Kenwood DRV-A310W Dashboard Camera 2-Inch LCD 1080p FHD User Manual

DRV-A310W

US Residents Only

GPS Integrated Dashboard Camera

INSTRUCTION MANUAL

• Updated information (the latest Instruction Manual, etc.) is available from

<https://www.kenwood.com/cs/ce/>.

For your records

Record the serial number, found on the back of the unit in the spaces designated on the

warranty card, and in the space provided below. Refer to the model and serial numbers

whenever you can upon your KENWOOD dealer for information or service on the product.

Model DRV-A310W

Serial Number______________

TABLE OF CONTENT

Before Use...................................................................................................................

Dashboard Camera Function Guide..............................................................................

Precautions for Use.......................................................................................................

Accessories....................................................................................................................

Key Features..................................................................................................................

Parts Name and Functions............................................................................................

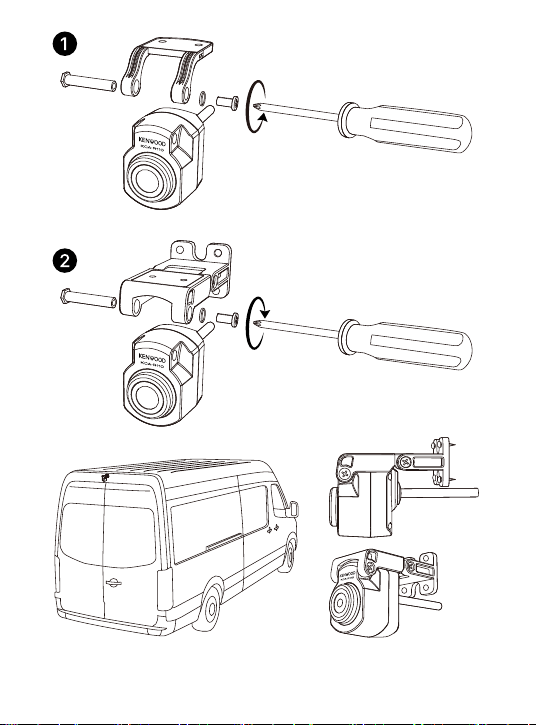

Installation and Connection.........................................................................................

On Screen Notiﬁcations................................................................................................

Video Mode...................................................................................................................

Video Menu...................................................................................................................

Setup Menu...................................................................................................................

Playback Mode..............................................................................................................

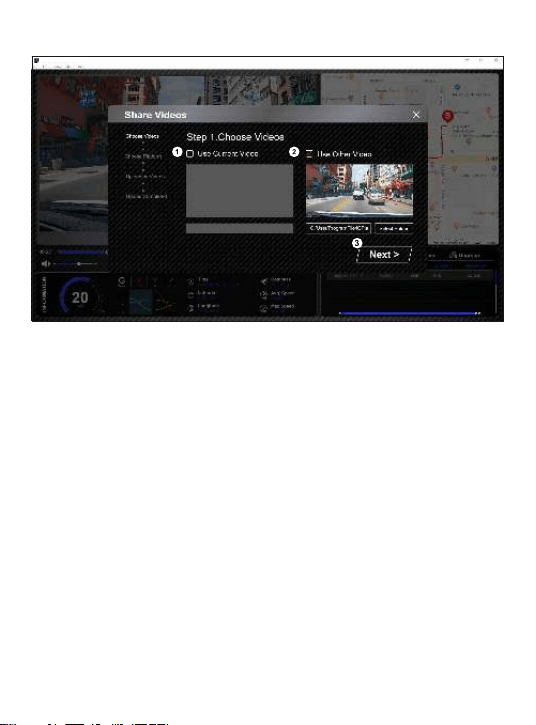

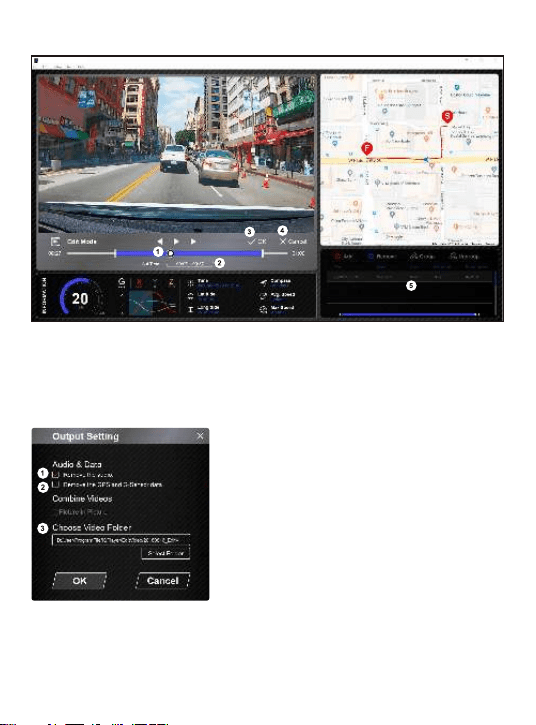

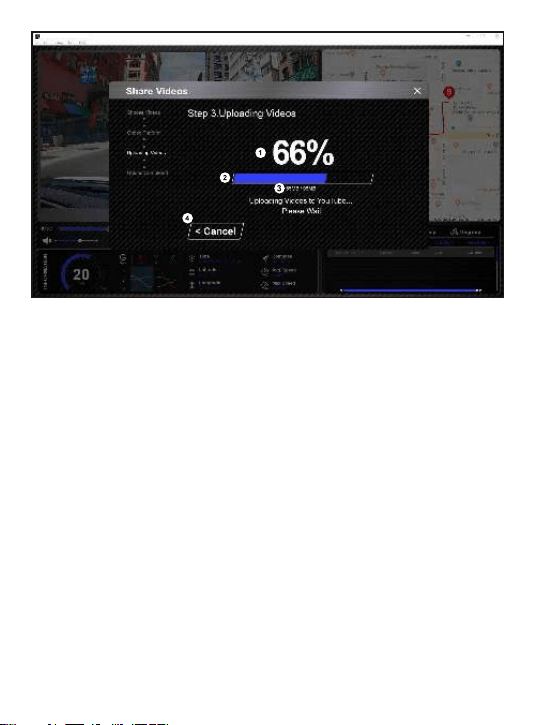

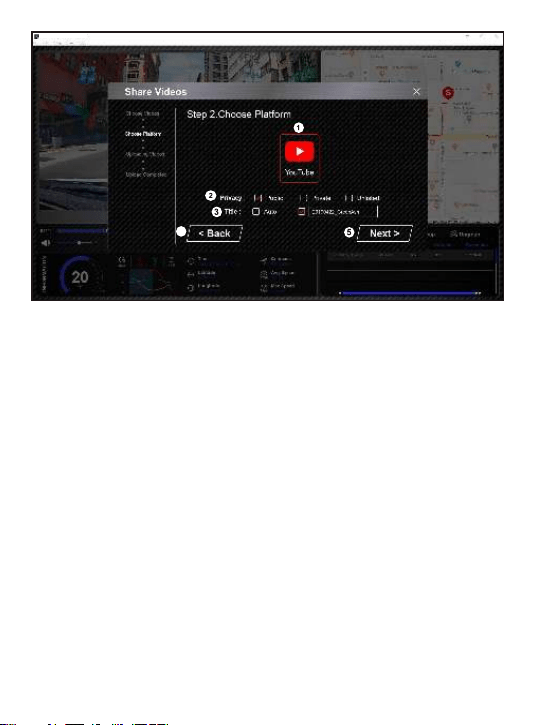

Using the Desktop Software.........................................................................................

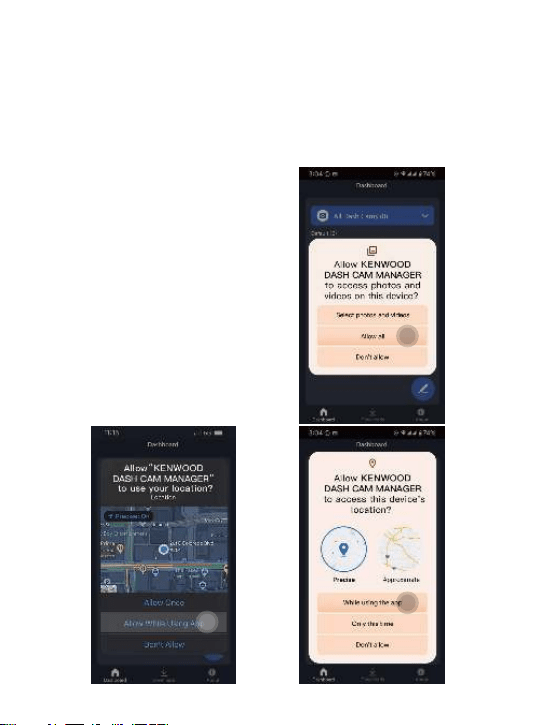

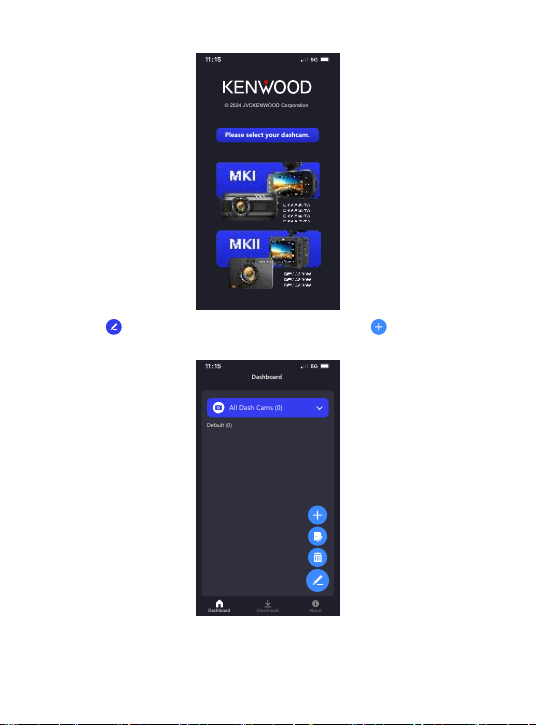

Using the Smartphone App...........................................................................................

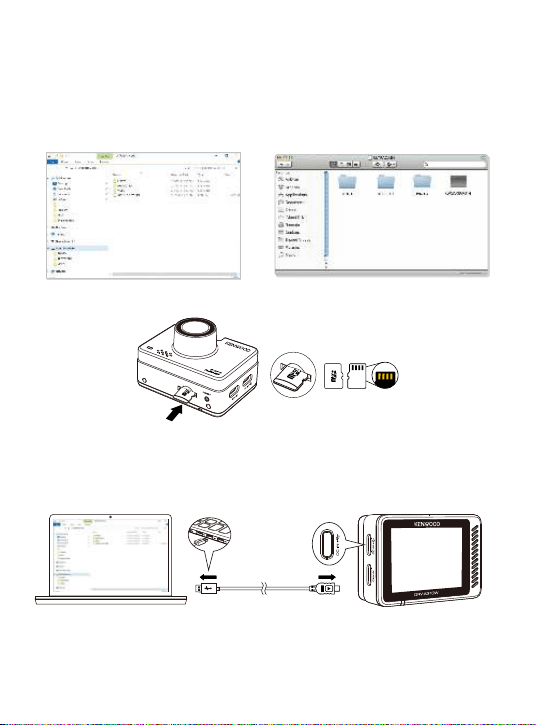

Connection with Computer...........................................................................................

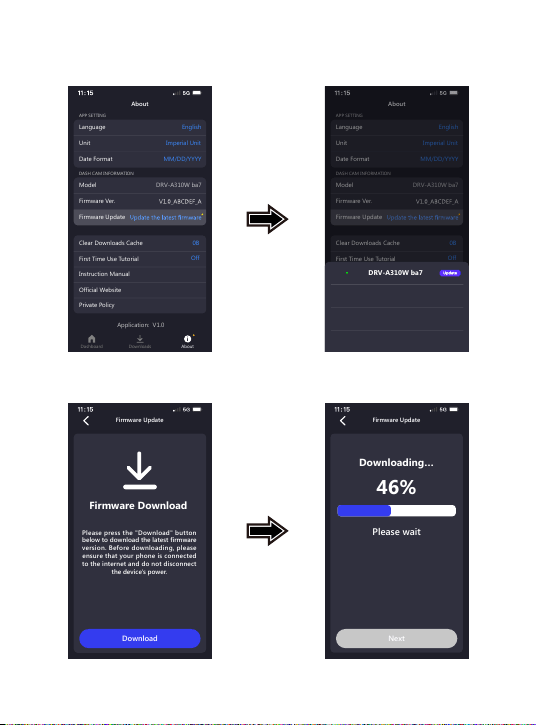

Firmware Update Instruction........................................................................................

Troubleshooting...........................................................................................................

Appendix.....................................................................................................................

Speciﬁcations...............................................................................................................

Before Use

With new technology readily available, JVCKENWOOD has developed an easy to use dashboard

camera for everyday use. The device allows its user to record ﬁles in1 minute lengths. These ﬁles are

easy to download to your desktop or laptop. In most instances, the video ﬁles are easily played on

your mobile device. While most cameras traditionally use the entire capacity of the SD card until it is

removed, the device automatically deletes the oldest ﬁle to create space for the new video.

Dashboard camera offers two modes:

1. Video Mode: Video mode will set to default when the device is active.

2. Playback Mode: Users can view all previously recorded videos and photos taken.

FEATURES:

Automatic Start/Stop Technology:

Maintain full focus on the road! The vehicles ignition will let the device turn on while connected to

your vehicles 12 V outlet or cigarette lighter socket. When the vehicle is turned off, the device will

automatically shut down, preserving the device power for those moments you are not connected to

permanent power.

The device lets users adjust camera settings to get the perfect shot. For a great photo every time,

here are a few tips from the designers:

1. Reduce the amount of sky in the picture. By adjusting the device towards the road, the automatic

exposure compensation will be focused on the road and not the light from the sky.

2. Position the device in the center of the dash. If you place the device behind the rearview

mirror, you will avoid all distractions from the road.

3. Remove any objects that will obstruct your shot such as the protective lens cover.

Clear vision will allow you to record everything in one shot.

The screen images and operation examples in this document were created for explaining the

operating procedures.

There may be screen images that differ from the actual screens or examples of operations not

actually performed.

Please note that JVCKENWOOD shall not be responsible for any damages suffered by the customer

or a third party as a result of incorrectly using this product, a failure during use of this product, or

other trouble, or due to the use of this product, unless such liability is acknowledged by law.

Recorded video, image, and audio content cannot be used for other than personal enjoyment

without the consent of the copyright holder as speciﬁed in the Copyright Act.

Please note that the recording of an event such as a show, performance, or exhibition may be

restricted even when doing so for personal enjoyment.

•

Dashboard Camera Function Guide

Disclaimer

Copyrights

Precautions and notices

Warning! Do not operate the device while driving. Using this product does not change the

requirement for a driver to take full responsibility for his or her behavior. This responsibility includes

observing all trafﬁc rules and regulations in order to avoid accidents, personal injury or property

damage.

For your own safety, do not operate the controls of the product while driving.

A window mount is needed when using the device in a car. Make sure that you place the device in

an appropriate place, so as not to obstruct the driver's view or deployment of airbags.

Make sure that no object is blocking the camera lens and no reﬂective material is placed near the

lens. Please keep the lens clean.

If the car's windscreen is tinted with a coating, this may impact the recording quality.

Connect the charger to a proper power source. The voltage requirements are found on the product

case and/or packaging.

Do not use the charger if the cord becomes damaged.

Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is

damaged or exposed to excess moisture.

Risk of explosion if the battery is replaced by an incorrect type.

Disposal of a battery into ﬁre or a hot oven, or mechanically crushing or cutting of a battery, that

can result in an explosion.

Leaving a battery in an extremely high temperature surrounding environment that can result in an

explosion or the leakage of ﬂammable liquid or gas.

A battery subjected to extremely low air pressure that may result in an explosion or the leakage of

ﬂammable liquid or gas.

Do not ingest battery, Chemical Burn Hazard.

This product contains a button cell battery. If the button cell battery is swallowed, it can cause

severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from

children.

If you think batteries might have been swallowed or placed inside any part of the body, seek

immediate medical attention.

Keep your device away from excessive moisture and extreme temperatures.

Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of

time.

Do not place anything on top of your device or drop objects on your device.

Do not drop your device or subject it to severe shock.

Do not subject your device to sudden and severe temperature changes. This could cause moisture

condensation inside the unit, which could damage your device. In the event of moisture

condensation, allow the device to dry out completely before use.

The screen surface can easily be scratched. Avoid touching it with sharp objects. Nonadhesive

generic screen protectors designed speciﬁcally for use on portable devices with LCD panels may be

used to help protect the screen from minor scratches.

Never clean your device with the power on. Use a soft, lint-free cloth to wipe the screen and the

exterior of your device.

Do not use paper towels to clean the screen.

Never attempt to disassemble, repair or make any modiﬁcations to your device. Disassembly,

modiﬁcation or any attempt at repair could cause damage to your device and even bodily injury or

property damage and will void any warranty.

•

Precautions for Use

Caring for your device

Taking good care of your device will ensure trouble-free operation and reduce the risk of damage.

Precautions for installation

Precautions for use

Cleaning the device

If you notice a problem with the device

If you notice a problem with the device, ﬁrst refer to “Troubleshooting” (P. 75) and check whether

there is a way to resolve the problem.

If the device does not return to normal after the reset, turn off the power of the device and then

contact your dealer or nearest JVCKENWOOD service center.

Install the device in a position where it will not block the front view of the driver (position where

hidden by the rear-view mirror).

Install the device so that it is within the wiping range of the wiper.

Install the device in a position where it will not interfere with the movement of the rear-view

mirror.

Take care not to install the device over the vehicle inspection sticker or other sticker.

Take care not to install the device where it will interfere with driving or airbag operation.

When installing the device in a vehicle equipped with a driving support system, check the

instruction manual of the vehicle and then select an installation position that will not interfere

with the driving support system.

If the device is installed incorrectly, event recording or parked recording may not work correctly.

Refer to “Installation and Connection” for the loosening of ﬁxing knob, installation orientation,

installation angle, and other information and then install the device correctly.

Do not install the device near a digital terrestrial television antenna or an electrical component.

Doing so may reduce television receiver sensitivity or cause ﬂickering and noise.

When selecting a position for the suction mount, make sure it’s on a glass surface that is smooth

and free of paint.

Before mounting, clean the area with a dry/clean cloth and add a small amount of moisture to the

windshield. This allows a stronger bond to form between the glass and the suction mount.

When ﬁxing the device with the adhesive mount, use a commercially available cleaning cloth or

the like to wipe off all dirt and grease on the mounting surface. If the device is re-afﬁxed or

mounted using, for example, general-purpose double-sided tape, the adhesion strength may

weaken and cause the device to fall.

After mounting the device, leave it for 24 hours before use to enable the mounting strength of the

adhesive mount to improve. Failing to do so may result in the adhesion of the adhesive mount

becoming weak and the device falling.

Fix the cord in place with tape or the like so that it does not interfere with driving.

Do not block the camera lens, get dirt on it, or place a reﬂective object near it.

When LED trafﬁc lights are recorded, video in which they appear to be ﬂickering or ﬂashing may

be recorded. JVCKENWOOD assumes no responsibility with regard to the distinguishing or

recording of trafﬁc lights.

If coating is used on the windshield of the vehicle, recording quality may be affected.

There is no guarantee that the device can record video in all conditions.

When the device is dirty, wipe it with a dry silicone cloth or other soft cloth. If the device is very

dirty, remove the dirt with a cloth with neutral cleaner on it then wipe off the cleaner. Wiping the

device with a hard cloth or using a volatile substance such as thinner or alcohol may cause

scratches, deformation, deterioration or other damage.

When the lens is dirty, gently wipe it with a soft cloth dampened with water. Rubbing the lens

strongly with a dry cloth may cause scratches.

•

Do not store or carry ﬂammable liquids, gases or explosive materials in the same compartment as

your device, its parts or accessories.

To discourage theft, do not leave the device and accessories in plain view in an unattended vehicle.

Overheating may damage the device.

•

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for

countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed of as

household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of

handling these items and their waste by products.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources while preventing detrimental effects

on our health and the environment.

Conformiteitsverklaring met betrekking tot RE-

richtlijn 2014/53/EU

Conformiteitsverklaring met betrekking tot RoHS-

richtlijn 2011/65/EU

Fabrikant:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPAN

EU-vertegenwoordiger:

JVCKENWOOD Europa B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht,

NEDERLAND

Dichiarazione di conformità relativa alla

direttiva RE 2014/53/UE

Dichiarazione di conformità relativa alla

direttiva RoHS 2011/65/UE

Produttore:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPAN

Rappresentante UE:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, PAESI BASSI

Declaración de conformidad con respecto a la

Directiva RE 2014/53/UE

Declaración de conformidad con respecto a la

Directiva RoHS 2011/65/UE

Fabricante:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPAN

Representante en la UE:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, PAÍSES

BAJOS

Declaration of Conformity with regard to the RE

Directive 2014/53/EU

Declaration of Conformity with regard to the

RoHS

Directive 2011/65/EU

Manufacturer:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPAN

EU Representative:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, THE

NETHERLANDS

Déclaration de conformité se rapportant à la

directive RE 2014/53/UE

Déclaration de conformité se rapportant à la

directive RoHS 2011/65/UE

Fabricant:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPON

Représentant dans l’UE:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, PAYS-BAS

Konformitätserklärung in Bezug auf die RE-

Richtlinie 2014/53/EU

Konformitätserklärung in Bezug auf die RoHS-

Richtlinie 2011/65/EU

Hersteller:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPAN

EU-Vertreter:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht,

NIEDERLANDE

English

Hereby, JVCKENWOOD declares that the radio equipment DRV-A310W is in compliance with Directive

2014/53/EU. The full text of the EU declaration of conformity is available at the following internet

address:

Français

Par la présente, JVCKENWOOD déclare que l’équipement radio DRV-A310W est conforme à la

directive 2014/53/UE. L’intégralité de la déclaration de conformité UE est disponible à l’adresse

Internet suivante:

Deutsch

Hiermit erklärt JVCKENWOOD, dass das Funkgerät DRV-A310W der Richtlinie 2014/53/EU entspricht.

Der volle Text der EUKonformitätserklärung steht unter der folgenden Internetadresse zur

Verfügung:

Nederlands

Hierbij verklaart JVCKENWOOD dat de radioapparatuur DRV-A310W in overeenstemming is met

Richtlijn 2014/53/EU. De volledige tekst van de EU-verklaring van overeenstemming is te vinden op

het volgende internetadres:

Italiano

Con la presente, JVCKENWOOD dichiara che l’apparecchio radio DRV-A310W è conforme alla

Direttiva 2014/53/UE. Il testo integrale della dichiarazione di conformità UE è disponibile al seguente

indirizzo internet:

Español

Por la presente, JVCKENWOOD declara que el equipo de radio DRV-A310W cumple la Directiva

2014/53/EU. El texto completo de la declaración de conformidad con la UE está disponible en la

siguiente dirección de internet:

Português

Deste modo, a JVCKENWOOD declara que o equipamento de radio DRV-A310W está em

conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade da UE está

disponível no seguinte endereço de internet:

Polska

Niniejszym, JVCKENWOOD deklaruje, że sprzęt radiowy DRV-A310W jest zgodny z dyrektywą

2014/53/UE. Pełny tekst deklaracji zgodności EU jest dostępny pod adresem:

ije o usklađenosti dostupan je na sljedećoj internet adresi:

RE Direktiﬁ 2014/53/EU ile ilgili Uyum Beyanı

RoHS Direktiﬁ 2011/65/EU için Uyum Beyanı

Üretici:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPONYA

AB Temsilcisi:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, HOLLANDA

Declaração de Conformidade relativa à Diretiva

RE 2014/53/UE

Declaração de conformidade relativa à Diretiva

RoHS 2011/65/UE

Fabricante:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi,

Kanagawa 221-0022, JAPÃO

Representante na UE:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, PAÍSES

BAIXOS

Český

Společnost JVCKENWOOD tímto prohlašuje, že rádiové zařízení DRV-A310W splňuje podmínky

směrnice 2014/53/EU. Plný text EU prohlášení o shodě je dostupný na následující internetové adrese:

Magyar

JVCKENWOOD ezennel kijelenti, hogy a DRV-A310W rádióberendezés megfelel a 2014/53/EU

irányelvnek. Az EU konformitási nyilatkozat teljes szövege az alábbi weboldalon érhető el:

Hrvatski

JVCKENWOOD ovim izjavljuje da je radio oprema DRV-A310W u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst deklaracije Europske un

Svenska

Härmed försäkrar JVCKENWOOD att radioutrustningen DRV-A310W är i enlighet med direktiv

2014/53/EU. Den fullständiga texten av EUförsäkran om överensstämmelse ﬁnns på följande

Internetadress :

Suomi

JVCKENWOOD julistaa täten, että radiolaite DRV-A310W on direktiivin 2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutus löytyy kokonaisuudessaan seuraavasta internet-osoitteesta:

Slovensko

S tem JVCKENWOOD izjavlja, da je radijska oprema DRV-A310W v skladu z Direktivo 2014/53/EU.

Celotno besedilo direktive EU o skladnosti je dostopno na tem spletnem naslovu:

Slovensky

Spoločnosť JVCKENWOOD týmto vyhlasuje, že rádiové zariadenie DRV-A310W vyhovuje smernici

2014/53/EÚ. Celý text EÚ vyhlásenia o zhode nájdete na nasledovnej internetovej adrese:

Dansk

Herved erklærer JVCKENWOOD, at radioudstyret DRV-A310W er i overensstemmelse med Direktiv

2014/53/EU. EUoverensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende

internetadresse:

Norsk

JVCKENWOOD erklærer herved at radioutstyret DRV-A310W er i samsvar med Direktiv 2014/53/EU.

Den fullstendige teksten til EU-konformitetserklæringen er tilgjengelig på følgende internettaddres-

se:

Ελληνικά

Με το παρόν, η JVCKENWOOD δηλώνει ότι ο ραδιοεξοπλισµός DRV-A310W συµµορφώνεται µε την

Οδηγία 2014/53/ΕΕ. Το πλήρες κείµενο της δήλωσης συµµόρφωσης της ΕΕ είναι διαθέσιµο στην

ακόλουθη διεύθυνση στο διαδίκτυο:

Eesti

Käesolevaga JVCKENWOOD kinnitab, et DRV-A310W raadiovarustus on vastavuses direktiiviga

2014/53/EL. ELi vastavusdeklaratsiooni terviktekst on kättesaadav järgmisel internetiaadressil:

Latviešu

JVCKENWOOD ar šo deklarē, ka radio aparatūra DRV-A310W atbilst direktīvas 2014/53/ES prasībām.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā tīmekļa adresē:

Lietuviškai

Šiuo JVCKENWOOD pažymi, kad radijo įranga DRV-A310W atitinka 2014/53/EB direktyvos

reikalavimus. Visą EB direktyvos atitikties deklaracijos tekstą galite rasti šiuo internetiniu adresu:

Malti

B’dan, JVCKENWOOD jiddikjara li t-tagħmir tar-radju DRV-A310W huwa konformi mad-Direttiva

2014/53/UE. It-test kollu tad-dikjarazzjoni ta’ konformità huwa disponibbli ﬂ-indirizz intranet li ġej:

Українська

Таким чином, компанія JVCKENWOOD заявляє, що радіообладнання DRV-A310W відповідає

Директиві 2014/53/EU. Повний текст декларації про відповідність ЄС можна знайти в Інтернеті за

такою адресою:

Türkçe

Burada, JVCKENWOOD DRV-A310W radyo ekipmanının 2014/53/AB Direktiﬁne uygun olduğunu

bildirir. AB uyumluluk deklarasyonunun tam metni aşağıdaki internet adresinde mevcuttur.

Limba română

Prin prezenta, JVCKENWOOD declară că echipamentul radio DRV-A310W este în conformitate cu

Directiva 2014/53/UE. Textul integral al declarației de conformitate UE este disponibil la urmatoarea

adresă de internet:

Български език

С настоящото JVCKENWOOD декларира, че радиооборудването на DRV-A310W е в съответствие с

Директива 2014/53/ЕС. Пълният текст на ЕС декларацията за съответствие е достъпен на следния

интернет адрес:

URL: https://www.kenwood.com/euukdoc/

Declaration of Conformity with regard to the Radio Equipment Regulations 2017 (S.I.2017/1206)

Declaration of Conformity with regard to the Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations 2012 (S.I. 2012/3032)

Manufacturer:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN

UK Importer:

JVCKENWOOD U.K. Limited

First Floor, Gleneagles, the Belfry, Colonial Way, Watford, Hertfordshire WD24 4WH, UNITED

KINGDOM

Hereby, JVCKENWOOD declares that the radio equipment “DRV-A310W” is in compliance with the

relevant statutory requirements.

The full text of the declaration of conformity is available at the following internet address:

https://www.kenwood.com/euukdoc/

FCC CAUTION

Changes or modiﬁcations not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

FCC NOTE

• This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

• This equipment may cause harmful interference to radio communications, if it is not installed

and used in accordance with the instructions. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

This transmitter must not be co-located or operated in conjunction with any other antenna or

transmitter.

ISED Notice

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science

and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following

two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired

operation of the device.

CAUTION

This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED

radio frequency (RF) Exposure rules.

This equipment has very low levels of RF energy that is deemed to comply without maximum

permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated

keeping the radiator at least 20 cm or more away from person’s body.

Pour le Canada

Note de ‘ISDE

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR

d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1. L’appareil ne doit pas produire de brouillage;

2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible

d’en compromettre le fonctionnement.

ATTENTION

Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un

environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes

directrices d’exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’ISDE. Cet

équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur

et le corps humain.

Supplier’s Declaration of Conformity

Trade Name: KENWOOD

Products: Dashboard Camera

Model Name: DRV-A310W

Responsible Party:

JVCKENWOOD USA CORPORATION

4001 Worsham Avenue, Long Beach,

CA 90808, U.S.A.

PHONE : 1-800-252-5722

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS:

(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY

CAUSE UNDESIRED OPERATION.

CAN ICES-3(B)/ NMB-3(B)

“La operación de este equipo esta sujeta a las siguientes dos condiciones:

(1) es posible que este equipo o dispositivo no cause interferencia perjudicial y

(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su

operación no deseada.”

Para cumplimiento de la IFT

Trademarks

SDXC and microSDXC Logos are trademarks of SD-3C LLC.

Apple, iOS, Mac and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.

App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under

license.

Google, Android, Google Maps and Google Pay are trademarks of Google LLC.

USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

Microsoft, Windows, and DirectX are registered trademark or trademark of Microsoft Corporation in

the U.S and other countries.

Macintosh, Mac are trademarks of Apple Inc., registered in the U.S. and other countries.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and

any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade

names are those of their respective owners.

Accessories

Before you get started, check you have everything below.

Key Features

Dashboard Camera Adhesive Mount Car Power Cable USB Car Charger Cable Clips Static Side Film

The provided Type-C car power cable in the package does not have data transfer

functionality and is only for power supply purposes. If you wish to view videos, please

remove the memory card and read it on a computer, or use the KENWOOD DASH CAM

MANAGER APP on your mobile to view via wireless link, or use a third-party USB-A to

USB-C cable with data transfer capabilities to connect and view on a computer. The

device does not support Type-C USB cables with PD (Power Delivery) fast charging or

USB-C to USB-C cables.

Product appearance may differ slightly to that shown above.

Note:

2” LCD Color Screen

We developed a screen that perfectly ﬁts your camera, without any loss of resolution.

This design allows you to use the playback feature, instantly letting you view the shot

you just captured.

G sensor/File Protection

The dashboard camera's built-in sensor detects an outside force, forcing the device to

save what has been just recorded. The ﬁle can also be manually saved. By pressing our

easy to access button around the screen, you are able to save an individual ﬁle.

Automatic Start/Stop Tech

The dashboard camera comes with built-in sensors that automatically turn the device on

and off with the vehicle.

Built-In Microphone & Speaker

A built-in microphone and speaker come standard. The feature also works with the

device’s playback feature.

GPS Data

Dashboard camera is able to record your location and speed while ﬁlming with the

magnetic GPS mount.

Parts Name and Functions

When DRV-A310W is not recording When DRV-A310W is recording When DRV-A310W is recording

with rear camera

(Rear camera is sold separately)

The buttons of the KENWOOD dash cam will correspond to

the functions currently represented by the displayed icons at

the right side of the screen. Please follow the corresponding

displayed icons to operate.

The printed icons are more important and commonly used

functions in the video mode, so the printed icons are as

reference, but please use the icon displayed on the screen as

a guideline.

Power Button / Mode / Screen Select

Power

Press and hold the button for 3 seconds to turn the camera on/off.

Mode

In Video mode, press to navigate between Video and Playback mode when it is not

recording.

Screen Select (Optional)

Press to switch the main camera to display on PIP screen.

When you have not installed a rear camera and only have a dashboard camera, no icon

will be displayed here, and there will be no screen selecting functionality. The icon will

only appear when connecting the rear camera while recording.

Note:

- PIP screen function is only available when connecting the rear camera. (sold separately)

•

Parking Mode

The dashboard camera has a parking mode, but a unique feature enables the device to

automatically record 30 seconds of video if there is any physical movement of the vehicle.

This feature requires hardwire kit CA-DR1031(optional accessory) to permanent power.

Full HD Rear Camera Recording (Optional)

DRV-A310W supports the rear camera recording. You can purchase the rear camera as a

front and rear Full HD dual-camera recording. (sold separately, please see KENWOOD

website for more detail).

05:20:43

04/25/2024

11:17:01

00:22

04/25/2024

11:17:01

00:22

04/25/2024

11:17:01

Menu / Mute Button

Press this button to open the Video or Setup menu.

Mute

Press and hold the button for 2 seconds to turn on or off the audio recording

function while in video mode.

Record / Screenshot Button

Record

In Video mode, press to start or stop recording.

Screenshot

Press and hold the button for 2 seconds to take a screenshot when recording.

File Protect / Wireless Link Button

File Protect

When recording, simply press the button and to protect the current video ﬁle from overwriting.

Wireless Link

In Video mode, press to start the wireless link when it is not recording.

•

1 2

Status LED Indicator

Red: Power On Red (Flashing): Recording Blue: Charging

Screen

The device is equipped with a standard 2” LCD color screen to let you view.

Parking Mode LED Indicator

Orange (Flashing): Parking Mode in Operation. The setting can be adjusted in the Video Menu.

Speaker

System sound and playback footage sound.

Bracket Slot

Slide the slots into the 3M bracket to complete the installation.

Microphone

Built-in microphone for audio recording.

Reset Button

On the rare occasions the camera has a problem, use the reset button to shut down the

camera. Simply press the reset until the camera turn off and press power button to turn on.

microSD Card Slot

Insert your microSD card here. Push your memory card into the slot until you hear a click.

DC-IN/Data transfer Port

By connecting DRV-A310W with the supplied car power cable, you are able to charge

the camera.

Rear Camera Port (Optional)

By connecting DRV-A310W rear camera, you are able to record a Full HD resolution video

simultaneously for your rearview. (sold separately)

10.

The provided Type-C car power cable in the package does not have data transfer

functionality and is only for power supply purposes. If you wish to view videos,

please remove the memory card and read it on a computer, or use the KENWOOD

DASH CAM MANAGER APP on your mobile to view via wireless link, or use a

third-party USB-A to USB-C cable with data transfer capabilities to connect and view

on a computer. The device does not support Type-C USB cables with PD (Power

Delivery) fast charging or USB-C to USB-C cables.

Note:

Installation and Connection

For the ﬁrst installation, follow the instructions below :

Insert Your microSD Card Into The Device

The device is designed to allow a standard microSD card to record your footage. Before

installing, make sure the gold end of the card is facing the LCD screen. Once it’s aligned

with the slot, push the card in and listen for the CLICK that will conﬁrm it is secure.

CONNECTING TO CAR POWER OUTLET

Connect the USB car charger that is included in the package to your vehicle’s 12V

outlet, and then connect the car power cable that is included in the package.

If you cannot hear the CLICK, take a small coin by the edge and push on the outside

end of the card until the sound is made.

Remember: DO NOT REMOVE OR INSERT THE MEMORY CARD WHILE THE DEVICE IS

TURNED ON.

The device will power off automatically when you insert or remove the SD card.

TIP:

1. Select the Language

3. Select Time Zone

2. Select the Country

THE FIRST-TIME SETUP

When connecting the power, DRV-A310W will turn on and display the ﬁrst-time

setup guide below.

The KENWOOD dash cam does not support Type-C USB cables with PD (Power

Delivery) fast charging or USB-C to USB-C cables. We recommend using the car

power cable provided by us.

The KENWOOD dash cam requires a 2A current for normal operation, and the

KENWOOD USB car charger provides a 2.6A output current. We recommend using

the USB car charger provided by us.

Please do not use other USB ports in the car to connect the KENWOOD dash cam,

as most car USB ports deliver less than 1A output, while the KENWOOD dash cam

requires a 2A current for normal operation.

Note:

Select Time Zones

United States (EST)

United States (CST)

United States (MST)

United States (PST)

es (AKST)

es (HST)

English

Español

Deutsch

Pусский

es (AKST)

es (HST)

Language

4. Set the Time and Date

Set Time and Date

MM/DD/YYYY

DD/MM/YYYY

YYYY/MM/DD

2019

2024

2021

2024

United States

Canada

China

Mexico

es (AKST)

es (HST)

Select Country

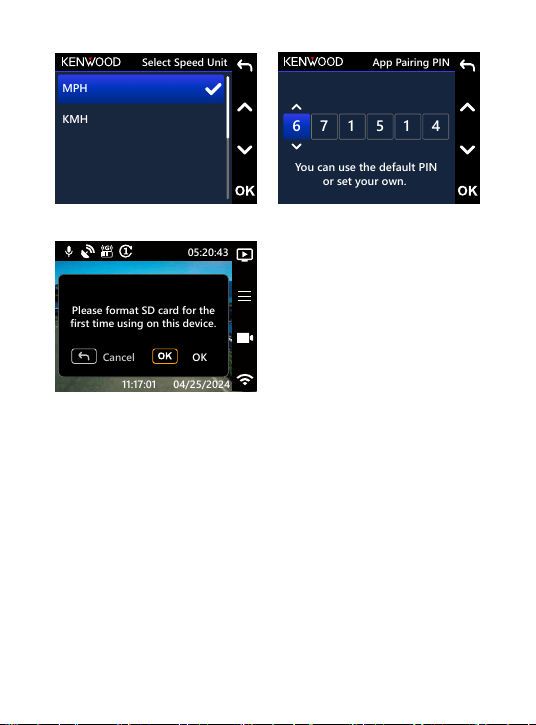

5. Select the Speed Unit

Select Speed Unit

MPH

KMH

TIP:

You can reset the settings either by operating inside of the SETUP MENU, or by

restoring defaults.

From now on, DRV-A310W will automatically turn on and start recording once

power has been made available from the 12V outlet. Just start the vehicle and

start driving!

If there is no 12V outlet or cigarette lighter for your vehicle, use the included

USB power cable but please notice that your USB power output port should

provide 2A current to make sure the device work properly.

DO NOT wire DRV-A310W directly to the car cigarette outlet or any 12V outlet.

Doing so will result in permanent damage to the camera.

You can purchase our hardwire kit from the KENWOOD ofﬁcial website that will

directly connect to your vehicle’s fuse box. This will allow you to

have your 12V outlet available for other use. Please read carefully and follow

the instructions below to help you operate DRV-A310W safely and refer to the

ofﬁcial website for accessory instructions.

6. Set the App Pairing PIN

7. First Time Use SD Card Format.

Press OK button to format

05:20:43

04/25/2024

11:17:01

Please

format SD card

for the

first time using on this device.

Cancel

App Pairing PIN

You can use the default PIN

or set your own.

Default PIN: 671514

1. Position ﬁlm location and clean windshield

Before applying, clean windshield location, remove any dust,

oil and use any cloth to give one last polish for best

performance.

2. Remove the protective layer

Before sticking, pull out the actual ﬁlm protector.

Pull out and remove the protective layer on one side.

3. Attach static side ﬁlm to the windshield

Adhere the static side to the windshield, press out and remove

excess bubbles using a squeegee or plastic card.

Make sure to press it fully to adhere on the windshield.

4. Install 3M adhesive mount

Mount 3M adhesive mount within the surface of the ﬁlm and

avoid the area that spans between windshield and ﬁlm.

Left-hand Drive

CAM clearly needs to view through CAM clearly needs to view through

Right-hand Drive

ATTACH THE STATIC SIDE FILM AND MOUNT TO THE WINDSHIELD

Select a location on the windshield where it won’t distract you. We recommend you

place the mount behind the rearview mirror on the passenger side, within the

windshield wiping area.

Left-hand Drive Right-hand Drive

HIDE AND TRIM THE CABLE

Unplug DRV-A310W ﬁrst to hide and trim the car power cable into the roof and

panel. The provided cable clips can help you keep the power cable neat.

After the installation, slide and attach it onto the 3M mount and re-plug the power

cable to DRV-A310W to power on the device.

Do not reuse windshield sticker applicator ﬁlm repeatedly. This will reduce the

adhesion performance and cause the static ﬁlm to fall off.

Note:

When selecting a location for the mount, make sure it’s on a glass surface that is

smooth and free of paint.

Before mounting, clean the area with a dry / clean cloth and add a small amount of

moisture to the windshield. This allows a stronger bond to form between the glass

and the mount.

Remember to place the mount within the area of the vehicle’s windshield wipers.

TIP:

Congrats! Now you are all set!

ADJUST THE ANGLE

Adjust the camera to the angle you want, the lens can be rotated up and down 180

degree. We recommend that the hood of the car should occupy at least 1/5 of the

screen.

REAR CAMERA INSTALLATION (OPTIONAL)

The Full HD resolution rear camera KCA-R110 is sold separately on the ofﬁcial website.

The KENWOOD dash cam does not support Type-C USB cables with PD (Power

Delivery) fast charging or USB-C to USB-C cables. We recommend using the car

power cable provided by us.

The KENWOOD dash cam requires a 2A current for normal operation, and the

KENWOOD USB car charger provides a 2.6A output current. We recommend using

the USB car charger provided by us.

Please do not use other USB ports in the car to connect the KENWOOD dash cam,

as most car USB ports deliver less than 1A output, while the KENWOOD dash cam

requires a 2A current for normal operation.

Note:

The additional special double-joint bracket allows you to install the rear camera on

a vertical surface, supporting various angles of installation and compatibility with

various car models.

It is recommended to place the rear windshield camera within the windshield

wiping area at the top of the rear windshield to record as clear an image as

possible. Make sure the heating grid lines do not obstruct the view.

Note:

(1) SELECT A LOCATION ON THE REAR WINDSHIELD

Select a location on the rear windshield, attach the adhesive mount, and place the

rear camera in place. The rear camera mount is designed for sloping windows or

vertical / ﬂat windows.

Tighten

Loosen

(3) ROUTE THE REAR CAMERA CABLE

Route the rear camera cable through the vehicle to the rear windshield and tuck

the cable away. The end of the cable should run through from the side of the

headliner at the rear of the vehicle for you to connect and mount the rear camera

to your selected position.

Dash Cam Rear Camera Cable Rear Camera

(2) CONNECT THE REAR CAMERA CABLE

Use the CAM IN port on the side of the front dash cam and plug in the rear camera

cable.

For hatch back trunk opening, leave about 3-5 inches of extra cable at the

vehicle’s end to ensure adequate cable connections, and comfortably open the

trunk without moving the rear camera.

Note:

Check all airbags locations on the vehicle owner’s manual. DO NOT route cable

over the airbags to avoid potential interference with airbag deployment and

posing a problem with proper airbag operation.

For vehicles that have headliner and curtain airbag, the wire should run through

from the bottom of the passenger side carpet trim, along the rear seat side, to

the rear windshield molding, and to the selected position.

(4) CONNECT THE REAR CAMERA CABLE TO THE REAR CAMERA

When all the cable is in place, connect the rear camera cable to the rear camera,

line up cable pins to secure the cable connection. Check the front dash cam to

ensure the rear camera is working correctly.

(5) ADJUST THE REAR CAMERA

Once the mount is set to the rear windshield, ensure the display on the front dash

cam (front and rear views) are level. Press the Screen Select Button when

recording to switch from the rear display to full screen, adjusting the rear camera

accordingly. Ensure the display is in the center, DO NOT attempt to adjust the dash

cam while driving.

00:22

04/25/2024

11:17:01

WARNING:

ALWAYS pay attention to the road ahead of you. Driving with distractions on the road

may result in penalties, accidents, or even death. PLEASE DRIVE CAREFULLY.

ALWAYS place the mount in a location that will not obstruct the driver's view of the

road. We recommend you place the mount behind the rearview mirror on the passenger

side, within the windshield wiping area.

DO NOT place the camera in front of the driver’s side.

DO NOT place the mount within the airbag deployment area or near any mirrors.

DO NOT operate the DRV-A310W while driving. Remember, the camera will

automatically record when the vehicle engine has started.

PLEASE place the camera where the power cable is easily concealed and will not

distract the driver. Avoid areas such as the steering wheel, pedals, or gear shifter.

PLEASE remember to clean the area where the mount will be placed.

PLEASE adjust your camera settings before you begin driving.

You can also connect the dash cam to your mobile device and download

KENWOOD DASH CAM MANAGER on App Store / Google Play. Use its Live View

function to adjust the rear camera.

If you still ﬁnd it too much trouble or don't want to do it yourself. It is

recommended to ﬁnd your local reliable Auto Dealer Service Department,

Car stereo Installer, and Auto Mechanic shop to ask about dash cam

installation. Fees may vary from one shop to another. Please ask and check the

reputation of the shop before installing it.

We have designed the rear camera to be waterproof with an IP67 rating (IP67

waterproof rating for the camera part), allowing you to place the camera

outside of the car without fear of heavy rain or snow. This provides you with

clearer video footage. Unlike regular dash cams that can only be placed on the

rear windshield, placing the camera outside of the car directly captures better

quality footage as there are no heat-insulating ﬁlms obstructing the view.

However, installing it outside your car requires professional wiring and

installation. If you want to install it externally, please go to a relevant store and

have a professional install it for you to avoid danger or damage.

Note:

First Time Use SD Card Format: when the SD card is inserted into the device for

the ﬁrst time, the device will ask you to format the card. Press OK button to format

and LEAVE button to cancel.

Note: Please save the important ﬁle before formatting the card.

OPTIONS: Format (Recommended) / Cancel

The following information will help you better understand the On Screen

Notiﬁcations when corresponding alert is detected.

05:20:43

04/25/2024

11:17:01

Remember to reformat

SD card once in a while

Cancel

30 Days SD Card Reformat: When the SD card has been formatted for 30 days,

the device will ask you to reformat the card every 30 days to days to keep the

storage of SD card is working correctly. Press OK button to format and LEAVE

button to cancel.

Note: Please save the important ﬁle before formatting the card.

OPTIONS: Format (Recommended) / Cancel

05:20:43

04/25/2024

11:17:01

Please

format SD card

for the

first time using on this device.

Cancel

On Screen Notiﬁcations

•

Protected Files Over Written: When the protected space of SD card is full, the

device will ask you to reformat the card, otherwise the ﬁrst protected ﬁle will be

overwritten when the protected space is full. Press OK button to format and

LEAVE button to cancel.

Note: Please save the important ﬁle before formatting the card.

OPTIONS: Format (Recommended) / Cancel

SD Card Error: When there is any writing / reading issue with the SD card, the

device will ask you to replace the card.

Note: Please save the important ﬁle before formatting the card.

Note: If the notiﬁcation keeps showing up, please check if the SD card is still

working. The life of SD cards is limited, it could be from 3 months to a year or more

depends on usage. Check with your SD card manufacturer for warranty information.

00:22

04/25/2024

11:17:01

Cancel

Protected videos are

being over written

Please save important

files and reformat SD card

00:00:00

04/25/2024

11:17:01

SD card error

Please format SD card

from time to time

•

00:00:00

04/25/2024

11:17:01

Please insert SD card

Access Menu During Recording: When pressing MENU button during

recording, you may need to press Record button to stop recording ﬁrst then

you can press MENU button to access Menu.

Screenshot: Press and hold the Record button for two seconds during

recording to take a snapshot of the photo. The image will be saved in the photo

folder

Insert SD card: This is a notiﬁcation to remind you to insert the SD card.

00:22

04/25/2024

11:17:01

Stop recording to

access Menu

00:22

04/25/2024

11:17:01

Photo taken

•

04/25/2024

11:17:01

00:22

Screen will be turned off

in 5 seconds

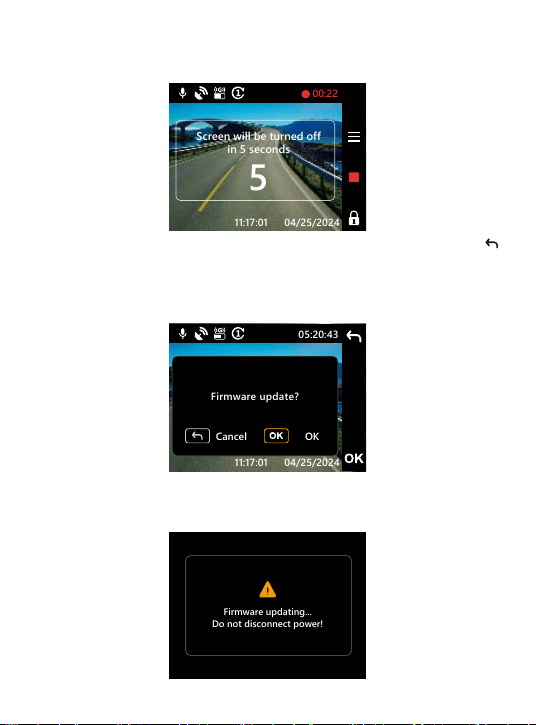

Update Firmware: Press OK button to start updating the ﬁrmware and LEAVE

button to cancel.

Note: Please save the important ﬁle before formatting the card.

Note: For more information about ﬁrmware update, please read page 69.

OPTIONS: Update (Recommended) / Cancel

Screen Saver: When screen saver is turned on, the device will automatically turn

off the screen after 30 seconds or 2 minutes of inactivity, and 5 seconds before the

screen is turned off The display will indicate that the device is about to turn off

the screen.

Updating Firmware: Do not disconnect power or press any button during this

period, it may cause update failure.

Note: For more information about ﬁrmware update, please read the page 69.

Firmware updating...

Do not disconnect power!

•

05:20:43

04/25/2024

11:17:01

Cancel

Firmware update?

The following information will help you better understand the icons in VIDEO MODE

and their relative functions. Some icons show up only when corresponding functions

are activated.

Microphone: When the audio recording function is off, there will be a red line

across the icon.

GPS: If this icon ﬂashes, it indicates DRV-A310W is locating GPS signal. When the

GPS signal is found, the icon will stop ﬂashing and remain stable on the screen.

G Sensor: The current sensitivity level of G-Sensor.

Video Length: The duration of each video clip.

Parking Mode Sensor: Indicates whether the parking mode function is enabled

or not. (Optional)

Recording Duration: This will indicate the length of the current recording.

File Protection: Indicates the current video clip is protected.

Date: Displays current date.

Time: Displays current time.

00:22

04/25/2024

11:17:01

Video Mode

Use the UP and DOWN buttons to select setting options and press the OK button to

enter the sub-menu.

Once you access the sub-menu, highlight the desired setting and press the OK button

to conﬁrm your selection and to return to the VIDEO MENU. Press twice the LEAVE

button twice to return to video mode.

Press the MENU button and select Video Menu while in VIDEO MODE while

DRV-A310W is not recording.

DRV-A310W’s default settings have been set for you to use the camera without needing

to change the settings. If you need to make adjustments to the settings, the following

instructions will help you.

Video Menu

Setup Menu

Video Menu

Parking Mode Sensor

Speed Units

een Saver

Exposure

G Sensor

tamp

Parking Mode LED

acy

Video Menu

Exposure: Adjust exposure levels settings.

OPTIONS:

Front Camera: +2 / +1 / 0 (default) / -1 / -2

Rear Camera: +2 / +1 / 0 (default) / -1 / -2 (Optional)

Parking Mode Sensor (Optional): The parking mode sensor has three

functions: Vibration detection, Motion detection and Time-lapse. Only one of these

functions can be activated at a time; they cannot be enabled simultaneously. When

this function is activated, the ICON on the screen will be displayed in white. When

not activated, it will be displayed in gray.

Vibration Detection: If the vibration detection is turned on, the device will enter

sleep mode after 1 minute when the vehicle is turned off or when the device loses

its power supply. In sleep mode, if the device detects any external forces, it will

automatically turn on, record a 30-second video, and then turn off afterward.

•

You are not able to access DRV-A310W menu while the camera is recording.-

TIP:

Motion Detection: If the motion detection is turned on, the device will enter

standby mode when the vehicle is turned off or when the device loses its power

supply. In standby mode, if the device detects any moving objects, it will

automatically record a 30-second video and then stop recording until there are no

more moving objects.

Time-Lapse: If the time-lapse is on, the device will begin capturing time-lapse

video when the engine is turned off until the next time the car is started or until

triggered by a timer or voltage threshold.

OPTIONS:

Vibration Detection: High / Medium / Low / Off (default)

Motion Detection: High / Medium / Low / Off (default)

Time-lapse: On / Off (default)

Parking Mode LED: The orange indicator light on the front of the device is the

parking mode LED light. It serves as a warning to others, indicating that the device

is recording. It ﬂashes once every two seconds. Options are available to turn it on,

off, or only on during parking mode is activated.

OPTIONS: Always on / On when parking (default) / Off

G Sensor: G sensor is the sensor that can detect forces. When it senses any forces,

it will protect the current ﬁle automatically. Adjust the sensitivity of G sensor here.

OPTIONS: High / Medium (default) / Low / Off

GPS: Turn the GPS function ON or OFF.

OPTIONS: On (default) / Off

Speed Units: Adjust the unit for speed data.

OPTIONS: MPH (default) / KMH

Data Privacy: Stores up to 4 sets of latest video ﬁles when Data Privacy set to ON.

OPTIONS: On / Off (default)

Screen Saver: DRV-A310W has a function to let the screen dim or shut down after

a period of inactivity. Press any button to re-activate the display.

OPTIONS:

LCD Always on / LCD Dim after 30 sec (default) / LCD Dim after 2 min / LCD Off

after 30 sec / LCD Off after 2 min

Parking LCD Off: On (default) / Off

Note: When this option is enabled, the screen will automatically turn off after two

minutes once parking mode has been activated, and will not turn back on until

there is interaction or the car is started.

•

Press the MENU button and select Setup Menu while in VIDEO MODE while

DRV-A310W is not recording.

Use the UP and DOWN buttons to select setting options and press the OK button to

enter the sub-menu.

Once you access the sub-menu, highlight the desired setting and press the OK button

to conﬁrm your selection and to return to the SETUP MENU. Press twice the LEAVE

button to return to the video mode.

System Menu

Video Menu

Setup Menu

System Menu

Wireless Link

Device Sounds

Time & Date

age

Country

e Default

em Info

nvert

Display Mirror

Format SD Card

Setup Menu

KENWOOD Stamp: Turn the KENWOOD logo stamp ON or OFF on the recorded ﬁles.

OPTIONS: On (default) / Off

Time & Date Stamp: Turn ON or OFF the date stamp mark on the recorded ﬁles.

OPTIONS: On (default) / Off

Information Stamp: Turn ON or OFF the information stamp including the

acceleration, speed, longitude and latitude data on the recorded ﬁles.

OPTIONS: On (default) / Off

Speed Stamp: Turn ON or OFF only the speed stamp mark on the recorded ﬁles.

OPTIONS: On (default) / Off

License Plate Stamp: Input your license plate number to put your license plate

stamp on the recorded ﬁles.

•

When you are in the SETUP MENU -> Restore Defaults, you will be able to

restore all the settings to DRV-A310W’s default settings.

Note:

DRV-A310W default settings have been selected for great image quality and ease of

operation. Under most circumstances, you don’t need to change the settings.

The setup menu cannot be accessed while the camera is recording.

Note:

Wireless Link: Turn on the wireless function to connect your mobile device.

OPTIONS: Connect / Disconnect

Format SD Card: Format the memory card. Formatting will remove ALL the ﬁles

in the card.

OPTIONS: Format / Cancel

Device Sounds: Adjust the button beep sound, volume, and voice recording.

OPTIONS:

Beep: On (default) / Off

Audio Rec: On (default) / Off

Time & Date: Adjust the TIME and DATE as required by using use the UP and

DOWN buttons to set the value. Press the OK button to save the setting and press

the MENU button to return to the SETUP MENU.

Time Zone / DST: Select the time zone setting.

OPTIONS: -12 / -11 / -10 / -9 / -8 / -7 / -6 / -5 / -4 / -3.5 / -3 / -2.5 / -2 /

-1 / GMT / +1 / +2 / +3 / +4 / +5 / +6 / +7 / +8 / +9 / +10 / +11 / +12

Language: Select a preferred language.

OPTIONS: English(default) / Deutsche / Français / Nederlands / Italiano / Español /

Português / Polska / Česky / Română

Country: Select a country and time zone setting.

OPTIONS: United States / Canada / China / Mexico / Korea / Japan / Taiwan / Russia /

Spain / Norway / Finland / Sweden / Germany / France / Italy / Netherlands / Belgium /

Denmark / Poland / United Kingdom / Ireland / India / Others

Display Invert: Rotate the LCD display for upside down footage recording only.

Note: Up and down buttons remain the same as the default conﬁguration.

OPTIONS:

Front Camera: On / Off (default)

Rear Camera: On / Off (default)

Display Mirror: Flip the LCD display horizontally for mirror footage recording only.

OPTIONS:

Front Camera: On / Off (default)

Rear Camera: On / Off (default)

Restore Defaults: Reset all the settings to KENWOOD factory default.

System Info: Displays the ﬁrmware version.

OPTIONS:

System Info: Displays the current ﬁrmware version and the FCC ID and IC ID.

Card Info: Displays the memory card information.

Satellite Signal: The count of how many satellite signals DRV-A310W is receiving.

App Pairing PIN: This is the PIN used for connecting with the App. If you forget you

PIN, you can always view or change your PIN here. The default PIN is 671514.

•

Use MODE button to access PLAYBACK MODE while DRV-A310W is not recording.

In PLAYBACK MODE, you are able to review the videos you have stored.

DIRECTORIES

Press the UP or DOWN buttons to navigate through the menu.

Protected: The directory for all protected videos.

Video: The directory for all unprotected videos.

Note: If the video ﬁle is protected under playback mode, the ﬁle will remain in video

directory.

Photo: All photos in the ﬁle.

Playback Mode

Playback

Protected

Video


05:20:43

04/25/2024

11:17:01

System Info

Model:

Firmware:

FCC ID:

IC:

Check updates:

www.kenwood.com/cs/ce/

DRV-A310W

V1.0_ABCDEF_A

IOMDRVA310W

282C-DRVA310W

System Info

This device complies with part

15 of the FCC Rules.Operation

is subject to the following two

conditions:(1) This device may

not cause harmful interference,

System Info

and (2) this device must accept

any interference received,

including interference that may

cause undesired operation.

Make sure the Dash Cam is not recording. Press and Hold the File Protect button

and the Record button for 3 seconds on the device to enter the System Info.

VIDEO FILES

Use the UP and DOWN buttons to select the video ﬁle and press the OK button to

select play this video.

Video ﬁle name: The format of video ﬁle name is YYYYMMDD_HHMMSS_[F/R]

For example, 20240425_111701_F mean this ﬁle was taken at Apr 25, 2024, 11: 17: 01,

F means front camera.

When using parking mode, the ﬁle name of the parking mode recording starts with a

"P", for example, P20240425_111701_F.

The watermark in the image ﬁle is described below.

Logo Date

Time

Speed

Latitude &

Longitude

Accelerator

Data

04/25/2024

X: +3.80Y: +1.02Z: +1.65 30MPH

N5° 41’33.15”

W62”42”33.15

11: 17: 01

YYYY: Years.

HH : Hours.

F/R: Front or rear camera.

MM: Months.

MM: Minutes.

DD: Days.

S S : Seconds.

Video

1/5

20240425_111701_F

20240425_111801_F

20240425_111901_F

11:17:01

2024/04/25

1/5

Video

20240425_111901_F

Play

Protect

Delete

KENWOOD Stamp: Logo, can be turned on / off in VIDEO MENU.

Time & Date Stamp: Date, Time, can be turned on / off in VIDEO MENU.

Information Stamp: Accelerator Data, Speed, Latitude & Longitude, can be turned

on / off in VIDEO MENU.

Speed Stamp: Speed Data, can be turned on / off individually.

License Plate Stamp: License plate number, can be turned on / off in VIDEO MENU.

1. File Type: Indicates the ﬁle type is video.

2. Playback: Displays the current playback time.

3. Playback Controls: Use DRV-A310W buttons as instructed below.

4. Date & Time: Indicates the date and time of the recorded ﬁle.

5. Protected File: Indicates the selected ﬁle is protected.

PLAY / PAUSE.

GO BACK to Video / Protected directory.

REWIND.

FAST FORWARD.

Protected Video

00: 00: 00

04/25/2024

11:17:01

PHOTO FILES

Use the UP and DOWN buttons to select the photo ﬁle and press the OK button to

select play this photo.

1. File Type: Indicates the ﬁle type is photo.

2. Playback Controls: Use DRV-A310W buttons as instructed below.

3. Date & Time: Indicates the date and time of the shoot ﬁle.

Previous.

Next.


4/4

20240425_111701_F

20240425_111801_F

20240425_111901_F

11:17:01

2024/04/25


4/4

20240425_111901_F

Play

Protect

Delete


4/4

04/25/2024

11:17:01

DELETE FILE

Use the UP and DOWN buttons to select the video ﬁle and press the OK button to

select delete this video.

Note: PROTECTED FILES CANNOT BE DELETED.

Once selected, follow the on screen

instructions to delete the current ﬁle.

You will have the following options:

Video

1/5

20240425_111901_F

Play

Protect

Delete

Video

1/5

20240425_111901_F

Delete this file?

Cancel

Protected Video

1/5

20240425_111901_F

Play

Unprotect

Delete this Video

PROTECT / UNPROTECT FILE

Use the UP and DOWN buttons to select the video ﬁle and press the OK button to

select protect / unprotect this video.

You will have the following options:

Once selected, follow the on screen

instructions to protect the current ﬁle.

Once selected, follow the on screen

instructions to unprotect the current ﬁle.

Video

1/5

20240425_111901_F

Protect this file?

Cancel

Protected Video

1/5

20240425_111901_F

Unprotect this file?

Cancel

Video

1/5

20240425_111901_F

Play

Protect

Delete

File

JVC VIDEO PLAYER

Edit Setup Share Help

01:0000:27

INFORMATION

-N 25 1”56”

Latitude

Compass

-W -263.12024 / 04 / 25 , -11 : 17 : 01

Time

Longitude

-W 121 33”32”

Max Speed

-135mph

Avg. Speed

-65mph

Compass

-W -263.1

0 200

mph

Sensor

-2.0

+1.0

-3

Add Remove Group Ungroup

File Date Size Duration Resolution

171129_191823_016 11/29/2017 96MB 01:00 1920*1080

20240425_111701_F 04/25/2024

96MB 01:00 1920*1080

20240425_111701_F 04/25/2024

96MB 01:00 1920*1080

KENWOOD VIDEO PLAYER

“KENWOOD VIDEO PLAYER” is a desktop software for displaying video recorded

with the device.

System Requirements for “KENWOOD VIDEO PLAYER”

OS: Microsoft Windows 11, Windows 10*

*Microsoft Visual C++ must be installed.

*DirectX XAudio2 must be installed.

OS: Apple macOS 12 (Monterey) or later

Installing the Software

Install the software in a computer environment in which you have administrator's rights.

1. Download the installer from https://www.kenwood.com/cs/ce/

2. Install according to the on-screen instructions.

3. We recommend installing it in a location other than the C drive.

Playback:

Using the Desktop Software

Video time line :

Drag the Video time line bar to Rewind or

Forward to cue Video, Speed and G-Sensor

date.

Video play control buttons :

Available options from left to right are stop,

last clip, last frame, play, next frame next clip.

Available hot keys for individual options are

(1) Play / Pause: space

(2) Stop: esc

(3) Last frame: left

(4) Next frame: right

(5) Next clip: N

(6) Last clip: B

Full screen display :

Toggle to ﬁt the image to the entire screen.

- Hot key: Alt + Enter

Video volume adjustment :

Drag this to change the audio volume.

- Default volume: 100%

Digital zoom in / out :

Roll the mouse wheel forward/backward on

the video area or drag this to change the

zoom in/out.

Video play speed :

Click to speed up / down videos on the main

screen.

Available speed options may range from one

quater to quadruple to original one.

-Default speed : 1X

Share Button :

Click to open different sharing options.

Video edit mode :

Click to open the video edit function window.

Screen shot :

Click to capture the current image displayed

on the main screen and save the ﬁle in a given

space.

-Default location : installation root directory

/Snapshot.

Speed :

Display the speed of the car in the video when

it was recorded. You may change the UOM of

speed under Setup → Speed Unit.

(Function available on the device with built-in

GPS)

-Unit of measure (UOM) option : Imperial Unit

or Metric Unit

-Default unit of measure : MPH

G-sensor data :

Display the G-data of the vehicle in the video

when it was recorded.

10.

11.

Chart of G-sensor data :

Display the G-data of the vehicle in the

video when it was recorded.

Time :

Display date and time of the video when it

was recorded.

Latitude :

Display the latitude of the video where it

was recorded.

(Function available on the device with

built-in GPS)

Longitude :

Display the longitude of the video where it

was recorded.

(Function available on the device with

built-in GPS)

Compass :

Display the direction of the video where it

was recorded.

(Function available on the device with

built-in GPS)

Avg. Speed :

Display the average speed of the video

where it was recorded.

(Function available on the device with

built-in GPS)

Max Speed :

Display the max speed of the video where it

was recorded.

(Function available on the device with

built-in GPS)

Google Maps :

Display the location of the video where it

was recorded.

(Function available on the device with

built-in GPS)

Add the ﬁle / Remove the ﬁle :

Click the “Add” key to display the “add

ﬁle” window. Click the “Remove” key to

erase the selected ﬁles from the play list.

File group / File ungroup :

You may group multiple ﬁles into the playlist then play

them in one ﬁle and link the data of each ﬁle to display

in data table. For example, adding 5 1-minute length

ﬁles into one group will end up with a 5 minutes display

time shown in the data table. The name of a group is a

string of the name of the ﬁrst ﬁle sufﬁxed with the

number of ﬁles in the group. That is, for a group of 5

ﬁles with the ﬁrst name “20180925_191823”, the name

of the group is “20180925_191823(5)”.

Video playlist :

A video thumbnail will show in this table

after the videos added in the list.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

How to Edit the Video:

Edit the timeline of the video by moving the white block on the timeline to set up

the edit scope of video.

Edit scope of the video. You may input a number to change the size of this scope.

Conﬁrm and click to validate the current work and proceed with the next step.

Click to exit the video edit mode.

The software system bar and video playlist stop functioning in video edit mode.

Remove audio ﬁle:

Check to remove the audio ﬁle of the exported

video.

Remove the GPS and G-sensor data:

Check to remove the GPS and G-sensor ﬁle of the

exported video.

Image export:

Select the target storage location of the image

ﬁle and its name.

Default location: installation root directory / Edit

video

File

JVC VIDEO PLAYER

Edit Setup Share Help

Edit Mode

OK Cancel

01:0000:27

Cut Time : 00:07 ~ 00:37

-N 25 1”56”

Latitude

Compass

-W -263.12018 / 08 / 14 , -19 : 33 : 03

Time

Longitude

-W 121 33”32”

Max Speed

-135mph

Avg. Speed

-65mph

Compass

-W -263.1

0 200

mph

Sensor

-2.0

+1.0

-3

INFORMATION

Add Remove Group Ungroup

File Date Size Duration Resolution

171129_191823_016 11/29/2017 96MB 01:00 1920*1080

171129_191823_017 11/29/2017 96MB 01:00 1920*1080

171129_191823_018 11/29/2017 96MB 01:00 1920*1080

KENWOOD VIDEO PLAYER

OK:

Click to go back to the play mode page.

Open folder:

Click to open folders with image ﬁles saved in

there.

Retry:

Click to export the image ﬁle again with the

previous settings.

Cancel:

Click to abort image ﬁle export and go back to

the video edit page.

Yes:

Click to go back to the play mode page.

No:

Click to abort image ﬁle export and go back to

the video edit page.

Image processing:

Proceed with image processing once the image

export options are setup.

Export status (1):

The image ﬁle export progress is presented as a

percentage symbol "%" and is synced with

item 3.

Export status (2):

The image ﬁle export progress is presented by

a frame being ﬁlled with layered colors ink and

synced with item 2. The export is ﬁnished once

the frame is fully inked in layered colors.

Share Mode

To share the current video:

When two ﬁles are playing, the one with the active speaker icon will be shared.

To share the non-current video:

Click and open the ﬁle selection window.

Next step:

Click to go to the next step.

Click Share → Share Videos in the software system bar at the top of the window or the

community sharing icon in the interface to display the sharing window.

00:27

INFORMATION

KENWOOD VIDEO PLAYER

Select a community platform:

You can select just one community platform and the one being selected will be circled in

layered colors.

Select the privacy mode:

You can select the privacy mode of Public, Private, and Unlisted when you upload the

video.

Upload title:

The title item will deﬁne the name of the video when you upload the video, you can

select the Auto: “DD/MM/YYYY (default) – Dash Cam – KENWOOD VIDEO PLAYER” or

deﬁne the title by yourselves.

Last step:

Click to go back to the last step.

Next step:

Click to go to the next step. (When you click on YouTube, a webpage will open for you

to log into your account. After completing the login authorization, the Next button will

be displayed.)

01:0000:27

Public Private Unlisted

KENWOOD VIDEO PLAYER

File upload failure:

This page displays if an upload failed or there is a server connection timeout.

Last step:

Click to go back to the last step.

00:27

File

JVC VIDEO PLAYER

Edit Setup Share Help

INFORMATION

KENWOOD VIDEO PLAYER

00:27

INFORMATION

KENWOOD VIDEO PLAYER

Connect to community platform:

The message "Connecting to Social Media…… Please Wait." displays when a

connection is being initiated. Your default browser will display and connect to the

selected community platform. You are required to bundle your account ID with the

platform for connection the ﬁrst time only (no longer needed once bundled).

Cancel:

Click to go back to the last step.

KENWOOD VIDEO PLAYER

Upload status (1):

The ﬁle upload progress is presented as a percentage symbol "%" and synced with

item 2.

Upload status (2):

The ﬁle upload progress is presented by a frame being ﬁlled with layered colors ink

and synced with item 1. The ﬁle is uploaded successfully once the frame is fully inked

in layered colors.

Upload progress:

The former number is the MB uploaded and the latter is the total for the upload.

Cancel:

Click to go back to the last step.

Conﬁrm:

Click to go back to play mode information.

KENWOOD VIDEO PLAYER

Connect DRV-A310W with your mobile devices by using wireless link function.

DOWNLOAD KENWOOD DASH CAM MANAGER

KENWOOD DASH CAM MANAGER is a completely free set of video playback

application. Which can be used to remote control and live stream preview in a short

distance or download and review videos from DRV-A310W. With its mapping

function, users can view the route, speed, latitude, longitude, and direction of the

drive at the time. In addition, users can easily edit the length of the video for quick

upload to share with friends, relatives, and insurance companies.

Please download KENWOOD DASH CAM MANAGER from App Store / Google Play.

Operating System Minimum Requirements: iOS 15 and above / Android 10 and above.

Using the Smartphone App

OPEN KENWOOD DASH CAM MANAGER APP ON YOUR MOBILE DEVICE

The ﬁrst time you open the app, two notiﬁcations will pop up.

1. You will need to allow "KENWOOD DASH CAM MANAGER" to access photos and

videos on this device "Allow all".. (Android users only)

2. You will need to allow "KENWOOD DASH CAM MANAGER" to access the location

information of this device "While using the app". (Both Android and iOS users)

The following pictures are provided for reference.

Android

iOS

Please select your dashcam.

Please select the MKII image to enter the MKII dedicated app

Press PEN icon on DASHBOARD page and then press + icon to enter ADD

DEVICE page.

All Dash Cams (7)

Default (0)

Dashboard

Downloads

About

All Dash Cams (0)

Add Device

Please enable the Wireless and Bluetooth

connection on your phone and then press the

Wireless Link button. After getting into the Wireless

Link mode, please check whether the device SSID is

the same as what is displayed in the list below. If it's

the same, press the Add button to add the device.

Dash Cam

Add

The phone will start scanning for nearby devices. If any are found, they will be

displayed in the list below. Next, please select the device you want to add and press

the ADD button.

Add

Please ensure that your dash cam is currently powered on and not in Menu or

Playback mode. Wireless Link activation is not supported in these modes.

However, it is supported in Video mode and Wireless Link mode.

Note:

Add Device

Complete

Pairing completed!

You can now connect to the

dashcam via Wireless Link.

READY TO GO

Congratulations on successfully adding and pairing the device. Please press the

COMPLETE button to return to the DASHBOARD page.

Complete

All Dash Cams (7)

Default

Dashboard

Downloads

About

All Dash Cams (1)

DRV-A310W ba7

Ready to Connect

After returning to the DASHBOARD page, you can see the device you just added has

appeared. A green light indicates the device is within connection range. After clicking

on the device, a window for entering the App Pairing PIN will pop up. If you use the

default PIN on the device, the App has already entered the default PIN for you:

671514. Click on the

✓

to connect the device. If you have set your

own PIN for your device, please enter the PIN you set.

All Dash Cams (7)

Default

Dashboard

Downloads

About

All Dash Cams (1)

DRV-A310W ba7

Ready to Connect

Please ensure that your dash cam is currently powered on and not in Menu or

Playback mode. Wireless Link activation is not supported in these modes.

However, it is supported in Video mode and Wireless Link mode.

Note:

Please enter the App pairing PIN. The default

pairing PIN is 671514, but if you have set your own

PIN on your dash cam, please enter the PIN you

have set. If you forget you PIN, you can always

view or change your PIN through your dash cam by

entering dash cam's Setup Menu > System Info >

App Pairing PIN.

App Pairing PIN

671514

All Dash Cams (7)

Default

Dashboard

Downloads

About

All Dash Cams (1)

DRV-A310W

Connected

Activating the wireless link mode

on the camera and establishing the

connection. Please wait a moment.

DRV-A310W ba7

Audio Rec

Record

Protect

Playback

Dash Cam

Sometimes, due to certain connection anomalies, a connection cannot be

established. Please follow the prompts displayed on the app to complete the

connection.

A mobile device can only connect to one dash cam at a time through a wireless

network, and you must connect your device to use it.

Note:

00:22

04/25/2024

11:17:01

Wireless Link

Device Connected

Please open the KENWOOD

DASHCAM MANAGER App and

select the SSID that matches

your dash cam.

SSID: DRV-A310W ba7

Wireless Link

Device Disconnect

Please open the KENWOOD

DASHCAM MANAGER App and

select the SSID that matches

your dash cam.

SSID: DRV-A310W ba7

After clicking After clicking

✓

, your phone will display connecting

and then take you to the DASH CAM page. Your dash cam side will switch from Video

mode to Wireless Link mode, and once the connection is complete, your dash cam will

display Connected. Congratulations! You can use all wireless functions now.

Dashboard

Downloads

About

Didault

DRV-A310W

Connected

Default (1)

Group1 (0)

Add Group

All Dash Cams (1)

MANAGE CONNECTED DEVICES (DASHBOARD PAGE)

ADD / DELETE / RENAME / REGROUP connected devices on your mobile device.

Press the connected device you just added on the DASHBOARD page. You will see a

green light ● next to the device meaning the device is connecting to your mobile

device correctly and then you will enter the DASH CAM page.

All Dash Cams (7)

Default

Dashboard

Downloads

About

All Dash Cams (1)

DRV-A310W ba7

Ready to Connect

Group setup

Edit devices menu

About page

Signal status indicator

Green light:

Within the connection range

Red light:

Outside the connection range

Group name

Device name

Dashboard page

Connection status

Downloads page

Rename / Delete group

Add device

Rename / Regroup device

Delete device

Add group

The device amount in

the group

The total device amount

DRV-A310W ba7

Audio Rec

Record

Protect

Playback

Dash Cam

After you enter DASH CAM page, you can ﬁnd there will be three pages (DASH CAM /

MENU / PLAYBACK) in the bottom navigation bar. You can always press it to switch the

page. If you want to go back to DASHBOARD page, just simply press BACK TO

PREVIOUS PAGE button.

CONTROL AND OPERATE (DASH CAM PAGE)

Control the LIVE STREAM / VIDEO RECORD / AUDIO RECORD / PROTECT FILE

function on your mobile device.

Audio record / mute

Back to Dashboard page

Protect ﬁle

Start / Stop recording

Screenshot

Full screen

Start / Stop live stream

Playback page

Dash Cam page

Menu page

Screen Select

Dual cameras display

Front camera display

Rear camera display

DRV-A310W ba7

VIDEO

SETUP

Playback

Dash Cam

tamp

MPH

er 2 min

Speed Unit

GPS

G Sensor

Medium

On when parking

Front Camera

Rear Camera

EXPOSURE

PARKING MODE SENSOR

Vibration Detection

Off

Motion Detection

Off

Time-lapse

Parking Mode LED

een Saver

ACCESS VIDEO AND SETUP MENU (MENU PAGE)

ADJUST SETTINGS on your mobile device. These settings will be synced with the dash

cam.

Setup menu

Playback page

Back to Dashboard page

Menu settings

Video menu

Dash Cam page

Menu page

DRV-A310W ba7

VIDEO

SETUP

Playback

Dash Cam

Time Zones/DST

Time & Date

04/25/2024 11:17:01

-5

Beep

Audio Rec

DEVICE SOUNDS

Format SD Card

Front Camera

Rear Camera

DISPLAY INVERT

Front Camera

Rear Camera

DISPLAY MIRROR

Setup menu

Playback page

Back to Dashboard page

Menu settings

Video menu

Dash Cam page

Menu page

04/25/2024 11: 00

11: 17

11: 18

11: 19

11: 20

11: 21

11: 22

11: 23

11: 24

DRV-A310W ba7

VIDEO


Playback

Dash Cam

Edit ﬁles menu

Back to previous page

Date and time

Video ﬁles

Protected video ﬁles

Protected parking

video ﬁles

Exact time of the video

F: Front camera

R: Rear camera (Optional)

04/25/2024

01:00

02:00

03:00

04:00

05:00

06:00

07:00

08:00

09:00

10:00

11:00

12:00

13:00

14:00

15:00

16:00

17:00

18:00

19:00

20:00

21:00

22:00

23:00

24:00

04/26/2024

01:00

02:00

03:00

04:00

05:00

06:00

07:00

08:00

09:00

10:00

11:00

12:00

13: 00

14: 00

15: 00

16: 00

17: 00

18: 00

19: 00

20: 00

21: 00

22: 00

23: 00

24: 00

DRV-A310W ba7

Playback

VIDEO


Dash Cam

PLAYBACK AND DOWNLOAD FILES (PLAYBACK PAGE)

PLAYBACK (PROTECT / UNPROTECT / DELETE) or DOWNLOAD the videos from the

connected DRV-A310W on your mobile device.

Playback photo ﬁles

Playback page

Back to Dashboard page

Playback video ﬁles

Dash Cam page

Menu page

The date you have

video ﬁles

The time you have

video ﬁles (Highlight)

04/25/2024 11: 00

11: 17

11: 18

11: 19

11: 20

11: 21

11: 22

11: 23

11: 24

Downloads

VIDEO


Dashboard

Downloads

About

Edit ﬁles menu

Date and time

Video ﬁles

Protected video ﬁles

Exact time of the video

Playback downloaded

photo ﬁles

Playback downloaded

video ﬁles

CUT AND SHARE DOWNLOADED FILES (DOWNLOADS PAGE)

Not only PLAYBACK (PROTECT / UNPROTECT / DELETE) the downloaded ﬁles with

speed data and Google Maps function but also CUT and SHARE the ﬁles to your

friends and relatives on your mobile device.

About page

Dashboard page

Downloads page

F: Front camera

R: Rear camera (Optional)

E: Edited video

08: 12

08: 13

08: 14

04/25/2024 11: 00

11: 17

11: 18

11: 19

11: 20

11: 21

11: 22

11: 29

11: 30

11: 31

DRV-A310W ba7

00: 00

01: 00

Playback

Dash Cam

Download ﬁles

Full screen

Delete ﬁles

Unprotect ﬁles

Protect ﬁles

Back to previous page

Play / Stop the

selected video

The video you select

(Highlight)

Timeline of the

selected video

Cut / edit function is very simple, select the length of the video you want, and press ✓

button to output the edited video.

00: 00

01: 00

Downloads

20240101_040320_E

00: 00

01: 00

00: 31

Back to previous page

The ﬁle name under

editing

Choose the spectrum

you want to keep

Press to output the

edited video

You can keep or

remove the audio

Speed : 56 MPH

04/25/2024 11: 00

11: 17

11: 18

20240425_111701_F

00: 00

01: 00

Dashboard

Downloads

About

Share ﬁles

Full screen

Delete ﬁles

Edit the selected ﬁle

Unprotect ﬁles

Share ﬁles to

phone's Photos(iOS)

Protect ﬁles

Back to previous page

Google Maps tracking logs

Play / Stop the

selected video

The video you select

(Highlight)

Timeline of the

selected video

(Note : After downloading your video,

please disconnect the device and

connect to the Internet to download

the Google Maps map data to watch.)

Speed

File name

All Dash Cams (7)

Default

Dashboard

Downloads

About

All Dash Cams (1)

DRV-A310W ba7

Ready to Connect

04/25/2024 11: 00

11: 17

Downloads

VIDEO


Dashboard

Downloads

About

04/25/2024 11: 00

11: 17

Speed : 56 MPH

20240425_111701_F

00: 00

01: 00

Dashboard

Downloads

About

04/25/2024 11: 00

11: 17

Speed : 56 MPH

20240425_111701_F

00: 00

01: 00

Dashboard

Downloads

About

4. Click on the Pen icon.3. Click Play to review the video.

2. Click on the ﬁle you want to edit.1. Enter the Downloads page.

How to edit the video:

04/26/2024 11: 00

11: 15

04/25/2024 11: 00

11: 17

Downloads

VIDEO


Dashboard

Downloads

About

00: 00

01: 00

Downloads

20240426_111501_E

00: 00

01: 00

00: 31

Speed : 56 MPH

04/25/2024 11: 00

11: 17

20240425_111701_F

00: 00

01: 00

Dashboard

Downloads

About

00: 00

01: 00

Downloads

20240426_111501_E

00: 00

01: 00

00: 31

8. The video with “E” is the

Edited video.

7. Once decided, press the

✓ icon to export the video.

6. Drag the time sliders on

both sides to determine the

range of the clip.

5. Click on the Edit icon.

About

Application: V1.1.9

Dashboard

Downloads

About

First Time Use Tutorial

Clear Downloads Cache

Model

DRV-A310W ba7

Firmware Ver.

Firmware Update

Language

English

Unit

Imperial Unit

Date Format

DD/MM/YYYY

APP SETTING

DASH CAM INFORMATION

0.00B

Off

Instruction Manual

Official Website

Private Policy

Permissions

APP SETTINGS AND HELPFUL INFO (ABOUT PAGE)

Change LANGUAGE / SPEED UNIT / DATE FORMAT settings and check the MODEL /

FIRMWARE VER. / FIRMWARE UPDATE / SOFTWARE VERSION / CLEAN

DOWNLOADS CACHE / FIRST TIME USE TUTORIAL / INSTRUC TION MANUAL /

OFFICIAL WEBSITE on your mobile device.

App universal settings

Connected device’s

information

First time use tutorial

Update ﬁrmware

through the mobile app

Instruction manual

Visit the ofﬁcial website

Current app version

About page

Clear the cache of

unﬁnished video

downloads

Downloads page

Dashboard page

If you are using an Android system, the video will automatically be saved in your

Photos App. If you are using an iOS system, please transfer it to your Photos App by

clicking on the Pen icon / Share to Phone's Photos icon.

When you use the third-party USB cable (Only support USB-A to USB-C) to connect

DRV-A310W to your computer, the LCD screen will show two available options.

Use the UP and DOWN buttons to select the necessary function, and press the OK

button to continue.

USB STORAGE (OPTIONAL)

When you have connected DRV-A310W to the computer, the camera will operate as a

card reader. Your computer will have a pop up of a new drive for you to browse all

the video and picture ﬁles.

Connection with Computer

USB Storage

Dash Cam

DASH CAM

When you choose this option, DRV-A310W will turn on and work normally while the

device is being charged.

DRV-A310W is a “Read Only” device If you want to copy / delete / edit the ﬁles,

remove the Micro SD Card and use another card reader to connect your computer.

REMEMBER: Turn your DRV-A310W off before you disconnect it from your

computer.

The provided Type-C car power cable does not have data transfer capabilities; it's

solely for power supply. When using a third-party USB-A to USB-C cable with data

transfer functionality to connect the camera to a computer, the camera will operate

as a card reader when selecting USB Storage on the camera. Your computer will pop

up with a new drive, allowing you to browse all video and picture ﬁles. The device

does not support Type-C USB cables with PD (Power Delivery) fast charging or USB-C

to USB-C cables.

Note:

REMEMBER: To always turn off DRV-A310W before disconnecting it from your

computer.

Note:

Team KENWOOD will keep update the ﬁrmware to improve the better user experience

for our valued customers. Once you register your product on KENWOOD website, we

will send you information about our new ﬁrmware update. Or you can visit the link

below once for a while to check if there is any new ﬁrmware update:

https://www.kenwood.com/cs/ce/ﬁrmware/option/

There are two ways to update the device’s ﬁrmware: (A) OTA updates via the

KENWOOD DASH CAM MANAGER APP on a smartphone and (B) Download the latest

ﬁrmware from the internet and updating the device using a memory card with your PC.

Please follow the step by step instruction below:

Firmware Update Instruction

OTA updates via the KENWOOD DASH CAM MANAGER APP on a smartphone(A)

Open the KENWOOD DASH CAM MANAGER APP on your phone and navigate

to the MKII DASHBOARD page. When your phone detects a new ﬁrmware

version, "Updates Available" will be displayed beneath your device name, and a

yellow dot will appear next to ABOUT page indicating the presence of new

ﬁrmware.

All Dash Cams (7)

Default

Dashboard

Downloads

About

All Dash Cams (1)

DRV-A310W ba7

Updates Available

About

Application: V1.0

Dashboard

Downloads

About

First Time Use Tutorial

Clear Downloads Cache

Model

DRV-A310W ba7

Firmware Ver.

Firmware Update

Language

English

Unit

Imperial Unit

Date Format

MM/DD/YYYY

APP SETTING

DASH CAM INFORMATION

Off

Instruction Manual

Official Website

Private Policy

About

First Time Use Tutorial

Clear Downloads Cache

Model

DRV-A310W ba7

Firmware Ver.

Firmware Update

Language

English

Unit

Imperial Unit

Date Format

MM/DD/YYYY

APP SETTING

DASH CAM INFORMATION

Off

Instruction Manual

Official Website

Private Policy

Application: V1.0

Dashboard

Downloads

About

DRV-A310W ba7

Go to the ABOUT page, and you'll see the "Firmware Update" option showing

"Update the latest ﬁrmware" accompanied by a yellow dot. Click on it and select

the device you wish to update.

After clicking, you'll be directed to the FIRMWARE UPDATE page. Follow the

on-screen instructions to download the latest Firmware and conﬁrm the update.

Firmware Update

Download

Please press the "Download" button

below to download the latest firmware

version. Before downloading, please

ensure that your phone is connected

to the internet and do not disconnect

the device's power.

Firmware Download

Firmware Update

Downloading…

46%

Please wait

At this point, the phone will transmit the downloaded ﬁrmware to the device

using the wireless link function.

Once the transfer is complete, press "Update" on your phone, and the device will

begin the update process. Please do not disconnect the device’s power during this

time. The update will take approximately 1-2 minutes.

Firmware Update

Update

Transferring completed!

100%

Please press the "Update" button

below to update the device. After

pressing the button, the connection

will be disconnected, and the

device begin the update process. It

will take approximately 1-2 minutes

to complete. DO NOT turn off the

device during the update. After the

update is complete, the device will

automatically restart.

Firmware Update

Done

The device has started updating.

The update will take approximately 1-2

minutes to complete. DO NOT turn off

the device during the update. After the

update is complete, the device will

automatically restart. Please press the

"Complete" button to return to the

application Dashboard page.

Firmware Update

Downloading…

100%

Please press the "Next" button below

for the next step. The firmware will be

transmitted to the device through the

Wireless Link function. It will take

approximately 1-2 minutes to transmit

the firmware, and please DO NOT turn

off the device during transmission.

Firmware Update

Downloading…

46%

Please wait

System Info

Model:

Firmware:

FCCID:

IC:

Check updates:

www.kenwood.com/cs/ce/

DRV-A310W

IOMDRVA310W

282C-DRVA310W

V1.0_ABCDEF_A

When the update starts, there will be a popup message as picture below.

DO NOT TURN OFF OR PRESS ANY BUTTON DURING THIS PERIOD, IT MAY

CAUSE THE UPDATE FAILURE.

It may take a while for updating. Once it ﬁnishes the update, DRV-A310W will

turn off the device automatically.

Turn on the dash cam and reset the ﬁrst time settings. Press MENU button

twice to entry SETUP MENU and select the System Info and select Firmware

Version to check if the Version is the latest one [V1.0_ABCDEF_A] as shown on

website, then it is successfully updated.

Firmware updating...

Do not disconnect power!

Download the latest ﬁrmware from the internet and updating the device

using a memory card with your PC

(B)

1. Make sure your SD card is formatted and copy the KWDCAZFW.BIN into the root

directory of the SD card.

Notice: Make sure the ﬁle name is KWDCAZFW.BIN If you see KWDCAZFW.BIN(1)

or so on, please rename the ﬁle name to KWDCAZFW.BIN

3. Connect DRV-A310W to your PC or Mac with the 3rd party USB A to USB C cable,

and make sure the dashcam is charging.

The device does not support Type-C USB cables with PD (Power Delivery) fast

charging or USB-C to USB-C cables.

2. Insert the SD card into the dashcam.

3rd party USB A to USB C cable

When turning on the dashcam, select Dash Cam and there will be a popup message

as picture below. Please press OK button to start the update.

05:20:43

04/25/2024

11:17:01

Cancel

Firmware update?

Firmware updating...

Do not disconnect power!

When the update starts, there will be a popup message as picture below.

DO NOT TURN OFF OR PRESS ANY BUTTON DURING THIS PERIOD, IT MAY

CAUSE THE UPDATE FAILURE.

It may take a while for updating. Once it ﬁnishes the update, DRV-A310W will

turn off the device automatically.

Turn on the dash cam and reset the ﬁrst time settings. Press MENU button

twice to entry SETUP MENU and select the System Info and select Firmware

Version to check if the Version is the latest one [V1.0_ABCDEF_A] as shown on

website, then it is successfully updated.

System Info

Model:

Firmware:

FCCID:

IC:

Check updates:

www.kenwood.com/cs/ce/

DRV-A310W

IOMDRVA310W

282C-DRVA310W

V1.0_ABCDEF_A

If your car power cable is not working properly with your DRV-A310W,

check your car’s power fuses. Also check your power cord and replace it if

there is an issue.

Auto power off function will turn off DRV-A310W automatically after it

loses its power supply. Make sure DRV-A310W is connected properly to the

car power cable.

The functions have been optimized to work properly with both PC and Mac

computers. Please reboot your computers. Make sure DRV-A310W is

connected properly.

You may have a small amount of available space left for your memory card.

Back up all the ﬁles you need from the memory card. Only AFTER you back

up all the ﬁles you need, format the memory card with DRV-A310W.

The memory card that we recommends for best quality is the UHS type 3

Max Endurance Micro SD Card.

If your PC does not recognize the video ﬁles, try another PC to view the

recorded video.

These ﬁles may not be played on your PC if you do not have a suitable

video player installed. Please refer to page 42. Download

Link: https://www.kenwood.com/cs/ce/

DRV-A310W releases the Micro SD Memory Card by pressing the memory

card forward. By applying the pressure on the memory card, a small click

sound will be made.

If you are unable to remove the memory card, use the edge of a small coin

to push forward until the click sound is made.

Make sure the metal portion of the memory card faces the screen side.

Once inserted, push the card until a CLICK sound is heard.

DRV-A310W does not charge

in my car

DRV-A310W shuts down on

its own

I cannot save my video ﬁles

to my computer through the

USB storage feature

The total video recording

time is only a few minutes

long

Video ﬁles jump when they

are being played

DRV-A310W video ﬁles can

not be played

Memory card does not

release from DRV-A310W

Unable to insert Micro SD

Memory Card

Blurred Image (Video)

DRV-A310W comes with a protective lens cover for the camera's lens, be

sure to remove it. Wipe the lens with a soft cloth until any debris / stains

are removed. Clean your vehicle's windshield where the camera is placed.

TroubleshootingTroubleshooting

If this message appears, simply adjust your browser settings and allow for

the download to proceed. Once complete, reset your browser security to

protect your PC.

When I download ﬁles from

the KENWOOD website a

malicious software message

appears

Reminder: DRV-A310W will not let you access the menu while it is

recording. To access the menu, stop recording and the MENU feature will

be accessible.

The parking mode function will automatically start recording a 30 second

video clip and turn off when external forces are detected. If you want to

turn off this function, go to VIDEO menu -> Parking Mode Sensor, and turn

it off.

When this message appears, your Micro SD card is at full capacity.

Reminder: When you have protected ﬁles, you limit the use of your

memory card. Delete unnecessary ﬁles to allow maximum use of your

memory card.

This indicates that the Micro SD card is not properly formatted to your

DRV-A310W. Please remove the ﬁles you would like to keep on to your PC,

and perform a “Format SD Card” procedure to allow your memory card to

function properly with DRV-A310W.

Be sure the power cord is connected properly. When DRV-A310W is being

charged, the blue LED indicator will illuminate.

DRV-A310W requires formatting the Micro SD card if the card is used on

DRV-A310W for the ﬁrst time. Please format the SD card in the SETUP

menu.

The screen saver function turns off the screen after a period of inactivity. If

you want to turn off this function, go to VIDEO menu -> Screen Saver,

and turn it off.

Be sure the ﬁle you are trying to delete is unprotected.

If the ﬁle is protected, please follow the instruction on page 40 to

unprotect the ﬁle ﬁrst, and then delete the ﬁle.

Try some different card readers and computers to see if any of them can

view the ﬁles. If none of them work, the ﬁles are probably damaged. Use

DRV-A310W to format the memory card. (WARNING: formatting the

memory card will remove all the ﬁles saved), We recommended using the

branded UHS 3 Max Endurance Micro SD Card. Note: You must format the

memory card with DRV-A310W for ﬁrst time use.

I press the MENU button but

nothing happens

DRV-A310W always turn on

by itself.

A “Card Full” message

appears on my DRV-A310W

A “Card Error” message

appears on my DRV-A310W

DRV-A310W does not charge

The message “Please Format

SD Card” appears on my

screen

My screen turns off

after I just turned it on

I cannot delete the ﬁle on

DRV-A310W

Micro SD Card is not letting

me view my ﬁles

If you continue to have problems with your device, please reset your device

to default settings in the setup menu and begin the process over again. If

these problems remain, Please contact your store of purchase or a service

center.

Unresolved Issues

Standard

Security

Frequency Range

Transfer Rate

Output Power

IEEE802.11n

WPA2

2400-2483MHz ISM band

72.2Mbps (802.11n)

15.67dBm±1.5dB (802.11n)

Wireless Link Speciﬁcation

Standard

Frequency Range

Output Power

2402-2480MHz

7.79dBm

Bluetooth Speciﬁcation

Appendix

Standard

Frequency Range

Output Power

BLE

2402-2480MHz

5.48dBm

GPS Speciﬁcation

Frequency Range

1559-1610MHz

Product Name / Model Number

Power Requirements

Power Supply

(Car power cable)

Power Input(Car power cable)

Front Sensor Resolution

Rear Sensor Resolution

(Rear camera is sold separately)

Front Lens Angle / Aperture

Rear Lens Angle / Aperture

(Rear camera is sold separately)

Front Recording Resolution

Rear Recording Resolution

(Rear camera is sold separately)

Screen Size

SD Card Recorded File Capacity

(Based on Default Settings)

Dash Cam / DRV-A310W

5V / 1.5A ; 12-24V DC

Input: 12-24V DC

Output: 5V DC

Fuse Type: SMD/4A

Built-in super capacitor

2M Pixel

136° / F1.8

131.6° / F2.0

1080P (1920 x 1080 pixel) @ 30fps

2.0”

Unit Dimensions 2.3 x 1.68 x 0.96 inches (5.85 x 4.28 x 2.44 cm)

65gUnit Weight

Screen Resolution 320 (W) X 240 (H) pixel x RGB

Screen Ratio 4 : 3

Card Reader Micro SD, SDHC, up to 256GB

SD Card (Recommended Type)

micro SDXC/SDHC card 8GB to 256GB supported,

UHS type 3 recommended for best resuts use a

regonized brand

32 GB Micro SD = 290 mins of recording

64 GB Micro SD = 580 mins of recording

128 GB Micro SD = 1160 mins of recording

256 GB Micro SD = 2320 mins of recording

Speciﬁcations

The provided Type-C car power cable in the package DOES

NOT HAVE DATA TRANSFER functionality and is ONLY FOR

POWER SUPPLY purposes. If you wish to view videos, please

remove the memory card and read it on a computer, or use

the KENWOOD DASH CAM MANAGER APP on your mobile to

view via wireless link, or use a third-party USB-A to USB-C

cable with data transfer capabilities to connect and view on

a computer.

The KENWOOD dash cam DOES NOT SUPPORT Type-C USB cables with PD

(Power Delivery) fast charging or USB-C to USB-C cables. We recommend

using the car power cable provided by us.

The KENWOOD dash cam requires a 2A current for normal operation, and the

KENWOOD USB car charger provides a 2.6A output current. We recommend using

the USB car charger provided by us.

Please DO NOT USE the other USB ports in the car to connect the KENWOOD

dash cam, as most car USB ports deliver less than 1A output, while the KENWOOD

dash cam requires a 2A current for normal operation.

DRV-A510W and DRV-A610W use HEVC (H.265) compression technology, so if your

computer does not support playback of this codec, please download a player

that supports HEVC (H.265) , such as KENWOOD VIDEO PLAYER, or search online

for free third-party players like VLC or MPC-HC.

•

Kenwood DRV-A310W Dashboard Camera 2-Inch LCD 1080p FHD in DRVA310W

Product's Documents

Owner's Manual

Specifications

Kenwood DRV-A310W Questions and Answers
