Kaliza Ceiling Fan
User Manual
Read and save these instructions before use
Model #51907
Home
EN I 2

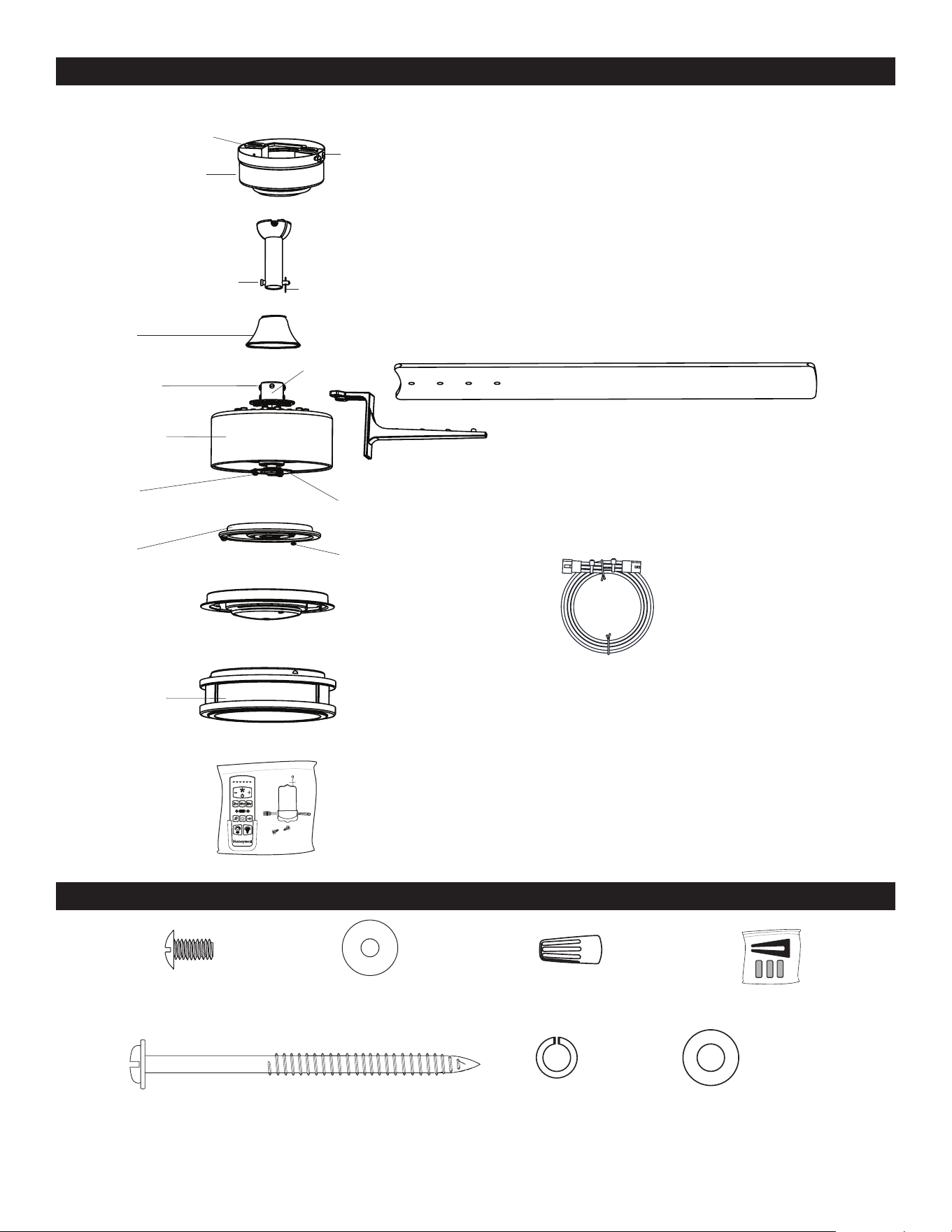

PACKAGE CONTENTS
HARDWARE CONTENTS
Mounting Bracket Screw (x 4)
Mounting Bracket
Canopy
Downrod
Downrod Pin
Downrod Clip
Blade Arm (x 6)
Blade (x 6)
Yoke Cover
Set Screw (x 2)
Yoke
Motor Assembly
Fitter Plate
Fitter Plate
Screw (x 3)
Light Kit
Light Pan
Light Pan Screw (x 3)
Glass Assembly
36-inch Lead Wire (optional) (x2)
Remote Kit
Blade Screw (x 18) Blade Washer (x 18) Wire Connector Blade Balancing Kit
Note: Some extra hardware may be included. The quantity listed above is the number required for installation.
Secondary Spring
Washer
Support WasherSecondary Support Screw
EN I 3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA
70-199. Hire an electrician or consult a do-it-yourself handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum of 7 feet from the blades to the floor and at least 30 inches from the tip
of the blades to any obstruction.
• RATED FOR DAMP LOCATIONS. This fan is intended for indoor or damp locations. It is not suitable for outdoor locations.
• The weight of the fan is 18.06 pounds.
DANGER: When using an existing outlet box, make sure it is securely attached to the building structure and can support the full
weight of the fan. Failure to this can result in serious injury or death. The stability of the outlet box is essential in minimizing wobble
and noise in the fan after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a humming sound from the fan. To reduce the risk of
fire or electric shock, do NOT use a full-range dimmer switch to control fan speed.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked “ACCEPTABLE
FOR FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at
least 35 lbs.).
WARNING: To reduce the risk of fire, electric shock or personal injury, wire connectors provided with this fan are designed to accept
only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is more than one
house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when installing them, balancing
the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts other than those provided with
this fan will void the warranty.
CAUTION: Be sure the outlet box is properly grounded or a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan assembly ensure they are secured.
THANK YOU
Honeywell Ceiling Fans feature a collection of fans in various sizes and specifications to ensure your choice of indoor or outdoor
fan delivers optimum performance for your room’s size. You can trust the quality of Honeywell Ceiling Fans to deliver maximum
airflow and stylish lighting options. Honeywell Ceiling Fans use high-quality materials that are long lasting and durable to
deliver a great look and last for years to come.
EN I 4
CARE AND MAINTENANCE
Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean
the fan.
At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the motor
housing and blades with a soft brush or lint-free cloth to avoid scratching the finish.
Total fixture wattage is 23 watts; do not attempt to replace LED.
Battery Replacement for Remote: Use CR2032 lithium batteries. WARNING: Keep batteries out of reach of children. May be fatal
if swallowed. In the event that a battery is swallowed, immediately consult a doctor. Non-rechargeable batteries are not to be
recharged. Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries. Do not mix old and
new batteries. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product.Do
not dispose of batteries in fire, as they may explode or leak.
SAFETY INFORMATION
CAUTION:
CAN ICES-003 (B) / NMB-003 (B)
CAN ICES-005 (B) / NMB-005 (B)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device (if applicable).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
HKC-US
3350 Players Club Parkway #225
Memphis, TN 38125
1-877-361-3883
EN I 5
D
INITIAL INSTALLATION
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 2 hours
Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers.

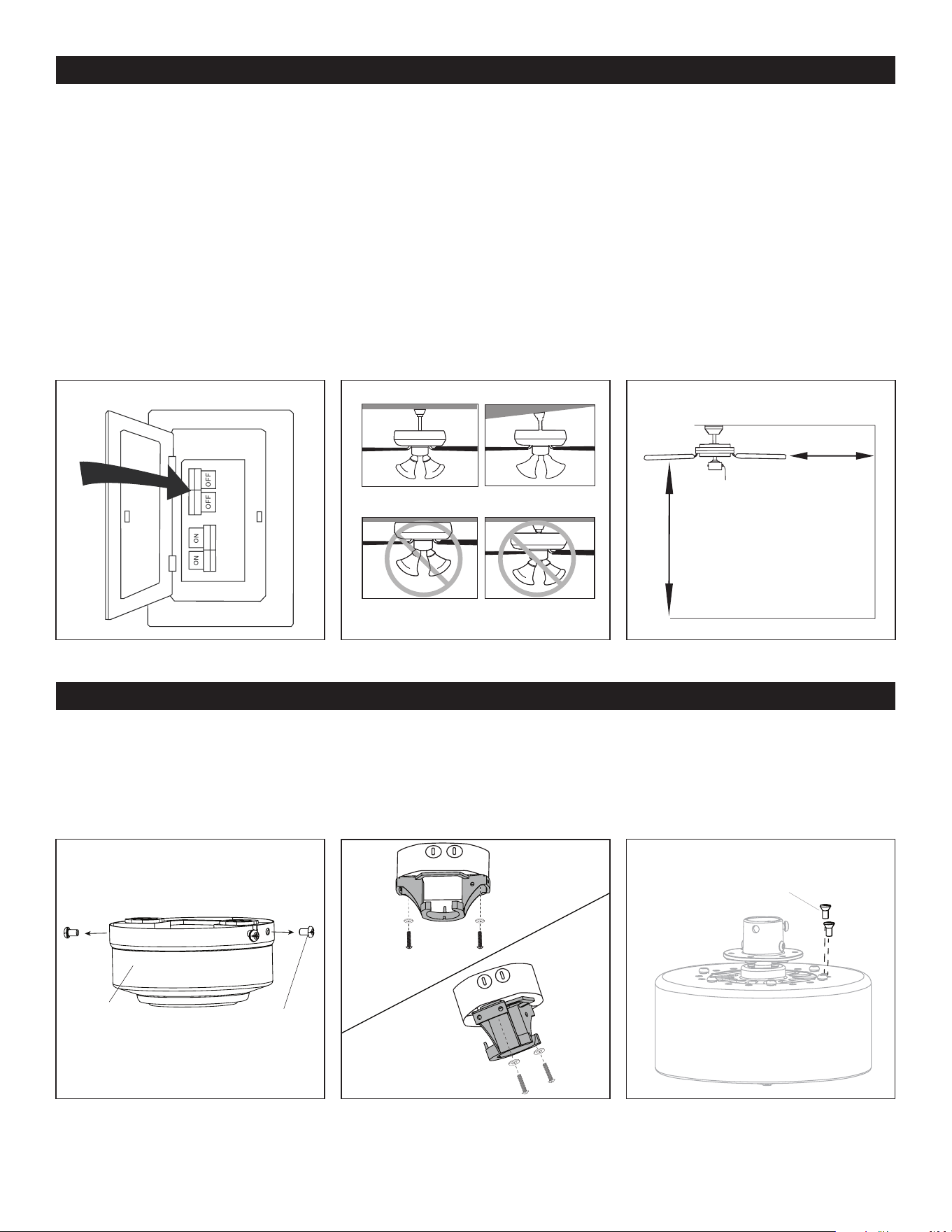

1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Choose one of the following mounting options (Figure 1.2) :
Standard Mount - best suited for ceilings 8 feet or higher. For very high ceilings, use a longer downrod (not included).
Angle Mount - best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade
clearance. Ensure the ceiling angle is not steeper than 10 degrees.
Flushmount Installation - not available for this model.
Closemount Installation - not available for this model.
3. Choose a suitable location - Ensure the blades will be at least 30 inches from any obstructions. Also check the downrod
length to ensure the blades will be at least 7 feet above the floor (Figure 1.3).
1. Loosen all four mounting bracket screws and completely remove the two screws from the round holes in the canopy. Then
remove mounting bracket from the canopy and save them for later. Remove the canopy from the mounting bracket (Figure 2.1).
2. Install the mounting bracket to the outlet box (sold separately) using the screws and washers provided with the outlet box
(sold separately) (Figure 2.2).
3. Remove the 12 Phillips-head motor screws from the top of the motor assembly and save for blade arm assembly (Figure 2.3).
Figure 1.1
Figure 2.1
Figure 1.2
Installation
Standard
Angle Mount
Motor Screw
Figure 2.2
Figure 1.3
Figure 2.3
Standard Mount
Flushmount
Angle Mount
Closemount
Mounting
Bracket Screw
Canopy
7 feet
minimum
30 in.
minimum
EN I 6
INITIAL INSTALLATION

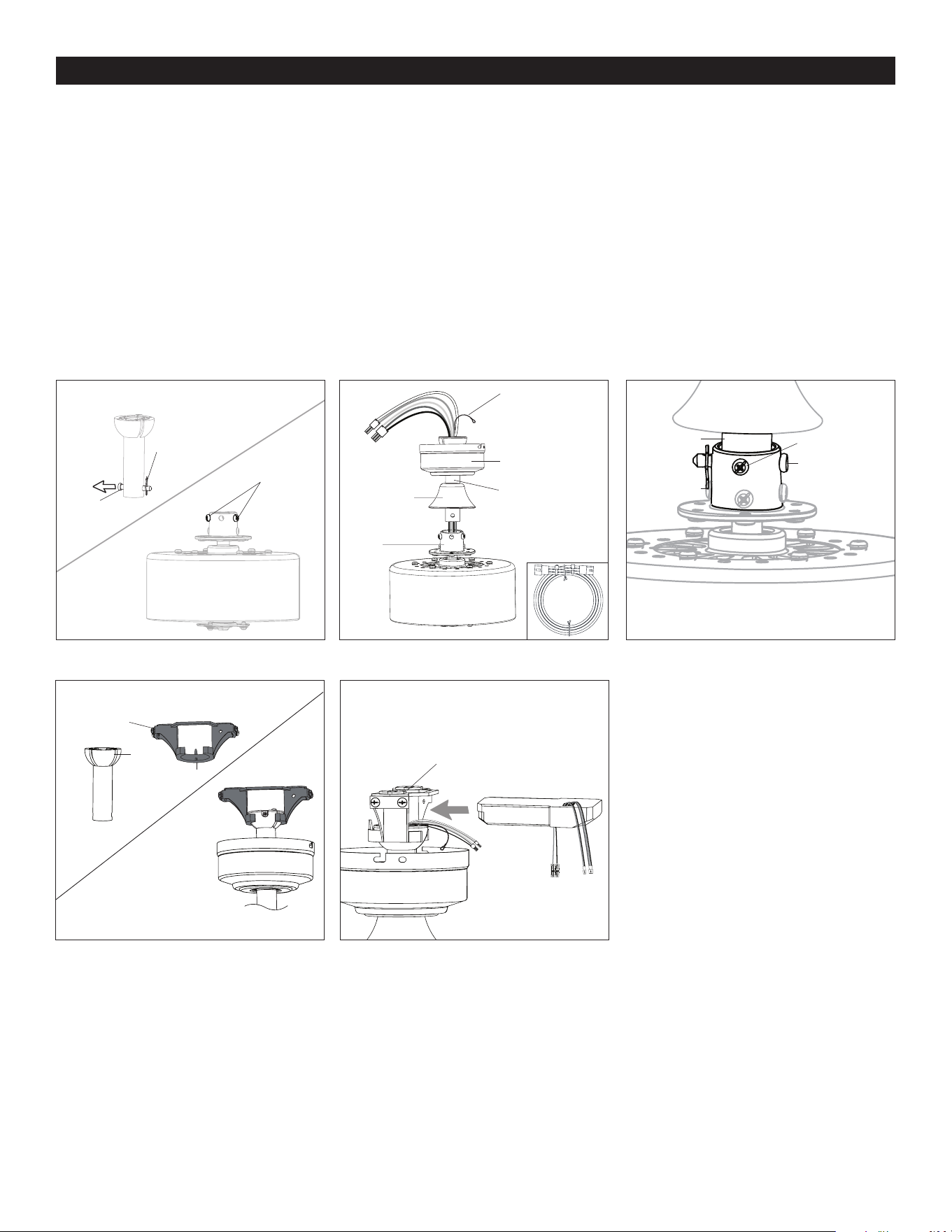

4. Remove the downrod clip and downrod pin from the downrod. Then partially loosen the set screws in the yoke at the top of
the motor assembly (Figure 2.4).
5. Insert the downrod through the canopy and yoke cover. Feed the wires and braided cable from the fan through the downrod
Depending on the length of downrod you use, you may need to use the 36-inch lead wires to accomodate a 36 or 48-
inch downrod (sold separately). When necessary, connect the 3-pin and 2-pin connector extending from the center of the
downrod to one end of the 36-inch lead wires. Note: The downrod included with this fan will not utilize the 36-inch lead wires
(Figure 2.5).
6. Slide the downrod into the yoke of the motor assembly. Align holes and install the downrod pin and downrod clip from the
downrod pack and secure with the two set screws (Figure 2.6).
7. Install the ball end of the downrod into the opening of the mounting bracket. Rotate the downrod until the tab in the
mounting bracket is seated in the slot in the downrod ball. WARNING: The fan and/or downrod should not rotate in the
mounting bracket, if installed correctly. Failure to align the slot in the downrod ball with the tab on the mounting bracket
may result in fan falling causing serious injury or death (Figure 2.7).
8. Insert the receiver in the mounting bracket with antenna end first and flat side facing up. Note: The receiver rests directly on
the downrod ball (Figure 2.8).
Figure 2.4
Figure 2.8
Downrod Clip
Mounting
Bracket
Receiver
Downrod
Downrod
Downrod Pin
Set Screw
Downrod
Braided Cable
Tab
Canopy
Slot
Yoke Cover
36-Inch Lead
Wire (optional)
Yoke
Figure 2.5 Figure 2.6
Figure 2.7
Set Screw
Mounting
Bracket
Downrod Clip
Downrod Pin
EN I 7
Figure 3.2Figure 3.1 Figure 3.3
Braided Cable
Brace
Open Loop
Secondary Support Screw
Support
Washer
Spring
Washer
Secondary
Support Screw
SECONDARY HANGING SYSTEM INSTRUCTIONS

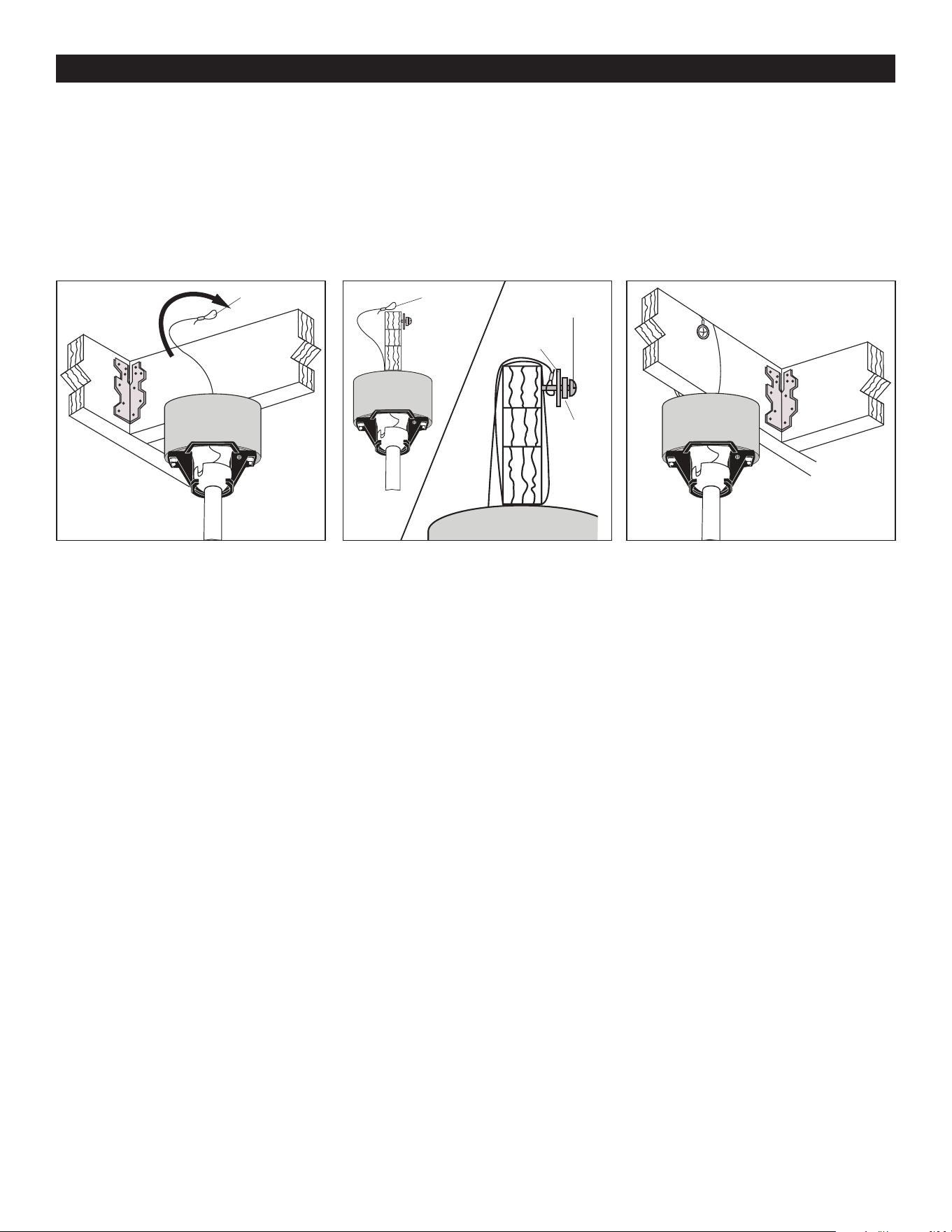

1. Feed the loop of the braided cable, preassembled to the motor assembly, up through the outlet box mounted in the ceiling
(Figure 3.1).
2. Install secondary support screw, spring washer and support washer partly into the side of the brace installed in the ceiling.
Then loop the braided cable up and over the ceiling brace and place the open loop of the braided cable around the secondary
support screw. Note: The ceiling support brace may not be accessible from below. If not, it must be accessed from above.
Important: The braided cable must make a complete circle around the support brace to secure the fan (Figure 3.2).
3. Tighten the secondary support screw, securing the braided cable (Figure 3.3).
For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System.
If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For
installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
EN I 8

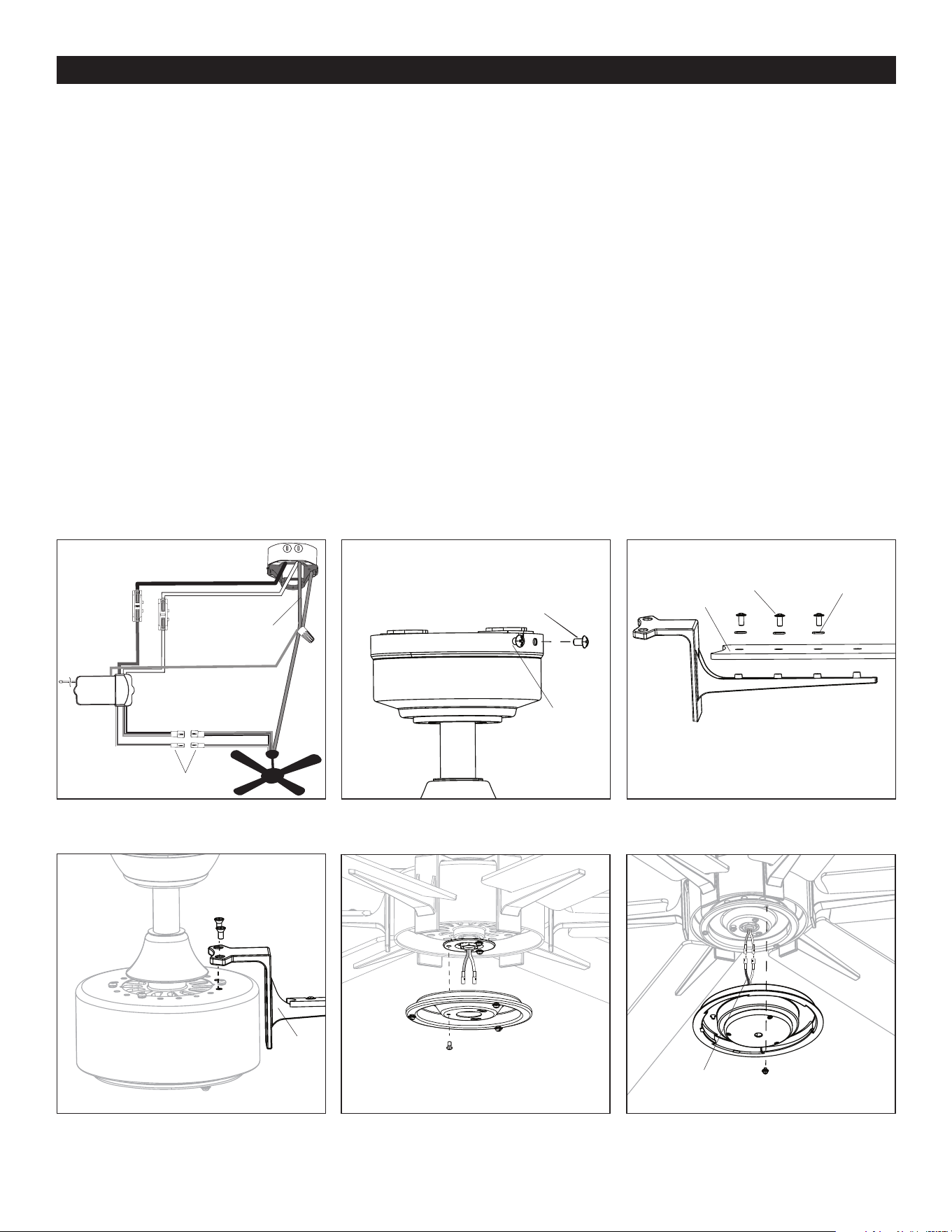

1. Make the following wire connections according to the diagram and these steps (Figure 4.1):
• Lift the lever and then push the White (neutral) supply wire into the empty hole of the wire connector preassembled to the
white wire from receiver and then lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply wire into the empty hole of the wire connector preassembled to the red
wire from the receiver and then lower the lever to secure wire.
• Connect the pin connectors from the receiver to the pin connects from the fan -- 3-pin to 3-pin and 2-pin to 2-pin.
• Use wire connector from hardware bag to connect the green wires from the receiver, downrod and mounting bracket to the
bare/green (ground) supply wire.
Important: If household supply wires are different colors than referred to above, a professional electrician should determine proper
wiring.
2. Align the canopy over the loosened mounting bracket screws. Place the J-slot of the canopy onto the mount bracket screws and
rotate clockwise. Secure the canopy with the two previously removed mounting bracket screws. Tighten all the mounting bracket
screws securely (Figure 4.2).
3. Partially insert three blade screws, along with their washers, through the blade and into the blade arm. Tighten each blade screw
with a Phillips screwdriver (not included), starting with the one in the middle. Repeat this step for the remaining blades and blade
arms (Figure 4.3).
4. Attach the blade arms to the top of the motor assembly using the motor screws. Completely secure each blade arm to the motor
assembly before moving to next (Figure 4.4).
5. Remove one of the three fitter plate screws preassembled to the fitter plate and loosen the other two but do not remove. Feed the
single-pin connector through center hole in light pan. Align the slotted holes in the light pan with the loosened screws in the fitter
plate. Turn light pan clockwise and replace the previously removed fitter plate screw. Tighten all screws (Figure 4.5).
6. Remove one of the three light pan screws from the light pan. Connect the single-pin connector from the light pan to the single-pin
connector from the light kit--blue to black and white to white. Lift the two keyhole slots in the light kit over the two loosened light
pan screws and turn in a clockwise direction. Then, use the previously removed light pan screw to secure the light kit to the light
pan (Figure 4.6).
FINAL INSTALLATION
Figure 4.2Figure 4.1 Figure 4.3
Mounting Bracket Screw
Blade Arm
Blade Screw
J-Slot
Blade Washer
Blade
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Green
Green
Receiver
Red
White
Green
Pin Connectors
Figure 4.5Figure 4.4 Figure 4.6
Light Pan
Screw
Fitter Plate
Screw
Light Pan
Single-pin
Connector
Light Kit
Motor Screw
Blade
Arm
EN I 9
FINAL INSTALLATION

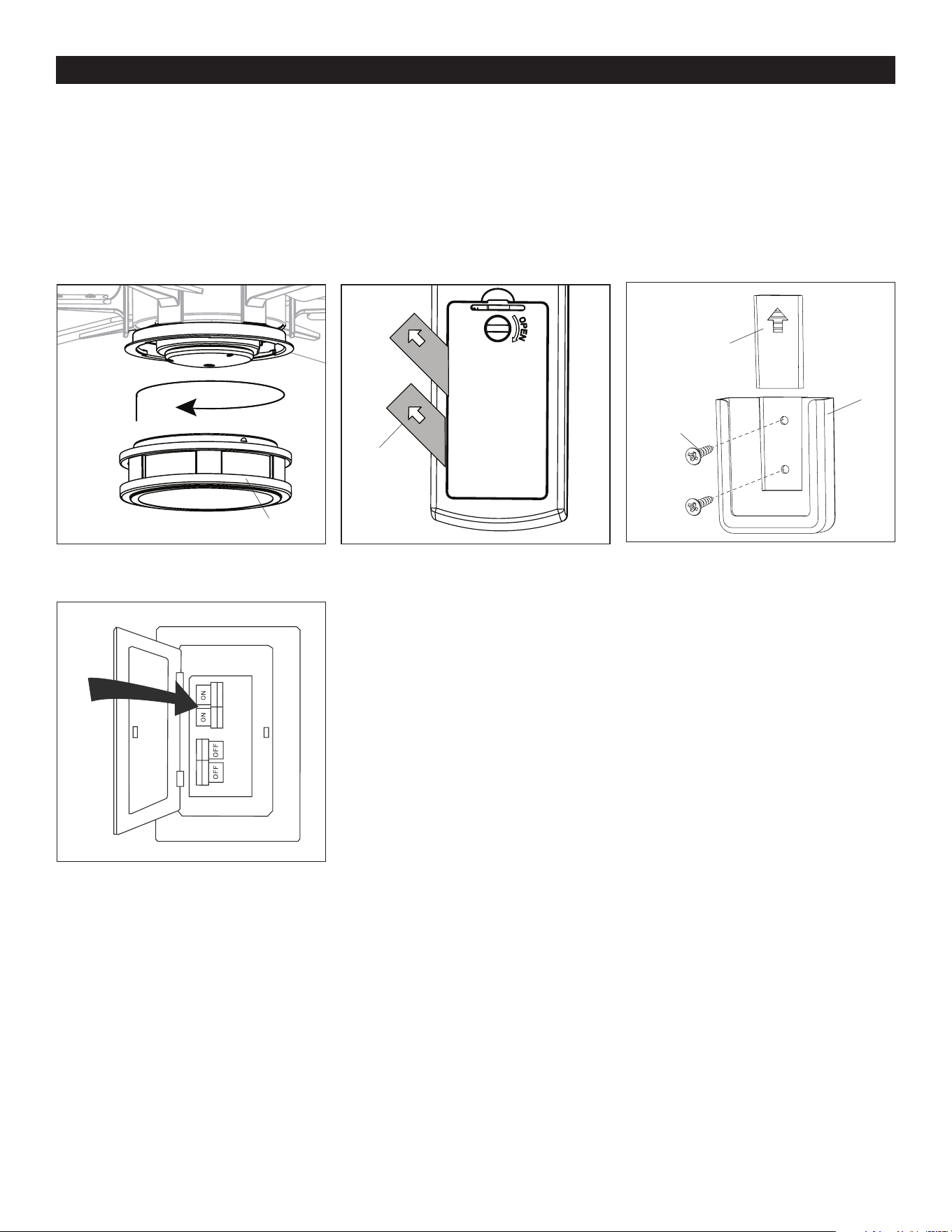

7. Lift the glass assembly into the light kit and twist in a clockwise direction to secure (Figure 4.7). Note: Remove the rubber
shipping blocks from the glass assembly. CAUTION: Avoid cross-threading the glass during installation. Improper installation
could cause the glass bowl to be difficult to remove or fall, which could cause serious injury.
8. Batteries were preinstalled in the battery compartment of the remote in remote pack. Pull the plastic film in the direction of
the arrow to remove which will activate the batteres (Figure 4.8).
9. Remote control comes equipped with a wall bracket. If you wish to install the wall bracket, remove the small plate to expose
the screw holes. Insert wall brackets screws through holes and into wall, then cover with the previously removed small plate.
The remote can be stored in the wall bracket for easy access (Figure 4.9).
10. Turn on power to fan at breaker box and the wall switch. Assembly is complete (Figure 4.10).
Figure 4.8 Figure 4.9Figure 4.7
Figure 4.10
Glass Assembly
Plastic Film
Wall Bracket
Small Plate
Wall Bracket
Screw
EN I 10
OPERATING INSTRUCTIONS
Figure 5.1 Figure 5.2

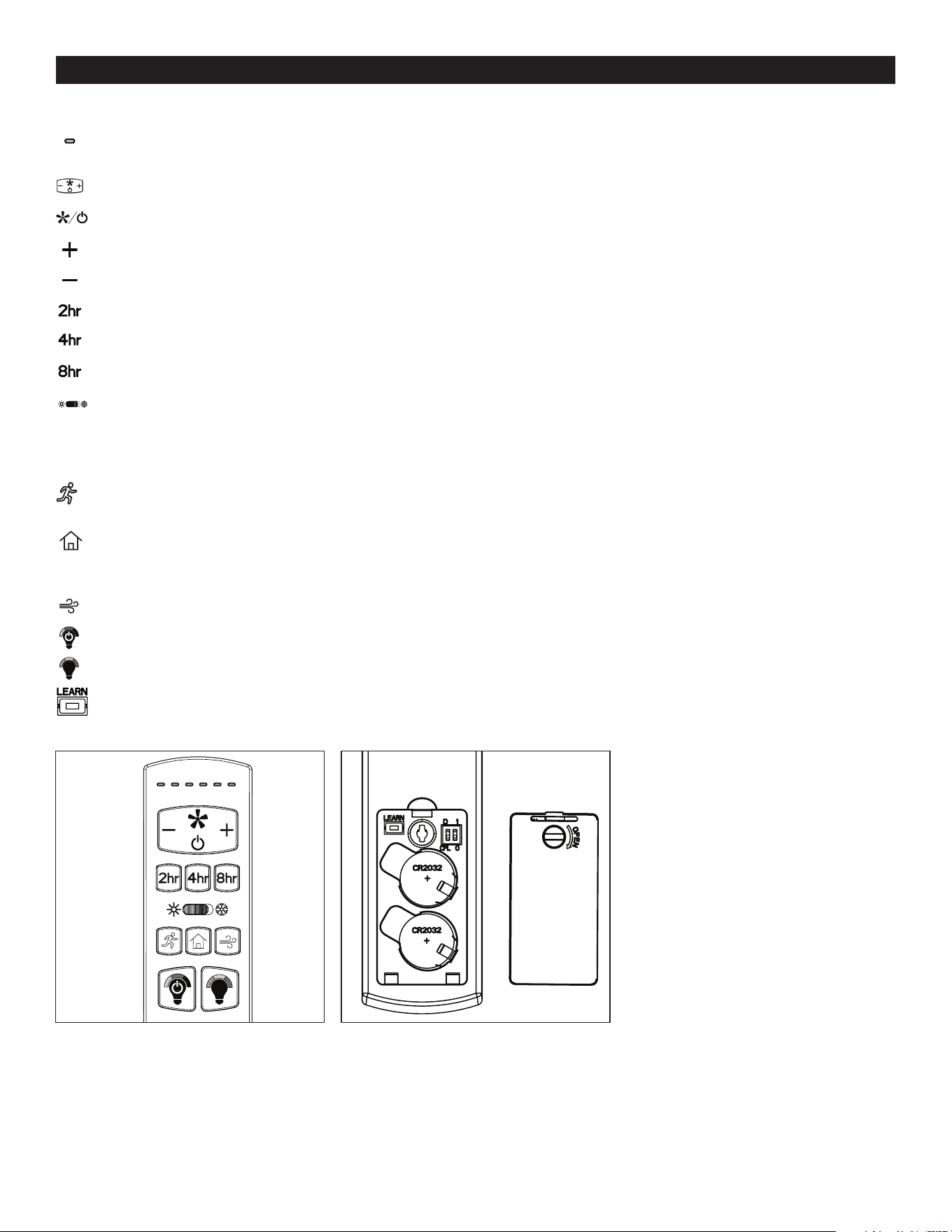

1. To operate the fan using the remote, press and release the following buttons (Figure 5.1):
LED Indicator - Indicates the six speeds of the fan. It should illuminate when any remote button is pressed. If not, replace
the DC3V, CR2032 batteries.
Fan Power button has three options:
Turns the fan off or turns fan on at previously selected speed.
Increase fan speed
Lower fan speed
Sleep Timer - Turn off fan after 2 hours (2hr). Press Fan Power button to deactivate.
Sleep Timer - Turn off fan after 4 hours (4hr). Press Fan Power button to deactivate.
Sleep Timer - Turn off fan after 8 hours (8hr). Press Fan Power button to deactivate.
Reverse Switch - In warmer weather, push the reverse switch left, which will result in downward airflow creating a wind
chill effect. In cooler weather, push the reverse switch right and the fan to low, which will result in upward airflow that can
help move stagnant, hot air off the ceiling area. Important: Wait for the fan to stop before moving the reverse switch. The
reverse switch must be set either completely left or right in order for the fan to function correctly. If the reverse switch is set
in the middle position, the fan will not operate.
Light Delay - Delays turning off light for one minute which allows safe exit from room. Light blinks to confirm function is
active. Press Light Control button to deactivate and turn the light off.
Home Shield™ - Simulates occupancy while away from home. Fan remains off and the light randomly turns on for a
minimum of five minutes and a maximum of 20 minutes. The light remains off for 60 minutes between events. Press and
hold button to activate. Light will blink to confirm Home Shield is active. Press any button to cancel.
Variable Breeze - Simulates a breeze in nature. Press and hold button to activate. Press any fan speed button to cancel.
Light Control - Tap button to turn the light off and on. Press and hold button to dim or brighten the lights.
Light Color - Press and hold button to cycle through the color temperatures from 2200K (warm white) to 6500K (daylight).
LEARN - Use button to resync remote to receiver (Figure 5.2). See TROUBLESHOOTING, page 11.
EN I 11
TROUBLESHOOTING
The fan does not
move.
The fan is noisy.
The fan wobbles
excessively.
The fan operates
correctly but the lights
are not working.
Remote does not
work.
1. Firmly push the reverse switch completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse (breaker).
4. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to control the fan speed.
4. Ensure the outlet box is secured to the building structure.
5. Ensure the mounting bracket is secured to the outlet box and that the screws are tight.
1. Ensure the single-pin connectors in the light kit are connected properly.
2. Turn the power off and check all connections at the ceiling outlet box.
1. Power surge may have cleared the memory and remote needs to be resynced to the receiver.
Syncing instructions: Within 30 seconds, press and hold the “LEARN” button (Figure 5.2) on the
back of the remote for 5 seconds. The fan will turn on at high speed and light will blink twice and
stay on, signaling a successful synchronization
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several remote fans in proximity, turn the power off to those fans and re-sync the fan.
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the
motor.
2. Switch one blade with a blade from the opposite side, or balance the fan using the blade
balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box. The bracket must be flush without movement against the outlet box. Verify
the outlet box is secure.
4. Use a longer downrod (sold separately) or move the fan to another location.
5. Lift up the yoke cover and tighten the set screws on the yoke until secure.
PROBLEM CORRECTIVE ACTION
If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are
experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883, Monday-Friday, 8am - 5pm, Central
Time.
WARNING: Shut off the power supply before you begin any maintenance task.
EN I 12
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and
material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling
fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and
material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts
made in whole or in part with glass and the finishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary
wear and tear, accident, misuse, or improper installation, is not covered by this warranty. The manufacturer assumes no
responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty
invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above.
The manufacturer shall not be liable for any loss or damage of any kind, including any incidental or consequential damages
resulting directly or indirectly, from any breach of warranty, express or implied, or any other failure of this product. Some states
do not allow the exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty
period associated with the defective part, the manufacturer agrees to replace the defective part without charge, or at its option,
to replace the ceiling fan with a comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime warranty. All other
express and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and
the implied warranty of merchantability is disclaimed. Some states do not allow the disclaimer of implied warranties, so this
disclaimer may not apply to you.

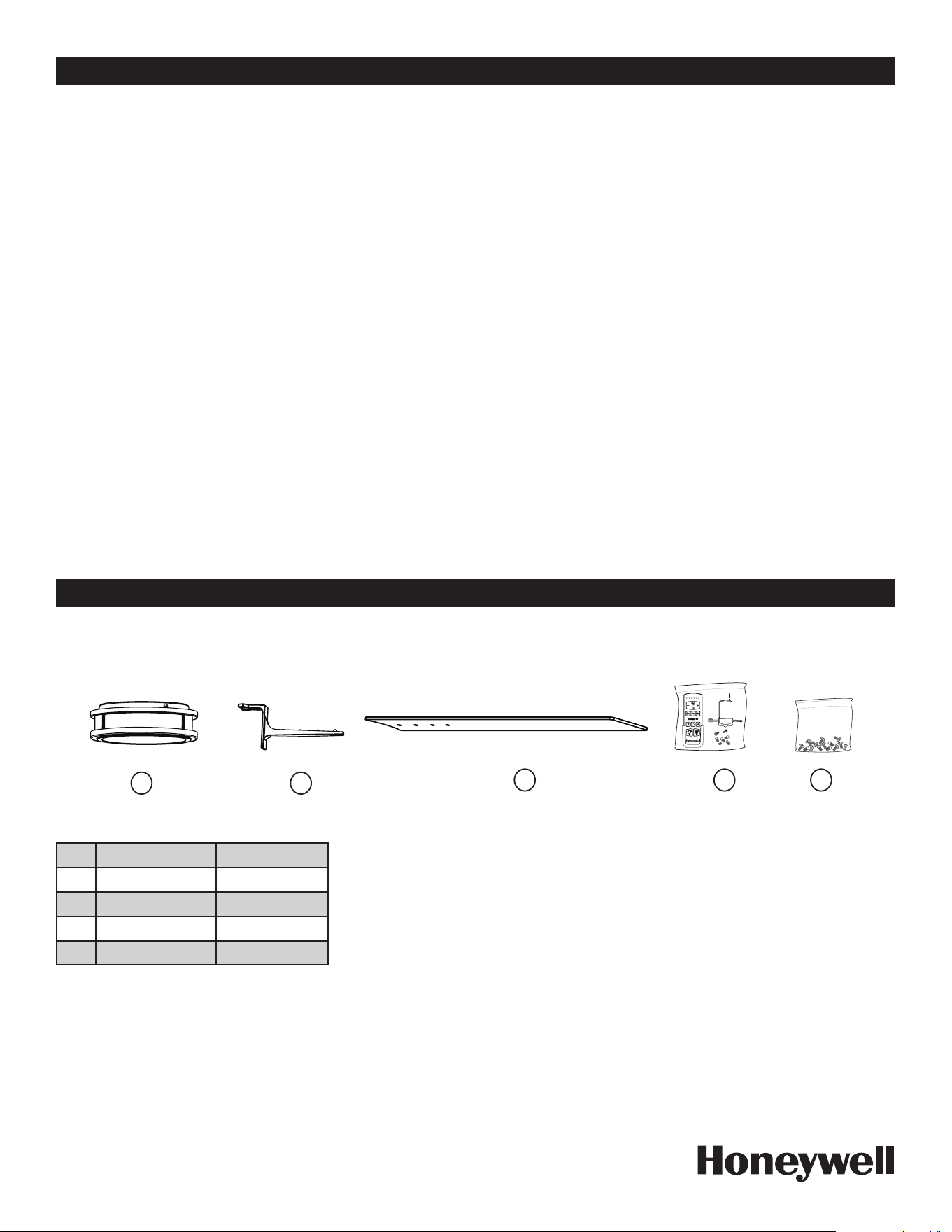

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department 1-877-361-3883. Monday-Friday, 8am - 5pm, Central Time.
A Glass Assembly
4A000026220
B Blade Arm (x 6)
4A073920007
C Blade (x 6)
4A086520001
D Remote Pack
4A000026460
HW Hardware Bag
4A000026450
A B
C D
HW
The Honeywell Trademark is used under license
from Honeywell International Inc ™.
Honeywell International Inc. makes no
representations or warranties with respect to this
product.
This product is manufactured for
Hong Kong China Electric Appliance, LTD.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1 (877) 361-3883
9933 • 112723
51907
Home
