Model: WWF8025DQWA
WWF7025EQWA
Washing Machine
2
CONTENTS
1.1 Conditions Of Use
1.2 Child Safety
1.3 General Safety
1.4 Installation
1.5 Use
1. SAFETY INFORMATION
........................................................................................................ 4
.................................................................................................................. 4
............................................................................................................. 5
.................................................................................................................... 6
.............................................................................................................................. 6
2.1 Parts
2.2 Accessories
2.
PRODUCT DESCRIPTION
............................................................................................................................ 7
.................................................................................................................. 7
3.1 Control Panel Description
3.2 Program Description
3.3 Maximum Load
3.4 Program Options Compatibility
3.5 Options
3.6 Settings
3.7 Start/Pause ( ) and Add Clothes ( ) Touchpad
3.
CONTROL PANEL
........................................................................................... 8
.................................................................................................... 9
............................................................................................................ 9
..................................................................................... 10
........................................................................................................................ 10
........................................................................................................................ 13
................................................... 14
5.1 Loading The Laundry
5.2 Using Detergent And Additives
5.3 Options Setting
5.4 Starting A Cycle ( )
5.5 Interruption Of A Program
5.6 Changing A Program
5.7 Changing The Options
5.8 Opening The Door
5.9 At The End Of The Program
5.10 When The Washing Program Is Completed, But There Is Water In The Drum
5.11 AUTO Standby Mode
5.
DAILY USE
.................................................................................................... 15
.................................................................................... 15
............................................................................................................ 16
.................................................................................................. 17
............................................................................................ 17
................................................................................................... 17
................................................................................................ 17
........................................................................................................ 17
........................................................................................ 17
......... 18
................................................................................................. 18
4.
BEFORE FIRST USE
....................................................................................................... 14
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
3
CONTENTS
6.1 Sorting The Laundry
6.2 Temperatures
6.3 Before Loading The Laundry
6.4 Maximum Loads
6.5 Removing Stains
6.6 Detergents Type And Quantity Of Detergent
6.
WASHING HINTS
.................................................................................................... 19
............................................................................................................... 19
........................................................................................ 19
........................................................................................................... 19
.......................................................................................................... 19
................................................................ 20
8.1 External Cleaning
8.2 Descaling
8.3 After Each Wash
8.4 Maintenance Wash
8.5 Cleaning The Dispenser Drawer
8.6 Cleaning The Drawer Recess
8.7 Cleaning The Drawer Bottom
8.8 Cleaning The Water Inlet Filter
8.9 Frost Precautions
8.
CARE AND CLEANING
........................................................................................................ 21
..................................................................................................................... 21
.......................................................................................................... 21
...................................................................................................... 22
.................................................................................. 22
...................................................................................... 22
....................................................................................... 23
.................................................................................... 24
......................................................................................................... 24
9.1 Possible Failures
9.2 Emergency Door Opening
9.
TROUBLESHOOTING
........................................................................................................ 25
........................................................................................... 27
7.
INTERNATIONAL WASH CODE SYMBOLS
................................................................ 21
10.
TECHNICAL DATA
.......................................................................................................... 28

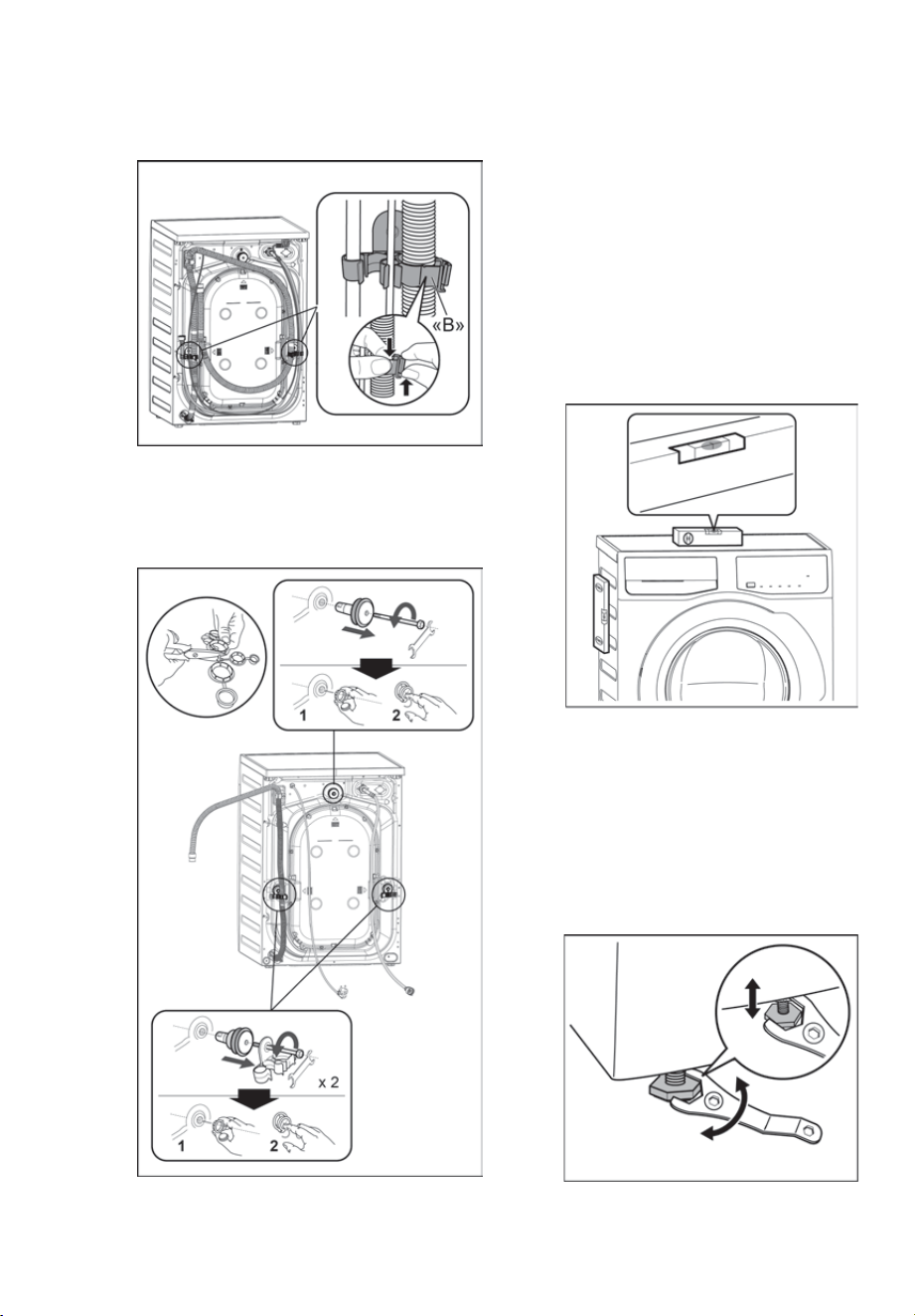

11.1 Unpacking
11.2 Positioning
11.3 Water Inlet
11.4 Water Drainage
11.5 Electrical Connection
................................................................................................................ 29
................................................................................................................ 30
................................................................................................................. 31
......................................................................................................... 31
................................................................................................. 32
11.
INSTALLATION
12.1 Packaging Materials
12.2 Old Machine
12.3 Ecological Hints
.................................................................................................. 33
............................................................................................................... 33
......................................................................................................... 33
12.
ENVIRONMENT CONCERNS
13.
WARRANTY
................................................................................................................... 34
4
SAFETY INFORMATION
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels, and other residential type
environments;
1.1 Conditions Of Use
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
●
bed and breakfast type environtments;
●
areas for communal use in blocks of flats or in
launderettes.
●
staff kitchen areas in shops, offices and other working
environtment;
●
●
●
This washing machine is not intended for use by
young children or infirm persons without supervision.
1.2 Child Safety
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.
5
●
●
●
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
Make sure that children or pets do not climb into the
drum.
Keep all detergents in a safe place out of children’s
reach.
●
This machine is provided with child safety lock option
( ) to prevent children playing with the control panel.
(see page 13)
●
1.3 General Safety
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your washing machine to
wash articles with whalebones,
material without hems or torn
material.
●
●
●
●
●
●
●
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●
●
●
6
Never use the washing machine if
the power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washing machine is accessi-
ble.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
1.4 Installation
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
Any electrical work required to install
this appliance should be carried out
by a qualified electrician.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which
it was designed.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
1.5 Use
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
7
PRODUCT DESCRIPTION2.
2.1 Parts
Detergent/Softener Dispenser
2
1
Worktop
2
Control Panel
3
Door
4
Emergency
Door Opening
5
Front Feet
(Level Adjustment)
6
Water Drain Hose
7
Water Inlet Hose
8
Rear Feet (Level Adjustment)
9
Mains Cable
10
Transit Bolts
11
Transit Bolts, Hose Support
12
3
4
6
9
10
11
7
1
8
All transit bolts (3 pcs) must be
removed before using the appliance.
CAUTION !
12
5
2.2 Accessories
To connect the drain hose on the edge
of a sink.
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
Plastic Caps
1
Plastic Hose Guide
2
To adjust levelling legs.
Spaner
To remove the transit bolts.
3
3
1
2
8
CONTROL PANEL3.
On/Off Button
3.1 Control Panel Description
1
Program Touchpad
2
Temp Touchpad
3
Delay End Touchpad
9
Display
10
LED Icon
Pause to add clothes status icon
Door Lock status icon
Extra Rinse status icon
Delay End status icon
11
Child Lock Option
4
Spin Touchpad
5
Extra Rinse Option
6
Option Touchpad
7
Start/Pause Touchpad
8
Woolmark Apparel Care
The wool wash cycle of this machine has been approved by The Woolmark
Company for the washing of machine washable wool products provided that
the products are washed according to the instructions on the garment label
and those issued by the manufacturer of this washing machine.
M1758.
The Woolmark symbol is a Certification mark in many countries.
1
10
2 3 4 65 7 8 9
11
9
3.2 Program Description
Program
Temperature
can be
selected
Cold, 30, 40, 60 ,90°C
-
White cotton with heavy.level of soil
To reset program/switching off the machine.
Type of load and soil level
Synthetic or mixed fabric items with normall level of soil
30°C
Lightly soiled synthetics or mixed fabrics.
Coloured cotton e.g. shirts, blouses, towels and
undergarments with normal level of soil.
Cold, 30, 40, 60°C
Cold, 30, 40°C
Cold, 30, 40°C
Cold, 30, 40°C
40°C, 60°C
30, 40, 60°C
Specially tested program for woollen garments
bearing the “Pure new woollen, non-shrink,
machine washable” label.
Bedding
Special program for one synthetic blanket,
duvet, bedspread and so on.
Energy Saver
White and colourfast, cotton with normal soil. Set
this program to have a good washing results and
decrease the energy consumption. The time of
the washing program is extended.
Delicate fabrics such as acrylics, viscose,
polyester items.
Whites
On/Off ( )
Colours
Delicates
Quick 15
Wool
Daily 60
1) Energy Saver program with 60 degC and 1200rpm is recommended for a full load of
normally soiled cottons, and is the Energy rating label program.
3.3 Maximum Load
Program
8.0 kg
4.0 kg
1.5 kg
5.0 kg
4.0 kg
1.5 kg
4.0 kg
8.0 kg
7.0 kg
3.5 kg
1.5 kg
4.0 kg
3.5 kg
1.5 kg
3.5 kg
7.0 kg
Maximum Load (kg)
WWF8025DQWA WWF7025EQWA
Bedding
Energy Saver
Whites
Colours
Delicates
Quick 15
Wool
Daily 60
1)
10
1) Vapour option can be combined with temperature 40°C to 90°C only.
3.4 Program Options Compatibility
Program
Option
Vapour Quick Soak
Rinse &
Spin
Drain &
Spin
Delay End
Extra
Rinse
Whites
Colours
Quick 15
Daily 60
Delicates
Wool
Bedding
Energy Saver
1)
The door stays locked with the
water in the drum. To continue
the cycle, you must press
(Start/Pause).
Temperature Touchpad
Press this touchpad repeatedly to
increase or decrease the wash tempera-
ture if you want your laundry to be
washed at a temperature different from
the one proposed by the washing
machine.
Spin Selection Touchpad
Press this touchpad repeatedly to
increase or decrease the spin speed or
select Rinse Hold, if you want your
laundry to be spun at a speed different
from the one proposed by the washing
machine.
Maximum speeds are:
1200 rpm
1000 rpm
No spin option eliminates all the spin
phases and increase the number of
rinses.
No Spin
By selecting this option, the water of
the last rinse is not emptied out and
the drum turns regularly to prevent the
laundry creases.
The door is still locked to indicate that
the water must be emptied out.
Rinse & Hold
3.5 Options
Energy Saver
Whites
Program Spin Speed
Colours
Delicates
Daily 60
Wool
800 rpm
Bedding
Quick 15
-
-
11
Select this option to add approximately
30 minutes of tumbling in vapour during
the wash cycle. Vapour helps open fabric
fibers up to allow laundry additives to
release tough stains. The indicator of this
option will be on.
Vapour Touchpad
Vapour may not necessarily be visible
inside the drum during a vapour wash
cycle. Vapour is created below the
drum and allowed to naturally rise into
the clothes.
At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may
notice vapour exiting from the drain
hose of the washing machine, this
is normal and there is no cause for
alarm.
Vapour may not be present during the
entire vapour wash cycle.
Vapour function is more effective with
half load.
NOTE:
●
●
●
●
With this option you can decrease the
program duration. Use this option for
items with light soil or items to refresh.
Quick
This option will reduce the working
time and the number of rinses.
If you need to add more rinse
phases, press “Spin” + “Option” at
the same time to add “Extra Rinse
” option.
This option allows you to soak heavily
soiled clothes and stained items at the
beginning of the wash before main
washing phase.
This option will increase the duration of the
program selected for about 50 minutes.
And uses more water from normal wash.
The process is as follows.
Soak
Fills with water while rotating the drum
to slowly dissolve the detegent. (this
takes about 20 minutes)
If you do not wish to use the soak water to
wash clothes, please follow the steps
below:
NOTE
During Soak phase,
drum will rotate
occasionally to
redistribute the clothes.
Press Start/Pause to pause the
machine. Then press On/Off to turn off
the machine.
1.
Press On/Off again to start the
machine, add detergent, and select a
program. Press Start/Pause to start the
selected program.
2.
1.
Soak (this takes about 30 minutes)
2.
Once Soak phase is completed
machine may add more water if
required then proceeds to main Wash.
3.
12
After selecting Delay End time, press Start/Pause touchpad to start the program. Machine
will then countdown and update time on the display every hours until it reaches the
starting point of the wash cycle.
If you wish to modify or cancel Delay End option after starting the program, follow the
steps below:
set the washing machine to PAUSE by pressing “Start/Pause” touchpad;
-
deselect this option by pressing “Delay End” touchpad repeatedly till the display shows
delay time “ ”;
-
press the “Start/Pause” to start the program.
-
Delay End Touchpad ( )
Before you start the program, this option makes it possible to define the end of the
washing program from minimum of 1 hour to maximum of 20 hours.
eg. if program duration is longer than 3 hours, minimum Delay End option starts
from 4 hours.
Press the Delay End touchpad to choose the end time as you wish. The display shows
the number of hours and the indicator beside the touchpad is on.
For example, if the program duration of your selected program is 3.20 hours and you
define the “Delay End” time to 6 hours. This means your wash program will finish in 6
hours. (See diagram)
This option must be selected after choosing the wash program, and before
pressing the “Start/Pause” touchpad.
With this option you can perform only the
last rinse of a selected washing program.
Rinse & Spin
Use this option for very wet clothes to
remove the water and spin.
Drain & Spin
Any temperature may be selected,
but “Cold” water is recommended
with this cycle as hotter water may
set some stains.
Use the amount of detergent
recommended for a normal wash
cycle. If desired, use a bleach or a
soaking agent safe for the fabric,
by pouring it into the detergent
compartment.
NOTE
Machine will drain remaining soak
water and starts filling with fresh
water for the main wash.
-
End of CycleStart the
Program
“Delay End” Time : 6 hrs.
Countdown
Program
Cycle
Pressed
Start/Pause
Extra Rinse and No Spin can also be
selected with this option.
13
3.6 Setting
●
●
●
●
Extra Rinse Option ( )
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft. Use
this option to add two rinse phases to a
program.
To activate this option, press “Spin”
and “Option” touchpads at the same
time until the “Extra Rinse” ( ) LED
turn on.
To deactivate this option, press “Spin”
and “Option” touchpads at the same
time until the “Extra Rinse” ( ) LED
turn off.
Child Safety Lock Option ( )
Your appliance is provided with CHILD
SAFETY LOCK which permits you to
leave the appliance unsupervised with
the door closed without having to worry
that children might be injured by or cause
damage to the appliance.
To activate the function, press
“Temp” and “Spin” touchpads at the
same time until symbol “ ” (lock)
show on the display with sound.
To set “Child Lock” option:
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when
the wash finished approximately 1 hour
later, it will not disturb you through the
night.
Error warning beeps such as
critical faults are not disabled.
Enabling/Disabling
End-Of-Wash Buzzer
To deactivate the function, press
“Temp” and “Spin” touchpads at the
same time until symbol “ ” (unlock)
show on the display with sound.
This function remains enabled
even after the appliance is
switched off.
After activating Child Lock,
if you press any touchpad,
symbol “ ” will flash on
display along with buzzer
sound. (except “On/Off”
button)
●
●
To disable the buzzer sound, press
“Program” and “Temp” touchpads at
the same time for 3 seconds, and
listen for “BEEP BEEP”.
To return to default configuration
press these 2 touchpads at the same
time for 3 seconds, and listen for
“BEEP”.
This option remains enabled
even after the appliance is
switched off.
Set this option after pressing the
“Start/Pause ” touchpad.
14
BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.
Put 2 litres of water in the detergent
compartment for washing phase.
This activates the drain system.
1.
2.
3.
To remove any manufacturing
residue inside the machine run a
Cottons cycle at 90 °C without any
laundry or detergent in the machine.
During installation or before first use
you may observe some water in the
machine. This is a residual water left in
the machine after a full functional test
in the factory to ensure the machine is
delivered to customers in perfect
working order and is no cause for
concern.
NOTE
Start/Pause ( ), Pause to add clothes ( )
This touchpad has 2 functions:
Start/Pause ( )
To interrupt a program which is
running, press this touchpad to pause
the machine, the “Start/Pause” pilot
light flashes.
After you have selected the desired
program and options, press this
touchpad to start the machine. The
“Start/Pause” pilot light will stop
flashing and remain lit until the water
level is above the bottom edge of the
door then pilot light goes OFF. If you
have selected a “Delay End” option,
the countdown will begin and will be
shown on the display.
To restart the program from the point
at which it was interrupted, press this
touchpad again, the “Start/Pause”
pilot light will stop flashing.
Pause to add clothes ( )
While running a program, you may add
clothes by:
Pressing the “ ” touchpad to pause
the program.
You can only add clothes if add
clothes “ ” pilot light is lit.
-
Wait for the machine to come to a
complete stop before opening the door.
-
Resume the program by pressing “ ”
touchpad again.
-
Add clothing and close the door.
-
3.7
For Safety reasons, door will
remain locked if water tempera-
ture is too HOT regardless of
pilot is lit or not.
15
5.2
Detergent Dispenser Drawer
1.
Using Detergent And
Additives
IMPORTANT: Please read
“Detergents Type and
Quantity of Detergent”on
page 20 before use.
DAILY USE5.
Press the On/Off button to switch the
machine ON.
1.
2.
5.1 Loading The Laundry
Connect the main plug to the main
socket.
Turn the water tap on.
3.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to page 19
“WASHING HINTS”)
5.
Close the door.
6.
Check and remove objects (if there
are any) that could be trapped in the
fold.
4.
Make sure that no laundry
remains between the seal and
the door.
CAUTION
Press the Program touchpad, to
choose the wash program you
require. (For more information
about washing programs, please
see page 9)
-
The display shows the program
duration.
-
The relevant light will light up.
“DETERGENT
FLAP”
“
DETERGENT
”
Compartment
“
SOFTENER
”
Compartment
The detergent dispenser is divided into
two compartments.
Compartment “SOFTENER”
This compartment is used for fabric
conditioner and starching agent.
-
Compartment “DETERGENT”
This compartment is used for detergent
on all programs.
-
Powder or liquid detergent ( )
Position down: for liquid detergent.
Position up: for powder detergent
(factory setting).
Do not use gelatinous or thick
liquid detergents.
-
Do not put more liquid than the
maximum level.
-
Do not set the Delay End.
-
When you use the liquid detergent:
16
Press the option touchpads, if you
want your laundry to be washed with
special functions.
Different functions can be
combined which is dependent on
the program selected.
If you want your laundry to be spun or
use temperature different from the one
proposed by the washing machine,
pess the “Spin” and the “Temp”
touchpads repeatedly to change the
spin speed and temperature.
5.3 Options Setting
1.
Measure out the amount of
detergent required, pour it into the
Detergent compartment.
Pull out the dispenser drawer until it
stops.
-
-
Measure out the detergent and the
fabric softener;
2.
If required, pour fabric softener into
the compartment marked “ ”.
-
Close the drawer gently.
NOTE:
NOTE:
-
-
Residues of detergent, softener
and water may remain in the
dispenser. It is recommended to
clean the dispenser regularly to
remove any residue.
The amount used must not exceed
the “MAX” mark in the drawer.
If you use thick softeners it is
recommended to dilute with water.
Position down: for liquid
detergent.
Position up: for powder detergent
(factory setting).
17
The appliance stops automatically.
The acoustic signal will operate.
The display will show “ ”.
The indicator of the touchpad
Start/Pause goes off.
-
-
-
-
-
-
The door lock indicator “ ” goes off.
Remove the laundry from the
appliance. Make sure that the drum is
empty.
5.9 At The End Of The Program
If you want to decrease washing time,
press the “Quick” option touchpad.
See page 11.
If you want to define the end of the
washing cycle, press the “Delay End
( )” touchpad repeatedly to choose
your washing machine working time.
To pause, press Start/ Pause. The
indicator will start flashing.
-
Press the Start/Pause again.
The program will continue.
-
Changing a running program is possible
only by switching off the appliance.
Press the “On/Off” button to cancel
the program and to turn off the
appliance.
-
5.5 Interruption Of A Program
5.6 Changing A Program
It is possible to change only some option
after the program has started.
Press the “On/Off” button again to
start the appliance. Now, you can set
a new washing program.
The appliance will not drain
the water.
-
5.7 Changing The Options
Press the touchpad Start/Pause. The
indicator will start flashing.
1.
If available change the options that
you wish.
2.
Press Start/Pause again. The program
will continue.
3.
2.
If an option is not compatible with the
wash program selected, symbol “ ”
will flash on display along with buzzer
sound.
-
The appliance will automatically
adjust the selected program
duration according to the type
and size of the load.
The display will show adjusted
program duration.
To start a program, press the Start/Pause
touchpad. The corresponding pilot light
will stop flashing and a default program
duration will be displayed on the screen.
5.4 Starting A Cycle ( )
After approx. 15 minutes from
the start of a program:
If you press any touchpad while a
program is operating, symbol “ ” will
flash on display along with buzzer sound.
(except Start/Pause touchpad)
While a program or the Delay End is
operating, the appliance door is locked
and the door lock indicator “ ” is on.
First set the machine to PAUSE by
pressing the “Start/Pause” touchpad.
Wait until the door lock indicator “ ”
goes off, then the door can be opened.
If the door lock indicator “ ” does not
disappear, this means that the machine
is already heating and the water level is
above the bottom edge of the door or the
drum is turning. In this case the door
CAN NOT be opened. If you need to
open it, you must drain the water to open
the door.
In case of emergency please
refer to “Emergency door
opening” on page 28.
5.8 Opening The Door
To drain the water, you have to switch
the machine off by pressing the “On/Off”
button to deactivate the appliance. Turn
On the machine and select “Drain & Spin”
option, you can select “No Spin”, if you
want the machine to only drain the
water then press Start/Pause touchpad
to start the program.
When the program is completed and
the door lock indicator “ ” goes off,
you can open the door.
18
5.10 When The Washing
Program Is Completed, But
There Is Water In The Drum
(Option “Rinse & Hold” is used)
The drum turns regularly to prevent
the creases in the laundry.
You must drain the water to open the door.
The indicator “Start/Pause” flashes to
remind you to drain the water.
-
-
-
-
-
Keep the door partly open, to prevent
the mildew and odours.
Turn off the water tap.
NOTE:
At the end of the program, the time
remaining can suddenly decrease from 7
minutes or less to 0 due to the
overestimated total program time during
the load sensing phase. In some cases
(with perfectly balanced load) the program
time can be shorter than the time
estimated after the load sensing phase is
completed. This is a normal behavior of
the machine and not a cause for concern
as it does not compromise its
performance.
NOTE:
The door lock indicator “ ” is on.
The door stays locked.
1.
To drain the water:
Press the “Start/Pause ” touchpad.
The appliance drains the water and
spins with the maximum spin speed
for selected program.
Alternatively, before pressing the
“Start/Pause” touchpad, you can press
the “Spin” touchpad to change the
spin speed. You can select “No Spin”,
if you want the machine to only drain
the water.
2.
Press the “On/Off” button to deactivate
the appliance.
3.
After approximately 18 hours, if you do
not press Start/Pause touchpad, the
appliance will drain and spin automati-
cally (except for “Wool” program) .
5.11 AUTO Standby Mode
To reduce energy consumption Auto
Standby mode will automatically
deactivates the appliance when:
You do not press any touchpads for
5 minutes before you press
“Start/Pause”.
After 5 minutes from the end of the
washing program.
Press the “On/Off” button to
activate the appliance again.
19
WASHING HINTS6.
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics,
delicates, woollens.
6.1 Sorting The Laundry
6.2 Temperatures
90°C
60°C
40°C
30°C
Cold
For normally soiled, colourfast
garments (e.g. shirts, night
dresses, pajamas....) in linen,
cotton or synthetic fibres and for
lightly soiled white cotton
(e.g.underwear).
For delicate items (e.g. net
curtains), mixed laundry
including synthetic fibres and
woollens bearing the label pure
new wool, machine washable,
non-shrink.
For normally soiled white cottons
and linen (e.g. teacloths, towels,
tablecloths, sheets...).
Never wash whites and coloureds
together. Whites may lose their
“whiteness” in the wash.
New coloured items may run in the first
wash; they should therefore be
washed separately the first time.
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.
Remove persistent stains before
washing.
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Remove hooks or tie them up in a bag
or a net.
Make sure that no metal objects are
left in the laundry (e.g. hair clips,
safety pins, pins).
6.3 Before Loading The Laundry
Recommended loads are indicated in the
program charts. General rules:
Washing a maximum load makes the
most efficient use of water and energy.
For heavily soiled laundry, reduce the
load size.
Cotton, linen:
drum full but not too
tightly packed;
Synthetics:
drum no more than
half full;
Delicate fabrics
and woollens:
drum no more than
one third full.
6.4 Maximum Loads
Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine
stain remover, lay the garment on a soft
cloth and dab the stain; treat several
times.
Dried grease stains: moisten with
turpentine, lay the garment on a soft
surface and dab the stain with the
fingertips and a cotton cloth.
Stubborn stains may not be removed by
just water and detergent. It is therefore
advisable to treat them prior to washing.
6.5 Removing Stains
Rust: oxalic acid dissolved in hot water or
a rust removing product used in cold
water. Be careful with rust stains which
are not recent since the cellulose
structure will already have been damaged
and the fabric tends to hole.
Wash bras, pantyhose and other
delicates in a mesh laundry bag, which
you can purchase from your
supermarket.
Make sure that you wash lint collectors
separately from lint producers.
20
Mould stains: treat with bleach, rinse
well (whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft
cloth and dab the stain.
Lipstick: moisten with acetone (*) as
above, then treat stains with methylated
spirits. Remove any residual marks from
white fabrics with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink,
moisten the fabric first with acetone (*),
then with acetic acid; treat any residual
marks on white fabrics with bleach and
then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub
with detergent paste.
(*) do not use acetone on artificial silk.
Low sudsing detergent is required for this
washing machine to prevent oversudsing
problems, unsatisfied washing result and
harm to the machine. Low sudsing
detergents designed for front load
washing machines are labelled “Front
Loading”, “high efficiency”, “HE”, such as
Cold Power for Front Loaders or “Matic”.
6.6 Detergents Type And
Quantity Of Detergent
Do not use wrong types of detergent,
such as Top Loading, Handwash
detergent or Soap-Based products in
your frontload washing machine. This
can result in excessive suds, longer
cycle time, low spin speeds, poor
rinsing and overloading of the motor.
The choice and quantity of detergent will
depend on ;
type of fabric (delicates, woollens,
cottons, etc.) ;
degree of soil ;
size of the load ;
wash temperature ; and
hardness of the water used.
the colour of clothes ;
Information on hardness of the water in
your area can be obtained from the
relevant water supply company, or from
your local authority.
You may have to try using the detergent
quantity as per manufacturers’
instructions then compare the wash result
to the list below and adjust the amount of
detergent for your future washes
accordingly.
Water hardness is classified by so-called
“degrees” of hardness.
The choice of detergent and use of correct
quantities not only affects your wash
performance, but also helps to avoid waste
and protect the environment. Although
biodegradable, detergents contain
substances which in large quantities can
upset the delicate balance of nature.
Quantity of detergent to be used
the washload to turn grey,
greasy clothes.
sudsing,
inadequate rinsing.
reduced washing effect,
Not enough washing powder causes:
Too much washing powder causes:
you are washing a small load,
large amounts of foam during washing.
the laundry is lightly soiled,
Use less detergent if:
21
INTERNATIONAL WASH CODE SYMBOLS7.
These symbols appear on fabric labels, in order to help you choose the best
way to treat your laundry.
Bleach in cold water DO NOT bleach
Bleaching
Hand wash
Max. wash
temperature
95 °C
Hot iron
max. 200 °C
Dry cleaning in
all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning in
petrol, pure alcohol
and R 113
DO NOT
dry clean
Warm iron
max. 150 °C
Lukewarm iron
max. 110 °C
DO NOT iron
Max. wash
temperature
60 °C
Max. wash
temperature
40 °C
Max. wash
temperature
30 °C
DO NOT
wash at all
Ironing
Dry cleaning
Drying
Flat Tumble dry DO NOT
tumble dry
High
temperature
Low
temperature
On clothes
hanger
On the line
Energetic
wash
Delicate wash
CARE AND CLEANING8.
WARNING! You must DISCONNECT the
appliance from the electricity supply,
before you can carry out any cleaning or
maintenance work.
The water we use normally contains lime.
It is a good idea to periodically use a
water softening powder in the machine.
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
CAUTION! Do not use alcohol,
solvents or chemical products.
Do this separately from any laundry
washing, and according to the softening
powder manufacturer's instructions.
This will help to prevent the formation of
lime deposits.
8.2 Descaling
8.1 External Cleaning
Leave the door open for a while. This
helps to prevent mould and stagnant
smells forming inside the appliance.
Keeping the door open after a wash will
also help to preserve the door seal.
8.3 After Each Wash
22
With the use of low temperature washes
it is possible to get a build up of residues
inside the drum.
We recommend that a maintenance
wash be performed on a regular basis.
8.4 Maintenance Wash
The drum should be empty of laundry.
Select the hottest cotton wash
program.
To run a maintenance wash:

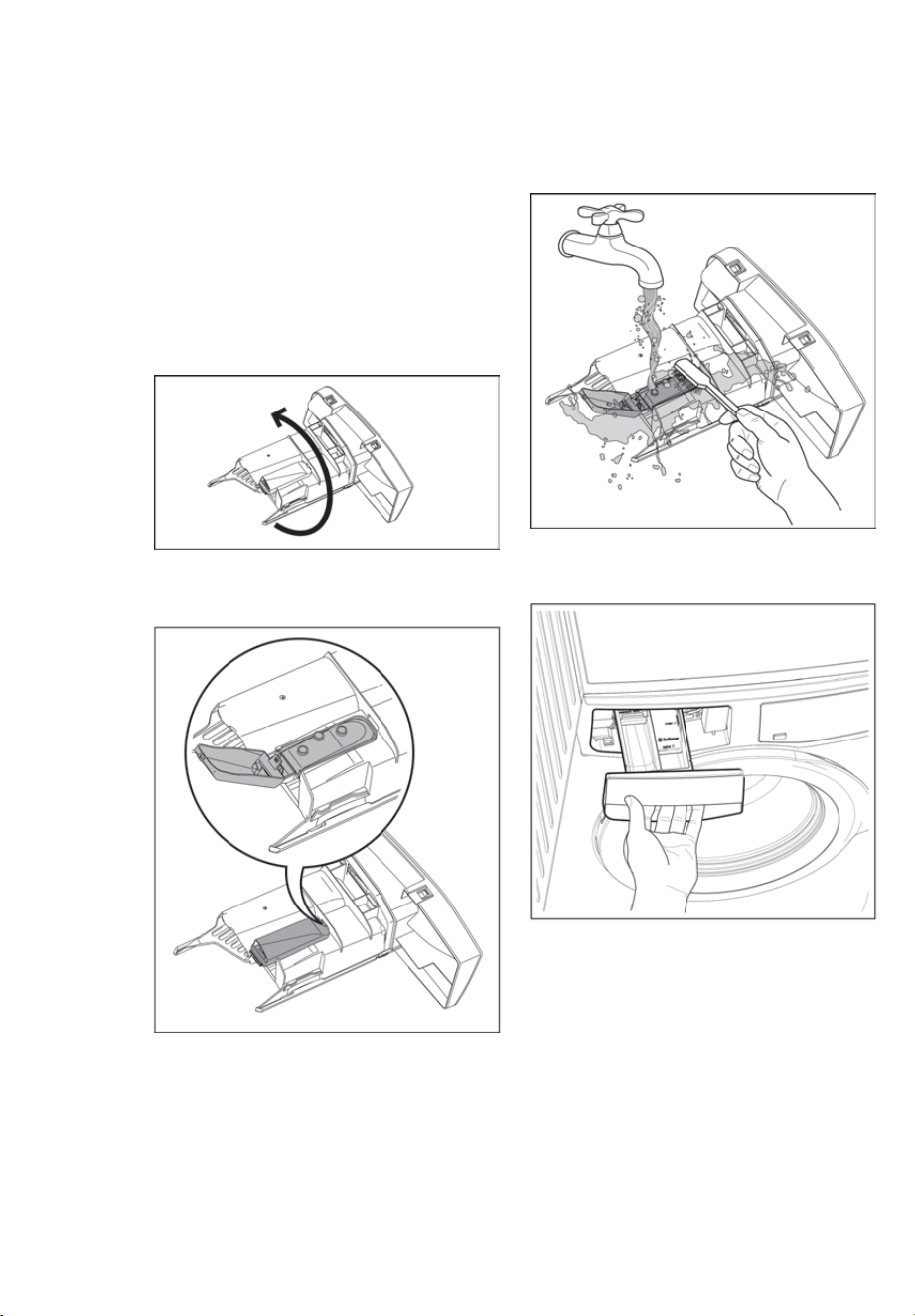

The washing powder and additive
dispenser drawer should be cleaned
regularly. Remove the drawer by
pressing the catch downwards and by
pulling it out. Flush it out under a tap, to
remove any traces of accumulated
powder.
8.5 Cleaning The Dispenser
Drawer
Having removed the drawer, use a small
brush to clean the recess, ensuring that
all washing powder residue is removed
from the upper and lower part of the
recess. Replace the drawer and run the
rinse program without any clothes in the
drum.
8.6 Cleaning The Drawer Recess
To aid cleaning, the top part of the
additive compartment should be removed.
23
After washing cycle finish, residues of
softener and water may remain in the
softener dispenser. It is recommended to
clean the bottom of softener dispenser
regularly to remove any residue.
8.7 Cleaning The Drawer Bottom
1.
After pulling out the drawer from its
recess, turn the bottom side up.
To clean the bottom of softener
dispenser:
2.
Push the catch and pull up the
softener bottom cover.
3.
Clean the dispenser with an old
toothbrush under the water tap.
4.
Close the softener bottom cover.
24
Remove the water inlet hose from
the water tap.
Clean the filter in the inlet hose with
a stiff brush.
If your water is very hard or contains
traces of lime deposit, the water inlet
filter may become clogged. It is therefore
a good idea to clean it from time to time.

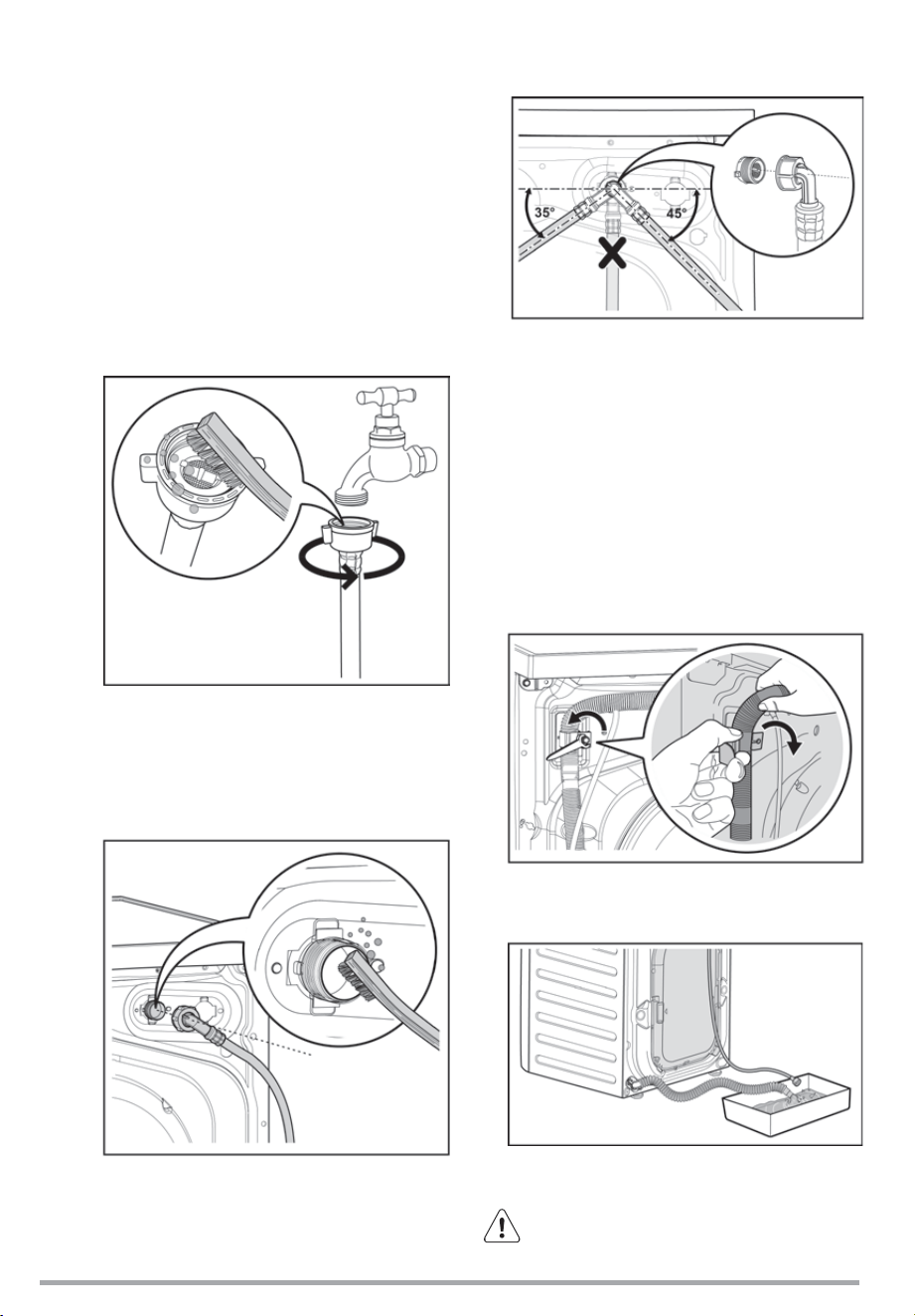

8.8 Cleaning The Water Inlet
Filter
To clean the water inlet filters:
1.
Close the water tap.
2.
3.
4.
5.
6.
7. Open the water tap.
Remove the inlet hose behind the
appliance.
Clean the filter in the valve with a
stiff brush or a towel.
Install the inlet hose again. Make
sure that the couplings are tight to
prevent leakages.
If the appliance is installed in an area where
the temperature can be less than 0 °C,
remove the remaining water from the inlet
hose and the drain pump.
Emergency Drain
8.9 Frost Precautions
Disconnect the main plug from the main
socket. Turn off the water tap.
1.
2. Remove the water inlet hose.
3. Remove the drain hose from the rear
support and unhook it from sink or spigot.
Put the end of the drain and inlet hose in a
container. Let the water flow out of the
hoses.
4.
5. When no more water flows, install the inlet
hose and the drain hose again.
NOTE: Make sure that the temperature
is more than 0 °C before you use the
appliance again.
25
TROUBLESHOOTING9.
9.1 Possible Failures
Certain problems are due to lack of
simple maintenance or oversights, which
can be solved easily without calling out an
engineer. Before contacting your local
Service Centre, please check possible
cause of malfunction and solution listed
below.
Once the problem has been eliminated,
press the Start/Pause button to restart the
program. If after all checks, the problem
persists, contact your local Service Centre.
WARNING! Deactivate the appliance
before you do the checks.
The door has not been closed. (code: )
The plug is not properly inserted in the
power socket.
Insert the plug into the
power socket.
Please check your domestic
electrical installation.
Press the Start/Pause ( )
touchpad.
If the laundry are to be
washed immediately, cancel
the “Delay End”.
Wait until the main supply is
stable. Appliance will start
automatically.
There is no power at the socket.
The Start/Pause ( ) touchpad has not
been pressed.
The “Delay End” has been selected.
The Main supply is unstable.
(If code “ ” appears in the display.)
The inlet hose is squashed or kinked.
(code: )
Check the inlet hose
connection.
The end of the drain hose is too low.
(code: )
Refer to relevant paragraph
in “water drainage” section
on page 31.
The filter in the inlet hose is blocked.
(code: )
Clean the water inlet hose
filter.
The door is not properly closed. (code: ) Close the door firmly.
The water tap is closed. (code: ) Open the water tap.
The washing
machine does
not start:
The machine
does not fill the
water:
The machine
fills then
empties
immediately:
Malfunction Possible Cause Solution
Close the door firmly.
The drain hose is squashed or kinked.
(code: )
Check the drain hose
connection.
The machine
does not empty
and/or does
not spin:
The option “Rinse & Hold” has been
selected.
Press Start/Pause ( )
touchpad to drain the water
or select spin program.
The laundry is not evenly distributed in the
drum.
Pause the machine and
redistribute laundry manually.
The appliance does not fill with water
properly.
The appliance door is open or not
closed correctly. Please check the door!
The appliance does not drain the water.
The main supply is unstable. Wait until
the main supply is stable.
No communication between electronic
elements of the appliance. Switch off
and switch on again.
Water leaks inside the machine.
Please call Service Centre.
Alarm Code:
26
Malfunction Possible Cause Solution
Too much detergent or unsuitable
detergent (creates too much foam)
has been used.
Reduce detergent quantity and
use correct type of detergent
(refer page 20).
Check whether there are any leaks
from one of the inlet hose fittings. It
is not always easy to see this as
the water runs down the hose;
check to see if it is damp.
Check the water inlet hose
connection.
Too little detergent or unsuitable
detergent has been used.
Increase detergent quantity or use
different detergent (refer page 20).
The program is still running. Wait until the end of cycle.
The transit bolts and packing have
not been removed.
Check the correct installation of the
appliance.
Detergent over dose.
Unbalanced load
The support feet have not been
adjusted.
Check the correct levelling of the
appliance.
Pause the machine and redistribute
laundry manually.
Refer to relevant paragraph in
“Positioning” section.
Reduce the detergent quantity or
use another one. (Refer page 20
“Detergents Type And Quantity Of
Detergent”).
Redistribute laundry manually in
the drum and start the spin phase
again.
Load more laundry.
The laundry is not evenly distributed
in the drum.
There is very little laundry in the
drum.
Unstable floors eg. wooden floors.
There is water in the drum.
You must drain the water to open
the door (refer “Opening The Door”
on page 17).
Contact Service. If you need to
open the door, please read carefully
“Emergency door opening” on next
page.
This problem may be caused by a
failure of the appliance.
Stubborn stains have not been
treated prior to washing.
Use commercial products to treat
the stubborn stains.
The correct temperature was not
selected.
Check if you have selected the
correct temperature.
Excessive laundry load. Reduce load.
The drain hose is damaged. Call Service.
There is water
on the floor:
Unsatisfactory
washing
results:
The door will
not open:
The machine
vibrates or is
noisy:
Cycle time
longer than
displayed:
Machines based on modern technology operate very economically using
very little water without affecting performance.
No water is
visible in the
drum:
The appliance calculated a new time according to the laundry load.
The cycle is
shorter than the
time displayed.
Disconnect the main plug from the
main socket. Turn off the water tap.
Contact your local Service Centre.
Water leaks inside the machine.
(code: )
27
In case of power failure or appliance failure,
the appliance door remains locked.
The wash program continues when power is
restored. If the door remains locked in case
of failure, it is possible to open it using the
emergency unlock feature.
Before Opening The Door:
9.2 Emergency Door Opening
Make sure that the water temperature
and the laundry are not hot. Wait until
they cool down if necessary.
WARNING!
Make sure that the drum is not rotating.
Wait until the drum stops rotating if
necessary.
●
●
Malfunction Possible Cause Solution
The electronic unbalance detection device has
cut in because the laundry is not evenly
distributed in the drum. The laundry is
redistributed by reverse rotation of the drum.
This may happen several times before the
unbalance disappears and normal spinning
can resume. If, after 10 minutes, the laundry is
still not evenly distributed in the drum, the
machine will not spin. In this case, redistribute
the load manually and select the spin program.
Pause the machine and
redistribute laundry
manually.
Machine not installed properly.
Make sure the levelling of
the appliance is correct.
Refer to “Installation”.
Make sure that the
packaging and/or the
transit bolts are removed.
Refer to “Unpacking”.
Transit bolts or packaging not removed.
The load may be too small.
Add more laundry in the
drum.
Spinning starts
late or the
machine does
not spin:
The machine
makes an
unusual noise:
If you are unable to identify or solve the
problem, contact our service centre.
Before calling service centre, make a note
of the model, serial number and purchase
date of your machine: the Service Centre
will require this information.
Make sure that the water level inside
the drum is not too high. If necessary,
perform an Emergency Drain
(see page 24).
●
2. Remove the cover door, as picture below.
To open the door proceed as follows:
1. Press “On/Off” to switch the appliance off.
Disconnect the main plug from the main
socket.
28
3. Pull the emergency unlock trigger downward twice then open the appliance door.
4. Take out the laundry.
5. Re-assemble the cover door.
TECHNICAL DATA10.
Dimensions (Height / Width / Depth)
Maximum dry
clothes
capacity
Spin speed
(Maximum / Minimum)
850 X 600 X 652 mm
Power supply (Voltage / Frequency)
Total power absorbed
Water supply pressure (Maximum / Minimum)
0.8 MPa / 0.05 MPa
220-240 V~ / 50 Hz
2000 W
Minimum fuse protection 10 A
1200 rpm / 800 rpm
open
the door
pulling the
emergency
unlock
downward
twice
7.0 kg
3.5 kg
1.5 kg
4.0 kg
3.5 kg
1.5 kg
3.5 kg
7.0 kg
WWF7025EQWA
8.0 kg
4.0 kg
1.5 kg
5.0 kg
4.0 kg
1.5 kg
4.0 kg
8.0 kg
Bedding
Energy Saver
Whites
WWF8025DQWAProgram
Colours
Delicates
Quick 15
Wool
Daily 60
29
INSTALLATION11.
4.
5.
Remove the polystyrene base.
6.
Put one of the polystyrene «A»
packaging elements on the floor behind
the appliance. Carefully put down the
appliance with the rear side on it. Make
sure not to damage the hoses.
Pull up the appliance in vertical
position.
11.1 Unpacking
You are advised to keep all transit
devices so that they can be refitted if
the machine ever has to be transport-
ed again.
All transit bolts and packing must be
removed before using the appliance.
CAUTION!
Open the door.
Remove the
polystyrene
piece from
the door seal
and all the
items from
the drum.
3.
Remove the polystyrene packaging
materials.
Remove the plastic bag on top of
the machine.
Remove the cardboard top.
Use gloves. Remove the external film.
If necessary, use a cutter.
1.
2.
30
7.
Remove the power supply cable and the
drain and inlet hoses from the hose
holders «B» on the rear of the appliance.
Loosen or tighten the feet to adjust
the level. A correct adjustment of the
appliance level prevents vibration,
noise and the movement of the
appliance when in operation.
11.2 Positioning
Use a spirit level on the top and
side of the washing machine to
check the levels.
If you do not have a spirit level, as a
guide use the edge of a door frame,
cupboard or bench to check that the
washing machine is leveled.
It is important that your washing
machine stands firm and leveled
on the floor to ensure correct
operation. The appliance must not
be installed behind a lockable
door, a sliding door or a door with
a hinge on the opposite side to
avoid restricting the washing
machine door.
8.
9.
Pull out the plastic spacers.
10.
Put the plastic caps in the holes. You can
find these caps in the user manual bag.
Remove the three transit bolts.
31
Never place cardboard, wood or similar
materials under the machine to
compensate for any unevenness in the
floor. Install the machine on a flat hard
floor. Make sure that air circulation
around the machine is not impeded by
carpets, rugs etc.
When the washing machine is levelled,
try to rock it from corner to corner. If it
does rock, adjust the legs again until it is
levelled and does not rock.
Connect the water inlet hose to a tap
with 3/4” BSP thread.
Use the hose supplied with the washing
machine. DO NOT USE OLD HOSES.
11.3 Water Inlet
Check that the machine does not touch
the wall or cupboard units.
The inlet hose must not be lengthened.
If it is too short and you do not wish to
move the tap, you will have to purchase
a new, longer hose specially designed
for this type of use.
Loosen the ring nut to angle the hose to
the left or right depending on the position
of your water tap. Do not place the inlet
hose downwards. After positioning the
inlet hose, be sure to tighten the ring nut
again to prevent leaks.
The end of the drain hose can be
positioned in three ways:
Hooked over the edge of a sink, using
the plastic hose guide supplied with the
machine.
11.4 Water Drainage
Fitting Hose Guide
bend
hose
2.
Adjust length to suit
trough.
Pull apart to
insert hose.
pull hose
1.
450 approx.
Hose
Guide
check
32
This machine is designed to operate on a
220-240 V, single-phase, 50 Hz supply.
11.5 Electrical Connection
“An incorrect power supply may void
your warranty.”
Check that your domestic electrical
installation can take the maximum load
required (2.0 kW), also taking into
account any other appliances in use.
The manufacturer declines any
responsibility for damage or
injury through failure to comply
with the above safety precaution.
Should the appliance power
supply cable need to be
replaced, this shall be carried
out by our Service Centre.
Connect the machine to an
earthed socket outlet.
CAUTION!
Push the drain hose onto the spigot
and secure with a clip, ensure a
loop is formed in the drain hose to
prevent waste from the sink
entering the appliance.
In a sink, drain pipe branch.
Directly into a drain pipe, at a height
of not less than 60 cm and not more
than 90 cm.
The end of the drain hose must always
be ventilated, i.e. the inside diameter of
the drain pipe must be larger than the
outside diameter of the drain hose.
The drain hose must not be twisted or
curled. Run it along the floor; only the
part near the drainage point must be
raised.
In this case, make sure the end
cannot come unhooked when the
machine will be emptied. This could
be done by tying it to the tap with a
piece of string or attaching it to the
wall.
For the correct functioning of the
machine, the drain hose must remain
hooked on the proper support piece
situated on the top part of back side of
the appliance.
This branch must be above the trap
so that the bend is at least 60 cm
above the ground.
Max.
90 cm
Min.
60 cm
Max. 90 cm
Min. 60 cm
33
When the appliance is installed, the
power supply cable must be easily
accessible.
If this appliance is supplied from a cord
extension set or electrical portable outlet
device, the cord extension set or electrical
portable device must be positioned so
that it is not subject to splashing or
ingress of moisture.
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by
disposing them properly in appropriate
collection containers.
To save water, energy and to help
protect the environment, we
recommend that you follow these
tips:
Use authorized disposal sites for your old
appliance. Help to keep your country tidy!
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
For more detailed information
about recycling of this product,
please contact your local city
office, your household waste
disposal service or the shop where
you purchased the product.
12.1 Packaging Materials
12.3 Ecological Hints
12.2 Old Machine
ENVIRONMENT CONCERNS12.
Normally soiled laundry may be
washed without prewashing in
order to save detergent, water
and time (the environment is
protected too!).
The machine works more
economically if it is fully loaded.
With adequate pre-treatment,
stains and limited soil can be
removed; the laundry can then
be washed at a lower
temperature.
Measure out detergent according
to the water hardness, the
degree of soil and the quantity of
laundry being washed.
34
Warranty
FOR SALES IN NEW ZEALAND
APPLIANCE: WESTINGHOUSE WASHING MACHINES (NZ ONLY)
This document sets out the terms and conditions of the product
warranties for Westinghouse Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should there be a manufacturing
defect in your Appliance. This warranty is in addition to other rights
you may have under the Consumer Guarantees Act in New Zealand.
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
WWMachine_Warr_NZ_Nov18
NEW ZEALAND
ELECTROLUX (NZ) Limited
3-5 Niall Burgess Road, Mount Wellington
electrolux.co.nz
FOR SERVICE
or to find the address of your nearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
(New Zealand only)
FOR SPARE PARTS
or to find the address of your nearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
(New Zealand only)
In this warranty:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or
service;
(iii) improper, negligent or faulty servicing or repair works
done by anyone other than an Electrolux authorised
repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect
power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions
supplied with the Appliance;
1.
Application: This warranty only applies to new Appliances,
purchased and used in New Zealand and is in addition to (and
does not exclude, restrict, or modify in any way) other rights and
remedies under a law to which the Appliances or services relate,
including any non-excludable statutory guarantees in New Zealand.
2.
Warranty Period: Subject to these terms and conditions, this
warranty continues for a period of 24 months in New Zealand,
following the date of original purchase of the Appliance.
• Inverter motor – Further 8 years
3.
Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily
accessible for service, without special equipment and subject to these
terms and conditions, repair or replace any parts which it considers to
be defective. Electrolux may, in its absolute discretion, choose whether
the remedy offered for a valid warranty claim is repair or replacement.
Electrolux or its ASC may use refurbished parts to repair your
Appliance. You agree that any replaced Appliances or parts become
the property of Electrolux.
4.
Travel and transportation costs: Subject to clause 7, Electrolux
will bear the reasonable cost of transportation, travel and delivery
of the Appliance to and from Electrolux or its ASC. Travel and
transportation will be arranged by Electrolux as part of any valid
warranty claim.
5.
How to claim under this warranty: To enquire about
claiming under this warranty, please follow these steps:
8.
New Zealand: Appliances and services provided by
Electrolux in New Zealand come with non-excludable rights
and statutory guarantees by Electrolux pursuant to the
Consumer Guarantees Act 1993. Nothing in this warranty is
intended to exclude, restrict or modify any of those rights or
guarantees. You and Electrolux agree that if the Appliance
and or the services are acquired for commercial or trade
purposes that the provisions of the Consumer Guarantees
Act 1993 will not apply.
9.
Confidentiality: You accept that if you make a warranty claim,
Electrolux and its agents including ASC may exchange
information in relation to you to enable Electrolux to meet its
obligations under this warranty. For more information on how we
handle your personal information, see our privacy policy at
www.electrolux.co.nz/other/privacy/
10.
Proof of purchase is required before you can make a claim under
this warranty.
6.
Exclusions: You may not make a claim under this warranty
unless the defect claimed is due to faulty or defective parts or
workmanship.
This warranty does not cover:
In addition, Electrolux is not liable under this warranty if:
7.
(b)‘ASC’ means Electrolux’ authorised serviced centres;
(a)‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(a) the Appliance has been, or Electrolux reasonably believes
that the Appliance has been, used for purposes other than
those for which the Appliance was intended, including where
the Appliance has been used for any non-domestic purpose;
(a) carefully check the operating instructions, user manual
and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
(b) the Appliance is modified without authority from Electrolux in
writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced.
(d)‘Warranty Period’ means the period specified in clause 3 of this
warranty;
(e)‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
(a) light globes, batteries, filters or similar perishable parts;
(b) parts and Appliances not supplied by Electrolux;
(d) damage to the Appliance caused by:
(c) cosmetic damage which does not affect the operation of the
Appliance;
(c)Westinghouse’ means Electrolux Home Products Pty Ltd of 163
O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in
respect of Appliances purchased in Australia and Electrolux (NZ)
Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road,
Mount Wellington, in respect of Appliances purchased in New
Zealand;
Notes.
G0021433-004-A12317346
