EN, English
Operator's manual
HUSQVARNA
AUTOMOWER
®
560/580/580L
EPOS
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Safety
1.1 Safety definitions...................................................3
1.2 General safety instructions....................................3
1.3 Safety instructions for installation..........................4
1.4 Safety instructions for operation............................4
1.5 Safety instructions for maintenance...................... 5
1.6 Battery safety........................................................ 5
1.7 To lift and move the product..................................5
2 Introduction
2.1 Support..................................................................6
2.2 Product description............................................... 6
2.3 System description................................................6

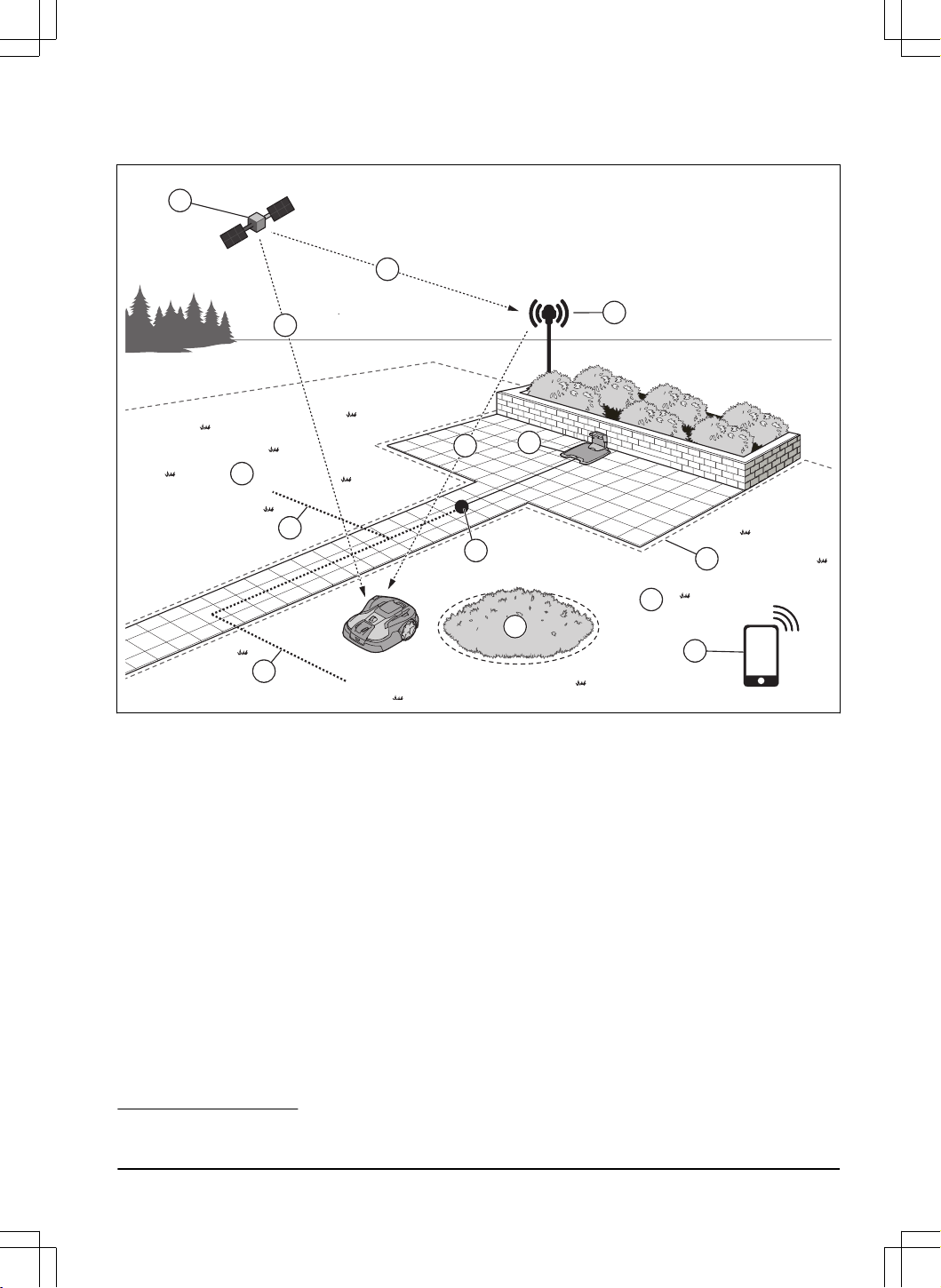

2.4 System overview................................................... 7
2.5 Product overview...................................................8

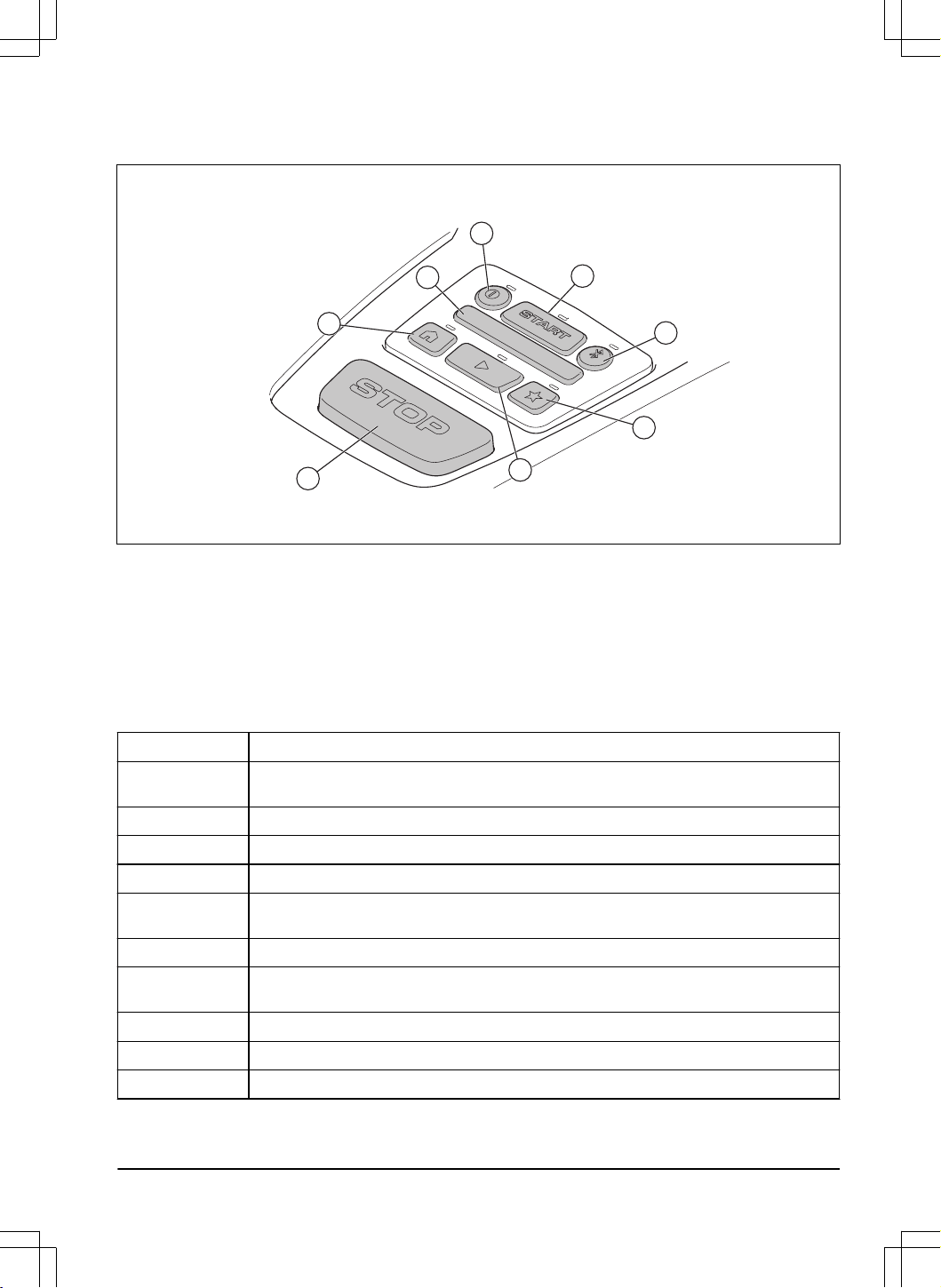

2.6 Control panel overview..........................................9
2.7 LED status bar on the product.............................. 9
2.8 LED indicators of the buttons.............................. 10
2.9 Symbols on the product...................................... 10
2.10 Symbols on the battery..................................... 10
2.11 Symbols in the app............................................11
2.12 Product damage................................................11
3 Installation
3.1 Introduction - Installation..................................... 12
3.2 Primary components for installation.................... 12
3.3 To prepare for installation................................... 12
3.4 Installation of the product.................................... 15
4 Settings
4.1 Schedule............................................................. 24
4.2 Cutting height...................................................... 24
4.3 Pattern.................................................................24
4.4 Operation............................................................ 25
4.5 ECO mode.......................................................... 25
4.6 Object avoidance................................................ 25
4.7 Accessories.........................................................25
4.8 General............................................................... 25
4.9 Security............................................................... 25
4.10 Automower
®
Connect ...................................... 26
4.11 Messages..........................................................26
4.12 Mowing profiles................................................. 26
4.13 Download firmware over the air (Firmware
over the air FOTA).................................................... 26
5 Operation
5.1 To set the product to ON.....................................27
5.2 To select operation mode....................................27
5.3 appDrive .............................................................27
5.4 Work area selection............................................ 27
5.5 Operation mode Park.......................................... 27
5.6 Operation mode Park at Maintenance point........28
5.7 To stop the product............................................. 28
5.8 To set the product to OFF................................... 28
5.9 To charge the battery.......................................... 28
6 Maintenance
6.1 Introduction - maintenance..................................29
6.2 Maintenance schedule........................................ 29
6.3 Clean the product................................................30
6.4 Replacement of the blades................................. 31
6.5 Replace the wheel brushes.................................33
6.6 Battery.................................................................33
6.7 Winter service..................................................... 33
7 Troubleshooting
7.1 Introduction - troubleshooting..............................34
8 Transportation, storage and disposal
8.1 Transportation..................................................... 43
8.2 To put the product into storage........................... 43
8.3 To put the charging station into storage..............43
8.4 Disposal.............................................................. 43
9 Technical data
9.1 Technical data.....................................................45
9.2 Registered trademarks........................................48
10 Declaration of Conformity
10.1 Original EU Declaration of Conformity.............. 49
10.2 Translated EU Declaration of Conformity..........50
11 Applicable to UK market
11.1 Statement of compliance...................................51
2
2550 - 002 - 25.03.2025
1 Safety
1.1 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
1.2 General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• Read the Operator’s manual carefully and make
sure you understand the instructions before you
use the product. Keep for future reference.
• This appliance is not intended for use by children
or persons with reduced physical, sensory or
mental capabilities (that could affect a safe
handling of the product), or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
However, EU requirements allows this appliance
to be used by children aged from 8 years and
above and persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
• The product must only be used with the equipment
recommended by Husqvarna. All other types of
use are incorrect.
• To prevent damage to the product and accidents to
vehicles and persons, do not install work areas and
transport paths across public pathways.
• The product is not a toy. The blades of the product
can cause injury to persons and animals.
• Do not let children less than 8 years of age be
in the work area during operation. Children and
animals must be supervised at all times during
operation.
• All persons must be a minimum of 3 m/10 ft away
from the product when it is in operation. Do not for
example sleep or sunbathe in the work area when
the product is in operation.
• Warning signs must be put around the work area
of the product if it operates in public areas. The
signs must have the text that follows: Warning!
Automatic lawn mower! Keep away from the
machine! Supervise children!
• Do not run when you operate the product manually
with appDrive. Make sure that you have a safe and
stable position at all times. Make sure that there
are no persons near the product when it operates
in steep slopes. Always wear substantial footwear
and long pants when you operate the product with
appDrive.

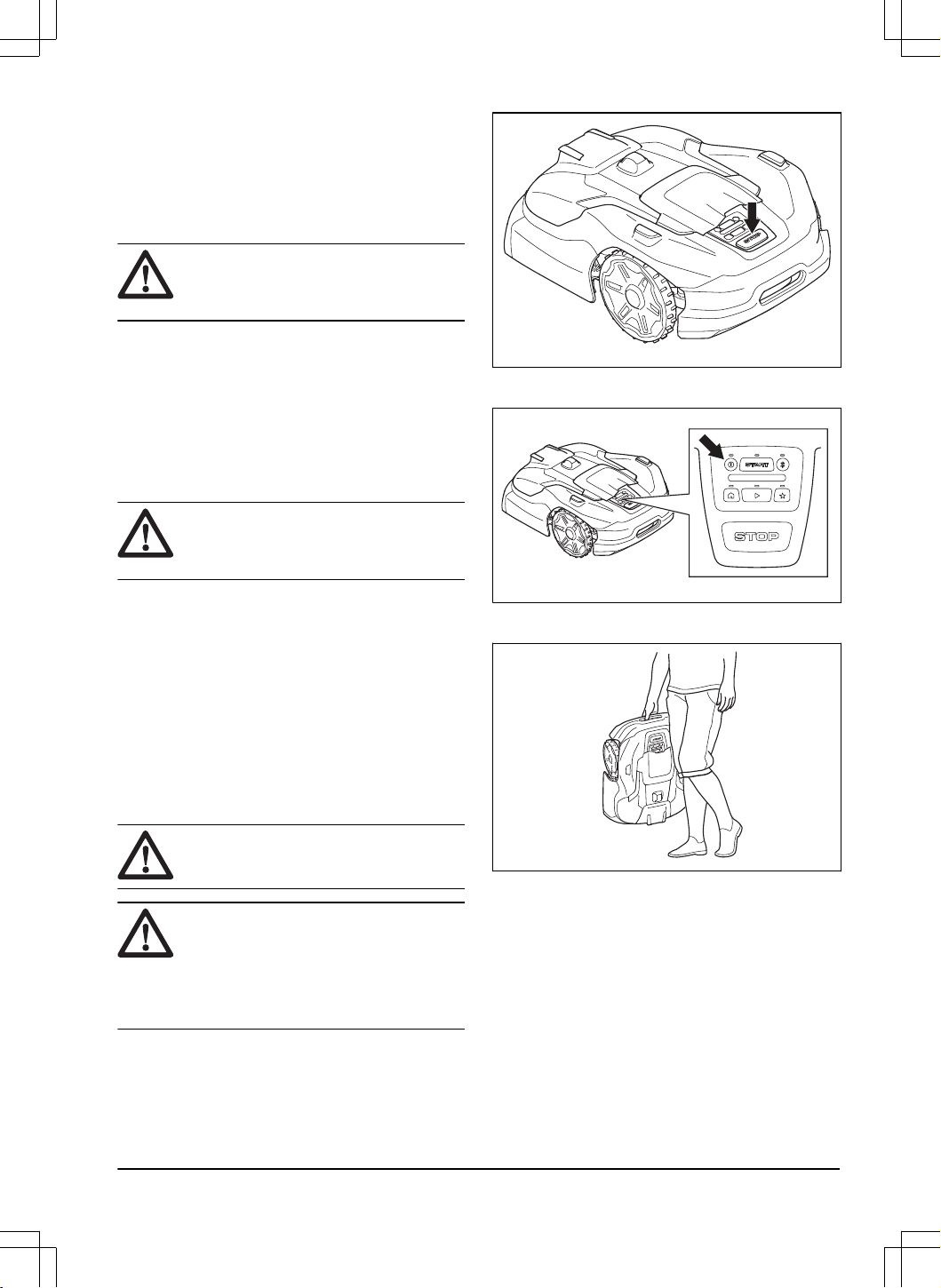

• To set the product to OFF, go behind the product
and push the STOP button. You can use the app
to pause the product if it is applicable for your
product. When the product is set to OFF, wait
minimum 3 seconds before you move the product.
• Set the product to OFF before you clear a
blockage, do maintenance or examine the product,
and if the product starts to vibrate abnormally.
Examine the product for damage before you start
the product again. Do not use the product if it is
damaged.
• Do not touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• If an injury or accident occur, get medical aid.
• Do not put power supply cable and extension cable
in the work area. This can cause damage to the
cables.
• Do not connect a damaged cable or plug, or touch
a damaged cable, before it is disconnected from
the power outlet. Disconnect the plug from the
power outlet if the cable becomes damaged while
in operation. A worn or damaged cable increases
the risk of electrical shock. A damaged cable must
be replaced by service personnel.
• When you connect the power supply to the power
outlet, use a residual-current device (RCD) with a
tripping current of maximum 30 mA.
• Only charge the product in the included charging
station. For safe disposal of the battery, refer to
Disposal on page 43
. Incorrect use may result in
electric shock, overheating or leaking of corrosive
liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Get
medical aid if corrosive liquid comes in your eyes.
2550 - 002 - 25.03.2025
Safety - 3
• Use only original batteries recommended by
Husqvarna. Product safety cannot be guaranteed
with other than original batteries. Do not use non-
rechargeable batteries.
• Follow the installation instructions that includes to
specify the work area, refer to
Installation on page
12
.
• Follow the instructions about to start and operate
the product, refer to
Operation on page 27
.
• If there is a risk of thunderstorm, Husqvarna
recommends that the power supply and all the
wires to the charging station are disconnected
to decrease the risk of damage to electrical
components. Connect the power supply and all
the wires again if there is no longer a risk of
thunderstorm. It is important that all wires are
connected correctly.
• Follow the maintenance instructions and if
necessary use Husqvarna original spare parts,
refer to
Maintenance on page 29
.
• For technical data such as weight, dimensions and
noise emission values, refer to
Technical data on
page 45
.
• The operator is responsible for accidents or
dangers that occurs to other persons or property.
• The product must only be operated, maintained
and repaired by persons that are fully conversant
with its special characteristics and safety
regulations.
• It is not permitted to change the initial design of the
product.
• Obey national regulations about electrical safety.
• Husqvarna does not guarantee full compatibility
between the product and other types of
wireless systems such as remote controls, radio
transmitters or equivalent.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Operation, charging and storage temperature
is 0-45°C / 32-113 °F. Long-term storage
temperature that is more than 1 month, must be
0-25 °C / 32-77 °F.
1.3 Safety instructions for installation
WARNING:
Read the warning
instructions that follow before you use the
product.
• Do not install the charging station in an area where
there is a risk that persons trip on it.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. In case
of malfunction, heating of the charging station and
the power supply may occur and create a potential
risk of fire.
• Do not put the power supply at a height where
there is a risk it can be put in water. Do not put the
power supply on the ground.
• Do not encapsulate the power supply. Condensed
water can harm the power supply and increase the
risk of electrical shock.
• Do not install the charging station where there are
pests, for example ants.
• Applicable to USA/Canada. If power supply is
installed outdoors: Risk of Electric Shock. Install
only to a covered Class A GFCI receptacle (RCD)
that has an enclosure that is weatherproof with the
attachment plug cap inserted or removed.
• Do not install the charging station where there is a
risk of standing water.
1.4 Safety instructions for operation
WARNING: Read the warning
instructions that follow before you use the
product.
• Keep your hands and feet away from the rotating
blades. Do not put your hands or feet near or
below the product when it is set to ON.
• Use the park mode or set the product to OFF when
persons, especially children or animals are in the
work area. Refer to
To set the product to OFF
on page 28
. Husqvarna recommends to set the
product to operate when the work area has no
activity. The product can cause injury to animals at
night in work area, for example hedgehogs. Refer
to
Scheduled operation on page 27
.
• Make sure that there are no objects such as
stones, branches, tools or toys on the lawn. The
blades can be damaged if it hits an object.
• Do not lift the product or move it when it is set to
ON.
• Do not to let the product collide with persons or
animals. If a person or animal comes in the way of
the product, stop the product immediately. Refer to
To stop the product on page 28
.
• Do not put objects on top of the product, the
charging station or the reference station.
• Do not use the product if the STOP button does
not work.
• Always set the product to OFF when it is not in
operation. The product can only start when you
enter the correct PIN code.
• Do no touch the charging plates on the charging
station when the charging station is connected to
the power outlet.
• Do not use the product at the same time as a
pop-up sprinkler. Use the
Schedule
function so the
product and pop-up sprinkler do not operate at the
same time. Refer to
Scheduled operation on page
27
.
4
- Safety 2550 - 002 - 25.03.2025
• Do not put a transport path where pop-up
sprinklers are installed.
• Do not let the product operate when there is
standing water in the work area. For example when
heavy rain forms pools of water.
1.5 Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Set the product to OFF when you do maintenance
on the product.
• Do not use a high-pressure washer to clean the
product. Do not use solvents to clean the product.
• Disconnect the plug to the charging station before
you clean or do maintenance of the charging
station.
1.6 Battery safety
WARNING: Read the warning
instructions that follow before you use the
product.
• Lithium-ion batteries can explode or cause fire if
disassembled, short-circuited, exposed to water,
fire, or high temperatures. Handle carefully, do
not dismantle, open the battery or use any type
of electrical/mechanical abuse. Avoid storage in
direct sunlight.
• Do not use a damaged battery. Dispose the battery
if it is damaged. Refer to
Disposal on page 43
.
1.7 To lift and move the product
To safely move the product from or in the work area the
product can be lifted or operated with appDrive. Refer to
appDrive on page 27
.
WARNING: The product must be set to
OFF before you lift the product.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
cause damage to the charging station and/or
the product. Push the STOP button and
pull the product out of the charging station
before you lift it.
1. Push the STOP button to stop the product.
2. Push the
ON/OFF button for 3 seconds to set the
product to OFF.
3. Lift the product by the handle with the blade disc
away from your body.
2550 - 002 - 25.03.2025
Safety - 5
2 Introduction
Serial number:
Product number:
PIN code:
The serial number and the product number are on the product rating plate and on the product carton.
• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and
the date of purchase to register your product.
2.1 Support
For support about the product, speak to your Husqvarna
servicing dealer.
2.2 Product description
Note: Husqvarna regularly updates the appearance
and function of the products. Refer to
Support on page
6
.
The product is a robotic lawn mower. The product has
a battery power source and cuts grass automatically. It
continuously alternates between mowing and charging.
The product operates until the battery state of charge is
low or until the work area is cut, then the product starts
to go to the charging station. The movement pattern
of the product can be set to irregular or systematic.
The virtual boundary specifies the work area where
the product is allowed to operate. The satellite receiver
in the product senses when it is approaching the
virtual boundary. When the product hits an obstacle or
approaches the virtual boundary the product selects a
new direction.
2.3 System description
The system contains a robotic lawn mower, a charging
station and a reference station. The robotic lawn mower
and reference station uses the technology with satellite
signals to position the robotic lawn mower correctly,
this means that boundary wires are not necessary. The
reference station is stationary and sends correction data
to the robotic lawn mower to get an accurate position
of the robotic lawn mower. The virtual work area for the
product is made in the Automower
®
Connect app. The
product is operated and waypoints are added to make
a map in the app. The reference station can operate as
a repeater to make a network of reference stations. You
can use the repeaters on larger areas. Refer to
System
overview on page 7
.
2.3.1 Connectivity
Automower
®
Connect is an app that you use to install
the product. The Automower
®
Connect app is connected
to the product with Bluetooth
®
connectivity. If you use 1
product, the Automower
®
Connect app can be used to
monitor and to select operation settings of the product.
You can also use the Automower
®
Connect app from a
remote location with cellular connectivity.
Husqvarna Fleet Services
™
is a cloud solution
that is available as an app and on the web on
www.husqvarna.com. Husqvarna recommends to use
Husqvarna Fleet Services
™
when you use more than 1
product. You can add your products to Husqvarna Fleet
Services
™
to get an overview of your products. You can
see where your products are located, which work areas
they operate in, and the status of the operation.
6 - Introduction 2550 - 002 - 25.03.2025
2.4 System overview
5
3
1
2
8
8
2
4
9
6
11
7
10
11
1. Satellites
2. Satellite signals
3. Reference station
1
4. Correction data
5. Charging station
6. Virtual boundary
7. Stay-out zone
8. Work area
9. Mobile device
2
10. Docking point
11. Transport path
1
Not included.
2
Not included.
2550 - 002 - 25.03.2025 Introduction - 7

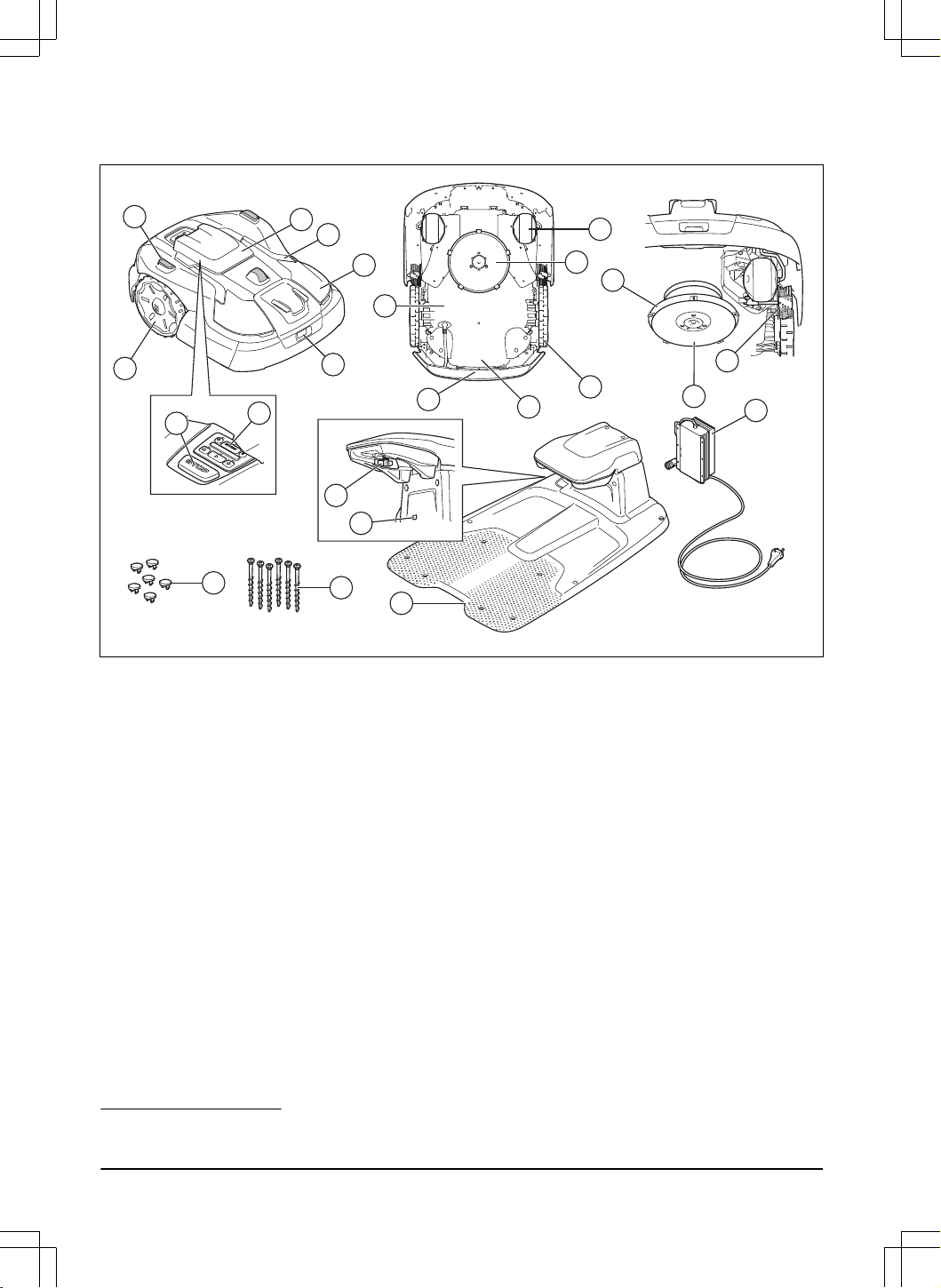

2.5 Product overview
3
6
18
19
16
1
2
7
8
5
4
21
23
20
11
15
17
13
12
14
10
9
22
1. Body
2. Warning lights
3. START button
4. STOP button
5. Radar sensor
6. Rear wheels
7. Keypad cover
8. Supports for service position
9. Front wheels
10. Cutting system
11. Chassis box with electronics, battery and motors
12. Rating plate (including product identification code)
13. Handle
14. Wheel cleaner
3
15. Blade disc
16. Skid plate
17. Active wheel brushes
4
18. Contact plates
19. LED indicator lamp of the charging station
20. Charging station
21. Screws to attach the charging station
22. Power supply unit
23. Plugs for the holes in the charging station
3
Only included for some models.
4
Only included for some models.
8 - Introduction 2550 - 002 - 25.03.2025
2.6 Control panel overview
1
5
8
6
2
3
4
7
1. ON/OFF button
2. START button
3. Bluetooth
®
button
4. LED status bar
5. Park button
6. Play button
7. Maintenance point button
8. STOP button
2.7 LED status bar on the product
The LED status bar on the control panel of the product shows the current product status:
LED status bar Product status
Green constant
light
The product cuts the lawn or moves out of the charging station.
Green chase light The product is preparing to start its operation.
Green light flashes The product is in
Pause
mode.
Red light flashes The product stopped because of an error.
Orange constant
light
The STOP button was pushed.
Orange chase light The product has stopped, and after 15 minutes the product sets to
Paused
.
Orange light flash-
es
Waiting for PIN code.
Blue constant light The product moves to the charging station or a maintenance point.
Blue light pulsates The product charges in the charging station.
Blue light flashes The product is parked in charging station or at the maintenance point.
2550 - 002 - 25.03.2025 Introduction - 9
LED status bar Product status
Blue chase light The product is preparing to start to return to the charging station.
White constant
light
The product is in appDrive mode.
White chase light The product sets to OFF.
Firmware installation is in progress.
White light flashes New firmware must be installed.
2.8 LED indicators of the buttons
The LED indicators of the buttons on the control panel shows the current button selection status:
LED indicator light Button selection status
Light is out You cannot push this button.
Constant white You can push this button.
Flashes white You can push this button and you are recommended to push this button.
Flashing blue Only for the Bluetooth
®
button. Bluetooth
®
is enabled and the mobile device can be connec-
ted.
Constant blue Only for the Bluetooth
®
button. The mobile device is connected with Bluetooth
®
to the product.
Constant orange Only for the Bluetooth
®
button. The product is connected to the maximum number of mobile
devices.

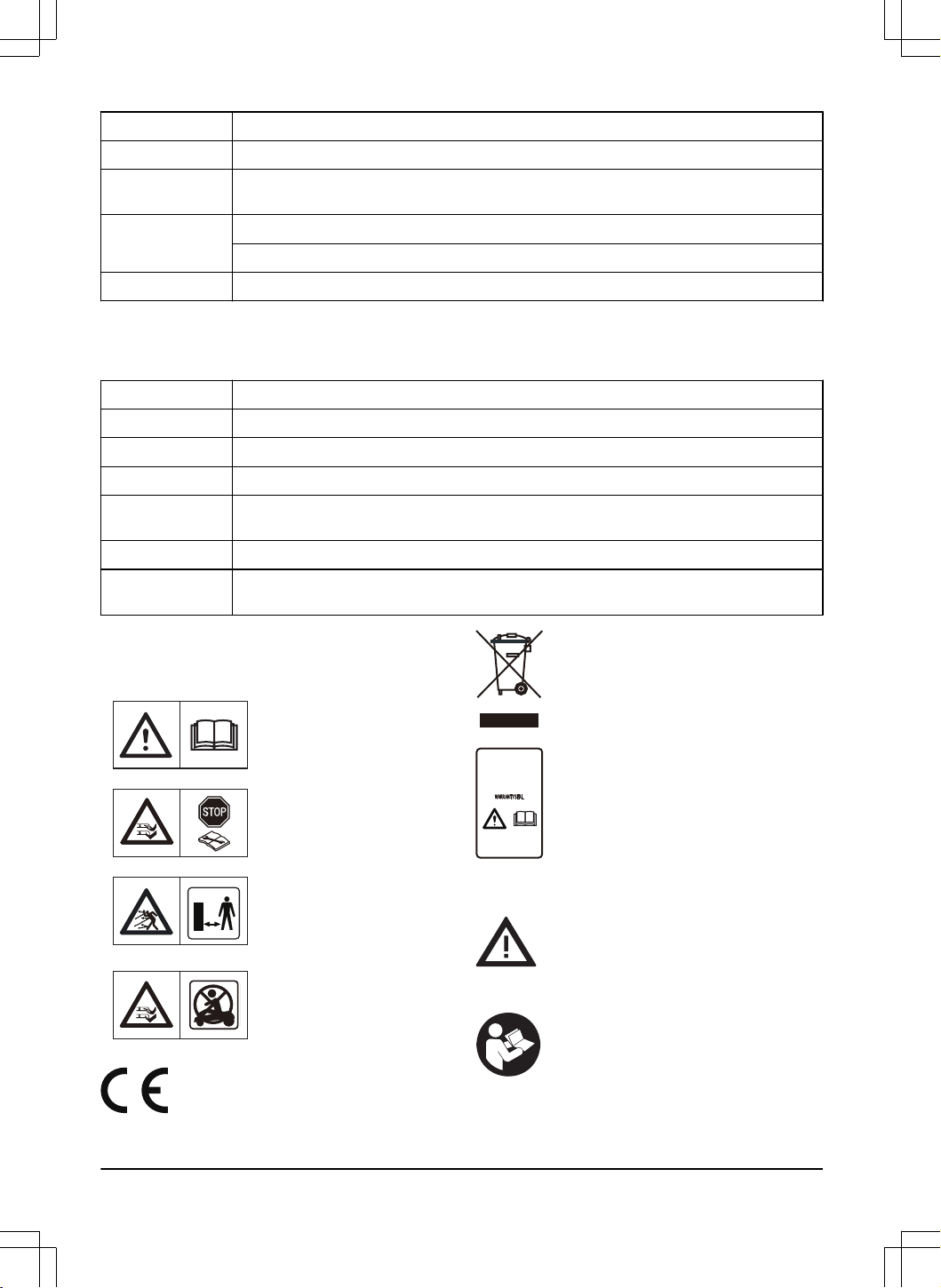

2.9 Symbols on the product
These symbols can be found on the product. Make sure
that you understand them.
WARNING: Read the opera-
tor instructions before you op-
erate the product.
WARNING: Disable the prod-
uct before maintenance or
before you lift the product.
WARNING: Keep a safe dis-
tance from the product when
it is in operation. Keep your
hands and feet away from the
rotating blades of the product.
WARNING: Do not sit on
the product. Do not put your
hands or feet near or below
the product.
This product complies with the applicable
EU Directives.
It is not permitted to dispose the product
as usual domestic waste. Obey national
regulations and use the local recycling
system.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must only be opened
and sealed by an authorized service
technician. The warranty will not be
applicable if the seal is broken.
2.10 Symbols on the battery
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited or handled roughly. Do not
expose to water, fire or high temperature.
Read the user instructions.
10 - Introduction 2550 - 002 - 25.03.2025
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
2.11 Symbols in the app
Shows the status of the correction data
that the product receives.
The status is
EPOS confirmed
. The
product has an accurate position and
direction. This is necessary to operate
the product automatically and for the
installation of map objects.
The status is
EPOS action is necessary
.
The product has an accurate position but
it is necessary to operate the product,
manually or automatically, to get an
accurate direction.
The status is
EPOS searching
. The
product does not have an accurate
position and is searching for the satellite
signals and the correction data to get an
accurate position.
2.12 Product damage
We are not responsible for damages to our product if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
2550 - 002 - 25.03.2025
Introduction - 11
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
3.2 Primary components for installation
The installation includes the components that follow:
• Robotic lawn mower, that cuts the lawn
automatically.
• Charging station, that charges the product.
• Power supply, which is connected to the charging
station and a 100-240V power outlet.
• Reference station
5
, that receives satellite signals
and sends correction data to the robotic lawn
mower.
• Mobile device with the Husqvarna Fleet Services
™
app and Automower
®
Connect app to do the
installation and the settings for the product.
3.3 To prepare for installation
CAUTION: Holes with water in the lawn
can cause damage to the product.
CAUTION: Read the installation
chapter before you start the installation.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to examine where
to put the charging station, the reference station,
and the virtual boundaries.
• Make a mark on the blueprint where to put
the charging station, the reference station, the
maintenance point, the transport paths and the
virtual boundaries for the work areas and stay-out
zones.
• Make sure that the work area where the product
operates has unimpeded sky view.
• Fill in holes in the lawn to make it level.
• Cut the grass before you install the product. Make
sure that the grass is maximum 5 cm / 2 in.
Note: The first weeks after installation the sound level
when the product cuts the grass can be higher than
usual. The sound level decreases after some time.
3.3.1 To examine where to put the
reference station
Read and understand the instructions about where to
put the reference station. Refer to the Operator's manual
for the reference station.
3.3.2 To examine where to put the charging
station
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• Make sure that the surface minimum 1 m / 3.3 ft. in
front of the charging station is level.
• Make sure that the baseplate of the charging
station is level and not bent.
max. 5 cm / 2"
max. 5 cm / 2"
• You can put the charging station inside or outside
the work area.
• In areas where the ambient temperature can be
more than 30°C / 86 °F, put the charging station in
an area with protection from the sun.
• If you install 2 charging stations near each
other, the minimum distance between the charging
stations must be 3 m / 9.8 ft.
• Install the charging station where there are no
metal objects in the ground.
CAUTION:
Metal objects can
cause interference with the charging
station signal.
5
Purchased separately.
12 - Installation 2550 - 002 - 25.03.2025
• Husqvarna recommends to have a minimum of 6
m / 19.6 ft. (A) free space in front of the charging
station.
A
A

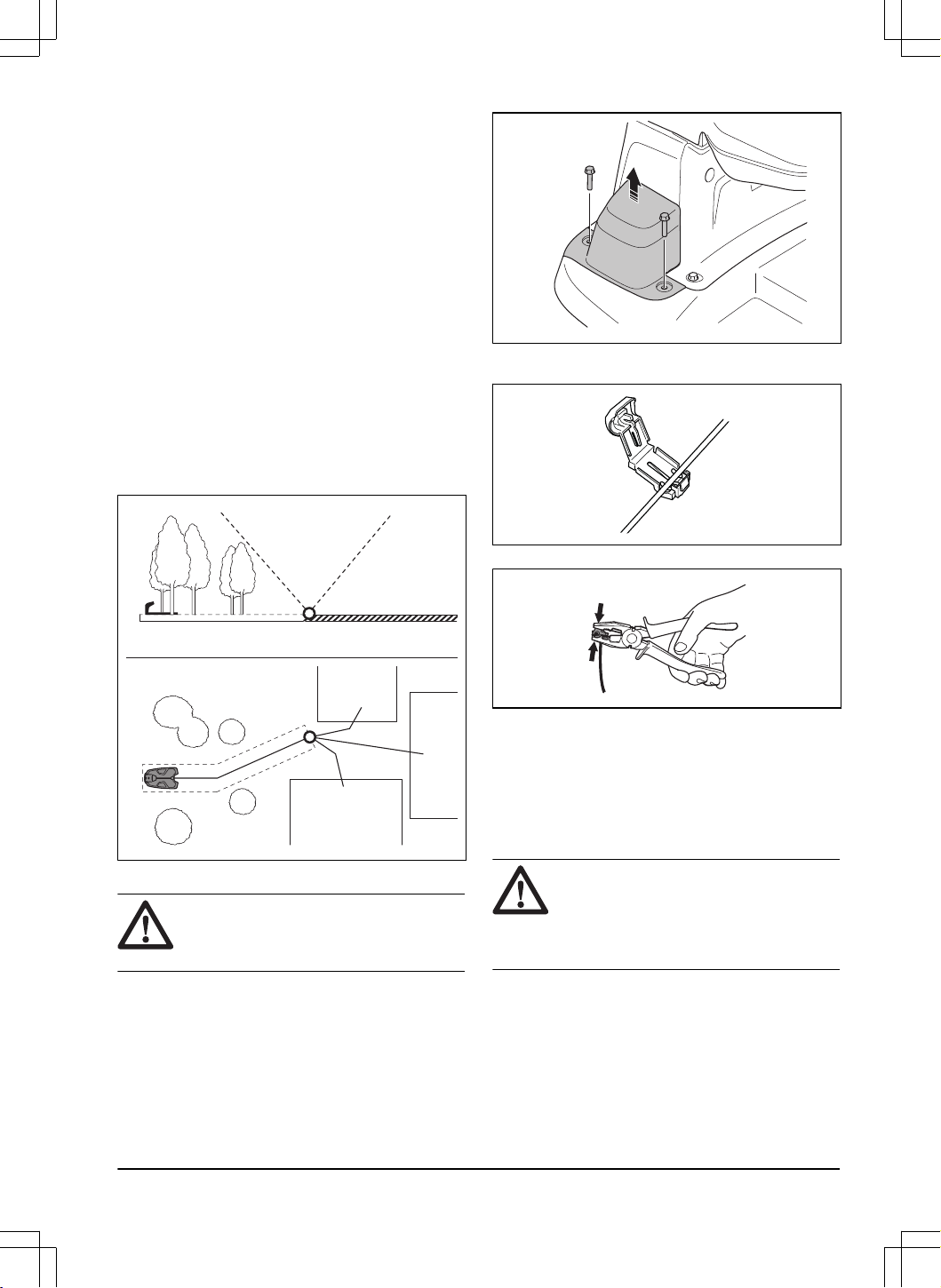

• Set the docking point in an area where there is
unimpeded sky view to make sure that it has
satellite coverage. If the area has no satellite
coverage, you can use the optional installation
method for dock by wire. Refer to
To install the
charging station with dock by wire on page 16
.
• Set the distance to the docking point to 130-220
cm / 51-87 in. in the app.
• If the docking point is not in the work area, install a
transport path to the work area.
3.3.3 To examine where to put the power
supply
CAUTION:
Make sure that the blades
on the product do not cut the low-voltage
cable.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.3.4 To examine where to install the
objects on the map
CAUTION: If the work area is adjacent
to water bodies, slopes, precipices or a
public road, the virtual boundary must have
a protective wall. The wall must be minimum
15 cm / 6 in. in height.
CAUTION: Do not let the product
operate on gravel.
CAUTION: For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
• Make sure that the product can receive radio
signals from the reference station in all parts of the
work area. Make sure that the maximum distance
between the reference station and the product is
500 m / 1640 ft.
Note: The maximum distance decreases if there
are objects between the reference station and
product.
• Husqvarna recommends a maximum distance from
the charging station to the most remote part of
the installation. The maximum distance is 500 m /
1640 ft.
Note: The maximum distance decreases if there
are slopes and high grass.
3.3.5 To install map objects near buildings
and trees

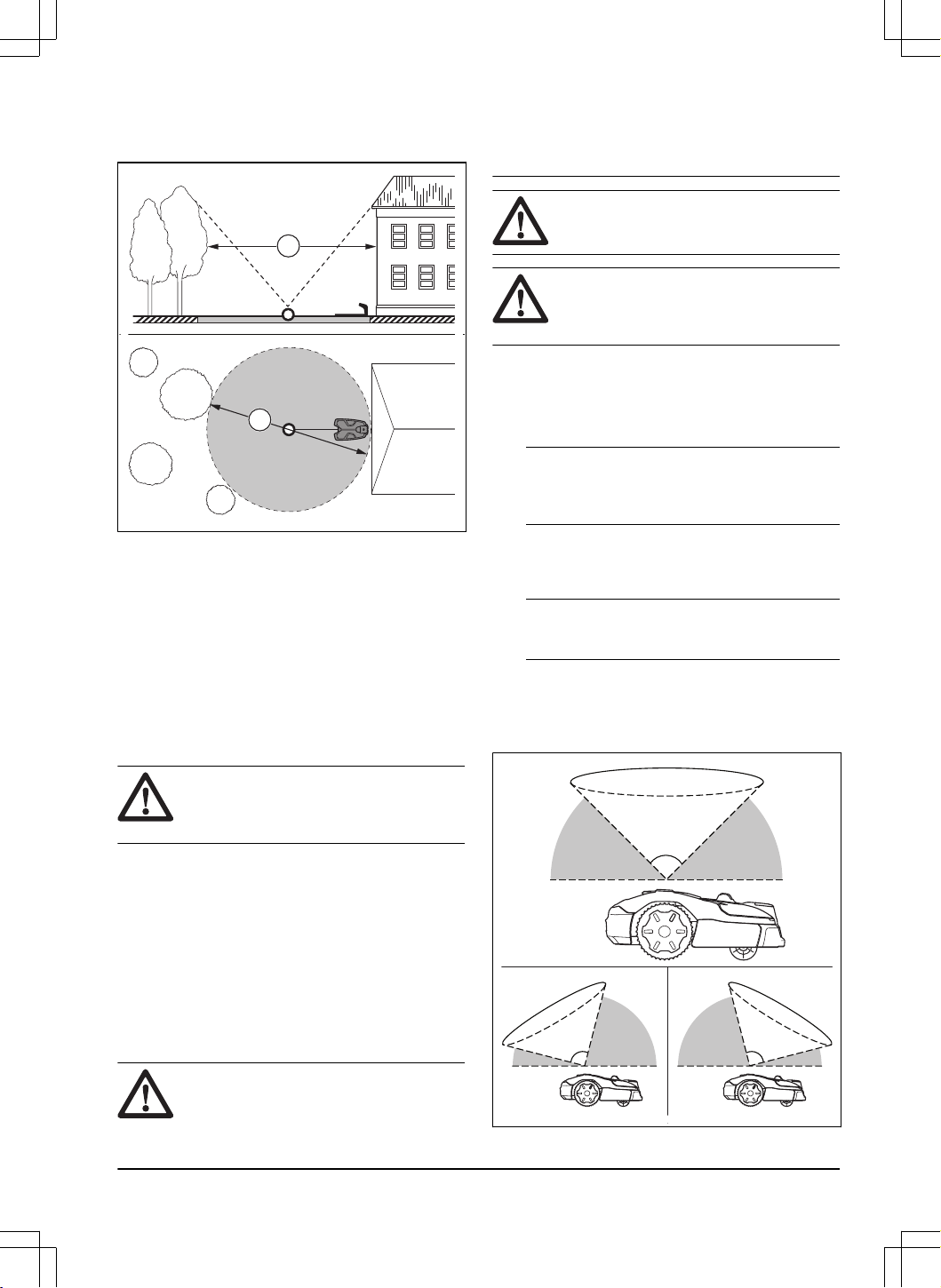

• Make sure that 90° section of the sky is
unimpeded.
90°
2550 - 002 - 25.03.2025
Installation - 13
Note: The product cannot receive signals from
the satellite for navigation if the sky is impeded.

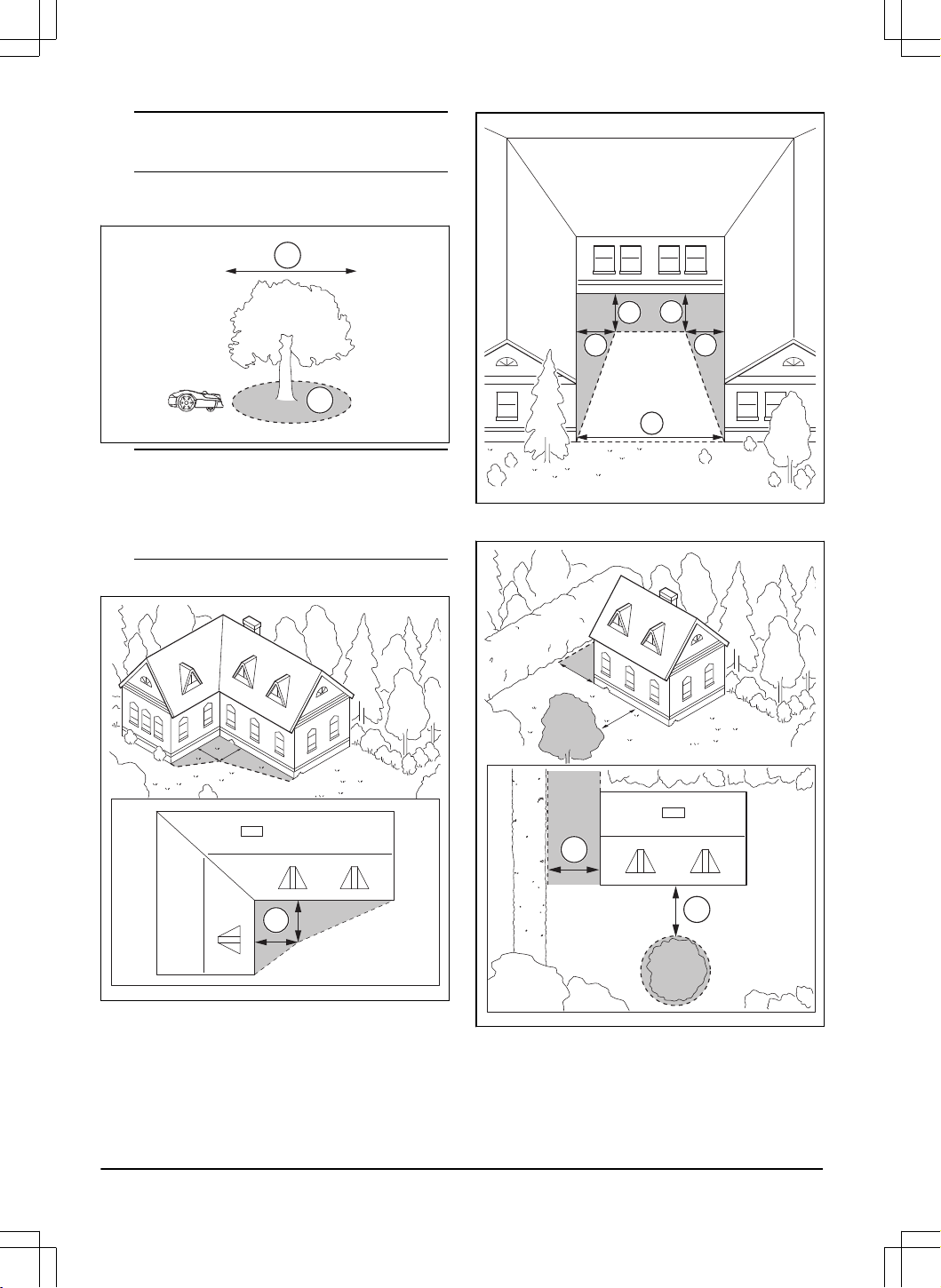

• Make a stay-out zone (B) around trees or a group
of trees with tree canopies that are more than 4 m /
13 ft. in diameter (A).
B
A
Note: Trees or a group of trees with tree
canopies that are more than 4 m / 13 ft. in diameter
(A) can cause temporary stops for the product.
Smaller trees do usually not cause interference
with the operation of the product.
• For L-shaped buildings, install the virtual boundary
at a minimum distance (C) of 1.5 m / 5 ft. from it.
C
• To install virtual boundaries in an area with an U-
shaped building, make sure that the distance (E) is
minimum 6 m / 20 ft. If the building is higher than 3
m / 10 ft., make sure that the distance (E) is twice
the height of the highest building. Install the virtual
boundary at a minimum distance (D) of 1.5 m / 5 ft.
from the building.
D
D
D
D
E
• Make sure that the areas between objects have a
distance (F) of minimum 4 m / 13.1 ft.
F
F
3.3.6 To examine where to install objects on
the map in narrow passages
• Make sure that a passage between objects less
than 1 m / 3.3 ft. has a minimum width of 2 m / 6.6
ft.
14
- Installation 2550 - 002 - 25.03.2025

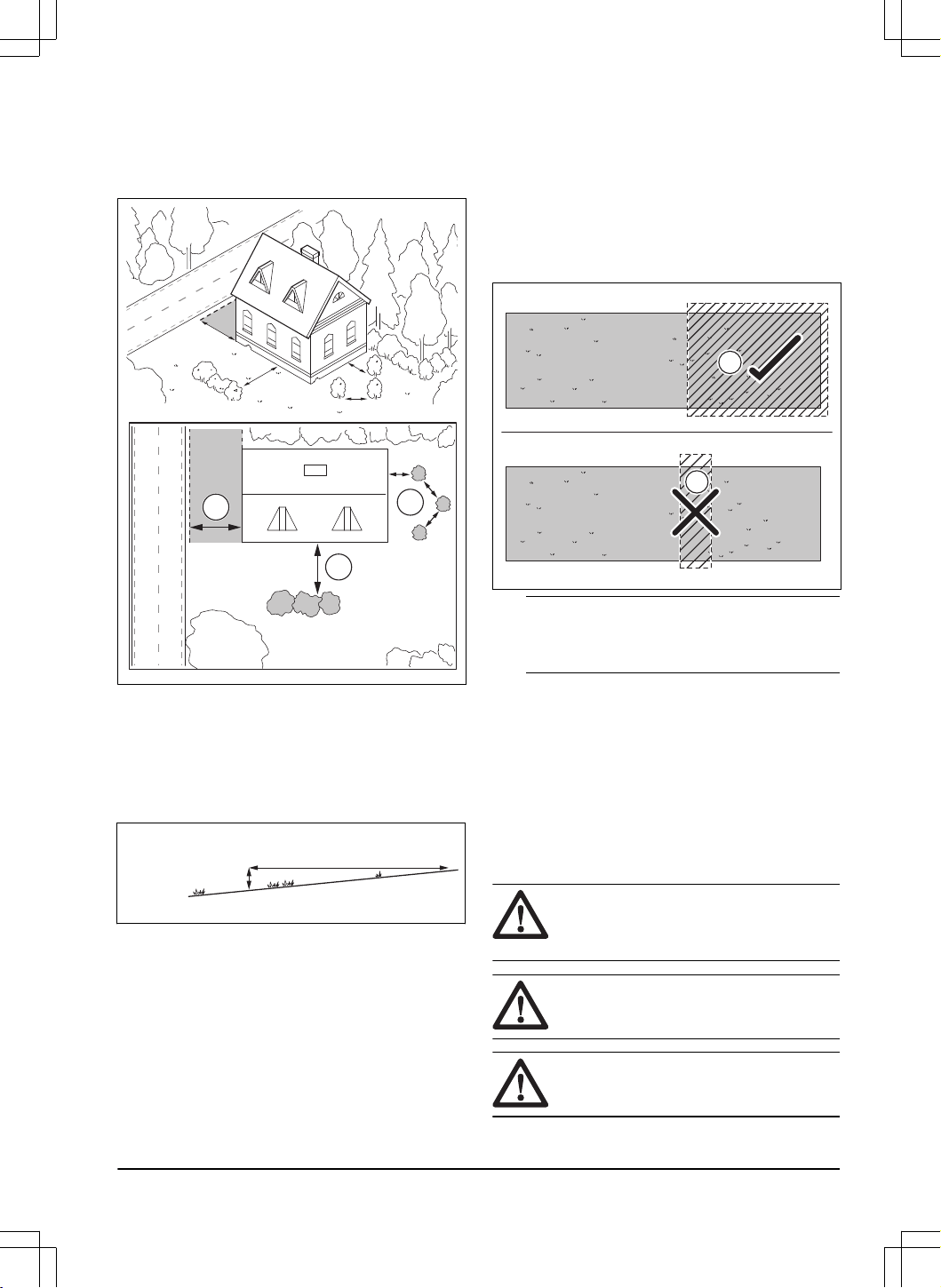

• Make sure that a passage between one object
lower than 1 m / 3.3 ft. and one object higher than
1 m / 3.3 ft. has a minimum width (A) of 2 m / 6.6 ft.
• Make sure that the distance between objects (B)
lower than 1 m / 3.3 ft. is minimum 1 m / 3.3 ft.
A
A
B
3.3.7 To install the map objects in a slope
Automower
®
560 EPOS can operate in 50% slopes
in the work area. Automower
®
580/580L EPOS can
operate in 45% slopes in the work area. At the virtual
boundaries the maximum slope is 20%. The slope (%) is
calculated as height for each m. Example: 10 cm / 100
cm = 10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes more than 45-50% in the work area,
isolate the slope with a stay-out zone.
• For slopes adjacent to a public road, put a fence or
a protective wall along the outer edge of the slope.
• Husqvarna recommends to set the direction of the
systematic pattern straight up the slope to prevent
wear on the grass.
3.3.8 To examine where to make stay-out
zones
• Make stay-out zones around objects that are larger
than 2x2 m / 6.6x6.6 ft.
• Make sure that the stay-out zone is minimum
30x30 cm / 1x1 ft.
• Make sure that the stay-out zone includes the
complete area (A) where the product must not
enter.
A
B
Note: Do not make a stay-out zone (B) across
the work area to prevent the product to enter parts
of the work area.
3.4 Installation of the product
3.4.1 Installation tools
• Socket wrench, 10 mm.
• Hex key, 8 mm. Included in the carton.
3.4.2 Installation of the charging station
Read and understand the instructions about the
charging station. Refer to
To examine where to put the
charging station on page 12
.
WARNING:
Read and understand the
safety instructions for installation. Refer to
Safety instructions for installation on page 4
.
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
2550 - 002 - 25.03.2025 Installation - 15

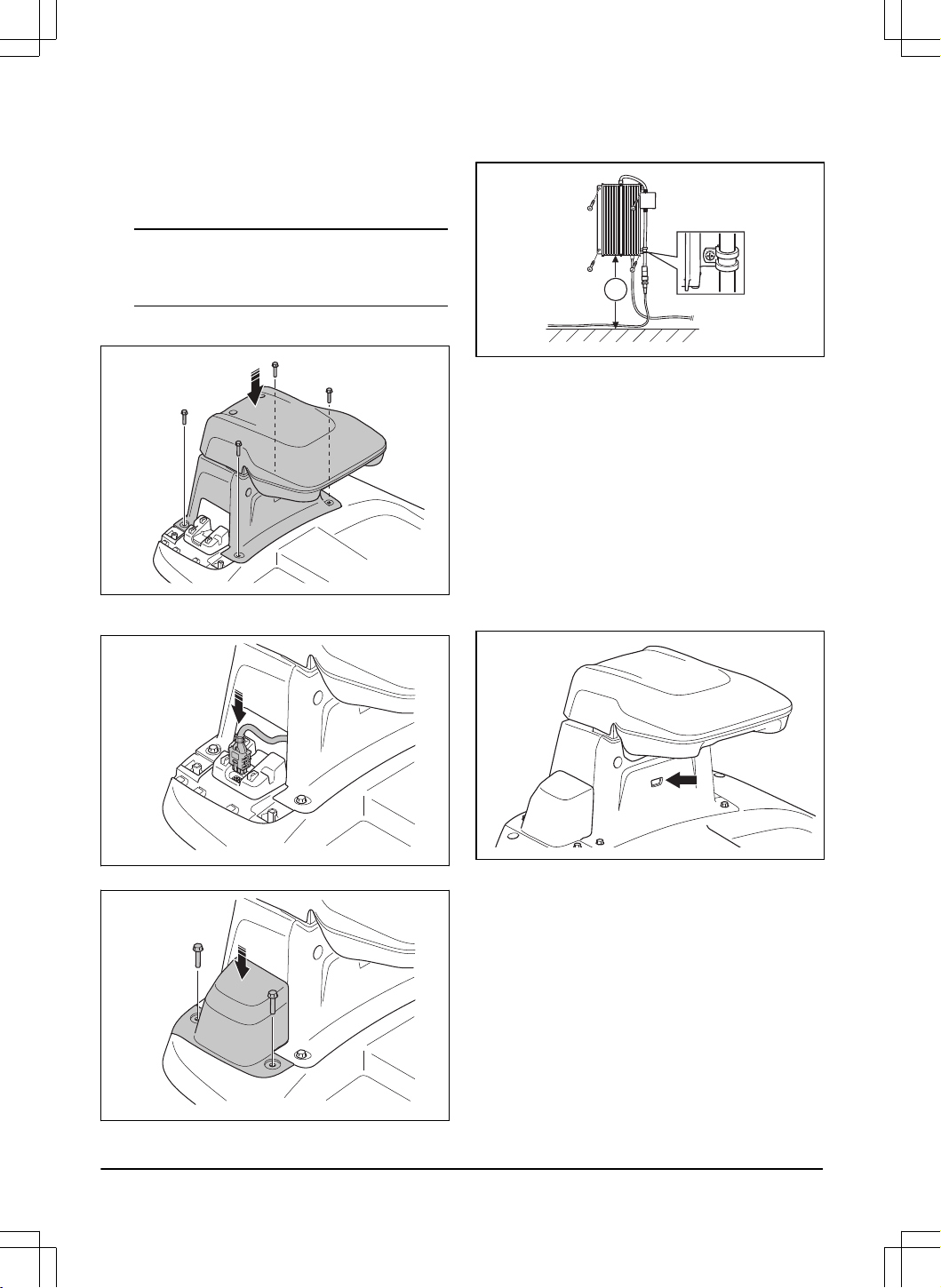

3.4.2.1 To install the charging station
1. Put the charging station baseplate in the selected
area.
2. Install 6 screws in the holes in the baseplate to
attach the baseplate to the ground. Install the 6
plugs in the remaining holes of the baseplate.
Note: The baseplate has 12 holes. Use 6 holes
for screws to attach the baseplate to the ground.
Use the other 6 holes to install the plugs.

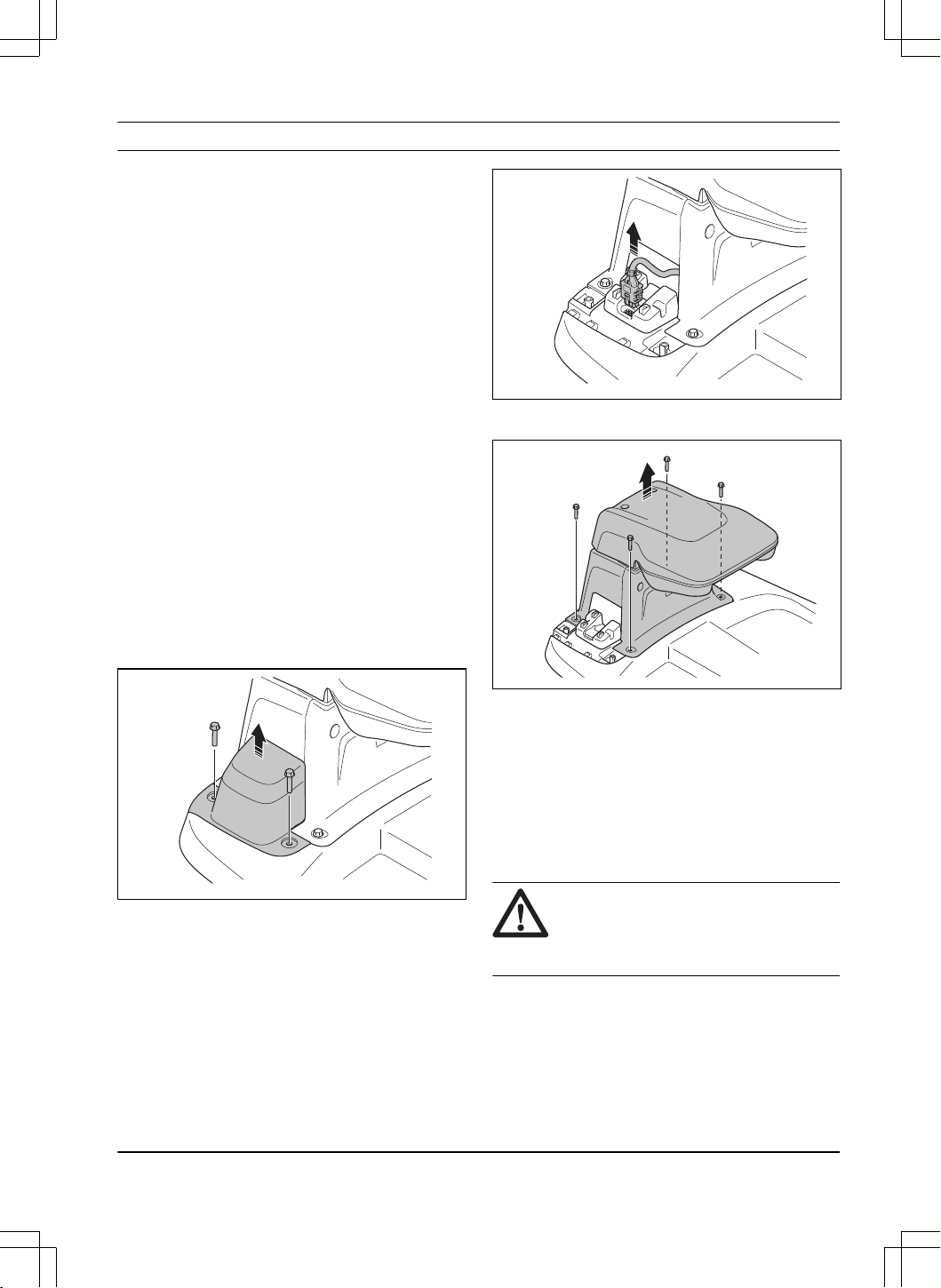

3. Use a 10 mm socket wrench to install the top of the
charging station with 4 screws.
4. Connect the cable of the top of the charging station
to the charging station baseplate.
5. Install the cable cover with 2 screws.
6. Put the power supply at a minimum height of 30
cm / 12 in. (A) and attach the power supply cable
with clips.
A
7. Connect the low-voltage cable to the charging
station.
8. Connect the power supply cable to a 100-240V
power outlet.
9. Put the low-voltage cable in the ground with stakes
or bury the cable.
10. Put the product in the charging station to charge
the product. Refer to
To charge the battery on
page 28
.
3.4.2.2 To do a visual check of the charging station
1. Make sure that the indicator LED lamp on the
charging station has a green light. Refer to
LED
indicator lamp on the charging station on page 41
for information about the LED indicator.
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
To
install the charging station on page 16
and
LED
indicator lamp on the charging station on page
41
.
3.4.3 To install the charging station with
dock by wire
Dock by wire is an optional installation method for the
charging station. With this method you install the wires
from the charging station to the docking point. Use this
method if it is necessary to put the charging station in an
area where the satellite coverage is not sufficient. The
docking point automatically sets to the point where the
guide wire connects to the boundary wire.
16
- Installation 2550 - 002 - 25.03.2025
• Install a boundary wire around the corridor where
the product travels from the charging station to the
docking point.
• Make an eyelet with the boundary wire where the
guide wire will be connected. Make the eyelet with
approximately 20 cm / 8 in. of the boundary wire.
• Install a guide wire in the middle of the corridor
for the product to follow and connect it to the
boundary wire.
• Make sure that the docking point is in an area
where there is unimpeded sky view.
• Make sure that the width of the corridor is
sufficient. Husqvarna recommends that the width
of the corridor is 2-5 m / 6.6-16.4 ft. The minimum
width of the corridor is 1 m / 3.3 ft. If the corridor is
near the charging station, make sure that the width
of the corridor is 2 m / 6.7 ft.
• Put the guide wire in a straight line for 3 m / 9.8 ft.
in front of the charging station.
• Husqvarna recommends that the length for the
guide wire in the installation is 10-100 m / 32-328
ft.
AR
G1
AL
3.4.3.1 To install the boundary wire
CAUTION:
Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around the corridor between
the charging station and the location of the docking
point. Start and complete the installation behind
the charging station. Refer to
To put the wire or the
cable into position with stakes on page 18
and
To
bury the wire or the cable on page 18
.
2. Remove the cable cover.
3. Open the connector and put the boundary wire in
the connector.
4. Close the connector with a pair of pliers.
5. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
6. Push the right connector onto the metal pin on the
charging station with the mark "AR".
7. Push the left connector onto the metal pin on the
charging station with the mark "AL".
3.4.3.2 To install the guide wire
CAUTION:
Twinned cables, or a
screw terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.

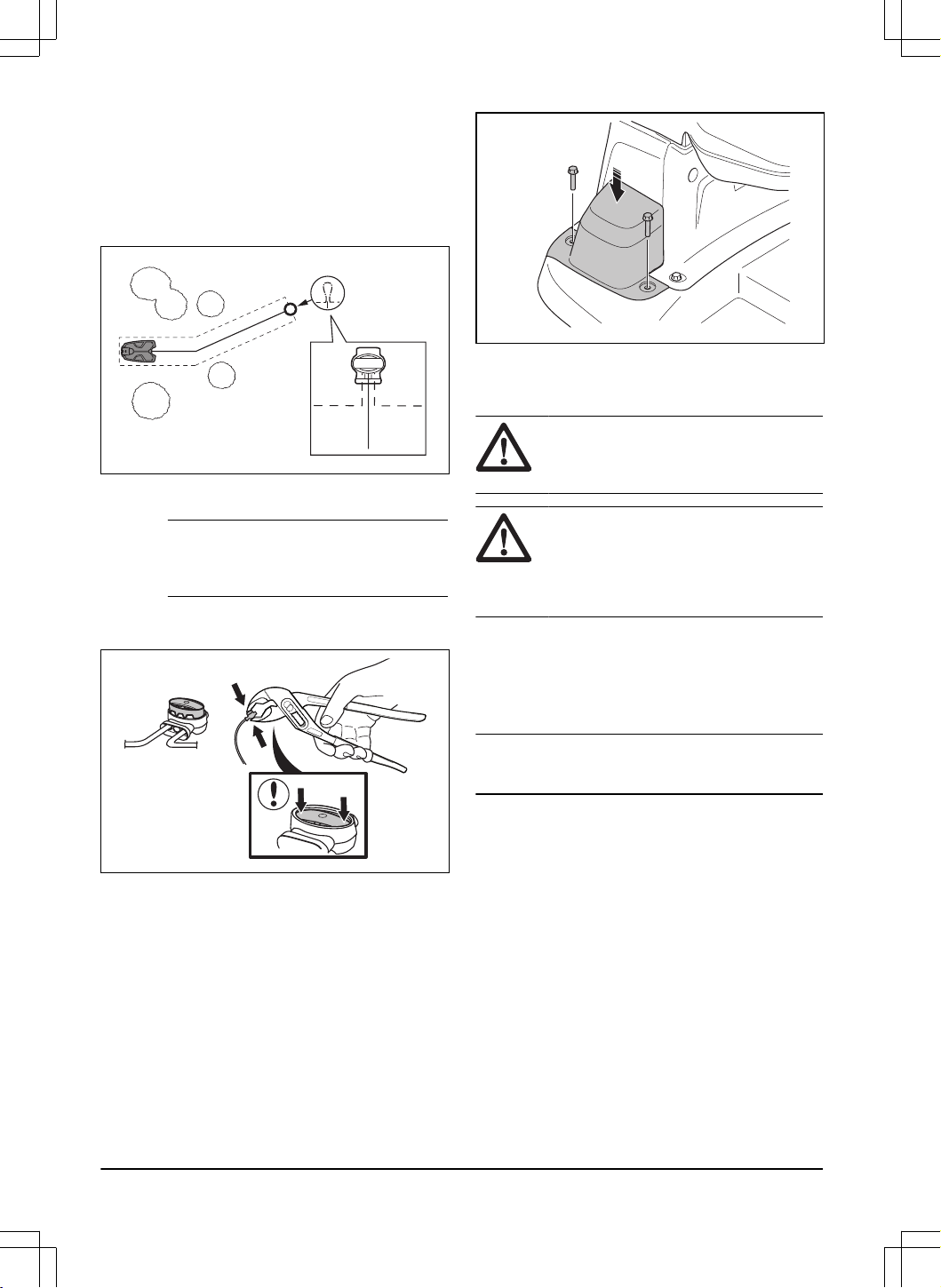

1. Open the connector and put the wire in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above each
connector.
4. Push the connector onto the metal pin on the
charging station with the mark "G1".
2550 - 002 - 25.03.2025
Installation - 17
5. Disconnect the charging station from the power
outlet.
6. Put the end of the guide wire at the eyelet on the
boundary wire.
7. Cut the boundary wire with a pair of wire cutters.
8. Connect the guide wire to the boundary wire with a
coupler.
a) Put the 2 ends of the boundary wire and the
end of the guide wire into the coupler.
Note: Make sure that you can see the ends
of the wires through the transparent area of
the coupler.
b) Push down the cover on the coupler with
adjustable pliers to attach the wires in the
coupler.
9. Attach the guide wire to the ground with stakes or
bury the guide wire in the ground. Refer to
To put
the wire or the cable into position with stakes on
page 18
or
To bury the wire or the cable on page
18
.
10. Install the cable cover with 2 screws.
11. Connect the charging station to the power outlet.
3.4.3.3 To put the wire or the cable into position with
stakes
CAUTION: Make sure that the stakes
hold the wire or the cable against the
ground.
CAUTION: Cutting the grass too low
right after installation can damage the wire
or the cable insulation. Damage to the
insulation may not cause disruptions until
several weeks or months later.
1. Put the wire or the cable on the ground.
2. Put the stakes at a maximum of 30 cm / 12 in.
distance from each other.
3. Attach the stakes to the ground with a hammer or a
plastic mallet.
Note:
The wire or the cable is overgrown with grass
and not visible after a few weeks.
3.4.3.4 To bury the wire or the cable
• Cut a groove in the ground with an edge cutter or a
straight shovel.
• Put the wire or the cable 1-20 cm / 0.4-8 in. into the
ground.
3.4.4 Installation of the reference station
Install the reference station according to the instructions
in the Operator's manual for the reference station.
3.4.5 To do the EPOS setup
1. Download the Husqvarna Fleet Services
™
app and
Automower
®
Connect app to your mobile device.
2. Log on to the Husqvarna Fleet Services
™
app.
3. Set the product to ON.
4. Start Bluetooth
®
on your mobile device.
18
- Installation 2550 - 002 - 25.03.2025

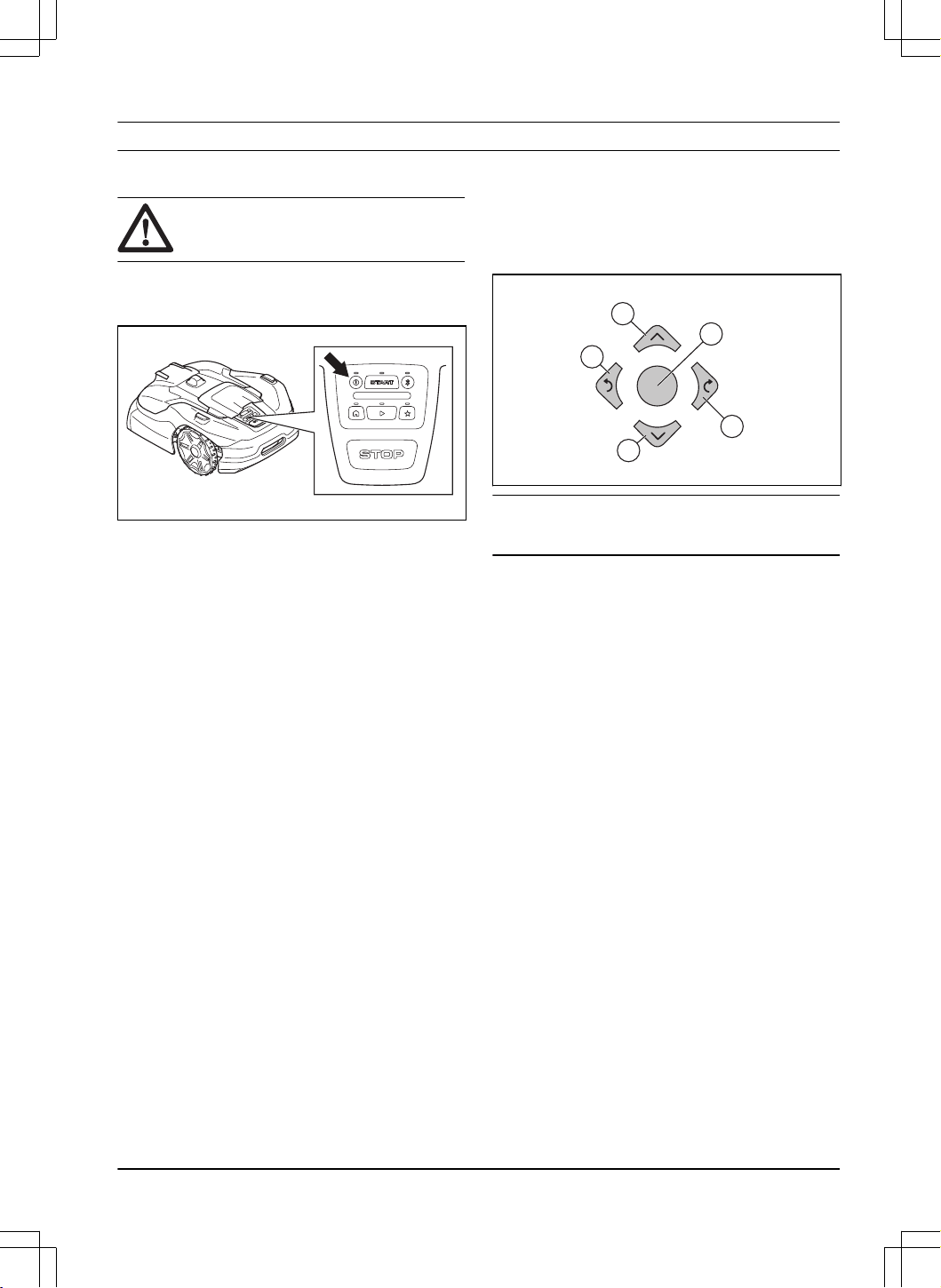

5. Push the Bluetooth
®
button on the product to
enable the Bluetooth
®
.
Note: Other devices with Bluetooth
®
enabled
can cause interference with the pairing operation.
Disable Bluetooth
®
on the other devices if it
causes interference with the pairing operation.
6. Select
Add robotic mower
in the app to add your
product and follow the instructions in the app.

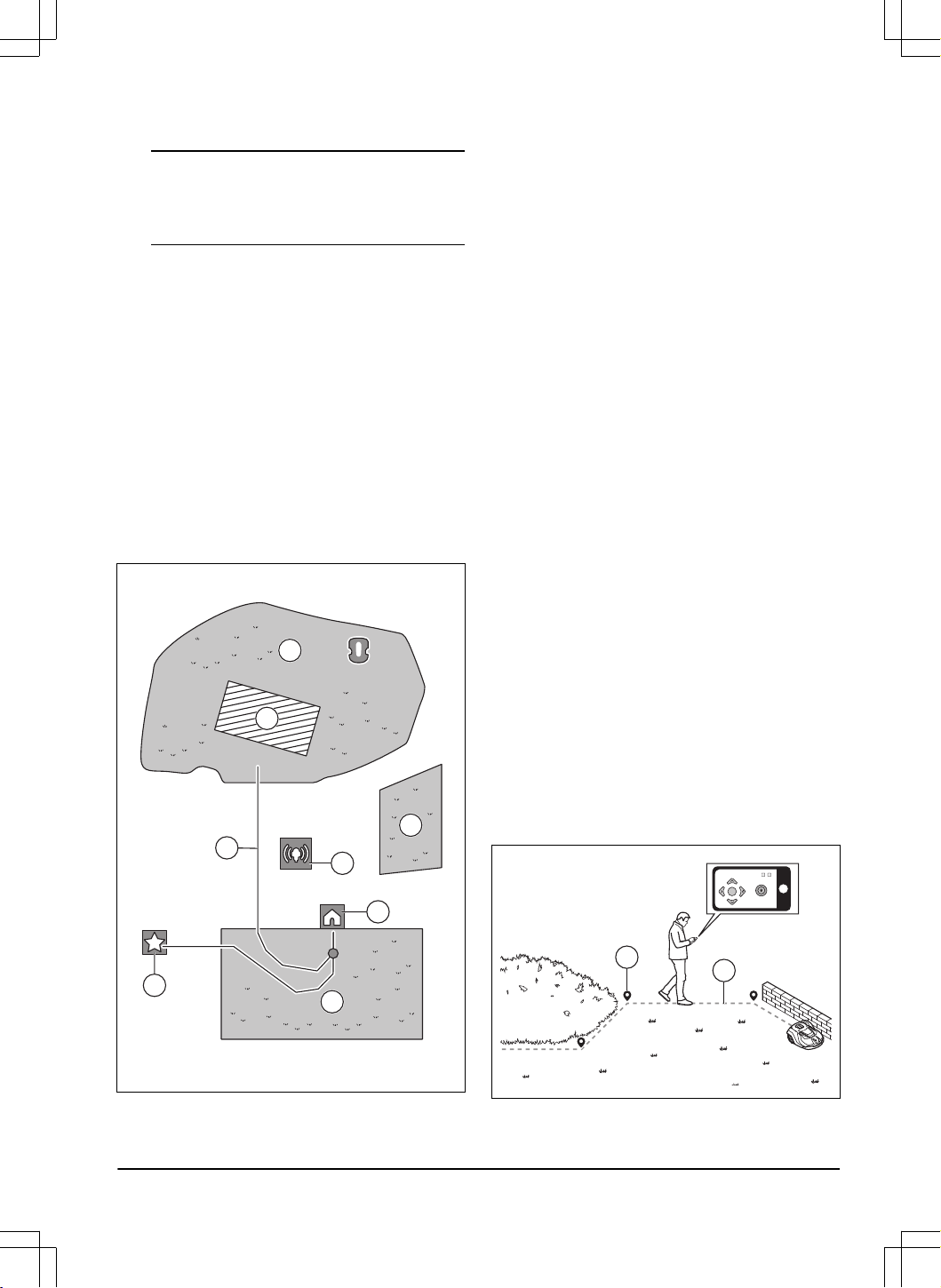

3.4.6 Installation of the map objects
Read and understand the instructions about where to
install the map objects. Refer to
To examine where to
install the objects on the map on page 13
.
On the map you can install the objects that follow in the
app:
•
Work areas
(A)
•
Stay-out zones
(B)
•
Transport path
(C)
•
Charging station
(D)
•
Maintenance point
(E)
•
Reference station
(F)
•
Work area (Secondary area)
(G)
A
G
B
A
D
E
C
F
A work area is specified by virtual boundaries. Maximum
20 work areas and secondary areas can be installed on
a map.
There are two types of work areas:
• A work area that has a charging station in it or
connected to it with a transport path where the
product operates automatically.
• A secondary area is a work area with no charging
station and no transport path. The product must be
moved manually to and from the work area.
A transport path is a specified path between the docking
point in front of the charging station and a work area.
The product can operate automatically in this path, but
does not cut grass. A transport path can temporarily be
enabled and disabled in the app.
Stay-out zones can be made if there are areas where
the product must not operate. A stay-out zone is
specified by virtual boundaries. Stay-out zones can
temporarily be enabled and disabled in the app.
A maintenance point is a specified position where the
product can be parked at. This can for example be used
for a service point where maintenance of the product
is done. The maintenance point is connected to the
docking point with a path.
To install objects on the map, operate the product with
the appDrive installation to add waypoints on the map.
Refer to
To install objects on the map on page 19
.
3.4.6.1 To install objects on the map
The waypoints (A) are positions that makes the virtual
boundaries and paths (B). The lines are straight
between the waypoints. It is recommended to use as
few waypoints as possible. For each work area and
the related stay-out zones and transport path the total
maximum number of waypoints are 800. Husqvarna
recommends to add maximum 1000 waypoints for the
complete installation of the map. To make smooth
curves use several waypoints. Husqvarna recommends
to set the minimum distance of 30 cm / 1 ft. between the
waypoints. You can adjust the positions of the waypoints
in the app after the installation of the map.
B
A
2550 - 002 - 25.03.2025
Installation - 19

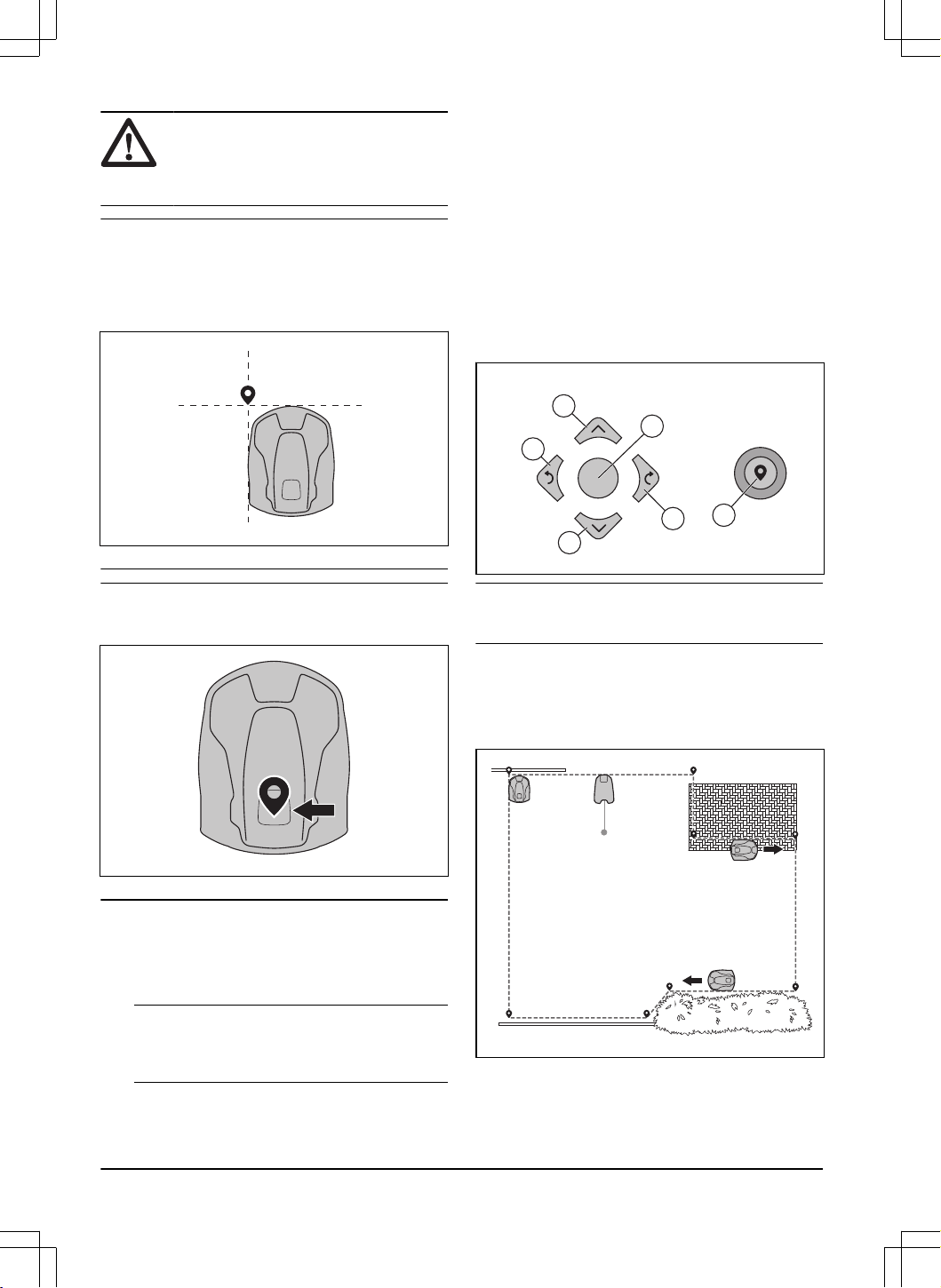

CAUTION: Do not lift and move the
product between the waypoints when you
install the map objects. Use appDrive for a
correct installation.
Note: The position of the waypoint when you install
a work area or a stay-out zone is in the front left
corner of the product. The virtual boundaries specifies
the area where the product operates. The product does
not cut the grass that is adjacent to the virtual boundary
because of the position of the cutting disc.
Note: The position of the waypoint when you install a
transport path or a path to a maintenance point is in the
middle of the product between the drive wheels.
• Make sure that you are near the product and
connected to the product with the app with
Bluetooth
®
.
• Make sure that the status is
EPOS confirmed
in the
appDrive.
Note:
A game controller with Bluetooth
®
can
be used together with appDrive to operate the
product.
• Make sure that the radio signal strength from
the reference station is good. The symbol for the
strength of the radio signal must be fully filled.
• Select the object you want to install and use the
buttons in the appDrive installation to operate the
product.
• Use the up button (A) to move the product forward.
• Use the down button (B) to move the product
rearward.
• Use the left arrow button (C) to rotate the product
to the left.
• Use the right arrow button (D) to rotate the product
to the right.
• Use the center button (E) as a joystick to move and
rotate the product in any direction.
• Use the waypoint button (F) to add a waypoint in
the map.
A
D
F
B
C
E
Note: Walk 2-3 m / 6.5-9.8 ft. behind the product
when you operate the product with appDrive.

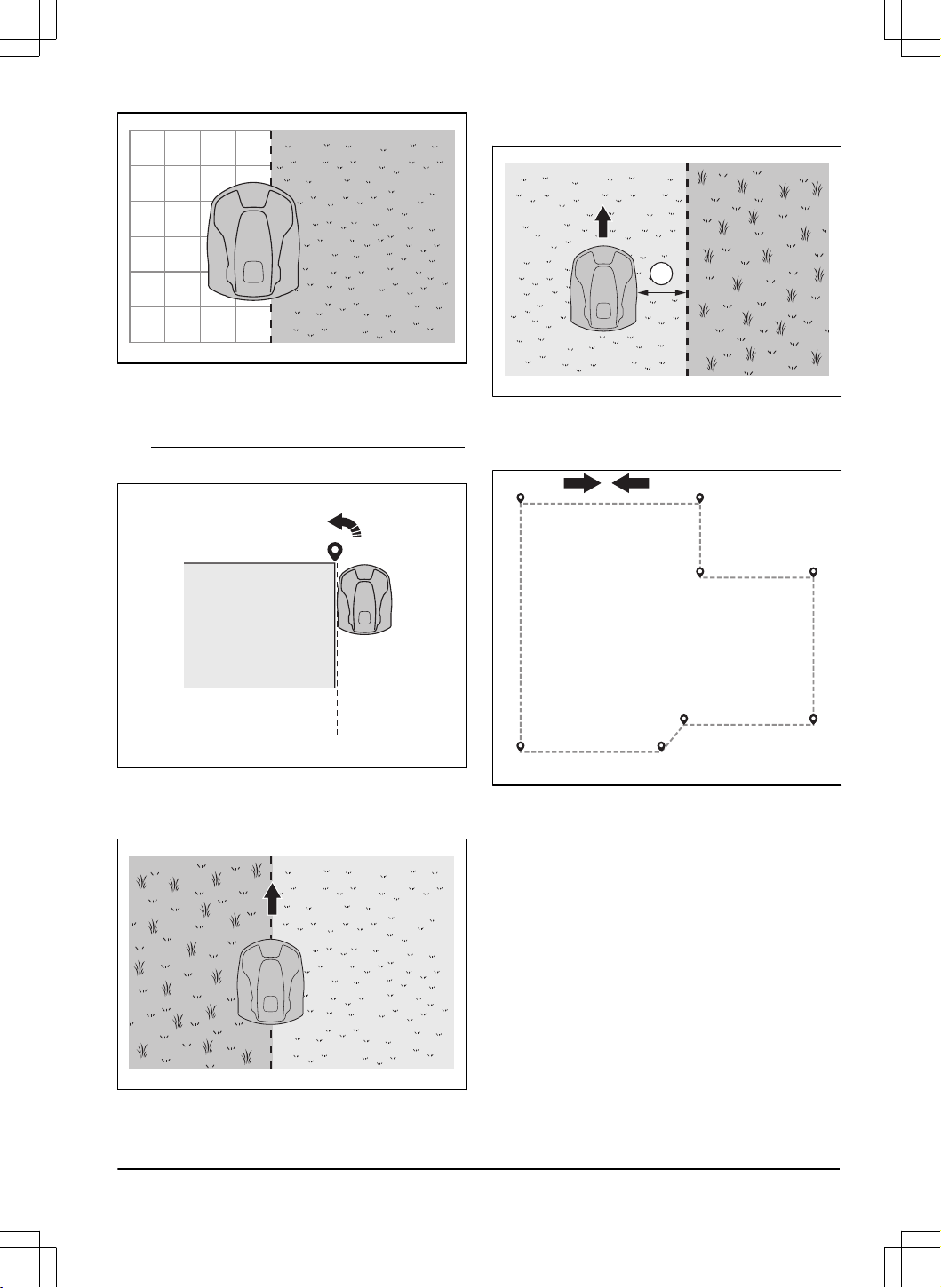

To make a work area
Minimum 3 waypoints are necessary to make a work
area.
• Operate the product clockwise around the
boundary of the work area and add waypoints.
• Add a waypoint to make the product cut the grass
at the edge between the lawn and the stone path.
Make sure that you straddle the edge of the lawn
when you add a waypoint.
20
- Installation 2550 - 002 - 25.03.2025
Note: The product can straddle the edge if the
height of the stone path is maximum 1 cm / 0.4 in.
in relation to the lawn
• Add the waypoint at the outer corner to install the
virtual boundary around a corner.
• For installation on golf courses, specify the work
area for the fairway. Operate the product in the
center of the edge between the fairway and the
rough.
• For installation on golf courses, specify the work
area for the rough. Operate the product on the
fairway. Keep a distance of 30 cm/1 ft. (A) from the
edge between the fairway and the rough.
A
• Do not set waypoints that make a virtual boundary
go across itself in the same work area.
• Save the work area to automatically connect the
first and last waypoint with a virtual boundary.
1
2
3
4
5
6
7
8
To make a stay-out zone
Minimum 3 waypoints are necessary to make a stay-out
zone.
• Operate the product counterclockwise around the
boundary of the stay-out zone.
• Do not set waypoints that make a virtual boundary
go across itself in the same stay-out zone.
• Save the stay-out zone to automatically connect
the first and last waypoint with a virtual boundary.
2550 - 002 - 25.03.2025
Installation - 21

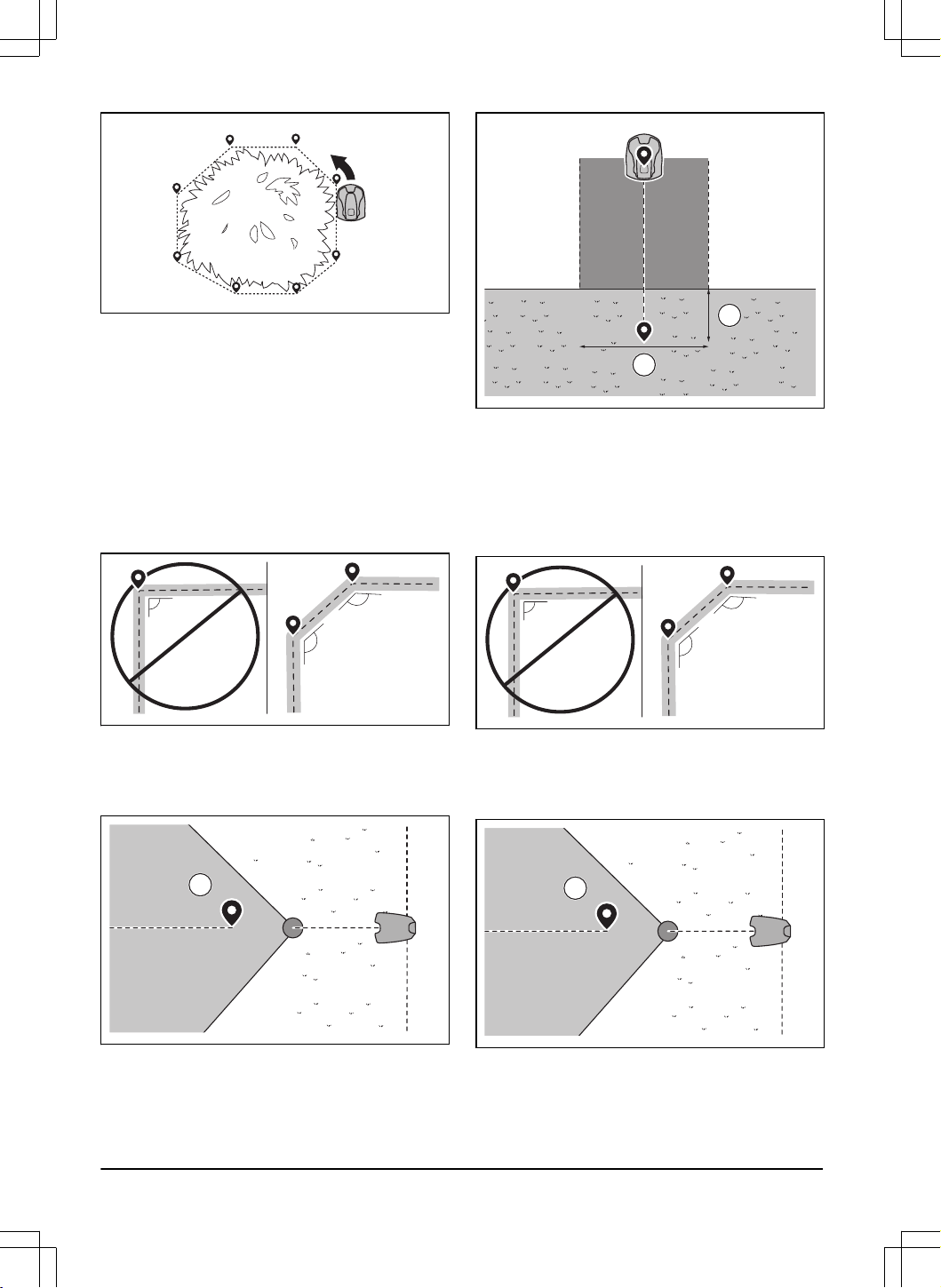

To make a transport path
• Operate the product and add waypoints on the
map to install a transport path. Start in a work area
minimum 1 m / 3.3 ft. from the virtual boundary.
• Install the transport path perpendicular to the
virtual boundary of the work area.
• Do not install a transport path across a stay-out
zone.
• Do not set waypoints that make the transport path
go across the same transport path.
• Do not make sharp bends when you install the
transport part. Husqvarna recommends to add
more waypoints to make smoother curves.
135º
135º
90º
• Operate the product and add waypoints to connect
the transport path to the docking point.
• Put the last waypoint on a transport path (A) in
an angle of +/-45 degrees seen from the docking
point.
A
• Save the transport path to automatically connect
the last waypoint to the docking point.
• Set the corridor width (A) for the transport path.
The corridor width can be set to 2-5 m / 6.6-16.4 ft.
B
A
To make a maintenance point
• Operate the product and add waypoints on the
map. Start to add waypoints at the position
where you install the maintenance point. The first
waypoint specifies the maintenance point.
• Do not make sharp bends when you install a
transport part. Husqvarna recommends to add
more waypoints to make smoother curves.
135º
135º
90º
• Operate the product and add waypoints to make a
path to the charging station.
• Put the last waypoint on a transport path (A) in
an angle of +/-45 degrees seen from the docking
point.
A
• Save the maintenance point to automatically
connect the last waypoint to the docking point.
22
- Installation 2550 - 002 - 25.03.2025
• Set the corridor width (A) for the maintenance
point. The corridor width can be set to 2-5 m /
6.6-16.4 ft.
A
2550 - 002 - 25.03.2025 Installation - 23
4 Settings
The product has factory settings but the settings can be
adapted to each work area.
4.1 Schedule
In the
Schedule
menu you can change the schedule
settings for the product. You can set separate schedule
settings for each work area.
Secondary areas
cannot be
scheduled. The schedule function controls which hours
the product is permitted to operate. When the product
does not operate, it is parked in the charging station.
The shape of the work area, number of obstacles and
slopes decreases the mowing capacity.
Systematic
mowing
Irregular mow-
ing
Area capacity –
sports 24
Mowing every
day
Mowing every
day
Area capacity –
standard 48
Mowing every
second day
Mowing every
day
Area capacity – max
72
Mowing every
third day
Mowing every
day
The maximum area capacity for the product varies with
the type of application and turf quality.
• Area capacity – sports 24: This is the maximum
area capacity for sports fields and golf fairways
that need to be mowed every day (24 hours).
Applicable to well-managed, lush, and dense turfs,
as well as turfs mowed at a low cutting height.
• Area capacity – standard 48: This is the maximum
area capacity for most turfs, such as facility
areas and golf roughs that need to be mowed
systematically every second day (48 hours). With
irregular pattern, mowing every day is needed.
Valid for standard turf quality mowed at medium
cutting height.
• Area capacity – max 72: This is the maximum
area capacity for facility areas, that can be mowed
systematically every third day (72 hours). With
irregular pattern, mowing every day is needed.
Valid for turf with slower grass growth mowed at
high cutting height.
4.1.1 To set the schedule for systematic
mowing
• Set the schedule to let the product operate for as
long time as possible.
Note:
After the product has cut the full work
area, it goes back to the charging station. When
the next session starts, the product cuts the full
work area again.
Note: If the product has not cut the full work
area before the session ends, it goes back to the
charging station. When the next session starts, the
product continues to cut from where it stopped.
• To cut a work area 2 times a day, you can set
2 different schedules. Set the schedule for the
product to have sufficient time to cut the complete
work area.
• With 2 or more parallel schedules, the product
starts to cut where it has not cut for the longest
time.
• Make sure that the product completes to cut each
work area in less than 24 hours. If the product
must cut a work area for more than 24 hours,
divide the work area into smaller work areas.
4.1.2 To set the schedule for irregular
mowing
The product operates the complete scheduled time with
irregular mowing.
• Decrease the scheduled time to prevent wear on
the grass.
• If the cutting result is not satisfactory, increase the
scheduled time. Refer to
Schedule on page 24
.
• With 2 or more parallel schedules in different work
areas, the product first starts to cut 1 work area.
After each charging of the product, the product
starts to cut another work area.
4.2 Cutting height
For Automower 560/580 EPOS
™
the cutting height can
be set to 20-60 mm / 0.8-2.4 in. For Automower 580L
EPOS
™
the cutting height can be set to 10-50 mm /
0.4-2.0 in.
4.3 Pattern
24
- Settings 2550 - 002 - 25.03.2025
The settings for the pattern is set for each work area.
You can do these settings:
• Set the pattern for how the product operates.
• For some patterns you can set the direction of the
pattern.
• For some patterns you can set the type of the
Border mowing
. With
Fixed border mowing
the
product always operates in the same paths to
keep a sharp border around the work area. With
Variable border mowing
, the product operates in
different paths to decrease the risk of track marks
along the virtual boundary.
Husqvarna recommends to use systematic pattern on
large and open work areas. If you use systematic
pattern on a work area with obstacles, make stay-out
zones around obstacles and use a pattern with many
directions for the best possible cutting result.
Husqvarna recommends to use irregular pattern if the
work area is complex and has many obstacles.
4.4 Operation
In the
Operation
menu you can change the settings of
the
Object avoidance
and
ECO mode
.
4.5 ECO mode
The charging station signal automatically disables when
the product is in the charging station. It is not necessary
to use
ECO mode
to disable the charging station signal.
This prevents interference with other equipment, for
example hearing loops. Husqvarna recommends to keep
ECO mode
disabled.
ECO mode
saves energy, but can
have a unsatisfactory effect on the operation of the
product.
4.6 Object avoidance
The product decreases its speed when it senses an
object in its path. This helps the product from hitting
the object too hard. When the
Object avoidance
function
is enabled, the product stops in front of the object
to prevent a collision. Then, the product turns and
continues to cut in a different direction.
Note:
This can cause that the grass is not cut around
the obstacle. This function can cause the product to not
cut high grass satisfactorily.
Note:
Object avoidance
is only used when the product
operates in work areas, not when it is in a transport
path.
4.7 Accessories
Settings for accessories mounted on the product can be
made in this menu.
4.7.1 Headlights / Warning lights
There are 4 different settings that control when the
warning lights are on:
•
Always on
•
Evening only (19:00-00:00)
•
Evening and night (19:00-07:00)
•
Always off
The warning light can be set to
Solid white light
,
Solid
amber light
or
Strobe amber light
. The warning lights
can also be set to flash if there is an error.
Note: Husqvarna recommends to use the warning
lights especially at night time.
4.8 General
In the
General
menu you can set the time and date, or
reset to factory settings.
This menu is only available when your mobile device is
connected to the product with Bluetooth
®
.
4.8.1 Time & date
The time and date can be changed manually, or by
using the time and date from the mobile device.
4.8.2 Reset to factory settings
The user settings can be reset to factory settings. All
map objects and the schedules will be deleted.
Note:
PIN code, Loop signal, Messages
and
Date &
Time
will not be reset.
4.9 Security
The security settings controls the PIN code, the
GeoFence and other security functions. The correct PIN-
2550 - 002 - 25.03.2025
Settings - 25
code must be entered to get access to the
Security
menu.
This menu is only available when your mobile device is
connected to the product with Bluetooth
®
.
4.9.1 New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
rare cases, there may be a need to generate a new
signal, for instance if 2 adjacent installations have a very
similar signal.
4.9.2 Change PIN code
You can change the PIN code. Make a note of the new
PIN code in Memo. Refer to
Introduction on page 6
.
4.9.3 Theft protection
In the
Theft protection
menu it is possible to set the
alarm duration and also what events should trigger the
alarm. The factory setting is to require PIN code and the
alarm duration is 1 min.
4.9.3.1 Alarm duration
There is a possibility to set how long the alarm signal
should last. A setting between 1 and 10 minutes is
possible.
4.9.3.2 STOP button pressed
If the alarm
"STOP button pressed"
is enabled, the
alarm goes off if someone presses the STOP button and
the PIN code is not entered within 30 seconds.
4.9.3.3 Carried away
If the alarm
Carried away
is enabled, the product senses
unexpected motions, and the alarm goes off.
4.9.4 GeoFence
GeoFence is a GPS-based theft protection that makes
a virtual fence for the product. If the product is more
than a set distance away from the center position the
product will be disabled and an alarm will start. The
center position sets to the current position of the product
when GeoFence is enabled. The PIN code is necessary
to stop the alarm and to start the product again. The
GeoFence is only enabled when the product is set to
ON.
4.10 Automower
®
Connect
In
Automower
®
Connect
you can enable or disable the
Automower
®
Connect module. You can also see the
signal strength, connectivity status, initiate new pairing
or remove the product from the paired accounts.
This menu is only available when your mobile device is
connected to the product with Bluetooth
®
.
4.11 Messages
In this menu the previous fault and information
messages can be found. For some of the messages,
there are tips and advice to help to rectify the fault.
If the product is disrupted in any way, for example it
is trapped or the battery is low, a message is saved
relating to the disruption and the time it happened.
If the same message is repeated several times, this
may indicate that an adjustment to the installation or the
product is required. Refer to
Installation on page 12
.
4.12 Mowing profiles
You can save different sets of settings in the
Mowing
profiles
. Use this function when you use one product for
more than one location or to have different settings on
the same location. In the
Mowing profiles
the product
settings, map objects and their settings are saved.
4.13 Download firmware over the air
(Firmware over the air FOTA)
The product has a function that automatically downloads
new firmware. When a new firmware is available, a
notification shows in the app where you can select
to install the new firmware. In the factory setting this
function is enabled. Husqvarna recommends you to
update the firmware when new firmware is available.
26 - Settings 2550 - 002 - 25.03.2025
5 Operation
5.1 To set the product to ON
WARNING: Read and understand the
safety chapter before you use the product.
• Push the ON/OFF button for 3 seconds to set the
product to ON. Make sure that the LED indicator
comes on.
• Open the app on your mobile device.
• Enter the PIN code.
5.2 To select operation mode
5.2.1 Scheduled operation
The product operates to the set schedule in the work
area where it cuts the grass and charges automatically.
5.2.1.1 To select scheduled operation in the app
1. Open the app on your mobile device.
2. Select
Start
>
Resume Schedule
.
5.2.1.2 To select scheduled operation in the control
panel
1. Push the STOP button.
2. Push the Play button.
3. Push the START button.
5.3 appDrive
Use the appDrive to operate the product manually.
5.3.1 To use appDrive
1. Open the app on your mobile device.
2. Select
Start
>
appDrive
.
5.3.2 To operate the product with appDrive
Use the buttons to operate the product:
• Use the up button (A) to move the product forward.
• Use the down button (B) to move the product
rearward.
• Use the left
arrow button (C) to rotate the product
to the left.
• Use the right arrow button (D) to rotate the product
to the right.
• Use the center button (E) as a joystick to move and
rotate the product in any direction.
A
D
B
C
E
Note: Walk 2-3 m / 6.5-9.8 ft. behind the product
when you operate the product with appDrive.
5.4 Work area selection
This function lets the product temporarily operate in a
selected work area. When the selected work area is cut,
the product continues to operate to the set schedule.
For the product to operate in a secondary area, you
must move the product manually to and from the
secondary area. The product operates until the work
area is cut or until the battery is empty.
5.4.1 To select the work area in the app
1. Open the app on your mobile device.
2. Select
Start
.
3. Select the work area.
5.5 Operation mode Park
The operation mode
Park
means that the product goes
back to the charging station. The product stays in the
charging station for a selected period of time or until you
select a new operation mode.
5.5.1 To select operation mode Park in the
app
1. Open the app on your mobile device.
2. Select
Park
.
3. Select for how long the product must stay in the
charging station.
2550 - 002 - 25.03.2025
Operation - 27

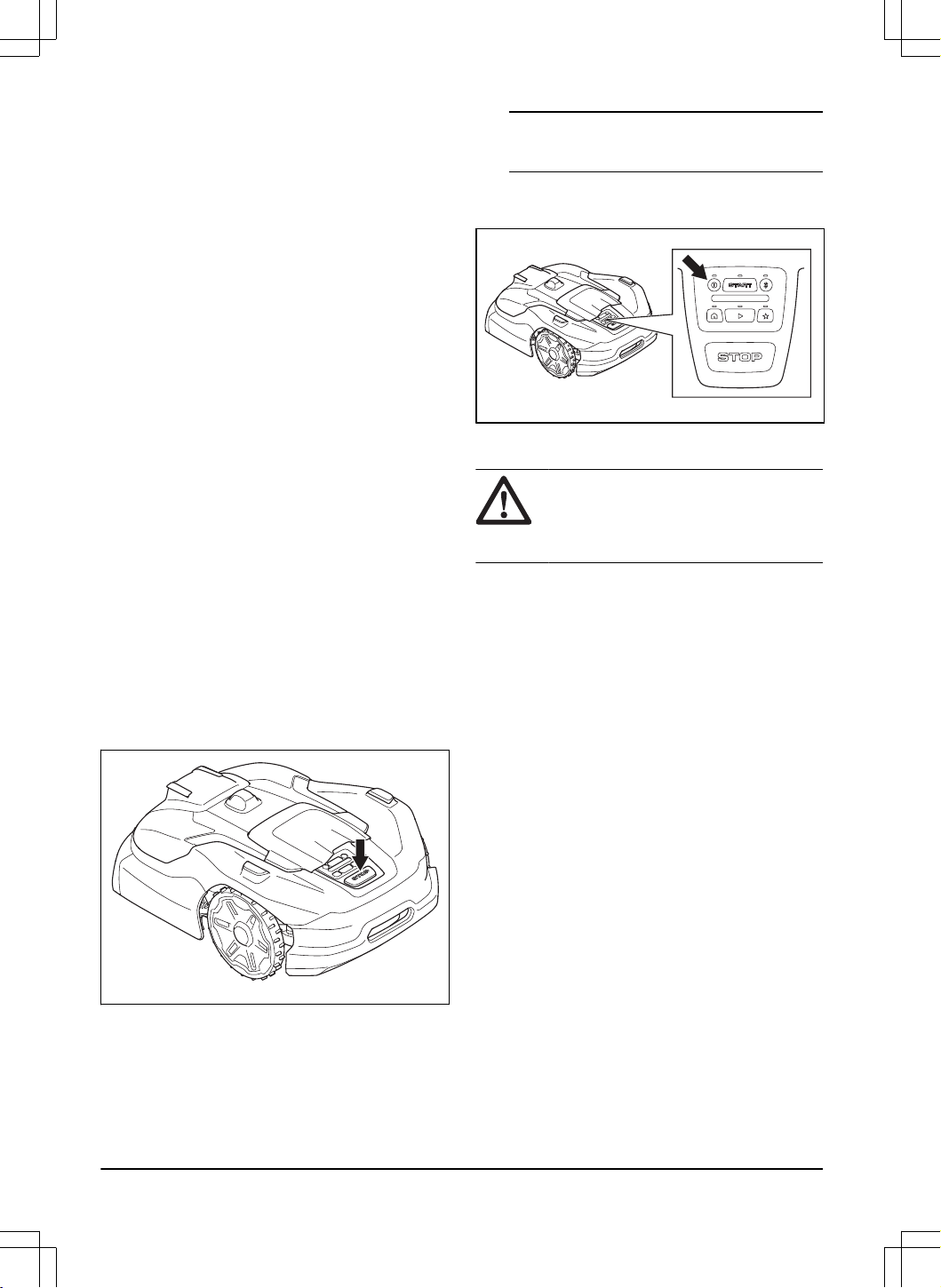

5.5.2 To select operation mode Park on the
control panel
1. Push the STOP button.
2. Push the Park button.
3. Push the START button.
The product stays in the charging station for 3 hours and
then it continues to operate to the set schedule.
5.6 Operation mode Park at
Maintenance point
You can park the product at the maintenance point to do
maintenance on the product.
5.6.1 To park the product at the
maintenance point with the app
1. Open the app on your mobile device.
2. Select
Park
>
Maintenance point
.
The product is parked at the maintenance point until you
select a new operation mode.
5.6.2 To park the product at the
maintenance point with the control panel
1. Push the STOP button.
2. Push the Maintenance point button.
3. Push the START button.
The product is parked at the maintenance point until you
select a new operation mode.
5.7 To stop the product
1. Push the STOP button to make the product and
the cutting motor stop.
5.8 To set the product to OFF
1. Push the STOP button on top of the product.
2. Connect the product with Bluetooth
®
short-range in
the app.
3. Enter the PIN code in the app.
Note:
The product cannot be set to OFF if it is
not connected to the app with Bluetooth
®
.
4. Push the ON/OFF button for 3 seconds to set the
product to OFF. Make sure that the LED indicator
goes out.
5.9 To charge the battery
WARNING: Read and understand the
safety instructions for the battery before you
use the product. Refer to
Battery safety on
page 5
.
When the product is new or after long-term storage, the
battery can be empty. If the battery is fully empty, the
product charges very slowly. The product can charge for
many hours before you can set the product on.
1. Put the product into the charging station until the
product is fully entered into the charging station.
2. Make sure that the charging is in progress in the
app or that the LED indicator pulsates blue.
28
- Operation 2550 - 002 - 25.03.2025
6 Maintenance
6.1 Introduction - maintenance
WARNING: Set the product to OFF
before you do maintenance on the product.
WARNING: Use protective gloves.
For better operation and lifetime of the product, make
sure to clean the product regularly and replace worn
parts.
When the product is new, examine the blade discs and
blades each week. If the wear is low, you can increase
the interval for the next time you examine the blade
discs and blades. Examine the blade discs and the
blades more regularly if there is much wear.
It is important that the blade disc rotates easily and that
the edges of the blades are not damaged. The usual
lifetime of the blades are 2 to 5 weeks. The conditions
that follow can increase or decrease the lifetime of the
blades:
• Operation time and dimension of the work area.
• Length and thickness of the grass.
• Soil, sand and use of fertilizers.
• Objects such as cones, tools, stones and roots in
the work area.
Note: The cutting result can be unsatisfactory if the
blades are blunt. Refer to
Replacement of the blades on
page 31
on how to replace the blades.
6.2 Maintenance schedule
The maintenance schedule shows how to do
servicing and maintenance on the product. Follow the
maintenance schedule for a better operation and to
increase the lifetime of the product.
X = The instructions are given in this operator's manual.
O = The instructions are not given in this operator's
manual. Speak to your approved servicing dealer.
Weekly Every
year
Every
third year
To prepare
Clean the product. Refer to
Clean the product on page 30
. X
Examine the product for damage and wear. X
Do an update of the firmware. O
Do a check of the servicing messages for recommended upgrades. O
Servicing
Examine the blades and replace the blades and blade screws if it is necessary.
Refer to
Replacement of the blades on page 31
.
X
Examine and polish the contact plates on the charging station. X
Examine and polish the charging plates on the product. X
Charge the battery fully before you put the product into storage. Refer to
To
charge the battery on page 28
.
X
Examine the wheels for wear. O
Examine and clean the collision columns. Do a check of the tightening torque on
the front and rear collision columns.
O
Make sure that the product is docking and charging correctly. O
2550 - 002 - 25.03.2025 Maintenance - 29
Weekly Every
year
Every
third year
Examine the cable and connector to the charging plates on the body of the
product.
O
Examine the rubber grommets on the chassis to make sure that it is sealed
correctly.
O
Examine the skid plate and skid plate bearing. O
Examine the rubber bellows in the cutting height adjustment system. O
Examine the rubber bellows for the collision columns. O
Replace the rubber bellows for the collision columns. O
Examine and clean the airflow filter. O
Replace the airflow filter. O
Do a check of the tightening torque of chassis screws. O
Open the chassis and replace all sealing strips. O
Last step
Use a software service tool to do a function test of the functions of the product. O
6.3 Clean the product
Husqvarna recommends to use a special cleaning and
maintenance kit, available as an accessory. Speak to
your Husqvarna representative for more information.
CAUTION: Do not use a high-pressure
washer to clean the product and the
charging station. Do not use solvents for
cleaning.
6.3.1 To clean the body, chassis and blade
disc
CAUTION: Make sure that the cutting
disc is installed on the product before you
clean the product with water.
Examine the blade disc and blades weekly. To clean
the product fully, the keypad cover and the body of the
product can be removed. If the product is dirty, use a
weak soap solution if it is necessary. Use a brush or a
water hose to clean the product.
1. Set the product to OFF.

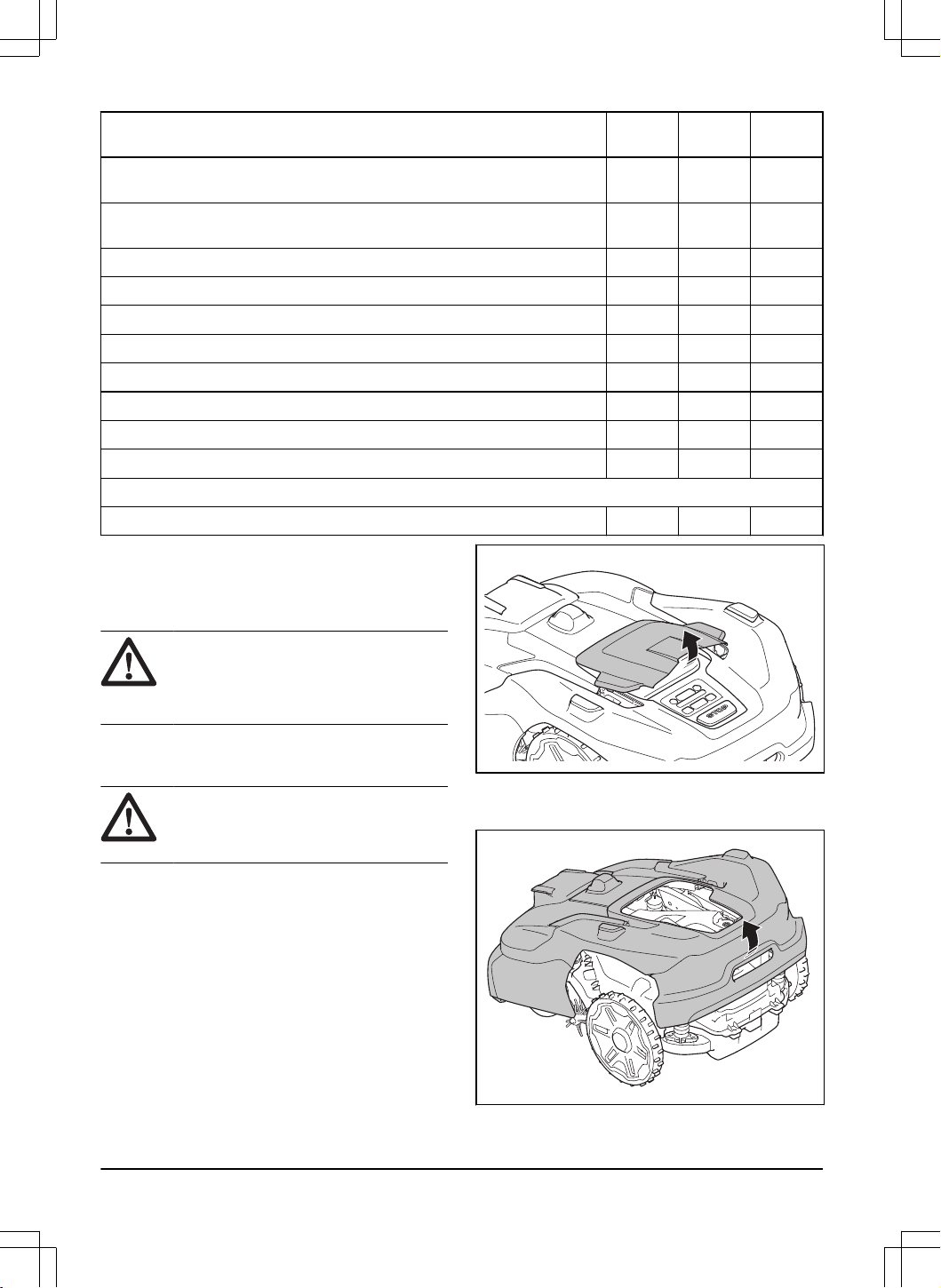

2. Carefully pull the keypad cover to remove it.
3. Hold the chassis with one hand and remove the
body with a fast and short pull upwards and
towards the front of the product.
30 - Maintenance 2550 - 002 - 25.03.2025
WARNING: If your hands come
between the body of the product and
the chassis, there is a risk of injury.

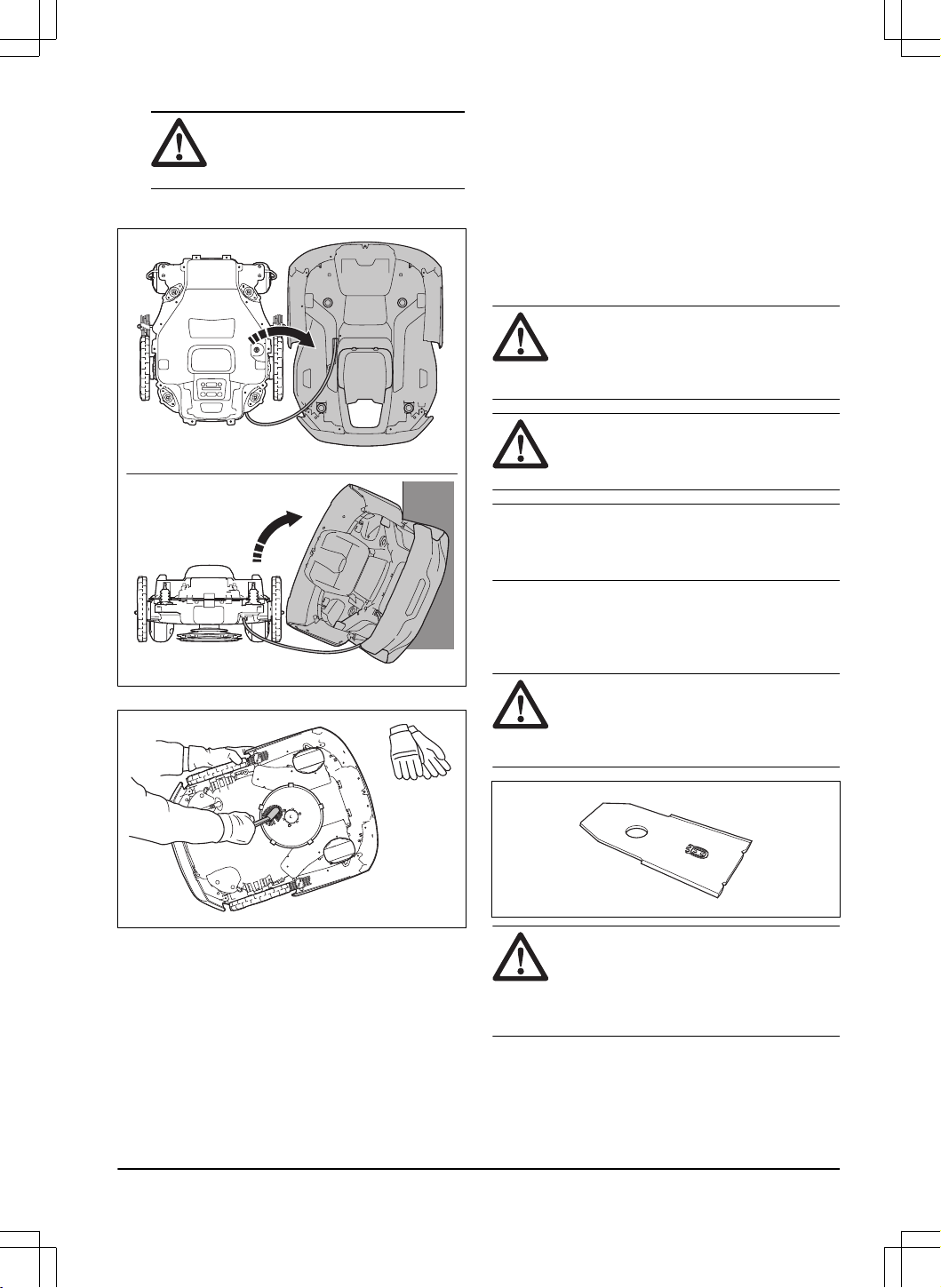

4. Put the body of the product adjacent to the chassis
of the product or tilt it against a wall.
5. Put the product onto its side.
6. Clean the blade disc bellows for the blade disc and
chassis with a brush. At the same time, make sure
that the blade disc rotates freely. Make sure that
the blades are not damaged and can pivot freely.
6.3.2 To clean the chassis
• Clean the bottom of the chassis with a brush or a
moist cloth.
6.3.3 To clean the wheels
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass.
• Use a soft brush to clean the wheels.
6.3.4 To clean the body of the product
• Use a moist cloth and a weak soap solution to
clean the body of the product.
6.3.5 To clean the charging station
WARNING: Disconnect the power
supply from the power outlet before
maintenance, or when you clean the
charging station or power supply.
CAUTION: Do not use a high-pressure
washer or running water to clean the
charging station.
Note: The product cannot enter the charging station
if there are objects in the charging station. Clean the
charging station regularly.
• Remove grass, twigs and other objects from the
charging station.
6.4 Replacement of the blades
WARNING:
Husqvarna can only
guarantee safety if you use Husqvarna
original blades with the embossed crowned
H-mark logotype.
WARNING: You must replace the
screws when you replace the blades. The
used screws can wear quickly and make the
blade come loose, this can cause serious
injury.
Replace worn or damaged blades for a safe operation.
Replace the blades regularly for a satisfactory cut result
and a low energy use. All 3 blades and screws must
be replaced at the same time to get a balanced cutting
system.
2550 - 002 - 25.03.2025
Maintenance - 31

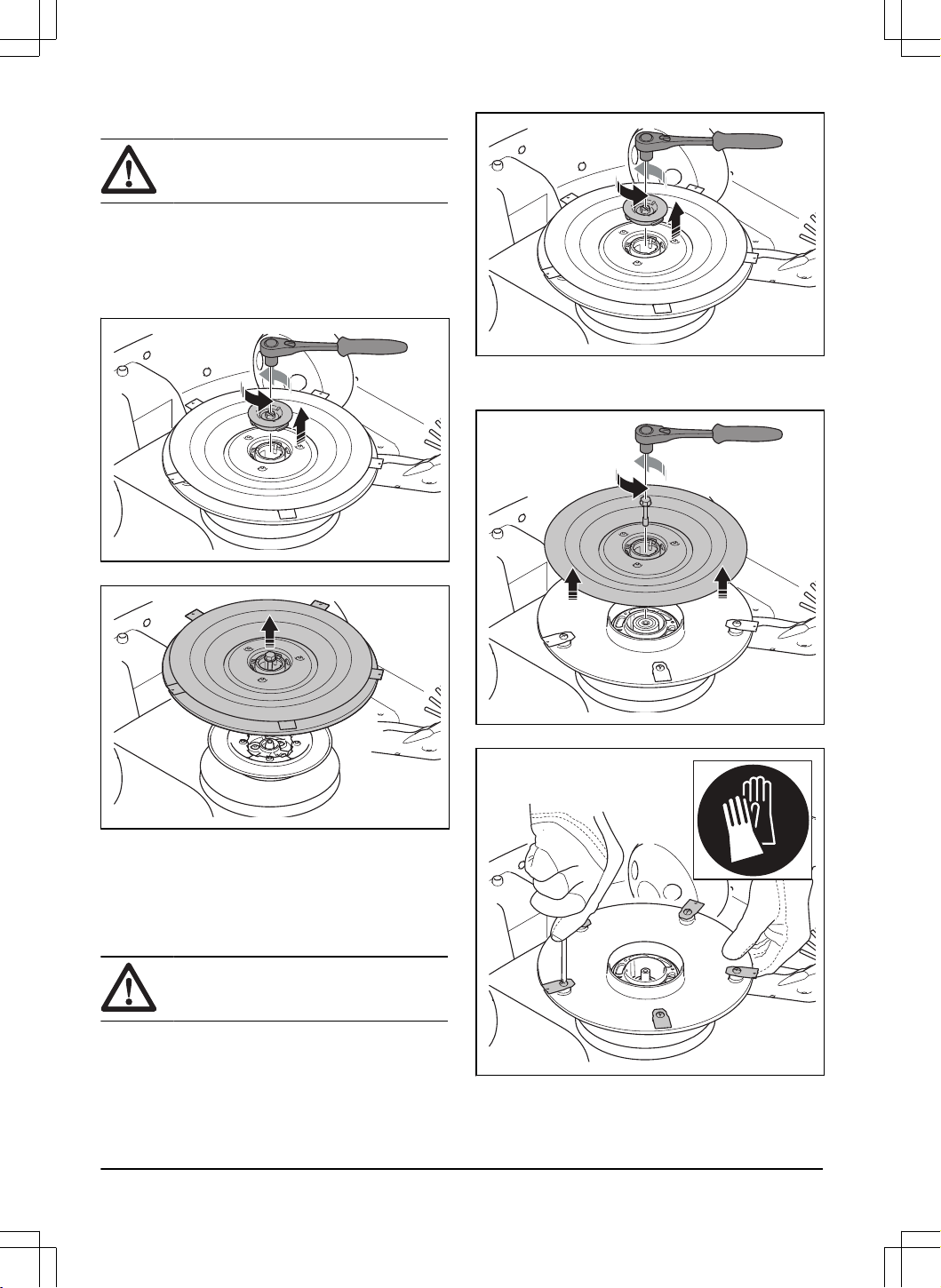

6.4.1 To replace the blade discs
WARNING: Use protective gloves.
1. Push the STOP button.
2. Set the product to OFF.
3. Put the product with the blade disc up.
4. Remove the coupling on the blade disc with a 10
mm socket wrench.
5. Loosen the screw with a 10 mm socket wrench.
6. Remove the blade disc.
7. Clean the shaft and hub if it is dirty.
8. Install the blade disc in opposite sequence.
6.4.2 To replace the blades on the blade
disc
WARNING: Use protective gloves.
1. If there are no holes in the skid plate, remove the
skid plate:
a) Remove the coupling on the blade disc with a
10 mm socket wrench.
b) Lift up the skid plate and remove the screw
with a 10 mm socket wrench. Remove the
skid plate.
2. Remove the 5 screws and the 5 blades.
32
- Maintenance 2550 - 002 - 25.03.2025

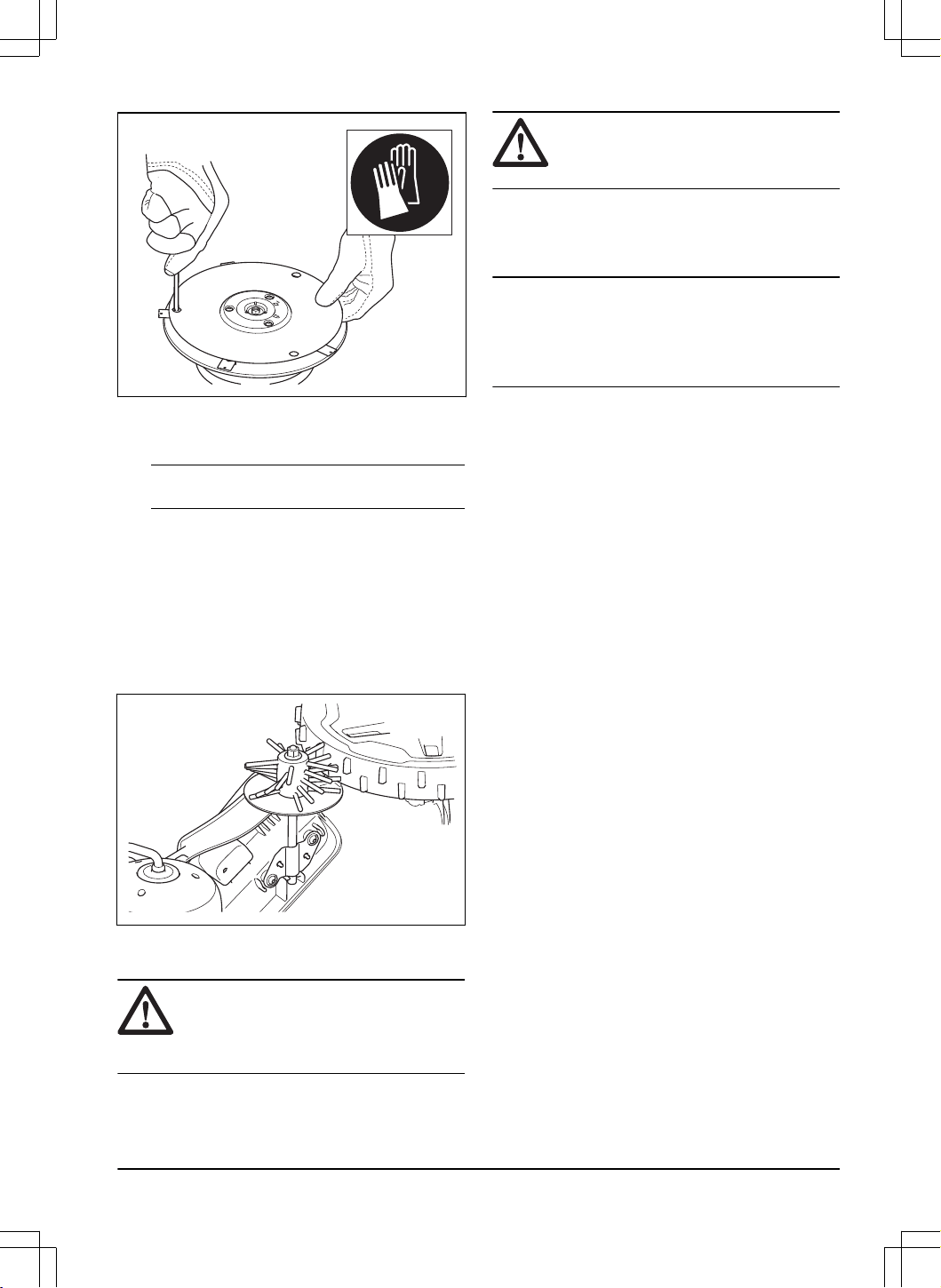

3. Install 5 new blades and screws.
4. If the skid plate was removed, install the skid plate
and the screw.
Note: Tightening torque 6 Nm.
5. Make sure that the blades can pivot freely.
6.5 Replace the wheel brushes
The wheel brushes are installed from the factory for
some models, but are available as accessory for all
models. The wheel brushes on the product removes
grass from the wheels of the product. Examine the
wheel brushes regularly and replace them when they
are worn. Husqvarna recommends to replace the wheel
brushes each 5-10 weeks.
6.6 Battery
CAUTION:
Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
CAUTION: The battery must be
replaced by an authorized service
technician.
If the operating time of the product is shorter than usual
between charges, this means that the battery is at the
end of its life cycle. Replace the battery to extend the
operating time.
Note: The battery life is related to the length of
the season and how many hours a day the product
operates. A long season or many hours of operation
a day means that the battery must be replaced more
regularly.
6.7 Winter service
Take your product to your Husqvarna central service for
service prior to winter storage. Regular winter service
will maintain the product in good condition and create
the best conditions for a new season without any
disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis, the
blade disc and all other moving parts.
• Testing of the product’s function and components.
• Checking and, if required, replacing wear items
such as blades and bearings.
• Testing the product’s battery capacity as well as a
recommendation to replace battery if necessary.
• If new firmware is available, the product is
updated.
2550 - 002 - 25.03.2025
Maintenance - 33
7 Troubleshooting
7.1 Introduction - troubleshooting
In this chapter, a number of messages are listed which may be shown in Automower
®
Connect and Husqvarna Fleet
Services
™
if there is a malfunction. There is a proposal action to the cause and steps to take for each message.
This chapter also presents some symptoms that can guide you if the product does not work as expected. More
suggestions for steps to take in the event of malfunction or symptoms can be found on www.husqvarna.com.
7.1.1 Messages
The messages in the table below are shown in the app. Speak to your Husqvarna representative if the same message
shows frequently.
Message Cause Action
Cutting system blocked
The blade disc is blocked by grass or
other objects.
Examine the blade disc and remove the
grass or other object.
The blade disc is in water. Move the product and prevent the collec-
tion of water in the work area.
The grass is high and thick. Adjust the cutting height to the height of
the grass.
Adjust the schedule settings to increase
the operation time.
Unexpected cutting height adj
The cutting height adjustment cannot
move.
Examine the cutting height adjustment
and remove grass or other objects. If the
problem stays, speak to your approved
servicing dealer.
Limited cutting height range
Cutting height problem
Cutting height blocked
Cutting system major imbal-
ance
The product senses vibrations in the
blade disc.
Examine the blades and screws for dam-
ages and wear. Make sure that all blades
are correctly installed and that there is
only one blade attached in each position
on the blade disc.
Cutting system imbalance
High temperature in cutting
motor, center
The product has operated in too high
temperature, too high or thick grass, or
in too steep slopes.
Put the product in an area with protection
from the sun and wait. Put the product on
a level surface with short grass and start
the product. If the problem stays, speak
to your authorized service center.
High internal temperature
Upside down
The product tilts or is with the top down. Put the product in the correct position.
Mower tilted
The product tilts more than the maximum
angle.
Move the product to an area that has lev-
el ground.
Lifted
The lift sensor was enabled because the
product was lifted.
Move the product. If the problem stays,
speak to your approved servicing dealer.
Trapped
The product is behind a number of obsta-
cles in a small area.
Examine the area and remove the obsta-
cles which make it hard for the product to
move away from this location.
34 - Troubleshooting 2550 - 002 - 25.03.2025
Message Cause Action
Slipped
The product has hit an obstacle and
stopped or the wheels cannot move on
the wet grass.
Move the product and correct the cause
of problem. If it is because of wet grass,
wait until the lawn is dry before you use
the product.
The work area includes a steep slope. Make a stay-out zone to exclude the
steep area from the work area.
Collision
The body of the product cannot move
freely around its chassis.
Remove dirt or object between the chas-
sis and the body of the product. Make
sure that the body of the product can
move freely around its chassis.
The product cannot move forward or
rearward.
Remove the object that prevents the
product from operation.
Slope too steep
The product stopped because the slope
is too steep.
Change the installation and exclude this
steep part of the work area.
Alarm! Mower stopped
The alarm was started because the prod-
uct was stopped.
Enter the PIN code to disable the alarm.
Alarm! Mower outside Geo-
fence
Alarm was started because the product
was moved out of the GeoFence area.
Alarm! Mower was moved
The alarm was started because the prod-
uct was moved.
Radar problem
The product will continue to operate, but
with reduced speed.
Clean the window for the radar. Restart
the product. If the problem stays, speak
to your approved servicing dealer.
Wheel drive problem, right/
left
The wheel is blocked by grass or other
objects.
Examine the drive wheel and remove
grass or other objects.
Wheel motor overloaded,
right/left
Grass or other objects is wound around
the drive wheel.
Examine the drive wheel and remove
grass or other objects.
Wheel motor blocked right/
left
The wheel is blocked by grass or other
objects.
Examine the wheel and remove grass or
other objects.
2550 - 002 - 25.03.2025 Troubleshooting - 35
Message Cause Action
Outside work area
The work area slopes too much by the
virtual boundary.
Make sure that the virtual boundary is
installed correctly. Refer to
To install ob-
jects on the map on page 19
.
The transport path or the path to the
maintenance point slopes too much.
Make sure that the transport path is in-
stalled correctly. Refer to
To make a
transport path on page 22
.
The product can not find the correct
charging station signal because of inter-
ference with a loop signal from a different
product installation nearby.
Put the product in the charging station
and make a new loop signal. Refer to
New loop signal on page 26
.
Interference from metal objects such as
fences, reinforcement steel or buried ca-
bles near the charging station.
Change the position of the charging sta-
tion.
Map problem
There is no specified work area. Make a work area in the app. Refer to
To
make a work area on page 20
.
The map object file is incorrect. Do a check of the map in the app. Adjust
the map and save it.
Delete the map and do a new installation.
Work area tampered
Temporary electronic or firmware prob-
lem.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
The charging station has been moved. Move the charging station to its original
position or reinstall the charging station
in the app to set its new position.
The reference station has been moved. Move the reference station to its original
position or reinstall the reference station
in the app to set its new position. If the
reference station is moved to a new po-
sition, you have to make a factory reset
and redo the installation with all maps.
Too many waypoints
There are too many waypoints in the cur-
rent work area.
Divide the current work area into sev-
eral work areas or redo the current
work areas, stay-out zones and transport
paths and use less waypoints.
Destination blocked
The way to the destination is blocked by
an obstacle.
Remove the obstacle that blocks the way
to the destination.
The way to the destination is blocked by
a stay-out zone.
Edit or remove the stay-out zone or make
a new installation of the work area.
There is no transport path to the work
area.
Make a transport path to the work area.
36 - Troubleshooting 2550 - 002 - 25.03.2025
Message Cause Action
Destination not reachable
The product cannot reach the destination
because there is a stay-out blocking the
way to the work area.
Edit or remove the stay-out zone or make
a new installation of the work area.
There is no transport path to the work
area.
Create a transport path to the work area.
The way back to the charging station is
blocked by an obstacle.
Remove the obstacle.
The way to the maintenance point is
blocked by an obstacle.
Searching for satellites
Weak satellite signal to the reference sta-
tion.
The satellite signal is temporary weak.
The product will start to operate when the
satellite signals are good.
Examine the installation of the reference
station. Refer to the Operator's manual
for the Reference station.
Weak satellite signal to the product. The satellite signal is temporary weak.
The product will start to operate when the
satellite signal are good.
Examine if there is an object between
the product and the sky that cause inter-
ference with the satellite signal. Remove
the object or do a new installation to not
include these parts in the work area. Re-
fer to
To install objects on the map on
page 19
Reference station communi-
cation problem
The product is not connected to the refer-
ence station.
Do a pairing operation between the prod-
uct and the reference station.
The reference station is not installed cor-
rectly.
Examine the installation of the reference
station. Refer to the Operator's manual
for the Reference station.
The product does not receive the radio
signal from the reference station in all
areas where the product operates.
Test if the product has radio signal from
the reference station in all of the work
area. If not, make a new installation of
the reference station or a new installation
of the map. Refer to
To install objects on
the map on page 19
.
Power failure. Examine and correct the cause for the
power failure of the reference station.
There is an error in the reference station
and the LED indicator flashes red.
Disconnect the power to the reference
station and connect it again to restart the
reference station. If the problem stays,
speak to your approved servicing dealer.
There is interference with another refer-
ence station or other radio systems in the
area.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
2550 - 002 - 25.03.2025 Troubleshooting - 37
Message Cause Action
Accessory power problem
There is a power problem with the acces-
sory port.
Set the product to off and disconnect and
reconnect the accessory to the accesso-
ry port. Restart the product. If the prob-
lem stays, speak to your approved serv-
icing dealer.
Connectivity problem
Problem with the Automower
®
Connect
module.
Restart the product. If the connection
problem stays, disconnect the product
from Automower
®
Connect and do a new
pairing operation. If the problem stays,
speak to your local Husqvarna represen-
tative.
Invalid firmware configuration
The firmware in the product is not upda-
ted.
Update the firmware to the latest version.
Invalid system configuration
Temporary electronic or firmware prob-
lem in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Invalid sub-device combina-
tion
Loop sensor problem
Tilt sensor problem
Lift sensor problem
Cutting motor problem, cen-
ter
Collision sensor problem
Collision problem, rear/front
STOP button problem
Safety function faulty
Electronic problem
Internal voltage problem
Temporary battery problem
Too high internal current
The product has stopped because it has
operated on too high or thick grass or in
a too steep slope.
Put the product on a level surface with
short grass and start the product. If the
problem stays, speak to your authorized
service center.
High internal power loss
Too high battery current
Empty battery
The product cannot find the charging sta-
tion.
The product has no accurate position
and cannot find the charging station.
There is an obstacle that prevents the
product to find the charging station.
The battery is at the end of its life cycle. Replace the battery. Refer to
Replace-
ment of the blades on page 31
.
The antenna of the charging station is
defective.
If the LED indicator on the charging
station flashes red, the antenna of the
charging station is defective. Speak to
your approved servicing dealer.
38 - Troubleshooting 2550 - 002 - 25.03.2025
Message Cause Action
Battery problem
Temporary battery or firmware problem
in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Incorrect type of battery. Use only original batteries recommended
by the manufacturer.
Battery needs replacement
The battery state of health is low. Replace the battery. Speak to your ap-
proved servicing dealer.
Battery near end of life
The battery state of health critically low.
Battery temperature outside
limits
The product cannot start because the
temperature in the battery is too high or
too low.
The product will start to operate when
the temperature of the battery has de-
creased. Make sure that the charging
station is put in an area with protection
from the sun.
No power in charging station
Incorrect or damaged power supply. Examine the power supply. If it is neces-
sary, replace the power supply.
Power failure. Examine and correct the cause for the
power failure of the charging station.
The connection between the charging
plates on the product and the contact
plates on the charging station is not
good.
Make sure that the charging plates and
contact plates are connected.
Charging system problem
There is corrosion or dirt on the charging
plates and contact plates.
Restart the product. Clean the charging
plates on the product and the contact
plates on the charging station.
Temporary electronic or firmware prob-
lem in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Charging current too high
Incorrect or defective power supply unit. Examine that the power supply unit and
charging station are not defective. Make
sure that you use the correct power sup-
ply unit and charging station. Restart the
product. If the problem stays, speak to
your approved servicing dealer.
Charging station communica-
tion problem
The product cannot communicate with
the charging station.
Make a new loop signal of or reinstall
the charging station. If the problem stays,
speak to your approved servicing dealer.
Power failure. Find and correct the cause of the power
failure.
Charging station blocked
The connection between the charging
plates on the product and the contact
plates on the charging station is not
good. The product made a number of
tries to charge.
Put the product in the charging station
and make sure that the charging plates
and contact plates are connected.
An object prevents the product to enter
the charging station.
Remove the object.
The charging station tilts or is bent. Put the baseplate on level ground.
2550 - 002 - 25.03.2025 Troubleshooting - 39
Message Cause Action
Stuck in charging station
An object prevents the product to move
out from the charging station.
Remove the object.
The baseplate has a wet or dirty surface
that prevents the product to move out
from the charging station.
Clean the baseplate of the charging sta-
tion.
High charging power loss
The contact between the charging plates
on the cutting deck and the contact
plates on the charging station is not
good.
Polish the charging plates on the cutting
deck and the contact plates on the charg-
ing station.
Temporary electronic or firmware prob-
lem in the product.
Start the product. If the problem stays,
speak to your authorized service center.
Guide 1 not found
The previously installed guide wire is no
longer found.
Examine if the guide wire is not correct-
ly connected to the charging station or
the boundary wire. Examine if there is a
break in the guide wire.
No loop signal
The power supply or the low-voltage ca-
ble for the charging station is not connec-
ted.
If the LED indicator on the charging sta-
tion is out, it shows that there is no pow-
er. Examine the power outlet connection
and the residual-current device. Make
sure that the low-voltage cable is con-
nected to the charging station.
The power supply or the low-voltage ca-
ble for the charging station is damaged.
Replace the power supply or low-voltage
cable.
ECO mode
is enabled and the LED in-
dicator of the charging station flashes
green. The product was started manually
in the work area but the STOP button
was not pushed before the product was
moved from the charging station. The
charging station signal is disabled and
the product cannot enter the charging
station. Refer to
ECO mode on page 25
.
Put the product in the charging station.
Start the product. Refer to
ECO mode on
page 25
.
The product does not find the loop signal
from the charging station.
Put the product in the charging station
and make a new loop signal. Refer to
New loop signal on page 26
.
The charging station in not installed cor-
rectly.
Install the charging station according to
the instruction. Refer to
Installation of the
charging station on page 15
.
Interference from metal objects such as
fences, reinforcement steel or buried ca-
bles near the charging station.
Change the position of the charging sta-
tion.
If the charging station is installed with a
dock by wire installation: The boundary
wire is damaged or not installed correct-
ly.
Examine that the boundary wire is con-
nected correctly to the charging station.
Examine all splices on the boundary
wire. Examine if the boundary wire is
damaged and repair if it is necessary.
40 - Troubleshooting 2550 - 002 - 25.03.2025
7.1.2 LED indicator lamp on the charging station
For a fully functional installation, the indicator lamp in the charging station must show a solid or flashing green light. If
another color shows, follow the troubleshooting guide below.
There is more help on www.husqvarna.com. If you still need help, speak to your local Husqvarna representative.
Light Status
Green solid light Normal operation.
Green flashing light Normal operation. The product is parked and the signals in the charging station are
off.
Blue flashing light Only when the charging station is installed with dock by wire: The boundary wire is
damaged or the boundary wire is not connected to the charging station.
Yellow flashing light Only when the charging station is installed with dock by wire: The guide wire is
damaged or the guide wire is not connected to the charging station.
Purple solid light Firmware update of the charging station is ongoing.
Red flashing light Interruption in the charging station’s antenna. Speak to your local Husqvarna repre-
sentative.
Red solid light Fault in the circuit board or incorrect power supply in the charging station. The fault
must be correct by an authorized service technician. Speak to your local Husqvarna
representative.
7.1.3 Symptoms
If the product does not operate correctly, refer to the symptoms table below.
Symptoms
Cause Action
The product cannot go into
the charging station.
The charging station is not on a level sur-
face.
Put the charging station on a level sur-
face. Refer to
To examine where to put
the charging station on page 12
.
The charging station is put too far from
the work area.
Make a new work area or move the
charging station.
There is another charging station instal-
led near the other that causes interfer-
ence.
Make sure that the distance between the
charging stations is minimum 3 m / 9.8 ft.
The product operates at the
incorrect time.
The time and date of the product must be
set.
Set the time and date. Refer to
Time &
date on page 25
.
The start and stop time for operation are
incorrect.
Change the schedule settings. Refer to
Schedule on page 24
.
There is vibration in the prod-
uct.
The cutting system is not in balance be-
cause of damaged blades.
Examine the blades and screws and re-
place them if necessary. Refer to
Re-
placement of the blades on page 31
.
The cutting system is not in balance be-
cause of too many blades in the same
position.
Do a check that only one blade is attach-
ed to each screw.
Blades of different thickness are installed
on the product.
Examine if the blades are of different
thickness and replace the blades if nec-
essary.
2550 - 002 - 25.03.2025 Troubleshooting - 41
Symptoms Cause Action
The product operates, but the
blade disc does not rotate.
The product goes to the charging station. Usual operation of the product. The
blade disc does not rotate when the
product goes to the charging station.
The product operates for
shorter periods than usual
between charges.
Grass or other object causes a blockage
to the blade disc.
Remove and clean the blade disc. Refer
to
To clean the body, chassis and blade
disc on page 30
.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 33
.
The grass is high and thick. Increase the cutting height and then de-
crease it when the grass is shorter.
Operation and charging times
are shorter than usual.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 33
.
The product is parked for
hours in the charging station.
The product is parked because of the set
Schedule
setting, or because
Park until
further notice
is selected.
Change the
Schedule
settings, or start
the product.
The product does not operate if the bat-
tery temperature is too high or too low.
The product starts to operate again when
the temperature is between the set limits
and the schedule settings lets the prod-
uct operate. Make sure that the charging
station is put in an area with protection
from the sun.
The product cannot connect
to the mobile device.
The product is connected to a different
mobile device or app.
Disable the app in all other connected
devices.
The cut result is not satisfac-
tory.
The products operating time is not suffi-
cient and/or its frequency of operation is
insufficient.
Increase the cutting time. Refer to
Schedule on page 24
.
The work area is too large. Set a limit to the work area, or extend
the operation time. Refer to
Schedule on
page 24
.
Blunt blades. Replace all the blades. Refer to
Replace-
ment of the blades on page 31
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then low-
er it when the grass is shorter.
Collection of grass by the blade disc or
around the motor shaft.
Remove the collection of grass and clean
the product. Refer to
Clean the product
on page 30
.
The pattern or the direction of the pattern
is unsatisfactory for the work area.
Select a different direction of the pattern
or a different pattern.
Worn out grass in slopes. The slope is too steep. Isolate the slope with a stay-out zone.
The pattern or the direction of the pattern
is unsatisfactory for the slope.
Select a different direction of the pat-
tern or a different pattern. For systemat-
ic pattern, Husqvarna recommends that
the direction of the systematic pattern is
straight up the slope and not parallel to it.
42 - Troubleshooting 2550 - 002 - 25.03.2025
8 Transportation, storage and disposal
8.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
8.2 To put the product into storage
• Charge the product fully. Refer to
To charge the
battery on page 28
.
• Set the product to OFF. Refer to
To set the product
to OFF on page 28
.
• Clean the product. Refer to
Clean the product on
page 30
.
• Put the product in a dry, frost-free area.
• Put the product with all wheels on level ground.
8.3 To put the charging station into
storage
You can remove the top of the charging station and put
it into storage. It is not necessary to put the baseplate of
the charging station into storage.
1. Remove the 2 screws for the cable cover and
remove the cable cover.
2. Disconnect the cable and close the orange lid of
the connector.
3. Remove the 4 screws for the top of the charging
station and remove it.
4. Put the power supply unit and the top of the
charging station in a dry, frost-free area.
8.4 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the battery on page 43
.
8.4.1 To remove the battery
CAUTION:
Only remove the batteries
when you dispose the product. When you
remove the warranty seal, the Husqvarna
warranty is no longer applicable.
1. Set the product to OFF.
2. Hold the chassis with one hand. Remove the body
of the product with a fast and short pull upwards
and towards the front of the product.
2550 - 002 - 25.03.2025
Transportation, storage
and disposal - 43

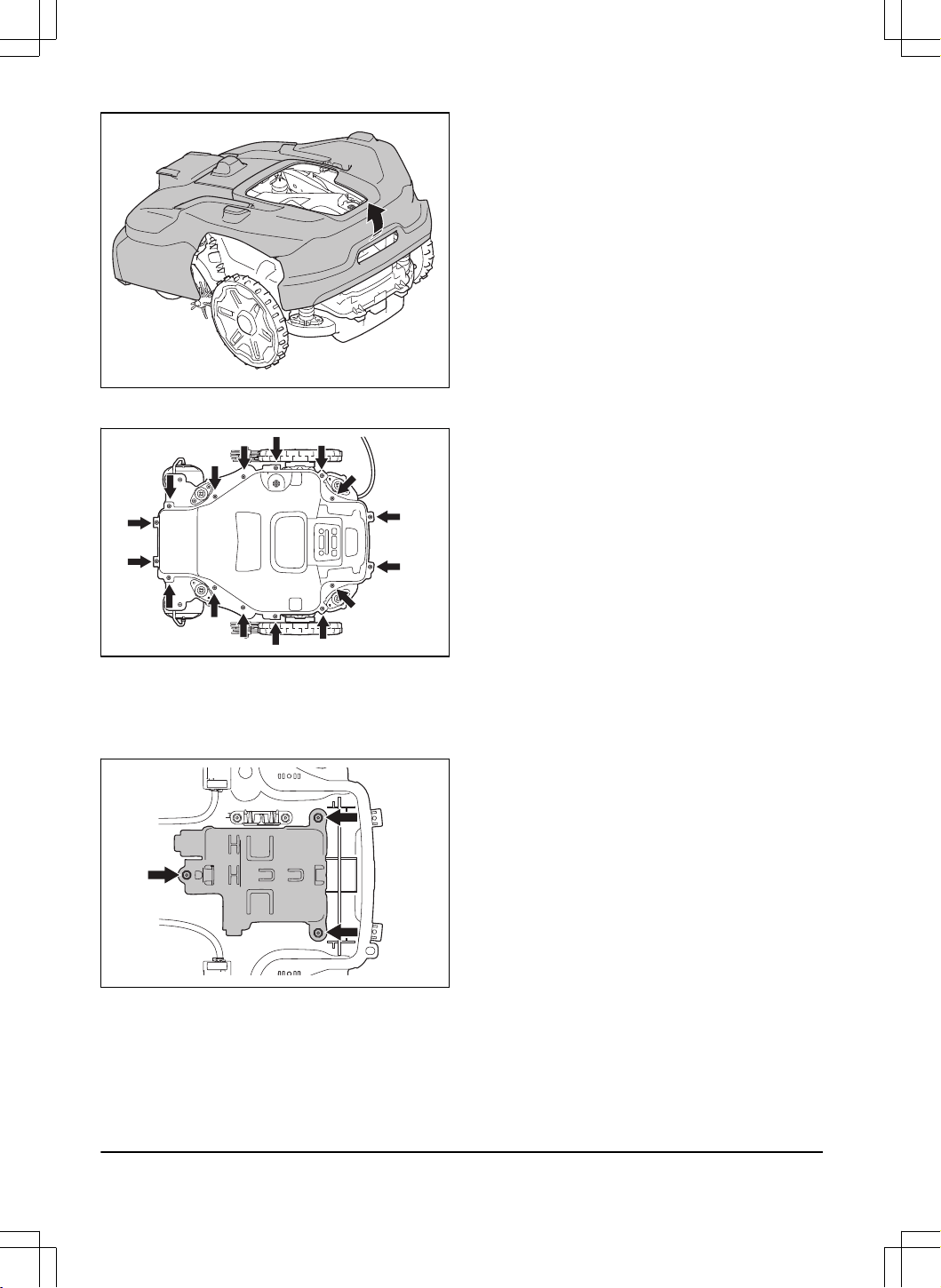

3. Remove the 16 screws on the chassis with a Torx
20.
4. Lift up the top section of the chassis.
5. Remove all cables from the cable holders on the
battery bracket.
6. Remove the 3 screws for the battery holder and
remove the battery holder.
7. Disconnect the 2 cables to the battery.
44
- Transportation, storage and
disposal
2550 - 002 - 25.03.2025
9 Technical data
9.1 Technical data
Dimensions Automower
®
560 EPOS Automower
®
580 EPOS Automower
®
580L EPOS
Length, cm / in. 78 / 30.7 78 / 30.7 78 / 30.7
Width, cm / in. 59 / 23.2 59 / 23.2 59 / 23.2
Height, cm / in. 31 / 12.2 31 / 12.2 31 / 12.2
Weight, kg / lbs 17. 3 / 38 17.6 / 39 18.4 / 41
Electrical system Automower
®
560 EPOS Automower
®
580 EPOS Automower
®
580L EPOS
Battery, Lithium-Ion 36V, 8.0
Ah, Art. No
546 56 03-01, 546 56
03-02
546 56 03-01, 546 56
03-02
546 56 03-01, 546 56
03-02
Power supply (42V DC), V
AC
100-240 100-240 100-240
Low-voltage cable for charg-
ing station, length m/ft.
2 / 6.6 2 / 6.6 2 / 6.6
Mean energy consumption at
maximum use, kWh/month
57 70 70
Charging current, A DC 7 7 7
Type of Power Supply Unit
for charging station
6
AP-290XXX AP-290XXX AP-290XXX
Average mowing time, min 150 120 120
Average charging time, min 55 55 55
Charging station wire anten-
na
Automower
®
560 EPOS Automower
®
580 EPOS Automower
®
580L EPOS
Operating Frequency Band,
Hz
100-80000 100-80000 100-80000
Maximum magnetic field,
dBuA/m
82 82 82
Maximum Radio-frequency
power
7
, mW @60m
<25 mW @60m <25 mW @60m <25 mW @60m
6
XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
The "XX" specifies the country version, such as JP, and the "Y" specifies the product revision, such as V.
7
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
2550 - 002 - 25.03.2025 Technical data - 45
Noise emissions measured
in the environment as sound
power
8
Automower
®
560 EPOS Automower
®
580 EPOS Automower
®
580L EPOS
Sound level, perceived, dB
(A)
64 68 69 (Without wheel brushes
installed.)
73 (With wheel brushes in-
stalled.)
Measured sound power
noise level, dB (A)
64 67 67 (Without wheel brushes
installed.)
72 (With wheel brushes in-
stalled.)
Noise emissions uncertain-
ties K
WA
, dB (A)
1 2 2
Sound pressure noise level
at the operator’s ear, dB (A)
9
56 59 59 (Without wheel brushes
installed.)
64 (With wheel brushes in-
stalled.)
Mowing Automower
®
560 EPOS Automower
®
580 EPOS Automower
®
580L EPOS
Cutting system 5 pivoted cutting blades 5 pivoted cutting blades 5 pivoted cutting blades
Maximum cutting motor
speed, rpm
2600 2800 2800
Power consumption during
cutting, W +/- 20 %
62 87 87
Cutting height, cm / in. 20-60 / 0.8-2.4 20-60 / 0.8-2.4 10-50 / 0.4-2.0
Cutting width, cm / in. 26 / 10.2 26 / 10.2 26 / 10.2
Narrowest possible passage,
m / ft.
0.8 / 2.6 0.8 / 2.6 0.8 / 2.6
Maximum slope for cutting
area, %
50 45 45
Maximum slope for virtual
boundary, %
20 20 20
Area capacity - Sports 24
(systematic pattern), m
2
/
acre(s)
6000 / 1.5 8000 / 2 8000 / 2
Area capacity - Standard 48
(systematic pattern), m
2
/
acre(s)
12000 / 3 16000 / 4 16000 / 4
Area capacity - Max 72 (sys-
tematic pattern), m
2
/ acre(s)
18000 / 4.5 24000 / 6 24000 / 6
Area per hour, no charging,
m
2
/ ft
2
400 / 4300 500 / 5400 500 / 5400
8
Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived
that is measured according to ISO 11094:1991.
9
Sound pressure noise uncertainties K
pA
, 2-4 dB (A).
46 - Technical data 2550 - 002 - 25.03.2025
IP-code Automower
®
560 EPOS Automower
®
580 EPOS Automower
®
580L EPOS
Robotic lawn mower IPX5 IPX5 IPX5
Charging station IPX4 IPX4 IPX4
Power supply charging sta-
tion
IP44 IP44 IP44
Frequency Band Support
10
Bluetooth
®
Frequency range 2400.0-2483.5 MHz
Automower
®
Connect 2G GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower
®
Connect 4G Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (1700 MHz),
Band 5 (850 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz),
Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900
MHz), Band 26 (850 MHz), Band 27 (850MHz), Band 28 (700 MHz), Band 66 (1700
MHz), Band 71 (600 mHz), Band 85 (700 MHz)
SRD868 (Europe) 863-870 MHz
SRD915 (North America) 902-928 MHz
SRD915 (Australia) 915-928 MHz
SRD915 (New Zealand) 915-928 MHz
SRD radar 60-64 GHz
Maximum radio-frequency transmitted power
Bluetooth
®
Output power 8 dBm
Automower
®
Connect 2G Power Class 4 (GSM/E-GSM) 33 dBm
Power Class 1 (DCS/PCS) 30 dBm
Power Class E2 (GSM/E-GSM) 27 dBm
Power Class E2 (DCS/PCS) 26 dBm
Automower
®
Connect 4G Power Class 3 23 dBm
SRD868 (Europe) 13 dBm
SRD915 (North America) 13 dBm
SRD915 (Australia) 13 dBm
SRD915 (New Zealand) 13 dBm
SRD radar
11
2.4 dBm
Deviations from this general technical data are included in the country specific chapters.
Full compatibility cannot be guaranteed between the product and other types of wireless systems such as remote
controls, radio transmitters, hearing loops, buried electric animal fencing or similar.
The products are made in England or the Czech Republic. See information on the rating plate. Refer to
Introduction
on page 6
.
10
All countries do not support cellular connection because of regional specified cellular systems. The included
service only applies if there is a third part sub-supplier of 2G/4G available in the operational area.
11
Measured value, Equivalent Isotropically Radiated Power (EIRP).
2550 - 002 - 25.03.2025 Technical data - 47
9.2 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, inc.
and any use of such
marks by Husqvarna is under license.
48 - Technical data 2550 - 002 - 25.03.2025
10 Declaration of Conformity

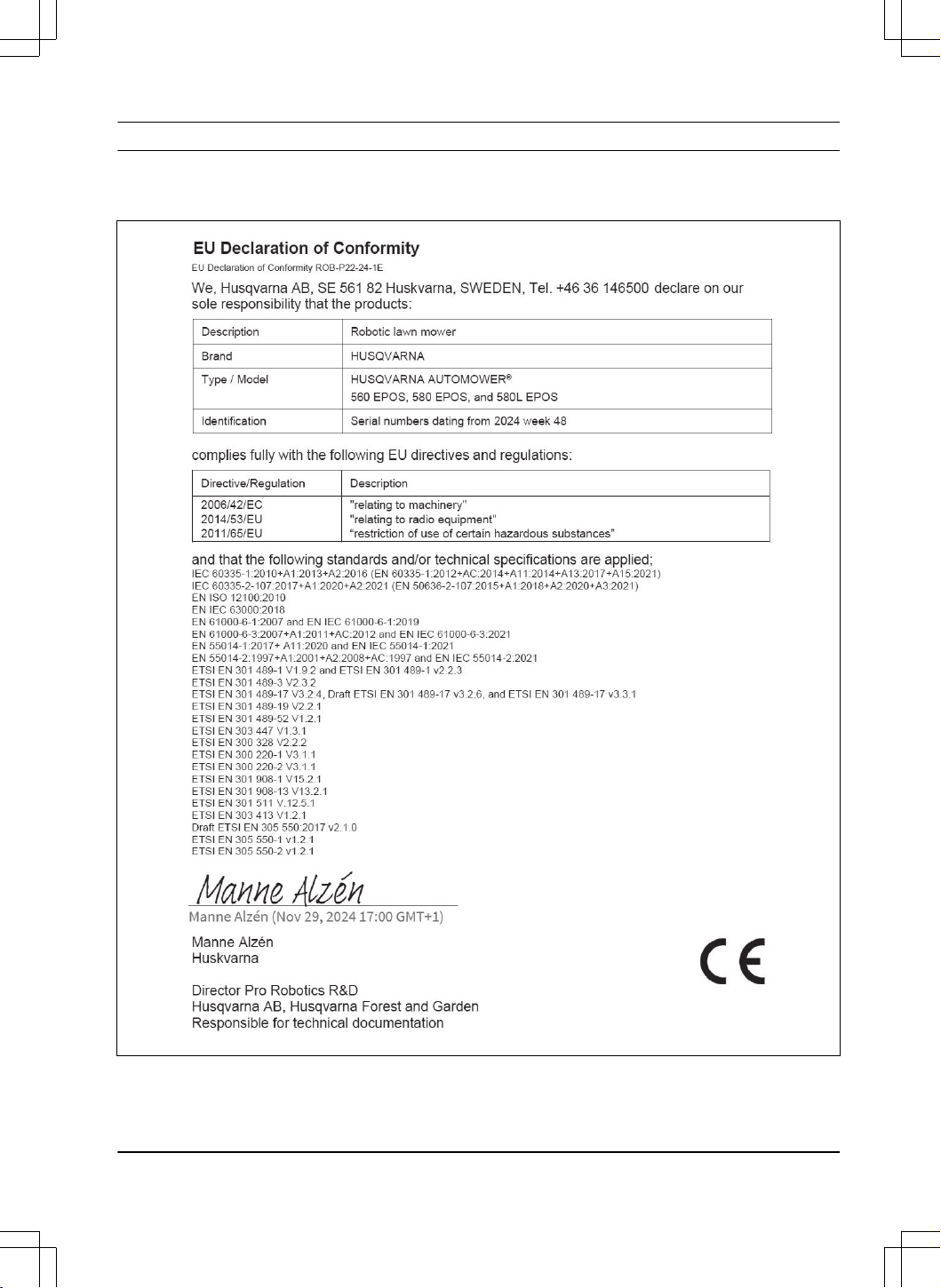

10.1 Original EU Declaration of Conformity
2550 - 002 - 25.03.2025 Declaration of Conformity -
49
10.2 Translated EU Declaration of Conformity
We, Husqvarna AB, SE 561 82 Huskvarna, SWEDEN,
Tel. +46 36 146500 declare on our sole responsibility
that the product:
Description Robotic lawn mower
Brand Husqvarna
Type/Model HUSQVARNA AUTOMOWER
®
560 EPOS, 580 EPOS, 580L EPOS
Identification Serial numbers dating from 2024 week 48
complies fully with the following EU directives and
regulations:
Directive/Regulation Description
2006/42/EC "Relating to machinery"
2014/53/EU "Relating to radio equipment"
2011/65/EU "Restriction of use of certain hazardous substances"
and that the following standards and/or technical
specifications are applied;
• IEC 60335-1:2010+A1:2013+A2:2016 (EN
60335-1:2012+AC:2014+A11:2014+A13:2017+A1
5:2021)
• IEC 60335-2-107:2017+A1:2020+A2:2021 (EN
50636-2-107:2015+A1:2018+A2:2020+A3:2021)
• EN ISO 12100:2010
• EN IEC 63000:2018
• EN 61000-6-1:2007 and EN IEC 61000-6-1:2019
• EN 61000-6-3:2007+A1:2011+AC:2012 and EN
IEC 61000-6-3:2021
• EN 55014-1:2017+ A11:2020 and EN IEC
55014-1:2021
• EN 55014-2:1997+A1:2001+A2:2008+AC:1997
and EN IEC 55014-2:2021
• ETSI EN 301 489-1 V1.9.2 and ETSI EN 301
489-1 v2.2.3
• ETSI EN 301 489-3 V2.3.2
• ETSI EN 301 489-17 V3.2.4, Draft ETSI EN 301
489-17 v3.2.6, and ETSI EN 301 489-17 v3.3.1
• ETSI EN 301 489-19 V2.2.1
• ETSI EN 301 489-52 V1.2.1
• ETSI EN 303 447 V1.3.1
• ETSI EN 300 328 V2.2.2
• ETSI EN 300 220-1 V3.1.1
• ETSI EN 300 220-2 V3.1.1
• ETSI EN 301 908-1 V15.2.1
• ETSI EN 301 908-13 V13.2.1
• ETSI EN 301 511 V.12.5.1
• ETSI EN 303 413 V1.2.1
• Draft ETSI EN 305 550:2017 v2.1.0
• ETSI EN 305 550-1 v1.2.1
• ETSI EN 305 550-2 v1.2.1
Manne Alzén
Huskvarna
Director Pro Robotics R&D. Husqvarna AB, Husqvarna
Forest and Garden. Responsible for technical
documentation.
50 - Declaration of Conformity 2550 - 002 - 25.03.2025
11 Applicable to UK market
11.1 Statement of compliance
This product complies with the UK Product Security
and Telecommunications Infrastructure Regulation.
Statement of compliance for your product can be found
at www.husqvarna.com/uk/support/.
2550 - 002 - 25.03.2025 Applicable to UK market -
51
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2025 HUSQVARNA. All rights reserved.
Original instructions
1144026-26
2025-04-02
