USER MANUAL
COFFEE GRINDER
B O LT
2
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
3
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
B O LT
COFFEE GRINDER
1. SAFETY 4
2. DESCRIPTION 6
3. INSTRUCTIONS 6
4. IDENTIFICATION 7
5. TECHNICAL CHARACTERISTICS 7
6. EXTERNAL COMPONENTS 8
7. INSTALLATION 9
8. ADJUSTMENT 10
9. OPERATION 12
10. SETTINGS 14
11. CLEANING 23
12. MAINTENANCE 25
13. DECLARATION OF CONFORMITY 29
CONTENTS
4
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
1. SAFETY
This coee grinder
should only be used
for the function
for which it was designed:
grinding coee beans.
Do not use the
grinder to grind
other types of
foods such as nuts or to
grind finer granulated foods
such as sugar and others.
This device may be
used by children
aged 8 years and
over, by people with
reduced physical, sensory
or mental capacities and
by people without prior
experience/knowledge,
provided they have received
supervision or instructions
on the safe use of the
device and understand the
associated risks.
Children should not
play with the device.
Cleaning and
maintenance of the
device should not be
carried out by children without
supervision.
Do not allowing
liquids to come
into contact with
internal or external surfaces
while the appliance is on or
o, except for those parts
expressly mentioned in the
“CLEANING” section.
If, for any reason, this happens,
disconnect the power supply
immediately and dry all
surfaces carefully.
ADDITIONAL SAFETY MEASURES BUILT-IN
TO OUR GRINDERS:
• Special screw to keep the hopper fixed.
• Safety current cut-o by microswitch to access
the grinding unit
5
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
1. SAFETY
If it is necessary to
access the interior,
where the electrical
components are located, go to
the nearest technical service
In the event of
any component
breaking, or for
any intervention we
recommend contacting
a technical services
centre, who will carry out
the repair or replacement,
guaranteeing that safety
standards are adhered to.
Only an authorised
supplier may
replace the main
cable of any grinder.
USERS SHOULD PAY
SPECIAL ATTENTION TO,
AND SCRUPULOUSLY
OBEY THE FOLLOWING
SAFETY INSTRUCTIONS
Any other use will be
considered improper
and dangerous.
NOTE: The manufacturer will not be liable for damage caused either by the
improper use of the device or by not following the stated safety measures.
6
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022

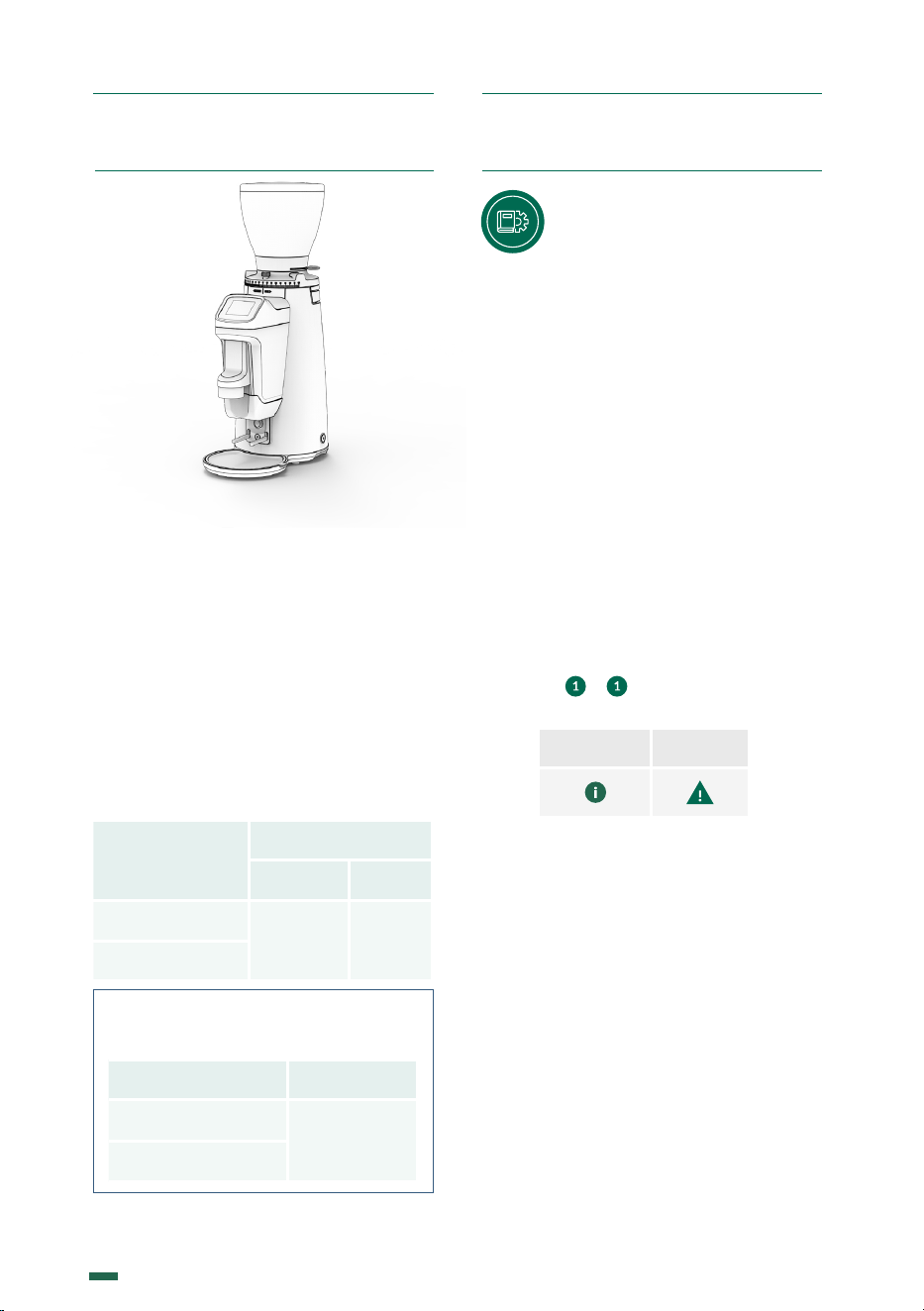

2. DESCRIPTION
3.1. This manual is designed to
provide the necessary informa-
tion to correctly install, use and
maintain the grinder, as well as
to highlight precautions for users to keep in
mind.
To ensure the best operation of the coee
grinder, please follow the instructions as out-
lined in this manual.
This manual should be saved for the life of
the grinder, and should always be at the dis-
posal of the operator.
3.2. This manual uses some special terms,
such as:
• Text in bold to highlight the importance
of some terms.
• Numbers in parentheses after a word,
which match the numbering of the
items in the image to the side or in the
image of the external components.
3. INSTRUCTIONS
Information Warning
Example: ( ) - Hopper Lid.
Icons:
Your new grinder has been designed using
the most sophisticated technologies in exist-
ence. The result is a product of high qual-
ity that oers the assurance of the best
results possible. Our products are manu-
factured by hand, one by one, following the
strictest quality requirements. In the manu-
facturing process, we use only the highest
quality materials (aluminum, stainless steel,
etc.) especially designated for being in con-
tact with food stu.
For the optimum functionality of the grinder
models described in this user manual, the
maximum work cycles are as follows:
Model
Work cycle
ON OFF
BOLT 64
5 s 30 s
BOLT 83
SOUND LEVEL
The level of sound emitted is:
Sound level With coffee
BOLT 64
81 dB
BOLT 83
7
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022

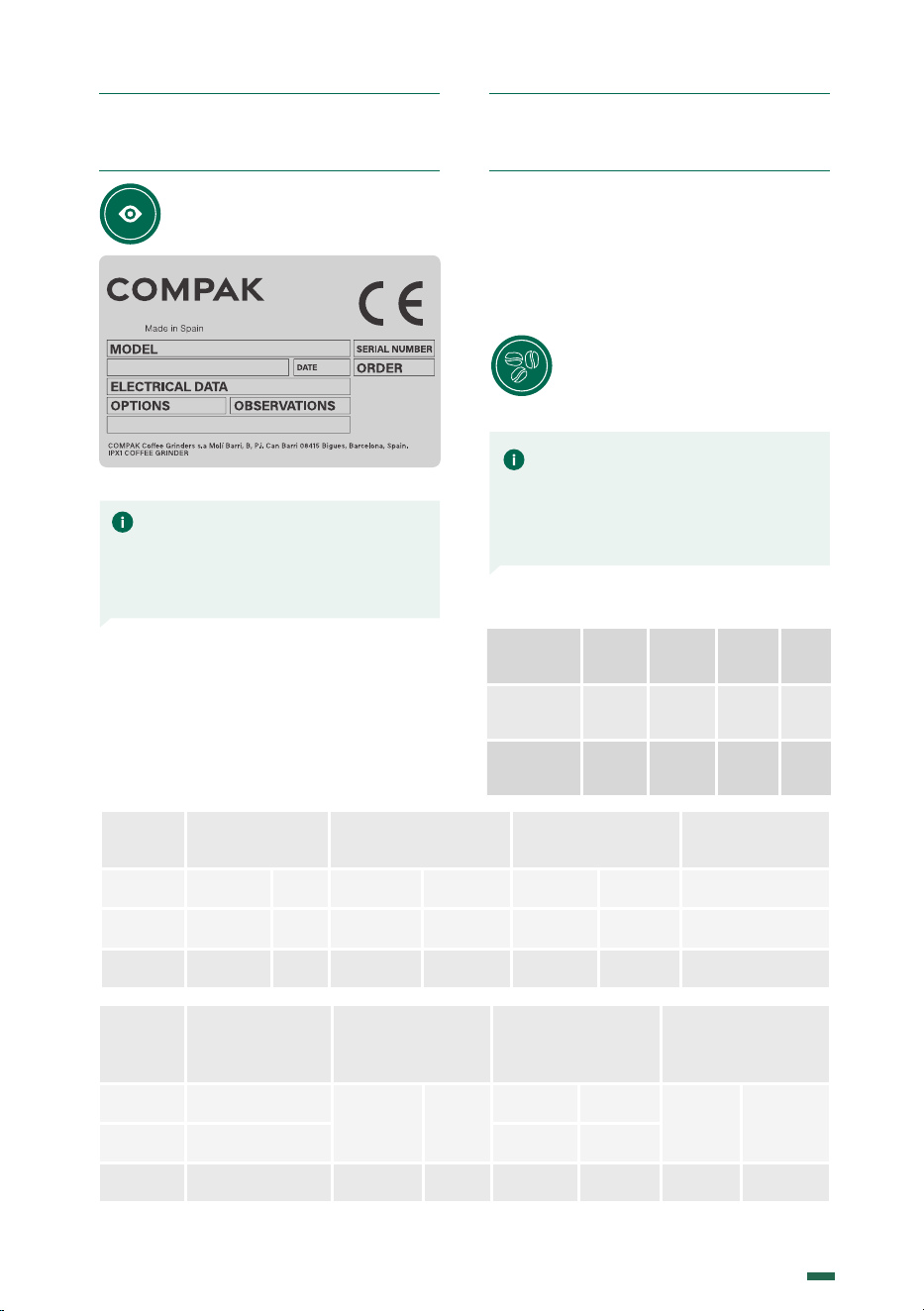

The technical characteristics
plate is indelibly marked with
the following information:
4. IDENTIFICATION
5.1. SCOPE
The coee grinders are intended for
businesses and communities where ground
coee must be used, or in small shops
selling coee, but not for continuous mass
production of food.
This grinder should only be
used to grind coee beans.
Any other use is considered
improper and dangerous.
NOTE: The manufacturer reserves
the right to change the machine
components, according to the
requirements of each market, and
also for technological advances.
NOTE: The manufacturer is not
liable for damage to persons, goods
or the machine itself, if the safety
regulations given in this manual are
not followed, or the machine is used
incorrectly.
5. TECH. CHARACTERISTICS
5.2. TECHNICAL DATA
220 V
60 Hz
230 V
50 Hz
240 V
50 Hz
Electrical
Power
675 675 675 W
Rotational
velocity
1500 1290 1310 rpm
* Production based on a medium roast coee and Espresso grinding point.
Ø
Flat Burrs
Production
50 Hz*
Production
60 Hz*
Time for one dose
(7g) 50Hz
BOLT 64 64 2.5 6 13 7 15
2,1
BOL
T 83 83 3.3 15 33 17.5 38.5 1,6
mm in Kg/h lb/h Kg/h lb/h s
Time for one dose
(7 gr) 60Hz
Hopper capacity Net weight
Height
Width
Depth
BOLT 64
1,9
1,250 3.08
13.8 30.4
660
231
384
25.98
9.09
15.12
BOLT 83
1,45
1
4.2 31.3
s Kg lb Kg lb mm in
8
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
1
2
10
15
5
14
8
12
11
6
7

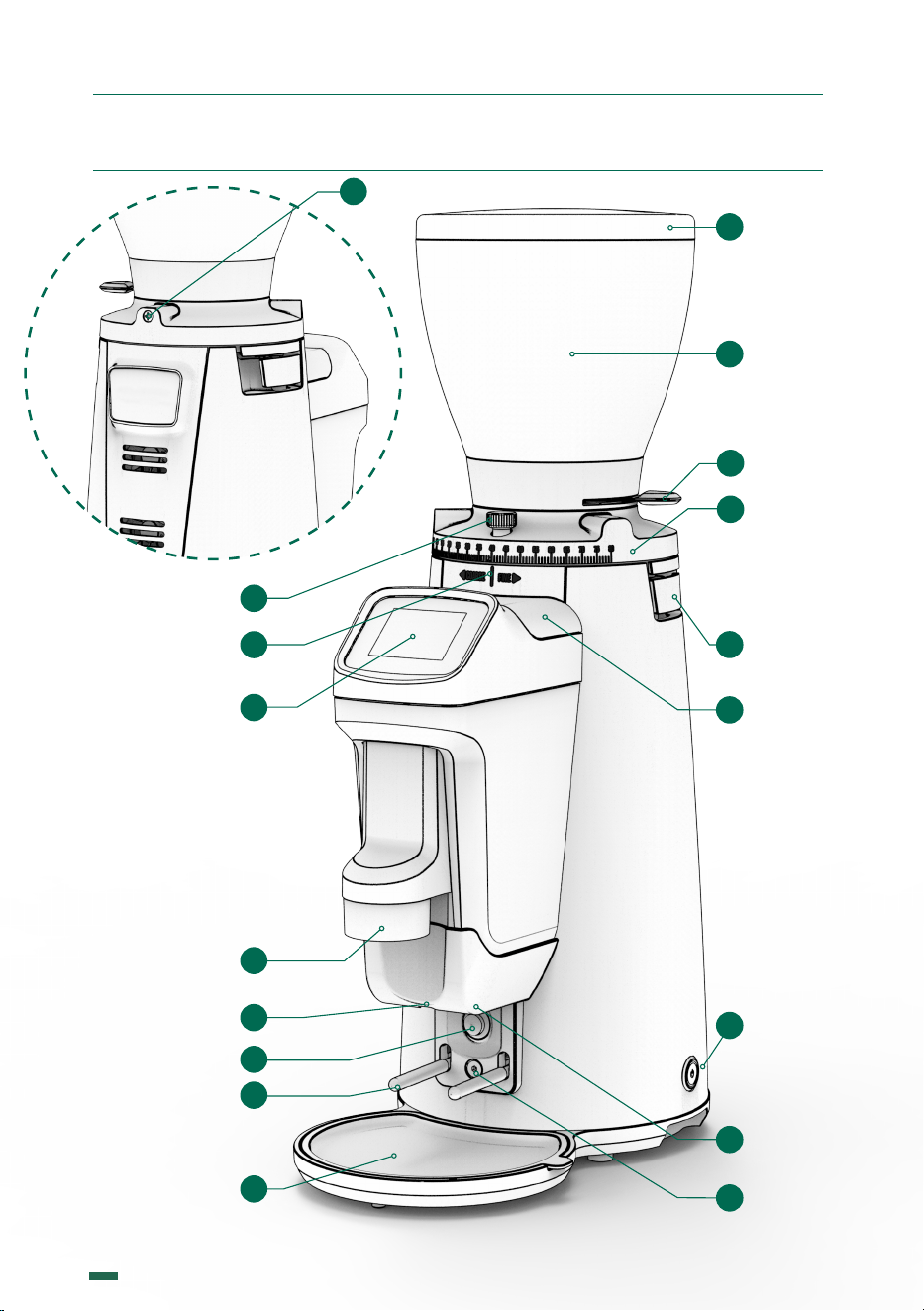

6. EXTERNAL COMPONENTS
Position
indicator
TFT screen
Tamper
Exit chute
Dose button
Coee
collection tray
Break option
stepped grind
Hopper
lid
Coee bean
hopper
Grind
regulator
Lock
Load
System
Fork
adjustment
screw
4
Hopper
shutter
3
Hopper security screw
16
9
Portafilter holder
17
Nozzle
adjustment
wheel
18
Cleaning
cover
Switch
ON-OFF
13
9
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
7. INSTALLATION
7.1. LEGAL NOTICES
The installer must read this instruction
manual carefully before installing the
machine.
The installation of the
device must be carried out
by qualified and authorised
personnel, obeying all the current safety
and hygiene regulations.
7.2. IMPORTANT WARNINGS
The operator must be a responsible
adult. Never a child nor someone without the
ability to accept that responsibility.
When handling the grinder, the following
precautions should be obeyed:
• When removing the grinder from
the packaging, always pull it by the
handles of the bag.
• Feet must not be bare.
• Hands and feet must be dry.
• Do not get the machine wet.
• Do not expose the machine to direct
sunlight or other atmospheric agents.
• Never insert any object into the coee
inlet or outlet while the appliance is
running. (Please remember that when
the grinder stops, the burrs will keep
turning for a short while).
• When unplugging the grinder, always
pull on the plug and never the power
cable to avoid a possible short circuit.
• Care is needed when handling cutting
burrs during cleaning.
7.3. WHERE TO USE IT
The appliance must be installed on a
solid and flat surface.
The minimum size for the
working space, to ensure you
get the best performance from
the machine, must be the following:
Height
680
26.77
mm
in
Width
251
9.88
mm
in
Depth
404
15.90
mm
in
• Install the grinders on tables that are
completely level and in areas free from
external vibrations
• Install the grinders in areas where
there are installations with a ground
connection.
• Avoid places where abrupt changes in
temperature, humidity or airflow may
occur.
7.4. INSTALLING THE COFFEE GRINDER
Before connecting the coee grinder, check
the following:
• The characteristics on the data plate
must match those of the electrical
mains network.
• The electrical connection plug
matches the socket into which it is to
be plugged.
• Ensure that the electrical power of
the facility is adequate for the power
consumed by the appliance.
• The point of connection to the electrical
mains network must be protected with
the appropriate electrical protection
device.
• The equipment must be correctly
connected to a ground connection
according to the current safety
regulations.
NOTE: This coee grinder should
not be installed in places (SUCH
AS INDUSTRIAL KITCHENS)
where are expected to be cleaned
using water jets.
10
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
8. ADJUSTMENT

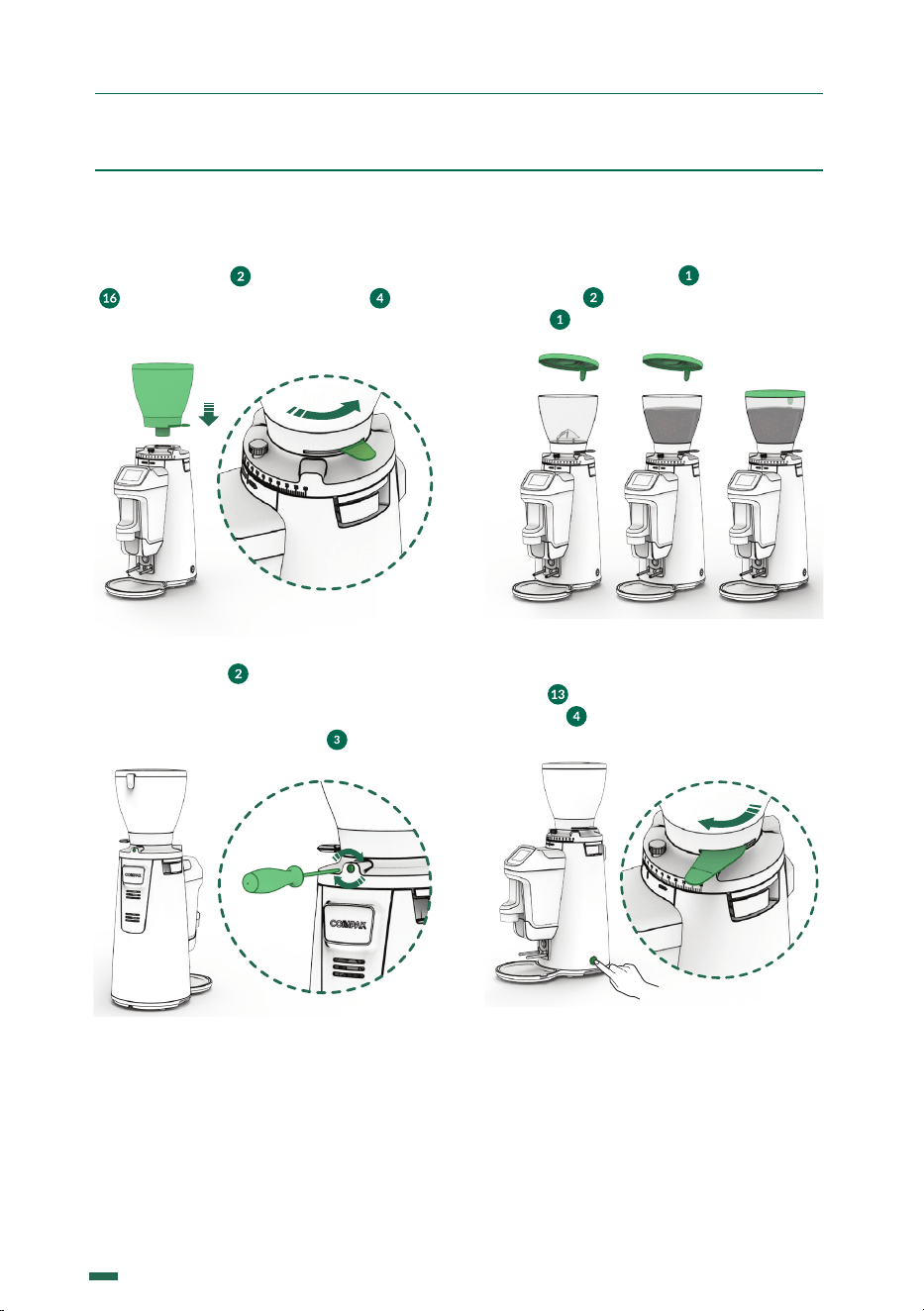

Remove the hopper lid ( ), fill the hopper
with coee ( ), and replace the lid on the
hopper ( ) (Fig. 3).
Fig. 3
Plug in the grinder, and press the main power
switch (
) to ON position, and open the
bean trap (
) to allow coee to pass into the
grind chamber (Fig. 4).
Fig. 4

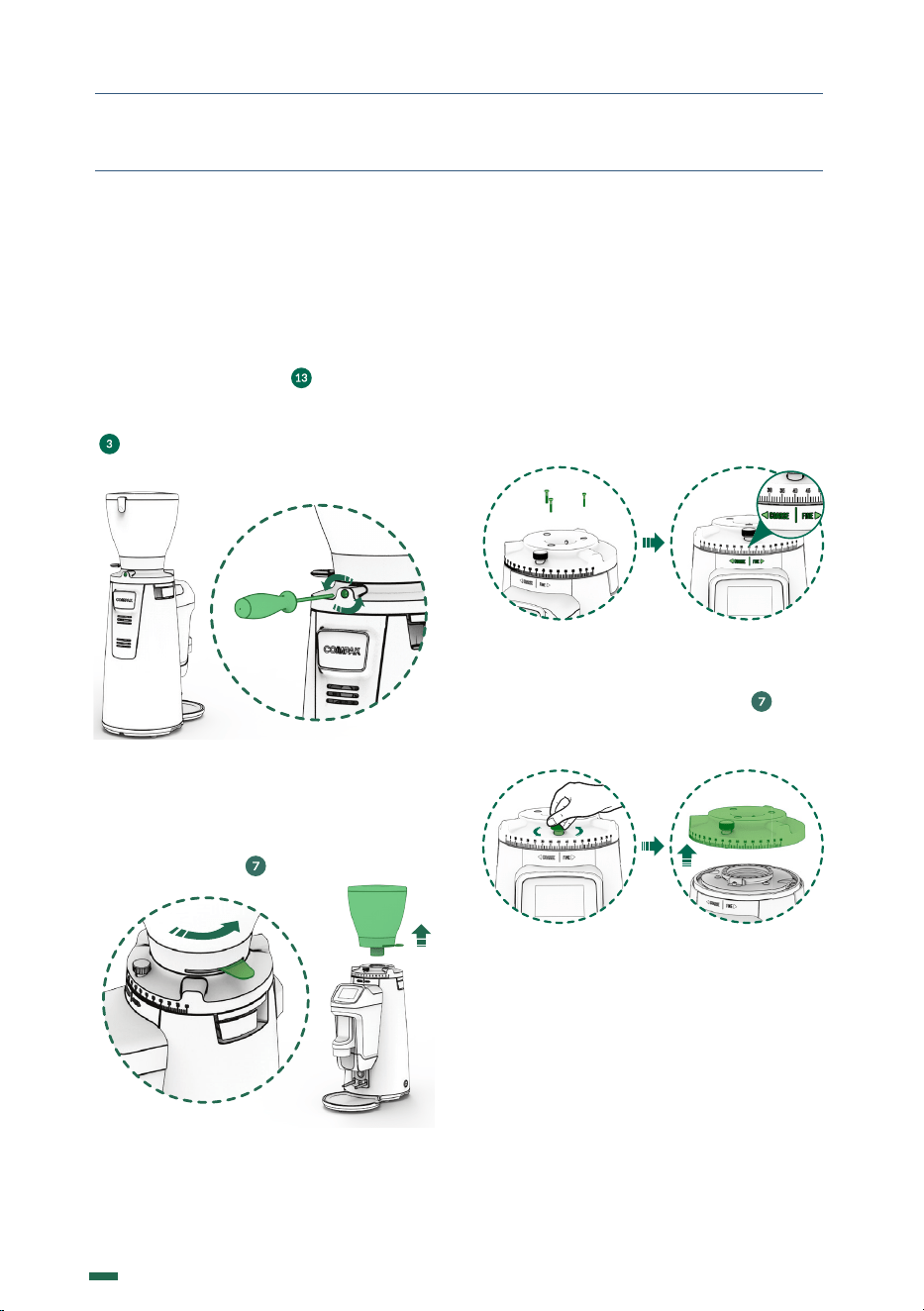

8.1. GRINDER SET UP
Place the hopper ( ) on the grind regulator
( ) and make sure the bean trap ( ) is in
the closed position (Fig. 1).
Fig. 1
Lock the hopper ( ) in place using a phillips
head screw driver to gently tighten the
hopper security screw making it match to the
hole at the bean hopper collar (
) (Fig. 2).
Fig. 2
11
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
8. ADJUSTMENT

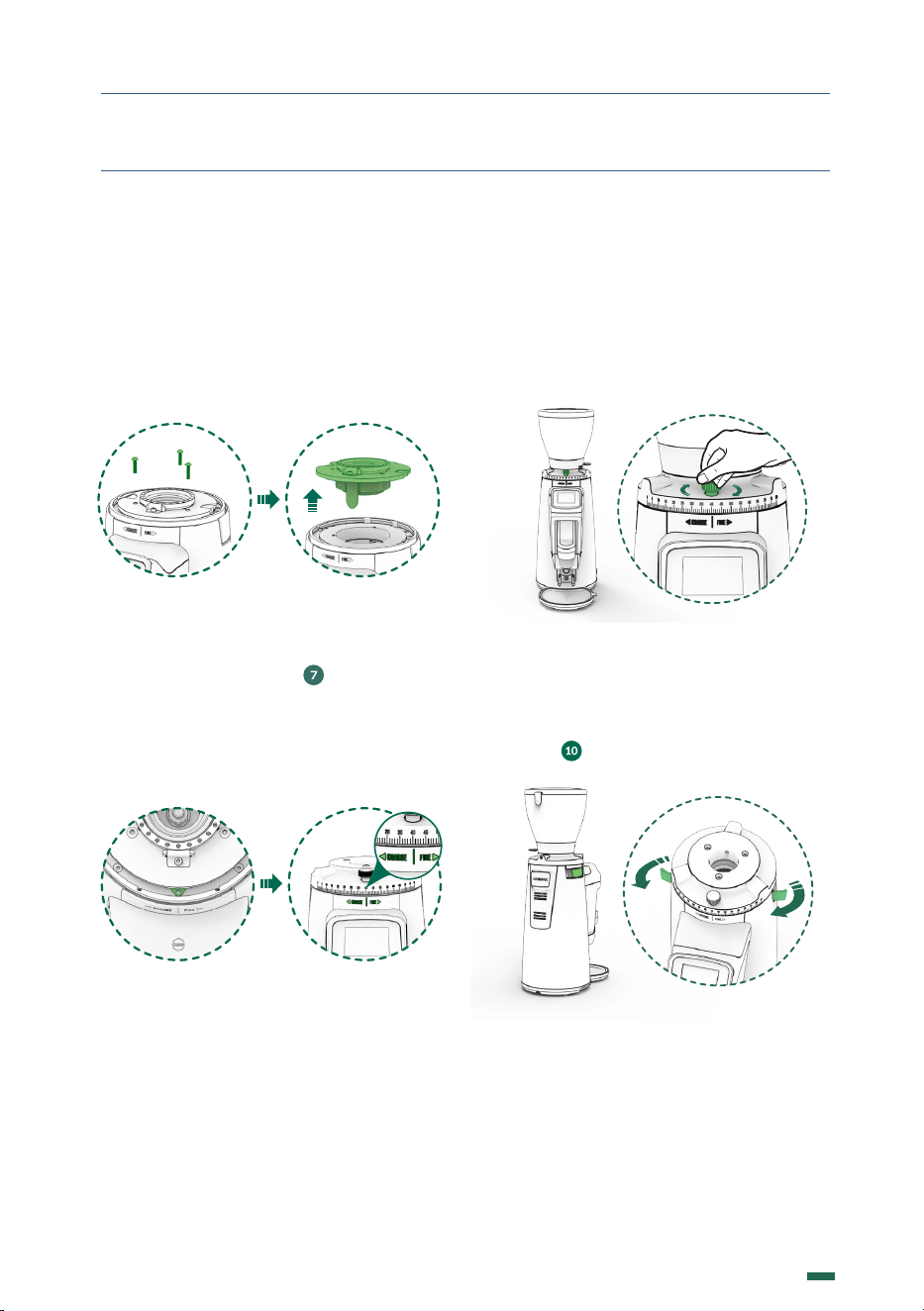

8.3. GRIND ADJUSTMENT SYSTEM
Rotate the grind regulator ( ) until reaching
the grind level desired.
Rotating the grind regulator clockwise will
result in a courser grind; turning the regulator
counterclockwise will result in a finer grinder
(Fig. 7).
Fig. 7
Once you reach the desired grinding point
(
), you can fix the grinding regulation using
the regulation break ( ) (Fig. 8).
Fig. 8

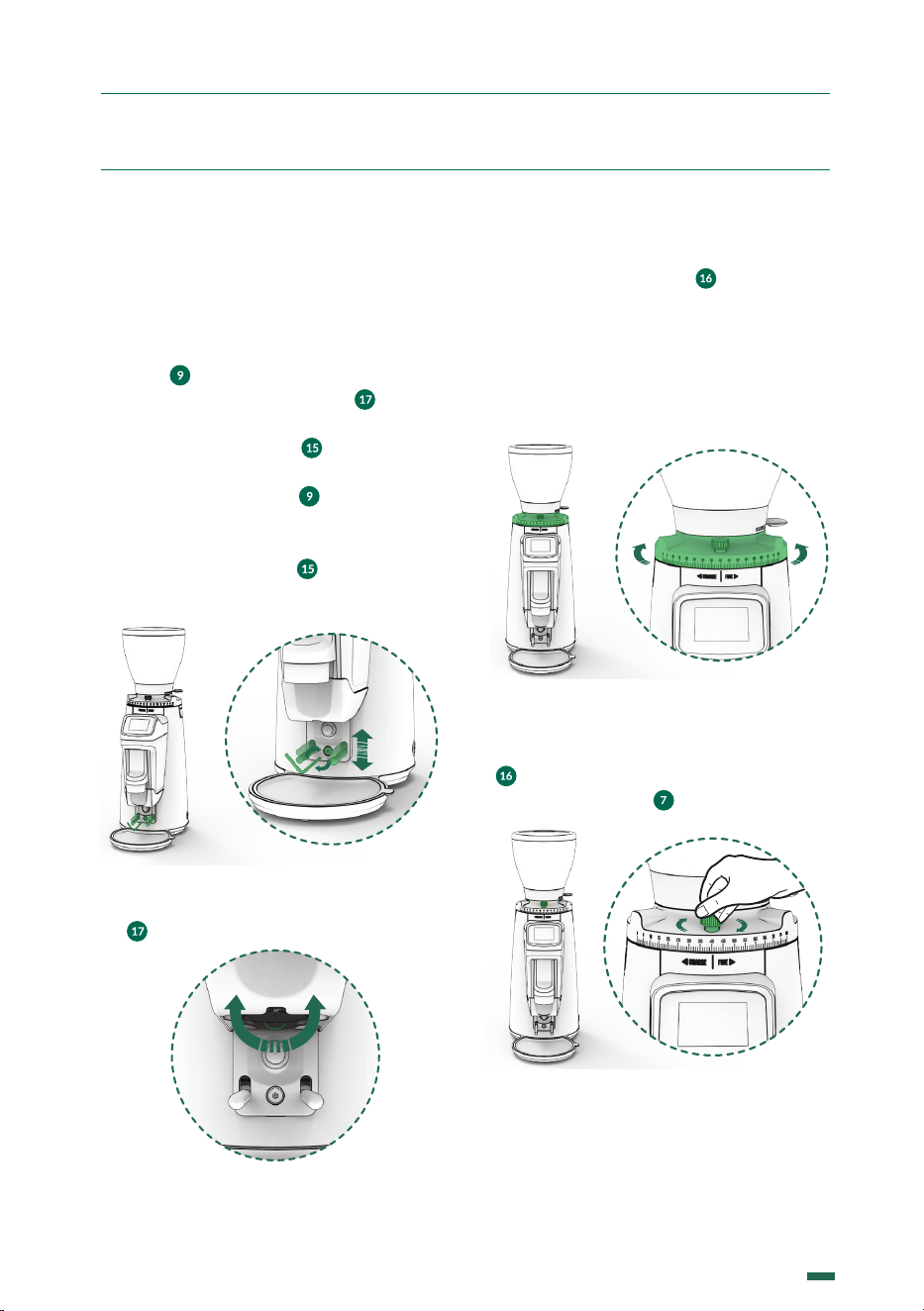

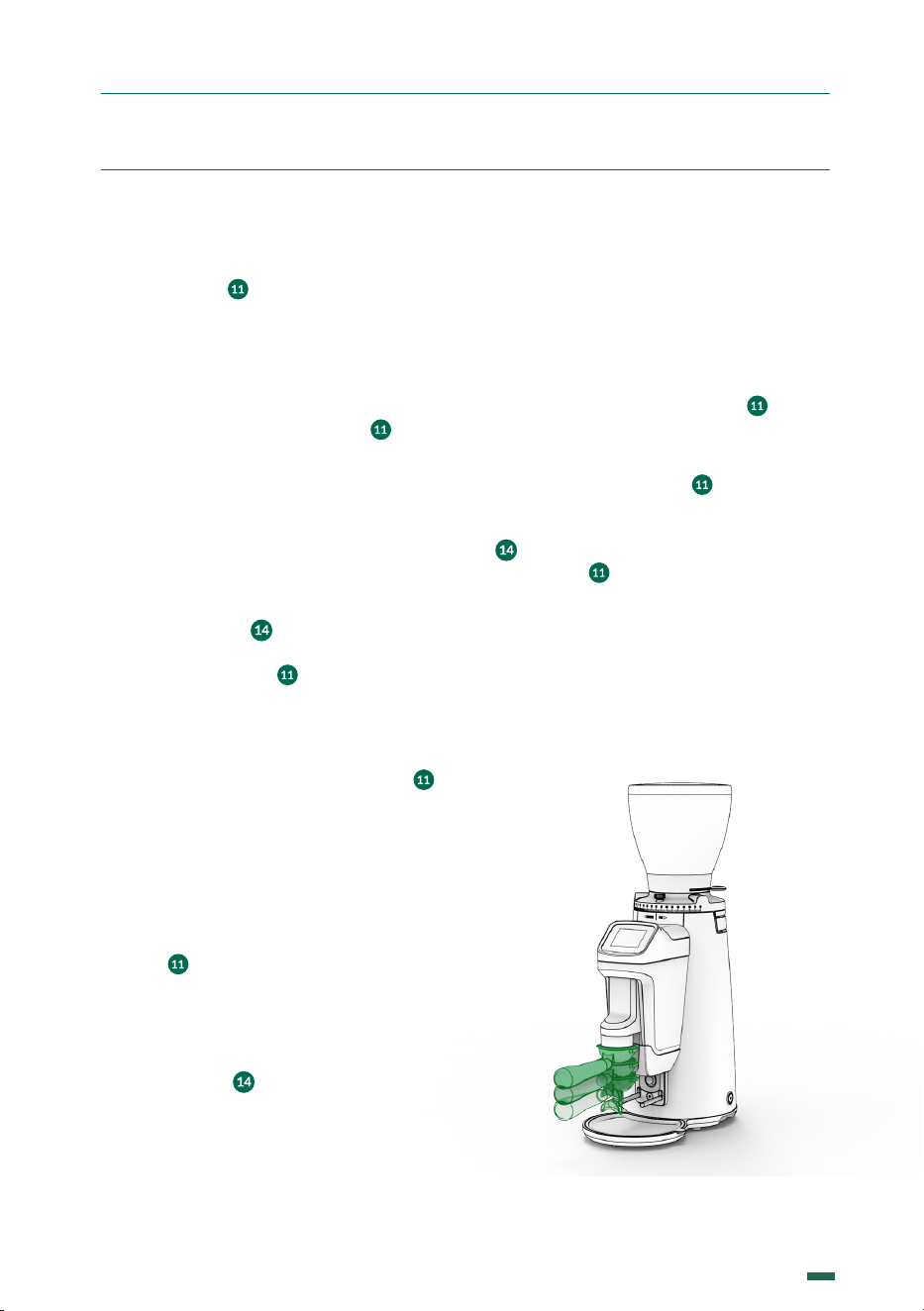

8.2. ADJUSTING THE PORTAFILTER
SUPPORT
In order to ensure the proper distribution of
ground coee in the portafilter, it is possible
to adjust the height of the lower portafilter
support (
) and move the nozzle back and
forth using the wheel to adjust it ( ).
To do this adjustment operation the height:
1. Loosen the screw (
) by using the
Allen Key #4 included with your grinder.
2. Adjust the support (
) to the desired
height using the portafilter as the point of
reference.
3. Tighten the screw (
) with the Allen
Key #4 provided (Fig. 5).
Fig. 5
4.
To move the nozzle forth turn the wheel
(
) clockwise,
and back counterclockwise
(Fig. 6).
Fig. 6
12
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
8. ADJUSTMENT

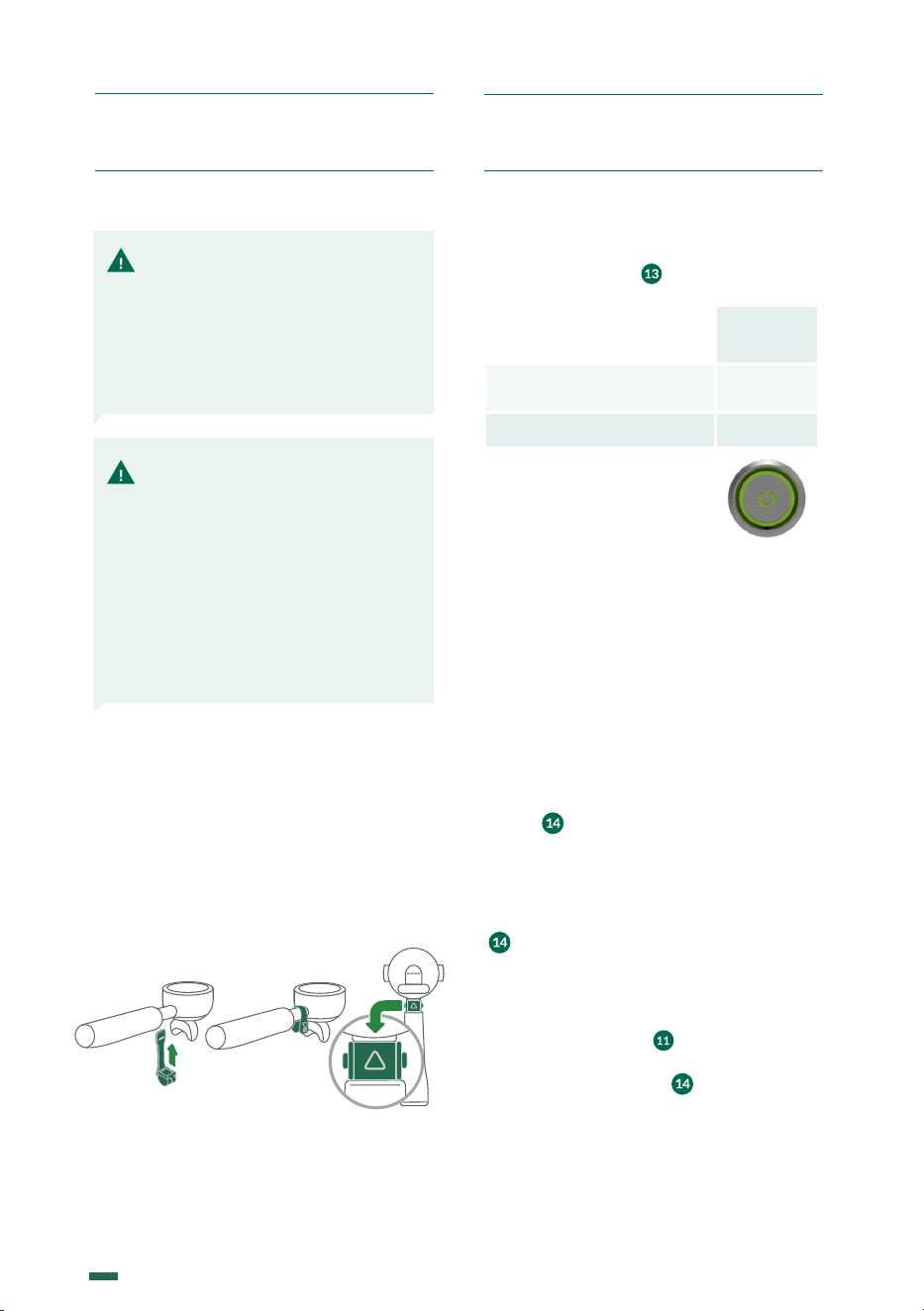

9.1. MAIN SWITCH
The main switch ( ) has the following
positions: OFF/ON (Fig. 4)
BOLT
The equipment’s electronic func-
tions are activated
ON
Equipment o OFF
Fig. 4
9.2. UTILIZATION

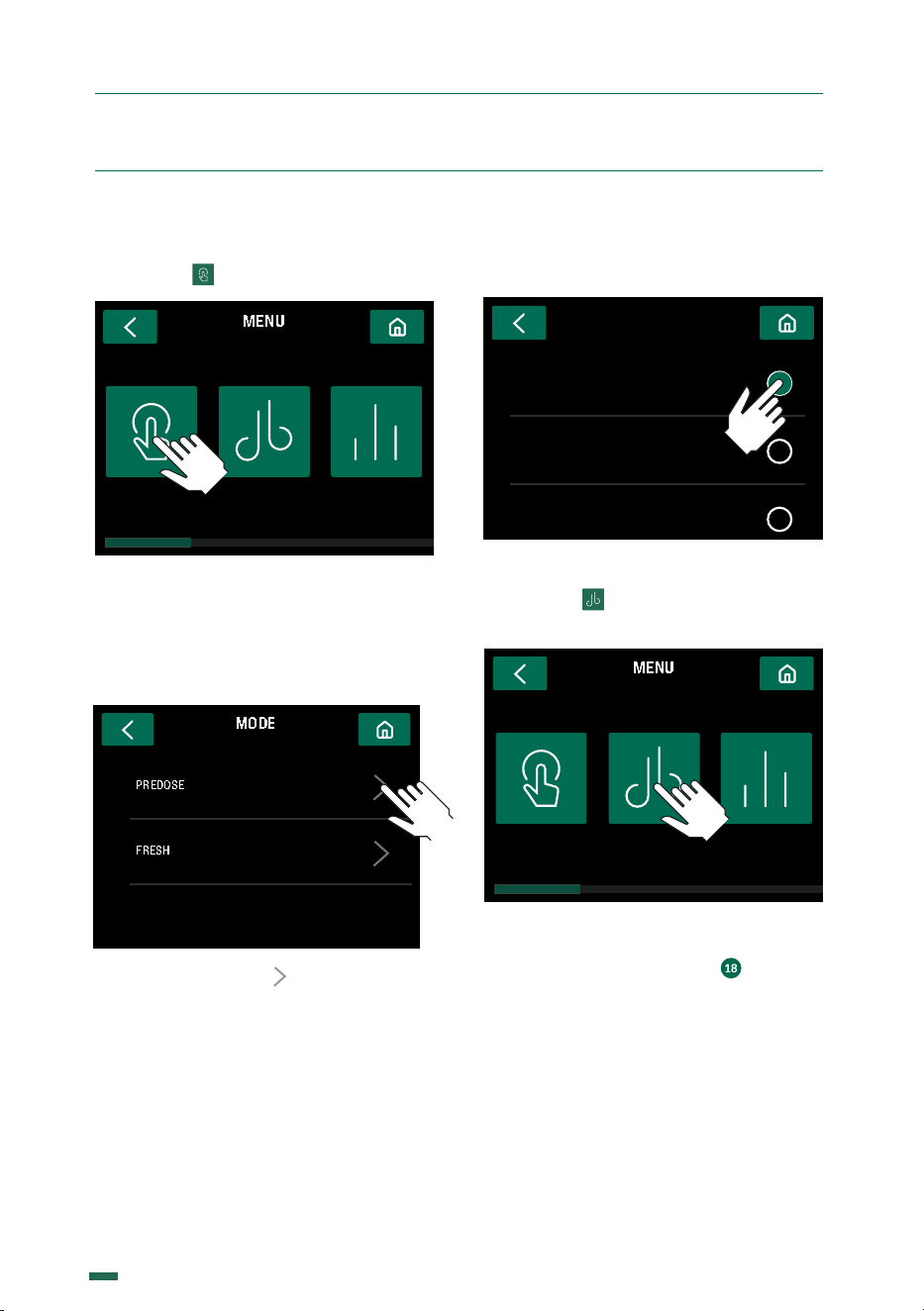

Through the program menu (section 10.4.3),
it is possible to select three distinct functional
modes: PUSH, DETECTION and TOUCH.
9.3. PUSH MODE
In the PUSH mode, a pre-programmed single,
double or triple* dose can be set by simple
pressing the corresponding icon on the TFT
screen ( ).
The preselection of a single, double or triple*
dose will remain active until it is changed by
pressing one of the three numbered icons. This
preselection is refle cted on the TFT screen
( ) with the icon of the active selection in the
secondary color, and the rest of the icons in the
principle color.
Dispensing the preselected dose by pressing
the lower pulse button ( ) one time. When the
grinding cycle begins, a timer countdown will
begin on the TFT screen ( ), which will count
down the timed dose cycle to zero.
9. OPERATION
NOTE: If the coee
throughput is very low, this
is because the coee is
being ground very fine. If
the throughput is very high,
this is because the coee is
being ground very coarse. A
perfect Espresso is produced
when the grinding gives an
infusion of 25 ml of coee in
25 seconds using about 7 g of
ground coee.
NOTE: It is recommended
that this operation be
performed, when changing
to a finer grinding, with the
motor running, to prevent
coee from building up
between the burrs and
blocking the grinder.
8.4. PREPARATION OF THE
PORTAFILTER DETECTOR (OPTIONAL)
1. Place the detector on the double portafilter
(Fig. 1).
2. Check that the detector ring tab is properly
closed (Fig. 2).
3. Make sure that the arrow is in the correct
position on the lower side (Fig. 3).
Fig. 1 Fig. 2 Fig. 3
*Triple dose only can be activated on FRESH MODE
13
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
9. OPERATION
On FRESH MODE once the grind cycle is
initiated, it can be paused by pressing the lower
activation button ( ). The cycle will pause, and
will complete the timed grind cycle as long as the
lower activation button is pressed again within 10
seconds. After 10 seconds of inactivity, the grind
cycle will reset to the complete cycle time.
Grind pause can be activated or deactivated
by pressing the lower pulse button ( ). First,
set up by following these steps: MENU /
SETTINGS / GRIND PAUSE.
9.4. TOUCH MODE
In this mode of operation when making the
selection of single, double or triple* doses of
coee by pressing the appropriate numeric
TFT icon screen ( ) starts grinding the
selected dosis without the need to actuate
the lower dose button ( ).
The time set for that dose will decrease to
zero, at which point the dose ends.
On FRESH MODE once the cycle starts
grinding using the lower dose button ( )
and is pressed again, the grinding cycle will
stop. If within 10 seconds it is pressed again,
it will complete the remaining time of the
original dose time setting. After 10 seconds
of inactivity the grinder will return to standby
mode.
To pause by pressing the lower activation
button ( ), you can enable or disable,
accessing MENU / SETTINGS / GRIND
PAUSE .
On FRESH MODE , pause grinding may also
be performed by pressing the active icon on
the TFT display ( ). This pause cannot be
enabled or disabled via the MENU.
9.5. DETECTION MODE
In this operating mode, the grinder detects
the presence of the portafilter through
the movement of a fitted Tag. When the
portafilter with the mounted Tag comes
in range, the system identifies it and
automatically grinds DOSE 2 by pressing
the lower portafilter button ( ) once.
Once Dose 2 is detected, you have 5 seconds
to press the lower button ( ). If you want to
cancel the selection, you can press 1 or 3* (if
the Dose 3* is activated) on the TFT screen
( ). If after 5 seconds, the lower button is
not pressed ( ), the grinder will return to the
standby mode.
9.6. TAMPER
9.6.1. Fixed Tamper (Optional)
Position the portafilter below the tamper and
push up to tamp the ground coee (Fig. 5).
Fig. 5
*Triple dose only can be activated on FRESH MODE
14
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
PUSH
PREDOSE
10:20:59
LAST CUP
1 2
10. SETTINGS

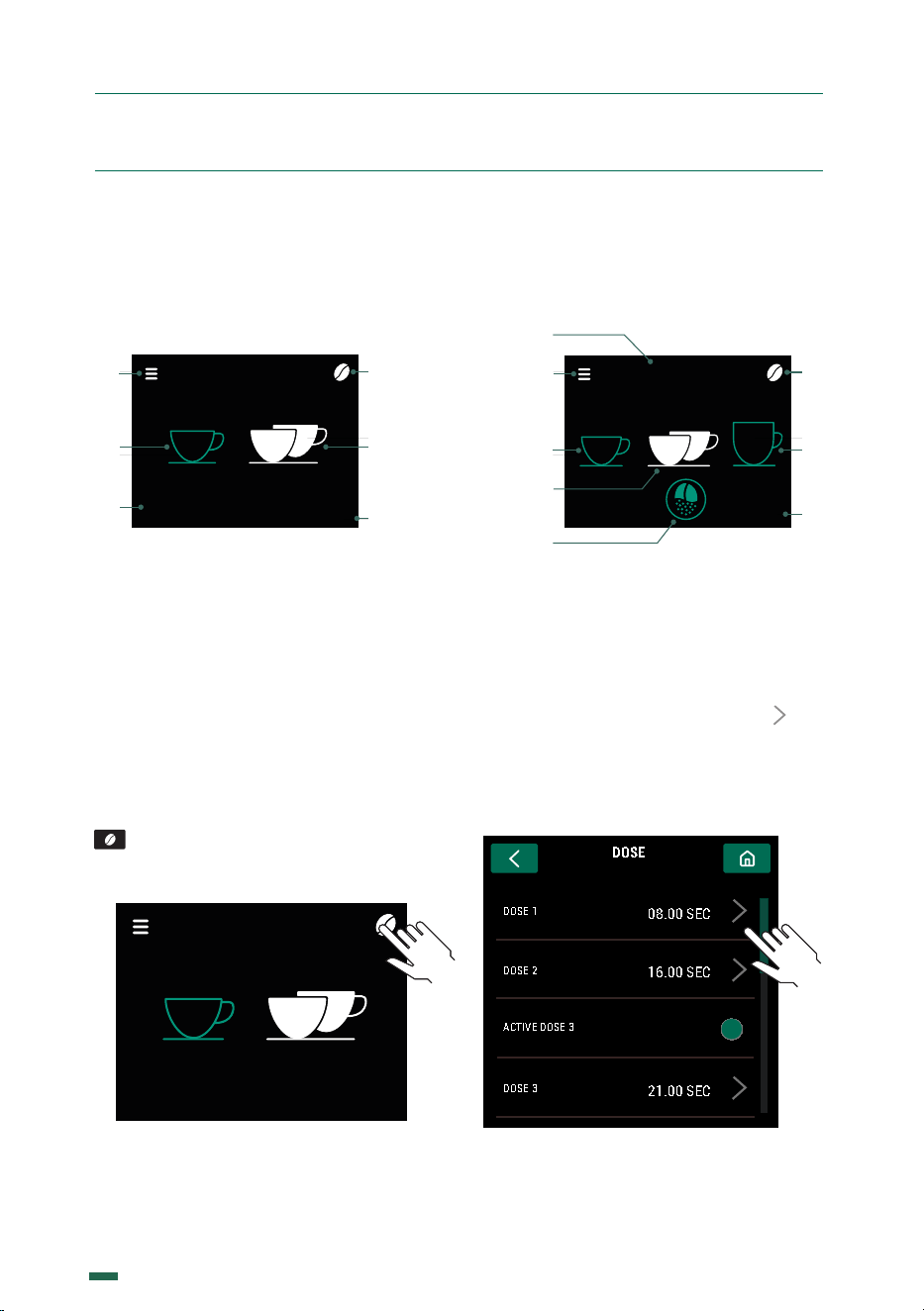

10.1. DISPLAY ICON GUIDE
10.2. GRIND TIME CONFIGURATIONS
10.2.1. The grinding times can be
configured for automatic, preselection and
instantaneous operation modes, and when
modified in one of the three modes they are
updated for all modes simultaneously.
To modify 1 dose, push the Coee Bean icon
of the Home menu and the dose time
menu will be accessed.
PUSH
PREDOSE
10:20:59
LAST CUP
1 2
10.2.2. Within the dose time menu you can
choose to change the time of 1, 2 or 3 doses
(if it is active), by pressing the symbol that
is in each of them, thus going to the dose
time configuration menu. To access dose
3 you must scroll down so that the option
appears.
DOSE
DOSE 1
08.00 SEC
DOSE 2
16.00 SEC
DOSE 3
21.00 SEC
ACTIVE DOSE 3
* In the case of 3 dose activation
Time from last
coee served
Menu
Configuration
Dose 1
Dose 2
active
Grind button
Dose 3*
Active
mode
Grind Time
Configuration
PUSH
SEC
08.00
1 2 3
Active
mode
Grind Time
Configuration
Time of
active dose
Menu
Configuration
Dose 1
Dose 2
active
DISPLAY PREDOSE MODE DISPLAY FRESH MODE
15
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
10. SETTINGS

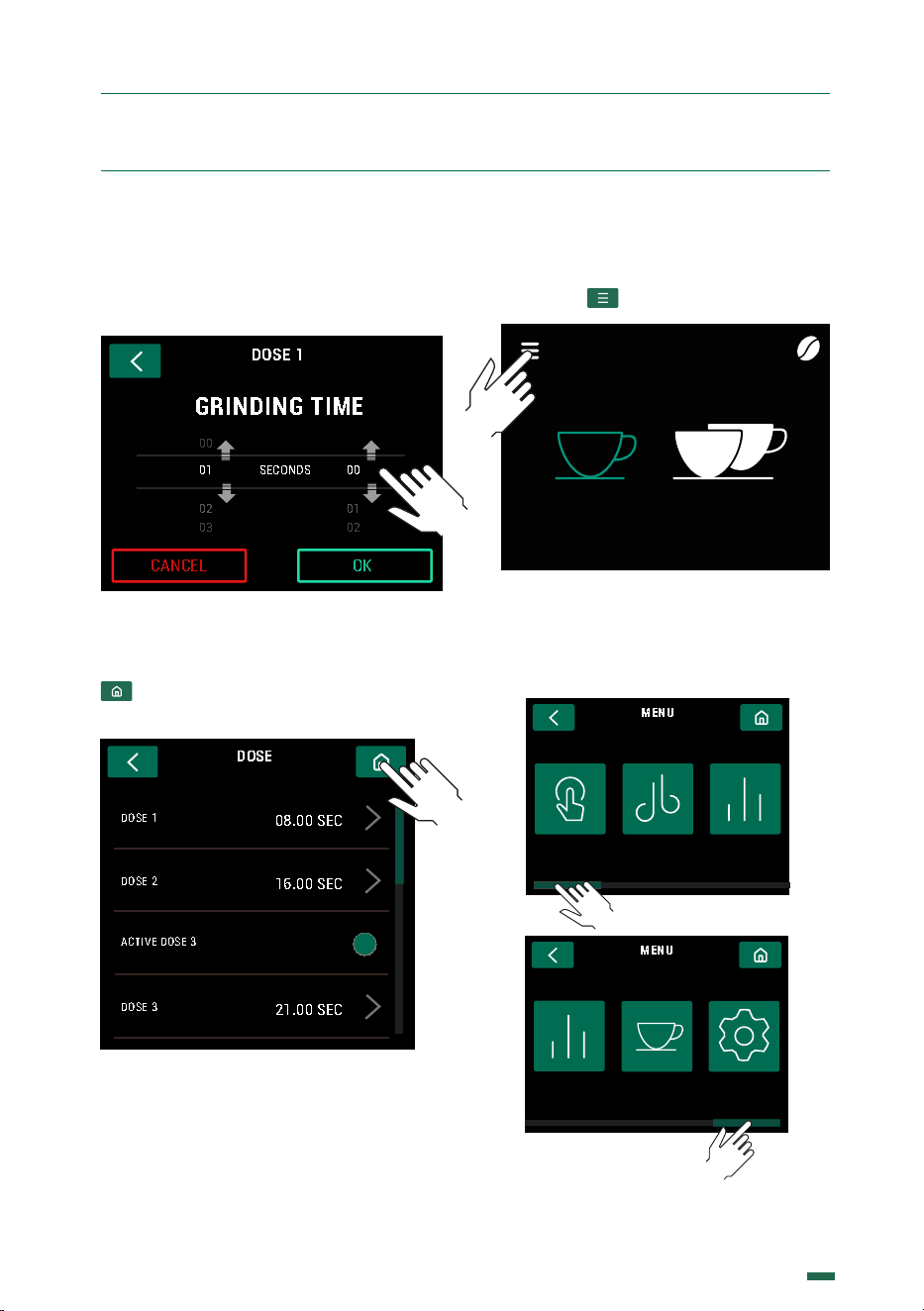

10.2.3. Inside the dose time configuration
menu, this can be changed by sliding the
seconds and tenths of a second up or down
until the desired time is obtained and press OK.
DOSE 1
02
03
01
02
00
01
SECONDS
00
GRINDING TIME
CANCEL
OK
10.2.4. When accepting, it will return to
the previous menu to be able to continue
changing more dose times or if the button
is pressed it will return to the Home
screen.
DOSE
DOSE 1
08.00 SEC
DOSE 2
16.00 SEC
DOSE 3
21.00 SEC
ACTIVE DOSE 3
10.3. ACCESS TO THE
CONFIGURATION MENU
10.3.1. Press
10.3.2. There are 5 options, use the horizontal
scroll to navigate between: Mode, Cleaning,
Statistics, Recipes and Settings.
PUSH
PREDOSE
10:20:59
LAST CUP
1 2
MENU
MODE CLEANING STATISTICS
MENU
SETTINGSSTATISTICS RECIPES
MENU
MODE CLEANING STATISTICS
MENU
SETTINGSSTATISTICS RECIPES
16
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
10. SETTINGS
10.4. MODE MENU
10.4.1. Press in the configuration Menu
MENU
MODE CLEANING STATISTICS
10.4.2 There are two dierent options to
operate the grinder, Predose where the
doses are pre-grind before you ask for them
or Fresh where are grinded by demand.
MODE
PREDOSE
FRESH
By pressing the simbol in one of them you
will acess to the next menu where you will be
able to chose between the dierent working
modes.
10.4.3 Choose between the dierent working
modes: Push, Detection or Touch.
TOUCH MODE
PUSH MODE
DETECTION MODE
PREDOSE

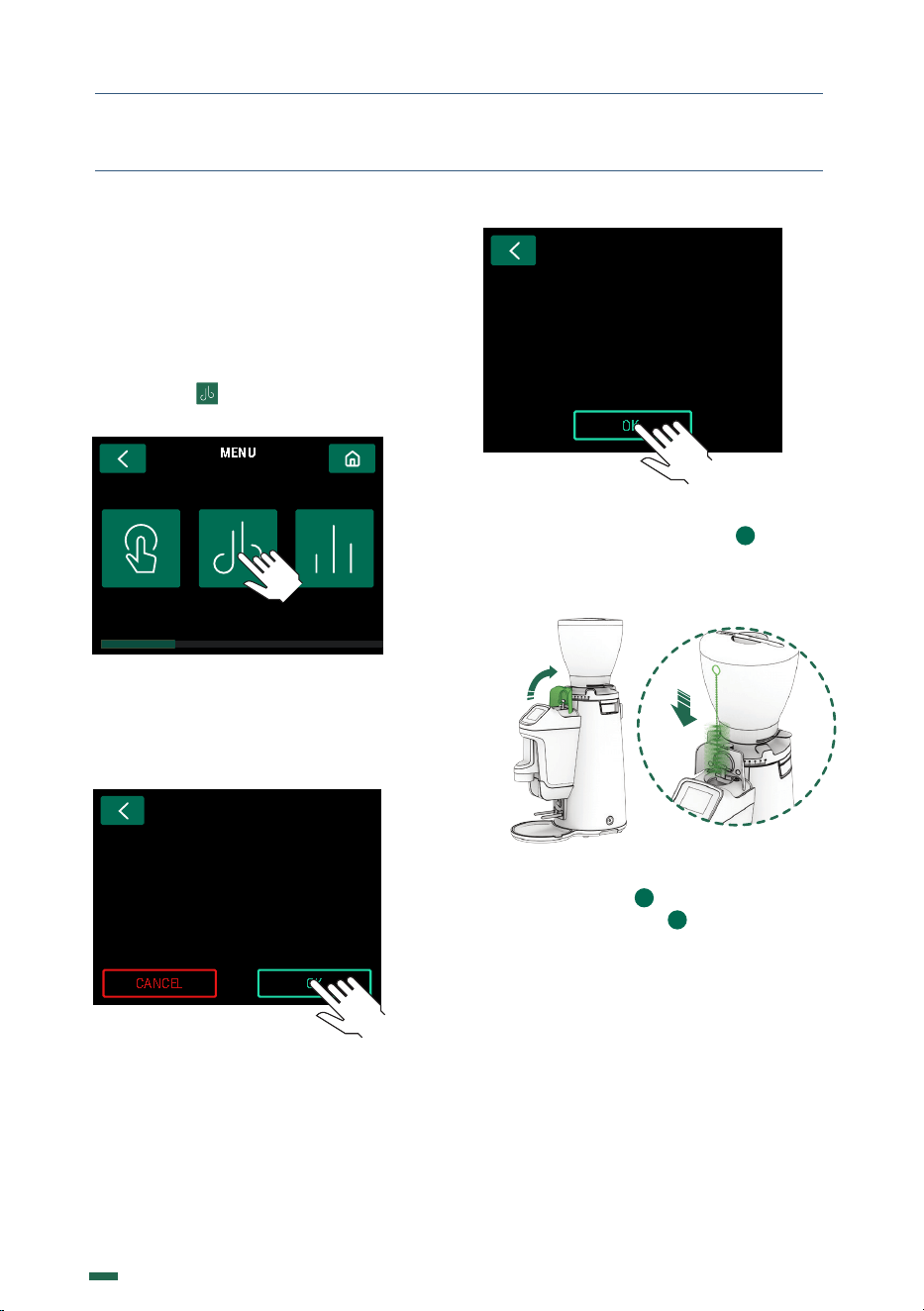

10.5. CLEANING MENU
10.5.1. Press in the configuration menu
to activate the Cleaning Mode.
MENU
MODE CLEANING STATISTICS
In that mode the grinder opens the gates and
is possible to clean using a circular brush
opening the Cleaning cover ( ) from the
top.
17
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
10. SETTINGS

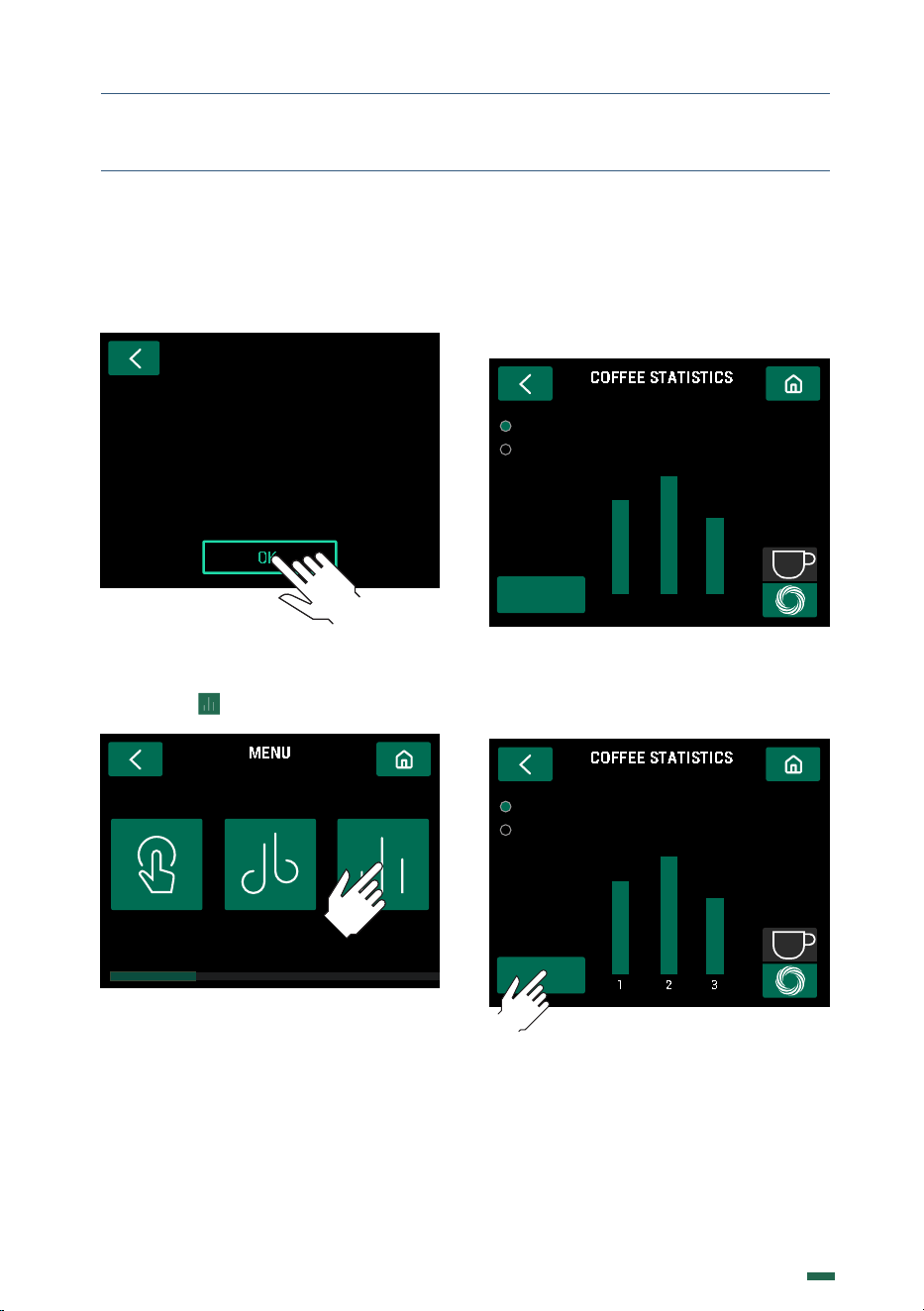

The screen will display the message “Doors
open, please clean with brush from the top”
and will remain in that state until you press
the OK to go back to working mode.
OK
DOORS OPEN, PLEASE
CLEAN WITH BRUSH
FROM THE TOP
CLEANING MODE
10.6. STATISTICS
10.6.1. Press
MENU
MODE CLEANING STATISTICS
10.6.2. The number of independent doses
for each selection is shown, either absolute
from the date of installation of the grinder, or
relative from a counter reset date. Burrs wear
can also be checked.
21 3
COFFEE STATISTICS
Relatives
Absoluts
5
4 3
RESET
Total:
12
10.6.3. Relative Statistics can be reset by
pressing the Reset Relative button and then
entering the Password.
Relatives
Absoluts
5
4 3
RESET
Total:
12
2
1
3
COFFEE STATISTICS
18
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
10. SETTINGS

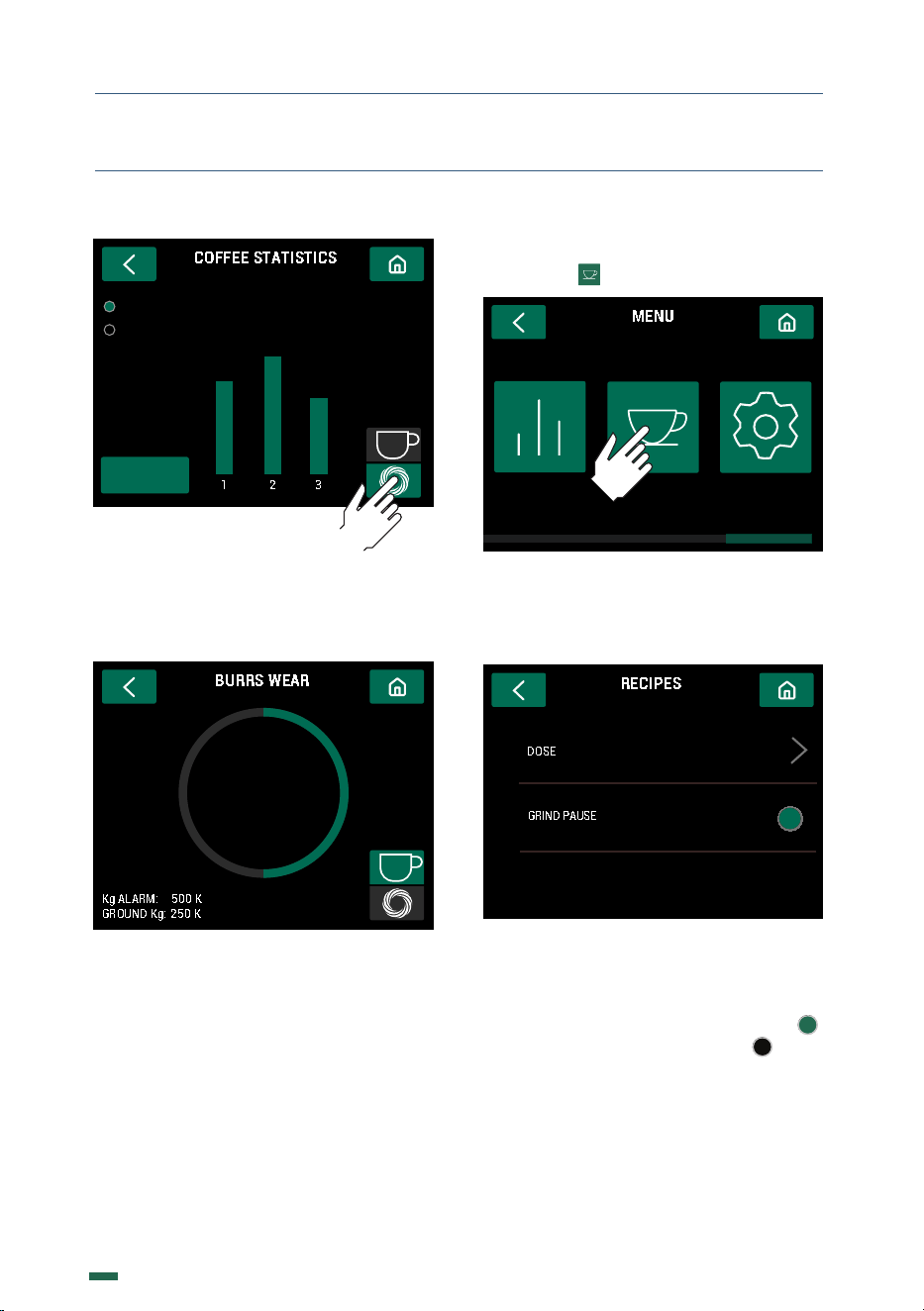

10.6.4. To access the Burrs wear graph, press
2
1
3
COFFEE STATISTICS
Relatives
Absoluts
5
4 3
RESET
Total:
12
10.6.4. There is a graphical view of the Burrs
wear in % as well as the Total ground Kg
and the Kg configured for the Burrs change
notice.
50
%
BURRS WEAR
Kg ALARM: 500 K
GROUND Kg: 250 K
10.7. RECIPES
10.7.1. Press
MENU
SETTINGSSTATISTICS RECIPES
10.7. 2 There are two options, the first one
will access the menu to configure the dose
times, the second, activate or deactivate the
Grinding Pause (by default it is active).
RECIPES
DOSE
GRIND PAUSE
If you access the menu to configure dose
times, we can follow the steps in point 10.2.2
to configure the dose time. In the Fresh
mode you’ll be able to activate or deactivate
the grinding pause, press the button ,
if the grinding pause is active, or if it is
deactivated.
19
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022

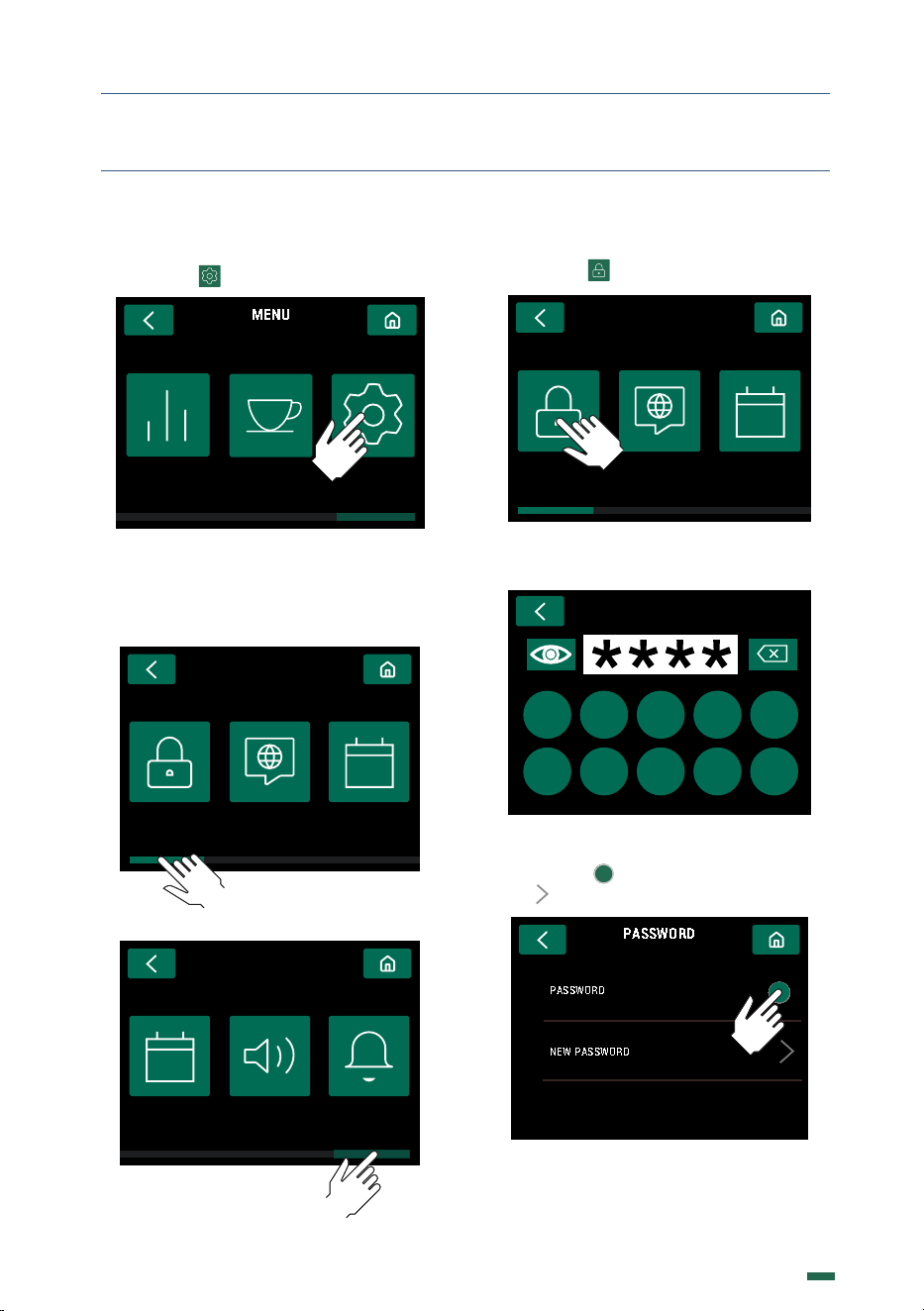

10.8. SETTINGS MENU
10.8.1. Press in the configuration menu
MENU
SETTINGSSTATISTICS RECIPES
There are 4 Settings options. Use the horizontal
scroll to navigate between: Password,
Language, Date / Hour, and Sounds.
DATE/HOURLANGUAGEPASSWORD
GRINDER SETTINGS
GRINDER SETTINGS
10.9. PASSWORD
10.9.1. Press
DATE/HOURLANGUAGEPASSWORD
GRINDER SETTINGS
GRINDER SETTINGS
If the Password is active, enter the Default
one: 0000
PASSWORD
0 1 2 3 4
5 7 8 96
10.9.2. Activate or deactivate the Password
by pressing . To modify the Password
press
PASSWORD
PASSWORD
NEW PASSWORD
10. SETTINGS
GRINDER SETTINGS
DOSE ALARMSOUNDSDATE/HOUR
20
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022

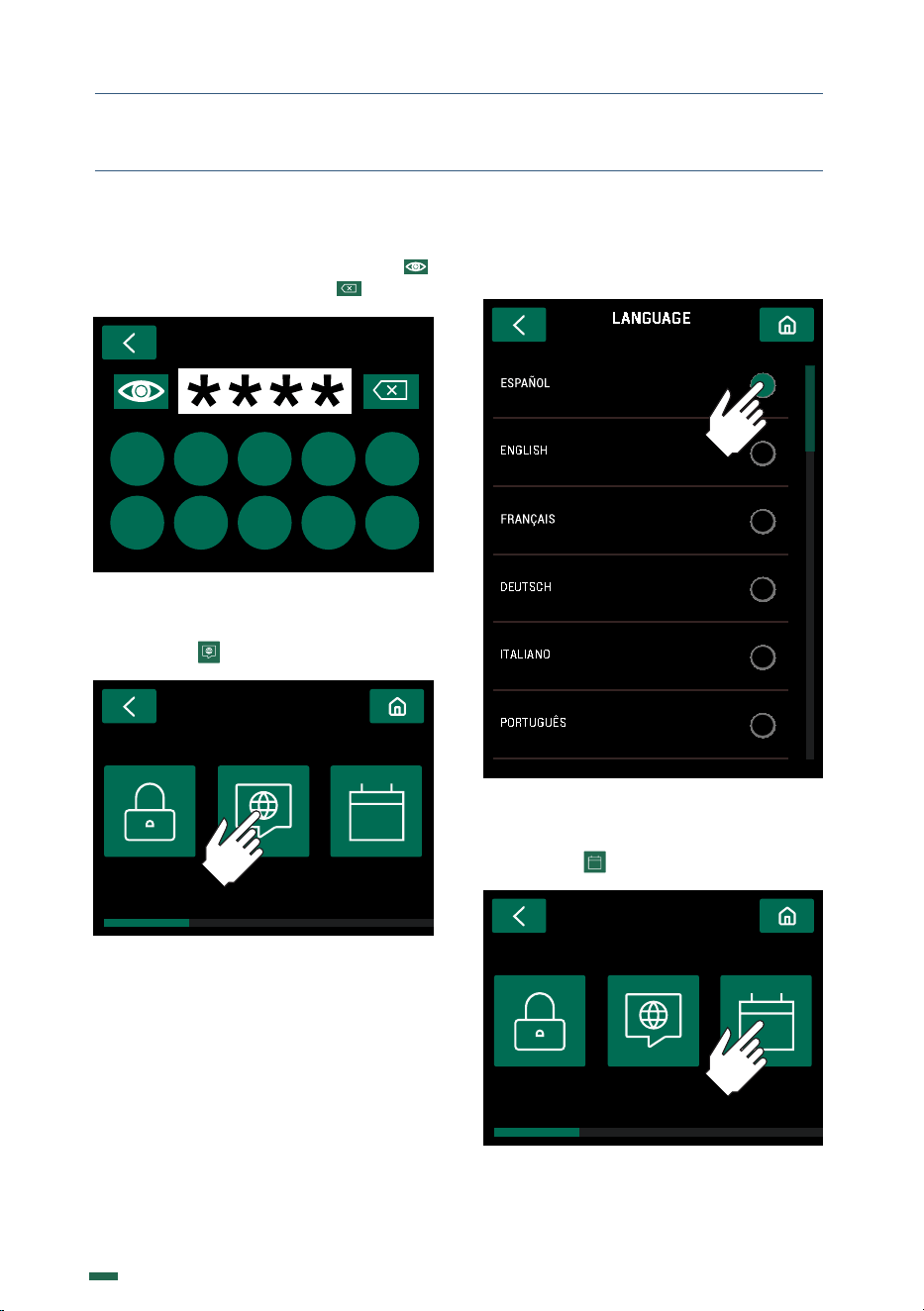

10.9.3. Enter a new 4 numbers Password.
Show or hide the numbers by pressing
or delete the numbers pressing
NEW PASSWORD
0 1 2 3 4
5 7 8 96
10.10. LANGUAGE
10.10.1. Press
DATE/HOURLANGUAGEPASSWORD
GRINDER SETTINGS
GRINDER SETTINGS
10. SETTINGS
10.10.2. Choose between the dierent
languages available using the vertical scroll.
LANGUAGE
PORTUGUÊS
ITALI ANO
DEUTSCH
ENGLISH

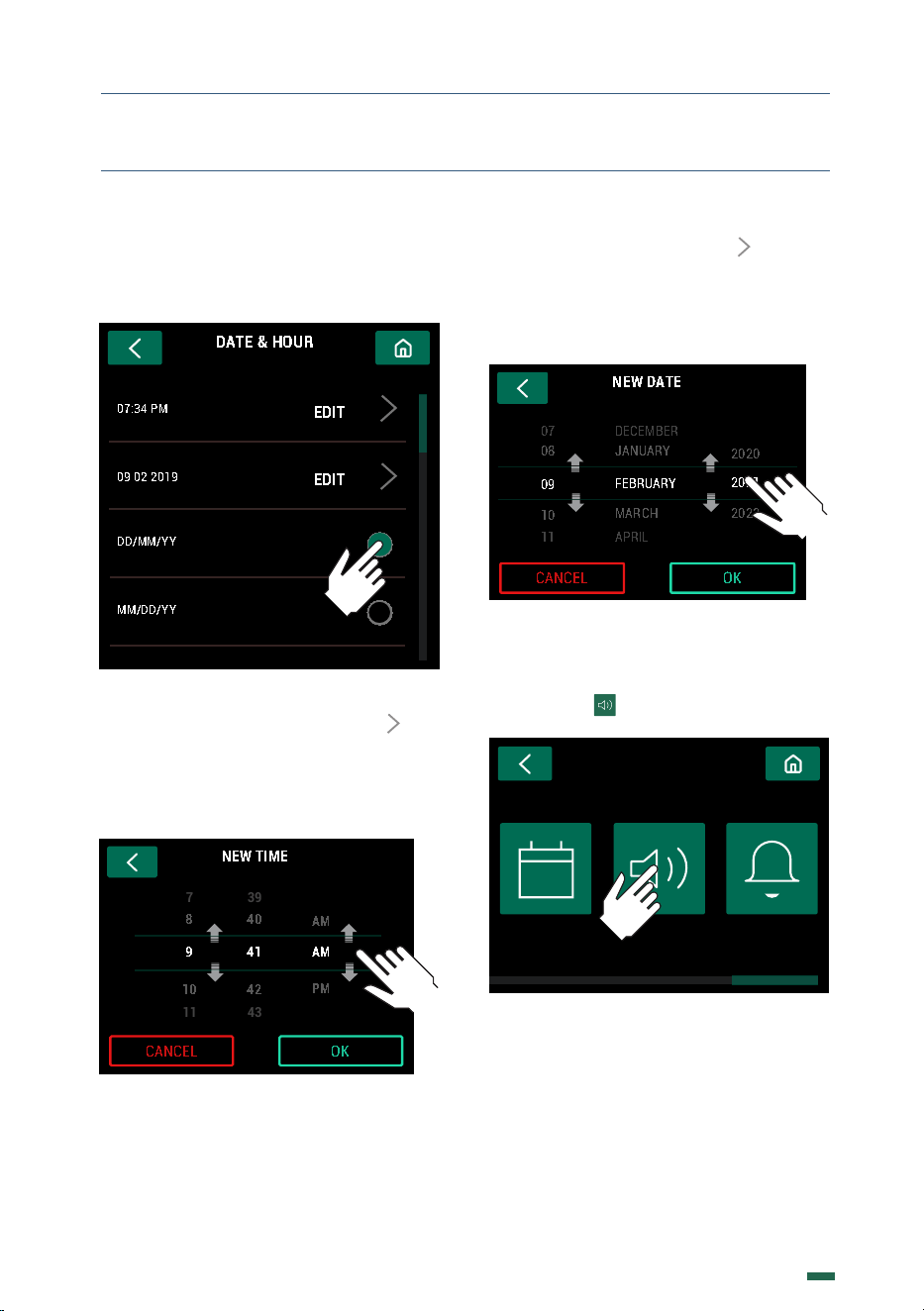

10.11. DATE/HOUR
10.11.1. Press
DATE/HOURLANGUAGEPASSWORD
GRINDER SETTINGS
GRINDER SETTINGS
21
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
10. SETTINGS
10.11.4. Edit the date by pressing to access
the date setting screen. change the days,
months and years by sliding up or down until
the desired time is obtained and press the
button OK to confirm.
NEW DATE
APRIL
11
2022
MARCH
10
2021
FEBRUARY
09
2020
JANUARY
08
DECEMBER
07
CANCEL
OK

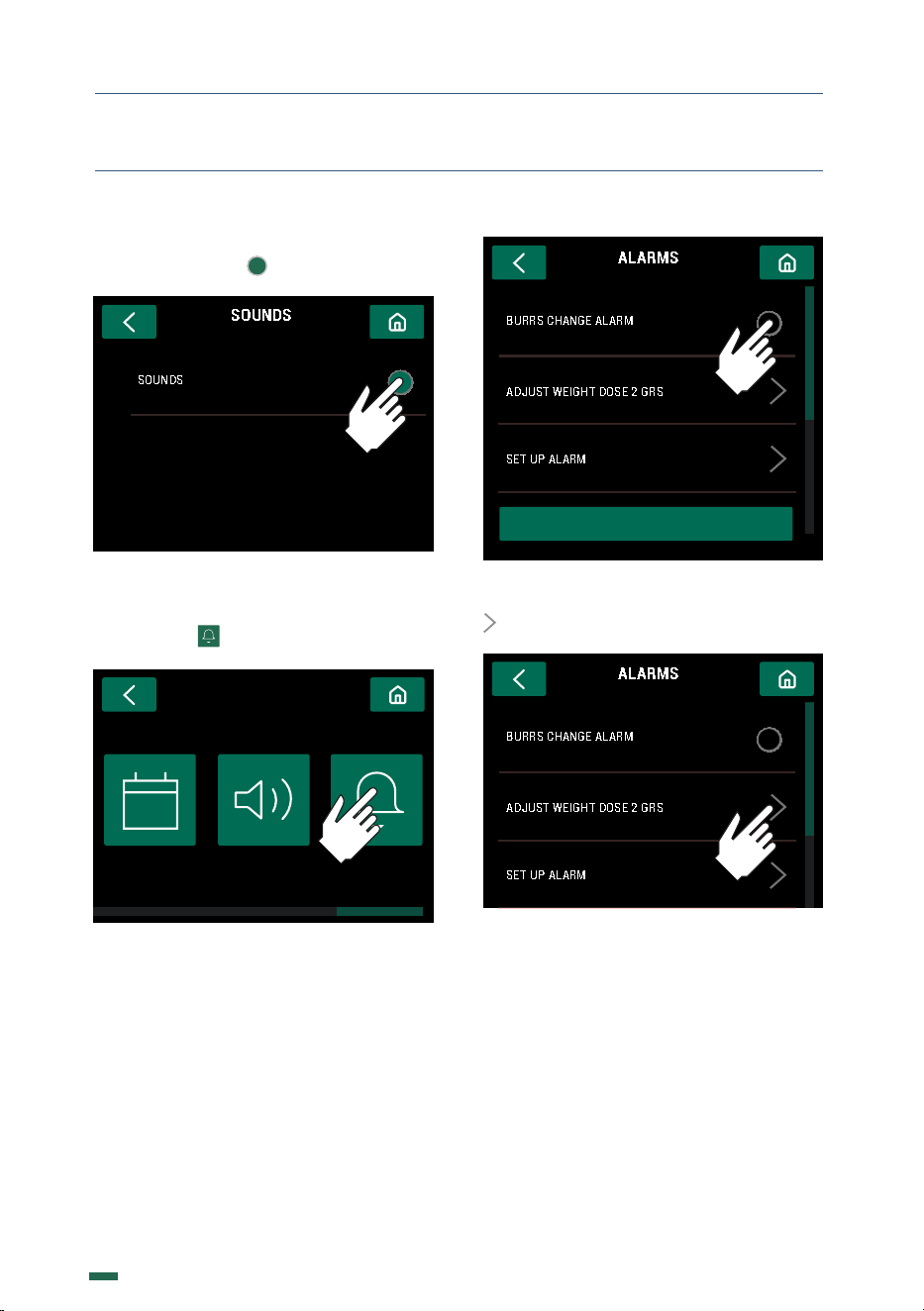

10.12. SOUNDS
10.12.1. Press
DOSE ALARMSOUNDSDATE/HOUR
10.11.2. Edit both the time, the date or the
way to show the date between DD/MM/YY
or MM/DD/YY.
DATE & HOUR
07:34 PM
EDIT
MM/DD/YY
DD/MM/YY
09 02 2019
EDIT
10.11.3. Edit the time by pressing to
access the time setting screen. Change the
hours, minutes and seconds by sliding up or
down until the desired time is obtained and
press the button OK to confirm.
NEW TIME
CANCEL
OK
43
11
PM
42
10
AM
41
9
AM
40
8
39
7
22
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
10.12.2. Activate or deactivate the sound by
pressing the button
SOUNDS
SOUNDS
10.13. BURRS CHANGE ALARM
10.13.1. Press
GRINDER SETTINGS
DOSE ALARMSOUNDSDATE/HOUR
10.13.2. Choose between, activate or
deactivate the Burrs change alarm, adjust
the Weight of the Dose 2, adjust the Burrs
change alarm Kg or by using the vertical
scroll, Rest Alarm.
ALARMS
BURRS CHANGE ALARM
ADJUST WEIGHT DOSE 2 GRS
SET UP ALARM
RESET ALARM
10.13.3. To adjust the Weight of Dose 2 press
ALARMS
BURRS CHANGE ALARM
ADJUST WEIGHT DOSE 2 GRS
SET UP ALARM
RESET ALARM
10.13.4. Change the grams of Dose 2 by
sliding the grams or tenths of a gram up or
down until the desired weight is reached and
press OK the button to accept.
Dose 2 will be the average weight used to
determine burr wear.
10. SETTINGS
23
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
11. CLEANING
11.1. GENERAL CLEANING
11.1.1. To ensure that the grinder functions
properly, and produces the highest quality
grind possible, the parts that come into
contact with coee should cleaned
periodically.
General Cleaning guidelines as follows:
• Always turn the main power switch to the
o position ( ).
• Unplug the machine from the power
source.
• Do not submerge the grinder in water or
use power washing devises.
• The appliance is not to be cleaned with a
water jet.
11.2. BEAN HOPPER CLEANING
11.2.1. In order to properly clean the bean
hopper ( ), first empty out all remaining
beans and fragments.
To remove the hopper, first close the bean
trap ( ), and then loosen the hopper lock
screw ( ) and lift the hopper straight up.
Clean the hopper ( ) with a moist soft cloth
or with a small amount of water and neutral
soap to eliminate any oily residue from the
beans.
Replace the bean hopper ( ) following the
same steps as the removal process, but in
reverse.
DOSE 2 WEIGHT IN GRS.
BURRS CHANGE
02
03
01
02
00
01
GR AMS
00
CANCEL
OK
10.13.5. To delete the stored data of the Burr
change alarm, i.e. once replaced the current
set of Burrs, scroll vertically, press the Reset
Alarm button and then enter the Password.
ALARMS
BURRS CHANGE ALARM
ADJUST WEIGHT DOSE 2 GRS
SET UP ALARM
RESET ALARM
10. SETTINGS
24
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
11.3. CLEANING THE COFFEE EXIT CHUTE
11.3.1. It is very important to maintain the exit
chute clean of coee in order to ensure the
consistency of the dosis and the continued
functioning of the grinder.
11.3.2. Press in the configuration menu to
activate the Cleaning Mode.
11.3.3. The screen will display the message
“Doors will open and coffee will fall. Be careful!”.
Once you press OK the grinder opens the gates
and a double dose falls.
11.3.4. The screen will display the message
“Doors open, please clean with brush from the
top” and will remain in that state until you press
the OK to go back to working mode.
11. CLEANING
MENU
MODE CLEANING STATISTICS
OK
DOORS OPEN, PLEASE
CLEAN WITH BRUSH
FROM THE TOP
CLEANING MODE
11.3.5. Open the Cleaning cover
(
18
)
to have
access from the top of the chute, and clean it with
a circular brush.
The dosis button
(
11
)
along with the and
lower portafilter holders
(
10
)
should be wiped
periodically to prevent build up of coffee grounds
and oils.
11.4. CLEANING THE GRIND CHAMBER
11.4.1. It is recommended that the grind
chamber be cleaned monthly with a cleaner.
This process will eliminate smelly residues
from the coee remains, which can negatively
aect the quality of the brewed coee.
Care is needed when handling cutting burrs
during cleaning.
DOORS WILL OPEN
AND COFFEE WILL FALL.
BE CAREFUL!
CLEANING MODE
CANC EL
OK
25
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
11. CLEANING
Not following the recommended
burr life guidelines can
compromise the safety of the
grinder.
These operation should be done
by a qualified service technician
wearing safety gloves.
12.1. GENERAL WARNING
12.1.1. Before performing any type of
maintenance you should:
• Always turn OFF the main power switch
to the o position ( ).
• If the grinder is jammed, unplug it from the
power source and contact an authorized
service technician.
In case of breakdown or malfunction, turn o
the appliance, we should never try to repair
it, it is essential to call the nearest technical
service.
NOTE: Not following these
warnings can compromise the
safety of the grinder as well as the
user.
12.2. GENERAL MAINTENANCE OF
THE GRIND CHAMBER
12.2.1. To guarantee the eiciency and correct
operation of the grinder, it is essential to follow
manufacturer instructions and ensure that all
maintenance work is carried out by qualified
sta.
Dull burrs will result in; a lower quality grind,
greater heat generation in the coee and grinder,
increased electrical consumption, and finally it
puts additional stress on the grinder motor.
The steps to follow are:
In order to properly clean the bean hopper ( ),
first empty out all remaining beans and fragments.
• Close the bean trap on the hopper
( )
and
grind out the remaining coffee in the grind
chamber.
• Pour the recommended grinder cleaning
product into the bean hopper ( ) and open
the bean trap
( )
, allowing the cleaning
product to pass into the grind chamber.
• Grind the cleaning product at a medium coarse
grind setting until the recommended amount
is passed through the system and nothing
remains in the grind chamber.
• Clean the hopper ( ) and refill with coffee beans.
• Discard the first 2-3 doses of coffee to assure
that the residual cleaning product is removed
from the grind chamber and set the grind
regulator to the desired setting ( ).
• Following these steps will ensure that the
grinder is clean and ready for use.
• We do not recommend the taking apart of
the grind assembly unless changing burrs, or
removing a blockage/obstruction in the grind
chamber. Removal of the grind assembly
should be performed by a qualified service
technician.
11.5. CLEANING THE OUTSIDE OF THE
GRINDER
11.5.1. To clean the exterior of the grinder, first
wipe with a dry soft cloth, and then gently
wipe with a damp cloth and neutral soap.
11.6. CLEANING THE TOUCH SCREEN
11.6.1. Proper cleaning should be done with a
soft, damp microfiber towel. Preferably distilled
water or other cleaning product specifically
designed for touch screen cleaning.
Turn o the grinder and gently wipe o the
screen using a circular motion.
12. MAINTENANCE
26
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
12. MAINTENANCE
12.3. GRINDING GROUP MAINTENANCE
To perform grind chamber maintenance
please observe the following steps:
12.3.1. Turn o the grinder by making sure
the main power switch ( ) is on the OFF
position. Disconnect the plug from the power
source. Loosen the hopper security screw
( ) using a Phillips head screw driver as
seen in (Fig. 1).
Fig. 1
12.3.2. Check that the shutter is in the closed
position before removing the hopper from
the grind regulator ( ) (Fig. 2).
Fig. 2
From that point, if your grinder have “Lock
Load System” skip until the point 12.3.7 if
not, keep following the next the steps
12.3.3. Loosen the grinding regulator screws
using an Hex Allen screwdriver #3, according
to (Fig. 3). Before remove the regulator take
a look to the position in the scale and take a
note. (Fig. 4).
Fig. 3 Fig. 4
12.3.4. Loosen the regulation break ( ) until it
feels free from the Parallel (Fig. 5). Remove the
regulator by pulling up (Fig. 6).
Fig. 5 Fig. 6
27
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
12. MAINTENANCE
12.3.5. Loosen the upper burs support
screws with a Hex Allen screwdriver #3,
according to (Fig. 7). Remove the upper
holder by pulling upwards to access the
grinding cavity, clean the interior with the
help of a brush or vacuum cleaner and
remove any coee residue from the grinding
cavity (Fig. 8).
Fig. 7 Fig. 8
12.3.6. When reassembling the regulator,
face the regulating brake ( ) with the shoe
of the Parallel System and tighten until they
link (Fig. 9). Turn the regulator until the
position meets the previous one that you
take a note in the point 12.3.3 and keep going
by reversing the steps (Fig. 10).
Fig. 9 Fig. 10
Only for grinders with a Lock Load System
12.3.7. To avoid losing the position of the
regulator scale with respect to the current
grinding point, it is essential to tighten the
setting of the grinding regulator using the
adjusting brake by turning it clockwise (Fig. 11).
Fig. 11
12.3.8. Unlock the grinding cavity by pulling
both levers situated in the top sides of the
grinders ( ) (Fig. 12).
Fig. 12
28
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022

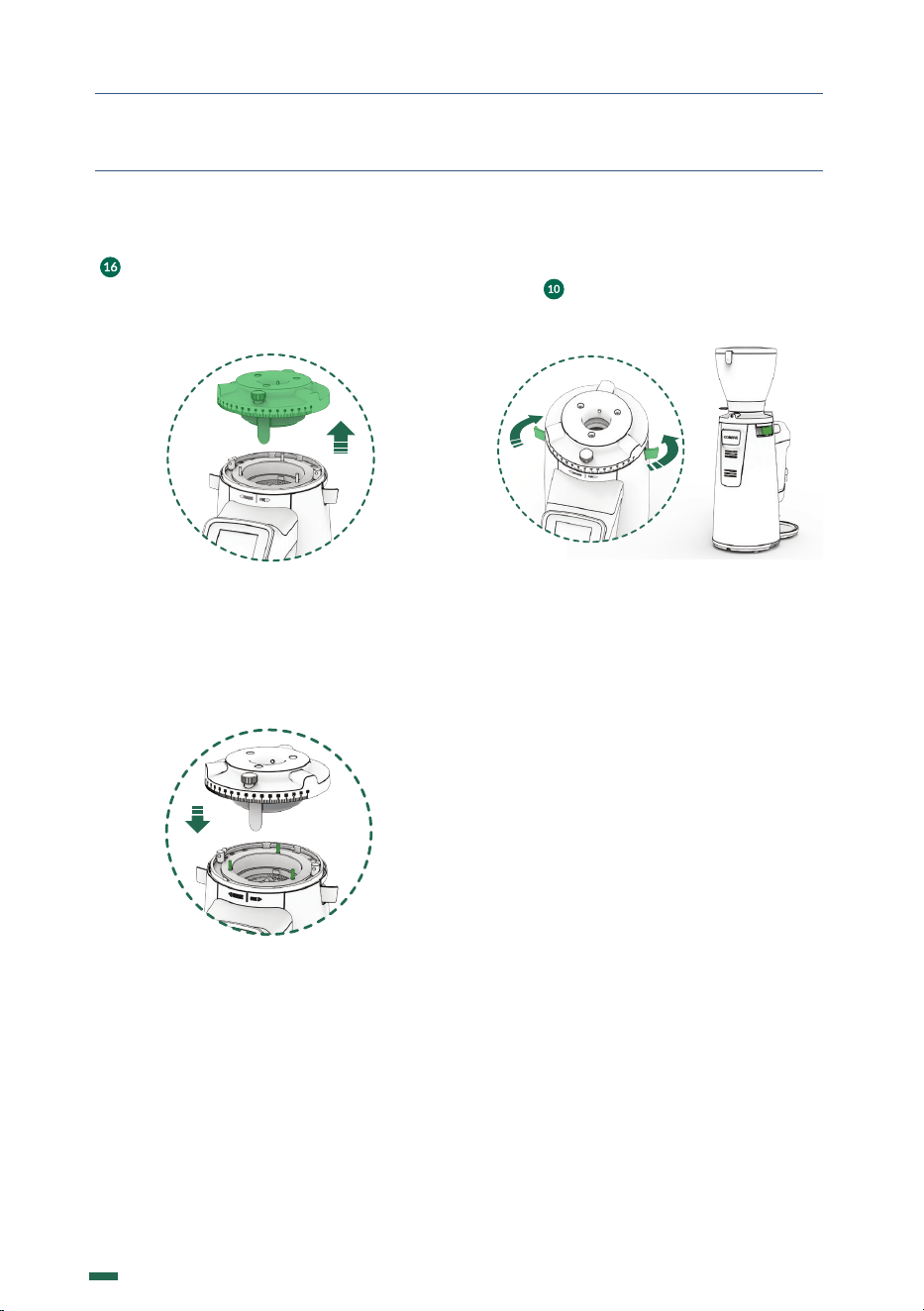

12.3.9. Pull up holding the grind regulator
( )
, according to access the grinding cavity,
clean the interior with the help of a brush
or vacuum cleaner and remove any coee
residue from the grinding cavity (Fig. 13).
Fig. 13
12.3.10. When reassembling the grind
regulator, face the silicon curtain in front and
the three holes with three pins in the grind
chamber (Fig. 14).
Fig. 14
12.3.11. When the grinding regulator is in
place, lock the system by pulling back the
levers ( ) (Fig. 15) until they are in the
working position (Fig. 16).
Fig. 15 Fig. 16
12. MAINTENANCE
29
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
12. MAINTENANCE

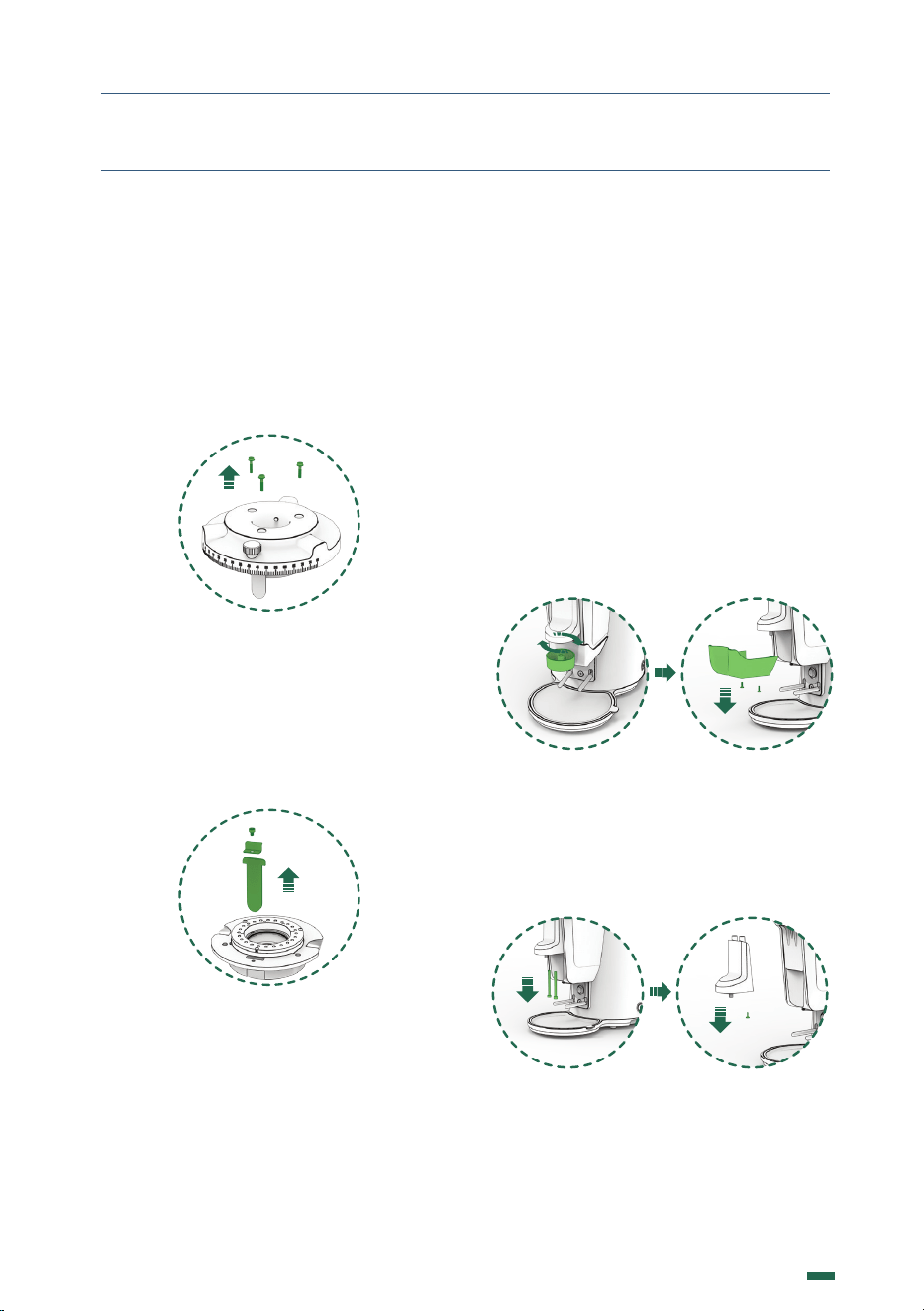

12.4. REPLACING THE SILICONE
CURTAIN
The silicon curtain ensures regularity in the
dose and reduces static electricity. Located
inside the coffee spout, can be replaced
once the regulator has been removed from
the grinder (Fig. 5). Using a #3 Allen Key,
untighten the three top screws (Fig. 17).
Fig. 17
Using a # 3 Allen key, the screw is loosened
and the curtain support is removed to gain
access to the silicone curtain, being able to
replace it with a new one or of a different
thickness according to the needs of each
coffee. (Fig. 18).
Fig. 18

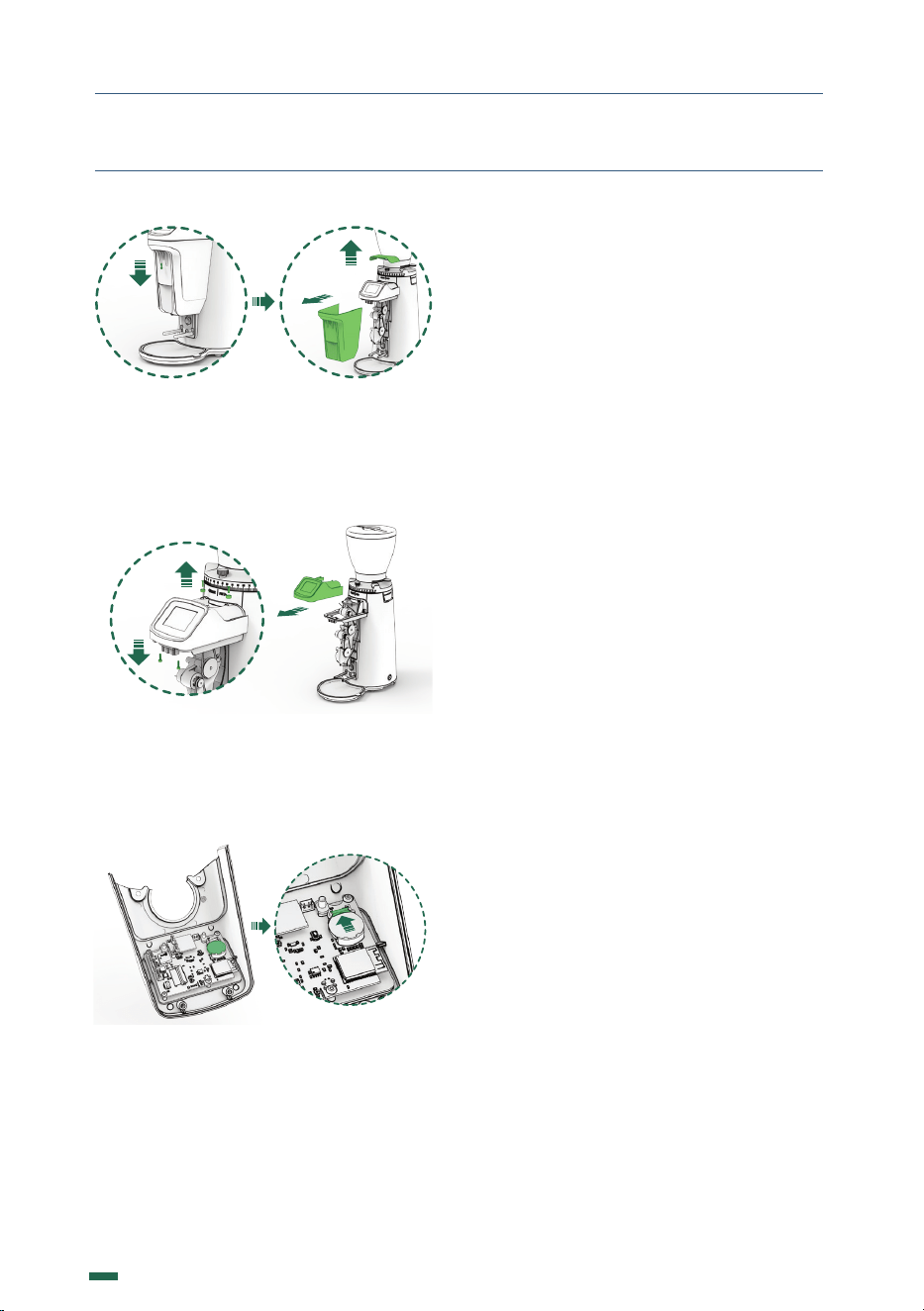

12.5. BATTERY REPLACEMENT
This grinder has a built-in battery back-up
for saving operating information when the
grinder is shut down. When this battery is
spent, it must be replaced by another of the
same characteristics: CR2032 (Lithium Cell
3V). The battery must be changed when the
grinder does not keep dose times.
The procedure to replace the battery without
losing the operating data stored in the
grinder is as follows:
• Loosen the tamper, according to (Fig. 19).
Remove the lower aluminium cover by
loosen the 2 screws using a #2.5 Allen key,
according to (Fig. 20).
Fig. 19 Fig. 20
Remove the 2 screws that hold the tamper
support with a #5 Allen key, according to
(Fig. 21) loosen the last screw T20 Torx and
pull to remove it (Fig. 22).
Fig. 21 Fig. 22
Remove the top screw that hold the plastic
support with a #4 Allen key (Fig. 23) and pull
to remove it (Fig. 24).
30
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
12. MAINTENANCE
Fig. 23 Fig. 24
Remove the top screws with a T10 Torx, and
bottom screws with a #4 Allen key that hold
the aluminium cover (Fig. 25) and pull to
remove it (Fig. 26).
Fig. 25 Fig. 26
Remove the battery from its holder inside the
control panel and replace it with a new one
(Fig. 27).
Fig. 27
31
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
13. DECLARATION OF CONFORMITY
Compak Coee Grinders, s.a.
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain
Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es
In accordance with European community directives, quality certificates have been applied.
All materials have been adapted and technical reports are available at our offices.
2014/30/UE on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
06/42/EC amending Directive 95/16/EC on the approximation of the laws of the Member
States relating to machinery
REG. 1935/2004 amending Directive 89/109/EC on the approximation of the laws of the
Member States relating to material and objects destinated to make contact with nutritional
products.
03/108/EC amending Directive 2002/96/EC on waste electrical and electronic equipment
(WEEE).
2014/34/UE on the harmonization of the laws of Member States relating to electrical
equipment designed for use within certain voltage limits.
2012/19/UE of 04/07/2012 on the approximation of the laws of the Member States on waste
electrical and electronic equipment (WEEE).
11/65/EU related to the restriction on the usage of certain dangerous substances with
electrical equipment and electronics.
Environment
Do not throw the applianceaway with the normal household waste; hand it in at an official
recycling collection point. By doing this, you will help to preserve the environment.
The Legal Representative
Jesús Ascaso
www.fsc.org
