1
CONTENTS
IMPORTANT SAFETY............................................................................................................................2
SPECIFICATION...................................................................................................................................................4
DIMENSION/CONNECTION.....................................................................................................................4
RATING.........................................................................................................................................................4
GENERAL INFORMATION..................................................................................................................................5
MAIN UNIT CONSTRUCTION.......................................................................................................5
ICE-MAKING AND ITS WATER TANK PARTS..............................................................................5
OPERATION PANEL........................................................................................................................6
OPERATING PROCEDURE AND MAINTENANCE...........................................................................................7
UNPACKING YOUR ICE MAKER....................................................................................................7

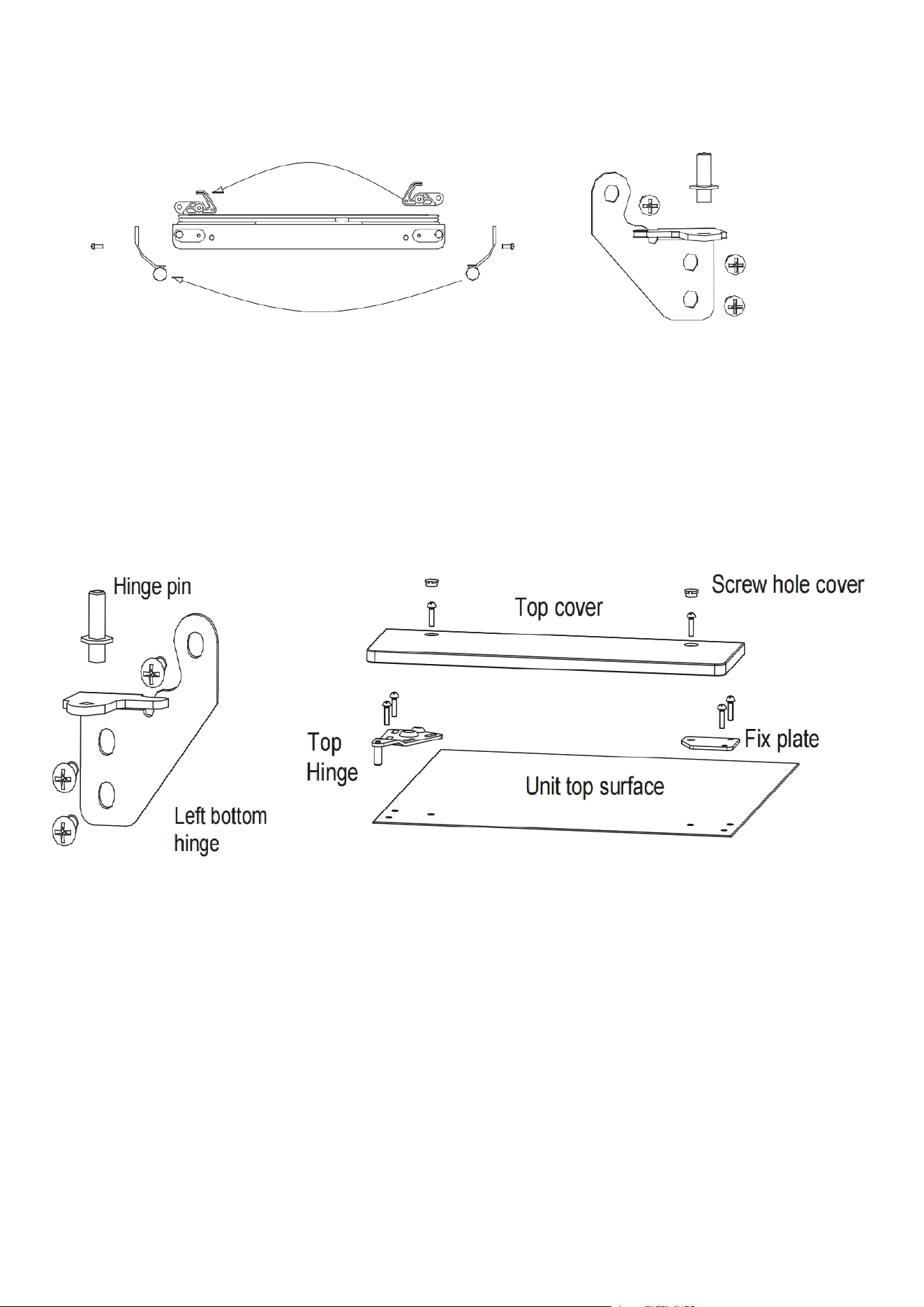

DOOR REVERSING(Optinal)...........................................................................................................7
INSTALLATION LOCATION REQUIREMENT..........................................................................................9
ELECTRICAL REQUIREMENT & CONNECTIONS...............................................................................10
CLEANING YOUR ICE MAKER BEFROE FIRST USING....................................................................10

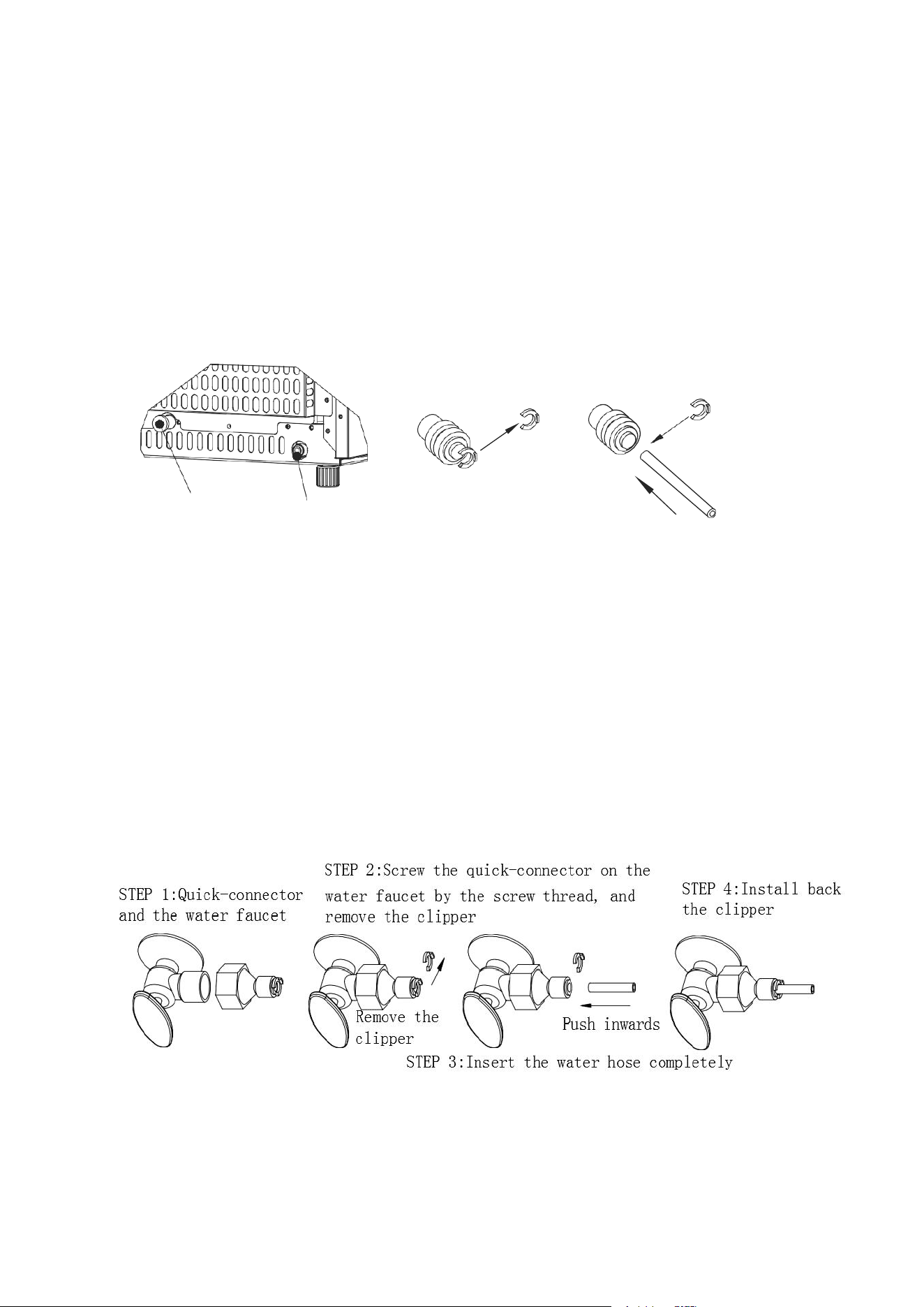

WATER CONNECTIONS FOR YOUR ICE MAKER..............................................................................11

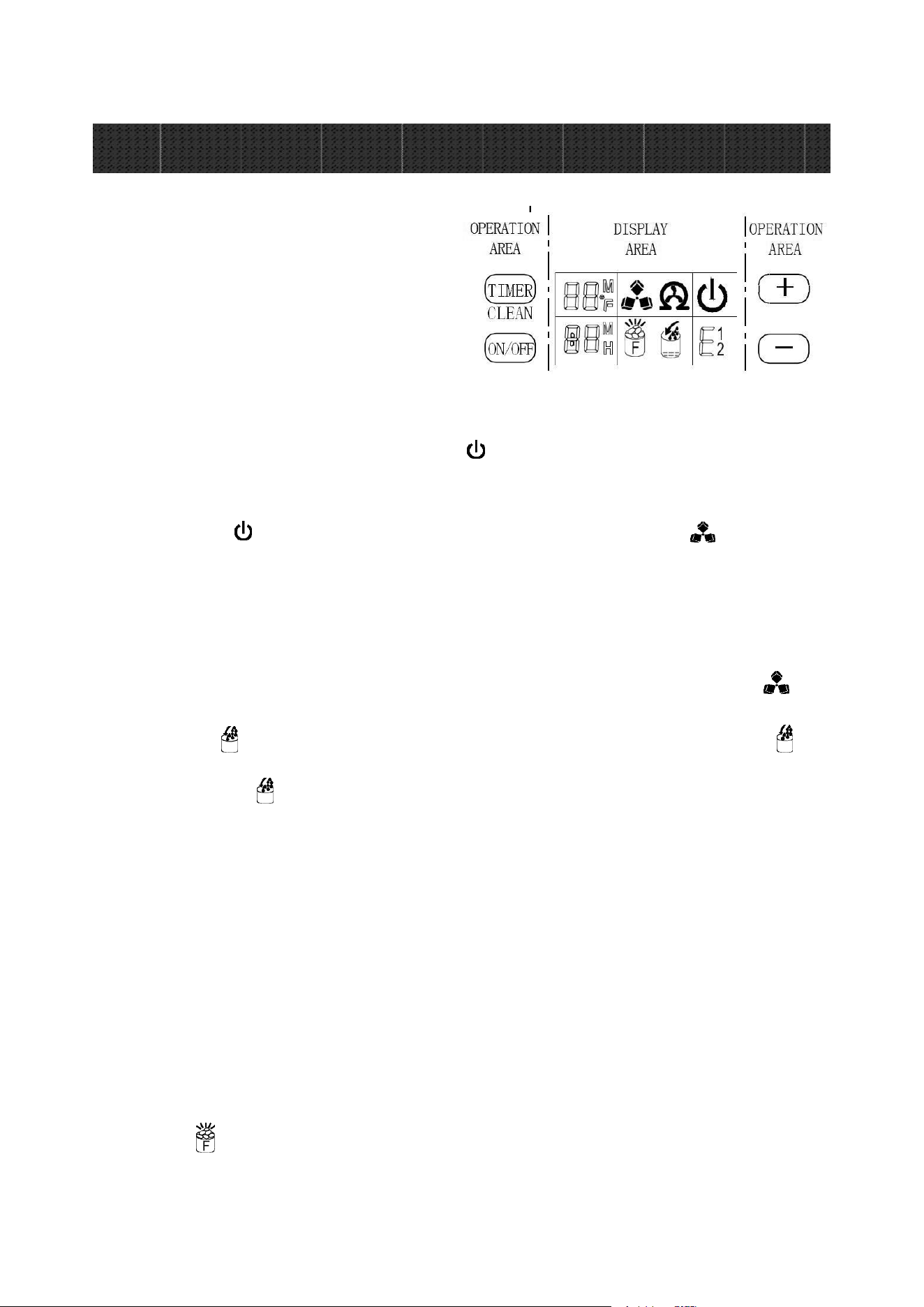

OPERATING YOUR UNIT......................................................................................................................12
THE ICE MAKING PROCESS......................................................................................... 12

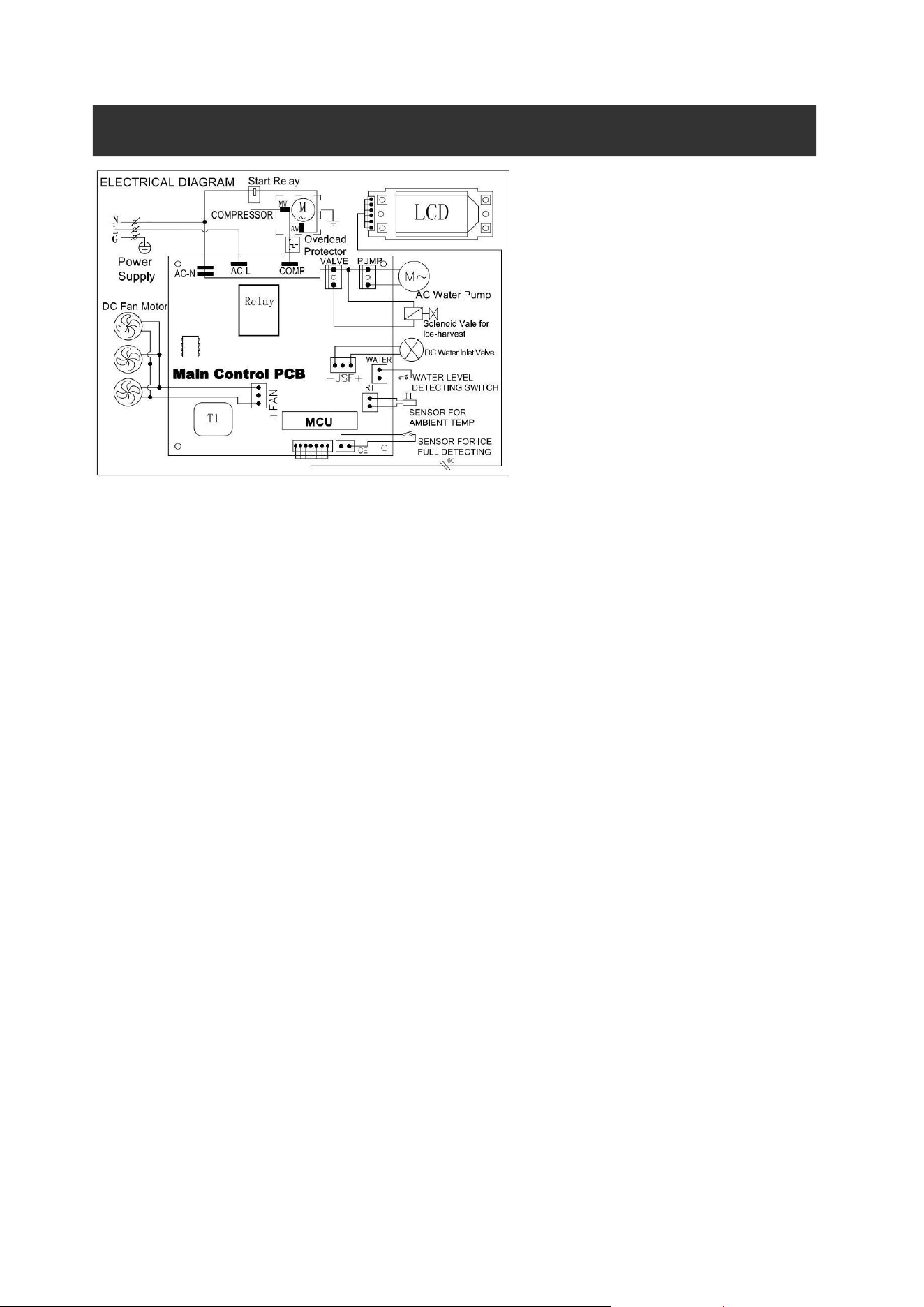

WIRING DIAGRAM.........................................................................................................................14
NORMAL SOUNDS........................................................................................................................14
PREPARING ICE MAKER FOR LONG STORAGE................................................................................14
CLEAND AND MAINENANCE........................................................................................................15
EXTERIOR CLEANING..........................................................................................................................15
INTERIOR CLEANING...........................................................................................................................15

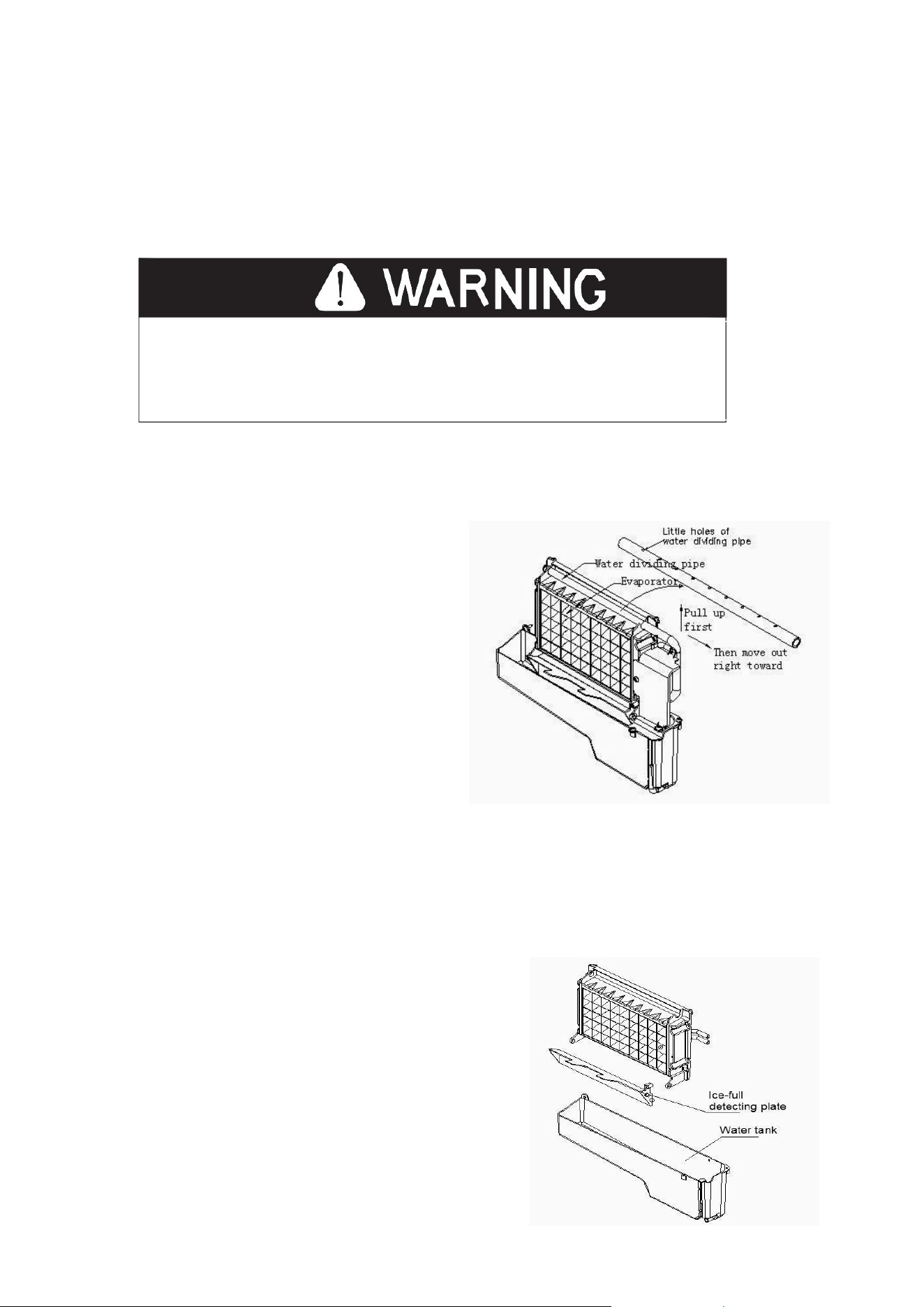

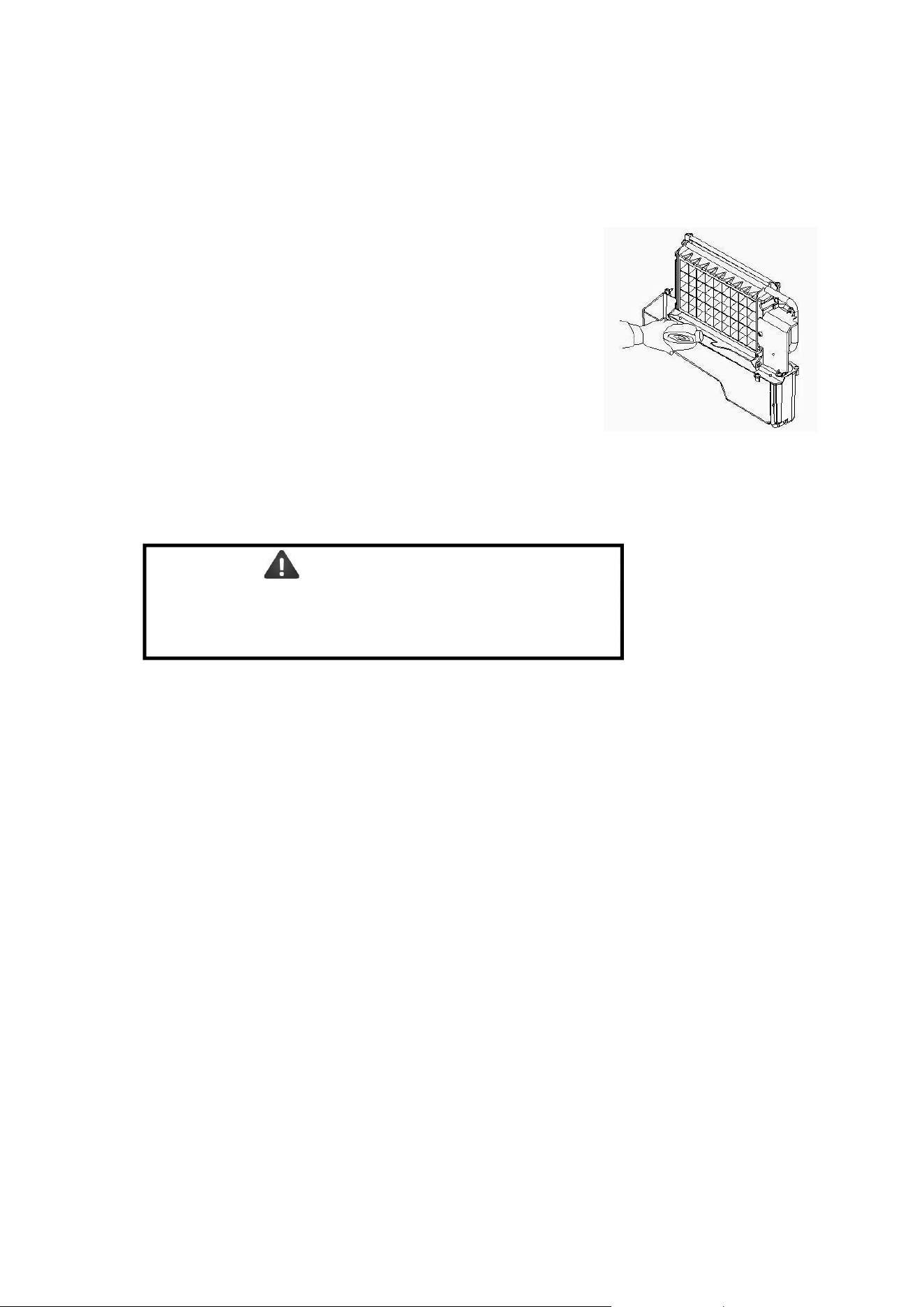

ICE MAKING PARTS CLEANING.........................................................................................................16
ICE MAKING ASSEMBLY SYSTEM CLEANING...............................................................................17
CLEANING SUGGESTION....................................................................................................................18
NORMAL TROUBLE SHOOTING...........................................................................................................19
CORRECT DISPOSAL OF THIS PRODUCT....................................................................................................20
2
IMPORTANT SAFETY
When using electrical appliances, basic safety precautions should be followed to
reduce the risk of fire, electric shock, and injury to persons or property. Read all
instructions before using any appliance.
Use this appliance only for its intended purpose as described in this owner’s manual. This
ice-maker must be properly installed in accordance with the installation instructions before
it is used.
This unit must be positioned so that the plug is accessible. Do not run cord over carpeting or
other heat insulators. Do not cover the cord. Keep cord away from traffic areas, and do not
submerge in water. No other appliance should be plugged into the same outlet, and be sure
that the plug is fully inserted into the receptacle.
We do not recommend the use of extension cord as it may overheat and cause a risk of fire.
If you must use an extension cord, use No.14AWG minimum size and rated no less than
1875 watts.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid a hazard.
Disconnect the mains plug from the supply socket when the unit is not in use for a long
term, where supply connection is via mains plug.
Remove power plug or disconnect from the mains before cleaning or servicing the appliance.
NOTE: If for any reason this product requires service, we strongly recommend that a
certified technician perform the service.
Never unplug your unit by pulling on the power cord. Always grasp the plug firmly and
pull straight out from the outlet.
Do not use your unit outdoors. Keep the unit away from direct sunlight and make sure
that there is at least 6 inches of space between the back of your unit and wall and keep
the front free. Keep ventilation opening in the appliance enclosure or in the built-in
structure, clear of obstruction.
Do not tip over the unit which will cause abnormal noise and make the ice-cube size
abnormal. And seriously, it may cause water leakage from the unit.
If the unit is brought in from outside in the winter season, give it a few hours to warm up to room
temperature before plugging it in.
Do not use other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or
explosion.
WARNING: This appliance must be earthed. Use the proper power source according to
the nameplate.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
WARNING: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
WARNING: Children should be supervised to ensure that they do not play with the
appliance.
WARNING: This appliance must be earthed. And use the 110-120V/60Hz earthed
3
power supply.
WARNING: Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use
Mechanical Devices ToDefrost Ice Maker. Do Not Puncture Refrigerant Tubing.
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired Only By Trained Service Personnel. Do Not Puncture RefrigerantTubing.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Install or Service This Product. All
Safety Precautions Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used .
CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;
Follow Handling Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety standard for
Refrigeration Systems, ASHRAE15. The ice maker shall not be installed in corridors or
hallways of public buildings.
If the unit is with problem need to be maintained, that replacing with like components
and that servicing shall be done by factory authorized service personnel, so as to
minimize the risk of possible ignition due to incorrect parts or improper service.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING:This appliance is intended to be used in household and similar
applications such as
Eg.staff kitchen areas in shops, offices and other working environments;
Eg. farm houses and by clients in hotels, motels and other residential type environments;
Eg.bed and breakfast type environments;
Eg.catering and similar non-retail applications.
IMPORTANT:
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a strip yellow: Grounding
Blue or White: Neutral
Brown or Black: Live
To avoid a hazard due to instability of the appliance, it must be placed at a even or flat
surface.
4
SPECIFICATIONS

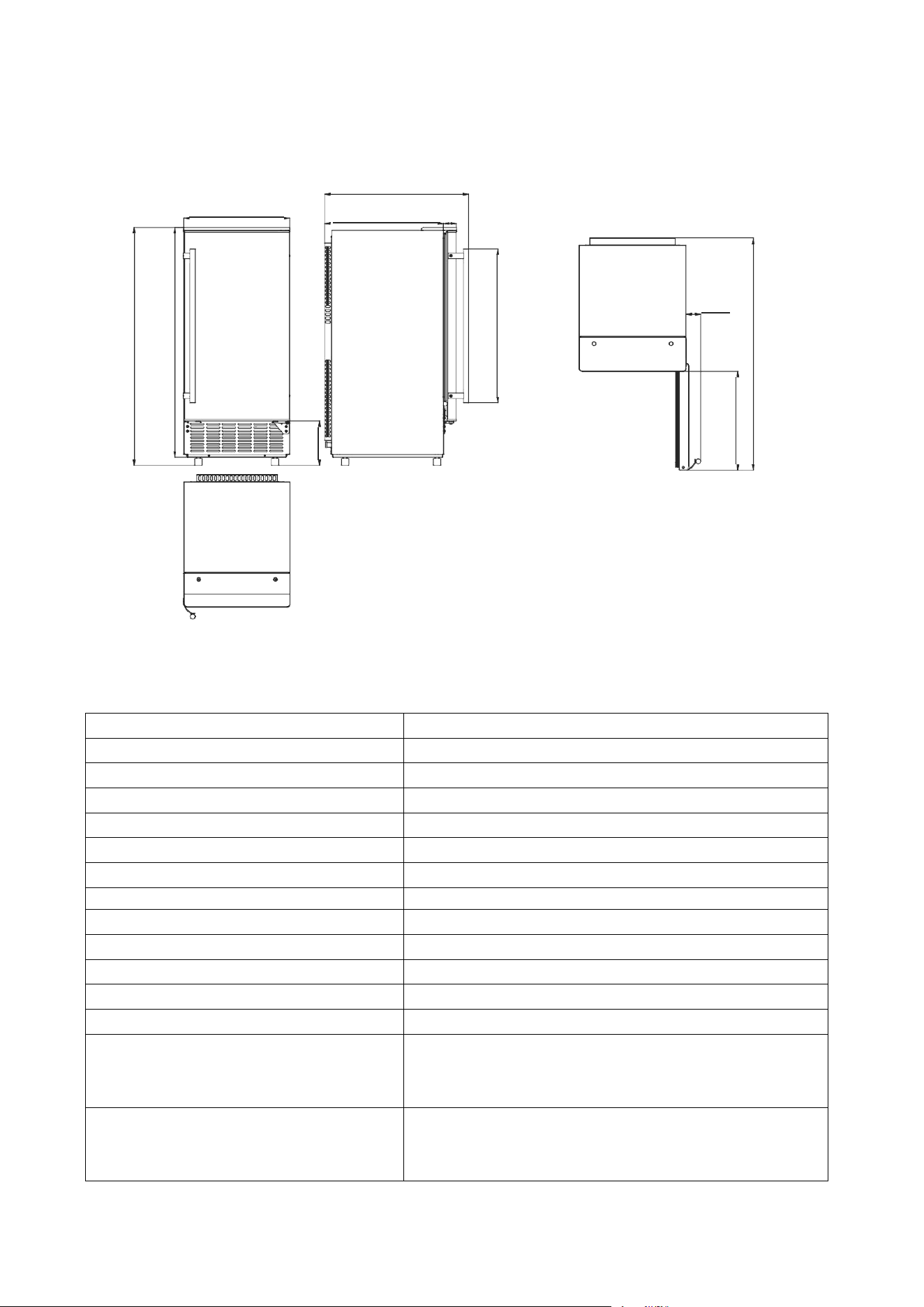

1) DIMENSIONS/CONNECTIONS
516
[20.3]
380
[15.0]
426 47
[16.8] [1.9]
2) Rating
MODEL
HBZB-36F
POWER SUPPLY VOLTAGE
1Phase, 115V/60Hz
CLAIMATE CLASS
10-40℃(50-104℉)
ELECTRICAL PROTECTION CLASS
I
ICE MAKING RATING (Amps)
2.6Amp
ICE HARVEST RATING (Amps)
3.0Amp
ICE MAKING CAPACITY (KG/24H)
36kg/24Hour
*
REFRIGERANT CHARGE
R290 2.65Oz / 75g
NET WEIGHT(lbs)
53.5 lbs
VESICANT
C
5
H
10
UNIT DIMENSIONS(W X D X H) (Inch)
15x20.3x33.5
MAX ICE STORAGE CAPACITY(lbs)
25lbs
ACCESSORIES
SHOVEL, INSTALLATION KITS,HANDLE
CONNECTION
POWER CORD----18AWG
WATER SUPPLY----6.35mm Diameter
DRAIN----Φ16
SYLPHON BELLOWSS(REAR)
RUNNING CONDITIONS
ROOM TEMP 50-110 Fahrenheit
WATER SUPPLY TEMP 41-95 Fahrenheit
WATER SUPPLY PRESSURE 0.04-0.6 MPa
NOTE
*:
TESTED AT 70 Fahrenheit ROOM TEMPERATURE AND 50 Fahrenheit WATER
TEMPERATURE.
53
[2.1]
850
[33.5]
820
[32.3]
550
[21.7]
159
[6.3]
351
[13.8]
824
[32.4]
5
GENERAL INFORMATION

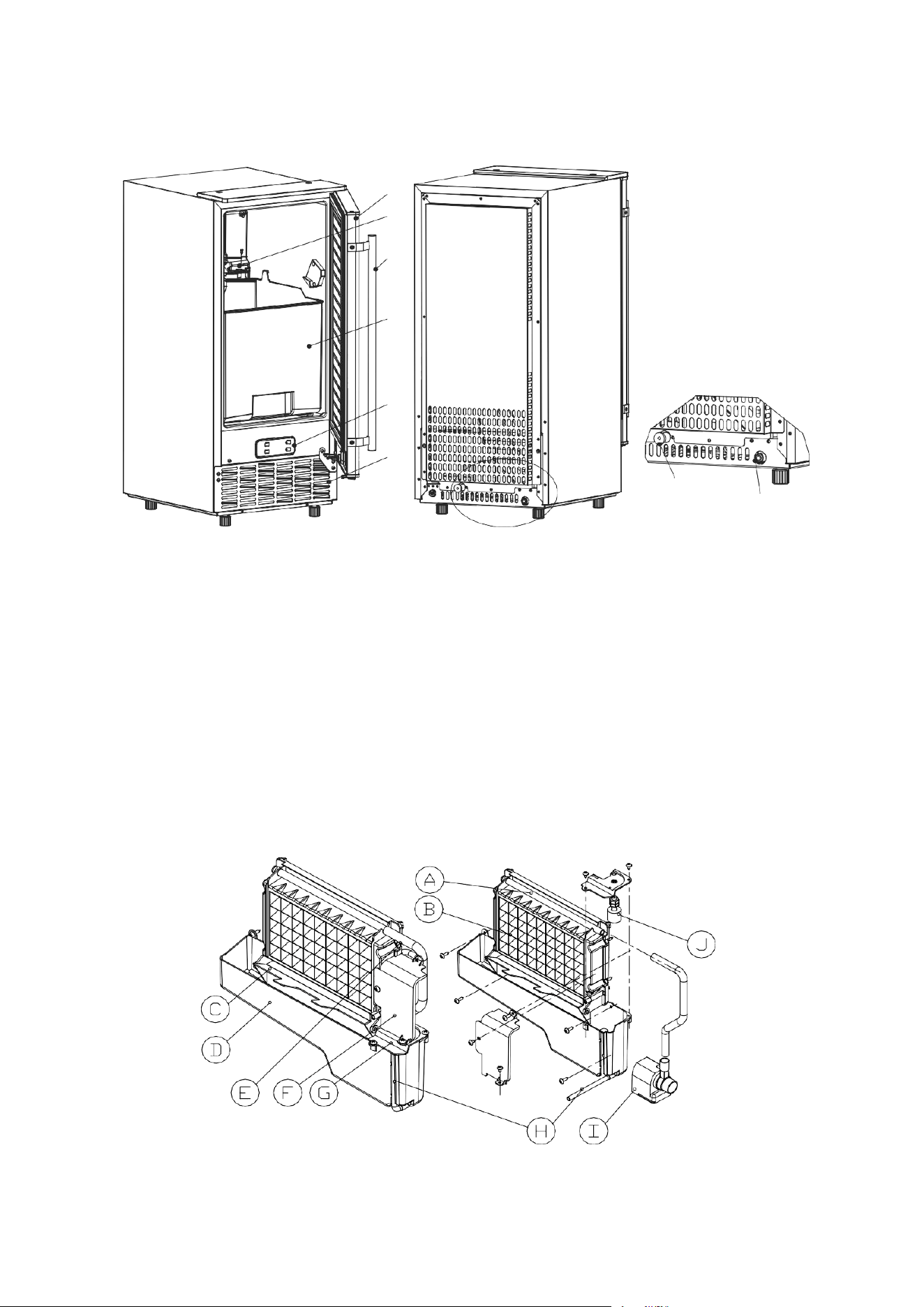

1) Main Unit Construction
①
②
③
④
⑤
⑥
1.
Door
2.
Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump
and some detecting parts
3.
Handle
4.
Ice tank
5.
Operation panel
6.
Air outlet: Must keep the air circulating smoothly, hot air will blow out when unit running.
7.
Water draining port: Normal plugged with the cap. When need to drain the water, unplug the cap.
And connect the white drain pipe.
8.
Water inlet port for water supply: Use to connect the water supply pipe.
Accessory: 2-meter white water drain pipe
water quick connector of the water faucet
¢6.35mm diameter white water supply pipe(3 meters long）.
2) Ice-making and its water tank parts
A. Water dividing pipe: with nine little holes, water will flow out from these little holes. And if no
water flows out, can be disassembled and cleaned.
B. Evaporator (ice-making module)
C. Ice full detecting board: Use to detect if the inner cabinet is full of ice or not, and to check if
the ice-harvest process is over or not.
⑦
⑧
6
D. Water tank.
E. Water supplying pipe.
F. Cover board on the right side of the evaporator.
G. Water level switch installing plate.
H. Water drain pipe of the water tank：when ice-making, this pipe should be clamped in the slot
of the water tank wall; And when draining, this pipe should be pulled out.
I. Water pump.
J. Water level detecting switch.

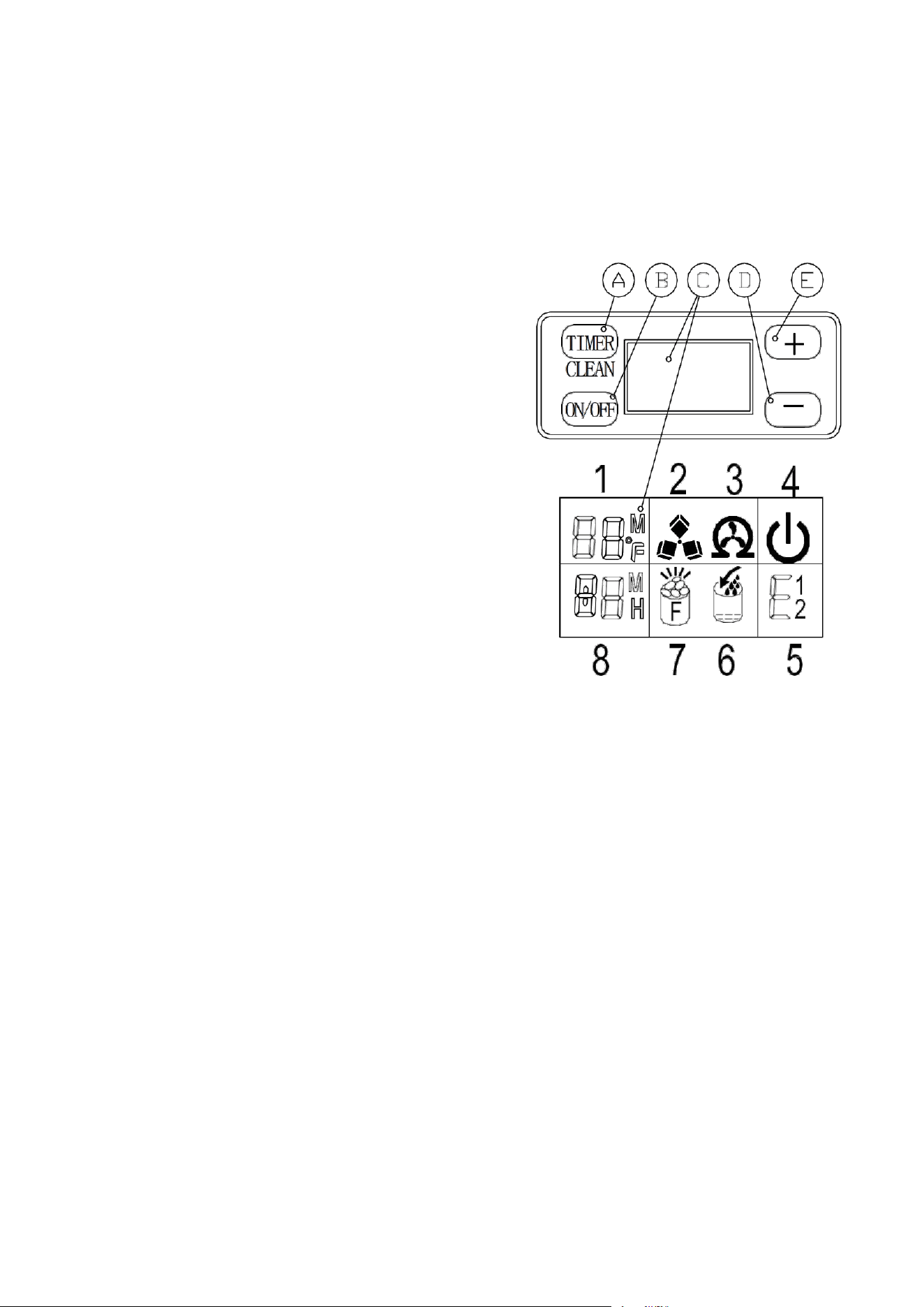

3) Operation panel
A. “TIMER CLEAN” Button:
Quickly press this button once, to enter the Timer
setting program; And press this button for more than
5 seconds, to enter the Cleaning program.
B. “ON /OFF” Button:
When the unit is off, press this button to turn on
the unit; And during the Self-cleaning program, or
normal ice-making state, press this button to turn
off the unit at once; And also if the unit is set with
the Timer, press this button to cancel the Timer
setting. When the unit is making the ice cube,
press this button for more than 5 seconds, the
unit will switch to ice harvest process by force.
C. LCD Display Window:
1. Environmental temperature display and ice-making
time countdown display. Display ice-making time
countdown with M as the unit display, and display
environmental temperature with F as the unit
display.
2. Making ice and deice symbol display, the machine is making ice when the symbol rotate, and
the machine is deice when the symbol flash. .
3. Automatic self-cleaning symbol display
4. On/Off symbol display
5. Error code display: E1 means the environmental temperature sensor is damaged.
E2 means ice making is anomaly or the refrigerant leaked.
E means drain pump not work(Only if the unit have drain tank).
6. Water flowing and water shortage display. The arrow flashing indicates that the machine is in
the water, the whole symbol is bright to indicate that the machine is short of water.
7. Ice full alarm. The machine will making ice again when you take out the ice.
8. Setting display. Display timing switch machine with the H as unit display; Display ice making
time setting with M as unit display.
D&E. “+”、“-” Button:
Used to adjust the ice-making process duration period, the default setting is zero, 1 minute
adding or decreasing per pressing of “+” or “-” button.
Also to adjust the delay time of the timer, the default setting is zero, 1 hour adding or
decreasing per pressing of “+” or “-” button.
7
OPERATING PROCEDURES & MAINTENANCE
UNPACKING YOUR ICE MAKER
1.
Remove the exterior and interior packaging. Check if all the accessories, includingthe instruction
manual, ice scoop, white water inlet pipe, the water draining pipe, the quick connector (connecting
a 1/4-inch connector with a 1/2-inch one), etc., are inside or not. If any parts are missing, please
contact our customer service.
2.
Remove the tapes for fixing the door and inner cabinet, ice scoop, etc.. Roughly clean the inner
cabinet & ice scoop with a wet cloth.
3.

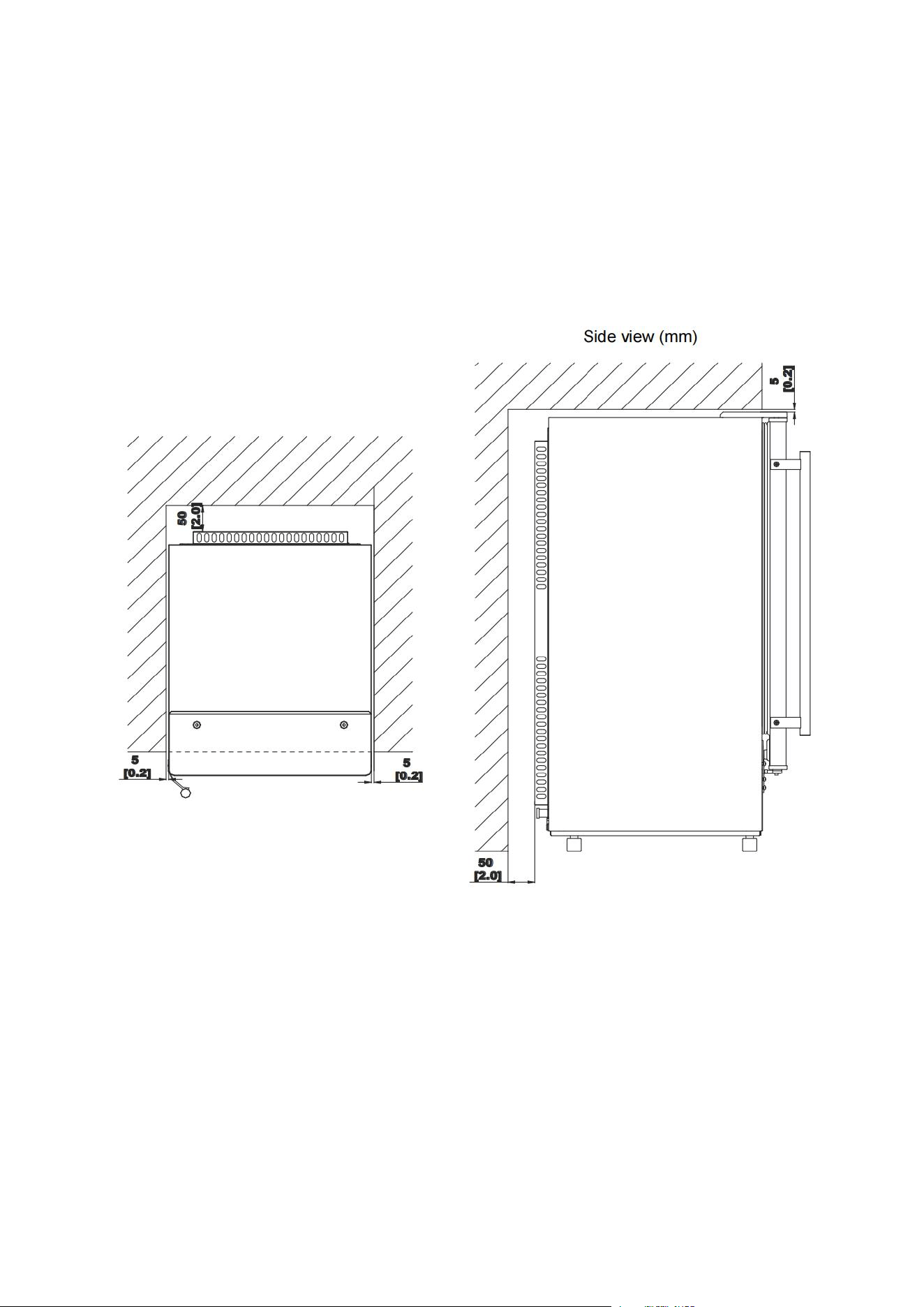

Put the ice maker on a level & flat floor, without direct sunlight and other sources of heat (i.e.: stove,
furnace, radiator). Make sure that there is at least 50cm gap between the air outlet and the
obstacles, and at least 5 cm between the wall.
4.
Allow 4 hours for the refrigerant fluid to settle before plugging the ice maker in if the unit may fall
upside down during shipping or transportation.
5.
The appliance must be positioned so that the plug is accessible.
WARNING: connect to the potable water supply only. Only use drinking water.
DOOR REVERSING (Optional)
If you want the refrigerator door to open from the opposite side, you can reverse the door swing.
Handle
1.
Ensure the unit is unplugged before starting door reversal.
2.
Remove the 2 screw hole covers on the top cover, unscrew two screw which fix the top cover.
3.
Remove the 2 screws from the top hinge, and 2 screws from the fix plate.
4.
Lift the door up and take off the door.
5.
Set the freezer door on a non-scratching surface with the outside up.
Top cover
Fix plate
Top
Hinge
Top
Hinge
Handle
Left fix
piece
Left
bottom
hinge
Right fix
piece
Right
bottom
Hinge
8
6.
Release the 2 screws on the handle, fix on the opposite side of the door. Remove the screw on the right
fixpiece, fix the left fix piece(from accessory bag) to the door.
hinge pin
Handle
Handle
Right bottom
Hinge
7.
Remove the right bottom hinge by removing the 3 screws, than fix the 3 screw back without hinge.
8.
Remove the hinge pin on the right bottom hinge and reinstall on the left bottom hinge.
9.
Remove the 3 screws from the left side and fix the left bottom hinge on the unit.
10.
Place the door on the left bottom hinge. With the magnetic gasket holding the door in place, make sure
the door is aligned with the unit, and secure the top hinge on the left with 2 screws.
11.
Open and close both the door several times to confirm the door is positioned correctly and the gasket is
sealed well. If this is not the case, please adjust the door again.
12.
Fix the Fix Plate back on the right side. Fix the top cover with 2 screws, cover the screw hole with
theScrew hole cover.
13.
Wait at least 30 minutes before plugging in the refrigerator to allow the
refrigerant to settle down. Then plug in the unit.
Left fix
piece
Right
piece
Change
Move
fix
9
INSTALLATION LOCATION REQUIREMENT
a)
This unit is not for outdoor use. Keep the proper room temperature and inlet water
temperature according to above specification table. Otherwise it will affect the ice making
performance.
b)
This unit should not be located near any heat resource.
c)
The unit should be located on a firm & level foundation at normal counter top height.
d)
There must be at least a 2-inch clearance at rear side for connection and a 10-inch
clearance in the front to open the door and keep good air circulation.
e)
Do not put anything on the top of the ice maker.
To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed
(at least a 16-inch free space). Allow about 0.2 inches clearance at rear, and 0.2 inches at top for
proper air circulation. The installation should allow the ice maker to be pulled forward for servicing if
necessary.
When installing the ice maker under a counter, follow the recommended spacing dimensions shown
above. Place electrical and water supplies and drain fixtures in the recommended locations as shown.
Choose a well-ventilated area with temperatures above 50 °F and below 90 °F. This unit MUST be
installed in an area protected from the elements, such as wind, rain, water spray, or drips. The ice
maker requires a continuous water supply with 1-8 bar pressure as required in the above specification
table. The temperature of the water feeding into the ice maker should be between 41°F and 77°F for
proper operation.
Installation Clearance
Top view (mm)
10
Electrical Shock Hazard
Plug into a grounding wall outlet.
Never remove the ground prong.
Use a separate power supply or receptacle.
Never use an adapter.
Never use an extension cord.
Failure to follow these instructions can result in death, fire, or
electrical shock.
ELECTRICAL REQUIREMENT & CONNECTIONS
WARNING: THIS UNIT MUST BE EARTHED.
Before you move your ice maker into its final location, it is important to make sure you have the proper
electrical connection.
It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles
that cannot be turned off by a switch or pull chain. If the supply cord or plug is to be replaced, it should
bedone by a qualified service engineer.
This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good grounding means.
Recommended grounding method
For your personal safety, this appliance must be properly grounded. This appliance is equipped with a
power supply cord having a grounding plug. To minimize possible shock hazard, the cord must be
plugged into a mating grounding-type wall receptacle, grounded in accordance with the National
Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the
personal responsibility of the customer to have a proper grounding wall receptacle installed by a
qualified electrician.
Before using your ice maker, it is strongly recommended to clean it thoroughly.
1.
Open the ice-getting door.
2.
Clean with diluted detergent, warm water and a soft cloth.
3.
Repeatedly clean the water contacting inner parts, you can pull the Water drain pipe of the water
tank indicating “H” in above illustration to drain the cleaned water in the water tank, then next to
clean inner ice-storing cabinet, till all of inner parts are cleanly, then drain out all of the cleaned
water from the water drain port located at unit back indicating “7”in above illustration. And must
reinstall back the water drain pipe of the water tank and the cap of the unit water drain port,
otherwise, the unit will not make the ice normally. And suggest that you should discard the
ice-cube made during the first ice-making cycle after cleaning.
4.
The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm
water.
5.
Dry the interior and exterior with a clean soft cloth.
11
WATER CONNECTION FOR YOUR ICE MAKER
Important: Be sure to use the new hose-sets supplied with the appliance to
connect to water mains and that old hose-sets should not be reused.
1. Connect the water supplying hose to the unit
Step 1: First remove the tape on the water inlet port for water supply (indicated in the following
illustration “B”) located at unit back, then use your other hand’s finger to press the out circle.
Step 2: Insert the one end of the white water hose into the water inlet port, and push inward completely,
and install back the clipper, then water hose connection is completed.
STEP 1: Remove the tape
STEP 2:Insert the water tube
Water inlet port on the
unit back
Then install the
clip back
Remove the clip first
2. Connecting the water drain pipe
White water
tube(accessory)
Insert water tube
inward completely
about 15mm depth
Pull out the water drainage cap with black color (indicated “A” in above illustration), then
connect the white drainage pipe included in accessory, again connect the other end of this drainage to
the main water drainage pipeline.
3. Connect the water hose to the water faucet of the water main supply system
First, install the supplied water quick-connector to the water faucet by screw thread; Second, remove the
clipper from the water quick-connector, insert the other end of the water hose into this quick-connector
port completely, then install back the clipper, also this step is completed.
Note: The water faucet should be supplied by the customer himself.
Important: The water pressure of main water supply system must be 0.04-0.6 MPa at least.
A
B
12
OPERATING YOUR UNIT
Operation Button and Display Area Diagram
THE ICE MAKING PROCESS
1.
Starting up: Plug in the power plug, and the symbol will flash in the display window. Press the
ON/OFF button on the control panel. The machine will start to make ice when the external pipe adds
water to reach the standard level on the water tank through the electromagnetic water valve.
Thereafter, the symbol will remain bright constantly in display window and symbol
will rotate.
The ambient temperature will be displayed on the upper left of the display screen.“80°F”means
the ambient temperature is 80°F. Several minutes later, the flashing numbers will be displayed in the
ambient temperature display area, and the flashing number“10M” means the unit still needs 10
minutes to finish this ice making cycle.
2.
After the ice making cycle is finished, the unit enters the deicing process, and the symbol flashes.
Next, the external pipe adds water to the water tank through the electromagnetic valve, and the
arrow on the symbol will flash until the water reaches the standard level. Finally, the symbol
extinguishes, and the unit enters the next ice-making cycle. When the water cannot reach the
standard level, the symbol is always bright, and the unit stops working. Restart the unit if there is a
water shortage; otherwise it will start up automatically after 15 minutes.
Note: Each ice-making cycle is around 11-20 minutes. The ice-making time will be changed
according to the ambient temperature and the water temperature, especially in the first ice-
making cycle. The ice-making cycle will be longer because of the high water temperature in
the water tank, but it will not be over 30 minutes.
3.
Adjust the ice thickness: Press the “+” and “-” button on the control panel to adjust the ice
thickness. The number in the left bottom of the display panel is the setting of the ice-making time,
and the default setting is “0”. To produce thicker ice, add one minute of ice-making time by pressing
“+” button once; in contrast, to produce thinner ice, reduce one minute of ice-making time by
pressing "-" once. Restart the machine and it will go back to the default setting of “0”.
Note: The time currently set only changes the next ice-making cycles.
4.
When the symbol lights up, the machine stops working, and it will work again after you take out
the ice.
5.
Shut down the unit
:
During the ice-making process, press the “ON/OFF” button on the control
13
panel, the unit shuts down and will be in the standby mode. If you press "ON/OFF" longer than 5
seconds during ice-making process, then the unit enters the deicing process directly. This function
can help remove the ice on the ice plate. Press "ON/OFF" to shut down the machine.
6.
Timing setting：Setting range：1-24 hours
Time shutdown：When the unit is running, it can set up the timing shutdown.
Time on：When the unit is in standby mode, you can set the unit with ON-TIMER.
How to set up the timing
Press the TIMER button, the default timing time is“1H” in the display panel, then press“+” button to
adjust the timing time as you need. Every time you press the“+”button, the time add 1 hour; Press“-”
button can reduce the timing time. During the process of time adjustment,The “H” in the lower corner
of the number will flash, then after 5 seconds flashing without pressing, the “H” letter will change
from flashing to constantly lighting, which means the timer program is completed.
In standby condition, the displayed 5H means the unit will start automatically after 5 hours; In ice-
making condition, the displayed 5H means the machine will shut down automatically after 5 hours,
the "H" in the display screen indicates that the machine currently has timing function, and the
number in front will be smaller and smaller. Until it becomes zero, the timing ends, and the machine
enters the mode you need.
How to cancel timing
When the unit has a timing（the display window will display XX H), press “TIMER” button, the timing
is canceled after the number on the screen and "H" are extinguished.
When the unit has a timing, the display area in the lower left corner will display the timing time and
the ice making setting time, and the display content will be switched every 5S.
7.
Automatic self-cleaning program. The default cleaning time is 20 minutes.
Start the self-cleaning program:
After connecting all of the water pipe, plug on the main power supply plug, then press “TIMER
CLEAN” button on the control panel for more than 5 seconds to enter the self-cleaning program. The
symbol will rotate on display screens, and time count down area displays 20M. And the “CLEAN”
light will always be on during this period, the digit window will indicate the left time. The water pump
runs for 8 minutes and stops for 3 minutes, are constantly recycle. The total duration time is 20
minutes for one self-cleaning program. Also, when the water pump stops, the water will supply to the
water tank automatically.
Cancel the self-cleaning program:
It takes about 20 minutes to complete one self-cleaning program. When the program is over, the
system will be in off-state automatically. And also you can press the “ON/OFF” button on the control
panel to cancel the self-cleaning program by force.
8.
How to switch Fahrenheit(°F) to Celsius(°c)?
Press “+”or“-”button longer than 5s, it will automatically switch.
14
WIRING DIAGRAM
Normal Sounds
Your new ice maker may make sounds that are not familiar to you. Most of the new sounds are normal.
Hard surfaces like the floor, walls and cabinets can make the sounds seem louder than they actually
are. The following describes the kinds of sounds that might be strange to you and reasons causing
them.
You will hear a swooshing sound when the water valve opens to fill the water tank for each cycle.
Rattling noises may come from the flow of the refrigerant or the water line. Items stored on top of
the ice maker can also make noises.
The high-efficiency compressor may make a pulsating or high-pitched sound.
Water running from the water tank to the evaporator plate may make a splashing sound.
Water running from the evaporator to the water tank may make a splashing sound.
As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your ice maker.
You may hear air being forced over the condenser by the condenser fan. During the harvest cycle,
you may hear the sound of ice cubes falling into the ice storage bin.
When you first start the ice maker, you may hear water running continuously. The ice maker is
programmed to run a rinse cycle before it begins to make ice.
Preparing the Ice Maker for Long Storage
If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary
to drain out all of the water in the system.
1.
Allow all of the ice cubes have been ejected from the evaporator of the ice maker.
2.
Turn off the unit, and unplug the power cord.
3.
Shut off the water supply at the main water supply.
4.
Disconnect the water supply hose from the water inlet valve.
5.
Pull out the water drain pipe of the water tank indicating “H” in above illustration to drain out the
water in the water tank. When all of the water has been drained out, reinstall back the water
drain pipe of the water tank.
6.
Then drain out all of the water from the water drain port located at unit back indicating “7” in the above
15
illustration.
7.
Disconnect the water drain pipe to the main drain pipeline or floor drain, and plug on the drain
cap again.
8.
Drop the door open to allow for circulation and prevent mold and mildew.
9.
Leave water supply hose and power cord disconnected until ready to reuse.
10.
Dry the interior & wipe the outside of the unit.
11.
Put a plastic bag on the unit to resist out dust & dirty.
CLEANING & MAINTENANCE
WARNING: Before carrying out any cleaning or maintenance operations, unplug the ice maker from
the main power supply electricity. (EXCEPTION: Ice maker self-cleaning program).
Do not use any alcohol or fume for cleaning/sanitizing the ice maker. It may cause cracks on
the plastic parts.
Ask a trained service person to check and clean the condenser at least once a year, in order
to let the unit work properly.
This appliance must be cleaned by the use of a water jet.
Periodic cleaning and proper maintenance will ensure efficiency, top performance, hygiene, and long
life. The maintenance intervals listed are based on normal conditions. You may want to shorten the
intervals if you have pets, or the unit is used outdoors, or there are other special considerations.
What shouldn't be done
Never keep anything in the ice storage bin that is not ice: objects like wine and beer bottles are not only
unsanitary, but also theirs labels may slip off and obstruct the drain pipe.
Exterior Cleaning
The door and cabinet may be cleaned with a mild detergent and warm water solution such as 28g of
dish washing liquid mixed with 7.5L of warm water. Do not use solvent-based or abrasive cleaners. Use
a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spots.
Stainless steel models can be discolored when exposed to chlorine gas and should be cleaned. Clean
stainless steel models with a mild detergent and warm water solution and a damp cloth. Never use
abrasive cleaning agents.
NOTICE: Stainless steel models exposed to chlorine gas and moisture, such as in areas
with spas or swimming pools, may have some discoloration of stainless steel.
Discoloration from chlorine gas is normal.
Interior Cleaning
For Ice Storage Bin
The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is used for the first
time and reused after stopping for an extended period of time. It is usually convenient to sanitize the bin after
16
the ice making system has been cleaned, and the storage bin is empty.
1. Disconnect power to the unit.
2. Open the door and with a clean cloth, wipe down the interior with a sanitizing solution made of 28g
of household bleach or chlorine and 7.5L of hot water(95℉ to 115℉) .
3. Rinse thoroughly with clear water. The waste water will be drained out through the drain pipe.
4. Reconnect power to the unit.
The ice scoop should be washed regularly. Wash it just like any other food container.
Ice Making Parts Cleaning
During the use, periodically clean these main system of your ice-maker.
1、Repeat above step to clean the water tank and
other inner parts of the unit.
2、Especially, for the water dividing pipe on the
evaporator, when the compressor and the water
pump run normally, but if there is no water
flowing out from the water dividing pipe or the
water flowing is very small, please discharge
this water dividing pipe to clean carefully. Clean
each little hole on the water dividing pipe
displayed in the following illustration, make sure
each hole is not clogged by something, then
install it back to the original location.
3、 When there are ice cubes on the surface of the evaporator, but can’t fall off easily, do not use the
mechanical substance to remove it by force; Only press the “ON/OFF” button for more than 5
seconds, the unit will enter the ice melting process, after some while, the big ice-cubes will fall
down, then turn off the unit and unplug the power cord to clean the surface of the evaporator.
4.
For the water tank and ice-full detecting plate
Also the water tank and the ice-full detecting plate are very
important to keep your ice cube hygienic. Put the mixture of
neutral cleaner & water into a clean water jet, then spray all
the inner surface of tank & the ice detecting plate. Wipe
these surfaces as clean as possible with a clean cloth. And
then, spray the surfaces with clean water, wiping with a dry
clean cloth. Then drain out the cleaned water in the water
tank by pulling out the Water drain pipe of the water tank
indicating “H” in above illustration. When all of the cleaned
water has been drained out, reinstall back the water drain
pipe of the water tank.
DO NOT use solent cleaning agents or abrasives on the interior.
These cleaners may transmit taste to the ice cubes, or damage or
discolor the interior.
17
WARNING
Wear rubber gloves and safety goggles
(
and/or face
shield) when handing Ice Machine Cleaner or sanitizer.
Suggestion: After cleaning the interior parts and install back to their respective position,
and make the machine back to work, discard first batch of ice.
Ice Making Assembly System Cleaning by Using Nu-Calgon Nickle Safe
Ice-machine Cleaner
Minerals that are removed from water during the freezing
cycle will eventually form a hard scaly deposit in the water
system. Cleaning the system regularly helps remove the
mineral scale buildup. How often you need to clean the
system depends upon how hard your water is. With hard
water of 4 to 5 grains/liter, you may need to clean the system
as often as every 6 months.
1.Turn off the ice maker. Keep the ice maker connected to
the water supply and drain pipe. But shut off the water
faucet of main water supply.
2.Open the door and scoop out all of the ice cubes. Either discard them or save them in
an ice chest or cooler.
3.Making the cleaning solution. Please mix the Nu-Calgon Nickle Safe Ice Machine
Cleaner with water to make the cleaning solution.
Use a plastic or stainless container with more than 4 liters capacity, mix 300 ml Nu-
Calgon Nickle Safe Ice-machine Cleaner with 2.8 liters of warm water about 120℉-140℉.
Then divide them into 2 shares equally in 2 cups. It is better to keep the temperature of
each cup of the cleaning solution.
4.Check to be sure that the water drain pipe of the water tank has been installed
properly in the slot of the tank wall. Then pour one cup of Nickel-Safe Ice Maker
Cleaning Solution into the water tank. Wait about 5 minutes.
5.Turn on the power to the ice maker, then press “TIMER CLEAN”button on the
control panel for more than 5 seconds, to enter the self-Cleaning program. Same as
the above explanation, the water pump runs for 8 minutes and stops for 3 minutes,
one cycle after one cycle. The total duration time is 30 minutes for one self-cleaning
program.
During this process, the “CLEAN” light will always be on during this period, and the
digit window will indicate the left time.
6.After 30 minutes of one self-cleaning program completing, pull out the drain pipe of
the water tank, drain the cleaning solution down to the lower ice storage bin. Shake
the unit slightly to drain out all of the cleaning solution completely. Then install back
the drain pipe to the slot of the water tank.
7.Repeat steps 4--6 to clean the ice making assembly system again.
18
The ice machine cleaner contains acids.
DO NOT use or mix with any other solvent-based cleaner
products.
Use rubber gloves to protect hands. Carefully read the material
safety instructions on the container of the ice machine cleaner.
8. Then open the water faucet of the main water supply, Let the water flow in the unit.
Again press the
“
TIMER CLEAN
”
button on control panel for more than 5 seconds,
to enter the self-Cleaning program. Same as the above explanation, the water
pump runs for 8 minutes and stops for 3 minutes, one cycle after one cycle. The
total duration time is 30 minutes for one self-cleaning program.
During this process, the “CLEAN”light will always be on, and the digit panel will
indicate the left time. Through this process, It will rinse the water dividing pipe,
evaporator, water pump, silicone pipe, water tank, etc.
9. After one self-cleaning program is complete, then pull out the drain pipe of the
water tank, drain the cleaning solution down to the lower ice storage bin, also
shake the unit slightly to drain out all of the water completely. Then install back the
drain pipe to the water tank slot tightly.
10. Repeat the step 8-9 again twice.
11. Following the above program to clean the ice storage bin .
12. After this special cleaning program is finished, you can return to the regular ice-
making mode. And suggest discarding the first batch of ice cubes.
Cleaning Suggestion
1) DAILY CLEANING
The ice shovel, door and the water dividing pipe should be cleaned by yourself each day. At the end of
every day, rinse the ice shovel and wipe both sides of the door with a clean cloth.
2) SEMI-MONTHLY CLEANING
The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the evaporator are to
be cleaned by yourself semi-monthly according to interior cleaning program.
3) SEMI-ANNUAL CLEANING
All the components & surfaces exposed to water or ice cubes, like ice storage bin, water tank, door,
evaporator, water pump, silicone tube, water dividing pipe, etc. should be cleaned by Using Nu-
Calgon Nickle Safe Ice-machine Cleaner every 6 months. They should be cleaned by the
serviceman according to ice-making assembly system cleaning program.
19
NORMAL TROUBLE SHOOTING
Problem
Possible Cause
Solution
No water supply
Check the main water supply pressure or
check whether the water supply hose is
blocked ornot, adding the water pressure
or cleaning the hose necessary.
“
” indicator is on.
The floating ball of the water
level detecting switch is
blocked, can’t be raised up.
Clean the water tank and the water level
detecting switch.
Water flows out from the water
tank.
Place the unit on the level position, not on
the slope.
Water flows out from the water
drain pipe of the water tank.
Pull out the pipe and install it back to the
slot of the water tank properly.
The unit start to enter
the ice making
process, but no water
flows in the unit, and
the “ ” indicator
Water supplying hose
breakdown, or water flows in
very slowly.
Check the main water supply pressure or
check whether the water supply hose is
blocked or not, adding the water pressure
or cleaning the hose necessary.
flashes.
Water pump is working,
but no water flows out
from the water dividing
pipe.
The little holes on the water
dividing pipe are blocked.
Clean these little holes.
The transparency of
the ice cube is not very
good.
Water quality is bad.
Change the water supply, or use the water
filter to soften or filter the water.
The ice cube shape is
irregular.
Water quality is not good or the
water tank is very dirty.
Clean the water tank, and change with new
water.
The little holes on the water
dividing pipe are some blocked.
Clean the water dividing pipe,make sure
all nine holes are unclogged.
Ice cube is very thin.
The ambient temperature is too
High.
Move the unit to low-temperature space, or
lengthen the time of each ice-making cycle.
Air circulation around the unit is
not good.
Make sure there is more than 20CM space
between the unit back & front and the
obstacle
Ice cube is too thick.
The ambient temperature is too
low.
Reduce the time of each ice-making cycle.
“
” indicator is on.
The ice storage bin is full of the
ice cube.
Take out some ice cube.
Ice making cycle is
normal, but there is no
ice cube produced.
The temperature of ambient or
the water in the water tank is
too high.
Move to the place with a temperature lower
than 90Fahrenheit
,
and change to the low-
temperature water.
Refrigerant leakage
Need the technical serviceman to maintain.
The cooling system tube is
clogged.
Need the technical service person to
Maintain.
20
ERROR INDICATOR
a) Ambient temp sensor breakdown-----Display E1 in the digital panel.
b) The machine does not make ice or the gas leak-----Display E2 in the digital panel.
c) The drain pump dose not work-----Display E in the digital panel(Only for the unit which
has drain tank).
d) Magnetic control switch cut off----- “Full” light will be on when plugging on or just turning
on the unit. And it will delete the breakdown display if this switch is electric shorted.
e) During the ice making process, press the “ON/OFF” button for more than 5 seconds,
the unit starts to enter the ice harvest program. And after the ice harvest program, it
continues to enter the ice making process.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed of with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
V1
Thank you for purchasing this product! If you have any questions
about the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message
or customer service number: 213-4467172 or 661-4358826.
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA
SERVICIO BAJO GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC
28407 Ascent Way, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
