INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE
USING THE UNIT.
www.belling.com.au
www.belling.co.nz
BDO610RCBK
10 Function Oven with ReadyCook Recipe Assist and VapourClean
EN - 2
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the
operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep
this book for future reference.
CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................4
1.1 General Safety Warnings ...............................................................................................4
1.2 Installation Warnings ......................................................................................................6
1.3 During Use .....................................................................................................................7
1.4 During Cleaning and Maintenance .................................................................................8
2.INSTALLATION AND PREPARATION FOR USE ..........................................................10
2.1 Instructions for the Installer ..........................................................................................10
2.2 Installation of the Oven .................................................................................................10
2.3 Electrical Connection and Safety.................................................................................. 11
3.PRODUCT FEATURES ...................................................................................................13
4.USE OF PRODUCT ........................................................................................................14
4.1 Oven Controls...............................................................................................................14
4.2 Cooking Table ...............................................................................................................15

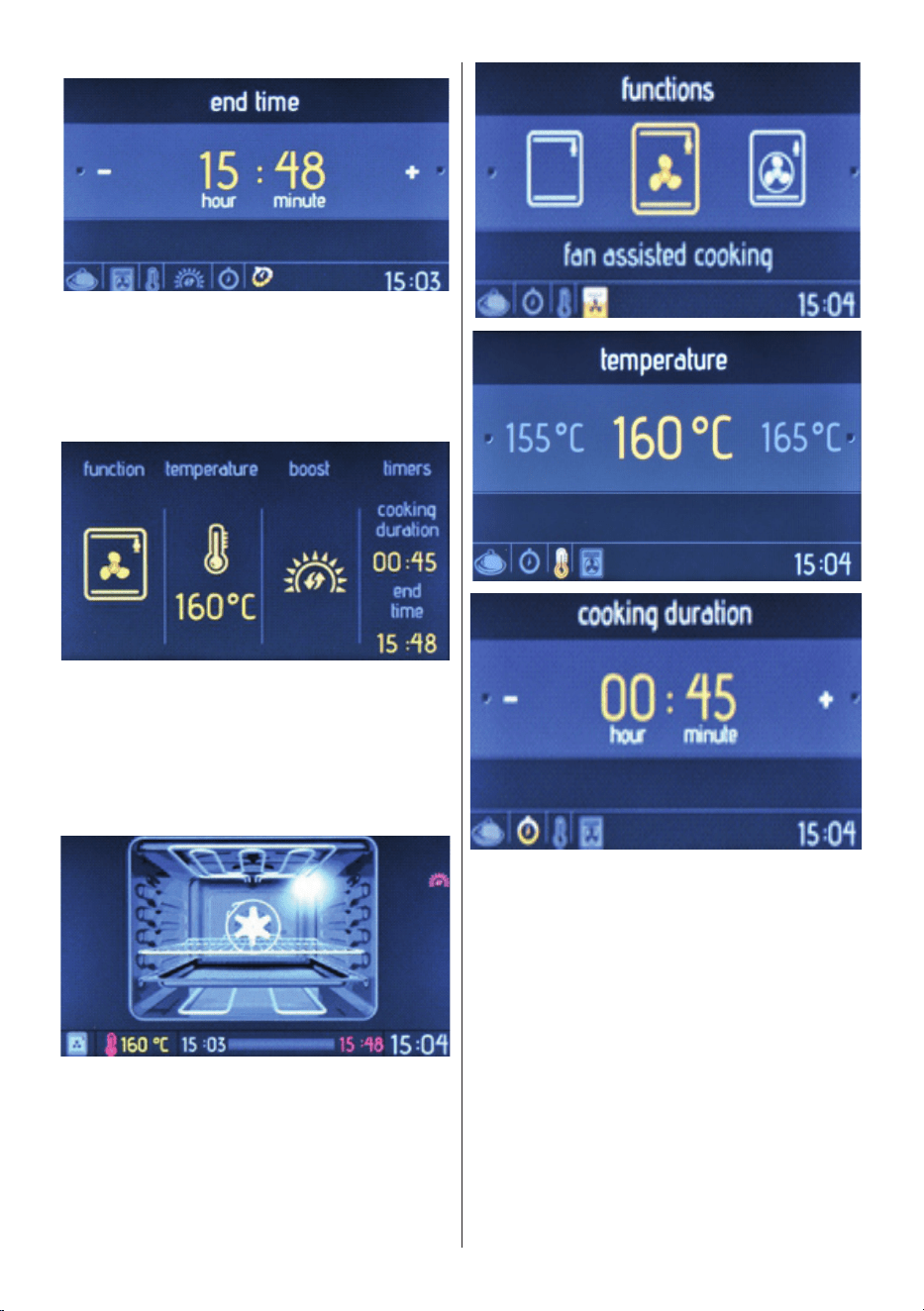

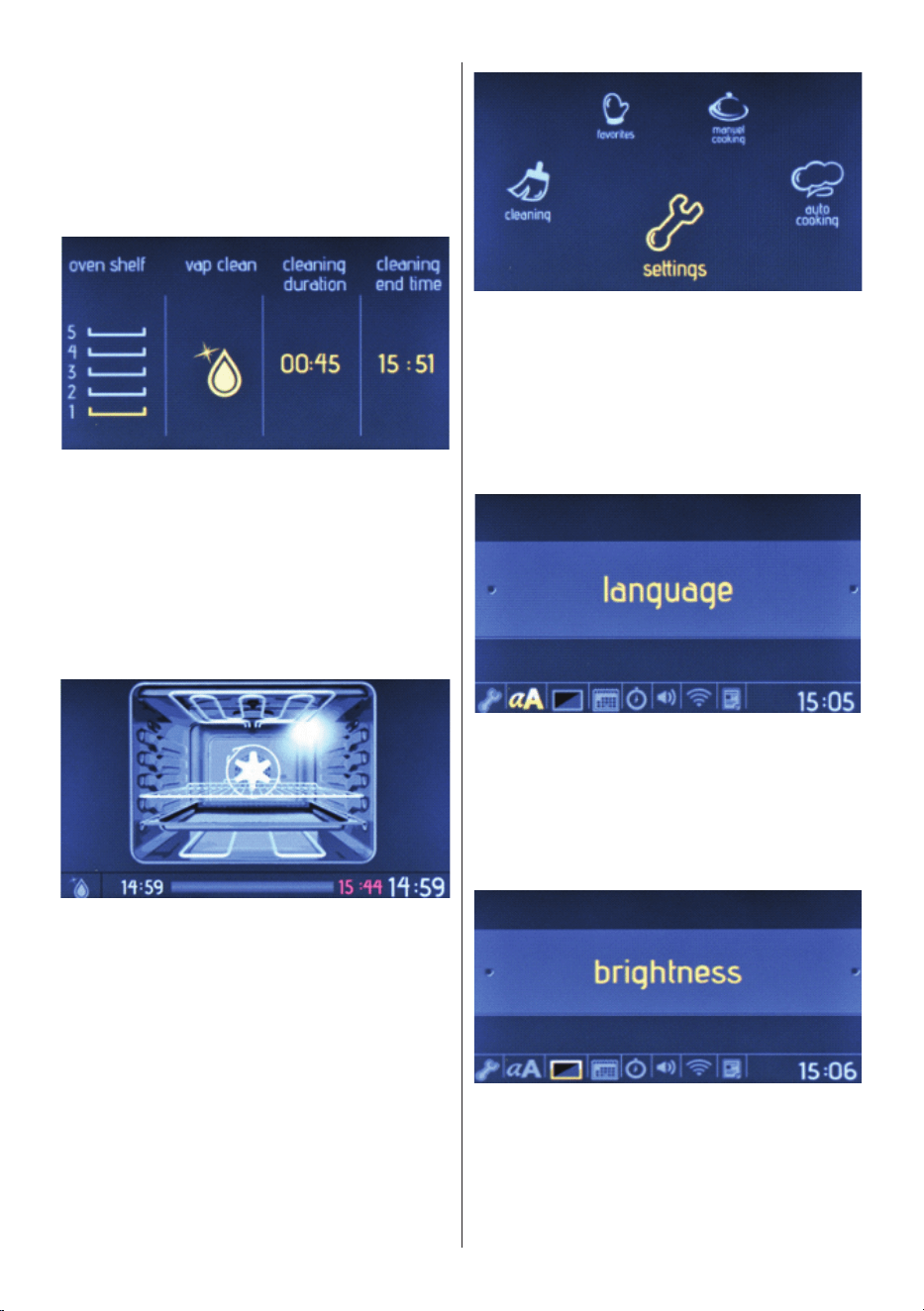

4.3 Use of the Smart LCD Control Unit ..............................................................................15
4.4 Accessories ..................................................................................................................24
5.CLEANING AND MAINTENANCE .................................................................................28
5.1 Cleaning ...................................................................................................................28
5.2 Maintenance .................................................................................................................30
6.TROUBLESHOOTING&TRANSPORT ........................................................................... 31
6.1 Troubleshooting ............................................................................................................31
6.2 Transport ...................................................................................................................31
7.WARRANTY
.................................................................................................
32
1.
SAFETY INSTRUCTIONS
•
Carefully read all instructions before using your
appliance and keep them in a convenient place for
reference when necessary.
•
This manual has been prepared for more than one
model therefore your appliance may not have some
of the features described within. For this reason, it
is important to pay particular attention to any figures
whilst reading the operating manual.
1.1
General Safety WarninGS
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
WARNING:
The appliance and its accessible parts
become hot during use. Young children should be
kept away.
• Children should be supervised to ensure that they
do not play with the appliance.
WARNING: Danger of fire: Do not store items
on the cooking surfaces.
WARNING:
If the surface is cracked, switch off
the appliance to avoid the possibility of electric shock.
•
Do not operate the appliance with an external timer
or separate remote-control system.
•
During use the appliance will get hot. Care should
be taken to avoid touching heating elements inside
the oven
EN - 4
•
Handles may get hot after a short period during use.
•
Do not use harsh abrasive cleaners or scourers
to clean the oven door glass and other surface.
They can scratch the surfaces which may result in
shattering of the door glass or damage to surfaces.
•
Do not use steam cleaners for cleaning the
appliance.
WARNING:
To avoid the possibility of electric
shock, make sure that the appliance is switched off
before replacing the lamp.
CAUTION:
Accessible parts may be hot when
cooking or grilling. Keep young children away from the
appliance when it is in use.
•
Your appliance is produced in accordance with all
applicable local and international standards and
regulations.
•
Maintenance and repair work should only be carried
out by authorised service technicians. Installation
and repair work that is carried out by unauthorised
technicians may be dangerous. Do not alter or
modify the specifications of the appliance in any
way. Inappropriate hob guards can cause accidents.
•
Before connecting your appliance, make sure
that the local distribution conditions (nature of the
gas and gas pressure or electricity voltage and
frequency) and the specifications of the appliance
are compatible. The specifications for this appliance
are stated on the label.
CAUTION:
This appliance is designed only for
cooking food and is intended for indoor domestic
household use only. It should not be used for any
other purpose or in any other application, such as for
non-domestic use, in a commercial environment or for
EN - 5
heating a room.
•
Do not use the oven door handles to lift or move the
appliance.
•
All possible measures have been taken to ensure
your safety. Since the glass may break, care should
be taken while cleaning to avoid scratching. Avoid
hitting or knocking the glass with accessories.
•
Make sure that the supply cord is not trapped or
damaged during installation. If the supply cord is
damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in
order to prevent a hazard.
•
Do not let children climb on the oven door or sit on it
while it is open.
•
Please keep children and animals away from this
appliance.
1.2
inStallation WarninGS
•
Do not operate the appliance before it is fully
installed.
•
The appliance must be installed by an authorised
technician. The manufacturer is not responsible
for any damage that might be caused by defective
placement and installation by unauthorised people.
•
When the appliance is unpacked, make sure that
it is has not been damaged during transportation.
In case of any defect do not use the appliance
and contact a qualified service agent immediately.
The materials used for packaging (nylon, staplers,
Styrofoam, etc.) may be harmful to children and they
should be collected and removed immediately.
•
Protect your appliance from the atmosphere. Do not
expose it to effects such as sun, rain, snow, dust or
excessive humidity.
EN - 6
EN - 7
• Any materials (i.e. cabinets) around the appliance
must be able to withstand a minimum temperature
of 100°C.
• The appliance must not be installed behind a
decorative door, in order to avoid overheating.
1.3 DurinG uSe
• When you first use your oven you may notice a
slight smell. This is perfectly normal and is caused
by the insulation materials on the heater elements.
We suggest that, before using your oven for the
first time, you leave it empty and set it at maximum
temperature for 45 minutes. Make sure that the
environment in which the product is installed is well
ventilated.
• Take care when opening the oven door during or
after cooking. The hot steam from the oven may
cause burns.
• Do not put flammable or combustible materials in or
near the appliance when it is operating.
• Always use oven gloves to remove and replace food
in the oven.
• Under no circumstances should the oven be lined
with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the
base of the oven whilst cooking. The base becomes
very hot and damage may be caused to the product.
Do not leave the oven unattended while cooking
with solid or liquid oils. They may catch fire under
extreme heating conditions. Never pour water on to
flames that are caused by oil, instead switch the oven
off and cover the pan with its lid or a fire blanket.
• If the product will not be used for a long period of
time, turn the main control switch off.
EN - 8
• Make sure the appliance control knobs are always
in the “0” (stop) position when it is not in use.
• The trays incline when pulled out. Take care not
to spill or drop hot food while removing it from the
ovens.
• Do not place anything on the oven door when it is
open. This could unbalance the oven or damage the
door.
• Do not hang towels, dishcloths or clothes from the
appliance or its handles.
1.4 DurinG CleaninG anD MaintenanCe
• Make sure that your appliance is turned off at
the mains before carrying out any cleaning or
maintenance operations.
• Do not remove the control knobs to clean the control
panel.
• To maintain the efficiency and safety of your
appliance, we recommend you always use original
spare parts and to call our authorised service agents
in case of need.
EN - 9
waste disposal service or the retailer who you
purchased this product from.
Disposal of your old machine
This symbol on the product or on its packaging
indicates that this product should not be
treated as household waste. Instead it should
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product,
please contact your local city office, your household
EN - 10
2. INSTALLATION AND
PREPARATION FOR USE
WARNING : This appliance must be
installed by an authorised service
person or qualified technician, according to
the instructions in this guide and in
compliance with the current local
regulations.
• Incorrect installation may cause harm
and damage, for which the manufacturer
accepts no responsibility and the
warranty will not be valid.
• Prior to installation, ensure that the local
distribution conditions (electricity voltage
and frequency) and the adjustments
of the appliance are compatible. The
adjustment conditions for this appliance
are stated on the label.
• The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.).
2.1 inStruCtionS for the inStaller
General instructions
• After removing the packaging material
from the appliance and its accessories,
ensure that the appliance is not
damaged. If you suspect any damage,
do not use it and contact an authorised
service person or qualified technician
immediately.
• Make sure that there are no flammable
or combustible materials in the close
vicinity, such as curtains, oil, cloth etc.
which may catch fire.
• The worktop and furniture surrounding
the appliance must be made of
materials resistant to temperatures
above 100°C.
• The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes
dryer.

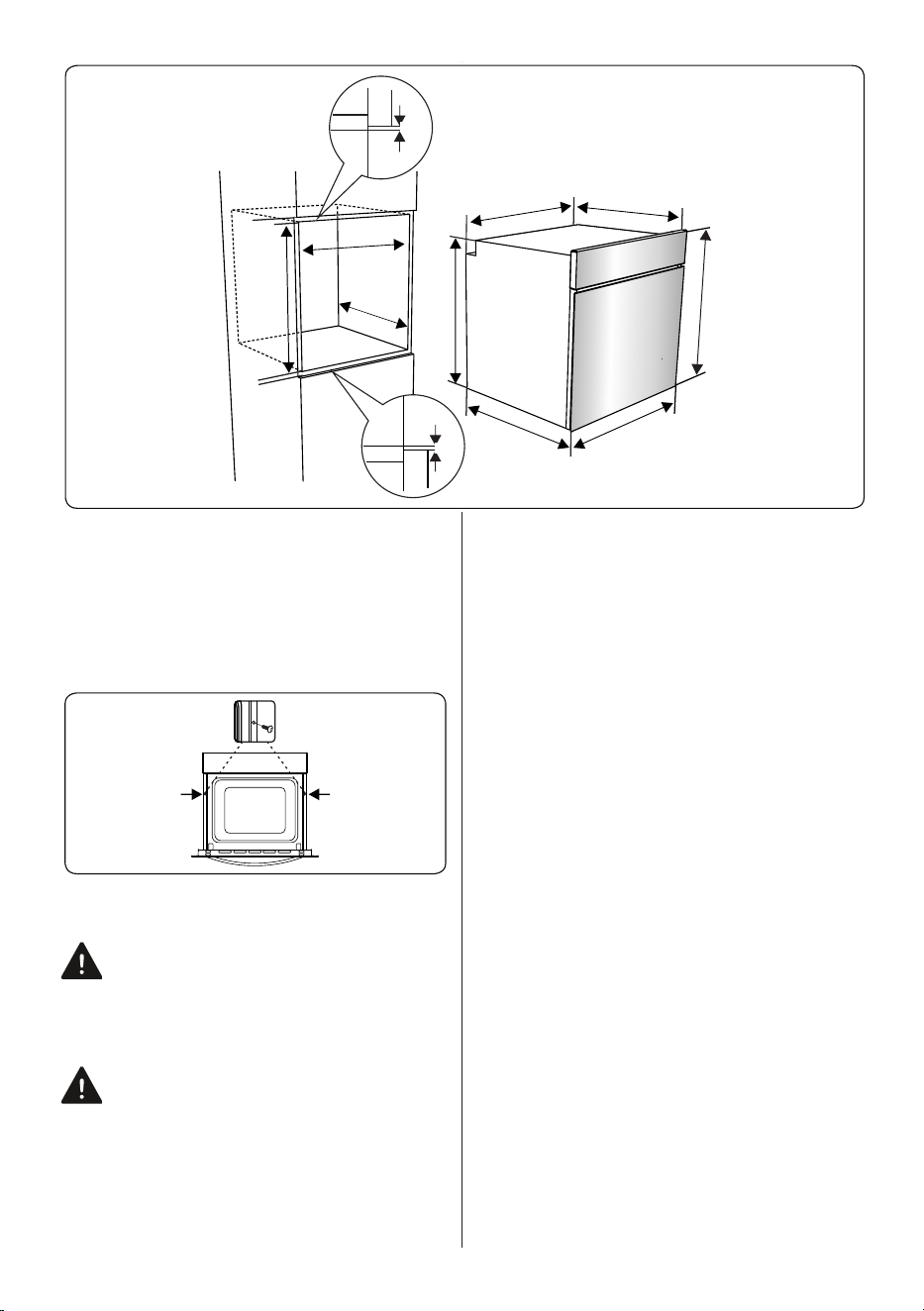

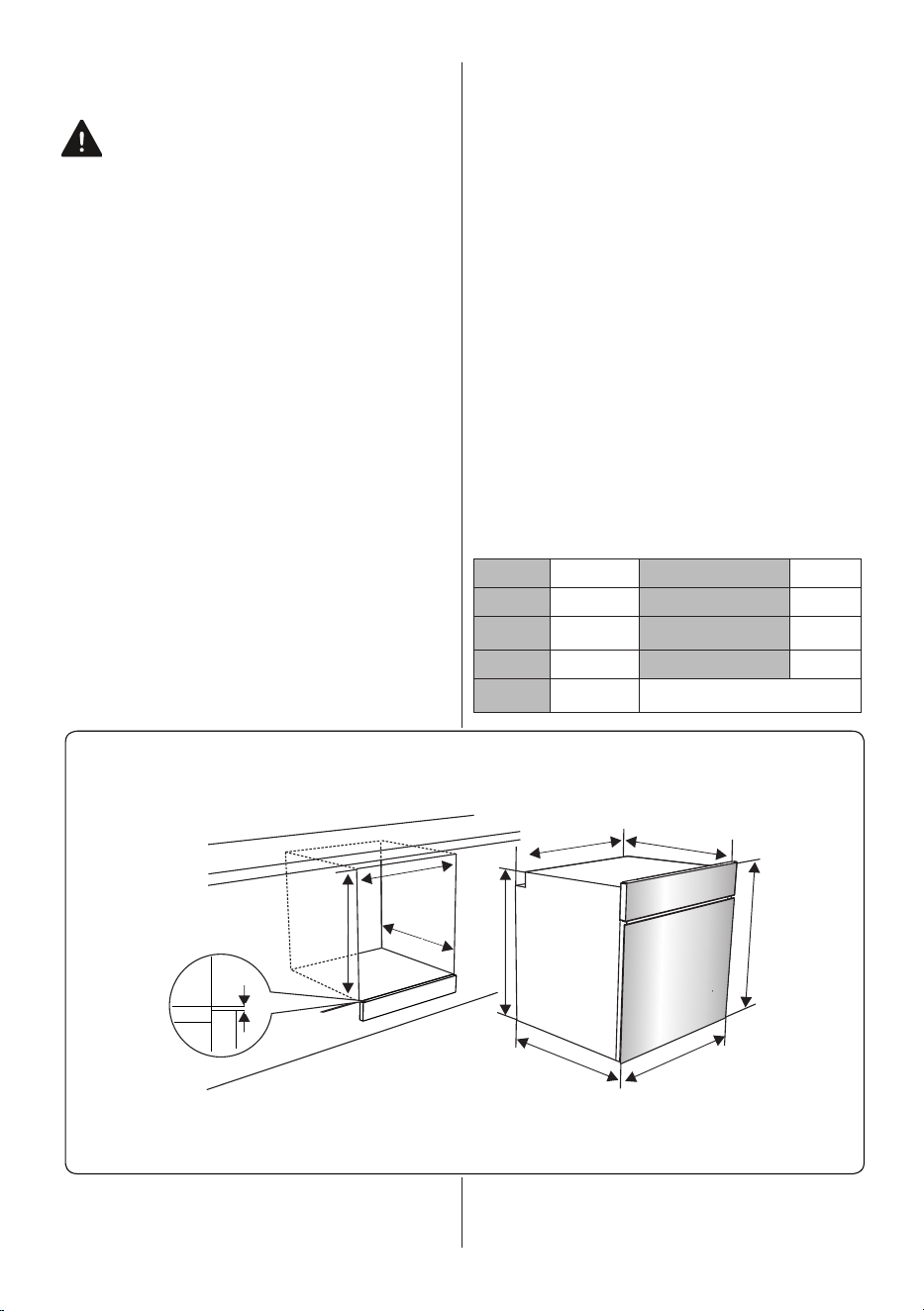

2.2 inStallation of the oven
The appliances are supplied with
installation kits and can be installed in a
worktop with the appropriate dimensions.
The dimensions for hob and oven
installation are given below.
A (mm) 557 min./max. F (mm) 560/580
B (mm) 550 min. G (mm) 555
C (mm) 595 min. H/I (mm) 600/590
D (mm) 575 min. J/K (mm) 5/10
E (mm) 574
F
A B
C
C
D
E
G
H
J
Installation under a worktop
EN - 11
F
A
B
C
C
D
E
G
I
J
K
Installation in a wall unit
After making the electrical connections,
insert the oven into the cabinet by pushing
it forward. Open the oven door and insert
2 screws in the holes located on the oven
frame. While the product frame touches the
wooden surface of the cabinet, tighten the
screws.
2.3 eleCtriCal ConneCtion anD Safety
WARNING: The electrical connection
of this appliance should be carried out
by an authorised service person or
qualified electrician, according to the
instructions in this guide and in compliance
with the current local regulations.
WARNING: THE APPLIANCE MUST
BE EARTHED.
• Before connecting the appliance to the
power supply, the voltage rating of the
appliance (stamped on the appliance
identification plate) must be checked for
correspondence to the available mains
supply voltage, and the mains electric
wiring should be capable of handling the
appliance’s power rating (also indicated
on the identification plate).
• During installation, please ensure
that isolated cables are used. An
incorrect connection could damage
your appliance. If the mains cable is
damaged and needs to be replaced
this should be done by a qualified
personnel.
• Do not use adaptors, multiple sockets
and/or extension leads.
• The supply cord should be kept away
from hot parts of the appliance and must
not be bent or compressed. Otherwise
the cord may be damaged, causing a
short circuit.
• If the appliance is not connected
to the mains with a plug, a all-pole
disconnector (with at least 3 mm contact
spacing) must be used in order to meet
the safety regulations.
• The appliance is designed for a power
supply of 220-240V ~ and 380-415V
3N~. If your supply is different, contact
the authorised service person or a
qualified electrician.
• The power cable (H05VV-F) must be
long enough to be connected to the
appliance, even if the appliance stands
on the front of its cabinet.
• Ensure all connections are adequately
tightened.
EN - 12
• Fix the supply cable in the cable clamp
and then close the cover.
• The terminal box connection is placed
on the terminal box.
Brown
Yellow+Green
Blue
EN - 13
3. PRODUCT FEATURES
Important: Specifications for the product vary and the appearance of your appliance
may differ from that shown in the figures below.

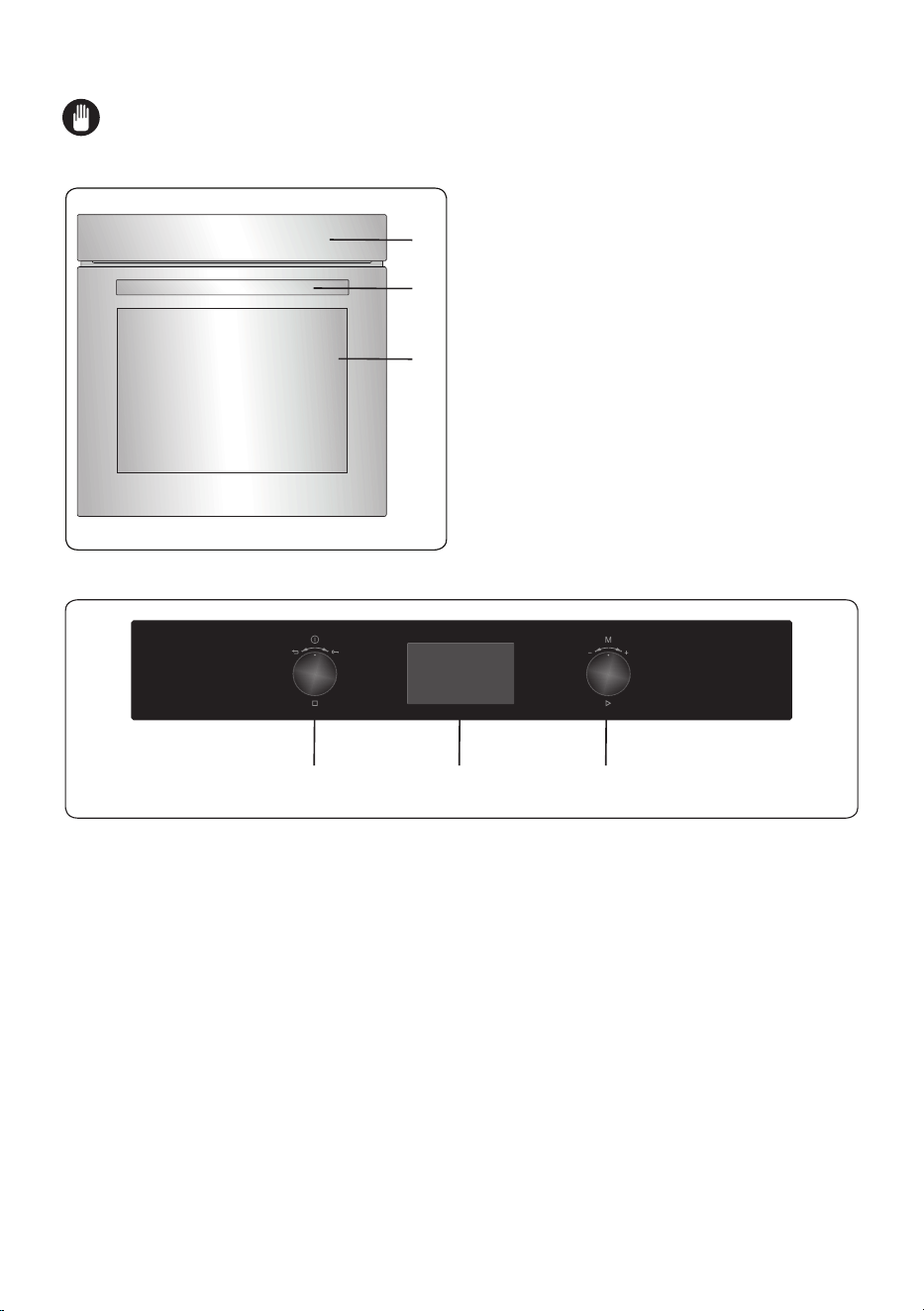

List of Components
1
2
3
1. Control Panel
2. Oven Door Handle
3. Oven Door
Control Panel
4. Timer
5. Oven Function Control Knob
6. Oven Thermostat Knob
5
4
6
EN - 14
4. USE OF PRODUCT
4.1 oven ControlS
Left knob
• Long push: Switch on / off
• Short push: Pause cooking
• Turn right: Key lock
• Turn left: Undo / Go to previous menu
Right knob
• Push: Select / Start cooking
• Turn right: Menu navigation / Increase
temperature
• Turn left: Menu navigation / Decrease
temperature

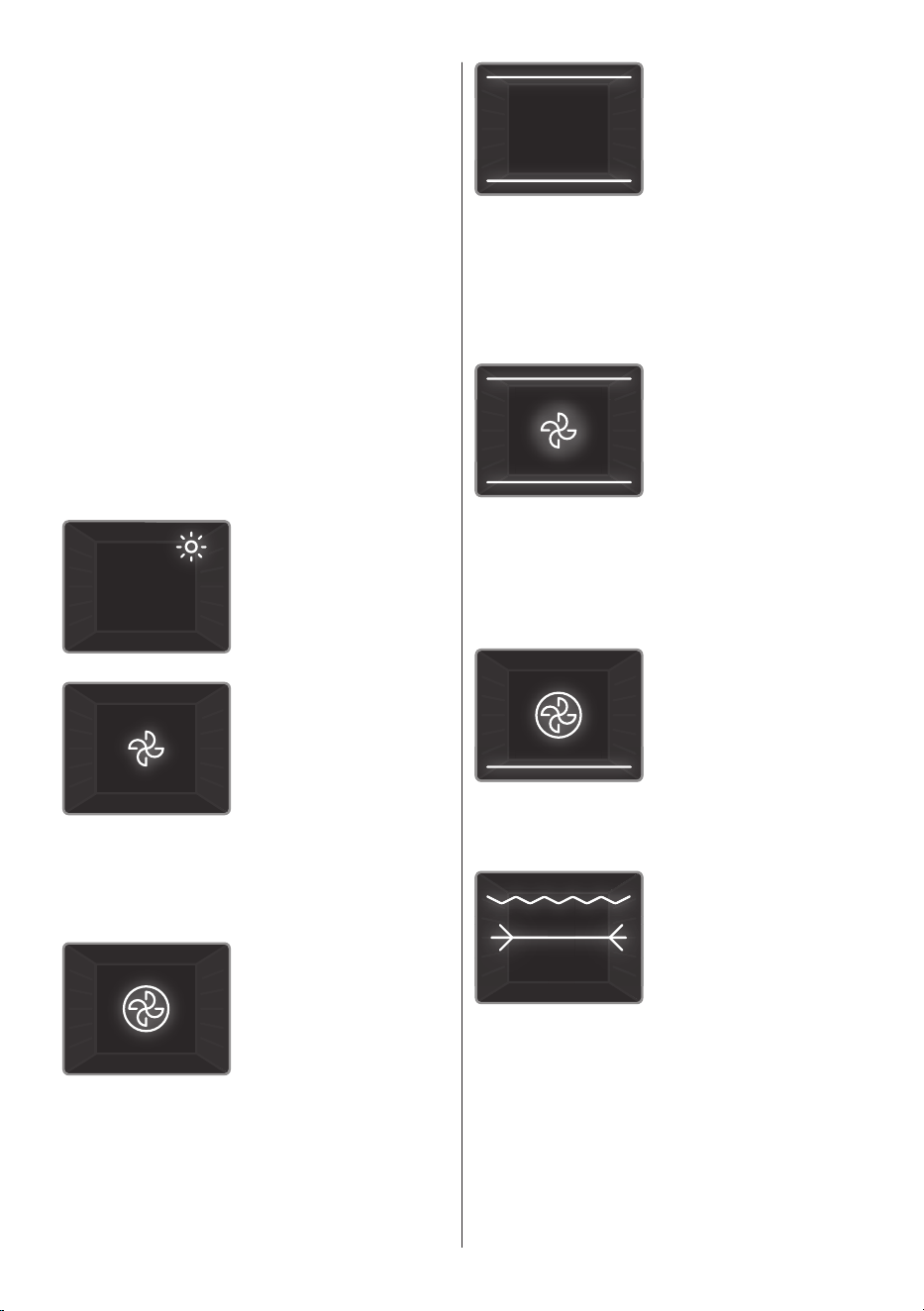

Oven Functions
* The functions of your oven may be
different due to the model of your product.
Oven Lamp: Only the
oven light will switch
on. It will remain on for
the duration of the
cooking function.
Defrost Function: The
oven’s warning lights
will switch on and the
fan will start to operate.
To use the defrost
function, place your
frozen food in the oven
on a shelf in the third slot from the bottom.
It is recommended that you place an oven
tray under the defrosting food, to catch the
water accumulated due to melting ice. This
function will not cook or bake your food, it
will only help to defrost it.
Turbo Function: The
oven’s thermostat and
warning lights will
switch on, and the ring
heating element and
fan will start operating.
The turbo function
evenly disperses the heat in the oven so all
food on all racks will cook evenly. It is
recommended that you preheat the oven for
about 10 minutes.
Static Cooking
Function: The oven’s
thermostat and
warning lights will
switch on, and the
lower and upper
heating elements will
start operating. The
static cooking function emits heat, ensuring
even cooking of food. This is ideal for
making pastries, cakes, baked pasta,
lasagne and pizza. Preheating the oven for
10 minutes is recommended and it is best
to use only one shelf at a time in this
function.
Fan Function: The
oven’s thermostat and
warning lights will
switch on, and the
upper and lower
heating elements and
fan will start operating.
This function is good for baking pastry.
Cooking is carried out by the lower and
upper heating elements within the oven and
by the fan, which provides air circulation,
giving a slightly grilled effect to the food. It
is recommended that you preheat the oven
for about 10 minutes.
Pizza Function: The
oven’s thermostat and
warning lights will
switch on, and the ring,
lower heating elements
and fan will start
operating. This function
is ideal for baking food, such as pizza,
evenly in a short time. While the fan evenly
disperses the heat of the oven, the lower
heating element ensures baking of the food.
Grilling and Roasting
Chicken Function:
The oven’s thermostat
and warning lights will
switch on, and the grill
heating element and
turnspit will start
operating. This function is used for grilling
and toasting food, as well as for roasting
chicken using the roasting skewer. For
grilling, use the upper shelves of the oven.
Lightly brush the wire grid with oil to stop
foods sticking and place food in the centre
of the grid. Always place a tray beneath the
food to catch any drips of oil or fat. When
roasting chicken, please refer to the
accessories section. We recommend
preheating the oven for about 10 minutes
when using this function.
EN - 15

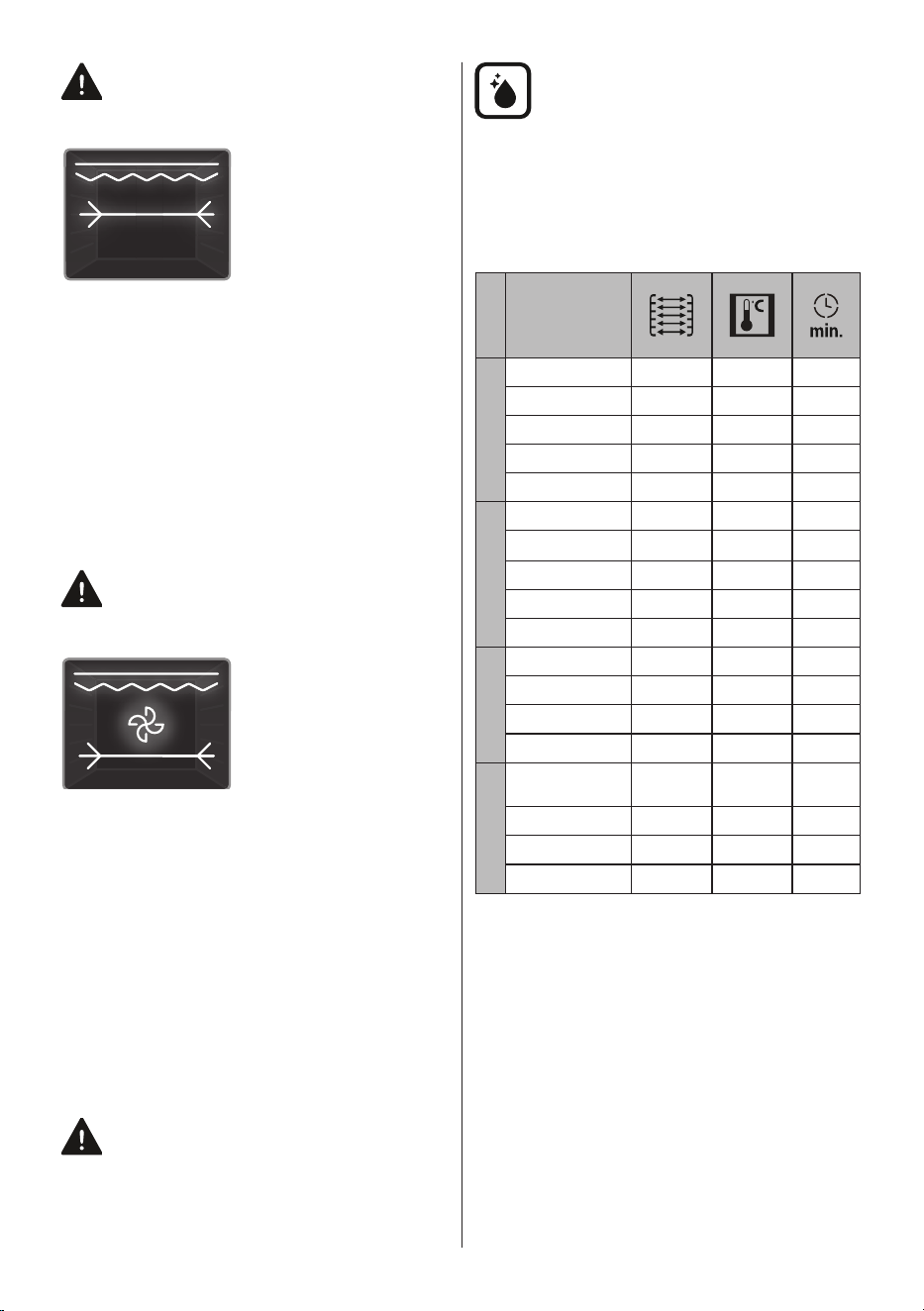

Warning: When grilling, the oven door
must be closed and the oven
temperature should be adjusted to
190°C.
Faster Grilling and
Roasting Chicken
Function: The oven’s
thermostat and warning
lights will switch on, and
the grill, upper heating
elements and turnspit
will start operating. This
function is used for faster grilling and for
grilling foods with a larger surface area,
such as meat. It is also suitable for roasting
chicken with the roasting skewer. For
grilling, use the upper shelves of the oven.
Lightly brush the wire grid with oil to stop
foods sticking and place food in the centre
of the grid. Always place a tray beneath the
food to catch any drips of oil or fat. When
roasting chicken, please see the
accessories section. We recommend
preheating the oven for about 10 minutes
when using this function.
Warning: When grilling, the oven door
must be closed and the oven
temperature should be adjusted to
190°C.
Double Grill - Fan
and Roasting
Chicken Function:
The oven’s thermostat
and warning lights will
illuminate, and the grill,
upper heating
elements, fan and turnspit will start
operating. This function is used for fast
grilling of thick food, for cooking food with a
large surface area and for roasting chicken
with the roasting skewer. Both the upper
elements of the grill will be energised along
with the fan to ensure even cooking. For
grilling, use the upper shelves of the oven.
Lightly brush the wire grid with oil to stop
food from sticking and place food in the
centre of the grid. Always put a tray
underneath the food to catch any drips of oil
or fat. When roasting chicken, please see
the accessories section. We recommend
that you preheat the oven for about 10
minutes.
Warning: When grilling, the oven door
must be closed and the oven
temperature should be adjusted to
190°C.
Vap Clean Function: Set the oven
function and thermostat to the Vap
Clean function symbol. Pour
200-250ml of water (about 1 cup)
into the small tray on the oven base. Vap
Clean runs for approximately 20 minutes
and will prepare your oven so that it can be
easily cleaned.
4.2 CookinG table
Function
Dishes
Static
Puff Pastry 2-3-4 170-190 35-45
Cake 2-3-4 170-190 30-40
Cookie 2-3-4 170-190 30-40
Stew 2 175-200 40-50
Chicken 2-3-4 200 45-60
Fan
Puff Pastry 2-3-4 170-190 25-35
Cake 2-3-4 150-170 25-35
Cookie 2-3-4 150-170 25-35
Stew 2 175-200 40-50
Chicken 2-3-4 200 45-60
Turbo
Puff Pastry 2-3-4 170-190 35-45
Cake 2-3-4 150-170 30-40
Cookie 2-3-4 150-170 25-35
Stew 2 175-200 40-50
Grilling
Grilled
meatballs
7 200 10-15
Chicken * 190 50-60
Chop 6-7 200 15-25
Beefsteak 7 200 15-25
*If available cook with roast chicken skewer.
4.3 uSe of the SMart lCD Control unit
Ready Cook is designed to help home
users to implement professional cooking
recipes easily using the built-in auto
cooking functions.
The Ready Cook menus, such as Manual
Cooking, Auto Cooking, Favourites,
Cleaning, and Settings, are described
below.

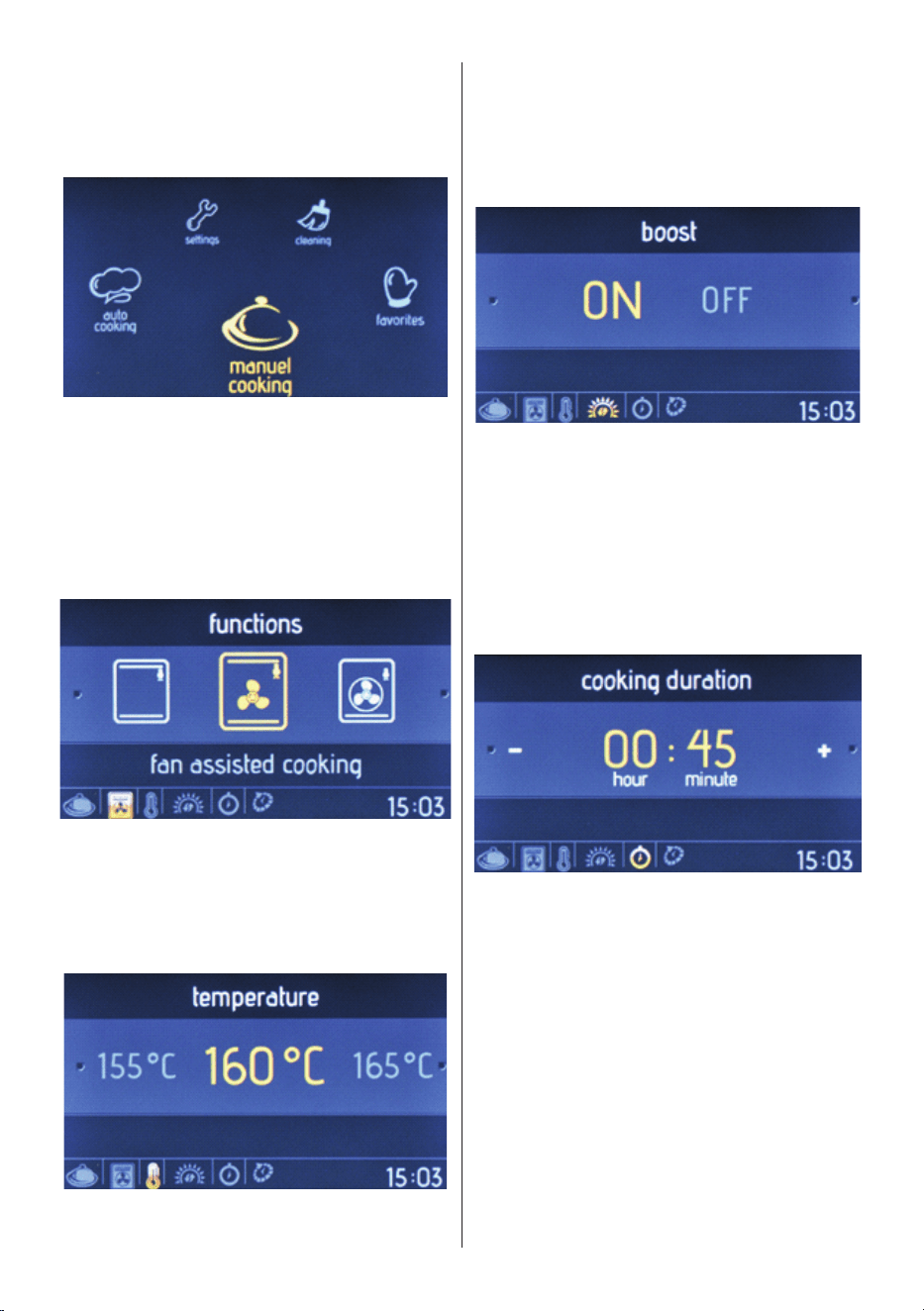

Manual cooking
You can adjust every cooking setting in
Manual Cooking mode, including the 7
EN - 16
different cooking functions, the temperature,
the boost function, the cooking duration,
and the cooking end time. Follow the
steps listed below to navigate the Manual
Cooking menu.
The main menu
• Rotate the right knob in either direction
until “Manual Cooking” is highlighted.
• Press the right knob to select the
highlighted option.

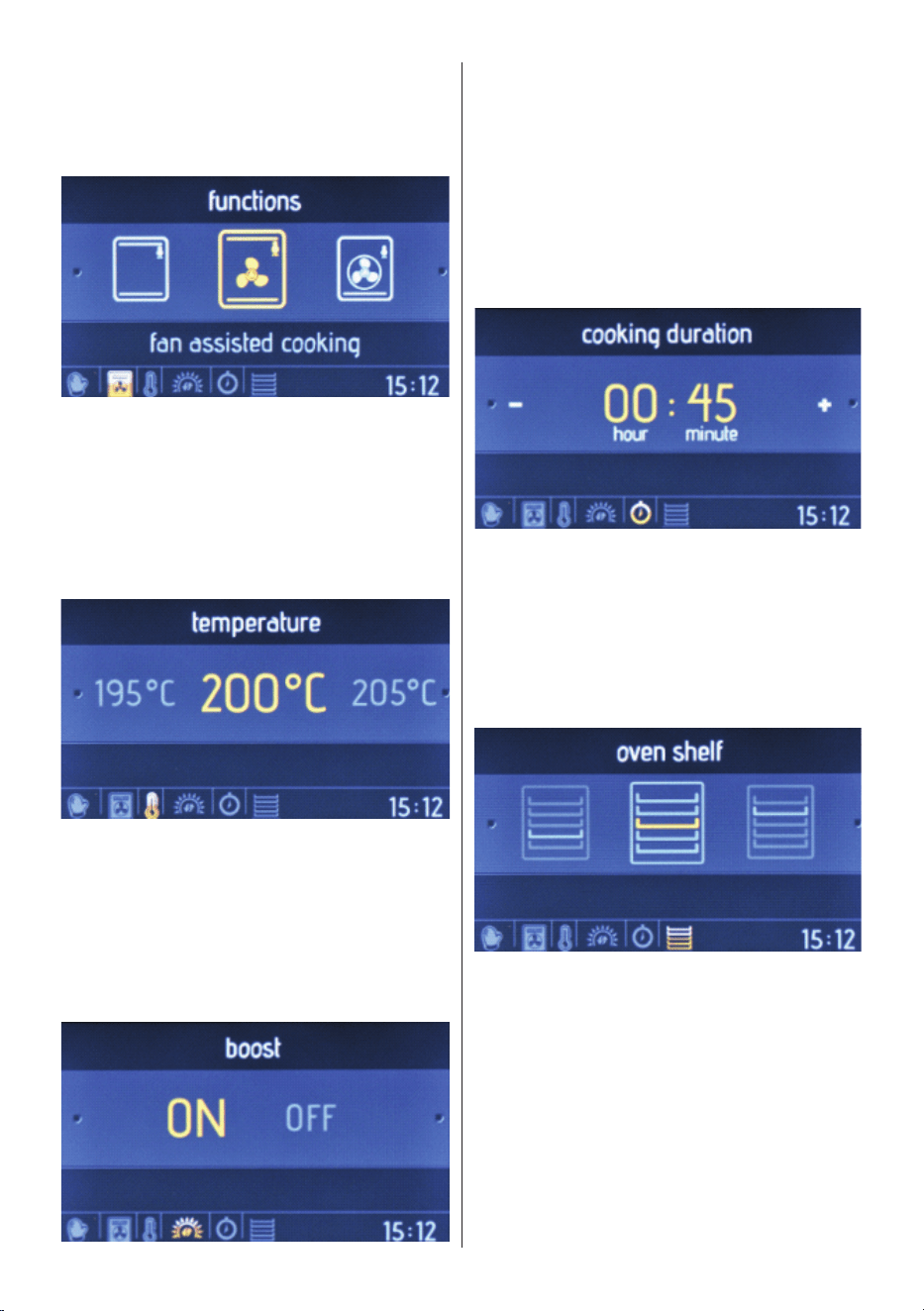

Oven function
• Rotate the right knob in either direction
to navigate between the available oven
functions.
• Press the right knob to select the
highlighted option.
Temperature
• Rotate the right knob in either direction
to navigate between the available
temperature settings.
• Press the right knob to select the
highlighted option.
Boost
• Rotate the right knob in either direction
to highlight Boost “ON” or “OFF”.
• Press the right knob to select the
highlighted option.
• Use this function to heat the oven the
desired temperature as quickly as
possible. This mode is not appropriate
for cooking.
Cooking duration
• Rotate the right knob in either direction
to change the cooking duration.
• Press the right knob to set the cooking
duration.
• NOTE: If the cooking duration is set to
00:00, cooking will continue until you
manually stop it.
EN - 17

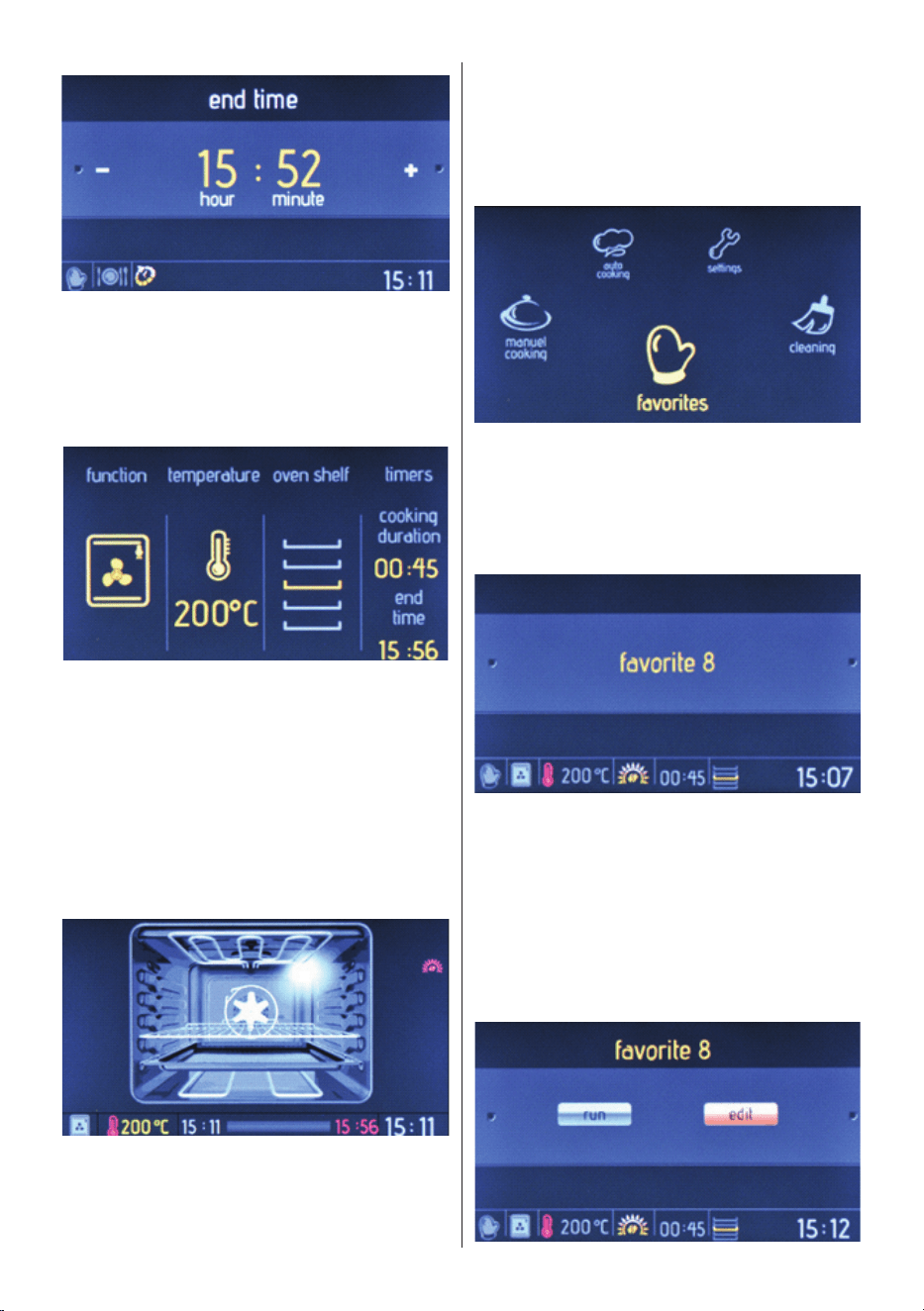

Cooking end time
• Rotate the right knob in either direction
to change the cooking end time.
• Press the right knob to set the cooking
end time.
The information screen
• Cooking will begin within 10 seconds of
the last action, or when the right knob is
pressed.
• Rotate the left knob anti-clockwise to go
back to the previous setting.
The animation screen displays:
• Cooking time
• Temperature
• Cooking start and end time
• Cooking function information.
The animation screen
• Press the left knob to stop cooking.
• Press the right knob to start / continue
cooking.
• Rotate the right knob in either direction
to change the temperature.
• Rotate the left knob anti-clockwise,
while any cooking function is active, to
display the oven function, temperature,
and cooking time setting screen.
• To stop cooking and return to the main
menu, press the left knob then rotate it
anti-clockwise.
EN - 18
Ready Cook has built-in, previously
determined, recipe functions that can be
selected in the Auto Cooking menu. You
will only be able to select the name of the
desired meal. It will not be possible to alter
any of the recipe settings, including cooking
duration and temperature, as these are
automatically set by Ready Cook.
Follow the steps below to perform auto
cooking.

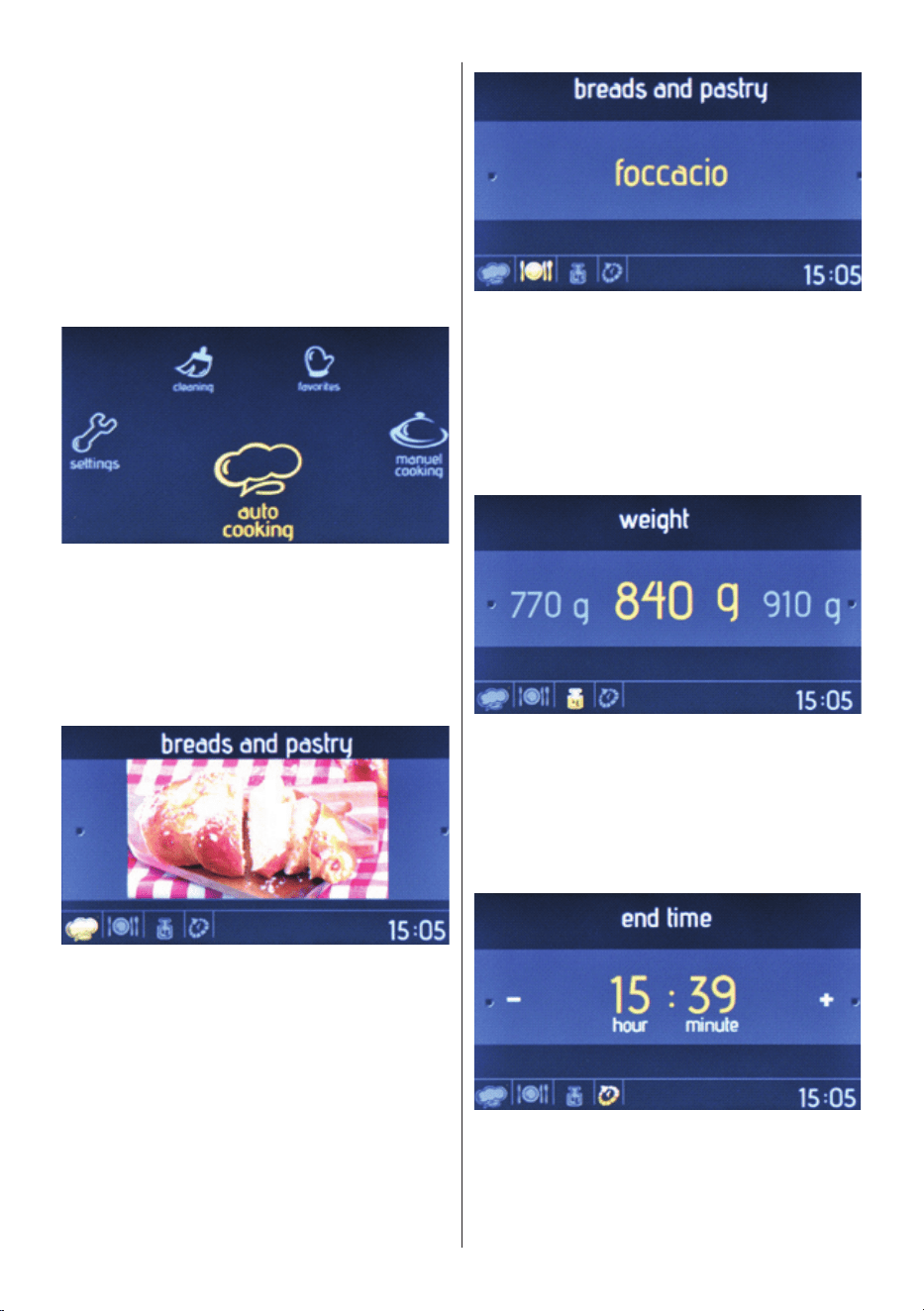

The main menu
• Rotate the right knob in either direction
until “Auto Cooking” is highlighted.
• Press the right knob to select the
highlighted option.
Food categories
• Rotate the right knob in either direction
to navigate between the available
recipes.
• Press the right knob to select the
highlighted option.
Recipe selection
• Rotate the right knob in either direction
to navigate between the available
recipes.
• Press the right knob to select the
highlighted option.
Food weight
• Rotate the right knob in either direction
to change the weight value.
• Press the right knob to set the weight.
Cooking end time
• Rotate the right knob in either direction
to change the cooking end time.
• Press the right knob to set the cooking
end time.
Auto Cooking
EN - 19

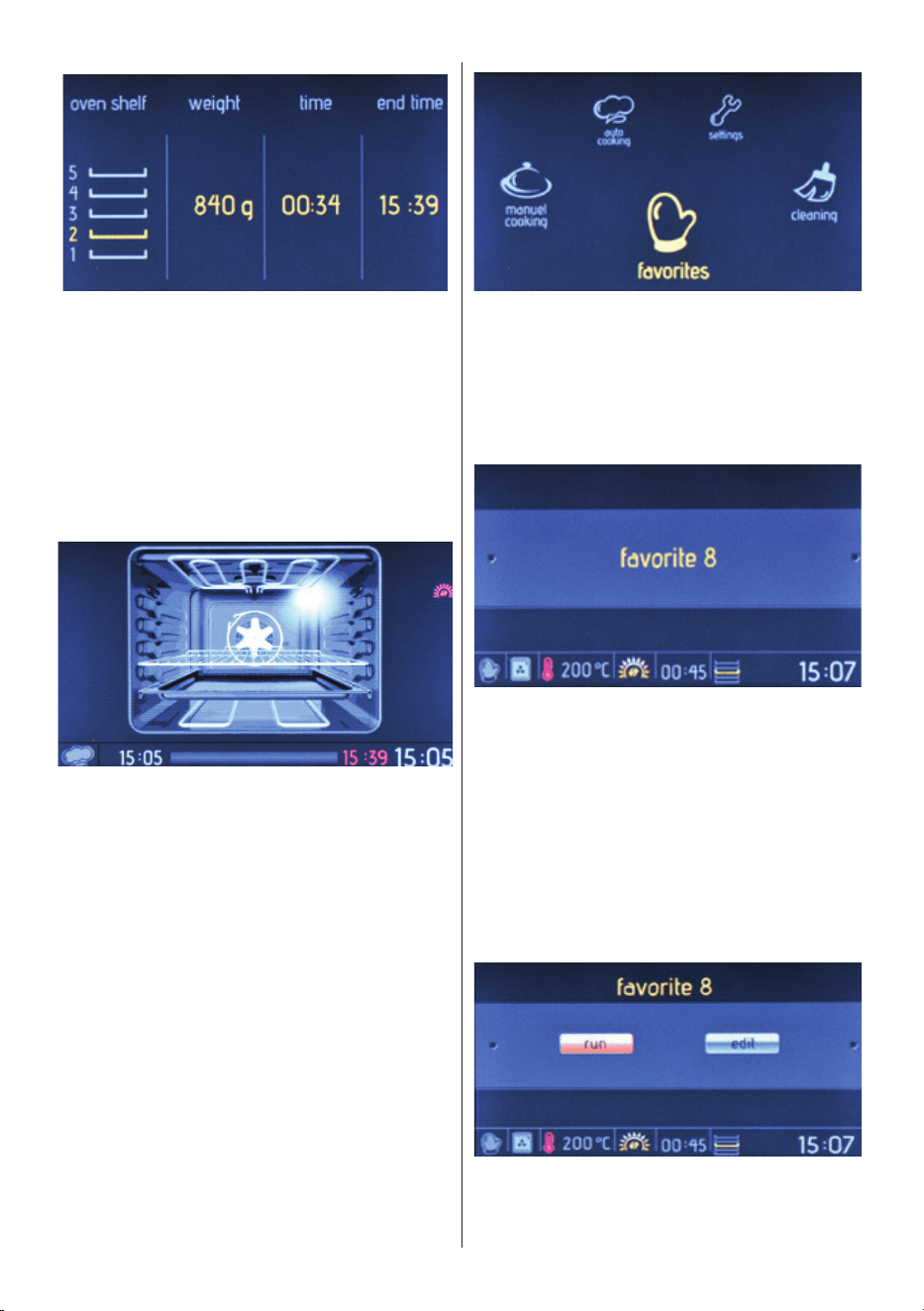

The information screen
• Cooking will start within 10 seconds of
no activity, or when the right knob is
pressed.
• Rotate the left knob anti-clockwise to
go back through the previous setting
screens.
• Place food on the middle shelf to
achieve the best cooking results.
The animation screen
• Press the left knob to stop cooking.
• Press the right knob to start and
continue cooking.
• To stop cooking and return to the main
menu, press the left knob and rotate it
anti-clockwise.
Favourites
It is possible to save your manual cooking
settings, allowing you to quickly select the
same cooking settings at any time. At the
end of the Manual Cooking menu, after the
cooking duration setting, you will be asked
whether you want to save the settings to
your favourites.
To create a favourite cooking setting, use
the edit function in the Favourites menu.
To select and begin a favourite function,
follow the steps below.
On the main menu
• Rotate the right knob in either direction
until 'Favourites' is highlighted.
• Press the right knob to select the
highlighted option.
Favourites
• Rotate the right knob in either direction
to navigate between the available
options.
• Press the right knob to select the
highlighted option.
• The settings stored in the favourite
will be displayed at the bottom of the
screen.
The run/edit screen
• Rotate the right knob to highlight “Run”.
• Press the right knob to select “Run”.
EN - 20
Cooking end time
• Rotate the right knob in either direction
to change the cooking end time.
• Press the right knob to set the cooking
end time.
The information screen
• Cooking will start within 10 seconds of
no activity, or when the right knob is
pressed.
• Rotate the left knob anti-clockwise to
go back through the previous setting
screens.
• Place food on the middle shelf to
achieve the best cooking results.
The animation screen
• Press the left knob to stop cooking.
• Press the right knob to start and
continue cooking.
• To stop cooking and return to the main
menu, press the left knob and rotate it
anti-clockwise.
To edit any Favourites settings, follow the
steps below.
The main menu
• Rotate the right knob in either direction
until “Favourites” is highlighted.
• Press the right knob to select the
highlighted option.
Favourites
• Rotate the right knob in either direction
to navigate between the available
options.
• Press the right knob to select the
highlighted option.
• The settings stored in the selected
'Favourite' will be displayed at the
bottom of the screen.
EN - 21
The run/edit screen
• Rotate the right knob to highlight “Edit”.
• Press the right knob to select “Edit”.
Oven function
• Rotate the right knob in either direction
to navigate between the available oven
functions.
• Press the right knob to select the
highlighted option.
Temperature
• Rotate the right knob in either direction
to navigate between the available
temperature settings.
• Press the right knob to select the
highlighted option.
Boost
• Rotate the right knob in either direction
to highlight Boost “ON” or “OFF”.
• Press the right knob to select the
highlighted option.
• Use this function to heat the oven the
desired temperature as quickly as
possible. This mode is not appropriate
for cooking.
Cooking duration
• Rotate the right knob in either direction
to change the cooking duration.
• Press the right knob to set the cooking
duration.
Oven shelf
• Rotate the right knob in either direction
to navigate between the available oven
shelves.
• Press the right knob to select the shelf
• For the same cooking results each time,
oven shelf information is important.
EN - 22
The information screen
• Rotate the left knob anti-clockwise to
go back through the previous setting
screens.
Save to favourites
• Rotate the right knob to highlight “Save”
(to save the settings) or “Cancel” (to
discard the settings).
• Press the right knob to select the
highlighted option.
Cleaning
With the Vapclean function, dried residue
within the oven will be softened with vapour.
To perform Vapclean, pour a glass of water
onto the oven shelf at the bottom of the
oven, then follow the steps listed below.
On the main menu
• Rotate the right knob in either direction
until “Cleaning” is highlighted.
• Press the right knob to select the
highlighted option.
The function selection screen
• Press the right knob to select
“Vapclean”.
Cleaning duration
• Rotate the right knob in either direction
to change the cleaning duration.
• Press the right knob to set the cleaning
duration.
EN - 23
Cleaning end time
• Rotate the right knob in either direction
to change the cleaning end time.
• Press the right knob to set the cleaning
end time.
The information screen
• Cleaning will start within 10 seconds
of no activity, or when the right knob is
pushed.
• Rotate the left knob anti-clockwise to
go back through the previous setting
screens.
The animation screen
• Press the left knob to stop cleaning.
• Press the right knob to start and
continue cleaning.
• To stop cleaning and return to the main
menu, press the left knob and rotate it
anti-clockwise.
Settings
The settings menu allows you to change
and set the date, time, screen brightness,
buzzer tone, and language option.
The main menu
• Rotate the right knob in either direction
until 'Settings' is highlighted.
• Press the right knob to select the
highlighted option.
The languages menu
• Rotate the right knob in either direction
to change the language.
• Press the right knob to set the desired
language.
The brightness menu
• Rotate the right knob in either direction
to change the screen brightness
between the levels 0 and 4.
• Press the right knob to set the screen
brightness.
EN - 24

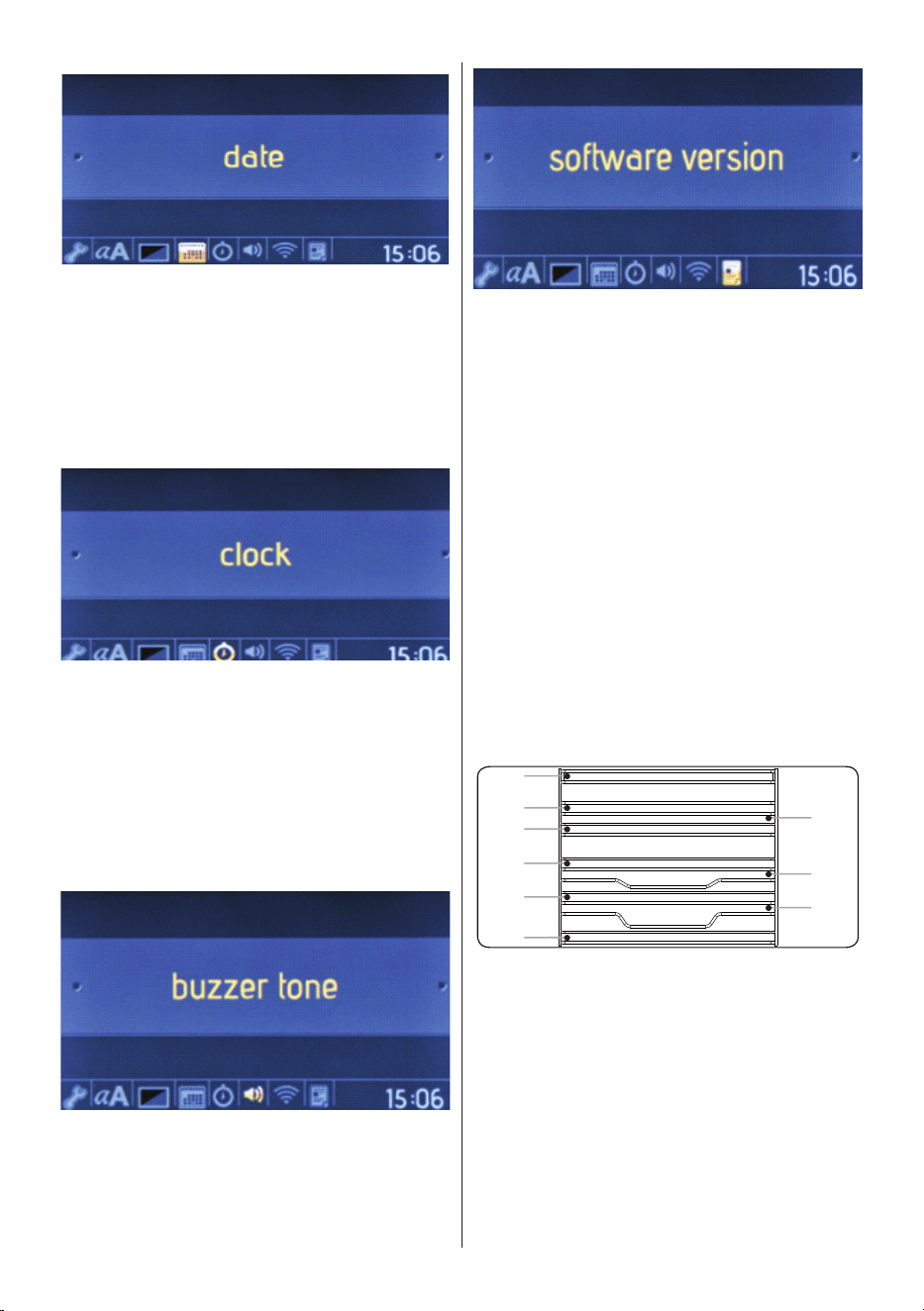

The date menu
• Rotate the right knob in either direction
to change the date.
• Press the right knob to set the date.
• The date is set in the format: month,
day, year.
The clock menu
• Rotate the right knob in either direction
to change the clock.
• Push the right knob to set the clock.
• Clock is set in the format: minute and
hour.
On the buzzer tone menu
• Rotate the right knob in either direction
to choose from 3 different buzzer tones.
• Press the right knob to set the desired
buzzer tone.
The software version menu
• The software version will be displayed
as information only. It cannot be
changed.
Key lock
The key lock is used to avoid unintentional
changes being made to the oven settings.
To activate or deactivate the key lock, rotate
the left knob anti-clockwise and hold it for 3
seconds. While the key lock is active, only
the “ON/OFF” button can be activated. All
other buttons will be locked.
4.4 aCCeSSorieS

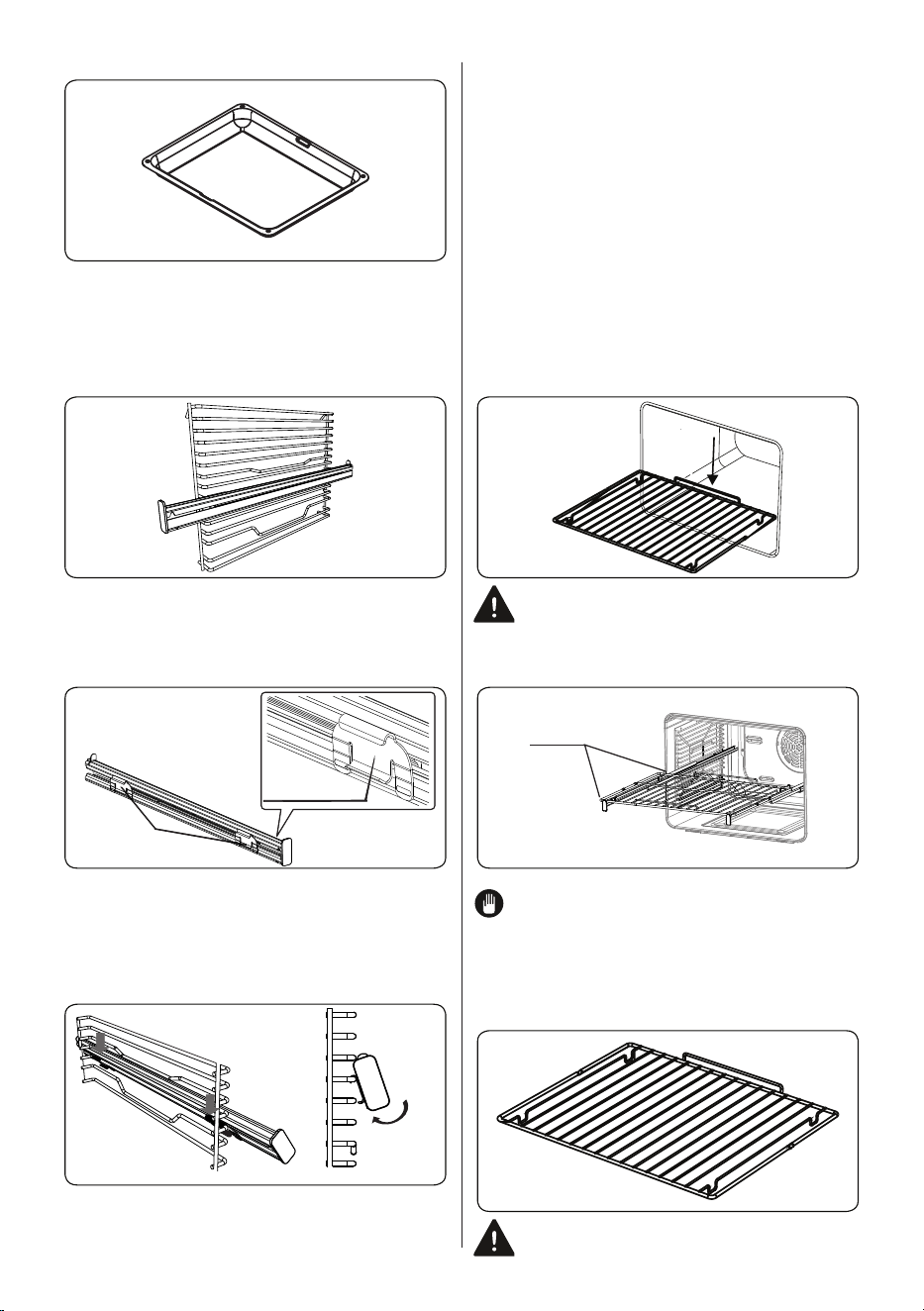

The EasyFix Wire Rack
Clean the accessories thoroughly with
warm water, detergent and a soft clean
cloth on first use.
7
5
6
4
3
2
1
T2
T1
• Insert the accessory to the correct
position inside the oven.
• Allow at least a 1 cm space between the
fan cover and accessories.
• Take care removing cookware and/or
accessories out of the oven. Hot meals
or accessories can cause burns.
• The accessories may deform with heat.
Once they have cooled down, they will
recover their original appearance and
performance.
• Trays and wire grids can be positioned
EN - 25
on any level from of 1 to 7.
• Telescopic rail can be positioned on
levels T1, T2.
• Level 3 is recommended for single level
cooking.
• Level T2 is recommended for single
level cooking with the telescopic rails.
• Level 2 and Level 4 are recommended
for double level cooking.
• The turnspit wire grid must be
positioned on Level 3.
• Level T2 is used for turnspit wire grid
positioning with the telescopic rails.
****Accessories may vary depending on the
model purchased.

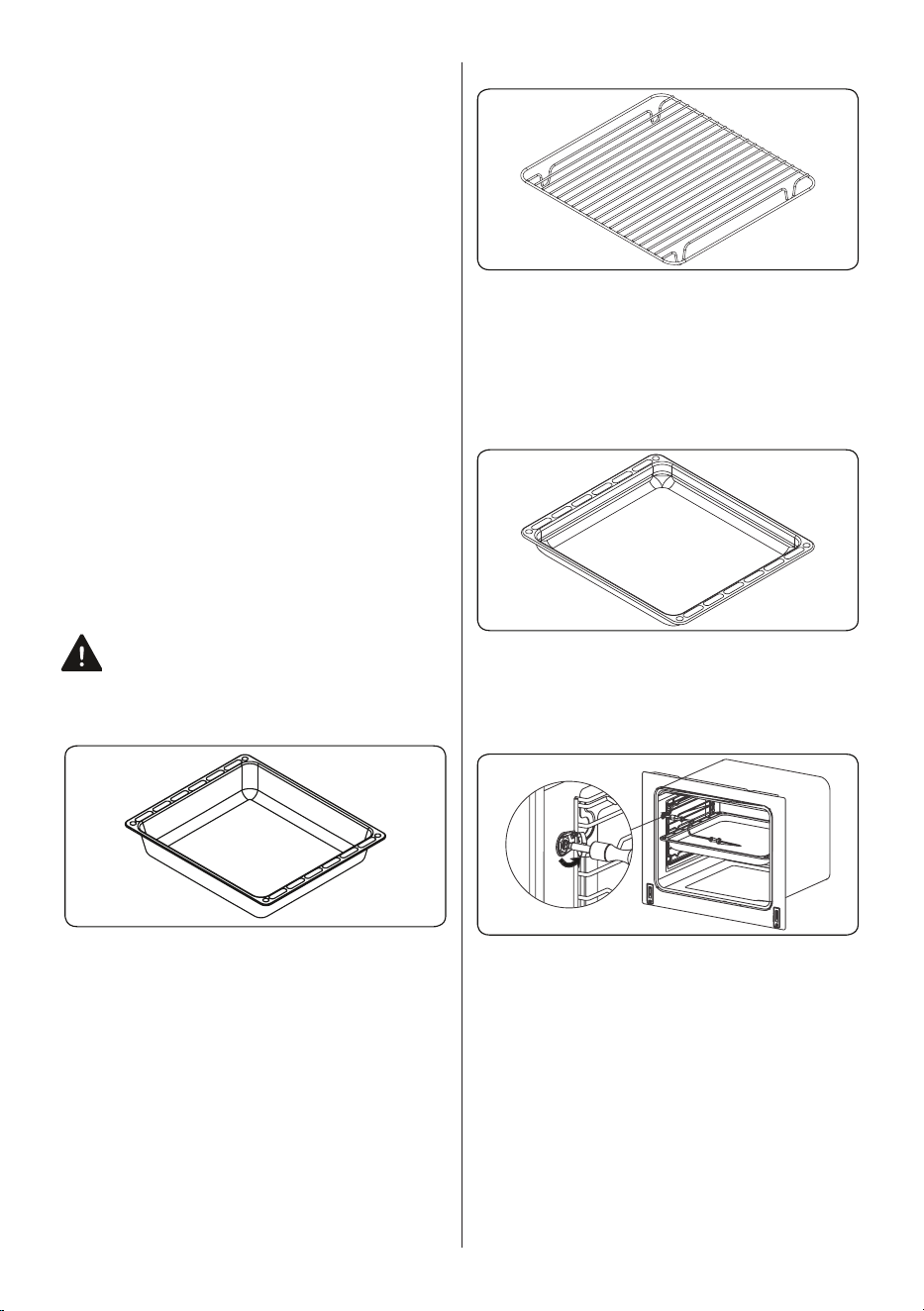

The 8 cm-deep Tray
The 8 centimetre-deep tray is best used for
cooking stews.
Put the tray into any rack and push it to the
end to make sure it is correctly placed. For
the most efficient use, place the tray on the
third shelf.
WARNING: The 8 cm-deep tray
should not be used on the first (lowest)
shelf. It is not recommended to
simultaneously cook food using two 8
cm-deep trays.
The Wire Grid for Deep Trays
Make sure the wire grid is correctly placed
within a deep tray. It is recommended
to use this accessory for grilling steaks,
meatballs and similar food.
The Deep Tray
The deep tray is best used for cooking
stews.
Put the tray into any rack and push it to the
end to make sure it is placed correctly.
The Meat Probe
The meat probe measures the temperature
inside a roast. Cooking with the meat probe
ensures optimum results for any type of
meat or size of roast.
Placing the meat probe
• Place the probe before roasting begins.
• Insert the probe into the side of the roast
so that the point reaches its centre.
• Insert the entire probe, up to the handle.
• We recommend that you turn the roast
over half-way through cooking. Bear this
in mind when placing the probe to avoid
problems with it later.
• The point of the probe must not be
touching a bone or fatty areas of the
joint. Also, it should not be in a hollow
EN - 26
area, which could happen with poultry.
• Put the roast with the probe already in it
into the oven.
• Plug the probe into the socket in the
upper left side of the oven.
Using the Meat Probe with the Timer
Plug the probe into the socket in the upper
left side of the oven, the Meat Probe symbol
and “AUTO” will appear on the display.
The numbers on the left of the display will
show the current temperature recorded by
the meat probe, while the numbers on the
right show the adjustment temperature. To
adjust the temperature of the meat probe,
press the “M” sensor button, then use the
“-” and “+” buttons to change the value. You
cannot use the cooking timer while the meat
probe is using it.
After some time, the Meat Probe symbol
will remain illuminated, and the current and
recommended temperatures will be shown
on the display. When the recommended
temperature reaches the previously set
level, the oven will automatically switch off,
the timer will sound and “AUTO” will flash
on the display. Pressing any button on the
timer will end the audible warning, “AUTO”
will continue to flash until the “-” and “+”
buttons are pressed simultaneously to end
“AUTO” mode.
Auto-cooking functions cannot be activated
when the meat probe is in use.

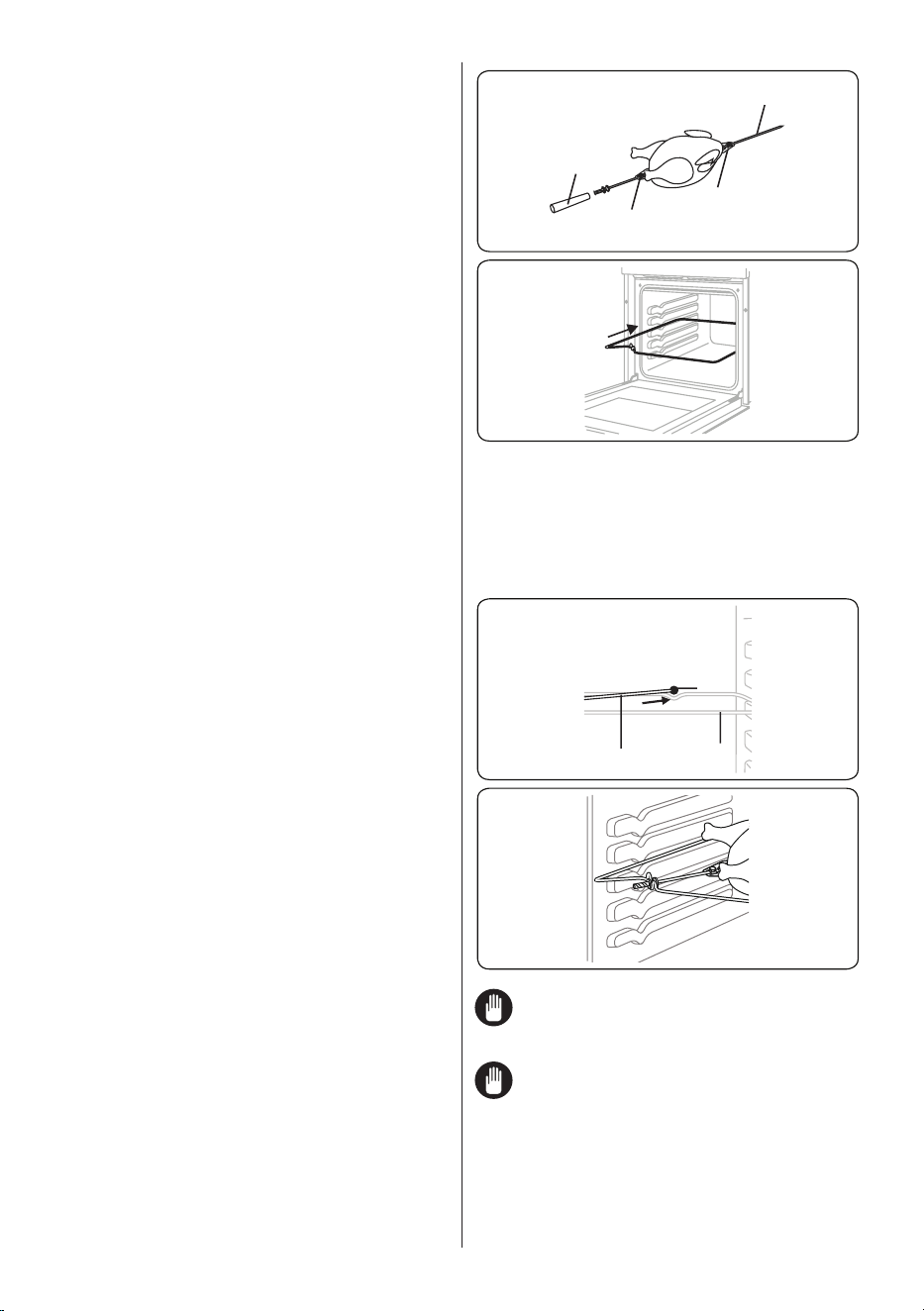

The Rotisserie
1. Loosen the screws on the skewer clamps
(b) and pull them off the spit. Push the spit
through the chicken, slide the clamps back
on, and stick them into the chicken. Tighten
the screws.
2. Fit the skewer grid (c) into the
appropriate rack.
a
b
b
e
1
2
c
3. Insert the tip of the skewer (a) into the
skewer insertion hole (d).
4. Fit the skewer on the skewer grid,
remove the handle and close the oven door.
The handle (e) must only be attached for
removing the chicken after roasting.
a
c
d
3
4
Important: Make sure the oven is not
in operation while performing these
steps.
Place the grill heat deflector under the
control panel if your oven does not
support closed-door grilling.
The Small Tray
The small tray is best used for baking
pastry.
Place the tray in the centre of a wire grid.
EN - 27
Wire Rack with Easyfix Full Extension
Telescopic Rail
The telescopic rail extends out fully to allow
easy access to your food.
Telescopic rails
Clean the accessories thoroughly with
warm water, detergent and a soft clean
cloth on first use.
Fastening tab
Fastener
• Positioning of the telescopic rails on the
wire rack is secured with the fastening
tabs on the fasteners.
• Remove the side runner. See section
“Removal of the wire shelf”.
• On each telescopic rail there are top
and bottom fasteners that allows you to
reposition the rails.
• Hang the telescopic rail top fasteners
on the side rack level reference wire
and simultaneously press the bottom
fasteners until you clearly hear the
fasteners clip into the side rack level
fixing wire.
• In order to remove, hold the front
surface of the rail and follow the
previous instructions in reverse.
The Telescopic Wire Grid
The Telescopic wire grid is best used for
grilling or for processing food in oven-
friendly containers.
WARNING
Be sure to place the telescopic wire
grid on the rail arms, between the rail
stopers shown in figure.
Rail
stopers
The number of wire racks changes
depening on the model of your product.The

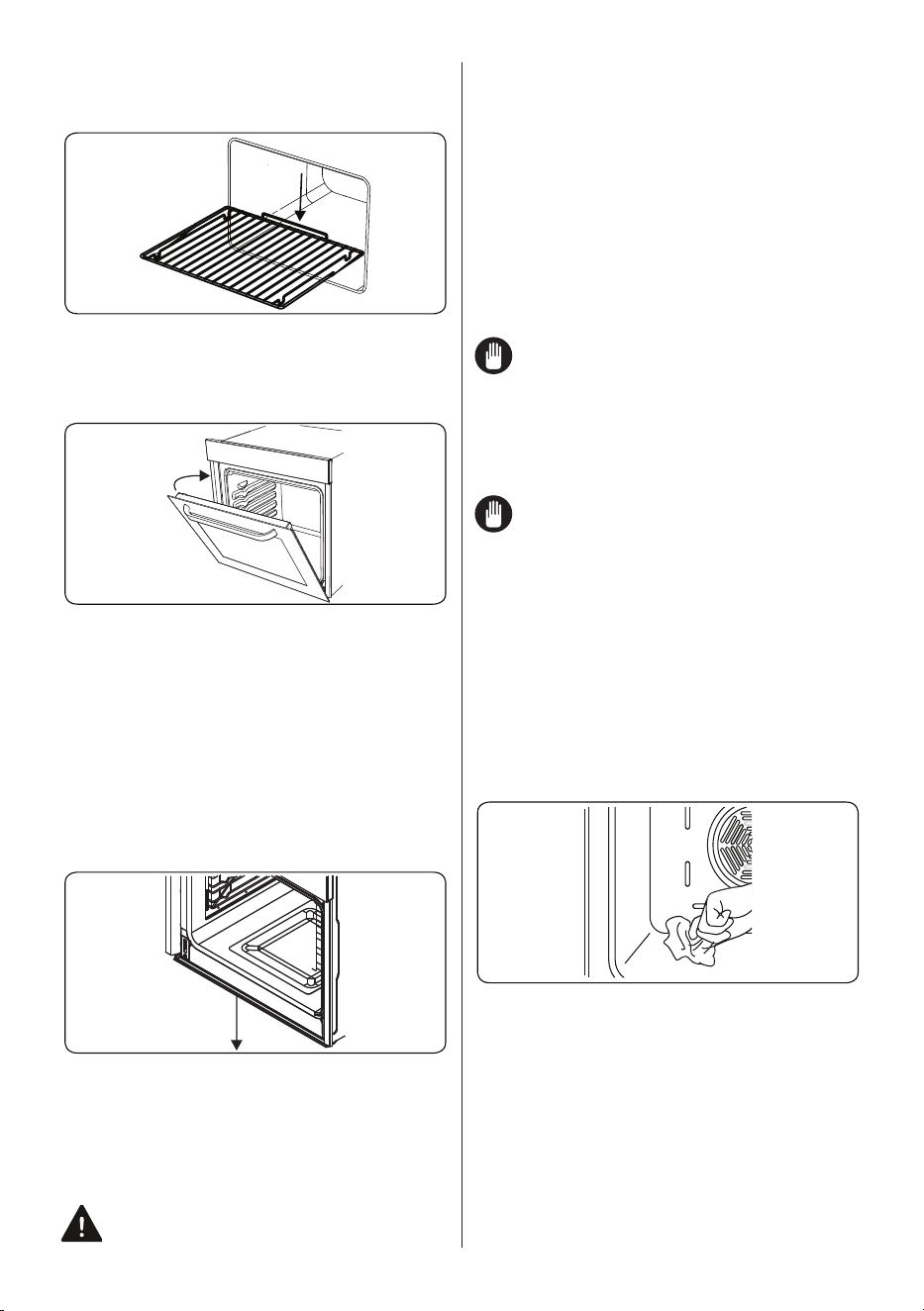

Wire Grid
The wire grid is best used for grilling or for
processing food in oven-friendly containers.
WARNING
EN - 28
Place the grid to any corresponding rack in
the oven cavity correctly and push it to the
end.
Soft-Close Oven Door
The oven door closes slowly by itself when
it is released just before the closed position.
The Water Collector
In some cases of cooking, condensation
may appear on the inner glass of the oven
door. This is not a product malfunction.
Open the oven door into the grilling position
and leave it in this position for 20 seconds.
Water will drip to the collector.
Cool the oven and wipe the inside of the
door with a dry towel. This procedure must
be applied regularly.
5. CLEANING AND
MAINTENANCE
5.1 CleaninG
WARNING: Switch off the appliance
and allow it to cool before cleaning is
to be carried out.
General Instructions
• Check whether the cleaning materials
are appropriate and recommended by
the manufacturer before use on your
appliance.
• Use cream cleaners or liquid cleaners
which do not contain particles. Do not
use caustic (corrosive) creams, abrasive
cleaning powders, rough wire wool or
hard tools as they may damage the
cooker surfaces.
Do not use cleaners that contain
particles as they may scratch the
glass, enamelled and/or painted parts
of your appliance.
• Should any liquids overflow, clean them
immediately to avoid parts becoming
damaged.
Do not use steam cleaners for
cleaning any part of the appliance.
Cleaning the Inside of the Oven
• The inside of enamelled ovens are best
cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked
in soapy water after each use. Then,
wipe the oven over again with a wet
cloth and dry it.
• You may need to use a liquid cleaning
material occasionally to completely
clean the oven.
Cleaning the Glass Parts
• Clean the glass parts of your appliance
on a regular basis.
• Use a glass cleaner to clean the inside
and outside of the glass parts. Then,
rinse and dry them thoroughly with a dry
cloth.
Cleaning the Stainless Steel Parts (if
available)
• Clean the stainless steel parts of your
EN - 29
appliance on a regular basis.
• Wipe the stainless steel parts with a soft
cloth soaked in only water. Then, dry
them thoroughly with a dry cloth.
Do not clean the stainless steel parts
while they are still hot from cooking.
Do not leave vinegar, coffee, milk, salt,
water, lemon or tomato juice on the
stainless steel for a long time.

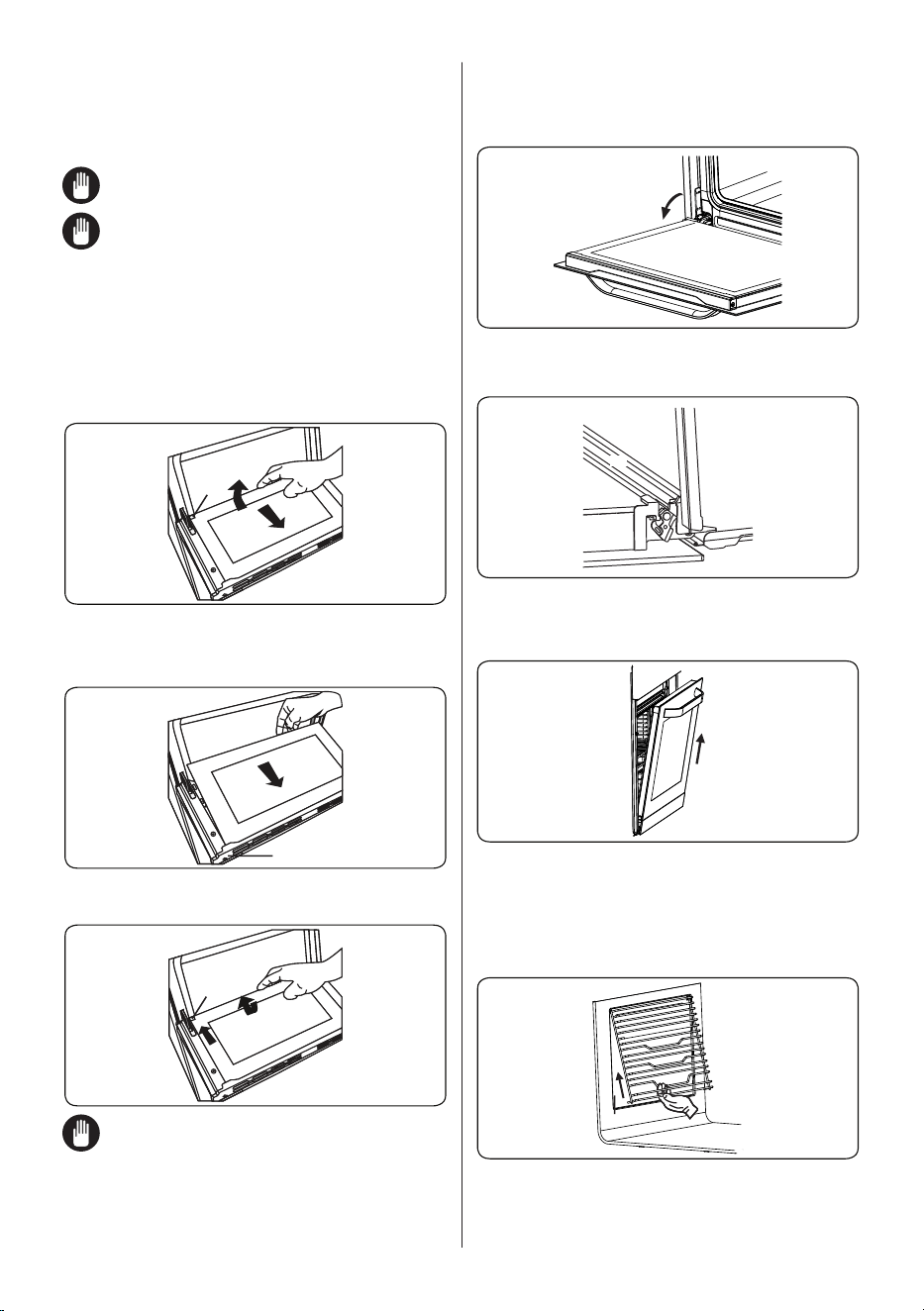

Removal of the Inner Glass
You must remove the oven door glass
before cleaning, as shown below.
1. Push the glass in the direction of B and
release from the location bracket (x). Pull
the glass out in the direction of A.
x
A
B
To replace the inner glass:
1. Push the glass towards and under the
location bracket (y), in the direction of B.
y
B
3. Place the glass under the location
bracket (x) in the direction of C.
x
C
If the oven door is a triple glass oven
door, the third glass layer can be
removed the same way as the second
glass layer.
Removal of the Oven Door
Before cleaning the oven door glass, you
must remove the oven door, as shown
below.
1. Open the oven door.
2. Open the locking catch (a) (with the aid
of a screwdriver) up to the end position.
a
3. Close the door until it is almost in the
fully closed position, and remove the door
by pulling it towards you.
Removal of the Wire Shelf
To remove the wire rack, pull the wire rack
as shown in the figure. After releasing it
from the clips (a), lift it up.
a
EN - 30
5.2 MaintenanCe
WARNING: The maintenance of this
appliance should be carried out by an
authorised service person or qualified
technician only.
Changing the Oven Lamp
WARNING:
Switch off the appliance
and allow it to cool before replacing
the lamp to avoid the posibility of
electric shock.
•
Remove the glass lens, then remove the
bulb.
•
Insert the new bulb (resistant to 300 °C)
to replace the bulb that you removed
(230 V, 15-25 Watt, Type E14).
•
Replace the glass lens, and your oven
is ready for use.
The lamp is designed specifically for
use in household cooking appliances.
It is not suitable for household room
illumination.
EN - 31
6. TROUBLESHOOTING&TRANSPORT
6.1 troubleShootinG
If you still have a problem with your appliance after checking these basic
troubleshooting steps, please contact an authorised service person or qualified
technician.
Problem Possible Cause Solution
Oven does not switch on. Power is switched off.
Check whether there is power supplied.
Also check that other kitchen appliances
are working.
No heat or oven does not
warm up.
Oven temperature control is
incorrectly set.
Oven door has been left open.
Check that the oven temperature control
knob is set correctly.
Oven light (if available) does
not operate.
Lamp has failed.
Electrical supply is disconnected or
switched off.
Replace lamp according to the
instructions.
Make sure the electrical supply is
switched on at wall socket outlet.
Cooking is uneven within
the oven.
Oven shelves are incorrectly
positioned.
Check that the recommended
temperatures and shelf positions are
being used.
Do not frequently open the door unless
you are cooking things that need to be
turned. If you open the door often, the
interior temperature will be lower and this
may affect the results of your cooking.
The timer buttons cannot be
pressed properly.
There is foreign matter caught
between the timer buttons.
Touch model: there is moisture on
the control panel.
The key lock function is set.
Remove the foreign matter and try again.
Remove the moisture and try again.
Check whether the key lock function is
set.
The oven fan (if available)
is noisy.
Oven shelves are vibrating.
Check that the oven is level.
Check that the shelves and any bake
ware are not vibrating or in contact with
the oven back panel.
The cooling fan continues
to operate after the oven is
switched off.
Electronically-controlled oven fan
automatically runs for a certain
amount of time to cool the oven.
The fan switches off automatically when
the electronic components have cooled
sufficiently.
The oven has switched
itself off.
Electronically-controlled ovens
switch off automatically if no function
is in operation.
The oven will switch itself off automatically
to save energy if no other action is taken
within a certain time frame after switching
it on or after the end of a cooking
programme.
If the door is opened during
a fan-assisted function, the
internal fan will stop.
Electronically-controlled ovens with
a door switch will stop cooking if the
oven door is opened.
It is a normal operation of the appliance,
useful when cooking foods in order to
avoid excessive heat escaping. When
the door is closed, the oven will restart to
normal operation.
6.2 tranSport
If you need to transport the product, use the original product packaging and carry it using
its original case. Follow the transport signs on the packaging. Tape all independent parts to
the product to prevent damaging the product during transport.
If you do not have the original packaging, prepare a carriage box so that the appliance,
especially the external surfaces of the product, is protected against external threats.
MANUFACTURER GUARANTEE
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460
(Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN
9429000069823 (Phone number 09 274 8265) in respect of the Belling Design product.
1. Belling Design Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a)
In the case of
Belling Design
products used for personal, domestic or household purposes,
a period of
5
years
from the date the product is purchased as a brand-
new product from a
retailer located in Australia / New Zealand.
b) In the case of Belling Design products used for purposes other than personal, domestic or
household purposes (including business or commercial use), a period of 90 days from the
date the product is purchased as a brand-new product from a retailer located in Australia /
New Zealand. Belling Design products are designed and intended for domestic use only;
and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent
Note: warranty periods detailed above may vary in line with agreements with select retail and
builder partners and may differ between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees
referred to in section 3 and any other statutory rights you may have under the Australian / New
Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance with the
product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect
installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance,
unauthorised modification, use on an incorrect voltage, power surges and dips, voltage
supply problems, tampering or unauthorised repairs by any persons, use of defective or
incompatible accessories or exposure to abnormally corrosive conditions, events
independent of human control which occurred after the goods left the control of Glen
Dimplex;
c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any
other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand
Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line
or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of
this document
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you first become
aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a
store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at
which the product is located at times nominated by us (so that we can inspect the product).
5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply,
we will, at our election, either repair the product or replace the product with a product of identical
specification (or where the product is superseded or no longer in stock, with a product of as close a
specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this
warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without affecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.
Whilst every effort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical,
plumbing and building codes, with compliance being issued as required by state or national
legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the
relevant standards by a licenced installer.
For maximum effectiveness and efficiency all rangehoods should be installed with the use of
ductwork, by a licenced installer with adherence to the relevant state and national building codes
and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines. Any
installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
Distributed by:
Glen Dimplex New Zealand LtdGlen Dimplex Australia Pty Ltd
For full terms and conditions, or to register your product warranty, please visit our website:
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, please contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 09 274 8265Ph: 1300 556 816
VERSION
1
REVISION
20
200402
