INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE
USING THE UNIT.
www.belling.com.au
www.belling.co.nz
BDO609PYBK
9 Function Pyrolytic Oven with 90L Capacity
EN - 2
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for selecting this oven from the Belling Design Collection .
This User Manual contains important safety information and instructions on the
operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.
CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................4
1.1 General Safety Warnings ...............................................................................................4
1.2 Installation Warnings ......................................................................................................6
1.3 During Use .....................................................................................................................7
1.4 During Cleaning and Maintenance .................................................................................8
2.INSTALLATION AND PREPARATION FOR USE ..........................................................10
2.1 Instructions for the Installer ..........................................................................................10
2.2 Installation of the Oven .................................................................................................10
2.3 Electrical Connection and Safety.................................................................................. 11
3.PRODUCT FEATURES ...................................................................................................13
4.USE OF PRODUCT ........................................................................................................14
4.1 Oven Controls...............................................................................................................14
4.2 Cooking Table ...............................................................................................................15
4.3 Use of the Touch Programmer ......................................................................................16
4.4 Accessories ..................................................................................................................17
5.CLEANING AND MAINTENANCE .................................................................................19
5.1 Cleaning ...................................................................................................................19
5.2 Maintenance .................................................................................................................21
6.TROUBLESHOOTING&TRANSPORT ........................................................................... 22
6.1 Troubleshooting ............................................................................................................22
6.2 Transport ...................................................................................................................22
7.WARRANTY
.................................................................................................
23
1.
SAFETY INSTRUCTIONS
•
Carefully read all instructions before using your
appliance and keep them in a convenient place for
reference when necessary.
•
This manual has been prepared for more than one
model therefore your appliance may not have some
of the features described within. For this reason, it
is important to pay particular attention to any figures
whilst reading the operating manual.
1.1
General Safety WarninGS
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
WARNING:
The appliance and its accessible parts
become hot during use. Young children should be
kept away.
• Children should be supervised to ensure that they
do not play with the appliance.
WARNING: Danger of fire: Do not store items
on the cooking surfaces.
WARNING:
If the surface is cracked, switch off
the appliance to avoid the possibility of electric shock.
•
Do not operate the appliance with an external timer
or separate remote-control system.
•
During use the appliance will get hot. Care should
be taken to avoid touching heating elements inside
the oven
EN - 4
•
Handles may get hot after a short period during use.
•
Do not use harsh abrasive cleaners or scourers
to clean the oven door glass and other surface.
They can scratch the surfaces which may result in
shattering of the door glass or damage to surfaces.
•
Do not use steam cleaners for cleaning the
appliance.
WARNING:
To avoid the possibility of electric
shock, make sure that the appliance is switched off
before replacing the lamp.
CAUTION:
Accessible parts may be hot when
cooking or grilling. Keep young children away from the
appliance when it is in use.
•
Your appliance is produced in accordance with all
applicable local and international standards and
regulations.
•
Maintenance and repair work should only be carried
out by authorised service technicians. Installation
and repair work that is carried out by unauthorised
technicians may be dangerous. Do not alter or
modify the specifications of the appliance in any
way. Inappropriate hob guards can cause accidents.
•
Before connecting your appliance, make sure
that the local distribution conditions (nature of the
gas and gas pressure or electricity voltage and
frequency) and the specifications of the appliance
are compatible. The specifications for this appliance
are stated on the label.
CAUTION:
This appliance is designed only for
cooking food and is intended for indoor domestic
household use only. It should not be used for any
other purpose or in any other application, such as for
non-domestic use, in a commercial environment or for
EN - 5
heating a room.
•
Do not use the oven door handles to lift or move the
appliance.
•
All possible measures have been taken to ensure
your safety. Since the glass may break, care should
be taken while cleaning to avoid scratching. Avoid
hitting or knocking the glass with accessories.
•
Make sure that the supply cord is not trapped or
damaged during installation. If the supply cord is
damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in
order to prevent a hazard.
•
Do not let children climb on the oven door or sit on it
while it is open.
•
Please keep children and animals away from this
appliance.
1.2
inStallation WarninGS
•
Do not operate the appliance before it is fully
installed.
•
The appliance must be installed by an authorised
technician. The manufacturer is not responsible
for any damage that might be caused by defective
placement and installation by unauthorised people.
•
When the appliance is unpacked, make sure that
it is has not been damaged during transportation.
In case of any defect do not use the appliance
and contact a qualified service agent immediately.
The materials used for packaging (nylon, staplers,
Styrofoam, etc.) may be harmful to children and they
should be collected and removed immediately.
•
Protect your appliance from the atmosphere. Do not
expose it to effects such as sun, rain, snow, dust or
excessive humidity.
EN - 6
EN - 7
• Any materials (i.e. cabinets) around the appliance
must be able to withstand a minimum temperature
of 100°C.
• The appliance must not be installed behind a
decorative door, in order to avoid overheating.
1.3 DurinG uSe
• When you first use your oven you may notice a
slight smell. This is perfectly normal and is caused
by the insulation materials on the heater elements.
We suggest that, before using your oven for the
first time, you leave it empty and set it at maximum
temperature for 45 minutes. Make sure that the
environment in which the product is installed is well
ventilated.
• Take care when opening the oven door during or
after cooking. The hot steam from the oven may
cause burns.
• Do not put flammable or combustible materials in or
near the appliance when it is operating.
• Always use oven gloves to remove and replace food
in the oven.
• Under no circumstances should the oven be lined
with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the
base of the oven whilst cooking. The base becomes
very hot and damage may be caused to the product.
Do not leave the oven unattended while cooking
with solid or liquid oils. They may catch fire under
extreme heating conditions. Never pour water on to
flames that are caused by oil, instead switch the oven
off and cover the pan with its lid or a fire blanket.
• If the product will not be used for a long period of
time, turn the main control switch off.
EN - 8
• Make sure the appliance control knobs are always
in the “0” (stop) position when it is not in use.
• The trays incline when pulled out. Take care not
to spill or drop hot food while removing it from the
ovens.
• Do not place anything on the oven door when it is
open. This could unbalance the oven or damage the
door.
• Do not hang towels, dishcloths or clothes from the
appliance or its handles.
1.4 DurinG CleaninG anD MaintenanCe
• Make sure that your appliance is turned off at
the mains before carrying out any cleaning or
maintenance operations.
• Do not remove the control knobs to clean the control
panel.
• To maintain the efficiency and safety of your
appliance, we recommend you always use original
spare parts and to call our authorised service agents
in case of need.
EN - 9
waste disposal service or the retailer who you
purchased this product from.
Disposal of your old machine
This symbol on the product or on its packaging
indicates that this product should not be
treated as household waste. Instead it should
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product,
please contact your local city office, your household
EN - 10
2. INSTALLATION AND
PREPARATION FOR USE
WARNING : This appliance must be
installed by an authorised service
person or qualified technician, according to
the instructions in this guide and in
compliance with the current local
regulations.
• Incorrect installation may cause harm
and damage, for which the manufacturer
accepts no responsibility and the
warranty will not be valid.
• Prior to installation, ensure that the local
distribution conditions (electricity voltage
and frequency) and the adjustments
of the appliance are compatible. The
adjustment conditions for this appliance
are stated on the label.
• The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.).
2.1
inStruCtionS for the inStaller
General instructions
• After removing the packaging material
from the appliance and its accessories,
ensure that the appliance is not
damaged. If you suspect any damage,
do not use it and contact an authorised
service person or qualified technician
immediately.
• Make sure that there are no flammable
or combustible materials in the close
vicinity, such as curtains, oil, cloth etc.
which may catch fire.
• The worktop and furniture surrounding
the appliance must be made of
materials resistant to temperatures
above 100°C.
• The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes
dryer.

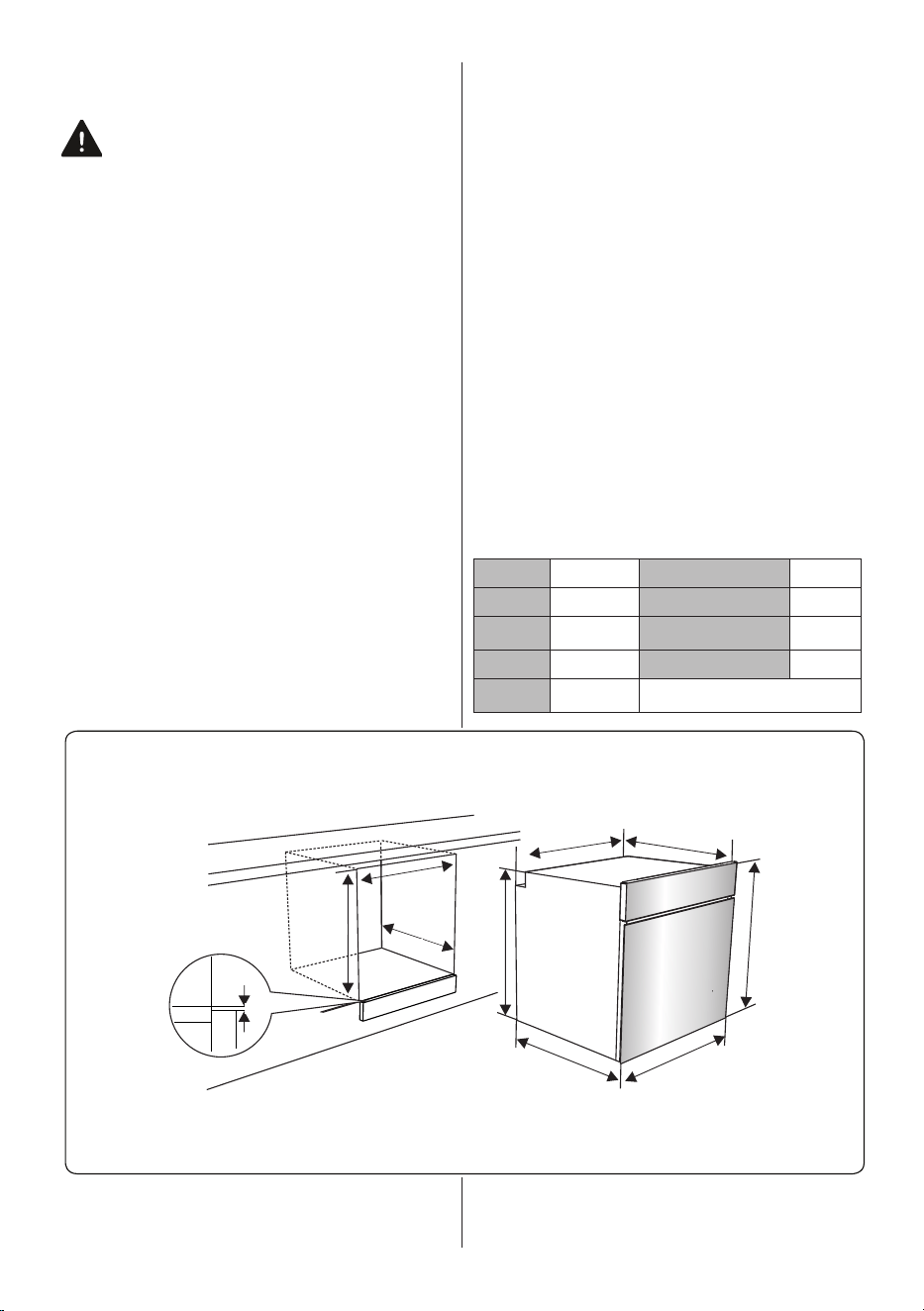

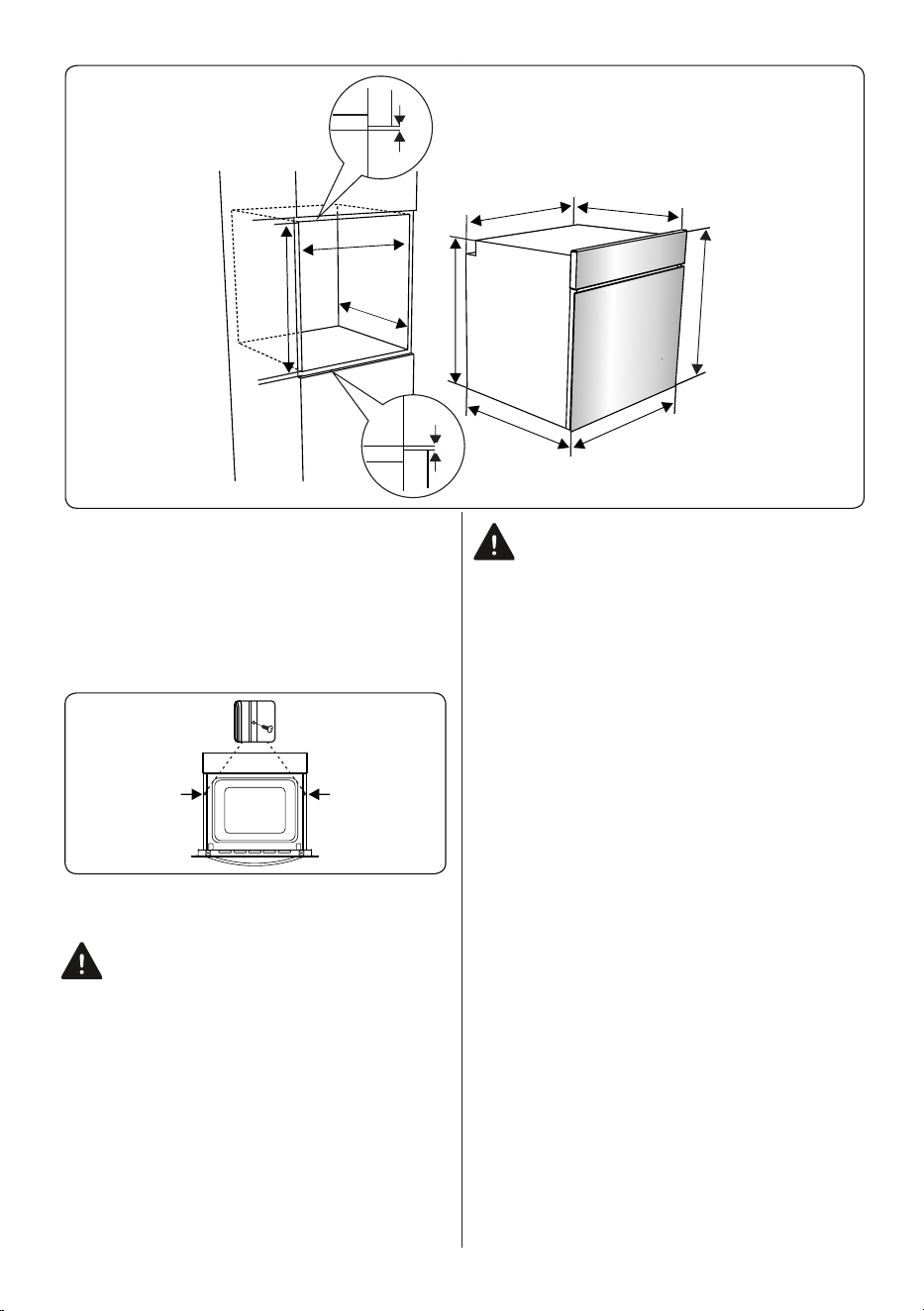

2.2
inStallation of the oven
The appliances are supplied with
installation kits and can be installed in a
worktop with the appropriate dimensions.
The dimensions for hob and oven
installation are given below.
A (mm) 557 min./max. F (mm) 560/580
B (mm) 550 min. G (mm) 555
C (mm) 595 min. H/I (mm) 600/590
D (mm) 575 min. J/K (mm) 5/10
E (mm) 574
F
A B
C
C
D
E
G
H
J
Installation under a worktop
EN - 11
F
A
B
C
C
D
E
G
I
J
K
Installation in a wall unit
After making the electrical connections,
insert the oven into the cabinet by pushing
it forward. Open the oven door and insert
2 screws in the holes located on the oven
frame. While the product frame touches the
wooden surface of the cabinet, tighten the
screws.
2.3 eleCtriCal ConneCtion anD Safety
WARNING: The electrical connection
of this appliance should be carried out
by an authorised service person or
qualified electrician, according to the
instructions in this guide and in compliance
with the current local regulations.
WARNING: THE APPLIANCE MUST
BE EARTHED.
• Before connecting the appliance to the
power supply, the voltage rating of the
appliance (stamped on the appliance
identification plate) must be checked for
correspondence to the available mains
supply voltage, and the mains electric
wiring should be capable of handling the
appliance’s power rating (also indicated
on the identification plate).
• During installation, please ensure
that isolated cables are used. An
incorrect connection could damage
your appliance. If the mains cable is
damaged and needs to be replaced
this should be done by a qualified
personnel.
• Do not use adaptors, multiple sockets
and/or extension leads.
• The supply cord should be kept away
from hot parts of the appliance and must
not be bent or compressed. Otherwise
the cord may be damaged, causing a
short circuit.
• If the appliance is not connected
to the mains with a plug, a all-pole
disconnector (with at least 3 mm contact
spacing) must be used in order to meet
the safety regulations.
EN - 12
• The appliance is designed for a power
supply of 220-240V ~ and 380-415V
3N~. If your supply is different, contact
the authorised service person or a
qualified electrician.
• The power cable (H05VV-F) must be
long enough to be connected to the
appliance, even if the appliance stands
on the front of its cabinet.
• Ensure all connections are adequately
tightened.
• Fix the supply cable in the cable clamp
and then close the cover.
• The terminal box connection is placed
on the terminal box.
Brown
Yellow+Green
Blue
EN - 13
3. PRODUCT FEATURES
Important: Specifications for the product vary and the appearance of your appliance
may differ from that shown in the figures below.

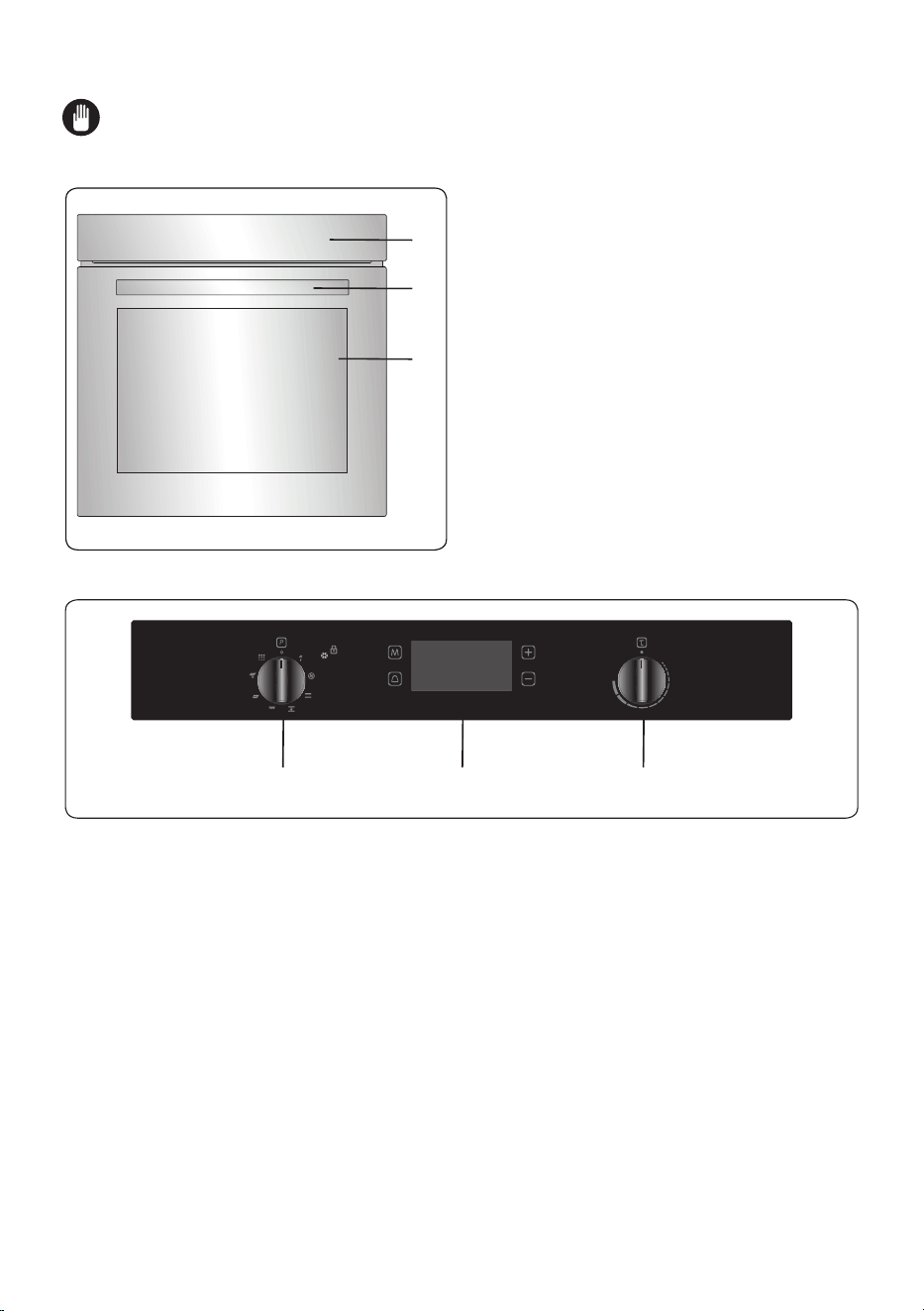

List of Components
1
2
3
1. Control Panel
2. Oven Door Handle
3. Oven Door
Control Panel
4. Timer
5. Oven Function Control Knob
6. Oven Thermostat Knob
5 4
6
EN - 14
4. USE OF PRODUCT
4.1 oven ControlS
Oven function control knob
Turn the knob to the corresponding symbol
of the desired cooking function. For the
details of different functions see ´Oven
Functions`.
Oven thermostat knob
After selecting a cooking function, turn
this knob to set the desired temperature.
The oven thermostat light will illuminate
whenever the thermostat is in operation
to heat up the oven or maintain the
temperature.

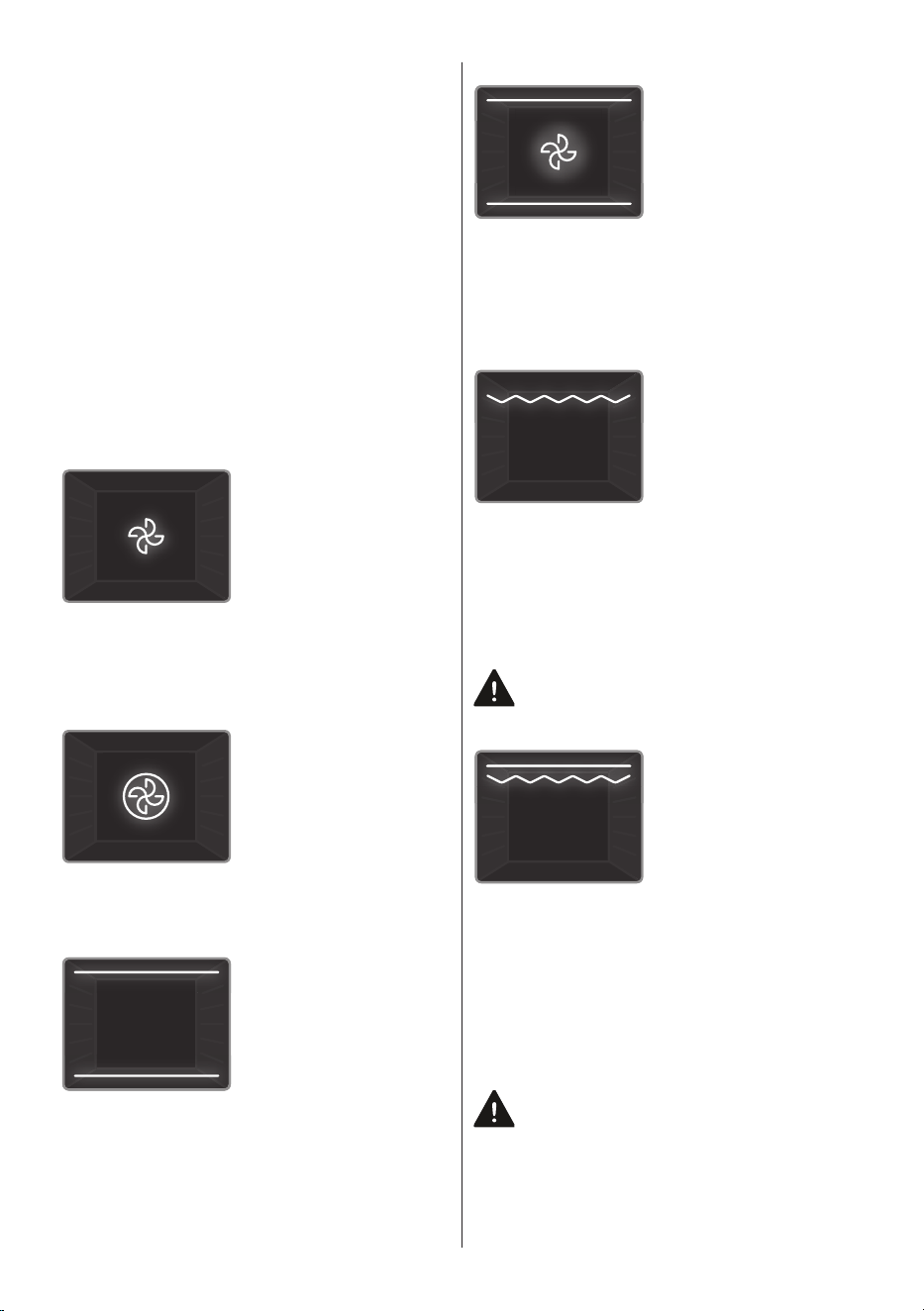

Oven Functions
* The functions of your oven may be
different due to the model of your product.
Defrost Function: The
oven’s warning lights
will switch on and the
fan will start to operate.
To use the defrost
function, place your
frozen food in the oven
on a shelf in the third slot from the bottom.
It is recommended that you place an oven
tray under the defrosting food to catch the
water accumulated due to melting ice. This
function will not cook or bake your food, it
will only help to defrost it.
Turbo Function: The
oven’s thermostat and
warning lights will
switch on, and the ring
heating element and
fan will start operating.
The turbo function
evenly disperses the heat in the oven so all
food on all racks will cook evenly. It is
recommended that you preheat the oven for
about 10 minutes.
Static Cooking
Function: The oven’s
thermostat and
warning lights will
switch on, and the
lower and upper
heating elements will
start operating. The
static cooking function emits heat, ensuring
even cooking of food. This is ideal for
making pastries, cakes, baked pasta,
lasagne and pizza. Preheating the oven for
10 minutes is recommended and it is best
to use only one shelf at a time in this
function.
Fan Function: The
oven’s thermostat and
warning lights will
switch on, and the
upper and lower
heating elements and
fan will start operating.
This function is good for baking pastry.
Cooking is carried out by the lower and
upper heating elements within the oven and
by the fan, which provides air circulation,
giving a slightly grilled effect to the food. It
is recommended that you preheat the oven
for about 10 minutes.
Grilling Function: The
oven’s thermostat and
warning lights will
switch on, and the grill
heating element will
start operating. This
function is used for
grilling and toasting foods on the upper
shelves of the oven. Lightly brush the wire
grid with oil to stop food sticking and place
food in the centre of the grid. Always place
a tray beneath the food to catch any drips
of oil or fat. It is recommended that you
preheat the oven for about 10 minutes.
Warning: When grilling, the oven door
must be closed and the oven
temperature should be adjusted to
190°C.
Faster Grilling
Function: The oven’s
thermostat and
warning lights will
switch on, and the grill
and upper heating
elements will start
operating. This function is used for faster
grilling and for grilling food with a larger
surface area, such as meat. Use the upper
shelves of the oven. Lightly brush the wire
grid with oil to stop food sticking and place
food in the centre of the grid. Always place
a tray beneath the food to catch any drips
of oil or fat. It is recommended that you
preheat the oven for about 10 minutes.
Warning: When grilling, the oven door
must be closed and the oven
temperature should be adjusted to
190°C.
EN - 15
Double Grill and Fan
Function: The oven’s
thermostat and
warning lights will
switch on, and the grill,
upper heating
elements and fan will
start operating. This function is used for
faster grilling of thicker food and for grilling
of food with a larger surface area. Both the
upper heating elements and grill will be
energised along with the fan to ensure even
cooking. Use the upper shelves of the oven.
Lightly brush the wire grid with oil to stop
food sticking and place food in the centre of
the grid. Always place a tray beneath the
food to catch any drips of oil or fat. It is
recommended that you preheat the oven for
about 10 minutes.
Warning: When grilling, the oven door
must be closed and the oven
temperature should be adjusted to 190°C.
Pyrolytic Cleaning Function: This
function allows you to clean the
inside of the oven thoroughly.
Warning: Before activating the
pyrolytic cleaning function, remove any
excessive spillage and make sure that the
oven is empty. Do not leave anything inside
the oven cavity in order to prevent damage.
• Before activating the pyrolytic cleaning
function, remove the wire oven shelves
and shelf supports (if available) and
ensure the oven door is closed.
• The oven door will lock when the
pyrolytic function starts.
• When the pyrolytic cleaning function
is on, it is advisable not to use a hob if
it is fitted above the oven. This could
cause overheating and damage to both
appliances.
• During the pyrolytic cleaning cycle the
oven door will become hot. Children
should be kept away until it has cooled.
• At the end of pyrolytic cleaning process,
the display will show the time of day.

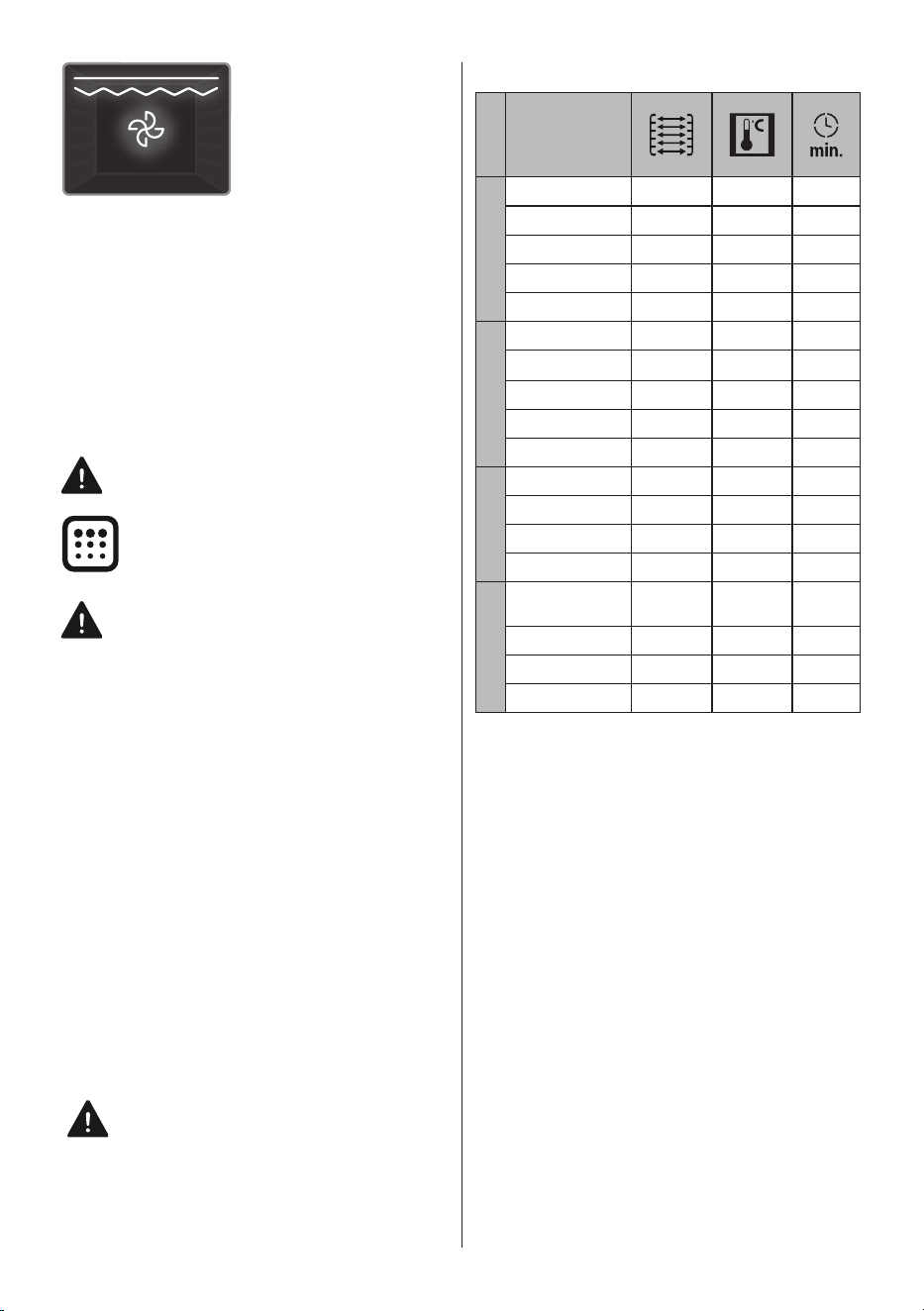

4.2 CookinG table
Function
Dishes
Static
Puff Pastry 2-3-4 170-190 35-45
Cake 2-3-4 170-190 30-40
Cookie 2-3-4 170-190 30-40
Stew 2 175-200 40-50
Chicken 2-3-4 200 45-60
Fan
Puff Pastry 2-3-4 170-190 25-35
Cake 2-3-4 150-170 25-35
Cookie 2-3-4 150-170 25-35
Stew 2 175-200 40-50
Chicken 2-3-4 200 45-60
Turbo
Puff Pastry 2-3-4 170-190 35-45
Cake 2-3-4 150-170 30-40
Cookie 2-3-4 150-170 25-35
Stew 2 175-200 40-50
Grilling
Grilled
meatballs
7 200 10-15
Chicken * 190 50-60
Chop 6-7 200 15-25
Beefsteak 6-7 200 15-25
*If available cook with roast chicken skewer.
Warning: When activating the
pyrolytic cleaning function, accessible
surfaces may get hotter than usual.
Children should be kept away.
EN - 16

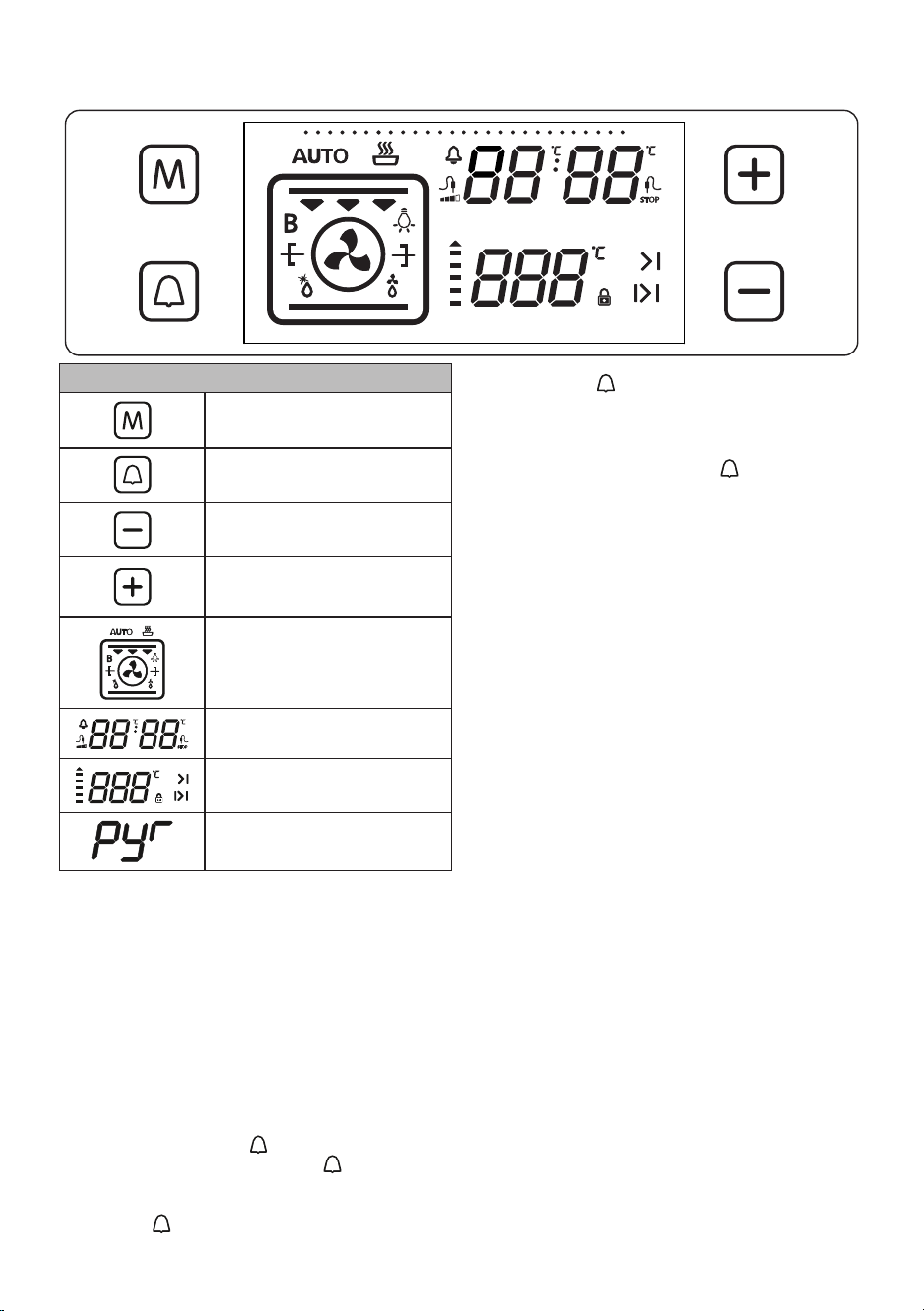

4.3 uSe of the touCh
ProGraMMer
Function Description
Mode key
Alarm key
Time setting key
Time setting/Temperature
settings for meat probe/ Key
lock key
Oven function display
Timer display
Temperature display
Pyrolytic cleaning
Adjusting the Time of Day
When the oven is switched on for the first
time after installation, “0.00” will flash on
the display. Press the “M” sensor button, or
the “+” and “-” buttons simultaneously. The
colon ´:` on the display will flash. You can
adjust and set the time of day using the “+”
and “-” sensor button. The time must be set
to enable use of the oven functions.
Adjusting the Cooking Time
Adjusting the Minute Minder
To set a Minute Minder timer, press the
alarm sensor button “
”, “0.00” will appear
on the
Timer display and the “
” symbol
will flash. Use the “+” and “-” sensor buttons
to adjust the desired warning time period
while the “ ” symbol is flashing.
Once you
have completed setting the time period,
wait until the “ ” symbol stops flashing and
remains illuminated. The audible warning
time will be set.
When the timer reaches zero, an audible
warning will sound and the “ ” symbol will
flash on the screen. Pressing “+” or “-” will
stop the audible warning and the symbol
will disappear from the screen.
Adjusting the Cooking Duration Time
This function helps you to cook for a
fixed period of time. Prepare the food
for cooking and put it in the oven. Then,
select the desired cooking function and the
temperature. Press the “M” sensor until
you see the Duration Time symbol “I>I” on
the Timer display screen. Set the required
cooking period using the “+” and “-” sensor
buttons while the timer is in this position.
AFTER SET THE REQUIRED COOKING
PERIOD, “AUTO” appear on the Timer
display screen. When you have completed
the adjustment, wait until the current time of
day is displayed on the screen and until the
Duration Time symbol remains illuminated.
When the timer reaches zero, the oven will
switch off, an audible warning will sound
and “AUTO” will flash on the screen. Press
any sensor button on the control unit to stop
the warning sound, “AUTO” will continue
to flash. Press the “+” and “-” buttons
simultaneously to exit “AUTO” mode.
Adjusting the Cooking End Time
This function is used to begin cooking
after a certain period of time and for a
specific duration of time. Prepare the food
for cooking and put it in the oven. Then,
select the desired cooking function and the
temperature.
Press the “M” sensor button until you see
the Duration Time symbol “I>I” and “AUTO”
appear on the Timer display screen. Set
EN - 17
the required cooking period using the “+”
and “-” sensor buttons while the timer is in
this position. Then, press the “M” sensor
button until the “>|” symbol is displayed,
the time of day and the Cooking Duration
Time symbol will flash. Adjust the cooking
finish time using the “+” and “-” buttons
while the timer is in this position. When
you have completed the adjustment, wait
until the current time of day and “>|” remain
illuminated on the Timer display.
The oven will calculate the operating time
by deducting the cooking period from
the set finishing time, at which it will stop
operating. The timer will give an audible
warning and “AUTO” will continue to flash.
Press any timer button to stop the warning
sound, and press the “+” and “-” buttons
simultaneously to exit “AUTO” mode.
Digital Timer Sound Adjustment
Press and hold the “-” sensor button until
you hear an audible 'beep' sound. After
this, each time the “-” button is pressed, a
different 'beep' tone will sound. There are
three different types of sound. Select the
desired tone and do not press any other
buttons. After a short time, the selected
warning sound will be saved.
Key Lock Function
The key lock is used to avoid unintentional
changes being made to the oven settings.
Press and hold the “+” button until you see
the key lock symbol on the display screen.
To deactivate the key lock, press and hold
the “+” button until the key lock symbol
disappears from the display.
While the key lock is active, only the power
button will be usable, all other buttons will
remain locked.
If there is no oven activity for 6 hours
while the oven is operating, the oven will
automatically switch off.
4.4
aCCeSSorieS
The EasyFix Wire Rack
Clean the accessories thoroughly with
warm water, detergent and a soft clean
cloth on first use.
7
5
6
4
3
2
1
T2
T1
• Insert the accessory to the correct
position inside the oven.
• Allow at least a 1 cm space between the
fan cover and accessories.
• Take care removing cookware and/or
accessories out of the oven. Hot meals
or accessories can cause burns.
• The accessories may deform with heat.
Once they have cooled down, they will
recover their original appearance and
performance.
• Trays and wire grids can be positioned
on any level from of 1 to 7.
• Telescopic rail can be positioned on
levels T1, T2.
• Level 3 is recommended for single level
cooking.
• Level T2 is recommended for single
level cooking with the telescopic rails.
• Level 2 and Level 4 are recommended
for double level cooking.
• The turnspit wire grid must be
positioned on Level 3.
• Level T2 is used for turnspit wire grid
positioning with the telescopic rails.
****Accessories may vary depending on the
model purchased.

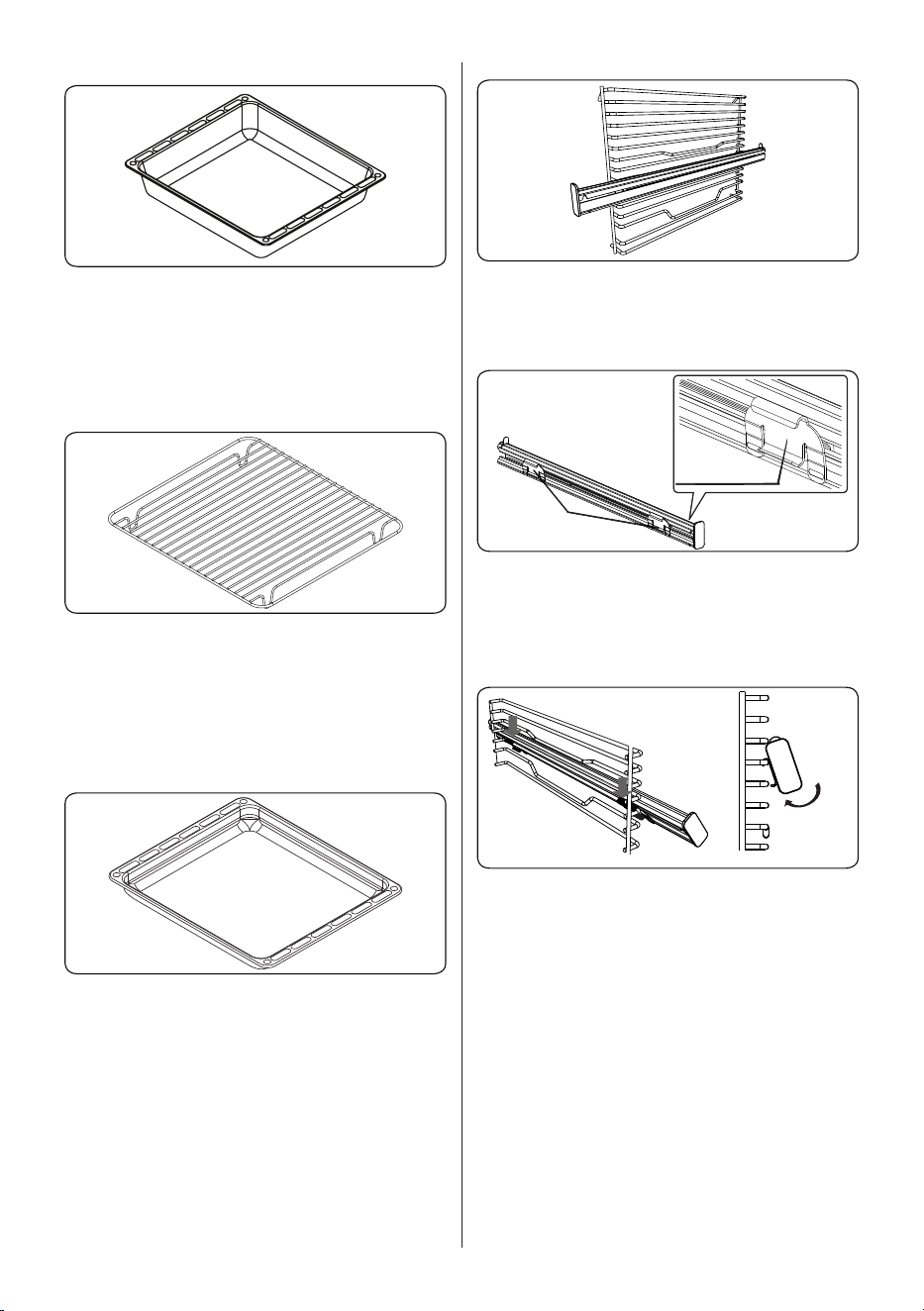

The 8 cm-deep Tray
The 8 centimetre-deep tray is best used for
cooking stews.
Put the tray into any rack and push it to the
end to make sure it is correctly placed. For
the most efficient use, place the tray on the
third shelf.
WARNING: The 8 cm-deep tray
should not be used on the first (lowest)
shelf. It is not recommended to
simultaneously cook food using two 8
cm-deep trays.
EN - 18
The Wire Grid for Deep Trays
Make sure the wire grid is correctly placed
within a deep tray. It is recommended
to use this accessory for grilling steaks,
meatballs and similar food.
The Deep Tray
The deep tray is best used for cooking
stews.
Put the tray into any rack and push it to the
end to make sure it is placed correctly.
Wire Rack with Easyfix Full Extension
Telescopic Rail
The telescopic rail extends out fully to allow
easy access to your food.
Telescopic rails
Clean the accessories thoroughly with
warm water, detergent and a soft clean
cloth on first use.
Fastening tab
Fastener
• Positioning of the telescopic rails on the
wire rack is secured with the fastening
tabs on the fasteners.
• Remove the side runner. See section
“Removal of the wire shelf”.
• On each telescopic rail there are top
and bottom fasteners that allows you to
reposition the rails.
• Hang the telescopic rail top fasteners
on the side rack level reference wire
and simultaneously press the bottom
fasteners until you clearly hear the
fasteners clip into the side rack level
fixing wire.
• In order to remove, hold the front
surface of the rail and follow the
previous instructions in reverse.

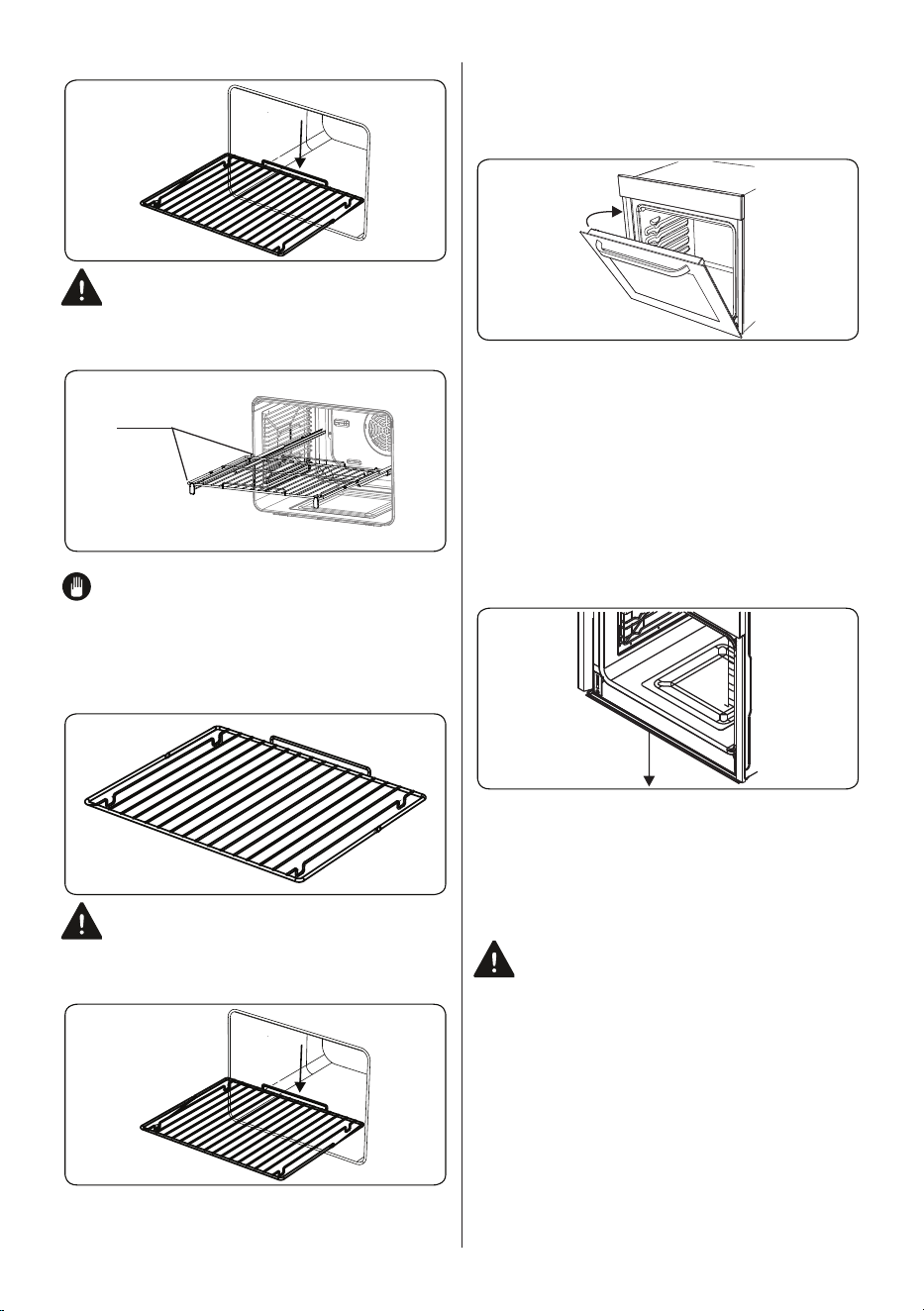

The Telescopic Wire Grid
The Telescopic wire grid is best used for
grilling or for processing food in oven-
friendly containers.
EN - 19
WARNING
Be sure to place the telescopic wire
grid on the rail arms, between the rail
stopers shown in figure.
Rail
stopers
The number of wire racks changes
depening on the model of your product.The
Wire Grid
The wire grid is best used for grilling or for
processing food in oven-friendly containers.
WARNING
Place the grid to any corresponding
rack in the oven cavity correctly and push it
to the end.
Soft-Close Oven Door
The oven door closes slowly by itself when
it is released just before the closed position.
The Water Collector
In some cases of cooking, condensation
may appear on the inner glass of the oven
door. This is not a product malfunction.
Open the oven door into the grilling position
and leave it in this position for 20 seconds.
Water will drip to the collector.
Cool the oven and wipe the inside of the
door with a dry towel. This procedure must
be applied regularly.
5. CLEANING AND
MAINTENANCE
5.1 CleaninG
WARNING: Switch off the appliance
and allow it to cool before cleaning is
to be carried out.
General Instructions
• Check whether the cleaning materials
are appropriate and recommended by
the manufacturer before use on your
appliance.
• Use cream cleaners or liquid cleaners
which do not contain particles. Do not
use caustic (corrosive) creams, abrasive
cleaning powders, rough wire wool or
hard tools as they may damage the
cooker surfaces.
EN - 20
Do not use cleaners that contain
particles as they may scratch the
glass, enamelled and/or painted parts
of your appliance.
• Should any liquids overflow, clean them
immediately to avoid parts becoming
damaged.
Do not use steam cleaners for
cleaning any part of the appliance.

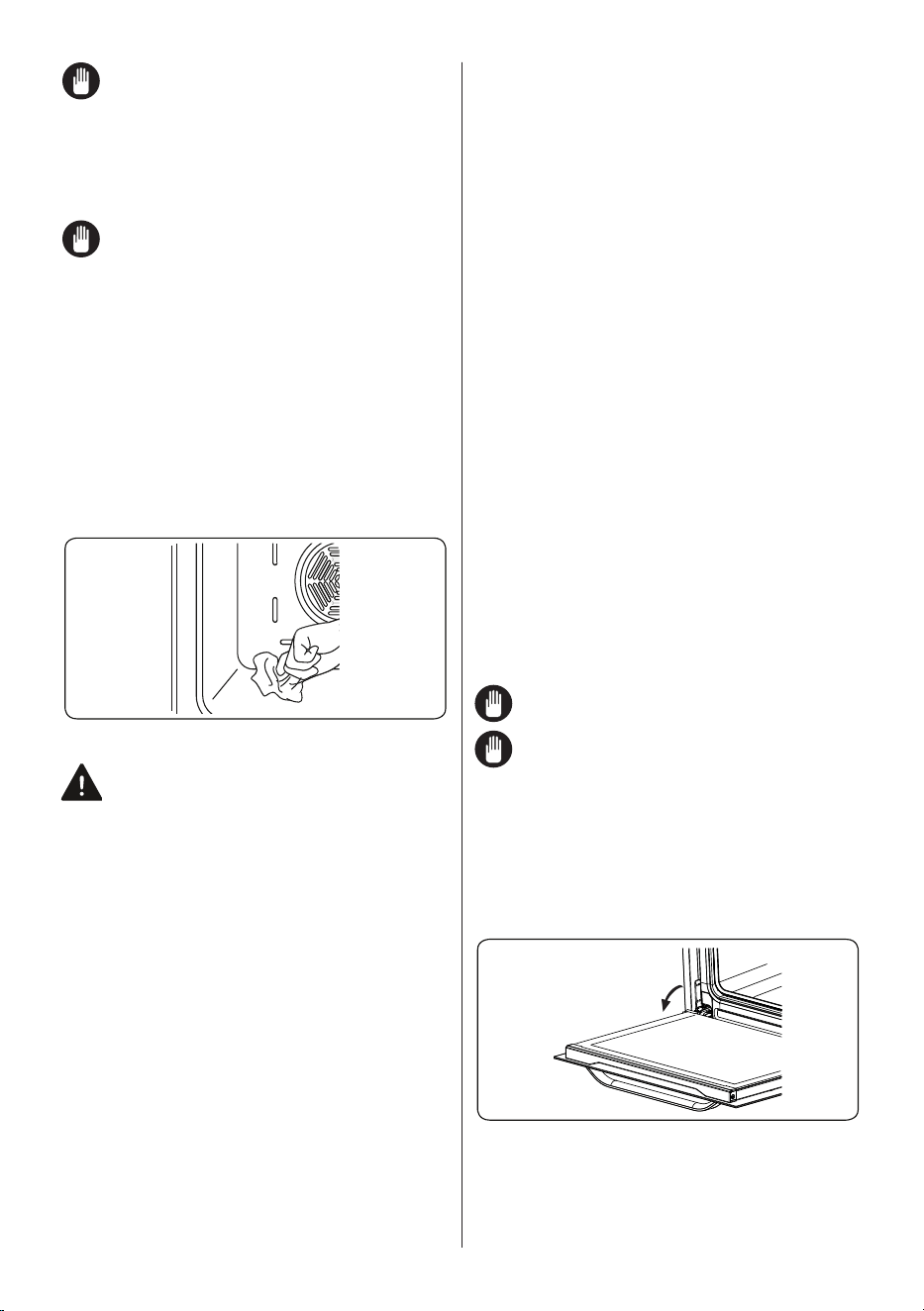

Cleaning the Inside of the Oven
• The inside of enamelled ovens are best
cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked
in soapy water after each use. Then,
wipe the oven over again with a wet
cloth and dry it.
• You may need to use a liquid cleaning
material occasionally to completely
clean the oven.
Pyrolytic cleaning
WARNING: Before activating the
pyrolytic cleaning function, remove any
excessive spillage and make sure that
the oven is empty. Do not leave anything
inside the oven, such as wire grids, trays, or
oven shelves and supports (if available), as
they could be damaged during pyrolytic
cleaning.
• The oven cavity is coated with a
special enamel that is resistant to high
temperatures. During the pyrolytic
cleaning operation, the temperature
inside the oven can reach about 475°C.
• The oven door will automatically lock,
for your safety, while the pyrolytic
cleaning function is in operation. After
the cleaning is complete, the cooling fan
will begin operating and the oven will
remain locked until it has cooled.
• It is advisable to wipe the oven down
with a sponge soaked in warm water,
after each cooking operation or pyrolytic
cleaning cycle has been carried out.
• During the pyrolytic operation, a smell
and some fumes will emanate due to
the destruction of food residue within
the oven. This is normal. Oven cleaning
fumes could be fatal to birds, children
and pets so all should be kept away
until the operation is complete.
• The area where the oven is installed
should be kept well-ventilated,
especially during the pyrolytic cleaning
function, and any doors leading into the
area should be closed to avoid passing
the smell and fumes throughout.
Cleaning the Glass Parts
• Clean the glass parts of your appliance
on a regular basis.
• Use a glass cleaner to clean the inside
and outside of the glass parts. Then,
rinse and dry them thoroughly with a dry
cloth.
Cleaning the Stainless Steel Parts (if
available)
• Clean the stainless steel parts of your
appliance on a regular basis.
• Wipe the stainless steel parts with a soft
cloth, soaked in only water. Then, dry
them thoroughly with a dry cloth.
Do not clean the stainless steel parts
while they are still hot from cooking.
Do not leave vinegar, coffee, milk, salt,
water, lemon or tomato juice on the
stainless steel for a long time.

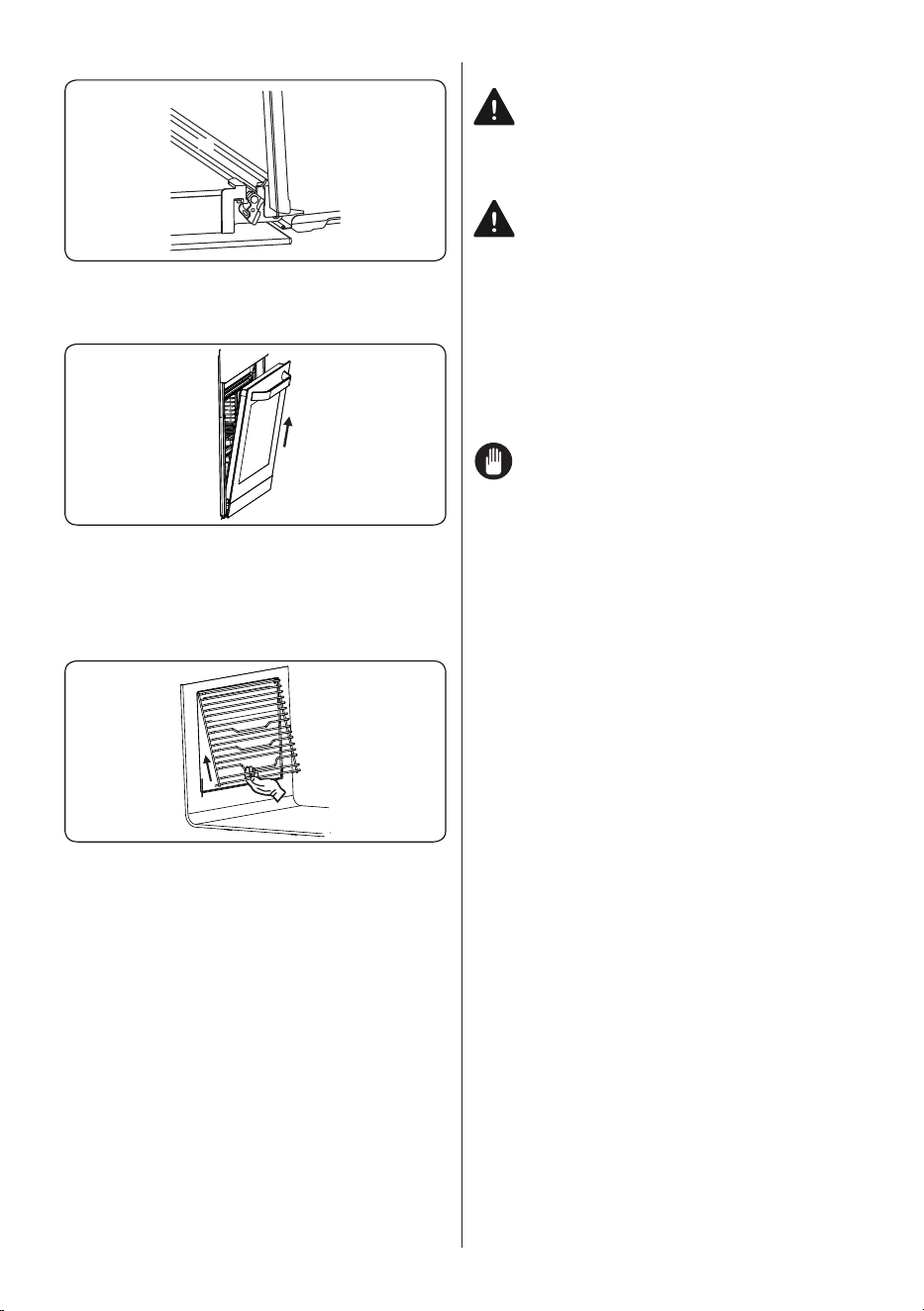

Removal of the Oven Door
Before cleaning the oven door glass, you
must remove the oven door, as shown
below.
1. Open the oven door.
2. Open the locking catch (a) (with the aid
of a screwdriver) up to the end position.
EN - 21
a
3. Close the door until it is almost in the
fully closed position, and remove the door
by pulling it towards you.
Removal of the Wire Shelf
To remove the wire rack, pull the wire rack
as shown in the figure. After releasing it
from the clips (a), lift it up.
a
5.2 MaintenanCe
WARNING: The maintenance of this
appliance should be carried out by an
authorised service person or qualified
technician only.
Changing the Oven Lamp
WARNING: Switch off the appliance
and allow it to cool before cleaning
your appliance.
• Remove the glass lens, then remove the
bulb.
• Insert the new bulb (resistant to 300 °C)
to replace the bulb that you removed
(230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven
is ready for use.
The lamp is designed specifically for
use in household cooking appliances.
It is not suitable for household room
illumination.
EN - 22
6. TROUBLESHOOTING&TRANSPORT
6.1 troubleShootinG
If you still have a problem with your appliance after checking these basic
troubleshooting steps, please contact an authorised service person or qualified
technician.
Problem Possible Cause Solution
Oven does not switch
on.
Power is switched off.
Check whether there is power supplied.
Also check that other kitchen appliances are
working.
No heat or oven does
not warm up.
Oven temperature control is incorrectly
set.
Oven door has been left open.
Check that the oven temperature control
knob is set correctly.
Oven light (if available)
does not operate.
Lamp has failed.
Electrical supply is disconnected or
switched off.
Replace lamp according to the instructions.
Make sure the electrical supply is switched
on at the wall socket outlet.
Cooking is uneven
within the oven.
Oven shelves are incorrectly
positioned.
Check that the recommended temperatures
and shelf positions are being used.
Do not frequently open the door unless you
are cooking things that need to be turned.
If you open the door often, the interior
temperature will be lower and this may affect
the results of your cooking.
The appliance door
cannot be opened; the
door lock symbol or
signal lamp lights up on
the display.
The appliance door is locked due to
the pyrolytic function.
Wait until the cooking compartment has
cooled and the door lock symbol goes out.
The timer buttons
cannot be pressed
properly.
There is foreign matter caught
between the timer buttons.
Touch model: there is moisture on the
control panel.
The key lock function is set.
Remove the foreign matter and try again.
Remove the moisture and try again.
Check whether the key lock function is set.
The oven fan is noisy. Oven shelves are vibrating.
Check that the oven is level.
Check that the shelves and any bake ware
are not vibrating or in contact with the oven
back panel.
After the “pyrolysis”
cleaning cycle, it is not
possible to select a
function.
The oven cools itself by operating the
cooling fan after “pyrolysis”.
Verify whether the door locking device has
switched off. If it has not, the oven is still in
the cooling period. During the cooling fan
period, no cooking function can be operated.
6.2 tranSPort
If you need to transport the product, use the original product packaging and carry it using
its original case. Follow the transport signs on the packaging. Tape all independent parts to
the product to prevent damaging the product during transport.
If you do not have the original packaging, prepare a carriage box so that the appliance,
especially the external surfaces of the product, is protected against external threats.
MANUFACTURER GUARANTEE
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460
(Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN
9429000069823 (Phone number 09 274 8265) in respect of the Belling Design product.
1. Belling Design Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a)
In the case of
Belling Design
products used for personal, domestic or household purposes,
a period of
5
years
from the date the product is purchased as a brand-
new product from a
retailer located in Australia / New Zealand.
b) In the case of Belling Design products used for purposes other than personal, domestic or
household purposes (including business or commercial use), a period of 90 days from the
date the product is purchased as a brand-new product from a retailer located in Australia /
New Zealand. Belling Design products are designed and intended for domestic use only;
and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent
Note: warranty periods detailed above may vary in line with agreements with select retail and
builder partners and may differ between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees
referred to in section 3 and any other statutory rights you may have under the Australian / New
Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance with the
product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect
installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance,
unauthorised modification, use on an incorrect voltage, power surges and dips, voltage
supply problems, tampering or unauthorised repairs by any persons, use of defective or
incompatible accessories or exposure to abnormally corrosive conditions, events
independent of human control which occurred after the goods left the control of Glen
Dimplex;
c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any
other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand
Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line
or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of
this document
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you first become
aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a
store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at
which the product is located at times nominated by us (so that we can inspect the product).
5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply,
we will, at our election, either repair the product or replace the product with a product of identical
specification (or where the product is superseded or no longer in stock, with a product of as close a
specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this
warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
READ T
HE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will n
ot be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without affecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.
Whilst every effort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical,
plumbing and building codes, with compliance being issued as required by state or national
legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the
relevant standards by a licenced installer.
For maximum effectiveness and efficiency all rangehoods should be installed with the use of
ductwork, by a licenced installer with adherence to the relevant state and national building codes
and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines. Any
installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
Distributed by:
Glen Dimplex New Zealand LtdGlen Dimplex Australia Pty Ltd
For full terms and conditions, or to register your product warranty, please visit our website:
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, plea
se contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 09 274 8265Ph: 1300 556 816
VERSION 1 REVISION 20
200402
