SERVICE PARTS MANUAL
HOTEL DISPENSER
MODEL CD40030 and CD40022
This is the list of service parts and for all versions
of these two hotel dispensers.
Pay close attention to the voltage and/or cycles to
be sure of ordering the correct part.
CD40022 and CD40030 Service Parts
Page 1
Table of Contents
Front and Top Panels ······································· Page 2
CD40030 & CD40022 Front Panel ································ Page 3
CD40130 and CD40230 Front Panel & Related Parts ······················ Page 4
Side, Back and Interior Panels ·································· Page 5
Dispensing Components ····································· Page 6
Ice Chute Mechanism ······································· Page 7
Ice Catch Pan ··········································· Page 8
Control Box ············································ Page 9

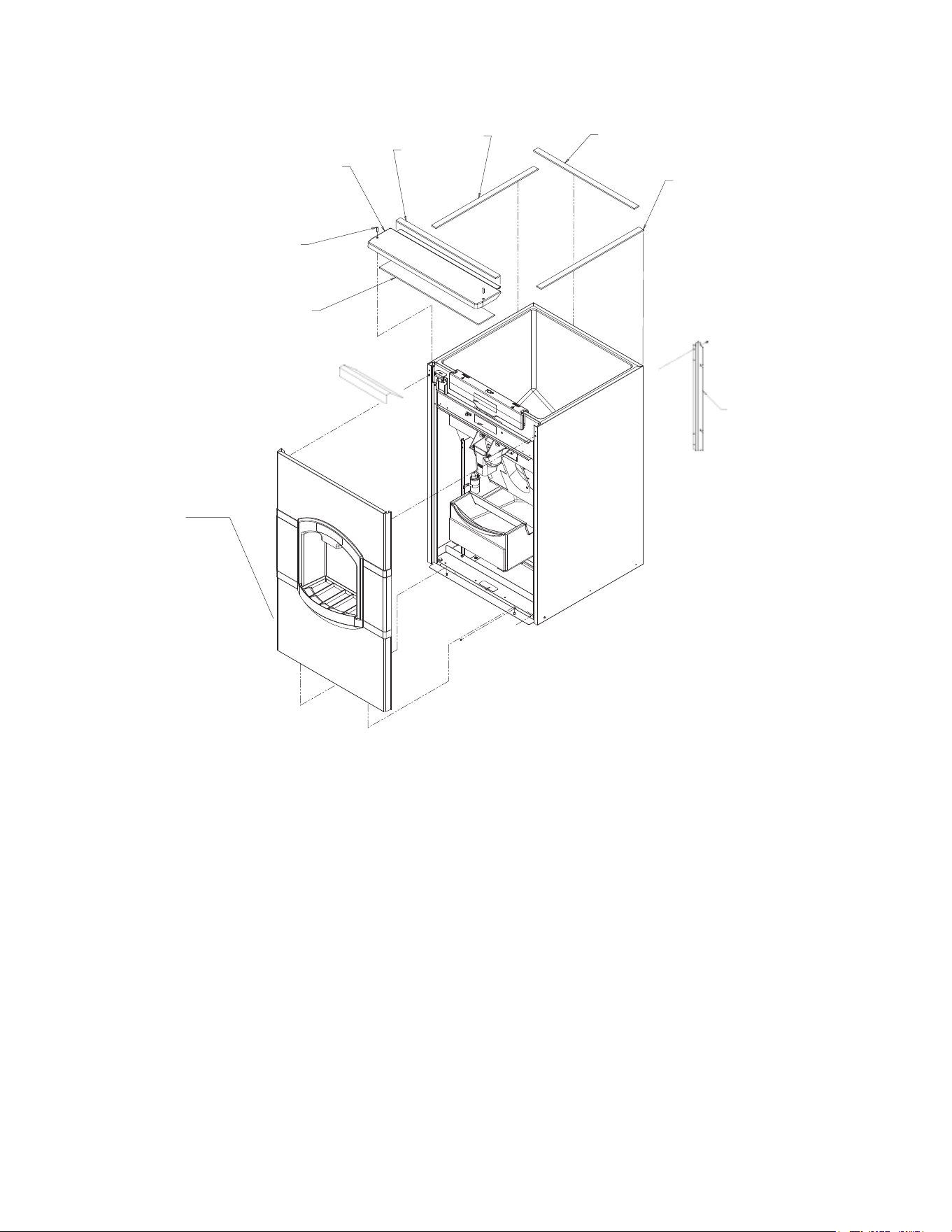

Front and Top Panels
Item Part
Number Number Description
1 1011339-104 Gasket tape, order by ft.
1a 1011339-104 Use 27.5” for CD40030, 19.5” for CD40022
1b 1011339-104 Use 27.88”
1c 1011339-104 Use 27.25” for CD40030, 19.25” for CD40022
2 1011351-24 CD40030 top panel
1011351-25 CD40022 top panel
3 1011351-42 Top panel screw
4 1011351-26 CD40030 panel insulation
1011351-27 CD40022 panel insulation
5 See Page 3
See Page 3
See Page 3
6 1011351-120 Ice deflector-30 inch wide only
7 1011351-110 30 inch wide ice machine mounting bracket
1011351-111 22 inch wide ice machine mounting bracket
CD40022 and CD40030 Service Parts
Page 2
1a
1b
1b
1c
2
3
4
5
7
6
8 1011339-143 Leg Set (4 ea)

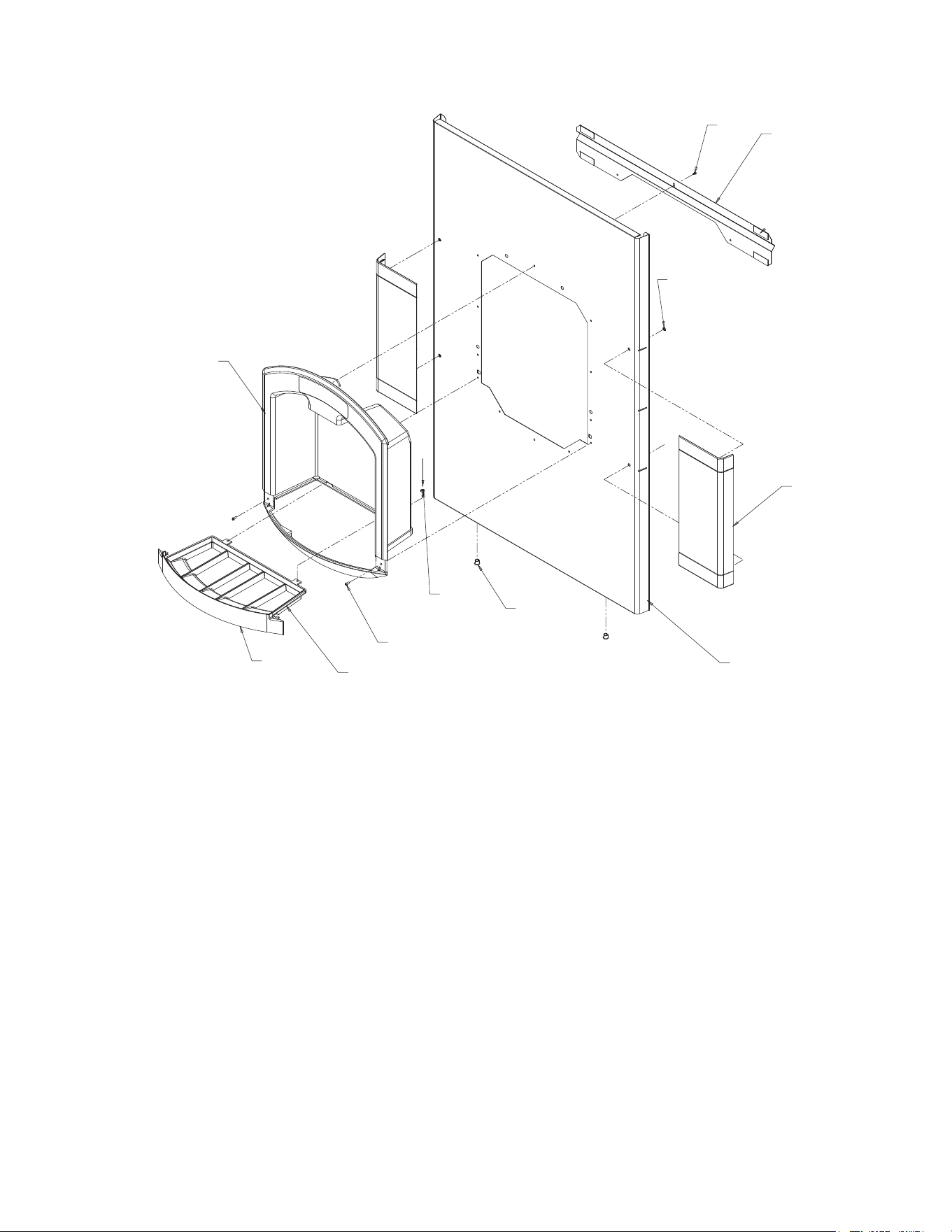

CD40030 & CD40022 Front Panel
Item Part
Number Number Description
1 1011351-44 Screw
2 1011351-106 CD40030 stiffener
1011351-107 CD40022 stiffener
3 1011351-36 Retainer
4 1011351-17 CD40030 side flange
1011351-19 CD40022 side flange
5 1011351-89 CD40030 Front panel*
1011351-91 CD40030 Front panel*
(Coin Mech Panel)
1011351-92 CD40022 Front panel*
* includes items 1 thru 4
Item Part
Number Number Description
6 1011351-50 Snap bushing
7 1011351-32 Screw
8 9031046-27 Screw
9 1011351-82 Foam gasket, 6”
per side
10 1011351-16 Grill
11a 1011351-14 CD40022, CD40030,
CD40230 dispense
housing
11b 1011351-15 CD40130 dispense
housing
CD40022 and CD40030 Service Parts
Page 3
1
2
3
4
6
11
10
9
8
7
5

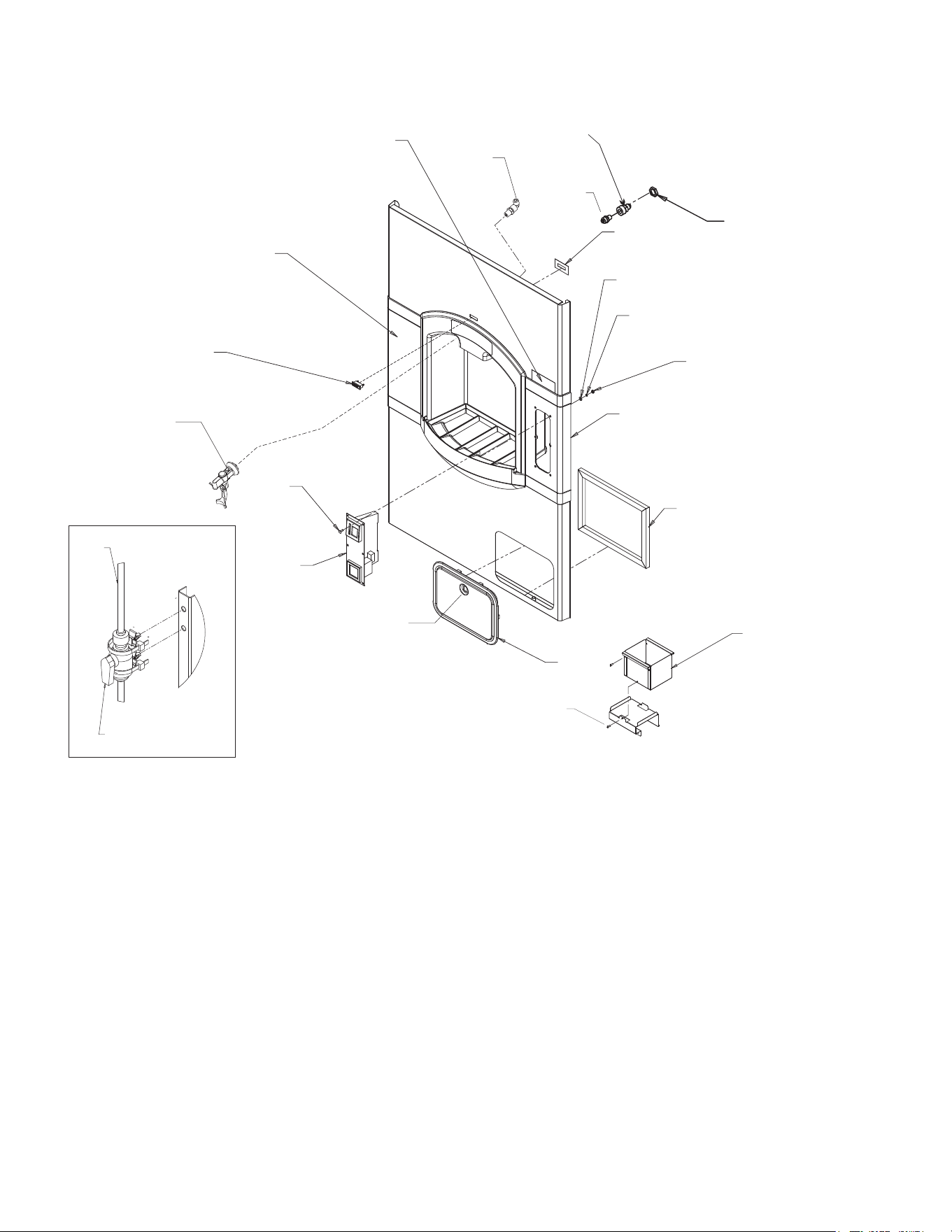

CD40130 and CD40230 Front Panel & Related Parts
Item Part
Number Number Description
1 1011351-74 Water inlet fitting
2 1011351-75 Straight connector
3 1011351-31 Pal nut
4 1011351-77 Male elbow connector
5 1011351-23 Water faucet
6 1011351-71 Tubing, order per ft
7 1011351-78 Shut off valve
8 1011351-119 Indicator light backing
9 1011339-52 Washer for coin mech
10 1011339-65 Lockwasher
11 1011339-50 Hex nut (8-32)
12 1011351-20 Right side flange for coin
mech model
13 1011351-01 Door shim
14 1011351-60 Door and lock
14a 1011351-64 Lock and key
14b 1011351-65 Key
15 9031046-27 Coin box screw
16 1011351-114 Coin box
17 1011351-62 Coin mechanism
101
1351-63 Coin switch
18 1011351-61 Mounting screw
19 1011351-68 Ready light
20 NLA CD40030 left side flange
21 1011351-79 Coin mech label
CD40022 and CD40030 Service Parts
Page 4
4
5
1
3
8
9
10
11
12
13
16
15
14
17
18
19
20
21
2
6
7
14a, 14b

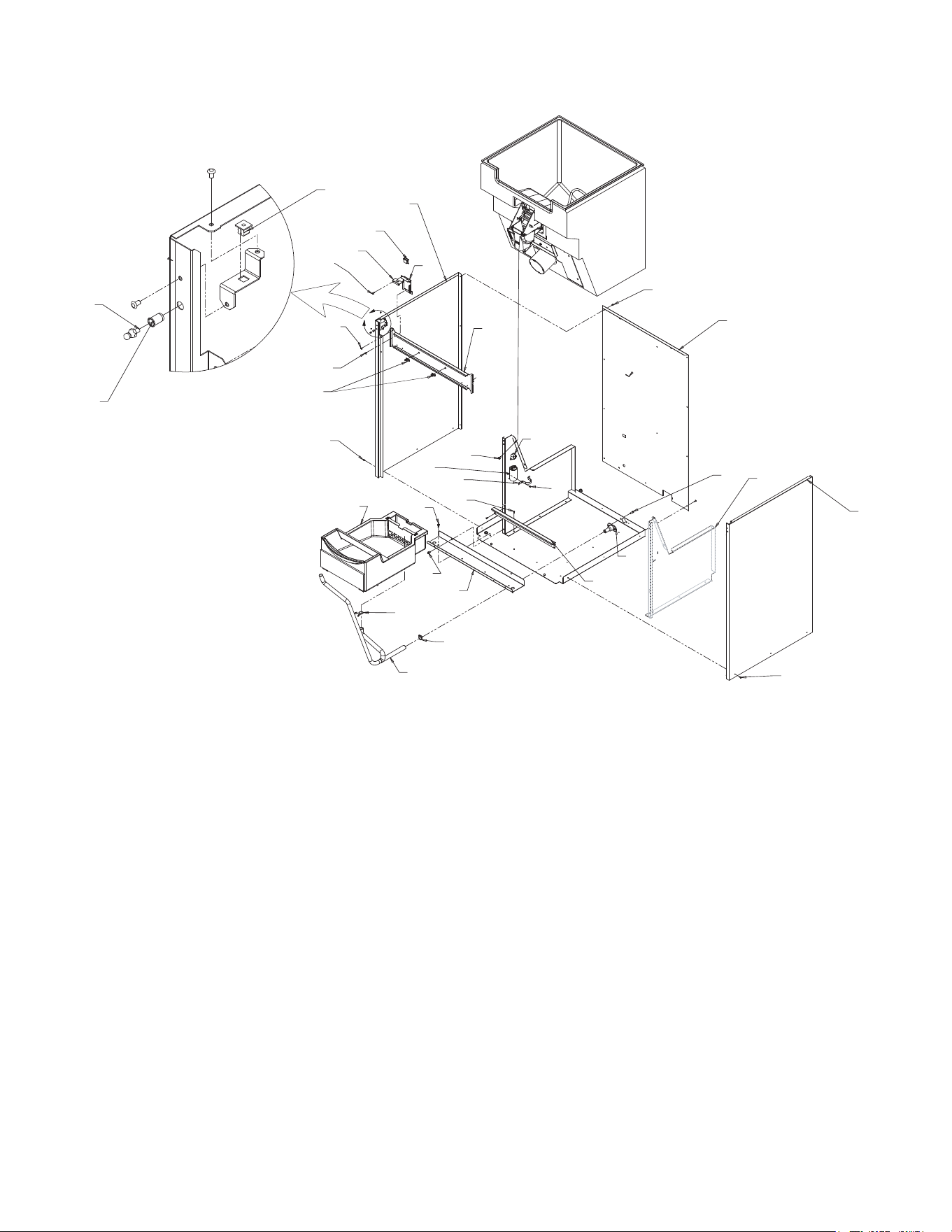

Side, Back and Interior Panels
Item Part
Number Number Description
1 9031046-27 Screw
2 1011351-95 CD40030 back panel
1011351-121 CD40022 back panel
3 1011351-94
Right side panel,
includes hardware
4 1011351-30 Screw
5 1011351-97 Bin support, right
1011351-96 Bin support, left
6 1011447-23 Drain fitting
7 1011351-105 Catch
pan support
8 1011351-108 CD40030 base stiffener
1011351-109 CD40022 base stiffener
9 1011339-74 Screw
10 1011351-07 Hose clamp
11 1011351-03 Hose clamp
12 1011351-21 Drain hose
13 1011351-87 Drain pan, assembled
14 1011351-04 Wire clamp (coin mech)
15 1011351-113 Switch plate top
15a 1011351-112 Switch plate
16 1011339-84 Switch, interlock
17 1011351-84 Left side panel, includes
mounting hardware
18 1011351-43 Plastic nut
19 1011351-40 Strike (ball stud)
20 1011351-41 Insert
21 1011351-70 Terminal cover
22 1011351-101 CD40030 support brckt
1011351-102 CD40022 support brckt
23 1011351-80 Motor capacitor
24 1011351-83 Strap
CD40022 and CD40030 Service Parts
Page 5
1
2
4
5
3
1
6
7
10
11
12
13
9
8
9
1
1
1
1
1
1
14
15
16
17
18
19
20
9
22
23
24
21
15a

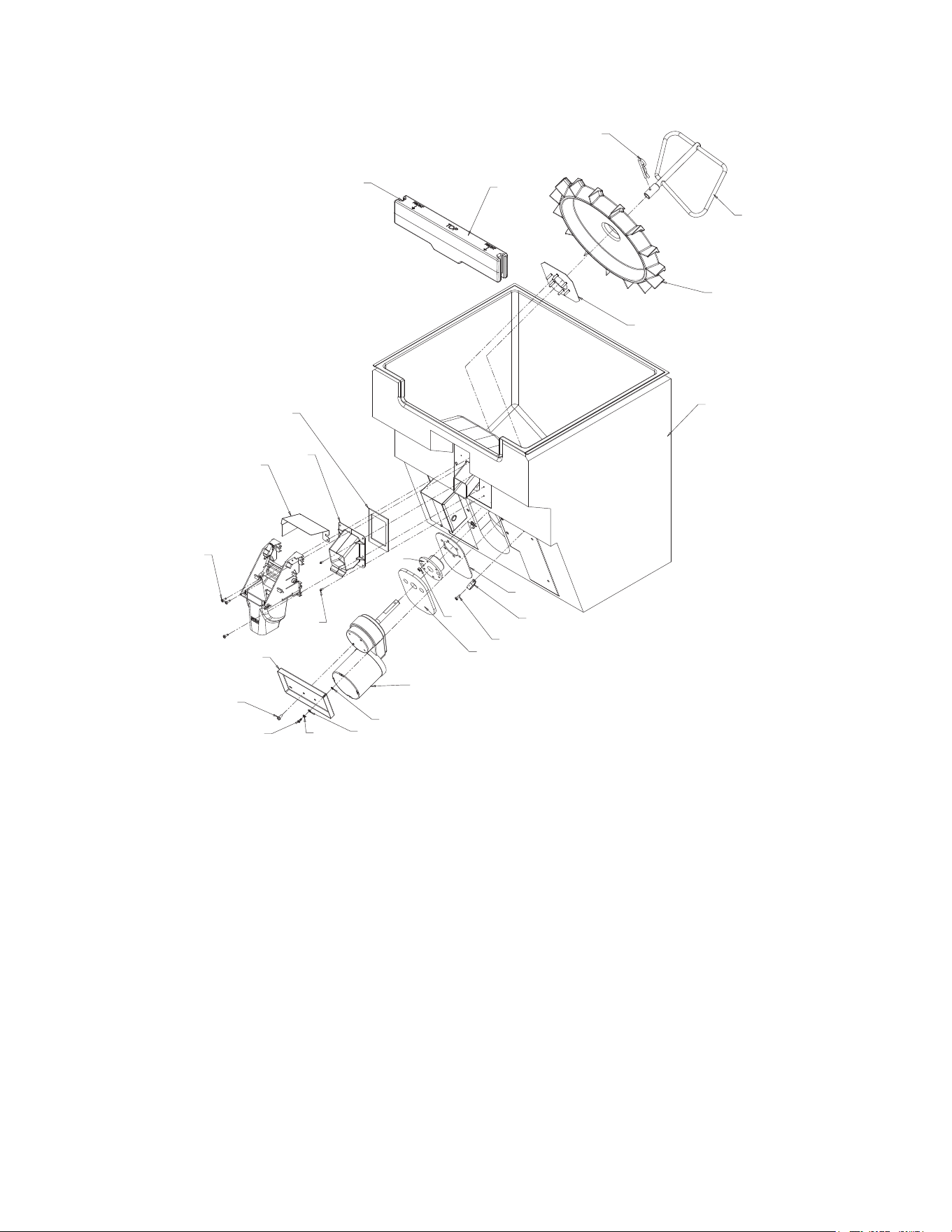

Dispensing Components
Item Part
Number Number Description
1 1011351-45 Hitch pin
2 1011351-22 Sweep arm
3 1011339-144 Dispense rotor
4 1011339-235 Hub plate
5 1011351-85 CD40030 bin assembly
1011351-86 CD40022 bin assembly
6 1011351-73 Insulation pad
7 1011351-48 Loop clamp
8 1011351-46 Screw Prior to March 23, 2012����
9 1011351-72 Insulation for hub
10 1011351-66 Dispense gearmotor,
dual volt
age
11 NLA Retainer
12 1011351-39 Cupped washer
13 1011351-38 Spring
14 1011351-46 ¼ turn stud
15 1011339-74 Screw
16 1011351-104 Mounting plate
17 9031046-27 Screw
18 1011339-160 Hub
19 1011351-115 Switch guard
20 1011351-12
Spout
21 1011351-29 Gasket
22 1011351-81 Gasket, 4” each end
23 1011351-103 Bin door
CD40022 and CD40030 Service Parts
Page 6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
8
19
20
21
22
23
16
18

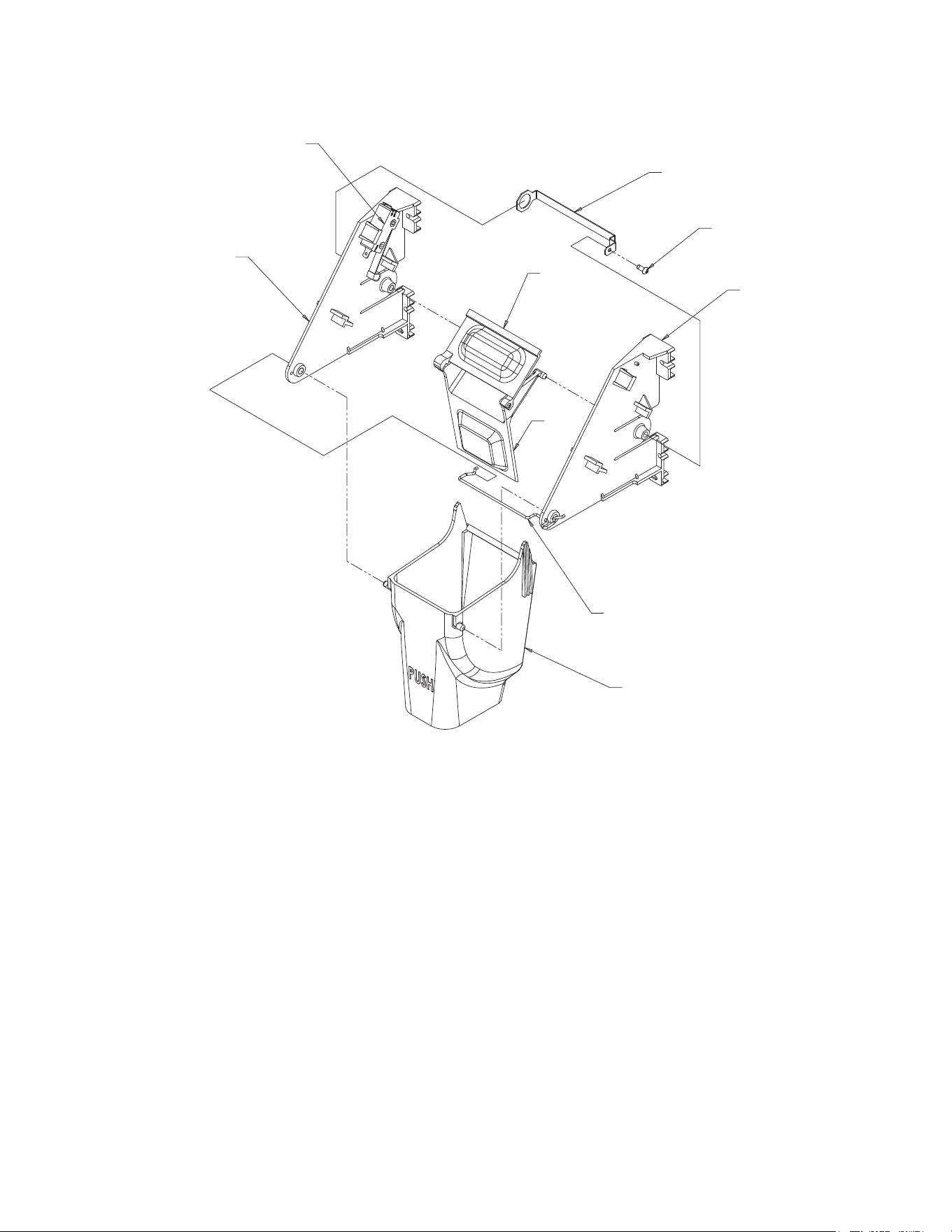

Ice Chute Mechanism
Item Part
Number Number Description
1 1011351-118 Clip
2 9031046-27 Screw
3 1011351-1
1 Bracket
4 1011351-10 Door lock
5 1011351-09 Door
6 1011351-13 Wire
7 1011351-08 Dispense chute
8 1011351-53 Vend switch
CD40022 and CD40030 Service Parts
Page 7
1
2
3
6
7
4
5
3
8

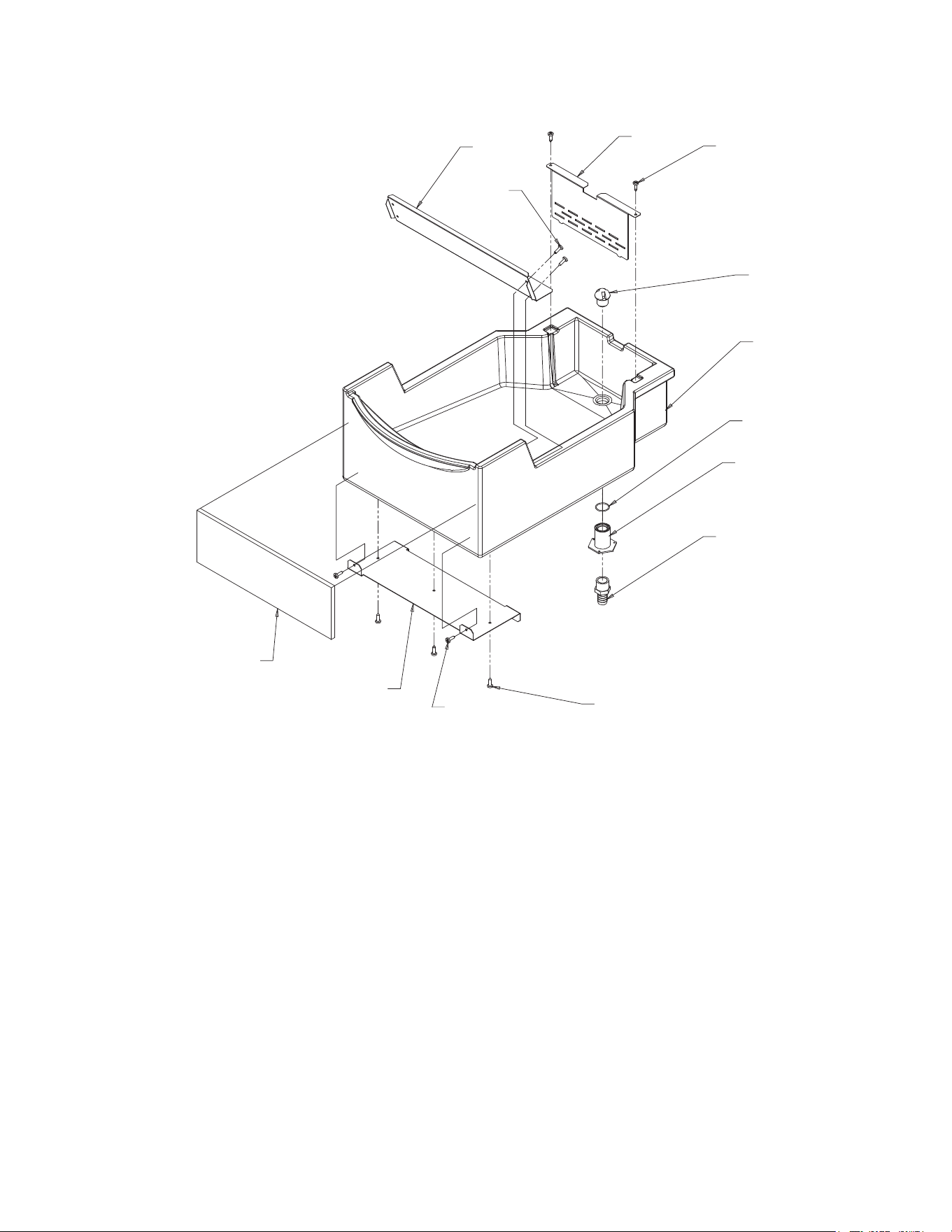

Ice Catch Pan
Item Part
Number Number Description
1 1011351-99 Screen
2 NLA Screw
3 1011351-02 Drain top
4 1011351-87 Complete assembly as
shown
5 1011351-69 O-ring
6 1011351-05 Drain
bottom
7 1011351-76 Drain fitting
8 1011351-117 Drain pan bracket
9 1011351-28 Foam pad
10 1011351-116 Drain guard
CD40022 and CD40030 Service Parts
Page 8
1
2
3
4
5
6
7
2
10
2
9
8
2

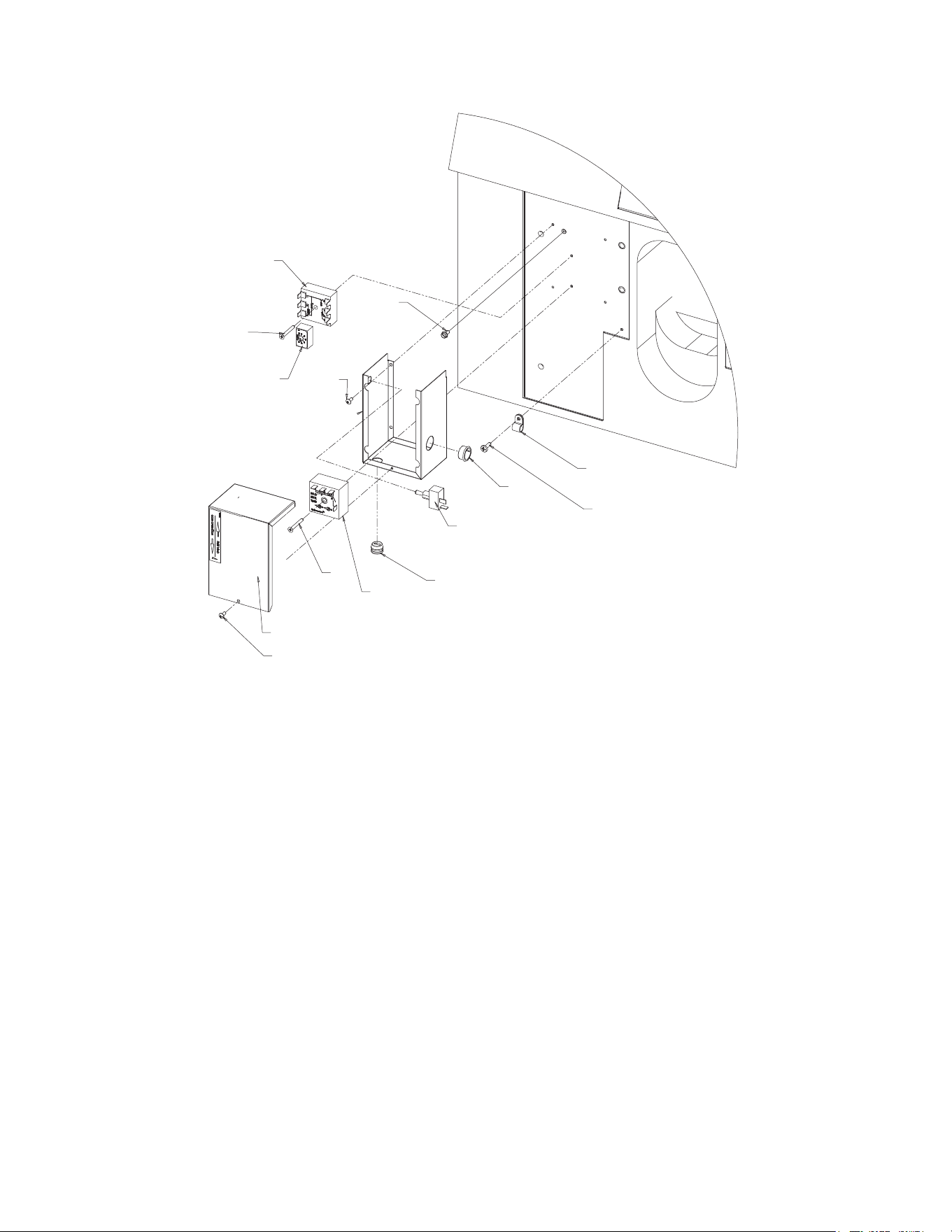

Control Box
Item Part
Number Number Description
1 1011351-124 Coin mech timer
2 1011351-35 Screw
3 1011351-58 Adjustment module
4 1011339-70 Screw
5 1011351-47 Loop clamp
6 1011339-82 Snap bushing
7 1011380-77 Free vend switch
8 1011351-49 S
train relief
9 1011351-55 60 Hz off cycle timer
1011351-56 50 Hz off cycle timer
10 1011351-98 Control box cover
Not shown
11 1011351-54 60 Hz harness, basic
and water
NLA Coin mech harness
1011351-67 50 Hz harness
12
1011351-52 115 volt power cord
1011351-51 230 volt power cord
CD40022 and CD40030 Service Parts
Page 9
1
2
3
4
5
4
6
7
8
9
2
10
4
