GEM/MFI/HEM R290 Service Parts Page 1 of 17 Ice-O-Matic
Service Parts Manual
GEM, MFI, and HEM with R290 Refrigerant
400lbs to 1500lbs Nominal Daily Capacity
TABLE OF CONTENTS
Model List .................................................................................................................................................... 2
Model Nomenclature ................................................................................................................................... 2
Cabinet ........................................................................................................................................................ 3
Refrigeration System: Air Cooled .............................................................................................................. 5
Refrigeration System: Water Cooled ......................................................................................................... 8
Water and Chute Systems ........................................................................................................................ 11
Electrical System ...................................................................................................................................... 13
Gearmotor ................................................................................................................................................. 14
Evaporator ................................................................................................................................................. 15
KGEMDISP Dispenser Kit ......................................................................................................................... 17
Ice-O-Matic 11100 E. 45
th
Avenue Denver, CO 808239
Revision Date: 11/20/2025
www.iceomatic.com 800-423-3367
GEM/MFI/HEM R290 Service Parts Page 2 of 17 Ice-O-Matic
MODEL LIST
MODEL NOMENCLATURE
This parts list contains the service parts available for the following GEM/MFI/HEM ice makers.
GEM 045 0 A 90 -1
Model Series
GEM = Modular Pearl Ice
MFI = Modular Flake Ice
HEM = Modular Hard Ice
Nominal Production Capacity
lbs/24hrs x 100
@ 70°F [21°C] Air / 50°F [10°C] Water
Electrical Designator
0 = 115V / 60Hz / 1P
5 = 230V / 50Hz / 1P
6 = 208-230V / 60Hz / 1P
Revision Level
Refrigerant Designator
Blank = R404A
49 = R449A
90 = R290
Cooling Type
A = Air
W = Water
R = Remote
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Model Model Model
GEM0450*
MFI0500*
HEM0450*
GEM0650* GEM0655*
MFI0800* MFI0805*
HEM0650*
GEM0955* GEM0956*
MFI1255* MFI1256*
HEM0956*
GEM1306*
MFI1506*
HEM1306*
GEM/MFI/HEM R290 Service Parts Page 3 of 17 Ice-O-Matic

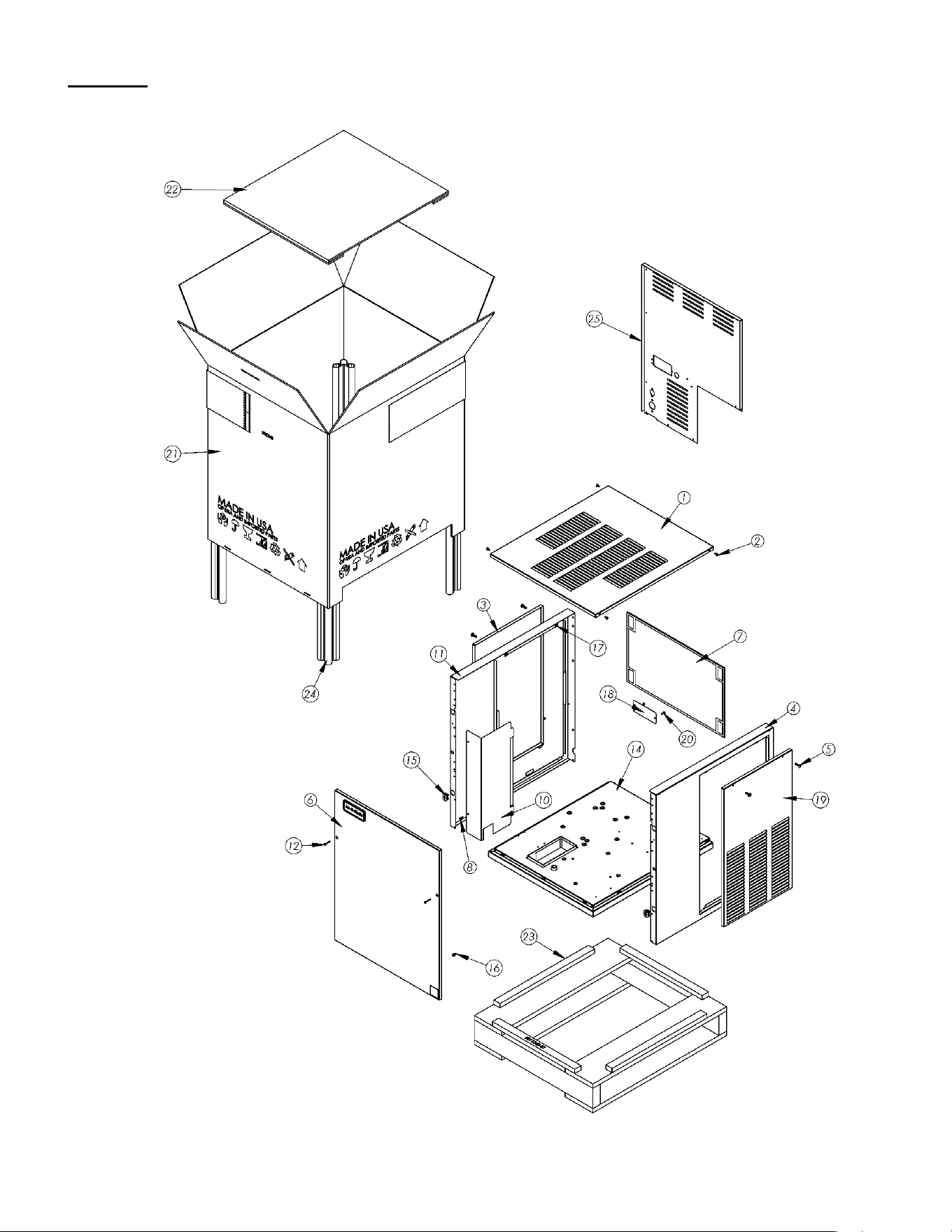

Cabinet
GEM/MFI/HEM R290 Service Parts Page 4 of 17 Ice-O-Matic
GEM****A
MFI****A
HEM****A
GEM1306A
MFI1506A
HEM1306A
GEM****W
MFI****W
1
3022064-01 3022064-01 3021951-
01 Panel, Top
2
9031046-27P 9031046-27P 9031046-
27P Screw (10 pack)
3
3021953-01 3021953-01 3021953-
01 Panel, Service (Both sides for water cooled)
4
3021952-01 3021952-01 3021952-
01 Panel, End, Right
5
9031113-14P 9031113-14P 9031113-
14P Screw (10 pack)
6
2031519-01 2031519-01 2031519-
01 Front Panel
7
9131583-01 9131574-01 N/
A Air Filter
8
9031046-03P 9031046-03P 9031046-
03P Screw (10 pack)
9
10
3013391-01 3013391-01 3013391-
01 Control Box Cover
11
3021950-01 3021950-01 3021950-
01 Panel, End, Left
12
9031045-07P 9031045-07P 9031045-
07P Screw (10 pack)
13
14
2021861-01 2021861-01 2021861-
01 Base
15
9021112-01 9021112-01 9021112-
01 Cabinet Catch
16
9021121-01 9021121-01 9021121-
01
Strike
17
9031035-04 9031035-04 9031035-
04
U-Nut
18
3013674-01 3013674-01 3013674-
01
Junction Box Cover
19
3022063-01 3022063-01 N/
A Panel, Service, Louvered
20
9031046-01P 9031046-01P 9031046-
01P Screw (10 pack)
21
9011341-01 9011341-01 9011341-
01 Carton
22
9011343-01 9011343-01 9011343-
01 Top Pad
23
9011342-01 9011342-01 9011342-
01 Skid
24
9011320-13 9011320-13 9011320-
13 Corner Post (4 Required)
25 N/A N/A 3013981-01 Rear Panel (Water Cooled)
Desciption
Item No.
Model Family
Cabinet
GEM/MFI/HEM R290 Service Parts Page 5 of 17 Ice-O-Matic

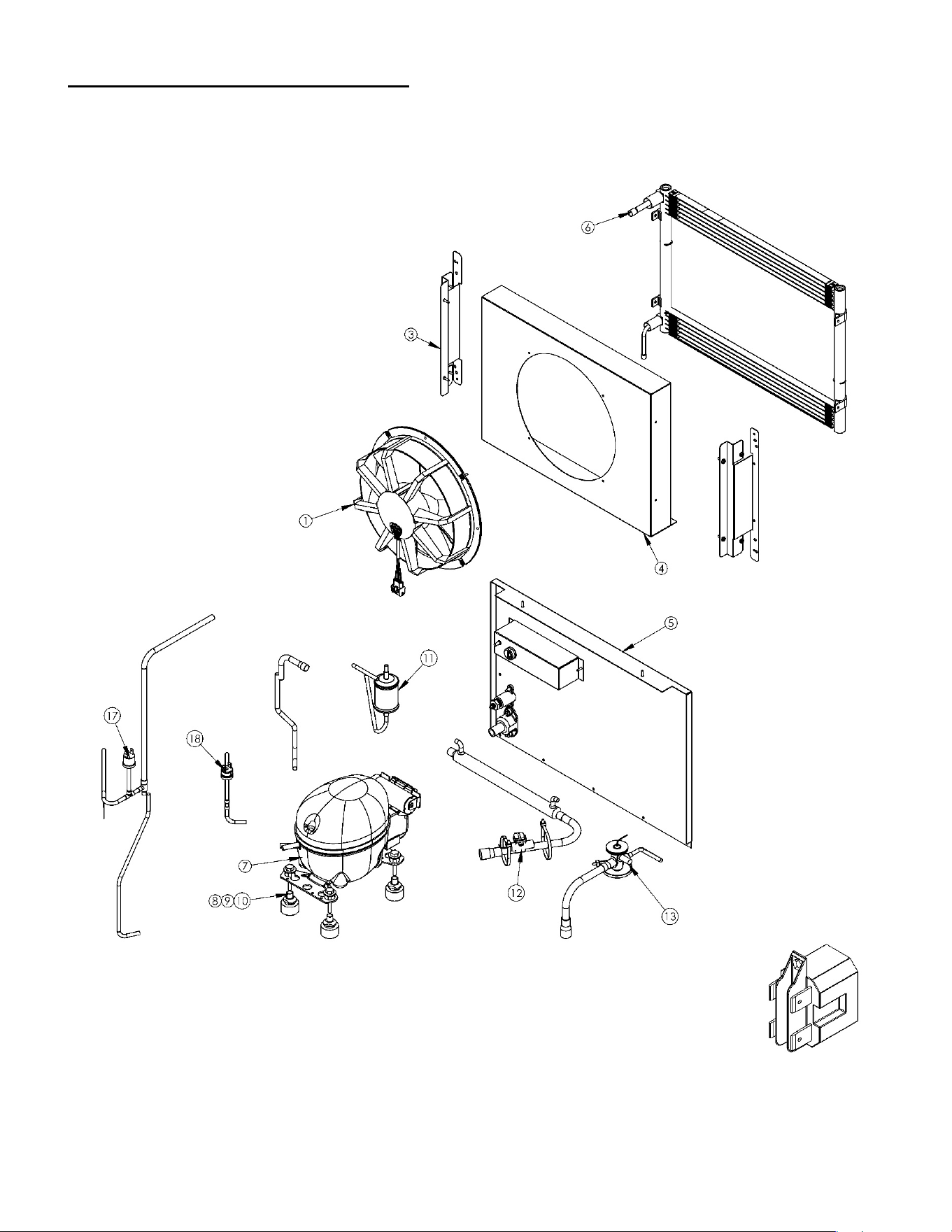

Refrigeration System: Air Cooled
Pin To QC Adapter
9181195-01
GEM/MFI/HEM R290 Service Parts Page 6 of 17 Ice-O-Matic
GEM0450A
MFI0500A
HEM0450A
GEM0650A
MFI0800A
HEM0650A
GEM0655A
MFI0805A
1
9161155-01 9161155-01 9161155-02 Fan Motor
2
3
3013866-01 3013866-01 3013866-01 Fan Shroud Bracket
4
3013902-01 3013902-01 3013902-01 Fan Shroud
5
3013903-01 3013903-01 3013903-01 Lower Rear Panel
6
9141174-01 9141174-01 9141174-01 Condenser
7
9181211-101 9181212-101 9141214-101 Compressor Kit
8
9031001-41P 9031001-41P 9031001-41P Compressor Bolt (10 pack)
9
N/A 9181002-09P 9181002-09P Compressor Grommet (10 pack)
10
N/A 9181002-02 9181002-02 Compressor Sleeve
11
9151163-01 9151163-01 9151163-01 Filter Drier
12
9131143-01 9131143-01 9131143-01 Insulation, Bulb
13
9151217-01 9151217-01 9151217-01 Expansion Valve
14
15
16
17
9041120-01 9041120-01 9041120-01
High Pressure Switch
18
9041102-01 9041102-01 9041102-01
Low Pressure Switch
9181003-60 9181003-66 9181003-52 Start Capacitor
- 9181009-13 9181009-26 Run Capacitor
9181004-36 9181010-42 9181010-27 Compressor Relay
9181169-03 Internal Internal Overload
Pin to QC Adapter
Desciption
Item
No.
Model Family
Compressor Starting Components (Included In Comp Kit)
9181195-01 (As Required)
Refrigeration System: Air Cooled
GEM/MFI/HEM R290 Service Parts Page 7 of 17 Ice-O-Matic
GEM0955A
MFI1255A
GEM0956A
MFI1256A
HEM0956A
GEM1306A
MFI1506A
HEM1306A
1
9161155-02 9161155-02 9161155-02 Fan Motor
2
3
3013866-01 3013866-01 3013929-01 Fan Shroud Bracket
4
3013902-01 3013902-01 3013987-01 Fan Shroud
5
3013903-01 3013903-01 3013903-02 Lower Rear Panel
6
9141174-01 9141174-01 9141181-01 Condenser
7
9181221-101 9181208-101 9181213-101 Compressor Kit
8
9031001-41P 9031001-41P 9031001-41P Compressor Bolt (10 pack)
9
9181002-09P 9181002-09P 9181002-09P Compressor Grommet (10 pack)
10
9181002-02 9181002-02 9181002-02 Compressor Sleeve
11
9151163-01 9151163-01 9151163-01 Filter Drier
12
9131143-01 9131143-01 9131143-01 Insulation, Bulb
13
9151217-01 9151217-01 9151217-01 Expansion Valve
14
15
16
17
9041120-01 9041120-01 9041120-01
High Pressure Switch
18
9041102-01 9041102-01 9041102-01
Low Pressure Switch
9181003-54 9181003-52 9181003-52 Start Capacitor
9181009-28 9181009-30 9181009-17 Run Capacitor
9181010-40 9181010-41 9181010-28 Compressor Relay
Internal Internal Internal Overload
Pin to QC Adapter
Desciption
Item
No.
Model Family
Compressor Starting Components (Included In Comp Kit)
9181195-01 (As Required)
Refrigeration System: Air Cooled
GEM/MFI/HEM R290 Service Parts Page 8 of 17 Ice-O-Matic

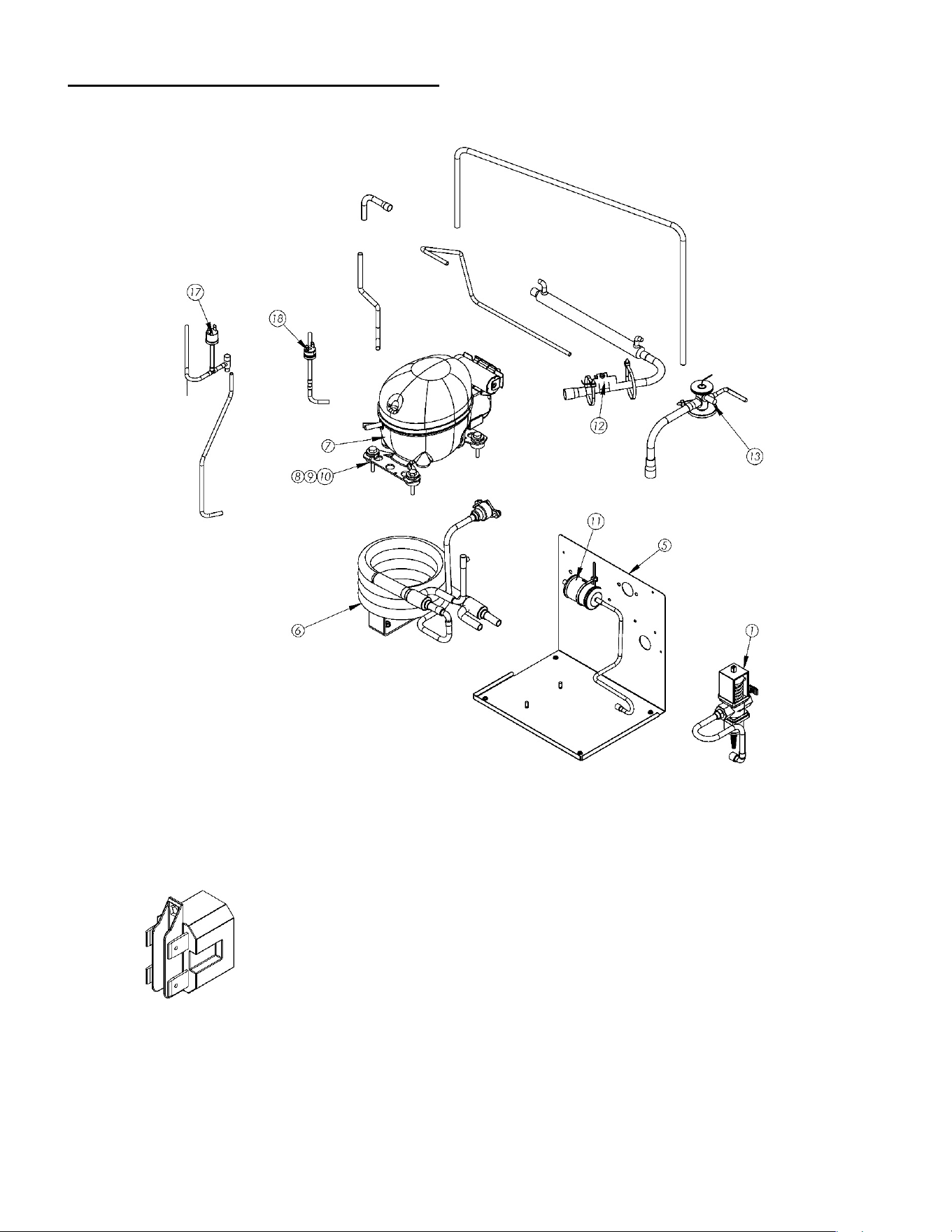

Refrigeration System: Water Cooled
Pin To QC Adapter
9181195-01
GEM/MFI/HEM R290 Service Parts Page 9 of 17 Ice-O-Matic
GEM0450W
MFI0500W
GEM0650W
MFI0800W
GEM0655W
MFI0805W
1
9041059-02 9041059-02 9041059-02 Water Regulator
2
3
4
5
2021863-01S 2021863-01S 2021863-01S Condenser Bracket
6
9141178-01 9141178-01 9141178-01 Condenser
7
9181211-101 9181212-101 9141214-101 Compressor Kit
8
9031001-41P 9031001-41P 9031001-41P Compressor Bolt (10 pack)
9
N/A 9181002-09P 9181002-09P Compressor Grommet (10 pack)
10
N/A 9181002-02 9181002-02 Compressor Sleeve
11
9151163-01 9151163-01 9151163-01 Filter Drier
12
9131143-01 9131143-01 9131143-01 Insulation, Bulb
13
9151217-01 9151217-01 9151217-01 Expansion Valve
14
15
16
17
9041120-01 9041120-01 9041120-01
High Pressure Switch
18
9041102-01 9041102-01 9041102-01
Low Pressure Switch
9181003-60 9181003-66 9181003-52 Start Capacitor
- 9181009-13 9181009-26 Run Capacitor
9181004-36 9181010-42 9181010-27 Compressor Relay
9181169-03 Internal Internal Overload
Pin to QC Adapter
Desciption
Item
No.
Model Family
Compressor Starting Components (Included In Comp Kit)
9181195-01 (As Required)
Refrigeration System: Water Cooled
GEM/MFI/HEM R290 Service Parts Page 10 of 17 Ice-O-Matic
GEM0956W
MFI1256W
1
9041059-02 W
ater Regulator
2
3
4
5
2021863-01S C
ondenser Bracket
6
9141178-01 C
ondenser
7
9181208-101 C
ompressor Kit
8
9031001-41P C
ompressor Bolt (10 pack)
9
9181002-09P C
ompressor Grommet (10 pack)
10
9181002-02 C
ompressor Sleeve
11
9151163-01 F
ilter Drier
12
9131143-01 I
nsulation, Bulb
13
9151217-01 E
xpansion Valve
14
15
16
17
9041120-01
H
igh Pressure Switch
18
9041102-01
Low
Pressure Switch
9181003-52 Start Capacitor
9181009-30 Run Capacitor
9181010-41 Compressor Relay
Internal Overload
Pin to QC Adapter
Desciption
Item
No.
Model Family
Compressor Starting Components (Included In Comp Kit)
9181195-01 (As Required)
Refrigeration System: Water Cooled
GEM/MFI/HEM R290 Service Parts Page 11 of 17 Ice-O-Matic

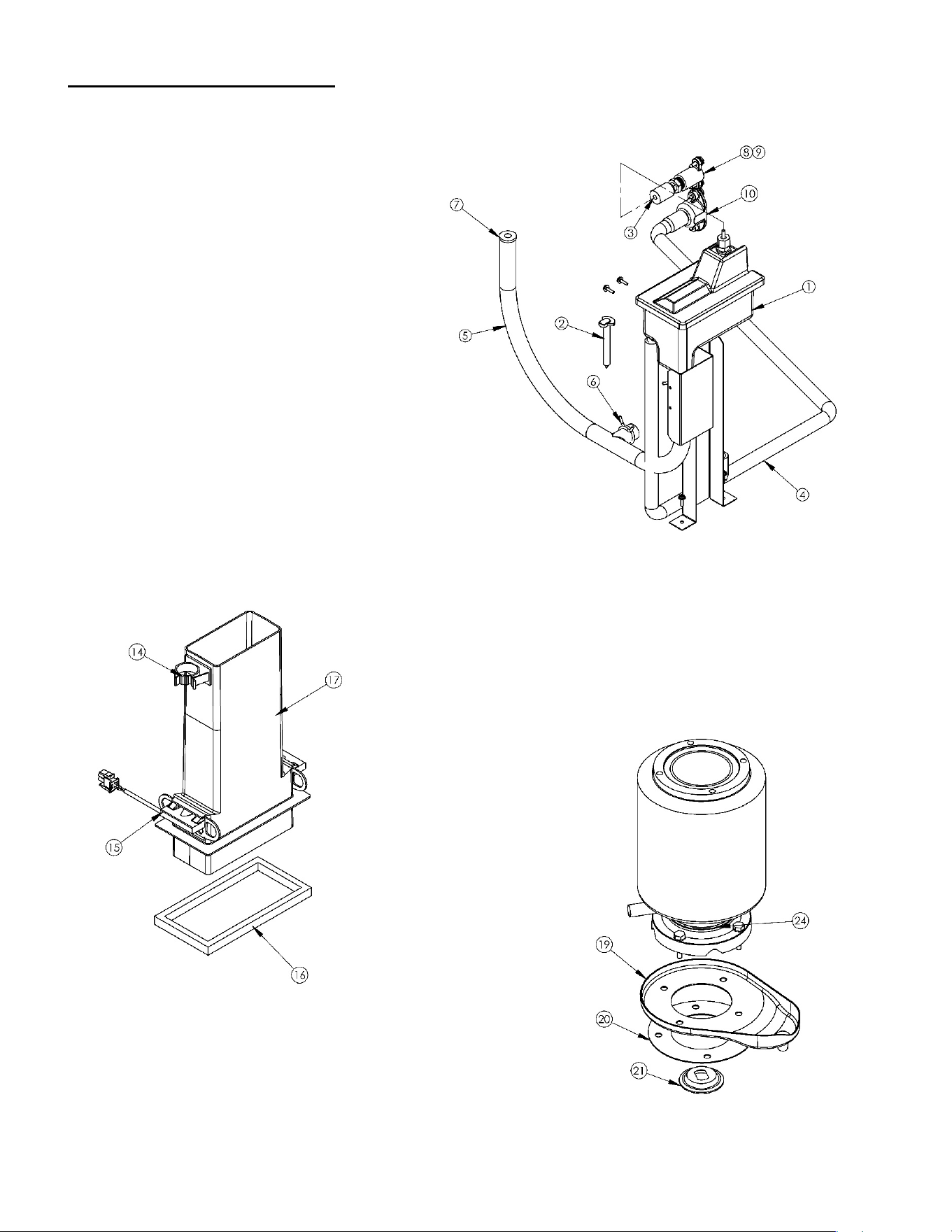

Water and Chute Systems
GEM/MFI/HEM R290 Service Parts Page 12 of 17 Ice-O-Matic
GEM /M FI
450 to 800
GEM /M FI
950 to 1500
HEM
450 to 800
HEM
950 to 1500
1
9131481-01 9131481-
01 9131481-01 9131481-01 Float Assembly
2
9101334-01 9101334-
01 9101334-01 9101334-01 Conductivity Probe
3
3032898-40 3032898-
40 3032898-40 3032898-40 1/4" OD Polyethelene Tube (40")
4
9051606-02 9051606-
02 9051606-02 9051606-02 Tube, Water Drain
5
9051619-01 9051619-
01 9051619-01 9051619-01 Tube, Evaporator Water Inlet
6
9021113-01 9021113-
01 9021113-01 9021113-01 Clamp
7
9051610-01 9051610-
01 9051610-01 9051610-01 Plug
8
9091074-01 9091074-
01 9091074-01 9091074-01 Drop Adapter Fitting
9
9091083-01 9091083-
01 9091083-01 9091083-01 Water Inlet Fitting
10
9091140-01 9091140-
01 9091140-01 9091140-01 Drain Fitting
14
9021116-01 9021116-
01 9021116-01 9021116-01 Clip, Hose
15
1051166-01 1051166-
01 1051166-01 1051166-01 Bin Control Assembly (set of 2)
16
9051614-01 9051614-
01 9051614-01 9051614-01
Gasket, Ice Chute
17
9051601-01 9051601-
02 9051601-03 9051601-04
Ice Chute, Lower
18
19
9051632-01 9051632-
01 9051632-01 9051632-01 Drip Pan
20
9131486-01 9131486-
01 9131486-01 9131486-01 Drip Pan Gasket
21
9051611-01 9051611-
01 9051611-01 9051611-01 Water Shed
22
23
24 9021140-01 9021140-
01 9021140-01 9021140-01 Insulation, Evaporator Collar Bottom
Desciption
Item No.
Model Family
Water & Chute Systems
Water and Chute Systems
GEM/MFI/HEM R290 Service Parts Page 13 of 17 Ice-O-Matic
GEM***0*
MFI***0*
H
EM***0*
GEM***5*
MFI***5*
H
EM***5*
GEM***6*
MFI***6*
H
EM***6*
1
See Ref. Sys. S
ee Ref. Sys. See Ref. Sys. Run Capacitor (pg. 6)
2
See Ref. Sys. S
ee Ref. Sys. See Ref. Sys. Start Capacitor (pg. 6)
3
See Ref. Sys. S
ee Ref. Sys. See Ref. Sys. Compressor Relay (pg. 6)
4
9021002-07 9021002-
06 9021002-06 Contactor
5
9101335-01 9101335-
01 9101335-01 Control Board
6
9101507-01 9101507-
01 9101507-01 Switch
7
9021096-01 9021096-
01 9021096-01 Cable Tie, Metal
8
9051881-01 9051881-
01 9051881-01 Contactor Box, Lower
9051881-02 9051881-02 9051881-02 Contactor Box, Upper (not shown)
Desciption
Item
No.
Model Family

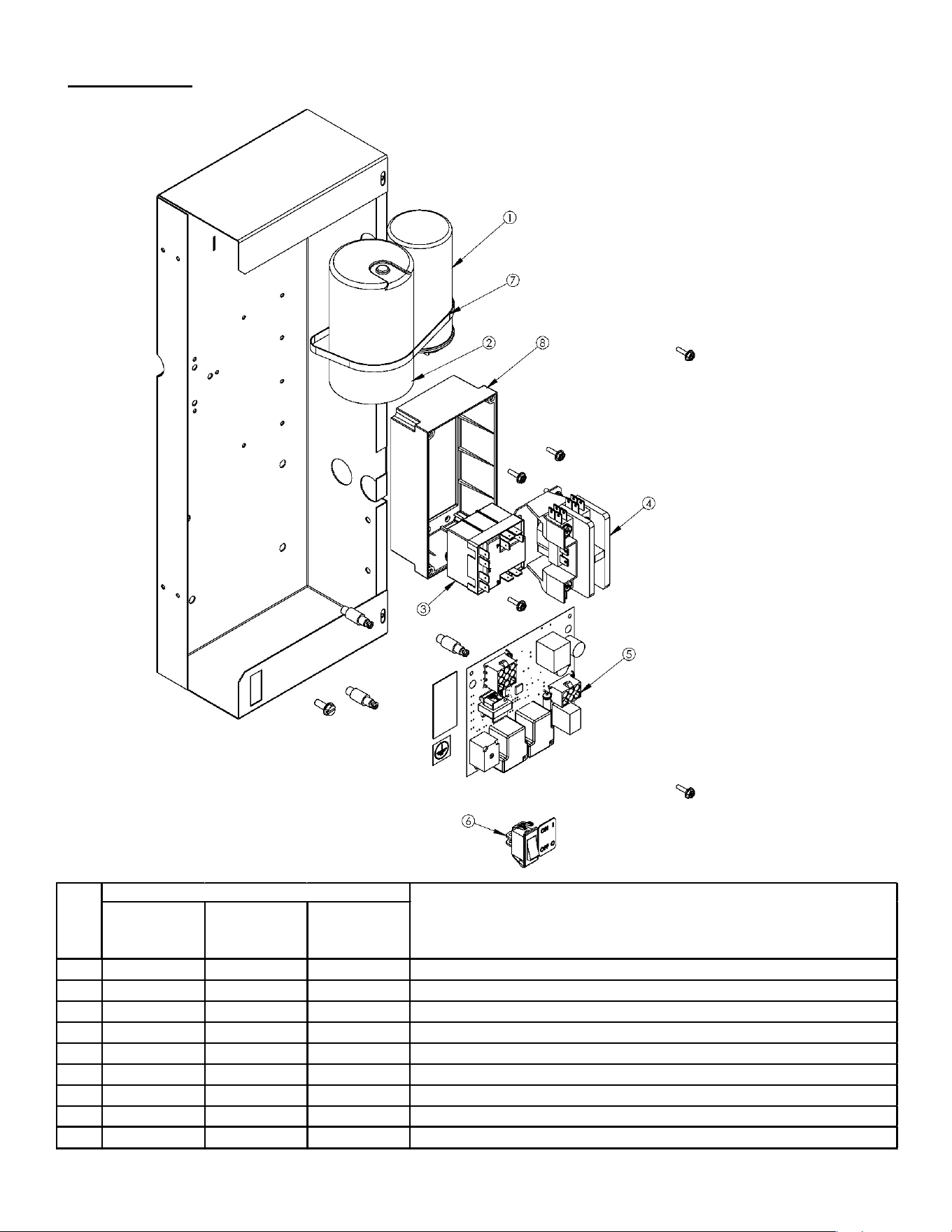

Control Box
GEM/MFI/HEM R290 Service Parts Page 14 of 17 Ice-O-Matic
GEM0450*
GEM0650*
MFI0500*
MFI0800*
GEM0655* MFI0805*
GEM0955*
GEM0956*
G
EM1306*
MFI1255*
MFI1256*
M
FI1506*
1
NA NA NA NA NA NA M
otor Only
2
NA NA NA NA NA NA G
earbox Only
3
9161157-01S 9161157-
01S 9161156-01S 9161156-01S 9161156-01S 9161156-01S Motor and Gearbox
4
2081048-02AS 2081048-
01AS 2081048-04AS 2081048-03AS 2081048-06AS 2081048-05AS Complete Assembly
Gearbox Lubricant (16oz)
Grease Needle
Upper Bearing Grease
9131560-01
6051062-01
Desciption
Item
No.
Model Family
6051073-01
HEM0450*
HEM0650*
HEM0956*
HEM1306*
1
NA NA Motor Only
2
NA NA Gearbox Only
3
9161157-01S 9161156-01S Motor and Gearbox
4
2081048-07AS 2081048-09AS Complete Assembly
Gearbox Lubricant (16oz)
Grease Needle
Upper Bearing Grease
9131560-01
6051062-01
Desciption
Item
No.
Model Family
6051073-01

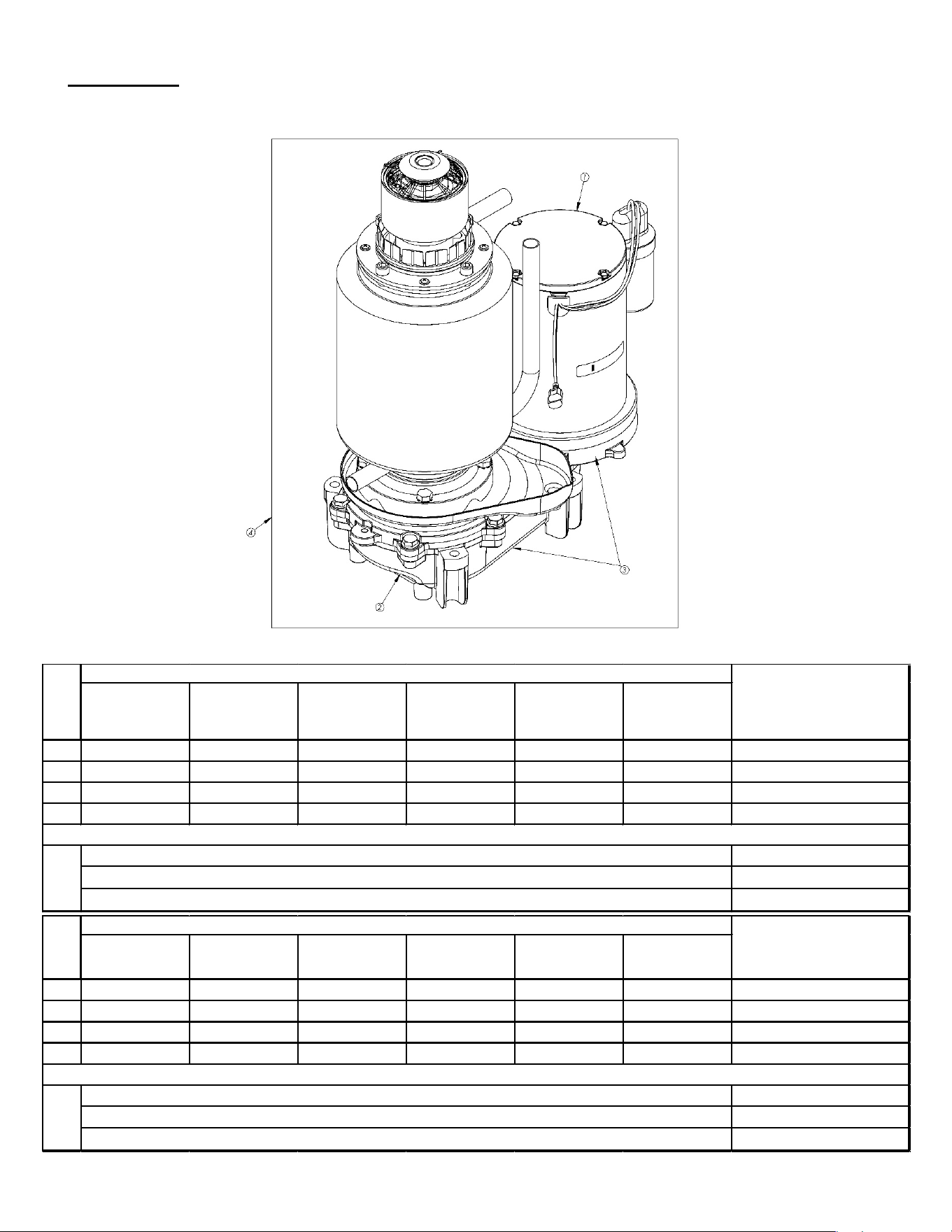

Gearmotor
GEM/MFI/HEM R290 Service Parts Page 15 of 17 Ice-O-Matic

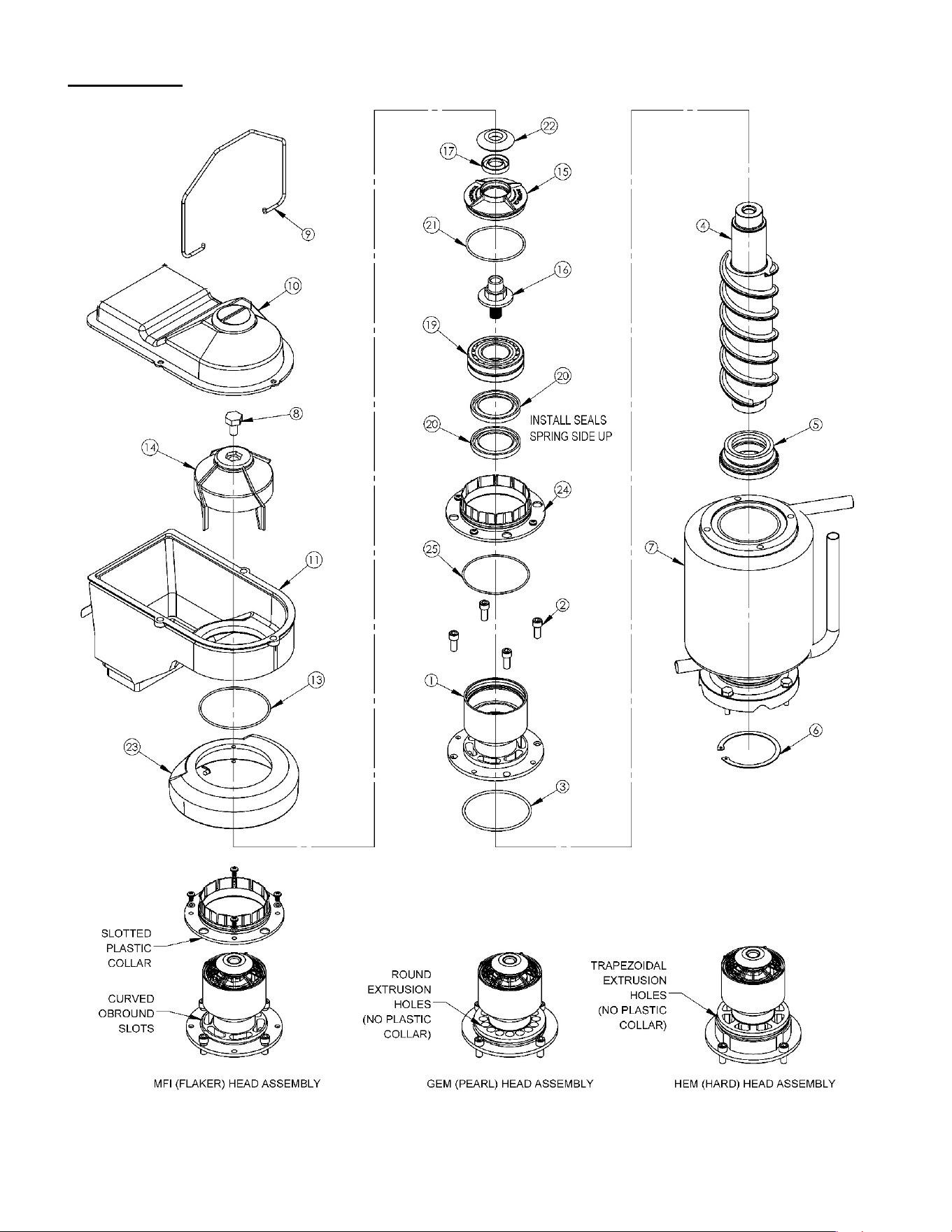

Evaporator
GEM/MFI/HEM R290 Service Parts Page 16 of 17 Ice-O-Matic
GEM045**
GEM065**
GEM095**
GEM130**
MFI050**
MFI080**
MFI125**
MFI150**
HEM045**
HEM065**
HEM095**
HEM130**
1 1051220-01A 1051220-01A 1051221-01A 1051221-01A 1051260-01 1051260-01
Breaker (Includes items 3, 15, 17,
19, 21, 22, 25)
2
9031169-02P 9031169-
02P 9031169-02P 9031169-02P 9031169-02P 9031169-02P Socket Head Screw (10 pack)
3
9051636-01 9051636-
01 9051636-01 9051636-01 9051636-01 9051636-01 O-Ring
4
9151167-01 9151196-
01 9151167-01 9151196-01 9151222-01 9151210-01 Auger
5
9021142-01 9021142-
01 9021142-01 9021142-01 9021142-01 9021142-01 Water Seal
6
9021141-01 9021141-
01 9021141-01 9021141-01 9021141-01 9021141-01 Ring, Water Seal
7
9151170-01 9151169-
01 9151170-01 9151169-01 9151170-01 9151169-01 Evaporator (Barrel Only)
8
9031001-44 9031001-
44 9031001-44 9031001-44 9031001-44 9031001-44 Hex Cap Screw
9
9131494-01 9131494-
01 9131494-01 9131494-01 9131587-01 9131587-01 Bail Clamp
10
9051602-01 9051602-
01 9051602-01 9051602-01 9051602-01 9051602-01 Ice Chute Cover
11
9131495-01 9131495-
01 9131495-01 9131495-01 9131495-01 9131495-01 Ice Chute Body with Insulation
12
13
9051634-01 9051634-
01 9051634-01 9051634-01 9051634-01 9051634-01 O-Ring
14
9051603-01 9051603-
01 9051603-01 9051603-01 9051603-01 9051603-01 Ice Sweep
15
9151171-01 9151171-
01 9151171-01 9151171-01 9151171-01 9151171-01 Breaker Cover
16
9151168-01 9151168-
01 9151168-01 9151168-01 9151168-01 9151168-01
Auger Stud
17
9121054-01 9121054-
01 9121054-01 9121054-01 9121054-01 9121054-01
Lip Seal
18
9031001-42 9031001-
42 9031001-42 9031001-42 9031001-42 9031001-42
O-Ring
19
9121052-01A 9121052-
01A 9121052-01A 9121052-01A 9121052-01A 9121052-01A Bearing
20
9121053-01 9121053-
01 9121053-01 9121053-01 9121053-01 9121053-01 Lip Seal
21
9051635-01 9051635-
01 9051635-01 9051635-01 9051635-01 9051635-01 O-Ring
22
9051640-01 9051640-
01 9051640-01 9051640-01 9051640-01 9051640-01 Water Shed
9051613-02 9051613-02 9051613-
01 9051613-01 9051613-02 9051613-02 Insulation Collar
- - - - 9051884-01 9051884-01 Lower Insulation Collar (HEM)
24
- - 9051638-
01 9051638-01 - - Slotted Collar
25 - - 9051637-01 9051637-01 - - O-Ring
Desciption
Item
No.
Model Family
23
Evaporator
GEM/MFI/HEM R290 Service Parts Page 17 of 17 Ice-O-Matic

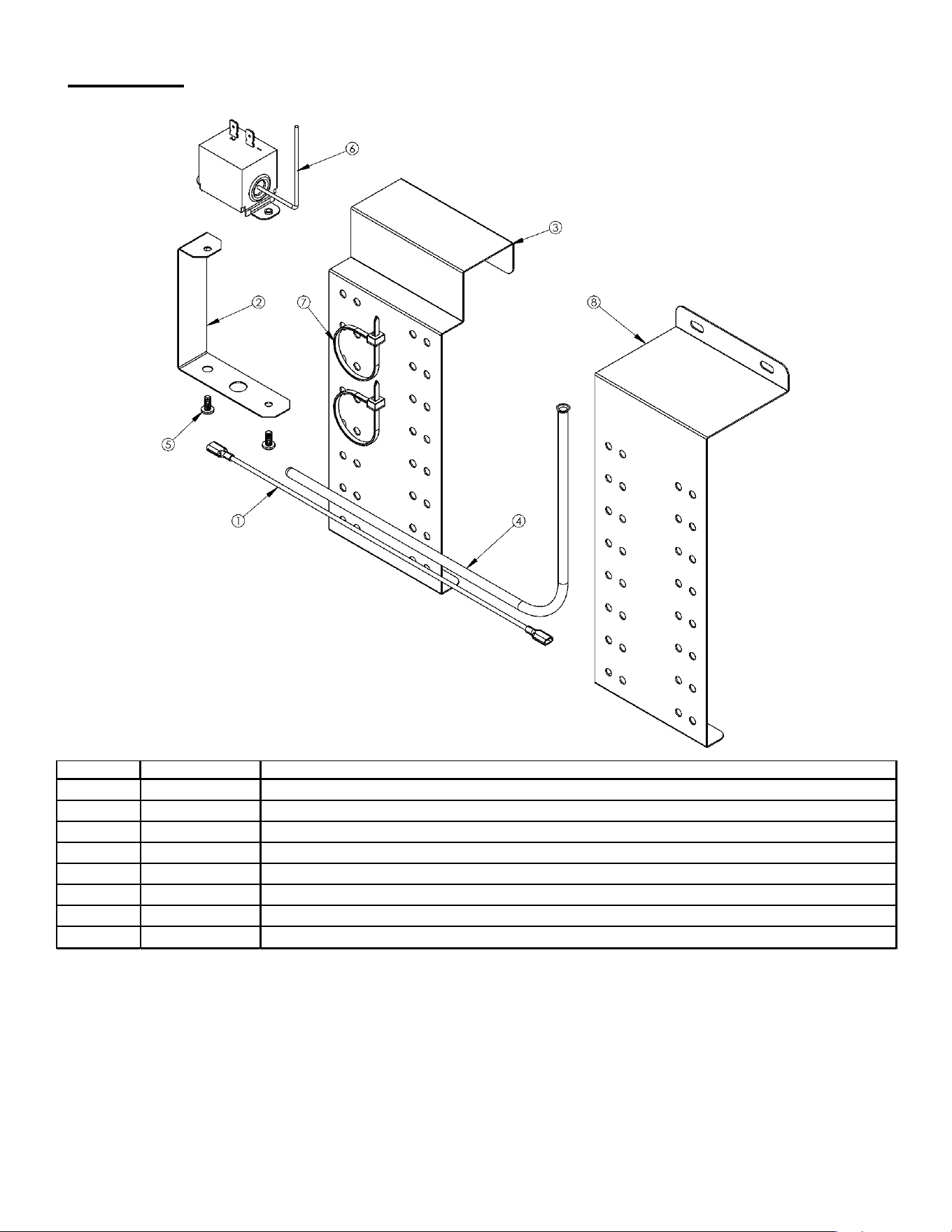

Item No. Part Number Desciption
1
2061032-52 KG
EMFS Wire Assembly
2
3013510-01 K
GEMFS Thermostat Bracket
3
3013572-01 B
in Thermostat Tube Bracket
4
3033768-01 B
in Thermostat Tube
5
9031008-02P B
in Thermostat Screw
6
9041097-01 B
in Thermostat
7
9021021-12 C
able Tie
8 3013862-01 Alternate Bin Thermostat Bracket
KGEMDISP
