VHF MARINE RADIO
MR HH600 FLT GPS BT
Owner’s Manual
Nothing Comes Close to a Cobra
®
English
A1
English
Our Thanks to You and
Customer Assistance
Introduction
©2022 Cobra Electronics Corporation
www.cobra.com
A2
English

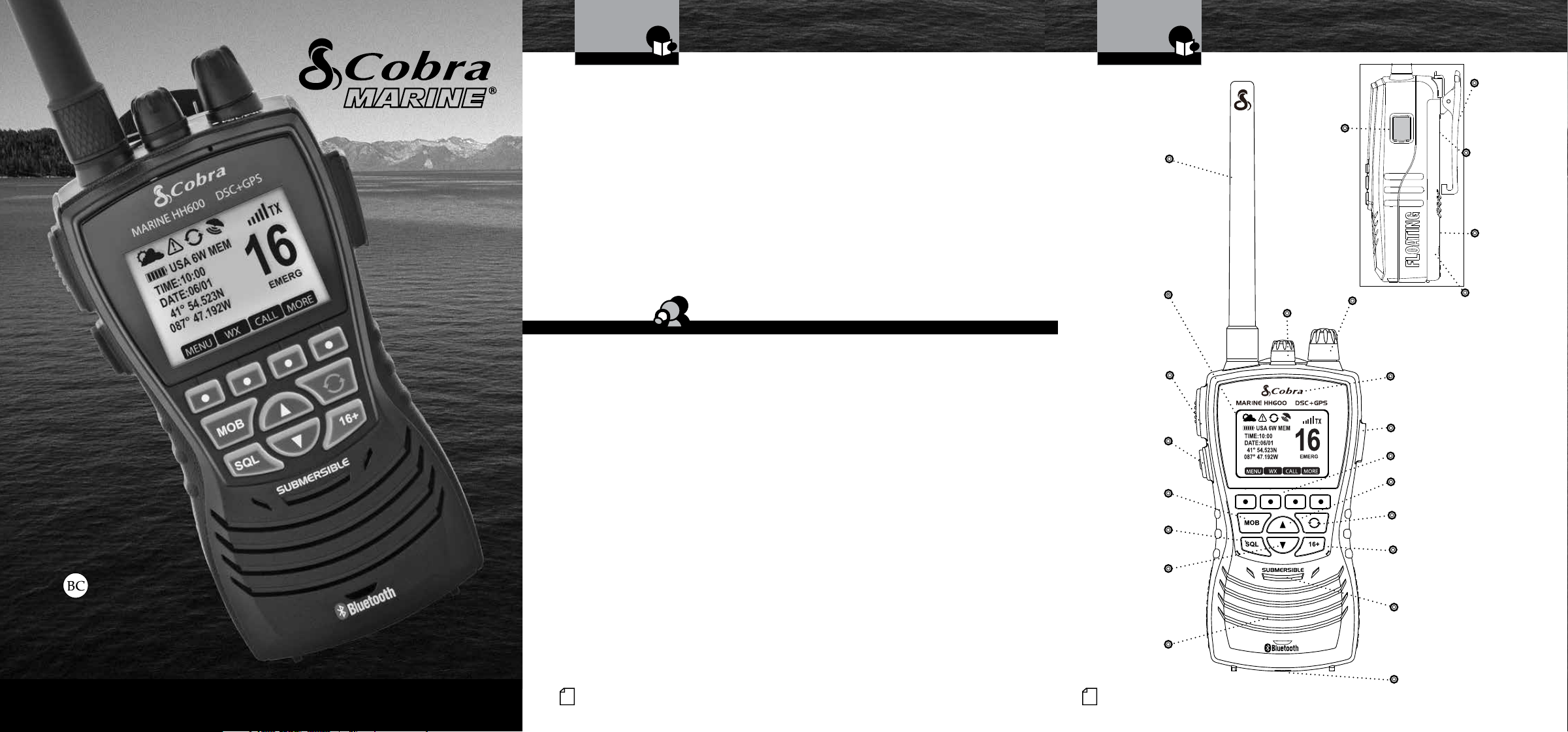

Radio Controls
and Indicators
Introduction
Instant
Channel
16+ Button
Channel
Up Button

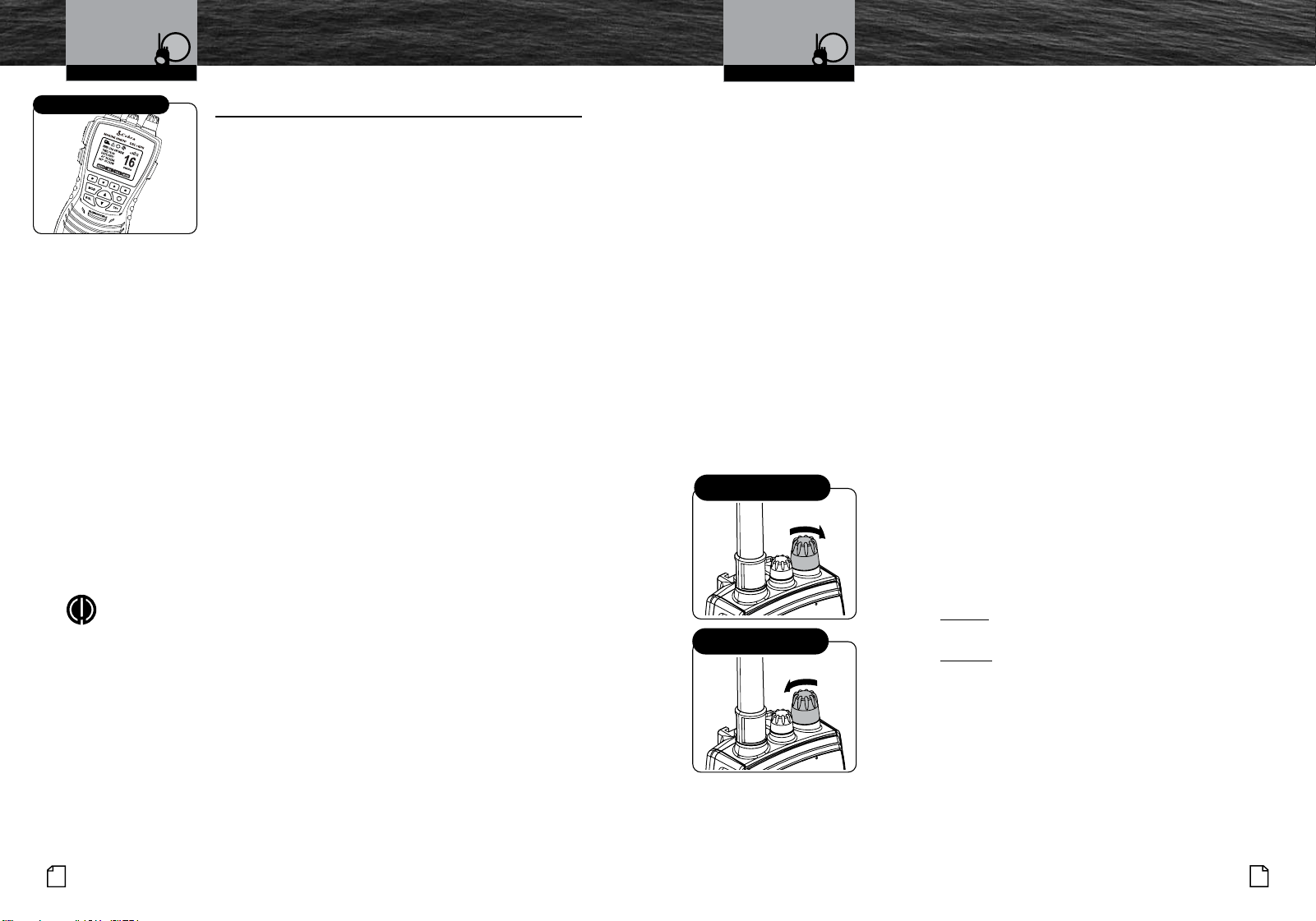

ON/OFF/
Volume Control
Speaker/
Microphone
External Cover
Antenna
Backlit
LCD
Screen
Battery
Backlight/
Key Lock
Button
Push
to Talk
Button
Channel
Down
Button
Speaker
Belt Clip
Battery
Door
Screw
VHF Microphone
Rewind-Say-Again
®
Button
Man Overboard
(MOB) Button
Distress
Key
LED Flashlight/
S.O.S.
Squelch
Button
Distress
Key
Battery
Door
Screw
Bluetooth
®
Calling
Microphone

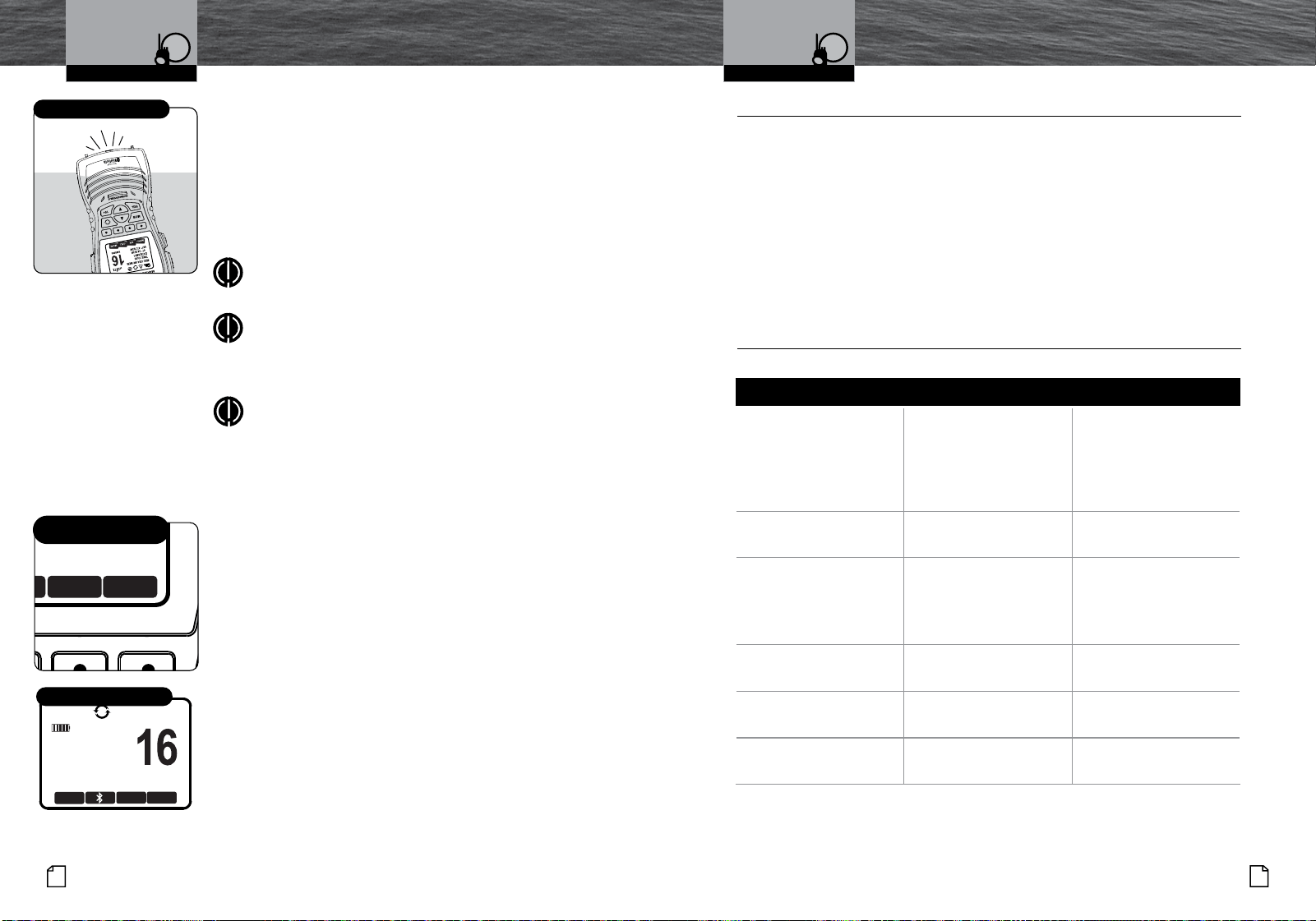

Soft Key Functions
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Caution Warning
Installation
Customer
Assistance
Customer Assistance
Thank you for purchasing a Cobra Marine
®
VHF radio.
Properly used, this Cobra
®
product will give you
many years of reliable service.
How Your Cobra Marine VHF Radio Works
This radio is a battery-powered portable transceiver for use aoat. It gives you 2-way
vessel-to-vessel and vessel-to-shore station communications, primarily for safety and
secondarily for navigation and operational purposes. With it, you can call for help, get
information from other boaters, talk to lock or bridge tenders and make radiotelephone
calls to anywhere in the world through a marine operator.
Besides 2-way communications, in the U.S.A., the radio can provide quick
access to receive eight NOAA (National Oceanographic and Atmospheric
Administration) and two Canadian weather channels for alerting you to weather
emergencies with a tone on a weather channel you can select for your area.
Customer Assistance
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner’s manual. If you require further assistance
after reading this manual, Cobra Electronics offers the following
customer assistance services:
For Assistance In The U.S.A.
Monday-Friday 9:00 AM- 5:00 PM EST
Call: 800-543-1608
SERVICE
Monday-Thursday 9:00AM-5:00PM EST
Call: 800-543-1608
Have questions? We can help. Contact us at 800-543-1608
M-F 9:00AM-5PM EST
For Assistance Outside the U.S.A.
Contact Your Local Dealer

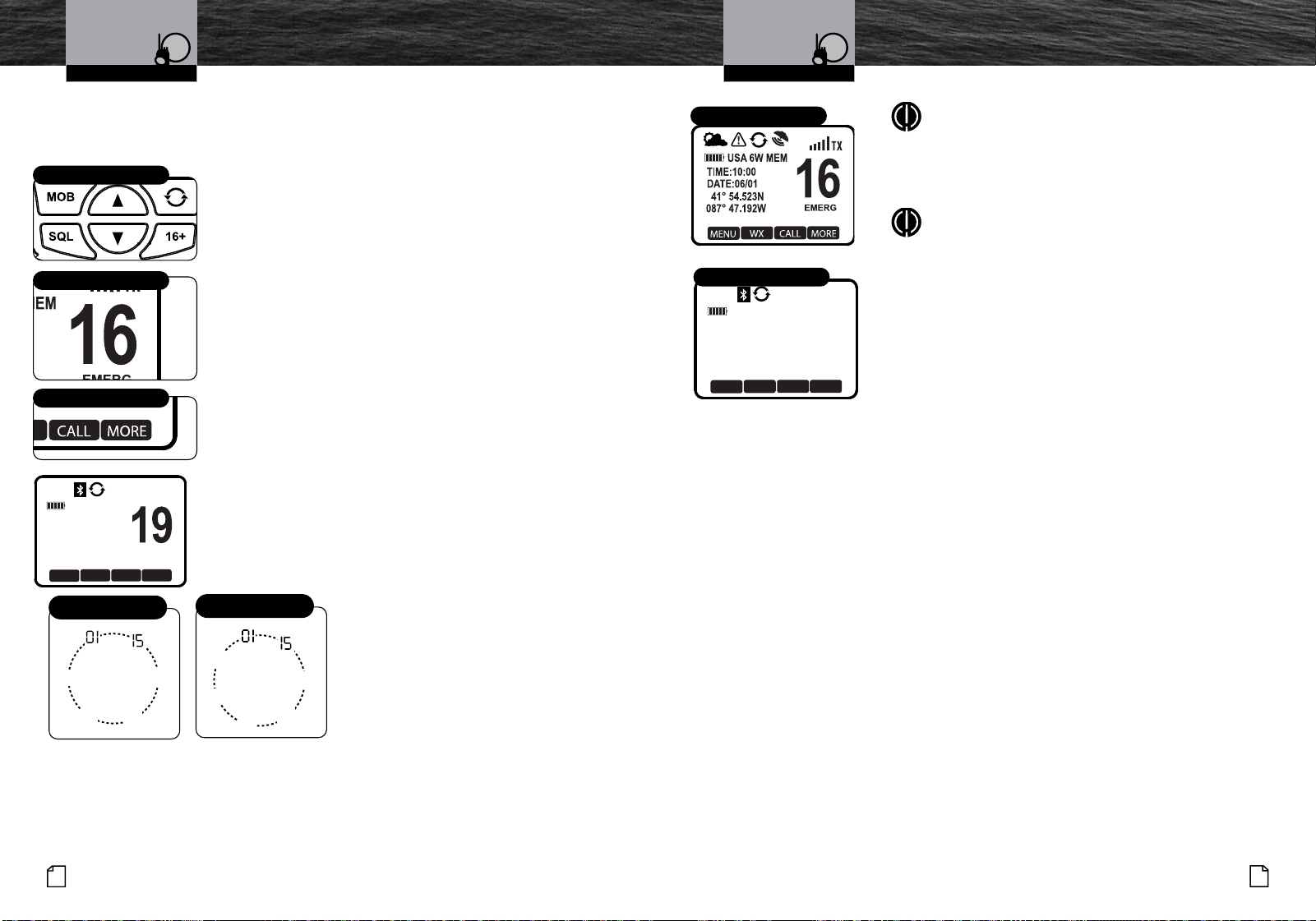

Product Features (continued)
•
EMERG
USA 6W MEM
41° 54.523N
087° 47.192W
DATE:06/01
TIME:10:00
WX
MENU
CALL MORE
ROG
16
A3
English
Introduction
Backlit Screen
•
Built-In GPS Receiver
Shows GPS coordinates on screen and
automatically sends GPS location with
DSC calls.
Digital Selective Calling (DSC Class-D)
Allows the ability to maintain a listening
watch on VHF Channel 16 while
simultaneously monitoring Channel 70
for DSC calls. Allows sending a distress
message at the touch of a button as well
as specific station-to-station calls. Radio
utilizes two (2) built-in encoders (receivers).
MicroBlue
TM
Bluetooth
®
Wireless Technology in a unique
noise canceling design. Widely compatible
for all mobile phones with Bluetooth
®
wireless technology.
Easy Redial Operation
Redial of last phone number dialed.
Voice Dialing
Supports standard mobile phone
voice dialing when paired to a
compatible mobile phone.
Floating
This radio will oat if dropped overboard.
It has an orange stripe so it’s easy to
retrieve.
Must use included battery to oat.
Rewind-Say-Again
®
Replays missed VHF calls.
6 Watt VHF
Select between 1, 3 or 6 watts for short and
long range communication.
Flashlight/S.O.S. Light
The radio can be used as a flashlight, strobe
light or S.O.S. signal.The light flashes when
dropped in the water.
Submersible to IPX8 Standards
Waterproof to 3.3 ft (1 m) of water
for 30 minutes.
All NOAA Weather Channels
Instant access to all National Weather
Channels, 24 hours a day.
Emergency Weather Alert
Receive NOAA alerts when threatening
weather is nearby.
Product Features
•
Backlit Screen
and Product Features
Product Features
Introduction
MOB (Man Over Board)
The radio dedicated MOB button marks and
memorizes the position information if a crew
member falls overboard.
Noise Canceling Microphone
Reduces effect of environmental
noise when speaking.
Basic Navigation
Basic navigation features include digital
compass, waypoint navigation, course,
speed, etc.
USA/International/Canada Channels
Allows operation on any of the three (3)
different channel maps established for
these areas.
BURP
The Cobra exclusive BURP feature expels
water from the speaker grill if the unit is
dropped in the water or is subjected to
extreme rain and weather.
Speaker/Mic Jack
Allows connecting optional Cobra
Lapel Speaker/Mic and other Cobra
accessories.
Instant Channel 16/9
Provides instant access to priority Channel
16 and calling Channel 9.
NMEA Out
NMEA 0183 output to display other vesels
and their information transmitted by DSC
or your chartplotter.
Unlimited Memory Channels
Allows programming of unlimited
VHF memory channels.
Tri-Watch
Use to monitor three (3) channels
at once — Channel 16, Channel 9 and one
other selected channel.
Channel Names
Friendly VHF channel names under the
channel number.
Channel Scan/Memory Scan
Use to scan through unlimited
channels or memory locations to nd
conversations in progress.
Signal Strength Meter
Shows the strength of incoming or outgoing
signals.
Button/Key Lock
Prevents accidental setting changes
when button lock is set.
Illuminated Buttons
Allows high visibility of all function buttons.

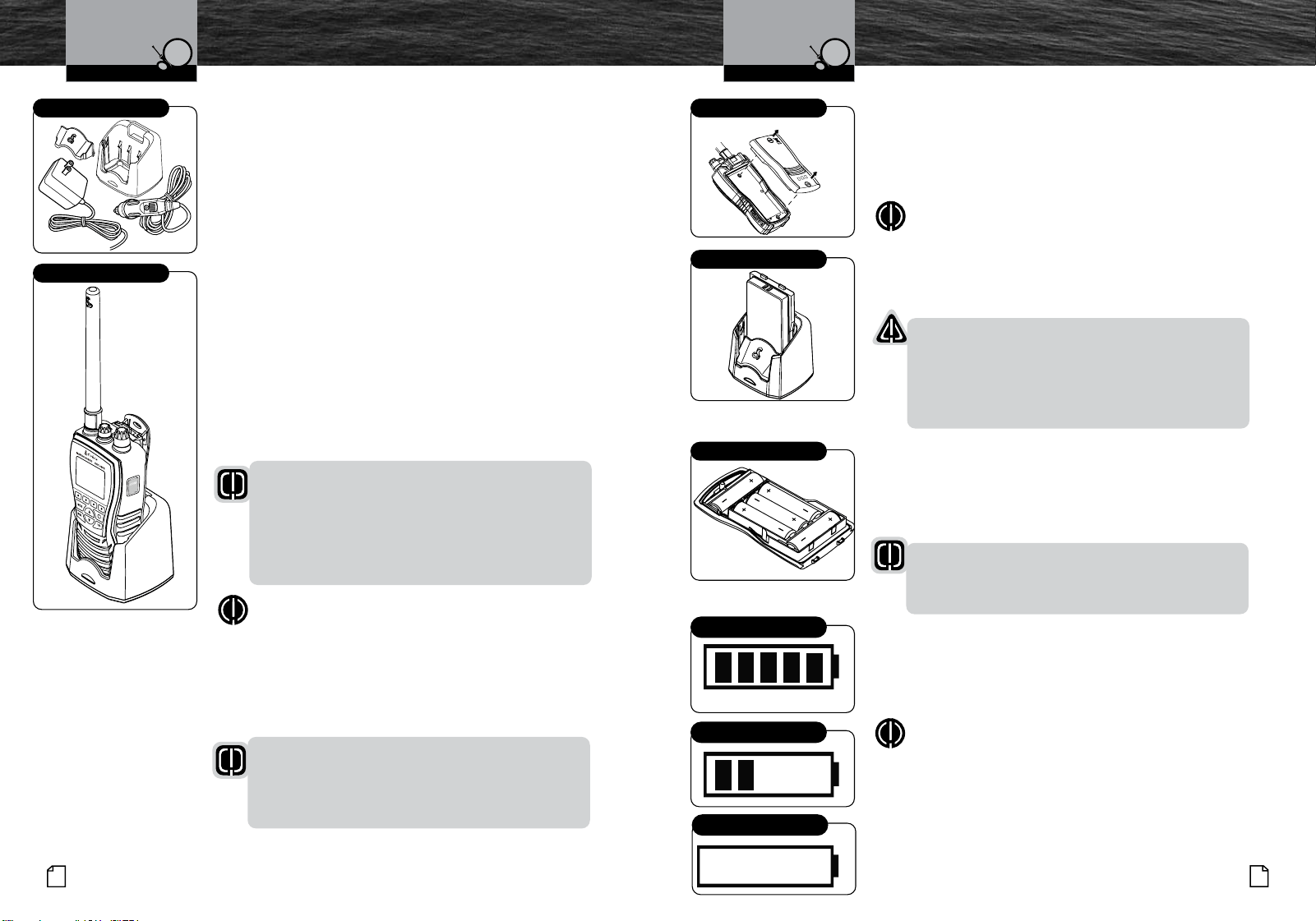

AA Battery Compatible
Good for emergency backup.
Includes AA battery tray (P/N CM 110-035).

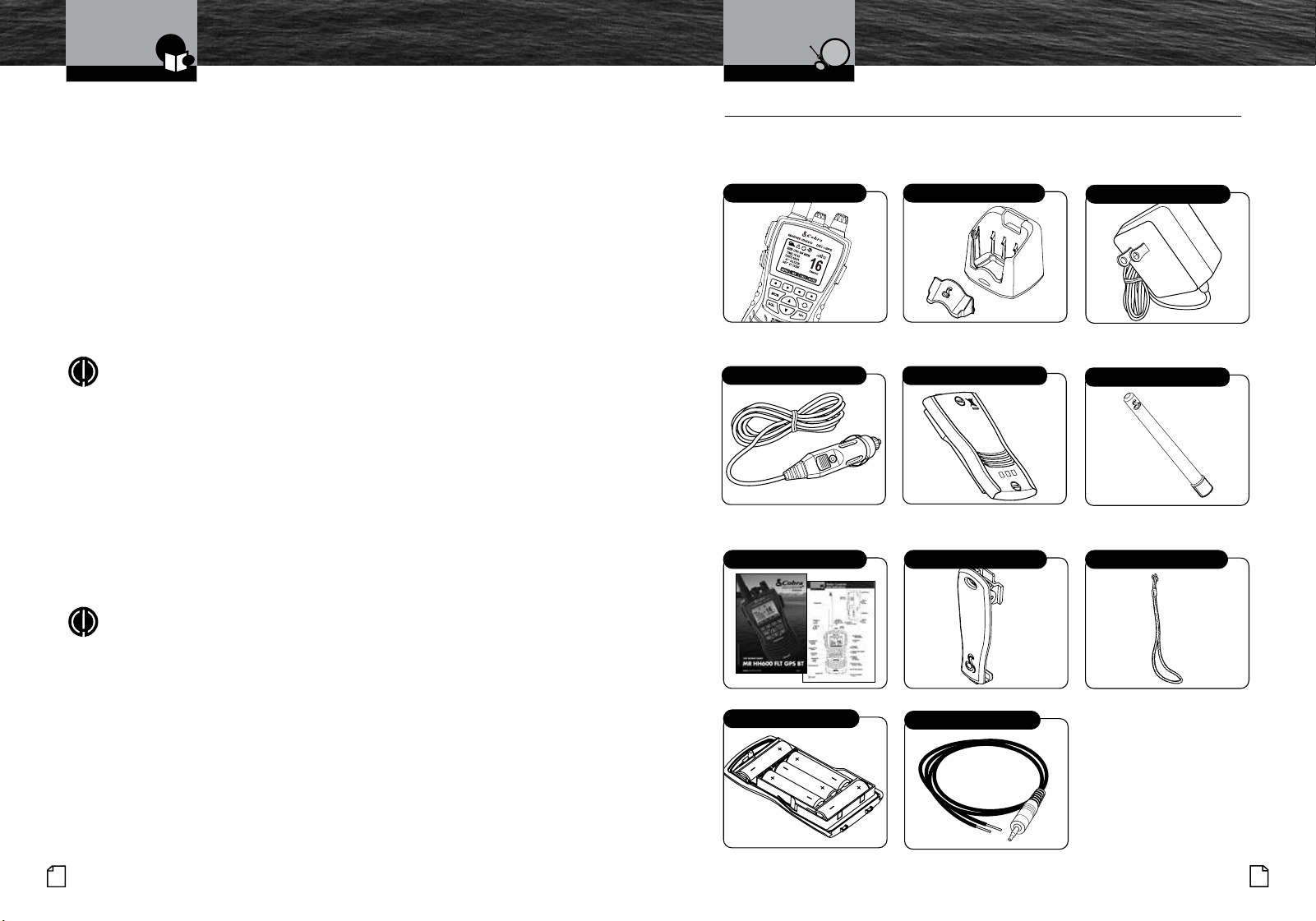

120V/12V Charger Included
Use to charge battery pack, at home,
in a car or in a boat.
Locking Desktop Charger
Holds the radio or battery in place while
charging. Vertical or horizontal mounting.
A4
English
Introduction
Notes

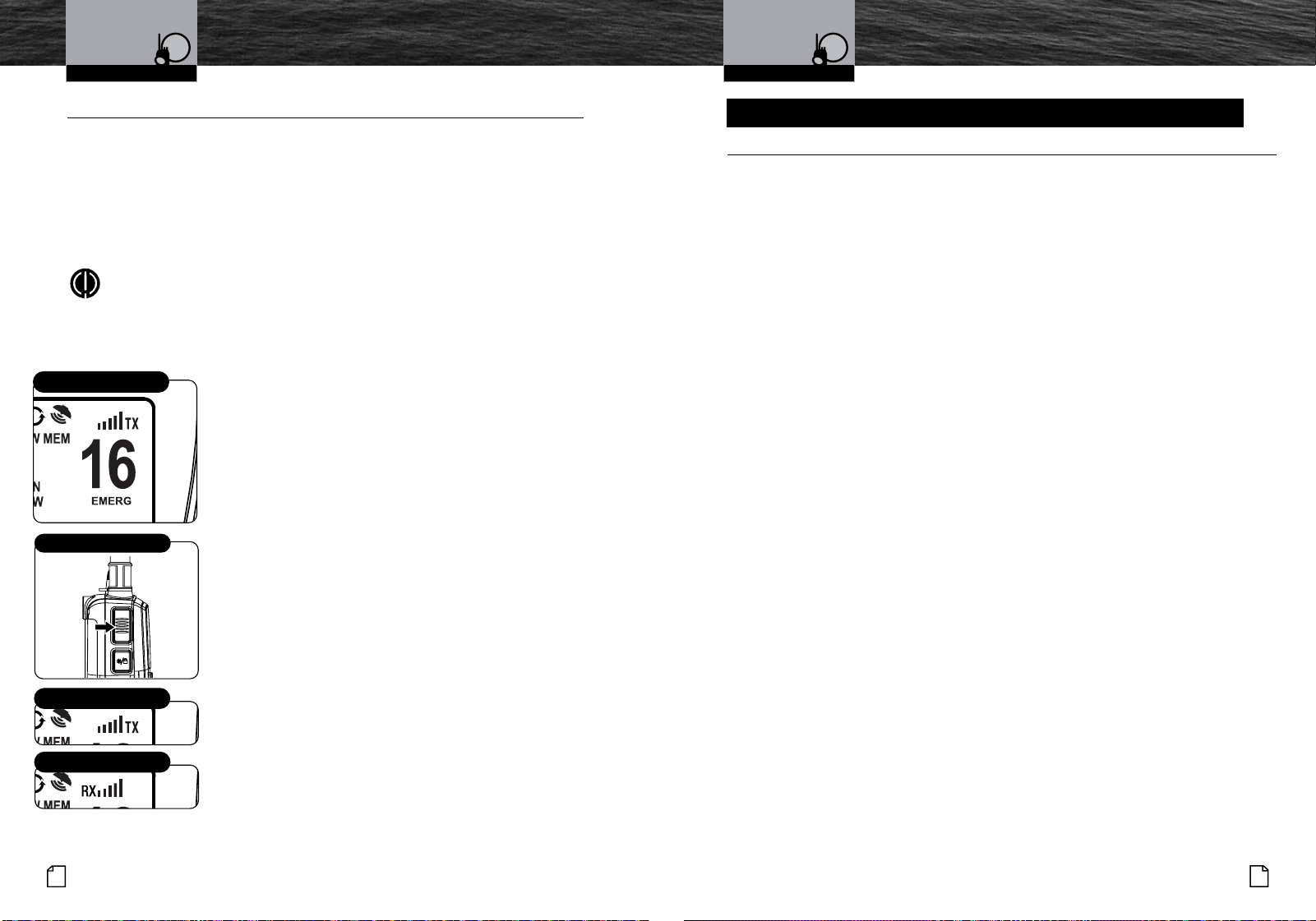

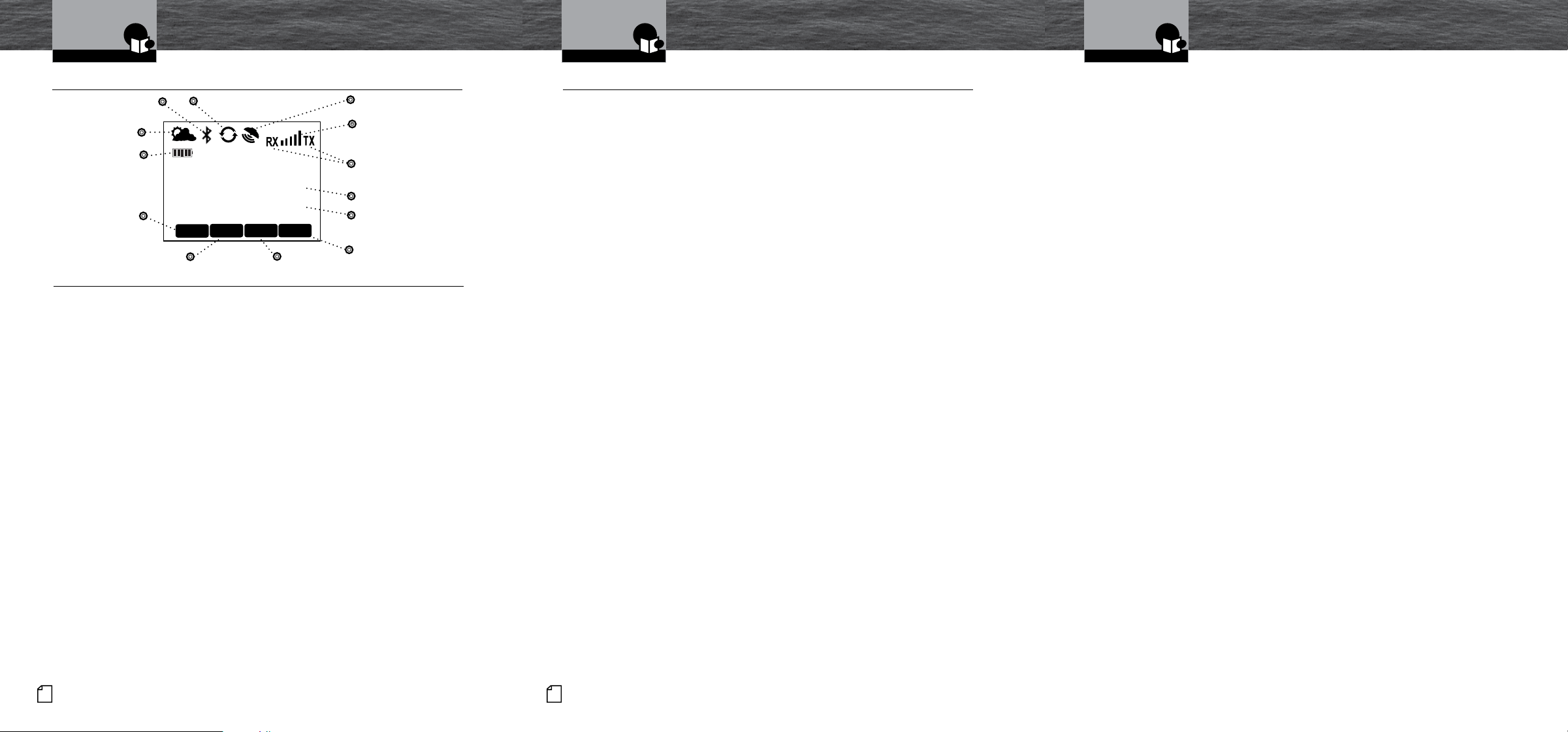

Signal Level Icon
Battery Power Icon
Weather Icon
Active Channel
Transmit and
Receive Icons
Left blank intentionally for your notes
Rewind-Say-Again
®
Icon
Bluetooth VOX Icon
GPS Icon

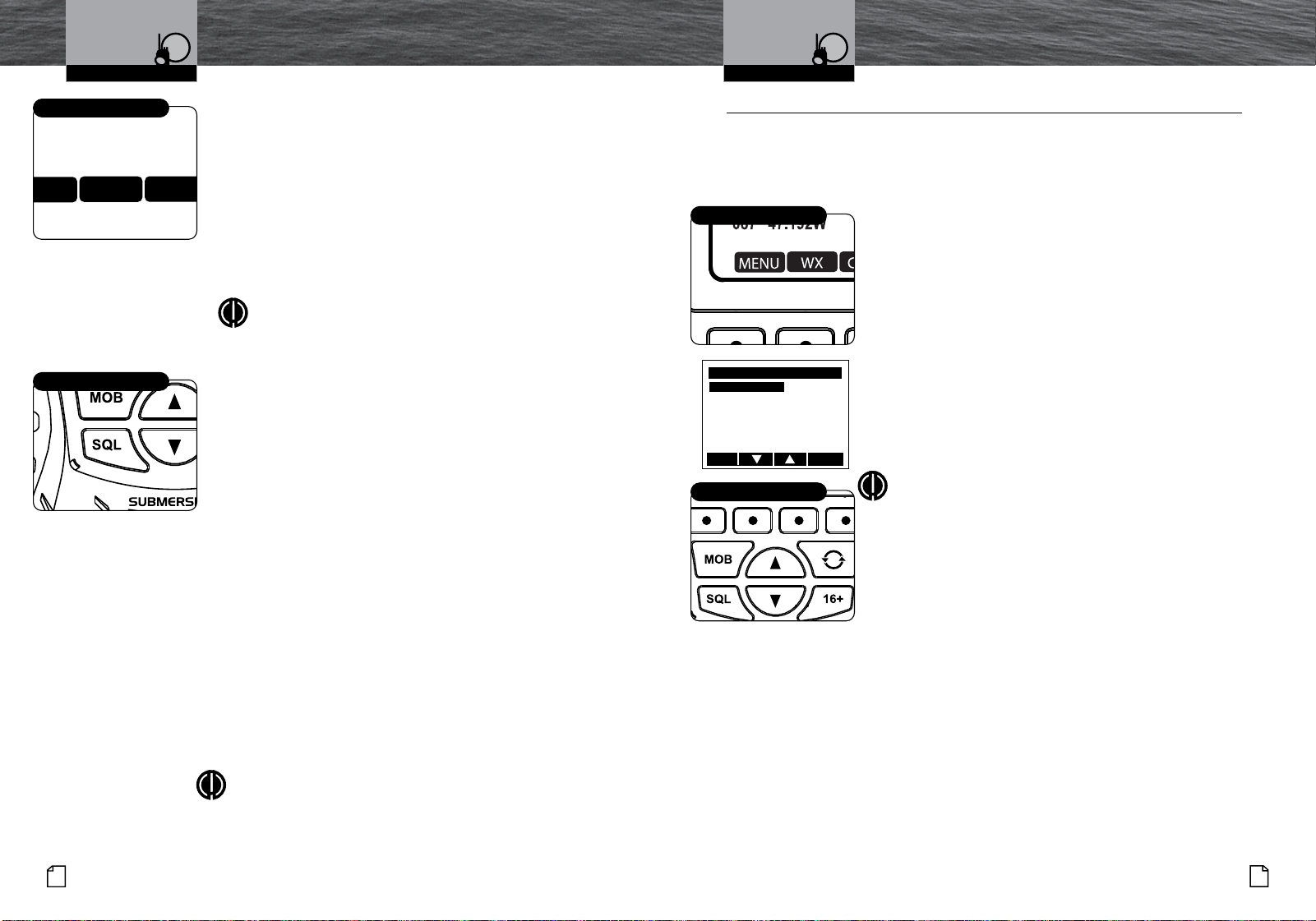

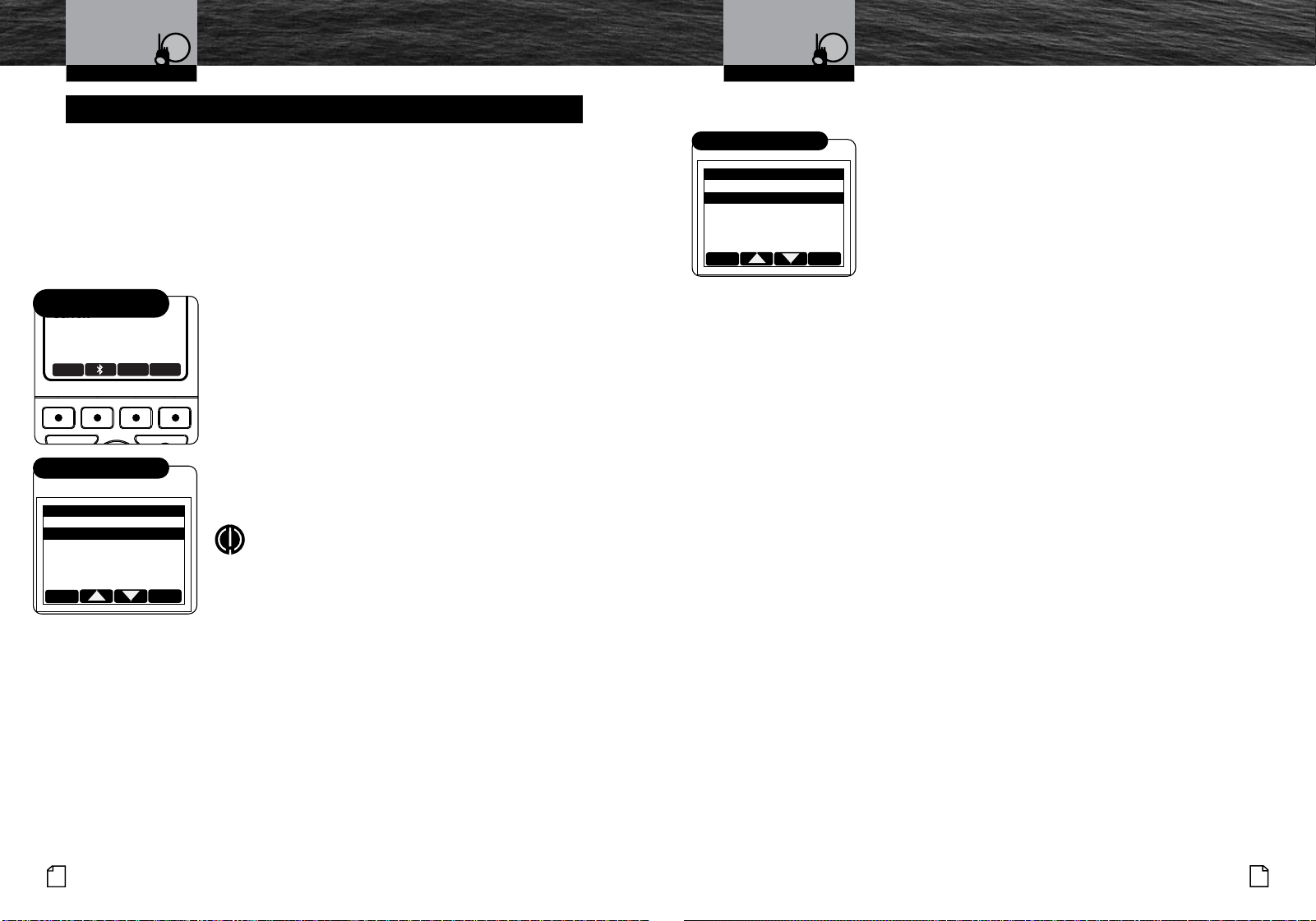

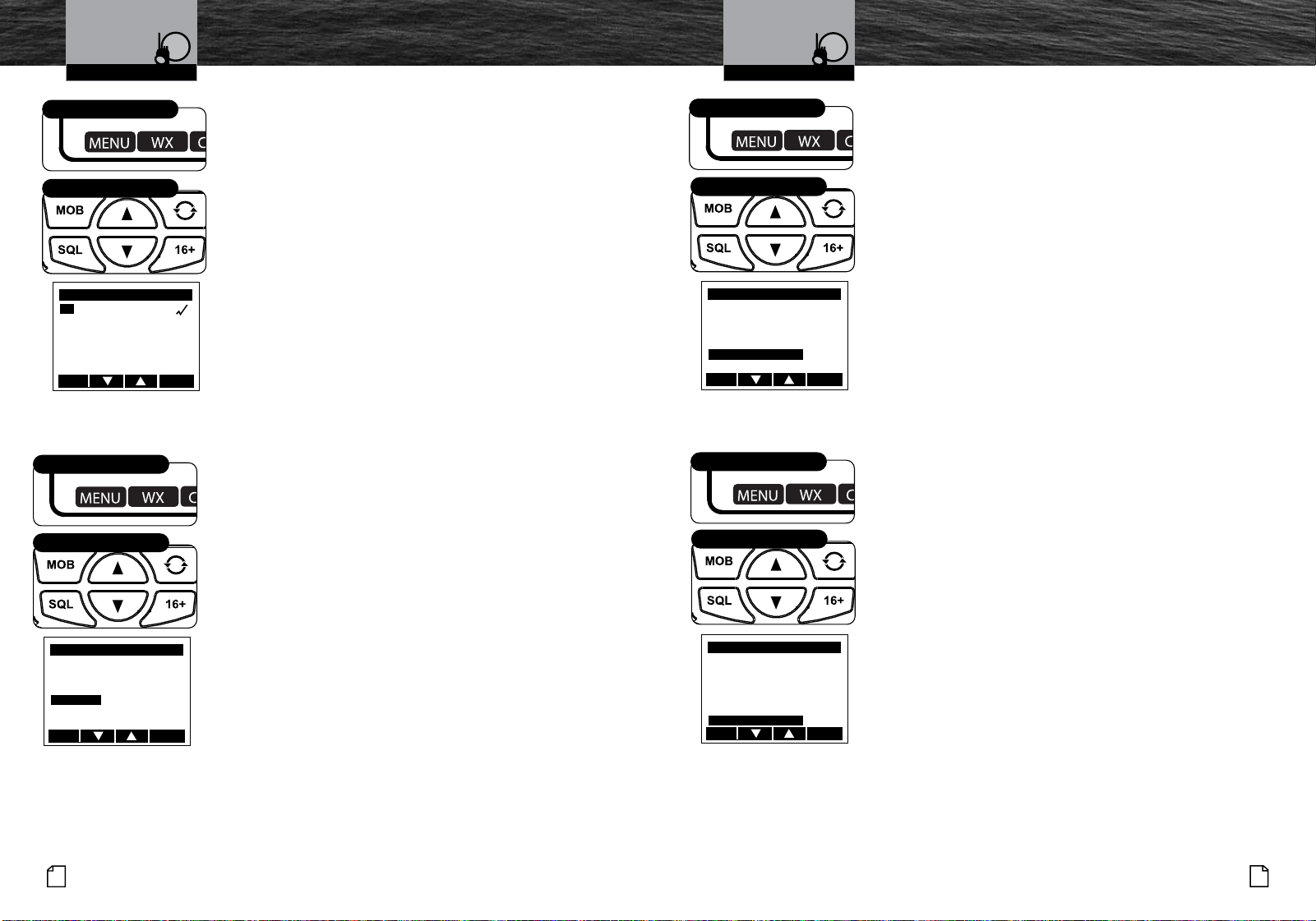

MENU Soft Key
WEATHER
Soft Key
CALL
Soft Key
MORE Soft Key
Channel Description
Introduction
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Caution Warning
Installation
Customer
Assistance
