INSTRUCTION MANUAL
CORDLESS HAND VAC
Catalog Numbers CHV1210, CHV1410, CHV1410B, CHV1510, CHV1610
SAVE THIS MANUAL FOR FUTURE REFERENCE.
FOR HOUSEHOLD USE ONLY.
Thank you for choosing Black & Decker!
Go to www.BlackandDecker.com/NewOwner
to register your new product.
PLEASE READ BEFORE RETURNING THIS
PRODUCT FOR ANY REASON:
If you have a question or experience a problem with your Black & Decker purchase, go to
HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS
If you can’t find the answer or do not have access to the internet,
call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.
Please have the catalog number available when you call.
for instant answers 24 hours a day.
To purchase a replacement lter
call 1-888-678-7278.
CHV1210
CHV1410
CHV1410B
CHV1510
CHV1610
2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliances, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: Read all safety warnings and all instructions.
Failure to follow the warnings and instructions listed below may result in electric
shock, fire and/or serious injury.
WARNING: Some household dust contains chemicals known to
the State of California to cause cancer, birth defects or other reproductive harm such
as asbestos and lead in lead based paint.
WARNING: To reduce the risk of fire, electrical shock or injury:
• WARNING: To reduce the risk of electric shock – Do not
use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away
from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free
of dust,lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in
areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without dust bag and/or filters in place.
• Do not charge the unit outdoors.
SAFETY GUIDELINES - DEFINITIONS
It is important for you to read and understand this manual.
The information it contains relates to protecting YOUR SAFETY and PREVENTING
PROBLEMS. The symbols below are used to help you recognize this information.
DANGER: Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a potentially haz ard ous situation which, if not
avoided, may result in minor or mod er ate injury.
NOTICE: Used without the safety alert symbol indicates potentially hazardous
situation which, if not avoided, may result in property damage.
3
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can
explode in a fire.
• This appliance is intended for household use only and not for commercial or industrial use.
• Shock Hazard. To protect against risk of electrical shock, do not put unit or charging
base in water or other liquid.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The
unit should be placed or mounted away from sinks and hot surfaces.
• Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Unplug the charger from outlet before any routine cleaning or maintenance.
• This product includes rechargeable nickel cadmium batteries. Do not incinerate
batteries as they will explode at high temperatures.
• Leaks from battery cells can occur under extreme conditions. If the liquid, which is a
20-35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap
and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the
liquid gets into the eyes, flush them immediately with clean water for a minimum of 10
minutes. Seek medical attention.
• Do not look into the air vents when the unit is switched on, as sometimes
there is a possibility of small debris being discharged from the air vents, especially
after cleaning / replacement of the filters as debris inside the unit can be disturbed.
Symbols
• The label on your tool may include the following symbols. The symbols and their
definitions are as follows:
V ..................volts A ...................amperes
Hz ................hertz W ..................watts
min ..............minutes
................alternating current
............direct current
n
o .................no load speed
................Class I Construction ..................earthing terminal
(grounded)
................safety alert symbol
................Class II Construction .../min or rpm..revolutions or reciprocation
(double insulated) per minute
SAVE THESE INSTRUCTIONS
4
Assembly
Wall Mounting
The product can be wall mounted, if desired, using the wall mount bracket, screws and
anchors supplied. To wall mount the vac, refer to gures B, C, D and E.
• Figure B - Mark the location of the screw
holes (within reach of an electrical outlet
for chargeing the vac while it is on the wall
bracket).
• Figure C - Insert the charger cord into the
curved slot in the wall mount bracket leaving
approximately 8-9 inches (203mm - 227mm)
excess as shown.

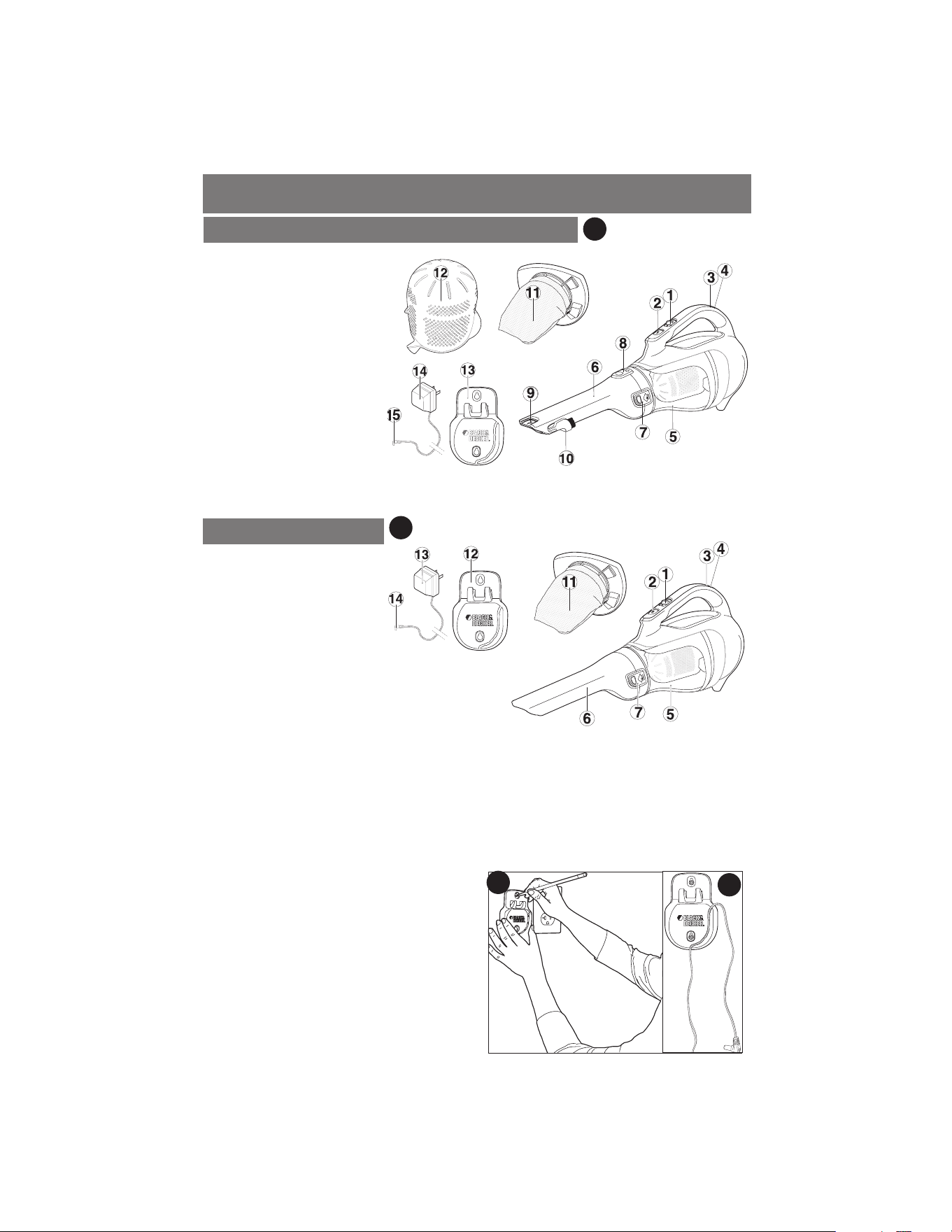

Product Features
1. On/off switch
2. Bowl release button
3. Charging indicator
4. Charging socket
5. Dust bowl
6. Nozzle
7. Nozzle release button
8. Nozzle rotating button
9. Extendable crevice tool
10. Flip-up Brush
11. Cloth filter
12. Plastic pre-filter
13. Wall mount bracket
14. Charger
15. Jack plug
A
B
C
A1
CHV1410, CHV1410B, CHV1510, CHV1610
1. On/off switch
2. Bowl release button
3. Charging indicator
4. Charging socket
5. Dust bowl
6. Nozzle
7. Nozzle release button
11. Cloth filter
12. Wall mount bracket
13. Charger
14. Jack plug
CHV1210
5

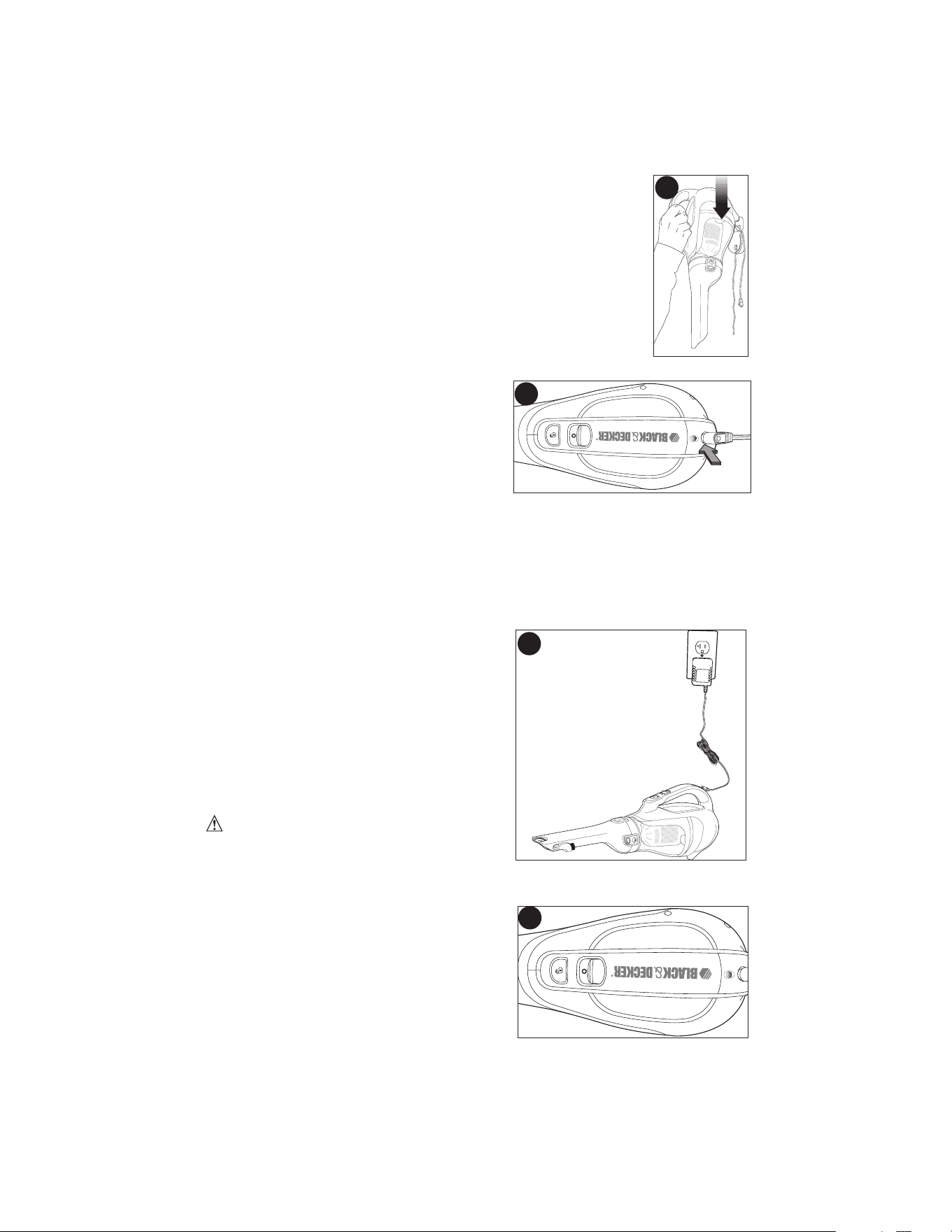

• Figure D - Hang the vac on the wall by placing the opening on the
base of the vac over the hooks in the wall mount bracket as shown in
gure D.
• Figure E - Insert the jack plug into the
charging socket.
Charging the battery
From new, the rechargeable cells of the product need a minimum charge time of 24
hours to ensure full power.
We suggest you fully discharge the product when it is used for the first time as this will
help the cells recharge faster.
• The switch must be in the off (“O”) position, the product will not charge if it is in any
other position.
• Figure F - Plug the jack plug of the charger into
the charging socket of the tool. Plug the charger
into any standard 120 Volt 60 Hz electrical outlet.
The charging indicator will be lit.
While charging, the charger may get warm, this
is perfectly normal and safe. It can remain on
charge indefinitely without damage or danger. It
is not possible to “overcharge” the battery cells
with the charger provided.
• The charging indicator will be lit as long as
the appliance is connected to the plugged-in
charger.
WARNING: Do not charge the
battery at ambient temperatures below 39°F
(4°C) or above 104°F (40°C).
Use
Switching on and off
• Figure G - To start, slide the On/Off switch
forward (i.e. “O”= Off, “I” = On).
• To stop, slide the switch back.
• Return the product to the charger immediately
after use so that it will be ready and fully charged
for the next use. Ensure that the product is fully
engaged with the charger plug.
F
G
E
D
6
Cleaning and emptying the product
WARNING: Projectile/Respiratory Hazard: Never use the vac
without its filter.
NOTE: The filter is re-usable, do not confuse
it with a disposable dust bag, and do not throw
it away when the product is emptied. We
recommend that you replace the filter every 6-9
months depending on frequency of use.
There are two methods of cleaning the bowl,
a quick empty method and a thorough clean
method.

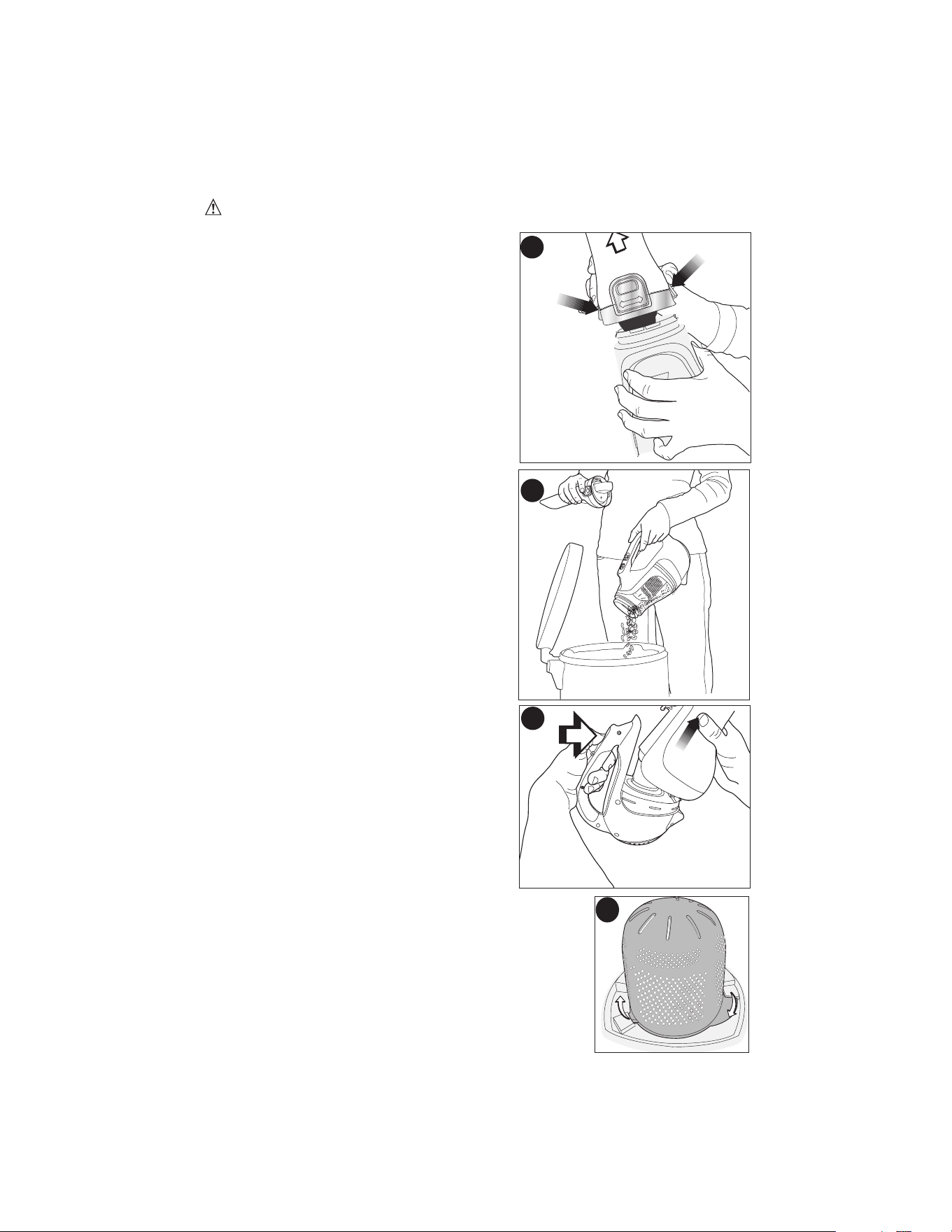

For a quick empty (gures H,I)
• Figure H - Press in on both nozzle release
buttons on the sides of the nozzle and remove the
nozzle by pulling straight off.
• Figure I - Empty the dust from the bowl.
• For a more thorough cleaning, remove bowl as
described below.
For a more thorough cleaning
(gures J, K, L & M)
• Figure J - Remove the dust bowl by pressing
the bowl release button and pulling the bowl
straight off.
• Remove filters from within the bowl.
• Figure K - Models CHV1410, CHV1410B,
CHV1510, CHV1610 have a plastic pre-filter and an inner
cloth filter. To separate the cloth filter from the plastic filter,
twist the plastic filter in a clockwise direction.
• Remove the inner cloth filter and shake or lightly brush any
loose dust off both filters.
H
I
J
K
7

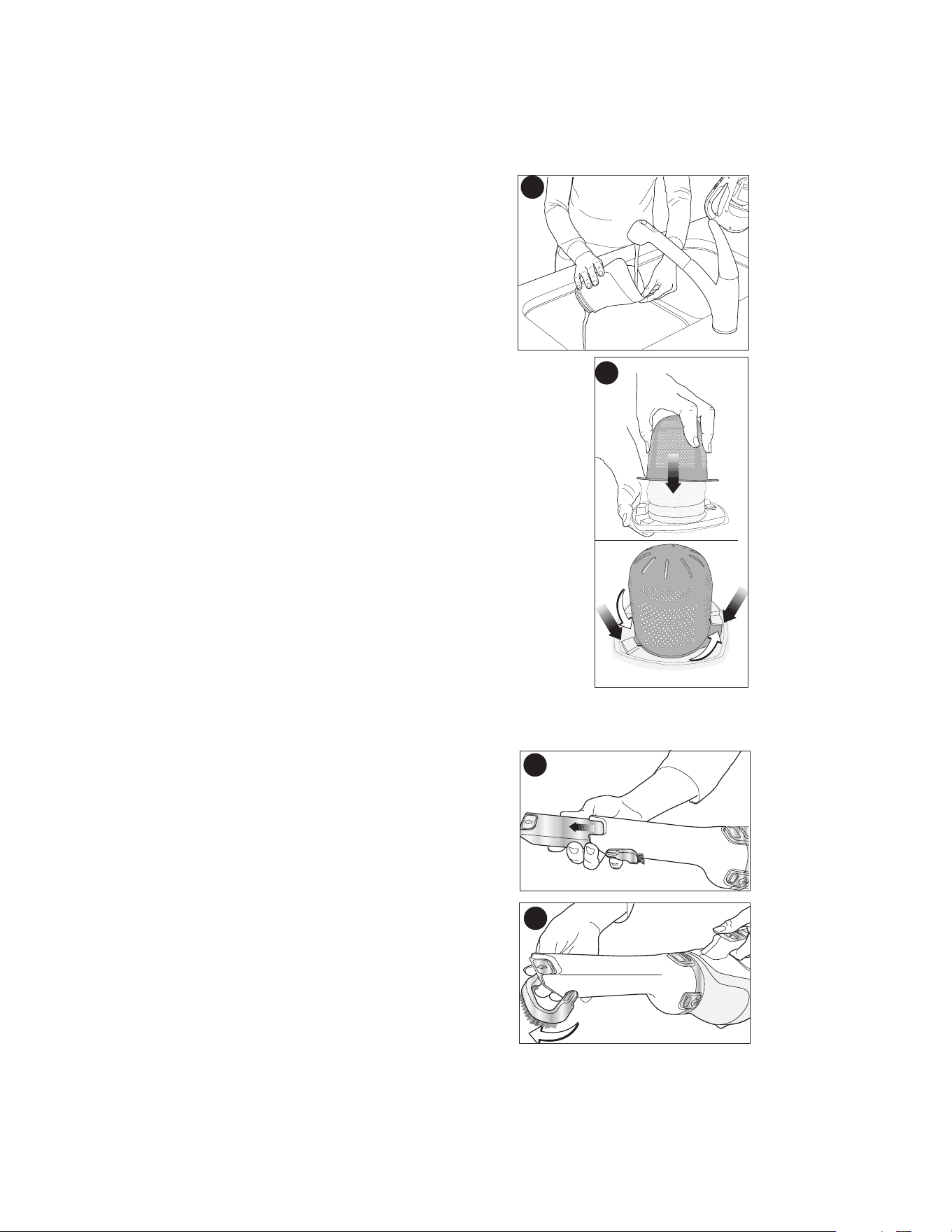

• Figure L - The dust bowls and filters can be
washed in warm soapy water. Allow to dry
before placing back into the vac.
• Figure M - (CHV1410, CHV1410B, CHV1510, CHV1610)
To replace the filters, slide the outer plastic filter over the cloth
filter.
• Align the wings of the plastic filter with the slots in the cloth
filter and twist in a counterclockwise direction.
• Place filters back into the bowl pressing firmly to ensure a
secure fit.
• To replace dust bowl, place it back onto the handle until it
“clicks” firmly into position.
IMPORTANT: Maximum dust collection will only be obtained
with a clean filter and an empty dust bowl. If dust begins to fall
back out of the product after it is switched off, this indicates
that the bowl is full and requires emptying.
• Wash the filters regularly using warm, soapy water and
ensure that they are completely dry before using again. The
cleaner the filter is, the better the product will perform.
• It is very important that the filter is correctly in position before
use.
Nozzle / Accessories (CHV1410,
CHV1410B, CHV1510, CHV1610)
• Figure N - A crevice tool is built into the nozzle
and can be extended as shown in figure N by
pulling the extension piece until it locks into
position.
• Figure O - A brush accessory is built into the
nozzle and can be flipped upwards for use.
L
M
N
O
8

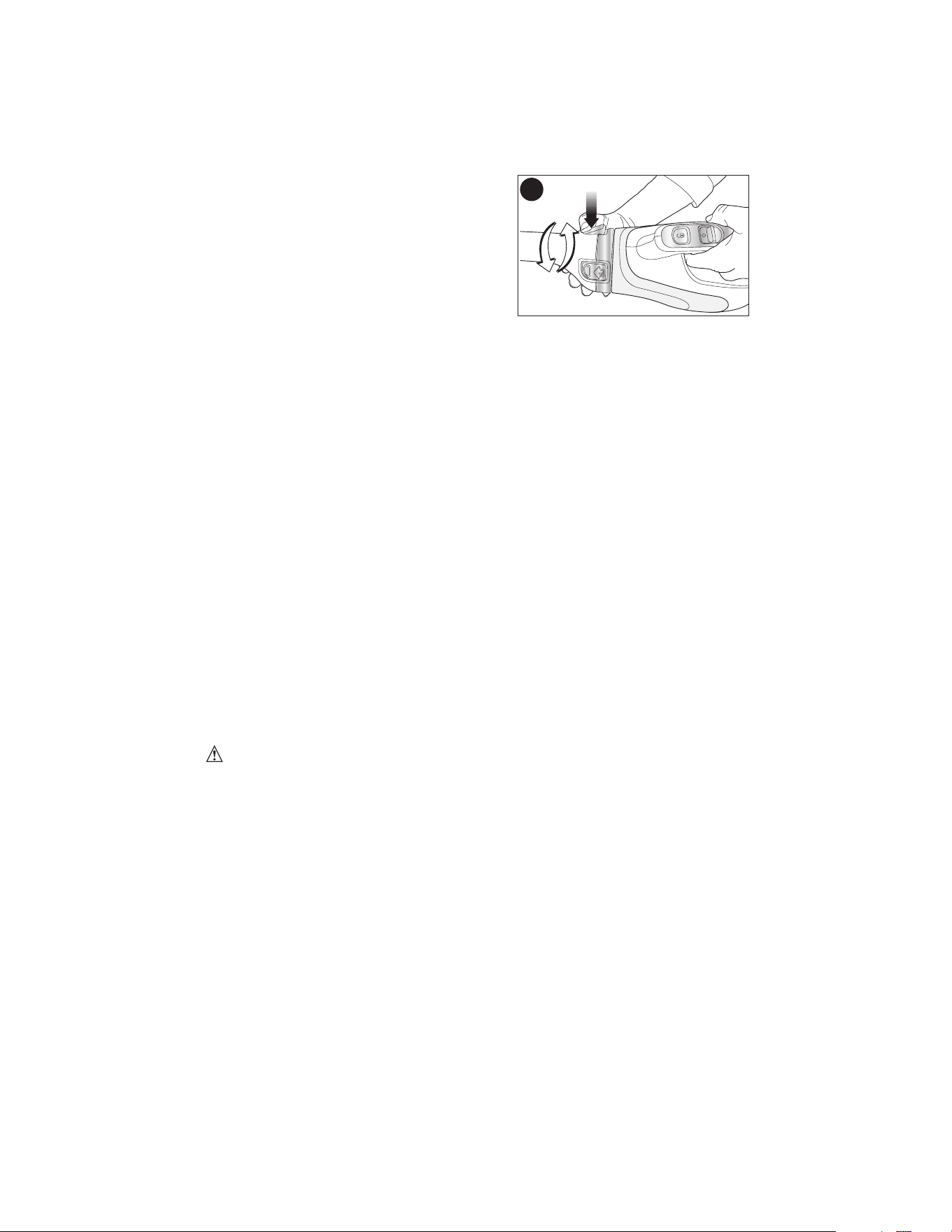

• Figure P - The nozzle can be rotated for better
access in tight spots. To rotate the nozzle press
the button shown in figure P and rotate the nozzle
to the left or right until it clicks into place.
Replacing the lters
The filters should be replaced every 6 to 9 months and whenever worn or damaged.
Replacement filters are available from your Black & Decker dealer.
Visit www.blackanddecker.com to locate dealers.
• Remove the old filters as described above.
• Fit the new filters as described above.
Maintenance
Bowls and filters can be washed thoroughly; however, use only mild soap and a damp
cloth to clean the main part of the vacuum.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and
adjustment (other than those listed in this manual) should be performed by authorized
service centers or other qualified service personnel, always using identical replacement
parts.
Troubleshooting
If the product does not work, check the following:
• The charge indicator light is on when unit is connected to charger.
• The charger was correctly plugged in for recharge. (It feels slightly warm to the touch.)
• The charger cord is not damaged and is correctly attached.
• The charger is plugged into a working electrical outlet.
• The switch is in the “OFF” position when charging.
For assistance with your product, visit our website www.blackanddecker.com for the
location of the service center nearest you or call the BLACK & DECKER help line at
1-800-544-6986.
Accessories
Recommended accessories for use with your product are available from your local dealer
or authorized service center. If you need assistance regarding accessories, please call:
1-800-544-6986.
WARNING: The use of any accessory not recommended for use
with this product could be hazardous.
Battery Removal and Disposal
This product uses nickel-cadmium (Ni-Cd) rechargeable and recyclable batteries.
When the batteries no longer hold a charge, they should be removed from the Vac and
recycled. They must not be incinerated or composted.
The batteries can be taken for disposal to a Black & Decker, Company-Owned or
Authorized Service Center. Some local retailers are also participating in a national
recycling program (see “RBRC
TM
Seal”). Call your local retailer for details. If you bring
the batteries to a Black & Decker Company-Owned or Authorized Service Center,
the Center will arrange to recycle old batteries. Or, contact your local municipality for
proper disposal instructions in your city/town.
To remove the battery pack for disposal:
1.) First, before attempting to disassemble the product, turn it on and leave it on until
the motor completely stops insuring a complete discharge of the batteries.
2.) Using a phillips screwdriver, remove the seven screws securing the two housing
halves.
3.) Lift the housing cover away from the assembly.
4.) Detach all lead connections from battery pack.
P
9
5.) Remove battery pack and dispose of as per recommended guidelines.
The RBRC™ Seal
The RBRC™ (Rechargeable Battery Recycling Corporation)
Seal on the nickel-cadmium battery (or battery pack) indicates that the costs
to recycle the battery (or battery pack) at the end of its useful life have
already been paid by Black & Decker. In some areas, it is illegal to place spent nickel-
cadmium batteries in the trash or municipal solid waste stream and the RBRC program
provides an environmentally conscious alternative.
RBRC in cooperation with Black & Decker and other battery users, has established
programs in the United States and Canada to facilitate the collection of spent nickel-
cadmium batteries. Help protect our environment and conserve natural resources by
returning the spent nickel-cadmium battery to an authorized Black & Decker service
center or to your local retailer for recycling. You may also contact your local recycling
center for information on where to drop off the spent battery, or call 1-800-8-BATTERY.
Service Information
All Black & Decker Service Centers are staffed with trained personnel to provide
customers with efficient and reliable power tool service. Whether you need technical
advice, repair, or genuine factory replacement parts, contact the Black & Decker location
nearest you. To find your local service location, refer to the yellow page directory under
“Tools—Electric” or call: 1-800-544-6986 or visit www.blackanddecker.com
Full Two-Year Home Use Warranty
Black & Decker (U.S.) Inc. warrants this product for two years against any defects in
material or workmanship. The defective product will be replaced or repaired at no charge
in either of two ways.
The first, which will result in exchanges only, is to return the product to the retailer from
whom it was purchased (provided that the store is a participating retailer). Returns should
be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days
after the sale). Proof of purchase may be required. Please check with the retailer for their
specific return policy regarding returns that are beyond the time set for exchanges.
The second option is to take or send the product (prepaid) to a Black & Decker owned
or authorized Service Center for repair or replacement at our option. Proof of purchase
may be required. Black & Decker owned and authorized Service Centers are listed
under “Tools-Electric” in the yellow pages of the phone directory and on our website
www.blackanddecker.com.
This warranty does not apply to accessories. This warranty gives you specific legal
rights and you may have other rights which vary from state to state. Should you have
any questions, contact the manager of your nearest Black & Decker Service Center.
This product is not intended for commercial use.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or
are missing, call 1-800-544-6986 for a free replacement.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For
products sold in Latin America, check country specific warranty information contained in
the packaging, call the local company or see the website for warranty information.
See ‘Tools-Electric’
– Yellow Pages –
for Service & Sales
Imported by
Black & Decker
(U.S.) Inc.,
701 E. Joppa Rd.
Towson, MD 21286
U.S.A
.
