ENGINEERED IN GERMANY
MIDRANGEMIDRANGE
USER MANUALUSER MANUAL
3
General instructions for installing HELIX
loudspeakers
To prevent damage to the speakers and possible inju-
ry, read this manual carefully and follow all installation
instructions. This product has been checked for proper
function prior to shipping and is guaranteed against man-
ufacturing defects.
For a proper performance and to ensure full warranty
coverage, we strongly recommend to get this product in-
stalled by an authorized HELIX dealer.
If you choose to perform your own installation read the
following information and precautions carefully.
Failure to follow the stated precautions may result in
personal injury and / or damage to the audio system or
vehicle.
1. Always make sure that the speaker will t into the in-
tended mounting location and that there is adequate
depth for the magnet system.
2. Check for adequate space between speaker and
window, window crank, power window mechanism,
seat, rear deck torsion bars, and other items which
may interfere with the speaker`s mounting. This
is very important if any hole cutting is required.
Detailed size information is indicated in the dimen-
sion section of this manual. Take care that the mount-
ing surface is at and free from all obstructions.
3. Ensure that the loudspeakers are correctly connect-
ed in polarity. Exchanging plus and minus may result
in signicant loss of sound quality. The positive leads
of the loudspeakers are marked red.
4. Make sure that all speaker wiring is fully protected
from cutting or wear at sharp edges, which can lead
to short circuits that may damage your head unit,
amplier and / or speaker system.
5. Verify that all connection wires are long enough in
order to avoid any mechanical stress on the wires or
the connectors.
6. Make sure that all components are mounted properly.
7. Do not mount the components where water may
splash on them.
8. The quality of the installation has a signicant eect
on the overall performance of the speaker system.
Treat each installation step with a high degree of
attention.
9. Avoid low frequency cancellation caused by air leak-
age between the speaker basket and the mounting
surface (e.g. mounted on a bended or uneven sur-
face or mounted in an oversized hole).
10. Mounting panel reinforcement may be necessary in
some cases in order to ensure a stable, torsion-free
and even surface. This can be achieved by mounting
the speaker on a metal, plastic or wooden sub-bae
behind the body or door panel. Consult an installa-
tion specialist for further advices.
11. In most cases you can use the original speaker
mounting locations in the doors, A-pillars, body pan-
els or the rear deck. If these are not available you
have to prepare your own secure installation place.
Due to their structural integrity and accessibility the
precut mounting holes should be used whenever
possible. Information on a proper mounting can be
found in the section “Installation” of this manual.
IMPORTANT: Never cut any metal that is an integral part
of an automobile`s safety or structural car body.
We strongly recommend that you operate the complete
audio system at low volume before nal installation. So
you can check whether each speaker is working before
securing the loudspeakers into their mounting locations.
Congratulations!
General instructions
Dear Customer,
Congratulations on your purchase of this high-quality product.
HELIX COMPOSE highlights best quality, excellent manufacturing and state-of-the-art sound quality.
Thanks to more than 35 years of experience in research and development of audio products HELIX COMPOSE sets
new standards in the car audio speaker market.
We wish you many hours of enjoyment with your new HELIX COMPOSE components.
Yours
AUDIOTEC FISCHER Team
Find your composition
Go to www.audiotec-fischer.com/compose to
explore the whole HELIX COMPOSE platform
4
Installation
max.
8 mm
Attention: To avoid damage to the speak-
ers, do not use countersunk screws and
do not overtighten the screws!

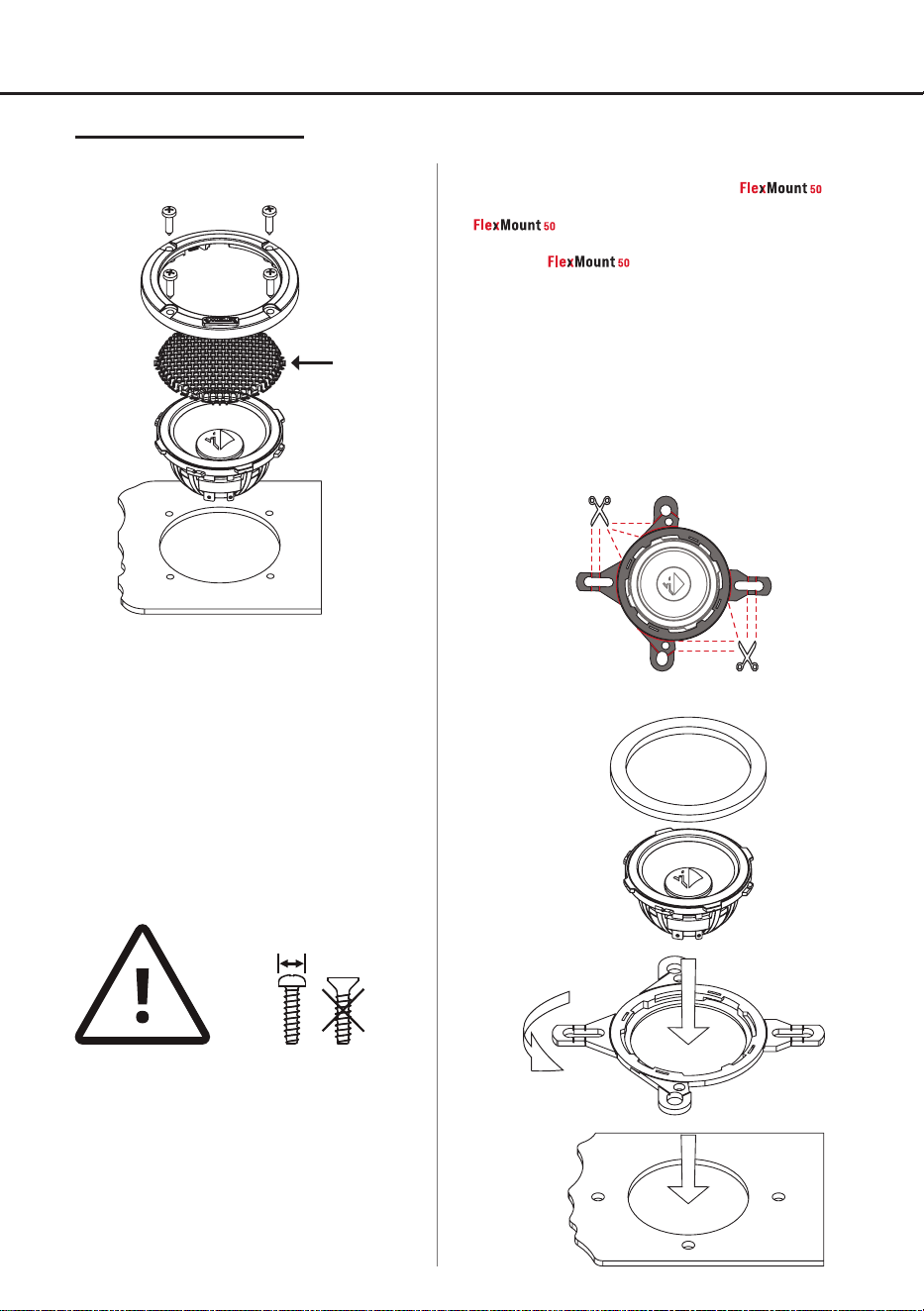

Mounting Ci5 M50FM-S3
Option a:
Installation with mounting ring & grille (included)
Option b:
Professional integration with universal
MULTI.1 (included) or optionally available car-specic
Note: the adaptor rings can be mounted in
two directions. Make sure to use the appropriate mounting
option for your vehicle. Additionally, the MULTI.1 can be in-
dividually adapted to the installation position by removing
superuous mounting ears.
Caution: When cutting or trimming the mounting ears,
sharp edges may form and small fragments may break o.
To avoid injury, it is recommended to wear appropriate pro-
tective gear such as gloves and safety glasses.
MULTI.1
Step 3
Step 1
Step 2
Installation
optional
5

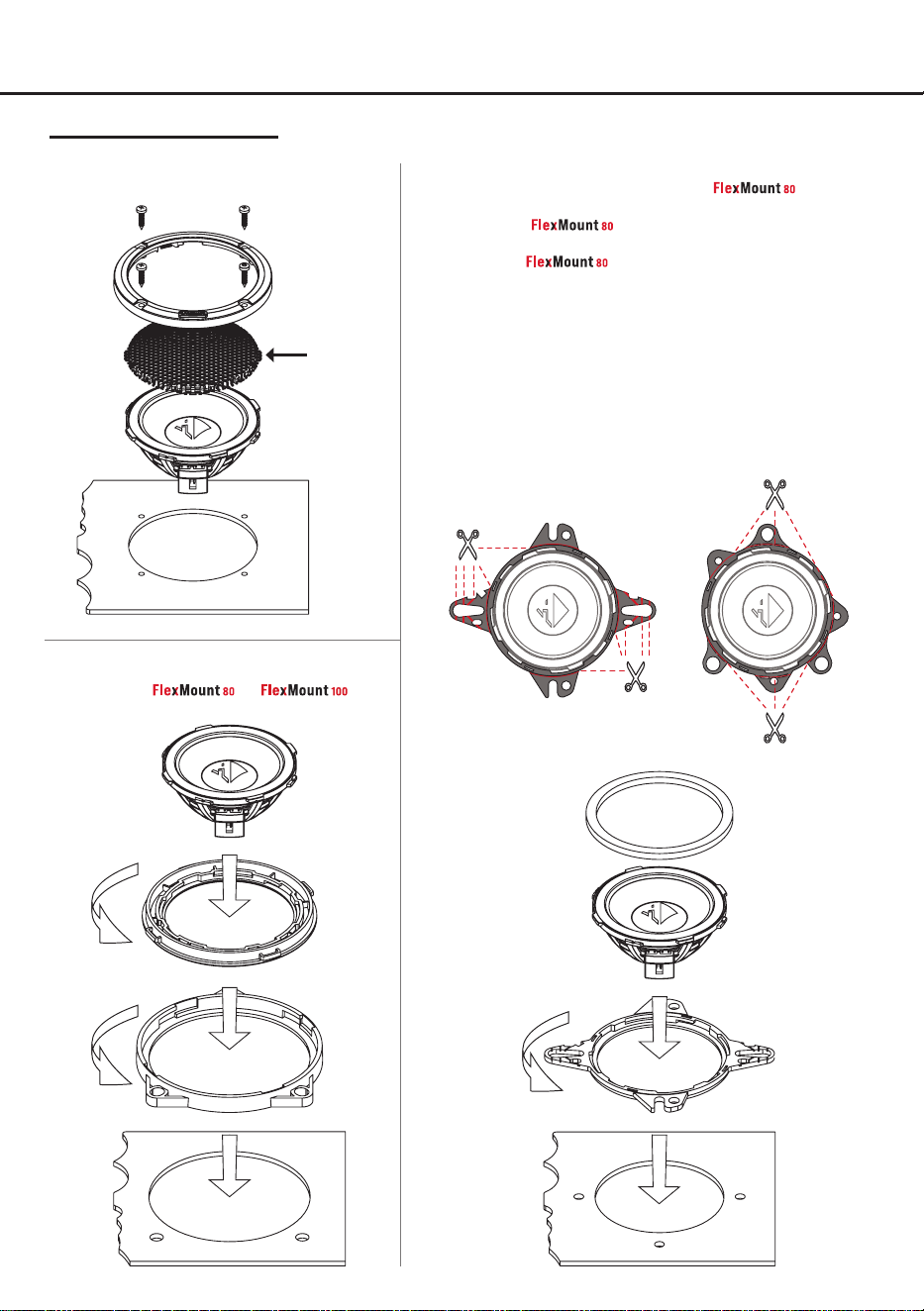

Mounting Ci5 M80FM-S3
Option a:
Installation with mounting ring & grille (included)
Option b:
Professional integration with universal
MULTI.1 or MULTI.2 (included) or optionally available
car-specic
Note: the adaptor rings can be mounted in
two directions. Make sure to use the appropriate mounting
option for your vehicle. Additionally, the rings MULTI.1 &
MULTI.2 can be individually adapted to the installation po-
sition by removing superuous mounting ears.
Caution: When cutting or trimming the mounting ears,
sharp edges may form and small fragments may break o.
To avoid injury, it is recommended to wear appropriate pro-
tective gear such as gloves and safety glasses.
Step 3
Step 1
Step 2
Option c:
Mounting with to
adaptor (included in scope of delivery)
Step 2
Step 1
Step 3
Step 5
Step 4
MULTI.1 MULTI.2
Installation
optional
6
Installation
Cut o the plug of the connection cable and
connect it to the amplier.
Option a: Universal connection, e.g. in active
applications
Option b: Connection to the original cable harness of the
vehicle via optional car-specic COMPOSE
, e.g. in active applications

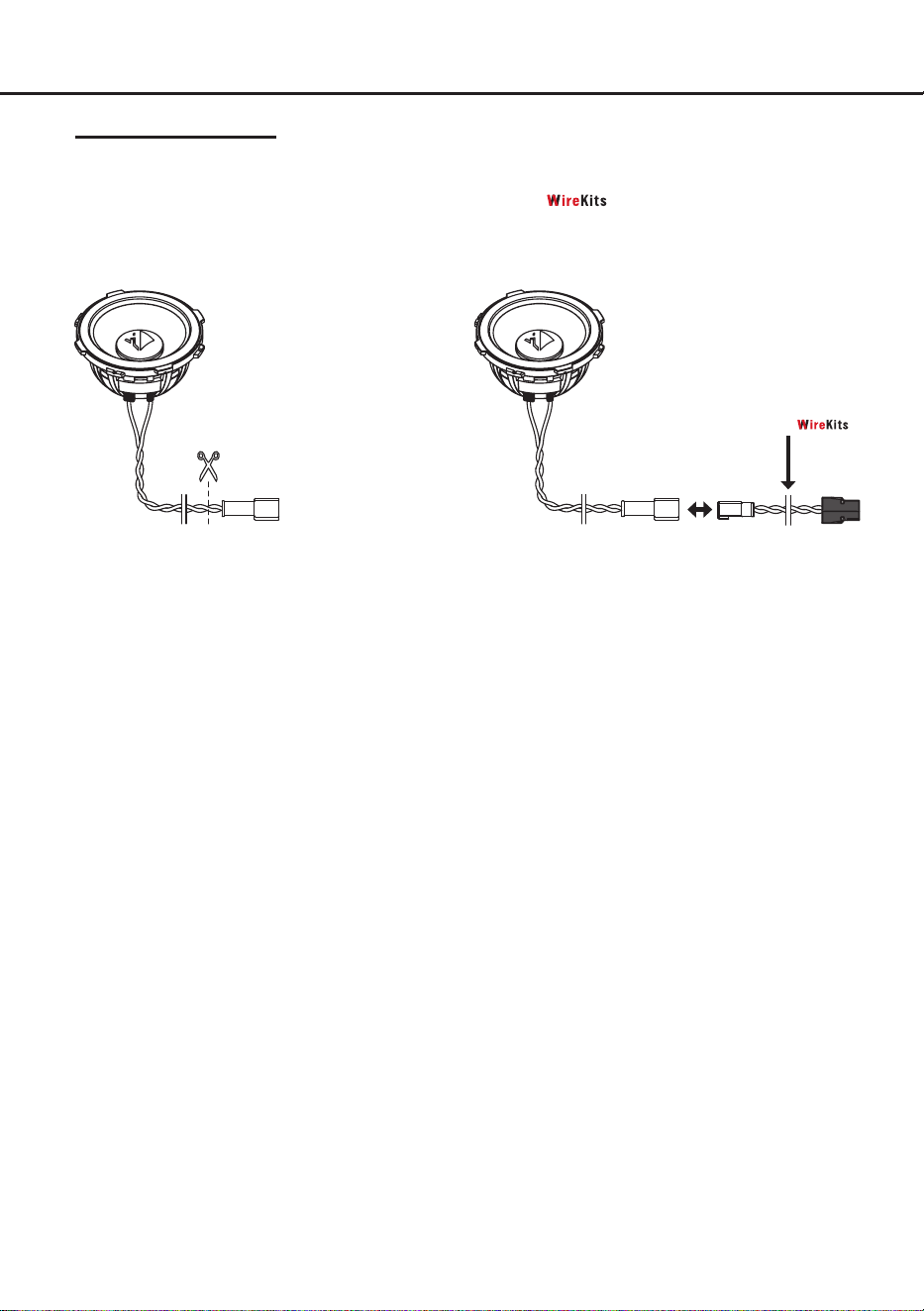

Wiring Ci5 M50FM-S3
Connection to signal
source via optional
COMPOSE
7

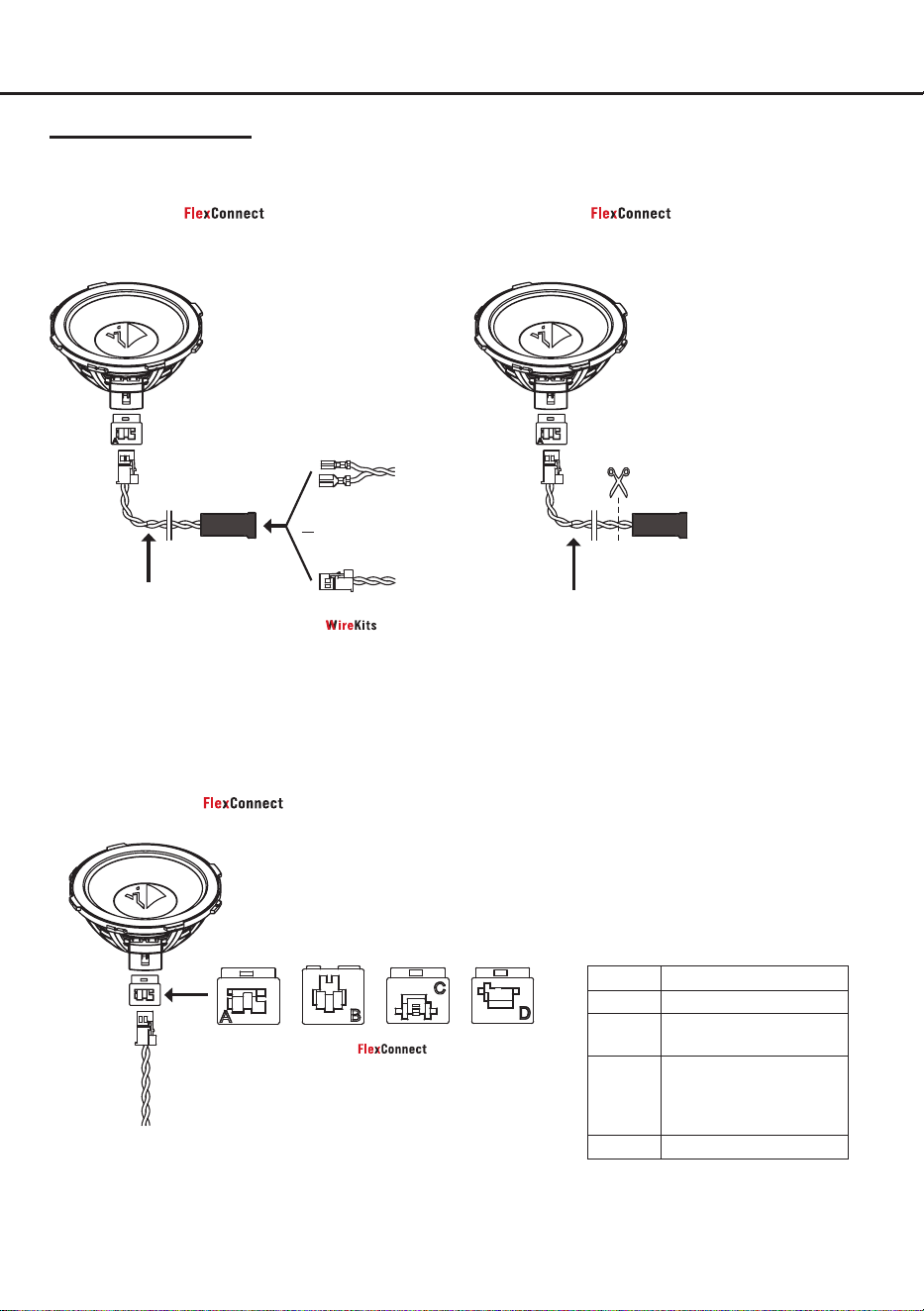

Wiring Ci5 M80FM-S3
Ensure that all components are correctly connected in polarity, i.e. plus to plus and minus to minus.
The positive leads of the loudspeaker system are marked red.
Insert the enclosed inlay A, cut o the plug
of the enclosed connection cable and connect it to the
amplier.
Option b:
Universal connection, e.g. in active applications
Connection cable
CWK M-225CC
(included)
From factory
cable harness
Option c: Direct connection to OEM connector with
car-specic inlay
Insert the enclosed inlay A and plug in
the enclosed connection cable. Then connect it to the
optional car-specic wiring harness.
Option a: Universal connection via optional car- specic
wiring harness, e.g. in active applications
Connection cable
CWK M-225CC
(included)
Car-specic inlay –
comes with the speaker
Inlay Vehicle compatibility
A Mercedes
B Audi
Tesla
C BMW
Ferrari
Mini
Rolls Royce
D
Porsche
Optional car-
specic wiring
harness
Optional
or
8

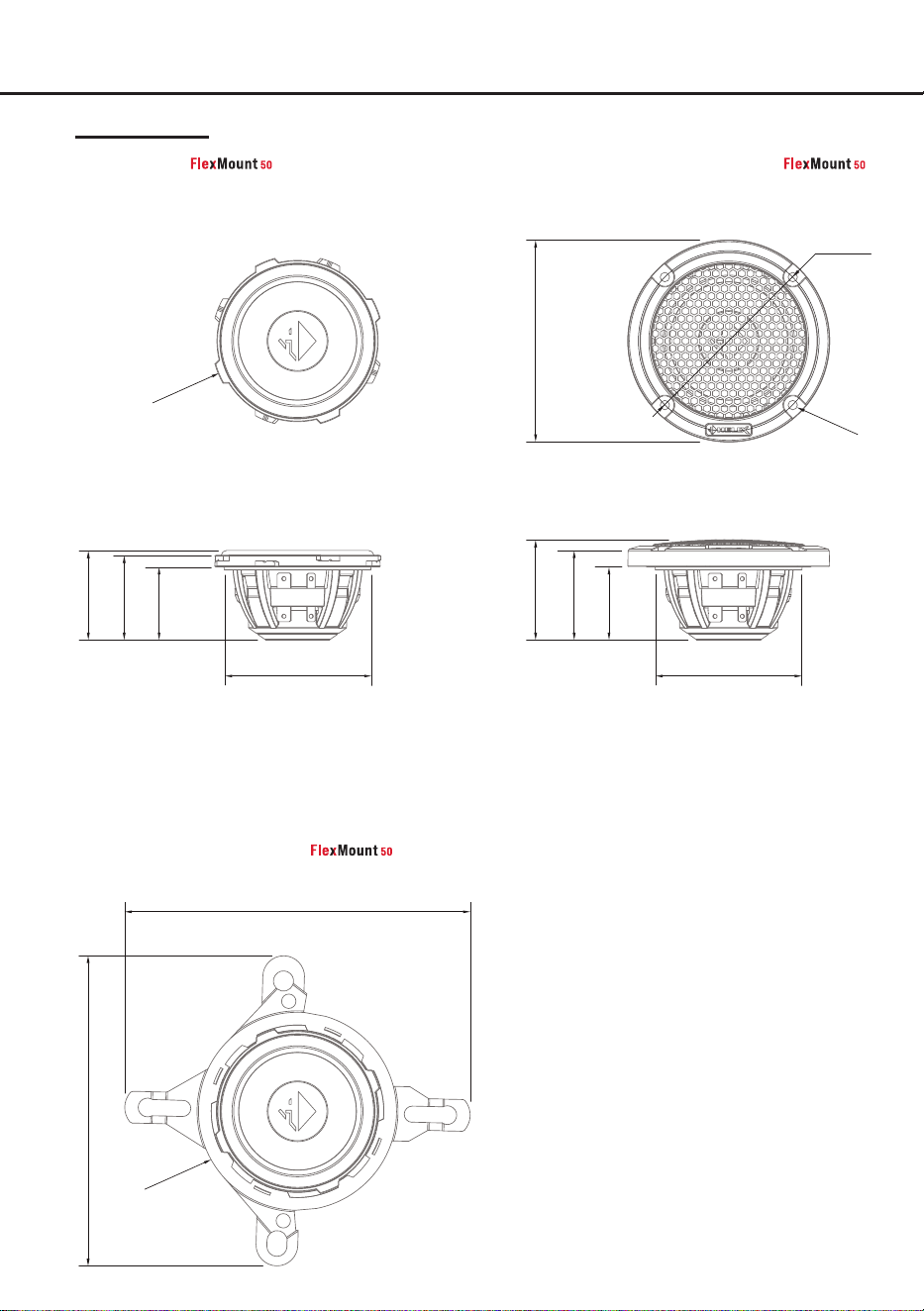

Dimensions
Ci5 M50FM-S3
Speaker without
Speaker with assembled grille and without
ø2.34”
ø59.5mm
0.99”
25.2mm
1.15”
29.2mm
1.22”
30.9mm
2.00”
50.9mm
Speaker with assembled universal MULTI.1
0.99”
25.2mm
1.21”
30.8mm
1.36”
34.6mm
2.00”
50.9mm
4.25”
108.0mm
4.74”
120.5mm
ø2.72”
ø69.0mm
ø2.47”
ø62.8mm
ø0.13”
ø3.2mm
ø2.75”
ø70.0mm
9
1.18”
30.1mm
1.19”
30.2mm
1.34”
34.1mm
1.41”
35.7mm
1.40”
35.6mm
1.62”
41.2mm
2.74”
69.5mm
2.74”
69.5mm
ø3.09”
ø78.5mm

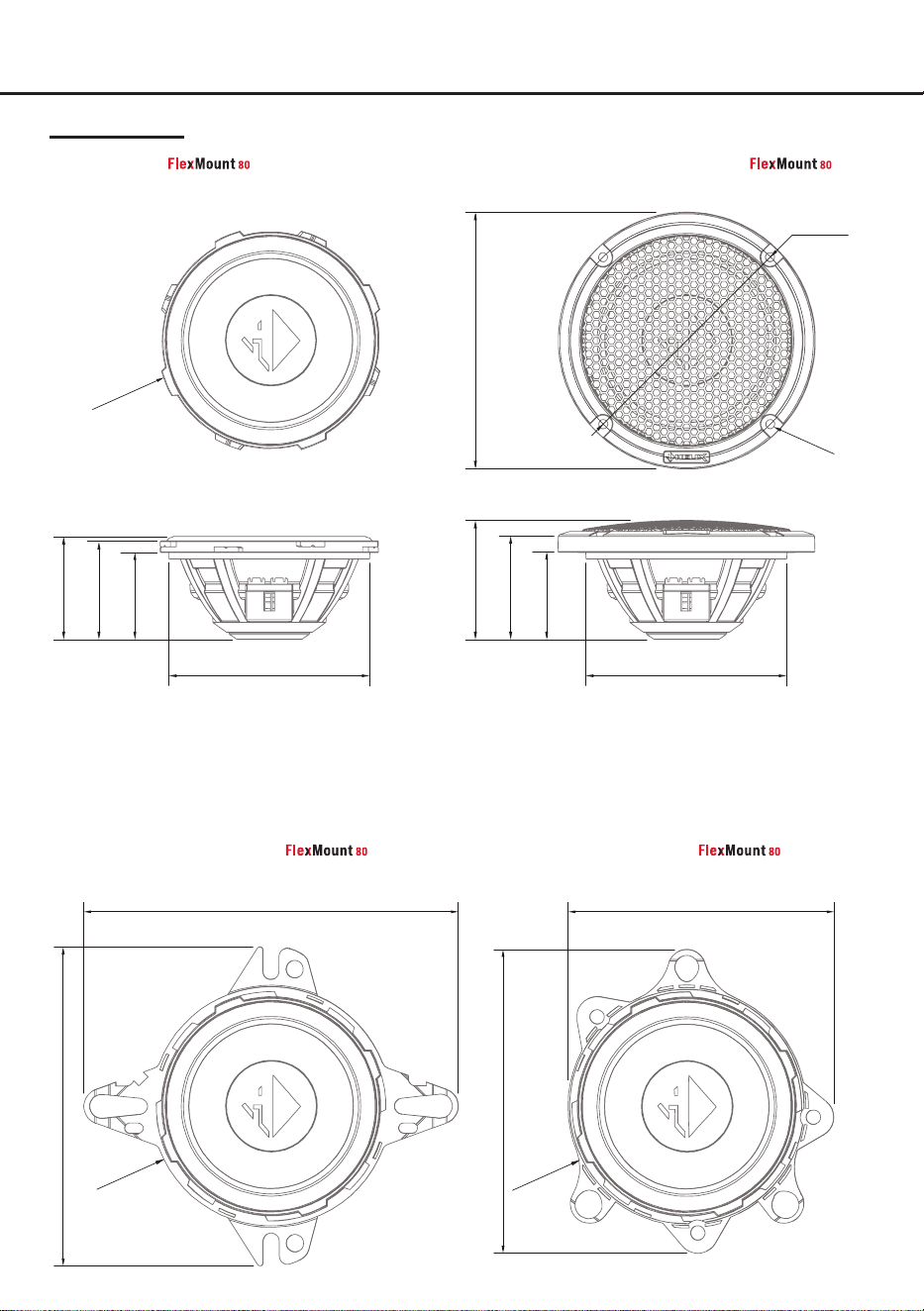

Ci5 M80FM-S3
Speaker without and without grille
Speaker with assembled grille and without
4.33”
110.0mm
4.13”
105.0mm
Speaker with assembled universal MULTI.1 Speaker with assembled universal MULTI.2
5.08”
129.1mm
3.63”
92.3mm
ø3.25”
ø82.5mm
ø3.18”
ø80.7mm
ø3.50”
ø88.9mm
ø3.22”
ø81.8mm
ø0.13”
ø3.2mm
10
Technical data
Ci5 M50FM-S3 Ci5 M80FM-S3
Power RMS / Max. P 70 / 130 Watts 90 / 135 Watts
Impedance Z 3 Ω 3 Ω
DC resistance Re 3.1 Ω 3.1 Ω
Frequency response 300 Hz - 20,000 Hz 200 Hz - 6,000 Hz
Resonance frequency
Fs
240 Hz 156 Hz
Mechanical Q factor Qms
3.09 3.68
Electrical Q factor Qes
0.80 0.75
Total Q factor Qts
0.68 0.63
Compliance Cms
300 μm/N 407 μm/N
Equivalent air volume Vas
0.16 L 0.7 L
Force factor B*I
2.8 Tm 3.2 Tm
Sensitivity SPL
89 dB @ 2.83V / 1m
85 dB @ 1W / 1m
92 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Cone area Sd 19.6 cm² 36 cm²
Moving mass Mms 1.43 g 2.6 g
Cone material
Silicon coated paper cone Silicon coated paper cone
Mechanical resistance Rms
0.71 kg/s 0.68 kg/s
Voice coil diameter Ø
20 mm 20 mm
Voice coil winding height
7 mm 7 mm
Max. linear excursion Xmax +/- 2.5 mm +/- 2.5 mm
Max. mechanical excursion Xmax +/- 3.5 mm +/- 4.5 mm
Features
Powerful push-pull neodymium
magnet system and
terminal, powerful
push-pull neodymium magnet
system and
11
FlexMount car-specic adaptors
Warranty Disclaimer
Correct disposal of this product
(Applicable in the European Union and other countries with separate collection systems)
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with
legislation that requires proper treatment, recovery and recycling. Contact your local government oce for details in locating a recycle facility close to you. Proper
recycling and waste disposal will help conserve resources and prevent detrimental eects on our health and the environment.
Use our Finder to easily check the compatibility
of the provided with your car model!
The warranty service is based on the statutory regulations. Defects and damage caused by overload or improp-
er handling are excluded from the warranty service. Any return can only take place following prior consultation, in the original packag-
ing together with a detailed description of the error and a valid proof of purchase. Technical modications, misprints and errors excepted!
For damages on the vehicle and the device, caused by handling errors of the device, we can’t assume liability. All HELIX speakers are tagged with a CE / UKCA /
EAC-Certication mark. Thereby these devices are certied for the use in vehicles within the European Community (EC) / United Kingdom / Eurasian Customs Union.

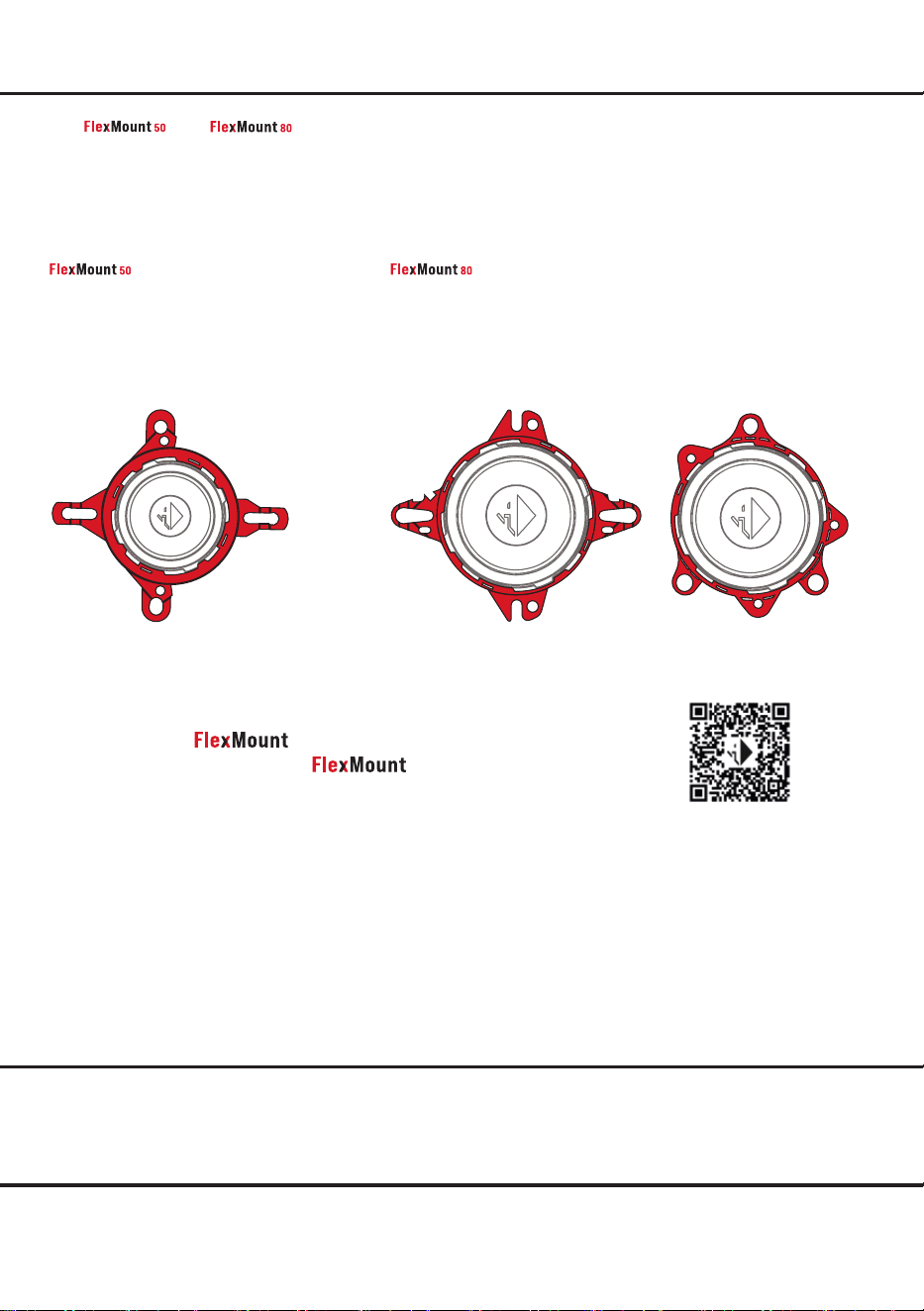

The and adaptor rings enable acoustically optimized and professional speaker integration
in vehicles. Below are the included adaptor rings and compatible car brands.
For additional vehicle-specic variants, please contact your retailer or visit www.audiotec-scher.com/compose for
the most up-to-date overview of available adaptors.
MULTI.1 MULTI.1 & MULTI.2
Audi
Ford
General Motors
Hyundai
Kia
Mercedes
Subaru
Toyota
and universal use
Chrysler
Ferrari
Ford
Jaguar
Land Rover
Lexus
Mazda
Mercedes-Benz
Porsche
Tesla
Toyota
Volvo
and universal use
AUDIOTEC FISCHER GmbH
Hünegräben 26 - 28
57392 Schmallenberg
Germany
Made in China
