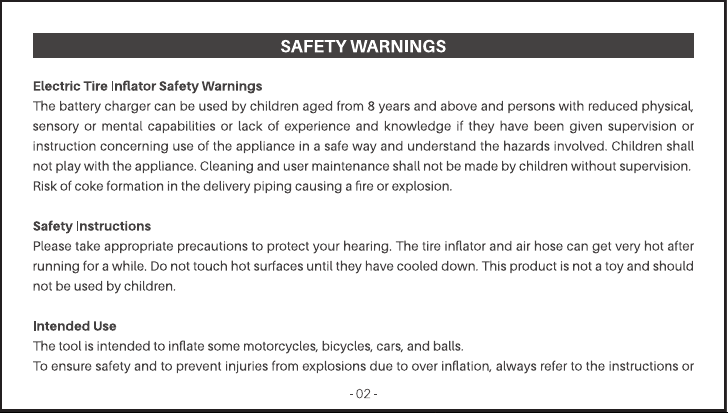

The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Risk of coke formation in the delivery piping causing a fire or explosion.
Please take appropriate precautions to protect your hearing. The tire inflator and air hose can get very hot after running for a while. Do not touch hot surfaces until they have cooled down. This product is not a toy and should not be used by children.
The tool is intended to inflate some motorcycles, bicycles, cars, and balls. To ensure safety and to prevent injuries from explosions due to over inflation, always refer to the instructions or relevant directions accompanying the item to be inflated before inflating it, in order to determine the correct air pressure. The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse
Air inflator x1
Needle Valve Adapter x1
Charging Cable x1
Presta Valve Adpater x1
User Manual x1

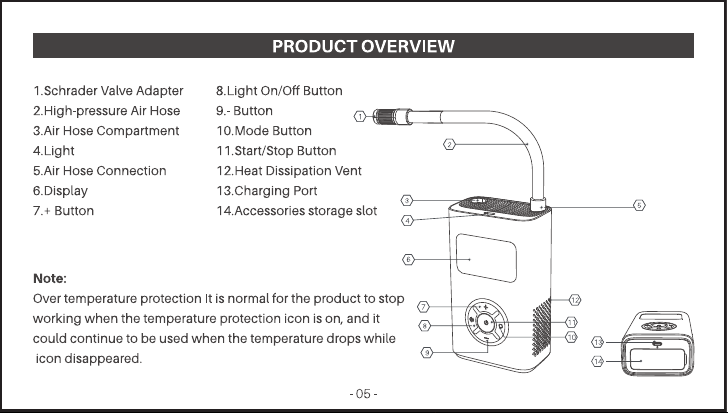

Note:
Over temperature protection It is normal for the product to stop working when the temperature protection icon is on, and it could continue to be used when the temperature drops while icon disappeared.

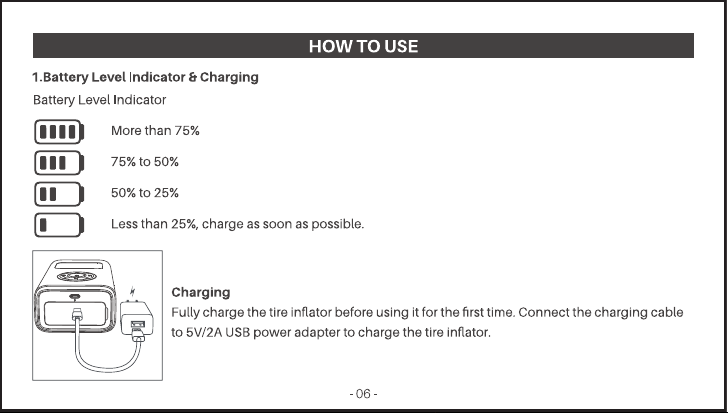

Battery Level Indicator
More than 75%
75% to 50%
50% to 25%
Less than 25%, charge as soon as possible.
Fully charge the tire inflator before using it for the first time. Connect the charging cable to 5V/2A USB power adapter to charge the tire inflator.

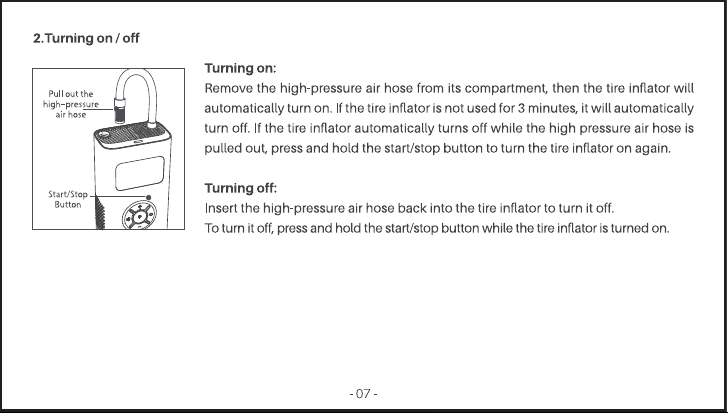

Remove the high-pressure air hose from its compartment, then the tire inflator will automatically turn on. If the tire inflator is not used for 3 minutes, it will automatically turn off. If the tire inflator automatically turns off while the high pressure air hose is pulled out, press and hold the start/stop button to turn the tire inflator on again.
Insert the high-pressure air hose back into the tire inflator to turn it off. To turn it off, press and hold the start/stop button while the tire inflator is turned on.

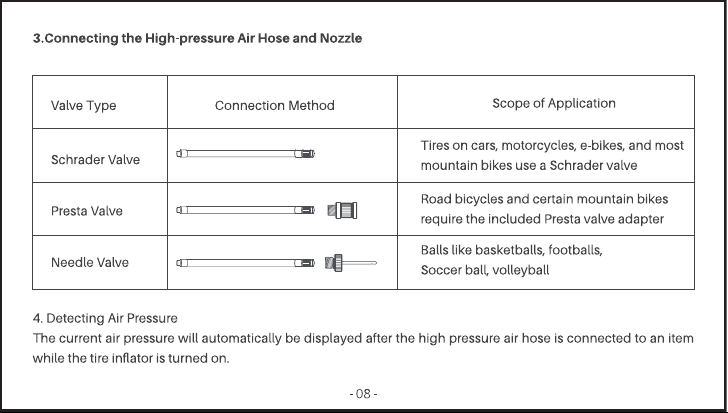

| Valve Type | Connection Method | Scope of Application |
|---|---|---|
| Schrader Valve |  |
Tires on cars, motorcycles, e-bikes, and most mountain bikes use a Schrader valve |
| Presta Valve |  |
Road bicycles and certain mountain bikes require the included Presta valve adapter |
| Needle Valve |  |
Balls like basketballs, footballs, Soccer ball, volleyball |
The current air pressure will automatically be displayed after the high pressure air hose is connected to an item while the tire inflator is turned on.

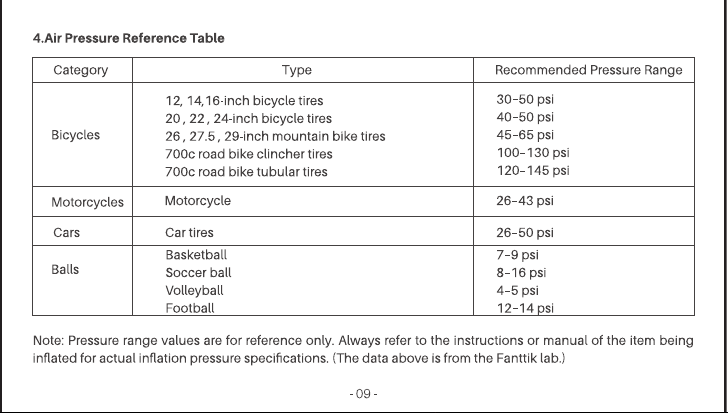

| Category | Type | Recommended Pressure Range |
|---|---|---|
| Bicycles | 12, 14, 16-inch bicycle tires | 30-50 psi |
| 20, 22, 24-inch bicycle tires | 40-50 psi | |
| 26, 27.5, 29-inch mountain bike tires | 45-65 psi | |
| 700c road bike clincher tires | 100-130 psi | |
| 700c road bike tubular tires | 120-145 psi | |
| Motorcycles | Motorcycle | 26-43 psi |
| Cars | Car tires | 26-50 psi |
| Balls | Basketball | 7-9 psi |
| Soccer ball | 8-16 psi | |
| Volleyball | 4-5 psi | |
| Football | 12-14 psi |
Note: Pressure range values are for reference only. Always refer to the instructions or manual of the item being inflated for actual inflation pressure specifications. (The data above is from the Fanttik lab).

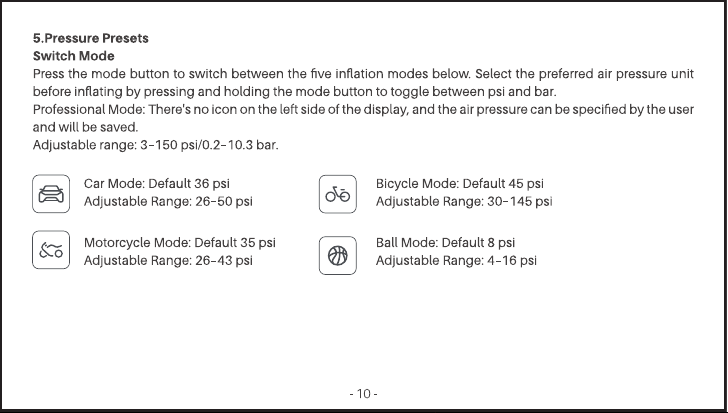

Switch Mode
Press the mode button to switch between the five inflation modes below. Select the preferred air pressure unit before inflating by pressing and holding the mode button to toggle between psi and bar. Professional Mode: There's no icon on the left side of the display, and the air pressure can be specified by the user and will be saved.
Adjustable range: 3-150 psi/0.2-10.3 bar.
Car Mode: Default 36 psi Adjustable Range: 26-50 psi
Bicycle Mode: Default 45 psi Adjustable Range: 30-145 psi
Motorcycle Mode: Default 35 psi Adjustable Range: 26-43 psi
Ball Mode: Default 8 psi Adjustable Range: 4-16 psi

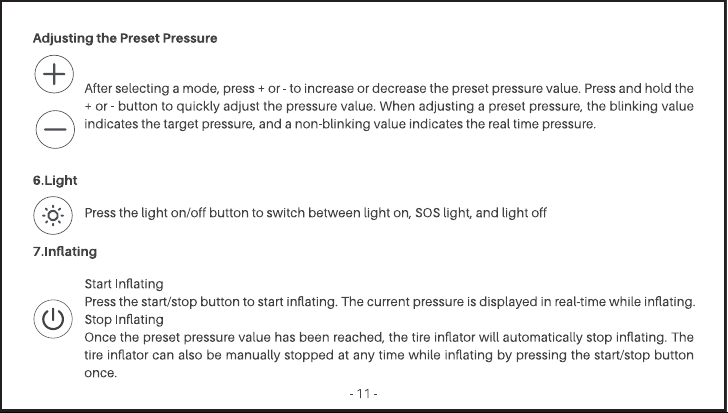

Adjusting the Preset Pressure
After selecting a mode, press + or - to increase or decrease the preset pressure value. Press and hold the + or - button to quickly adjust the pressure value. When adjusting a preset pressure, the blinking value indicates the target pressure, and a non-blinking value indicates the real time pressure.
Press the light on/off button to switch between light on, SOS light, and light off
Start Inflating
Press the start/stop button to start inflating. The current pressure is displayed in real-time while inflating.
Stop Inflating
Once the preset pressure value has been reached, the tire inflator will automatically stop inflating. The tire inflator can also be manually stopped at any time while inflating by pressing the start/stop button once.

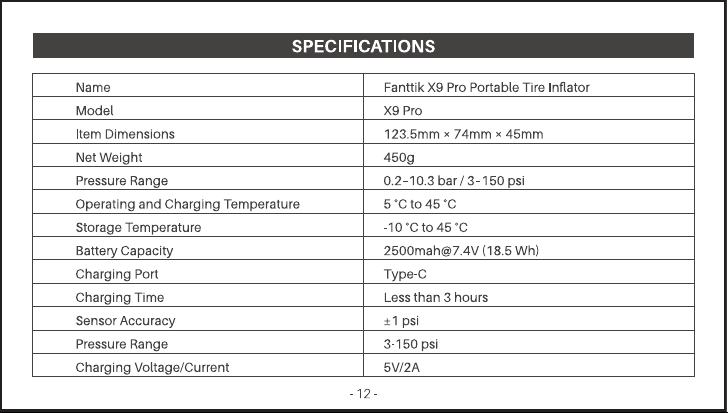

| Name | Fanttik X9 Pro Portable Tire Inflator X9 Pro |
| Model | X9 Pro |
| Item Dimensions | 123.5mm × 74mm × 45mm |
| Net Weight | 450g |
| Pressure Range | 0.2–10.3 bar / 3–150 psi |
| Operating and Charging Temperature | 5 °C to 45 °C |
| Storage Temperature | -10 °C to 45 °C |
| Battery Capacity | [email protected] (18.5 Wh) |
| Charging Port | Type-C |
| Charging Time | Less than 3 hours |
| Sensor Accuracy | ±1 psi |
| Pressure Range | 3–150 psi |
| Charging Voltage/Current | 5V/2A |

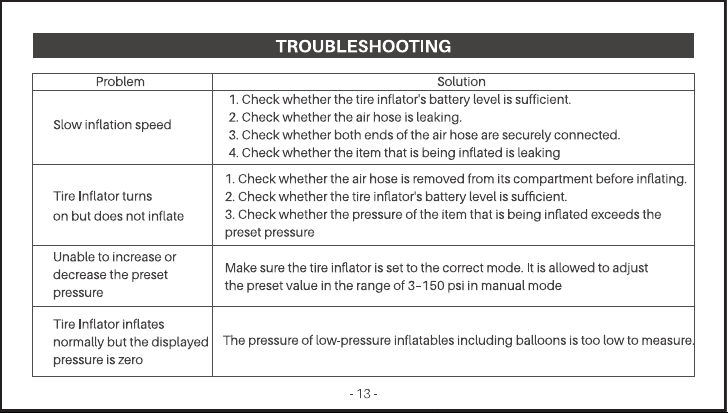

| Problem | Solution |
|---|---|
| Slow inflation speed | 1. Check whether the tire inflator's battery level is sufficient. 2. Check whether the air hose is leaking. 3. Check whether both ends of the air hose are securely connected. 4. Check whether the item that is being inflated is leaking. |
| Tire Inflator turns on but does not inflate | 1. Check whether the air hose is removed from its compartment before inflating. 2. Check whether the tire inflator's battery level is sufficient. 3. Check whether the pressure of the item that is being inflated exceeds the preset pressure |
| Unable to increase or decrease the preset pressure | Make sure the tire inflator is set to the correct mode. It is allowed to adjust the preset value in the range of 3-150 psi in manual mode |
| Tire Inflator inflates normally but the displayed pressure is zero | The pressure of low-pressure inflatables including balloons is too low to measure |

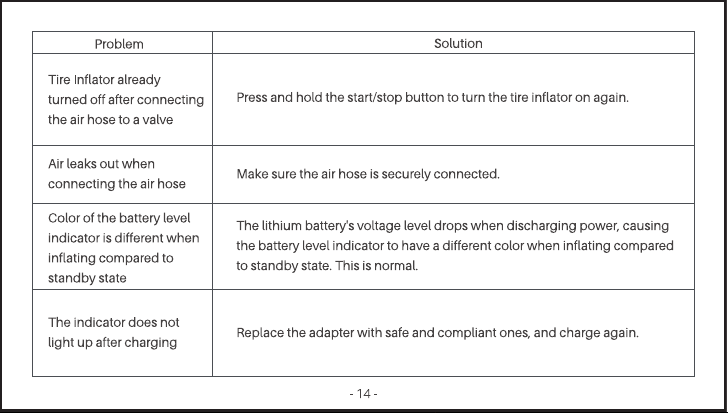

| Tire Inflator already turned off after connecting the air hose to a valve | Press and hold the start/stop button to turn the tire inflator on again. |
| Air leaks out when connecting the air hose | Make sure the air hose is securely connected. |
| Color of the battery level indicator is different when inflating compared to standby state | The lithium battery's voltage level drops when discharging power, causing the battery level indicator to have a different color when inflating compared to standby state. This is normal. |
| The indicator does not light up after charging | Replace the adapter with safe and compliant ones, and charge again. |

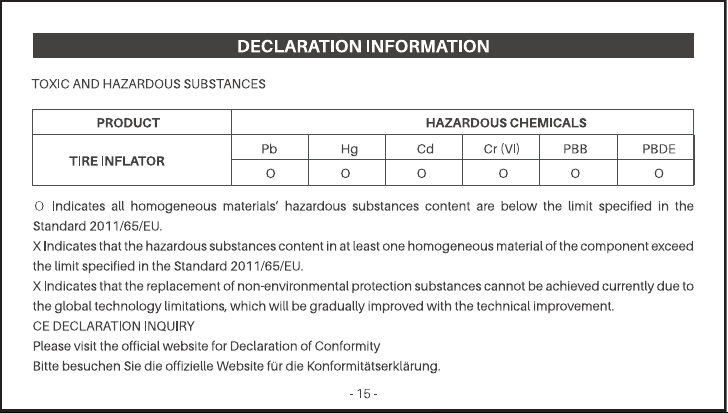

| PRODUCT | HAZARDOUS CHEMICALS | |||||
|---|---|---|---|---|---|---|
| Pb | Hg | Cd | Cr (VI) | PBB | PBDE | |
| TIRE INFLATOR | O | O | O | O | O | O |
- O Indicates all homogeneous materials' hazardous substances content are below the limit specified in the Standard 2011/65/EU.
- X Indicates that the hazardous substances content in at least one homogeneous material of the component exceed the limit specified in the Standard 2011/65/EU.
- X Indicates that the replacement of non-environmental protection substances cannot be achieved currently due to the global technology limitations, which will be gradually improved with the technical improvement.
CE DECLARATION INQUIRY
Please visit the official website for Declaration of Conformity
Bitte besuchen Sie die offizielle Website für die Konformitätserklärung.

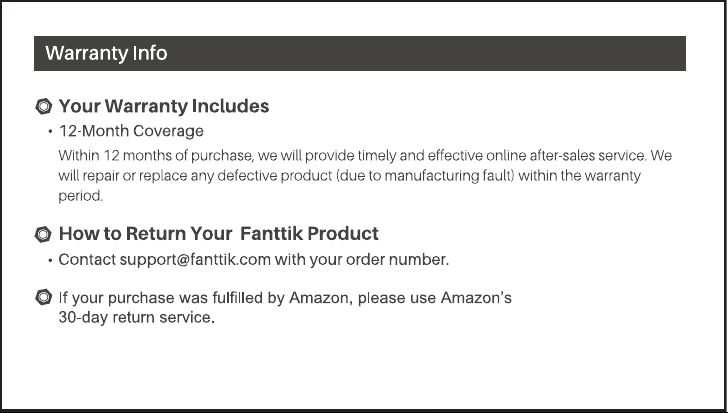

If your purchase was fulfilled by Amazon, please use Amazon's 30-day return service.
