User Manual
Hammer Drill
PID01A

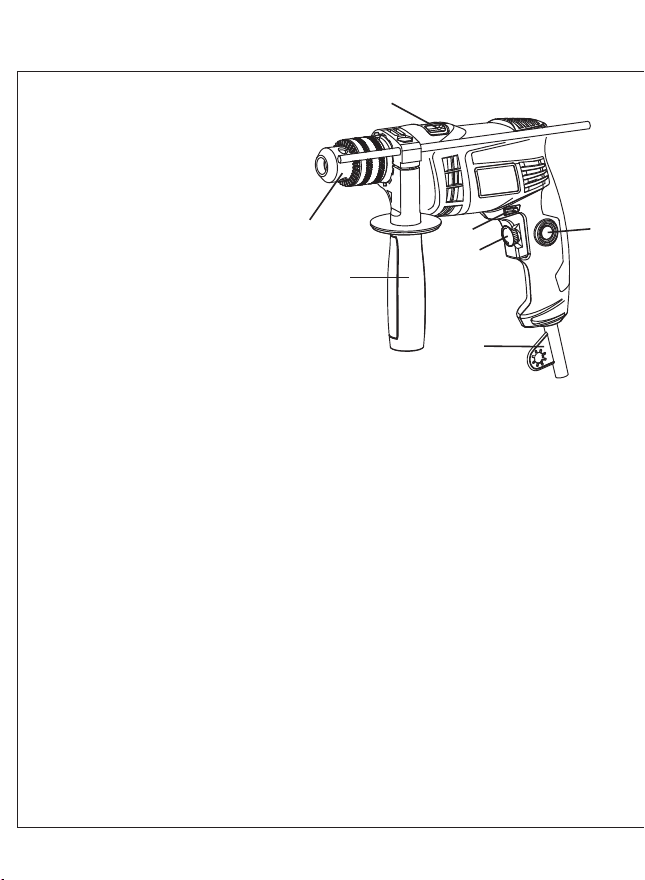

Overview
1. Drill chuck
2. Second handle
3. Switch for percussion drilling/drilling
4. Direction switch
5. Locking button
6. Operating switch with speed regulator wheel
7. Drill chuck key
General Safety Instructions for Electric Tools
This device is exclusively for private use! It is not fit for commercial use!
Warning: when working with electrical devices the following prevention and safety
Instructions are to be observed to avoid fires, electric shocks and physical injuries:
For safe working:
�
�
�
�
�
�
�
Keep the working area in order!
Disorder in the working area can give rise to dangers of accidents! Pay attention to
the ambient conditions!
Do not leave electric tools under the rain!
Do not use these in humid or wet surroundings!
Make sure that there is enough light! Make sure that the working area is visible at a
glance!
Do not use electric tools in areas subject to the risk of fires! Protect yourself against
electric shocks!
Avoid coming into contact with grounded parts (e.g. pipes, radiators, stoves,
refrigerators)!
- 01 -
1
3
4
6
5
7
2
In case of extreme application conditions (e.g. high humidity, presence of metal
particles, etc.) the electrical safety of the device can be improved by connecting
an isolation transformer or a fault current circuit breaker!
Keep children away!
Do not let other people touch the tool or the cable!
Keep other people out of the working area! Make sure that the tool is stored safely!
Unused electric tools are to be kept in a dry, highflying or closed place, out of the
reach of children!
Do not overload the electric tool! It works better and safer within the indicated
capacity range! Use the right electric tool!
Do not use weak tools or adapters for heavy jobs. Do not use tools for purposes or
jobs for which these are not intended. For example, hand circular saws are not be
used to cut trees or branches! Always wear suitable working cloths!
Do not wear baggy cloths or jewellery! Risk of being caught by moving parts!
When working outside, it is advisable to wear rubber gloves and skid-proof shoes!
If you have long hair, wear a hairnet! Use protective goggles!
Always wear a breathing mask during jobs producing dust! Connect the vacuum
system (if available)!
If devices for the connection of vacuum and collection systems are available,
make sure that these are connected and used correctly!
Do not tamper with the cable!
Do not carry the tool by the cable and do not use it to pull the plug out of the
socket!
Protect the cable against heat sources, oil and sharp edges! Secure the tool!
Use chucking devices or a vise to keep the tool still! The tool can thus be held in
place more safely than by hand and the tool can be used with both hands!
Avoid unusual body postures! Always stand firmly in place and keep your balance!
Always keep the tool in good order!
Always keep tools sharp and clean to work correctly and safely!
Follow the maintenance and tool change instructions!
Check the plug and cable on a regular basis and have a qualified technician
change these in case of damage!
Check the extension cable on a regular basis and replace it if damaged!
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
- 02 -
Pull the plug out of the socket after use, before maintenance and when changing
accessories such as saw blades, drills cutters, etc.!
Do not leave protruding tool keys!
Make sure before turning on the tool that the key or setting gauge is removed!
Avoid the accidental starting of the tool!
Never carry an electric tool connected to the power mains with your finger on the
switch!
Make sure that the switch is off when connecting to the mains! Extension cable
outdoors: Use only certified and duly marked extension cables outdoors!
Always be careful! Pay attention to your work! Proceed carefully. Do not use the
tool if you are not concentrated!
Check the tool for damages!
Before using the tool the next time check that the protection devices or slightly
damaged parts are in good working conditions! Check whether the moving parts
function correctly, that these are not jammed or whether any parts are damaged!
All the parts to be correctly mounted and meet all the requirements for the pro�per
functioning of the electric tool!
Damaged protection devices and parts are to be repaired or changed by a
qualified technician provided that the operating instructions do not specify
otherwise!
Damaged switches are to be replaced in a customer service shop! Do not use
electric tools that cannot be switched on or off!
For your own safety always use only the accessories and attachments specified in
the operating instructions or recommended or specified by the tool manufacturer!
The use of accessories and attachments other than those specified in the operating
instructions can cause injuries!
Always have your tool be repaired by certified technicians!
This tool meets the relevant safety requirements!
Repairs are to be carried out only by qualified technicians with original spare parts
to avoid the risk of injuries to the user caused by improper repairs!
During operating, wear hearing protection to avoid damage to your hearing!
WARNING!
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
- 03 -
Special Safety Information
When drilling or screwing into walls, ceilings etc make sure beforehand that you will not
damage any hidden electric cables. During this work you should not touch any metal
parts of the machine. Only touch the machine by the plastic housing.
Your machine is double insulated. This means that two completely independent types
of insulation prevent you from coming into contact with live metal parts. This measure
represents a high degree of protection against an electric shock.
Your Drill has the following Functions:
The operating switch (6) is used for all work carried out with the drilling machine. With
the speed selection via the regulator wheel you have optimum control of the
machine.
The machine can be set to continuous operation with the locking button (5).
The second handle (2) gives you an additional way of holding the machine firmly.
Depending on the position of the percussion drilling/drilling switch(3), you can use
your drilling machine as a percussion drill or rotating drill.
The direction switch (4) controls the direction of motion when the machine is used
as a screwdriver or if you would like to remove a drilling bit that has become jammed.
Using the adjustable bit stop you can fix the depth of blind holes accurately during
drilling.
Preparing the Drilling Machine
Warning! When performing the following work, always ensure that the machine is
not connected to the mains power supply
Inserting the Second Handle (2)
In order to assemble the second handle (2), release it by rotating the lower part
anti-clockwise so that you can easily pull the handle over the drill chuck on to the
flange located behind it. Then turn the handle to a working position that is comfort-
able for you and fix it in place by tightening it (rotating the lower part clockwise).
Adjusting the Bit Stop
The second handle (2) has a retainer for the bit stop. Insert a drill. Now release the
handle. Push the bit stop forwards until its end is in line with the end of the drill. Now
push the bit stop back until the distance between the end of the bit stop and the end
of the drill corresponds to the depth to which you would like to drill.
Inserting the Drill
- 04 -
First remove the mains supply from the socket. Turn the ring of the drill chuck (1) until
the clamping jaws are open wide enough. Insert the drill into the clamping jaws of the
drill chuck (1). Insert the end of the drill chuck key (7) into one of the three holes on the
body of the drill chuck (1) and let the head of the key (7) lock into place in the ring of
the drill chuck (1). In order to tighten the clamping jaws and fix the drill in place, turn
the drill chuck key (7) in a clockwise direction. Important: Then remove the key (7) from
the chuck (1)!
Working with the Drilling Machine
Ensure that the mains power supply voltage is the same as the operating voltage of
your machine. For details, please see the type plate. Insert the correct drill for the type
of job to be performed. If necessary, adjust the bit stop. Adjust the speed of the
machine using the regulating wheel on the operating switch (6). The more the
operating switch (6) is pressed in, the faster the drill rota�tes. Set the direction switch
(4) to the desired direction of motion. Never alter the position of the percussion drilling
switch (3) or the direction switch (4) when the machine is switched on. The machine is
switched on by pressing the operating switch (6). When the operating switch (6) is
released, the machine stops. If you would like to use continuous operation press the
locking button (5) while the opera�ting switch (6) is pressed. In order to switch off the
machine during continuous ope�ration, press the operating switch (6) again and then
let it go. Do not touch the drill chuck (1) while the machine is switched on.
Drilling Tips
�
�
�
�
�
�
�
�
Care of the Tools
Always insert the correct size and type of drill or screwdriver.
Set the machine to the correct speed.
Always hold the machine tightly by the handle and second handle (2).
When drilling wood and metal, set the percussion-drilling switch (3) to drilling.
When drilling masonry, set the percussion-drilling switch (3) to percussion drilling.
When using the machine as a screwdriver, set the percussion-drilling switch (3) to
drilling.
Set the direction switch (4) to the correct direction.
Never change the direction of motion when the machine is switched on.
- 05 -
Voltage:
Frequency:
Power input:
No load speed:
Chuck size:
Drilling capacity:
Steel:
Concrete:
Wood:
120V~
60Hz
6A
0-2800 rpm
13mm
13mm
13mm
25mm
Overload
Never use excessive force when drilling. Too much pressure reduces the speed of the
machine, and the required power is greatly reduced. This may result in overlo� ad,
which can damage the motor of the drilling machine. When the drilling machine
becomes too hot, allow it to run for two minutes without a load and then interrupt
working for a short time. Clean the drilling machine with a clean cloth and a brush.
Ensure that the ventilati�on slits are not blocked.
Warning: Always use the additional grips which come with the appliance. Losing
control of the appliance may result in injuries.
Technical Data
- 06 -
