INSTALLATION GUIDE
for the
SBX-T-TCMAX3G/12TW3
SKU# 94749
2022-Up Toyota Tundra CrewMax
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 12TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
2
5
OUT
OF
SBX-T-TCMAX3G/12TW3 INSTR_SKU# 011613

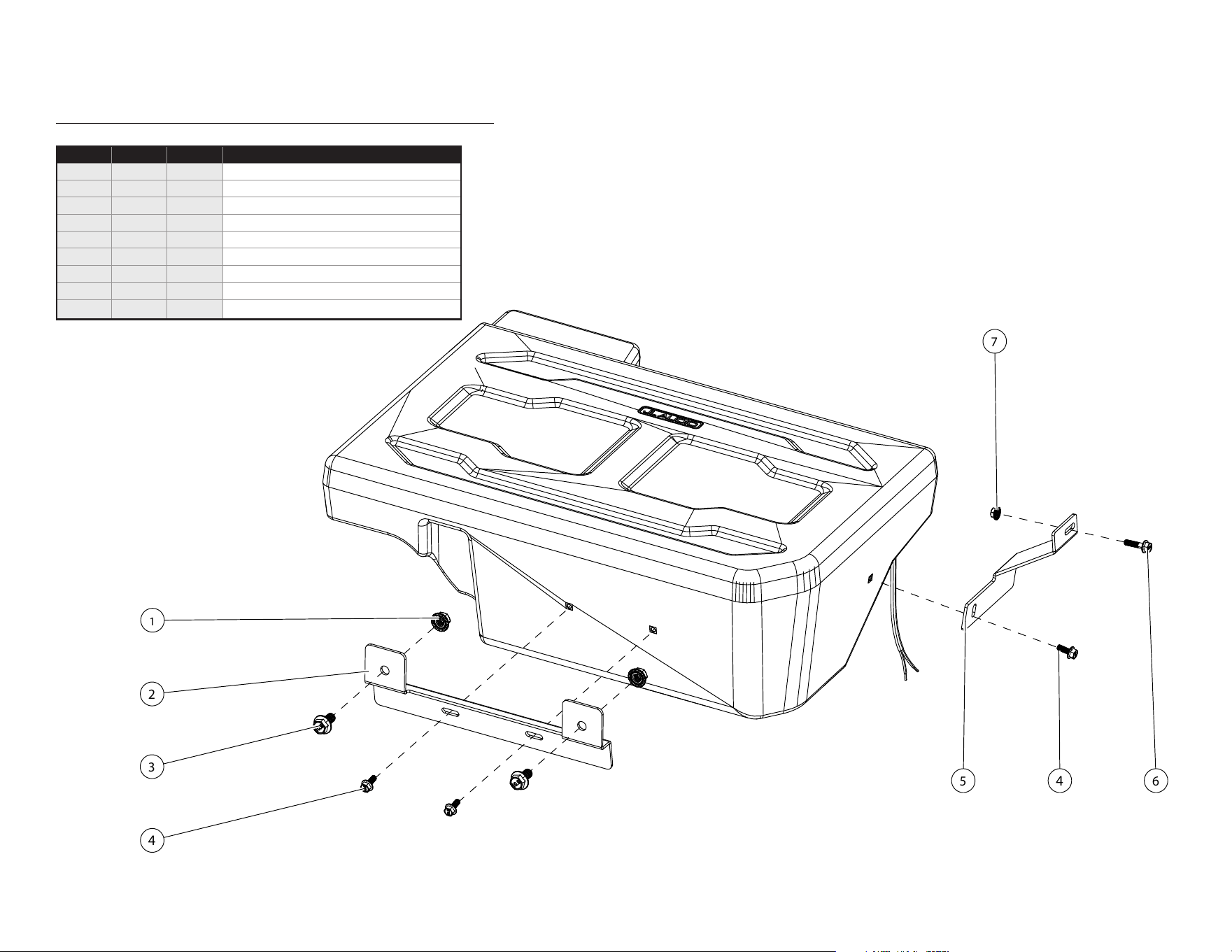

INCLUDED HARDWARE
4
7
5
6
1
2
3
4
Continued on Next Page
Page 2 • JL Audio, Inc., 2024
BOM ID Qty SKU Description
1 2 155111 M10 Serrated Flange Locknut
2 1 155073 Front Bracket
3 2 155108 M10 x 20mm Flanged Hex Head Screw
4 3 155107 M6 x 16mm Flanged Hex Head Screw
5 1 155074 Side Bracket
6 1 155109 M6 x 25mm Flanged Hex Head Screw
7 1 155110 M6 Flanged Serrated Locknut
- 1 194157 Vibra-Tite 132 (not shown)
- 2 150249 Foam Tape (not shown)
SBX-T-TCMAX3G/12TW3 INSTR_SKU# 011613
Page 3 • JL Audio, Inc., 2024 Continued on Next Page

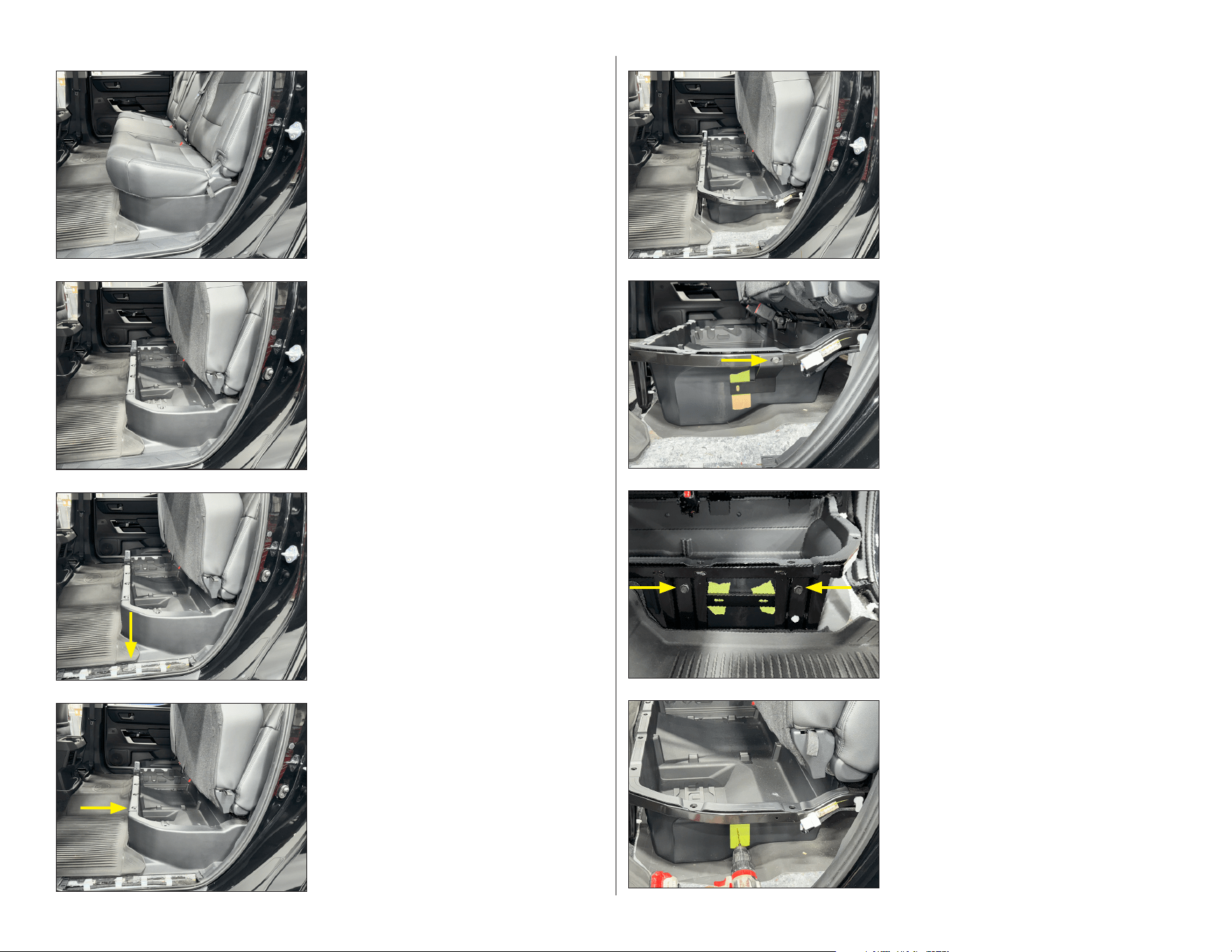

STEP 8
Remove the Side Bracket from the seat frame.
Using a 1/8” drill bit, carefully drill through the
center mark on the storage pocket. Using a 1”
drill bit, carefully enlarge the hole.
Repeat the process for the Front Bracket.
STEP 7
Align the Front Bracket to the seat frame, as
shown. Temporarily secure the Front Bracket
with an M10 x 20mm Flanged Hex Head Screw
on the outside of the frame and an M6 Flanged
Serrated Locknut on the inside of the frame.
Mark the center location of the two slots in the
Front Bracket onto the storage pocket.
STEP 6
Align the Side Bracket to the seat frame, as
shown. Temporarily secure the Side Bracket
with an M6 x 25mm Flanged Hex Head Screw
on the outside of the frame and an M6 Flanged
Serrated Locknut on the inside of the frame.
Mark the center location of the slot in the Side
Bracket onto the storage pocket.
STEP 5
Remove the outer storage pocket trim panel.
STEP 4
Carefully remove the retaining clips around the
upper perimeter of the storage pocket.
STEP 3
Carefully unclip and remove the rear door sill
panel on the driver’s side.
STEP 2
Lift the rear seat bottom and empty the
storage pocket.
STEP 1
Empty the rear seat area.
SBX-T-TCMAX3G/12TW3 INSTR_SKU# 011613
Page 4 • JL Audio, Inc., 2024
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new SBX™ subwoofer system!

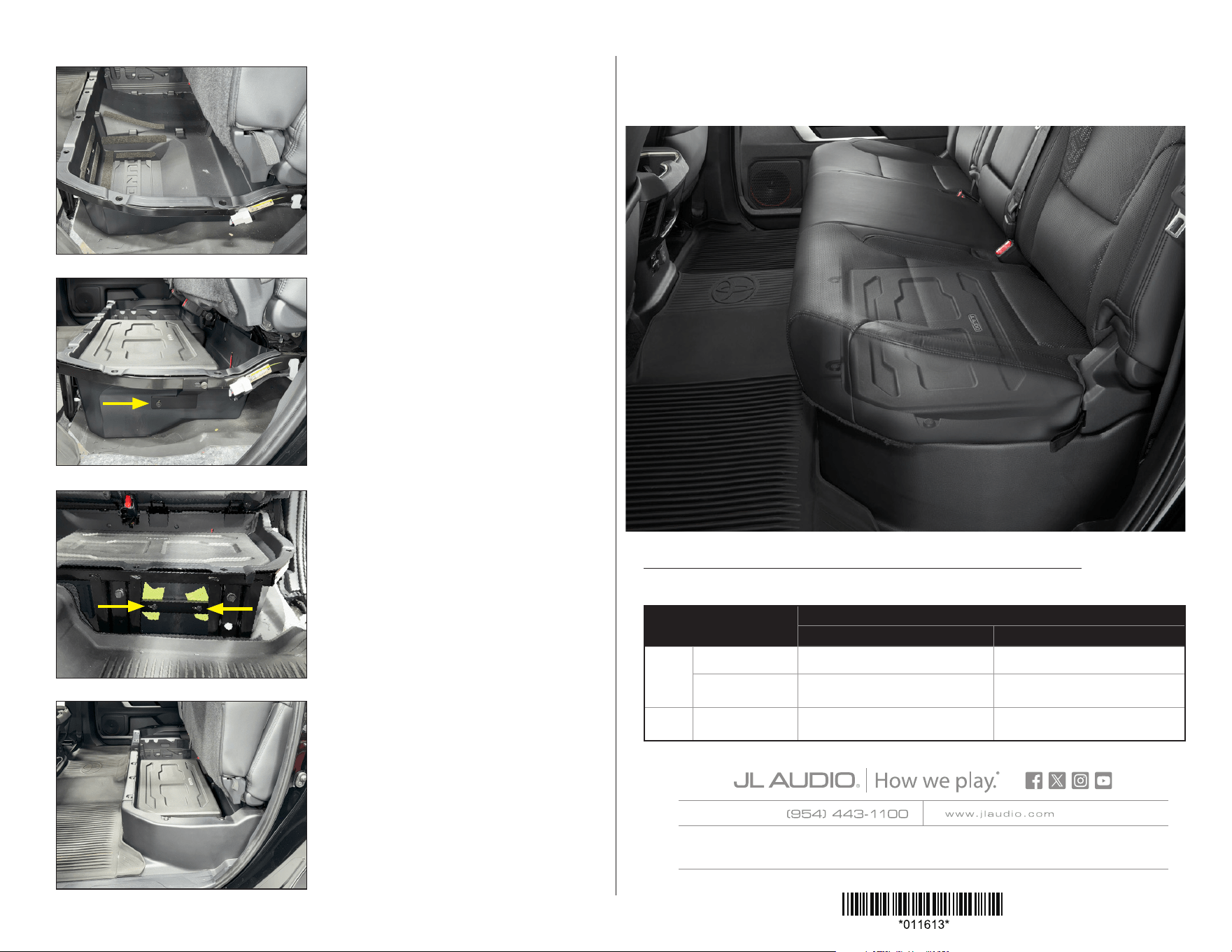

STEP 10
Reinstall the Side Bracket onto the seat frame,
and hand tighten the M6 x 25mm Flanged Hex
Head Screw and M6 Flanged Serrated Locknut.
Apply Vibra-Tite 132 to an M6 x 16mm Flanged
Hex Head Screw, pass it through the slot in the
Side Bracket, through the hole in the storage
pocket, into the threaded insert in the side of
the enclosure, and hand tighten.
STEP 9
Peel the adhesive backing and place Foam
Tape Strips into the storage pocket, as needed.
Place the enclosure into the storage pocket
and route speaker cable as necessary.
JLA-SKU# 011613 • ver. 04.18.2024 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
STEP 12
Fully tighten all the fasteners on the Side
Bracket and Front Bracket.
Reinstall the outer storage bracket trim panel,
retaining clips, and door sill panel.
STE P 11
Reinstall the Front Bracket onto the seat frame,
and hand tighten the M10 x 20mm Flanged
Hex Head Screw and M10 Flanged Serrated
Locknut.
Apply Vibra-Tite 132 to a pair of M6 x 16mm
Flanged Hex Head Screws, pass each through
a slot in the Front Bracket, through the holes in
the storage pocket, into the threaded inserts in
the front of the enclosure, and hand tighten.
Please review the warranty information included with each product for details. Warranty is valid only if the product was purchased from an Authorized JLAudio Dealer. Authorized dealer
status can be veried with the Dealer Locator on www.jlaudio.com. International Warranty: Please contact your country’s JLAudio distributor for specic warranty details.
© Garmin Ltd. or its subsidiaries. All rights reserved. • Garmin, JLAudio, Stealthbox, and How we play. are trademarks of Garmin Ltd. or its subsidiaries and are registered in one or more
countries, including the U.S. The JLAudio logo, the How we play logo, the Stealthbox logo, and the SBX logo are trademarks of Garmin Ltd. or its subsidiaries. Product images shown are for
illustrative purposes only and may differ from the actual product. Due to continuous product development, all specifications are subject to change without notice.
SBX-T-TCMAX3G/12TW3 INSTR_SKU# 011613
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of your vehicle.
1 - Installation may require adaptor, 2 - Component woofer only
Location / OEM
Speaker Size
Suggested JL Audio Speaker Models
Coaxial Models Component Models
Front
Dash / 2.75-inch N/A CF-275mt
Door / 6x9-inch
C1-690x
(1)
, C1-690tx
(1)
, C2-690tx
(1)
C2-650x
(1)
, C5-650x
(1)
C1-650, C2-650, C3-650,
C6-650cw
(2)
,
C7-650cw
(2)
Rear Door / 6.5-inch C1-650x, C2-650x
C1-650, C2-650, C3-650,
C6-650cw
(2)
,
C7-650cw
(2)
