Product Guide
S32DG80*S S34DG85*S
Contents
Contents
Precautions and Notes
Read After Installing the product
21 Picture sizes and input signals
Supported Resolutions for UHD Input Signals
22 If Input Signal Plus is set to Off
22 If Input Signal Plus is set to On
Read Before Connecting a Computer (Supported Resolutions)
23 VESA DMT
24 VESA CVT
24 CVT Custom
Supported Resolutions for Video Signals
25 CTA-861
25 List of graphic cards supporting HDR10
Specifications
General
Appendix
Responsibility for the Pay Service (Cost to Customers)
27 Not a product defect
27 A Product damage caused by customer’s fault
27 Others
FreeSync (for AMD graphics card)
Adaptive-Sync (for NVIDIA graphics card)
Supported Resolutions for FreeSync/Adaptive-Sync (VRR)
32 VESA DMT
32 VESA CVT
33 CTA-861
33 CVT Custom
Before Using the Product
Safety Precautions
3 Electricity and Safety
4 Installation
4 Operation
Cleaning
Correct posture to use the product
Preparations
Installation
7 Attaching the Stand
9 Precautions for moving the product
10 Checking the space around the product
11 Adjusting the Product Tilt and Height
13 Attaching the BRACKET WALL
14 Rotating the Product
15 Wall Mount Kit Specifications (VESA)
Control Panel
Connections
Ports

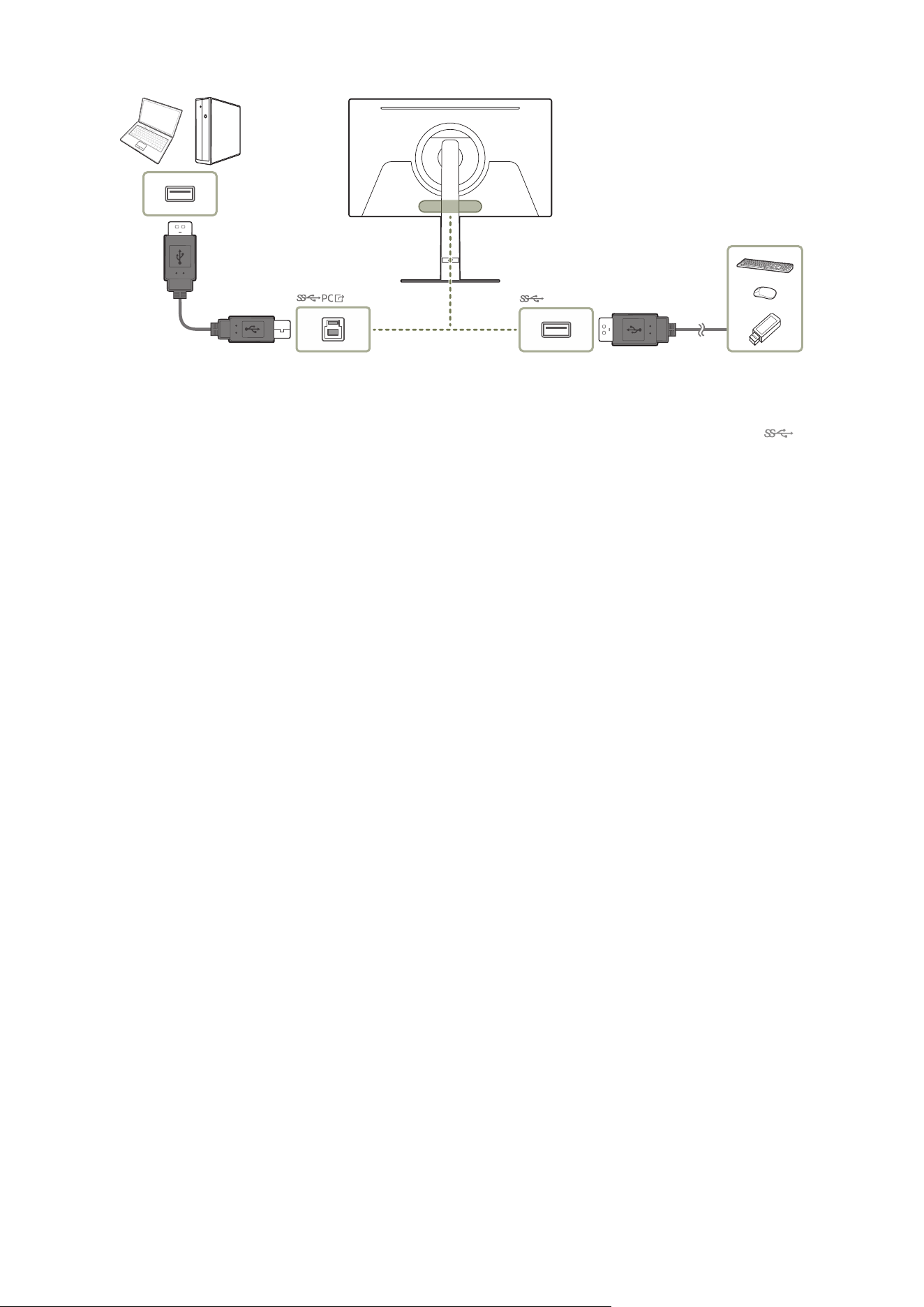

19 Connecting the Product to a PC as a USB HUB
Tidying Up the Connected Cables
- 3 -
Before Using the Product
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE
PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
AC voltage: Rated voltage marked with this
symbol is AC voltage.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
DC voltage: Rated voltage marked with this
symbol is DC voltage.
Class II product: This symbol indicates that a
safety connection to electrical earth (ground)
is not required. If this symbol is not present
on a product with a mains lead, the product
MUST have a reliable connection to protective
earth (ground).
Caution. Consult instructions for use: This
symbol instructs the user to consult the user
manual for further safety related information.
Electricity and Safety
Warning
● Do not use a damaged power cord or plug, or a loose power socket.
● Do not use multiple products with a single power socket.
● Do not touch the power plug with wet hands.
● Insert the power plug all the way in so it is not loose.
● Connect the power plug to a grounded power socket (type 1 insulated devices only).
● Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.
● Do not place the power cord or product near heat sources.
● Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
● Do not disconnect the power cord while the product is being used.
● Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.
● Keep the power socket where the power cord is connected unobstructed.
– The power cord must be disconnected to cut off power to the product when an issue occurs.
● Hold the plug when disconnecting the power cord from the power socket.
- 4 -
Installation
Warning
● DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT
NEAR HEAT SOURCES.
● Keep the plastic packaging out of the reach of children.
– Children may suffocate.
● Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
– The product may fall and become damaged or cause an injury.
– Using the product in an area with excess vibration may damage the product or cause a fire.
● Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.
● Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
– The product lifespan may be reduced or a fire may result.
● Do not install the product within the reach of young children.
– The product may fall and injure children.
● Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil pollution. And do not
install or use the product in the kitchen or near the kitchen stove.
Caution
● Do not drop the product while moving.
● Do not set down the product on its front.
● When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not
protruding.
– The product may fall and become damaged or cause an injury.
– Install the product only on cabinets or shelves of the right size.
● Set down the product gently.
– Product failure or personal injury may result.
● Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme
temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended
period of time) may seriously affect its performance.
– Be sure to consult Samsung Customer Service Center if you want to install the product at such a place.
● Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
– The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the
product is on the ground facing up or down, do not put pressure on it.
Operation
Warning
● There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.
– Contact Samsung Customer Service Center for repairs.
● To move the product, first disconnect all the cables from it, including the power cord.
● If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact
Samsung Customer Service Center.
● Do not let children hang from the product or climb on top of it.
– Children may become injured or seriously harmed.
● If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then contact
Samsung Customer Service Center.
– Continued use can result in a fire or electric shock.
- 5 -
● Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
– The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious injury.
● During a lightning or thunderstorm, power off the product and remove the power cord.
● Do not drop objects on the product or apply impact.
● Do not move the product by pulling the power cord or any cable.
● If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.
● Do not lift or move the product by pulling the power cord or any cable.
● Do not use or keep combustible spray or an inflammable substance near the product.
● Ensure the vents are not blocked by tablecloths or curtains.
– An increased internal temperature may cause a fire.
● Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the
product (via the vent or input/output ports, etc).
– Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered
the product. Then contact Samsung Customer Service Center.
● Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.
– Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered
the product. Then contact Samsung Customer Service Center.
● Do not use liquid fumigators containing chemicals, such as mosquito repellent or air freshener, around the product.
– If steam comes in contact with the product surface or enters the product, it may cause stains or malfunction.
Caution
● Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective
pixels.
– Set the screen to power-saving mode or moving-picture screen saver when not using the product for an extended
period of time.
● Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time
(vacation, etc).
– Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
● Use the product at the recommended resolution and frequency.
– Your eyesight may deteriorate.
● Do not hold the product upside-down or move it by holding the stand.
– The product may fall and become damaged or cause an injury.
● Looking at the screen too close for an extended period of time can deteriorate your eyesight.
● Do not use humidifiers or stoves around the product.
● Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
● Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.
● Store small accessories out of the reach of children.
● Exercise caution when adjusting the product angle or stand height.
– Your hand or finger may get stuck and injured.
– Tilting the product at an excessive angle may cause the product to fall and an injury may result.
● Do not place heavy objects on the product.
– Product failure or personal injury may result.
- 6 -
Cleaning
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby.
" Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product (Service fee will be
charged.)
Do not press the product screen with hands or other objects. There is a risk of damaging the screen.
" Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the product and PC.
2. Disconnect the power cord from the product.
" Hold the power cord by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
3. Wipe the product with a clean, soft and dry cloth.
Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product clean.
● Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.
● Do not spray water or detergent directly on the product.
4. Connect the power cord to the product when cleaning is finished.
5. Power on the product and PC.
Correct posture to use the product
Use the product in the correct posture as follows:
● Straighten your back.
● Allow a distance of 45 to 50cm between your eye and the screen, and look
slightly downward at the screen.
● Keep your eyes directly in front of the screen.
● Adjust the angle so light does not reflect on the screen.
● Keep your forearms perpendicular to your upper arms and level with the back
of your hands.
● Keep your elbows at about a right angle.
● Adjust the height of the product so you can keep your knees bent at 90 degrees
or more, your heels attached to the floor, and your arms lower than your heart.
● Do the Eye excercises or blink frequently, then eye fatigue will be relieved.
- 7 -
Preparations
Installation

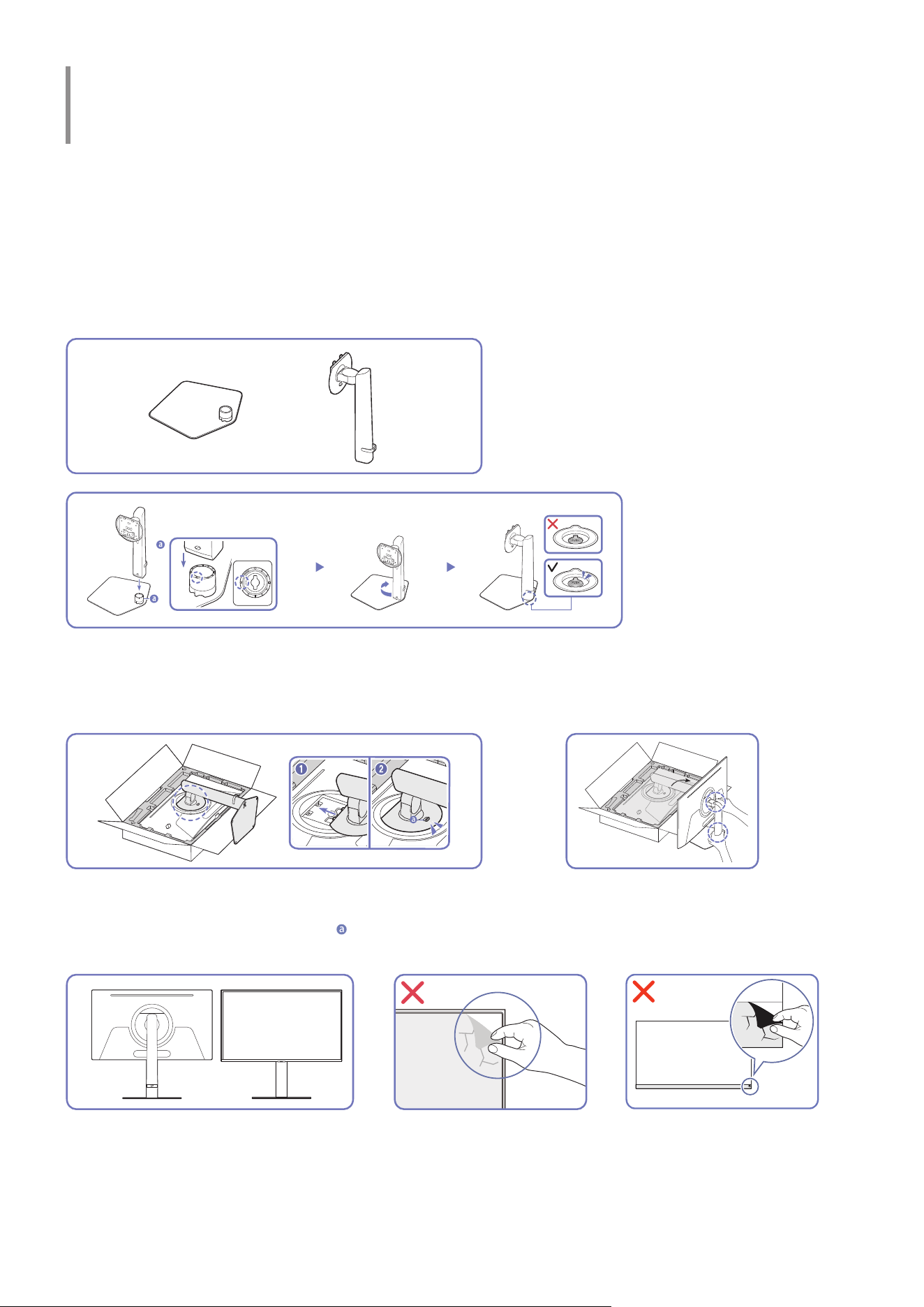

Attaching the Stand
" Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
" Disassembly is the reverse order of assembly.
S32DG80*S
1
Check the direction of the arrow on the stand base. Align the direction of the arrow on the stand base
with the front direction of the stand neck, and then insert the stand neck from top to bottom.
Turn the stand neck clockwise to fasten it to the base. Lift the stand slightly and check that the PUSH
button on the bottom of the base protrudes.
2
3
Push the assembled stand into the main body in the direction of the arrow as
shown in the figure.
Confirm that the stand is tightly fastened. If
has not been fully lowered,
lower it while holding it with your hand.
Stand up the monitor as shown in the
figure.
4
Stand assembly is complete. Caution
Do not arbitrarily remove the
panel film. If not observed,
the warranty service may be
restricted.
- 8 -

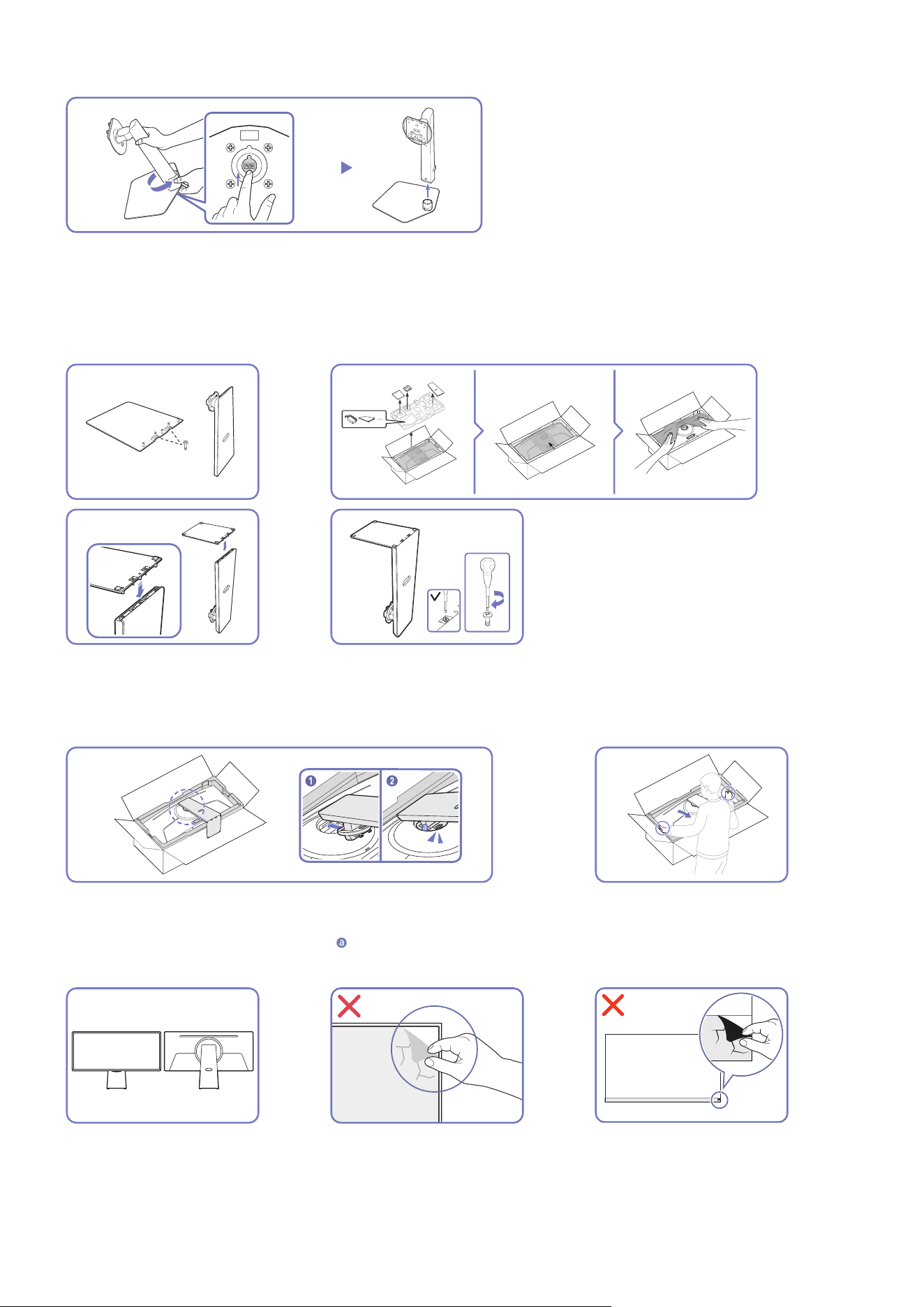

Separating the stand neck from the stand base
Lift the assembled stand slightly and press the PUSH button on the bottom of the base.
While holding down the PUSH button, turn the stand neck anticlockwise to remove it.
S34DG85*S
1 2
Put the stand base onto the stand neck
as the direction shown in the figure.
Check that the stand neck is firmly
connected.
Tightly fasten the connecting screw at
the bottom of the stand base.
3
4
Push the assembled stand into the main body in the direction of the arrow as
shown in the figure.
Confirm that the stand is tightly fastened. If
has not been fully lowered, lower it
while holding it with your hand.
Stand up the monitor as shown in the
figure.
5
Stand assembly is complete.
Caution
Do not arbitrarily remove the panel
film. If not observed, the warranty
service may be restricted.
- 9 -

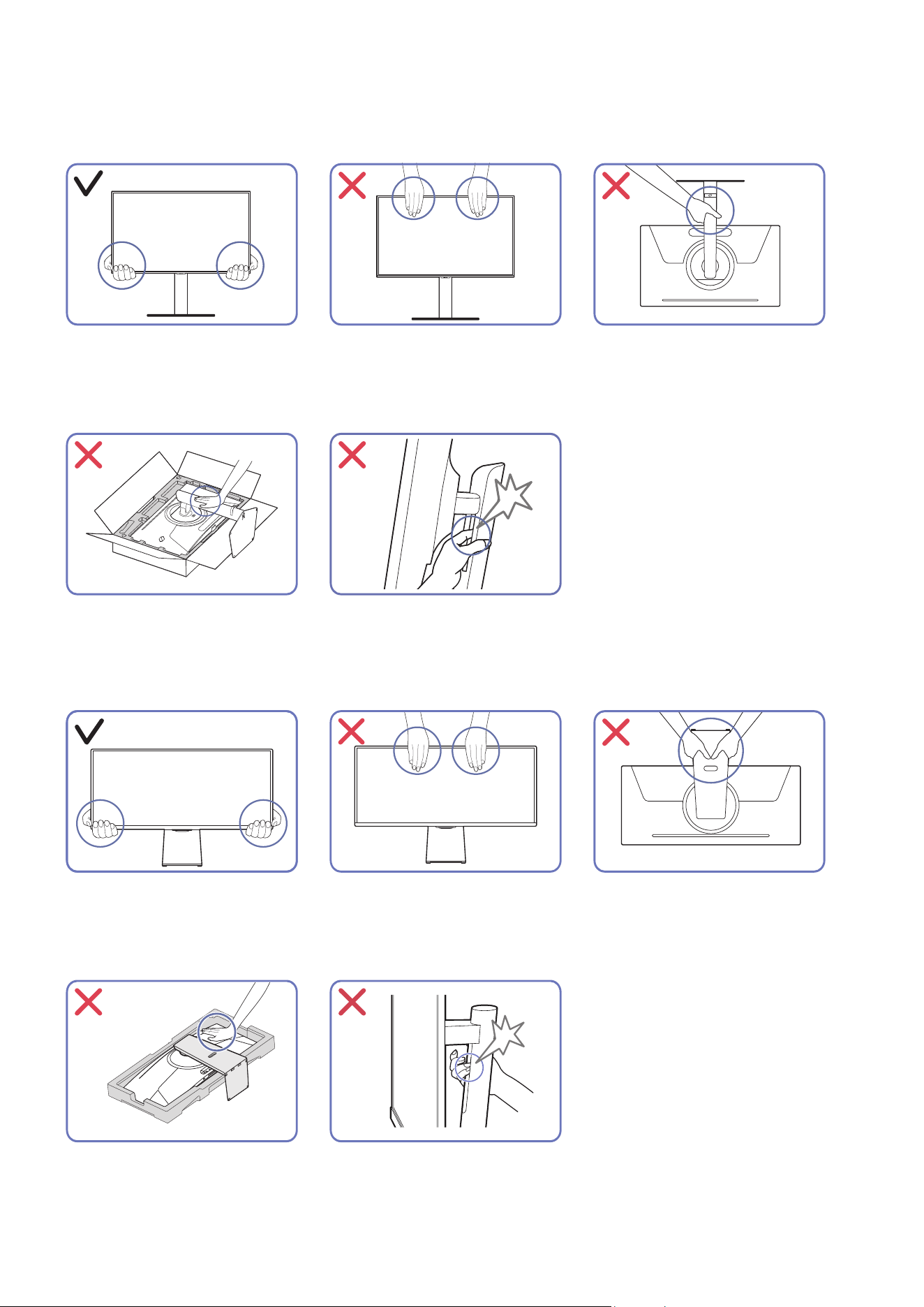

Precautions for moving the product
" The color and shape of parts may differ from what is shown.
S32DG80*S
Hold the lower corners or edges of the
product when moving it.
Do not directly apply pressure on the
screen.
Do not hold the screen when moving
the product.
Do not hold the product upside down
only by the stand.
Do not press down on the product.
There is a risk of damaging the product.
Be careful and ensure that your ngers
are not caught.
S34DG85*S
Hold the lower corners or edges of the
product when moving it.
Do not directly apply pressure on the
screen.
Do not hold the screen when moving
the product.
Do not hold the product upside down
only by the stand.
Do not press down on the product.
There is a risk of damaging the product.
Be careful and ensure that your ngers
are not caught.
- 10 -
Checking the space around the product
Make sure to have enough space for ventilation when placing the product. An internal temperature rise may cause fire and
damage the product. Maintain enough space around the product as shown in the diagram when installing the product.
" The exterior may differ depending on the product.
S32DG80*S
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
S34DG85*S
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
- 11 -
Adjusting the Product Tilt and Height
" The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve
quality.
S32DG80*S
● The product tilt and height can be
adjusted.
● When adjusting the tilt and height, hold
both sides of the product and avoid using
excessive force to prevent damage.
● When adjusting the stand height, you
may hear a noise. This noise is generated
because the ball inside the stand slides
when the stand height is adjusted. It
is a normal noise and not a product
malfunction.
● When adjusting the left/right angles of
the product, there may be a slight gap in
the connection area of the stand base.
This is normal and does not indicate a
malfunction of the product.
-2.0° (±2.0°) ~ 25.0° (±2.0°) 120.0 mm (±5.0 mm)
S34DG85*S
-2.0° (±2.0°) ~ +20.0° (±2.0°) 120.0 mm (±5.0 mm)
- 12 -
Caution
" The Product shape may differ depending on the model.
● Grasp the left and right sides of the monitor and adjust the swivel.
● Grasp the center of the monitor and adjust the height.
● Do NOT hold the stand moving part with your hand when leveling the screen. Your hand may get hurt.
● When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not
protruding.
● Do not put an object around the lower part of the product. The product or object may get damaged when adjusting the
product height.
After adjusting the product tilt and height, if the screen is not level, take the following actions.
● Hold the bezel at both side edges and adjust the monitor angle until the screen becomes level. (Be careful not to directly
hold the LCD display.)
- 13 -
Attaching the BRACKET WALL
" The bracket may not be supplied, depending on the country and region.
" Power the product off and remove the power cable from the power socket.
1 2
3
Attach the BRACKET WALL here
BRACKET WALL
Align with on the monitor, and tightly fasten the screws on .
- 14 -

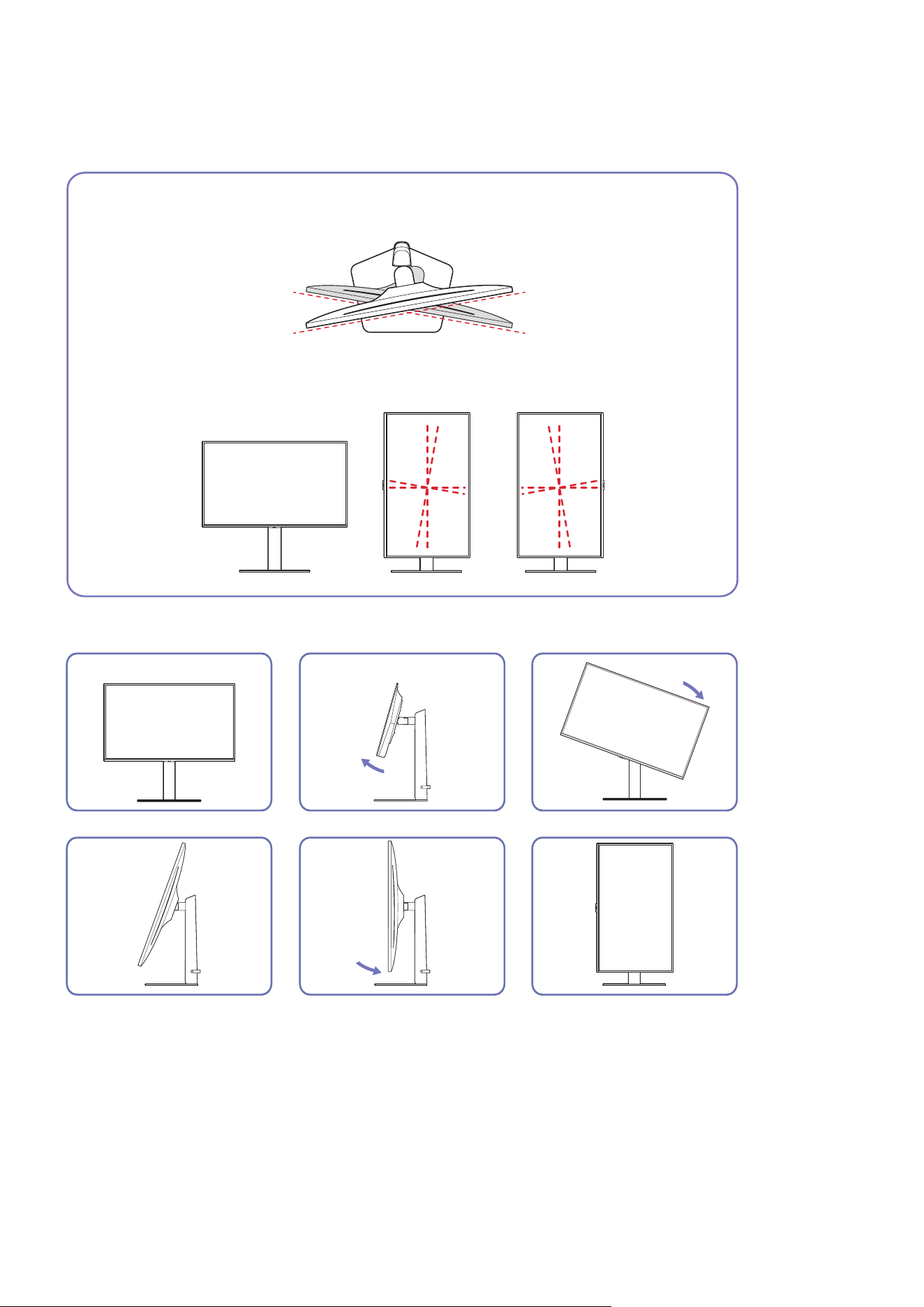

Rotating the Product
" The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve
quality.
" S32DG80*S model only.
-92.0° (±2.0°) ~ 92.0° (±2.0°)
-30.0° (±3.0°) ~ 30.0° (±3.0°)
You can rotate your product as shown below.
6
3
4 5
21
● Be sure to fully extend the stand before rotating the product.
● If you rotate the product without fully extending the stand, the corner of the product may hit the floor and get damaged.
● When rotating the product, be careful not to damage the product by hitting the object or stand.
- 15 -
Wall Mount Kit Specifications (VESA)
" Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than
plaster board, please contact your nearest dealer for additional information. If you install the product on a slanted wall, it
may fall and result in severe personal injury. Samsung wall mount kits contain a detailed installation manual and all parts
necessary for assembly are provided.
● Do not use screws that are longer than the standard length or do not comply with the VESA standard screw specifications.
Screws that are too long may cause damage to the inside of the product.
● For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
● Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
● Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.
● Do not mount the product at more than a 15 degree tilt.
● Standard dimensions for wall mount kits are shown in the table below.
Model name
VESA screw hole
specs (A * B) in
millimeters
C
Standard
Screw
Quantity
C
Product
Wall mount bracket
S32DG80*S 100.0 x 100.0
7. 5 ~ 10.5
mm
M4 4
Model name
VESA screw hole
specs (A * B) in
millimeters
C
Standard
Screw
Quantity
C
Product
Wall mount bracket
S34DG85*S 100.0 x 100.0
3.5 ~ 5.5
mm
M4 4
" Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.
- 16 -
Control Panel
" You can turn on the product with the Power button, and then use the Control menu. The Control menu appears when the
Power button is pressed while the product is On.
On Off
S32DG80*S S34DG85*S
On Off
Control menu
Home Settings Return Source Power Off
Power button / Controller button
● Press button: Display the Control menu. Select or run a focused item on the menu.
● Press and hold button: The running function is terminated.
" This function may not be supported depending on the model.
● Up/Down button: Changes the channel.
" This function may not be supported depending on the model.
● Left/Right button: Changes the volume.
" This function may not be supported depending on the model.
" The buttons may work differently depending on the situation.
Microphone
Power indicator / Remote control sensor
● The LED turns on when the product is turned off.
● The LED blinks when the product enters the standby mode.
" When 60 seconds elapses with no signal, the product enters the standby mode. In standby mode, the screen turns on
again when any signal is input or any button is pressed on the remote control.
● The color and shape of parts may differ from what is shown.
● The screen may dim if the protective film on the SAMSUNG logo or the bottom of the product is not detached. Please
remove the protective film.
● When using the buttons (excluding Power) on the Samsung Smart Remote, the receiver LED does not blink.
Microphone switch
You can turn on or off the microphone by using the switch at the bottom of the Product.
If microphone is turned off, All voice and sound features using microphone are not available.
● The position and shape of the microphone switch may differ depending on the model.
● During analysis using data from the microphone, the data is not saved.
- 17 -
Connections
Using various connectors, you can also connect external devices.
Ports
" The functions available may vary depending on the product model. The color and shape of parts may differ from what is
shown. Specifications are subject to change without notice to improve quality. Refer to the actual product.
S32DG80*S
Port
Description
Connects to a PC using a USB cable.
" This port can only connect to a PC.
Connect to a USB device.
" To connect a wireless keyboard or mouse, connect the dongle to the port.
HDMI 1(ARC)
HDMI
2
Connects to a source device using an HDMI cable.
DP
Connects to a PC using a DP cable.
DC **V
Connects to the AC/DC adapter.
" For more information about connection to an external device, refer to (left directional button) Connected
Devices
Connection Guide.
- 18 -
S34DG85*S
Port
Description
DC **V
Connects to the AC/DC adapter.
DP
Connects to a PC using a DP cable.
HDMI 1(ARC)
HDMI
2
Connects to a source device using an HDMI cable.
Connects to a PC using a USB cable.
" This port can only connect to a PC.
Connect to a USB device.
" To connect a wireless keyboard or mouse, connect the dongle to the port.
" For more information about connection to an external device, refer to (left directional button) Connected
Devices
Connection Guide.
- 19 -
Connecting the Product to a PC as a USB HUB
Using the product as a hub, connect and use various source devices with the product at a time.
" The Product shape may differ depending on the model.
" To detect and start a USB device (USB memory, Keyboard, Mouse, etc.) faster, connect the USB device to the port on
the product. The read/ write rate will be affected by the USB device and your PC.
" For USB-related problems caused by OS, drive programs or software, please contact relevant suppliers.
" With the launch of various USB devices on the market, we cannot guarantee that our products are matched with all USB
devices.
" For an external mass-storage HDD requiring external power supply, be sure to connect it to a power source.
" The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the
connection.
" Some products do not follow the USB standard, and it may cause a malfunction of the device.
" It is recommended that users use USB devices of 5V/1A or lower.
- 20 -
Tidying Up the Connected Cables
S32DG80*S
1
2
1
3
1. Connect the corresponding cables.
2. Pull the right side of the HOLDER-STAND CABLE to remove from the stand.
The left side of the cable can be damaged when pulled forcibly.
3. Put both cables in the cable holder on the stand (HOLDER-STAND CABLE) to organize the cables, as shown in the figure.
Assembly is complete.
S34DG85*S
1
1
1
1
2
1
3
1. Pass cables through the hole on the stand.
2. Connect the cables to the corresponding ports.
3. Organize cables by passing them through the hole on the stand, as shown in the figures.
- 21 -
Precautions and Notes
You can get instructions and information that you must read after installation.
Read After Installing the product
Read this information after installing the product.
Picture sizes and input signals
The Picture Size is applied to the current source. The applied Picture Size will remain in effect whenever you select that source
unless you change them.
Input signal Picture size
Series
G80SD G85SD
HDMI, DisplayPort (720p)
16:9 O -
HDMI, DisplayPort (1080p)
16:9, 21:9 O -
HDMI (3440 x 1440 @ 60 Hz), DisplayPort (3440 x 1440 @ 60/120 Hz)
21:9 Standard, 16:9 Standard,
4:3
- O
HDMI (3440 x 1440 @ 120 / 175 Hz)
DisplayPort (3440 x 1440 @ 175 Hz)
21:9 Standard, 16:9 Standard,
4:3 in Game Mode
- O
HDMI, DisplayPort (3840 x 2160p)
16:9 O -
HDMI, DisplayPort (3840 x 1600p)
21:9 O -
USB (720p)
16:9, 4:3 O -
USB (3840 x 2160p @ 24/30 Hz)
16:9 O -
USB (3840 x 2160p @ 60 Hz)
16:9 O -
" The input ports for external devices may differ depending on the model and geographical area.
" Available Picture Size may differ depending on the external device.
- 22 -
Supported Resolutions for UHD Input Signals
Check the supported resolution for UHD input signals.
● Resolution: 3840 x 2160p
If Input Signal Plus is set to Off
Frame rate (fps)
Color Depth / Chroma
Sampling
RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
60 8 bit - - - O
If Input Signal Plus is set to On
Frame rate (fps)
Color Depth / Chroma
Sampling
RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
60
8 bit O O O O
10 bit - - O O
- 23 -
Read Before Connecting a Computer (Supported Resolutions)
Check the resolutions supported for PC input signals.
When you connect your product to a computer, set the computer's video card to one of the standard resolutions listed in the
tables below or on the next pages. The product will automatically adjust to the resolution you choose. Note that the optimal and
recommended resolutions are 3840 x 2160 at 240 Hz (G80SD series), 3440 x 1440 at 120 Hz (G85SD series, when Game Mode is
on.) Choosing a resolution not included in the tables can result in a blank screen or just the remote control sensor turning on.
Refer to the user manual of your graphics card for compatible resolutions.
" G80SD series: With Input Signal Plus enabled, the optimal resolutions are 3840 x 2160 at 240 Hz. With Input Signal Plus
disabled, the optimal resolution is 3840 x 2160 at 30 Hz.
" G85SD series: The native resolution is 3440 x 1440 at 60 Hz with the Input Signal Plus set to On/Off.
" If the resolution is set to an unsupported one, the "Mode Not Supported" message may appear or noise may occur on the
screen. Make sure to set the resolution to a supported one.
" The input ports for external devices may differ depending on the model and geographical area.
VESA DMT
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
640 x 480 60 Hz 31.469 59.940 25.175 - / - O O
640 x 480 75 Hz 37.500 75.000 31.500 - / - O O
800 x 600 60 Hz 37.879 60.317 40.000 + / + O O
800 x 600 72 Hz 48.077 72.188 50.000 + / + O O
800 x 600 75 Hz 46.875 75.000 49.500 + / + O O
1024 x 768 60 Hz 48.363 60.004 65.000 - / - O O
1024 x 768 70 Hz 56.476 70.069 75.000 - / - O O
1024 x 768 75 Hz 60.023 75.029 78.750 + / + O O
1152 x 864 75 Hz 67.500 75.000 108.000 + / + O O
1280 x 720 60 Hz 45.000 60.000 74.250 + / + O O
1280 x 800 60 Hz 49.702 59.810 83.500 - / +
O O
1280 x 1024 60 Hz 63.981 60.020 108.000 + / + O O
1280 x 1024 75 Hz 79.976 75.025 135.000 + / + O O
*1440 x 900 60 Hz 55.935 59.887 106.500 - / + O O
*1600 x 900 60 Hz 60.000 60.000 108.000 + / + O O
*1680 x 1050 60 Hz 65.290 59.954 146.250 - / + O O
*1920 x 1080 60 Hz 67.500 60.000 148.500 + / + O O
" *: This input signal is supported only by G80SD series.
- 24 -
VESA CVT
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
*1920 x 1080RB 240 Hz 291.587 239.989 606.500 + / - O O
**1920 x 1080RB 175 Hz 205.529 175.000 427.500 + / - O O
*2560 x 1080RB 240 Hz 291.544 239.954 793.000 + / - O O
*2560 x 1440RB 60 Hz 88.787 59.951 241.500 + / - O O
2560 x 1440RB 120 Hz 182.996 119.998 497.750 + / - O O
*2560 x 1440RB 240 Hz 388.511 239.970 1056.750 + / - O O
**2560 x 1440RB 175 Hz 274.170 175.000 745.700 + / - O O
*3840 x 1600RB 60 Hz 98.750 59.994 395.000 + / - O O
*3840 x 1600 120 Hz 205.924 119.932 1103.750 - / + O O
*3840 x 1600RB 240 Hz 431.750 239.994 1727.000 + / - O O
*3840 x 2160RB 240 Hz 582.938 239.991 2331.750 + / - O O
" *: This input signal is supported only by G80SD series.
" **: This input signal is supported only by G85SD series.
CVT Custom
" This input signal is supported only by G85SD series.
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
3440 x 1440 50 Hz 73.681 49.987 265.250 + / - O O
3440 x 1440 60 Hz 97.014 59.959 349.250 + / - O O
3440 x 1440 100 Hz 161.736 99.961 582.250 + / - O -
3440 x 1440 120 Hz 194.097 120.000 698.750 + / - O O
3440 x 1440 175 Hz 283.264 175.000 1019.750 + / - O O
- 25 -
Supported Resolutions for Video Signals
Check the resolutions supported for video signals.
CTA-861
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
720 x 480 60 Hz 31.469 59.940 27.000 - / - O O
**720 x 576 50 Hz 31.250 50.000 27.000 - / - O O
**1280 x 720 50 Hz 37.500 50.000 74.250 + / + O O
1280 x 720 60 Hz 45.000 60.000 74.250 + / + O O
**1920 x 1080 50 Hz 56.250 50.000 148.500 + / + O O
1920 x 1080 60 Hz 67.500 60.000 148.500 + / + O O
1920 x 1080 120 Hz 135.000 120.000 297.000 + / + O O
*2560 x 1080 60 Hz 66.000 60.000 198.000 + / + O O
*2560 x 1080 120 Hz 150.000 120.000 495.000 + / + O O
3840 x 2160 30 Hz 67.500 30.000 297.000 + / + O O
**3840 x 2160 50 Hz 112.500 50.000 594.000 + / + O O
3840 x 2160 60 Hz 135.000 60.000 594.000 + / + O O
*3840 x 2160
120 Hz 270.000 120.000 1188.000 + / + O O
" The input ports for external devices may differ depending on the model and geographical area.
" *: This input signal is supported only by G80SD series.
" **: This input signal is supported only by G85SD series.
List of graphic cards supporting HDR10
HDR10 is accessible only on Windows 10 systems equipped with graphic cards that support Play Ready 3.0 Digital Rights
Management (for protected HDR content). Use graphic cards listed below for HDR10.
● NVIDIA GeForce 1000 series or higher
● AMD Radeon™ RX 400 series or higher
● Intel UHD Graphics 600 series or higher
" Graphic cards that support hardware-accelerated 10-bit video decoding for HDR video codecs are recommended.
- 26 -
Specifications
General
Model Name S32DG80*S S34DG85*S
Size
32 Class
(31.6 Inches / 80.3 cm)
34 Class
(34.1 Inches / 86.8 cm)
Display area
699.48 mm (H) x 394.73 mm (V) 800.1 mm (H) x 337.1 mm (V)
Pixel Pitch
0.1814 mm (H) x 0.1814 mm (V) 0.2315 mm (H) x 0.2315 mm (V)
Maximum Pixel Frequency
2331.75 MHz 1019.75 MHz
Synchronization
(PANEL Spec)
Horizontal
Frequency
140.88 ~ 565.44 kHz 96.6 ~ 284.9 kHz
Vertical
Frequency
48 ~ 240 Hz 48 ~ 175 Hz
Resolution
Optimum
Resolution
3840 x 2160 @ 240 Hz
3440 x 1440 @ 60 Hz (Game Mode off)
3440 x 1440 @ 120 Hz (Game Mode on)
Maximum
Resolution
3440 x 1440 @ 175 Hz (Game Mode on)
Power Supply
AC100-240V~ 50/60Hz
Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the
product label.
Signal connectors
HDMI, DisplayPort
Environmental conditions
Operating
Temperature:
32 °F to 104 °F (0 °C to 40 °C)
Humidity:
10 % to 80 %, non-condensing
Operating
Temperature:
50 °F to 104 °F (10 °C to 40 °C)
Humidity:
10 % to 80 %, non-condensing
Storage
Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
Humidity: 5 % to 95 %, non-condensing
● Plug-and-Play
This product can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the
product and PC system optimizes the product settings. Product installation takes place automatically. However, you can
customize the installation settings if desired.
● Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker
on the LCD panel. This does not affect product performance.
● The specifications are subject to change without notice to improve quality.
● For detailed device specifications, visit the Samsung website.
- 27 -
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following
cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
● If a service technician is requested to give instructions on how to use product or simply adjusts options without
disassembling product.
● If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
● If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.
● If a product is reinstalled to move to a different spot or to move to a different house.
● If the customer requests instructions on how to use another company’s product.
● If customer requests instructions on how to use the network or another company’s Program.
● If customer requests software installation and setup for the product.
● If a service technician removes/cleans dusts or foreign materials inside of the product.
● If customer requests an installation additionally after purchasing a product through home-shopping or online.
A Product damage caused by customer’s fault
Product damage caused by customer’s mishandling or wrong repair
If a product damage is caused by;
● External impact or drop.
● Use of supplies or separately sold product unspecified by Samsung.
● Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.
● Remodeling or repairing the product by customer.
● Using it with incorrect voltage or non-authorized electrical connections.
● Not following the “cautions” in Product Guide.
Others
● If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
● If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)
" If customer requests a service in case the product has no defect, service fee may be charged. So please read Product Guide
first.
- 28 -
FreeSync (for AMD graphics card)
FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency.
This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.
The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD
graphics card.
● Off: Disable FreeSync.
● On: Turn on the AMD graphics cards’ FreeSync function. You may experience intermittent flickers when playing some
games.
Apply the optimum resolution when using FreeSync.
The refresh rate setting method please refer to Q & A → How can I change the frequency?
" This menu is not available when Multi View is enabled.
" The FreeSync function is only enabled in HDMI or DisplayPort mode.
Use the HDMI/DP cable provided by the manufacturer when using FreeSync.
" If the FreeSync function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve the issue by
changing the resolution of the PC screen to the recommended resolution.
" If you set the Input Signal Plus to OFF, the FreeSync Premium pro mode is disabled.
- 29 -
If you use the FreeSync function while playing a game, the following symptoms may occur:
● The screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the
following actions: decrease the game setting values, change the current FreeSync Premium pro mode to Off, or visit the
AMD website to check your graphics driver’s version and update it with the latest one.
● While you are using the FreeSync function, the screen may flicker due to variation of the output frequency from the
graphics card.
● The response rate during the game may fluctuate depending on the resolution. A higher resolution generally decreases the
response rate.
● The sound quality of the monitor may be degraded.
" If you encounter any issues when using the function, contact the Samsung Service Centre.
" If you change the screen resolution while the function is On, the screen may intermittently blank out due to the graphic
card. Set FreeSync Premium pro to Off and change the resolution.
" The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is applied, the
screen may have malfunction.
The models in the Graphics Cards list supports FreeSync
FreeSync can only be used with specific AMD graphics card models. Refer to the following list for supported graphics cards:
Make sure to install the latest official graphics drivers from AMD that support FreeSync.
" For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website.
" Select FreeSync Premium pro Off if you are using a graphics card from a different manufacturer.
" When applying the FreeSync function via the HDMI cable, it may fail to work due to the bandwidth limitation of certain
AMD graphics card.
● Radeon™ RX Vega series
● Radeon™ RX 500 series
● Radeon™ RX 400 series
● Radeon™ R9/R7 300 series (excluding R9 370/X, R7
370/X, R7 265)
● AMD Radeon™ 5500 Series
● AMD Radeon™ 5700 Series
● Radeon™ Pro Duo (2016 edition)
● Radeon™ R9 Nano series
● Radeon™ R9 Fury series
● Radeon™ R9/R7 200 series (excluding R9 270/X, R9
280/X)
● AMD Radeon™ 5600 Series
● AMD Radeon™ RX 6000 Series
- 30 -
Adaptive-Sync (for NVIDIA graphics card)
" This function may not be supported depending on the model.
Adaptive-Sync technology is solution that eliminates screen tearing without all the usual lag and latency.
This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.
The displayed Adaptive-Sync menu items on the monitor may vary, depending on the monitor model and compatibility with the
NVIDIA graphics card.
● Off: Disable Adaptive-Sync.
● On: Turn on the NVIDIA graphics cards’ Adaptive-Sync function. You may experience intermittent flickers when playing
some games.
Apply the optimum resolution when using Adaptive-Sync.
The refresh rate setting method please refer to Q & A → How can I change the frequency?
" This menu is not available when Multi View is enabled.
" The Adaptive-Sync function is only enabled in HDMI or DisplayPort mode.
Use the HDMI/DP cable provided by the manufacturer when using Adaptive-Sync.
" If the Adaptive-Sync function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve the issue
by changing the resolution of the PC screen to the recommended resolution.
" If you set the Input Signal Plus to OFF, the Adaptive-Sync mode is disabled.
- 31 -
If you use the Adaptive-Sync function while playing a game, the following symptoms may occur:
● The screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the
following actions: decrease the game setting values, change the current Adaptive-Sync mode to Off, or visit the NVIDIA
website to check your graphics driver’s version and update it with the latest one.
● While you are using the Adaptive-Sync function, the screen may flicker due to variation of the output frequency from the
graphics card.
● The response rate during the game may fluctuate depending on the resolution. A higher resolution generally decreases the
response rate.
● The sound quality of the monitor may be degraded.
" If you encounter any issues when using the function, contact the Samsung Service Center.
" If you change the screen resolution while the function is On, the screen may intermittently blank out due to the graphic
card. Set Adaptive-Sync to Off and change the resolution.
" The function is unavailable in the devices (e.g. AV devices) that have no NVIDIA graphic card. If the function is applied, the
screen may have malfunction.
The models in the Graphics Cards list supports Adaptive-Sync
Adaptive-Sync can only be used with specific NVIDIA graphics card models. Refer to the following list for supported graphics
cards:
Make sure to install the latest official graphics drivers from NVIDIA that support Adaptive-Sync.
" For additional NVIDIA graphics card models that support the Adaptive-Sync feature, visit the official NVIDIA website.
" Select Adaptive-Sync Off if you are using a graphics card from a different manufacturer.
" When applying the Adaptive-Sync function via the DisplayPort cable, it may fail to work due to the bandwidth limitation of
certain NVIDIA graphics card.
● GeForce GTX 10 series
● GeForce RTX 30 series
● GeForce RTX 20 series
● GeForce RTX 40 series
- 32 -
Supported Resolutions for FreeSync/Adaptive-Sync (VRR)
Check the supported resolutions for the FreeSync/Adaptive-Sync (VRR) signal.
When Game Mode is set to On or Auto, the FreeSync/Adaptive-Sync (VRR) function is activated.
" FreeSync/Adaptive-Sync (VRR) is only available in select models.
VESA DMT
" This input signal is supported only by G80SD series.
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
1600 x 900 60 Hz 60.000 60.000 108.000 + / + O O
VESA CVT
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
*2560 x 1440RB 60 Hz 88.787 59.951 241.500 + / - O O
*3840 x 1600RB 60 Hz 98.750 59.994 395.000 + / - O O
*3840 x 1600 120 Hz 205.924 119.932 1103.750 - / + O O
**1920 x 1080RB 175 Hz 205.529 174.918 427.500 + / - O O
*1920 x 1080RB 240 Hz 291.587 239.989 606.500 + / - O O
2560 x 1440RB 120 Hz 182.996 119.998 497.750 + / - O O
**2560 x 1440RB 175 Hz 274.173 119.000 745.750 + / - O O
*2560 x 1080RB 240 Hz 291.544 239.954 793.000 + / - O O
*2560 x 1440RB 240 Hz 388.511 239.970 1056.750 + / - O O
*3840 x 1600RB 240 Hz 431.750 239.994 1727.000 + / - O O
*3840 x 2160RB 240 Hz 582.938 239.991 2331.750 + / - O O
" *: This input signal is supported only by G80SD series.
" **: This input signal is supported only by G85SD series.
- 33 -
CTA-861
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
*1280 x 720 60 Hz 45.000 60.000 74.250 + / + O O
*1920 x 1080 60 Hz 67.500 60.000 148.500 + / + O O
**1920 x 1080 120 Hz 135.000 120.000 297.000 + / - O O
*2560 x 1080 60 Hz 66.000 60.000 198.000 + / + O O
*3840 x 2160 60 Hz 135.000 60.000 594.000 + / + O O
*1920 x 1080 120 Hz 135.000 120.000 297.000 + / + O O
*2560 x 1080 120 Hz 150.000 120.000 495.000 + / + O O
*3840 x 2160 120 Hz 270.000 120.000 1188.000 + / + O O
" *: This input signal is supported only by G80SD series.
" **: This input signal is supported only by G85SD series.
CVT Custom
" This input signal is supported only by G85SD series.
Resolution
(Dots x lines)
Display
format
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal / vertical)
Port
HDMI DP
3440 x 1440 120 Hz 194.097 120.000 698.750 + / - O O
3440 x 1440 175 Hz 283.264 175.000 1019.750 + / - O O
