MSC5BK, MSC5BL 1 081622
MSC5BK, Heavy Duty Full Drawer Service Cart, Power Drawer Black
MSC5BL, Heavy Duty Full Drawer Service Cart, Power Drawer Blue
Copyright © Professional Tool Products, 2022
All rights reserved.
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the
device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not
legible, contact Matco Tools for replacements. If the operator is not fluent in English, the product and safety instructions shall be read and
discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator
comprehends its contents. PLEASE NOTE: Loading cart beyond rated capacity may cause structural damage to the cart as well as personal
and /or property damage. Please educate your customers to the dangers of overloading.
Maximum Total Net Load .................. 700 lbs.
Top Lid of Cart .....................................150 lbs.
Power Drawer .....................................100 lbs.
3" Drawer .............................................100 lbs.
4" Drawer .............................................100 lbs.
5" Drawer .............................................100 lbs.
• Read and follow all instructions in User's Manual.
• Do not load carts beyond rated capacity
PLEASE NOTE:
Loading cart beyond rated capacity may cause structural damage to the cart as well as personal and/or property
damage. Please educate your customers to the "dangers of overloading". Do not attempt to push cart with items on the top lid.
• Lock lid and drawers before moving. • Apply brake on locking casters anytime cart is in place. • Do not pull cart. Push from
handle on end to move. • Units can tip or fall causing damage or personal injury. • Cart is designed to roll easily on
flat surfaces and should not be used on uneven or inclined surfaces. • Do not open more than one loaded drawer at a time.
• Do not stand on or step in drawers. • Keep children away from unit. • Wear gloves when lifting edges. • Before connecting to
a power supply, always check to make sure the power supply corresponds to the voltage required on the product. • Fully insert
plug to reduce the risk of electric shock. • Always unplug when not in use. • Disconnect power before installing or servicing.
• Do not try to plug in unit or product when hands are wet or damp, or if standing on a wet or damp surface or in water. • Never
attempt to pick up unit or plugged in product that should fall in standing water. • This unit is not waterproof and is intended for general
use indoors. • Do not use in potentially dangerous locations, such as flammable or explosive atmospheres. • Keep cord away from
heat, oil, sharp edges or moving parts. • Failure to heed these warnings may result in personal injury and/or property damage.
WARNING
WARNING: This product can expose you to chemicals including
lead, which is known to the State of California to cause cancer and
birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
MSC5BK, MSC5BL 2 081622
MSC5BK, Heavy Duty Full Drawer Service Cart, Power Drawer Black
MSC5BL, Heavy Duty Full Drawer Service Cart, Power Drawer Blue

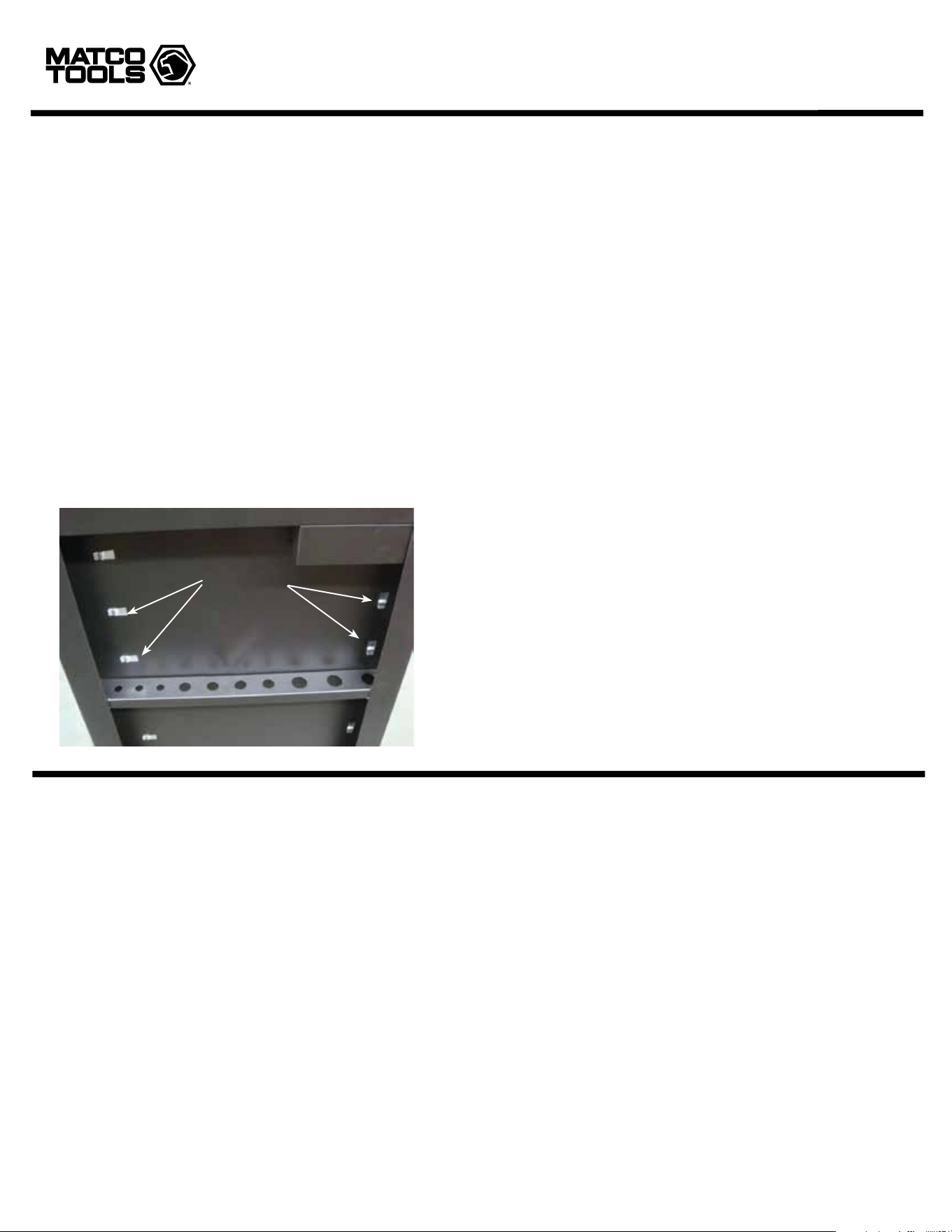

Mounting Slots
TROUBLESHOOTING
Problem: Drawers appear not to fit, do not slide in accurately and
bump the cart sides.
Solution: The roller bearing slides must be fully engaged into the
mounting slots on all drawers. They potentially could fall out of
position during shipment. Check the side of the cart to determine
which slide is out of position.
Remove the drawer that is out of position. The drawer is
removed by the two clips on the actual roller bearing slide.
Simply push the roller bearing slide back down into position.
Insert the drawer back onto the roller bearing slides.
Problem: Back Lock/Unlock Switch does not engage
the drawer.
Solution: The inside Lock/Unlock slide potentially could fall
out of its groove during shipment. Unscrew the four screws that
are holding the Lock/Unlock slide in place.
Once the screws are removed, simply place the latch back onto
the slide and tighten the four screws back down.
TOTAL DIMENSIONS
Height, Open Lid .................................................................... 64.5"
Height, Closed Lid .................................................................. 40.5"
Width without handle ............................................................ 48.4"
Width with Handle ................................................................. 52.1"
Depth ...................................................................................... 24.8"
WEIGHT RATINGS
Max Total Capacity .............................................................700 lbs.
On top of Closed Lid .......................................................... 150 lbs.
Top Compartment ..............................................................150 lbs.
Power Drawer ....................................................................100 lbs.
3" Drawer ............................................................................100 lbs.
4" Drawer ............................................................................100 lbs,
5" Drawer ............................................................................100 lbs.
SPECIFICATIONS
WARRANTY
This MATCO TOOLS service/storage cart carries a one (1) year warranty (only for the parts listed below) subject to the terms and
conditions below.
What is Covered
MATCO TOOLS warrants the following components of this product to be free from defects in workmanship and materials.
The components covered by the one (1) year warranty include welded joints, paint, drawers, lid, hinge, slides, casters, handles
and pulls, gas pistons, bumpers, key lock, drawer lock mechanism, hardware, clips, and grommets.
What is NOT Covered (Exclusions)
This warranty does not cover normal wear, damage caused by neglect and misuse. Disassembly of any product will void the
warranty. This warranty also only applies to a genuine MATCO TOOLS branded product that was purchased from an authorized
MATCO TOOLS dealer. Purchases outside of this are not covered. If the product has been modified in any way it will not be
covered.
Drawer liners are not covered under warranty.
Themed, Special or Limited Edition Product - Any MATCO TOOLS storage/service cart that is a limited, special, or themed design
will not be covered under the one (1) year warranty due to the special paint, decals, and screen-printing. Therefore, decals and
screen-printing, and will only carry an OUT OF THE BOX warranty. However, other interchangeable components such as the
drawers, lid, gas pistons, bumpers, casters, slides, hardware, key lock, drawer lock mechanism, clips and grommets will all retain
the one (1) year warranty.
MSC5BK, MSC5BL 3 081622
MSC5BK, Heavy Duty Full Drawer Service Cart, Power Drawer Black
MSC5BL, Heavy Duty Full Drawer Service Cart, Power Drawer Blue
MSC5BK, MSC5BL 4 081622
MSC5BK, Heavy Duty Full Drawer Service Cart, Power Drawer Black
MSC5BL, Heavy Duty Full Drawer Service Cart, Power Drawer Blue

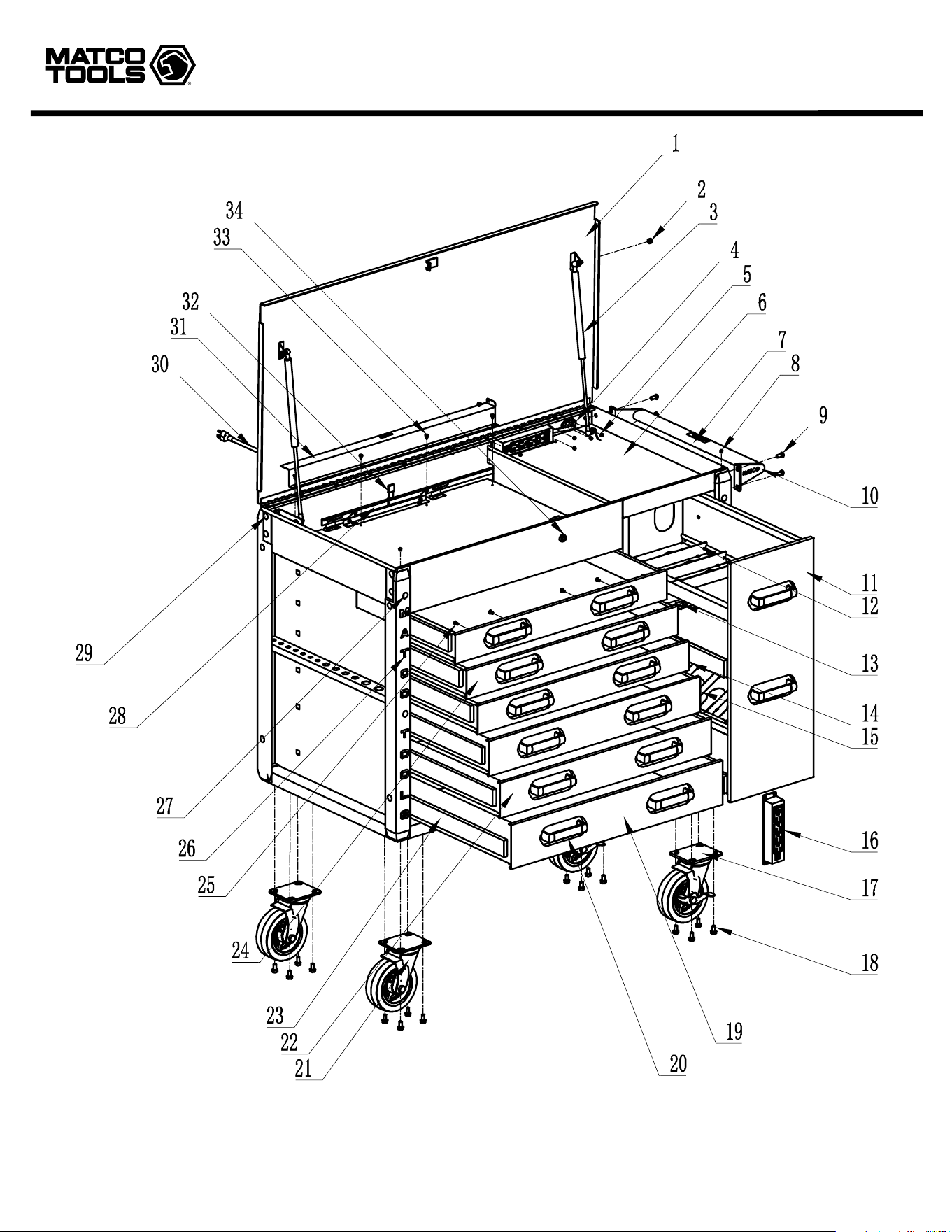

No. Part No. Description Qty
1 RSLID10BK LID (10 RIVETS) / BLACK 1
1 RSLID10BL LID (10 RIVETS) / BLUE 1
2 RSGPLN LOCK NUT (EACH) / GAS PISTON (EACH) 4
3 RSGP5 GAS PISTON (EACH) 2
4 RSPO4USB2T01 POWER STRIP / TOP COMPARTMENT 1
5 RSPSTCBK BOLT KIT / POWER STRIP TC 1
6 RSLINERSUT LINER (EACH) / SMALL UPPER TRAY 1
7 RSPUSHHDL06 PUSH HANDLE 1
8 RSACB ANTI-COLLISION BUTTON (EACH) 2
9 RS4QPHBKC PUSH HANDLE BRACKET HARDWARE / CHROME 1
10 RSMSC4HB PUSH HANDLE BRACKETS (PAIR) / CHROME 1
11 RSPDRWBK POWERED DRAWER / BLACK 1
11 RSPDRWBL POWERED DRAWER / BLUE 1
12 RSPDGRIDTC GRID INSERT (EACH) / POWER DRAWER / TOP 3
13 RS4RCP01 GROMMET FOR POWER CORD (EACH) / POWER DRAWER 4
14 RSPDCC CABLE CLAMP / POWERED DRAWER 1
15 RSPDDRIDB GRID INSERT (EACH) / POWER DRAWER / BOTTOM 5
16 RSPO4USB2B01 POWER STRIP / POWER DRAWER 1
17 RS6INLC01 6" LOCKING CASTER (EACH) 2
18 RSCSTRBK CASTER BOLT KIT 1
19 RS5INFDRWBK 5" DRAWER / BLACK 1
19 RS5INFDRWBL 5" DRAWER / BLUE 1
20 RSDRWPULL DRAWER PULL / CHROME 1
21 RS6INNLC01 6" NON-LOCKING CASTER (EACH) 2
22 RS4INFDRWBK 4" DRAWER (EACH) / BLACK 2
22 RS4INFDRWBL 4" DRAWER (EACH) / BLUE 2
23 RSBBSLIDE05 BALL BEARING SLIDES (PAIR) 8
24 RS3INFDRWBK 3" DRAWER (EACH) / BLACK 3
24 RS3INFDRWBL 3" DRAWER (EACH) / BLUE 3
25 RSDRWPULLHK DRAWER PULL HARDWARE KIT 1
26 RSMSC4FDBP BUMPERS (SET OF 4) 1
27 RSFDFK PLASTIC CLIP (SET OF 4) / ONE BUMPER 4
28 RSLOCKBARBK LOCK BAR ASSEMBLY / BLACK 1
28 RSLOCKBARBL LOCK BAR ASSEMBLY / BLUE 1
29 RSFDPCK PLASTIC PUSH CAPS (SET OF 4) / ONE BUMPER 4
30 RSPOWCORDT POWER CORD (EACH) / TOP COMPARTMENT & DRAWER 2
31 RSCOVPLTBK COVER PLATE / BLACK 1
31 RSCOVPLTBL COVER PLATE / BLUE 1
32 RSKNBCOVRLB02 KNOB COVER / LOCKING BAR 1
33 RSCOVPLTSCREWS COVER PLATE SCREWS / SELF-TAPPING (SET OF 5) 1
34 RSLOCK2K04 LOCK W/2 KEYS 1
NS RSDRWLINER LINER (EACH) / DRAWER 6
NS RSLINERLUT LINER (EACH) / LARGE UPPER TRAY 1
NS RSPAINTJGSF114 TOUCH-UP PAINT / BLACK 1
NS RSPAINTJGSF012 TOUCH-UP PAINT / BLUE
Only items identified by part number are available separately.
