BULLETIN NO.
54-07-3600
SERVICE PARTS LIST
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
15 31-21-0048 Power Cell Door Hinge (1)
16 05-74-0754 M2 x 8mm Pan Head T6 ST Screw (3)
17 31-21-0049 Power Cell Door Pin (1)
22 05-74-0756 M2.5 x 15mm Pan Head T8 Screw (8)
26 05-74-0761 M3x5mm PH H2 Leak Test Screw (1)
28 43-44-0613 Leak Test Gasket/ ID=3mm T=1.2mm (1)
32 43-44-0615 Main Gasket/Detector (1)
40 12-20-0306 Service Nameplate (1)
51 3711 Red Exterior Rotary Laser Receiver (1)
53 31-50-0201 Bottom Housing Assembly / Detector (1)
56 31-21-0051 Power Cell Door Kit/Detector (1)
57 31-21-0052 Power Cell Door Assembly / Detector (1)
59 43-44-0612 Leak Test Gasket Kit (1)
60 22-38-0106 Rotary Detector Clamp Assembly (1)
CATALOG NO. 3711
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
Red Exterior Rotary Laser RECEIVER
DATE
July 2023
WIRING INSTRUCTION
M96A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. NOTES
40 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or name
plate.
57
16
(x3)
15
17
53
22
(x8)
26
28
32
40
15 16
17 57
56
26
28
59
51
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

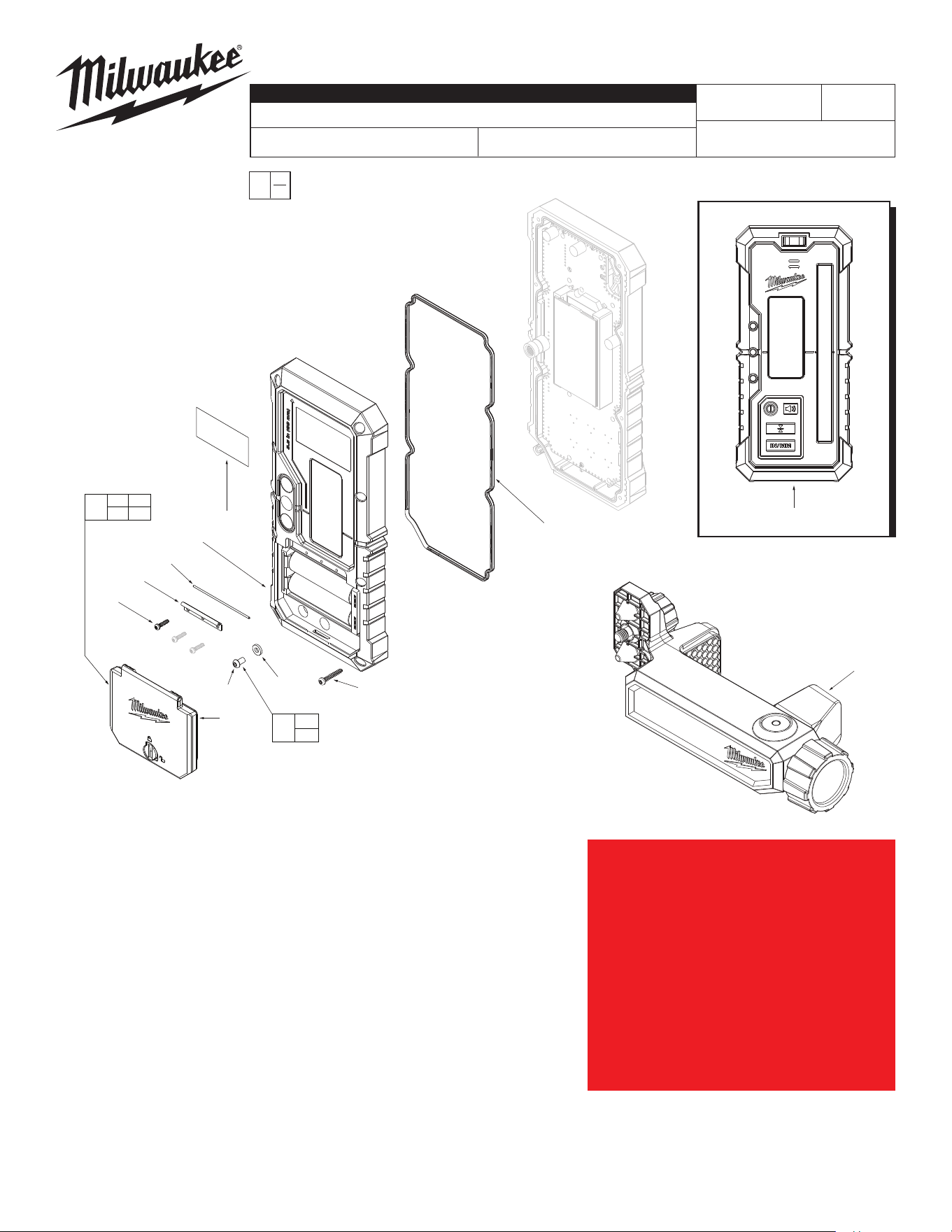

Drwg. 1
Service needs pertaining to accuracy
or calibration can only be performed at
MILWAUKEE TOOL Central Repair:
1401 Sycamore Ave., Greenwood, MS 38930-7277
OR
2198 Southtech Drive, Greenwood, IN 46143-6725
OR Via e-Service at:
www.milwaukeetool.com/e-service.
QUESTIONS: please call 1.800.SAWDUST
OR
Return it to a MILWAUKEE FACTORY SERVICE
CENTER location, freight prepaid and insured.
A copy of the proof of purchase should be
included with the return product.
60
SERIAL NO.
7
6
5
4
(x2)
13
52
35
12
9
(x9)
8
10
12
13
4 5
6 7
58
12 13
35
54
10 12
13
55

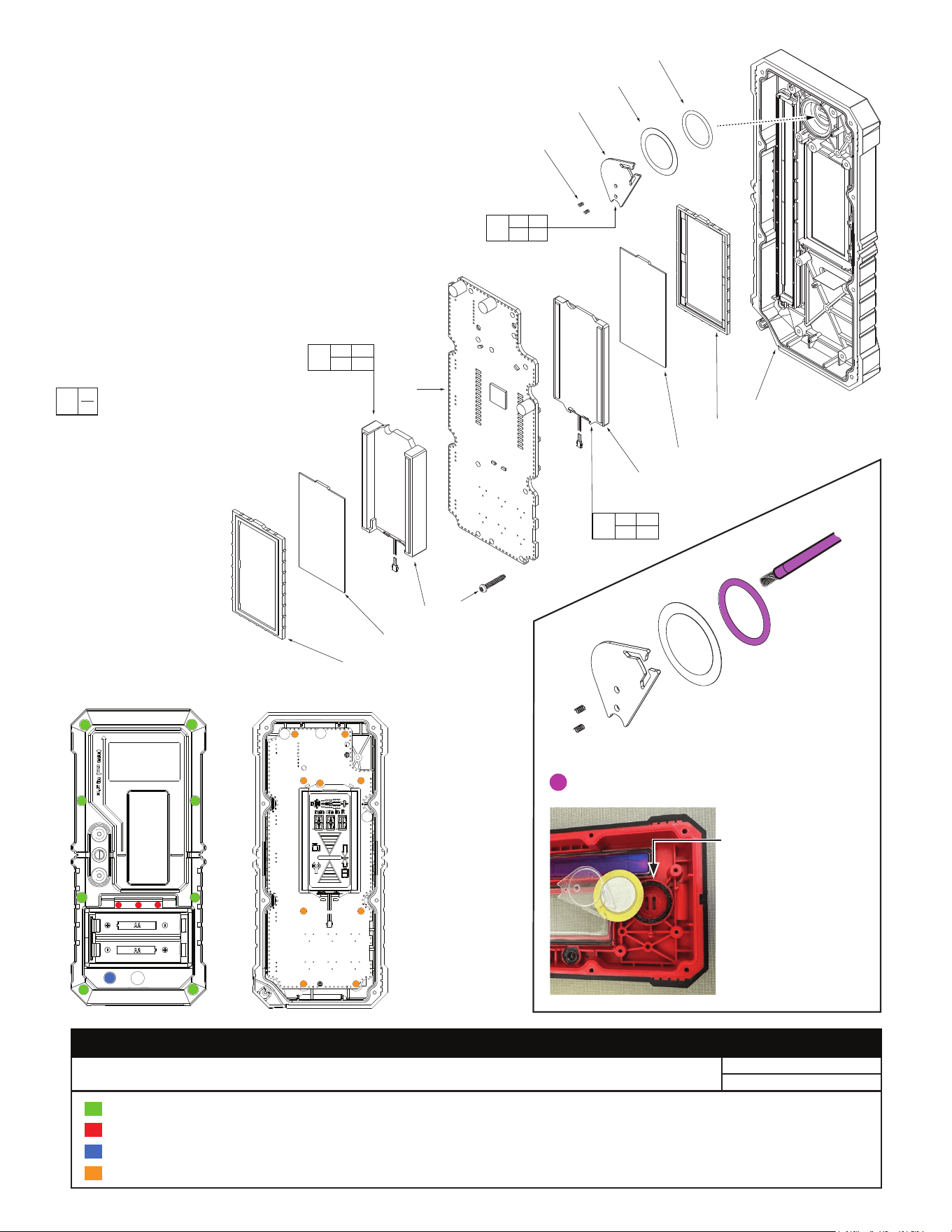

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
4 --------------- Buzzer Spring (2)
5 --------------- PiezoBuzzerStando (1)
6 --------------- Buzzer O-Ring (1)
7 --------------- Piezo Buzzer (1)
8 --------------- PCBA (1)
9 05-74-0543 M2.5 x 8mm PT T8 Screw (9)
10 --------------- RearLCDStando (1)
12 --------------- LCD (2)
13 43-44-0616 LCD Gasket / Detector (2)
35 --------------- TopLCDStando (1)
52 31-50-0200 Top Housing Assembly/3711 (1)
54 44-06-0118 Front LCD Kit / Detector (1)
55 44-06-0119 Rear LCD Kit / Detector (1)
58 14-46-0363 Piezo Buzzer Kit (1)
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. DESCRIPTION OF FASTENER WHERE USED (kgf-cm) (lb-in)
22 05-74-0756 M2.5 x 15mm T-8 Screw Front and Rear Housings 6.0 ± 0.5 5.2
16 05-74-0754 M2 x 8mm PT T-6 Screw Rear Housing and Battery Door 3.5 ± 0.5 3.0
26 05-74-0761 M3 x 5mm Screw Rear Housing and Leak Test 4.0 ± 0.5 3.5
9 05-74-0543 M2.5 x 8mm PT T-8 Screw PCBA and Front Housing 5.0 ± 0.5 4.3
LUBRICATION:
= Type "H042" Grease, 50-08-5317
NOTE: The picture to
the left may not rep-
resent the tool above,
but the lubrication
instruction is still valid.
Coat the O-Ring (#8) with
a thin layer of grease on
all sides of the O-Ring.
Check and remove any
excess grease from the
buzzer cavity walls.
