Important Safety Instructions 2
Safety Information 3
Preparation 4
What is Included 4
Front View 5
Rear View 6
Installing the base stand 7
Installing a wall-mount bracket 7
Remote Control 8
Connecting External Devices 9
Customizing TV Settings 10
Initial Setup 10
Navigating the Onscreen Display 11
Selecting Input Source 12
Picture Settings 12
Audio Settings 13
Time Settings 14
Setup Settings 15
Lock Settings 16
Channel Settings 17
Parental Control 18
Troubleshooting 20
Specication22
Limited Warranty 23
2
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions – All the safety and operating instructions should be read before this product is
operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for
example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers)thatproduceheat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with
one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade
orthe thirdprong isprovidedforyoursafety.Iftheprovided plugdoes nott intoyour outlet,consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and at the point where they exit from the apparatus.
• Onlyuseattachments/accessoriesspeciedbythemanufacturer.
• Useonly withthe cart,stand,tripod,bracket,ortablespeciedbythemanufacturer,or
sold with the apparatus. When a cart or rack is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused for long periods of time.
• Referallservicingtoqualiedpersonnel.Servicingisrequiredwhentheapparatushasbeendamaged in
any way, such as the power supply cord or plug is damaged, liquid has been spilled, or objects have fallen
into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
• Please keep the unit in a well-ventilated environment.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.Theapparatusshouldnotbeexposedtodrippingorsplashing.Objectslledwithliquids,
such as vases should not be placed on the apparatus.
• WARNING:Thebatteriesshallnotbeexposedtoexcessiveheatsuchassunshine,reorthelike.
• WARNING: The wall socket plug is used as disconnect device, the disconnect device shall remain
readily operable.
• Thislightning ashwitharrowheadsymbolwithinanequilateraltriangleis intendedto
alert the user to the presence of non-insulated “dangerous voltage” within the product’s
enclosurethatmaybeofsufcientmagnitudetoconstituteariskofelectricshock.
• Warning:Toreducetheriskofelectricshock,donotremovecover(orback)asthere
arenouser-serviceablepartsinside.Referservicingtoqualiedpersonnel.
• The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way
that it does not require a safety connection to electrical earth.
This product contains electrical or electronic materials. The presence of these materials may, if not disposed of
properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
ThisTVincorporatesHigh-DenitionMultimediaInterface(HDMI™)technology.HDMI,theHDMIlogoand
High-DenitionMultimediaInterfacearetrademarksorregisteredtrademarksofHDMILicensingLLC.
IMPORTANTSAFETYINSTRUCTIONS
3
SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please read carefully all the instructions in
this user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the
label at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other
electronic components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on them, which may damage the leads.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm, or when not using the television for extended period of time, turn off
the power switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist
areas, such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged,
liquid is spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally
penetrates the ventilation slots or if the set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service
theunityourselfisdangerousandmayinvalidatetheproduct’swarranty.Qualiedpersonnel
must only service this apparatus.
• To avoid battery leakage, remove exhausted batteries from the remote control, or when not
using for long period.
• Donotbreakopenorthrowexhaustedbatteriesonare.
Physical Safety
• Donotblockventilationslotsinthebackcover.YoumayplacetheTVinacabinet,butensure
atleast5cm(2’’)clearanceallaround.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care
of the remote control.
• TocleantheTVuseasoftdrycloth.Donotusesolventsorpetroleumbaseduids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus(includingampliers)thatproduceheat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong, the wide blade, or the third prong is provided for your safety. If the provided
plugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Referallservicingtoaqualiedservicepersonnel.Servicingisrequiredwhentheapparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture,
does not operate normally, or has been dropped.
• Please always connect your television to a power outlet with protective ground connection.
SAFETYINFORMATION
4
PREPARATION
PREPARATION

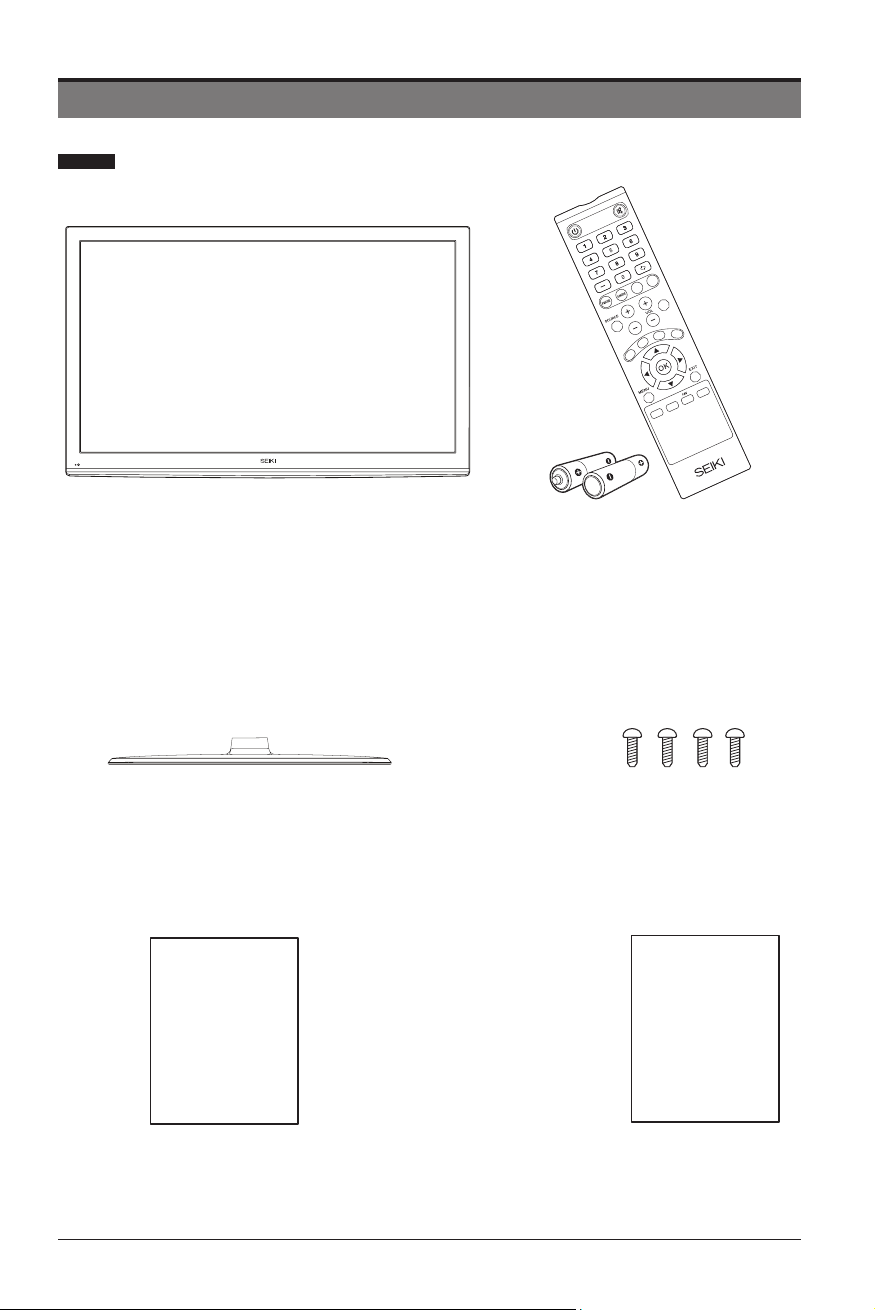

What is Included
Remote Control with Batteries
TV Set
UserManualwithWarrantyCard
User Manual
Quick Start Guide
Quick
Start Guide
Base Stand
MTS
SLEEP
INFO
CH
FREE Z
E
CH.LIS T
ADD/ERASE
CC V-CHIP
ASPEC T
EPG
Four Screws
5
PREPARATION
Front View
1. VOL +/-
Press to adjust the volume.
2. CH
Press to select a channel.
3. MENU
DisplaytheOSD(onscreendisplay)menu.
4. SOURCE
Press to select among different input signal sources.
5. POWER
Switch the TV between On / Standby mode.
6. IR(InfraredReceiver)
Receive IR signals from the remote control.
7. POWER Indicator
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby mode.
6
PREPARATION

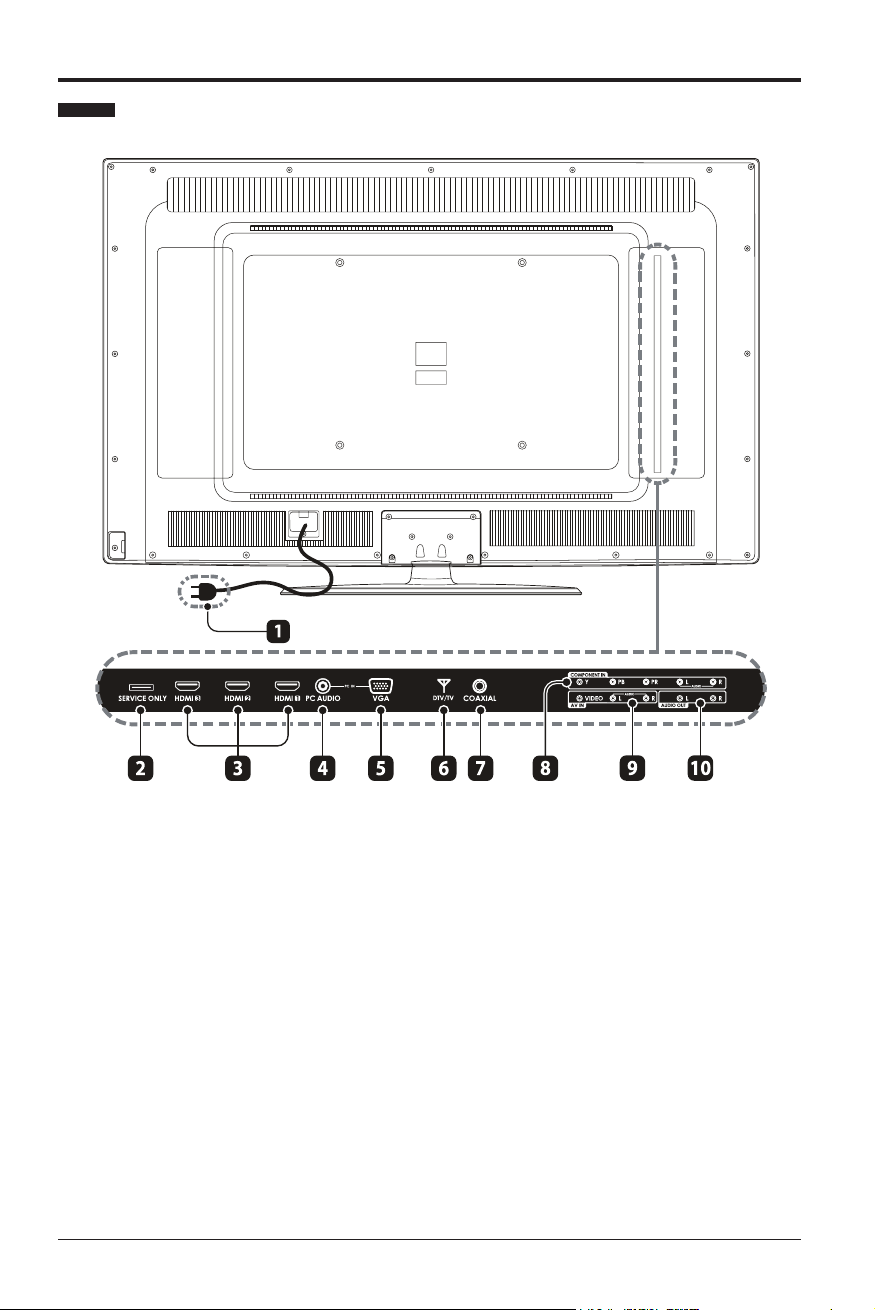

Rear View
1. Power Cord
Connect to AC power outlet.
2. SERVICE ONLY
For Service Only.
3. HDMI Inputs
ConnecttoaHigh-Denition(HD)signal
output device.
4. PC AUDIO Input
Connect to a computer audio output.
5. VGA Input
Connect to a computer or other devices
with a VGA interface.
6. DTV/TV Input
Connecttothe antenna(75ΩVHF/UHF)
socket with the RF coaxial cable.
7. COAXIAL Digital Audio Output
Connect to the audio socket on the digital
audio system.
8. COMPONENT Input
Connect to AV devices with component
(Y/Pb/Pr)videoandaudiooutputsockets.
COMPONENT&VIDEOsharewithAUDIO
IN(L/R).
9. AV Input
Connect to the composite VIDEO and
AUDIO(L/R)output socketsonexternal
video devices.
10. AUDIO Output
ConnecttotheAUDIO(L/R)intput
sockets on external audio devices.
7
PREPARATION

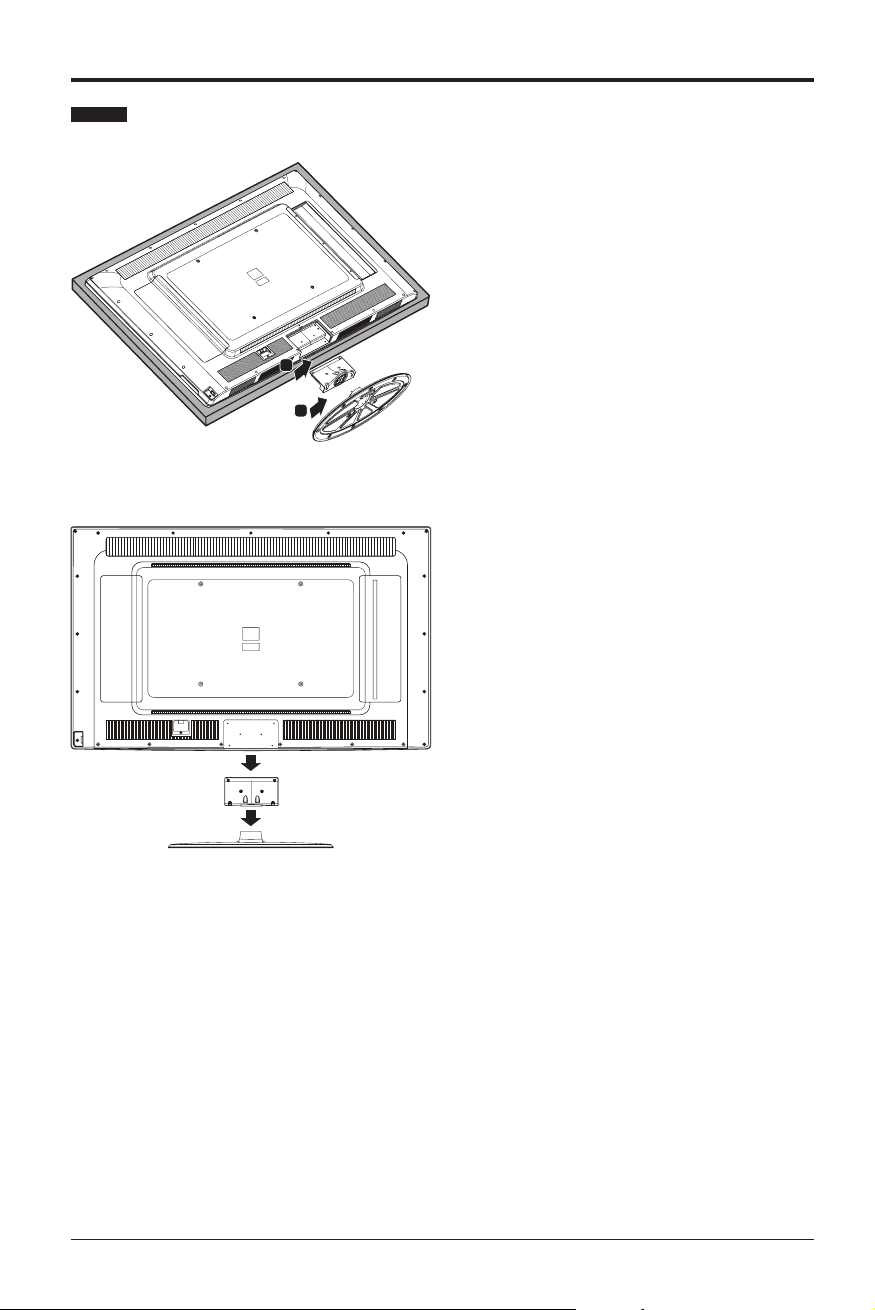

Installing the Stand
WARNING: This apparatus is intended to be supported by UL Listed wall mount bracket.
• 1. Lay the TV face-down on a flat,
cushioned surface to avoid the screen
from damage or scratches.
• 2. Untighten the 6PCS screws holding
the Base Support and remove them.
Fix the Base Support to the Base
Stand using 4PCS screws.
• 3. Fix the base assembly to the main
unit using 6PCS provided screws.
• Lay the TV face-down on a flat,
cushioned surface to avoid the screen
from damage or scratches.
• Untighten the 6PCS screws holding
the stand assembly and remove them.
• Attach the wall-mount bracket to
the TV using the mounting holes on
thebackoftheTV.MountthisTV
according to the instructions included
in the wall-mount bracket.
2
1
8
PREPARATION

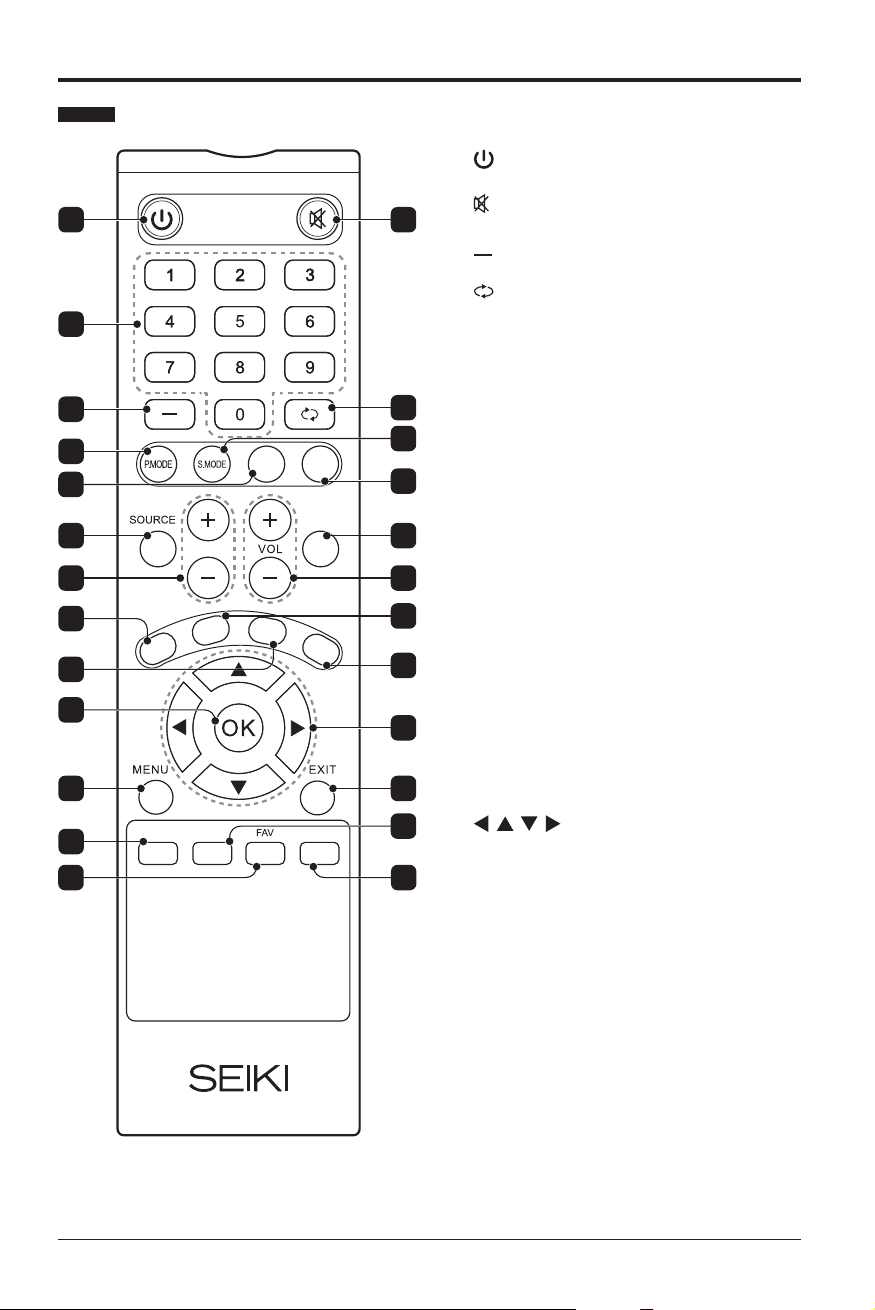

Remote Control
1. : Switch the TV between on and
standby mode
2.
:MuteandrestoreyourTVsound
3. 0~9:Selectaprogram(ATV/DTVmode)
4.
: Enter multiple program channel
number such as 2-1
5.
: Return to previous viewing channel
6. P.MODE: Select picture mode: dynamic/
movie/energy saving/user/standard
7. S.MODE: Select sound mode: standard/
music/movie/user
8. MTS: Switch among different audio
channels:STEREO/MONO/SAP
9. SLEEP: Set the TV sleep timer:
OFF/5/10…/180/240 min
10. SOURCE: Select among the different
input signal sources: TV/AV/Component/
HDMI1/HDMI2/HDMI3/VGA
11. INFO: Display the present screen
information such as the current channel
and input source
12. CH+/-: Select a channel
13. VOL+/-: Adjust the volume
14. FREEZE: Freeze the picture
15. CH.LIST: Display program list
16. ASPECT: Select the aspect ratio
settings:standard/wide/wide zoom/zoom
17. EPG: Display the EPG (Electronic
ProgramGuide)inDTVmode.
18. OK:ConrmtheselectionintheOSD(on
screendisplay)menus
19. : Allows you to navigate the
OSD menus and adjust the system
settings to your preference.
20. MENU: Display the OSD (on screen
display)menu
21. EXIT: Exit the OSD menu
22. CC: Closed Caption selection: ON/OFF/
CCOnMute
23. V-CHIP: Set up parental control
24. FAV: Display the favorite channel list
25. ADD/ERASE: Add or delete Favorite
channels
MTS
SLEEP
INFO
CH
FREEZ
E
CH.LIS T
ADD/ERASE
CC V-CHIP
ASPECT
EPG
3
21
24
22
20
18
16
14
12
10
8
6
4
21
25
23
19
17
15
13
11
9
7
5
9

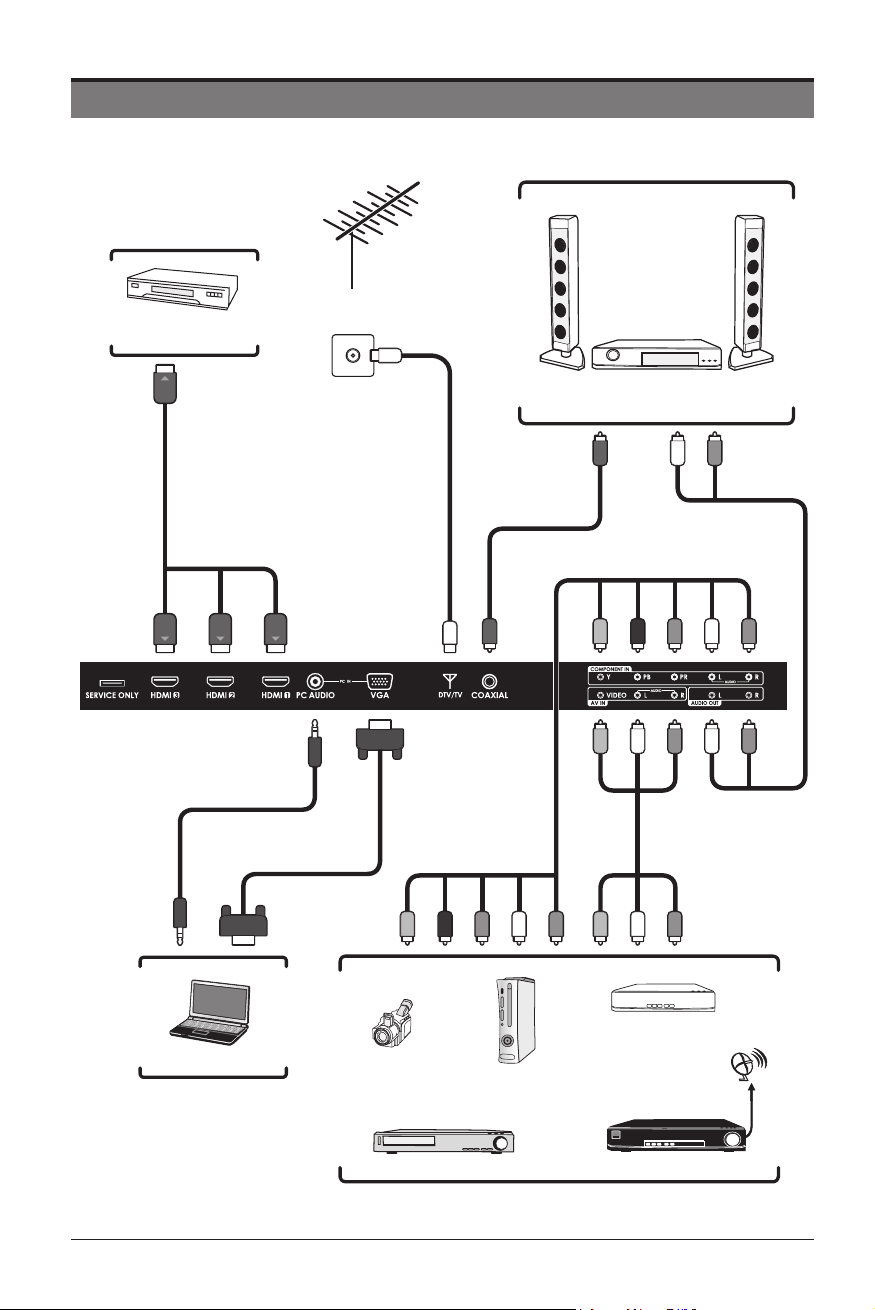

CONNECTING EXTERNAL DEVICES
CONNECTING EXTERNAL DEVICES
HDMIDevice
Computer
Digital Audio System
Video Camera
Game Console
Blu-ray Player / Recorder
Satellite ReceiverVCR
Satellite
Antenna Cable
OR
RF Cable
(notincluded)
HDMICable
(notincluded)
Audio Cable
(notincluded)
3.5mm Audio Cable
(notincluded)
VGA Cable
(notincluded)
AV Cable
(notincluded)
Component Cable
(notincluded)
Coaxial Cable
(notincluded)
10
CUSTOMIZING TV SETTINGS
Initial Setup
• Connect the power cord to the power socket after you have completed all the
physicalconnections.Atthisstage,theTVwillenterStandbyModeandthered
LED indicator will illuminate.
• InStandbyMode,pressthe
button on the main unit or on the remote control to
turn the TV on. The red LED indicator will turn blue.

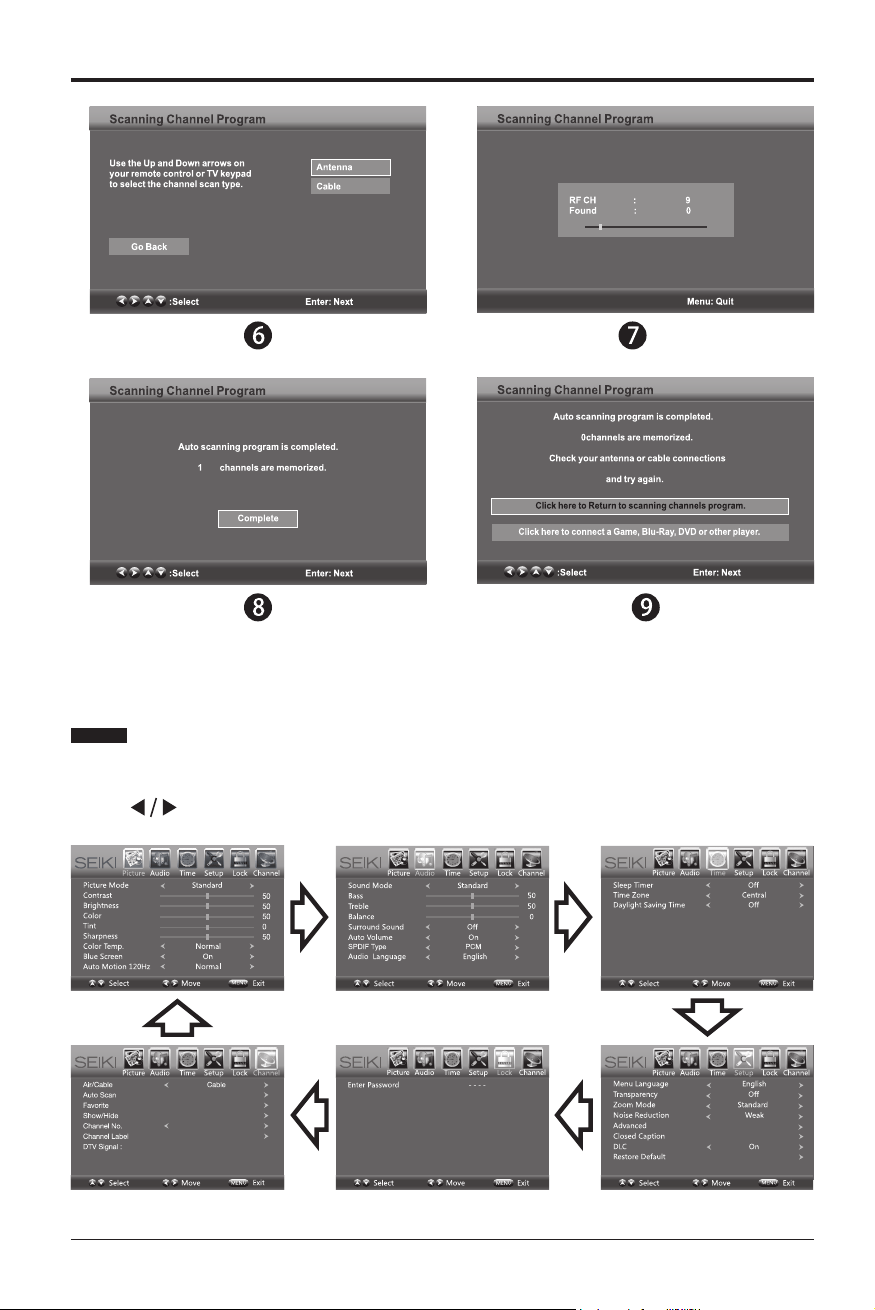

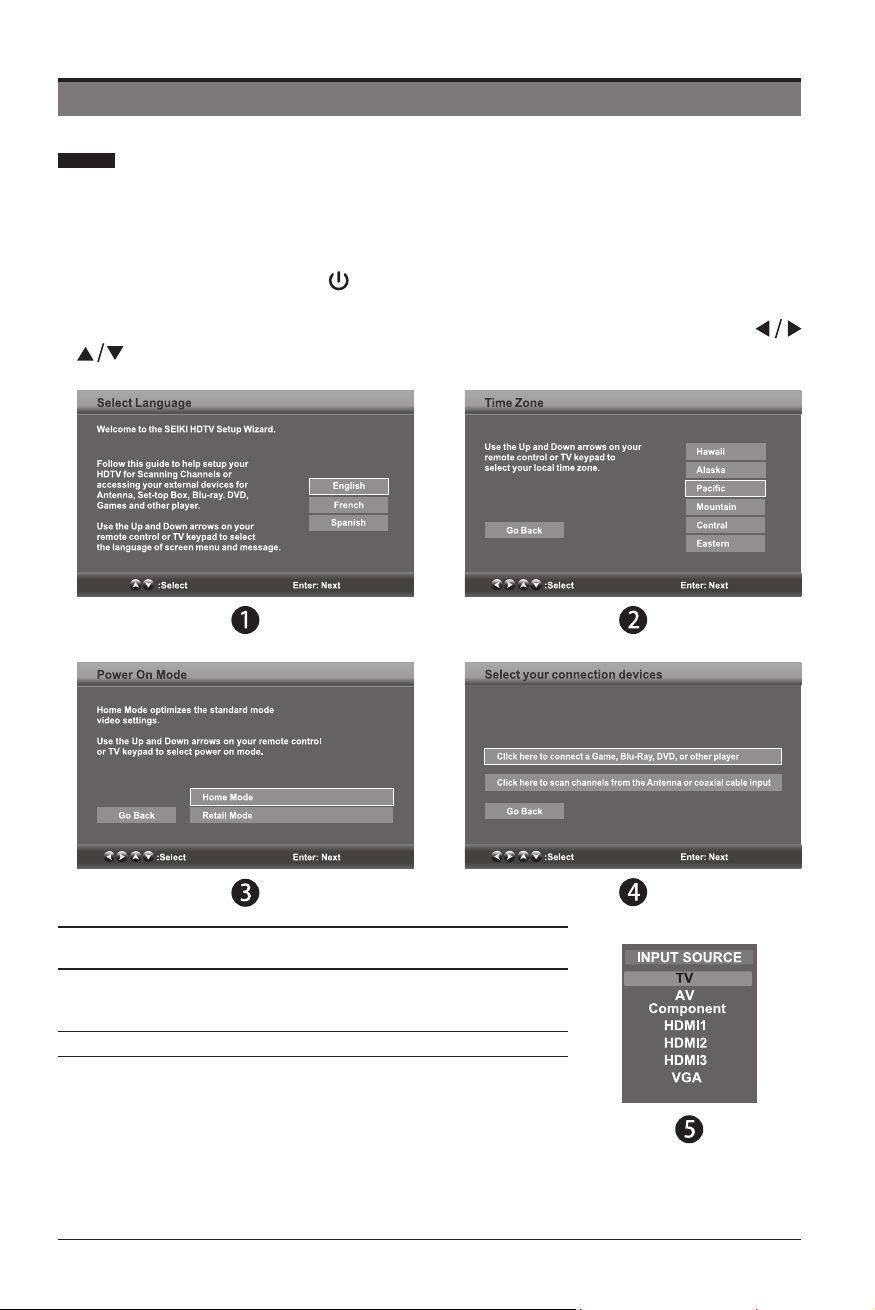

• The first time you turn the TV on; it will go into the Setup Wizard. Press
buttons to select your desired mode and press OKtoconrm.
CUSTOMIZINGTVSETTINGS
Home Mode : The picture mode will be Standard if you select
this mode.
Retail Mode : Select Dynamic Mode if you would like your
picture to be brighter. At times this mode may use more energy
to operate the Volume/Sound Mode and Picture Mode.
• The SLEEP-MODE Power should be less than 1W.
11
CUSTOMIZINGTVSETTINGS
• If channels cannot be found, this frame
will be displayed automatically.
Navigating the On-screen Display
• PresstheMENUbuttontodisplaythemainmenu.
• Use buttons to navigate and select the available menus.
12

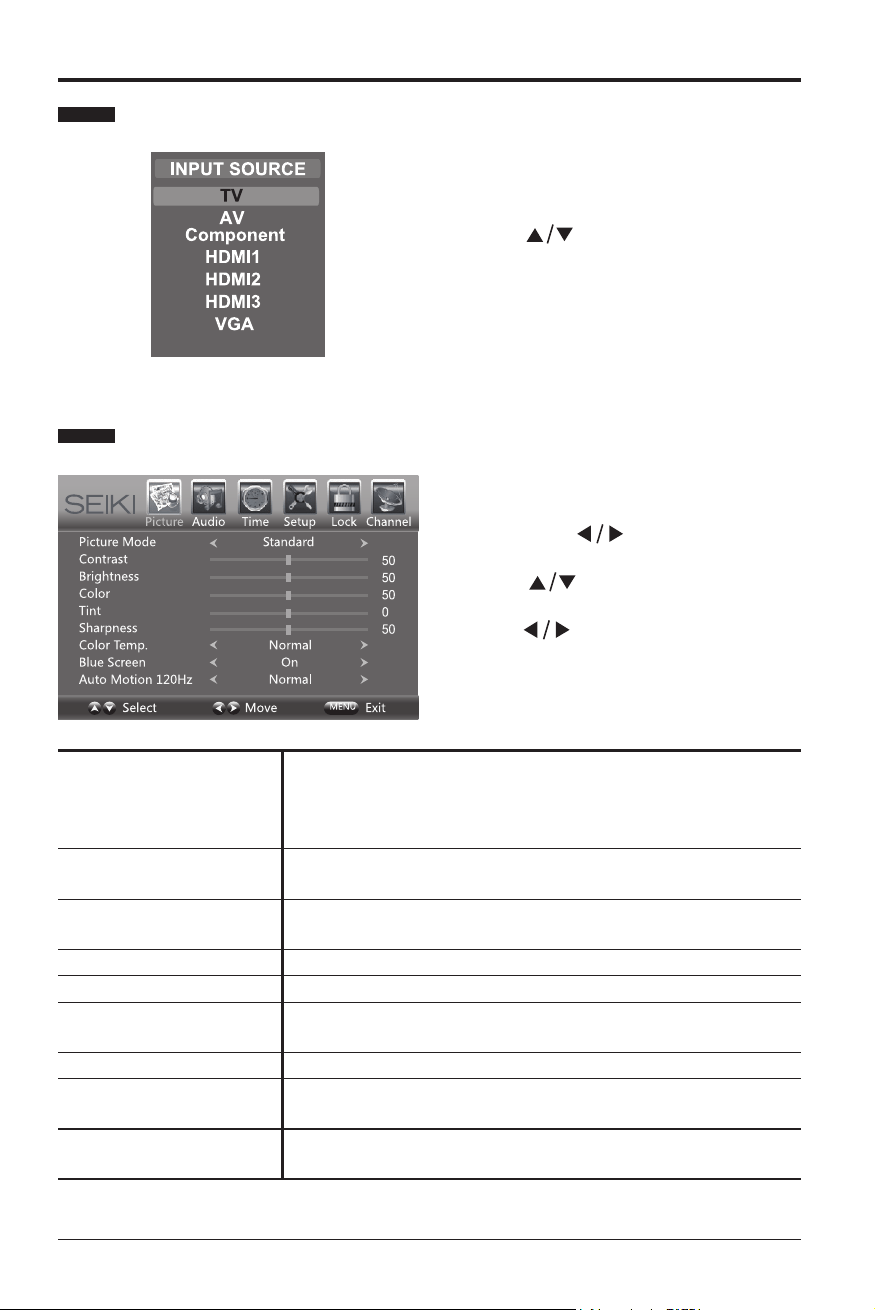

Selecting Input Source
Picture Settings
• Press the SOURCE button on the
main unit or on the remote control to
display the Input Source list.
• Press
buttons to select your
desired input source among: TV/AV/
Component/HDMI1/HDMI2/HDMI3/
VGA and then press OK button to
conrm.
• Press the MENU button on the main
unit or on the remote control and
then press
buttons to select
PICTURE menu.
• Press buttons to select the
following picture options and then
press buttons to adjust each
option’s setting.
CUSTOMIZINGTVSETTINGS
Picture Mode
Cycleamongpicturemodes:Dynamic/Movie/User/
Standard.
Alternative: you may press the P.MODE button to
select the picture mode directly.
Contrast
Adjust the difference between light and dark levels in
the pictures. (For User mode)
Brightness
Increase or decrease the amount of white in the picture.
(For User mode)
Color Control the color intensity. (For User mode)
Tint Adjust the balance between red and green levels.
Sharpness
Adjust the level of crispness in the edges between light
and dark areas of the picture. (For User mode)
Color Temperature Cycle among color temperature: Cool/Normal/Warm.
Blue Screen
Allow the blue background to turn On/Off during weak or
no signal conditions.
Auto Motion 120Hz
Reduce the motion judder in the video: Low/Normal/
Strong/Off.
13
CUSTOMIZINGTVSETTINGS

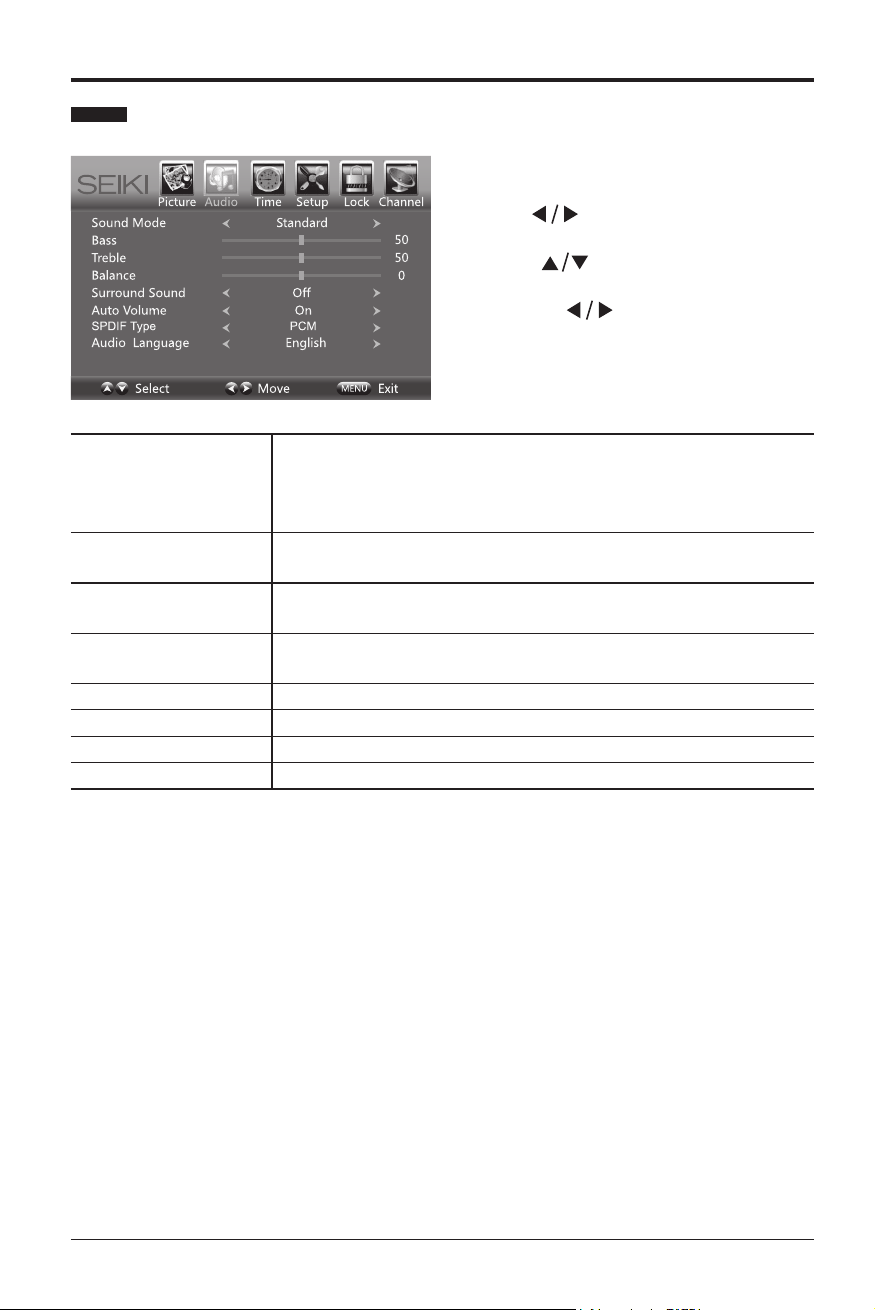

Audio Settings
• Press the MENU button on the main
unit or on the remote control and then
press
buttons to select AUDIO
menu.
• Press
buttons to select the
following audio options and then
press the
button to adjust each
option’s setting.
Sound Mode
Allow the selection of an audio-enhancement technique:
Standard/Music/Movie/User.
Alternative: you may press the S.MODE button to select
the picture mode directly.
Bass
Control the relative intensity of lower-pitched sounds. (For
User mode)
Treble
Control the relative intensity of higher-pitched sounds. (For
User mode)
Balance
Adjust the relative volume of the speaker in a multiple
speaker system.
Surround Sound Provide an enhanced listening experience.
Auto Volume Volume levels are automatically controlled.
SPDIF Mode SelectthedigitalaudiooutputmodebetweenRAW/PCM.
Audio Language
Select audio language among: English, French, Spanish.
14
Sleep Timer
Select a period of time after which the TV automatically
switches to standby mode: OFF/5/10/…/180/240 min.
Alternative: You may press the SLEEP button
repeatedly to select the number of minutes directly.
Time Zone
Select a Time Zone among: Pacific/Alaska/Hawaii/
Eastern/CentralorMountain.
Daylight Saving Time
Select to turn On/Off daylight saving time.
CUSTOMIZINGTVSETTINGS

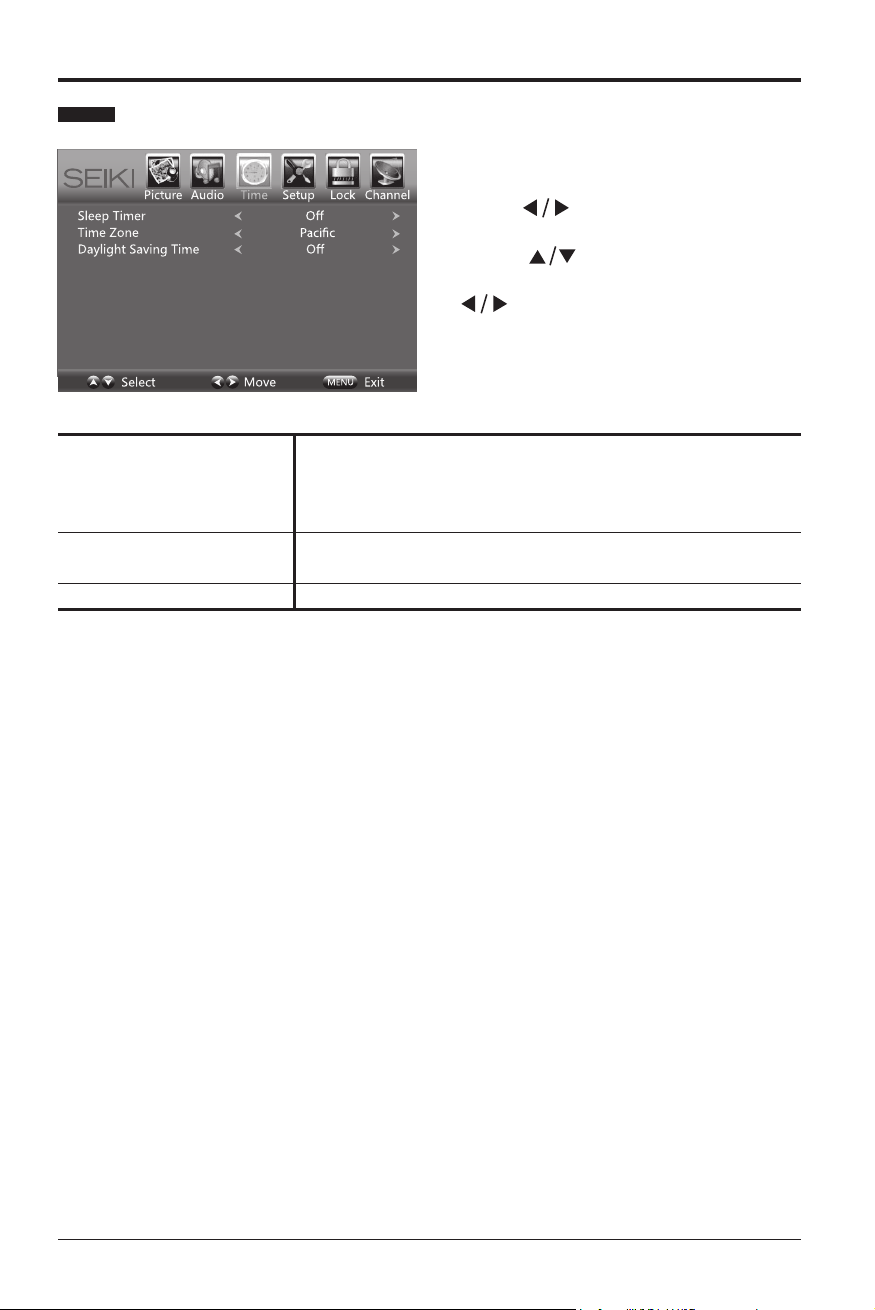

Time Settings
• Press the MENU button on the main
unit or on the remote control and then
press
buttons to select TIME
menu.
• Press
buttons to select the
following time options and then press
button to adjust each option’s
setting.
15

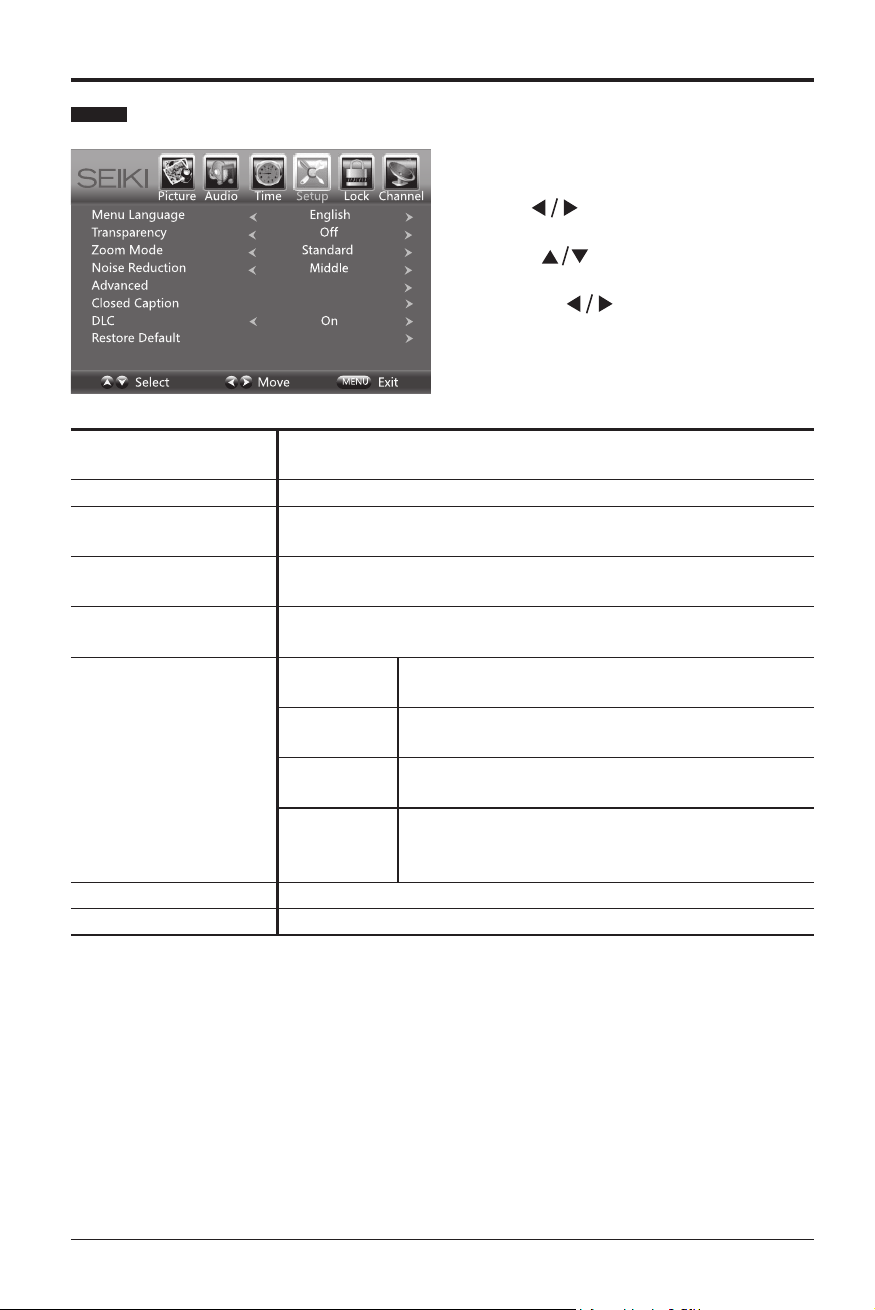

Setup
• Press the MENU button on the main
unit or on the remote control and then
press
buttons to select SETUP
menu.
• Press
buttons to select the
following setup options and then
press the
button to adjust each
option’s setting.
CUSTOMIZINGTVSETTINGS
Menu Language
Select menu language among: English, French or
Spanish. The default on-screen menu language is English.
Transparency Select to turn ON/OFF transparency function.
Zoom Mode
Select zoom mode among: Wide/Wide Zoom/Zoom/
Standard.
Noise Reduction
Reduce the noise level of the connected device: OFF/
Weak/Middle/Strong.
Advanced
Adjust advanced option’s setting: H-POS, V-POS, Clock,
Phase or Auto. (VGA source mode only)
Closed Caption
CCMode
Select CC mode among: On, Off or CC on
Mute.
Basic
Selection
Basic Selection: CC1, CC2, CC3, CC4,
Text1, Text2, Text3, Text4.
Advanced
Selection
Advanced Selection: Service1, Service2,
Service3, Service4, Service5, and Service6.
OPTION
Options:Mode,FontStyle,FontSize,Font
Edge Style, Font Edge Color, FG Color, BG
Color, FG Opacity and BG Opacity.
DLC Select to turn ON/OFF the dynamic luminance control.
Restore Default Restore the TV to factory default settings.
16

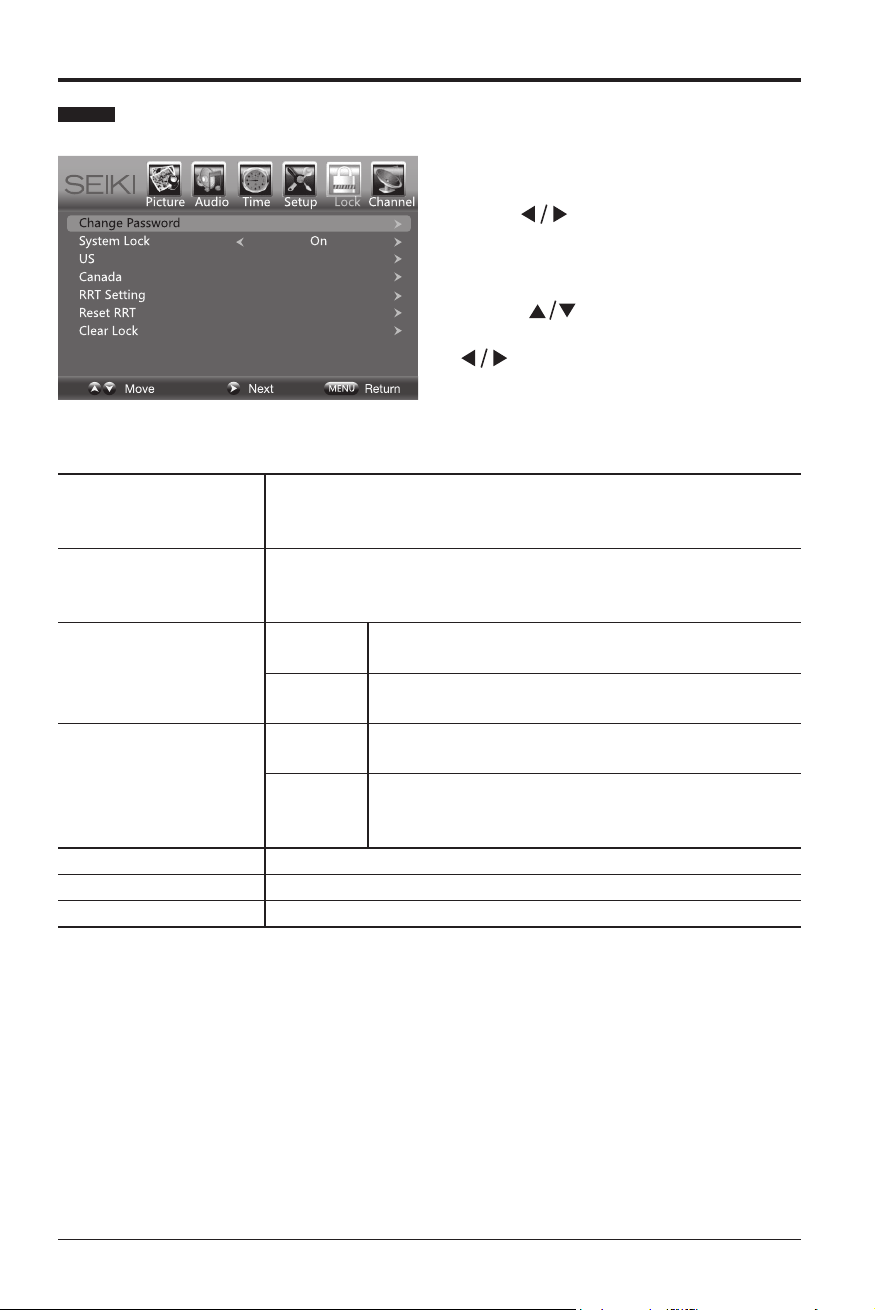

Lock Settings
• Press the MENU button on the main
unit or on the remote control and then
press
buttons to select LOCK
menu.
• Use the 0-9 buttons to input 4-digit
password to enter the LOCK menu.
• Press buttons to select the
following options and then press the
buttons to adjust each option’s
setting.
CUSTOMIZINGTVSETTINGS
Note: The default password is “0000”
Change Password
Use 0-9 buttons to input the old password and then input
the new 4-digit password. Re-enter new password for
conrmation.
System Lock
Select to turn ON/OFF system lock. The following options
(US,Canada,RRTSettingandResetRRT)willonlybe
accessible when you turn the system lock on.
US
TV
TV RATING: Press OK button to lock or unlock
TV rating.
MPAA
SelectMPAAratingamong:N/A,G,PG,PG-
13, R, NC-17,or X.
Canada
Canada
English
SelectMPAAratingforEnglish-speaking
Canada among: E, C, C8+, G, PG, 14+, 18+.
Canada
French
SelectMPAA ratingforQuebecCanada
among: E, G, 8 ans+, 13 ans+, 16 ans+, 18
ans+.
RRT Setting Set Rating Region Table.
Reset RRT Select to reset the RRT setting.
Clear Lock Clear all lock settings.
17

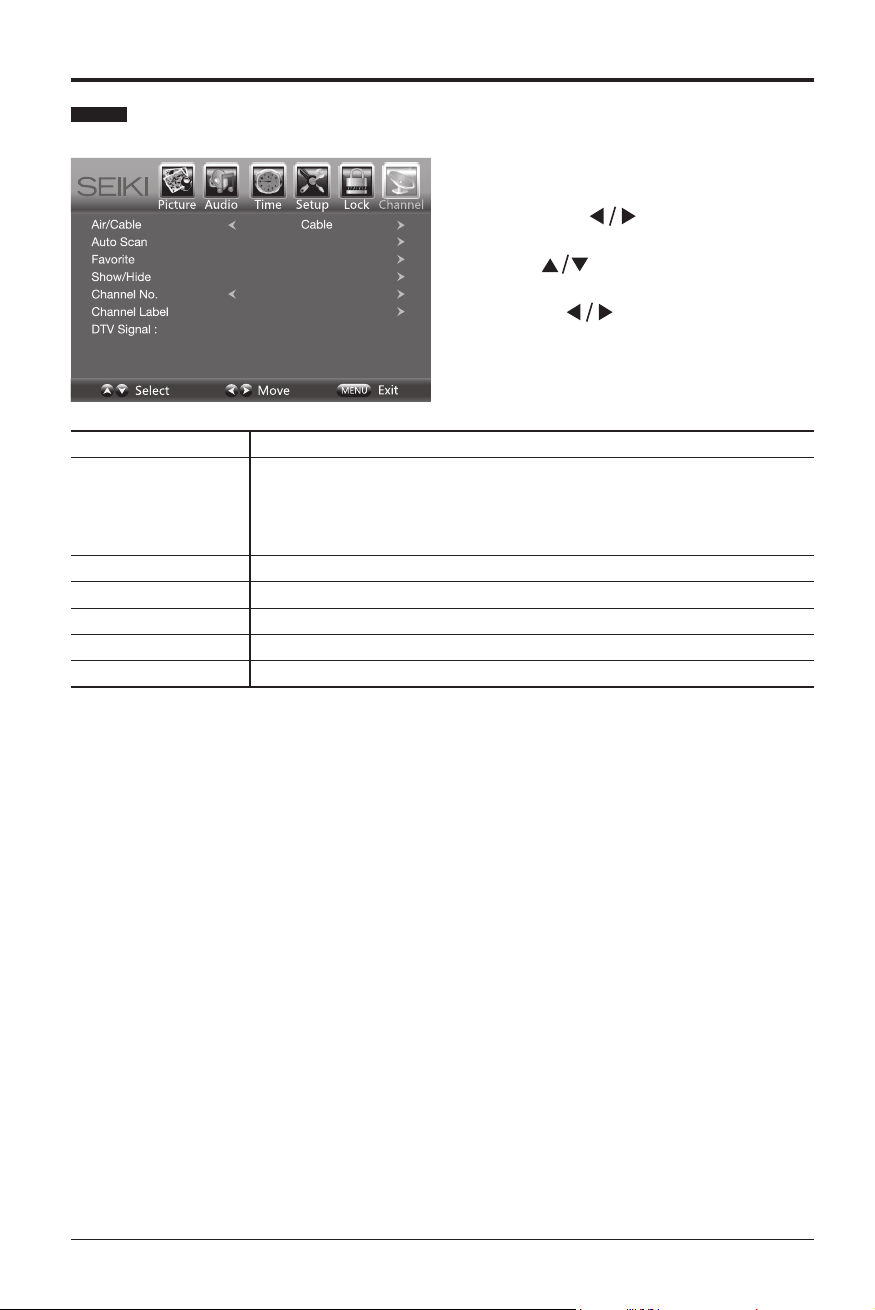

Channel Settings
• Press the MENU button on the main
unit or on the remote control and
then press
buttons to select
CHANNEL menu.
• Press buttons to select the
following channel options and then
press the button to adjust each
option’s setting.
CUSTOMIZINGTVSETTINGS
Air/Cable
Select antenna between Air and Cable.
Auto Scan
Find and store all available channels automatically. Allow you
to select cable system among Auto/STD/IRC/HRC before
going to auto scan if you choose Cable as input signal; while
it will go straight to auto scan if you choose Air one.
Favorite Set the selected channel as one of the favorite programs.
Show/Hide Show/Hide the selected channel.
Channel No. Display the current channel number.
Channel Label Display the current channel label.
DTV Signal
Display the quality of current DTV signal.
18
PARENTAL CONTROL
PARENTAL CONTROL
Press the MENU button on the main unit or on the remote control and then press
buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter
the LOCK menu. If used, this option feature can "block'' undesirable programming from
appearing on the TV. Parental Control offers the user a wide variety of options and settings
that restrict or "block'' the programming that can appear on the TV. Parental Control allows
the user the capability of defining which program rating they consider acceptable, to the
younger more sensitive viewer. It can be preset and turned either on or off by the user
whospeciesthe secret4-numbercode,thepassword.The numberofhours blockedare
specified. General audiences and children blocks should be both programmed into the
TV'smemory.ViewerratingsarespeciedforbothTVandthemotionpictureIndustry;both
rating systems should be used, for complete coverage. The ratings are based on the ages
of children.
Overview
ToensurecompletecoverageforallTVprograms,(moviesandregularTVshows)choose
aratingforMPAA,fromtheselections below,aswellas ratingsfromtheTVParental
Guidelines Rating Systems below, using the Age Block option for General Audiences, and
for children. In addition to those, you may wish to add additional restrictions from the content
block menu, and submenus examples below.
Things to Consider before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example,if you choose
TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to
see:TV-PG,TV-14,orTV-MAratedprogramming.)Doyouwanttoblocktheauxiliaryvideo
source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the
TVAudio/VIdeoInputJacks)Orleaveunblocked,thenchoose allowableratings.Block
program "Content" based on individual parameters such as: Strong Dialog, Bad Language,
Sex Scenes,Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a
secret password, in the Set Password option, using the numbers keys on the remote control.
Do not forget the password, it is the only way you can access the Parental Control menu
and change rating selections, or turn Parental Control off.Do you want the Parental Control
to be active at all times? If not, you can turn it on or off with the Lock On/Off option.
• YoucansetdifferentParentalControlviewingrestrictionsforgeneralaudiencesandfor
children, both can be active at the same time.
• Simply specifying one content block such as Sex Scenes, will not automatically restrict
the programming that appears from the video sources.
• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources.
• YoucannotdisableParentalControl bydisconnectingtheTVfrompower.Block
hourswillbeautomaticallyresettotheoriginalblocktimesettingspeciedifpoweris
disconnected.
19
PARENTAL CONTROL
• Motion Picture Association of America (MPAA) Rating System
Grade Meaning
G General Audiences Content not offensive to most viewers.
PG
Parental Guidance
Suggested
Content is such that parents may not want their
children to view the program.
PG-13
Parents Strongly
Cautioned
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
R Restricted
Not for children under 17, strong element of sex and/
or violence.
NC-17
No children under
age 17
Not for children under 17 under any circumstances.
Strong sexual content.
X Hard Core Films Same as NC-17 rating.
No Rating No Rating MPAANotRated
• TV Parental Guideline Rating System
Grade Meaning
TV-Y All Children Content not offensive to most viewers.
TV-Y7
Directed to Older
Children
Considered suitable for children over 7, may contain
fantasy violence scenes.
TV-G General Audience
Considered suitable for all audience; children may
watch unattended.
TV-PG
Parental Guidance
Suggested
Suggested unsuitable for younger children, may
contain suggestive language, bad language, sex and
violence scenes.
TV-14
Parents Strongly
Cautioned
unsuitable for children under 14, may contain strong
language, bad language, sex and violence scenes.
TV-MA
MatureAudience
Only
Adults only, may contain strong language, bad
language, sex and violence scenes.
Canadian Rating:
Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).
Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+).
Note: The V-Chlp will automatically block certain categories that are "more restrictive".If you block TV-Y
category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category,then all the
categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).
20
TROUBLESHOOTING
TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check
the following troubleshooting questions. Remember also to check any other
connected electronic device, such as DVD or blu-ray player to pinpoint the
problem. If the TV still fails to operate normally, please contact technical support.
The TV does not operate properly
The TV does not respond
when pressing any
buttons
• The TV may freeze up during use. Disconnect the power
cord from the power socket for a few minutes. Reconnect the
power cord and try to operate it again as usual.
TV cannot be switched on
• Check that the TV is connected to the power supply.
• MakesureallconnectedAVdevicesareswitchedoffbefore
switching on your TV.
The remote control does
not work
• Check to see if there are any objects between the TV and the
remote control causing an obstruction. Ensure that you are
pointing the remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity
(+to+,-to-).
• Install new batteries.
Power is suddenly turned
off
• Check the power of the TV. The power supply maybe
interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
The video function does not work
Nopicture&NoSound
• Check whether the TV is switched on.
• Try another channel. The problem may be caused by the
broadcaster.
Picture appears slowly
after switching on
• This is normal; the image is muted during the TV startup
process. Please contact your service centre if the picture has
notappearedafterveminutes.
No or poor color or poor
• Adjust the settings in the PICTURE menu.
• Try another channel. The problem may be caused by the
broadcaster.
• Check if video cables are connected properly.
Horizontal/Vertical bar or
picture shaking
• Check for local interference such as an electrical appliance
or power tool.
Poor reception on some
channels
• Station or cable channel may be experiencing problems, tune
to another station.
• Station signal is weak, reposition the antenna for better
reception.
• Check for sources of possible interference.
Lines or streaks in
pictures
• Checkantenna(changethepositionoftheantenna.)
No pictures when
connectingHDMI
• CheckiftheinputsourceisHDMI1/HDMI2/HDMI3.
Pictures appears in wrong
ratio
• Adjust the Aspect Ratio settings in the SETUP menu or press
the ASPECT button on the remote control.
21
TROUBLESHOOTING
The audio function does not work
Picture OK but no sound
• Press the VOL +/- buttons.
• Soundmuted?PresstheMUTEbutton.
• Try another channel. The problem may be caused by the
broadcaster.
No output from one of the
speakers
• Adjust the Balance settings in the AUDIO menu.
Unusual sound from
inside the TV
• A change in ambient humidity or temperature may result in
an unusual noise when the TV is switched on or off and does
not indicate a fault with the TV.
No sound when
connectingHDMI
• CheckiftheinputsourceisHDMI1/HDMI2/HDMI3.
Audio noise
• Keep the RF coaxial cable away from the other connected
cables.
Password
Lost password
• Select the SET Password setting in the LOCK menu, then
enter the following master password “8899”. The master
password clears your previous password and allows you to
enter a new password.
There is a problem in PC mode
The signal is out of range
(invalidformat)
• Adjust the resolution, horizontal frequency, or vertical
frequency.
Vertical bar or stripe on
background&Horizontal
Noise&Incorrectposition
• UseAutoconguresoradjustclock,phase,orH/Vposition.
Screen color is unstable
or show a single color
• Check the signal cable.
• Reinstall the PC video card.
22
SPECIFICATION
SPECIFICATION
Panel Size 60 inch diagonally
Display Type LED
Panel Technology TFT
Panel 60 Hz Vs. 120 Hz 120 Hz
Display Resolution 1080P
HD Compatible Up to 1080P
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 3500~5000:1
Brightness(CentreTyp.)Cd/M² 250
ResponseTime(GToG) 4 ms
LampLife(Typ.Hours) 30.000 hours
HorizontalViewingAngle(AtCR>10) 170
VerticalViewingAngle(AtCR>10) 160
Wall-mount(LxW-inches) 15.75*15.75VESA(inches)
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
or used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
theinterferencebyoneormoreofthefollowingmeasures:1)reorientorrelocatethereceiving
antenna;2)increasetheseparationbetweentheequipmentandthereceiver;3)connectthe
equipmenttoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected;4)
consult the dealer or an experienced radio/TV technician for additional suggestions.
Anychangesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment. Where shielded interface cables have
beenprovidedwiththeproductorspeciedadditionalcomponentsoraccessorieselsewhere
denedtobeusedwiththeinstallationof theproduct,theymustbeusedinordertoensure
compliance with FCC regulation.
Canadian DOC statement
Standard Television Receiving Apparatus Canada BETS-7
This Class B digital apparatus complies with Canadian ICES-003.
23
LED TV – 42” and Above Screen Size Models (the “Product”)
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition,
is warranted by SEIKI DIGITAL INC. (SEIKI) to the original consumer purchaser against defects in material and workmanship
(“Warranty”) as follows:
1. PARTS AND LABOR : For a period of one (1) year from date of original consumer purchase, if this Product or any functional
part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, SEIKI will (i) supply, at no charge to the
original consumer, new or rebuilt replacement functional parts in exchange for defective functional parts, and/or (ii) repair
or replace the Product, with new or re-certied product of similar or better quality, at SEIKI’s option, at no charge to the
original consumer, or pay the labor charges to any SEIKI authorized service provider. After the applicable Warranty periods,
the consumer must pay for all parts and labor costs.
2. IN-HOME SERVICE : During the Warranty period described above, this Warranty includes “in-home” service (subject to
availability) which includes an authorized service provider repairing the Product in the original consumer’s home or removal
of the Product for repairs at a SEIKI authorized service provider and returning the Product to the original consumer’s home.
“In-home” service is NOT available in all areas. In order for a consumer to receive “in-home” service, the Product must be
accessible to the SEIKI authorized service provider. If “in-home” service is unavailable, or the repair cannot be completed,
SEIKI may elect to (i) request that the customer transport their product to an SEIKI authorized service center, with the
customer being responsible for any transportation charges incurred to ship the Product or part(s) to SEIKI for diagnosis,
repair or replacement, or (ii) replace the Product with new or re-certied product of similar or better quality, all at SEIKI’s
option.
To obtain Warranty Service and Troubleshooting information call our toll free customer service line at:
1‐855‐MY‐SEIKI (1‐855‐697‐3454)
Please have your model and serial number available along with your date of purchase.
You can also visit us online and REGISTER your SEIKI product at:
www.SEIKIDIGITAL.com
To receive Warranty service, the original consumer purchaser must contact SEIKI for problem determination and service procedures.
Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the applicable Warranty
period(s), MUST be presented to SEIKI, or an authorized customer service provider, in order to obtain the requested service.
Exclusions and Limitations
This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non‐commercial use of
the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions,
improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed
repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery,
insurance, installation or set‐up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and
tear, cosmetic damage or damage due to acts of nature, accident; (g) commercial use of the Product; (h) modication of, or to any
part of the Product. In addition, this Warranty does not cover images “burnt” into the screen. This Warranty applies to the original
consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and
the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid
only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All
replaced parts and products, and products on which a refund is made, become the property of the Warrantor.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE
SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED
ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE
PRICE ‐ AT THE WARRANTOR’S SOLE DISCRETION ‐ ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY
TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY SHALL NOT EXCEED THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SEIKI. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so
the above limitations or exclusions may not apply to you. This Warranty gives you specic rights, and you may have other rights,
which vary from state to state.
Please send all correspondence to:
SEIKI DIGITAL INC.
c/o SEIKI Digital Customer Service
6880 Commerce Blvd., Canton, MI 48187 USA
DO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT THE CUSTOMER SERVICE TO
CONFIRM SHIPPING ADDRESSES FOR SERVICE.
SEIKI LED TV’s LIMITED WARRANTY TO ORIGINAL CONSUMER
