SEIKr
USERMANUAL
Read the User Manual carefully before using the TV
and keep it for further reference.
ImportantSafety Instructions
Safety Information
Preparation
What's Included
Front View
Rear View
Installing the Base Stand
Removing the Stand for Wall-Mounting
Remote Control
Connecting External Devices
Customizing TV Settings
Initial Setup
Navigating the On screen Display
Selecting Input Source
Picture Settings
Audio Settings
Time Settings
Setup Settings
Lock Settings
Channel Settings
USB Multimedia
Parental Control
Troubleshooting
Specification
Limited Warranty
2
4
4
5
6
7
7
8
9
10
10
11
12
12
13
14
15
16
17
18
19
20
23
24
IMPORTANT SAFETY INSTRUCTIONS
o
o
o
o
Read these instructions - All the safety and operating instructions should be read before this product is
operated.
Keep these instructions - The safety and operating instructions should be retained for future reference.
Heed all warnings -Atl warnings on the appliance and in the operating instructions should be adhered to.
Follow all instructions -All operating and use instructions should be followed.
Do not use this apparatus near water - The appliance should not be used near water or moisture - for
example, in a wet basement or near a swimming pool, and the like.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with
one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and at the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart or rack is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Unplug the apparatus during lightning storms or when unused for tong periods of time.
Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Please keep the unit in a welt-ventilated environment.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with
liquids, such as vases, shall not be placed on apparatus.
WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
WARNING: The mains plug is used as disconnect device, the disconnect device shall remain
readily operable.
RISQUE CHOC ELECTRIQUE NE
. This lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of non-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
. Warning: To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
. The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
D his equipment is a Class II or double insulated electrical appliance. It has been designed in such a way
that it does not require a safety connection to electrical earth.
This product contains electrical or electronic materials. The presence of these materials may, if not disposed of
properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
H_mm This TV incorporates High-Definition Multimedia Interface (HDMF _) technology. HDMI, the HDMI logo and
_,_,,,T. ,,'.= H gh-Def n t on Mu t med a nterface are trademarks or reg stered trademarks of HDM L cens ng LLC
2

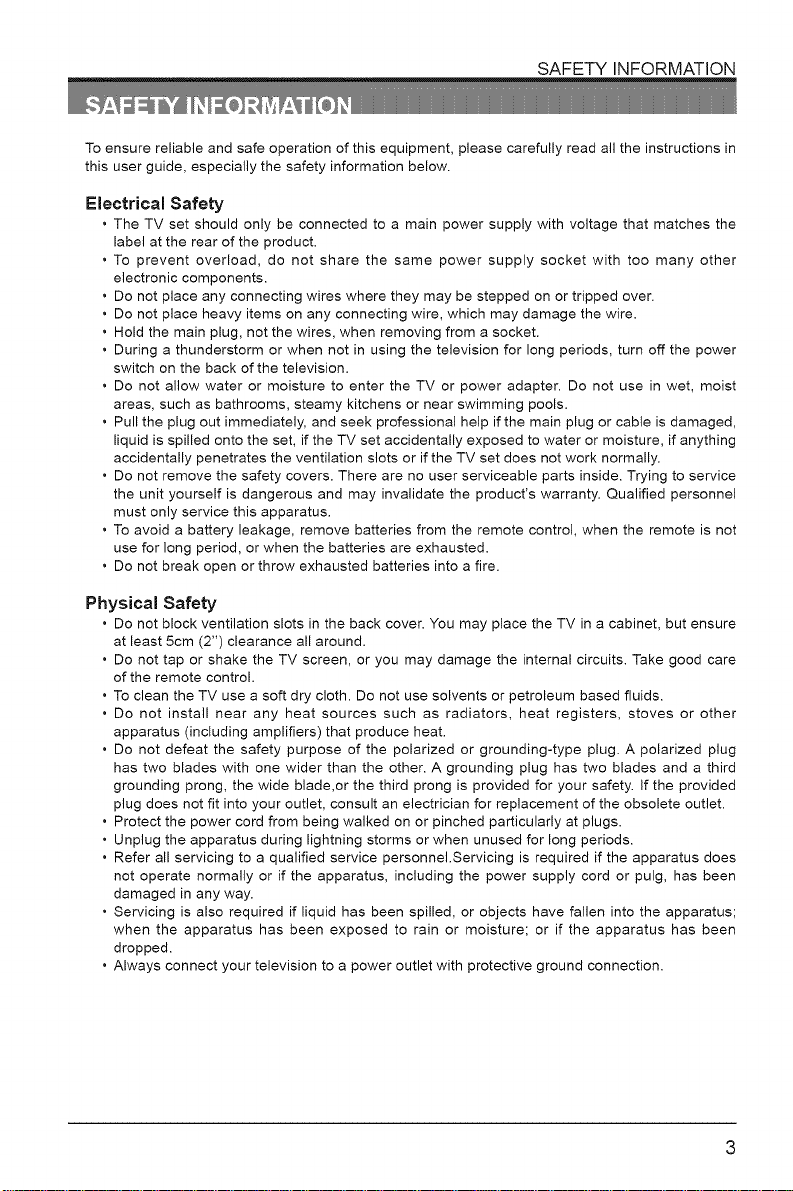

SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please carefully read all the instructions in
this user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the
label at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other
electronic components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on any connecting wire, which may damage the wire.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm or when not in using the television for long periods, turn off the power
switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do not use in wet, moist
areas, such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged,
liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything
accidentally penetrates the ventilation slots or if the TV set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service
the unit yourself is dangerous and may invalidate the product's warranty. Qualified personnel
must only service this apparatus.
• To avoid a battery leakage, remove batteries from the remote control, when the remote is not
use for long period, or when the batteries are exhausted.
• Do not break open or throw exhausted batteries into a fire.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure
at least 5cm (2") clearance all around.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care
of the remote control.
• To clean the TV use a soft dry cloth. Do not use solvents or petroleum based fluids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding plug has two blades and a third
grounding prong, the wide blade,or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Refer all servicing to a qualified service personnel.Servicing is required if the apparatus does
not operate normally or if the apparatus, including the power supply cord or pulg, has been
damaged in any way.
• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus;
when the apparatus has been exposed to rain or moisture; or if the apparatus has been
dropped.
• Always connect your television to a power outlet with protective ground connection.
PREPARATION
What's Included
TV Set Remote Control with Batteries
TV Stand
Stand Support
Twelve Screws
User Manual
Quick
Start Guide
User Manual Quick Start Guide
4
PREPARATION

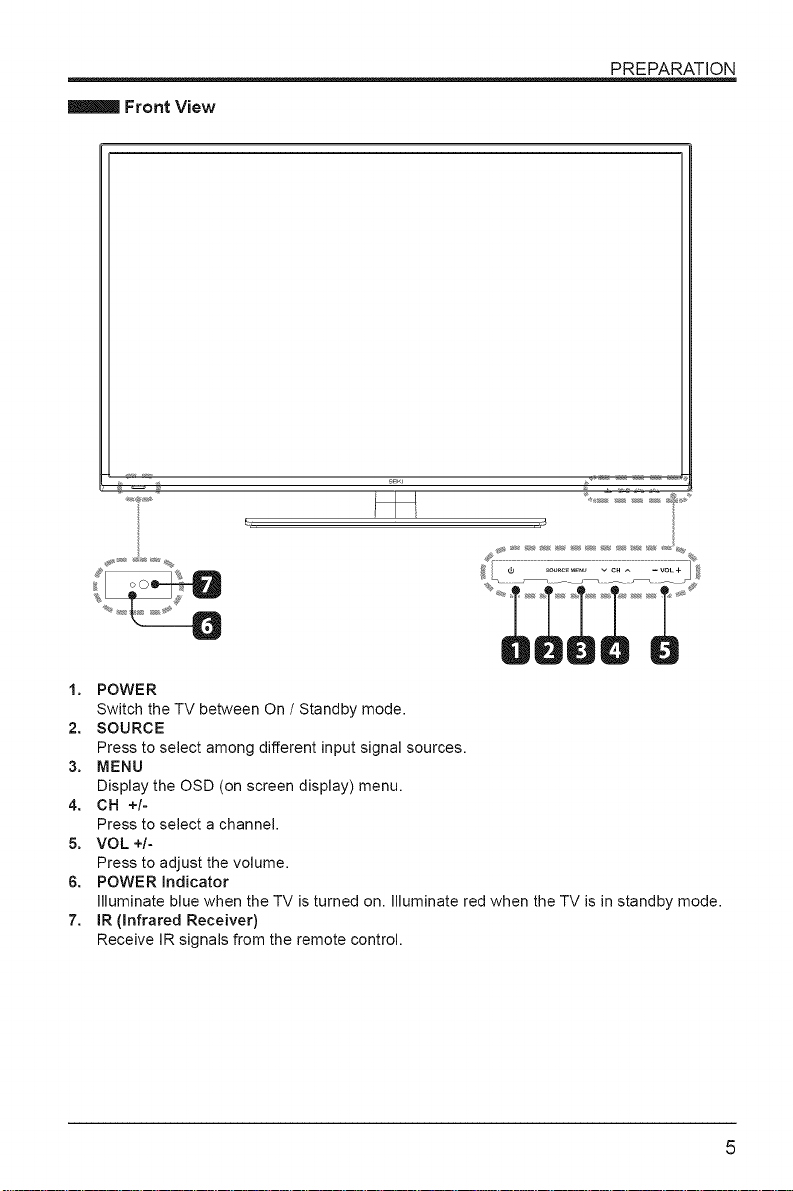

Front View
1, POWER
Switch the TV between On / Standby mode.
2, SOURCE
Press to select among different input signal sources.
3. MENU
Display the OSD (on screen display) menu.
4, CH +/-
Press to select a channel.
5, VOL +/-
Press to adjust the volume.
6, POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
7, IR (Infrared Receiver)
Receive IR signals from the remote control.
PREPARATION
Rear View
--O
1. Power Cord
Connent to AC power outlet.
2. Headphone Output Socket
Connect to the Headphones.
3. USB Port
Connect to a USB storage device to play
compatible audio and photo files. (USB
mode)
4. HDMI Inputs
Connect to a High-Definition (HD) signal
output device.
5. VGAInput
Connect to a computer or other devices
with a VGA interface.
6. PC AUDIO Input
Connect to a computer audio output.
7. OPTICAL
Connect a digital sound system to this
jack.
8. DTV/TV Input
Connect to the antenna (75[3 VHF/UHF)
socket with the RF coaxial cable.
9. COMPONENT/AV Input
Connect to AV devices with Component
/AV output sockets.
Component Y input is sharing with
composite video input (AV).
Component/AV share with Audio in (L/R).
PREPARATION

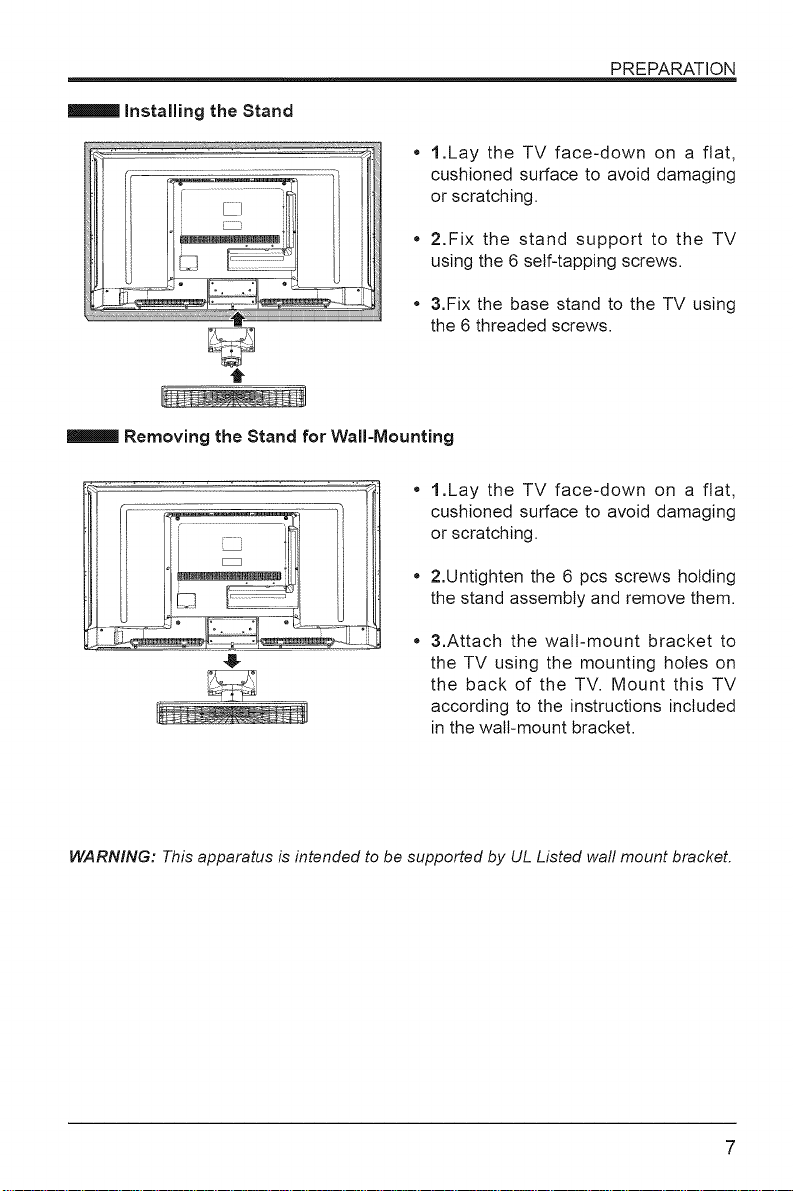

Installing the Stand
1.Lay the TV face-down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2.Fix the stand support to the TV
using the 6 self-tapping screws.
3.Fix the base stand to the TV using
the 6 threaded screws.
t
Removing the Stand for Wall=Mounting
1.Lay the TV face-down on a flat,
cushioned surface to avoid damaging
or scratching.
2.Untighten the 6 pcs screws holding
the stand assembly and remove them.
3.Attach the walt-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the watt-mount bracket.
WARNING: This apparatus is intended to be supported by UL Listed waft mount bracket.
PREPARATION
Remote Control
81--
0i
HDMI
,. ,J
SEIKI
1. (,_: Switch the TV between on and
standby mode
2. _: Mute and restore your TV sound
3. 0-9: Select a program (ATV/DTV mode)
4. : Enter multiple program channel
number such as 2-1
5. d;>: Return to previous viewing channel
6. P.MODE: Select picture mode: dynamic/
movie/energy saving/user/standard
7. S.MODE: Select sound mode: standard/
music/movie/user
8. MTS: Switch among different audio
channels: STEREO/MONO/SAP
9. SLEEP: Set the TV sleep timer:
OFF/5/10.../180/240 min
10. SOURCE: Select among the different
input signal sources: TV/AV/Componentl
HDMI I/H DMI2/H DMI3/VGA/USB
11. INFO: Display the present screen
information such as the current channel
and input source
12. CH+/=: Select a channel
13. VOL+/-: Adjust the volume
14. AUTO: Press to adjust the picture
automatically in VGA source
15. CC: Closed Caption selection: ON/OFF/
CC On Mute
16. V-CHIP: Set up parental control
IT. ASPECT: Select the aspect ratio
settings:standa rd/wide/wide zoom/zoom
18. OK: Confirm the selection in the OSD 'on
screen display' menus
19.4 A Y _: Allows you to navigate the
OSD menus and adjust the system
settings to your preference.
20. MENU: Display the OSD 'on screen
display' menu
21. EXIT: Exit the OSD menu
22. AIBIClD: Single push>switch to FAV
channel, push and hold>store current
channel
23. CH-LIST: Display program list
24. ADD/ERASE: Add or delete Favorite
channels
25. FAV: Display the favorite channel list
26. FAV+/-: Press to scan the TV favorite
programs
27. HDMI: Select the HDMI mode directly
CONNECTING EXTERNAL DEVICES
VCR
Satellite Receiver
Digital Audio System
Audio Cable
(not included)
HDMI Cable
(not included)
omponent Audio
(not included)
Component Cable
(not included)
AV Cable
(not included)
Optical Cable
(not included)
_Headphon_
!
VGA Cable 3.5mmAudioCable
(not included) (notincluded) _
i
| RF Cable
!" -1 |(not included)
L HDMI Device ! [ Computer
i
OR
CUSTOMIZINGTVSETTINGS

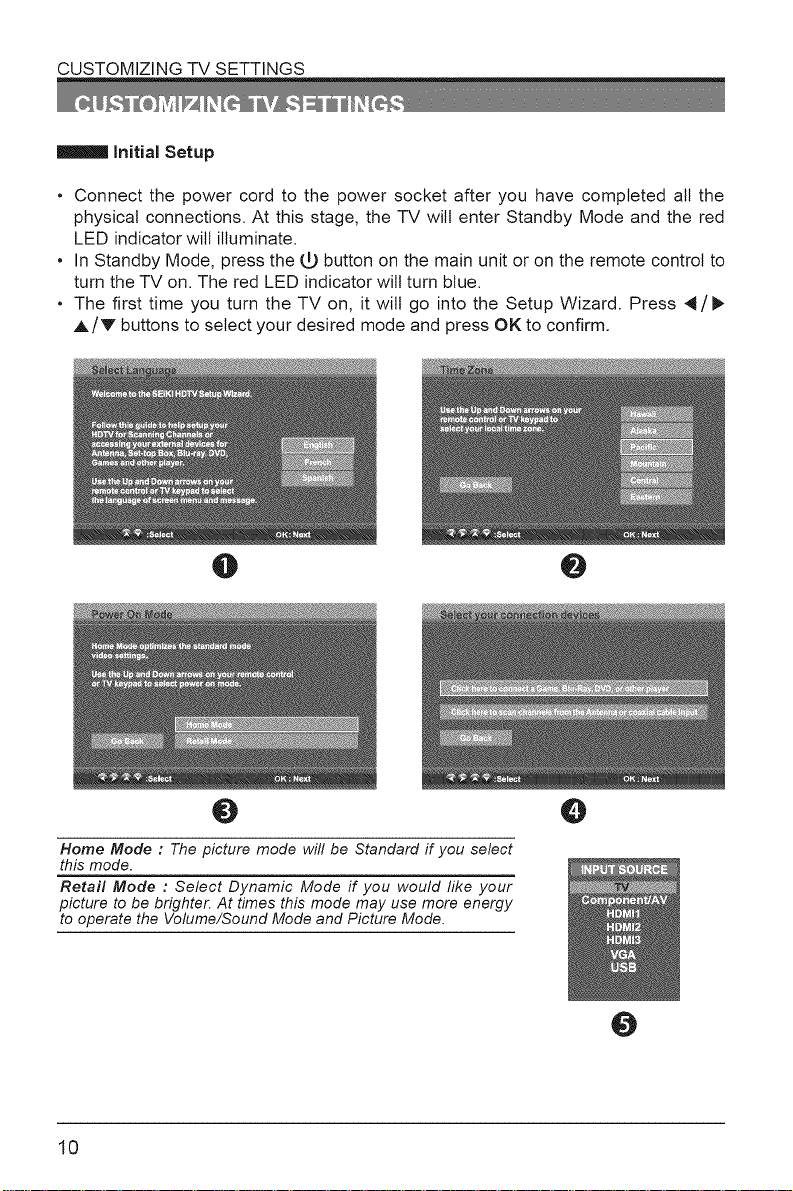

InitialSetup
• Connect the power cord to the power socket after you have completed all the
physical connections. At this stage, the TV wilt enter Standby Mode and the red
LED indicator wilt illuminate.
• In Standby Mode, press the H,Dbutton on the main unit or on the remote control to
turn the TV on. The red LED indicator will turn blue.
• The first time you turn the TV on, it wilt go into the Setup Wizard. Press 4/I_.
A/V buttons to select your desired mode and press OK to confirm.
@ O
O 0
Home Mode : The picture mode will be Standard if you select
this mode.
Retail Mode : Select Dynamic Mode if you would like your
picture to be brighter. At times this mode may use more energy
to operate the Volume/Sound Mode and Picture Mode.
10
O
O
Q
CUSTOMIZING TV SETTINGS
O
0
• If channels can not be found, this frame
will be displayed automatically.
Navigating the On=screen Display
* Press the MENU button to display the main menu.
* Use 4 / _ buttons to navigate and select the available menus.
11
CUSTOMIZING TV SETTINGS
Selecting Input Source
• Press the SOURCE button on the
main unit or on the remote control to
display the Input Source list.
• Press A/V buttons to select your
desired input source among: TV/
Component&AV/H DMI I/HDMI2/
HDMI3/VGA/USB and then press
O K button to confirm.
Picture Settings
• Press the MENU button on the main
unit or on the remote control and
then press _/_ buttons to select
PICTURE menu.
• Press _/V buttons to select the
following picture options and then
press 4/I_ buttons to adjust each
option's setting.
Cycle among picture mode: Dynamic/Movie/User/
Standard.
Picture Mode
Alternative: you may press the P.MODE button to
select the picture mode directly.
Contrast Adjust the difference between light and dark levels in
the pictures. (For User mode)
Increase or decrease the amount of white in the picture.
Bright ness (For User mode)
Color Control the color intensity. (For User mode)
Tint Adjust the balance between red and green levels.
Sharpness Adjust the level of crispness in the edges between light
and dark areas of the picture. (For User mode)
Color Temperature Cycle among color temperatures: Cool/Normal/Warm.
Allow the blue background to turn On/Off during weak or
Blue Screen
no signal conditions.
12
CUSTOMIZINGTVSETTINGS
Audio Settings
• Press the MENU button on the main
unit or on the remote control and then
press _/_, buttons to select AUDIO
menu.
• Press A/V buttons to select the
following audio options and then
press the 4/_ button to adjust each
option's setting.
Allow the selection of an audio-enhancement technique:
Standard/Music/Movie/User
Sound Mode
Alternative: you may press the &MODE button to select
the sound mode directly.
Control the relative intensity of lower-pitched sounds. (For
Bass
User mode)
Control the relative intensity of higher-pitched sounds. (For
Treble
User mode)
Balance Adjust the relative volume of the speaker in a multiple
speaker system.
Surround Sound Provide an enhanced listening experience.
Auto Volume Volume levels are automatically controlled.
SPDIF Mode Select the digital audio output mode between RAW/PCM.
Audio Language Select audio language among: English, French, Spanish
13
CUSTOMIZING TV SETTINGS
Time Settings
* Press the MENU button on the main
unit or on the remote control and then
press 4/I_ buttons to select TIME
menu.
* Press A/V buttons to select the
following time options and then press
41/II_ button to adjust each option's
setting.
Select a period of time after which the TV automatically
switches to standby mode: OFF/5/10/.../180/240 min.
Sleep Timer
Alternative: You may press the SLEEP button
repeatedly to select the number of minutes directl_
Select a Time Zone : Pacific/Alaska/Hawaii/Eastern/
Time Zone
Central or Mountain.
Daylight Saving Time Select to turn On/Off daylight saving time.
14
Setup
CUSTOMIZING TV SETTINGS
• Press the MENU button on the main
unit or on the remote control and then
press 4/_ buttons to select SETUP
menu.
• Press A/V buttons to select the
following setup options and then
press the 4/_" button to adjust each
option's setting.
Menu Language Select menu language " English, French or Spanish. The
default on-screen menu language is English.
Transparency Select to turn On/Off transparency function.
Select zoom mode : Wide/Wide Zoom/Zoom/Standard.
Just Scan/Dot to Dot.
Zoom Mode
Note: Different input source, the zoom mode options may
differ.
Reduce the noise level of the connected device: Off/
Noise Reduction
Weak/Middle/Strong.
Advanced Adjust advanced option's setting: H-POS, V-POS, Clock,
Phase or Auto. (VGA source mode only)
CC Mode Select CC mode : On, Off or CC on Mute.
Basic Basic Selection: CC1, CC2, CC3, CC4,
Selection Text1, Text2, Text3, Text4.
Closed Caption Advanced Advanced Selection: Service1, Service2,
Selection Service3, Service4, Service5, and Service6.
Options: Mode, Font Style, Font Size, Font
OPTION Edge Style, Font Edge Color, FG Color, BG
Color, FG Opacity and BG Opacity.
DLC Select to turn On/Off the dynamic luminance control.
Restore Default Restore the TV to factory default settings.
Remarks: whenselect 'just scan'mode in HDMIoption, the TV display asfullscreen,
when select 'Dot to Dot 'mode in VGAoption,the TV display as fullscreen.
15
CUSTOMIZING TV SETTINGS
Lock Settings
Note: The default password is "0000"
* Press the MENU button on the main
unit or on the remote control and then
press 4/I_ buttons to select LOCK
menu.
* Use the 0=9 buttons to input 4-digit
password to enter the LOCK menu.
* Press A/V buttons to select the
following options and then press the
4/I_ buttons to adjust each option's
setting.
Change Password
System Lock
US
Canada
RRT Setting
Reset RRT
Clear Lock
Use 0-9 buttons to input the old password and then input
the new 4-digit password. Re-enter new password for
confirmation.
Select to turn On/Off system lock. The following options
(US, Canada, RRT Setting and Reset RRT) will only be
accessible when you turn the system lock on.
TV RATING: Press OK button to lock or unlock
TV
TV rating.
Select MPAA rating: N/A,G, PG, PG-13, R,
MPAA
NC-17,or X.
Canada Select MPAA rating for English-speaking
English Canada: E, C, C8+, G, PG, 14% 18+.
Canada Select MPAA rating for Quebec Canada : E, G,
French 8 ans+, 13 ans+, 16 ans+, 18 ans+.
Set Rating Region Table.
Select to reset the RRT setting.
Clear all lock settings.
16
CUSTOMIZING TV SETTINGS
Channel Settings
• Press the MENU button on the main
unit or on the remote control and
then press 4/11_ buttons to select
CHANNEL menu.
• Press ,_,/V buttons to select the
following channel options and then
press the 4/I_ button to adjust each
option's setting.
Air/Cable Select antenna between Air and Cable.
First, select your cable system from Auto/STD/IRC/HRC.
Auto Scan Next, select the Auto Scan feature to scan your available
cable channels. Itwill perform the auto scan if the Air antenna
is selected.
Favorite Set the selected channel as favorite channels.
Show/Hide Show/Hide the selected channel.
Channel No. Display the current channel number.
Channel Label Display the current channel label.
DTV Signal Display the quality of current DTV signal.
17

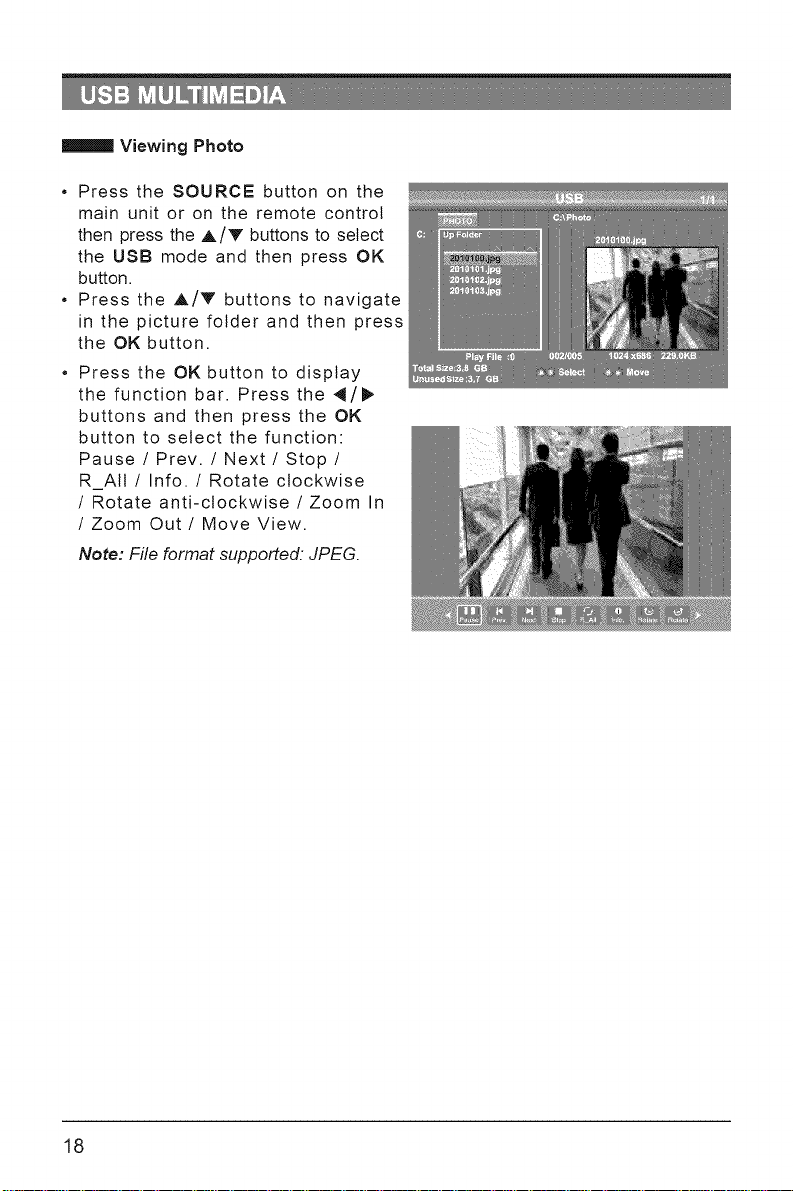

Viewing Photo
• Press the SOURCE button on the
main unit or on the remote control
then press the A/V buttons to select
the USB mode and then press OK
button.
Press the A/V buttons to navigate
in the picture folder and then press
the OK button.
Press the OK button to display
the function bar. Press the 4/1_
buttons and then press the OK
button to select the function:
Pause / Prev./ Next / Stop /
R All / Info. / Rotate clockwise
/ Rotate anti-clockwise / Zoom In
/ Zoom Out / Move View.
Note: File format supported. JPEG.
18
Press the MENU button on the main unit or on the remote control and then press 4/D,-
buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter
the LOCK menu. If used, this option feature can "block" undesirable programming from
appearing on the TV. Parental Control offers the user a wide variety of options and settings
that restrict or "block" the programming that can appear on the TV. Parental Control allows
the user the capability of defining which program rating they consider acceptable, for the
younger more sensitive viewer. It can be preset and turned either on or off by the user
who specifies the the secret 4-number password. The user can specify what time to block
programming.General audiences and children blocks should be both programmed into the
TV's memory. Separate different viewer ratings are specified for both TV and the motion
picture Industry; both rating systems should be used and based on the ages of children.
Overview
To ensure complete coverage for all TV programs, (movies and regular TV shows) choose
a rating for MPAA, from the selections below,as well as ratings from the TV Parental
Guidelines Rating Systems below, using the Age Block option for General Audiences, and
for children, in addition, you may wish to add additional restrictions from the content block
menu, and submenus examples below.
Things to Consider before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example,if you choose
TV-PG, more restrictive ratings will be automaticaaly blocked; the viewer will not be able to
see: TV-PG,TV-14,or TV-MA rated programming.) DYou may block the auxiliary video source
entirely. (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/
Video input Jacks) or remain unblocked, then choose scceptable ratings. Block program
"Content" based on individuaa parameters such as: Strong Diaaog, Bad Language, Sex
Scenes,Violence Scenes, or Fantasy. Violent Scenes; in Content BIk option. Select a secret
password, in the Set Password option, using the numbers keys on the remote control.Save
the password, it is the only way to access the Parental Control menu and change rating
setting, or turn off Parental Control.
• You can set different Parental Control viewing restrictions for general audiences and for
children, both can be active at the same time.
• Simply specifying one content block such as Sex Scenes, will not automatically restrict
the programming that appears from the video sources.
• Even if you choose to leave the AUX inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources.
• You cannot disable Parental Control by disconnecting the TV from power. Block
hours will be automatically reset to the original block time setting specified if power is
disconnected.
19
PARENTAL CONTROL
Motion Picture Association of America (MPAA) Rating System
G
PG
PG-13
R Restricted
No children under
NC-17
age 17
X Hard Core Films
No Rating No Rating
General Audiences
Parental Guidance
Suggested
Parents Strongly
Cautioned
Content not offensive to most viewers.
Content is such that parents may not want their
children to view the program.
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
Not for children under 17-contains strong element of
sex and/or violence.
Not for children under 17-under any circumstances.
Contains strong sexual content.
Same as NC-17 rating.
MPAA did not rate
, TV Parental Guideline Rating System
TV-Y All Children Content not offensive to most viewers.
Directed to Older Considered suitable for children over 7-may contain
TV-Y7
Children fantasy violence scenes.
Considered suitable for all audience; children-may
TV-G General Audience
watch unattended.
Parental Guidance Suggested unsuitable for younger children, may
TV-PG Suggested contain suggestive language, bad language, sex and
violence scenes.
Parents Strongly unsuitable for children under 14-may contain strong
TV-14
Cautioned language, bad language, sex, and violence scenes.
Mature Audience Adults only-may contain strong language, bad
TV-MA
Only language, sex ,and violence scenes.
Canadian Rating:
Canadian Engflsh is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+).
Canadian French is used in Quebec (G,8 ans+, 13 ans+, 16 ans+, 18 ans+)
Note: The V-Chip will automatically block certain categories that are "more restrictive'ill you block TV-Y
category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the
categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14,and TV-MA).
2O
If your TV does not operate normally or cannot be turned on, please check
the following troubleshooting questions. Remember also to check any other
connected electronic device, such as DVD or Btu-ray player to pinpoint the
problem. If the TV still fails to operate normally, please contact technical support.
The TV does not respond
when pressing any
buttons
TV cannot be switched on
The remote control does
not work
Power is suddenly turned
off
No picture & No Sound
B
• The TV may freeze up during use. Disconnect the power
cord from the power socket for a few minutes. Reconnect the
power cord and try to operate it again as usual.
• Check that the TV is connected to the power supply.
• Make sure all connected AV devices are switched off before
switching on your TV.
• Check to see if there are any objects between the TV and the
remote control causing an obstruction. Ensure that you are
pointing the remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity
(+ to +, - to -).
• Install new batteries.
• Check the power of the TV. The power supply maybe
interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
• Check whether the TV is switched on.
• Try another channel. The problem may be caused by the
broadcaster.
• This is normal; the image is muted during the TV startup
Picture appears slowly
process. Please contact your service centre if the picture has
after switching on not appeared after five minutes.
• Adjust the settings in the PICTURE menu.
No or poor color or poor • Try another channel. The problem may be caused by the
picture broadcaster.
• Check if video cables are connected properly.
Horizontal/Vertical bar or • Check for local interference such as an electrical appliance
picture shaking or power tool.
• The station or cable channel may be experiencing problems,
tune to another station.
Poor reception on some • Station signal may be weak, reposition the antenna for better
channels
reception.
• Check for sources of possible interference.
Lines or streaks in
• Check antenna (change the position of the antenna.)
pictures
No pictures when
• Check if the input source is HDMII/HDMI2/HDMI3.
connecting HDMI
Pictures appear in wrong • Adjust the Aspect Ratio settings in the SETUP menu or press
ratio the ASPECT button on the remote control.
21
TROUBLESHOOTING
Picture OK but no sound
• Press the VOL +/- buttons.
• Sound muted? Press the MUTE button.
• Try another channel. The problem may be caused by the
broadcaster.
No sound when
connecting HDMI
Audio noise
No output from one of the
• Adjust the Balance settings in the AUDIO menu.
speakers
• A change in ambient humidity or temperature may result in
Unusual sound from
an unusual noise when the TV is switched on or off and does
inside the TV
not indicate a fault with the TV.
• Check if the input source is HDMII/HDMI2/HDMI3.
Lost password
The signal is out of range
(invalid format)
Vertical bar or stripe on
background & Horizontal
Noise & Incorrect position
Screen color is unstable
or show a single color
• Keep the RF coaxial cable away from the other connected
cables.
• Select the SET Password setting in the LOCK menu, then
enter the following master password "8899". The master
password clears your previous password and allows you to
enter a new password.
• Adjust the resolution, horizontal frequency, or vertical
frequency.
• Use Auto configures or adjust clock, phase, or H/V position.
• Check the signal cable.
• Reinstall the PC video card.
22
SPECIFICATION
Panel Size 48 inch diagonally
Display Type LED
Panel Technology TFT
Panel 60 HzVs. 120 Hz 60 Hz
Display Resolution 1080P
Component and HDMI Support Up to 1080P
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 3000:1
Brightness (Centre Typ.) Cd/M2 250
Response Time (G To G) 8 ms
Lamp Life (Typ. Hours) 30,000 hours
Horizontal Viewing Angle (At CR_>I0) 178
Vertical Viewing Angle (At CR_>10) 178
Wall-mount(LxW-mm) 400*400 VESA(mm)
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
or used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: 1) reorient or relocate the receiving
antenna; 2) increase the separation between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that to which the receiver is connected; 4)
consult the dealer or an experienced radio/TV technician for additional suggestions,
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. Where shielded interface cables have
been provided with the product or specified additional components or accessories elsewhere
defined to be used with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
23
S2"and Under Screen Size Models (the"Product")
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition,
is warranted by SEIKI DIGITAL INC. /SEIKI) to the original consumer purchaser against defects in material and workmanship
('_Warranty") as follows:
1. REPLACEMENT : For a period of one (1) year from date of original consumer purchase, if this Product or any part is
determined by SEIKI, or a SEIKI authorized service provider, to be defective, SEIKI will replace the Product with new or re-
certified product of simitar or better specification, at SBIKt's option, at no charge to the original consumer. After the one (1)
year Warranty period, you must pay for all cost of Product replacement charges.
Once the Product is replaced, the warranty resume one (1) year period from the date of original consumer purchase; and will
not be extended for the replacement process. Advanced Replacement option is available only with a valid U.S. credit card
for guarantee purpose.
2. PARTS : For a period of one (1) year from the date of original consumer purchase, SEIKI will supply, at no charge to the
original consumer, new, rebuilt or refurbished replacement parts in exchange for defective parts. After the one (1) year
Warranty period, you must pay for the costs of all parts.
3. SHIPPING COSTS: Notwithstanding the foregoing, the original consumer is responsible foranyshipping charges incurred to
ship the Product or part(s) to SEIKI or to an SEIKI authorized customer service provider, for diagnosis, repair or replacement.
The consumer is responsible for securely packing the Product and utilizing a reliable carrier to transport to SEIKI authorized
service providen
To obtain Warranty Service and Troubleshootlng information call our toll free customer service line at:
1-855-MY-SEIKI (1-855-697-3454)
Please have your model and serial number avallable along with your date of purchase.
You can also visit us online and REGISTER your SEIXI product at:
www.SEIKI.corn
To receive Warranty service, the original consumer purchaser must contact SEIKI for problem determination and service
proced ures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the
appllcable Warranty perlod(s), MUST be presented to SEIKI, or an authorized customer service provider, irl order to
obtain the requested service.
Exclusions and Limitations
This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial use of
the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions,
improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed
repairs by non-authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery,
insurance, installation or set=up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and
tear, cosmetic damage or damage due to acts of nature, accident; (g) commercial use of the Product; (h) modification of, or to any
part of the Product. In addition, this Warranty does not cover images"burnt"into the screen. This Warranty applies to the original
consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and
the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid
only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All
replaced parts and products, and products on which a refund is made, become the property of the Warranton
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE
SHALL APPLY. THE WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER TH E EXPRESS WARRANTY PERIOD STATED
ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE
PRICE - AT THE WARRANTOR'S SOLE DISCRETION - ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY
TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER'S RECOVERY SHALL NOT EXCEED THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SEIKI. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so
the above limitations or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights,
which vary from state to state.
SEIKI DIGITAL INC.
c/o SEIKI Digital Customer Service
6880 Commerce Blvd., Canton, M148187 USA
DO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT CUSTOMER SERVICE TO
OBTAIN SHIPPING ADDRESSES FORSERVICE.
24
ServiceHotline:
1-855-MY-SEIKI (1-855-697-3454)
2 014 Seiki Digital Inc. All rights reserved. Printed in China
