NOTE:
Please read all instructions
carefully before using this
product
NOTA:
Por favor lea atentamente
las instrucciones antes de
utilizar este producto
Table of Contents / Índice
Safety Notice / Aviso de
seguridad
Important Assembly
Information / Información
importante de montaje
Care and Maintenance /
Cuidado y mantenimiento
Parts List / Lista de piezas
Warranty / Garantía
Ordering Parts / Solicitud de
piezas
Model / Modelo
STB-0130
Retain This Manual for
Reference / Conserve
este manual para
futura referencia
221228
OWNER'S
MANUAL / MANUAL
DEL USUARIO
WEIGHT PLATE RACK
STB-0130
IMPORTANT: Please read this manual before commencing
assembly of this product.
IMPORTANTE: Por favor lea este manual antes de comenzar a
montar este producto.
IMPEX INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.marcypro.com
support@impex-fitness.com
Impex Inc www.marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN…………………………………………………….1
IMPORTANT SAFETY NOTICES………………………………………..2
WARNING LABELPLACEMENT……………………………………… 3
HARDWARE PACK………………………………………………………. 4
ASSEMBLY INSTRUCTIONS…………………………………………….5
EXPLODED DIAGRAM……………………………………………………6
PARTS LIST……………………………………………………………….. 6
WARRANTY……………………………………………………………….. 7
ORDERING PARTS………………………………………………………. 7
BEFORE YOU BEGIN
Thank you for selecting the STEELBODY Weight Plate Rack STB-
0130 by IMPEX INC. For your safety and benefit, read this manual
carefully before using the equipment. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you
have any questions, or find there are missing or damaged parts,
we guarantee you complete satisfaction through direct assistance
fro our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service
Agents will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.marcypro.com
support@impex-fitness.com
Impex Inc www.marcypro.com
2
IMPORTANCE SAFETY NOTICE
PRECAUTIONS
Certain precautions apply when you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your machine. In
particular, note the following safety precautions:
1. Keep children and pets away from the equipment at all times.
DO NOT leave children unattended in the same room with the equipment.
2. If the user experiences dizziness, nausea, chest pain, or any other
Abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
3. Position the equipment on an obstruction free, level surface.
4. DO NOT use the equipment near water or outdoors.
4. Keep hands away from all moving parts.
6. DO NOT use attachments not recommended by the manufacturer.
7. Do not place any sharp objects around the equipment.
8. Never use if the unit is not functioning properly.
9. NEVER climb or stand on rack.
10. This equipment is designed and intended for home and consumer use
only, not for commercial use.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the equipment. DO NOT over
tighten. If parts are worn or damaged, DO NOT use. Contact Customer
Service for replacement parts.
2. Failure to examine regularly may affect the safety level of the
equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive
detergent.
DO NOT use solvents or bleach.
4. Maximum weight load on Storage Rack: 360lbs
5. Assembled Dimension: 39.5” x 11.5” x 10.5”
WARNING: CONSULT WITH YOUR DOCTOR BEFORE BEGINNING ANY
EXERCISE PROGRAM. READ ALL INSTRUCTIONS BEFORE USING ANY
FITNESS EQUIPMENT. NOT FOR USE BY CHILDREN UNDER AGE 14.
INSPECT FOR DAMAGE BEFORE EACH USE. DO NOT USE IF DAMAGED
OR MISSING PARTS.
SAVE THESE INSTRUCTIONS.
Impex Inc www.marcypro.com
3

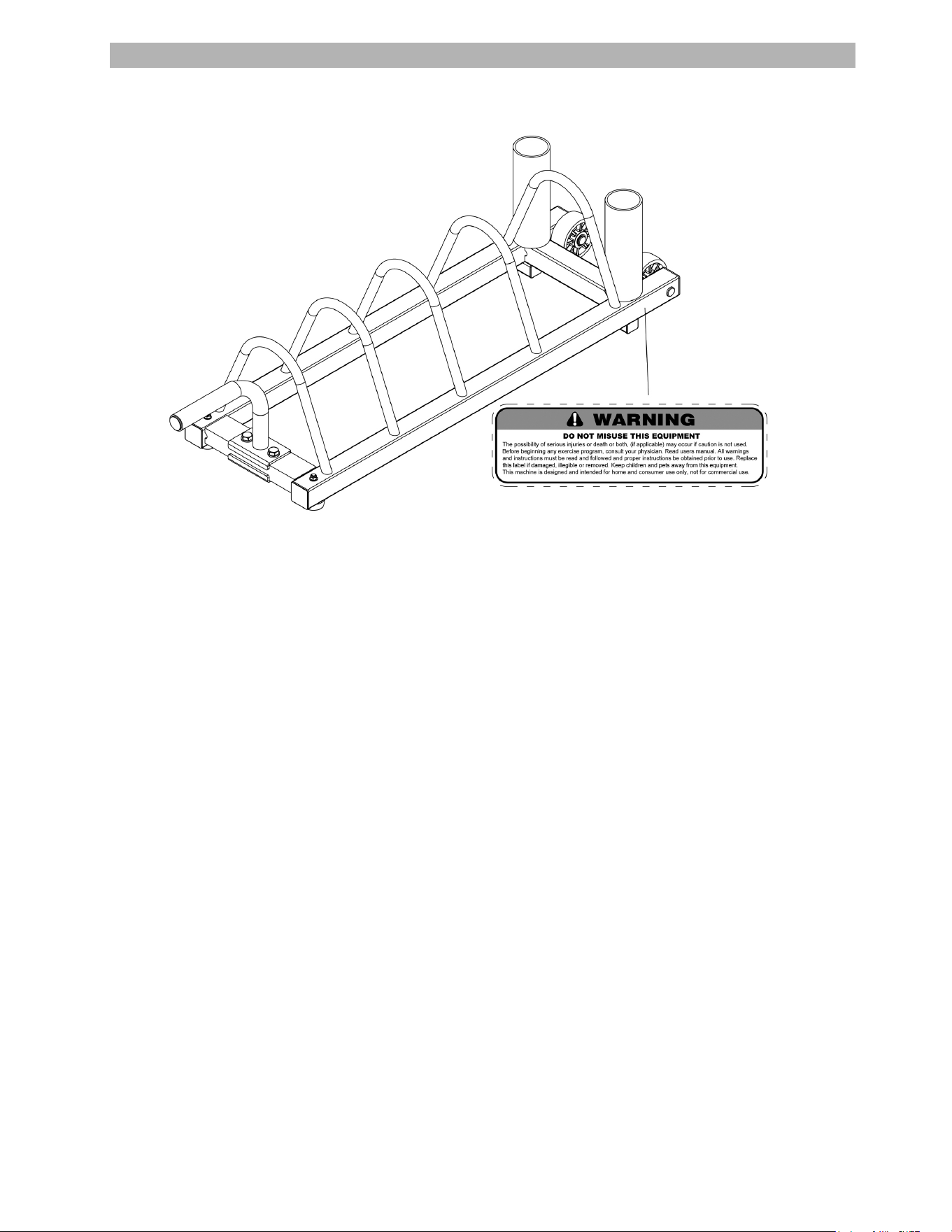

WARNING LABEL PLACEMENT
The Warning Label shown here has been placed on the Rack Storage Frame. If the label is missing
or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in
location shown.
Impex Inc www.marcypro.com
4

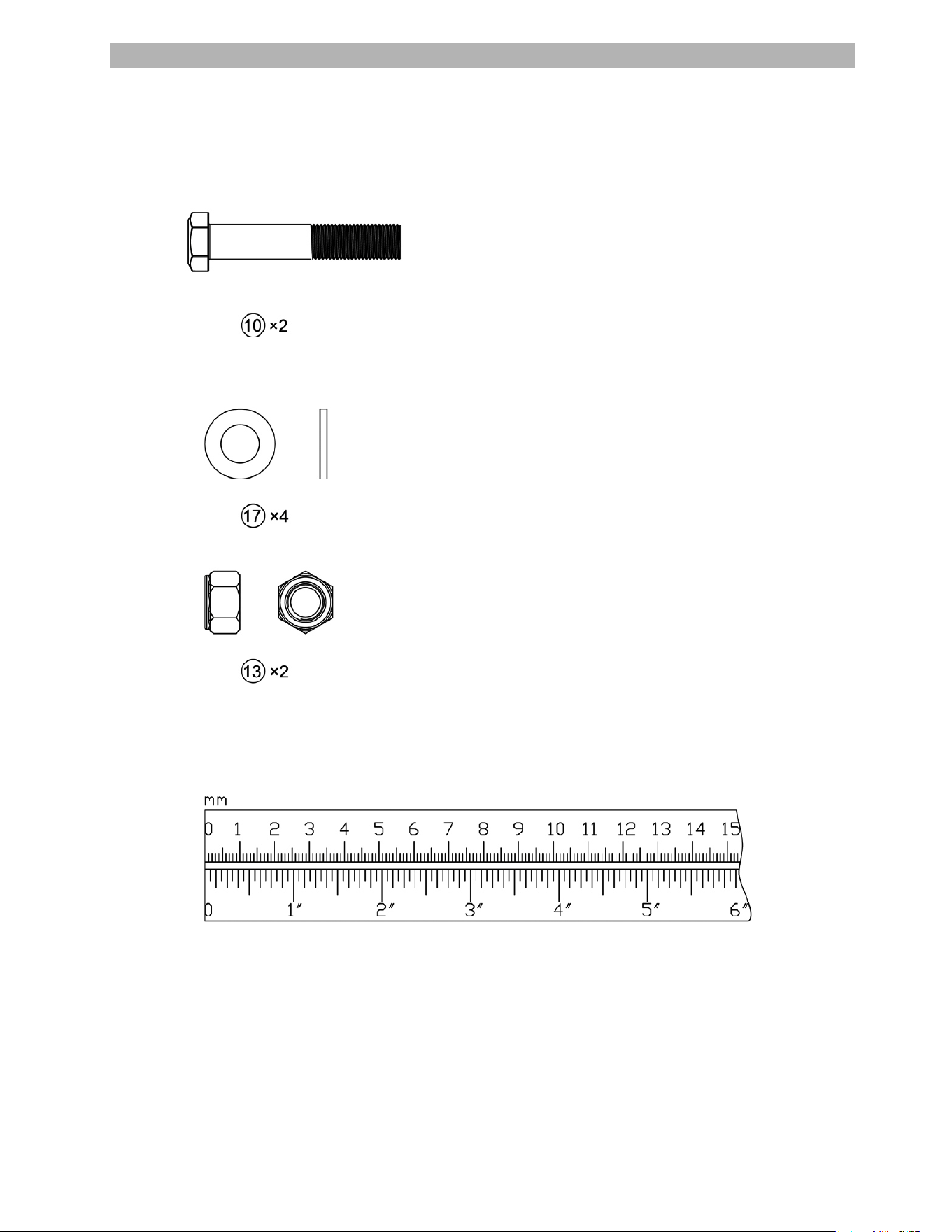

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
Impex Inc www.marcypro.com
5
ASSEMBLY INSTRUCTION
Tools required for assembling this equipment: Two Adjustable Wrenches.
It is strongly recommended that two or more people assemble this fixture to avoid
possible injury.

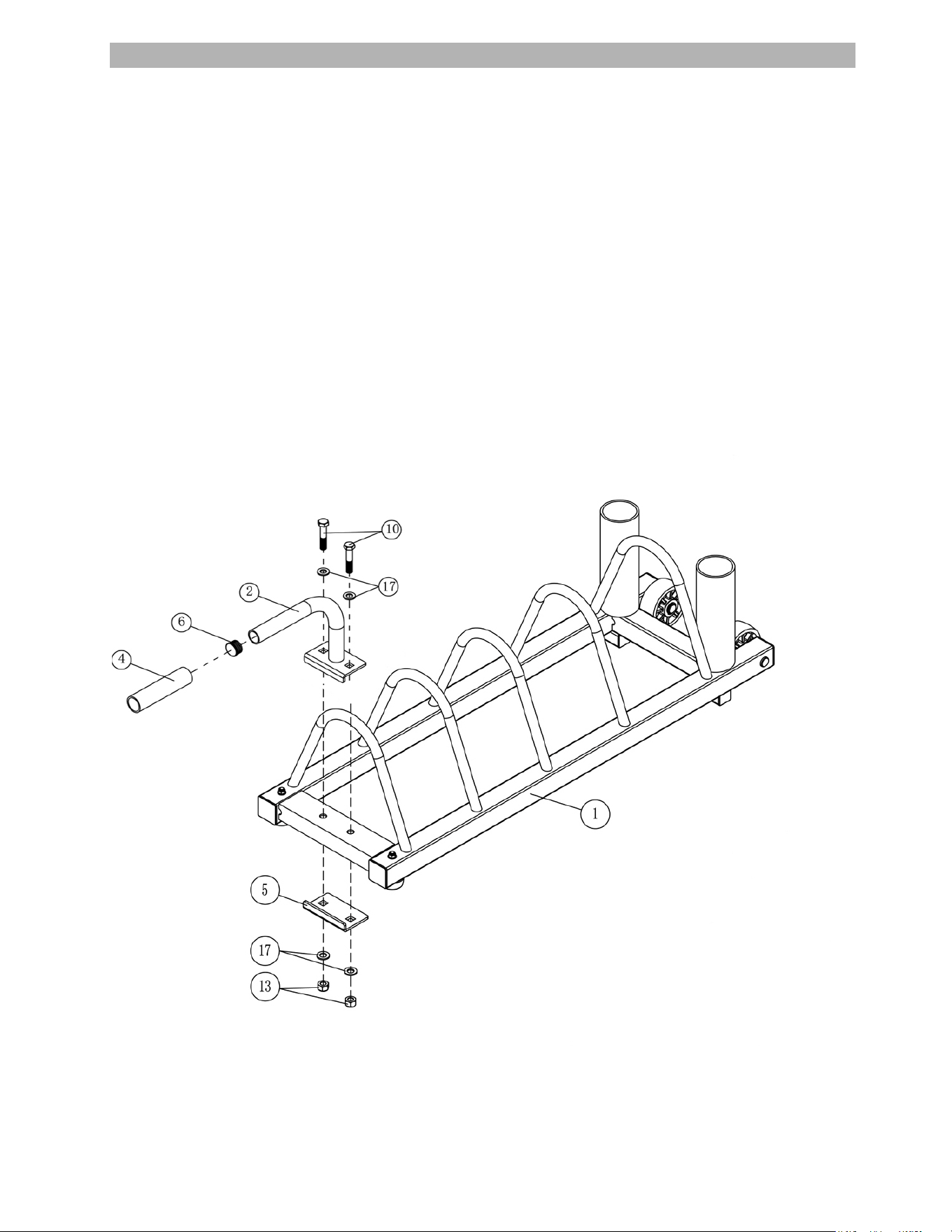

STEP-1 (See Diagram 1)
A.) Attach the Handle (#2) to the Storage Rack Frame (#1). Secure it to the Storage Rack
Frame with two M10 x 2 ⅛” Hex Bolts (#10), one Bracket (#5), four Ø ¾” Washers
(#17), and two M10 Aircraft Nuts (#13).
B.) Push Handle Grip (#4) onto the Handle. Plug the Handle End Cap (#6) onto the
Handle.
DIAGRAM-1
Impex Inc www.marcypro.com
6
EXPLODED DIAGRAM
STB-0130 PARTS LIST
PART
NO.
DESCRIPTION
SIZE
QUANTITY
1
Storage Rack Frame
1
2
Handle
1
3
Roller Wheel
2
4
Handle Grip
6”
1
5
Bracket
3 ½” x 2 ⅛”
1
6
Handle End Cap
Ø 1”
1
7
End Cap
1” x 1”
4
8
End Cap
1 ½” x 1 ½”
4
9
Rubber Bumper
Ø 1 ½” x ⅝”
2
10
Hex Bolt
M10 x 2 ⅛”
2
11
Philips Screw
M6 x 2”
2
12
Lock Ring
Ø ⅝”
2
13
Aircraft Nut
M10
2
14
Aircraft Nut
M6
2
15
Washer
Ø 1 ⅛”
2
16
Washer
Ø ½”
4
17
Washer
Ø ¾”
4
Impex Inc www.marcypro.com
7
IMPEX
®
INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX
®
") warrants this product to be free from defects in workmanship and material, under normal
use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty
extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or
repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or other damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential
damages or whatsoever natures. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.marcypro.com
IMPEX
®
INC.
2801 S. Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
support@impex-fitness.com
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
