Turntable
TAV3000B
User manual
Register your product and get support at:
www.philips.com/support
EN 1
Contents
1
Important
Trademarks
Safety
2
2
2
2
Your turntable
Intorduction
What's in the box
3
3
3
Overview of the main unit
4
10
3
Get started
Connect power
Adjust volume level
Power on
7
7
7
7
4
Phono operate
Clear Bluetooth® pairing records
Play from vinyl records
Stop playing vinyl records
8
8
8
Replace the stylus 9
9
Remove the dust cover
5
Listen to Bluetooth® music
Connect Bluetooth®
Disconnect Bluetooth®
10
10
10
6
Auracast™ operate
Disconnect Auracast™ receiver
Auracast™ receiver
11
11
11
Auracast™ broadcast 11
Disconnect Auracast™
broadcast
12
7
Bluetooth-Out operation
(BT-OUT)
Connect to Bluetooth enabled
device
12
Disconnect BT-OUT
12
Headphone output
12
10
Product information
Speci�cations
20
20
Compliance
22
11
Troubleshooting
21
12
Notice
22
13
Listen to an external device
13
8
Other features
13
User guide
14
18

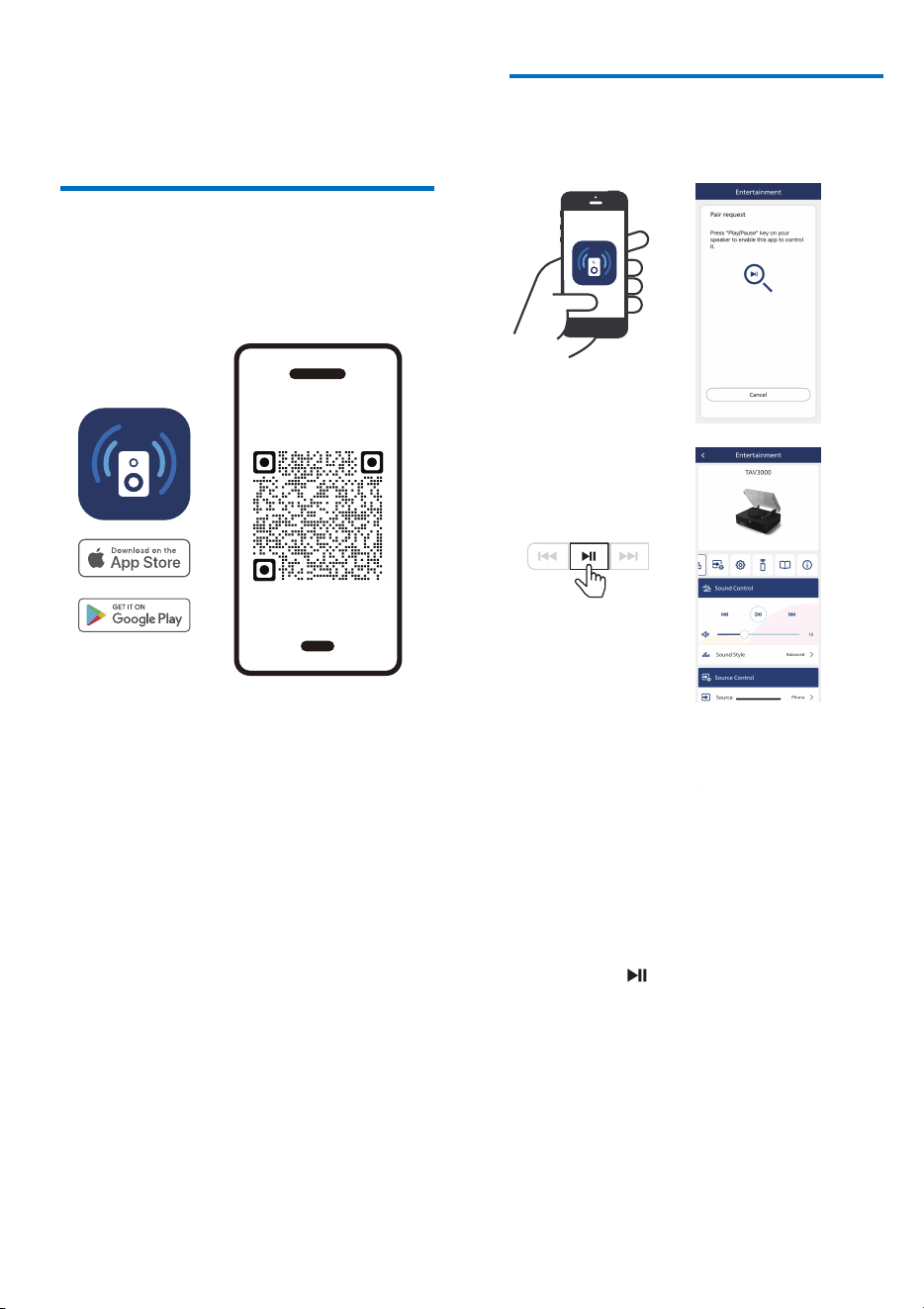

App download
14
Pair the App with your turntable
9
Philips Entertainment App

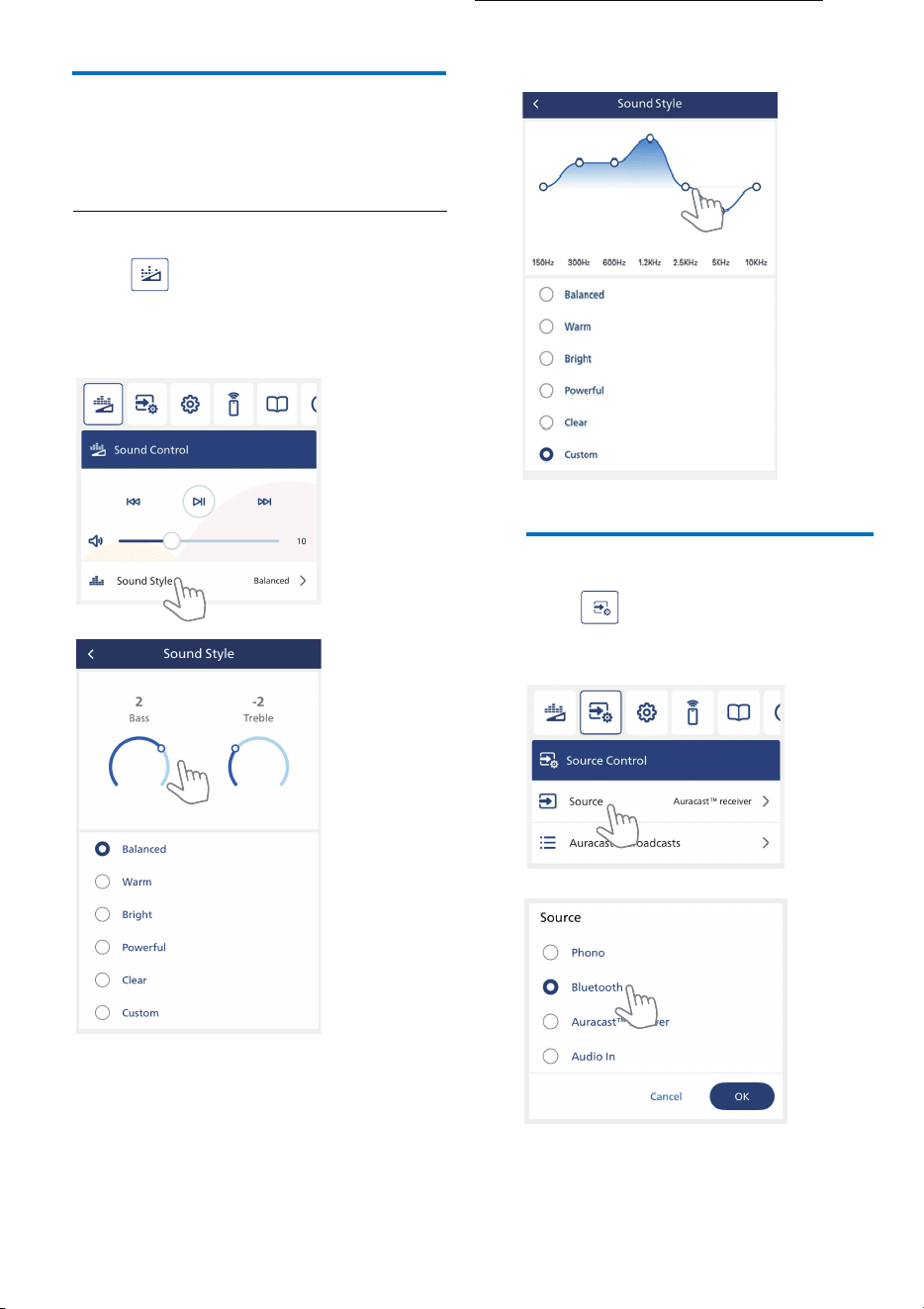

Choose your sound
Select source
14
15
15

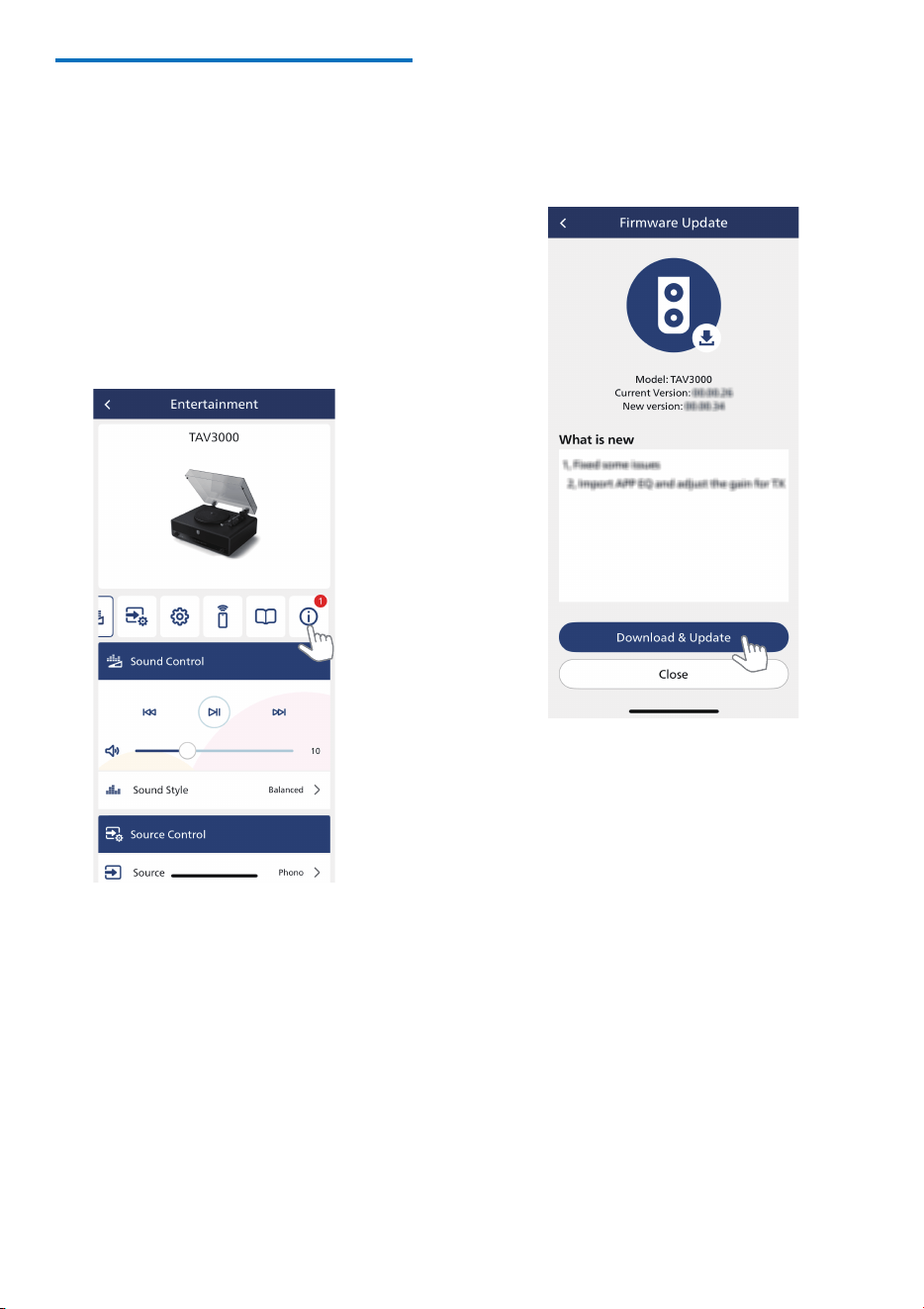

Firmware upgrade
18
Remote control
19
Select Auracast™ broadcast
16
Select Bluetooth Out(BT OUT)
Receive Auracast™ broadcast
16
Receive unencrypted Auracast™
broadcast
17
17
2 EN
1
Important
Safety
Read and understand all instructions
before you use this turntable.
If damage is caused by failure to follow
the instructions, the warranty does not
apply.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO OUALIFIED SERVICE PERSONNEL.
This 'bolt of lightning' indicates uninsulated
material within the device may cause an
electrical shock. For the safety of everyone in
your household, please do not remove the
covering. The 'exclamation mark' calls
attention to features for which you should
read the enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of �re or electric
shock, the device should not be exposed to
rain or moisture and objects �led with liquids,
such as vases, should not be placed on the
device.
CAUTION: To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs: To prevent electric shock, match wide
blade to wide slot.)
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never look into the laser beam inside this
apparatus.
Never place this apparatus on other
electrical equipment.
Keep this apparatus away from direct
sunlight, naked �ames or heat.
Ensure that you always have easy access to
the power cord, plug or adaptor to discon-
nect the apparatus from the power.
Make sure that there is enough
free space around the product for
ventilation.
Only use attachments/accessories
specifed by the manufacturer.
The product shall not exposed to
dripping or splashing.
Do no place any source of danger
on the product (e.g. liquid �lled
objects. lit candles).
Where the MAlNS plug or an
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily operable.
Please use the product safety in an
environment with temperature
between 0°C and 40°C.
Note
The type plate is located on the
bottom of the product.
Trademarks
The Auracast™ word mark and logos are
trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by MMD Hong
Kong Holding Limited is under license.
Other trademarks and trade names are
those of their respective owners.
The making of unauthorized copies of
copy-protected material, including
computer programs, �les, broadcasts and
sound recordings, may be an infringement
of copyrights and constitute a criminal
offence. This equipment should not be
used for such purposes.
The Bluetooth word mark and logos
are registered trademarks owned by
Bluetooth SlG, Inc. and any use of such
marks by MMD Hong Kong Holding Limited
is under license.
EN 3
2 Your turntable
Congratulations on your purchase, and
welcome to Philips! To fully bene�t from
the support that Philips offers, register your
product at www.philips.com/support.
What's in the box
Check and identify the contents of your
package:
Introduction
With this turntable, you can
• Play from vinyl records;
•
Listen to music via Bluetooth;
•
Play music from Audio in;
•
Enjoy music throught headphone;
•
Support Bluetooth out and Aux out;
•
Support Auracast™ receiver &
Auracast™ broadcast;
•
Use App to control the unit.
• Main unit
• Power adaptor
• Slipmat
• 45 rpm adaptor
• Quick start guide
• Safey sheet
Warranty card
•
Note
• Power adaptor quantity and plug type vary by regions.
Images, illustrations and drawings shown on this user
manual are for reference only. Actual product may vary
in appearance.
•
www.philips.com/welcome
/10 /98
/96
/79
LED 1 indicator
BT OUT
Press to turn power on/off.
Switch source
(Phono/Bluetooth/Audio in).
Auracast
™
/BT Out LED indicator.
Function status (see below table ).
Source LED indicator.
Function status (see below table ).
Skip to the next track.
Next Auracast
™
broadcast channel.
In Auracast receiver mode, press to
rescan Auracast
™
broadcast channel.
Press to switch to Auracast
™
receiver
mode.
Press and hold for more than 3 seconds
to activate / deactivate Auracast
™
broadcast mode.
Connect the headphone.
Press to enable to BT Out.
VOLUME knob
Adjust volume level.
LED 2 indicator
Skip to the previous track.
Previous Auracast
™
broadcast channel.
Play or pause.
Pairing mode.
1 2 3 4 5 6 7 8 9
9
10
10
EN 4
Overview of the main unit
Press and hold to disable to BT Out.
/
LED 2
Status
Blink Cyan (slow)
Auracast
™
receiver scanning
Solid Cyan
Auracast
™
receiver connected
Blink Cyan (very slow)
Auracast
™
receiver idle
Solid Amber Encrypted Auracast
™
broadcastt
Blink Amber (fast)
Deactivated encrypted Auracast
™
broadcast
Solid Purple
Unencrypted Auracast
™
broadcast
Blink Purple (fast)
Deactivated unencrypted
Auracast
™
broadcast
Blink White (slow)
BT Out pairing
Solid White
BT Out connected
Blink White (fast)
BT Out disconnected
Blink Red
Invalid operation
LED 1
Status
Solid Red Standby
Solid Blue BT connected
Blink Blue (fast) BT pairing
Blink Blue (slow) BT disconnected
Solid Pink Audio in
Solid Light Brown Phono
Solid Cyan
Auracast
™
receiver
PLATTER
The position to place a vinyl record.
CENTER SPINDLE
Balance the stylus pressure.
COUNTERWEIGHT
The spindle holds the turntable
platter stable and centered.
45 RPM ADAPTOR
TONE ARM REST
Place the adaptor over the center
spindle when playing 7’’ vinyl
records with large center holes.
Use this rest to hold the tone arm
during non-use.
TONE ARM LIFT LEVER
Used to control the tonearm to rise
from/fall on a record surface without
endangering the surface of the record
and the stylus.
AUTO STOP SLIDE
Switch speed (33-1/3/45/78 RPM).
SPEED SLIDE
Auto stop function ON/OFF.
TONE ARM
TONE ARM CLIP
Drive the stylus to slide above the
record.
Fix the tonearm for protection during
non-use.
19
20
HEADSHELL
Connect the cartridge and the tonearm.
21
CARTRIDGE
Cartridge model: AT3600LA
22
11
13
14
15
16
17
18
19
21
22
20
12
EN 5
Overview of the main unit
RCA OUTPUT JACK
Connect to external speaker using
an RCA cable (not included).
23
AUDIO INPUT JACK
Connect the external device using
a 3.5mm cable (not included).
24
DC IN JACK
Connect the power adaptor.
25
DUST COVER
26
23 24 25
26
6 EN
Overview of the main unit
3
Connect power
Power on/off
Connect the power adapter to the
wall outlet.
Press the button to switch the unit
on.
Rotate the knob to switch the
source.
Rotate the VOLUME knob to adjust
the volume level.
Caution
Phono/Bluetooth /Audio in.
EN 7
Get started
Caution
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
Always follow the instructions in this
chapter in sequence.
Risk of product damage! Ensure that the
power supply voltage corresponds to the
voltage printed on the back or the underside
of the unit.
Risk of electric shock! Before you plug the
adaptor, make sure that the plug is �xed
securely, when you unplug the adaptor,
always pull the plug, never pull the cord.
Before you connect the adaptor, make sure
that you have completed all the other
connections.
The unit switches to the last selected
source.
Adjust volume level
Press the button to switches the unit
off.
The unit switch to standby.
Place the 45 RPM adaptor over the center
spindle when playing 7’’ vinyl records with
large center holes.
4
Play from vinyl records
Stop playing
1
2
4
3
1
Place the unit on a �at and level surface.
Place the slipmat on the platter before
placing the vinyl record.
Use the speed switch next to tone arm
to adjust the speed (33-1/3, 45 & 78 RPM)
to match the record.
Use the auto-stop switch next to the
tone arm to enable/disable the auto
stop function. (45 RPM not applicable)
5
Gently parallelly pull the stylus cover
forward to remove before playing.
6
Turn the knob to Phono source.
LED 1 turns to solid brown.
7
Unlock the tone arm clip, and use the
lift lever to raise the tone arm.
Use the lift lever to raise the tone arm,
and use the �nger to move the tone arm
back on the tone arm rest.
8
Use the �nger lift to align the stylus
over the record.
9
Use the lift lever to lower the tone
arm on the record to begin playing.
33rpm
45rpm
It is normal to play a 78-rpm record with a
rustling sound, which is caused by the
characteristics of the itself.
Place the 45 RPM adaptor back on the
adaptor rest next to the tone arm during
non-use.
8 EN
Phono operate
Tip
78rpm
2
Lower the lift lever, and lock the tone arm
clip to �x it.
9 EN
Replace the stylus
Place your �ngers at the tip of the stylus
and push down to the direction ’A’.
Pull the stylus out toward the direction ’B’.
Removing the stylus from the tone arm:
Hold the tip of the stylus and insert the
other edge by pressing toward direction ‘C’.
Push the stylus up toward direction ‘D’
until it locks at the tip.
Stylus model: AT3600 (not included).
Caution
Do not bend or force the stylus into the
cartridge.
Do not touch the stylus tip to avoid injury
to your hand.
Turn off the unit's power before you replace
the stylus.
b
a
3
1
2
3
4
Install the stylus cover to protect the stylus
tip.
Remove the dust cover
1
Open the dust cover.
2
Lift up the dust cover vertically
from the hinge base.
5
Rotate the knob to switch to
to BT source and LED 1 blinks blue.
LED 1 blinks blue.
1
2
Select on your
Bluetooth enabled device.
[ Philips TAV3000 ]
3
Philips TAV3000
Listen to
Bluetooth® music
Connect Bluetooth®
Disconnect Bluetooth®
Play the audio from your device.
Deactivate Bluetooth on your
device.
Press and hold the button on
the unit for 3 seconds to enter
pairing mode.
Press and hold the button on the
unit for 3 seconds in disconnect
mode.
Note
Compatibility with all Bluetooth devices
is not guaranteed.
Any obstacle between the unit and the
device can reduce the operational
range.
The effective operation range between
this unit and your Bluetooth enabled
device is approximately 10 meters (free
space).
Press the buttons on
the product or your device to skip
to previous/next track.
Press the button on the product
or your device to play/pause the
track.
After successful pairing and
connection, the Bluetooth
indicator turns solid blue, and
you will hear the prompt sound
from the unit.
EN 10
Clear Bluetooth® pairing
records
Auracast
™
receiver
1
3
2
1
3
2
4
4
5
6
7
8
6
Auracast
™
operate
Disconnect Auracast
™
receiver
You can broadcast your music to this
turntable or any other Auracast
™
compatible products.
Short press the button on the
turntable or select Source Control on
Philips Entertainment App to switch to
Auracast
™
receiver source.
If you enter Auracast
™
source for the
�rst time or if the station list is empty,
the product performs a full scan
automatically.
The turntable will automatically search
for near by Auracast
™
broadcasts and
connect to the unencrypted broadcast
with the strongest signal.
Entering the same password that
you input when setting up
AuracastTM broadcast from your
mobile phone, dongle or device.
On your mobile device or dongle that
supports Auracast™, follow the
instruction to enable Auracast™
broadcast."
After successful connection, the LED 2
turns to solid cyan.
Select and play audio from your
Auracast
™
enabled mobile device ,
dongle or product to the unit.
Follow the Auracast
™
connection on
any additional Auracast
™
compatible
products you want to include. Short
press the buttons to select an
Auracast
™
broadcast channel.
Only unencrypted broadcast is
selected and encrypted broadcast
is skipped.
Short press the button again to
rescan the Auracast
™
broadcasts.
Switch your turntable to another
source.
Deactivate Auracast
™
broadcast on
your mobile device, dongle or
product.
In Phono/Bluetooth/Audio in
source, press and hold the
button on your turntable for 3
seconds or select Source Control
on Philips Entertainment App (
/Auracast™ broadcast) to enter
into Auracast
™
broadcast.
You can broadcast to any number
of Auracast
™
enabled products,
follow the instruction to enable
Auracast
™
connection.
Once connected, LED 2 on
Auracast
™
enabled products will
turn solid Cyan.
When unencrypted broadcast
is selected, LED 2 turns solid
purple and you will hear the
prompt sound from your
turntable.
When encrypted broadcast is
selected, LED 2 turns solid
amber and you will hear the
prompt sound from your
turntable.
11 EN
Auracast
™
broadcast
LED 1 turns solid cyan and LED 2
blinks cyan, you will hear the
prompt sound from the unit.
On Philips Entertainment App,
enter General Settings, select
Public (unencrypted broadcast) or
Personal (encrypted broadcast)
from Auracast
™
broadcaster.
If Auracast broadcast channel is
encrypted, Auracast recceiver
products are required to enter the
password in order to listen to it.
7
5
Disconnect BT-OUT
Disconnect Auracast
™
broadcast
Exit Auracast
™
broadcast from
your turntable.
LED 2 blinks purple or amber.
Press and hold the button on your
turntable for 3 seconds.
Rotate the knob to switch between
Phono/Bluetooth/Audio in to play
different audio sources.
Bluetooth-Out (BT-Out)
operation
1
2
3
4
Connect to Bluetooth
enabled device
In Phono/Audio in source, press BT OUT
button to enter Bluetooth out pairing
mode.
LED 2 blinks white.
LED 2 turns solid white.
Ensure your Bluetooth enabled device is
in pairing mode.
The turntable starts to scan and pair to
nearest Bluetooth enabled device or
device with the strongest signal automati-
cally.
Once connected, you will hear the prompt
sound from the turntable.
Press and hold BT OUT button on
the turntable for 3 seconds.
Note
EN 12
If the pairing fails, press BT OUT
button again to perform the
scanning of Bluetooth enabled devices.
LED 2 turns from solid white to
blinks white.
8
1
Other features
Listen to an external
device
Headphone output
You can listen to an external device
through this turntable with an audio
cable.
Use Audio in cable (not included)
connecting one end to the external
device and connecting the other
end of 3.5mm to the AUDIO IN jack
on the back of the unit.
1
2
2
3
You can connect the unit to an external
speaker using an audio cable:
Rotate the knob to switch to
Audio in source.
LED 1 turns to solid pink
Start to play the device (see the
device user manual).
Connect the RCA cable (not included)
to the external speaker.
RED plug - Plug into the
R-channel output.
WHITE plug - Plug into the
L-channel output.
The volume is controlled by the
external speaker.
Connect the headphone/ earphone
through the headphone jack on
the front of your turntable.
Rotate the VOLUME knob to adjust
the volume level.
13 EN
EN 14
9
Philips
Entertainment App
App download
Scan the QR code and press “Download”
button, or search “Philips Entertainment”
in the Apple App Store or Google Play to
download the app.
The Philips Entertainment App puts you
in charge of the music you are listening
to. You can use your smart device to
easily choose the sound style you want,
switch between sources, and more.
philips.to/entapp
Launch the Philips Entertainment
App on your mobile device.
Make sure your mobile device is
enabled the Bluetooth setting.
If you connect the Philips
Entertainment App with your
turntable for the �rst time, you
are asked to pair the App with
your turntable.
Press the button on your
turntable to enable the App to
discover and control it.
1
2
3
4
Pair the App with your
turntable
EN 15
Select source
Press icon on the App to select
Phono/Bluetooth /Auracast
™
receiver/Audio In.
Press icon on the App to select
prede�ned sound modes to suit your
music: Balanced/Warm/Bright/
Powerful/Clear.
Select Equalizer (EQ) Effect
Choose your sound
You can choose the ideal sound for your
music.
EN 16
Select Auracast
TM
receiver source.
Press [Auracast
TM
broadcasts] to
enter
Auracast
TM
broadcast list.
When an unencrypted playback
source from mobile phone or dongle
is selected, the
turntable will search
and connect to it.
Make sure to activate
Auracast
TM
broadcast on your mobile phone,
dongle or product.
1
2
3
Receive encrypted
Auracast™ broadcast
Receive unencrypted
Auracast™ broadcast
Select Auracast
TM
receiver source.
Press
[Auracast
TM
broadcasts] to
enter Auracast
TM
broadcast list.
1
2
When an encrypted playback source
from mobile phone, dongle or
product is selected, you will ask to
input a password. Entering the same
password that you input when setting
up Auracast
TM
broadcast from your
mobile phone, dongle or product.
Make sure to activate Auracast
TM
broadcast on your mobile
phone, dongle or product.
3
17 EN

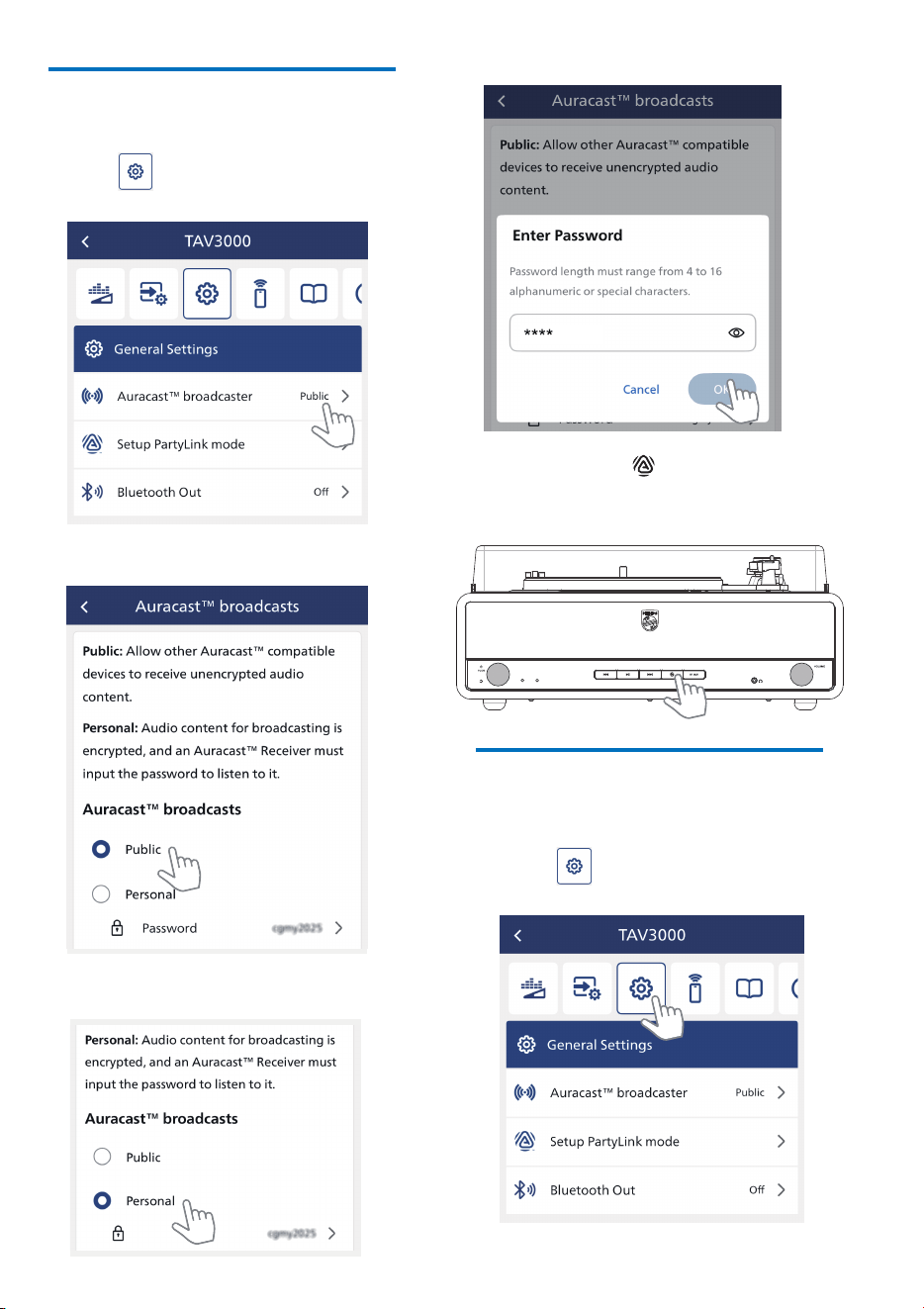

Select Public or Personal broadcasts.
Select Auracast
TM
broadcast
Select Bluetooth Out
(BT Out)
1
Press icon on the App to enter
General Settings list.
1
Press icon on the App to enter
General Settings list.
2
Enter password when Personal
(encrypted broadcast) is selected.
3
Press and hold button from
the turnable to enter Auracast
TM
pairing mode.
4
EN 18
User guide
Remote control
For more information about using this unit,
press icon on the App you can �nd
[User Manual] and [Quick Start Guide].
Enable [Bluetooth Out] and start
to scan.
Press "remote" icon to enter and
use your mobile device via Philips
Entertainment App as a remote
control to operate the turntable.
2
Devices that are paired previously
will be shown in Paired devices
and not paired devices will be
shown in Discovered devices.
3
Select the device to connect
Bluetooth Out.
4
19 EN
Firmware Upgrade
To get the best features and support,
update your unit with the latest �rmware
version.
The �rmware for MCU can be upgraded to
the latest version via Philips Entertainment
app.
Please go to Firmware Update and press
Download & Update. If the upgrade is
released, the Download & Upgrade icon
can be pressed to proceed automatically.
Once this product is connected to Philips
Entertainment app, it can receive
over-the-air �rmware update. Always
upgrade with the latest �rmware version
to improve the performance of this unit.
20 EN
10
Product information
Note
Product information is subject to change without
prior notice.
Phono: 3W x 2 THD 10%
Bluetooth /Audio in: 6W x 2 THD 10%
60Hz -20 KHz
2.0 CH
2 x 2.25" full range 4
1 x bass port
V5.4
2402-2480MHz
≤7.65dBm
≤4.57dBm
≤9.31dBm
A2DP, AAC, SBC, LC3
33-1/3 RPM, 45 RPM
and 78 RPM
800mV 100mV RMS
Automatic stop ON/OFF
switch (45 RPM not applicable)
AT3600LA
12.0V 1.0A
7 W
<0.5 W
42.0 x 17.9 x 34.8 cm
4.35 kg
Ampli�er
Output power
Speaker
Frequency response
Sound channel
Speakers
Bass enhancement
Bluetooth
Bluetooth version
Bluetooth frequency
band
Transfer rate (max. e.i.r.p.)
BLE(max. e.i.r.p.)
Bluetooth supported
pro�les
Turntable
Turntable speeds
AUDIO IN
Audio in input level
Automatic
Automatic stop function
Stylus model
General information
Power supply
Operation power
consumption
Standby power
consumption
Dimensions (W x H x D)
Weight (main unit)
21 EN
Turntable is spinning, but no sound
Check the volume.
Check if the source is switched to the
Phono properly.
Check if the stylus cover is removed
properly.
Check if the tone arm lift lever is
already pushed down to make it fall
on the record.
Bluetooth cannot be connected with
this unit.
Check if device does not support the
pro�les required for this unit. The
formats of these �les are not supported.
Check if Bluetooth function of the
device is not enabled. Refer to the user
manual of the device to �nd out how to
enable the function.
Check if this unit is not in pairing mode.
Check if this unit is already connected
with another Bluetooth-enabled device.
Disconnect that device and then try
again.
11
Troubleshooting
Warning
Never remove the casing of this device.
To keep the warranty valid, never try to
repair the system yourself. If you
encounter problems when using this
device, check the following points
before requesting service. lf the problem
remains unsolved, go to the Philips web
page (www.philips.com/support). When
you contact Philips, make sure that the
device is nearby and the model number
and serial number are availaple.
Check if power adaptor of the unit is
connected improperly.
Check if there is power at the AC outlet.
No power
No sound
Check the volume.
Check if the source is selected properly.
Check if connecting cable is connected
properly.
Decline in turntable audio performance
Check if the turntable stylus is worn
out. Replace the stylus.
The audio quality is poor after connec-
tion with a Bluetooth-enabled device.
The Bluetooth reception is poor.
Move the device closer to this unit or
remove any obstacle between them.
Record sounds too fast or too slow
Check if the speed is selected
properly to match the vinyl record.
No response from the unit
Disconnect and reconnect the power
adaptor, then turn on the unit again.
As a power-saving feature, the system
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
22 EN
Any changes or modi�cations made to this
device that are not expressly approved by
MMD Hong Kong Holding Limited may
void the user’s authority to operate the
product. Hereby, TP Vision Europe B.V.
declares that this product is in compliance
with the essential requirements and other
relevant provisions of Directive
2014/53/EU and UK Radio Equipment
Regulations SI 2017 No 1206. You can �nd
the Declaration of Conformity on
www.philips.com/support.
This product complies with the
radio interference requirements of
the European Community.
This product is designed and
manufactured with high-quality
materials and components, which
can be recycled and reused.
This symbol means the product
must not be discarded as house-
hold waste and should be
delivered to an appropriate
collection facility for recycling.
Follow local rules and never
dispose of the product with
normal household waste.
Correct disposal of old products
helps prevent negative conse-
quences for the environment and
human health.
12
Notice
Compliance
TAV3000_UM_V1.0
