Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 254 221
Contents
2
Warning and Safety instructions ............................................................................... 4
Caring for the environment......................................................................................... 11

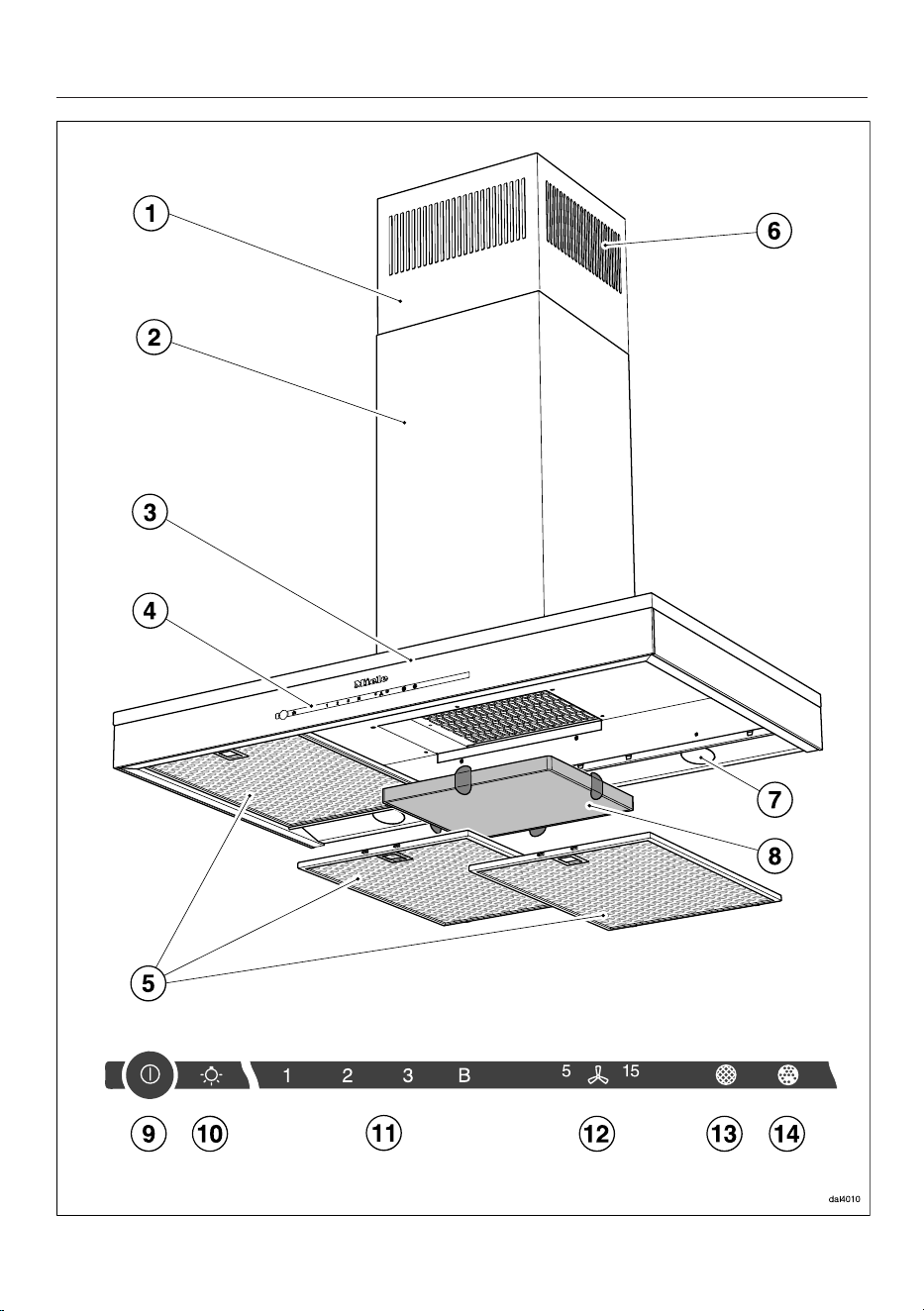

Guide to the cooker hood............................................................................................ 12
Modes of operation ...................................................................................................... 14
Before using for the first time..................................................................................... 15
Select Extraction mode or Recirculation mode .........................................................
15
Setting up Miele@home...............................................................................................
15
Performing Scan & Connect................................................................................... 16
Sign out of WiFi (reset to factory settings)........................................................... 16
Setting up Con@ctivity .................................................................................................
17
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 17
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0)............................ 17
Reattempting the connection ................................................................................. 18
Operation (Automatic mode) ..................................................................................... 19
Cooking with Con@ctivity (Automatic mode)...........................................................
19
Cooking process.............................................................................................................
19
Leaving automatic mode temporarily..........................................................................
20
Returning to automatic mode ................................................................................. 20
Operation (Manual mode)........................................................................................... 21
Cooking without Con@ctivity (Manual mode) ..........................................................
21
Switching the fan on ......................................................................................................
21
To select a power level ..................................................................................................
21
Selecting the run-on time .............................................................................................
21
Switching the fan off......................................................................................................
21
Dimming/switching the hob lighting on/off ...............................................................
22
Power management.......................................................................................................
22
Safety switch-off ............................................................................................................
22
Operation (Automatic and Manual modes)............................................................. 23
Operating hours counter ...............................................................................................
23
Altering the operating hours counter for the grease filter(s) .............................. 23
Altering or deactivating the charcoal filter operating hours counter................. 24
Reading the filter operating hours counter ........................................................... 24
Energy saving tips......................................................................................................... 25
Cleaning and care ......................................................................................................... 26
Housing............................................................................................................................
26
Important information for appliances with stainless steel surfaces................. 26
Important information for appliances with lacquered casing ............................ 26
Grease filters...................................................................................................................
27
Replacing the grease filters ..................................................................................... 28
Contents
3
Charcoal filter..................................................................................................................
29
Resetting the charcoal filter operating hours counter......................................... 29
Disposing of charcoal filters.................................................................................... 29
Reactivatable charcoal filter.................................................................................... 29
Installation...................................................................................................................... 30
Before installation ..........................................................................................................
30
Protective foil ..................................................................................................................
30
Installation materials......................................................................................................
30

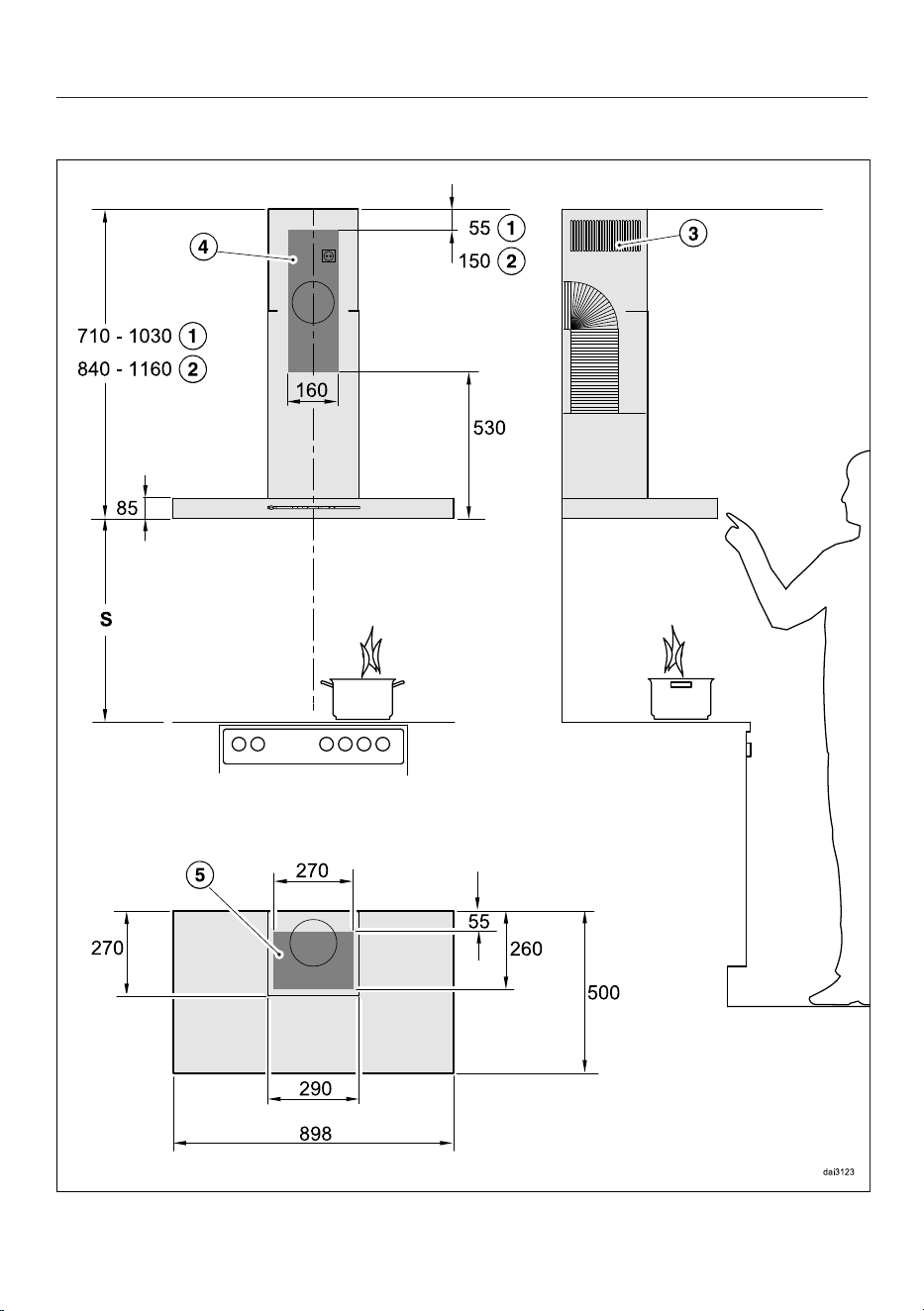

Appliance dimensions....................................................................................................
32
Safety distance between hob and cooker hood (S) ..................................................
33
Installation recommendations......................................................................................
34
Drilling diagram for wall mounting ...............................................................................
34
Connection for air extraction ........................................................................................
35
Non-return flap.......................................................................................................... 35
Condensation............................................................................................................ 36
Silencer ...................................................................................................................... 36
Electrical connection .....................................................................................................
37
Service............................................................................................................................. 38
Contact in the event of a fault......................................................................................
38
Position of the data plate ..............................................................................................
38
Warranty ..........................................................................................................................
38
Technical data................................................................................................................ 39
Special accessories for recirculation mode................................................................
39
EU Conformity declaration............................................................................................
39
UK Conformity declaration ...........................................................................................
39
Warning and Safety instructions
4
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety instructions
and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob, please
ensure that there is an adequate supply of fresh air into the room in
which it is installed. Please seek the advice of a qualified gas fitter
(e.g. GasSafe in the UK) for more information if necessary.
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been shown
how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Warning and Safety instructions
5
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker hood
unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and do
not guarantee the required safety of the appliance.
Warning and Safety instructions
6
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this booklet.
Under no circumstances should any other parts of the housing be
opened.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
Warning and Safety instructions
7
Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
8
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode, whereby
the air is redirected into the room in which it is installed, the above
restrictions do not apply.
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
- When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
- Select a pan which is suitable for the size of the burner.
- Regulate the flame so that it does not burn up the sides of the pan.
- Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Warning and Safety instructions
9
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat rising
from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
This cooker hood is not suitable for placing objects on.
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the hob and the
bottom of the cooker hood given in the “Installation” section of this
manual must be observed, unless the hob manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker hood,
and they have different minimum safety distances to the cooker
hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which is
in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
Warning and Safety instructions
10
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as described
in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when genuine
original Miele replacement parts are used. Faulty components must
only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation
of your vapour extraction unit.
Caring for the environment
11
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material
reduces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with
household waste or if handled
incorrectly. Please do not, therefore,
dispose of your old appliance with
household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, with your dealer
or with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without
destroying them, where this is possible.
These must be taken to a suitable
collection point where they can be
handed in free of charge. Please ensure
that your old appliance poses no risk to
children while being stored for disposal.
Guide to the cooker hood
12
Guide to the cooker hood
13
a
Telescopic extension piece
b
Tower
c
Canopy
d
Control elements
e
Grease filters
f
Recirculation grille
Only for recirculation mode
g
Hob lighting
h
Charcoal filter
Disposable or reactivatable charcoal filter
Optional accessory for recirculation mode
i
Sensor control for switching the fan on and off
j
Sensor control for switching the lighting on and off and for dimming the lighting
k
Sensor controls for selecting the fan power level
l
Sensor control for the run-on function
m
Sensor control for the grease filter operating hours counter
n
Sensor control for the charcoal filter operating hours counter
Modes of operation
14
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
(recirculation mode cooker hoods
require a conversion kit and charcoal
filter, see “Technical Data”)
The air is drawn in and cleaned first by
the grease filters and then by a charcoal
filter. The cleaned air is then recirculated
back into the kitchen.
Before using for the first time
15
Select Extraction mode or
Recirculation mode
The cooker hood is suitable for both
extraction mode and recirculation
mode. The power of the fan is adapted
to suit the selected mode of operation.
The cooker hood is set up ex-works for
recirculation mode. It has to be re-set
for extraction mode.
To re-set it for extraction mode the
operating hours counter for the charcoal
filter(s) has to be deactivated.
Switch off the fan and the lighting.
Touch the run-on option control
and the Charcoal filter control at
the same time.
The Charcoal filter symbol and one of
the fan power levels will flash.
Touch the B control.
Confirm your choice by touching the
Charcoal filter control.
All the indicator lights will go out.
Extraction mode has now been set.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Setting up Miele@home
Requirements:
- A WiFi network
- The Miele app
- A Miele user account. The user
account can be created via the
Miele app.
Your cooker hood is equipped with an
integrated WiFi module. Connect the
cooker hood to your household WiFi
network. You will then be able to operate
the cooker hood via the Miele app.
If your Miele hob is connected to a
home WiFi network, you can control the
cooker hood automatically via the
Con@ctivity function.
Before installing the cooker hood in
its final location, ensure that the
signal of your WiFi network is strong
enough.
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability, please
visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Before using for the first time
16
Performing Scan & Connect
Scan the QR code.
If you have installed the Miele app and
have a user account, you will be taken
directly to the networking steps.
If you have not yet installed the Miele
app, you will be taken to the Apple App
Store
®
or the Google Play Store™.
Install the Miele app and set up a user
account.
Scan the QR code again.
The Miele app will guide you through
the setup process.
Sign out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the cooker hood off.
Press and hold the 1 control.
Touch the lighting control at the same
time.
With an existing WiFi connection the 2
and the 3 will light up constantly.
The cooker hood is ready for
disconnection in the next two minutes.
Touch the 1 control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds the 2 and the 3 will
flash on and off. The connection has
now been disconnected.
Quit disconnection mode on the
cooker hood by touching the Run-on
control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Before using for the first time
17
Setting up Con@ctivity
Con@ctivity is the direct
communication system between an
electric Miele hob and a Miele cooker
hood. It enables the cooker hood to
operate automatically depending on the
operational state of a Miele hob with
onset controls.
- When the hob is switched on, the
cooker hood lighting comes on
automatically and then after a short
time the fan also comes on.
- The cooker hood selects the power
level automatically during cooking.
The power level selected by the
cooker hood depends on the number
of cooking zones being used and their
power levels.
- After switching the hob off the fan and
the hob lighting will switch off
automatically after a specified period
of time.
See “Operation” for detailed information
about this function.
Con@ctivity via the home WiFi
network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be
activated automatically.
Con@ctivity via a direct WiFi
connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele hob
If you do not have a home network, you
can establish a direct connection
between the hob and the cooker hood.
Switch the cooker hood off.
Press and hold the B button.
Touch the 1 button for
approx.5seconds at the same time.
2 will light up constantly, 3 will flash.
The cooker hood will be ready for
connection in the next 2minutes.
Before using for the first time
18
Start the WiFi connection on the hob.
For further details, see the hob
operating instructions.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the cooker
hood by touching the Run-on option
control.
Con@ctivity is now activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network.
Should this be required at a later date,
the WiFi connection between the hob
and the cooker hood must be
disconnected (see “Signing off WiFi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the cooker hood cancels the
process.
Disconnect the connection to the
cooker hood (see “Signing out of
WiFi”) and to the hob.
Attempt to make the connection
again.
Operation (Automatic mode)
19
When Con@ctivity is active, the cooker
hood always operates in automatic
mode (see “Before using for the first
time” – “Setting up Con@ctivity”).
If you wish to manually operate the
cooker hood, see “Operation (Manual
mode)” – “Cooking without
Con@ctivity”.
Cooking with Con@ctivity
(Automatic mode)
Switch a cooking zone on at the
desired power level.
The hob lighting will come on.
After a few seconds the fan will come
on, first at power level 2, then it will
switch immediately to power level 1.
The cooker hood selects the fan power
level automatically during cooking.
This is determined by the total output of
the hob, i.e. the number of cooking
zones in operation and the power levels
selected.
If you select a higher power level or are
using several cooking zones, the cooker
hood will switch to a higher fan power
level.
When you reduce the power level or the
number of cooking zones on the hob,
the fan power level is also reduced.
Examples for power levels 1 to B
Reaction time
The cooker hood reacts with a slight
delay because altering the power level
on the hob does not immediately result
in a reduction or increase in cooking
vapours.
Because the hob transmits the
information to the cooker hood at
intervals, this can also cause delays.
The reaction can vary from a few
seconds to a couple of minutes.
Cooking process
For example, you switch on a cooking
zone at the highest power level to
heat a pan for frying. You reduce the
power level after approx. 10seconds
to 4minutes (60seconds to
5minutes for a for a HiLight hob).
The cooker hood recognises a cooking
process.
The cooker hood switches itself on and
when the hob power level has been
reduced, the hood switches to fan
power level 3 and remains at that level
for approx. 5minutes.
After that, the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Operation (Automatic mode)
20
Switching off
Switch off all cooking zones.
The cooker hood fan will reduce its
power level in stages over the next few
minutes and will then switch itself off.
This helps to neutralise any lingering
vapours and odours in the air.
- From the Booster setting, the fan
switches immediately to Level 3.
- From Level 3, it will switch to Level 2
after approx. 1minute.
- From Level 2, it will switch to Level 1
after 2minutes.
- After 2minutes at Level 1 the fan
switches itself off.
- After another 30 seconds, the hob
lighting switches off.
The cooking process is then finished.
Leaving automatic mode
temporarily
To leave automatic mode temporarily
during cooking:
Manually select a different fan power
level, or
Manually switch the cooker hood off,
or
Activate the run-on function on
the cooker hood. The fan will switch
itself off after the selected run-on
time, and the lighting will remain on.
The cooker hood functions are now
operated manually (see “Operation
(Manual mode)”).
Returning to automatic mode
The cooker hood will resume automatic
mode:
- If the cooker hood has not been used
for approx. 5minutes after selecting a
fan power level manually, or
- If the manually selected fan power
level corresponds to the automatic
one again, or
- The cooker hood fan and the hob have
been switched off for at least
30seconds.
Automatic mode will resume next
time the hob is switched on.
You can also operate the cooker hood
manually for a complete cooking
process.
Switch the cooker hood fan on before
the hob.
If the cooker hood fan and the hob have
been switched off for at least
30seconds after cooking, automatic
mode will resume next time the hob is
switched on.
Operation (Manual mode)
21
Cooking without Con@ctivity
(Manual mode)
The cooker hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Manual operation)” – “Leaving
automatic mode temporarily”).
Switching the fan on
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Touch the On/Off control.
The fan will come on at power level 2.
To select a power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Select the power level required by
touching a control from 1 to B.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the fan automatically
switches back to level 3 after 5minutes.
Selecting the run-on time
It is advisable to run the fan for a few
minutes after cooking has finished. This
helps to remove any lingering vapours
and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
The run-on function enables the fan to
continue running for a pre-determined
time before switching itself off
automatically.
After you have finished cooking, touch
the run-on option control.
- Once: the fan will switch itself off
after 5minutes (5 lights up).
- Twice: The fan will switch itself off
after 15minutes ( 15 lights up).
- If you touch the run-on option
control again, the fan will remain
on ( will go out).
Switching the fan off
Press the On/Off control to switch
the fan off.
Operation (Manual mode)
22
Dimming/switching the hob
lighting on/off
The hob lighting can be switched on and
off and dimmed independently of the
fan.
Press the lighting sensor briefly to
switch it on or off.
The lighting will switch on at maximum
brightness.
With the lighting switched on, press
and hold the hob lighting sensor.
The brightness will gradually dim until
you release the control.
Press and hold the lighting control
again to increase the brightness to
the level required and then release it.
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
- If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off
automatically after 12hours.
You can deactivate power management.
Keep in mind that deactivating this
function may increase energy
consumption.
Activating/deactivating Power
management
Switch off the fan and the lighting.
Touch the run-on option control
for approx. 10 seconds, until 1 lights
up in the power level display.
Then touch the following controls in
turn:
- the lighting control,
- the 1 control and then
- the lighting control again.
When Power management is activated,
the 1 and B indicators light up
constantly.
When it is deactivated, the 1 and B
indicators flash.
To deactivate Power management,
touch 1.
The 1 and B indicators will flash.
To activate Power management,
touchB.
The 1 and B indicators will light up
constantly.
Confirm the setting with the run-on
option control.
All the indicator lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Safety switch-off
If Power management has been
deactivated, the cooker hood will switch
itself off automatically after 12hours if it
has been left on (fan and hob lighting).
To switch it on again press the On/
Off control or the lighting
control.
Operation (Automatic and Manual modes)
23
Operating hours counter
The cooker hood registers the length of
time it has been operated.
When the grease filter symbol or the
charcoal filter symbol lights up, the
operating hours counters are signalling
that the filters need to be cleaned or
changed. Further information about
cleaning and replacing the filters and
resetting the operating hours counter
can be found under “Cleaning and care”.
Altering the operating hours counter
for the grease filter(s)
You can set the operating hours counter
to suit the type of cooking you do.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter time of 20hours if
you fry a lot.
- If you only cook occasionally, we
recommend that you still select a
short time. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult.
- Select a longer time of 40 or 50hours
if you use very little fat for cooking.
Switch off the fan and the lighting.
Touch the run-on option control
and the Grease filter control at the
same time.
The Grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
1.................................................... 20 hours
2................................................... 30 hours
3................................................... 40 hours
B................................................... 50 hours
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
Grease filter control .
All the indicator lights will go out.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Operation (Automatic and Manual modes)
24
Altering or deactivating the charcoal
filter operating hours counter
The charcoal filter is needed for
recirculation mode.
You can set the operating hours counter
to suit the type of cooking you do.
It has to be deactivated for extraction
mode.
It is set at the factory for 180hours of
use before the filters need replacing.
Switch off the fan and the lighting.
Touch the run-on option control
and the Charcoal filter control at
the same time.
The Charcoal filter symbol and one of
the fan power levels will flash.
Fan power level indicators 1 to B show
the time set:
1.................................................. 120 hours
2................................................. 180 hours
3................................................ 240 hours
B.............................................. deactivated
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
Charcoal filter control.
All the indicator lights will go out.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Reading the filter operating hours
counter
You can check the percentage of time
set already used before the filter needs
replacing.
Switch the fan on with the On/Off
control.
Press and hold the Grease filter
control or the Charcoal filter
control .
One or more of the power level
indicators will flash.
The number of fan power level
indicators flashing shows the
percentage of the operating time which
has already been used up.
1 ......................................................... 25%
1 and 2 .............................................. 50 %
1 to 3 ................................................. 75 %
1 toB .............................................. 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Energy saving tips
25
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there is
insufficient air flow the cooker hood
cannot operate efficiently and this
causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and therefore
benefit from reduced energy
consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
- If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power level
is usually sufficient. Only use the
Booster setting when necessary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the
kitchen air after cooking, use the
run-on function. The fan will switch
off automatically after the selected
run-on time.
Cleaning and care
26
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following cleaning
instructions.
All external surfaces and controls can
be cleaned using hot water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
- cleaning agents containing soda,
acids, chlorides or solvents,
- abrasive cleaning agents, e.g. powder
cleaners or cream cleaners and
abrasive sponges, as well as pot
scourers or sponges which have been
used previously with abrasive cleaning
agents. These will damage the surface
material.
Important information for appliances
with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered casing
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Important for appliances with glass
surfaces
Glass surfaces can be cleaned using a
proprietary non-abrasive cleaning
agent designed specifically for use on
glass.
Cleaning and care
27
Grease filters
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the cooker
hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood and
in the kitchen.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease filters
should therefore be cleaned every 3 to
4 weeks.
The filter operating hours control
reminds you to regularly clean the
grease filters by illuminating the grease
filter symbol.
You can set the operating hours counter
interval to suit the type of cooking you
do (see “Operation (Automatic and
Manual modes)”).
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.
To take out a grease filter, release the
locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning and care
28
Cleaning the grease filters in the
dishwasher
Risk of damage due to
excessively high temperatures in the
dishwasher.
Excessively high temperatures may
cause the grease filters to become
unusable, if they become deformed,
for example.
Select a programme that does not
exceed the recommended
temperature.
Also follow the information provided
in the operating instructions for the
dishwasher.
Place the grease filters upright or at a
slight angle in the lower basket.
Ensure the spray arm is not
obstructed.
Use a standard household cleaning
detergent.
Select a programme with a maximum
wash temperature of 65°C.
Depending on the detergent used, the
internal filter surfaces may become
discoloured. This will not affect the
functioning of the grease filters in any
way.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
housing to prevent the risk of these
catching fire.
Refit the grease filters, making sure
that the latch faces outwards.
If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be re-set.
Whilst the fan is switched on, press
the Grease filter control for approx.
3 seconds, until only the 1 is flashing.
The Grease filter symbol goes out.
If you want to clean the grease filters
before the operating hours counter has
reached its maximum:
Touch the Grease filter control for
approx. 6 seconds, until only the 1 is
flashing.
Replacing the grease filters
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
the Miele Customer Service
Department (see end of these operating
instructions for contact details) or from
your Miele dealer.
Cleaning and care
29
Charcoal filter
With recirculation mode, a charcoal
filter must be fitted in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odours.
The charcoal filter is fitted in the canopy
above the grease filters.
Fitting/replacing a charcoal filter
Remove the grease filter before fitting
or replacing a charcoal filter.
Take the charcoal filter out of its
packaging.
Insert the charcoal filter into the back
of the charcoal filter frame, then push
up into the frame at the front.
Refit the grease filters.
When to change the charcoal filter
Replace the charcoal filter when it no
longer absorbs kitchen odours
effectively.
It should, however, be replaced at
least every 6 months.
The operating hours counter will remind
you to replace the charcoal filter by
lighting up the charcoal filter symbol .
Resetting the charcoal filter operating
hours counter
After changing the charcoal filter, the
operating hours counter needs to be re-
set.
Touch the Charcoal filter control
for approx. 3 seconds with the cooker
hood switched on until only the
indicator light for level 1 is flashing.
The Charcoal filter symbol will go
out.
If you want to replace the charcoal filter
before the operating hours counter has
reached its maximum:
Touch the Charcoal filter control
for approx. 6 seconds until only the
indicator light for level 1 is flashing.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filter
A reactivatable charcoal filter is available
for this cooker hood. It can be used
several times after being reactivated in
the oven.
Please follow the operating
instructions supplied with the filter.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Installation
*INSTALLATION*
30
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Protective foil
The housing components have
protective foil around them to protect
them from transport damage.
Please remove this foil before fitting
the housing components. It can be
peeled off easily.
Installation materials
1vent connection
for exhaust ducting 150mm.
1 non-return flap
for fitting into the exhaust socket on the
motor unit (not needed for recirculation
mode).
Telescopic wall bracket
for securing the cooker hood to the
wall.
6 screws 5x60mm and
6 plugs 8x50mm
for securing to the wall.
The screws and plugs are
designed for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the cooker hood.
2 M6nuts with locking teeth
for securing the appliance.
2 screws, 3.9x7.5mm
for securing the chimney.
Installation
*INSTALLATION*
31
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details on
the individual steps involved in the
installation of this appliance.
DUW20
Conversion kit for recirculation mode
The conversion kit contains an exhaust
grille, hose and hose clips (not
supplied, but available as an optional
accessory. See “Technical data”).
Installation
*INSTALLATION*
32
Appliance dimensions
The diagram is not drawn to scale.
Installation
*INSTALLATION*
33
a
Extraction
b
Recirculation
c
Ventilation grille positioned at the top for recirculation
de
(Only d is required for recirculation mode cooker hoods). The shaded area
represents the wall or ceiling area for the ducting cut-out and for the
connection socket. Recirculation cooker hoods only need a connection socket
to be fitted.
Connection for air extraction 150 mm
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, deep fat fryer (electric) 650mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW. 650mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760mm
Single burner gas hob, output > 8.1 kW Not possible
Installation
*INSTALLATION*
34
Installation recommendations
- When deciding on the safety distance
between the hob and cooker hood,
please note that a distance of
650mm above electric cookers/hobs
may be preferable to give more
working space under the hood.
- Account should also be taken of the
height of the person who will be using
the hood most often. They should
have sufficient space to work
comfortably at the hob, and be able to
reach the cooker hood controls with
ease.
- Please be aware that if positioned too
high, extraction will be inefficient.
- To achieve optimum vapour
extraction, the cooker hood must be
positioned centrally over the hob, not
to the side.
- The hob should be no wider than the
cooker hood, and if possible, it should
be narrower.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.
Drilling diagram for wall
mounting
When drilling, please follow the
directions contained on the
accompanying installation sheet.
When installing a custom back wall
with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws 5mm).
Installation
*INSTALLATION*
35
Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
exhaust ducting made from approved
non-flammable materials for exhaust
ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps, these
must be opened whenever the cooker
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional accessory)
is recommended. Both of these have a
built-in non-return flap.
If the on-site ventilation system does
not have a non-return flap, one is
supplied with the cooker hood.
The non-return flap is fitted in the
exhaust socket of the fan.
Installation
*INSTALLATION*
36
Condensation
If the exhaust ducting is to run through
cool rooms or ceiling space, for
example, the significant variations in
temperature between the different
areas can cause condensation to form.
Insulate the exhaust ducting to reduce
temperature variations.
If the exhaust ducting is to be laid
horizontally, it must be laid with a
downwards sloping gradient of at least
1cm per meter. This is to ensure that
condensation cannot drain back into the
cooker hood.
In addition to insulating the exhaust
ducting, it is advisable to also install a
condensate trap for collecting and
evaporating any potential condensation.
Condensate traps for 125mm or
150mm diameter exhaust ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically and
as closely as possible to the cooker
hood above the exhaust connection.
The arrow on the casing indicates the
direction of airflow.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust ducting.
Silencer
To reduce noise levels even further, a
silencer (optional accessory) can be
installed in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating outside
reaching the kitchen through the exhaust
ducting (e.g. traffic noise). For this reason,
the silencer must be positioned as close
as possible to the ducting exit.
Installation
*INSTALLATION*
37
In recirculation mode, the silencer needs
to be positioned between the exhaust
socket and the directional unit. Check
that there is sufficient space.
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or a
fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to multi-
socket adapters or extension cables
can overload the cables.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend
using a type residual current device
(RCD) in the relevant electrical
installation for connecting the cooker
hood.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified
specialist or the Miele Customer
Service Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not
synchronised with the mains power
supply (e.g. island networks, back-up
systems) is possible. A prerequisite for
operation is that the power supply
system complies with the specifications
of EN50160 or an equivalent standard.
The function and operation of the
protective measures provided in the
domestic electrical installation and in
this Miele product must also be
maintained in isolated operation or in
operation that is not synchronised with
the mains power supply, or these
measures must be replaced by
equivalent measures in the installation.
As described, for example, in the current
version of VDE-AR-E 2510-2.
Service
38
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/
service.
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele
Customer Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate is visible after removing
the grease filter(s).
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Technical data
39
Fan motor 80W
Hob lighting 3x3W
Total connected load 89W
Voltage AC 230V
Fuse rating 3A
Mains connection cable length 1.5m
Weight
DA 6698W 26kg
WiFi module
Frequency band 2.400–2.4835GHz
Maximum transmission power <100mW
Special accessories for recirculation mode
Conversion kit DUW20 and one charcoal filter DKF12-P or DKF12-R
(reactivatable)
EU Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to https://miele.co.uk/
manuals and enter the name of the product or the serial number
UK Conformity declaration
Miele hereby declares that this cooker hood complies with UK Radio Equipment
Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to https://miele.co.uk/
manuals and enter the name of the product or the serial number
Technical data
40
ThisStatement of Compliance confirms this Miele product fully complies with the
Product Security and Telecommunications Infrastructure (Security Requirements
for Relevant Connectable Products) Regulations 2023.
1) Household Appliance –
2)
Manufactured by: Miele & Cie KG,
Carl Miele Street 29, 33332 Gutersloh Germany
Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road,
Abingdon, Oxon, OX14 ITW Great Britain
The defined support period at the time of first supply is 10 years
3)
To report vulnerabilities and cybersecurity issues please contact: [email protected]4)
5) Signature
Name: Paul Wright
Company Position: Head of Technical Management
Date of signature: 19th March 2024
Place of signature:
Abingdon, Oxfordshire
Cooker Hood DA 6498 W, DA 6698 W, DA 5798 W
Note for test institutes
Energy efficiency must be calculated using extraction mode. The cooker hood is set
up ex-works for recirculation mode. To re-set it for extraction mode the operating
hours counter for the charcoal filter(s) has to be deactivated (see “Before using for
the first time”).
Technical data
41
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DA 6698 W
Annual Energy Consumption (AEC
hood
) 24,6 kWh/year
Energy efficiency class A++
Energy efficiency index (EEI
hood
) 34,8
Fluid Dynamic Efficiency (FDE
hood
) 40,6
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 74,4 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,1%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point 365,1 m
3
/h
Air flow (min. speed) 200 m
3
/h
Air flow (max. speed) 400 m
3
/h
Air flow (intensive or boost setting) 640 m
3
/h
Max. air flow (Q
max
) 640 m
3
/h
Air pressure at best efficiency point 369 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 36 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 52 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
63 dB
Electrical power input at best efficiency point 92,0 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 9,0 W
Average illumination of the lighting system on the cooking surface 670 Ix
Time increase factor 0,5
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected]
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 254 221 / 01en-GB
DA6698W
