MINOR IV – TRUE WIRELESS
FULL ONLINE MANUAL
004
MINOR IV – FULL ONLINE MANUAL
BACK TO INDEX
004

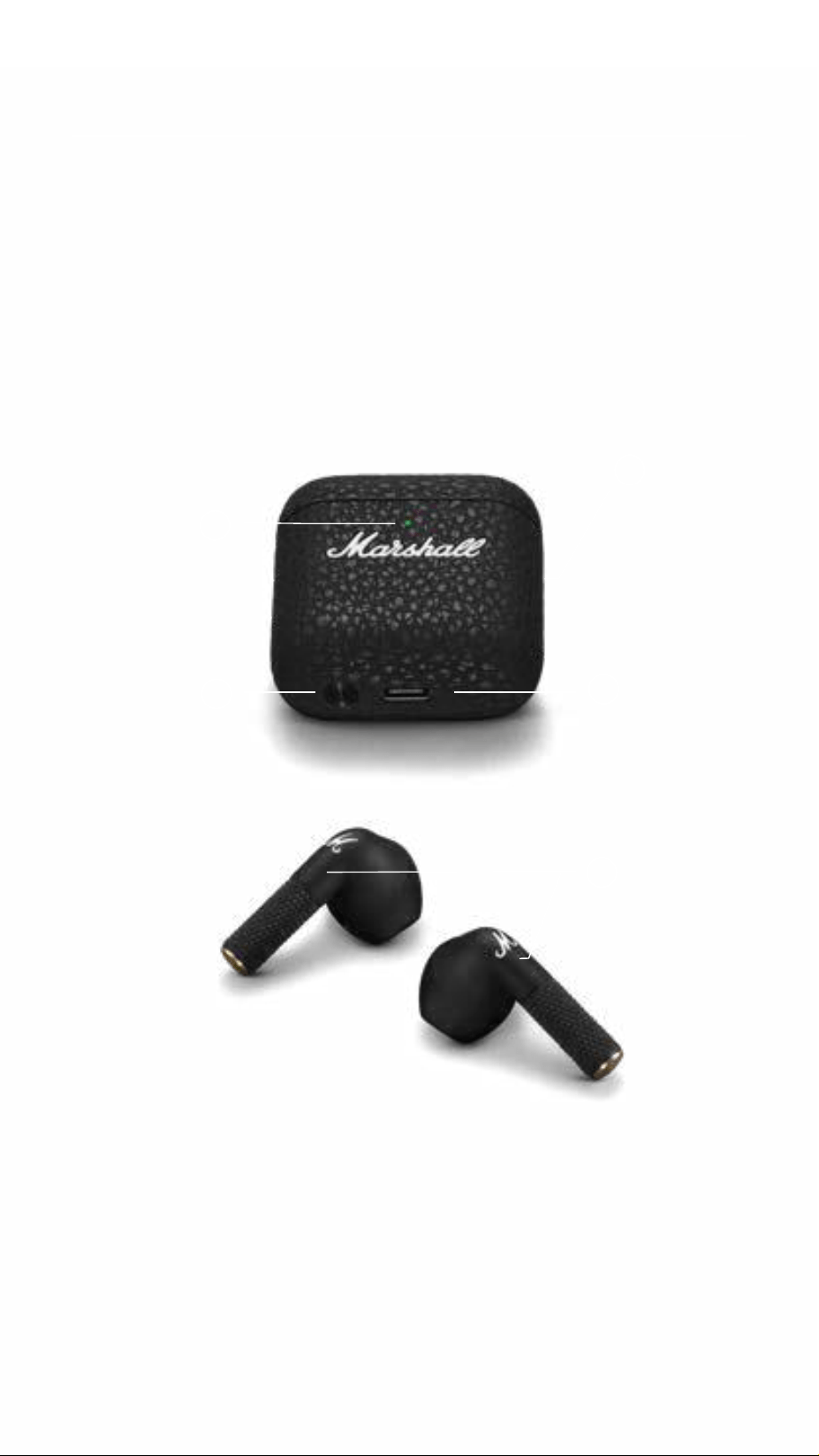

ENGLISHDEVICE LAYOUT
1
CHARGING CASE INDICATOR
The LED shows the case battery charge, from red through yellow to
green (0–100%). It pulses blue while in Bluetooth
®
pairing mode.
2
CHARGING CASE BUTTON
Quick press to see the charging case battery level. With the earbuds in
the case and the lid open, push and hold for 2 seconds to initiate pairing.
3
WIRELESS CHARGING
Charge the case by placing it on a wireless charging pad.
4
USB-C POWER INPUT
Charge the case by plugging it into a USB power source.
5
TOUCH CONTROLS
Touch the left or right earbud to control your music, phone calls and more.
005
MINOR IV – FULL ONLINE MANUAL
BACK TO INDEX
005
ENGLISHINSTRUCTIONS
GETTING STARTED
I. Open the charging case.
II. Press and hold the button on the bottom of the case until the LED turns
to a slow blue pulse.
III. Select MINOR IV from your sound device’s Bluetooth list.
IV. Download the Marshall Bluetooth app and follow the in-app instructions
to complete the setup.
TOUCH CONTROLS
Touch the left or right earbud to control your music, phone calls and more.
The long touch behaviour can be customised in the app.
• Play/pause – single tap
• Skip forward – double tap
• Skip backward – triple tap
• Increase the volume – long touch the right earbud
• Decrease volume – long touch the left earbud
• Receive/end a call – double tap
• Reject a call – long touch any earbud
CHARGING THE EARBUDS
Put your earbuds back in the case and close the lid to turn them o and
begin charging.
CHARGING THE CASE
Use a wireless charger or plug the case into a USB power source to charge it.
The case is fully charged when the front-facing LED is steady green.
To charge the case using a wireless charger, follow the instructions below.
I. Place the charging case with its back flat against the wireless charging pad.
II. Make sure that the front LED lights up to indicate that the case is charging.
III. Once the LED light has turned steady green the case is fully charged.
006
MINOR IV – FULL ONLINE MANUAL
BACK TO INDEX
006
ENGLISHINSTRUCTIONS
CLEANING YOUR MINOR IV
Earbuds come in close contact with your skin frequently and sometimes for
long periods of time. This will over time cause build-up of dirt and grease that
can aect performance and may cause skin irritation. Clean your earbuds
regularly to keep them fresh and make them last longer.
Unplug any cables before cleaning the case. Make sure everything is
completely dry before using the earbuds, putting the earbuds back in the
case, or plugging in a USB charger.
Use a disinfectant wipe or a lint-free cloth, slightly damp with 70% isopropyl
alcohol or 75% ethyl alcohol to gently clean the exterior surfaces of the
earbuds and the case. Avoid getting moisture in any openings or in the
speaker mesh. Carefully clean those areas with a dry and soft brush, or a
cotton swab.
• Do not use any sharp objects.
• Do not use compressed air.
• Do not use products containing bleach or hydrogen peroxide.
• Do not submerge the earbuds in any cleaning agents.
BATTERY CARE GUIDE
Your earbuds come equipped with high-performance lithium-ion batteries
and battery life span is aected by charging and usage. Follow the guidelines
below to keep your batteries in great condition for as long possible.
• Avoid using fast chargers if possible. Fast charging causes stress on the
battery and will degrade it.
• Avoid letting the battery drain completely or charging it when it’s already
full. Try to keep the charge between 30% and 80%.
• If the earbuds are stored for a long time, it’s recommended to charge
the earbuds to about half-charge and then do a factory reset. Store the
earbuds and case in a cool, dark, and dry place.
• Avoid using or charging the earbuds in hot and unventilated places,
45°C/113°F and above.
• Avoid charging the battery at low temperatures, below 10°C/50°F and
using the earbuds below 0°C/32°F.
• Avoid strong mechanical shocks such as dropping the earbuds or case
on hard surfaces as it might harm the batteries.
Download the Marshall Bluetooth app and select the battery preservation
level that best suits you and your earbuds.
GET IT ONGET IT ON
007
MINOR IV – FULL ONLINE MANUAL
BACK TO INDEX
007007
ENGLISHINSTRUCTIONS
PAIRING A NEW DEVICE
Minor IV can be connected with two devices at a time and remembers up to
8 previously paired devices. When in range, they will try to reconnect with the
last connected device.
I. Place the earbuds in the case and keep the lid open.
II. Press and hold the button on the bottom of the case until the LED turns
to a slow blue pulse.
III. Select MINOR IV from your sound device’s Bluetooth list.
Note: Minor IV can be connected with two devices at a time.
RESETTING THE EARBUDS
If your earbuds become erratic or unresponsive, follow the instructions below.
I. Place the earbuds in the case and close the lid to restart the earbuds.
If the problem persists, perform a factory reset.
Note: This will delete all user settings and the earbuds will need to be
paired again.
I. Remove MINOR IV, and Minor IV [LE] if present, from your sound
device’s Bluetooth list.
II. Place the earbuds in the case and keep the lid open.
III. Press and hold the button on the bottom of the case for 10 seconds and
release when the LED turns purple.
IV. The earbuds have returned to their factory settings and are ready to be
paired, see section Getting started.
MARSHALL BLUETOOTH APP
Download the Marshall Bluetooth app to get the most out of your
earbuds and keep them up to date with the latest software.
008
MINOR IV – FULL ONLINE MANUAL
BACK TO INDEX
ENGLISH
PROBLEM CAUSE ACTION
The earbuds do not
turn on
The battery has
no charge.
Place the earbuds in the
case to charge them.
If the case LED does
not turn on, use a USB
power source or a
wireless charging plate
to charge the case.
Cannot connect
or pair with a
Bluetooth device
Bluetooth is not
enabled on your
device (smartphone,
tablet, computer).
Activate Bluetooth on
your playback device.
The earbuds are not in
pairing mode.
Make sure that the
earbuds are in the case
with the case lid open
when start paring, see
Pairing a new device.
Erratic behavior The earbuds are
not using the latest
firmware version.
Download the Marshall
Bluetooth app and
connect to the earbuds.
Follow the in-app
instructions to ensure
that Minor IV has the
latest firmware version.
There is a
software error.
Perform a factory
reset, see Resetting
the earbuds.
The earbuds need to be
set up again.
TROUBLESHOOTING
