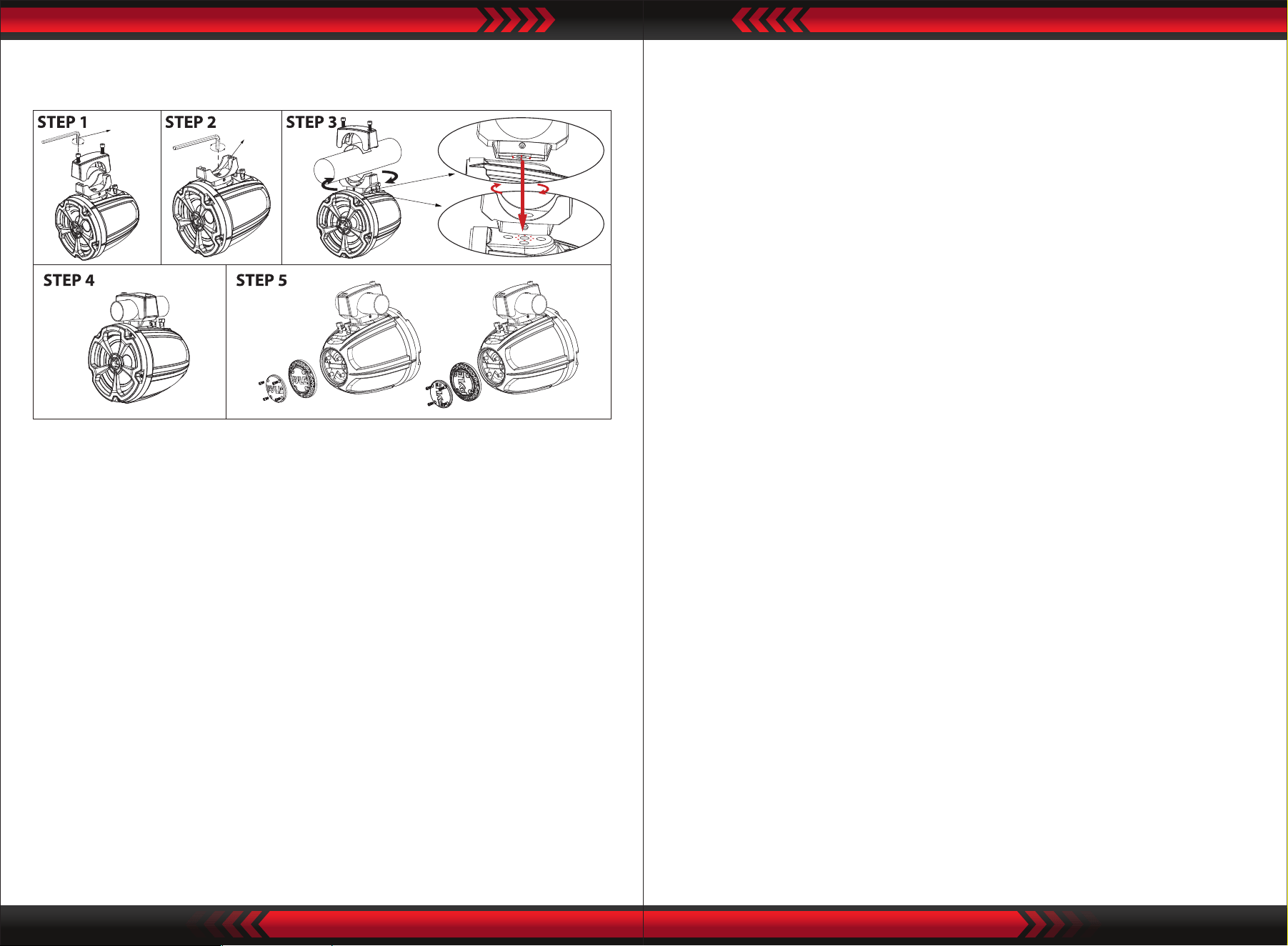

PLUTV61BK Speaker Installation
Speaker Mounting suggestion as below:
Step 1: Removing the top half of clamp
Put the PLUTV61BK speaker in a safe place.
Using the 1/4” Hex key, remove the top clamp bolts.
Step2/3: To adjust mounting clamp angle and speaker position
Diagram A is to show there are four round pins underneath the bottom
base of aluminum die cast clamp, which can be inserted and xed to four
round notch holes on top of plastic cabinet as diagram B shows by every
45 degrees adjustment either at clockwise or counter clockwise direction.
Through such design, user can change the angle of swivel clamp, use the
5/16” hex key to loose the center screw a little bit and lift the bottom clamp
to twist speaker angle by every 45 degrees to get the optimal angle you
want. Then re-making sure the pins on base of bottom clamp are inserted
and sits on notch holes on top of plastic cabinet at and seamlessly.
Then re-tighten the center hex screw to secure the bottom clamp strongly.
Step 4: Securing clamp bolts
Using the correct rubber pads (labeled for O.D.) install on both top and
bottom half of clamps. 3.15” x 1.2” x 0.2” rubber pads for 1.75” O.D. 3.15” x
1.2” x 0.08” rubber pads for 2” - 3” O.D. Using the 1/4” Hex bit socket hand
tighten the bolts evenly (both sides should have the same spacing
between bolts).
Step 5: Option for adjustable PYLE logo---Unbolt the screws rst, adjust the logo
direction, then re-x screws.
Features:
•
Pro Audio PowerSport Speakers
• Compact & High-Powered Output
• Marine Grade Rated Construction
• Weatherproof & Water-Resistant Housing
• Sound System: (2) x 6.5'' Woofers + (2) x 1’’ Tweeters
• 2-Way Full Range Stereo Sound Reproduction
• Impressive Bass Response
• Integrated Speaker Wiring for Quick Connection
• Sleek Design, Machine Molded Speaker Cabinet Housing
• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
• Used for O-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft
What’s in the Box:
•
(2) 6.5'' -inch ATV/UTV Speakers
• (2) Speaker Connection Wires, 6.5' ft.
• (2) 3” Aluminum Mounting Brackets (Pre-Installed on Speakers)
• (4) 3.15” x 1.2” x 0.2” Inches Rubber Pads
• (4) 3.15” x 1.2” x 0.08”Inches Rubber Pads
• (4) M8 x 55mm Hexagon Socket Head Cap Screws
• (4) M8 x 35mm Hexagon Socket Head Cap Screws (Pre-Installed)
Marine/PowerSports Tower Technical Specs:
•
Power Output: 1200 Watts
• Marine Grade Waterproof Rating: IP-X6
• Speaker Size: 6.5’’ -inch (Each)
• Speaker Style: Passive Speakers
• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
• Tweeter Type: Neodymium Dome (x2)
• Impedance: 4 Ohm
• Magnet Type: 32 oz. Circuit
• Mid-Woofer Voice Coil Type: 1'', TIL
• Sensitivity: 92 dB +/- 2 dB @ 1M/1W
• Universal Mounting Brackets Roll-Bar/Roll-Cage Diameter: 1.75’’ ~ 3.0’’ –inches
• 1.75”~2” for Motorsports/ Powersports Application.
• 2.25”~3” for Marine Application.
• Speaker Dimensions: 8.1’’ x 8.9’ x 10.5’’ -inches, with Bracket (-Each)
5/16”
Hex key
1/4”
Hex key
45°
Diagram A
Diagram B
