Evolution 069-0001 Handheld Dry Wall Sander User Manual

225mm HAND-HELD DRYWALL SANDER

Instruction

Manual

Read instructions before operating this tool.

Original written in UK English Date Published: 01/03/2016

Bedienungs handbuch

Manual de instrucciones

Manuel d’Instruction

Istruzioni Manuale

Oryginalna Instrukcja

Originele Instructies

Ursprungliga Instruktioner

Evolution Power Tools reserves the right to make improvements and modications

to the design and technical specication of this product without prior notication.

DRYWALL SANDER - SPECIFICATIONS

Power (230V ~ 50Hz) (Watts): 1050

RPM Rated speed (min

-1

): 1500-2300

Recommended Maximum Duty Cycle (Minutes): 30

Abrasive paper size (Diametre mm): 225

Dust extraction hose length (metres): 2

Weight (kg): 2.8

Noise and Vibration Data:

Sound Pressure LPA: 88dB(A) K=3dB(A)

Sound Power Level LWA: 99dB(A) K=3dB(A)

Vibration Level: 4.915m/s

K=1.5m/s

INFORMATION:

- that the deciared vibration total value has been measured in accordance with

a standard test method and may be used for comparing one tool with another;

- that the deciared vibration total value may also be used in a preliminary assessment of exposure

WARNING:

- that the vibration emission during actual use of the power tool can differ from the declared

total value depending on the ways in which the tool is used;and

- of the need to identify safety measures to protect the operator that are based on an estimation of

exposure in the actual conditions of use (taking account of all parts of the operating cycle such as

the times when the tool is switched off and when it is running idle in addition to the trigger time).

BUILD

IMPORTANT

Please read these operating and

safety instructions carefully and

completely. For your own safety, if

you are uncertain about any aspect of using

this equipment please access the relevant

Technical Helpline, the number of which can be

found on the Evolution Power Tools website.

We operate several Helplines throughout our

worldwide organization, but technical help is

also available from your supplier.

UK: +44 (0)114 251 1022

www.evolutionpowertools.com/register

Congratulations on your purchase of an

Evolution Power Tools Machine. Please

complete your product registration ‘online’

as explained in the A4 online guarantee

registration leaflet included with this

machine. You can also scan the QR code

found on the A4 leaflet with a Smart

Phone. This will enable you to validate your

machine’s guarantee period via Evolution’s

website by entering your details and thus

ensure prompt service if ever needed. We

sincerely thank you for selecting a product

from Evolution Power Tools.

EVOLUTION LIMITED GUARANTEE

Evolution Power Tools reserves the right

to make improvements and modifications

to the product design without prior notice.

Please refer to the guarantee registration

leaflet and/or the packaging for details of

the terms and conditions of the guarantee.

Evolution Power Tools will, within

the guarantee period, and from the original

date of purchase, repair or replace any

goods found to be defective in materials or

workmanship. This guarantee is void if the

tool being returned has been used beyond the

recommendations in the Instruction Manual

or if the machine has been damaged by

accident, neglect, or improper service.

This guarantee does not apply to machines

and / or components which have been altered,

changed, or modified in any way, or subjected

to use beyond recommended capacities

and specifications. Electrical components

are subject to respective manufacturers’

warranties. All goods returned defective shall

be returned prepaid freight to Evolution Power

Tools. Evolution Power Tools reserves the

right to optionally repair or replace it with the

same or equivalent item.

There is no warranty – written or verbal –

for consumable accessories such as

(following list not exhaustive) blades, cutters,

drills, chisels or paddles etc. In no event shall

Evolution Power Tools be liable for loss or

damage resulting directly or indirectly from

the use of our merchandise or from any other

cause. Evolution Power Tools is not liable

for any costs incurred on such goods

or consequential damages.

No officer, employee or agent of Evolution

Power Tools is authorized to make oral

representations of fitness or to waive any

of the foregoing terms of sale and none

shall be binding on Evolution Power Tools.

Questions relating to this limited

guarantee should be directed to the

company’s head ofce, or call the

appropriate Helpline number.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electric shock, this

equipment is fitted with an approved cord

and plug for its intended country of use. Do

not change the cord or plug in any way.

GENERAL SAFETY RULES

Read and understand all instructions

before operating this product. Failure

to follow all instructions listed below

may result in electric shock, re and

/ or serious personal injury. SAVE

THESE INSTRUCTIONS FOR FUTURE

REFERENCE.

IMPORTANT

HAND HELD DRYWALL SANDER

IMPORTANT SAFETY INSTRUCTIONS

GENERAL SAFETY RULES

WARNING: When using electric tools

basic safety precautions should always be

followed to reduce the risk of fire, electric

shock and personal injury.

POWER TOOL GENERAL SAFETY

INSTRUCTIONS

(These General Power Tool Safety

Instructions are as specified in BS EN

60745-1:2009 & EN 61029-1:2009)

WARNING: Read all safety warnings and

instructions. Failure to follow the warnings

and instructions may result in electric shock,

fire and/ or serious injury.

Save all warnings and instructions for

future reference.

The term “power tool” in the warnings refers

to your mains-operated (corded) power tool

or battery-operated (cordless) power tool.

1) General Power Tool Safety Warnings

[Work area safety]

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in

explosive atmospheres, such as in the

presence of ammable liquids, gasses or

dust. Power tools create sparks which may

ignite the dust or fumes.

c) Keep children and bystanders away

while operating power tool. Distractions

can cause you to lose control.

2) General Power Tool Safety Warnings

[Electrical Safety]

a) Power tool plugs must match the

outlet. Never modify the plug in any

way. Do not use any adapter plugs

with earthed (grounded) power tools.

Unmodified plugs and matching outlets will

reduce the risk of electric shock.

b) Avoid body contact with earthed

or grounded surfaces, such as pipes,

radiators, ranges and refrigerators.

There is an increased risk of electric shock if

your body is earthed or grounded.

c) Do not expose power tools to rain or

wet conditions. Water entering a power

tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the

cord for carrying, pulling or unplugging

the power tool. Keep cord away from

heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the

risk of electric shock.

e) When operating a power tool outdoors,

use an extension cord suitable for outdoor

use. Use of a cord suitable for outdoor use

reduces the risk of electric shock.

f) If operating a power tool in a damp

location is unavoidable, use a residual

current device (RCD) protected supply.

Use of an RCD reduces the risk of

electric shock.

3) General Power Tool Safety Warnings

[Personal Safety].

a) Stay alert, watch what you are doing

and use common sense when operating a

power tool. Do not use a power tool while

you are tired or under the inuence of

drugs, alcohol or medication. A moment of

inattention while operating power tools may

result in serious personal injury.

b) Use personal protective equipment.

Always wear eye protection. Protective

equipment such as dust masks, non-skid

safety shoes, hard hat or hearing protection

used for appropriate conditions will reduce

personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off-position before

connecting to power source and or

battery pack, picking up or carrying the

tool. Carrying power tools with your finger

on the switch or energising the power tools

that have the switch on invites accidents.

d) Remove any adjusting key or wrench

before turning the power tool on. A

wrench or key left attached to a rotating part

of a power tool may result in personal injury .

e) Do not overreach. Keep proper

footing and balance at all times. This

enables better control of the power tool in

unexpected situations.

f) Dress properly. Do not wear loose

clothing or jewellery. Keep your hair,

BUILD

clothing and gloves away from moving

parts. Loose clothes, jewellery or long hair

can be caught in moving parts.

g) If devices are provided for the

connection of dust extraction and

collection facilities, ensure that these are

connected and properly used. Use of dust

collection can reduce dust-related hazards.

4) General Power Tool Safety Warnings

[Power tool use and care].

a) Do not force the power tool. Use the

correct power tool for your application.

The correct power tool will do the job better

and safer at a rate for which it was designed.

b) Do not use the power tool if the switch

does not turn it on or off. Any power tool

that cannot be controlled with the switch is

dangerous and must be repaired.

c) Disconnect the power tool from

the power source and/or battery pack

from the power tool before making any

adjustments, changing accessories, or

storing power tools. Such preventative

safety measures reduce the risk of starting

the power tool accidentally.

d) Store idle power tools out of the

reach of children and do not allow

persons unfamiliar with the power tool

or these Instructions to operate the

power tool. Power tools are dangerous in

the hands of untrained users.

e) Maintain power tools. Check for

misalignment or binding of moving

parts, breakage of moving parts and

any other condition that may affect

the power tools operation. If damaged,

have the power tool repaired before

use. Many accidents are caused by poorly

maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are

easier to control.

g) Use the power tool, accessories and

tool bits etc. in accordance with these

instructions, taking into account the

working conditions and the work to

be performed. Use of the power tool for

operations different from those intended

could result in a hazardous situation.

5) General Power Tool Safety Warnings

[Service]

a) Have your power tool serviced by a

qualied repair person using only identical

replacement parts. This will ensure that the

safety of the power tool is maintained.

HEALTH ADVICE

WARNING: When drilling, sanding, sawing

or grinding, dust particles will be produced.

In some instances, depending on the

materials you are working with, this dust

can be particularly harmful to you (e.g.

lead from old gloss paint).You are advised

to consider the risks associated with the

materials you are working with and to

reduce the risk of exposure. Some wood

and wood type products, especially MDF

(Medium Density Fibreboard), can produce

dust that may be hazardous to your health.

We recommend the use of an approved face

mask with replaceable filters when using

this machine, in addition to using the dust

extraction facility.

You should always:

• Work in a well-ventilated area.

• Work with approved safety equipment,

such as dust masks that are specially

designed to filter microscopic particles.

WARNING: If you suspect that paint on

surfaces in your home contains lead, seek

professional advice. Lead based paints

should only be removed by a professional

and you should not attempt to remove it

yourself. Once the dust has been deposited

on surfaces, hand to mouth contact can result

in the ingestion of lead. Exposure to even

low levels of lead can cause irreversible brain

and nervous system damage. The young and

unborn children are particularly vulnerable.

HAND HELD DRYWALL SANDER

HEALTH ADVICE

WARNING: When using this machine the

operator can be exposed to high levels

of vibration transmitted to the hand and

arm. It is possible that the operator could

develop “Vibration white nger disease”

(Raynaud syndrome). This condition can

reduce the sensitivity of the hand to

temperature as well as producing general

numbness. Prolonged or regular users

of sanding machines should monitor

the condition of their hands and ngers

closely. If any of the symptoms become

evident, seek immediate medical advice.

• The measurement and assessment of

human exposure to hand-transmitted

vibration in the workplace is given in:

BS EN ISO 5349-1:2001 and BS EN ISO

5349-2:2002

• Many factors can influence the actual

vibration level during operation e.g the

work surfaces condition and orientation

and the type and condition of the abrasive

disc being used. Before each use, such

factors should be assessed, and where

possible appropriate working practices

adopted. Managing these factors can help

reduce the effects of vibration:

Handling

Handle the machine with care, allowing

the machine to do the work.

Avoid using excessive physical effort on

any of the machines controls.

Consider your security and stability, and

the orientation of the machine during use.

Work Surface

Consider the work surface material; its

condition, density, strength, rigidity and

orientation.

ADDITIONAL SAFETY INSTRUCTIONS

FOR DRYWALL SANDERS

WARNING: Be sure to read and

understand all instructions. Failure

to follow all instructions listed below

may result in electric shock, re and/or

serious personal injury.

1. Know your power tool. Read operator’s

manual carefully. Learn the applications and

limitations, as well as the specific potential

hazards related to this tool.

2. Always wear safety glasses or eye

shields when using this machine.

Everyday eyeglasses have only impact-

resistant lenses; they are not safety glasses.

3. Always protect your lungs. Wear a

face mask or dust mask that is specially

designed to filter microscopic particles. Do

not use any Drywall Sander if it is suspected

that asbestos or lead could be present

in the wall material. Contact the relevant

authorities for advice.

4. Always protect your hearing. Wear

hearing protection during extended periods

of operation. Wear other PPE (Personal

Protection Equipment) as may be necessary

for the job at hand. If unsure, consult

competent advice from a supervisor or other

responsible person.

5. Inspect the machines power cord

regularly and if damaged have it

repaired or replaced. Always be aware

of the power supply cords location and

routing. Ensure that the power cord is safely

routed and cannot be damaged in any way

by contact with sharp or heavy objects etc.

Ensure that the power cord route does not

pose a ‘trip hazard’.

6. Always check for damaged parts.

Before further use of the tool, a guard

or other part that is damaged should be

carefully checked to determine if it will

operate properly and perform its intended

function. Check for misalignment or binding

of moving parts, breakage of parts, and

any other condition that may affect the

tool’s operation. A guard or other part that

is damaged should be properly repaired or

replaced at a qualified service centre.

7. Do not abuse the power supply cord.

Never use the cord to carry the tools or pull

the plug from the outlet. Keep cord away from

heat, oil, sharp edges or moving parts. Replace

damaged cords immediately. Damaged cords

VIBRATION

BUILD

increase the risk of electric shock.

8. Always make sure that any extension

cord you use is in good condition, and if

used outdoors is of a suitable type, and

so labelled. When using an extension cord

be sure to use one that is heavy enough to

carry the current that your tool will draw.

An undersized cord will cause a drop in

line voltage, resulting in loss of power and

possible overheating.

9. Do not use the tool while tired or

under the inuence of drugs, alcohol or

any medication. Following this rule will

reduce the risk of electric shock, fire or

serious personal injury.

10. Save these instructions. Refer to them

frequently and use them to instruct others

who may use this tool. If someone borrows

this tool, make sure they have these

instructions also.

11. Ensure that the operator is adequately

trained in the use adjustment and

operation and operation of the machine.

All operators should have read and understood

the instructions contained within this manual,

before commencing operations.

12. Ensure that the workplace lighting

is adequate, and/or provide extra

lighting for the immediate work area.

Poorly illuminated workplaces are inherently

dangerous.

13. Keep the work area well ventilated.

If possible open some windows and put an

exhaust fan in one of them to move air from

the inside to the outside. Post WARNING

notices to alert bystanders that potentially

hazardous operations are taking place nearby.

14. Use a vacuum dust extraction

machine in conjunction with this sander.

The workplace should be kept as clean and

dust free as possible. A dust filled room has

an explosive potential.

15. Ensure that there are no sources of

ignition nearby. Dust suspended in the air

has an explosive potential.

16. Do not connect a domestic vacuum

cleaner to this machine. A domestic

vacuum cleaner is not suitable for the

collection of drywall dust particles.

Safety Warnings Common

for Sanding Operations:

a) This power tool is intended to

function as a sander tool. Read

all safety warnings, instructions,

illustrations and specications

provided with this power tool.

Failure to follow all instructions listed below

may result in electric shock, fire and/or

serious injury.

b) Operations such as grinding, sanding,

wire brushing, polishing or cutting-off

are not recommended to be performed

with this power tool. Operations for which

the power tool was not designed may create

a hazard and cause personal injury.

c) Do not use accessories which are not

specically designed and recommended

by the tool manufacturer. Just because

the accessory can be attached to your

power tool, it does not assure safe

operation.

d) The rated speed of the accessory

must be at least equal to the maximum

speed marked on the power tool.

Accessories running faster than their rated

speed can break and fly apart.

e) The outside diameter and the

thickness of your accessory must be

within the capacity rating of your power

tool. Incorrectly sized accessories cannot

be adequately guarded or controlled.

f) The arbour size of wheels, anges,

backing pads or any other accessory

must properly t the spindle of the

power tool. Accessories with arbour holes

that do not match the mounting hardware

of the power tool will run out of balance,

vibrate excessively and may cause loss

of control.

g) Do not use a damaged accessory.

Before each use inspect the accessory

such as abrasive wheels for chips and

cracks, backing pad for cracks, tear

or excess wear, wire brush for loose

or cracked wires. If power tool or

accessory is dropped, inspect

HAND HELD DRYWALL SANDER

SAFETY INSTRUCTIONS FOR ALL OPERATIONS

for damage or install an undamaged

accessory. After inspecting and

installing an accessory, position yourself

and bystanders away from the plane

of the rotating accessory and run the

power tool at maximum no-load speed

for one minute.

Damaged accessories will normally break

apart during this test time.

h) Wear personal protective equipment.

Depending on application, use face

shield, safety goggles or safety glasses.

As appropriate, wear dust mask, hearing

protectors, gloves and workshop apron

capable of stopping small abrasive or

workpiece fragments. The eye protection

must be capable of stopping flying debris

generated by various operations . The

dust mask or respirator must be capable

of filtrating particles generated by your

operation. Prolonged exposure to high

intensity noise may cause hearing loss.

i) Keep bystanders a safe distance

away from work area. Anyone entering

the work area must wear personal

protective equipment. Fragments of

workpiece or of a broken accessory may fly

away and cause injury beyond immediate

area of operation.

j) Hold the power tool by insulated

gripping surfaces only, when performing

an operation where the cutting

accessory may contact hidden

wiring or its own cord.

Cutting accessory contacting a “live”

wire may make exposed metal parts of

the power tool “live” and could give the

operator an electric shock.

k) Position the cord clear of the spinning

accessory. If you lose control, the cord may

be cut or snagged and your hand or arm

may be pulled into the spinning accessory.

l) Never lay the power tool down until

the accessory has come to a complete

stop. The spinning accessory may grab the

surface and pull the power tool out of your

control.

m) Do not run the power tool while

carrying it at your side. Accidental contact

with the spinning accessory could snag

your clothing, pulling the accessory into

your body.

n) Regularly clean the power tool’s

air vents. The motor’s fan will draw the

dust inside the housing and excessive

accumulation of powdered metal may cause

electrical hazards.

o) Do not operate the power tool near

ammable materials. Sparks could ignite

these materials.

p) Do not use accessories that require

liquid coolants. Using water or other liquid

coolants may result in electrocution or

shock.

Kickback is a sudden reaction to a pinched

or snagged rotating wheel, backing pad,

brush or any other accessory. Pinching

or snagging causes rapid stalling of the

rotating accessory which in turn causes the

uncontrolled power tool to be forced

in the direction opposite of the accessory’s

rotation at the point of the binding.

For example, if an abrasive wheel is

snagged or pinched by the workpiece, the

edge of the wheel that is entering into the

pinch point can dig into the surface of the

material causing the wheel to climb out or

kick out. The wheel may either jump toward

or away from the operator, depending on

direction of the wheel’s movement at the

point of pinching. Abrasive wheels

may also break under these conditions.

Kickback is the result of power tool misuse

and/or incorrect operating procedures or

conditions and can be avoided by taking

proper precautions as given below.

a) Maintain a rm grip on the power

tool and position your body and arm

to allow you to resist kickback forces.

Always use auxiliary handle, if provided,

for maximum control over kickback or

torque reaction during start-up.

The operator can control torque reactions

or kickback forces, if proper precautions

KICKBACK & RELATED WARNINGS

BUILD

are taken.

b) Never place your hand near the

rotating accessory. Accessory may

kickback over your hand.

c) Do not position your body in the area

where power tool will move if kickback

occurs. Kickback will propel the tool in

direction opposite to the wheel’s

movement at the point of snagging.

d) Use special care when working

corners, sharp edges etc. Avoid

bouncing and snagging the accessory.

Corners, sharp edges or bouncing have

a tendency to snag the rotating accessory

and cause loss of control or kickback.

e) Do not attach a saw chain

woodcarving blade or toothed

saw blade. Such blades create frequent

kickback and loss of control.

a) Do not use excessively oversized

sanding disc paper. Follow

manufacturers recommendations,

when selecting sanding paper.

Larger sanding paper extending beyond

the sanding pad presents a laceration hazard

and may cause snagging, tearing of

the disc or kickback.

WARNING: the operation of any sanding

machine can result in foreign objects being

thrown towards your eyes, which could result

in severe eye damage. Before beginning

power tool operation, always wear safety

goggles or safety glasses with side shield or

a full face shield where needed.

WARNING: If any parts are missing, do not

operate your machine until the missing parts

are replaced. Failure to follow this rule could

result in serious personal injury.

SAFETY LABELS & SYMBOLS

WARNING: Do not operate this machine

if warning and/or instruction labels are

missing or damaged. Contact Evolution

Power Tools for replacement labels.

Note: All or some of the following symbols

may appear in the manual or on the product.

Symbol Description

V Volts

A Amperes

Hz Hertz

Min

-1

Rated speed

~ Alternating Current

No Load Rated speed

Double Insulated

Wear Safety Goggles

Wear Ear Protection

UKCA Certification

INTENDED USE OF THIS POWER TOOL

WARNING: This product is a Drywall

Sanding Machine and has been designed to

be used with most commercially available

sanding discs. Only use sanding discs

designed for use in this machine and/

or those recommended specifically by

Evolution Power Tools Ltd.

When tted with a correct abrasive

sanding disc this machine can be used

to sand:

• Drywall walls and ceilings.

WARNING: This machine is not suitable for

sanding materials that may contain asbestos

or lead based products.

PROHIBITED USE OF THIS POWER TOOL

WARNING: This product is a Drywall

Sanding Machine and must only be used as

such. It must not be modified in any way,

or used to power any other equipment or

drive any other accessories other than those

mentioned in this Instruction Manual.

WARNING: This product is not intended

for use by persons (including children)

with reduced physical, sensory or mental

HAND HELD DRYWALL SANDER

SAFETY WARNINGS SPECIFIC FOR SANDING OPERATIONS UK

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning

the safe use of the product by a person

responsible for their safety and who is

competent in its safe use.

GETTING STARTED

UNPACKING

Caution: This packaging contains sharp

objects. Take care when unpacking. Remove

the machine, together with the accessories

supplied from the packaging. Check carefully

to ensure that the machine is in good

condition and account for all the accessories

listed in this manual. Also make sure that all

the accessories are complete. If any parts

are found to be missing, the machine and

its accessories should be returned together

in their original packaging to the retailer. Do

not throw the packaging away; keep it safe

throughout the guarantee period. Dispose

of the packaging in an environmentally

responsible manner. Recycle if possible. Do

not let children play with empty plastic bags

due to the risk of suffocation.

ITEMS SUPPLIED

DESCRIPTION QUANTITY

Instruction Manual 1

Sanding Discs (assorted) 8

Dust Extraction Hose 1

Side Assist Handle 1

Dust Bag 1

Hose Adaptor 1

Carry Belt 1

Replacement Carbon Brush

Set (power)

Hex Key 5mm 1

GETTING STARTED

BUILD

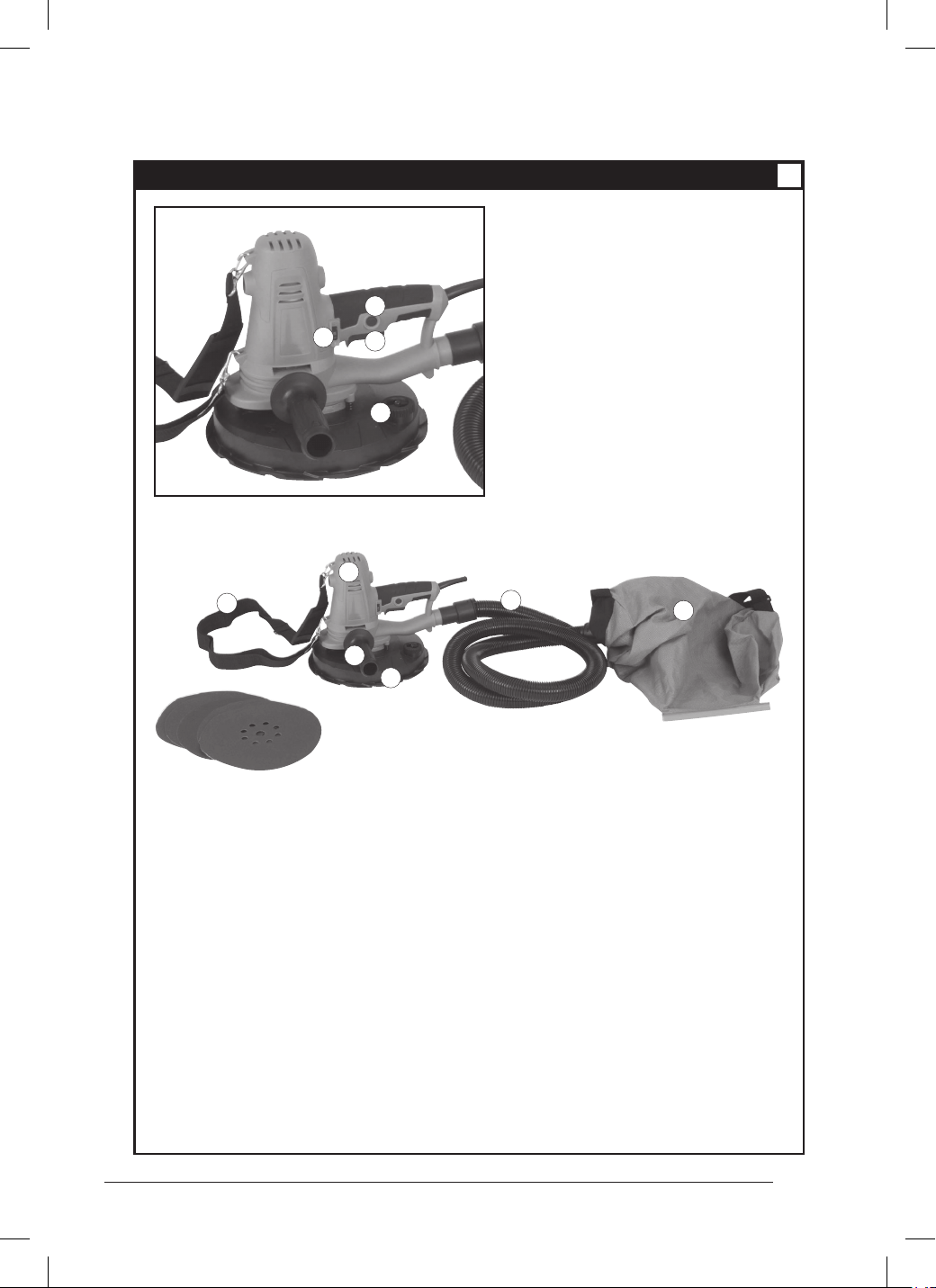

1. Sprung Sanding Head

2. Power

3. Side Assist Handle

4. Power On/Off Trigger

5. Power rated speed control

6. Trigger Locking Button

7. Dust Extraction Hose

8. Dust Collection Bag

9. Suction Regulator

10. Machine Carry Strap

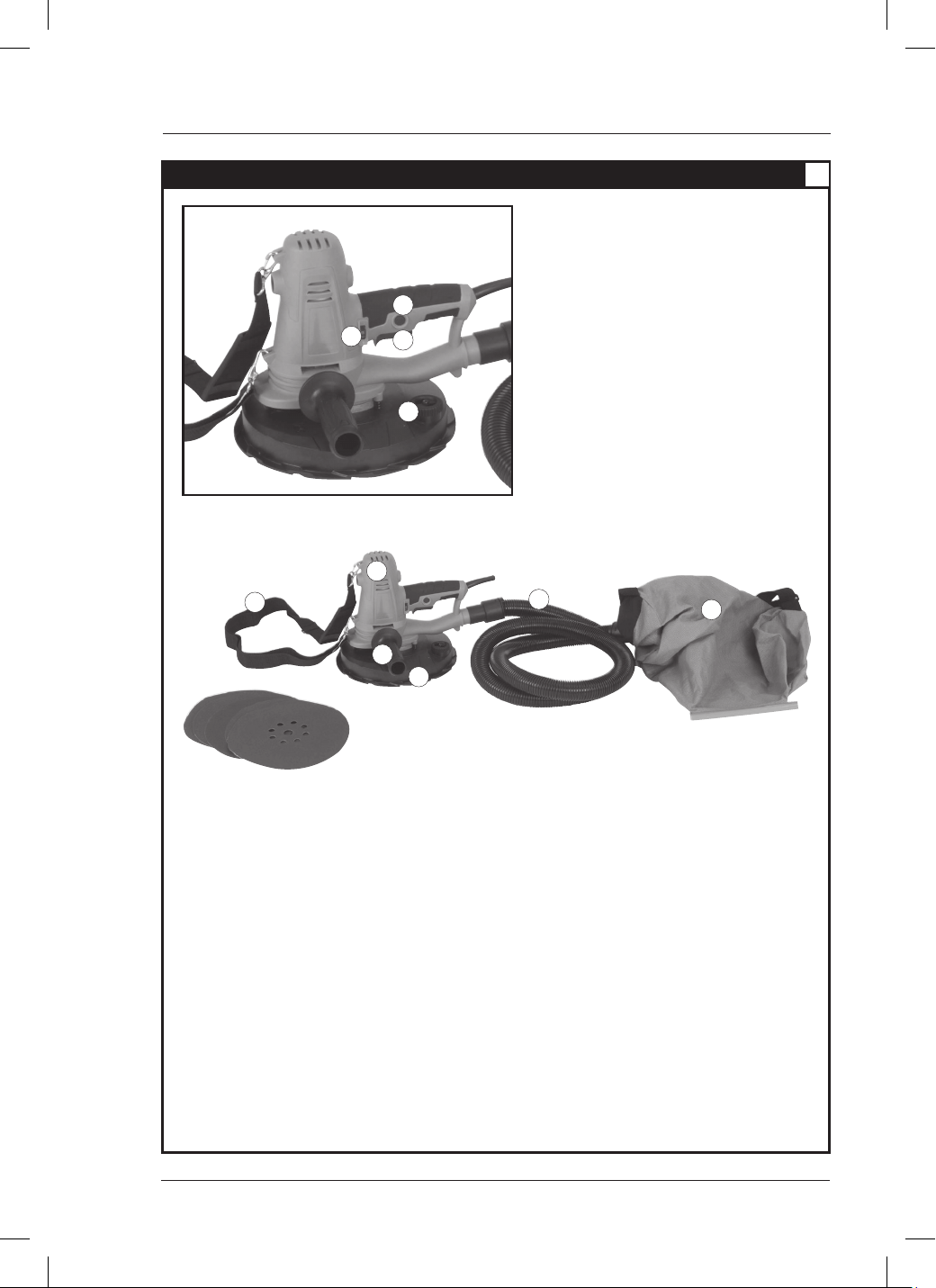

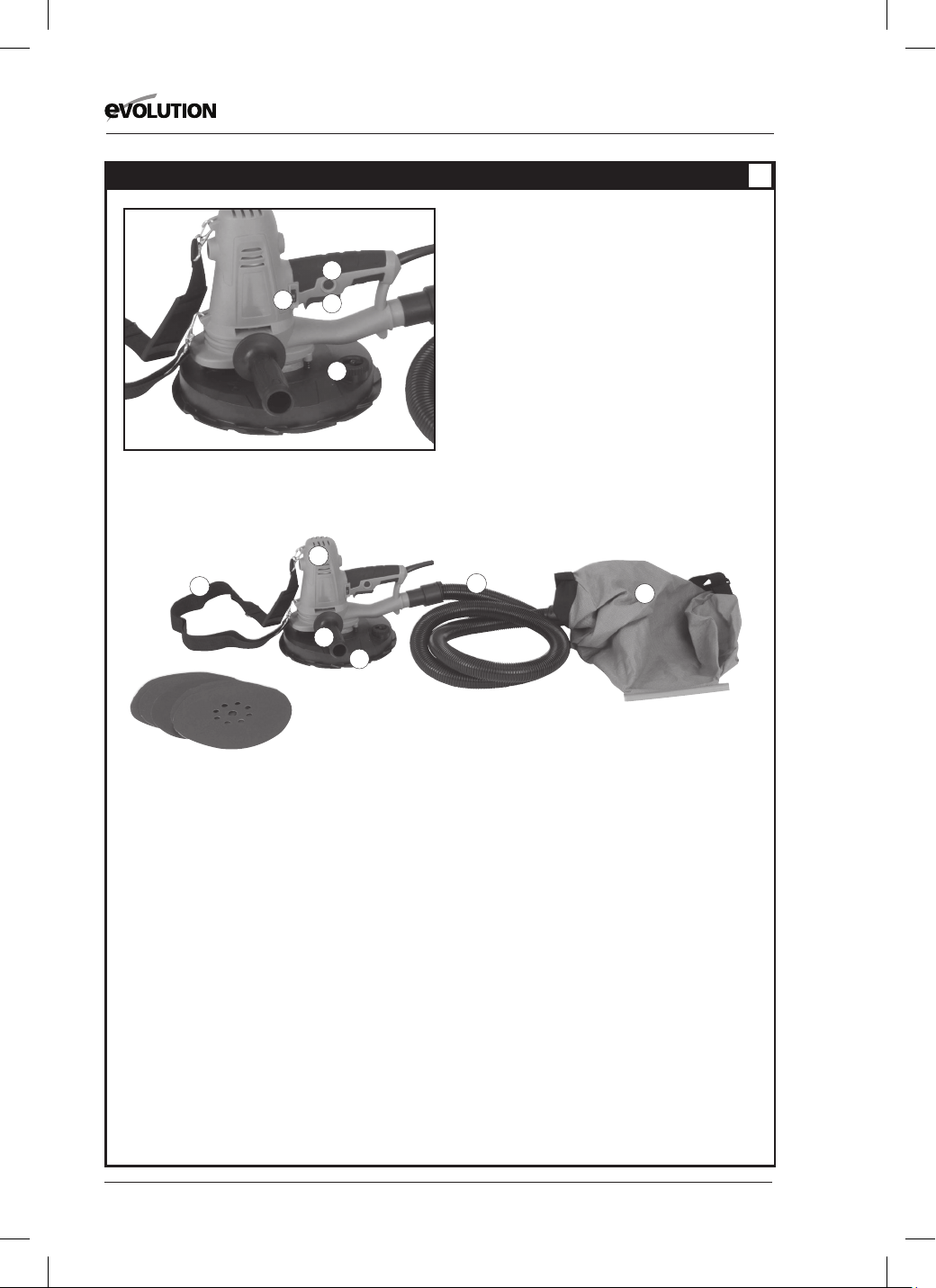

OVERALL VIEW OF DRYWALL SANDER

HAND HELD DRYWALL SANDER

ASSEMBLY

Some minor assembly is required to prepare

the EB225DWSHH for use.

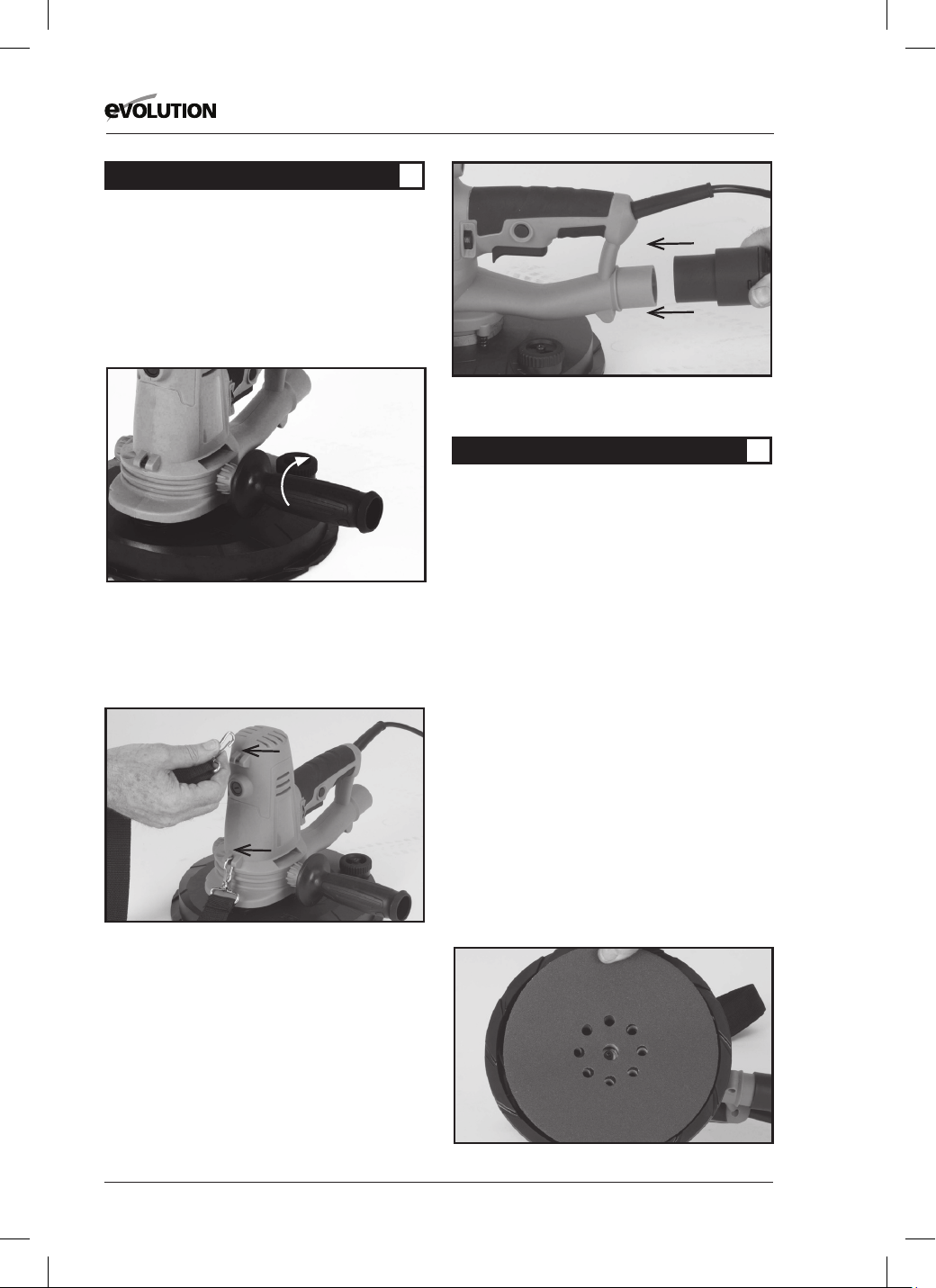

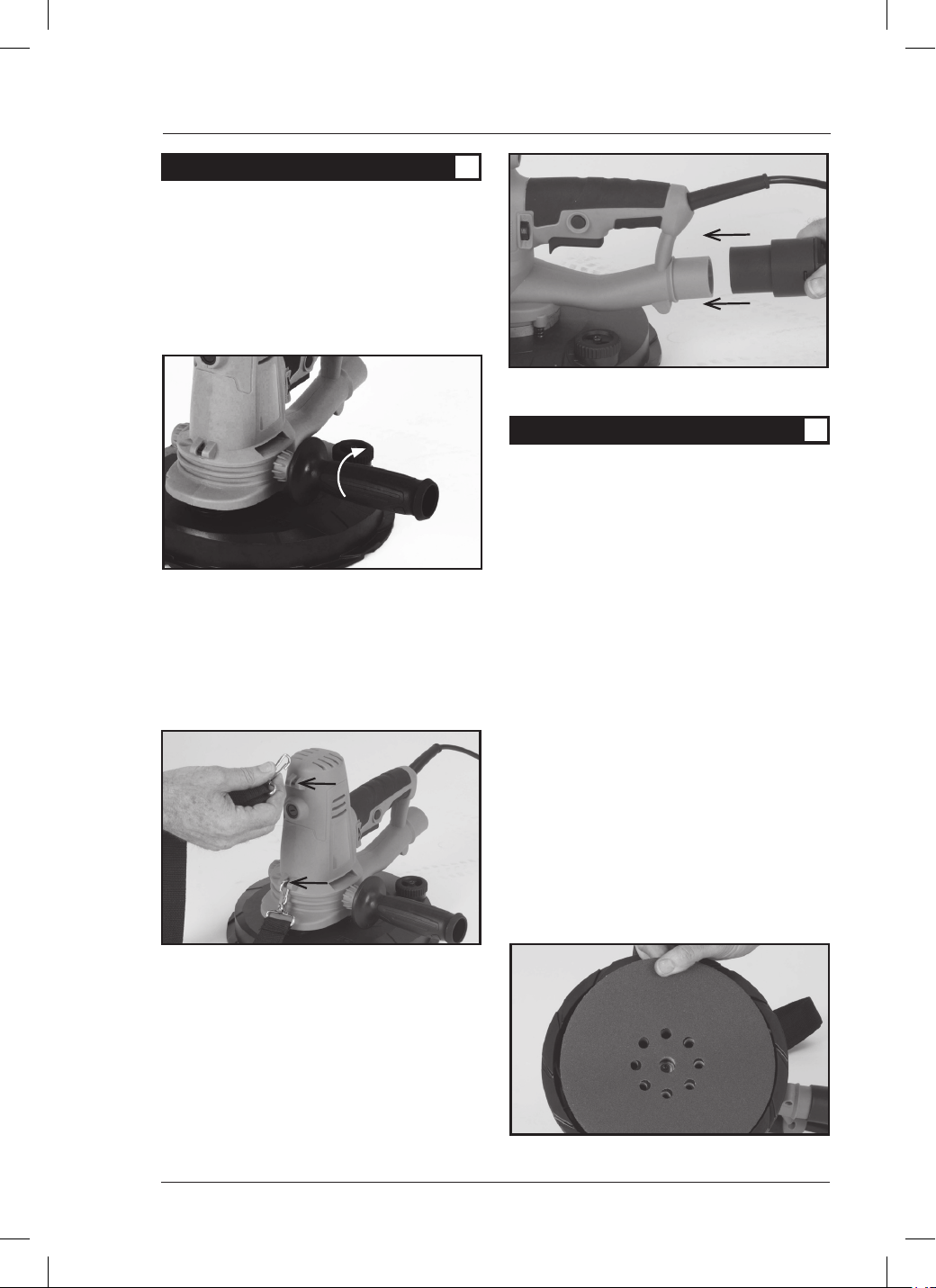

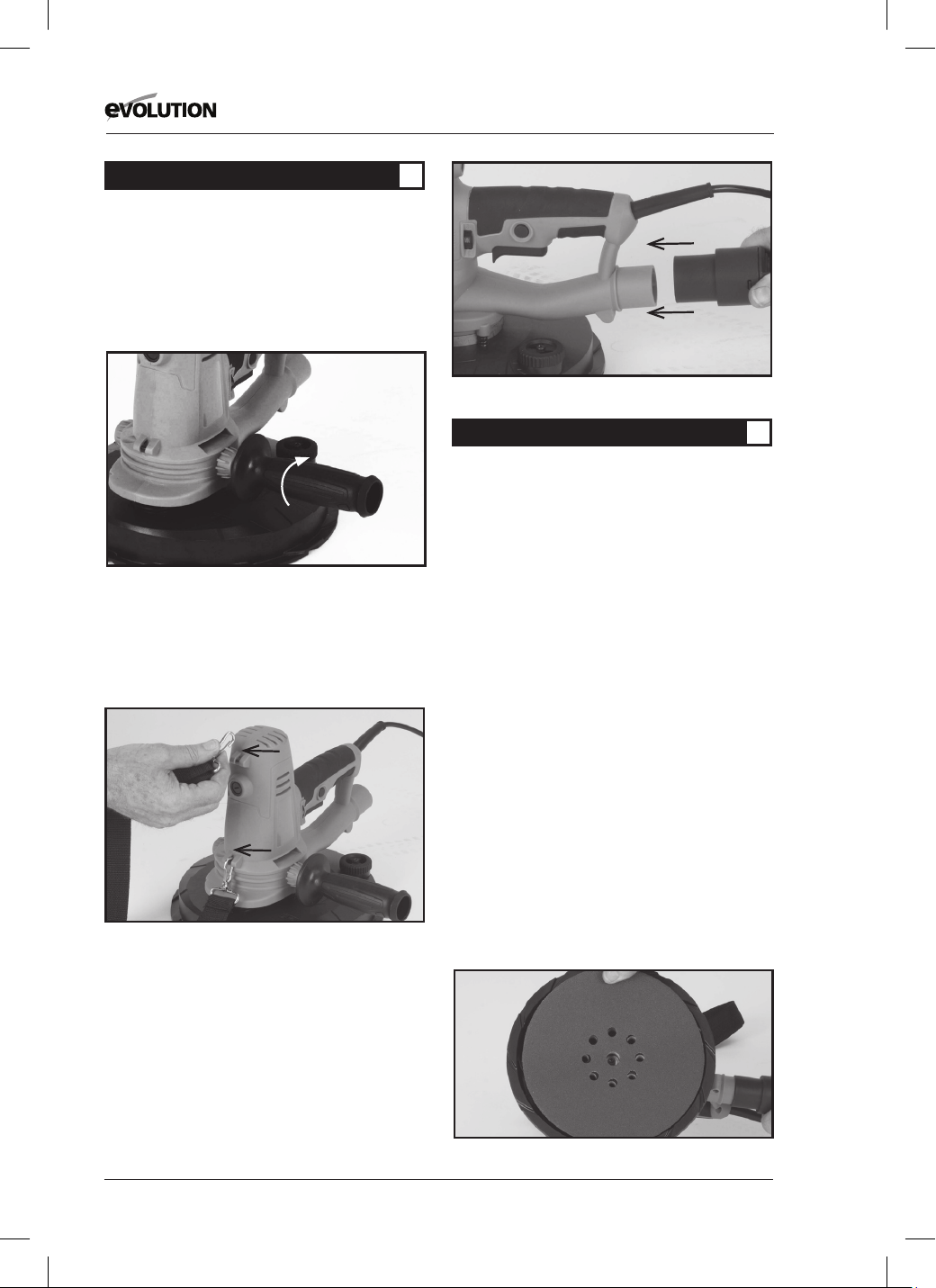

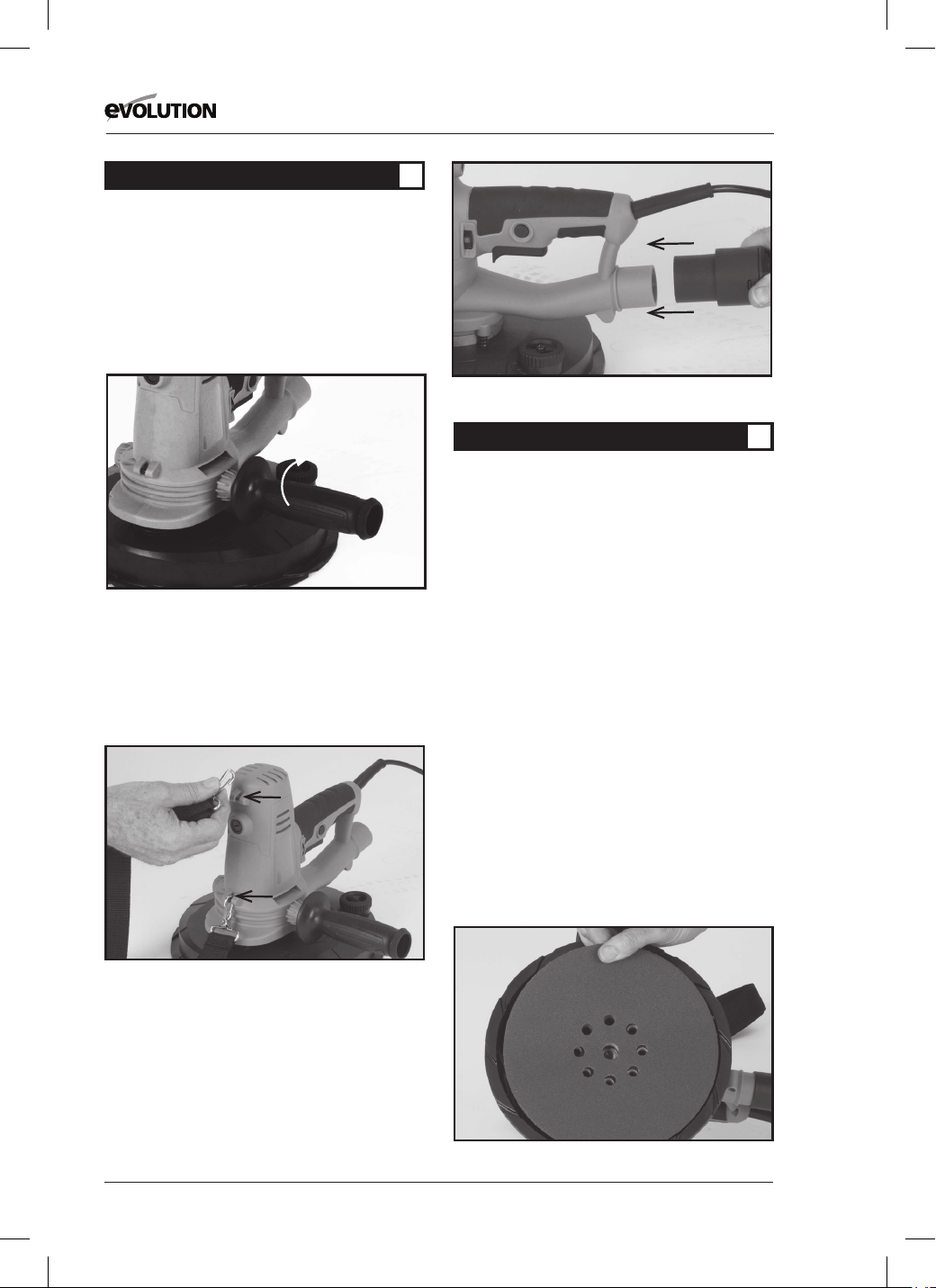

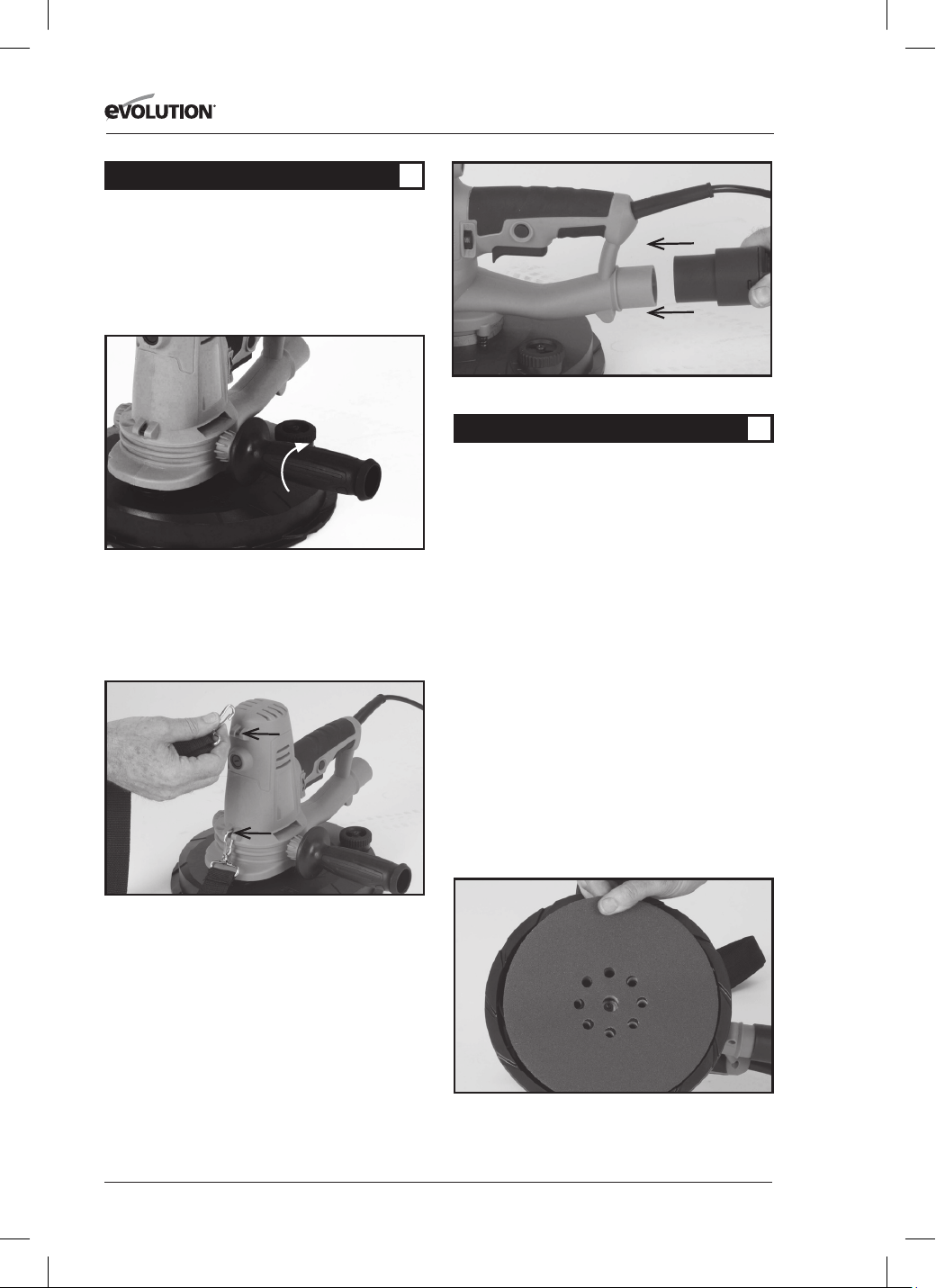

• Attach the Side Assist Handle to the

machine by screwing it into the preferred

boss on the left hand or right hand side

of the machine. (Fig. 1)

• Attach the Carry Strap to the main body

of the machine (if required) by clipping it

to the dedicated attachment pins. (Fig. 2)

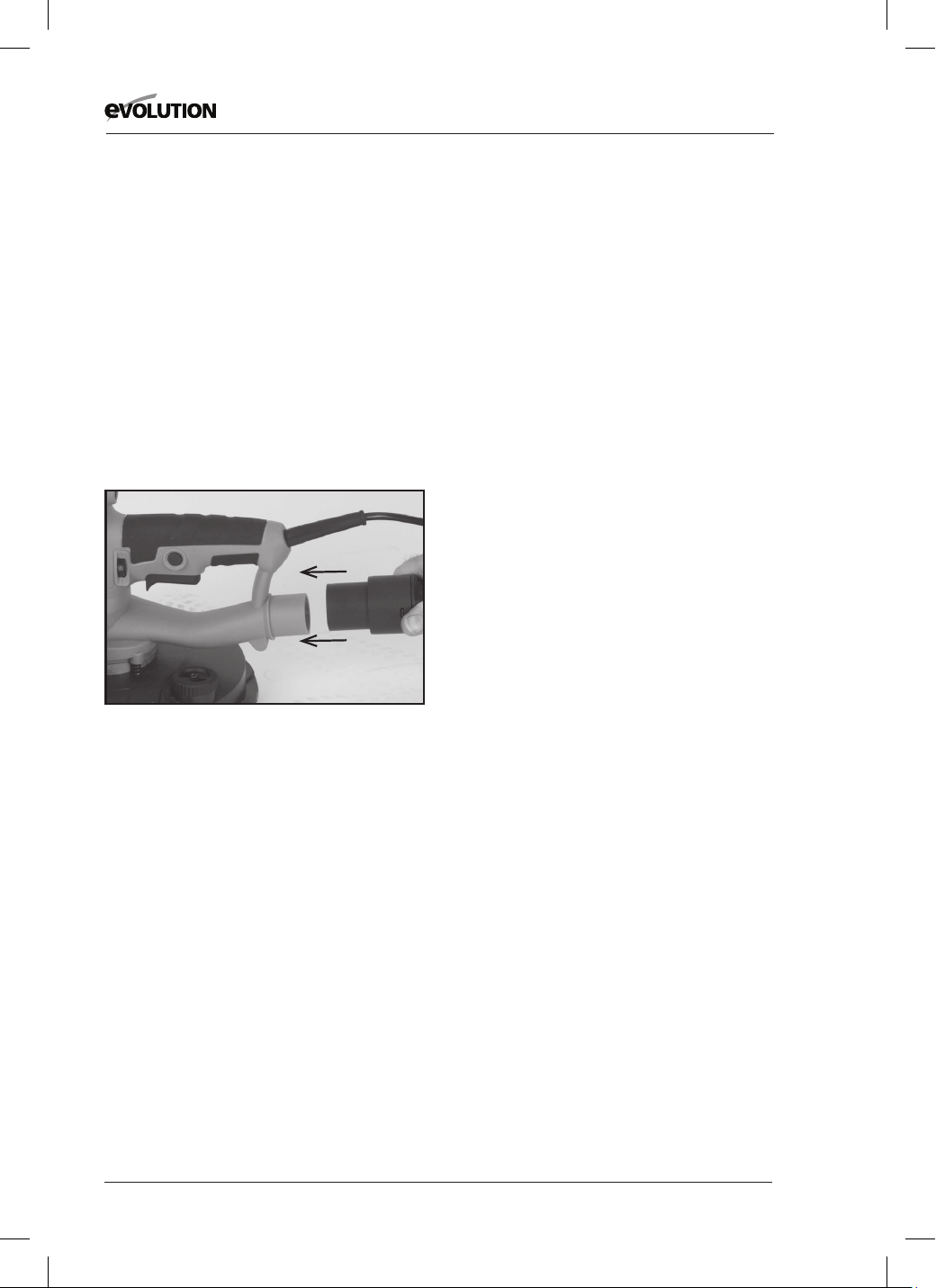

• Push the Dust Extraction Hose onto the

dust extraction port on the machines

main body. (Fig. 3)

OPERATION

Fitting or removing an

Abrasive Sanding Disc

WARNING: Only remove or replace an

abrasive sanding disc with the machine

disconnected from the power supply.

Note: Only use sanding discs which are

specifically designed for use in this machine.

This machine uses a hook and loop system

which enables very quick changes of the

abrasive sanding disc. The hooks on the Power

Driven Backing Pad engage with the loops on

the back of the abrasive sanding disc.

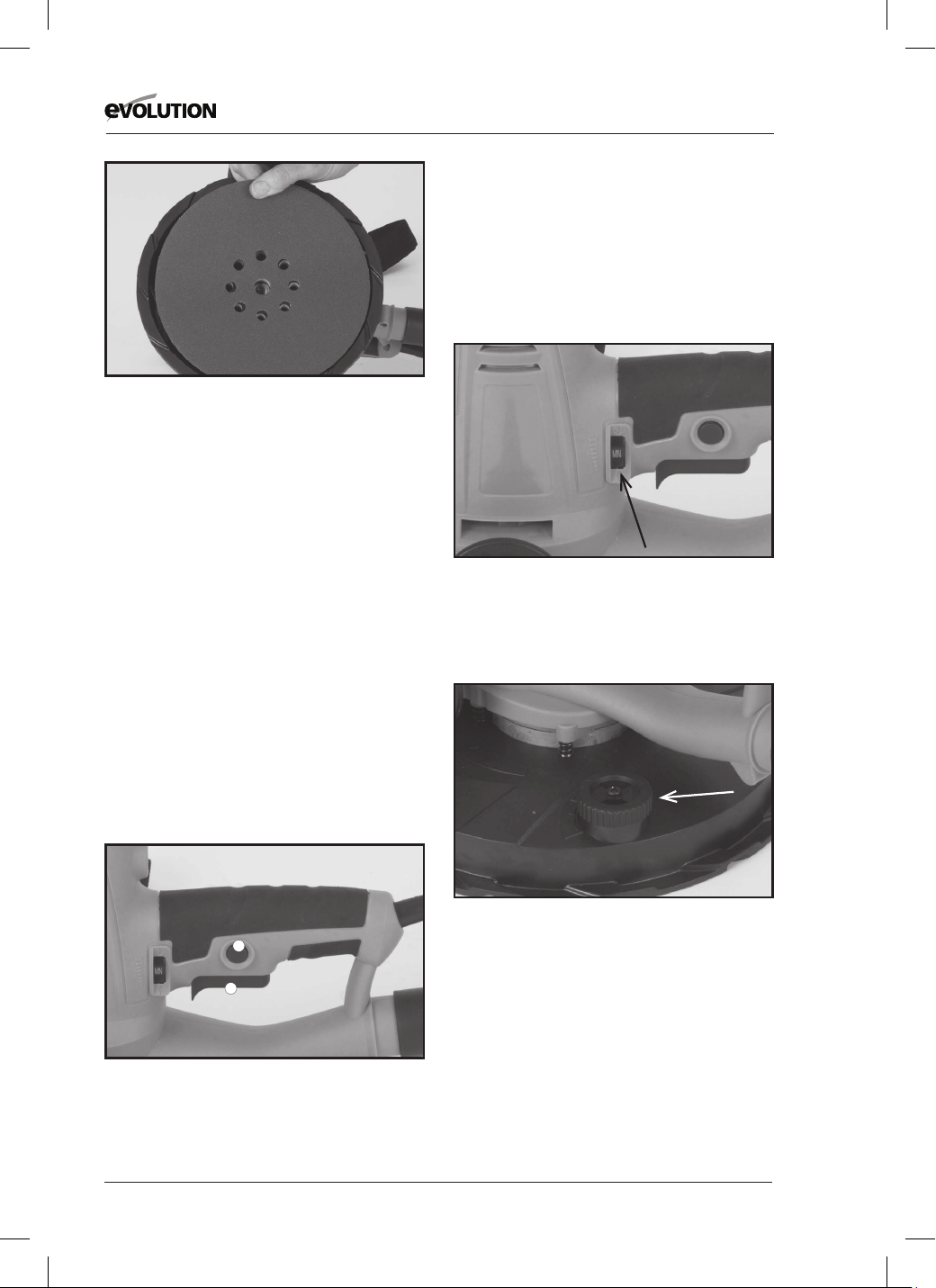

To t an abrasive sanding disc:

• Place the new abrasive disc accurately

onto the Backing Pad.

• Press it firmly by hand into place.

• Be careful to ensure that the nine (9)

holes in the abrasive sanding disc line up

perfectly with the nine (9) holes in the

Backing Pad. (Fig. 4)

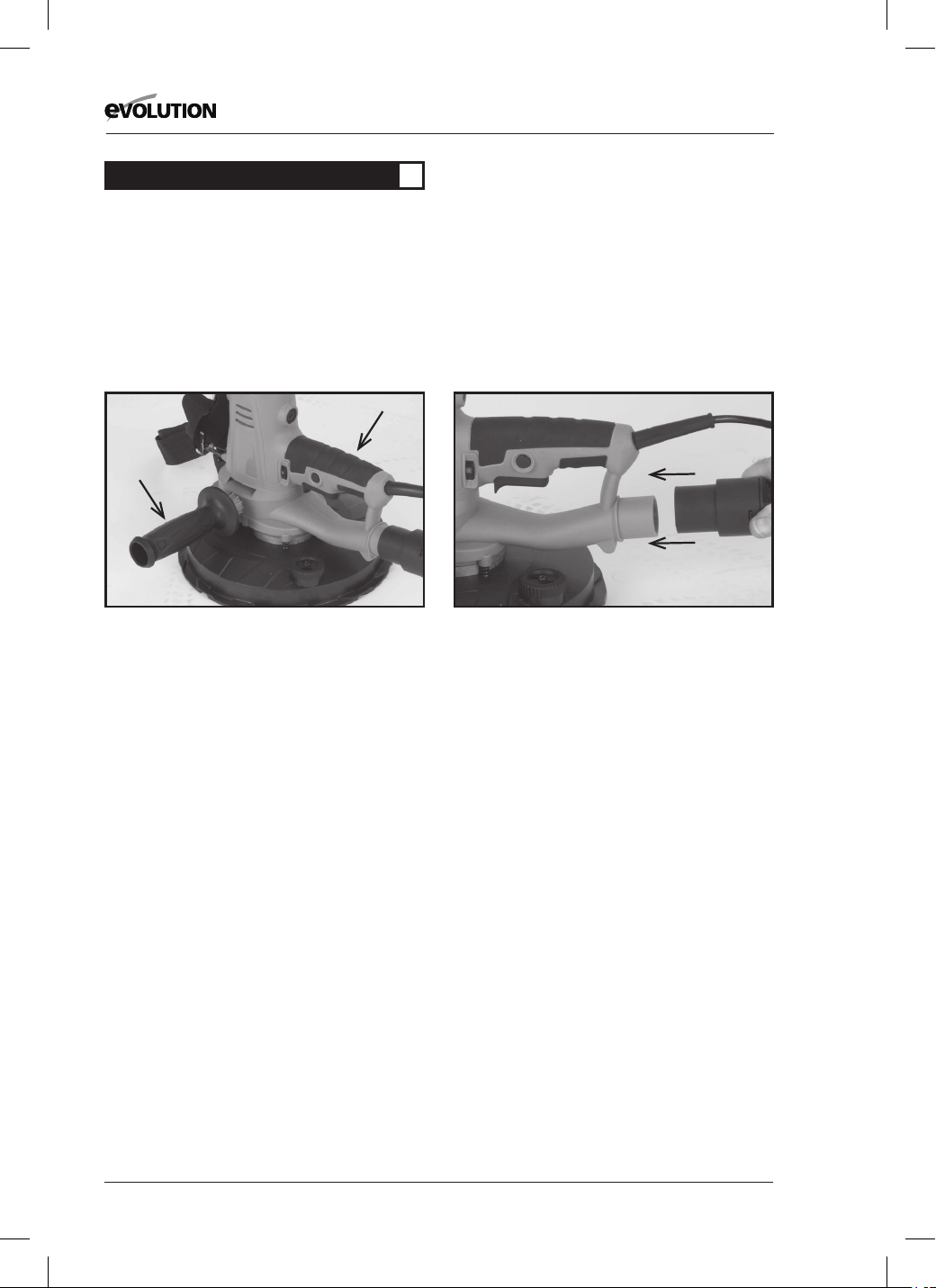

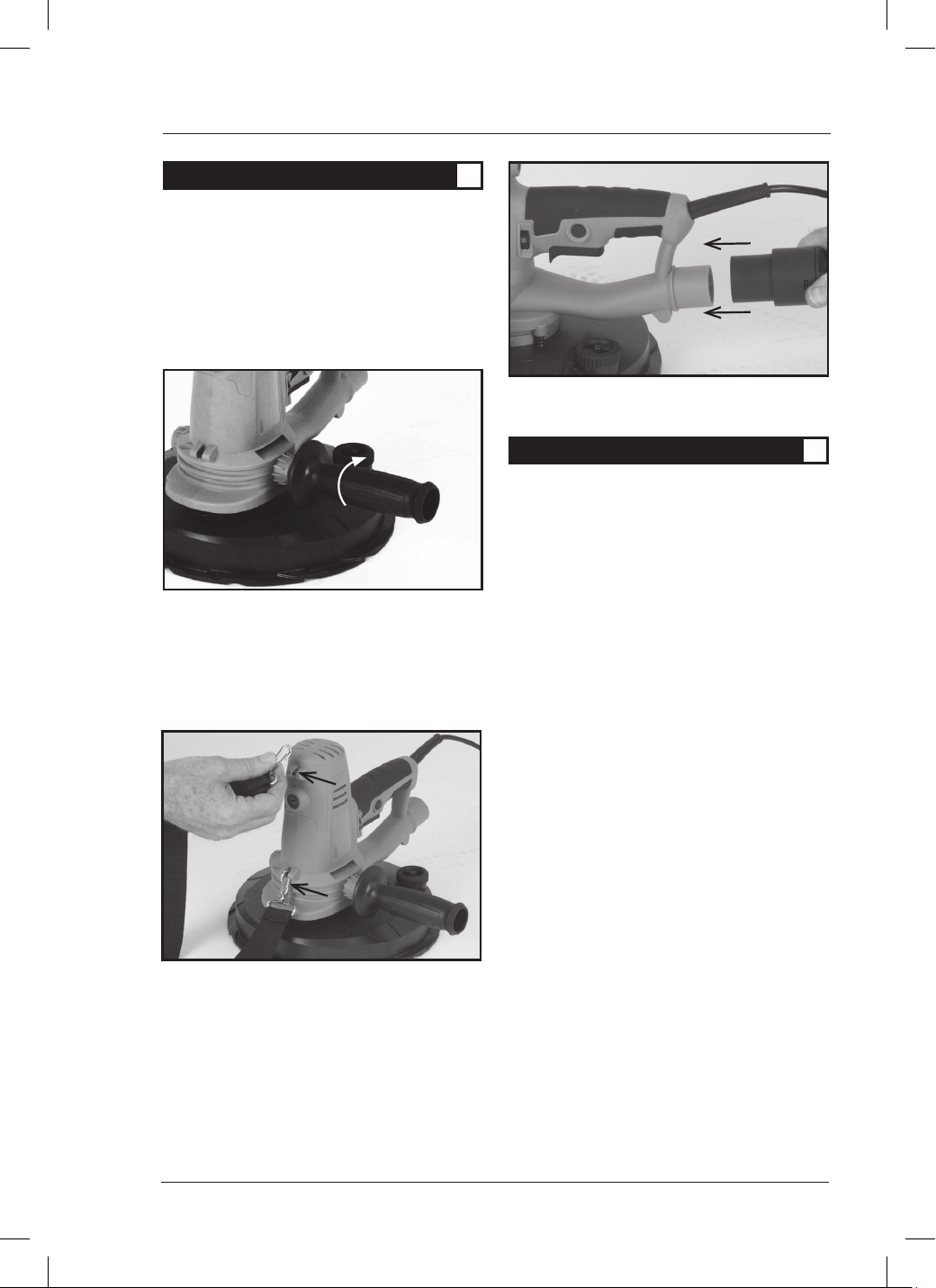

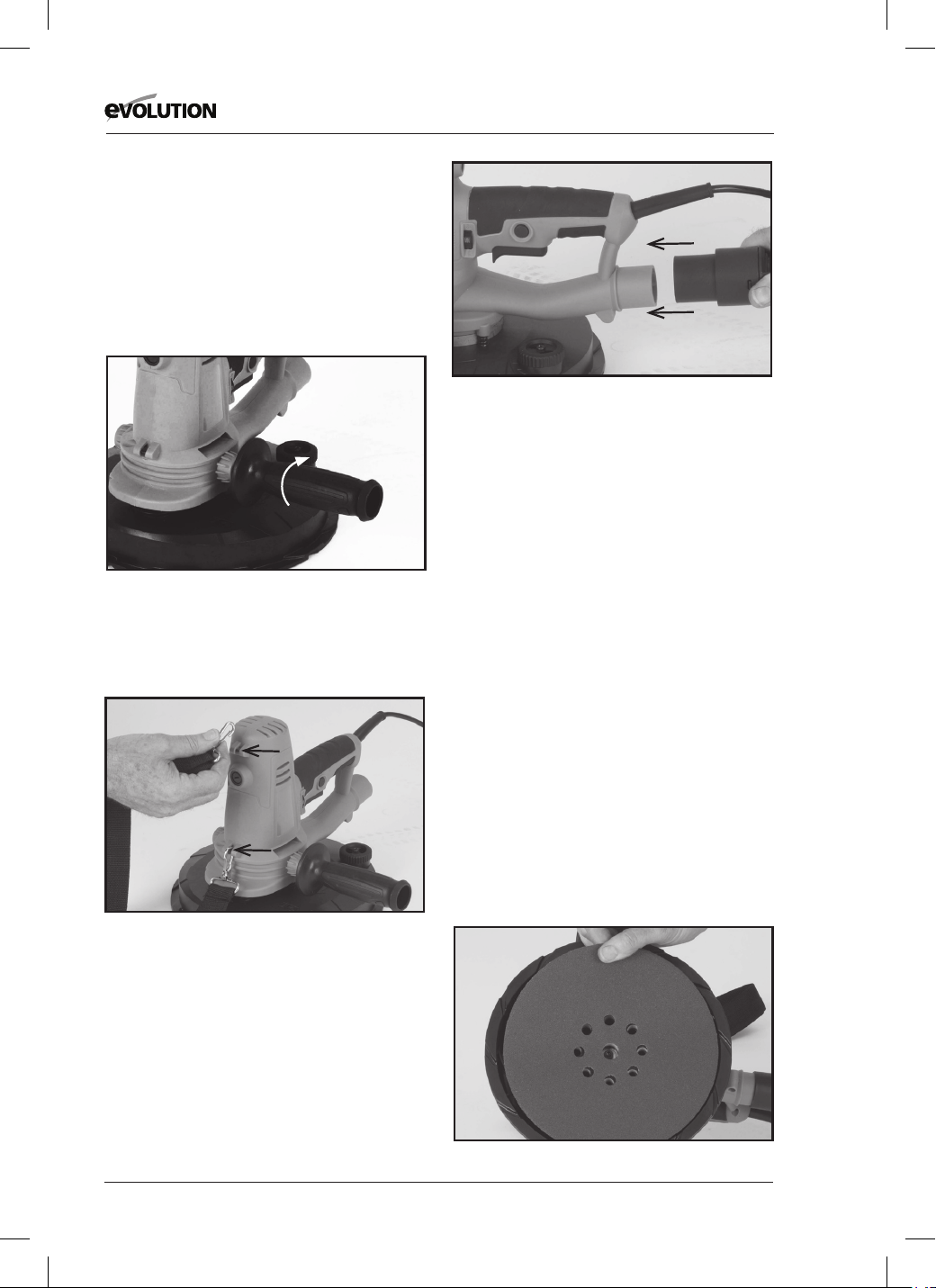

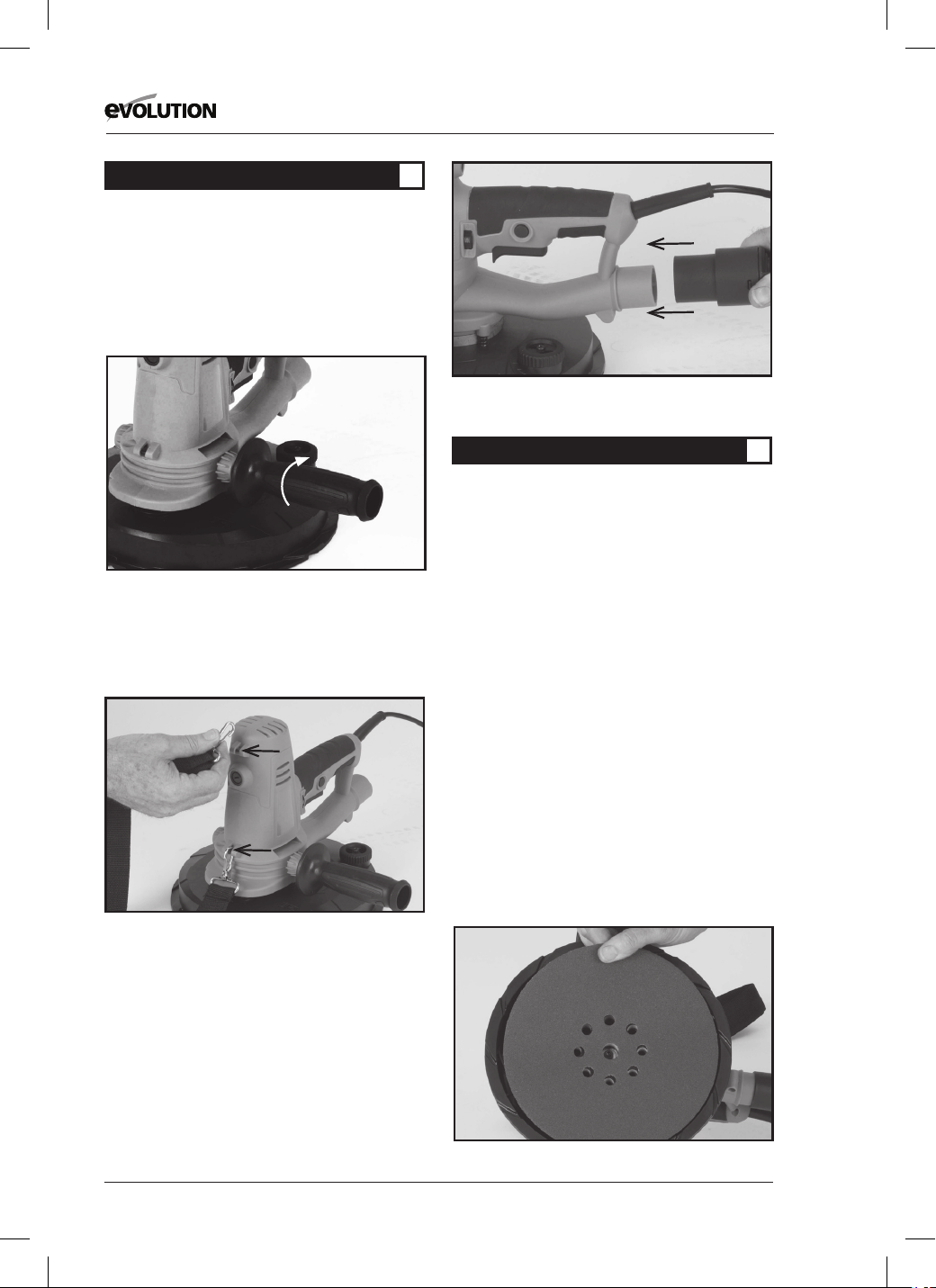

Fig. 1

Fig. 3

Fig. 2

Fig. 4

ASSEMBLY

OPERATION

BUILD

To remove an Abrasive Sanding Disc:

• Lift the abrasive disc at any point along

its edge, and gently peel upwards and

away from the Backing Pad.

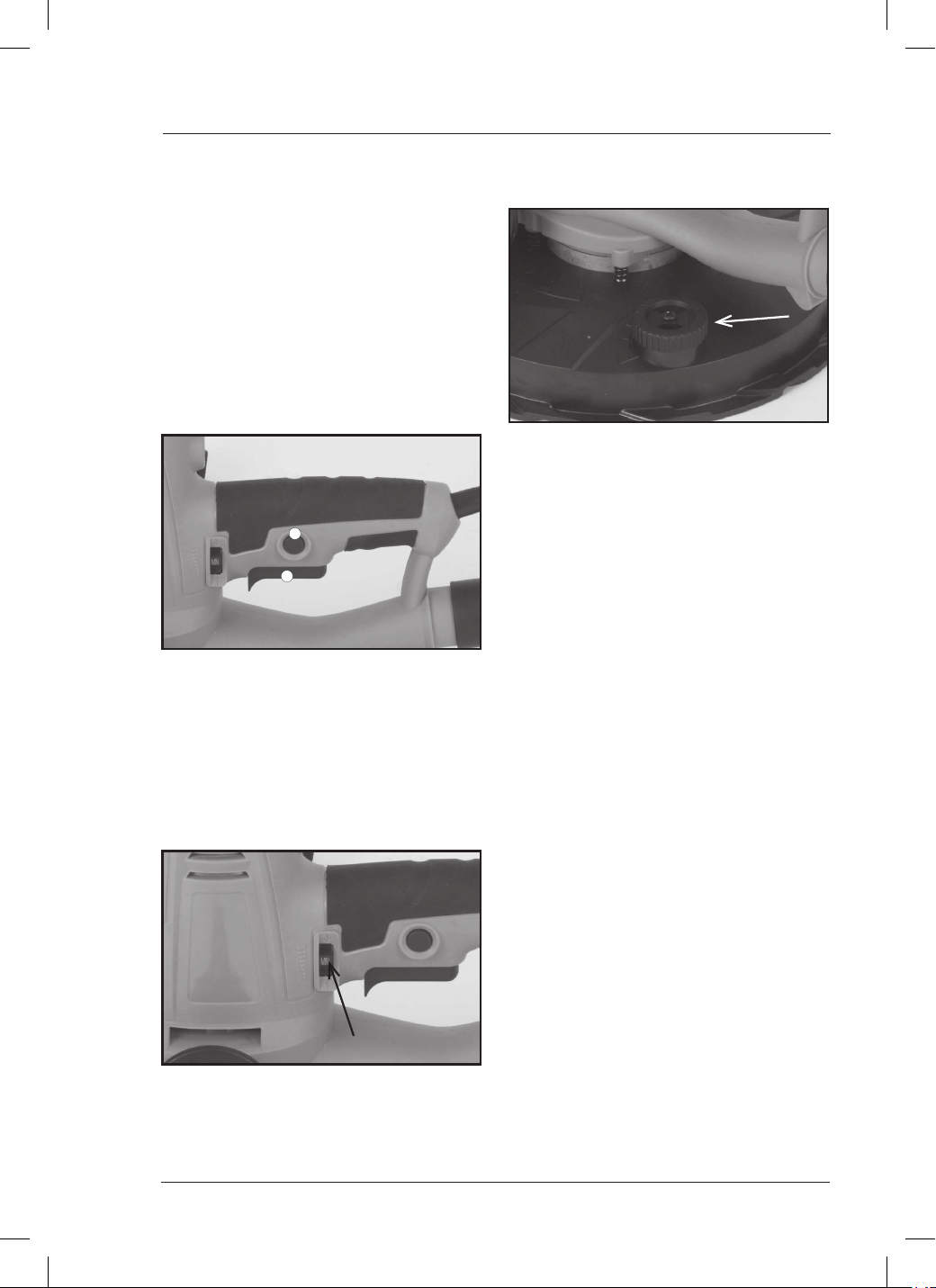

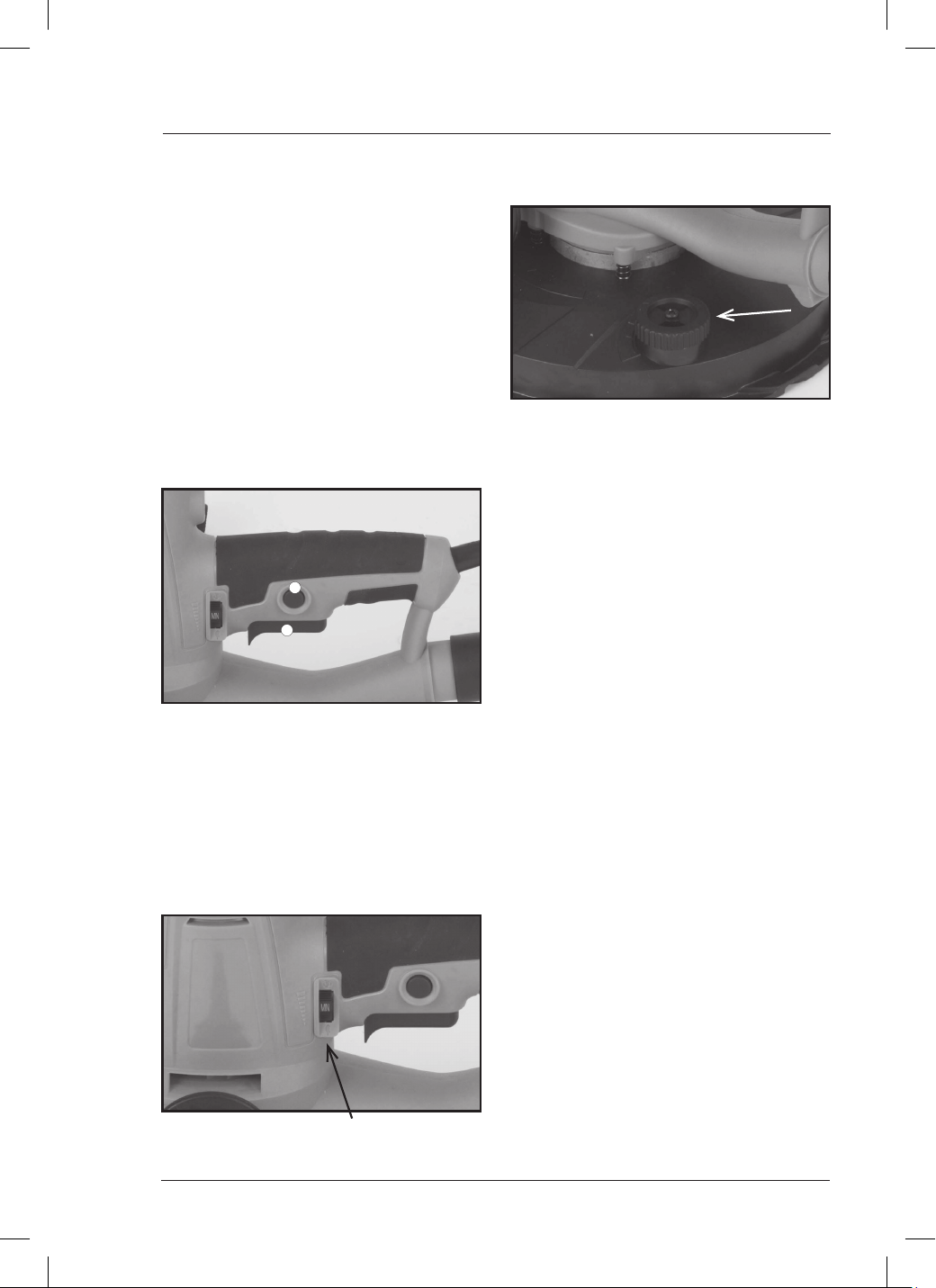

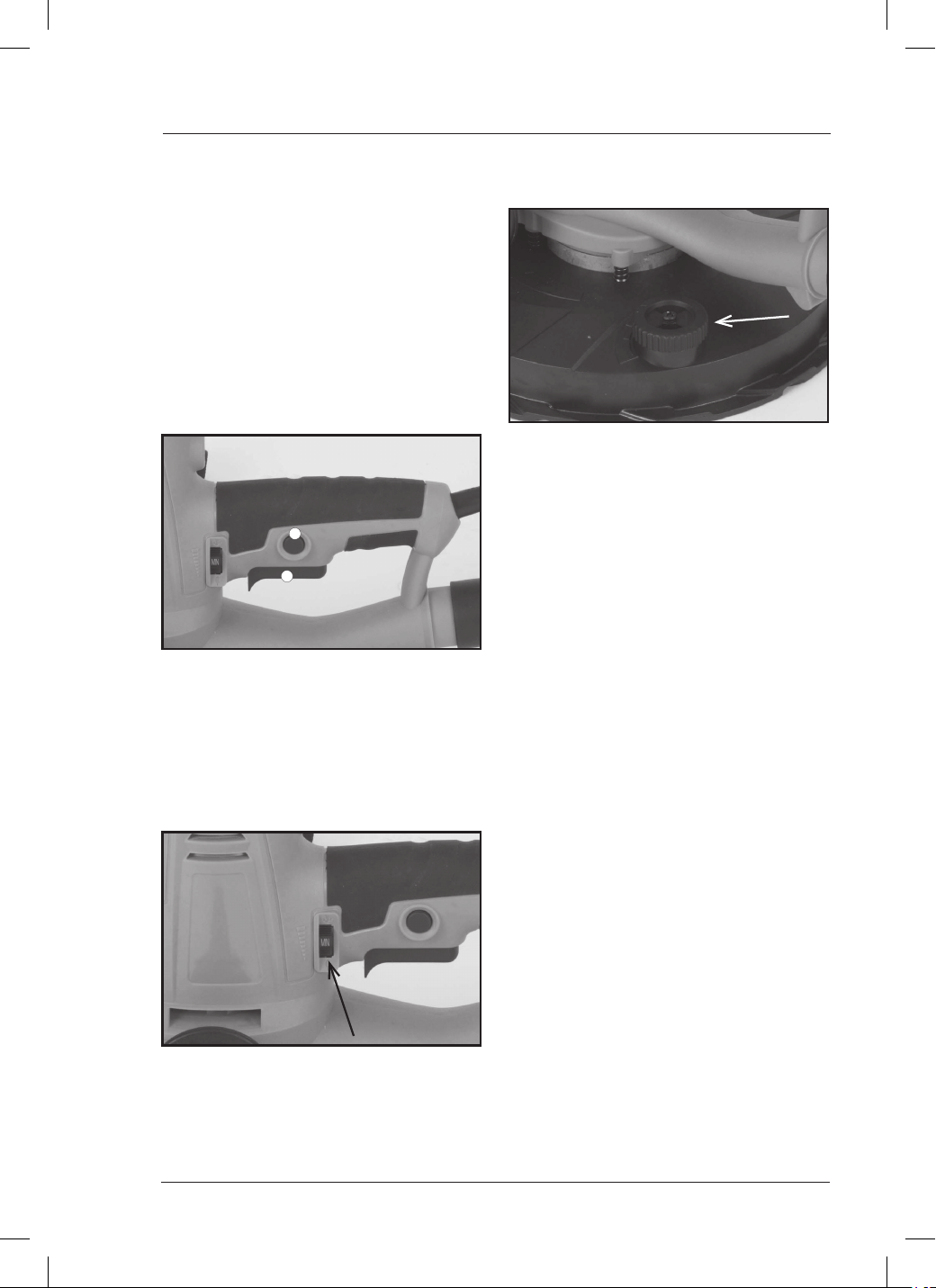

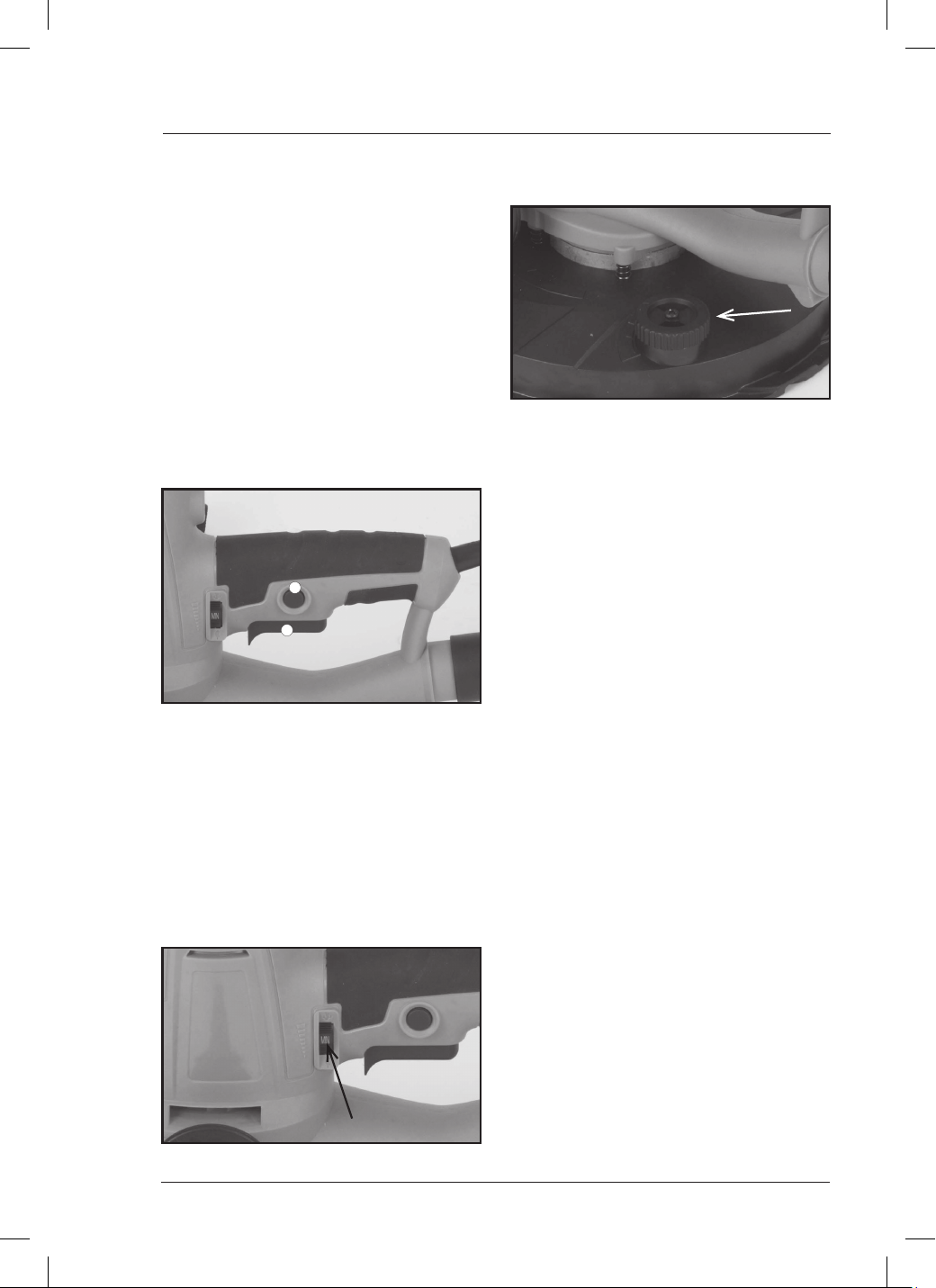

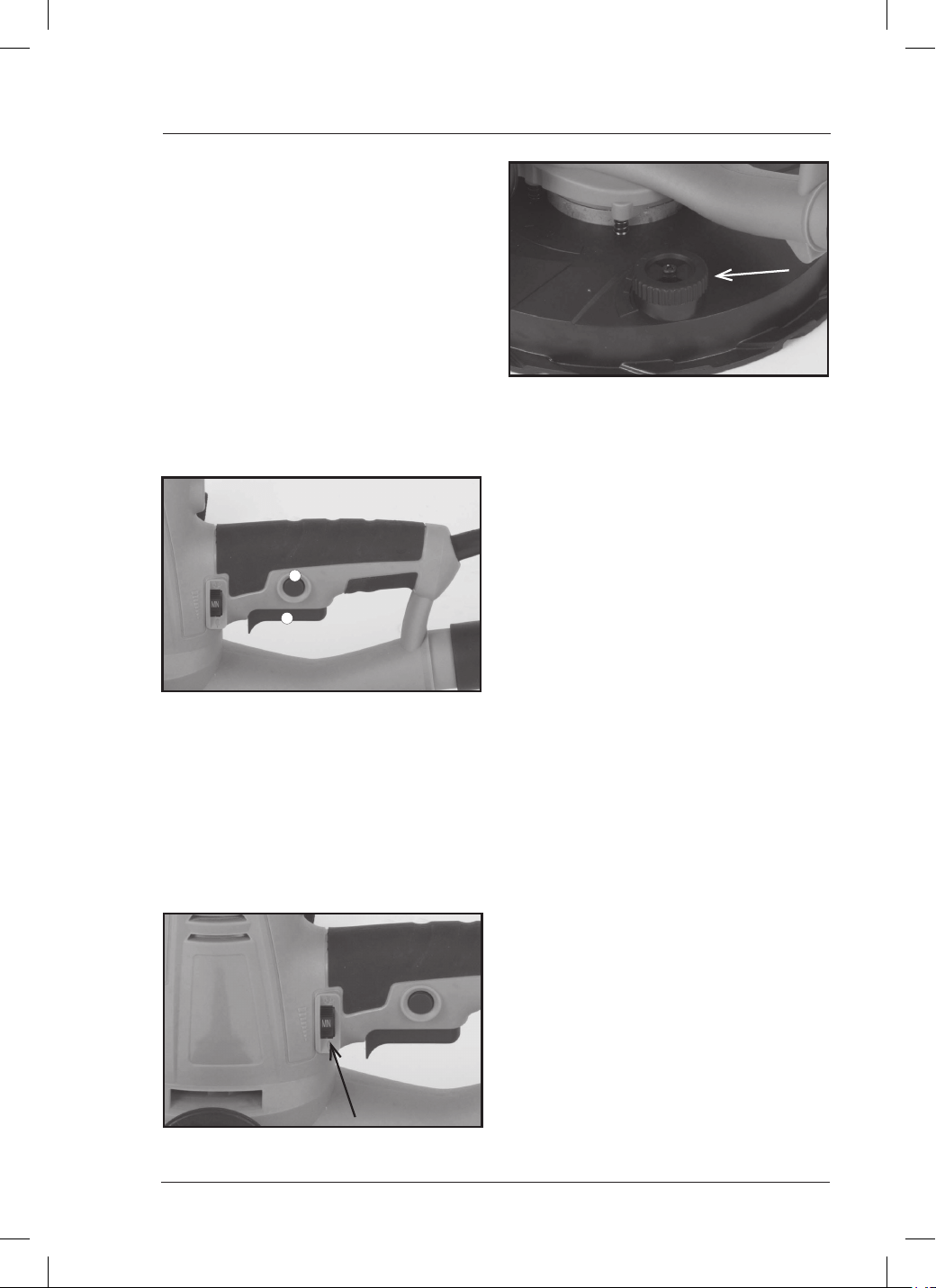

To switch the machine ‘On’:

• Press the Trigger Switch. (Fig. 5A)

Note: For operator convenience the On/Off

Trigger Switch can be locked in the

‘On’ position.

• Push in the ‘Trigger Locking Button’ (Fig. 5B)

to lock the Trigger in the ‘On’ position.

To switch ‘Off’:

• Press the Trigger slightly and then release.

The Power Rated speed Control (Fig. 6)

Rotate the thumb wheel until the required

rated speed is obtained.

Sanding Head Suction Regulator Control

(Fig. 7)

The Suction Control Regulator allows the

operator to adjust the power of the suction

provided by the inbuilt dust extraction system.

Extra air can be allowed into the Sanding

Head, reducing the suction power. This may

be necessary as at maximum suction the

Sanding Head may become difficult to move

or sweep over the work surface. Regulating

the volume of air admitted to the Sanding

Head can reduce operator workload by

reducing the effort required to sweep the

Sanding Head over the work surface.

To adjust the suction:

• Rotate the Regulator counter clockwise

fully, for reduced suction.

• Rotate the Regulator clockwise fully for

maximum suction.

Note: The Regulator has three (3) positive

stop positions.

The Sprung Sanding Head

The Sanding Head is attached to the

machine by four (4) sprung loaded pins.

This allows the Sanding Head to move

slightly in multiple directions.

When in use the Sanding Head can

effectively ‘float’ over the work surface

compensating automatically for uneven

wall surfaces. This action enables the user

to sweep the work surface with minimal

changes to their stance and foot position,

allowing greater security and better balance

for the operator.

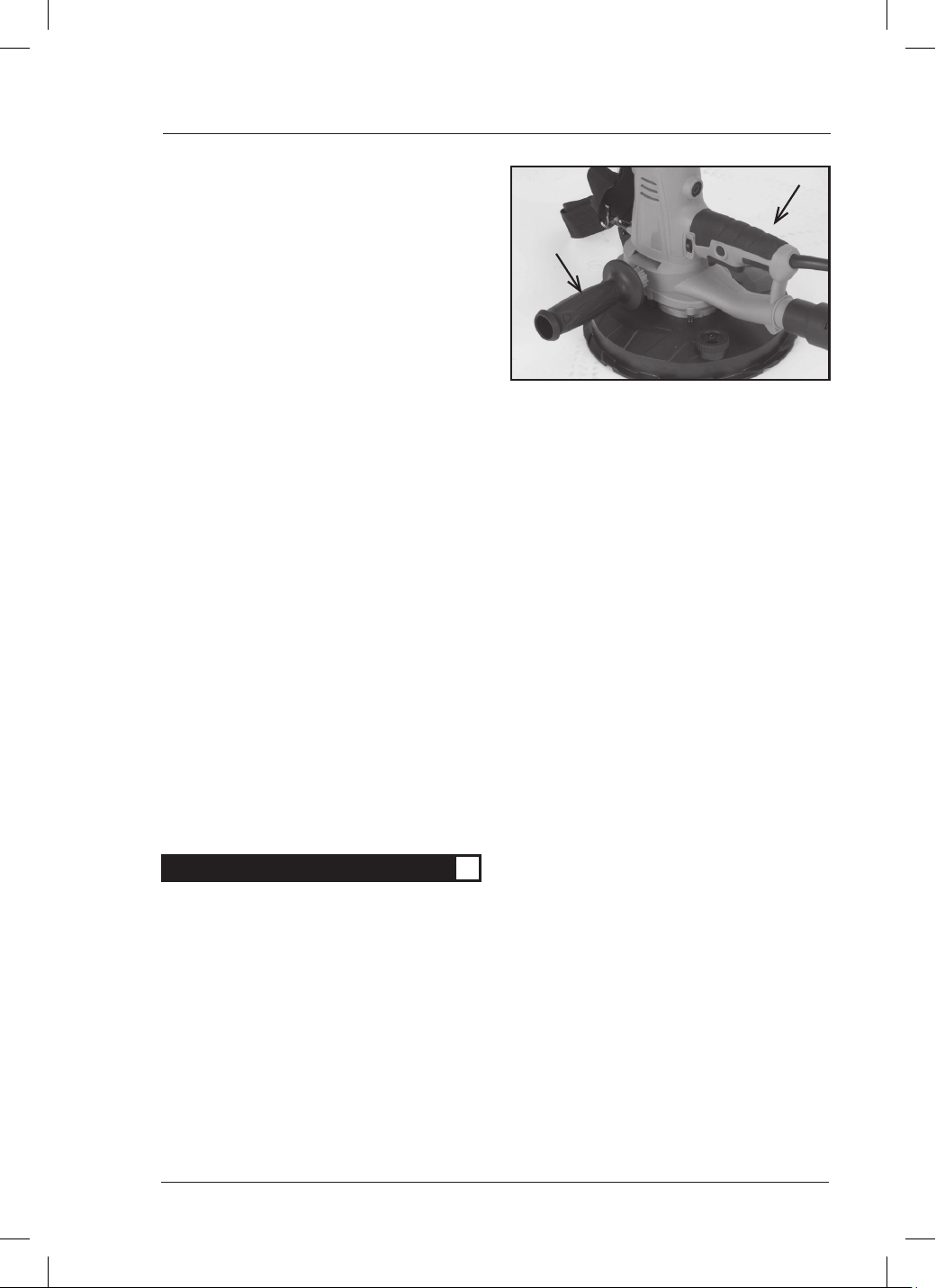

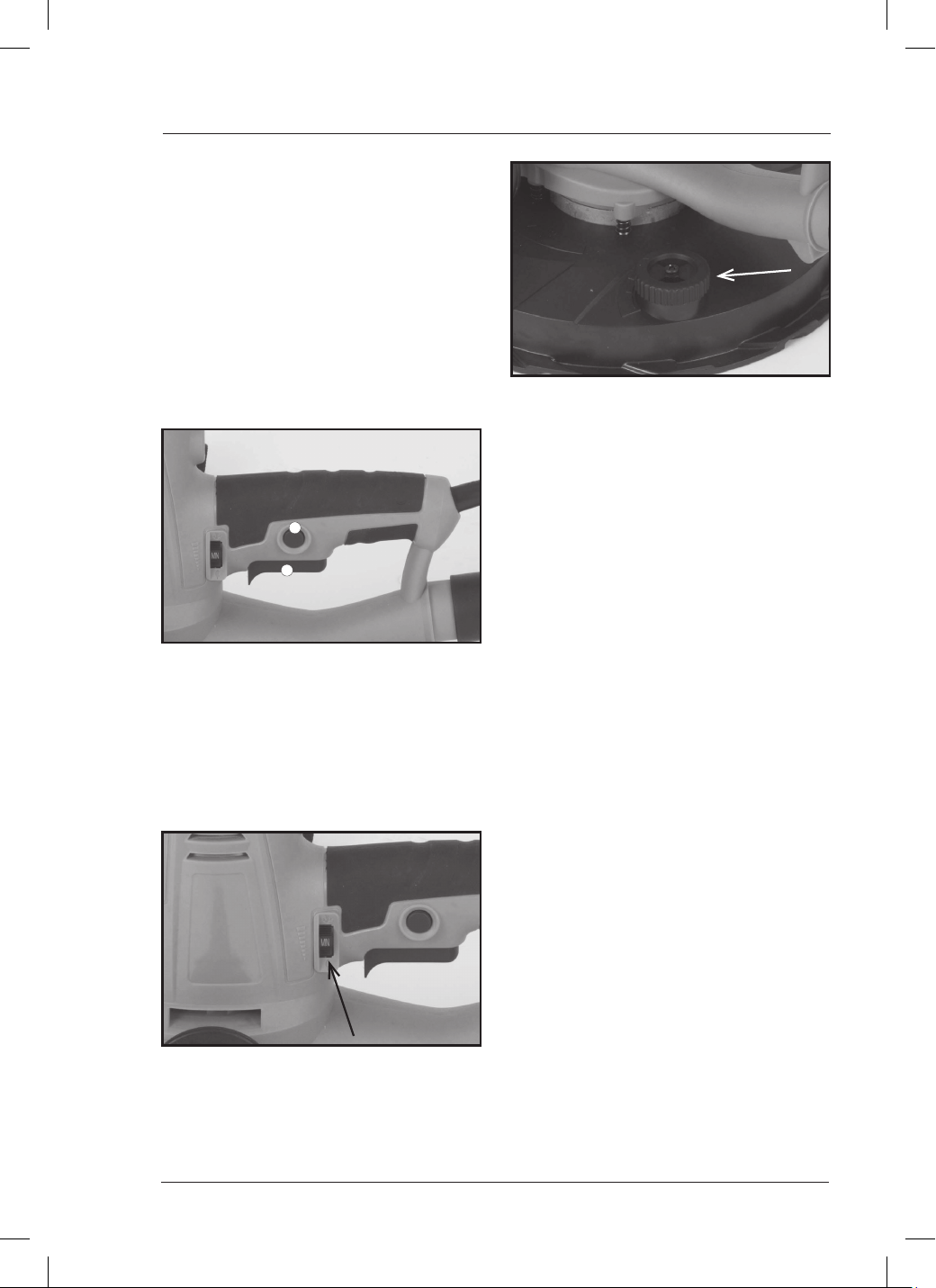

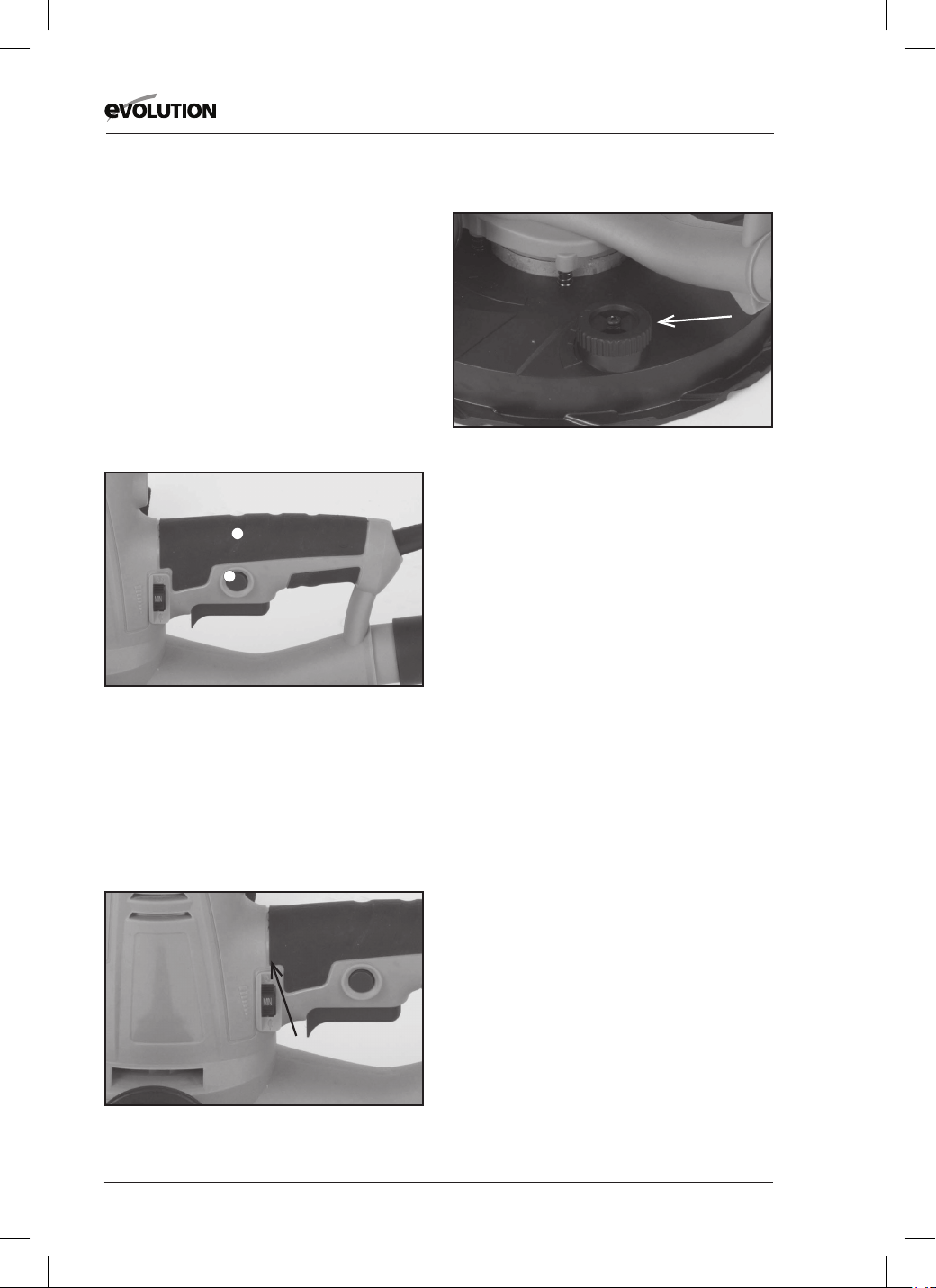

Fig. 5A +B

Fig. 6

Fig. 7

HAND HELD DRYWALL SANDER

OPERATION

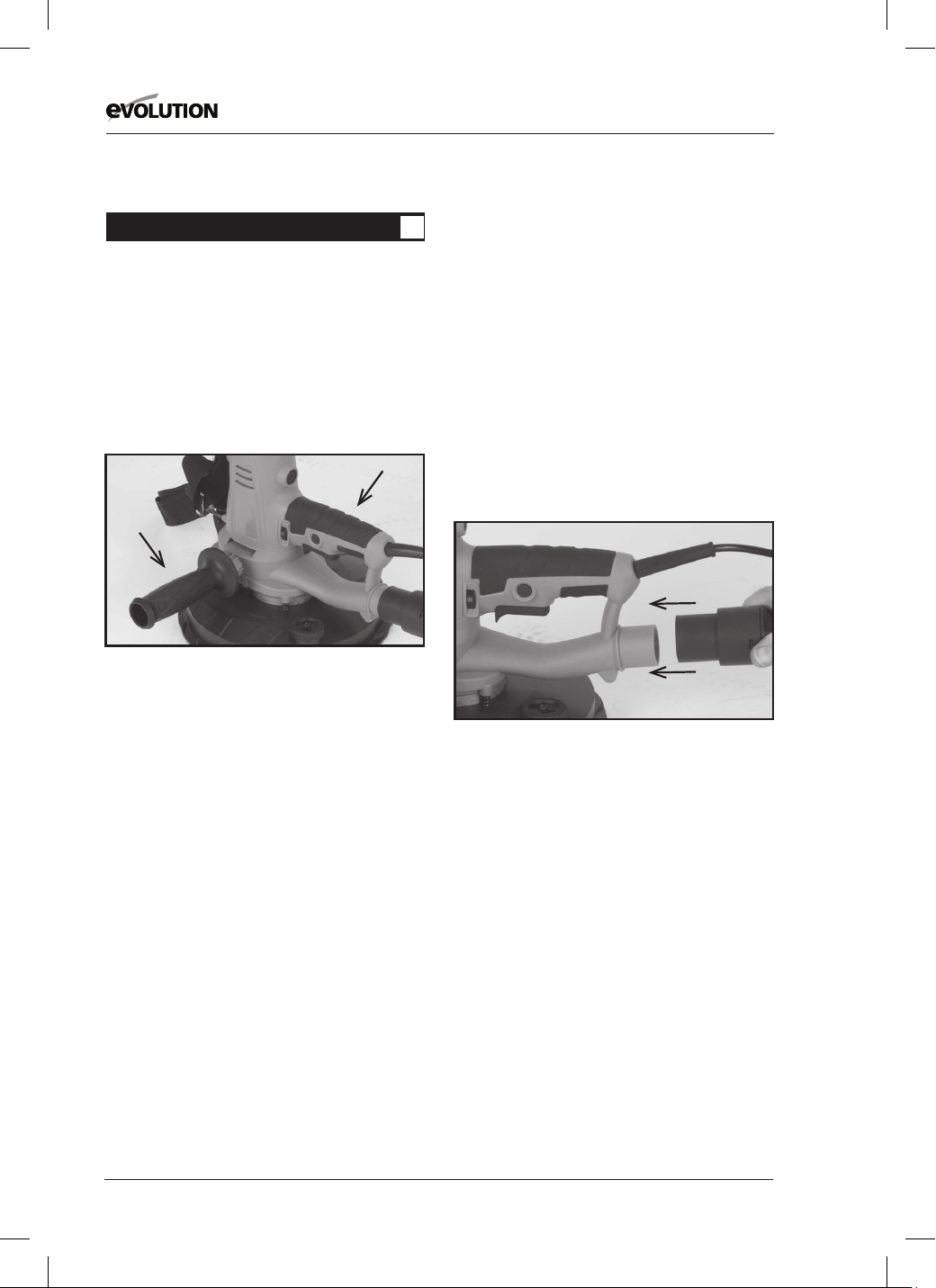

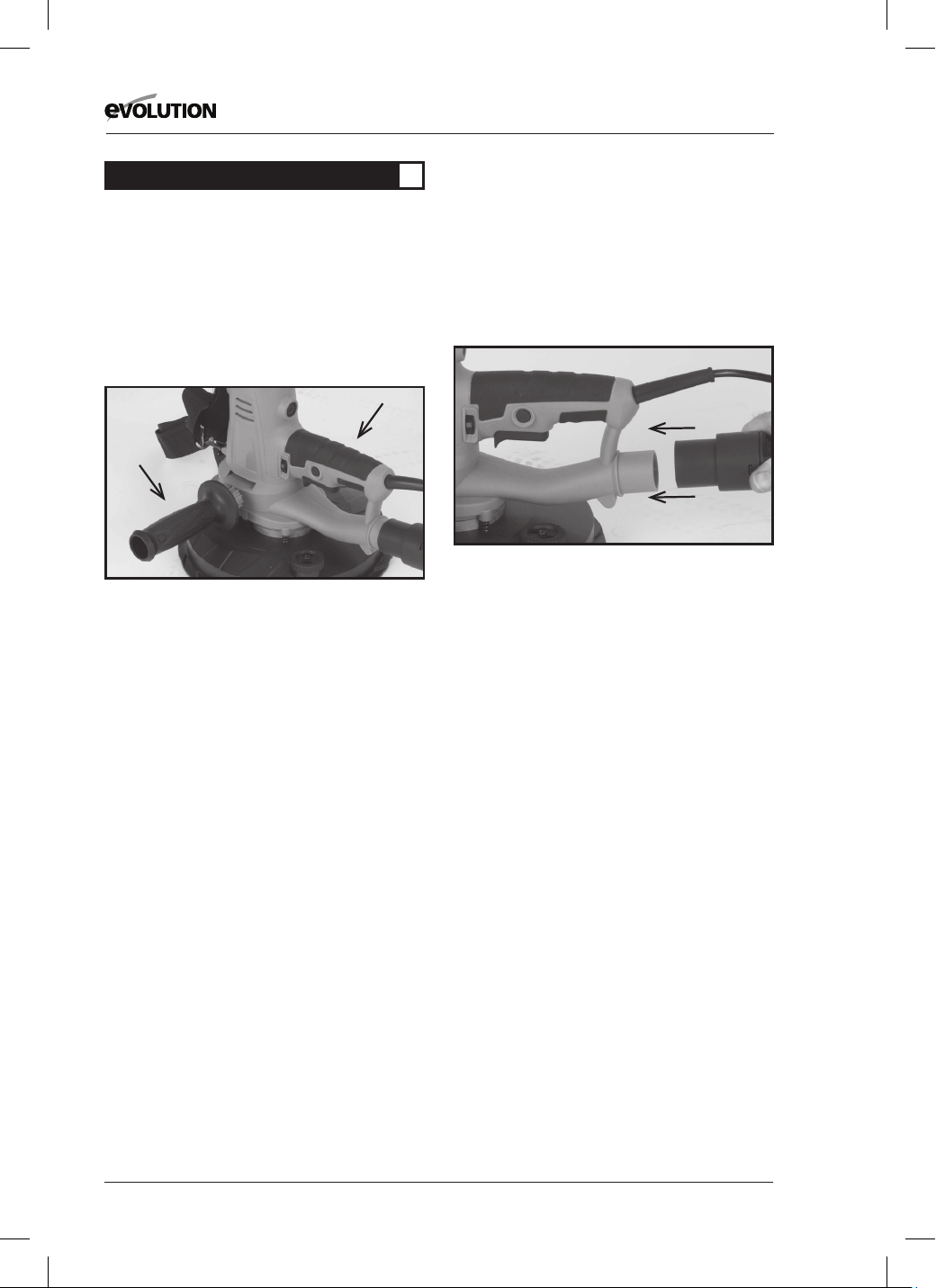

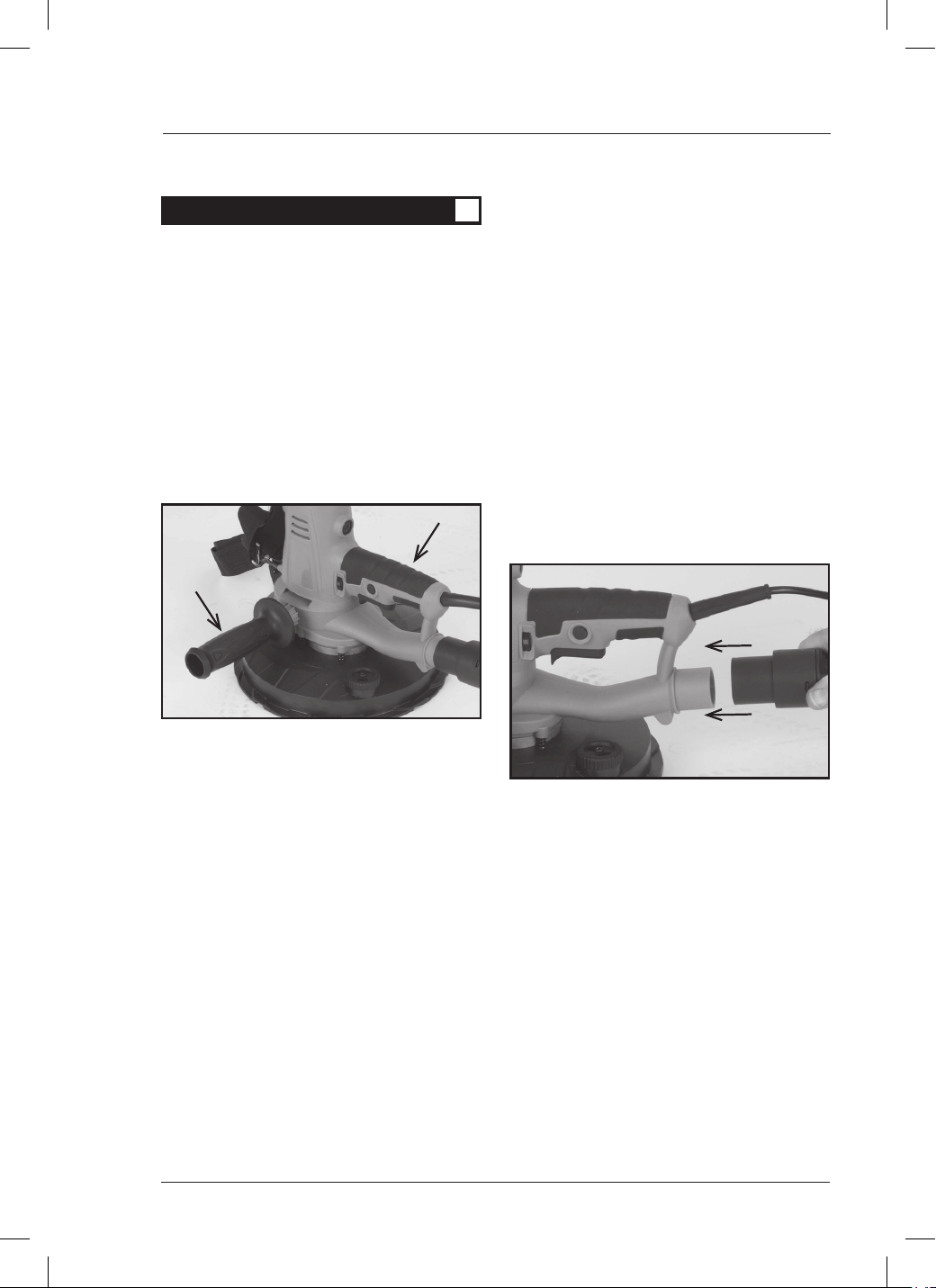

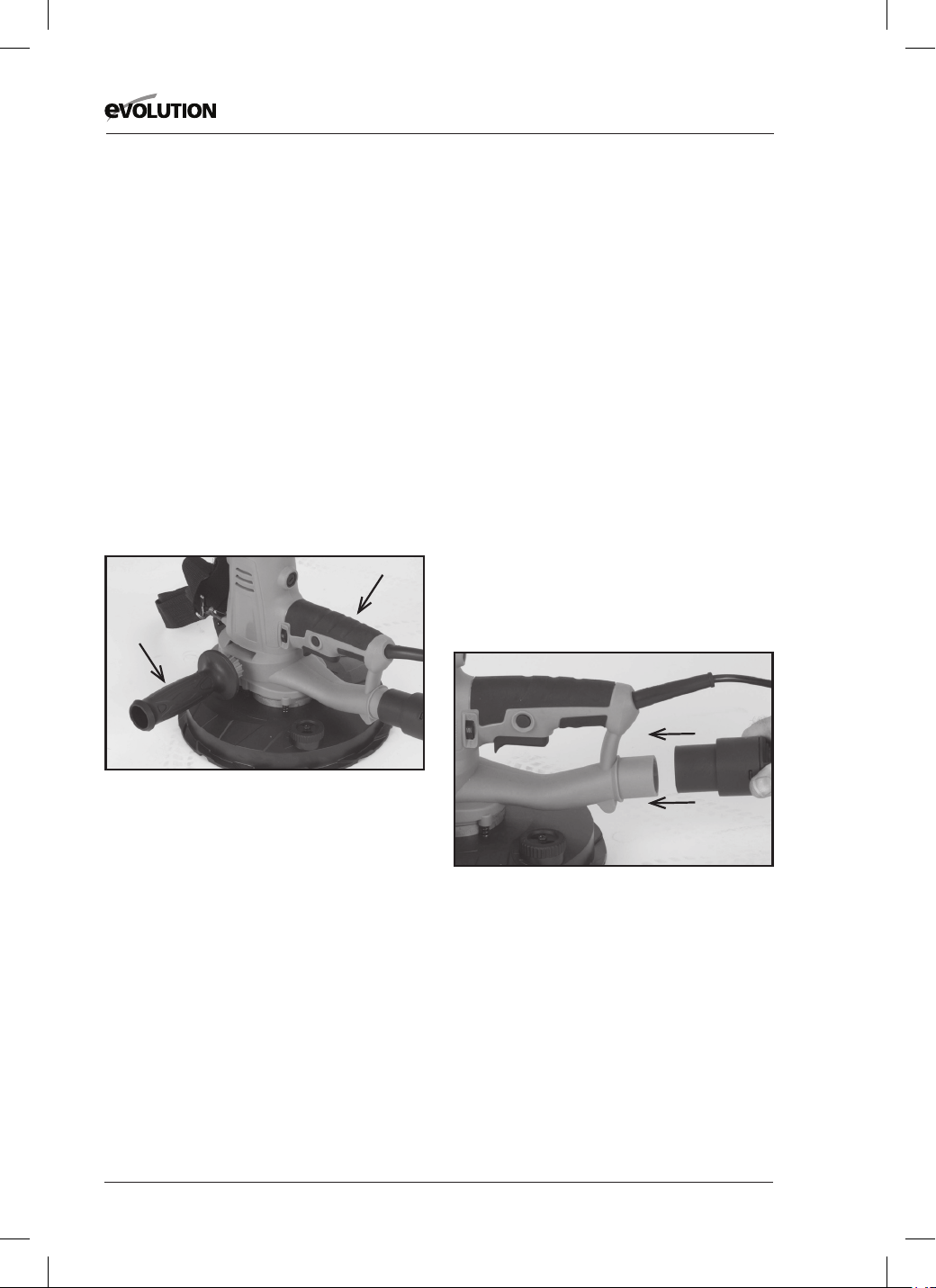

Holding the Drywall Sander

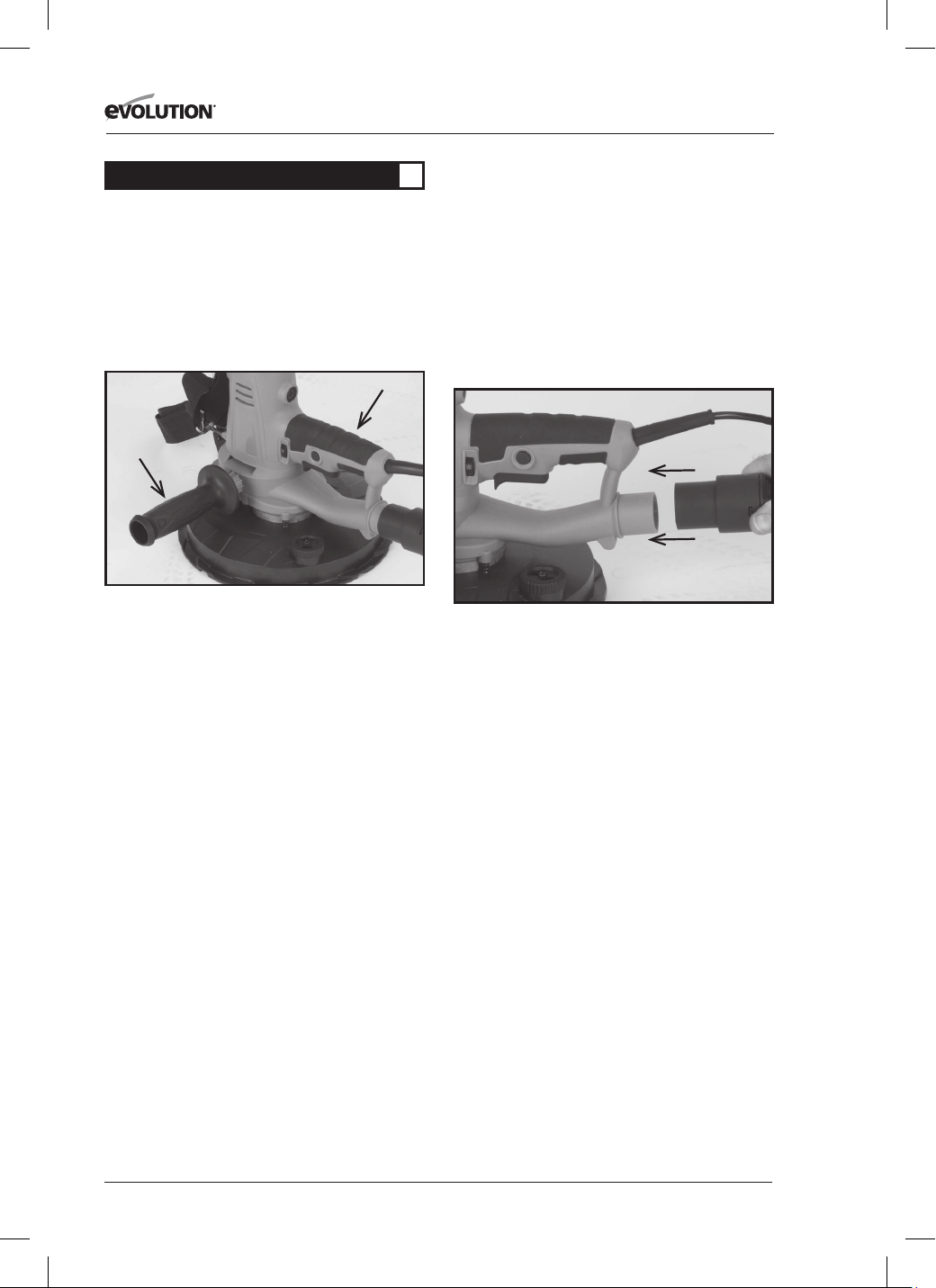

The Drywall Sander should always be held

with both hands, one on the Trigger Switch

Handle, and the other on the Side Assist

Handle. (Fig. 8)

Note: Attach the Side Assist Handle to

that side of the machine that best suits the

operator or the application.

Note: Although the sander is a light weight

design, the user should be aware that

prolonged use can cause operator muscle

fatigue.

We recommend a maximum operator duty

cycle of 10 – 12 minutes, after which the

operator should rest for 5 minutes before

resuming sanding operations.

Carry Straps

Carry straps are provided for both the

Sanding Machine and the Dust Collection

Bag. These should be used whenever

necessary to aid operator comfort and safety.

Operator Stance

The operator should adopt a comfortable

stance with their feet apart and firmly

balanced.

Both feet should be on the ground or floor.

It is not acceptable to have one foot on the

floor and the other on a stand or ladder rung

etc. as this precludes the operator from

achieving a proper balanced stance.

Caution: If ‘reach’ or access considerations

necessitate the use by the operator of a

‘stand – on’ platform, such a platform must

be suitable and stable in use e.g. a folding

inside scaffold or ‘hop on’ work platform.

The operator must NEVER overstretch.

SANDING – Operating Advice

• Connect the dust extraction hose to the

machine by pushing it onto the machines

dust extraction port. (Fig. 9).

Note: The Dust Extraction Hose is permanently

attached to the Dust Collection Bag.

• Adjust the Carry Straps for operator

convenience and comfort.

• Ensure that the mains lead and dust

collection hose do not pose a ‘trip’ or

any other hazard to the operator or any

bystanders.

• Adopt the correct stance for the operation.

• Switch the machine ‘On’ and position

the Drywall Sander Sanding Head lightly

against the work surface, and apply just

enough pressure to align the Sanding

Head with the work surface.

• Gently apply more pressure to engage

the rotating abrasive disc onto the work

surface.

• Move the Sander across the work

surface in long overlapping sweeps.

Apply only enough pressure to keep

the abrasive disc flat against the work

surface. Excessive pressure should be

avoided as it can cause swirl marks and

unevenness in the work surface.

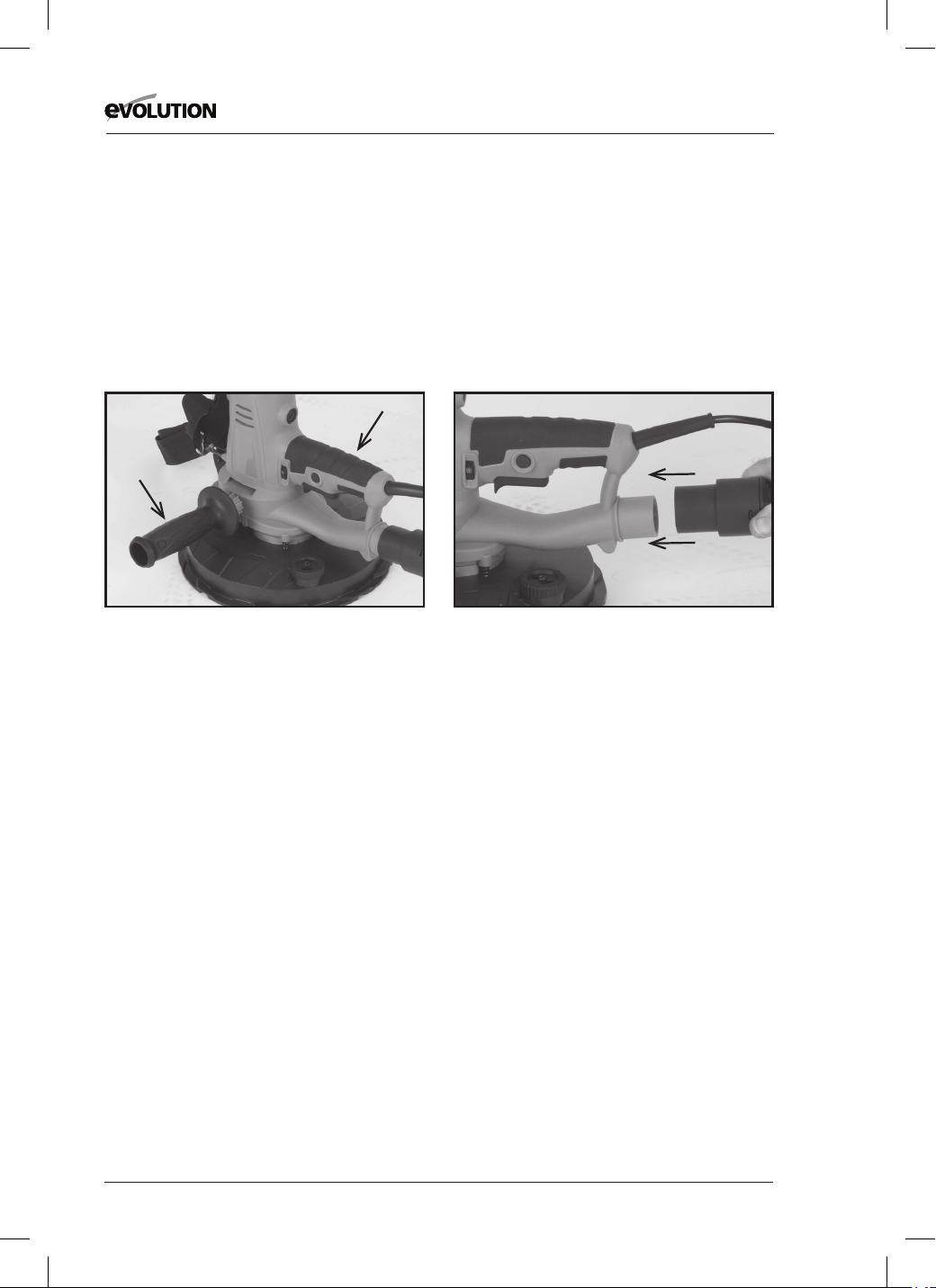

Fig. 8 Fig. 9

OPERATION

BUILD

• Keep the Sander in constant motion

whilst the abrasive disc is in contact with

the work surface. Use a steady, sweeping

motion, allowing the rotating abrasive disc

to ‘float’ over the work surface. Moving

the Sander erratically or concentrating

for too long on one area can cause swirl

marks or unevenness in the work surface.

Caution: Always keep your hands away

from the Sanding Head. The Sanding Head

swivels in multiple directions and could

pinch your hands.

WARNING: Do not allow the rotating

abrasive disc to contact sharp objects such

as protruding nails, screws etc, or wall

architecture such as electrical boxes or

switch plates. Damage to the Sander or the

wall fittings could result.

Dust Collection

Dust collection is automatic. Wall dust will

sucked from the Sanding Head, along the

dust extraction hose and deposited in the

Dust Collection Bag.

Note: We recommend for operational

efficiency that the Dust Collection Bag is

emptied when it is approximately 2/3 full.

Emptying the Dust Collection Bag

WARNING: Only empty the Dust Collection

Bag when the machine is switched ‘Off’.

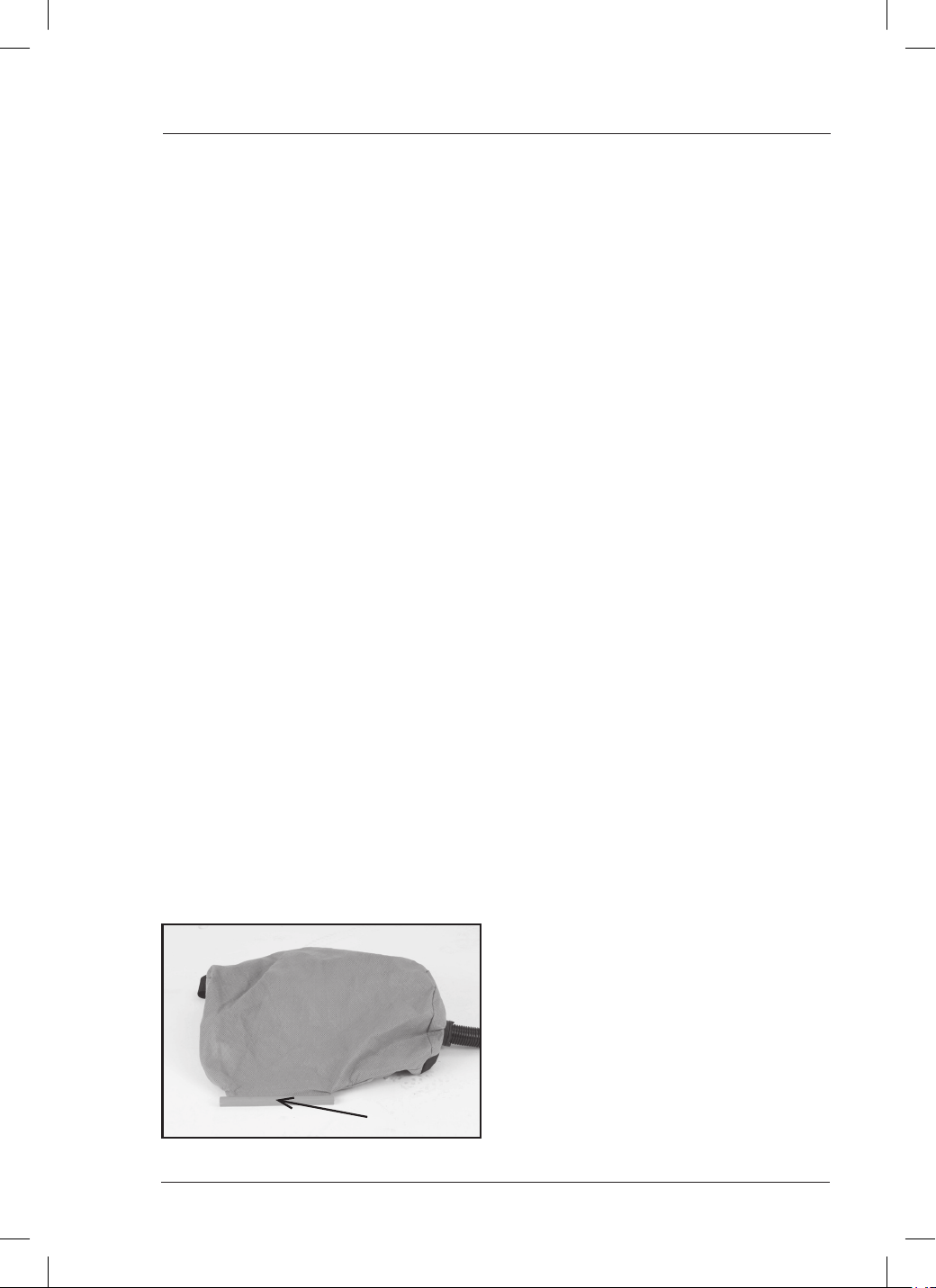

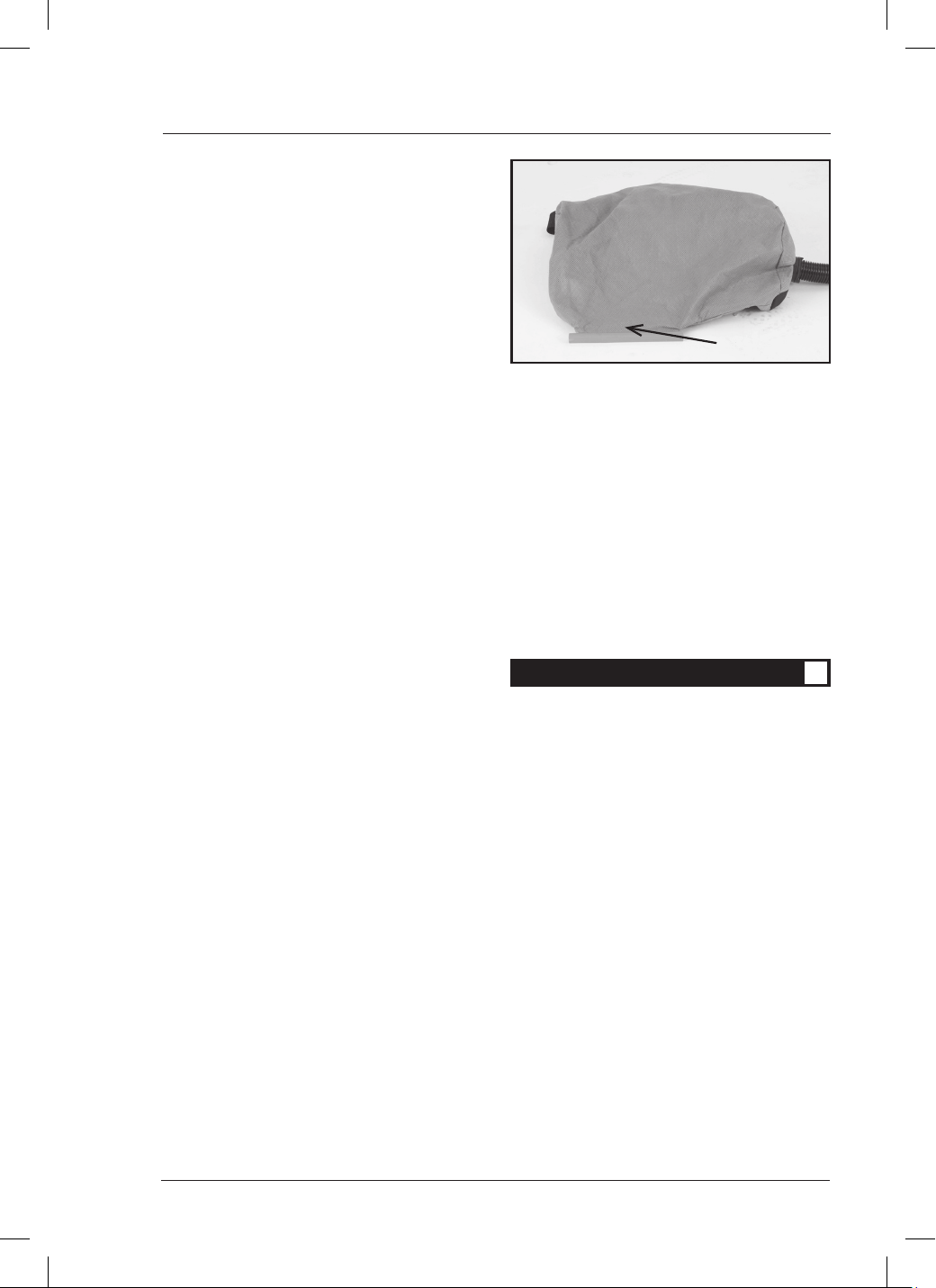

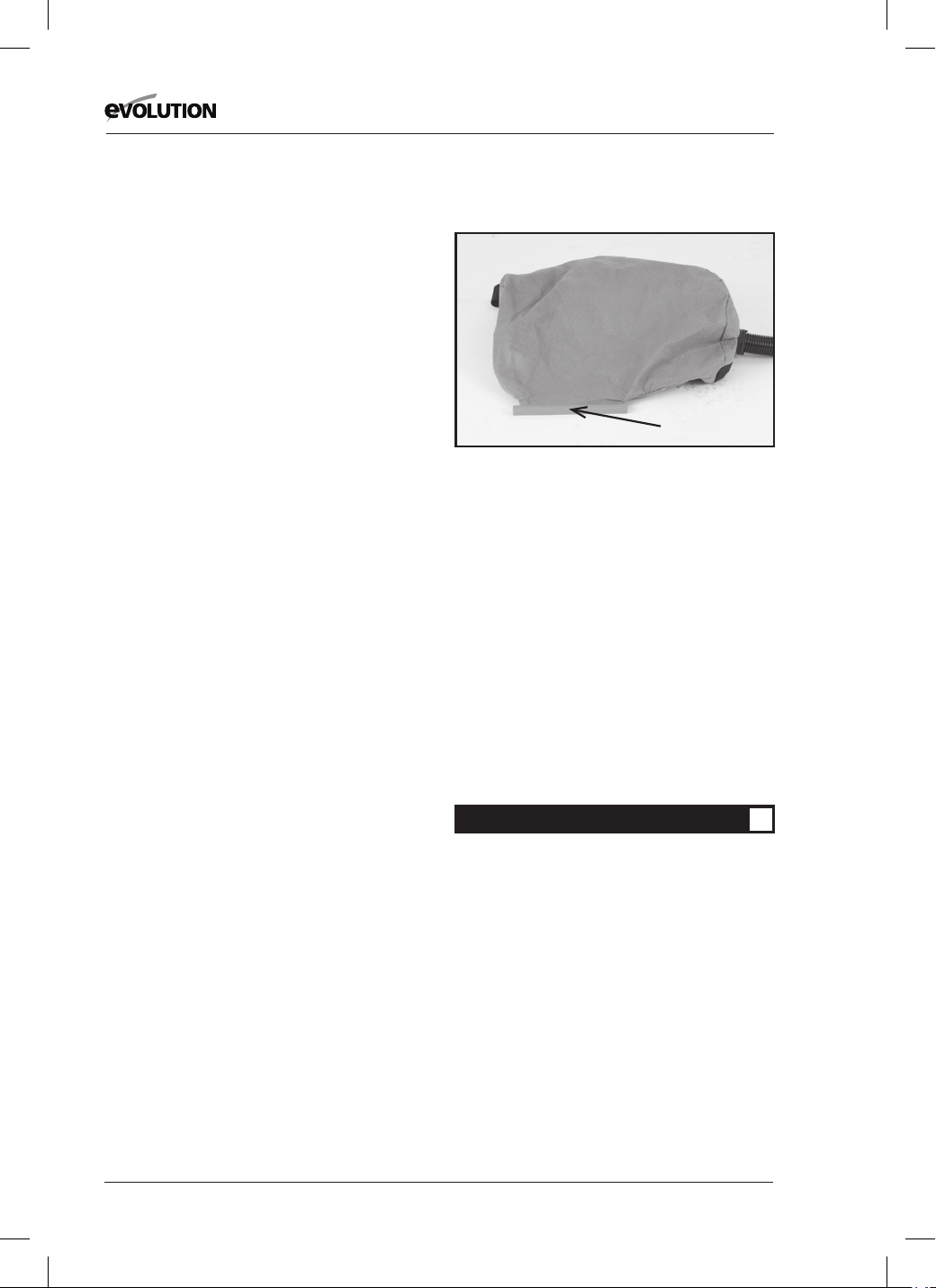

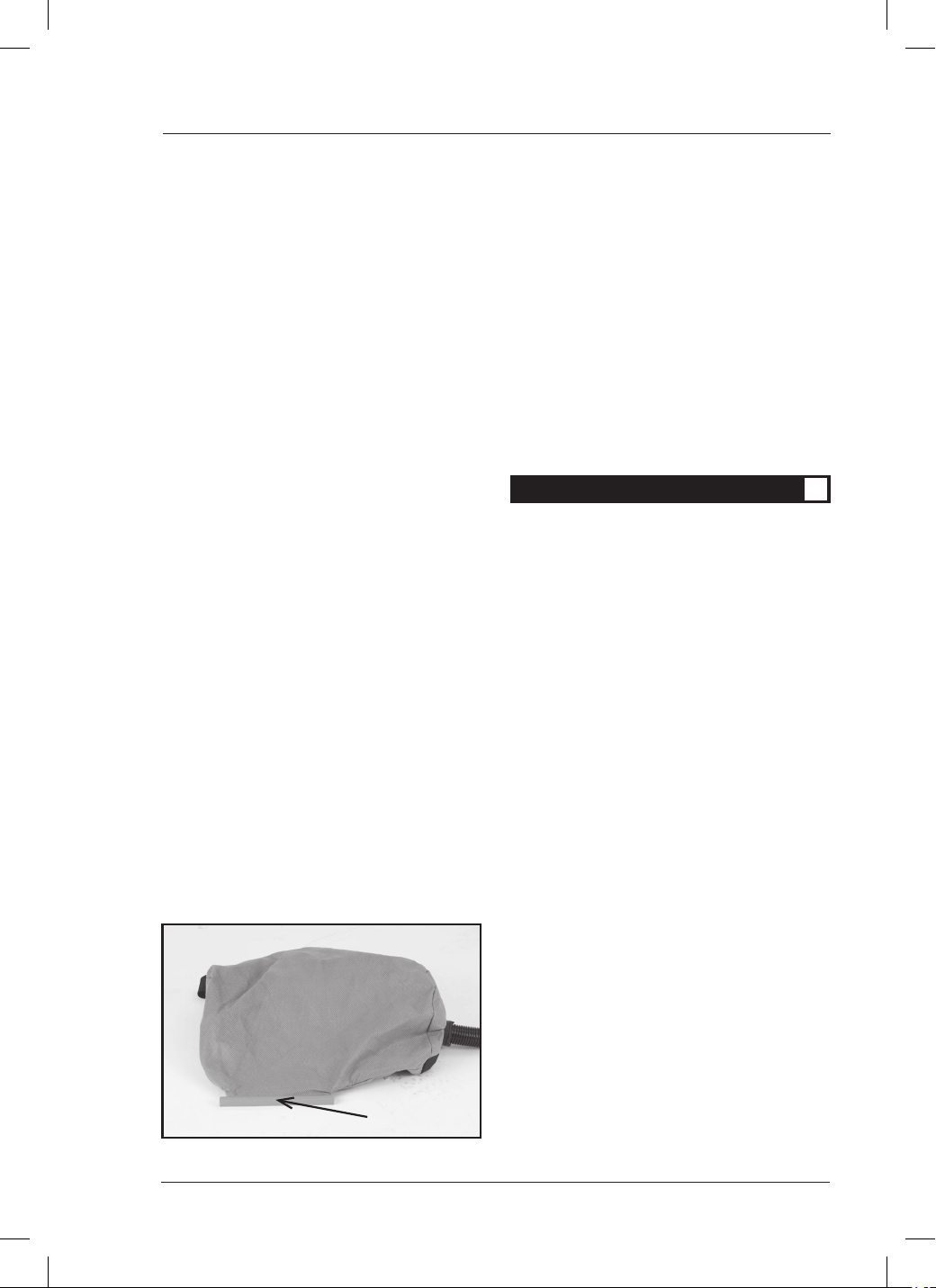

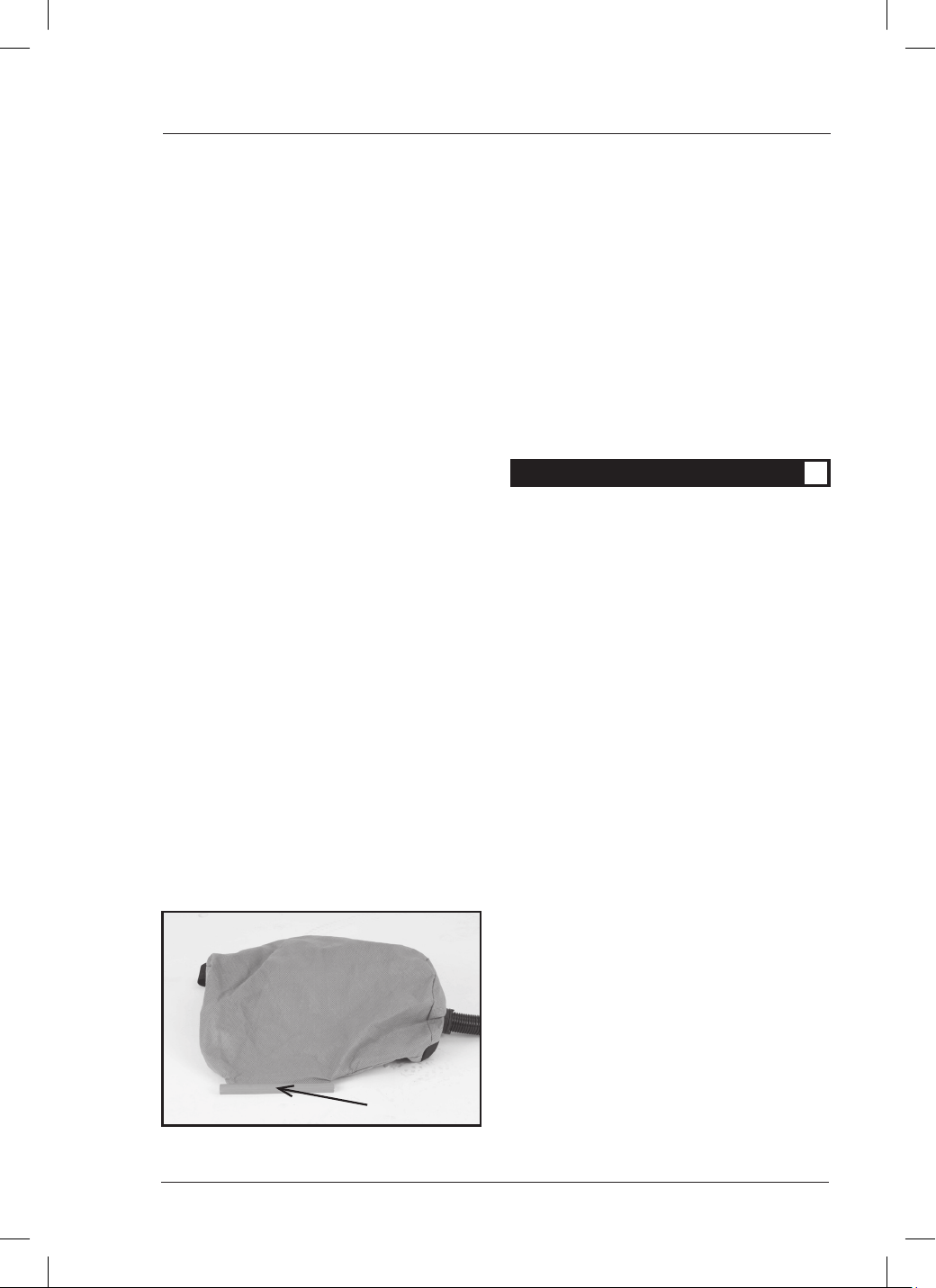

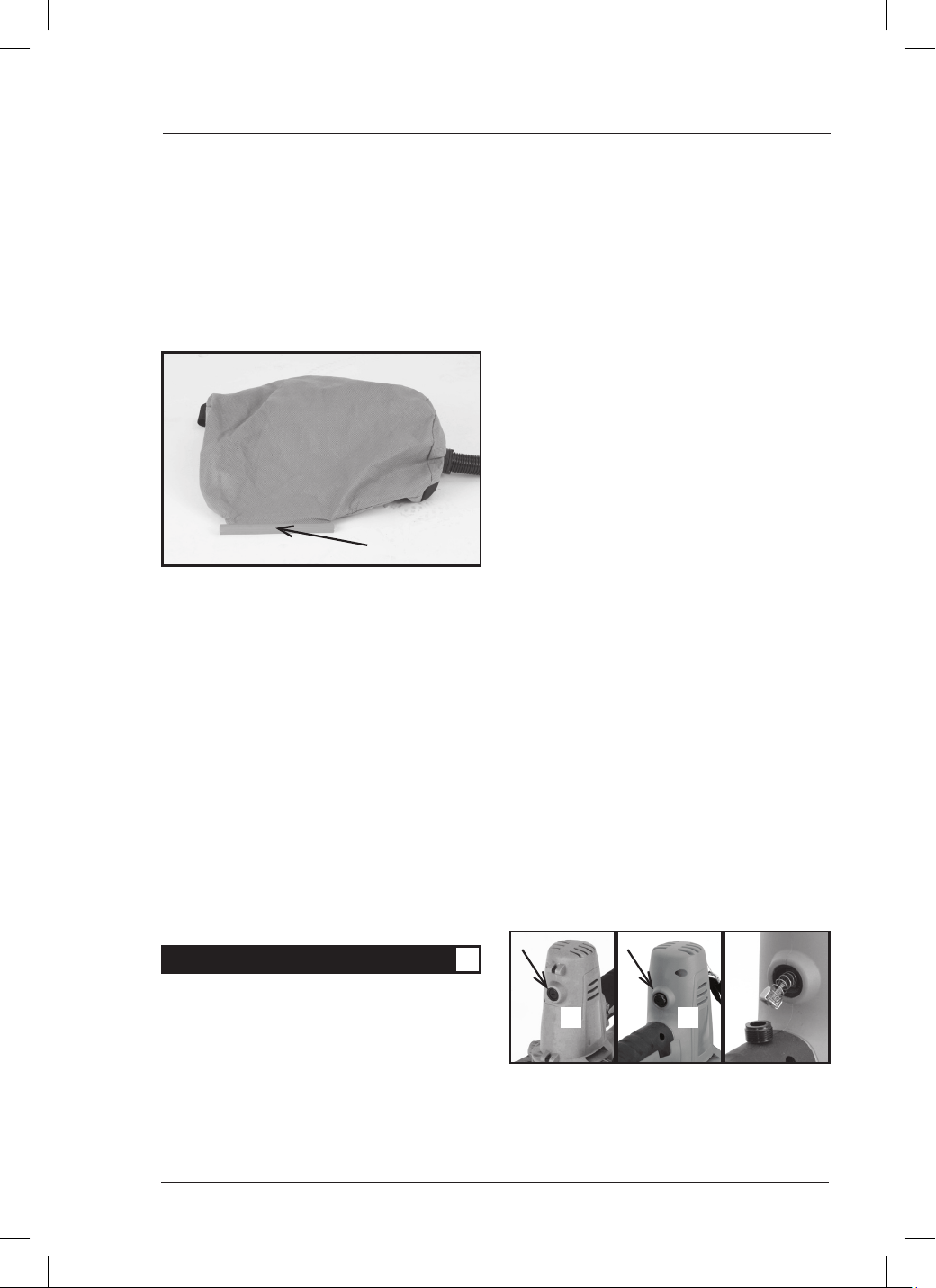

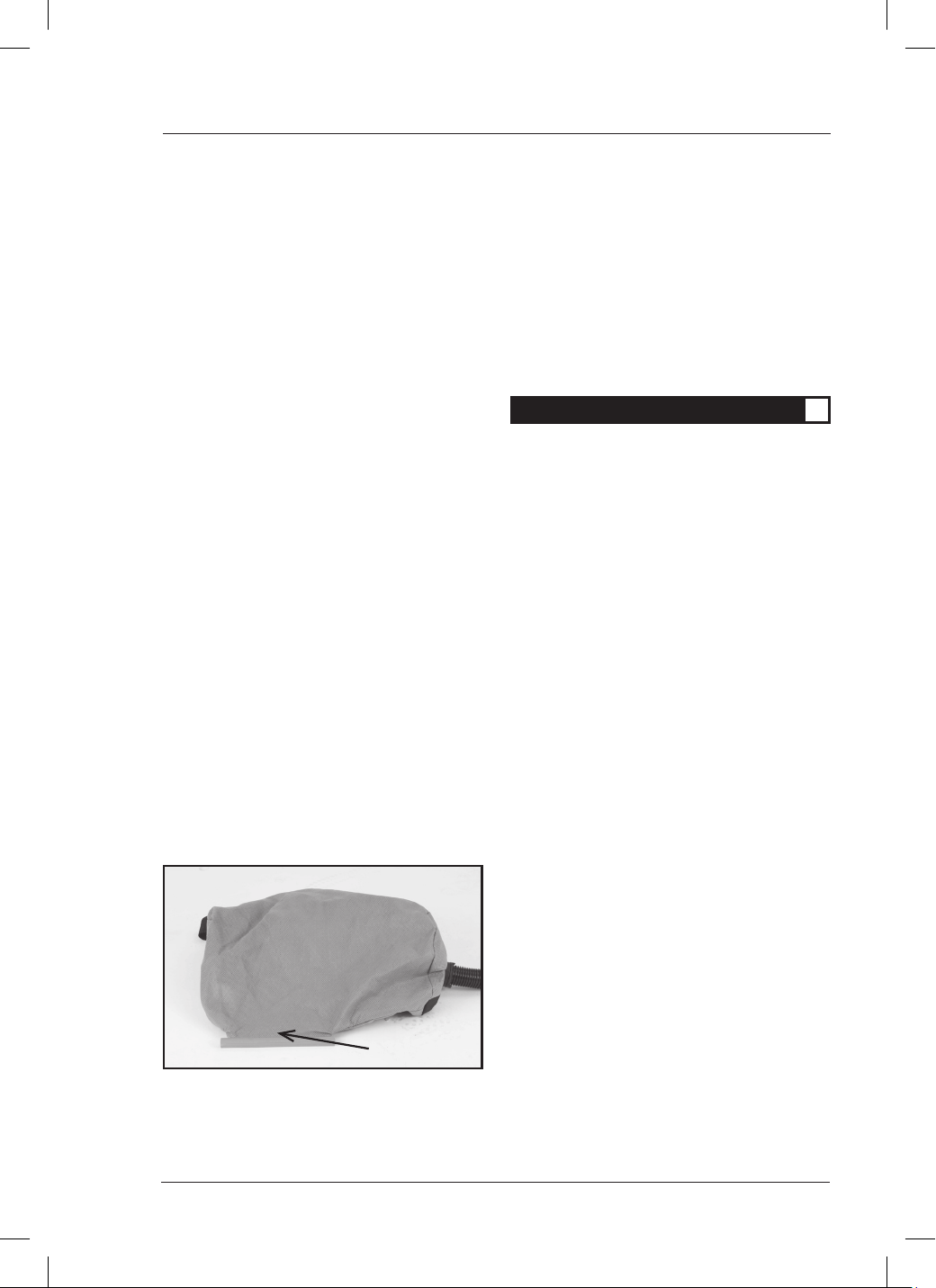

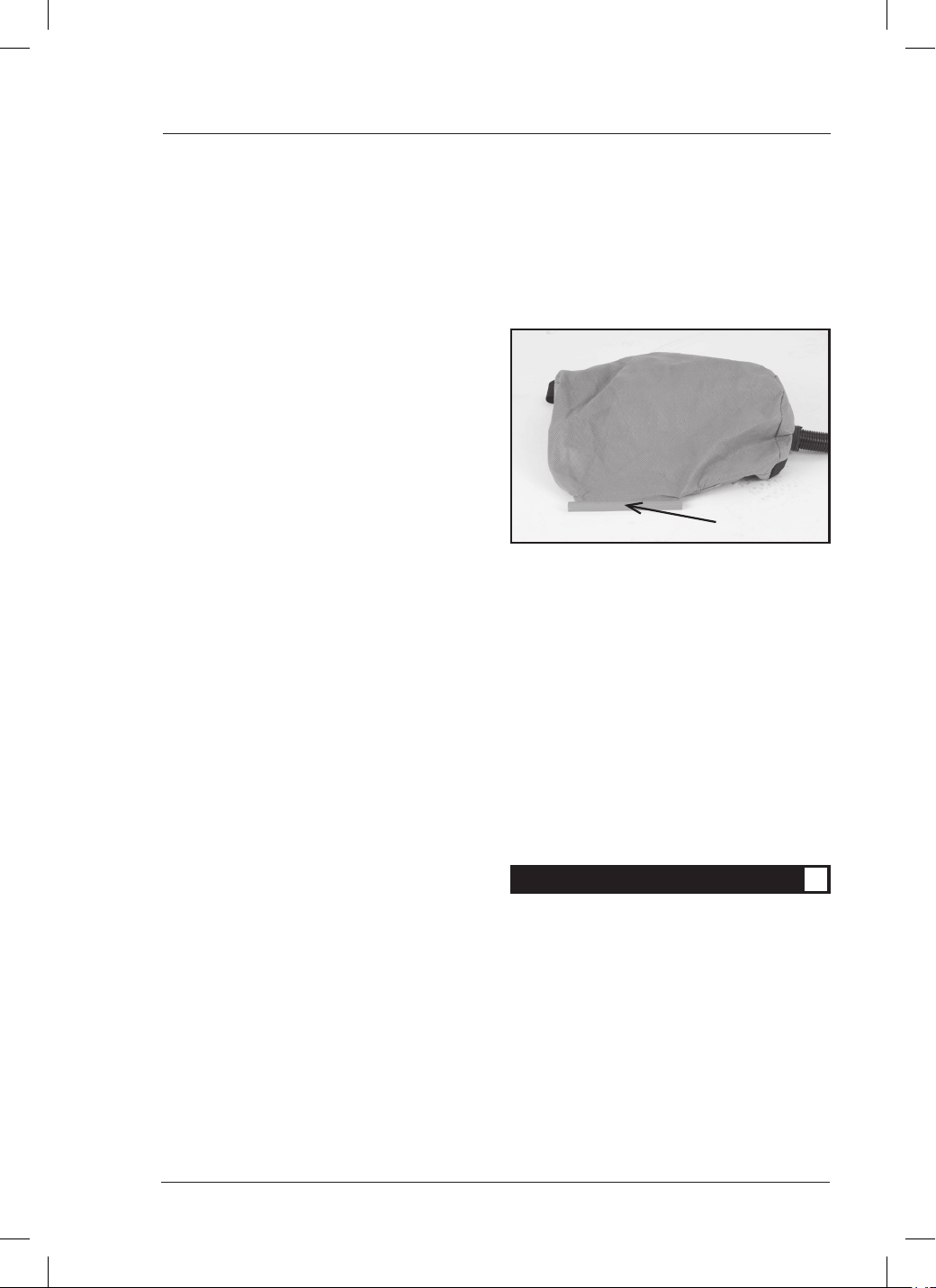

The Dust Collection Bag has an open seam

which is sealed by a plastic slide fastener.

(Fig. 10)

Slide this fastener from the Dust Collection

Bag to open the seam.

Dispose of the contents of the Dust

Collection Bag in an environmentally

responsible way.

Note: It may be necessary for the

operator to wear a dust mask and other

PPE (Personal Protection Equipment) as

necessary when disposing of the contents

of the Dust Bag.

Reseal the seam by sliding the plastic

fastener back onto the Dust Collection Bag.

MAINTENANCE

Note: Any maintenance must be carried

out with the machine switched off and

disconnected from the mains/battery

power supply. Check that all safety features

and guards are operating correctly on a

regular basis. Only use this machine if all

guards/safety features are fully operational.

All power bearings in this machine are lubricated

for life. No further lubrication is required.

Use a clean, slightly damp cloth to clean

the plastic parts of the machine. Do not use

solvents or similar products which could

damage the plastic parts.

WARNING: Do not attempt to clean by

inserting pointed objects through openings in

the machines casings etc. The machines air

vents should be cleaned using compressed

dry air.

Excessive sparking may indicate the

presence of dirt in the power or worn out

carbon brushes.

Fig. 10

HAND HELD DRYWALL SANDER

MAINTENANCE

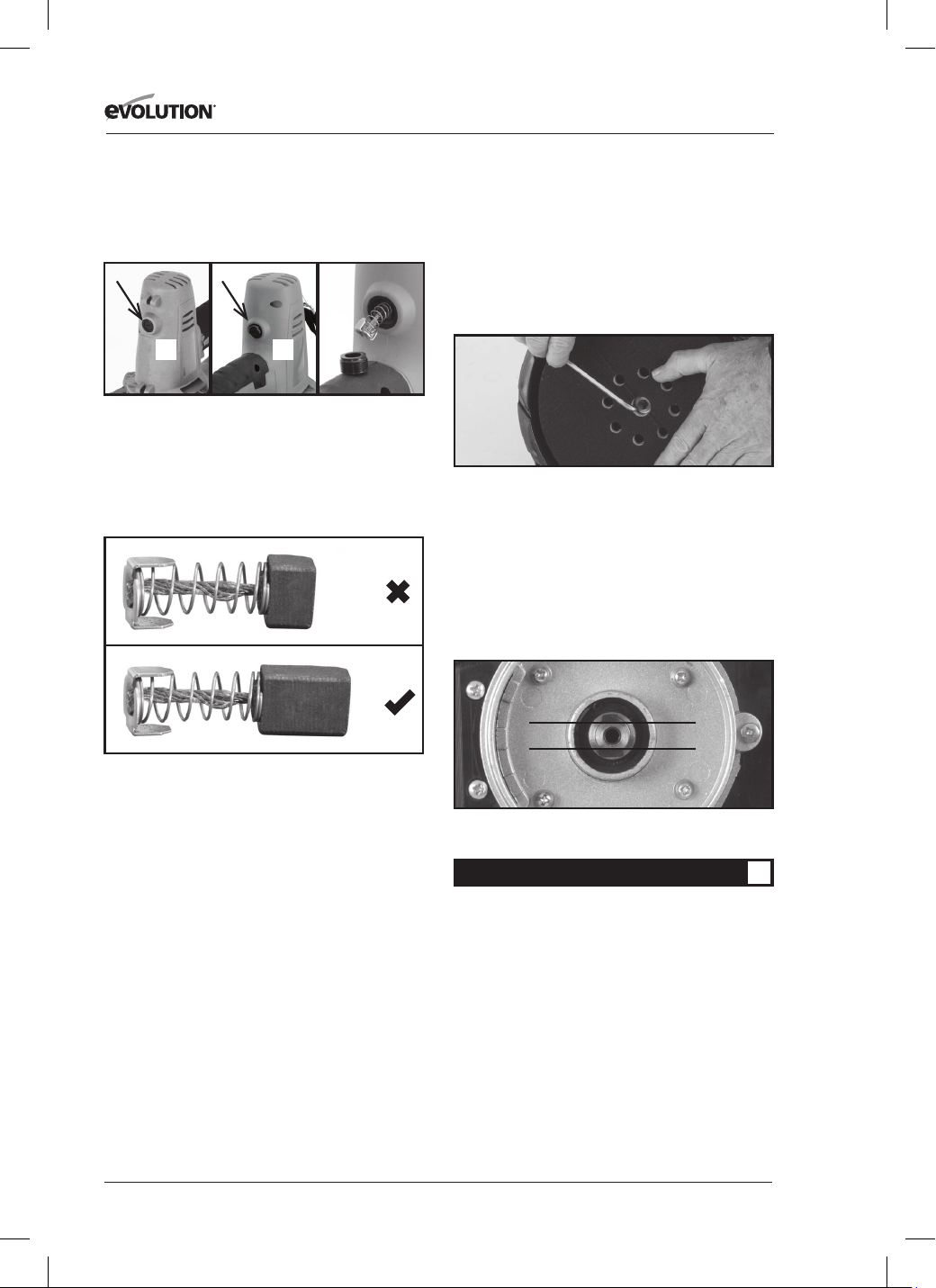

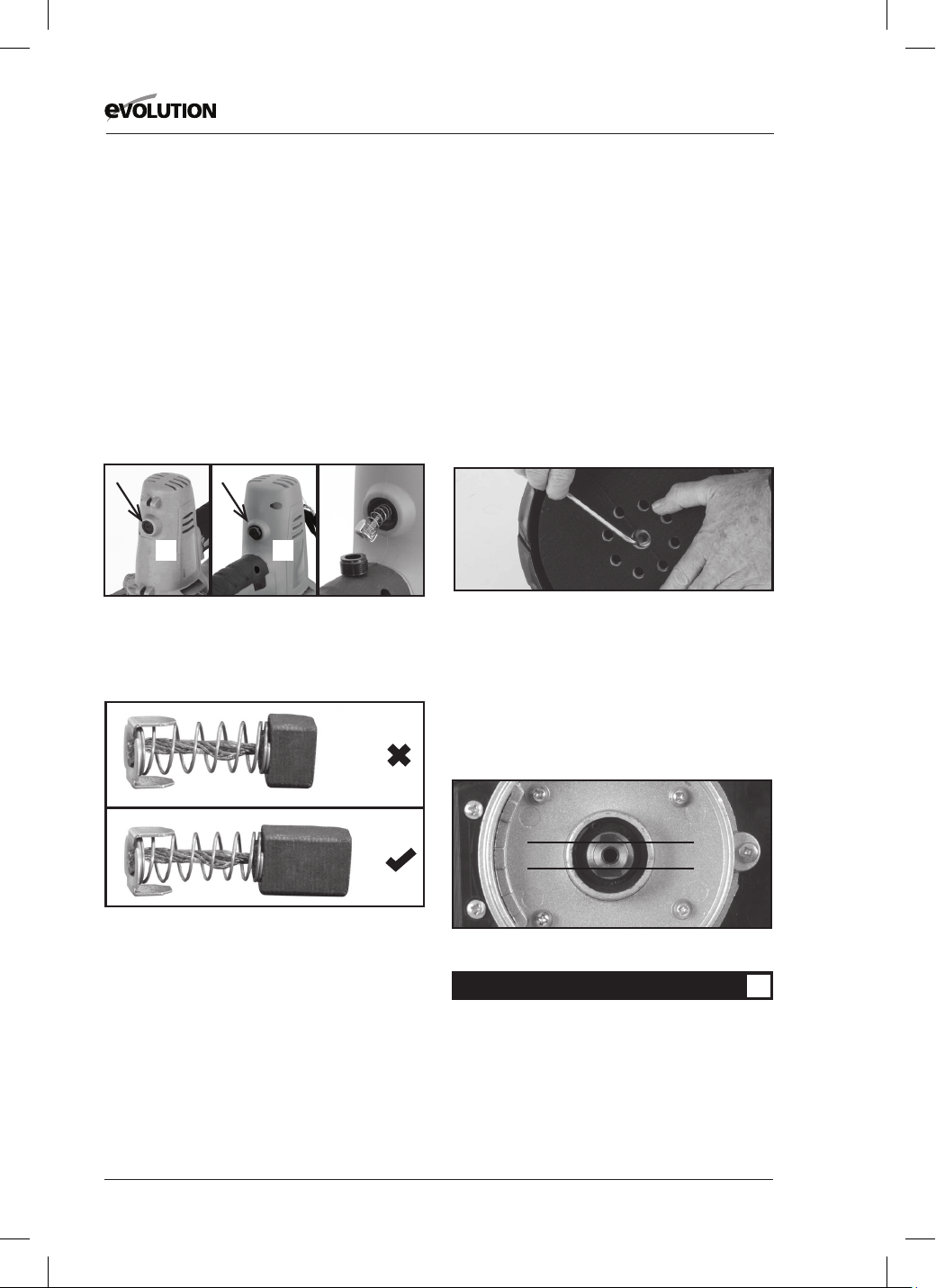

Checking and replacing the

Carbon Brushes

WARNING: Disconnect the machine from

the power supply before attempting to

check or replace the Carbon Brushes.

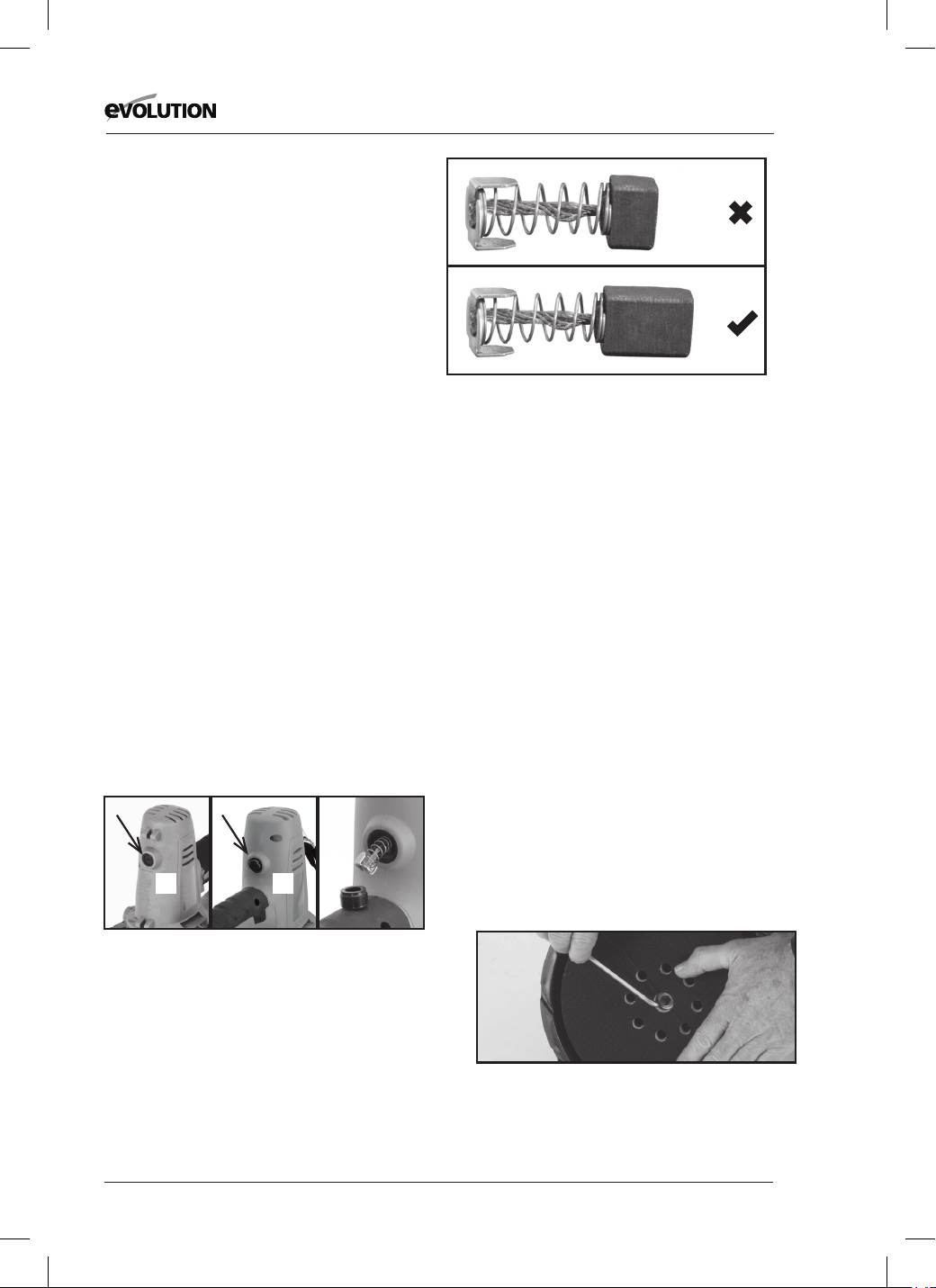

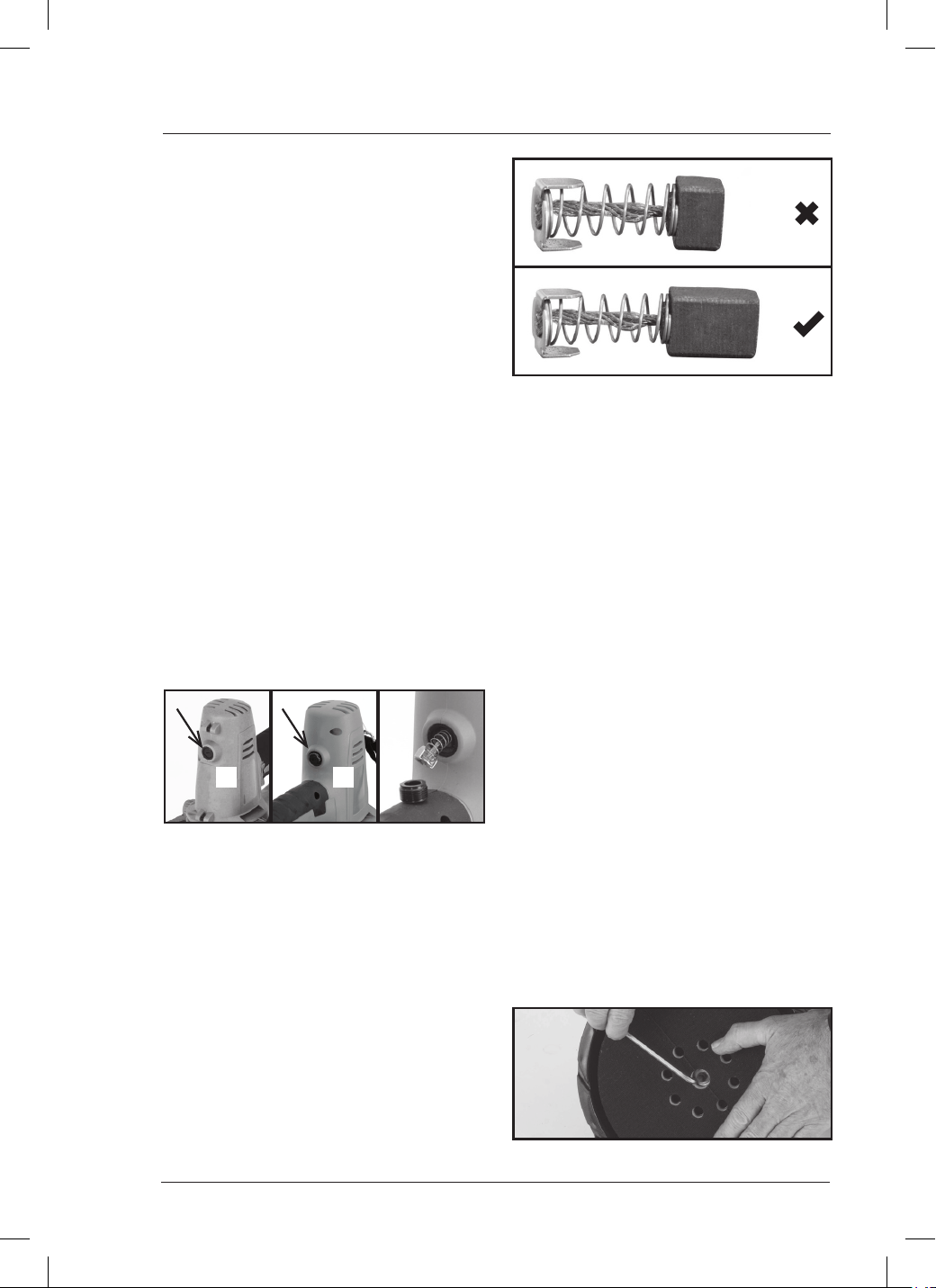

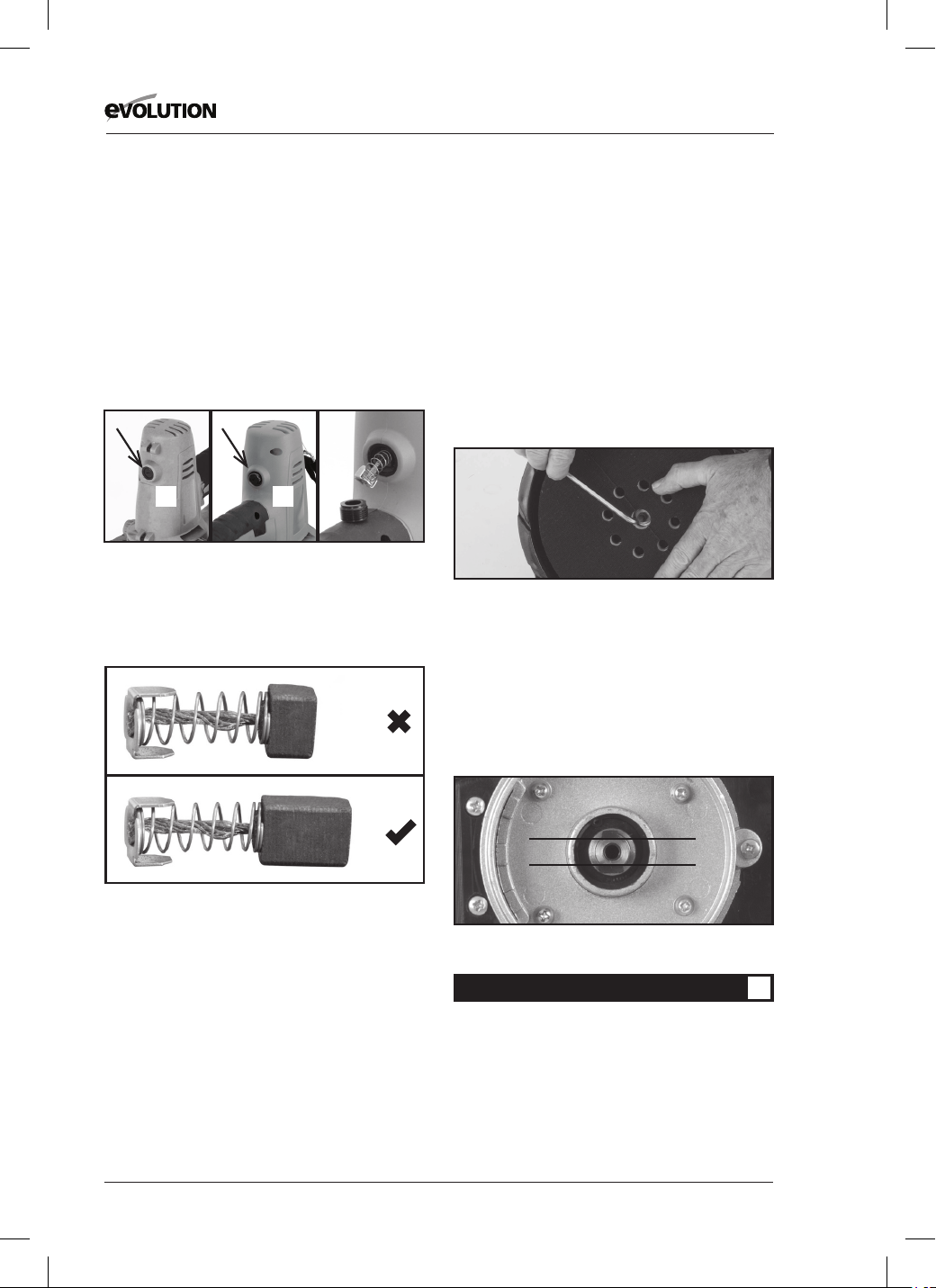

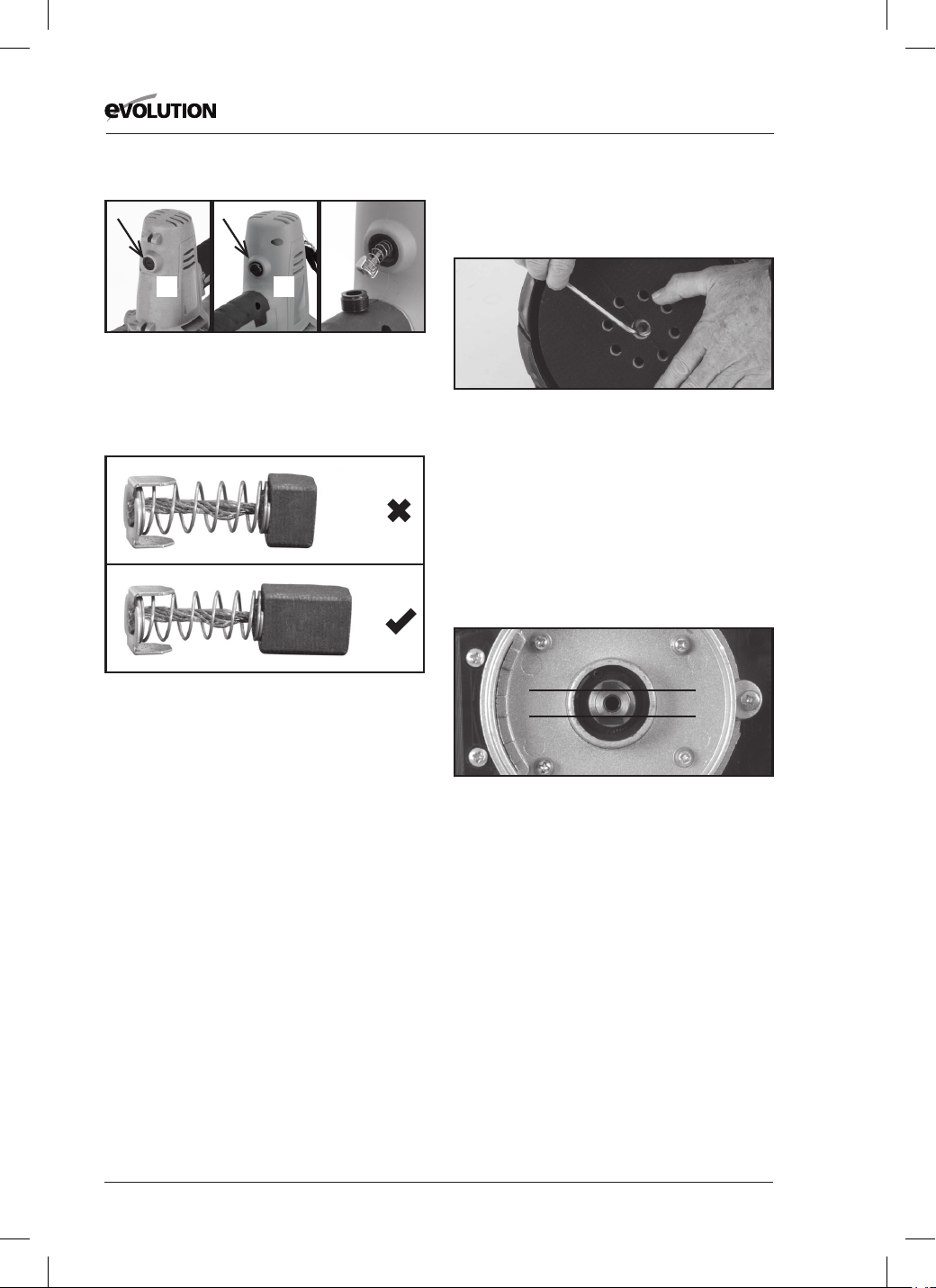

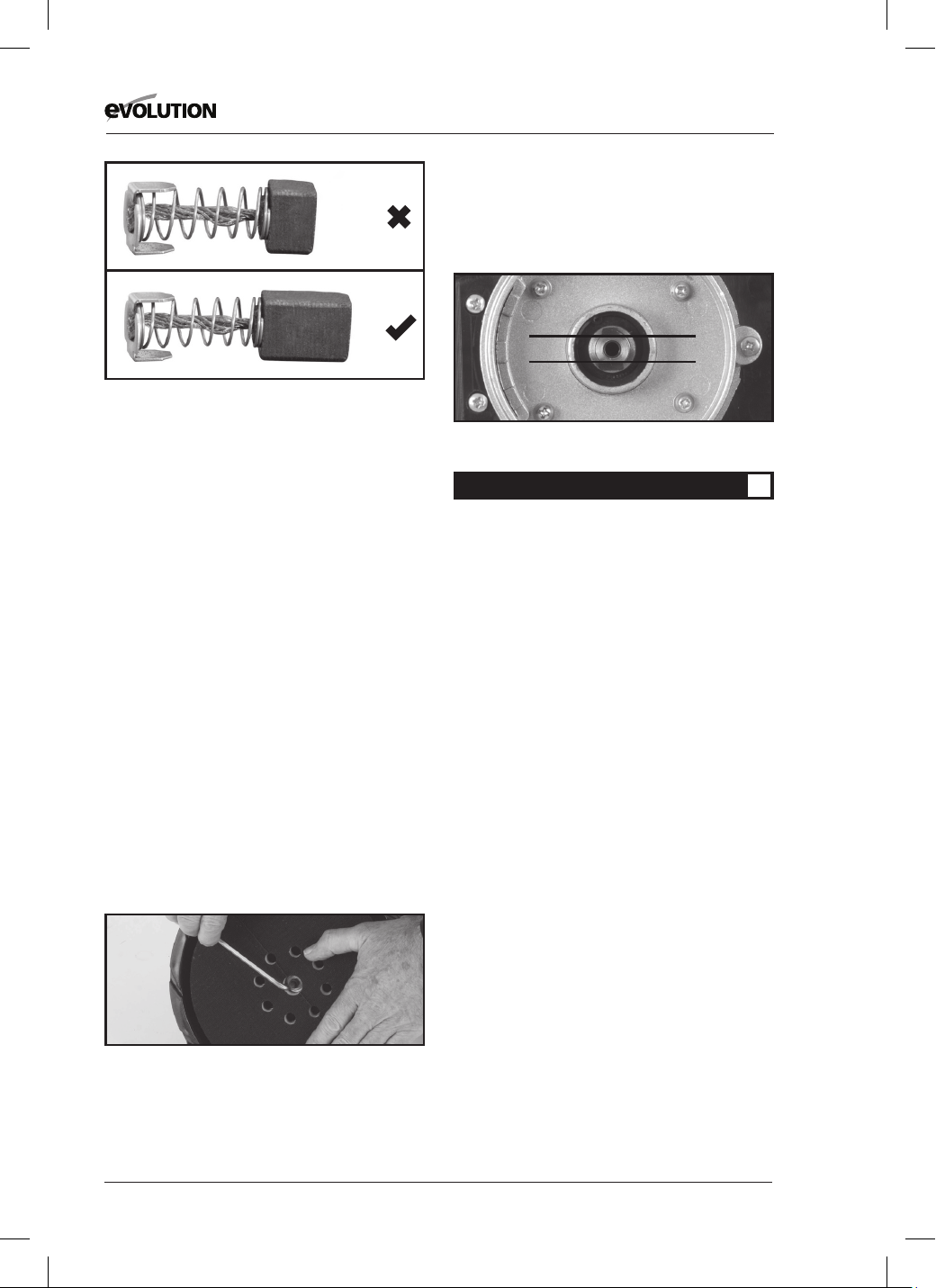

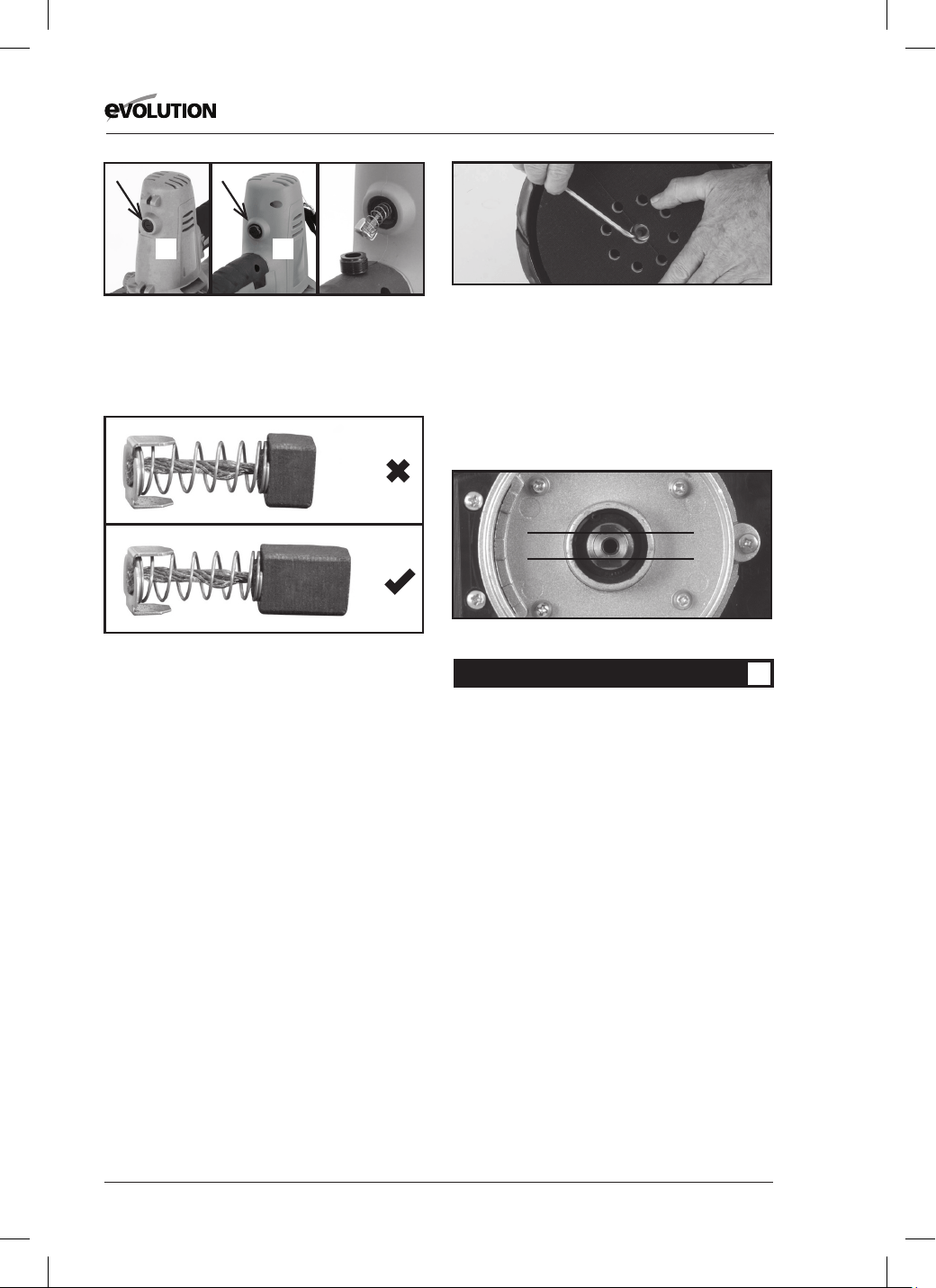

To remove the brushes:

• Unscrew the 2 plastic caps found

towards the base of either side of the

motor housing. Be careful as the caps are

spring-loaded.

• You must replace both carbon brushes

if one has less than 6mm length of

carbon remaining, or if the spring or wire

is damaged or burned.

• Withdraw the brushes with their springs.

• If replacement is necessary renew the

brushes and replace the caps.

• Ensure the caps screw back freely.

Note: Used but serviceable brushes can

be replaced, but only as long as they are

returned to the same position, and inserted

the same way round, as they were removed

from the machine.

• Run new brushes without load for

approximately 5 minutes. This will help

the bedding-in process.

To replace the Power Driven Backing Pad

WARNING: Only attempt this procedure

with the machine disconnected from the

power supply.

• Remove any installed sanding disc to

reveal the Backing Pad and the centrally

located socket headed screw that

attaches it to the power drive spindle.

• Holding the Backing Pad with the palm

of one hand, loosen the socket headed

screw using the supplied 5mm Hex Key

with the other hand. (Fig. 11)

• Remove the socket headed screw and

lift away the Backing Pad.

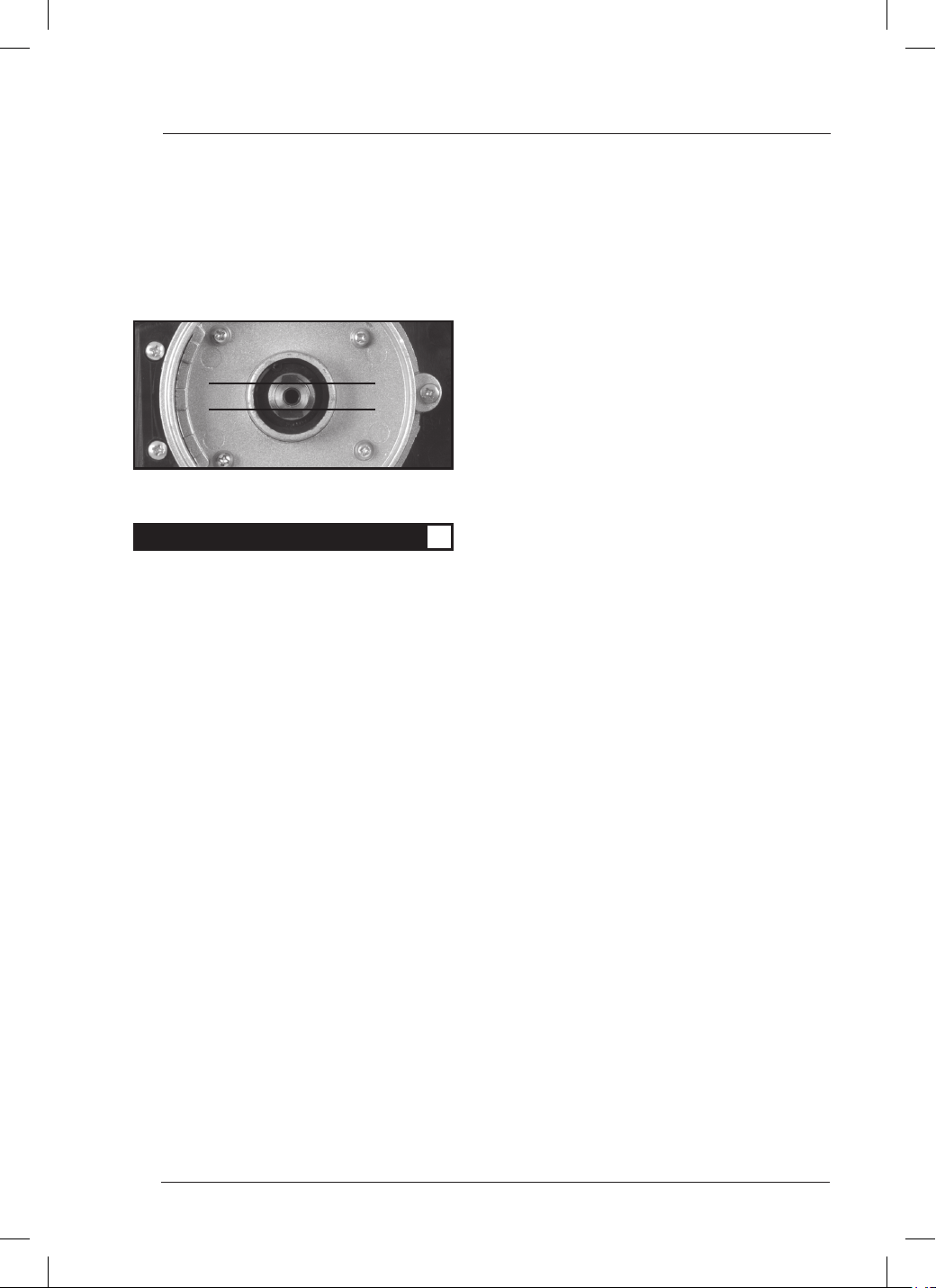

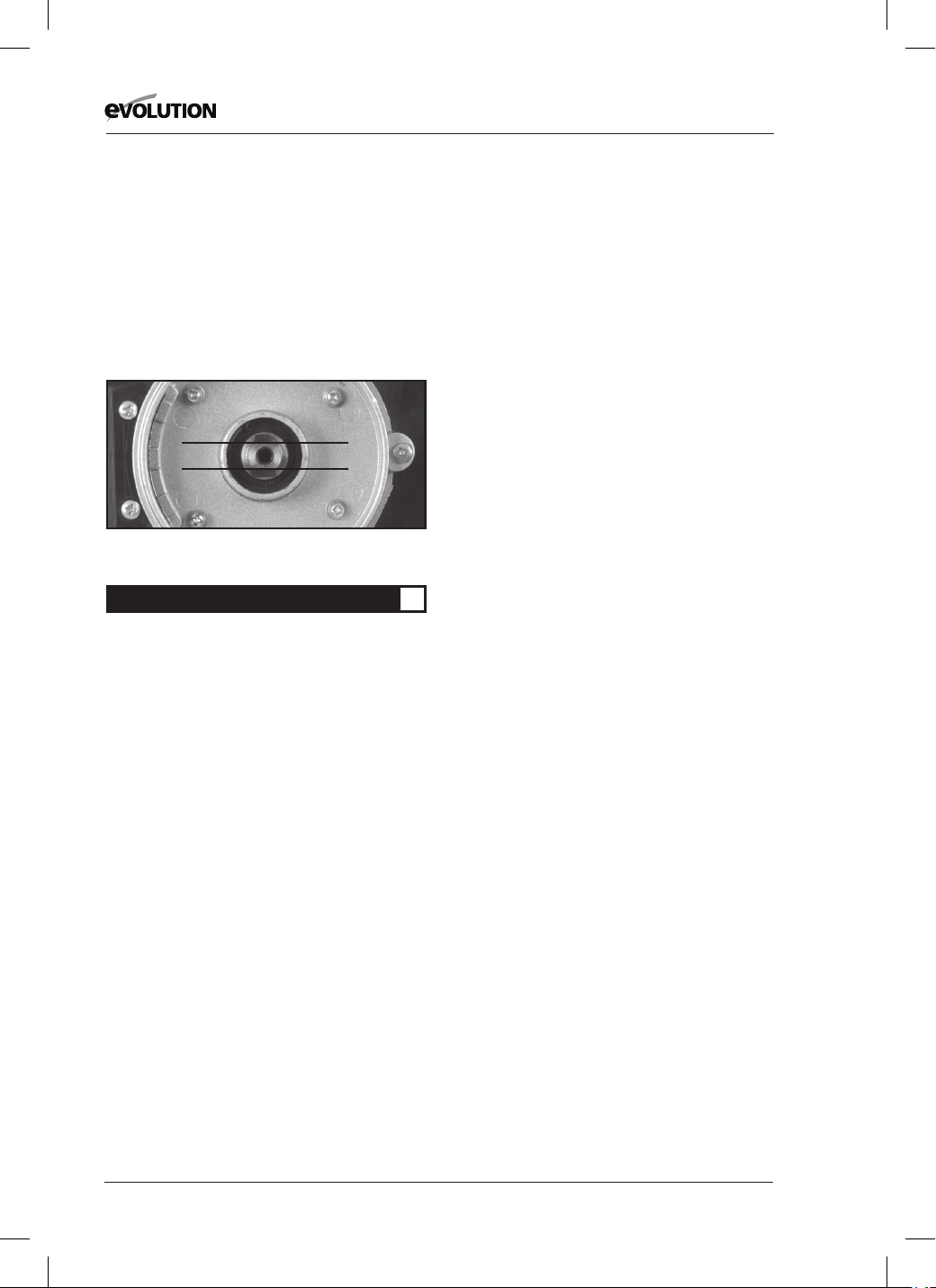

Note: The two (2) flats machined on the

power spindle that engage in the Backing

Pad to provide positive drive and location.

(Fig. 12)

Waste electrical products should not be

disposed of with household waste. Please

recycle where facilities exist. Check with

your Local Authority or retailer for recycling

advice.

ENVIRONMENTAL PROTECTION

Fig. 11

Fig. 12

1 2

> 6mm

BUILD

HAND HELD DRYWALL SANDER

EC DECLARATION OF CONFORMITY

In accordance with EN ISO 17050-1:2004

The manufacturer of the product covered by this Declaration is:

UK: Evolution Power Tools Ltd, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS, 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the

relevant provisions of the Machinery Directive and other appropriate directives as detailed below.

The manufacture further declares that the machine as detailed in this declaration, where

applicable, fulfils the relevant provisions of the Essential Health and Safety requirements.

The Directives covered by this Declaration are as detailed below:

2006/42/EC. Machinery Directive.

2014/30/EU. Electromagnetic Compatibility Directive

The Restriction of the Use of certain Hazardous Substances

in Electrical Equipment (RoHS) Directive

2002/96/EC as amended by 2003/108/EC. The Waste Electrical and Electronic Equipment (WEEE) Directive

And is in conformity with the applicable requirements of the following documents:

EN 60745-1: 2009+A11: 2010 • EN 60745-2-3: 2011+A2: 2013 +A11: 2014+ A13: 2015

EN 55014-1: 2017 +A11:2020 • EN 55014-2:2015 • EN IEC 61000-3-2:2019 • EN61000-3-3:2013:2013+A1:2019

Product Details

Description: 225MM HAND HELD DRYWALL SANDER

Evolution Model No: 069-0001, 069-0003

Factory Model No: R7235A, R7235B

Brand Name: EVOLUTION

Voltage: 230-240V ~ 50Hz

Input: 1050W

The technical documentation required to demonstrate that the product meets the requirements of directive has

been compiled and is available for inspection by the relevant enforcement authorities, and verifies that our technical

file contains the documents listed above and that they are the correct standards for the product as detailed above.

Name and address of technical documentation holder.

Signed: Print: Matthew Gavins - Group Chief Executive

Date: 01/03/16

UK: Evolution Power Tools Ltd, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS, 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

EB225DWSHH

2011/65/EU.&

2015/863/EU.
