17" VARIABLE-SPEED
DRILL PRESS
58783
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 25b
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
read this material before using this product.
Failure to do so can result in serious injury.
SaVe tHiS ManUaL.
Page 2 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
table of contents
Important Safety Information ...................... 2
Specifications ............................................. 5
Setup - Before Use ..................................... 5
Operating Instructions ................................ 8
Maintenance and Servicing ....................... 12
Parts List and Assembly Diagram.............. 14
Warranty .................................................... 16
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inFOrMatiOn
General tool Safety Warnings
read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning it on.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations,
or expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should
be kept safe distance from work area.
6. MAKE WORKSHOP KID PROOF with padlocks,
master switches, or by removing starter keys.
7. DON’T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
table a: recOMMenDeD MiniMUM Wire GaUGe
FOr eXtenSiOn cOrDS
(120 VOLt)
naMepLate
aMpereS
(at full load)
eXtenSiOn cOrD
LenGtH
25′ 50′ 100′ 150′
0 – 6 18 16 16 14
6.1 – 10 18 16 14 12
10.1 – 12 16 16 14 12
12.1 – 16 14 12 Do not use.
9. USE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition.
When using an extension cord, be sure to use one
heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
Table A shows the correct size to use depending
on cord length and nameplate ampere rating.
If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
Page 3For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings, bracelets,
or other jewelry which may get caught in moving
parts. Nonslip footwear is recommended.
Wear protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also use
face or dust mask if cutting operation is dusty.
Everyday eyeglasses only have impact resistant
lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold
work when practical. It’s safer than using your
hand and it frees both hands to operate tool.
13. DON’T OVERREACH. Keep proper
footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for
lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing;
when changing accessories, such as
blades, bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in
off position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended
accessories. The use of improper accessories
may cause risk of injury to persons.
18. NEVER STAND ON TOOL. Serious injury
could occur if the tool is tipped or if the
cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function – check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into
a blade or cutter against the direction of
rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool
until it comes to a complete stop.
Grounding instructions
tO preVent eLectric SHOcK anD DeatH FrOM incOrrect GrOUnDinG Wire
cOnnectiOn reaD anD FOLLOW tHeSe inStrUctiOnS:
110-120 Vac Grounded tools: tools with three prong plugs
1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
2. Do not modify the plug provided – if it will
not fit the outlet, have the proper outlet
installed by a qualified electrician.
3. Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
The conductor with insulation having an outer
surface that is green with or without yellow
stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
4. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as
to whether the tool is properly grounded.
5. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.
6. Repair or replace damaged or
worn cord immediately.
General tool Safety Warnings (continued)
Page 4 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
110-120 Vac Grounded tools: tools with three prong plugs (cont.)
125 Vac 3-prong plug and Outlet
(for up to 125 Vac and up to 15 a)
Grounding
pin
7. This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated above in
125 Vac 3-prong plug and Outlet. The tool has
a grounding plug that looks like the plug illustrated
above in 125 Vac 3-prong plug and Outlet.
8. The outlet must be properly installed and grounded
in accordance with all codes and ordinances.
9. Do not use an adapter to connect
this tool to a different outlet.
Drill press Safety Warnings
For your Own Safety read instruction
Manual Before Operating Drill press
1. Wear eye protection.
2. Do not wear gloves, necktie, or loose clothing.
3. Clamp workpiece or brace against
column to prevent rotation.
4. Use recommended speed for drill
accessory and workpiece material.
5. The included chuck key is specially designed
to be self-ejecting, reducing the risk of ejecting
at high speed. Only use the included chuck
key or an identical replacement key.
6. DO nOt Operate WitH any GUarD
DiSaBLeD, DaMaGeD, Or reMOVeD. Moving
guards must move freely and close instantly.
7. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
8. When servicing use only identical replacement parts.
9. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved
and breathing protection must be NIOSH-approved
for the specific hazards in the work area.
10. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
11. Industrial applications must follow OSHA guidelines.
12. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
13. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
14. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
15. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Vibration Safety
This tool vibrates during use. Repeated or
long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders. To
reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
Page 5For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp
3. Use tools with the lowest vibration when there
is a choice between different processes.
4. Include vibration-free periods each day of work.
5. Grip workpiece as lightly as possible (while still
keeping safe control of it). Let the tool do the work.
6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SaVe tHeSe inStrUctiOnS.
Specifications
Electrical Rating 120VAC / 60 Hz / 8A
Spindle Speeds Variable 300-3100 RPM
Throat Depth 8-1/2″
Table Tilt 45º left and right
Table Swing Around Column 360°
Spindle Stroke 4.7″ (120mm)
Spindle Taper MT3
Chuck Capacity 5/8″ (16mm)
LASER LIGHT
DO NOT STARE INTO BEAM
Max. Output: 1 mW,
Wavelength: 650 nm
CLASS II LASER PRODUCT
This product complies with
21 CFR 1040.10 and 1040.11
Distributed by Harbor Freight Tools,
Calabasas, CA, 58783
Manufacture Date: ___________, ______
23j
caUtiOn! Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous exposure.
caUtiOn! The use of optical instruments
with this product will increase eye hazard.
Setup - Before Use
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO preVent SeriOUS inJUry FrOM acciDentaL OperatiOn:
turn the power Switch of the tool off and unplug the tool from its electrical
outlet before performing any procedure in this section.
note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Mounting
caUtiOn! Secure Drill Press to a
supporting structure before use.
1. Verify that installation surface has no hidden
utility lines before drilling or driving screws.
2. Bolt Base to a flat, level, solid floor location
capable of supporting the weight of the
Drill Press and any work pieces.
Page 6 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
Setup - Before Use (continued)

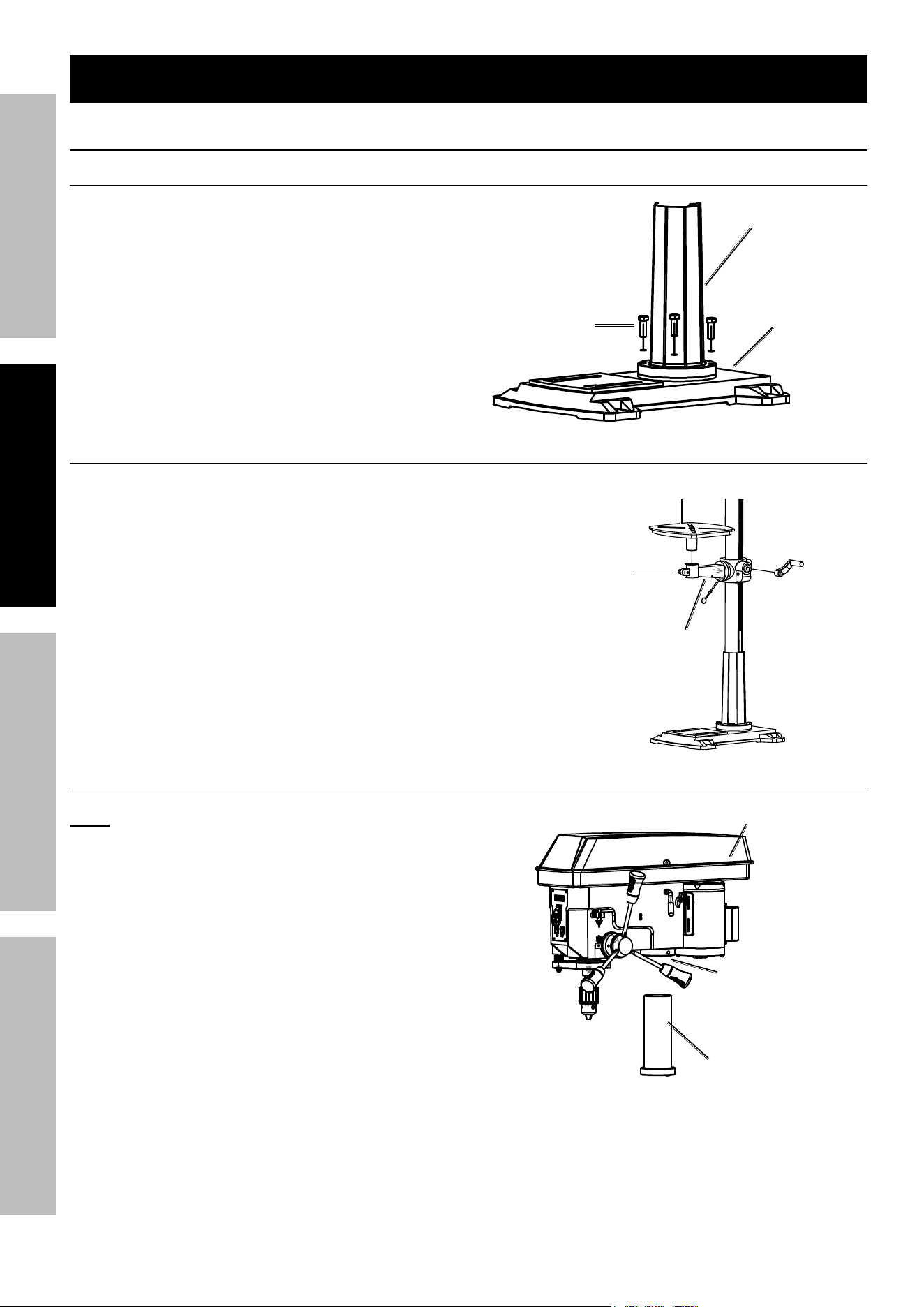

assembly
column to Base
1. Place Column Base (141) onto the Base (136).
2. Place Bolts (142) in Column Base and Base.
3. Tighten Bolts.
Base (136)
column
Base (141)
Bolt (142)
table to table Support
1. Thread Lock Handle (132) into
Table Support Bracket (135).
2. Lower Table (96) into Table Support Bracket
and tighten Lock Handle to secure.
Lock Handle
(132)
table
Support
Bracket (135)
table (96)
Headstock to column
note: Make sure Set Screw (98) is backed
out enough to allow column insertion.
1. With help of an assistant, lift Headstock (57)
above Column (124), and gently slide it
down Column as far as it will go.
Headstock (57)
column (124)
Set Screw
(98)
2. Align Headstock with Base (136).
3. Using a hex wrench, tighten Set Screw (98)
to secure Headstock in place.
Page 7For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp

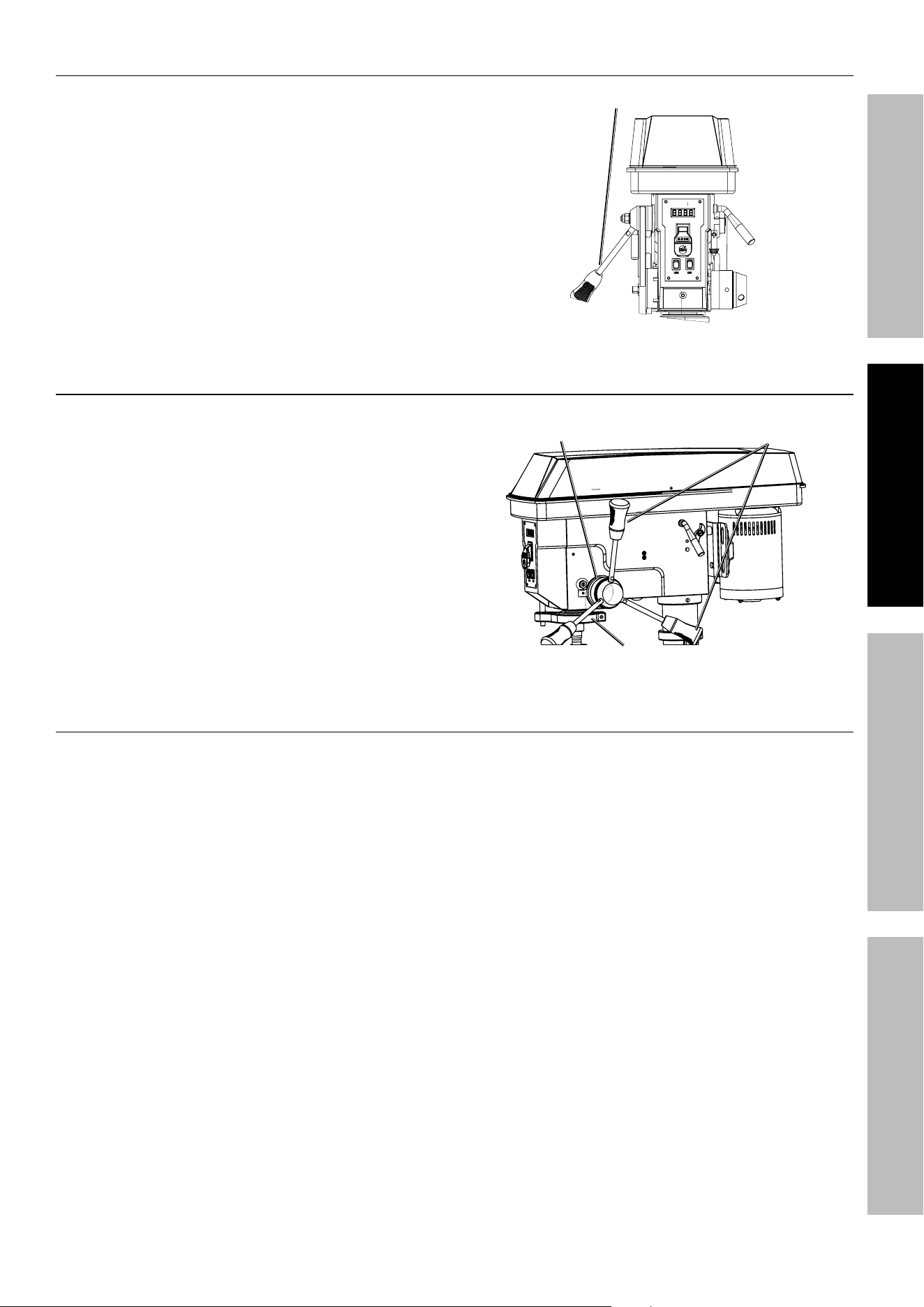

installing Speed Handle
1. Install Speed Handle (92) by threading
into opening on left side of Drill Press.
Speed Handle (92)
Feed Handles/Bars
Thread Feed Bars (67) into
Feed Bar Seat (68) and tighten them.
III
Feed Bar
Handles (66)
Feed Bar
Seat (68)
Feed Bar (67)
installing/removing the chuck
1. Thoroughly clean Arbor (120) and the tapered
hole in Chuck (121) of all dirt, grease, oil,
and protective coatings. Make sure all parts
are thoroughly clean, dry and burr free.
2. Insert Arbor into end of Spindle (119). If
necessary, rotate Arbor to ensure that it is correctly
positioned and fully inserted into the Spindle
shaft. Firmly tap Arbor nose with a rubber mallet.
3. Open jaws of the Chuck to their maximum,
using the supplied Chuck Key.
4. Slide the Chuck onto the Arbor
nose as far as it will go.
5. Hold a piece of scrap wood against the Chuck
nose to protect it and firmly tap wood with a
rubber mallet to ensure proper seating and
a solid fit of the Chuck on the Spindle.
6. To remove Chuck, use Feed Handles to lower
Chuck until slots in Quill and Spindle are
exposed. Rotate chuck until they align.
7. Adjust lower Stop Nut all the way
up to lock Spindle in place.
8. Insert Drift Key (97) into slot and tap it with a
rubber mallet (not included) to release Chuck
and Arbor. Make sure to hold chuck with
one hand to prevent it from falling.
Page 8 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
Operating instructions
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tool Set Up
tO preVent SeriOUS inJUry FrOM acciDentaL OperatiOn:
turn the power Switch of the tool off and unplug the tool from its electrical
outlet before performing any procedure in this section.
tO preVent SeriOUS inJUry:
DO nOt Operate WitH any GUarD DiSaBLeD, DaMaGeD, Or reMOVeD.
Moving guards must move freely and close instantly.

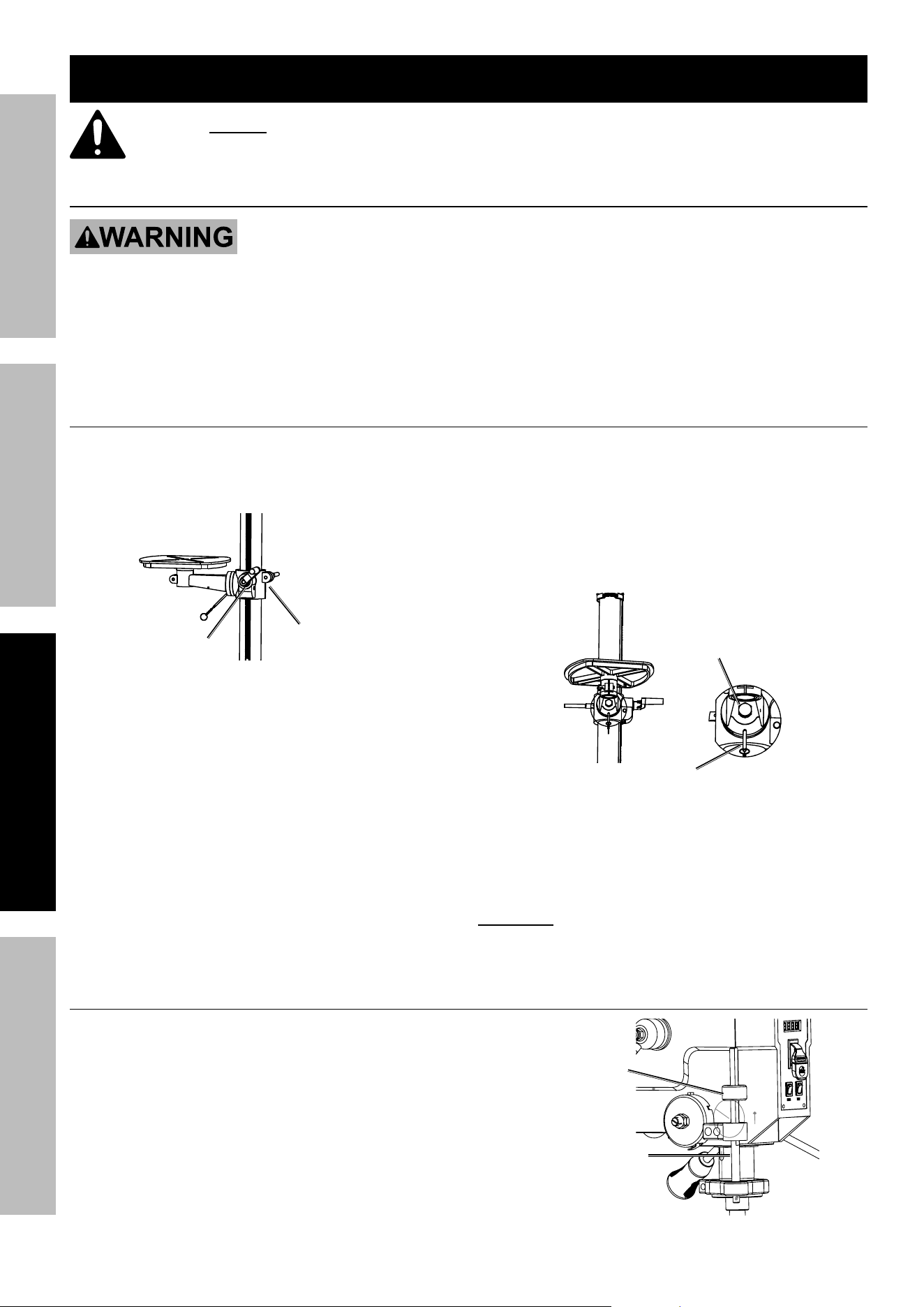

table adjustment
1. Raise or lower Table by loosening
Lock Handle (140) and turning Height Crank (127)
clockwise to raise and counterclockwise to lower.
crank
Handle
(127)
Lock Handle
(140)
2. Loosen Lock Handle to pivot Table (96)
around Column.
3. Remove Locating Pin (79).
4. Loosen Adjustment Bolt and tilt to required angle.
5. Tighten Adjustment Bolt.
6. To adjust table back to horizontal, loosen Adjustment
Bolt, tilt table to 0°, and insert Locating Pin.
I
adjustment
Bolt
Locating pin (79)
7. TO ENSURE THAT THE DRILL IS ENTIRELY
PERPENDICULAR TO THE TABLE,
insert a straight round bar (not included) into
Chuck, place a square on Table and bring it
up to round bar. Adjust angle as needed.
caUtiOn! to prevent injury from
unexpected table movement, tighten
Lock Handle (140) after adjustment.
Setting a Drilling Depth
Pushing button on Depth Scale Knob allows
for depth adjustments on the Depth Scale.
1. Push button on Depth Scale Knob and slide
Knob until bottom of Knob is aligned with desired
depth mark on Gauge Scale. Release button.
2. Rotate Depth Scale Knob for fine-
tuning of the setting.
Depth Scale
Knob
Gauge Scale
Page 9For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp
changing Drill Speed
1. Refer to table below to determine appropriate
speed for drill size being used.
note: Drill press must be running
during speed change.
2. To adjust drill speed, simply raise or
lower the Speed Handle (91) until LED
display shows desired RPM.

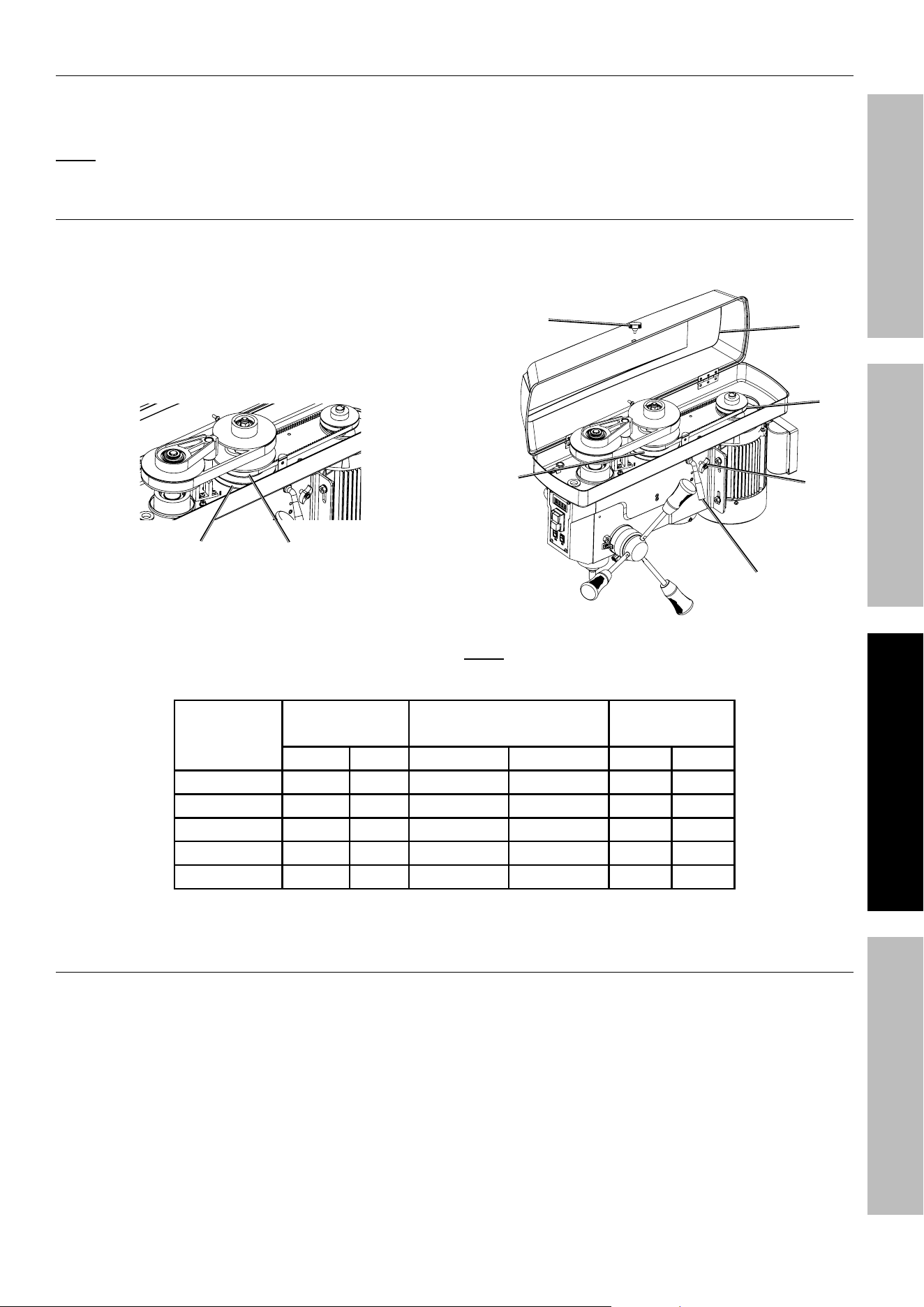

adjusting Speed range
1. Turn Drill Press off and unplug Power Cord.
2. Loosen Belt Cover Knob, open Belt
Cover and loosen Belt Lock Knob.
3. Pull Belt Tension Handle forward.
4. Move Belt to proper Pulley position
based on speed requirements.
Low
Speed
position
High
Speed
position
5. Push Belt Tension Handle and
tighten Belt Lock Knob.
6. Close Belt Cover and tighten Belt Cover Knob.
7. Plug Power Cord into an electrical
outlet and resume operation.
Belt
tension
Handle
Belt
Lock
Knob
Belt
cover
Belt
cover
Knob
Belt
pulley
note: If Belt is too long to be properly
tensioned, it must be replaced.
Speed
range
(rpM)
WOOD
Drill Bit Size
aLUMinUM/Zinc/BraSS
Drill Bit Size
irOn/SteeL
Drill Bit Size
in mm in mm in MM
2000 - 3100 3/8 9.5 7/32 5.6 3/32 2.4
1400 - 2000 5/8 16 11/32 8.75 5/32 4
1000 - 1400 7/8 22 15/32 12 1/4 6.4
800 - 1000 1-1/4 31.75 11/16 17.5 3/8 9.5
300 - 800 1-5/8 41.4 3/4 19 1/2 12.5
The table above shows drill speeds for various materials used by this Drill Press.
Drill Bit installation
1. Insert drill bit into jaws of Chuck approximately 1″,
ensuring that jaws do not touch flutes of drill bit.
2. Before tightening Chuck, ensure that
drill bit is centered within jaws.
3. Tighten Chuck securely with included Chuck Key.
Page 10 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
Workpiece and Work area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
3. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
5. Make sure the table height and position
is set so that the drill travel range is
sufficient for the material to be drilled.
6. Make sure the work is securely clamped.
That is, held in a drill vise, or bolted to the table.
Never hold the material with your bare hands while
drilling. Severe personal injury may be caused if
the material is flung out of the operator’s hand.
7. IF THE MATERIAL IS IRREGULARLY SHAPED and
cannot be laid flat on the table, it should be securely
blocked and clamped. Any tilting, twisting or shifting
will result not only in a roughly drilled hole but also
increases the chances of damage to the drill.
8. FOR FLAT WORK, lay the piece on to a
wooden base and clamp it down firmly against
the table to prevent it from turning.
9. FOR SMALL MATERIALS that cannot be clamped
to the table, use a drill press vise. Make sure
the vise is clamped or bolted to the table.
10. WHEN DRILLING COMPLETELY THROUGH
WOOD, position a piece of scrap wood between the
material and the table to prevent splintering on the
underside of the material as the drill breaks through.
The scrap piece of wood must make contact with
the left side of the column. Securely clamp the
other end of the scrap wood to the table. Also, set
the depth of the drill so that the drill will not come
in contact with the table - or align the table so that
the hole in its center is in line with the drill bit.
Page 11For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp

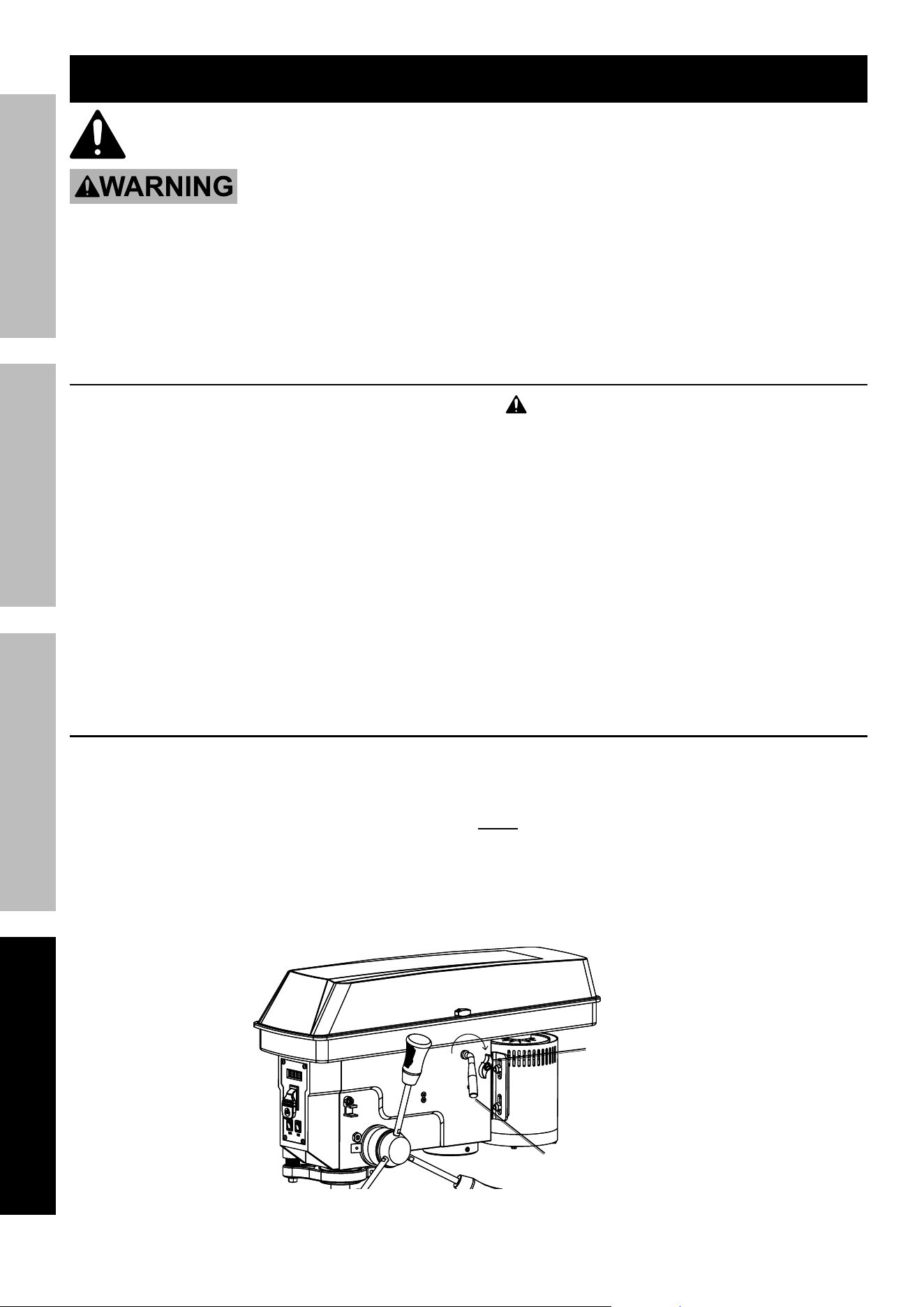

General Operating instructions
1. Bring drill bit down with Feed Knob to where hole is
to be drilled.
Make minor workpiece alignment adjustments.
2. Plug Power Cord into an electrical outlet.
3. Turn Drill Press on.
4. Move speed lever to appropriate
setting (see table on page 9).
5. Pull down on the Feed Knob and
slowly drill hole into workpiece.
6. Turn Drill Press off by flipping Power Switch down.
7. To lock Drill Press in OFF position, remove
safety key from Power Switch and store
key in a safe place until next use.
WarninG! tO preVent SeriOUS inJUry: If
the drill bit grabs and spins the workpiece, do not
attempt to stop the spinning with your hands. Step
back, and turn the drill press off. Wait for the spindle
to stop turning before dislodging the workpiece.
8. To prevent accidents, turn off tool and disconnect
its power supply after use. Clean, then store
tool indoors out of children’s reach.
Laser Function
WarninG! tO preVent SeriOUS
inJUry: Do not stare directly into laser
beam. Please observe all safety rules:
a. Never aim the beam at a person or an
object other than the workpiece.
b. Do not project the laser beam
into the eye of others.
c. Always make sure the laser beam is aimed at
a workpiece that does not posses reflective
surfaces, as the laser beam could project
into your eyes or the eyes of others.
1. Place workpiece on table.
2. Turn Laser Switch to ON.
note: The two laser lines cross
where drill meets workpiece.
3. Lower Drill to meet Workpiece.
Page 12 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO preVent SeriOUS inJUry FrOM acciDentaL OperatiOn:
turn the power Switch of the tool off and unplug the tool from its electrical
outlet before performing any procedure in this section.
tO preVent SeriOUS inJUry FrOM tOOL FaiLUre:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BeFOre eacH USe, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• damaged electrical wiring
• any other condition that may
affect its safe operation.
2. aFter USe, wipe external surfaces
of the tool with clean cloth.
3. WarninG! tO preVent SeriOUS
inJUry: if the supply cord of this power
tool is damaged, it must be replaced only
by a qualified service technician.
4. Periodically wear ANSI-approved safety goggles and
NIOSH-approved breathing protection and blow dust
out of the motor vents using dry compressed air.
5. Periodically apply a light coat of machine
oil to the column to inhibit corrosion.
6. Apply a light coat of paste wax, or similar
product, to the table surface to protect the
metal and inhibit corrosion. (Avoid products
containing silicone, which may stain wood.)
Belt inspection and tensioning
1. Examine belt for cracks, tears in
backing, and other damage.
2. Replace belt if damaged.
3. Loosen Lock Handle.
note: Belt should deflect to 1/2″ while pressing
midway between pulleys. Do not overtighten belt.
4. Turn Belt Tension Handle clockwise
to desired tension and hold.
5. Tighten Lock Handle.
Lock Handle
Belt tension Handle
Page 13For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp

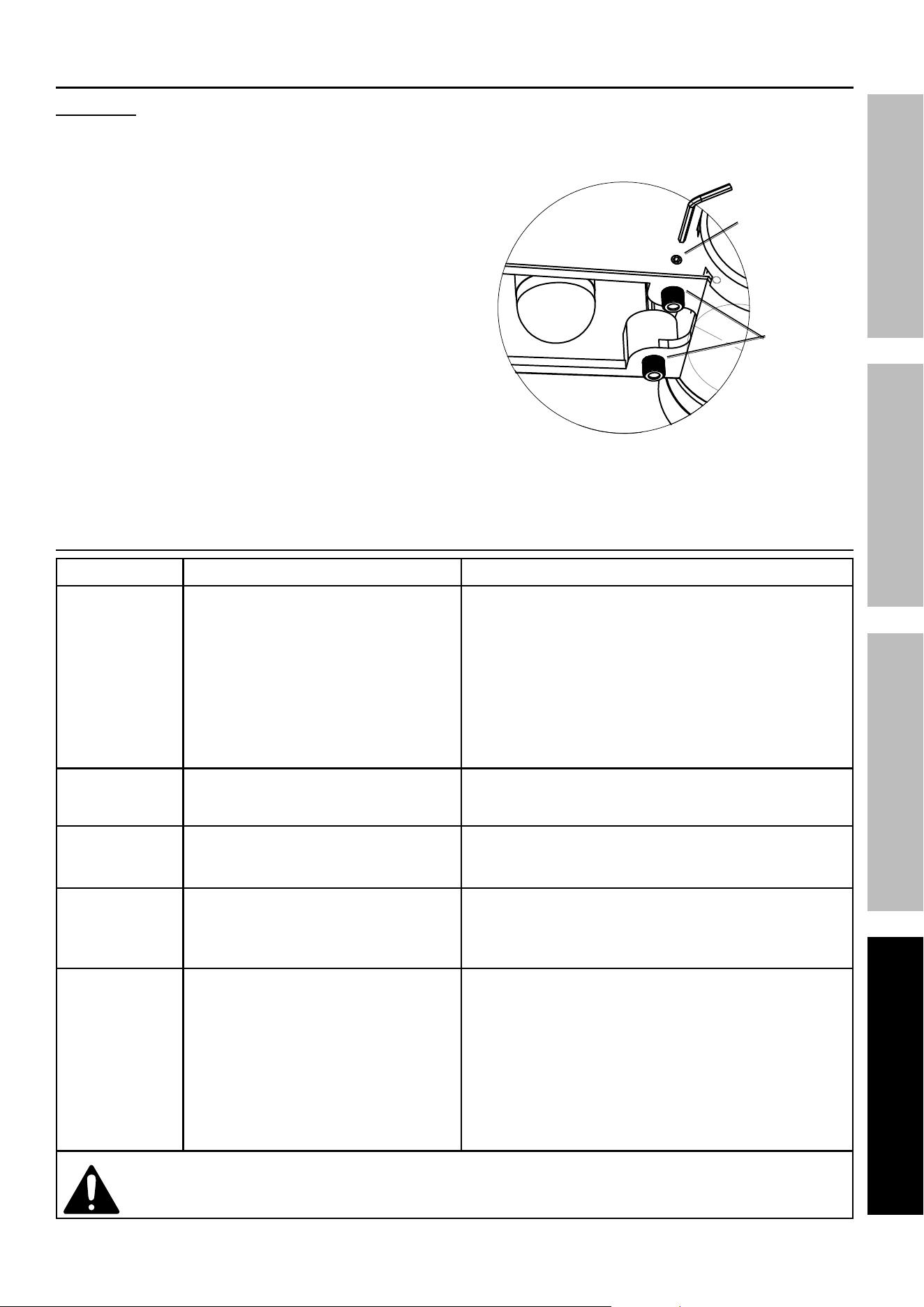

Laser adjustment
WarninG! tO preVent SeriOUS
inJUry: Do not stare directly into laser
beam. Please observe all safety rules:
a. Never aim the beam at a person or an
object other than the workpiece.
b. Do not project the laser beam
into the eye of others.
c. Do not use a workpiece with reflective
surfaces, as the laser beam could project
into your eyes or the eyes of others.
1. Adjust table to 0° and clamp a workpiece to table.
2. Use a small drill bit in the chuck, and lower
it to create an indentation in workpiece.
3. Turn on Laser Switch. Lasers should
intersect exactly at the indentation.
4. If laser needs adjustment, use a 3mm hex
key (not included) to turn Laser Adjustment
Set Screws counterclockwise.
5. Gently rotate Laser Housing until both
Laser lines intersect at the indentation.
6. Tighten both set screws.
Laser
adjustment
Set Screw
Laser
Housing
troubleshooting
problem possible causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear. (Carbon
brushes or switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
If breaker is tripped, make sure circuit is right
capacity for tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates
slowly.
Extension cord too long or
wire size too small.
Eliminate use of extension cord. If an extension cord
is needed, use one with the proper diameter for its
length and load. See table a on page 2.
Performance
decreases
over time.
1. Accessory dull or damaged.
2. Carbon brushes worn or damaged.
1. Keep cutting accessories sharp.
Replace as needed.
2. Have qualified technician replace brushes.
Excessive noise
or rattling.
1. Internal damage or wear. (Carbon
brushes or bearings, for example.)
2. Belt (if equipped) too loose (slipping)
or too tight (bearing damage).
1. Have technician service tool.
2. Properly tension belt.
Overheating. 1. Forcing machine to work too fast.
2. Accessory dull or damaged.
3. Blocked motor housing vents.
4. Motor being strained by long or
small diameter extension cord.
1. Allow machine to work at its own rate.
2. Keep cutting accessories sharp.
Replace as needed.
3. Wear ANSI-approved safety goggles and
NIOSH-approved dust mask/respirator while
blowing dust out of motor using compressed air.
4. Eliminate use of extension cord. If an extension cord
is needed, use one with the proper diameter for
its length and load. See table a on page 2.
Follow all safety precautions whenever diagnosing or servicing
the tool. Disconnect power supply before service.
Page 14 For technical questions, please call 1-800-444-3353. 58783
SaFety OperatiOn MaintenanceSetUp
parts List and assembly Diagram
parts List
part Description Qty
1 V-Belt 1
2 Hex Socket Screw 1
3 Upper Medium Wheel 1
4 Lower Medium Wheel 1
5 Medium Wheel
Compression Spring
1
6 Screw 1
7 Medium V-Belt Wheel 1
8 Nut 2
9 Spring 2
10 Bearing 1
11 Key 1
12 Medium Shaft Sleeve 1
13 Hex Screw 3
14 Bearing 1
15 Medium Wheel Shaft 1
16 Socket Set Screw 3
17 Circlip 1
18 Circlip 1
19 Adjusting Base 1
20 Bearing 1
21 Circlip 1
22 Spindle Upper Wheel 1
23 Spindle Lower Wheel 1
24 Counter Baffle 1
25 Lamp Holder 1
26 Screw 1
27 Socket Screw 1
28 Rack Shaft 1
29 Spring 1
30 Sleeve 1
31 Socket Screw 1
32 Sleeve 1
33 Key 1
34 Circlip 2
35 Bearing 2
36 Circlip 1
37 V-Belt 1
38 Socket Screw 3
39 Motor V-Belt Pulley 1
40 Key 1
41 Bolt 4
42 Motor 1
43 Washer 4
44 Nut 4
45 Screw 5
46 Pulley Cover
Assembly
1
part Description Qty
47 Motor Plate 1
48 Nut 2
49 Spring Washer 2
50 Motor Rod 2 1
51 Motor Rod 1 1
52 Washer 4
53 Handle 2
54 Spring Pin 2
55 Lamp Holder 1
56 Bracket 1
57 Head 1
58 Bushing 2
59 Socket Screw 2
60 Screw 9
61 Plate 3
62 LED Bulb 1
63 Fork 1
64 Circlip 1
65 Motor Adjusting Rod 1
66 Feed Bar Handle 3
67 Feed Bar 3
68 Feed Bar Seat 1
69 Spring Pin 1
70 Pinion Shaft 1
71 Scale Circle 1
72 Screw 4
73 Counter Probe 1
74 Counter Base 1
75 Chuck Key Holder 1
76 Star Washer 2
77 Screw 2
78 Switch Box 1
79 Locating Pin 1
80 Key 1
81 Digital Display
Transformer
1
82 Switch Box Cover 1
83 ON/OFF Switch 1
84 Screw 4
85 Lamp/Laser Switch 2
86 Gear Shaft 1
87 Gear Base 1
88 Thin Nut 1
89 Variable Handle Base 1
90 Nut 1
91 Variable Handle 1
92 Speed Handle 1
93 Screw 5
94 Nut 1
part Description Qty
95 Bearing 1
96 Work Table 1
97 Drift Key 1
98 Socket Screw 4
99 Laser 2
100 Spring Plate 1
101 Spring 1
102 Spring Cap 1
103 Nut 2
104 Ruler 1
105 Ruler Bracket 1
106 Screw 2
107 Socket Screw 1
108 Nut 1
109 Scale Collar 1
110 Screw 1
111 Sleeve 1
112 Stop Block 1
113 Spring 1
114 Nut 1
115 Washer 1
116 Bearing 1
117 Washer 1
118 Quill 1
119 Spindle 1
120 Arbor 1
121 Chuck 1
122 Chuck Key 1
123 Collar 1
124 Column 1
125 Rack 1
126 Handle 1
127 Crank Handle 1
128 Worm 1
129 Inner Gear Shaft 1
130 Inner Gear 1
131 Table Bracket 1
132 Table Lock Handle 1
133 Bolt 1
134 Power Cord 1
135 Table Support 1
136 Base 1
137 Allen Wrench 1
138 Allen Wrench 1
139 Allen Wrench 1
140 Table Bracket
Lock Bar
1
141 Column Base 1
142 Bolt 4
Page 15For technical questions, please call 1-800-444-3353.58783
SaFetyOperatiOnMaintenance SetUp

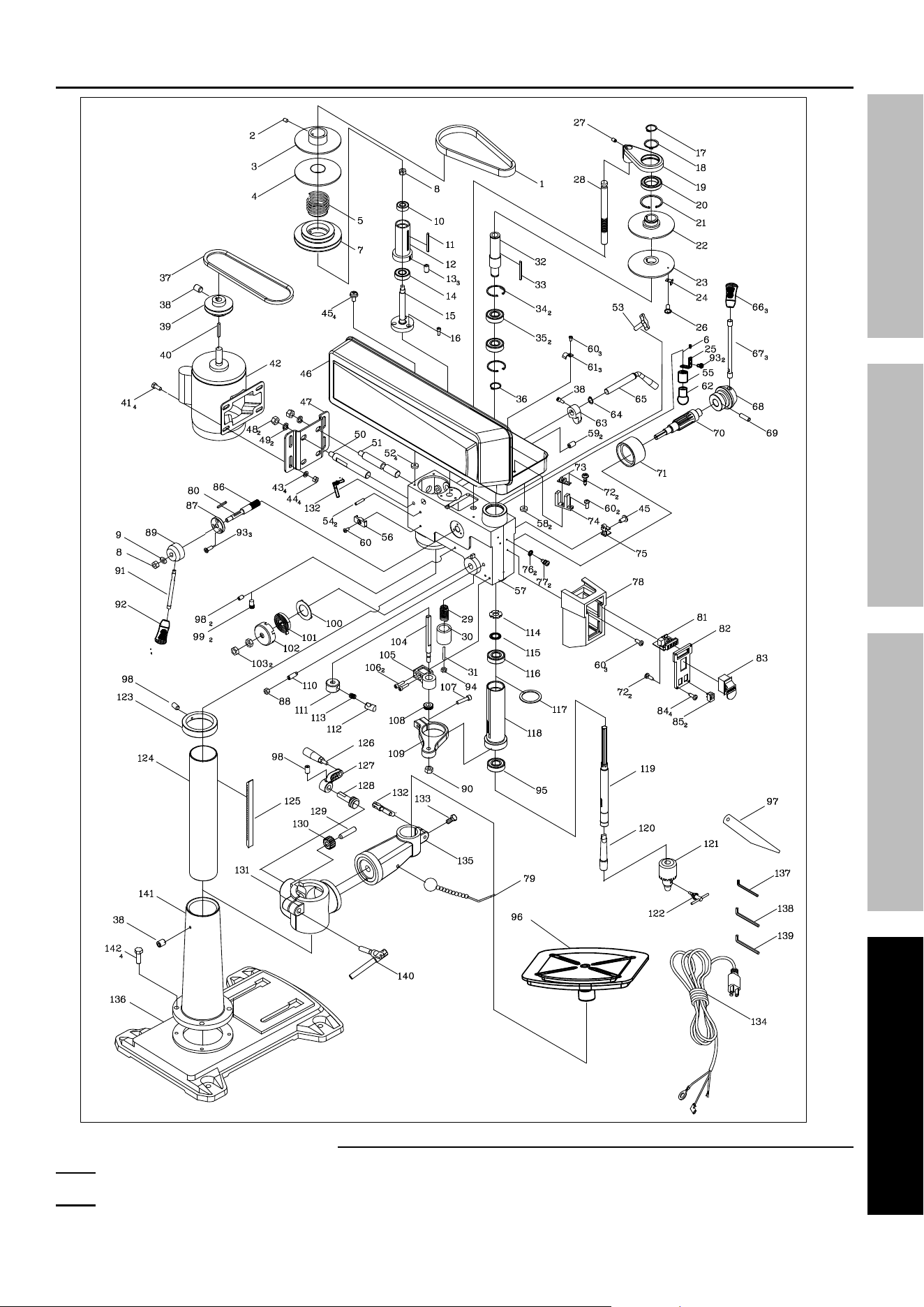

assembly Diagram
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175446565 when ordering parts.
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26677 agoura road • calabasas, ca 91302 • 1-800-444-3353
pLeaSe reaD tHe FOLLOWinG careFULLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
