MAGNETIC STIRRERS
USER MANUAL
MODEL NO.: XLD-C1
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL NO.: XLD-C1
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Magnetic Stirrers
2
WARNING:
Please read this manual carefully before using the product. Failure to
do so may result in serious injury. SAVE THIS MANUAL
Warning!
Read the operating instructions carefully before use.
Ensure that only trained staff works with the instrument.
When operating wear personal safety protection to avoid the risk from:
- Splashing and evaporation of liquids
- Release of toxic or combustible gases
Set up the instrument in a spacious area on a stable, clean, non-slip,
dry and fireproof surface. Do not operate the instrument in explosive
atmospheres, with hazardous substances or around water.
Gradually increase the speed, reduce the speed if:
- Stirring bar breaks away due to high speed
- The instrument is not running smoothly, or the container is not
centered on the plate
Be aware of hazards due to:
- Flammable materials or media with a low boiling temperature
- Overfilling of media
- Unsafe container
Process pathogenic materials only in closed vessels.
- If the case of the stirrer bar is PTFE, please note：
- Elemental fluorine, three fluoride and alkali metals will corrode the
PTFE and Halogen alkanes make it expand at room temperature
Check the instrument and accessories prior to each use. Do not use
damaged components. Safe operation is only guaranteed with the
accessories listed in the “Accessories” section. Accessories must be
securely attached to the device and must be removed when not in use.
Always disconnect the power before fitting accessories.
When the external temperature sensor needed, the tip of the
measuring sensor must be at least 5-10 mm from vessel bottom and
3
wall.
The instrument can only be fully disconnected from the main power
supply by turning off the main or disconnecting the plug.
The voltage stated on the label must correspond to the main power
supply.
The instrument must only be operated by experts.
Keep away from high magnetic fields.
Proper use
The instrument is designed for mixing and/or heating liquids in schools,
laboratories or factories
Observe the minimum distances between multiple units, and distances
to the rear wall and above the assembly (min. 100 mm).
This device is not suitable for using in residential areas or other constraints
mentioned in Safety Instructions.
4
TECHNICAL SPECIFICATIONS
Model
XLD-C1
Voltage [VAC]
100~240
Frequency [Hz]
50/60
Power [W]
5
Maximum stirring
capacity [mL]
3000
Product Dimensions
(L*W*H)[mm]
143*149*47.5
Packing Size
(L*W*H) [mm]
210*155*52
Net Weight [kg]
0.28
Gross Weight [kg]
0.35
*Products such as specifications, appearance, and design are
subject to modification without prior notice.
PACKAGE CONTENTS
Machine*1
Adapter*1
Stirrer bar*1
5

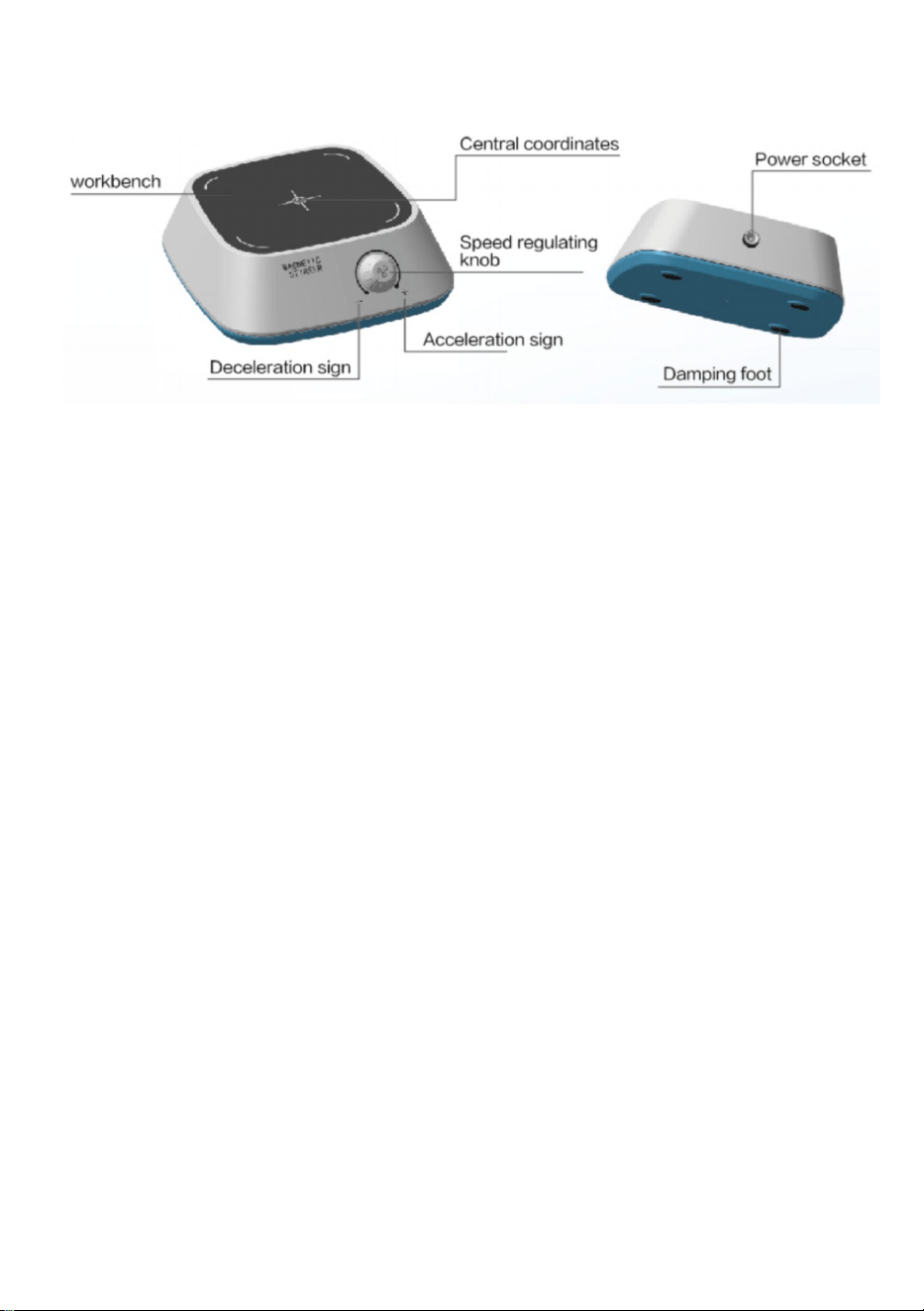

PRODUCT FUNCTIONS
Using the step
1. Place the machine stably on a flat workbench, and insert the
output plug of the random power adapter into the power socket
at the rear of the machine.
2. Plug the input end of the power adapter into a power socket with
the voltage consistent with the voltage identified by the product.
3. Add an appropriate amount of the solution to be stirred into the
experimental bottle, and gently place the stirrer in the liquid. After
confirmation, place the experimental bottle stably at the central
coordinate position of the machine workbench.
4. Start acceleration: the knob can rotate in the right direction (you
will hear and feel its click). At this time, the motor is turned on.
Continue to rotate to the right to increase the speed. After
increasing to the required speed, it will run at a constant speed.
5. Deceleration closing: when the knob rotates to the left, the motor
speed will gradually decrease. When you hear and feel it click),
the motor will be closed.
6. Transfer the test bottle after the solution stirring in the test bottle
is completely prohibited.
7. When idle, pull out the power cord plug and cut off the power
supply of the whole machine.
