* LG LED Monitor applies LCD screen with LED
backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
LED LCD MONITOR
(LED Monitor*)
34U62TB
www.lg.com
Copyright © 2025 LG Electronics Inc. All Rights Reserved.

2
ENGLISH
2
TABLE OF CONTENTS
LICENSE .......................................3
OPEN SOURCE SOFTWARE
NOTICE INFORMATION ..............4
ASSEMBLING AND PREPARING 4
- Supported Drivers and Software .........................5
- Product and Button Description...........................5
How to Use the Joystick Button
- Moving and Lifting the Monitor............................6
Installing on a Table
Adjusting the Stand Height
Adjusting the Angle
Using the Kensington Lock
Installing the Wall Mount Plate
Installing on the Wall
USING THE MONITOR .............. 12
- Connecting to a PC...................................................12
HDMI Connection
DisplayPort Connection
- Connecting AV Devices ...........................................13
HDMI Connection
- Connecting Peripherals...........................................13
Connecting Headphones
USER SETTINGS ....................... 14
- Activating the Main Menu ....................................14
Main Menu Features
Menu Settings
Quick Settings
Input
General
TROUBLESHOOTING ................ 26
PRODUCT SPECIFICATION ...... 29
- Factory Support Mode (Preset Mode, PC) .. 31
- HDMI Timing (Video) ................................................33
- Beep Guide ...................................................................34
LIMITED WARRANTY (USA) ... 38
LIMITED WARRANTY (CANADA)
................................................... 41

3
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc.

4
ENGLISH
OPEN SOURCE SOFTWARE
NOTICE INFORMATION
To obtain the source code that is contained in this product, under GPL, LGPL, MPL,
and other open source licenses that have the obligation to disclose source code, and
to access all referred license terms, copyright notices and other relevant documents,
please visit http://opensource.lge.com.
LG Electronics will also provide open source code to you on CD-ROM for a charge
covering the cost of performing such distribution (such as the cost of media,
shipping, and handling) upon email request to opensourc[email protected].
This offer is valid to anyone in receipt of this information for a period of three
yearsafter our last shipment of this product.
ASSEMBLING AND PREPARING
CAUTION
• Always use genuine LG components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of
unauthorized components.
• It is recommended that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there
may be image noises.
• Illustrations in this document represent typical procedures, so they may look
different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when
assembling the product. (Doing so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the
monitor. Damage caused in this way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the
monitor to fall off the stand and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force
applied to the monitor screen may cause damage to it.

5
ENGLISH
NOTE
• The components may look different from those illustrated here.
• Without prior notice, all product information and specifications contained in this
manual are subject to change to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping
site, or contact the retailer from where you purchased the product.
• The power cord provided may differ depending upon the region.
Supported Drivers and Software
You can download and install the latest version from the LGE website (
www.lg.com
).
Drivers and Software Installation Priority
Monitor Driver Recommended
LG Switch Recommended
Dual Controller Optional
Product and Button Description
Joystick Button

6
ENGLISH
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or
moving it left/right/up/down with your finger.
Basic Functions
Power on
Press the joystick button once with
your finger to turn on the monitor.
Power off
Press and hold the joystick button once
with your finger to turn off the monitor.
/
Volume
control
You can control the volume by moving
the joystick button left/right.
NOTE
• The joystick button is located at the bottom of the monitor.
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor
from being scratched or damaged and to ensure safe transportation, regardless of
its shape or size.
• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it
from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive
vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or
tilt it sideways.

7
ENGLISH
Installing on a Table
• Lift the monitor and place it on the table in an upright position. Place the monitor
at least 100mm (3.94 inches) away from the wall to ensure sufficient ventilation.
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
CAUTION
• Unplug the power cord before moving or installing the monitor. There is risk of
electric shock.
• Make sure to use the power cord that is provided in the product package and
connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest
retail store.
CAUTION
• Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create
images.
• If you use the monitor panel without the stand base, its joystick button may cause
the monitor to become unstable and fall, resulting in damage to the monitor or
human injury. In addition, this may cause the joystick button to malfunction.

8
ENGLISH
Adjusting the Stand Height
1 Place the monitor mounted on the stand base in an upright position.
2 Handle the monitor with both hands for safety.
Max. 150.0 mm
WARNING
• When adjusting the screen height, do not place your hand on the stand body to
avoid injury to your fingers.
Adjusting the Angle
1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.
The angle of the screen can be adjusted forward or backward from -5° to 21° for a
comfortable viewing experience.
21 °5-°
Rear Side Front Side
WARNING
• To avoid injury to the fingers when adjusting the screen, do not hold the lower part
of the monitor’s frame as illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the
monitor.

9
ENGLISH
NOTE

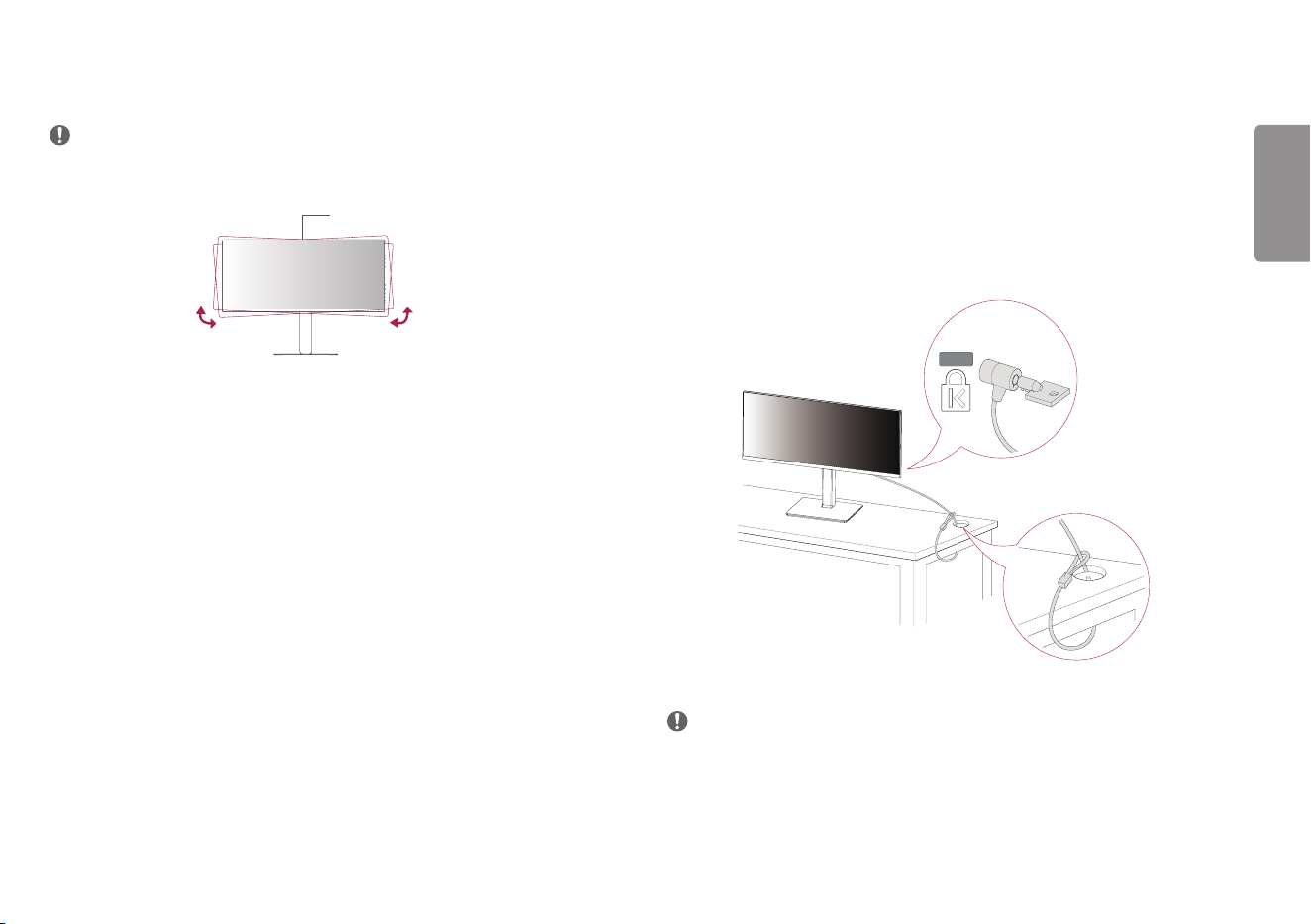

• The left or right side of the monitor head can be slightly rotated up or down (up to
3°). Adjust the horizontal level of the monitor head.
Monitor head
Using the Kensington Lock
The connector for the Kensington security system is located at the bottom of the
monitor.
For more information on installation and usage, refer to the Kensington lock owner’s
manual or visit the website at http://www.kensington.com.
Connect the monitor to a table using the Kensington security system cable.
NOTE
• The Kensington security system is optional. You can obtain optional accessories
from most electronics stores.

10
ENGLISH
Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible
devices.
NOTE
• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate’s installation
guide.
• Be careful not to apply too much force while mounting the wall mount plate as it
may cause damage to the screen.
• Remove the stand before installing the monitor on a wall mount by performing the
stand attachment in reverse.
Installing on the Wall
Install the monitor at least 100mm (3.94 inches) away from the wall and leave
about 100mm (3.94 inches) of space at each side of the monitor to ensure
sufficient ventilation. Detailed installation instructions can be obtained from your
local retail store. Alternatively, please refer to the manual for how to install and set
up a tilting wall mounting bracket.
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back
of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the
wall.
1 If you use screws longer than the standard length, it may damage the inside of
the product.
2 A non-VESA standard screw may damage the product and cause the monitor
to fall. LG Electronics is not liable for any accidents relating to the use of non-
standard screws.
Wall Mount (mm) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate (Optional) LSW 149

11
ENGLISH
NOTE
• Use the screws specified by VESA standards.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain optional accessories from
your local dealer.
• The length of the screw may differ for each wall mounting bracket. Be sure to use
the proper length.
• For more information, please refer to the user manual for the wall mounting
bracket.
CAUTION
• Unplug the power cord before moving or installing the monitor to avoid electric
shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor
falling off, which could lead to injury. Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
• Applying excessive force when tightening screws may cause damage to the
monitor. Damage caused in this way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards.
Damage caused by the use or misuse of inappropriate components will not be
covered by the product warranty.
• When measured from the back of the monitor, the length of each installed screw
must be 8 mm (0.3 inches) or less.
Wall Mount Plate
Back of the Monitor
Screw
Dimensions
: M4 x L10
Wall Mount Plate
Back of the
Monitor
Max. 8 mm (0.3 inches)

12
ENGLISH
USING THE MONITOR
• Illustrations in this manual may differ from the actual product.
Press the joystick button, go to Settings → Input, and then select the input option.
CAUTION
• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image
retention. Use a screensaver if possible.
NOTE
• When connecting the power cord to the outlet, use a grounded (3-hole) power strip
or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low.
This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
Connecting to a PC
• This monitor supports the *Plug and Play feature.
* Plug and Play: A feature that allows you to add a device to your computer without
having to reconfigure anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.
CAUTION
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility
issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI
cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
cable
- High-Speed HDMI
®
/
TM
cable with Ethernet
DisplayPort Connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
• There may be no video or audio output depending on the DP (DisplayPort) version
of the PC.
• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini
DisplayPort to DisplayPort) cable or gender that supports DisplayPort1.4. (sold
separately)

13
ENGLISH
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.
NOTE
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility
issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI
cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
cable
- High-Speed HDMI
®
/
TM
cable with Ethernet
Connecting Peripherals
Connecting Headphones
Connect peripherals to the monitor via the headphones port.
NOTE
• Peripheral devices are sold separately.
• If you use angled earphones, it may cause a problem with connecting another external
device to the monitor. Therefore, it is recommended to use straight earphones.
Angled Straight
(Recommend)
• Depending on the audio settings of the PC and external device, headphones and
speaker functions may be limited.

14
ENGLISH
USER SETTINGS
NOTE
• Your monitor’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
• When Beep Guide is activated, pressing the joystick
button will take you to Settings right away.
Activating the Main Menu
1 Press the joystick button on the bottom of the
monitor.
2 Move the joystick up/down ( / ) and left/right
( / ) to set the options.
3 Press the joystick button once more to exit the
main menu.
Joystick Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can
turn off the monitor this way at any time, including when the
OSD is on.)
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input features.
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Settings feature.
Main menu disabled Enters the Accessibility menu.
Main menu enabled Turns off the monitor.
Main menu disabled Enters the Accessibility menu.
Main menu enabled Enters the Picture Mode feature.

15
ENGLISH
Main Menu Features
Power Off
Input Settings
Picture Mode
Exit
Main Menu Description
Input Sets input mode.
Power Off Turns off the monitor.
Settings Configures the screen settings.
Picture Mode Sets the picture mode.
Exit Exits the main menu.
Menu Settings
1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
2 Move the joystick up/down and left/right to set the options.
3 To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
4 If you want to exit the OSD menu, move the joystick to until you exit.
Quick Settings Input Picture General
NOTE
• : On
• : Off

16
ENGLISH
Quick Settings
Settings > Quick Settings Description
Brightness Adjusts the brightness of the screen.
Contrast
Adjusts the contrast of the screen.
Volume
Adjusts the volume.
NOTE
• You can adjust Mute / Unmute by moving the joystick button to in the Volume menu.
Color Temp
Set your own color temperature.
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.

17
ENGLISH
Input
Settings > Input Description
Input List Selects the input mode.
Auto Input Switch
When automatic input switch is set to On, display will automatically switch to new input when connected.
On Enables Auto Input Switch.
Off Disables Auto Input Switch.
Aspect Ratio
Adjusts the aspect ratio of the screen.
Full Wide Displays the video in widescreen, regardless of the video signal input.
16:9 Displays the video in 16:9.
4:3 Displays the video in 4:3.
PBP Displays the screens of two input modes on one monitor.
Main/Sub Screen Change Toggles between the main screen and sub screen in PBP mode.
Main/Sub Sound Change Toggles between the audio of the main screen and sub screen in PBP mode.

18
ENGLISH
[PBP]
Settings > Input Description
Input List
Displays the screens of two input modes on one monitor.
Main Input List
Please refer to the table below for possible PBP combinations.
Sub Input List
PBP Connection
Sub Screen (Right)
HDMI DisplayPort
Main Screen (Left)
HDMI
DisplayPort
Aspect Ratio
Adjusts the aspect ratio of the screen.
Main Aspect Ratio
Full Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
Sub Aspect Ratio
Full Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
PBP You can disable the feature that displays images from two input modes simultaneously on one monitor.
Main/Sub Screen Change Toggles between the main screen and sub screen in PBP mode.
Main/Sub Sound Change Toggles between the audio of the main screen and sub screen in PBP mode.

19
ENGLISH
NOTE
• The Picture Mode that can be set depends on the Input signal.
[Picture Mode on SDR (Non-HDR) signal]
Settings > Picture Description
Picture Mode
Custom Allows the user to adjust each element.
Vivid Heightens contrast, brightness and sharpness to display vivid images.
HDR Effect Optimizes the screen for high dynamic range.
Reader Optimizes the screen for reading documents. You can brighten the screen in the OSD menu.
Cinema Optimizes the screen to improve the visual effects of a video.
FPS This mode is optimized for FPS games.
RTS This mode is optimized for RTS Game.
Color Weakness
This mode is for users who cannot distinguish between red and green. It enables users with color weakness to
easily distinguish between the two colors.

20
ENGLISH
[Picture Mode on HDR signal]
Settings > Picture Description
Picture Mode
Custom Allows the user to adjust each element.
Vivid Optimized the screen for HDR vivid colors.
Cinema Optimized the screen for HDR video.
FPS This mode is optimized for FPS games.It is suitable for very dark FPS games.
RTS This mode is optimized for RTS Game.
NOTE
• HDR content may not display correctly depending on Windows 10/ macOS settings, please check HDR On/Off settings in Windows.
• When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.
• While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to
Graphic card performance.

21
ENGLISH
Settings > Picture Description
Picture Adjust
Brightness Adjusts the brightness of the screen.
Contrast
Adjusts the contrast of the screen.
Sharpness Adjusts the sharpness of the screen.
SUPER RESOLUTION+
High Optimizes the screen for crystal clear images. Best for high-definition video or games.
Middle
Optimizes the screen for comfortable viewing, with images at the middle level between the low
and high modes. Best for UCC or SD videos.
Low
Optimizes the screen for smooth and natural images. Best for still images or images with less
movement.
Off Displays in the most common setting. Disables SUPER RESOLUTION+.
NOTE
• Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use
the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
Black Level
Sets the offset level.
• Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
DFC Adjusts the brightness automatically according to the screen.

22
ENGLISH
Settings > Picture Description
Game Adjust
Response Time
Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Fast.
For a fast-moving picture, it is recommended that you use Faster.
Once Faster Mode is selected, Motion Blur may occur depending on the content.
Faster Sets the response time to Faster.
Fast Sets the response time to Fast.
Normal Sets the response time to Normal.
Off Disables the feature.
Black Stabilizer
You can control the black contrast to have better visibility in dark scenes.
You can easily distinguish objects on dark game screens.

23
ENGLISH
Settings > Picture Description
Color Adjust
Gamma
Mode 1,
Mode 2,
Mode 3
The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma
value, the lighter the image becomes.
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Color Temp
Set your own color temperature.
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
Red/Green/Blue You can customize the picture color using red, green, and blue colors.
Six Color
Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue,
cyan, magenta, and yellow) and then saving the settings.
Hue
Adjusts the tone of the screen colors.
Saturation
Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter
the colors become. The higher the value, the more saturated and darker the colors become.
Picture Reset
Do you want to reset
your picture settings?
No Cancel the select.
Yes Returns to the default settings.

24
ENGLISH
General
Settings > General Description
Language Sets the menu screen to the desired language.
SMART ENERGY SAVING
Conserve energy by using luminance compensation algorithm.
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the feature.
NOTE
• The value of energy saving data may differ depending on panel and panel suppliers.
• If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.
Deep Sleep Mode
When Deep sleep mode is enabled, power consumption is minimized while the monitor is in standby mode.
On Enables Deep sleep Mode.
Off Disables Deep sleep Mode.
Power LED
On The power LED turns on automatically.
Off The power LED turns off.
Automatic Standby
Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the
auto-off function.
(8 H, 6 H, 4 H, and Off)
Input Compatibility Version
Set Input Compatibility Version to the same version as the connected external device.
- In case of DisplayPort input, set to 1.4 or over to use the HDR function.
- In case of HDMI input, set to 2.0 or over to use the HDR function.

25
ENGLISH
Settings > General Description
Buzzer
This feature lets you set the sound generated from Buzzer when your monitor powers on.
On Enables your monitor's Buzzer.
Off Disables your monitor's Buzzer.
OSD Lock
This feature disables the configuration and adjustment of menus.
On Enables OSD Lock.
Off Disables OSD Lock.
NOTE
• All features are disabled except Brightness, Contrast, Volume, Input List, Auto Input Switch, Aspect Ratio, PBP, OSD Lock, Open Source
Software License and Information.
Information The following display information will be shown; Total Power On Time, Resolution.
Open Source Software
License
You can check the Open Source Software notice information.
Reset to Initial Settings
Do you want to reset
your settings?
No Cancel the select.
Yes Returns to the default settings.

26
ENGLISH
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged in? • Check if the power cord is correctly plugged into the power outlet.
Is the power LED on? • Check the power cable connection and press the power button.
Is the power on and the power LED
displaying white?
• Check that the connected input is enabled (Settings > Input).
Is the power LED blinking? • If the monitor is in sleep mode, move the mouse, or press any key on the keyboard, to switch the display on.
• Check if the computer is turned on.
Is the The screen is not currently set
to the recommended resolution. If you
have no video or the screen flickers,
see the troubleshooting guide in the
product owner’s manual. message being
displayed?
• This occurs when signals transferred from the PC (graphics card) are out of the recommended horizontal or vertical frequency
range of the monitor. Please see the Product Specification section of this manual to set the appropriate frequency.
Is the No Signal message being
displayed?
• This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and
reconnect it.
Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com.
• Make sure to check if the graphics card supports Plug and Play function.
Some features are disabled.
Are some functions not available when
you press the Menu button?
• The OSD is locked. Go to Settings > General and set OSD Lock to Off.

27
ENGLISH
The screen retains an image.
Does image sticking occur even when the
monitor is turned off?
• Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
• To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution? • If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or
the recommended resolution.
NOTE
• Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed
per second is called vertical frequency, or refresh rate, and is represented by Hz.
• Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the horizontal interval, the result is the number of horizontal
lines displayed per second. This is called horizontal frequency and is represented by kHz.
• Check if the graphics card’s resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution Control Panel > Display >
Menu in Windows. (The settings may differ depending on the operating system (OS) you use.)
• Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the
graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
• Some graphics cards may not support 1920 x 1080 resolution. If the resolution cannot be displayed, contact the manufacturer of your graphics card.

28
ENGLISH
The display color is abnormal.
Does the display appear discolored
(16 colors)?
• Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Menu > Color Quality. (The settings
may differ depending on the operating system (OS) you use.)
Does the display color appear unstable or
monochrome?
• Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
Are there spots on the screen? • When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD
screen. It is not an error, nor is it related to the monitor's performance.
No sound from the headphone port.
Are images displayed using DP
(DisplayPort) or HDMI input without
sound?
• Make sure that the headphone port connections are made properly.
• Try increasing the volume with the joystick.
• Set the audio output of the PC to the monitor you are using. On Microsoft Windows, go to Control Panel > Hardware and
Sound > Sound > set the Monitor as default device. (The settings may differ depending on the operating system (OS) you use.)

29
ENGLISH
PRODUCT SPECIFICATION
LCD Screen Color Depth 8-bit / 10-bit color is supported.
Resolution Max Resolution 3440 x 1440 @ 100 Hz (HDMI)
3440 x 1440 @ 120 Hz (DP)
Recommended Resolution 3440 x 1440 @ 100 Hz (HDMI)
3440 x 1440 @ 120 Hz (DP)
Power Sources Power Rating 19 V 2.0 A
AC/DC Adapter ADS-45SQ-19-3 19040E, manufactured by SHENZHEN HONOR ELECTRONIC
ADS-45FSQ-19 19040EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
ADS-45FSQ-19 19040EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC
ADS-45FSQ-19 19040EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
ADS-45FSQ-19 19040EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
ADS-45FSQ-19A 19040EPB-1, manufactured by SHENZHEN HONOR ELECTRONIC
AD10530LF, manufactured by PI Electronics (H.K.) Ltd.
AD2137S20, manufactured by PI Electronics (H.K.) Ltd.
AD2137620, manufactured by PI Electronics (H.K.) Ltd.
AD2182R20, manufactured by PI Electronics (H.K.) Ltd.
Output: 19 V 2.1 A
Environmental Conditions Operating Conditions Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity Less than 80 %
Storing Conditions Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Humidity Less than 85 %

30
ENGLISH
Dimensions Monitor Size (Width x Height x Depth)
With Stand 809.0 x 533.8 x 230.0 (mm)
31.8 x 21.0 x 9.0 (inches)
Without Stand 809.0 x 358.9 x 91.5 (mm)
31.8 x 14.1 x 3.6 (inches)
Weight (Without Packaging) With Stand 7.7 kg (16.9 lbs)
Without Stand 4.9 kg (10.8 lbs)
Specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
The Power Consumption level can be different by operating condition and monitor setting.

31
ENGLISH
Factory Support Mode (Preset Mode, PC)
HDMI
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.940 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.004 -/-
1920 x 1080 67.500 60.000 +/+
3440 x 1440 43.764 29.955 +/-
1720 x 1440 88.739 59.919 +/-
3440 x 1440 73.631 49.953 +/-
Recommended Timing
- Input Compatibility Version : 1.4
3440 x 1440 127.351 84.957 +/-
3440 x 1440 150.996 99.997 +/-
Recommended Timing
- Input Compatibility Version : 2.0

32
ENGLISH
DP
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.940 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.004 -/-
1920 x 1080 67.500 60.000 +/+
1720 x 1440 88.739 59.919 +/-
3440 x 1440 88.841 59.987 +/-
3440 x 1440 127.351 84.957 +/-
3440 x 1440 150.996 99.997 +/-
Recommended Timing
- Input Compatibility Version : 1.2
3440 x 1440 182.986 119.991 +/-
Recommended Timing
- Input Compatibility Version : 1.4
If you use an input timing that is outside the supported frequency, you may experience poor response speed or image quality.

33
ENGLISH
HDMI Timing (Video)
Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks
480P 31.5 60
720P 45.0 60
1080P 67.5 60
2160P 135.0 60

34
ENGLISH
Menu Location
Quick Settings 1
Quick Settings - Brightness 1 1
Quick Settings - Brightness 1 1 1 Slider
Quick Settings - Contrast 1 2
Quick Settings - Contrast 1 2 1 Slider
Quick Settings - Volume 1 3
Quick Settings - Volume 1 3 1 Slider
Quick Settings - Color Temp 1 4
Quick Settings - Color Temp - Custom 1 4 1
Quick Settings - Color Temp - Warm 1 4 2
Quick Settings - Color Temp - Medium 1 4 3
Quick Settings - Color Temp - Cool 1 4 4
Quick Settings - Color Temp - Manual 1 4 5
Quick Settings - Color Temp - Manual
1 4 5 1
Slider
Input (PBP Off) 2
Input (PBP Off) - Input List 2 1
Input (PBP Off) - Input List - HDMI 2 1 1
Input (PBP Off) - Input List -
DisplayPort
2 1 2
Input (PBP Off) - Auto Input Switch 2 2 Toggle
Input (PBP Off) - Aspect Ratio 2 3
Input (PBP Off) - Aspect Ratio - Full
Wide
2 3 1
Input (PBP Off) - Aspect Ratio - 16:9 2 3 2
Menu Location
Input (PBP Off) - Aspect Ratio - 4:3 2 3 3
Input (PBP Off) - PBP 2 4
Input (PBP Off) - PBP - Off 2 4 1
Input (PBP Off) - PBP - PBP(1:1) 2 4 2
Input (PBP Off) - Main/Sub Screen
Change
2 5
Input (PBP Off) - Main/Sub Sound
Change
2 6
Input (PBP On) 2
Input (PBP On) - Input List 2 1
Input (PBP On) - Input List - Main Input 2 1 1
Input (PBP On) - Input List - Main Input
- HDMI
2 1 1 1
Input (PBP On) - Input List - Main Input
- DisplayPort
2 1 1 2
Input (PBP On) - Input List - Sub Input 2 1 2
Input (PBP On) - Input List - Sub Input
- HDMI
2 1 2 1
Input (PBP On) - Input List - Sub Input
- DisplayPort
2 1 2 2
Input (PBP On) - Auto Input Switch 2 2
Input (PBP On) - Aspect Ratio 2 3
Input (PBP On) - Aspect Ratio - Main
Aspect Ratio
2 3 1
Input (PBP On) - Aspect Ratio - Main
Aspect Ratio - Full Wide
2 3 1 1
Menu Location
Input (PBP On) - Aspect Ratio - Main
Aspect Ratio - Original
2 3 1 2
Input (PBP On) - Aspect Ratio - Sub
Aspect Ratio
2 3 2
Input (PBP On) - Aspect Ratio - Sub
Aspect Ratio - Full Wide
2 3 2 1
Input (PBP On) - Aspect Ratio - Sub
Aspect Ratio - Original
2 3 2 2
Input (PBP On) - PBP 2 4
Input (PBP On) - PBP - Off 2 4 1
Input (PBP On) - PBP - Off - HDMI 2 4 1 1
Input (PBP On) - PBP - Off -
DisplayPort
2 4 1 2
Input (PBP On) - PBP - On 2 4 2
Input (PBP On) - PBP - On - HDMI 2 4 2 1
Input (PBP On) - PBP - On - DisplayPort 2 4 2 2
Input (PBP On) - Main/Sub Screen
Change - On
2 5
Input (PBP On) - Main/Sub Sound
Change - On
2 6
Picture 3
Picture - Picture Mode 3 1
Picture - Picture Mode - Custom 3 1 1
Picture - Picture Mode - Vivid 3 1 2
Picture - Picture Mode - HDR Effect 3 1 3
Picture - Picture Mode - Reader 3 1 4
Beep Guide

35
ENGLISH
Menu Location
Picture - Picture Mode - Cinema 3 1 5
Picture - Picture Mode - FPS 3 1 6
Picture - Picture Mode - RTS 3 1 7
Picture - Picture Mode - Color
Weakness
3 1 8
Picture - Picture Adjust 3 2
Picture - Picture Adjust - Brightness 3 2 1
Picture - Picture Adjust - Brightness
3 2 1 1
Slider
Picture - Picture Adjust - Contrast 3 2 2
Picture - Picture Adjust - Contrast
3 2 2 1
Slider
Picture - Picture Adjust - Sharpness 3 2 3
Picture - Picture Adjust - Sharpness
3 2 3 1
Slider
Picture - Picture Adjust - SUPER
RESOLUTION+
3 2 4
Picture - Picture Adjust - SUPER
RESOLUTION+ - High
3 2 4 1
Picture - Picture Adjust - SUPER
RESOLUTION+ - Middle
3 2 4 2
Picture - Picture Adjust - SUPER
RESOLUTION+ - Low
3 2 4 3
Picture - Picture Adjust - SUPER
RESOLUTION+ - Off
3 2 4 4
Picture - Picture Adjust - Black Level 3 2 5
Picture - Picture Adjust - Black Level
- High
3 2 5 1
Menu Location
Picture - Picture Adjust - Black Level
- Low
3 2 5 2
Picture - Picture Adjust - DFC 3 2 6 Toggle
Picture - Game Adjust 3 3
Picture - Game Adjust - Response Time 3 3 1
Picture - Game Adjust - Response Time
- Faster
3 3 1 1
Picture - Game Adjust - Response
Time - Fast
3 3 1 2
Picture - Game Adjust - Response Time
- Normal
3 3 1 3
Picture - Game Adjust - Response
Time - Off
3 3 1 4
Picture - Game Adjust - Black Stabilizer 3 3 2 1
Picture - Game Adjust - Black Stabilizer
3 3 2 1
Slider
Picture - Color Adjust 3 4
Picture - Color Adjust - Gamma 3 4 1
Picture - Color Adjust - Gamma - Mode
1
3 4 1 1
Picture - Color Adjust - Gamma - Mode
2
3 4 1 2
Picture - Color Adjust - Gamma - Mode
3
3 4 1 3
Picture - Color Adjust - Gamma - Mode
4
3 4 1 4
Picture - Color Adjust - Color Temp 3 4 2
Picture - Color Adjust - Color Temp -
Custom
3 4 2 1
Menu Location
Picture - Color Adjust - Color Temp -
Warm
3 4 2 2
Picture - Color Adjust - Color Temp -
Medium
3 4 2 3
Picture - Color Adjust - Color Temp -
Cool
3 4 2 4
Picture - Color Adjust - Color Temp -
Manual
3 4 2 5
Picture - Color Adjust - Color Temp -
Manual
3 4 2 5 1
Slider
Picture - Color Adjust - Red 3 4 3
Picture - Color Adjust - Red
3 4 3 1
Slider
Picture - Color Adjust - Green 3 4 4
Picture - Color Adjust - Green
3 4 4 1
Slider
Picture - Color Adjust - Blue 3 4 5
Picture - Color Adjust - Blue
3 4 5 1
Slider
Picture - Color Adjust - Six Color 3 4 6
Picture - Color Adjust - Six Color - Red
Hue
3 4 6 1
Picture - Color Adjust - Six Color - Red
Hue
3 4 6 1 1
Slider
Picture - Color Adjust - Six Color - Red
Saturation
3 4 6 2
Picture - Color Adjust - Six Color - Red
Saturation
3 4 6 2 1
Slider

36
ENGLISH
Menu Location
Picture - Color Adjust - Six Color -
Green Hue
3 4 6 3
Picture - Color Adjust - Six Color -
Green Hue
3 4 6 3 1
Slider
Picture - Color Adjust - Six Color -
Green Saturation
3 4 6 4
Picture - Color Adjust - Six Color -
Green Saturation
3 4 6 4 1
Slider
Picture - Color Adjust - Six Color - Blue
Hue
3 4 6 5
Picture - Color Adjust - Six Color - Blue
Hue
3 4 6 5 1
Slider
Picture - Color Adjust - Six Color - Blue
Saturation
3 4 6 6
Picture - Color Adjust - Six Color - Blue
Saturation
3 4 6 6 1
Slider
Picture - Color Adjust - Six Color - Cyan
Hue
3 4 6 7
Picture - Color Adjust - Six Color - Cyan
Hue
3 4 6 7 1
Slider
Picture - Color Adjust - Six Color - Cyan
Saturation
3 4 6 8
Picture - Color Adjust - Six Color - Cyan
Saturation
3 4 6 8 1
Slider
Picture - Color Adjust - Six Color -
Magenta Hue
3 4 6 9
Picture - Color Adjust - Six Color -
Magenta Hue
3 4 6 9 1
Slider
Menu Location
Picture - Color Adjust - Six Color -
Magenta Saturation
3 4 6 10
Picture - Color Adjust - Six Color -
Magenta Saturation
3 4 6 10 1
Slider
Picture - Color Adjust - Six Color -
Yellow Hue
3 4 6 11
Picture - Color Adjust - Six Color -
Yellow Hue
3 4 6 11 1
Slider
Picture - Color Adjust - Six Color -
Yellow Saturation
3 4 6 12
Picture - Color Adjust - Six Color -
Yellow Saturation
3 4 6 12 1
Slider
Picture - Picture Reset 3 5
Picture - Picture Reset - No 3 5 1
Picture - Picture Reset - Yes 3 5 2
General 4
General - Language 4 1
General - Language - English 4 1 1
General - Language - German 4 1 2
General - Language - French 4 1 3
General - Language - Spanish 4 1 4
General - Language - Italian 4 1 5
General - Language - Swedish 4 1 6
General - Language - Finnish 4 1 7
General - Language - Portuguese 4 1 8
General - Language - Portuguese
(Brazil)
4 1 9
General - Language - Polish 4 1 10
Menu Location
General - Language - Russian 4 1 11
General - Language - Turkish 4 1 12
General - Language - Ukrainian 4 1 13
General - Language - Chinese 4 1 14
General - Language - Traditional
Chinese
4 1 15
General - Language - Japanese 4 1 16
General - Language - Korean 4 1 17
General- Language -Arabic 4 1 18
General - SMART ENERGY SAVING 4 2
General - SMART ENERGY SAVING -
High
4 2 1
General - SMART ENERGY SAVING -
Low
4 2 2
General - SMART ENERGY SAVING
- Off
4 2 3
General - Deep Sleep Mode 4 3 Toggle
General - Power LED 4 4 Toggle
General - Automatic Standby 4 5
General - Automatic Standby - 8H 4 5 1
General - Automatic Standby - 6H 4 5 2
General - Automatic Standby - 4H 4 5 3
General - Automatic Standby - Off 4 5 4
General - Input Compatibility Version 4 6
General - Input Compatibility Version
- 2.0/1.4
4 6 1
General - Input Compatibility Version
- 1.4/1.2
4 6 2

37
ENGLISH
Menu Location
General - Buzzer 4 7 Toggle
General - OSD Lock 4 8 Toggle
General - Information 4 9
General - Information 4 9 1
General - Open Source Software
License
4 10
General - Open Source Software
License
4 10 1
General - Reset to Initial Setting 4 11
General - Reset to Initial Setting - No 4 11 1
General - Reset to Initial Setting - Yes 4 11 2

38
ENGLISH
LIMITED WARRANTY (USA)
THE PRODUCT’S FULL LIMITED WARRANTY TERMS AND CONDITIONS ARE AVAILABLE AT https://www.lg.com/us AND/OR YOUR WARRANTY.
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS (“LG”) TO RESOLVE DISPUTES BY
BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE
THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.
PROCEDURE FOR RESOLVING DISPUTES:
ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY
THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO
A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors,
employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of
any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in
any way to the sale, condition or performance of the product or this Limited Warranty.
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration
by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good
faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the
claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for
arbitration.
Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree
to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined
or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG
shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but
that small claims court action may not be brought on a class or representative basis.

39
ENGLISH
Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the
American Arbitration Association (“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in effect at the time the
arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a
copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written
demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and
the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered
on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the
arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.
Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or
inconsistent with applicable federal law.
Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the
AAA unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein,
LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the
arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim
amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent
that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by
the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to
reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it
may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.
Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator,
(2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the right to a hearing will be determined by
the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we
agree to a telephonic arbitration.
Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you
must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to optout@lge.
com, with the subject line: “Arbitration Opt Out” or (ii) calling 1- 800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b)
the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii)
online by accessing https://www.lg.com/us/support and clicking on “How do I find my model number?”).

40
ENGLISH
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of
this dispute resolution procedure.
Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited
Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

41
ENGLISH
LIMITED WARRANTY (CANADA)
THE PRODUCT’S FULL LIMITED WARRANTY TERMS AND CONDITIONS ARE AVAILABLE AT https://www.lg.com/ca_en/ AND/OR YOUR WARRANTY.
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION
INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. FOR
FURTHER CLARITY, THIS ARBITRATION PROVISION IS NOT APPLICABLE TO CONSUMERS RESIDING IN ONTARIO AND QUÉBEC. IN ARBITRATION, CLASS ACTIONS AND JURY
TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.
• DISCLAIMER:
IF YOU ARE A CONSUMER SUBJECT TO QUÉBEC AND ONTARIO’S CONSUMER PROTECTION ACT, THE EXCLUSION OF WARRANTIES CONTAINED IN THIS SECTION DO NOT
EXCLUDE OR LIMIT THE RIGHTS AND REMEDIES THAT YOU MAY HAVE UNDER SUCH ACT, INCLUDING THE RIGHT TO MAKE A CLAIM UNDER ANY OF THE STATUTORY
WARRANTIES PROVIDED THEREUNDER.
PROCEDURE FOR RESOLVING DISPUTES:
EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR
RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF
GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), YOU AND LG BOTH IRREVOCABLY
AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors,
employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of
any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in
any way to the sale, condition or performance of the product or this Limited Warranty.
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by
sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the “Notice of Dispute”). You and LG agree to engage in good faith discussions
in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and
describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute
shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any
amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

42
ENGLISH
Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG’s receipt of the Notice of Dispute, you and
LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that
prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the
arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or
entity’s product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG
shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but
that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory
of jurisdiction as it relates to the claims at issue between you and LG. This does not apply to consumers in Ontario and Québec. In accordance with provincial legislation, the
consumer and LG may agree to resolve the dispute using any procedure available, including commencing the action before the competent courts of those provinces.
Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential,
and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the
province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco
Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. For consumers in Ontario
and Québec, the applicable arbitration legislation only applies if consumers agree to submit the dispute to arbitration. Judgment may be entered on the arbitrator’s award in
any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the
arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.
Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such
law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between
you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy
between you and LG.
Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless
you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein,
LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail
in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and
claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent
that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by
the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies
previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to
seek attorneys’ fees and expenses from you if LG prevails in the arbitration.

43
ENGLISH
Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator,
(2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be
determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the
province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.
Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and
effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration
procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.
Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that,
or, in other jurisdictions, if you choose to opt out. The arbitration provision does not apply to consumers in Ontario and Québec.
For individuals that fall within the binding arbitration provisions, you may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to
participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the
product by either (i) sending an e-mail to op[email protected], with the subject line: “Arbitration Opt Out;” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or
provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the
serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/findmodel_serial/ ).
In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the
extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or
controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction
of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of
this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy
the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.
Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute
resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

The model and serial number of the product are located on the back and on one side of
the product.
Record them below in case you ever need service.
Model
Serial No.
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 111 Sylvan Avenue, North Building,
Englewood Cliffs, NJ 07632
E-mail [email protected]om
