SERVICE/INSTALL MANUAL

IMPORTANT INFORMATION,

KEEP FOR OPERATOR

This manual provides information for:

GLASS DOOR MERCHANDISER

(SWING AND SLIDING DOOR)

THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,

UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS

CONTAINED IN THIS MANUAL.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂammable vapors

and liquids in the vicinity of this or any other appliance.

NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the consignee

to inspect the container upon receipt of same and to determine the possibility

of any damage, including concealed damage. Electrolux Professional, Inc.

suggests that if you are suspicious of damage to make a notation on the

delivery receipt. It will be the responsibility of the consignee to ﬁle a claim with

the carrier. We recommend that you do so at once.

Manufacture Service/Questions 866-339-8515.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE: Due to a continuous program of product improvement, Electrolux

Professional, Inc. reserves the right to make changes in design and speciﬁcations

without prior notice.

NOTICE: Please read the entire manual carefully before

installation. If certain recommended procedures are not followed, warranty claims

will be denied.

The serial number of all self-contained refrigerators and freezers is located inside

the unit on the left hand side near the top on the wall. Always have the serial

number of your unit available when calling for parts or service. This manual

covers standard units only. If you have a custom unit, consult the customer service

department at the number listed in this manual.

USA & Canada, 866-339-8515

4003 Collins Lane, Louisville, KY 40245

www.kelvinatorcommercial.com

Kelvinator Commercial is a pending or registered trademark of Electrolux Consumer Products, Inc., and is used under a license from Electrolux Consumer Products, Inc. Information contained in

this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most updated product information and speciﬁcations.

EQUIPMENT DESCRIPTION

REV. D (09/24)

GLASS DOOR REFRIGERATORS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHGM12R R290 85 115/60/1 3 9.2 7.44 1/5 1670 3 247 5-15P

KCHGM26R R290 85 115/60/1 3 21.6 16.8 1/5 1670 3 377 5-15P

KCHGM48R R290 105 115/60/1 4.5 43.4 31.92 1/3 2380 3.7 553 5-15P

KCHGM72R R290 150 115/60/1 7.5 67.6 49.52 3/4 3200 5.29 780 5-15P

SLIDING GLASS DOOR REFRIGERATORS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHSGM36R R290 104 115/60/1 4.5 27.5 11.28 1/3 2380 3.7 454 5-15P

KCHSGM48R R290 104 115/60/1 4.5 40.2 32.24 1/3 2380 3.7 538 5-15P

KCHSGM72R R290 149 115/60/1 7.5 67.6 49.84 3/4 3200 5.29 776 5-15P

2 GLASS DOOR MERCHANDISER

RECEIVING & INSPECTING THE EQUIPMENT

Even though most equipment is shipped crated, care should be taken during

unloading so the equipment is not damaged while being moved into the building.

1. Visually inspect the exterior of the package and skid or container. Any

damage should be noted and reported to the delivering carrier immediately.

2. If damaged, open and inspect the contents with the carrier.

3. In the event that the exterior is not damaged, yet upon opening, there is

concealed damage to the equipment, notify the carrier. Notiﬁcation should

be made verbally as well as in written form.

4. Request an inspection by the shipping company of the damaged equipment.

This should be done within 10 days from receipt of the equipment.

5. Be certain to check the compressor compartment housing and visually

inspect the refrigeration package. Be sure lines are secure and base is still

intact.

IMPORTANT - READ FIRST - IMPORTANT

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.

WE HAVE PROVIDED MANY IMPORTANT SAFETY MESSAGES IN THIS MANUAL AND ON YOUR

APPLIANCE. ALWAYS READ AND OBEY ALL SAFETY MESSAGES.

OUR PRODUCT INSTRUCTIONS WILL BE UPLOADED ON OUR COMPANY OFFICIAL WEBSITE.

THIS IS THE SAFETY ALERT SYMBOL. THIS SYMBOL ALERTS YOU TO POTENTIAL

HAZARDS THAT CAN KILL OR INJURE YOU AND OTHERS. ALL SAFETY MESSAGES

WILL FOLLOW THE SAFETY ALERT SYMBOL AND EITHER THE WORDS” DANGER”,

“WARNING” OR “CAUTION”.

DANGER MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY RESULT

IN SEVERE PERSONAL INJURY OR DEATH.

WARNING MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY

RESULT IN EXTENSIVE PRODUCT DAMAGE, SERIOUS PERSONAL INJURY, OR

DEATH.

CAUTION MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY RESULT

IN MINOR OR MODERATE PERSONAL INJURY, OR PROPERTY OR EQUIPMENT

DAMAGE.

ALL SAFETY MESSAGES WILL ALERT YOU TO WHAT THE POTENTIAL HAZARD IS, TELL YOU

HOW TO REDUCE THE CHANCE OF INJURY, AND LET YOU KNOW WHAT CAN HAPPEN IF THE

INSTRUCTIONS ARE NOT FOLLOWED.

FOLLOW BASIC PRECAUTIONS, INCLUDING THE FOLLOWING:

NOTE: IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE

MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN

ORDER TO AVOID A HAZARD.

NOTE: THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING

CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES,

OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN

SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A

PERSON RESPONSIBLE FOR THEIR SAFETY.

NOTE: CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH

THE APPLIANCE.

NOTE: THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE

AND PERSONS WITH REDUCED PHYSICAL SENSORY OR MENTAL CAPABILITIES

OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN

SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE

WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY

WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE

MADE BY CHILDREN WITHOUT SUPERVISION.

NOTE: KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8

YEARS.

NOTE: DO NOT STORE EXPLOSIVE SUBSTANCES SUCH AS AEROSOL CANS WITH A

FLAMMABLE PROPELLANT IN THIS APPLIANCE.

NOTE: THE APPLIANCE USES FLAMMABLE INSULATION BLOWING GAS C5H10, DISPOSAL

OF THE APPLIANCE SHALL IN ACCORDANCE WITH THE REGULATIONS OF LOCAL

AUTHORITIES.

NOTE: THE KEY FOR APPLIANCE ELECTRIC BOX SHOULD BE SAFE KEPT BY QUALIFIED

PERSONS IN ORDER TO AVOID A HAZARD

WARNING: KEEP VENTILATION OPENINGS, IN THE APPLIANCE ENCLOSURE OR IN THE BUILT-IN

STRUCTURE, CLEAR OF OBSTRUCTION.

WARNING: DO NOT USE MECHANICAL DEVICES OR OTHER MEANS TO ACCELERATE

THE DEFROSTING PROCESS, OTHER THAN THOSE RECOMMENDED BY THE

MANUFACTURER.

WARNING: DO NOT DAMAGE THE REFRIGERANT CIRCUIT.

WARNING: DO NOT USE ELECTRICAL APPLIANCES INSIDE THE FOOD STORAGE COMPARTMENTS

OF THE APPLIANCE, UNLESS THEY ARE OF THE TYPE RECOMMENDED BY THE

MANUFACTURER. HANDLING, MOVING, AND USE OF THE REFRIGERATOR OR

FREEZER TO AVOID EITHER DAMAGING THE REFRIGERANT TUBING, OR INCREASING

THE RISK OF A LEAK.

CAUTION: RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW

HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH U.S. GOVERNMENT

REGULATIONS. COMPONENT PARTS SHALL BE REPLACED WITH LIKE COMPONENTS

AND THAT SERVICING SHALL BE DONE BY FACTORY AUTHORIZED SERVICE

PERSONNEL, SO AS TO MINIMIZE THE RISK OF POSSIBLE IGNITION DUE TO

INCORRECT PARTS OR IMPROPER SERVICE.

CAUTION: RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW

HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED

DANGER: RISK OF CHILD ENTRAPMENT. BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR

OR FREEZER: TAKE OFF THE DOORS, LEAVE THE SHELVES IN PLACE SO THAT

CHILDREN MAY NOT EASILY CLIMB INSIDE.

6. Freight carriers can supply the necessary damage forms upon request.

7. Retain all crating material until an inspection has been made or waived.

INSTALLATION

NOTE:

STANDARD WARRANTIES WILL BE VOIDED DUE TO IMPROPER INSTALLATION

PROCEDURES.

DANGER:

THE ON/OFF SWITCH MUST BE TURNED TO OFF AND THE UNIT

DISCONNECTED FROM THE POWER SOURCE WHENEVER PERFORMING

SERVICE, MAINTENANCE FUNCTIONS OR CLEANING THE REFRIGERATED

AREA.

GLASS DOOR FREEZERS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHGM26F R290 110 115/60/1 8 21.7 16.8 1 2000 3.88 390 5-15P

KCHGM48F R290 150 115/60/1 9 43.8 31.92 1 1/4 3650 5.29 580 5-15P

KCHGM72F R290 150 115-230/60/1 9 67.6 49.52 1 1/2 4500 5.29 774 L14-20P

3 GLASS DOOR MERCHANDISER

LOCATION

Units represented in this manual are intended for indoor use only. Be sure the

location chosen has a ﬂoor strong enough to support the total weight of the

cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds.

Reinforce the ﬂoor as necessary to provide for maximum loading. For the most

efﬁcient refrigeration, be sure to provide good air circulation inside and out.

INSIDE CABINET

Do not pack refrigerator so full that air cannot circulate. The refrigerated air is

discharged at the top rear of the unit. It is important to allow for proper air ﬂow

from the top rear to the bottom of the unit. Obstructions to this air ﬂow can cause

evaporator coil freeze ups and loss of temperature or overﬂow of water from the

evaporator drain pan. The shelves have a rear turn up on them to prevent this.

However, bags and other items can still be located to the far rear of the cabinet.

Air is brought into the evaporator coil with fans mounted to the front of the coil.

Prevent obstruction by locating large boxes and tall stacks of product to the

bottom of the cabinet.

OUTSIDE CABINET

Be sure that the unit has access to ample air. Avoid hot corners and locations

near stoves and ovens. It is recommended that the unit be installed no closer

than 2” from any wall with at least 12” of clear space above the unit. Should

it become necessary to lay the unit on its side or back for any reason, allow at

least 24 hours before start-up so as to allow compressor oil to ﬂow back to the

sump. Failure to meet this requirement can cause compressor failure and unit

damage.

LEVELING

A level cabinet looks better and will perform better because the doors will line up

with the frames properly, the cabinet will not be subject to undue strain and the

contents of the cabinet will not move around on the shelves. Use a level to make

sure the unit is level from front to back and side to side. Units supplied with legs

will have adjustable bullet feet to make the necessary adjustments. If the unit is

supplied with casters, no adjustments are available. Ensure the ﬂoor where the

unit is to be located is level.

STABILIZING

Models are supplied on casters for your convenience, ease of cleaning

underneath and for mobility. It is very important, however, that the cabinet be

installed in a stable condition with the front wheels locked while in use.

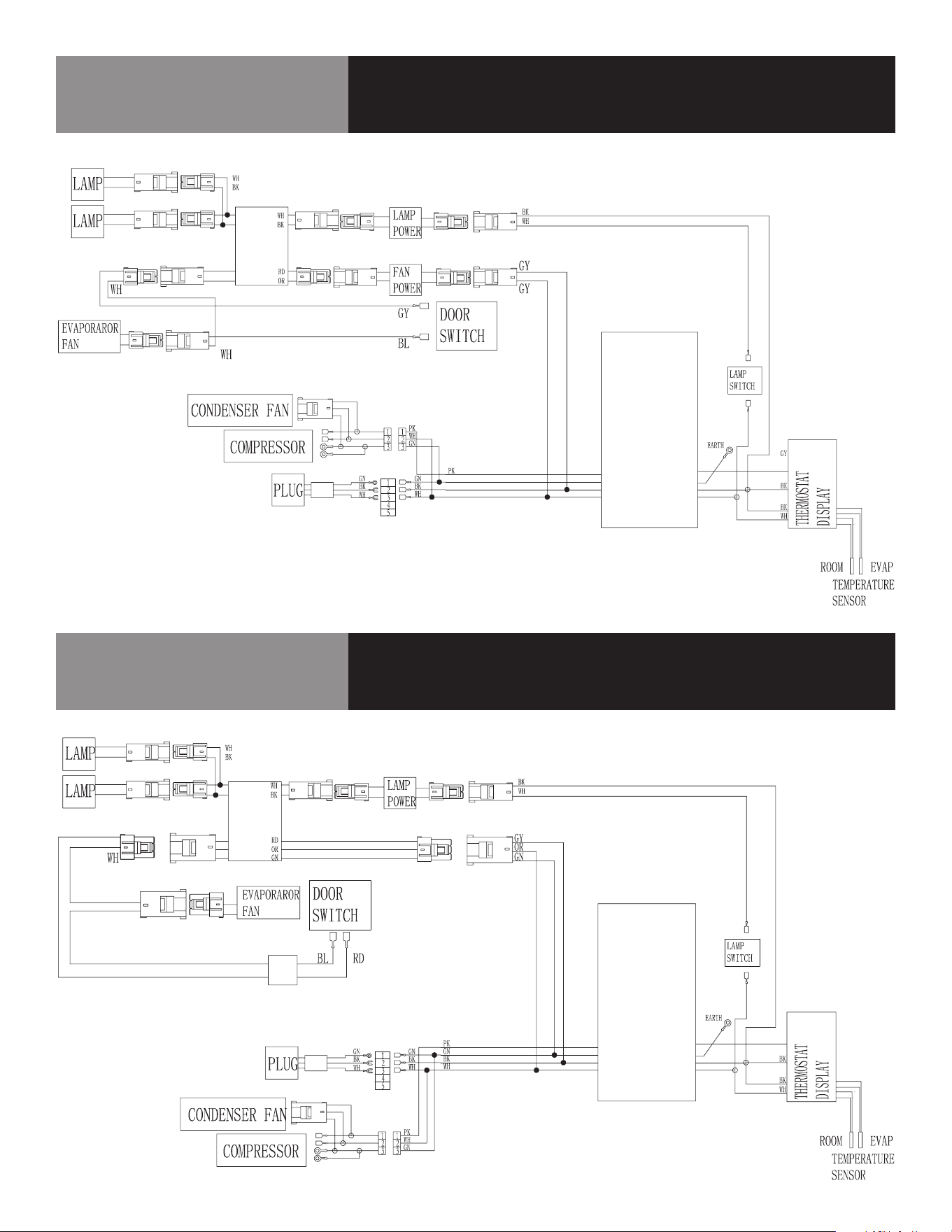

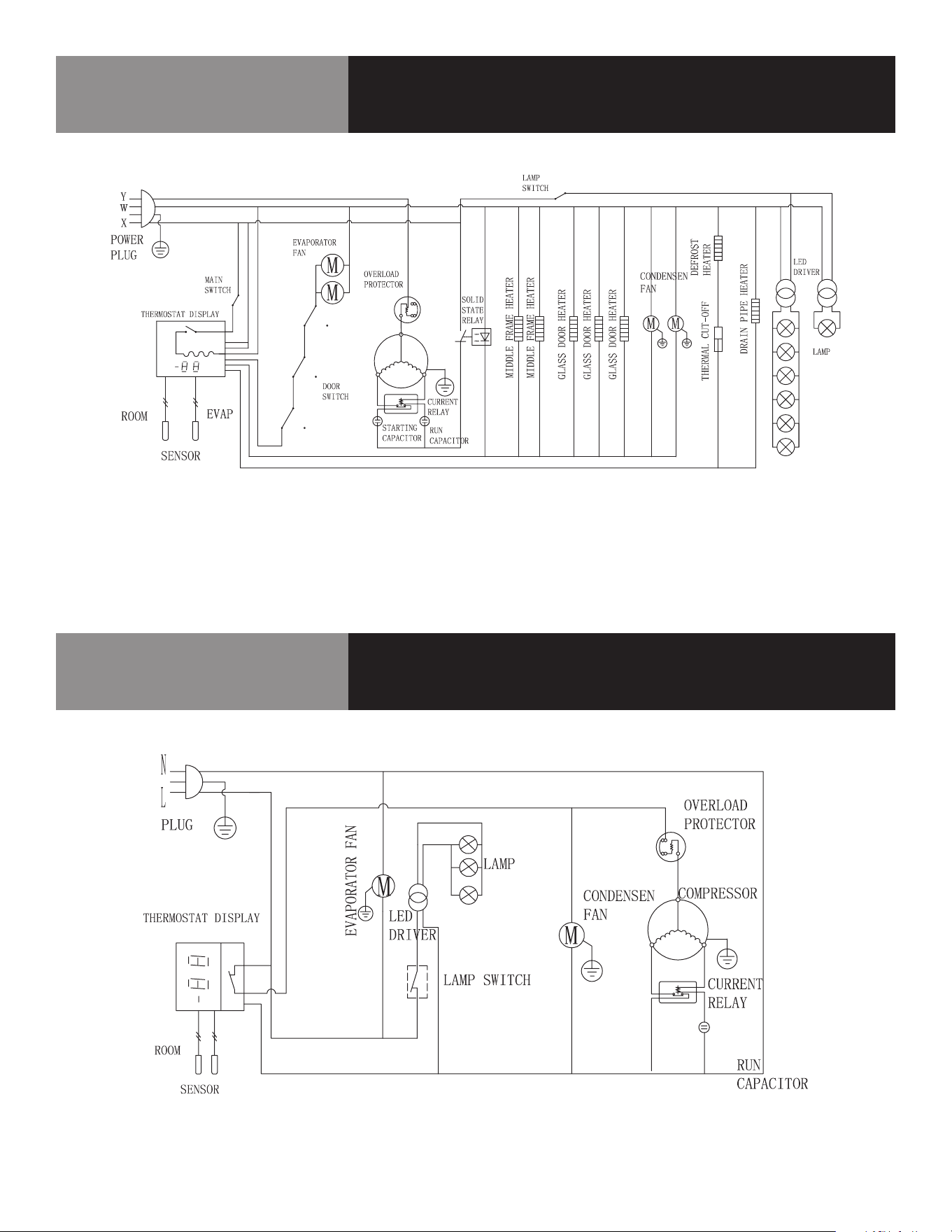

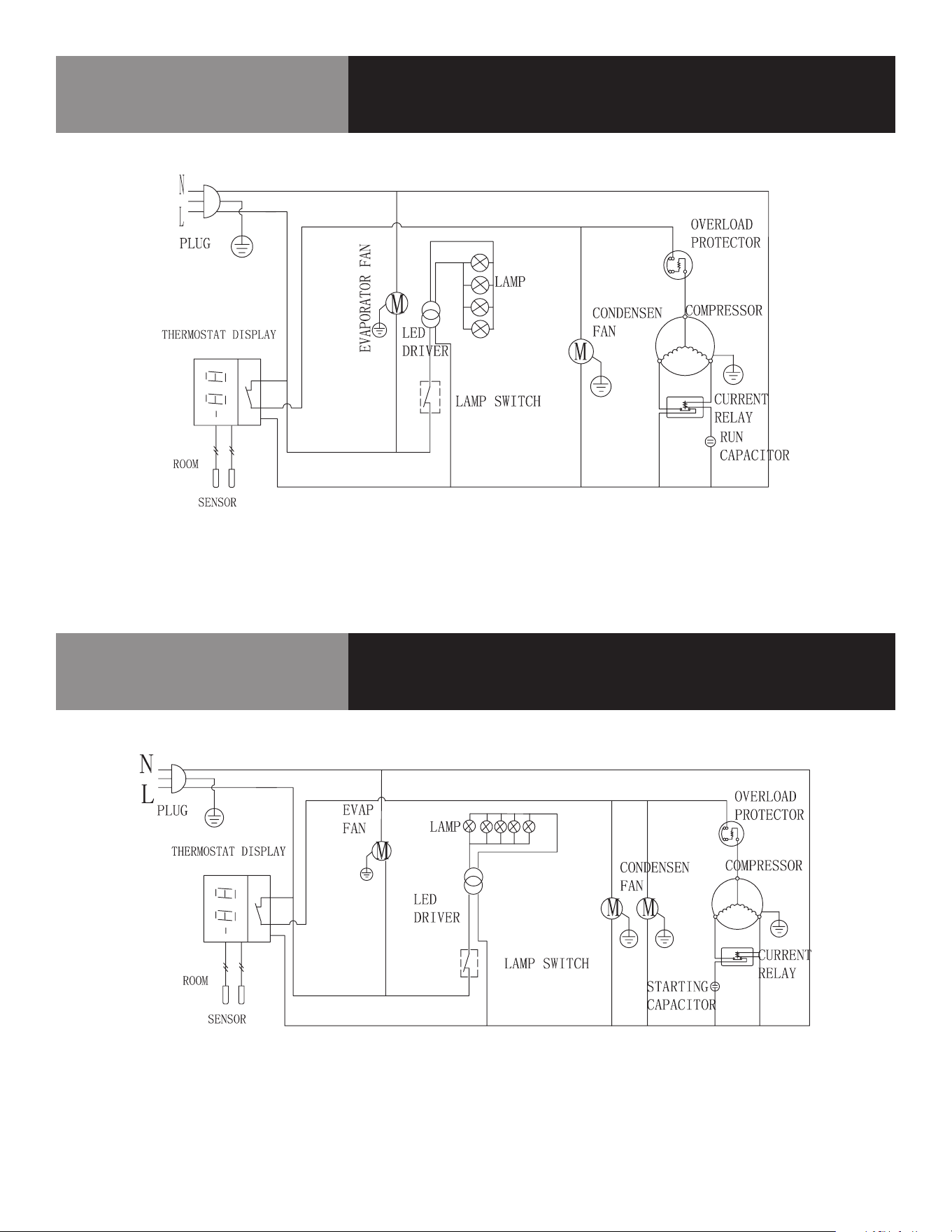

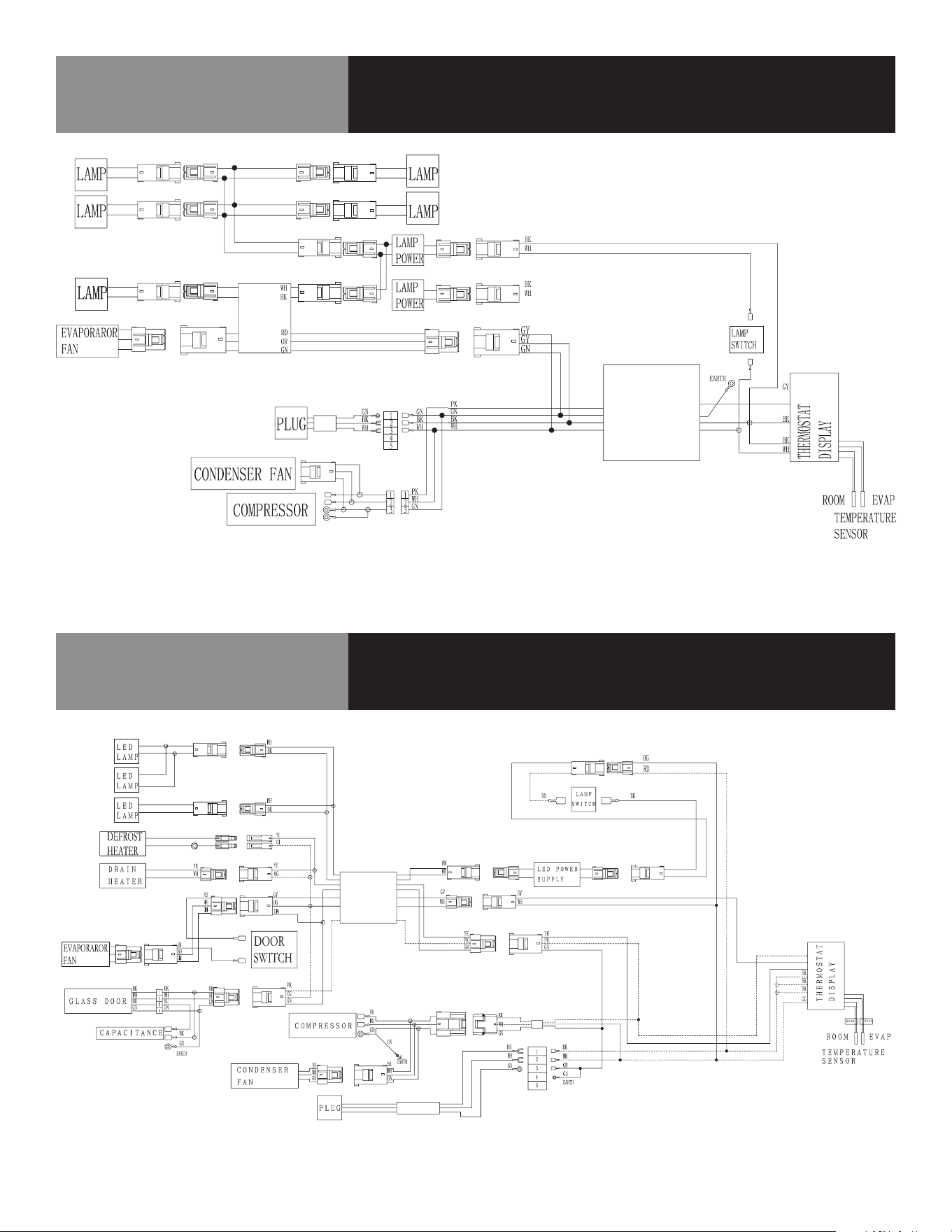

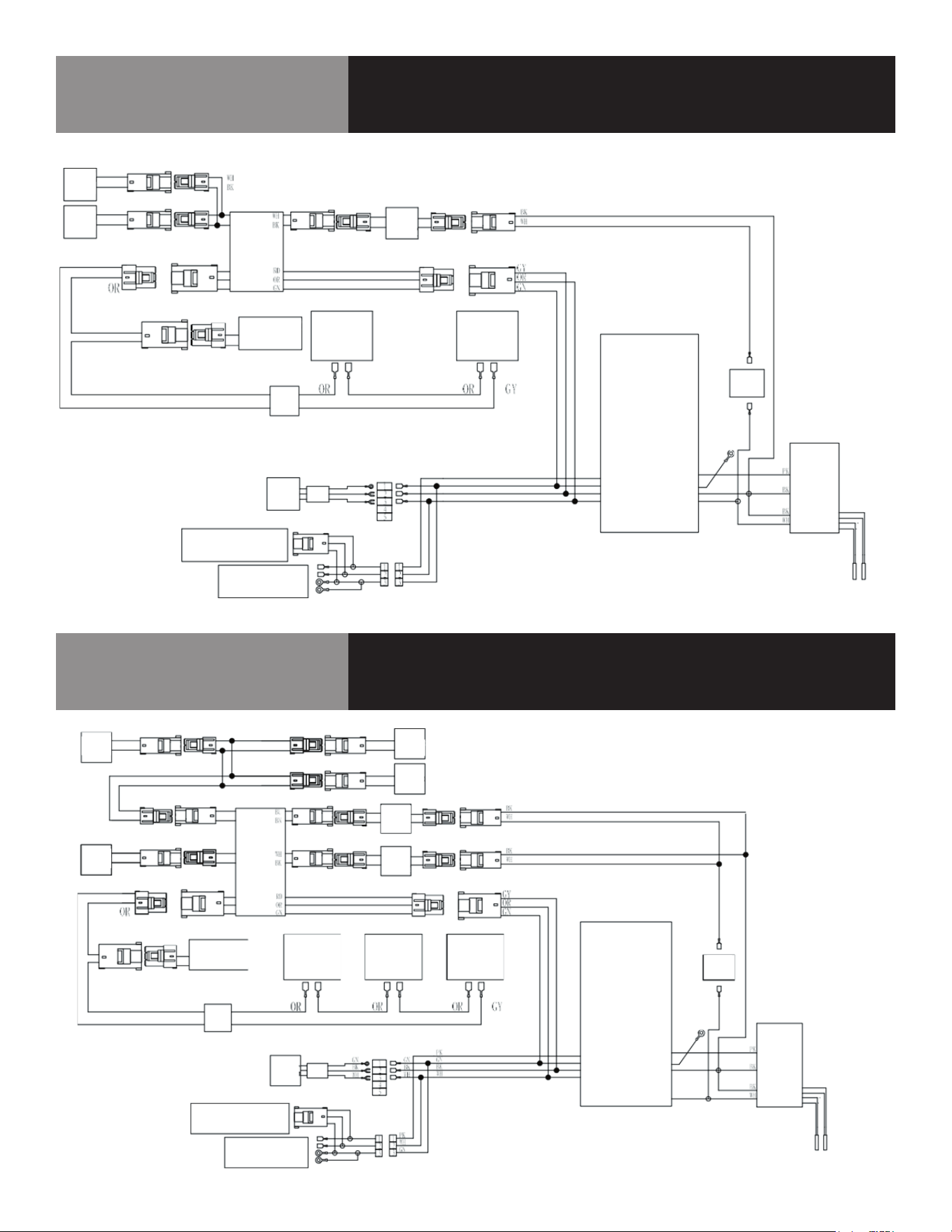

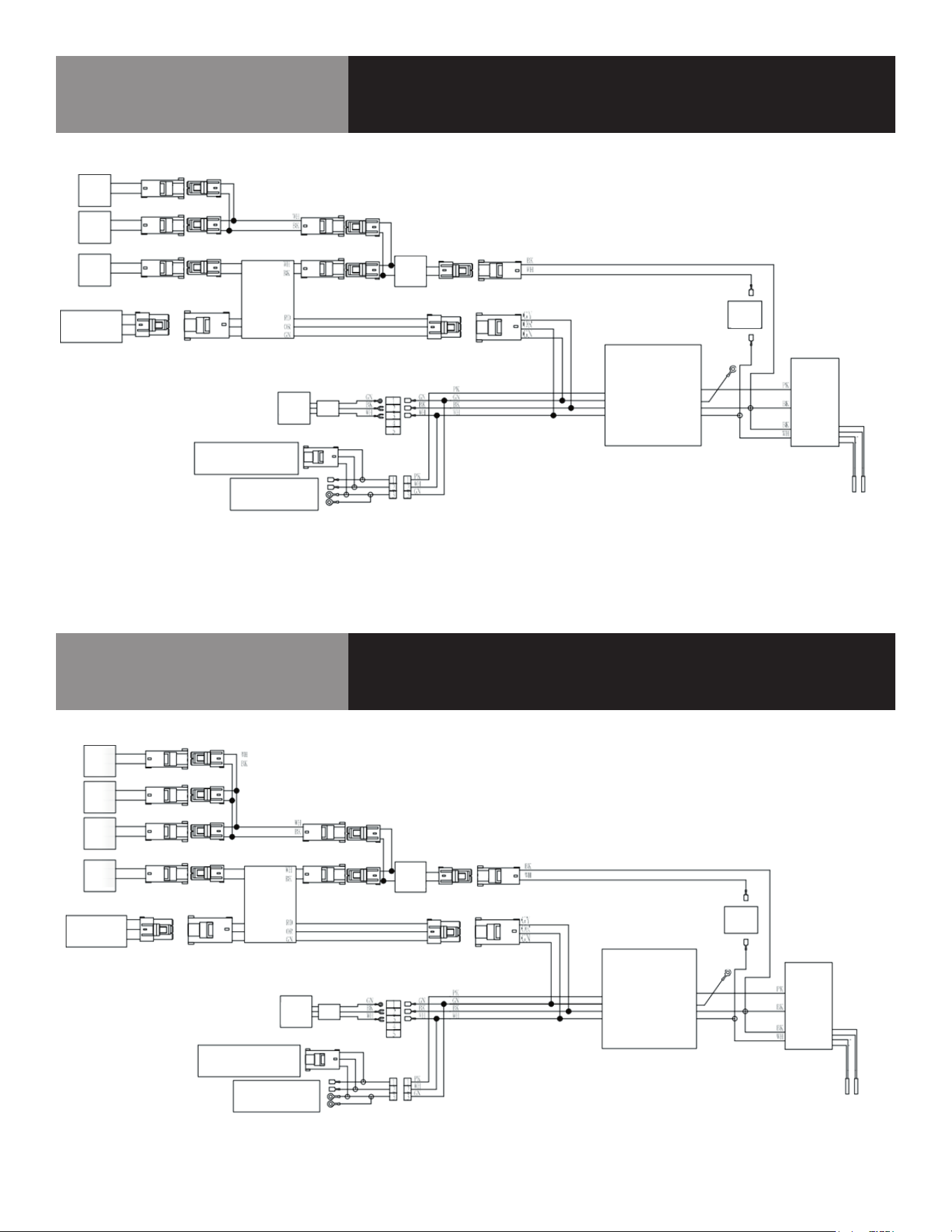

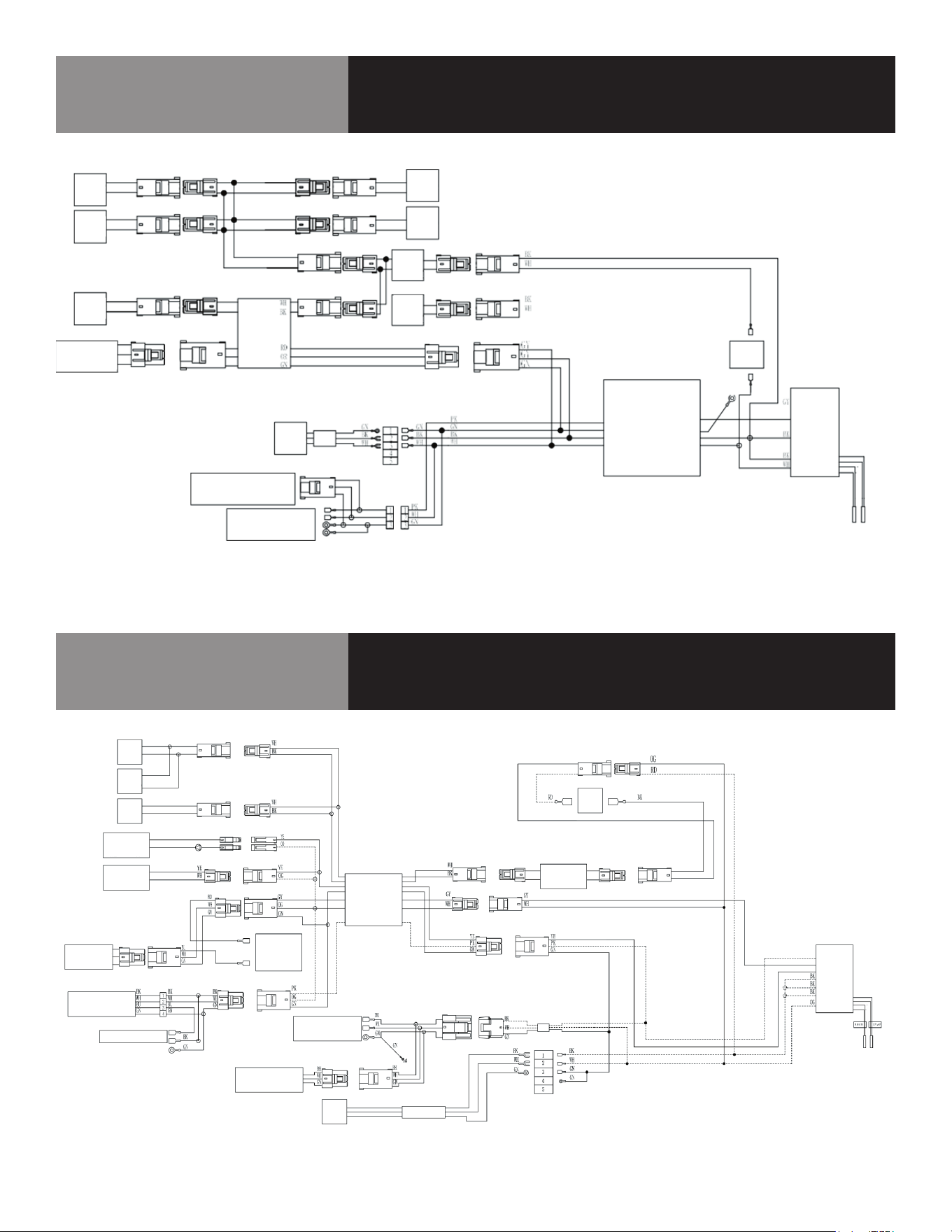

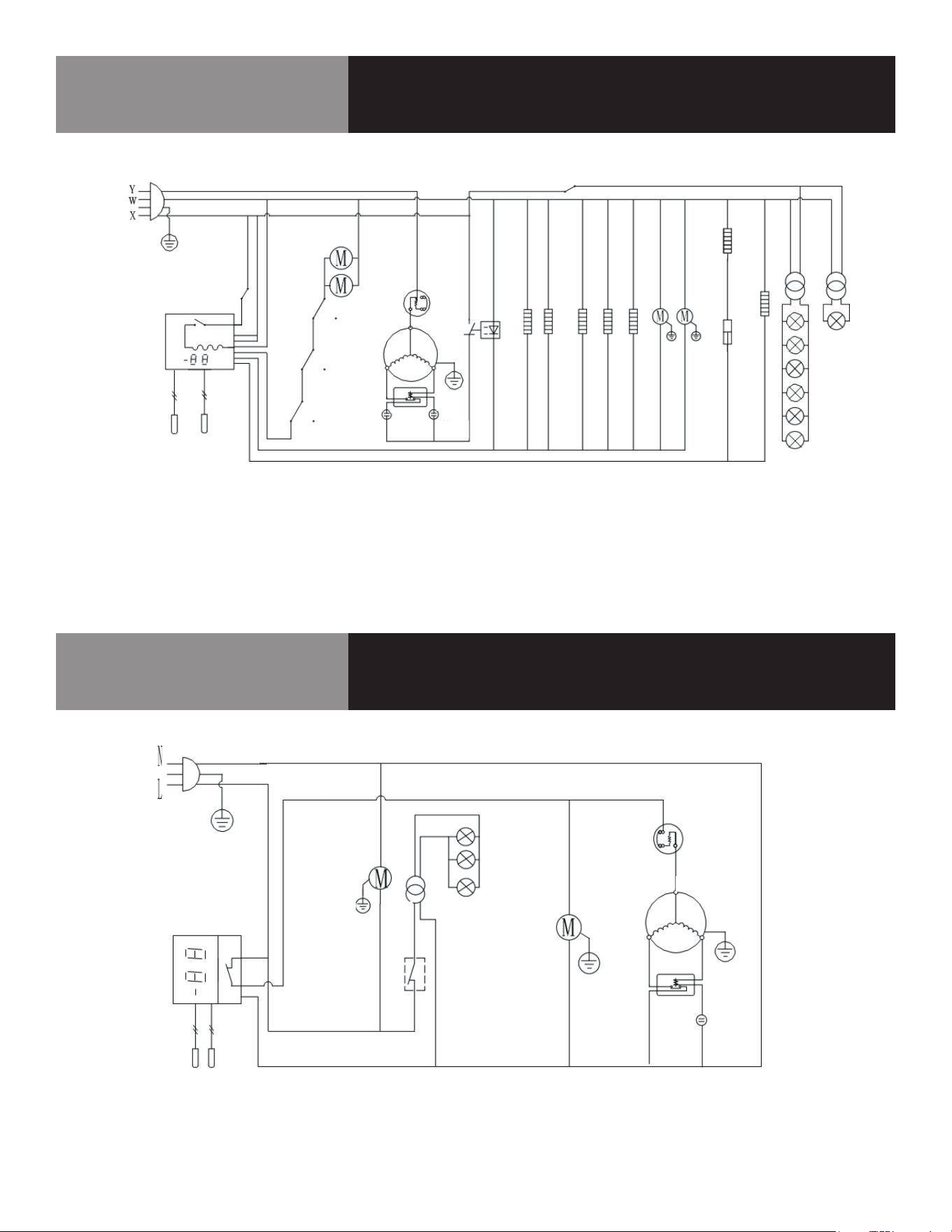

ELECTRICAL CONNECTION

Refer to the amperage data, the serial tag, your local code or the National

Electrical Code to be sure the unit is connected to the proper power source. A

protected circuit of the correct voltage and amperage must be run for connection

of the line cord, or permanent connection to the unit.

OPERATION

CAUTION: DO NOT THROW ITEMS INTO THE STORAGE AREA. FAILURE TO HEED THESE

RECOMMENDATIONS COULD RESULT IN DAMAGE TO THE INTERIOR OF THE

CABINET.

REFRIGERATION CYCLE

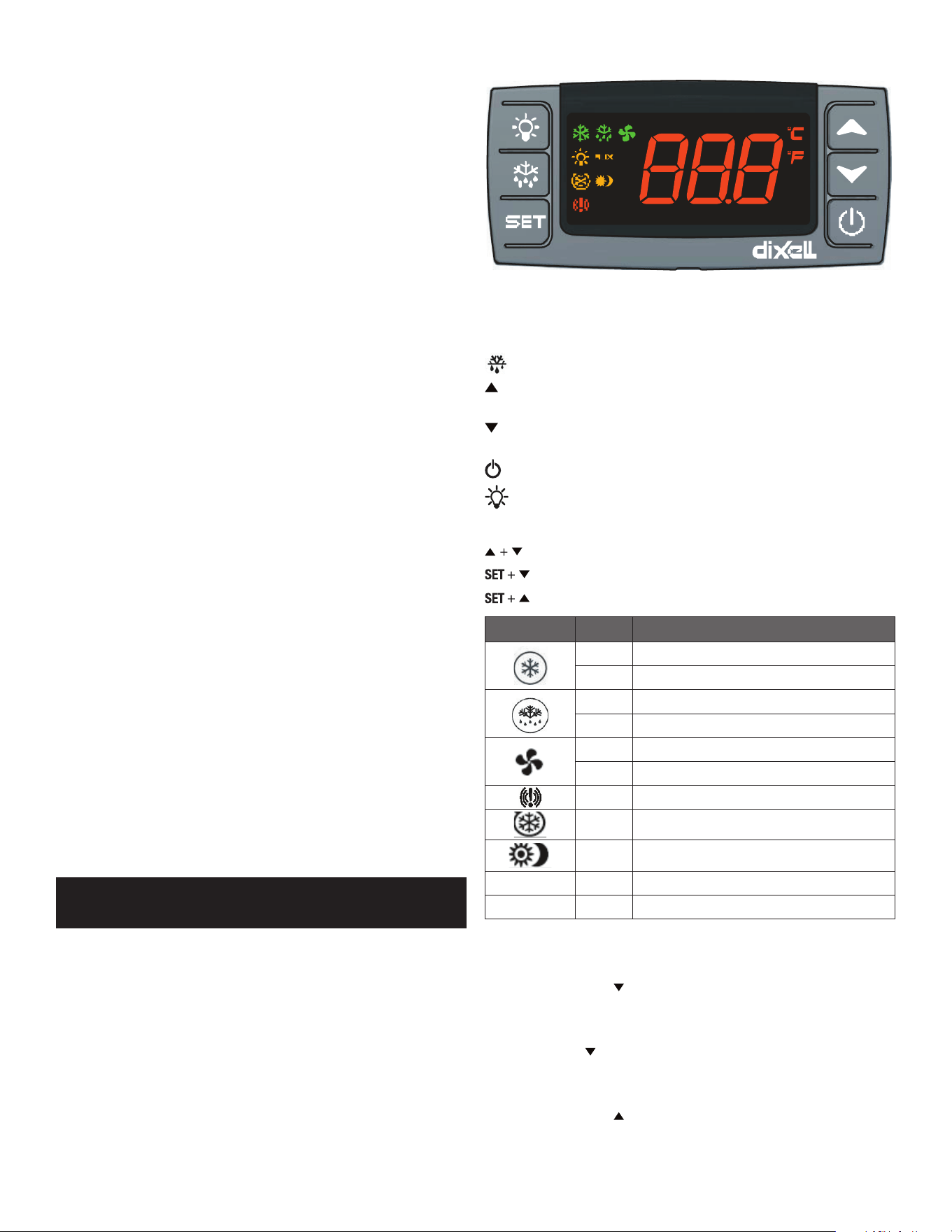

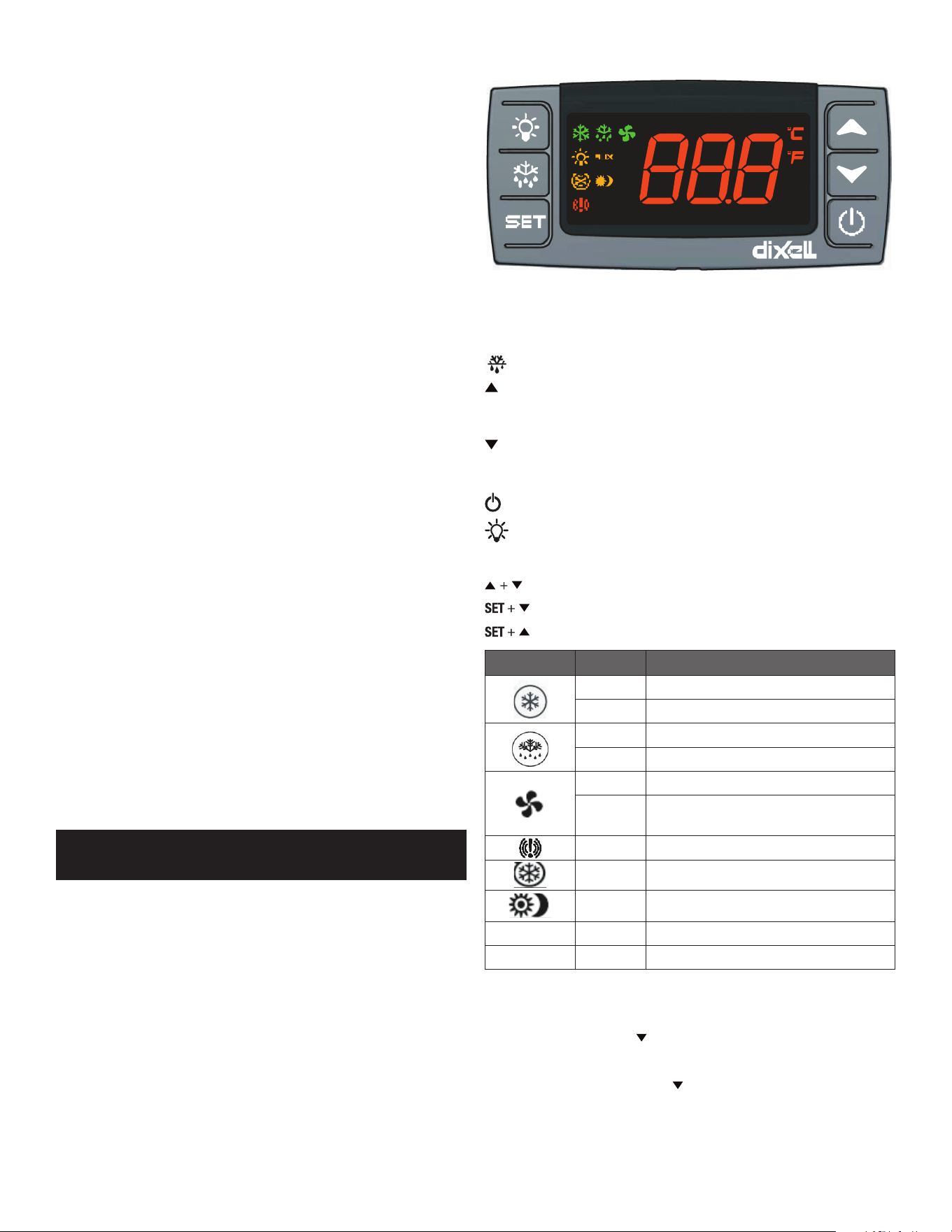

During the refrigeration cycle, the controller supplies power to the condensing

unit and evaporator fan motors. The evaporator fan will run at any time when the

evaporator coil temperature is below 54°F and it will cycle off during the defrost

period. Every 6 hours, the unit will turn off and the defrost heater will work to

clear up the ice. The controller now displays the defrost symbol. When the coil

temperature reaches 45°F or after 20 minutes of defrost, the unit will turn on

again.

1. Anti-Condensation heaters on the door frames work in conjunction with the

compressor.

2. The factory setting of the temperature range is -7 to -3°F

LIGHT SWITCH: A light switch is located next to the on/off switch on the front of

the bottom panel.

CONTROL PANEL SOLID-STATE THERMOSTAT

FRONT PANEL COMMANDS

SET SET: To display target set point; in programming mode it selects a

parameter or conﬁrms an operation.

DEF: To start a manual defrost

UP: To see the max. stored temperature; in programming mode it browses

the parameter codes or increases the display valve

DOWN: To see the min. stored temperature; in programming mode it

browses the parameter codes or decreases the display value

To switch the instrument off, if onF = oFF.

Not enabled

Key combination:

To lock and unlock the keyboard

To enter in programming mode

To return to the room temperature display

LED MODE FUNCTION

On Compressor enabled

Flashing Anti-short cycle delay enabled

On Defrost enabled

Flashing Drip time in progress

On Fans enabled

Flashing Fans delay after defrost in progress

On An alarm is occurring

On Continuous cycle is running

On Energy saving enabled

ºC/ºF

On Measurement unit

ºC/ºF

Flashing Programming phase

MAX & MIN TEMPERATURE MEMORIZATION

How to see the MIN temperature:

1. Press and release the key.

2. The “Lo” message will be displayed followed by the minimum temperature

recorded.

3. By pressing the key again or by waiting 5 seconds the normal display will be

restored.

How to see the MAX temperature:

1. Press and release the key.

2. The “Hi” message will be displayed followed by the maximum temperature

recorded.

4 GLASS DOOR MERCHANDISER

3. By pressing the key again or by waiting 5 seconds the normal display will be

restored.

How to reset the MAX and MIN temperature recorded:

1. Hold press the SET key for more than 3 seconds, while the max and min

temperature is displayed. (rST message will be displayed)

2. To conﬁrm the operation the “rST” message starts blinking and the normal

temperature will be displayed.

MAIN FUNCTIONS

How to see the setpoint:

1. Push and immediately release the SET key: the display will show the set point

value.

2. Push and immediately release the SET key or wait for 5 seconds to display the

probe value again.

How to change the setpoint:

1. Press the SET key for more than 2 seconds to change the set point value.

2. The value of the set point will be displayed and the “

ºC” or “ºF”

LED starts

blinking.

3. To change the set value, push the

or key within 10 seconds.

4. To memorize the new set point value, push the SET key again or wait 10 seconds.

How to start a manual defrost:

1. Push the DEF ( )

key for more than 2 seconds and a manual defrost will start.

How to change a parameter value:

To change the parameter’s value operate as follows:

1. Enter the programming mode by pressing the SET + keys for more than 3

seconds (the “

ºC” or “ºF”

LED starts blinking).

2. Select the required parameter. Press the SET key to display its value.

3. Use

or to change its value.

4. Press SET to store the new value and move to the following parameter.

To Exit: Press the SET + or wait 15 seconds without pressing a key.

Note: The set value is stored even when the procedure is exited by waiting the

time-out to expire.

How to lock the keyboard:

1. Press and hold for more than 3 seconds the + keys.

2. The “POF” message will be displayed and the keyboard will be locked. At this

point it will be possibly only to see the set point or the MAX or MIN temperature

stored.

3. If a key is pressed for more than 3 seconds the “POF” message will be displayed.

How to unlock the keyboard:

1. Press and hold together for more than 3 seconds the and keys, til the “Pon”

message is displayed.

The continuous cycle:

When defrost is not progress, it can be activated by holding the key pressed for

about 3

seconds

. The compressor operates to maintain the “ccS” set point for the

time set through the “CCt” parameter. The cycle can be terminated before the end

of the set time using the same activation key for 3

seconds

The ON/OFF functions:

With “onF = oFF”, pushing the ON/OFF key, the instrument is switched off. The

“OFF” message is displayed. In this conﬁguration, the regulation is disabled. To

switch the instrument on, push again the ON/OFF key.

WARNING: Loads connected to the normally closed contacts of the relays

are always supplied and under voltage, even if the instrument is in stand

by mode.

ALARM SIGNALS

MESSAGE CAUSE OUTPUTS

“P1” Room probe failure

Compressor output acc. to par.

“Con” and “COF”

“P2” Evaporator probe failure Defrost end is timed

“HA” Maximum temperature alarm Outputs unchanged

“LA” Minimum temperature alarm Outputs unchanged

“HA2” Condenser high temperature

It depends on the “Ac2”

parameter

“LA2” Condenser low temperature

It depends on the “bLL”

parameter

“dA” Door open Compressor and fans restarts

“EA” External alarm Output unchanged

“CA” Serious external alarm (i1F=bAL) All outputs OFF

“CA” Pressure switch alarm (i1F=PAL) All outputs OFF

How to see the alarm and reset the recorded alarm:

1. Push the or key to display the alarm signals.

2. When the signal is displayed, hold the SET key until the “rst” message is

displayed. Push the SET key again. The “rst” message starts blinking and the

normal temperature will be displayed again.

Alarm recovery:

Probe alarms “P1”, “P2” start some seconds after the fault in the related probe; they

automatically stop some seconds after the probe restarts normal operation. Check

connections before replacing the probe.

Temperature alarms “HA”, “LA”, “HA2” and “LA2” automatically stop as soon as the

temperature returns to normal values.

Alarms “EA” and “CA” (with i1F=bAL) recover as soon as the digital input is disabled.

Alarm “CA” (with i1F=PAL) recovers only by switching off and on the instrument.

Other messages:

CODE DESCRIPTION

Pon Keyboard Unlocked

PoF Keyboard locked

noP

In programming mode: none parameter is present in Pr1

On the display or in dP2, dP3, dP4: the selected probe is not enabled

noA None alarm is recorded

5 GLASS DOOR MERCHANDISER

MAINTENANCE

DANGER:

THE POWER MUST BE TURNED OFF AND THE UNIT DISCONNECTED FROM

THE POWER SOURCE WHENEVER PERFORMING SERVICE, MAINTENANCE

FUNCTIONS OR CLEANING THE REFRIGERATED AREA.

DANGER:

NEVER USE A HIGH PRESSURE WATER WASH FOR THIS CLEANING

PROCEDURE AS WATER CAN DAMAGE THE ELECTRICAL COMPONENTS

LOCATED NEAR OR AT THE CONDENSER COIL.

DANGER: NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!

CAUTION: NEVER USE AN ACID BASED CLEANING SOLUTION！MANY FOOD PRODUCTS

HAVE AN ACIDIC CONTENT WHICH CAN DETERIORATE THE FINISH. BE SURE

TO CLEAN THE STAINLESS STEEL SURFACES OF ALL FOOD PRODUCTS.

REFRIGERATORS AND FREEZERS

The interior and exterior can be cleaned using soap and warm water. If this isn’t

sufﬁcient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning

the exterior, always rub with the “grain” of the stainless steel to avoid marring

the ﬁnish.

Do not use an abrasive cleaner because it will scratch the stainless steel and

plastic and can damage the breaker strips and gaskets.

CLEANING THE CONDENSER COIL

The condenser coil requires regular cleaning. Recommended cleaning is every

90 days. In some instances, you may ﬁnd that there is a large amount of debris

and dust or grease accumulated prior to the 90 day time frame. In these cases

the condenser coil should be cleaned every 30 days.

If the build up on the coil consists of only light dust and debris, the condenser

coil can be cleaned with a simple brush. Heavier dust build-up may require a

vacuum or even compressed air to blow through the condenser coil.

If heavy grease is present, there are de-greasing agents available for refrigeration

use and speciﬁcally for the condenser coils. The condenser coil may require a

spray with the de-greasing agent and then blown through with compressed air.

Failure to maintain a clean condenser coil can initially cause high temperatures

and excessive run times. Continuous operation with dirty or clogged condenser

coils can result in compressor failures. Neglecting the condenser coil cleaning

procedures will void any warranties associated with the compressor or cost to

replace the compressor.

In order to maintain proper refrigeration performance, the condenser ﬁns must

be cleaned of dust, dirt and grease regularly. It is recommended that this be

done at least every three months. If conditions are such that the condenser is

totally blocked in three months, the frequency of cleaning should be increased.

Clean the condenser with a vacuum cleaner or stiff brush. If extremely dirty, a

commercial-grade condenser cleaner may be required.

STAINLESS STEEL CARE AND CLEANING

To prevent discoloration of rust on stainless steel several important steps need to

be taken. First, we need to understand the properties of stainless steel. Stainless

steel contains 70-80% iron which will rust. It also contains 12-30% chromium

which forms an invisible passive ﬁlm over the steels surface which acts as a

shield against corrosion. As long as the protective layer is intact, the metal is still

stainless. If the ﬁlm is broken or contaminated, outside elements can begin to

breakdown the steel and begin to form rust of discoloration. Proper cleaning of

stainless steel requires soft cloths or plastic scouring pads.

Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner

containing chlorides will damage the protective ﬁlm of the stainless steel.

Chlorides are commonly found in hard water, salts, and household and industrial

cleaners. If cleaners containing chlorides are used, be sure to rinse repeatedly

and dry thoroughly.

Routine cleaning of stainless steel can be done with soap and water. Extreme

stains or grease should be cleaned with a non-abrasive cleaner and plastic scrub

pad. It is always good to rub with the grain of the steel. There are also stainless

steel cleaners available which can restore and preserve the ﬁnish of the steels

protective layer.

Early signs of stainless steel breakdown can consist of small pits and cracks.

If this has begun, clean thoroughly and start to apply stainless steel cleaners in

attempt to restore the passivity of the steel.

GASKET MAINTENANCE

Gaskets require regular cleaning to prevent mold and mildew build up and also

to keep the elasticity of the gasket. Gasket cleaning can be done with the use of

warm soapy water. Avoid full strength cleaning products on gaskets as this can

cause them to become brittle and prevent proper seals. Do not use sharp tools

or knives to scrape or clean the gasket which could possibly tear the gasket and

rip the bellows.

Gaskets can easily be replaced and don’t require the use of tools or authorized

service technicians. The gaskets are “Dart” style and can be pulled out of the

grove in the door and replaced by pressing the new one back into place.

DOORS/HINGES

Over time and with heavy use, door hinges may become loose. If the door is

beginning to sag, tighten the screws that mount the hinge brackets to the frame

of the unit. If the doors are loose or sagging this can cause the hinge to pull out

of the frame which may damage to both the doors and the door hinges.

DRAIN MAINTENANCE

Each unit has a drain located inside the unit which removes the condensation

from the evaporator coil and evaporates it into an external condensate evaporator

pan. Each drain can become loose or disconnected from moving or bumping the

drain. If you notice excessive water accumulation on the inside of the unit, be

sure the drain tube is connected from the evaporator housing to the condensate

evaporator drain pan. If water starts to collect underneath the unit, you may want

to check the condensate evaporator drain tube to be sure it is still located inside

the drain pan. The leveling of the unit is important as the units are designed to

drain properly when on a level surface. If your ﬂoor is not level this can also

cause drain problems. Be sure all drain lines are free of obstructions because

this may cause water to back up and overﬂow the drain pans.

SWING DOOR REPLACEMENT AND ADJUSTMENT

1. Open the bottom panel and hold the door. Then loosen the bottom hinge

screw and take off the old door.

2. Prepare new door; insert top pin into top hinge, get one bottom hinge to hold

the door with the bottom pin. Fasten bottom hinge securely to the door frame

with three screws.

3. Allow the door to freely swing, making sure it swings closed by itself with no

restriction.

4. Plug the unit in and make sure the lock works well.

5. If not, adjust the door height by adding the plastic spacer/washer provided

with the bottom hinge pin.

REMOVE THE BOTTOM PANEL

Loosen and remove the top screws, slide the panel up and out

LIGHT BULB REPLACEMENT

1. Upper light bulb replacement: Loosen the screws in the bottom of the top

panel and swing the panel up until the light bulb is exposed. Light bulb can

then be changed.

2. LED light bulb replacement: Take the cover off to replace the LED light bulb.
