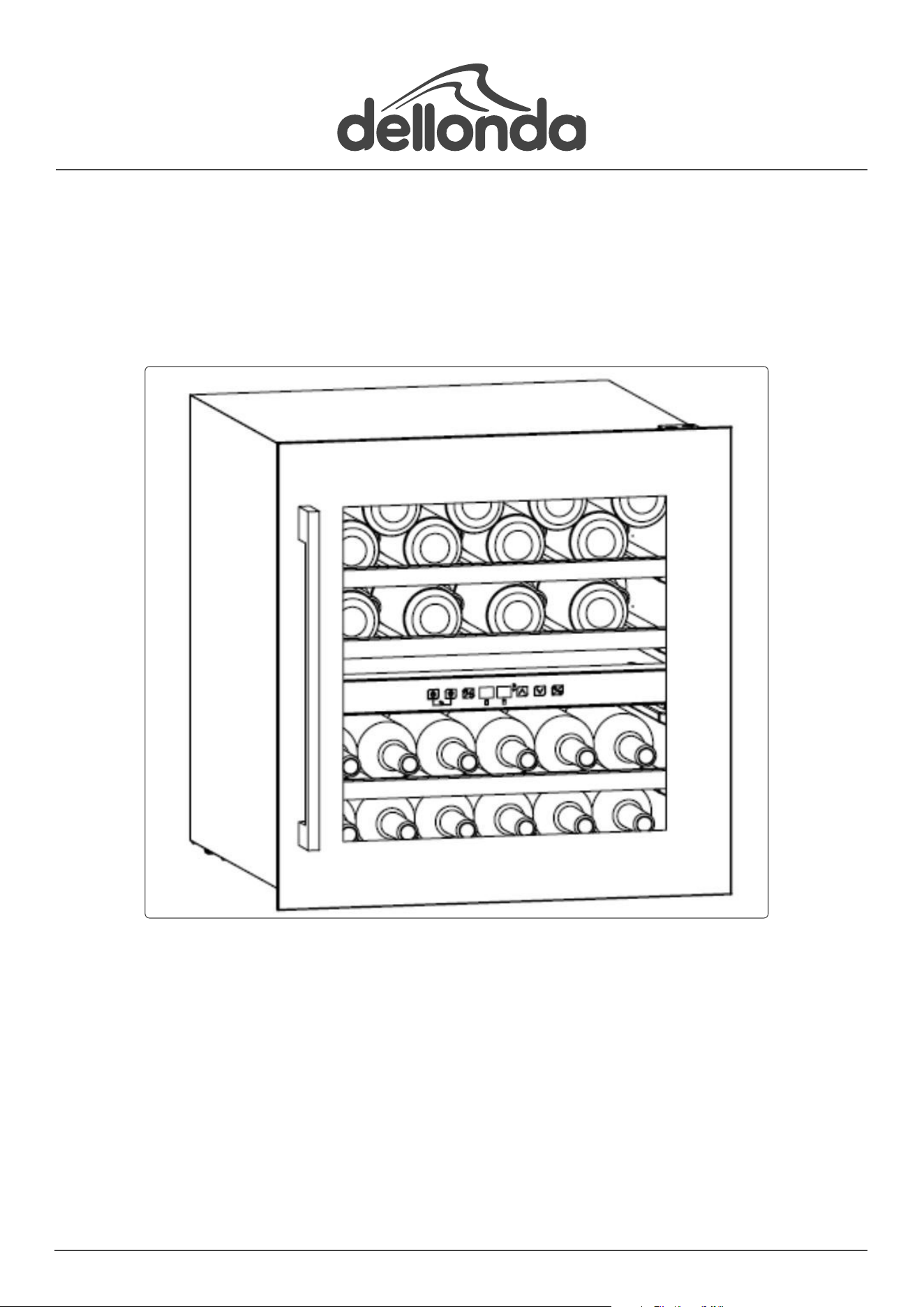

BARIDI 36 BOTTLE WINE FRIDGE & COOLER 60CM
Model No: DH117
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
DH117 Issue 1 10/12/2024
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
SPECIFICATION
Model No: DH117 Nett Weight: 32.3kg
Capacity: 36 Bottle Noise Level: 39dB
Climate Class: SN/N/ST Plug Type: 3-Pin BS
Colour of Product: Black Power Cable Length: 1.5m
Electrical Class: Class I Product Dimensions (W x D x H): 590 x 565 x 595mm
Energy Eciency Class: G Rated current: 0.8A
Frequency: 50Hz Refrigerant: R600a (25g)
Internal Dimensions (W x D x H): 470 x 426 x 503mm Temperature Range: 5-22°C
IP Rating: IPX0 Voltage: 220-240V
Maximum Bottle Height: 330mm Volume: 85L
INTRODUCTION
Fits into a standard cabinet space to allow you to seamlessly make the most out of your kitchen. Dual zone design means you can control the
temperature of each zone individually, with the upper zone and the lower zone ranging from 5-22°C. Compressor cooling technology with an
automatic defrost feature to make this unit as easy as possible to use. At a low 39dB this fridge is designed to be seamlessly integrated into
your kitchen cabinets allowing you to chill up to 36 bottles of wine to the perfect temperature. Features stylish stainless steel handle, beech
wood shelves and an internal LED light.
SAFETY
READ THESE INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL OR USE THE APPLIANCE.
9 Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack of experience and
knowledge can use the appliance, if they have been given supervision or instruction concerning use of the appliance in a safe way to
understand the hazards involved.
8 Children shall NOT play with the appliance.
8 Cleaning and user maintenance on the appliance shall NOT be made by children without supervision.
9 The appliance shall be disconnected from its power source during service and when replacing parts.
9 This appliance is intended to be used exclusively for the storage of wine.
9 This refrigeration appliance is intended to be used at ambient temperature ranging from 10°C to 38°C.
8 DO NOT damage the power cord. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
8 DO NOT store explosive substances such as aerosol cans with a ammable propellant in this appliance.
9 Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
9 This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops; oces and other working
environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;
catering and similar non-retail applications.
TO AVOID CONTAMINATION OF FOOD, PLEASE RESPECT THE FOLLOWING INSTRUCTIONS:
Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. If the refrigerating
appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.
WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING! DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8 DO NOT expose the appliance to rain.
WARNING! DO NOT modify the appliance.
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING! DO NOT use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the
manufacturer.
WARNING! DO NOT damage the refrigerant circuit.
WARNING! DO NOT use electrical appliances inside the food storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
Indoor use
only
WARNING!
Risk of re
9 Ensure the appliance is connected to a power supply in accordance with the rating label.
9 Use an independent grounded socket with 10A or higher.
8 DO NOT connect to transformer or socket with multiple outlets.
9 Ensure the socket is grounded properly and do not modify power cord & plug.
9 Ensure the power plug is fully in the socket.
9 Ensure the appliance can easily be disconnected from the supply when in the installed position, unless the appliance incorporates a switch.
8 DO NOT store or burn gasoline or other ammables near the appliance in case of possible re.
8 DO NOT store ammables, explosives, acid & alkaline liquids etc. in the compartment of the appliance.
8 DO NOT operate other appliances in the compartment.
8 DO NOT touch the inside of the compartment with wet hands.
INSTALLATION
POSITION
8 DO NOT lean the appliance over 45° when moving it into position.
9 The appliance must be installed indoors on a at, rm and dry oor, away from direct sunlight.
9 Allow the appliance to cool for at least an hour before storing wine bottles.
HOUSING
SHELF
UPPER HINGE
DOOR SEAL
HANDLE
NOTE: the above is for reference only. The appliance you buy might not be exactly
the same as shown here. Please refer to the actual product.
CONTROL
PANEL
ADJUSTABLE
FOOT
LOWER HINGE
1 - INSTALL THE HANDLE
Reveal the two small holes on the door frame from the inner side by pulling out
some of the door seal. Use two screws to secure the handle.
2 - BRACKET INSTALLATION
The appliance is equipped with a pair of brackets at the top (2) and
at the bottom. This pair of brackets might not be needed and can be
removed as per your actual installation situation.
If the opening size of your cabinet is bigger than the appliance, you
could x 4 screws (1) (ST4.0*13) (packed separately in a plastic bag)
into the inner wood plate of the cabinet.
OPERATION
BEFORE USE
9 Clean the inside of the appliance.
9 Check the drainage pipe is in good condition.
9 Level the appliance on a rm and dry surface for at least 30 minutes.
9 Allow at least 1 hour for the appliance to cool down inside.
CONTROL PANEL
Note: keys will not function when in lock mode.
ON/OFF
Hold for 3 seconds to turn on/off.
LIGHT
Press to turn on/off the LED lights inside. In stand-by mode, the key is invalid.
ZONE SWITCH
Press the key to switch between upper zone and lower zone for choosing which zone to set temperature. Press the key
once, the LED will display in the chosen zone. Press up and down key to set temperature. Press again to set temperature.
UP
Press the key once, LED Display in regular ash showing current set temperature. Continue pressing to adjust set
temperature, one press increases the temperature by 1
o
C. Leave for 5 seconds and the new set temperature will be set.
DOWN
Press the key once, LED Display in regular ash showing current set temperature. Continue pressing to adjust set
temperature, one press increases the temperature by 1
o
C. Leave for 5 seconds and the new set temperature will be set.
SWITCH BETWEEN FAHRENHEIT/CELSIUS
Switch temperature display between Fahrenheit and Celsius by pressing for 2 seconds.
CHILD LOCK
To lock/unlock, press both keys at the same time for 3 seconds.
TEMPERATURE
The default temperature is set to 12
o
C. This can be adjusted according to the wine being stored.
Note: both upper and lower zone can be set between 5-22
o
C. The lower zone can only be set equal to or higher than that of the upper zone.
ALARM
An alarm will sound if the appliance malfunctions. Press any key to cancel the alarm sound.
ERROR CODES
Upper Zone Sensor Failure - E1 (open circuit), E2 (short circuit)
Defrost Sensor Failure - E3 (open circuit), E4 (short circuit)
Lower Zone Sensor Failure - E5 (open circuit), E6 (short circuit)
WINE STORAGE
This appliance is intended to be used exclusively for the storage of
wine. The loading capacity will vary depending on size of bottles
and their arrangement. Each shelf is designed for 1-2 layers of wine
bottles. Note: more than 2 layers of bottle arrangement on one shelf
is not recommended.
Avoid placing too many bottles in front of the fan if possible as this
can block the air inlet and affect cooling eciency.
If the wine cooler has been empty for an extended period, it is
recommended to turn off, clean and leave open for ventilation.
RECOMMENDED TEMPERATURE FOR WINE STORAGE
Red wine 15-18
o
C Rose wine 10-11
o
C
White wine 9-14
o
C Champagne & sparkling wine 5-8
o
C
TROUBLESHOOTING
PROBLEM POSSIBLE SOLUTION
Appliance makes lots of noise. Adjust the front foot to level the appliance.
Ensure there is space around the appliance.
Liquid owing sound inside the cabinet. This is normal because of the refrigerant inside the appliance.
Appliance does not start. Ensure the appliance is connected to the power supply correctly.
Make sure the power supply switch is on.
Note: the compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously. If no cooling occurs, call an authorised service centre.
Door does not seal tightly. After extended use, the door seal might get stiff and partially distort.
Use a warm, dry towel to soften the seal and close the door.
The appliance does not cool suciently. Adjust the temperature setting.
Keep the appliance away from sunlight or heat.
Avoid opening the door frequently.
Unpleasant smells inside cabinet. A new appliance may smell of plastic, but this should disappear after a short time.
Clean the compartment and ventilate for a few hours.
Condensate on the glass door. Avoid opening the door frequently, or leaving the door open for extended periods.
High ambient temperature and humidity may cause condensation.
The light is not working. Check the power supply rst.
Call the retailer’s after-sale service or authorised service centre.
MAINTENANCE
CLEANING
9 Disconnect the appliance before cleaning.
9 Clean the appliance regularly with a soft cloth or sponge.
8 DO NOT use abrasive brushes, organic solvents, alkaline detergent, boiling water, washing powder or harsh chemicals etc.
9 Clean regularly surfaces that come in contact with accessible drainage systems.
POWER CUT
9 To protect your wines during a power cut, avoid opening the door as much as possible.
9 During very long power cuts, take the necessary measures to protect your wine.
IF THE APPLIANCE IS NOT BEING USED FOR A LONG TIME
9 Remove all bottles from the appliance.
9 Switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Note: If the appliance is disconnected or if there is a power cut, you must wait at least ve minutes before re-starting.
9 Servicing is only to be carried out by an authorised service centre.
MOVING THE APPLIANCE
9 Turn off the power supply and unplug the appliance.
9 Remove all bottles.
8 DO NOT lean the appliance more than 45
o
when transporting.
DISPOSAL
9 Dispose of this appliance in accordance to local regulations.
9 Before you scrap the appliance, remove the doors.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in an
environmentally friendly way. Drain any uids (if applicable) into approved containers, in accordance with local waste regulations. It is our policy to
continually improve products and we reserve the right to alter data, specications and parts without prior notice. No liability is accepted for incorrect
use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Product Information Sheet. Refrigerating Appliances
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd. DELEGATED_ACT EU/2019/2016
MODEL_IDENTIFIER DH117
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS TechnicalCompliance@dellonda.co.uk
Parameter Verification tolerances
Low-noise appliance No Design type Built-in
Wine storage appliance No Other refrigerating appliance No
General product parameters
Height mm 595
Width mm 590 85
Depth mm 563
EEI 169 G
Airborne acoustical noise emissions (dB(a)
re 1 pW
39 C
Annual energy consumption kWh/a 140
SN = extended temperate(10-32°C)
N = temperate 16-32°C
ST = subtropical 16-38°C
T = tropical 16-43°C]
Minimum ambient temperature (°C) for
which the refrigerating appliance is
suitable.
10 38
Winter setting No
Baridi 36 Bottle Wine Fridge & Cooler 60cm
Total volume. Litres.
Airborne acoustical noise emission class
Maximum ambient temperature (°C) for
which the refrigerating appliance is suitable.
Climate class
SN/N/ST
Energy efficiency class
Compartment type
Volume.
Litres.
Recommended temperature setting for optimised food storage
Freezing capacity (kg/24 h)
Defrosting type
(auto = A Manual = D)
Pantry #N/A #N/A
#N/A
_
#N/A
Wine storage appliance Yes 85.0 #N/A
_
#N/A
Beverage / Beer cooler #N/A #N/A #N/A
_
#N/A
Cellar #N/A
#N/A #N/A
_
#N/A
Fresh food #N/A #N/A
#N/A
_
#N/A
Chill #N/A #N/A #N/A
_
#N/A
0-star or ice-making #N/A #N/A #N/A
_
#N/A
1-star #N/A #N/A #N/A
_
#N/A
2-star #N/A #N/A #N/A
_
#N/A
3-star #N/A #N/A #N/A
_
#N/A
4-star #N/A #N/A #N/A #N/A #N/A
2-star section #N/A #N/A #N/A
_
#N/A
Variable temperature compartment
Compartment
types
FALSE FALSE
_
FALSE
4-star compartments Light source parameters
Fast freeze facility No Type of light source LED
Energy efficiency class exempt
Minimum duration of guarantee (years) 1
Suppliers website https://www.dellonda.co.uk/
