SMART CAR CHARGER DC1242-500
USER MANUAL
FUNCTION INTRODUCTION
BASIC PARAMETERS
DC 1242-500
12~30V, 50A(MAX)
42V, 13A(MAX)
100A
Up to 500W
About 0.1mA under shuntdown model and 260mA under state of power-on but
without any load.
-10℃~55℃ / 14℉~131℉
10℃~45℃ / 50℉~113℉
Fan cooling
Short-circuit protection, over-voltage protection, under-voltage protection,
overheating protection.
193*90*52 mm / 7.6*3.5*2 in
12 months
Product Model
Input Specification
Output Specification
Fuse Rated Current
Output Power
Standby power
Operating Temperature
Storage Temperature
Heat Dissipation
Protective design
Dimension
Warranty

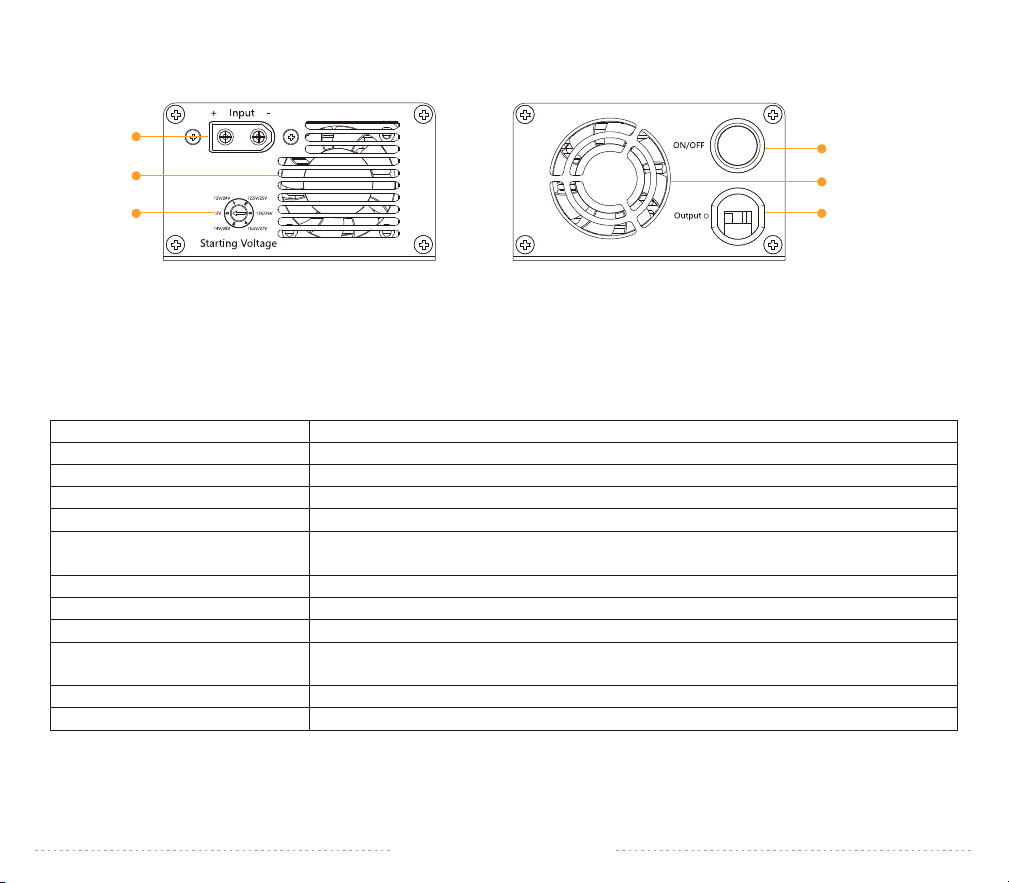

①
②
③
④
⑤
⑥
①
②
XT90 Input
Heat Sink
③
④
Starting Voltage Knob
Switch Button
⑤
⑥
Heat Sink
Output
WORKING PRINCIPLE
1: PECRON smart car charger (hereinafter referred to as car charger) can detect the input voltage. If the input voltage is
greater than the set starting voltage, the car charger will work, otherwise it will not work.
2: The battery voltage will be in a lower range when the car is not started, and the voltage will be pulled up after the car is
started.
3: The starting voltage of the car charger is set based on the principle of increasing the starting voltage of the car. The set
value should be greater than the battery voltage when the car is not started, and should be less than the battery
voltage when the car is started.
XT90
DC 1242-500
Positive
Input
Cable
Connect to
the positive
terminal of
the battery
Negative
Input
Cable
Connect to
the negative
terminal of
the battery
Car Battery
Fuse
Output Cable

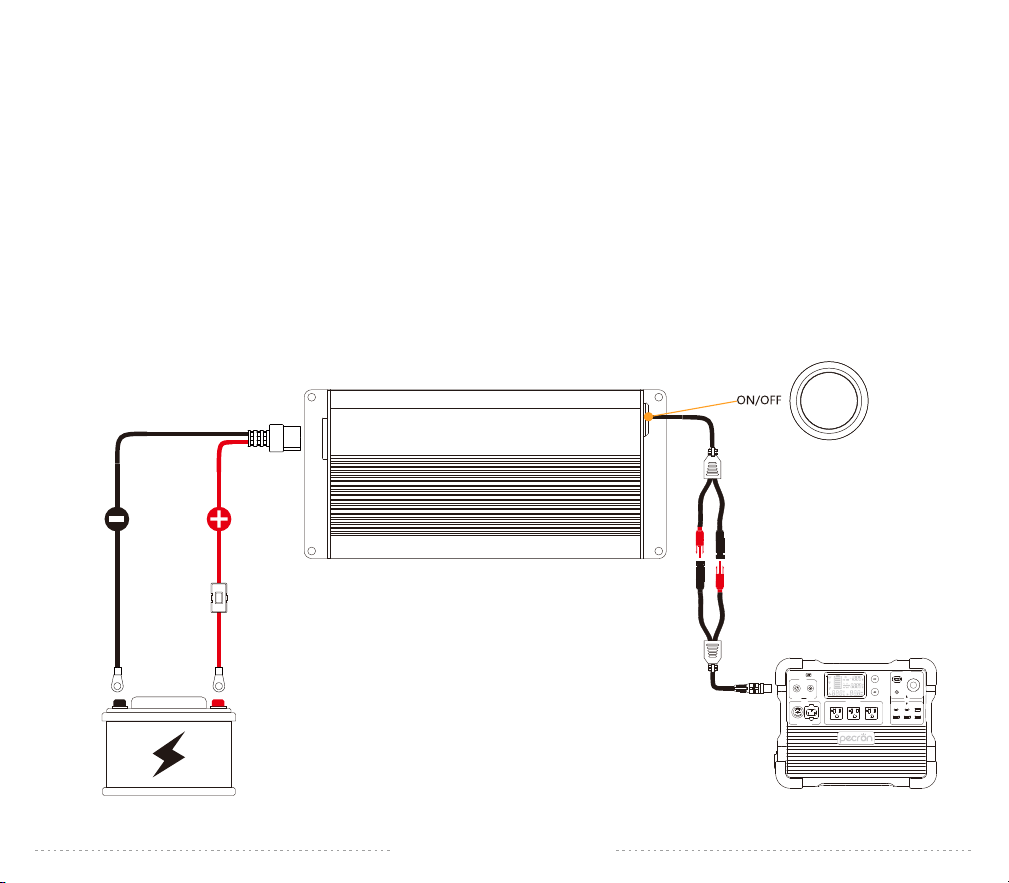

USAGE DIAGRAM
Step 1: Connect the car battery to the PECRON power station.
E1500
100V~120V-15A(MAX)
AC INPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX)
12V~18V
100W(MAX)
DC INPUT
※ If you need to plug and unplug the connector during charging, please turn off the charger before plugging and unplugging the cables.
※ When setting the starting voltage, please debug in this way, If the setting voltage is too low, the car battery power will be drained,
resulting in the car not being able to ignite and start normally.
Step 2: First check if cables correctly connect and then turn on the switch button.
Step 3: Check if the status of the car charger is normal and calibrate its voltage.
Normal state: The car charger doesn't work when the car is not started. The car charger starts working after the car is started.
After starting the car, if the car charger does not work, you need to lower the starting voltage.
If the car charger works even when the car does not start, the starting voltage needs to be increased.

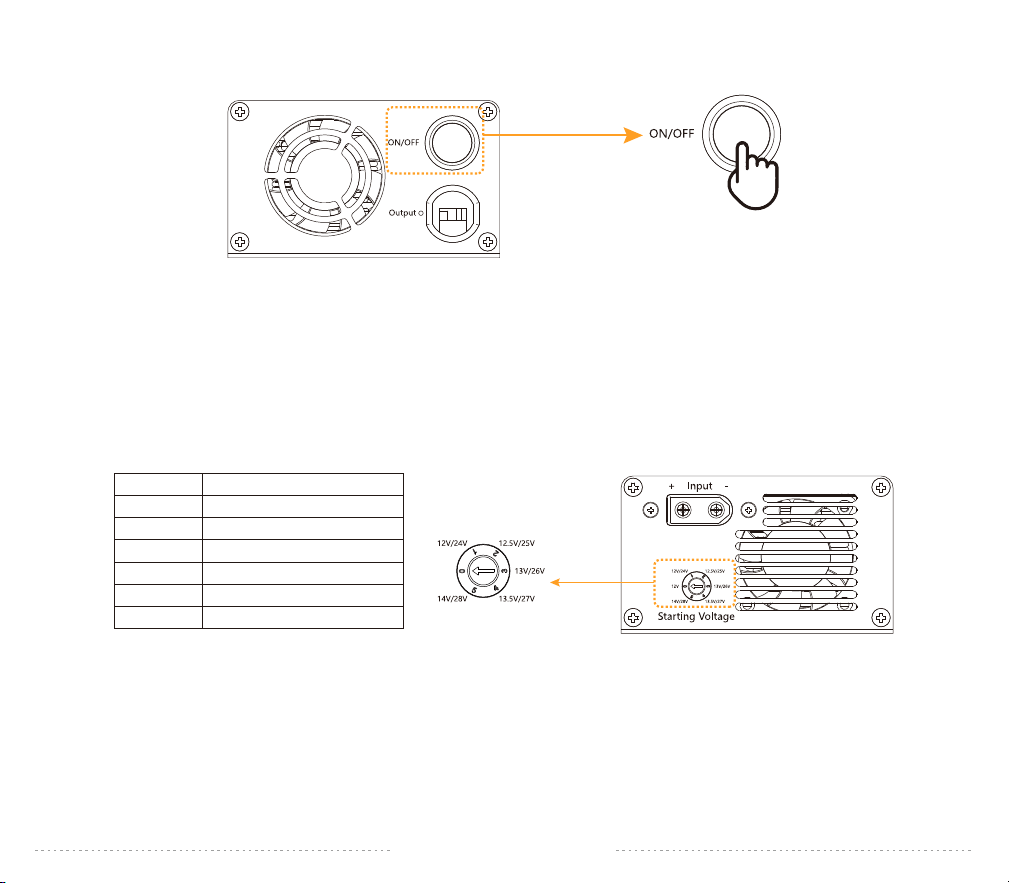

Starting Voltage Range
12V~30V
12V~17V / 24V~30V
12.5V~17V / 25V~30V
13V~17V / 26V~30V
13.5V~17V / 27V~30V
14V~17V / 28V~30V
Gear Level
0
1
2
3
4
5
12V
PACKING LIST
PECRON DC1242-500 *1 Input Connection Cable
(approx. 5 meters) *1
Mini Screwdriver *1 User Manual *1
XT90
WARNINGS
1：Make sure to connect the input and output cables according to the instructions;
2：Do not block the fan vent when the car charger is working;
3：Do not subject this product to mechanical impact
4：The output terminal of this product is not allowed to be short-circuited;
5：Make sure the car is started before turning on the car charger. Prevent the car battery from entering an under-voltage
protection state due to insufficient supply voltage;
6：Use standard and original charging cable of this product to avoid abnormalities.
7：Install and use this product in a dry, clean environment with suitable temperature.
Please read the user manual thoroughly before using this product, and keep this manual in a safe place for future
reference. Failure to follow the instructions for proper set up, use, and care for the device can increase the risk of serious
personal injury, death, or property damage. Once you use this device, you are deemed to have understood, recognized
and accepted all terms and contents of this document. The user shall be responsible for his own actions and all
consequences arising from failure to use the device in accordance with the “User Manual”, or as authorized in
PECRON's current product literature.
In compliance with laws and regulations, PECRON reserves all rights for final explanation, and to change these terms and
conditions at any time without prior notice. In the event that any revisions are made, the revised terms and conditions
shall be posted on our website immediately, please visit our website to inform yourself of any changes.
DISCLAIMER
EXCLUSIONS
PECRON’s warranty does not apply to：
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in
PECRON’s current product literature.
CUSTOMER SUPPORT：[email protected]
WEBSITE：www.pecron.com
PECRON.LLC
8：Do not use this product in high-temperature environments such as heat sources or fire sources.
9：Do not get this product wet, immersed in water or any other liquid.
10：Ensure that the input (XT90) and output (MC4) wires of this product are firmly connected to avoid safety issues
caused by short circuits and virtual connections.
11：When it's not using for a long time (more than a week), please turn off the main switch of the charger.
