Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326.
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 343-4165
Model Number: LV21029 BK
221024
Low Voltage LED Path Light
A
B
D
E
F
C

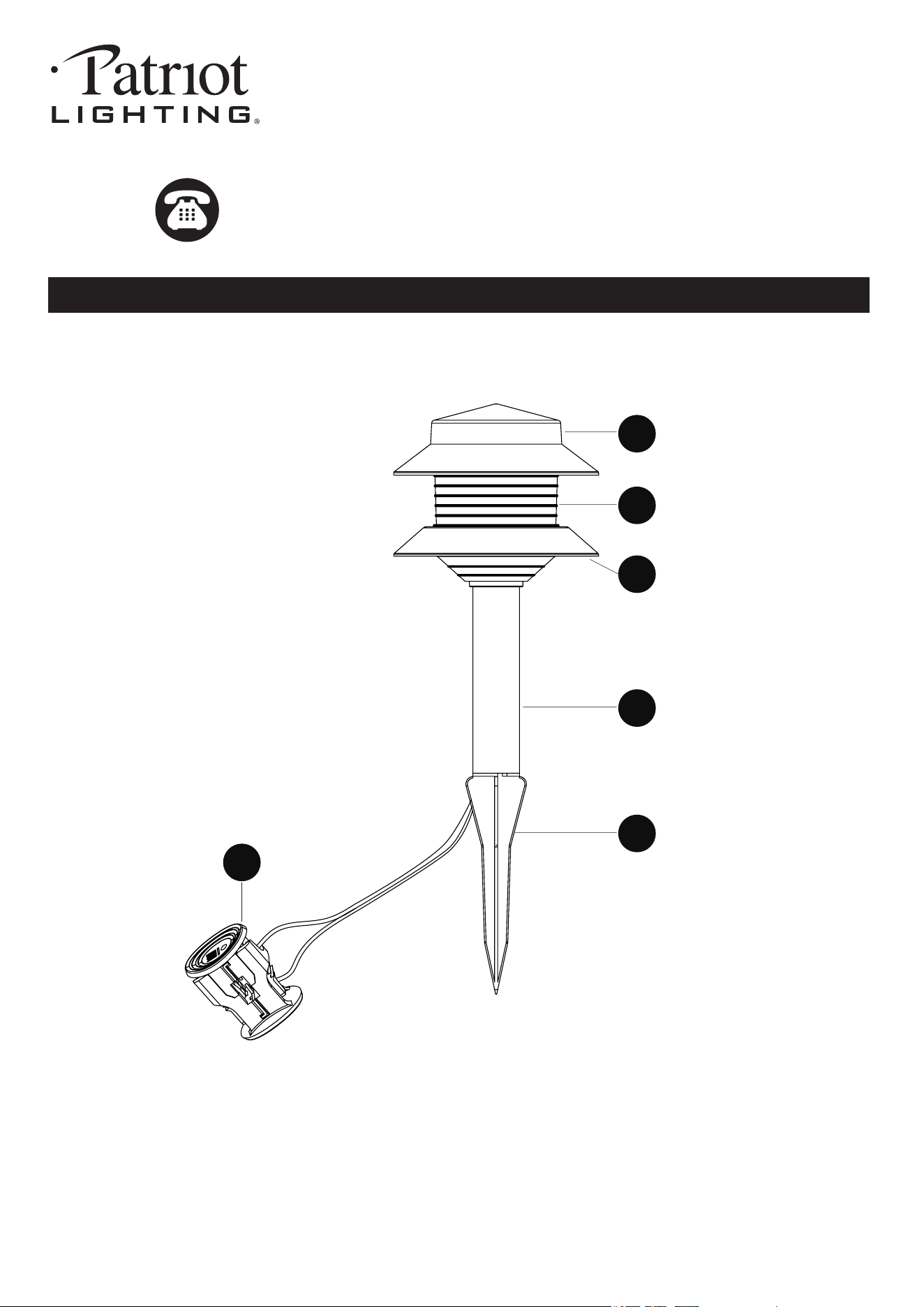

PACKAGE CONTENTS
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Phillips Screwdriver, Electrical Tape and Wire Cutters.
Page 2 of 3
SAFETY INFORMATION
PREPARATION
221024
ASSEMBLY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
CAUTION
Risk of fire or electrical shock. Turn off power before assembly. Read all of these instructions thoroughly
before use. Keep this instruction manual in a safe place for future reference.
Do not install or connect wires with wet hands.
Do not install this product within 10 feet (3 meters) away from a pool, spa, fountain, or other body of water.
The main cable is intended for shallow burial - maximum depth must not exceed 6 inches (15.2 cm).
For low voltage landscape lighting systems only.
Do not step on, or drive over the main cable.
This lighting fixture is only suitable for a 12V power supply.
This LED lamp is a highly efficient, extremely low wattage, energy saving product.
Use shielded cable for outdoor use in the following sizes: 18 AWG, 16 AWG, 14 AWG, 12 AWG.
Do not submerge in water.
Do not repair or modify this product.
The maximum power of the LED module is 2.5W.

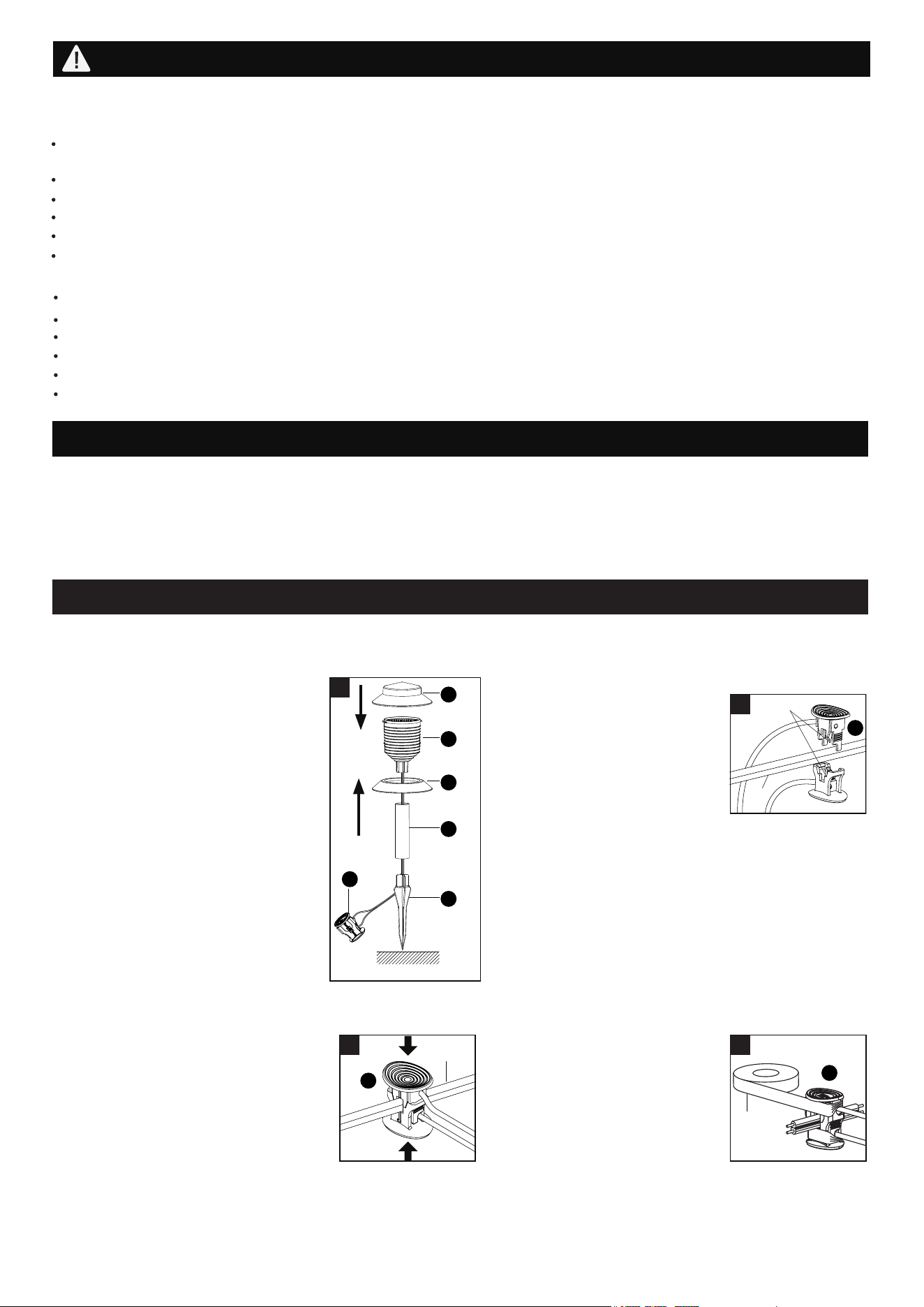

1. Insert ground stake (E) by pressing
it into the tube (D). Install the tube (D)
by pressing it into the lens (B). Snap
the disk (C) into the slot in the
lens (B). Turn the cover (A) on the
lens (B) until it stops. Gently insert
the ground stake (E) into the ground.
(Fig.1)
Never push the fixture into the
ground by the fixture head.
Note: In compacted, clay, or
hard soils, moisten the ground
with water before inserting the
stake into the ground to avoid
breakage.
Fixture Assembly
Quick Connector
The connector (F) is intended for
use with 18 AWG, 16 AWG,
14 AWG or 12 AWG outdoor
cables.
2. Place the connector (F) on
opposite sides of the low
voltage power cable where the fixture will be located.
Align and fit the main low voltage power cable
vertically to the slot of connector (F) as shown.
(Fig.2)
Contact Pin
2
F
3. Press the connector (F) together until
fully seated and locked around the
power cable. Pre-set prongs will pierce
the power cable insulation and
establish contact. Turn on the power
unit. If the light fixture does not turn on,
repeat operations 2 and 3. (Fig.3)
4. Once the connector (F) is in
place, wrap it with electrical tape
for additional protection. (Fig.4)
3
F
4
F
1
Ground
A
B
C
D
E
F
Power
Cable
Power Cable
Electrical
Tape
Fixture installation
Page 3 of 3
221024
ASSEMBLY INSTRUCTIONS (continued)

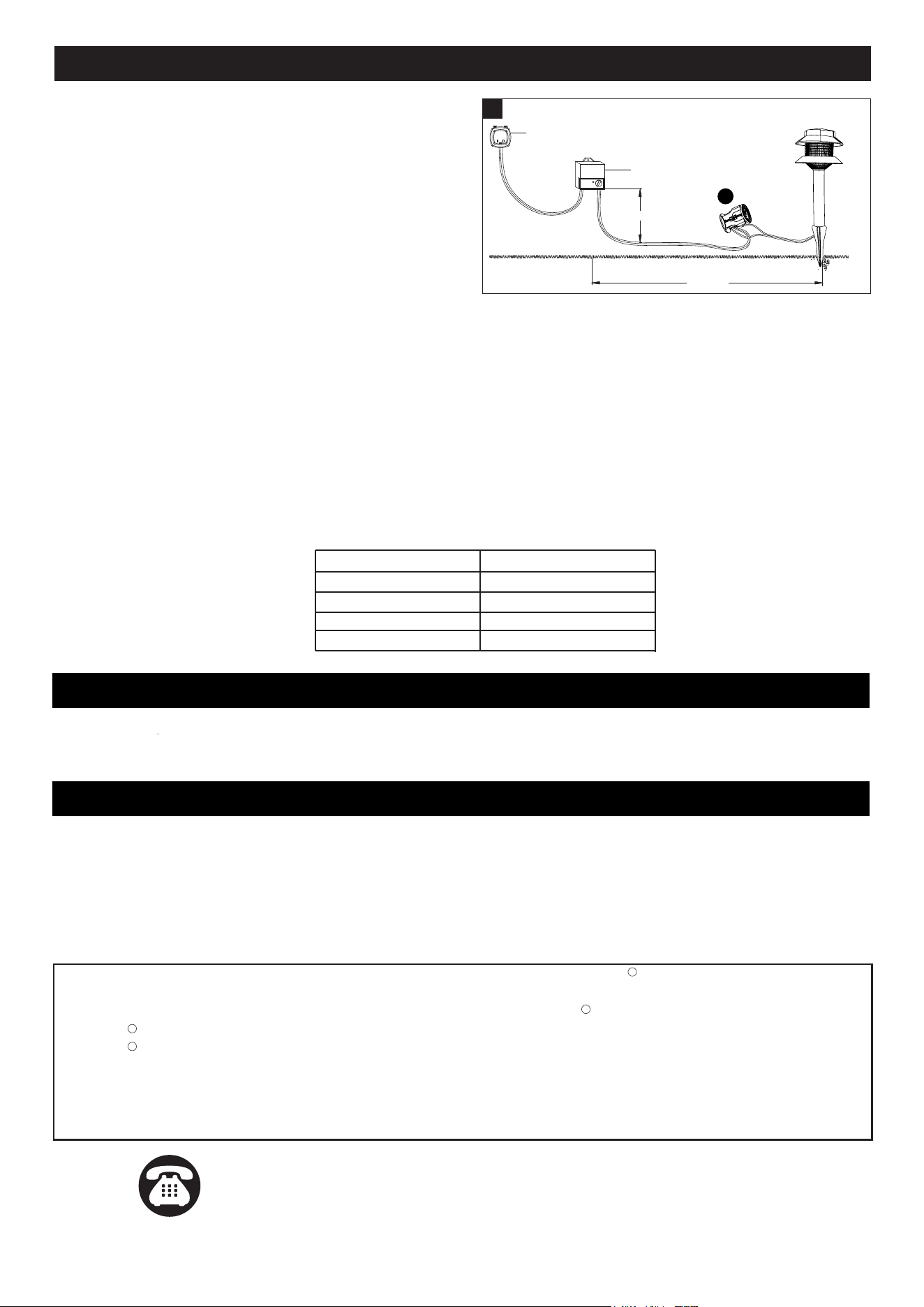

5. Attach the fixture to the power cable with the connector (F).
To insure uniform brightness the first fixture should be a
minimum of 10 feet (3 meters) from the transformer
(not included). (Fig.5)
12"(30cm)
10 ft. (3m)
GFCI
Transformer
5
Caution:
a. The included connector is to be used only on low voltage power cable with 18 AWG, 16 AWG, 14 AWG or 12 AWG
cable.
b. The fixture's cable and connector shall:
● Be protected by routing in close proximity to the light fixture, or next to a building structure such as a house or deck.
● Not be buried except for a maximum 6 inches (15.2 cm) to connect to the main low voltage cable.
● Have a length such that the connector is within 6 inches (15.2 cm) from the light fixture or a building structure.
c. Do not use cable smaller than listed in chart below.
SELECT CABLE. Use the chart below to determine the MINIMUM gauge cable to be used, depending on the wattage
of the power pack. Using large cable will ensure maximum light output.
Power Pack Wattage
240-300 12
14-12
16-14-12
18-16-14-12
120-240
60-120
0-60
Minimum Gauge Cable
TROUBLESHOOTING
CARE AND MAINTENANCE
Clean the lens and surfaces with a non-abrasive cleaner. Do not use any cleaners with chemicals, solvents or harsh
abrasives. Use only a soft dry cloth to dust or wipe the lens area.
If the light does not work.
1. Make sure the switch and circuit breaker are on.
2. Make sure the wiring connection is correct.
3. Make sure the photocell is not exposed to light (if have photocell).
4. Make sure the connections between contact pins of connector and wires from power adaptor are in good condition.
If unable to fix any of the above issues, please consult a certified electrician.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
F
