Solar Light
Model Number: SL24004
241122
REF. PARTS NAME
Includes (1) AA 600 mAh(1.2V) Ni-MH rechargeable battery per fixture.
The lifetime for LEDs is estimated to be 100,000 hours.
LED
Read all instructions before assembly. Failure to do so may result in faulty assembly
and potential injury.
FUNCTION: The built-in solar panels convert sunlight into electricity. The rechargeable battery stores the energy and
converts the power into light for use during the night. The overall performance and illumination hours of the solar light
are largely dependent on the geographic location, weather and temperature conditions. Stronger and longer exposure
to direct sunlight will maximize the stored energy in the battery and provide longer lighting hours.
LOCATION: It is important to select an outdoor location with full, direct sunlight where the solar panel can receive at
least 8 hours of sunlight each day. Shady areas will not enable batteries to be fully charged. This will reduce the lighting
hours at night. It is also important to avoid placing the solar light by light sources, such as street lights or porch lights,
which may cause the solar light to turn off automatically. The solar light is designated for outdoor usage and ideal for
night lighting of gardens, paths, etc.

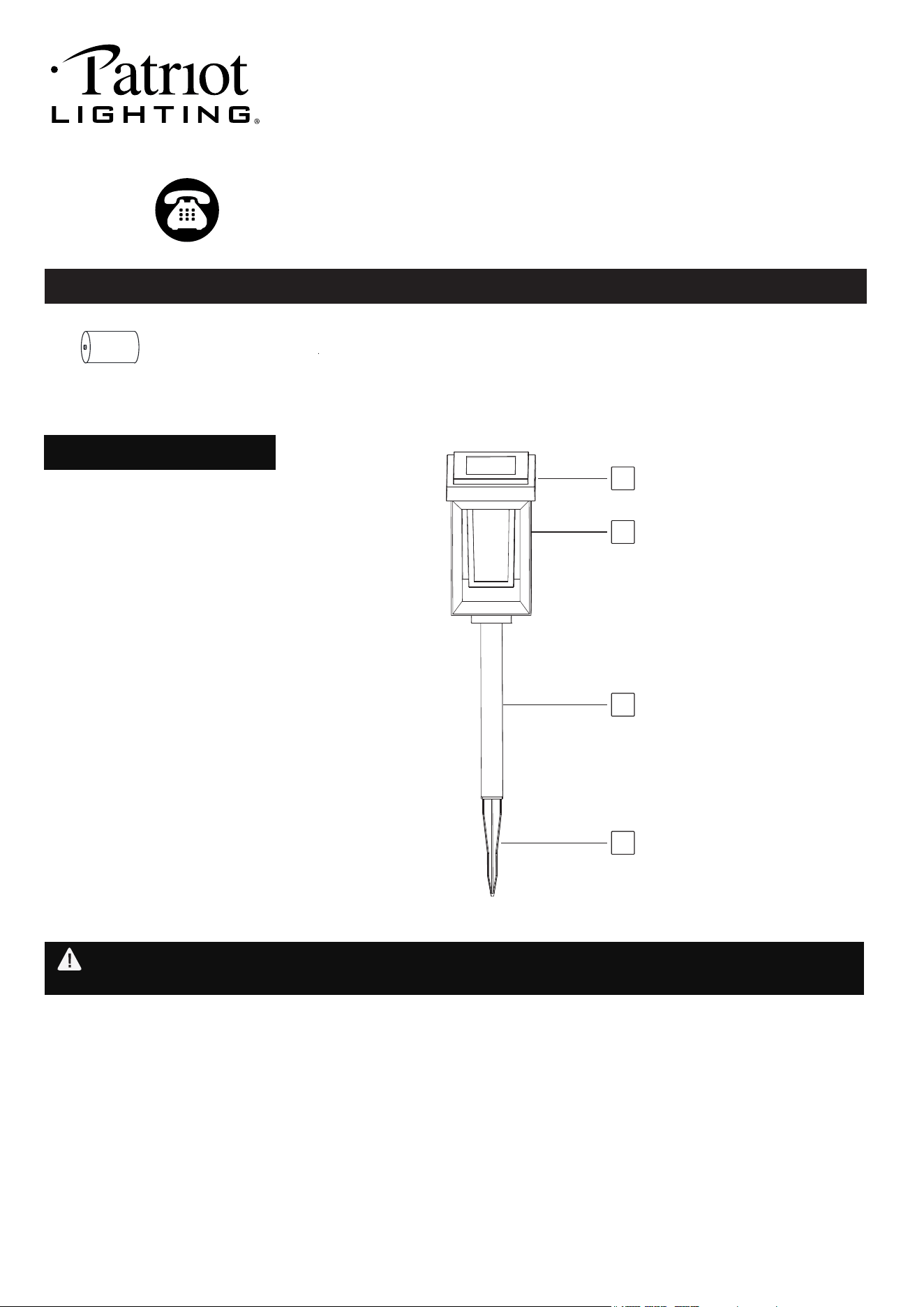

PACKAGE CONTENTS
A
B
C
D
A Solar Panel Unit
B Decorative Shade
C Connection Tube
D Ground Stake
CLEANING AND MAINTENANCE: Please use a damp cloth to clean the solar panel. Do not use any chemical or
abrasive cleaner. It is important to ensure that no moisture enters into the solar light.
Page 2 of 2
241122
ASSEMBLY AND BATTERY REPLACEMENT INSTRUCTIONS

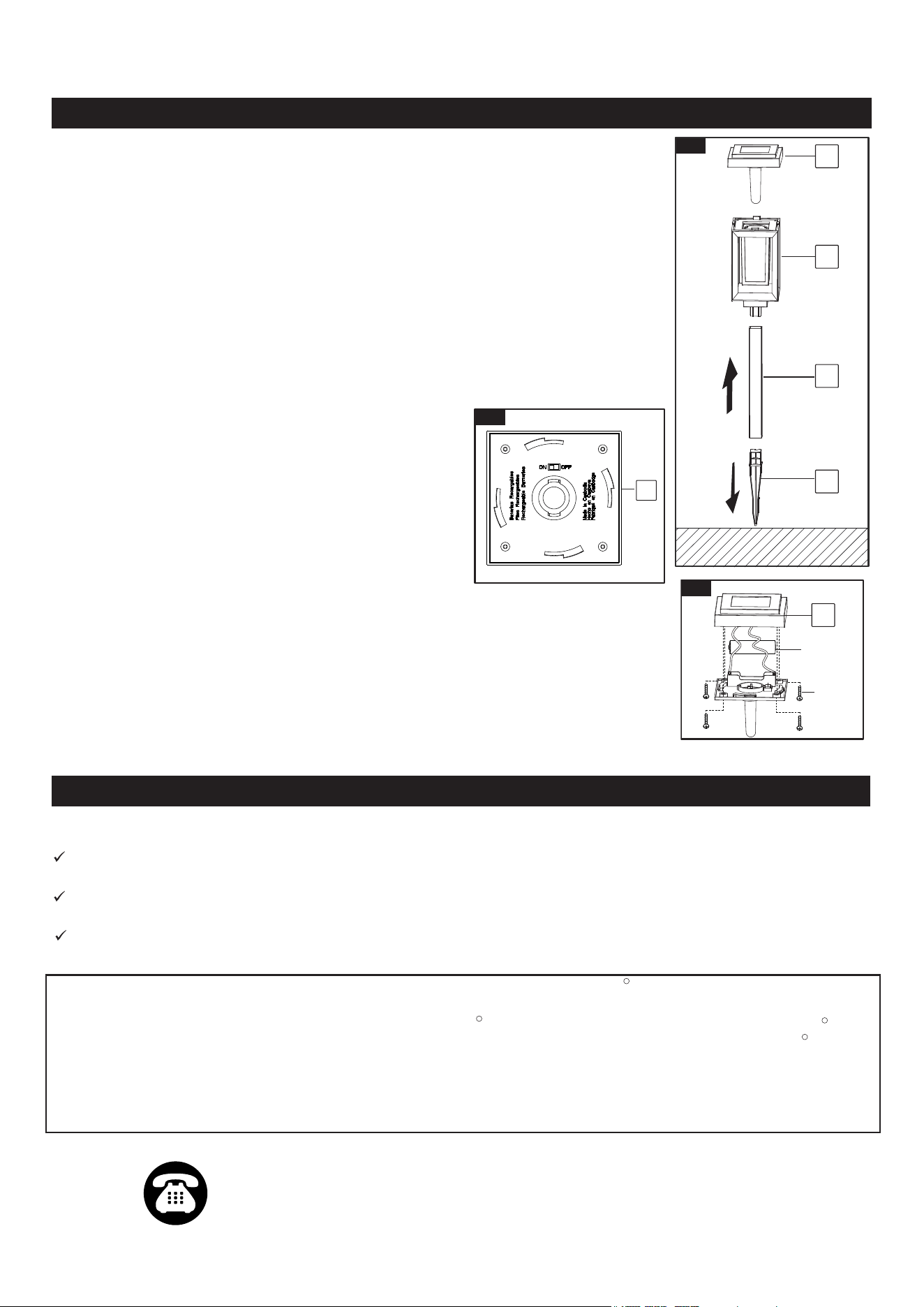

ASSEMBLY (Fig.1)
• Carefully remove your solar light from the box.
• Do not press on the surface of the solar panel this can damage the solar module.
• Attach the solar panel unit (A) to the decorative shade (B).
• Connect one end of the connection tube (C) with the decorative shade (B),
then connect the other end with the ground stake (D) .
• Gently insert the ground stake (D) into the ground.
Never push the fixture into the ground by the fixture head.
CAUTION: In compacted, clay, or hard soils, moisten
the ground with water before inserting the stake into
the ground to avoid breakage.
OPERATIONAL INSTRUCTIONS
• Turn the switch to "ON" position before using the fixture.
(Fig.2)
• After assembly, make sure the solar panel is exposed to
direct sunlight for 8 hours. The fixture will automatically
illuminate at dusk.
CHANGING BATTERIES (Fig.3)
• Rotate the solar panel unit (A) counterclockwise to remove it from the decorative
shade (B).
• Unscrew the four set screws, careful open the cover of solar panel unit (A) .
• Replace the old battery with a new battery making sure the polarity is correct.
• Restore the cover.
TROUBLESHOOTING
Check the rechargeable battery and make sure that it is in contact to the metal plate and the polarity is correct. If the
battery is worn out, replace the battery with (1) AA 600 mAh(1.2V) Ni-MH rechargeable battery per fixture.
Always keep the solar light distant from other night light sources, such as exterior lights. Reposition the light to avoid
close contact with other night light sources.
Make sure solar panel is clean and free of dirt and debris. If needed use a damp cloth to clean the solar panel. Do
not use any chemical or abrasive cleaner. It is important to ensure that no moisture enters into the solar light.
If light does not work, please follow these troubleshooting steps:
RECHARGEABLE BATTERY: This product contains (1) AA 600 mAh(1.2V) Ni-MH rechargeable battery per fixture.
When the battery expires, it must be recycled or disposed of properly. Please contact your local waste disposal authority
for the correct procedure. Do not expose battery to fire.
Fig.2
A
Fig.3
Battery
A
Set Screw
ONE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to
a defect in material workmanship within one (1) years from the date of original purchase, simply bring this lighting fixture
with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PARTIOT LIGHTING agrees
to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT LIGHTING product or
part free of charge, within the stated warranty period, when returned by the original purchaser with original sales receipt.
This warranty; (1) excludes expendable parts including but not limited to light bulbs and batteries; (2) does not cover
damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to persons/property or
costs. This warranty does give you specific legal rights and you may have other rights, which vary from state to state.
R
R
R
R
