User Manual
UPRIGHT CONVERTIBLE
REFRIGERATOR FREEZER
MODEL:
KM-RUF-21S
REFRIGERATOR \ FREEZER
SAVE THESE INSTRUCTIONS CAREFULLY
Unit must be kept clear of combustibles at all times.
For any service-related Issues, please contact us:
Phone Number: 718-576-6342
Email address: [email protected]

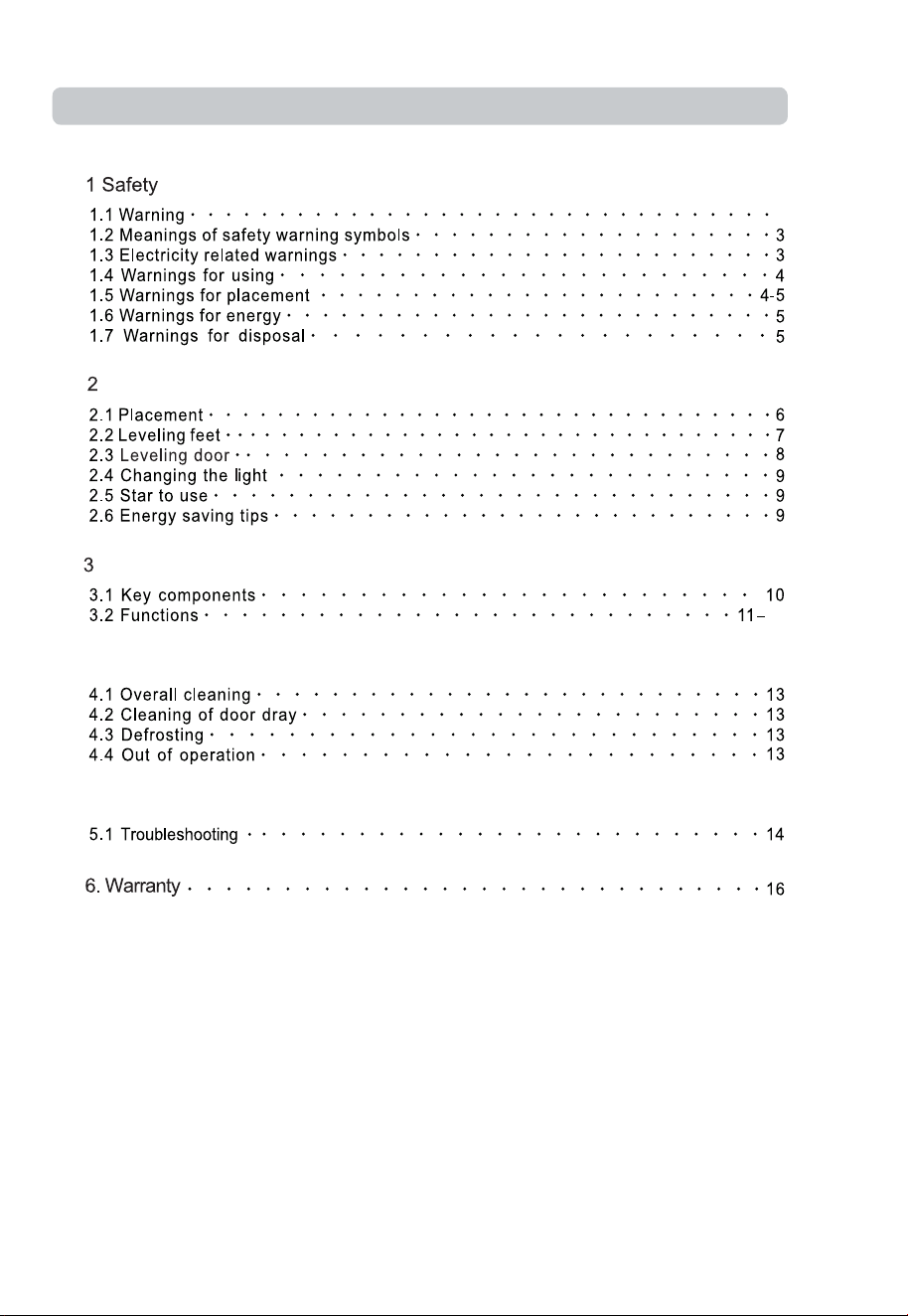

CONTENTS
1
12
Proper Use of the Freezer
Structure and Functions
4 Maintenance and Care of the Freezer

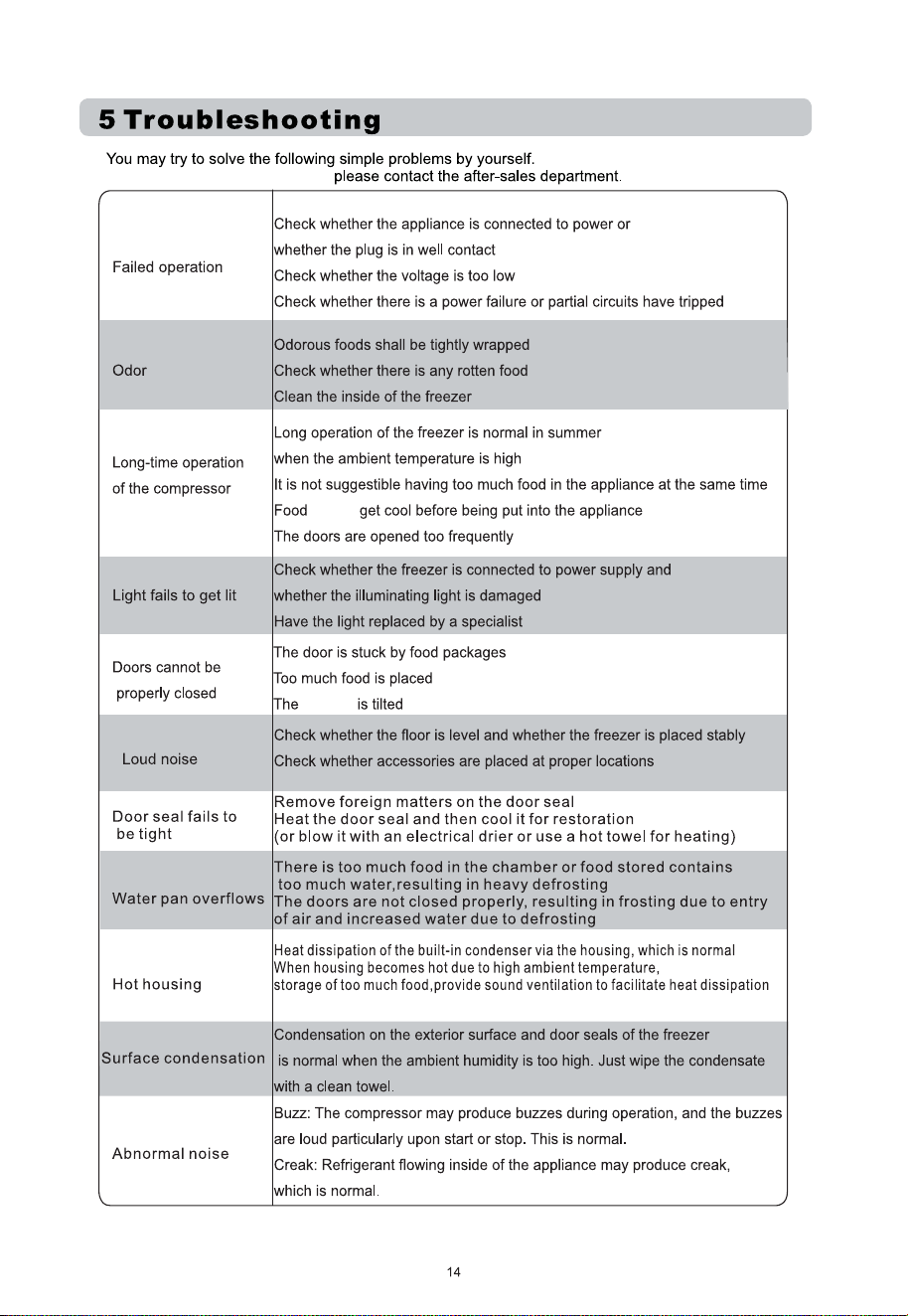

5 Troubleshooting
Warnings
This appliance is intended to be used in household and similar locations such as staff kitchen
areas in shops, offices and other working environments, farmhouses and by clients in hotels, motels
and other residential type environments, bed and breakfast type environments, catering and similar non-
retail locations.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory, intellectual capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the
appliance.
WARNING: Keep ventilation openings, in both the freezer and the built-in structure,clear of
obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
WARNING: Properly dispose of the freezer according to local laws and regulations pertaining to
flammable gases and refrigerants.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
WARNING:risk of fire / flammable materials

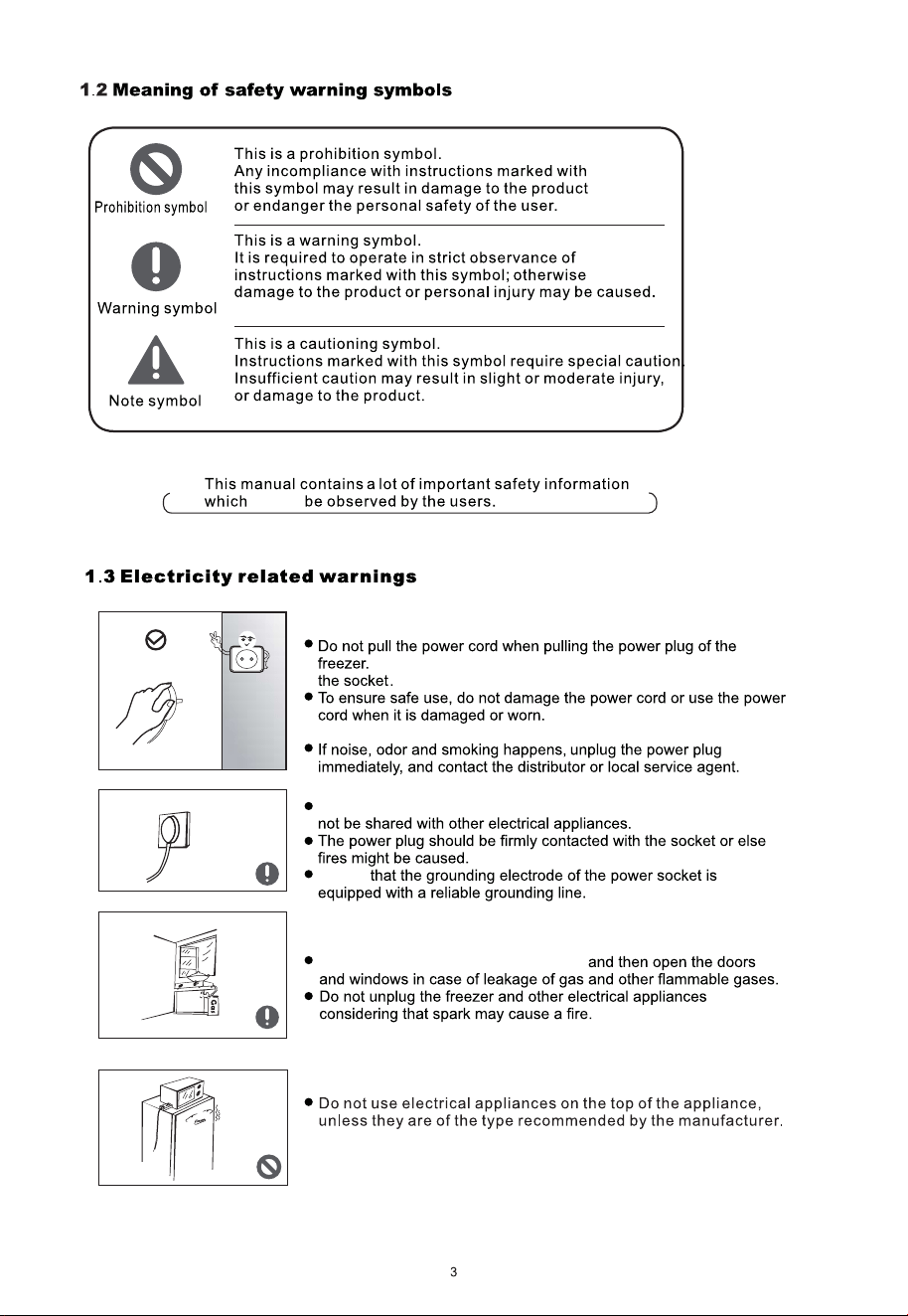

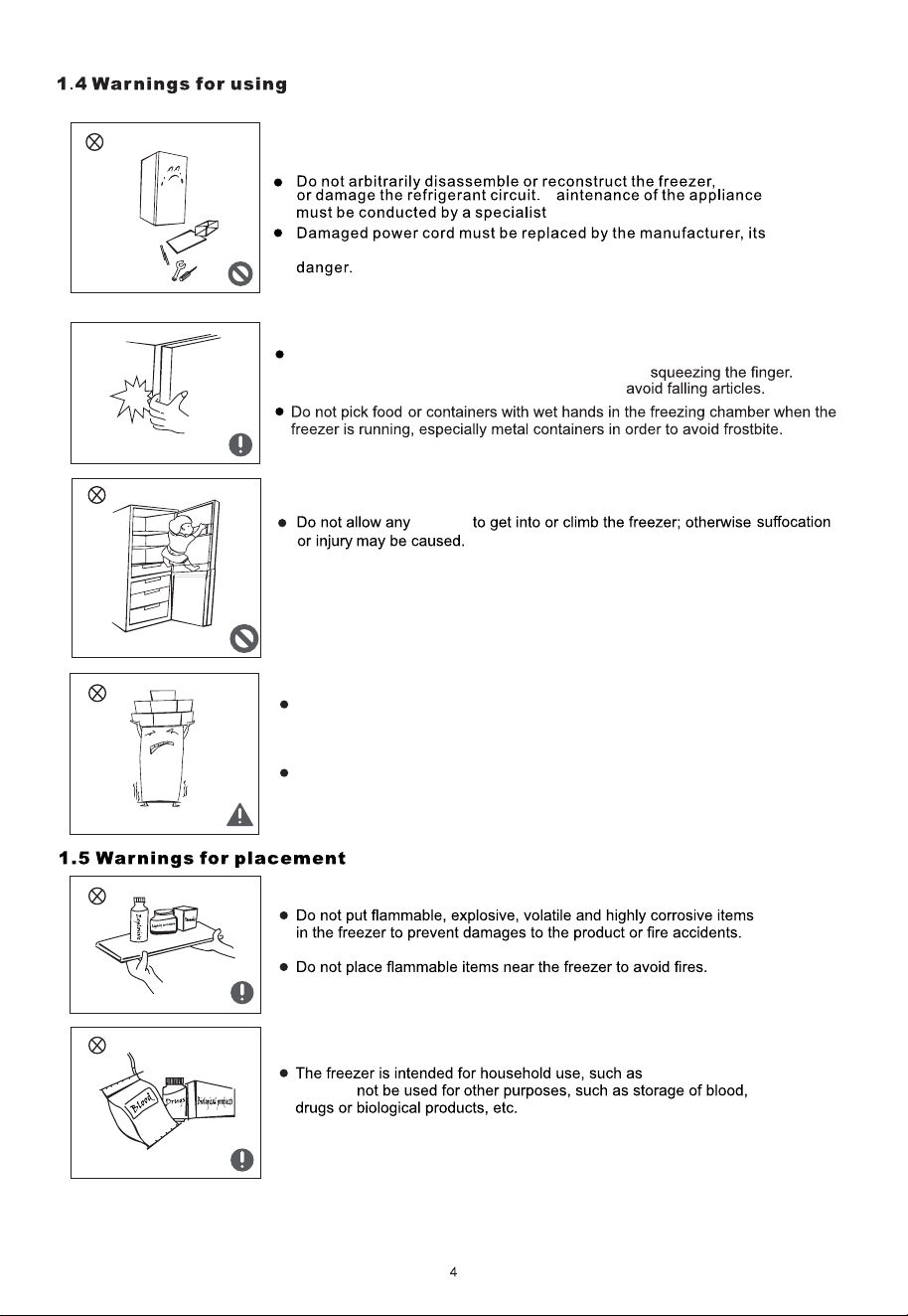

1 Safety Warnings
1.1 WARNING
WARNING:To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
WARNING:Connect to potable water supply only. (Suitable for ice making machine)
Do not use extension cords or ungrounded (two prong) adapters.
The freezer must be disconnected from the source of electrical supply before attempting the
installation of accessory.
Refrigerant and cyclopentane foaming materials used for the appliance are flammable.Therefore, when
the appliance no longer runs, it should be kept away from any fire source and be recycled by a special
recycling company with corresponding qualification rather than be disposed by combustion, so as to
prevent damage to the environment or any other harm.
For doors or lids fitted with locks and keys, keep the keys out of reach of children and not in the vicinity
of the refrigerating appliance in order to prevent children from beinglocked inside.
To prevent a children from being trapped, keep out of reach of children and not in the vicinity of the
freezer (or refrigerator).
For EU standard:This appliance can be used by children from ages 8 years and above, and people
with reduced physical sensory, intellectual capabilities, or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance. Cleaning and user maintenance
should not be made by children without supervision. Children ages 3 to 8 years are allowed to load and
unload refrigerating appliances.
To avoid contamination of food, respect the following instructions:
– Opening the door for long periods can cause a significant increase of temperature in the compart-
ments of the appliance.
– Clean surfaces regularly that can come in contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for 48h. Flush the water system connected to a
water supply if water has not been drawn for 5 days. (note 1)
– Store raw meat and fish in suitable containers in the freezer so that it is not in contact with or drip
onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making
ice-cream and making ice cubes. (note 2)
– One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
– For appliances without a 4-star compartment this refrigerating appliance is not suitable for freezing
food. (note 4)
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave
the door open to prevent mold developing within the appliance.
Notes 1, 2, 3, 4: Confirm whether it is applicable according to your product compartment type.
For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in
appliance.
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer,its service
agent, or similar qualified person.
should
Firmly grasp the plug and pull it directly out from
Use a dedicated power socket. The power socket should
Turn the valve off from the leaking gas
Ensure
maintenance department, or related professionals in order to avoid
M
children
Be considerate when closing the freezer door to
The gaps between the freezer and freezer door are small.
Do not put your hand in these areas to prevent from
Pull the plug out in case of power failure or cleaning. Do not connect the freezer
to a power supply within five minutes to prevent damages to the compressor
due to successive starts.
Do not place heavy objects on top of the freezer considering that objects may
fall when opening or closing the door, and accidental injuries might be caused.

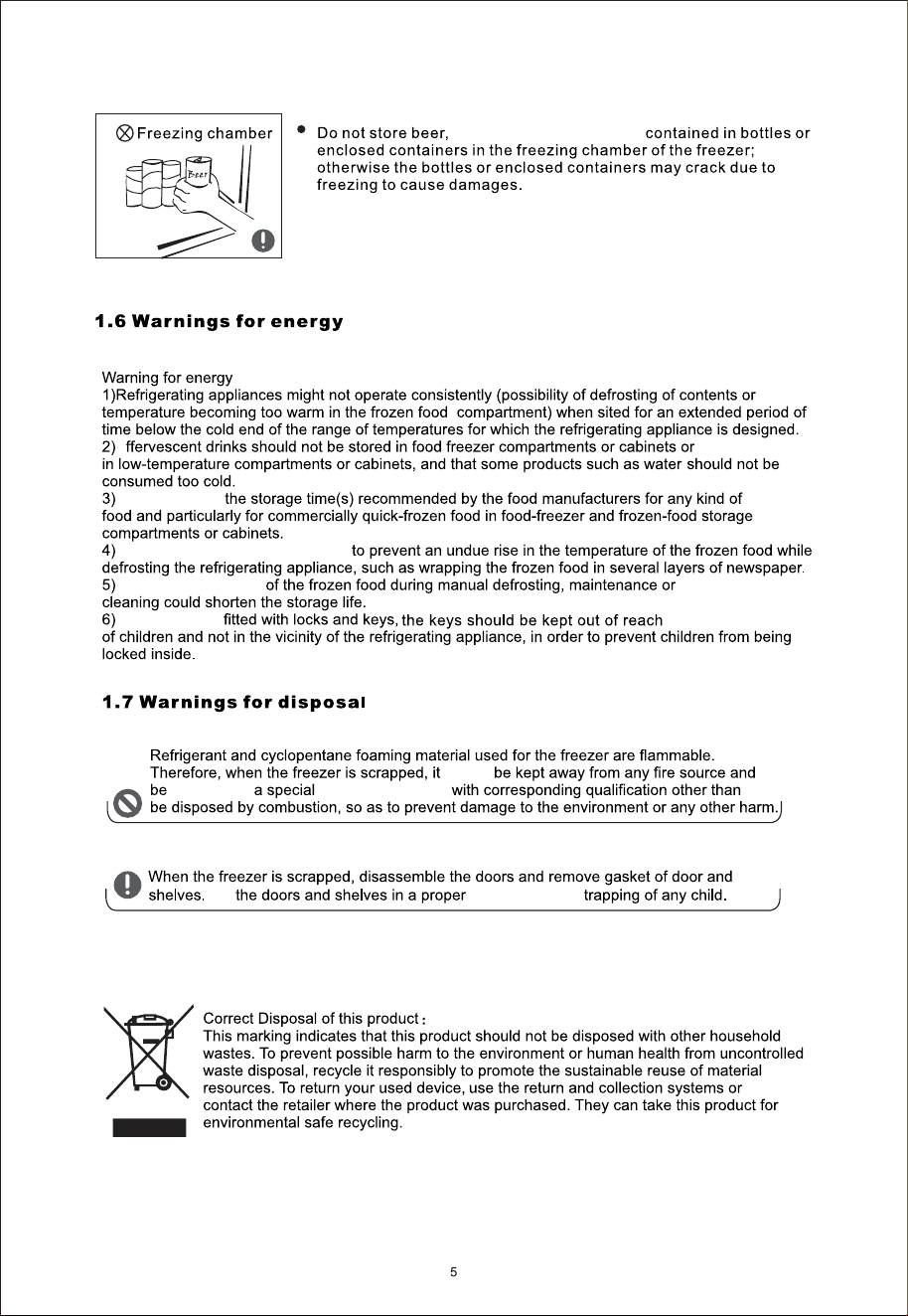

It should
storing food.
E
A rise in temperature
beverages or other fluids
Do not exceed
Take the necessary precautions
For doors or lids
should
recycled by
Put place to prevent
recycling company
Tear
should

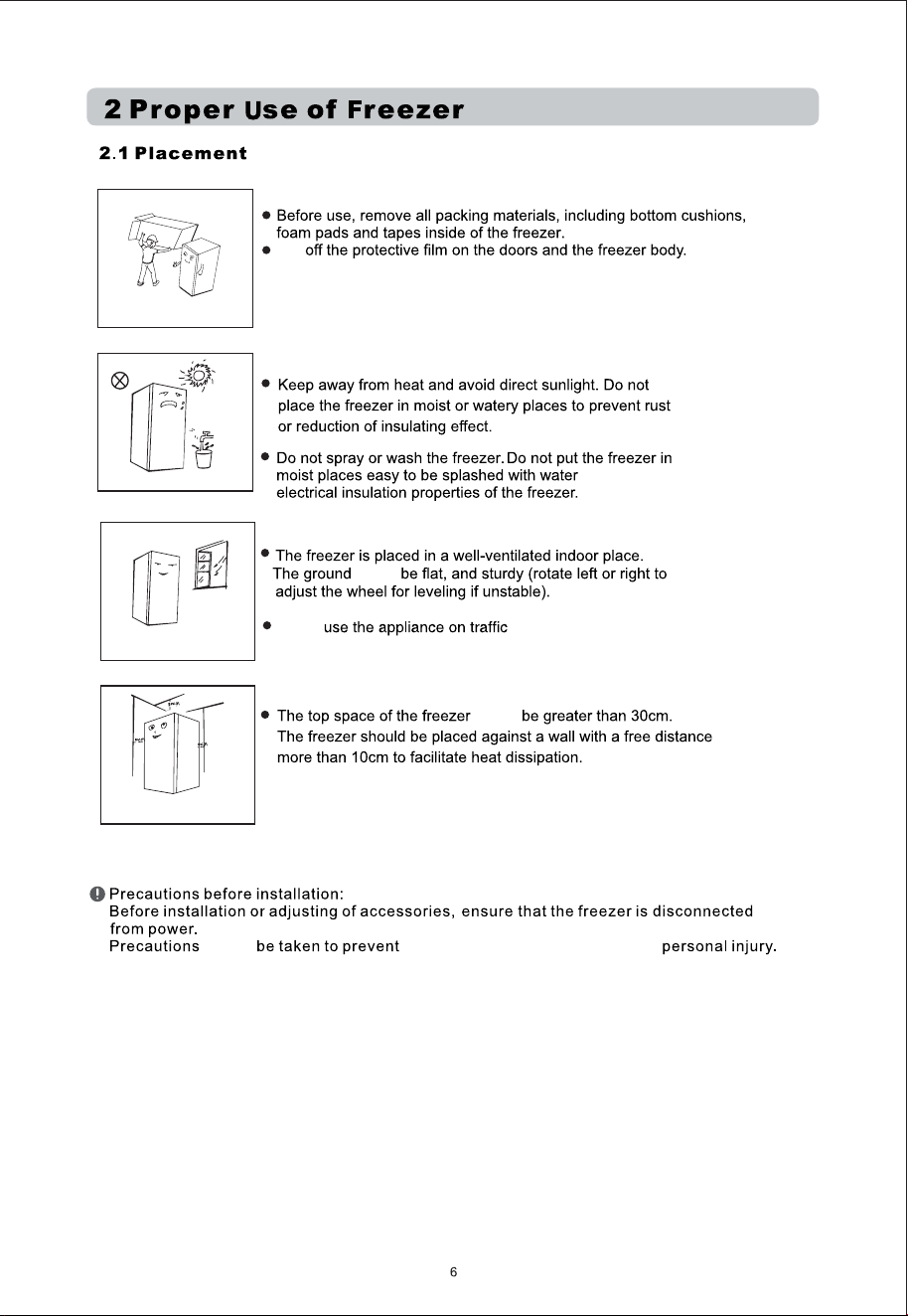

F
U
should
should
Do not
to not affect
means (such as a boat).

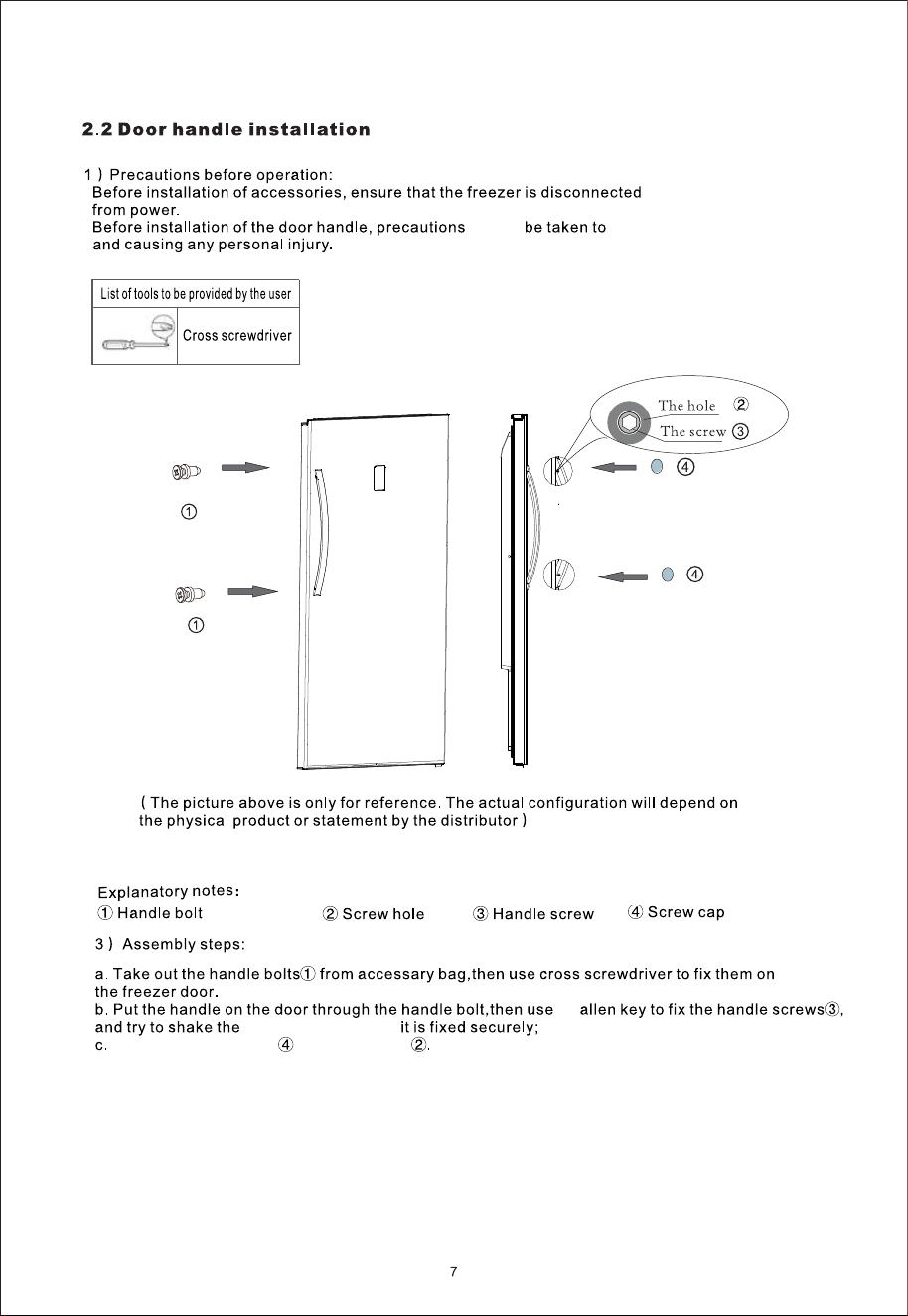

the handle from falling and causing a
should
handle to make sure
Cover the screw caps on screw hole
prevent the handle from falling

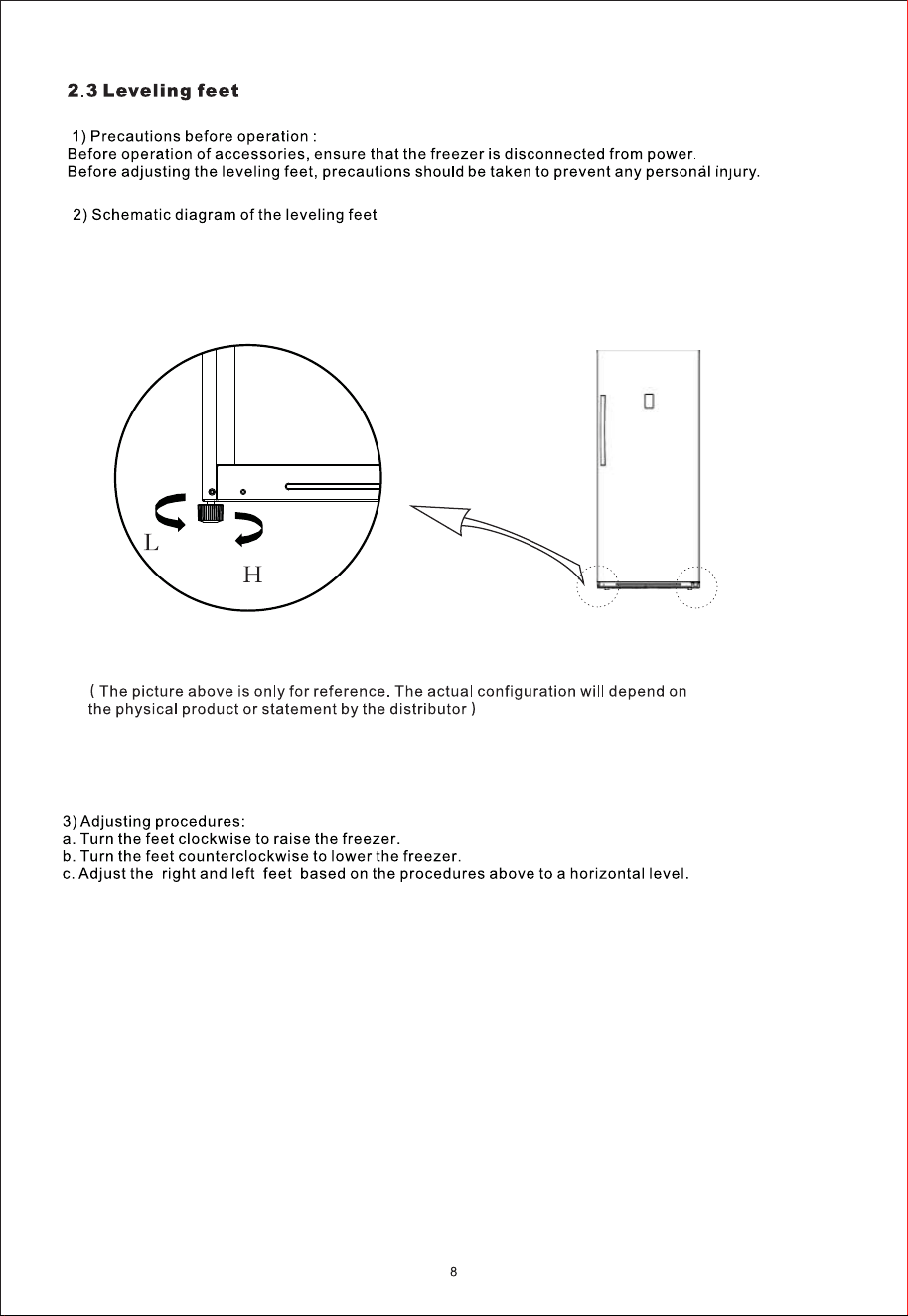

s

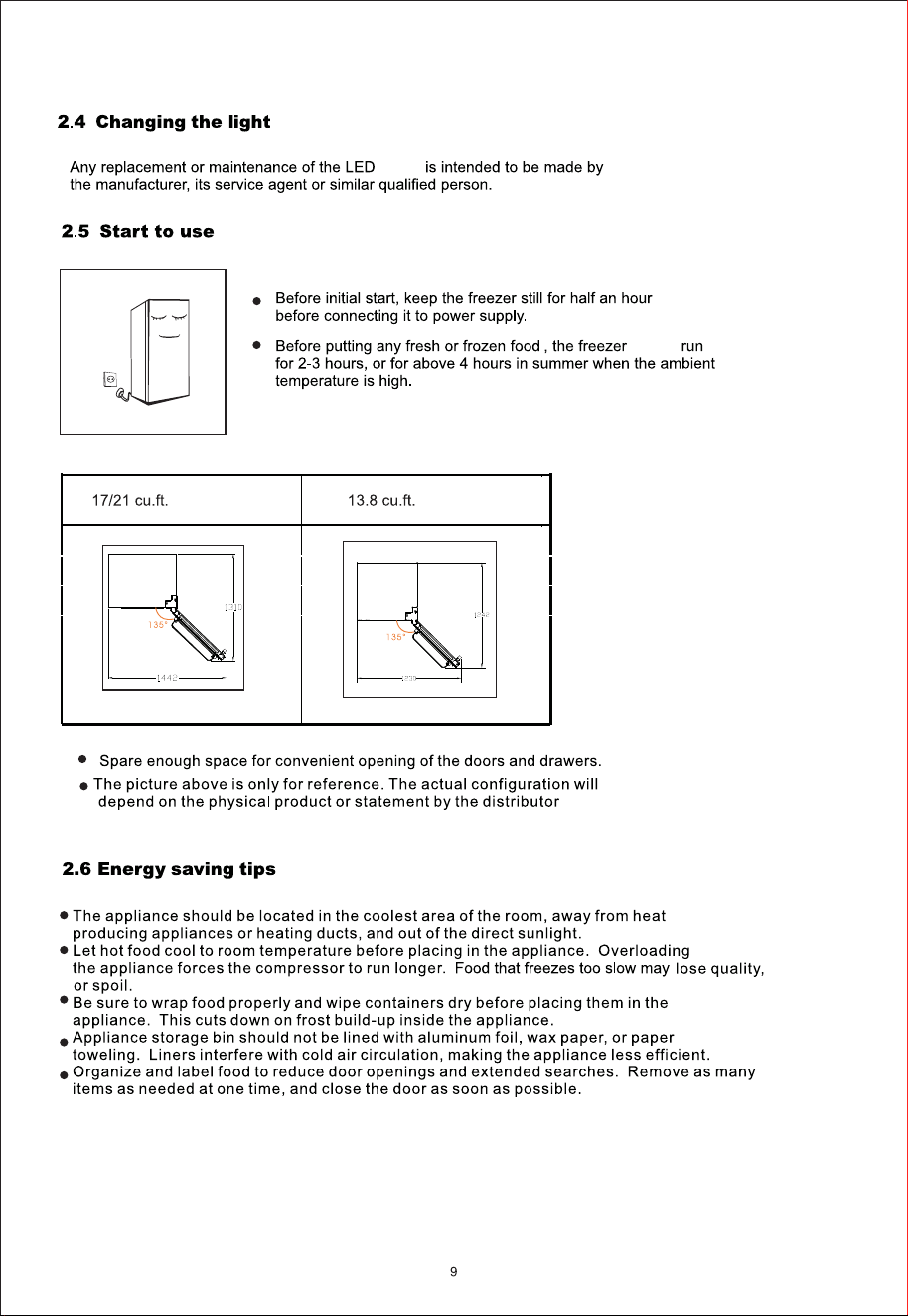

an
Stored food should not block the air outlet; otherwise
F
should
Note that food

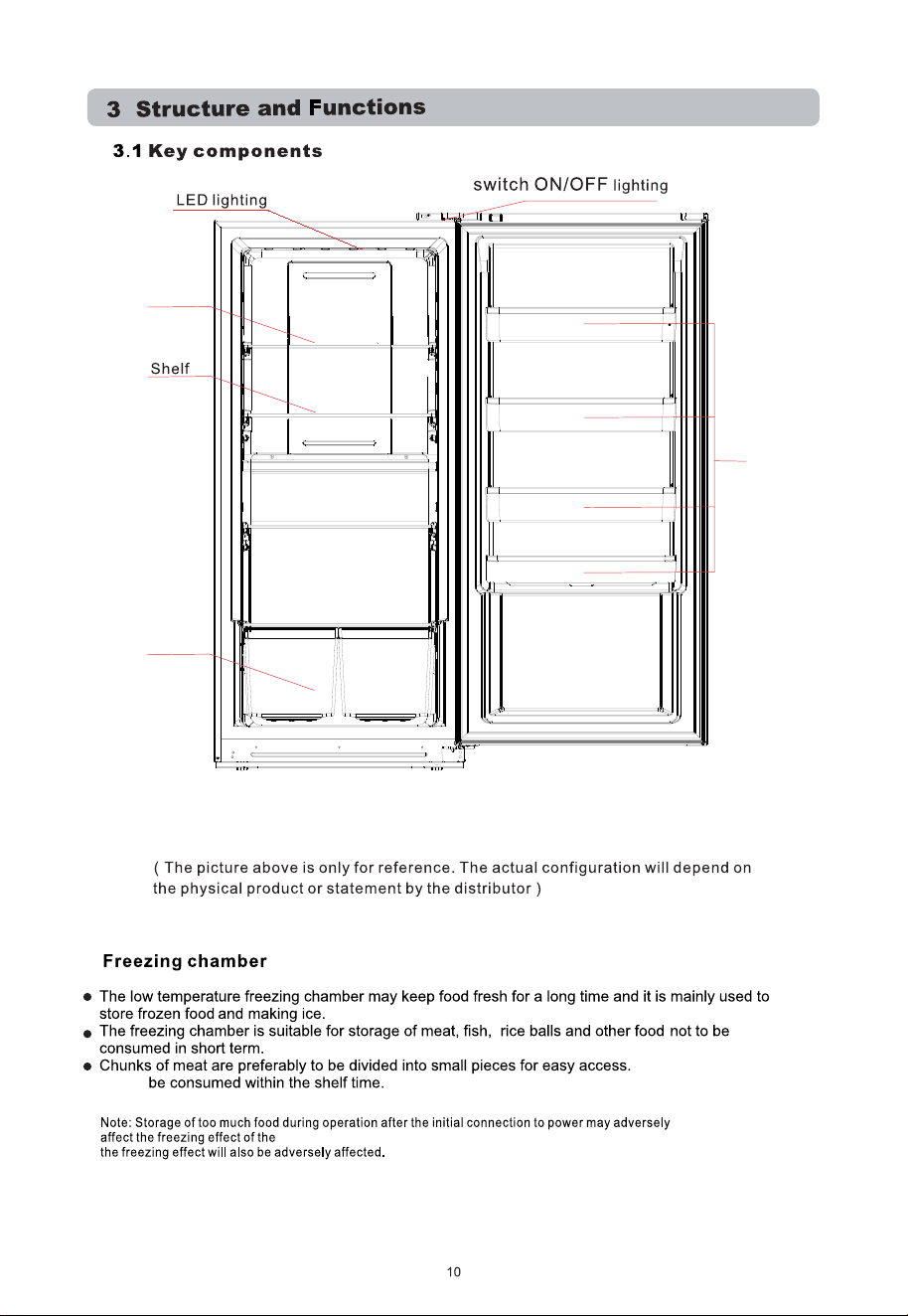

Doo r tr ay
Glass shelf
Glass drawer
freezer.
Open the door, the blue point is on, close the door, the bule piont is off. If the door is
open over 300 seconds while running, then the door open alert is activated and the blue point
blink with buzzing.
D E
A
B
C
The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor

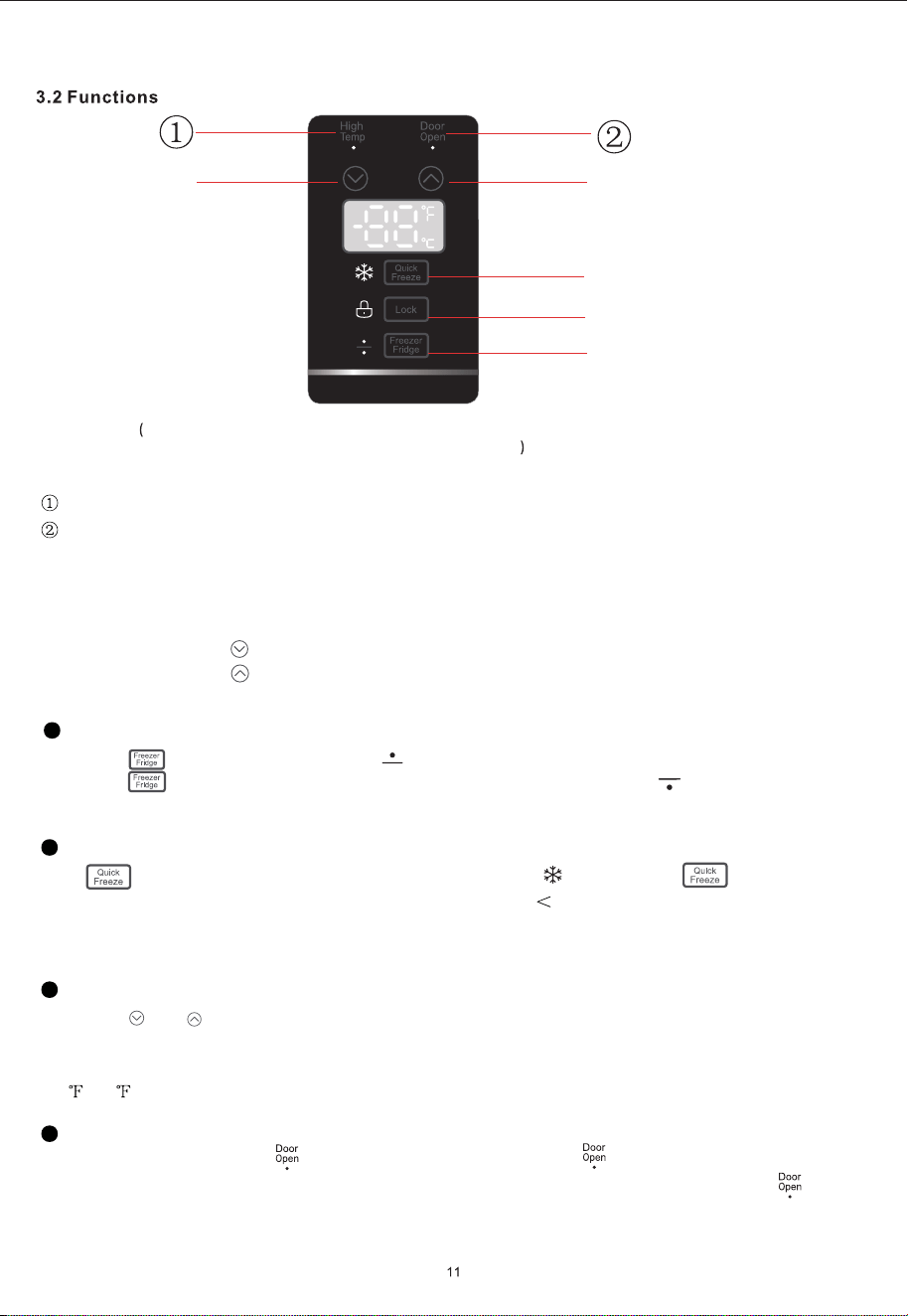

1. Indicator
Hi-Temp(High temperature alarm)
Door Open (if the door is kept opened for 300 seconds alarm)
2. Button
3. Function
Freezer & Refrigerator conversion
Hold down
Hold down
for 3s, then the upper point shines with a beep, the appliance runs as a freezer.
for another 3s, then the upper point goes out and the low point shines with a beep,
the appliance runs as a refrigerator.
Quick Freeze Function setting
Press to enter Quick Freeze Mode, then a snowflake icon shines. Press again to
exit the Quick Freeze Mode. If the internal temperature reaches
-13℉, it will exit Quick Freeze Mode
automatically after 3 hours. If the internal temperature cannot reach -13℉, it will exit
Quick Freeze Mode automatically after 24 hours.
Centigrade-Fahrenheitconversion
Hold down and at same time for 3 seconds until a beep to change the temperature display.The
default refrigerating and freezing temperature is 5℃(41℉)/-18℃(0℉).The temperature
range of the freezer is -12℃~-24℃(10℉~-11℉).The temperature range of the refrigerator 2℃~8℃
(35
~46 ).
Door open alert
downD.Temperature setting
E.Temperature setting up
A.Quick Freeze button
nottub kcoL.B
C.Freezer & Refrigerator conversion button
Fault Code
Fault Description
Please contact the after-sales service department of the company or professionals to
deal with the faults.
Communication error
Temperature sensor failure
of freezing chamber
Failure of ambient temperature
sensor
Failure of defrosting sensor in
freezing chamber
High temp. alert
In refrigerator mode, if the inside temperature is over 59F(15 for 36 hours, then the
high temperature alert is activated with the blue point blink and buzzing for 10 seconds,
and it will buzz for 10 seconds every 30 minutes.
If the temperature reach below 54℉(12℃), the High Temperature Alert will exit.
Or press any button to cancel this alert
In freezer mode, if the inside temperature is over 18℉(-8℃) for 36 hours, then the
high temperature alert is activated with the blue point blink and buzzing for 10 seconds,
and it will buzz for 10 seconds every 30 minutes.
If the te
mperature reach below 10℉(-12℃), the High Temperature Alert will exit.
Or press any button to cancel this alert.
Lock
Press B for 3 seconds, enter into lock status, icon is on with a beep.Then press it for another
3 seconds to unlock it, icon is off with a beep.
Temp
Press to drop the temperature. Press to rise the Temperature.
Reset
Press B and at the same time for 3 seconds until a beep for mainboard reset. Then all the
variables of mainboard will be initialized (except the variables stored in the EEPROM). The
display will be fully lighted for 3 seconds just like the freezer is powered on for the first time.
While resetting, if the compressor is running, it will pause for 5 minutes then run again.
Recommended setting: Refrigerated chamber 39℉ , freezing chamber 0℉.
Website: www.koolmore.com Phone Number: 718-576-6342
12
Email address: [email protected]

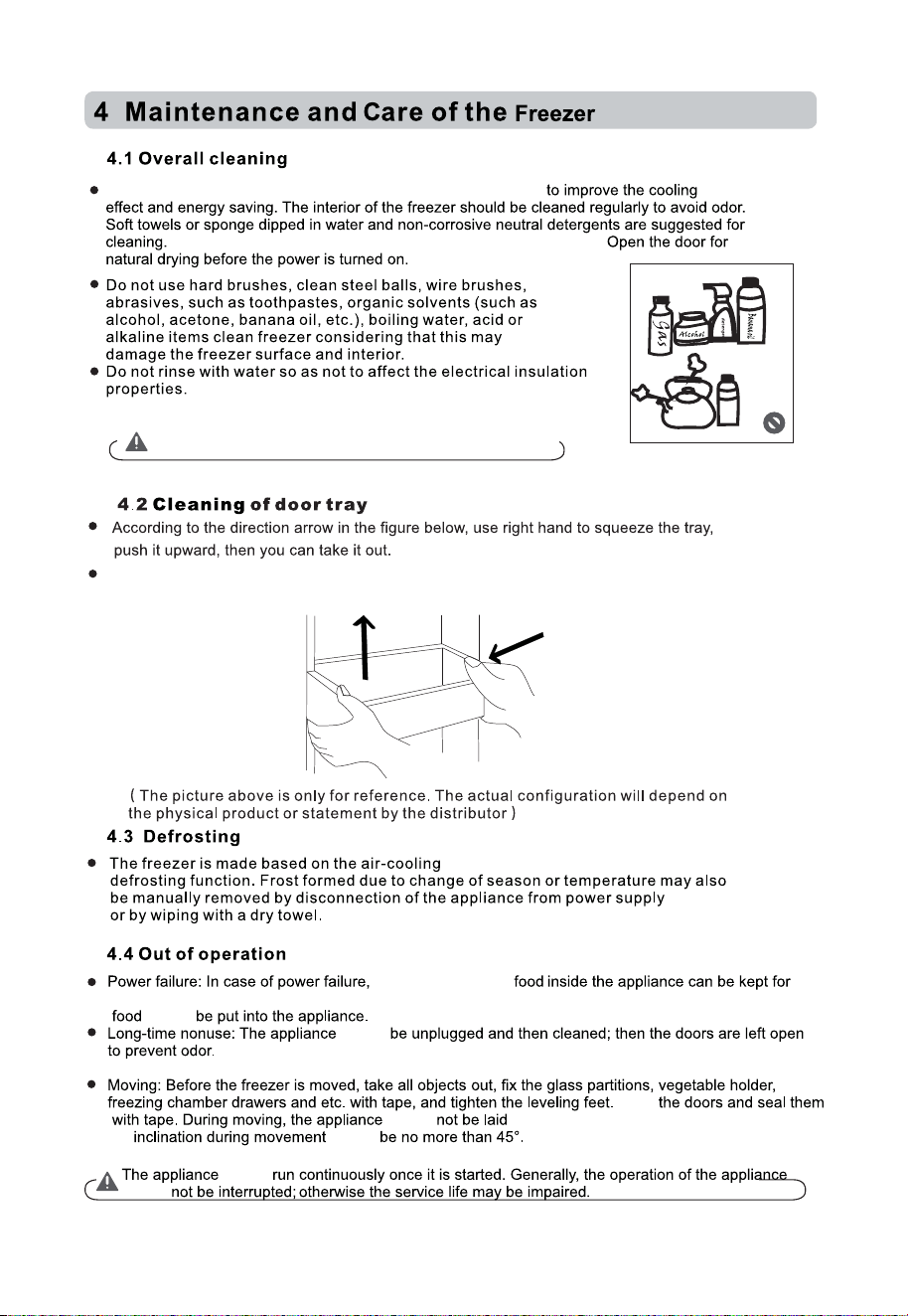

Unplug the freezer for defrost and cleaning.
several hours. During the power failure, the amount of times the door opens should be reduced and no more
should
should
should
The should
should
should
The freezer should be cleaned with clean water and a dry cloth.
Dust behind and around the freezer should be cleaned regularly
principle, which has an automatic
Close
upside down, horizontally, or be vibrated.
After washing the tray having been taken out, you can adjust its installation height in accordance
with your requirement.
even in the summer,
13
If the problem cannot be solved,
should
freezer
6 Koolmore Limited Warranty
For one year from the date of purchase, when this major appliance is installed,
operated and maintained according to instructions attached to or furnished with the
product, Koolmore Supply Inc will pay for Replacement Parts and repair labor to
correct defects in materials or workmanship that existed when this major Appliance
was purchased or that are the result of normal usage. At its sole discretion.
Koolmore Supply Inc may determine to replace the product. In the event of product
replacement, your appliance will be warranted for the remaining term of the original
unit's warranty period.
YOU’RE SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY
SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
Service must be provided by a Koolmore designated service company. This limited
warranty is valid only in the United States. This limited warranty is effective from
the date of original consumer purchase. Proof of original purchase date is required
to obtain service under this limited warranty.
3 Year Compressor Warranty
In addition to the 1 year parts and labor warranty above, Koolmore Supply
Inc warrants the compressor to be free of defects in material and
workmanship for a period of 3 years from the date of delivery.
Website: www.koolmore.com Phone Number: 718-576-6342
16
Email address: [email protected]
What this warranty does not cover
1. Commercial, non-residential, multiple-family use inconsistent with published
user, operator or installation instructions.
2. Service to correct improper product maintenance or installation, installation not
in accordance with electrical or plumbing codes or correction of household electri-
cal or plumbing (i.e. house wiring, fuses or water inlet hoses).
3. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation
solutions, etc.).
4. Defects or damage caused by the use of non-genuine parts or accessories.
5. Damage from accident, misuse, abuse, fire, floods, acts of God or use with
products not approved by Koolmore.
6. Repairs to parts or systems to correct product damage or defects caused by
unauthorized service, alteration or modification of the appliance.
7. Cosmetic damage including scratches, dents, chips, rust, peeling and other
damage to the appliance finishes unless such damage results from defects in
materials and workmanship and is reported to Koolmore within 30 days.
8. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive
environments including but not limited to high salt concentrations, high moisture or
humidity or exposure to chemicals.
11.
Food or medicine loss due to product failure.
9.
Pick-up or deliver
y
.
This product is intended for in-home repai
r
.
10.
Service or parts for appliances with original model/serial numbers removed,
altered or not easily determined.
To schedule service, please call 718-576-6342 or email [email protected]
Please have serial number and model number available when calling for service.
Website: www.koolmore.com Phone Number: 718-576-6342
17
Email address: [email protected]
