PRODUCT QUICK GUIDE
CCTV PROJECT PRODUCTS
2019 H1
2019
H1
PRODUCT QUICK GUIDE
CCTV PROJECT PRODUCTS
Network Camera / PTZ Camera / NVR / Thermal / Transmission & Display / Software
ARTIFICIAL INTELLIGENCE
Artificial Intelligence (AI) is the new buzzword in science and technology.
A technology with innumerable applications, AI is beginning to influence many
aspects of our lives. When it comes to the field of video & image analytics, AI
applications have grown rapidly in recent years, benefiting from deep learning
algorithms based on neural networks. For video surveillance, the IoT era has
already arrived. But this new age also brings challenges. Now, Hikvision’s
DeepinView Cameras and DeepinMind NVRs will lead the way in this new world of
surveillance technology by making invisible intelligence visible for users, and
then putting that intelligence to good use.
And what can Hikvision’s AI products do? Facial Detection is only the beginning
for Deep Learning features. With analytics that take business solutions into the
next century, and with automated alarm accuracy above 90%, this technology is
a step above and beyond video surveillance as we know it.
Hikvision’s Deep Learning technology filters out insignificant objects and
movements in a scene that would trigger conventional alarm systems. Vehicle
data gets recorded and shapes the database to perform numerous security
functions. People Counting systems give businesses an edge in marketing and
conversion rates.
Across the board, Hikvision’s AI Solutions are adding value on multiple levels –
today and tomorrow.
ULTRA LOW LIGHT
(DarkFighter & DarkFighterX)
With the deepening of security awareness and the building boom of safe cities, high-quality video surveillance has become a basic requirement. Since night hours
make up almost half of the surveillance recording, and since most crime happens at night, improving low-light video quality is the most critical problem in the
video surveillance industry today.
Featuring a large HD progressive scan CMOS sensor, Hikvision’s DarkFighter Technology captures excellent color imaging in extremely dark environments – even
down to 0.002 lux – and automatically switches to monochrome by removing the IR filter to boost sensitivity when illumination is lower than 0.002 lux. All the while,
DarkFighter maintains superlative image quality and has now reached 4 MP resolution.
DarkFighterX’s technology is based on the retinal imaging that human eyes use to process color and brightness. This human-like technology features an
innovative dual-sensor design – one sensor for IR imaging that guarantees image brightness, the other sensor for visible light that guarantees vivid color. These
signals are then combined into one bright, full-color image.
DarkFighterX
Camera
DarkFighter
Camera
Traditional
Camera
1st Generation
2nd Generation
3rd Generation
Normal color restoration and image
brightness
• 1/1.8” sensor
• Improved brightness and color
•
Dual sensors
• Excellent brightness and color for an extremely clear, clean image
WDR
(LightFighter)
Hikvision is set to reach new heights in extremely high contrast imaging with the ultra-high 140 dB
WDR “LightFighter” technology for exceptional, industry-leading visibility in brightly lit or high-contrast
environments. The result of this cutting-edge advancement is crystal-clear, detail-rich images with true
color reproduction in lighting conditions that would defeat conventional WDR technology.
The key to the performance of the LightFighter technology is the industry-leading WDR system that allows
cameras to record greater scene detail even where the intensity of illumination varies considerably, such as
backlighting when very dark and very bright areas appear simultaneously in the field of view. The 140 dB WDR
in the LightFighter offers 100 times more powerful enhancement than the conventional 120 dB WDR systems.
LightFighter is particularly suited to intense backlight situations, and is the ideal technology for cameras
pointing towards windows and entrance doors.
4K
With the development of 4K technology quickly coming into focus, opportunities to use this technology
in security will continue to grow. As a leading video surveillance manufacturer, Hikvision has paid close
attention to the rise of 4K and has launched a total 4K system to harness this technology in the global
security industry.
Without complementary 4K components, such as monitors and NVRs, 4K cameras cannot be used to their
full potential, and therefore have little practical use in surveillance. By building a total system – complete
with cameras, NVRs, etc. – Hikvision strives to provide a system that is more helpful and more useful to its
customers. The Hikvision 4K system, which comes equipped with a variety of smart functions, satisfies the
security industry’s need for ultra-high resolution and smart surveillance.
Contents
Network Camera
DeepinView Series
Ultra Series
Special Series

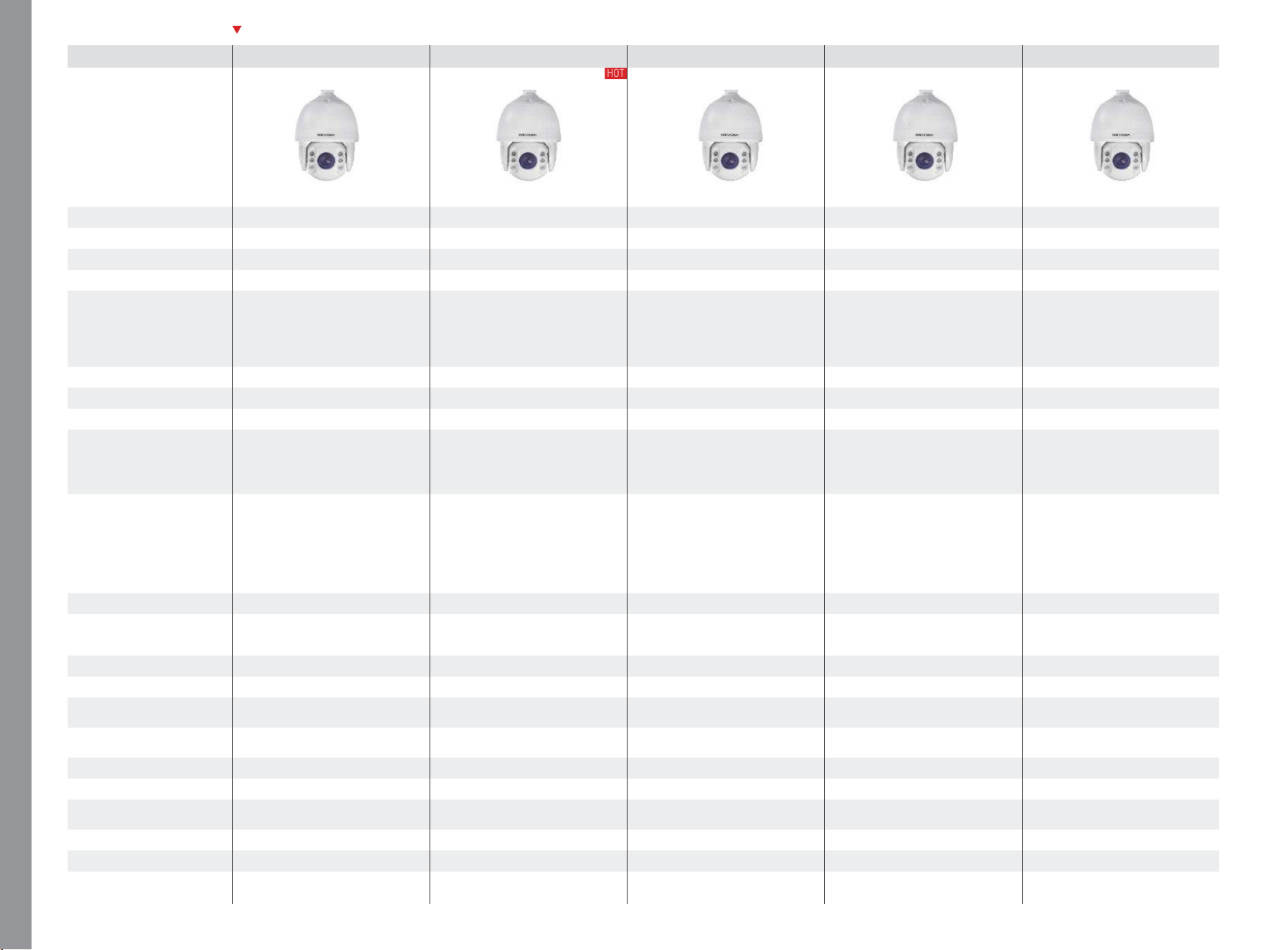

PTZ Dome Camera
Ultra Series
Positioning Systems
Panoramic Camera
PanoVu Series
Fisheye Series

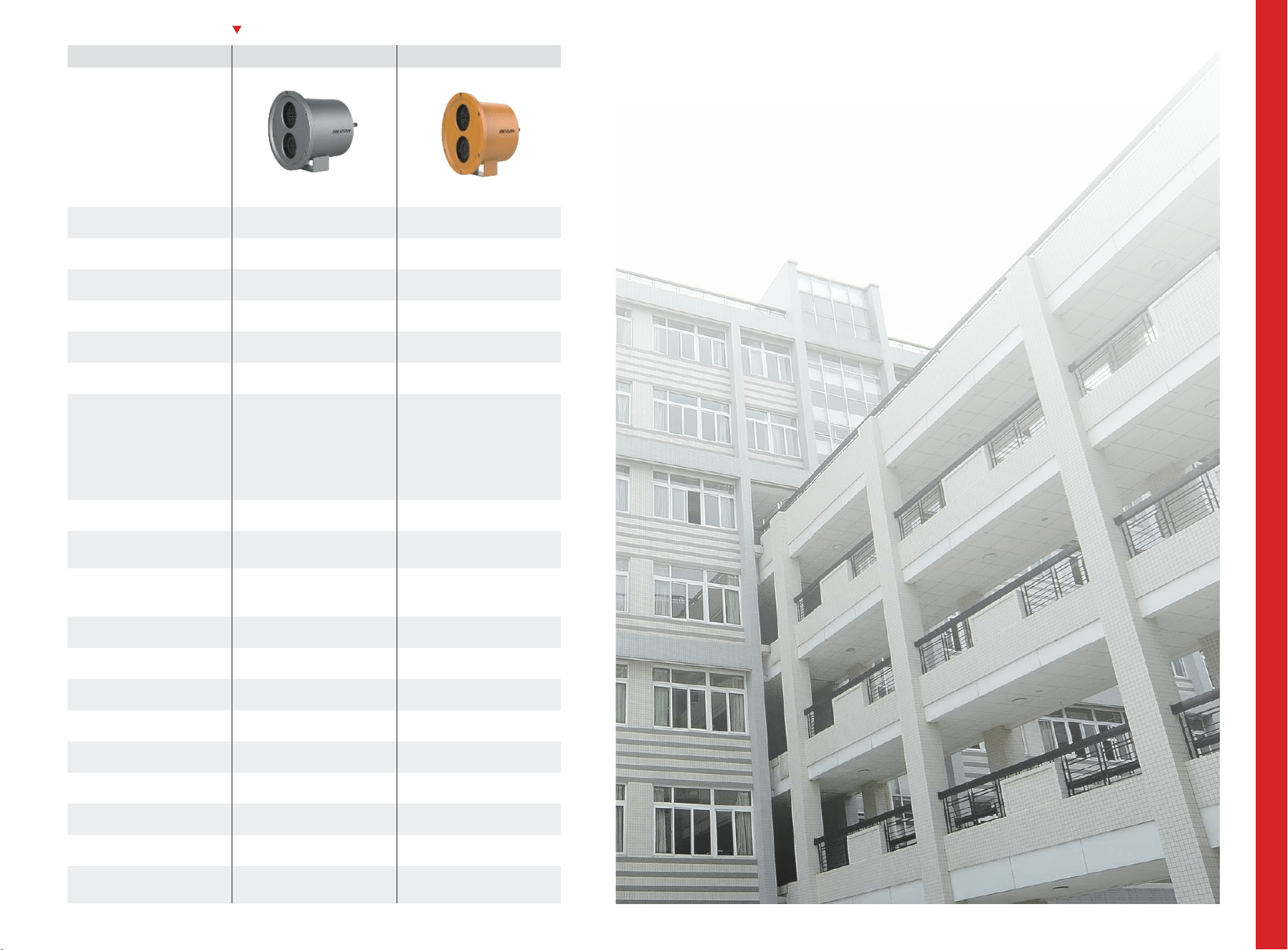

Explosion-Proof and
Anti-Corrosion

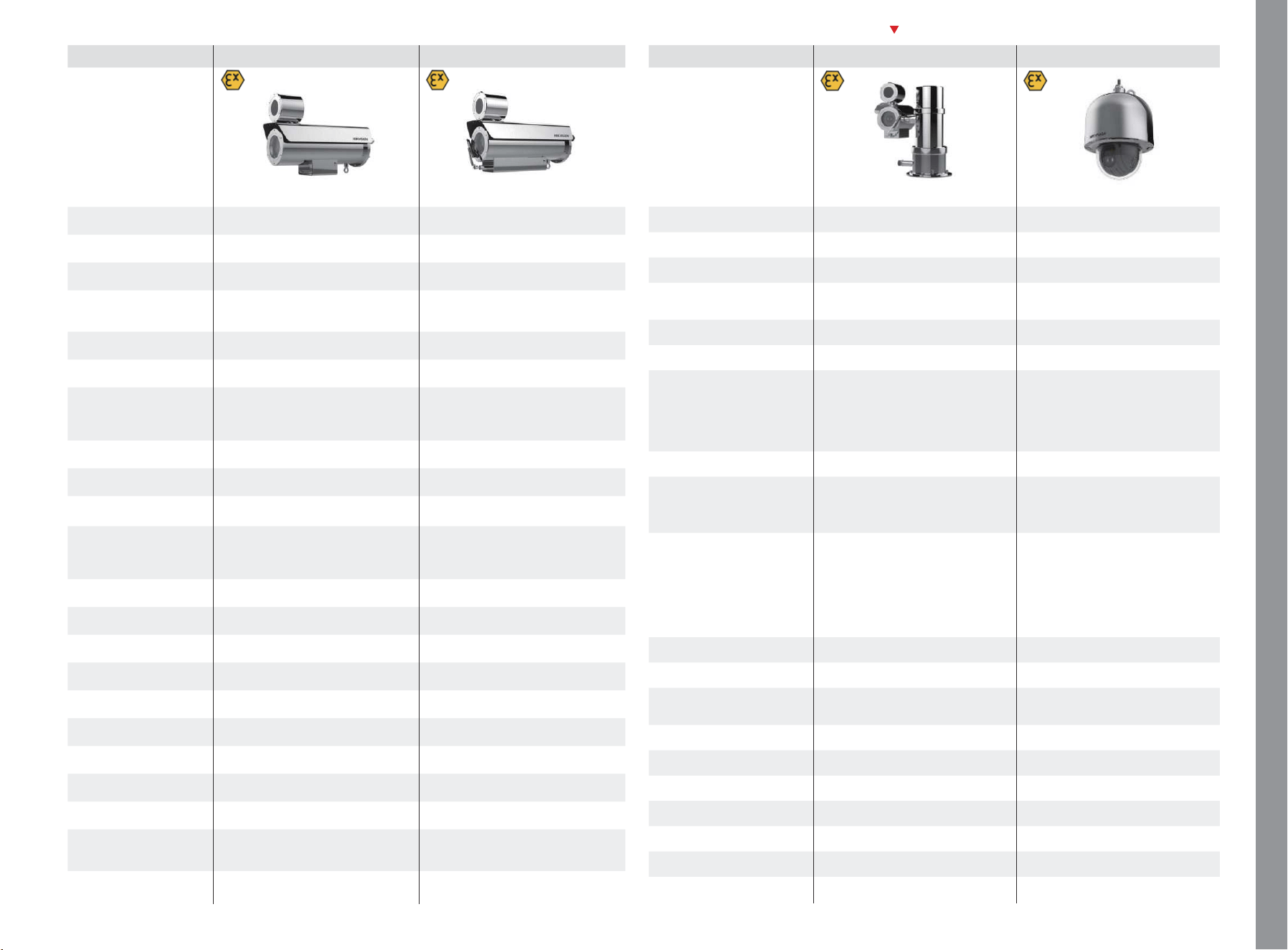

Explosion-Proof Series
Anti-Corrosion Series

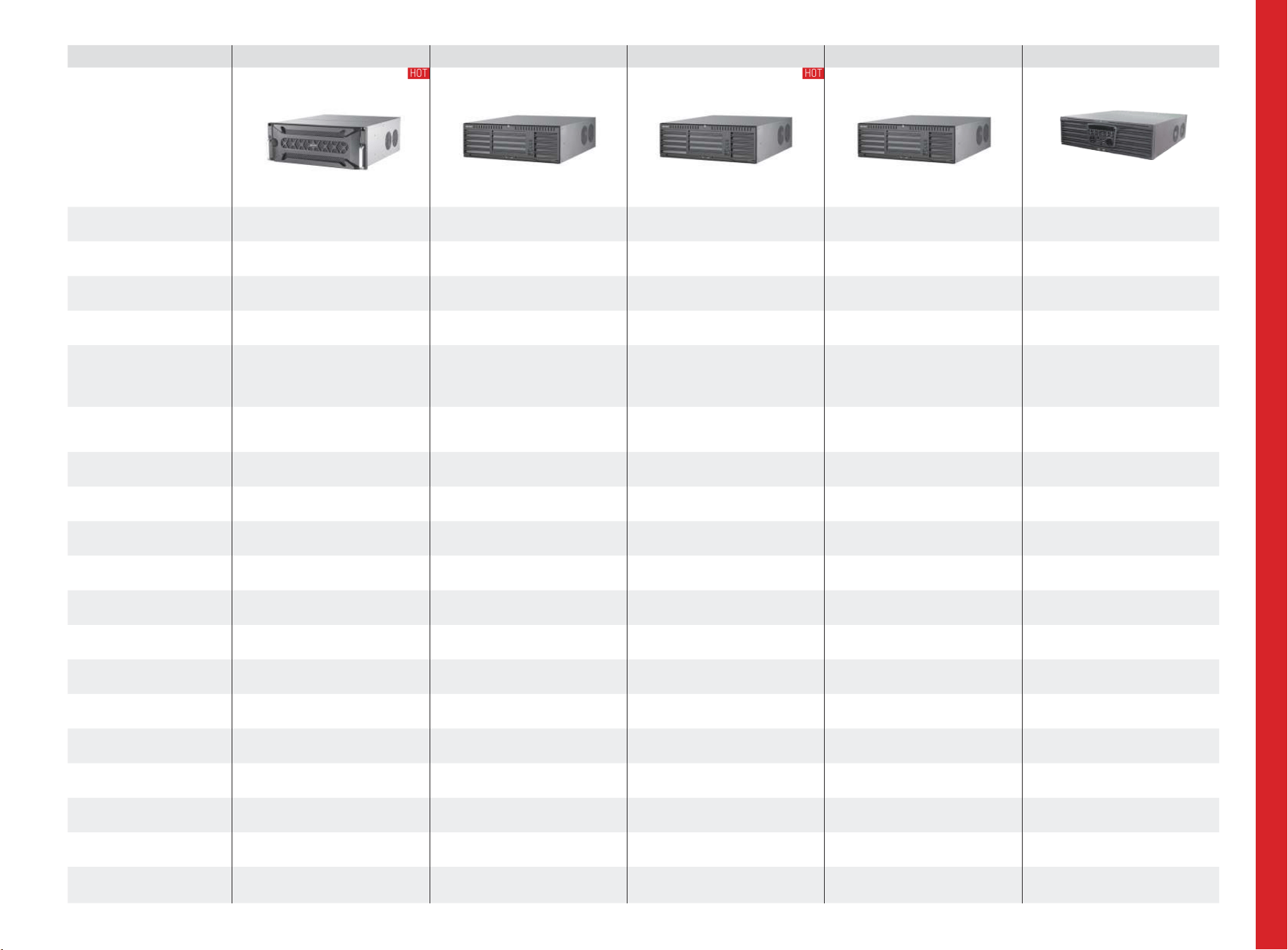

NVR
DeepinMind Series
Ultra Series
Workstation Series
Network Storage
Hybrid SAN
Cloud Storage
Data Center
Generic Purpose Server
DeepinMind Series Server

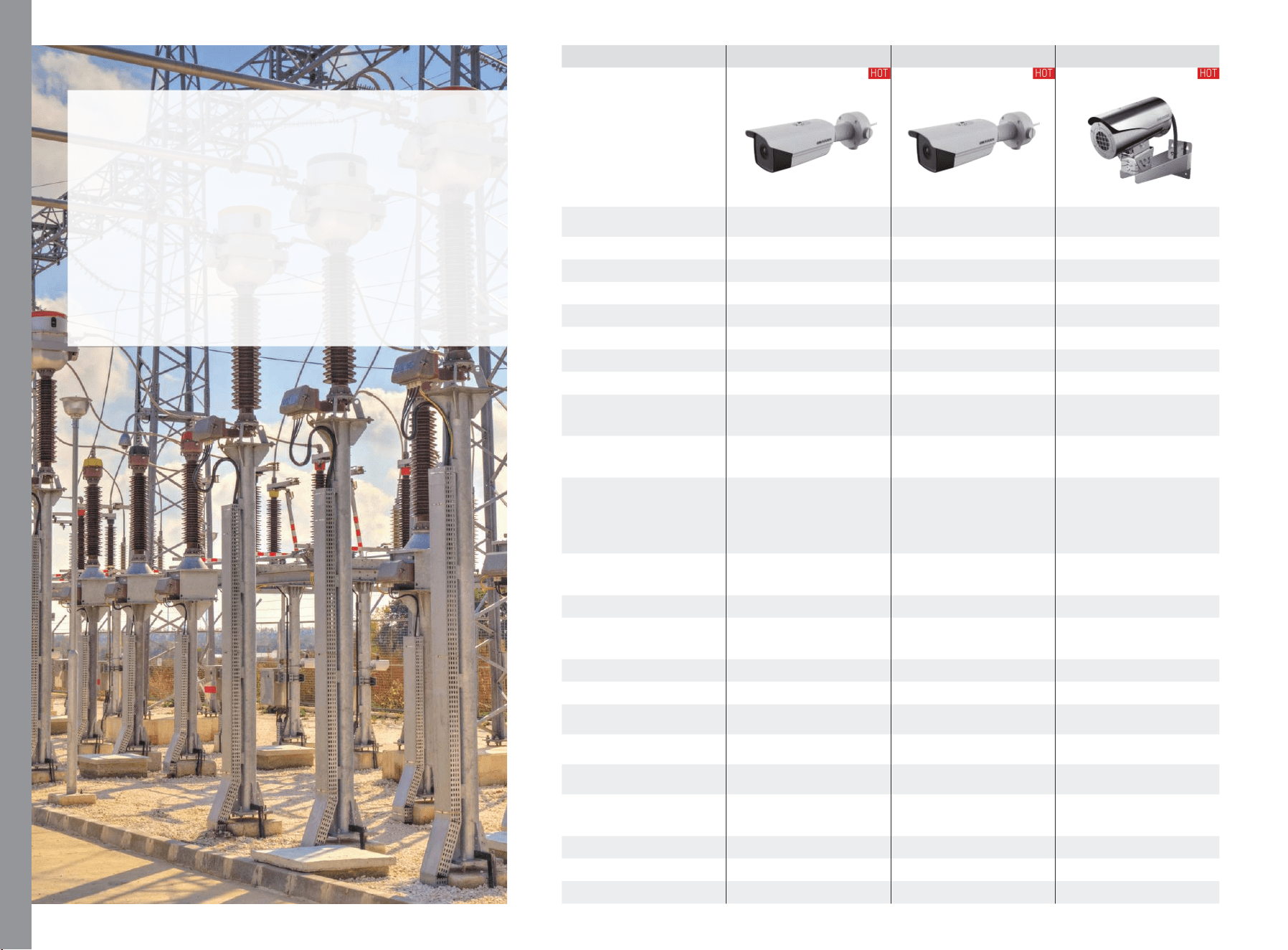

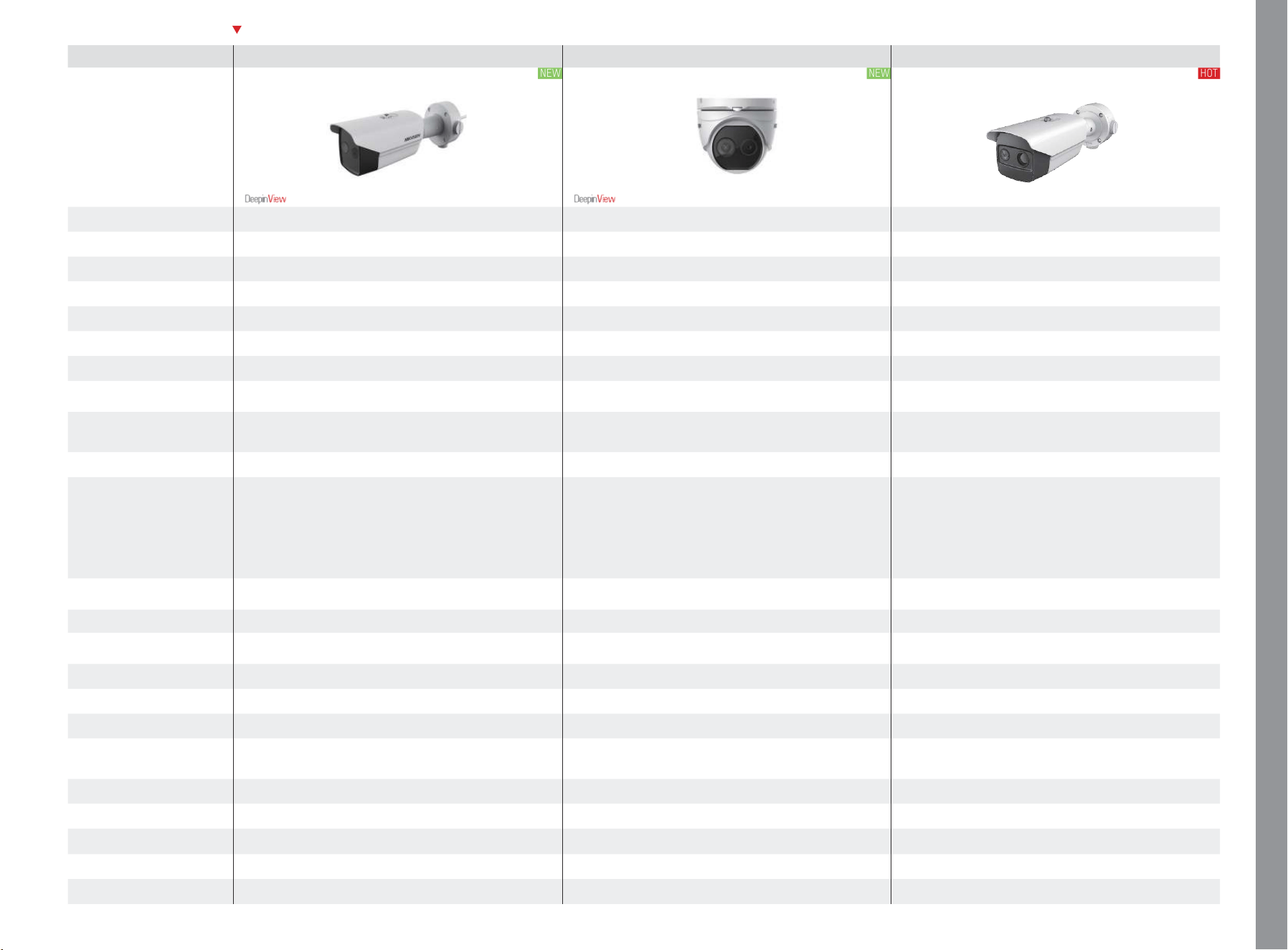

Thermal
Security
Thermography
Commercial Vision
003 049
060
066
071
025
037
043
004
009
026
050
055
058
061
064
067
068
072
079
083
026
034
038
041
044
047
001
Commercial Display
LCD Video Wall
LED Display
Interactive Tablet
Decoder
Decoder
Software
HikCentral Pro
Blazer Pro

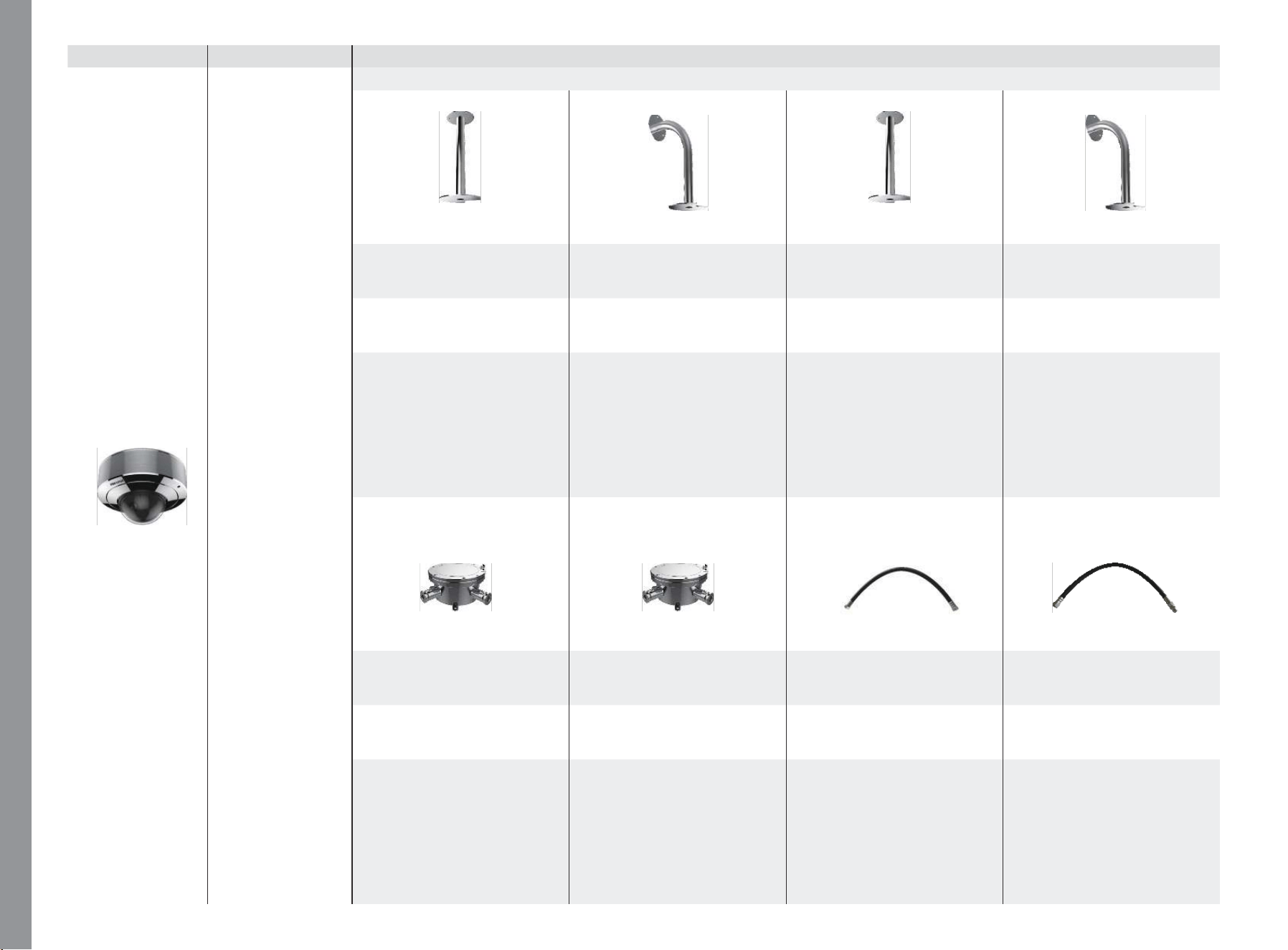

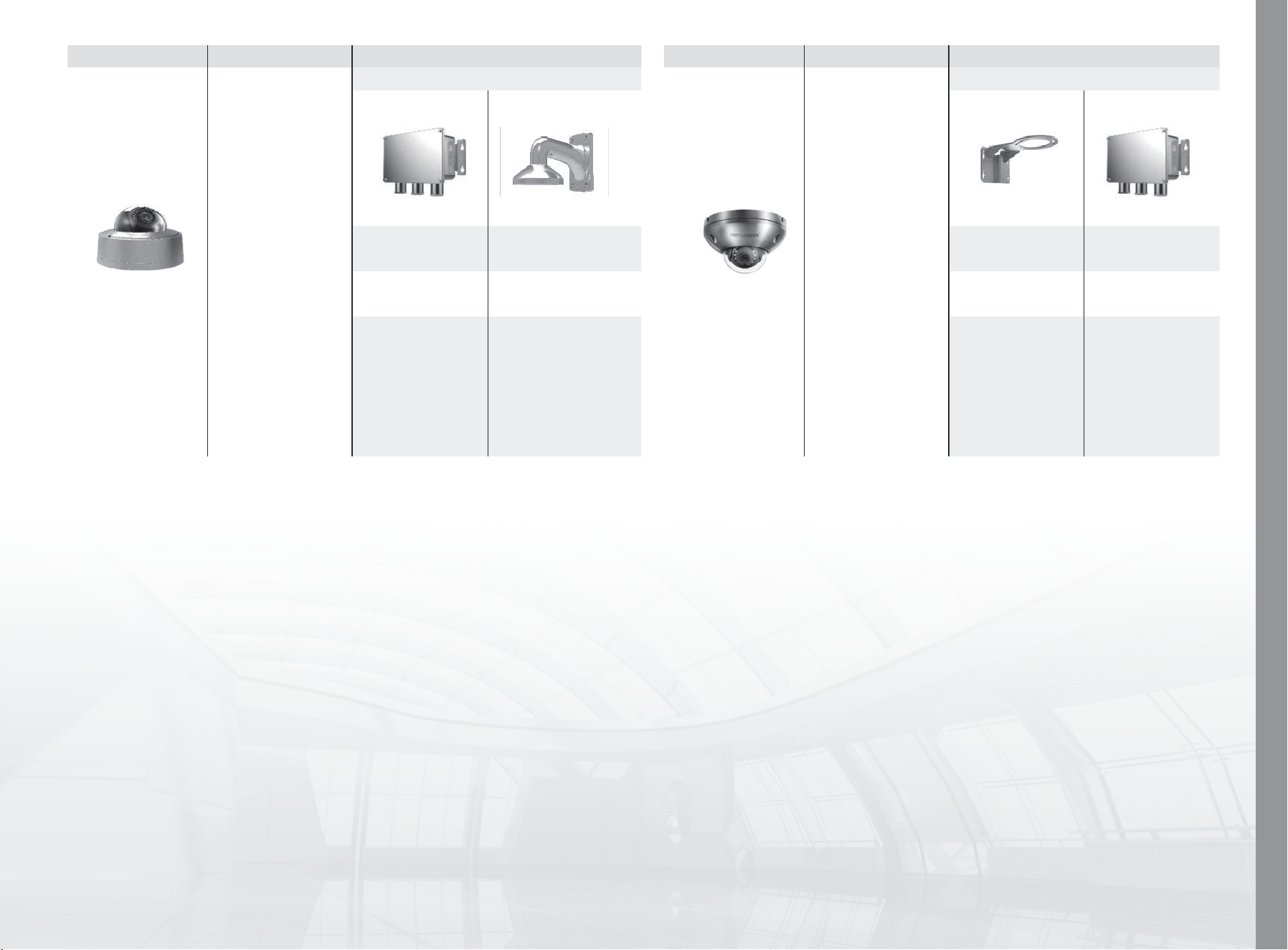

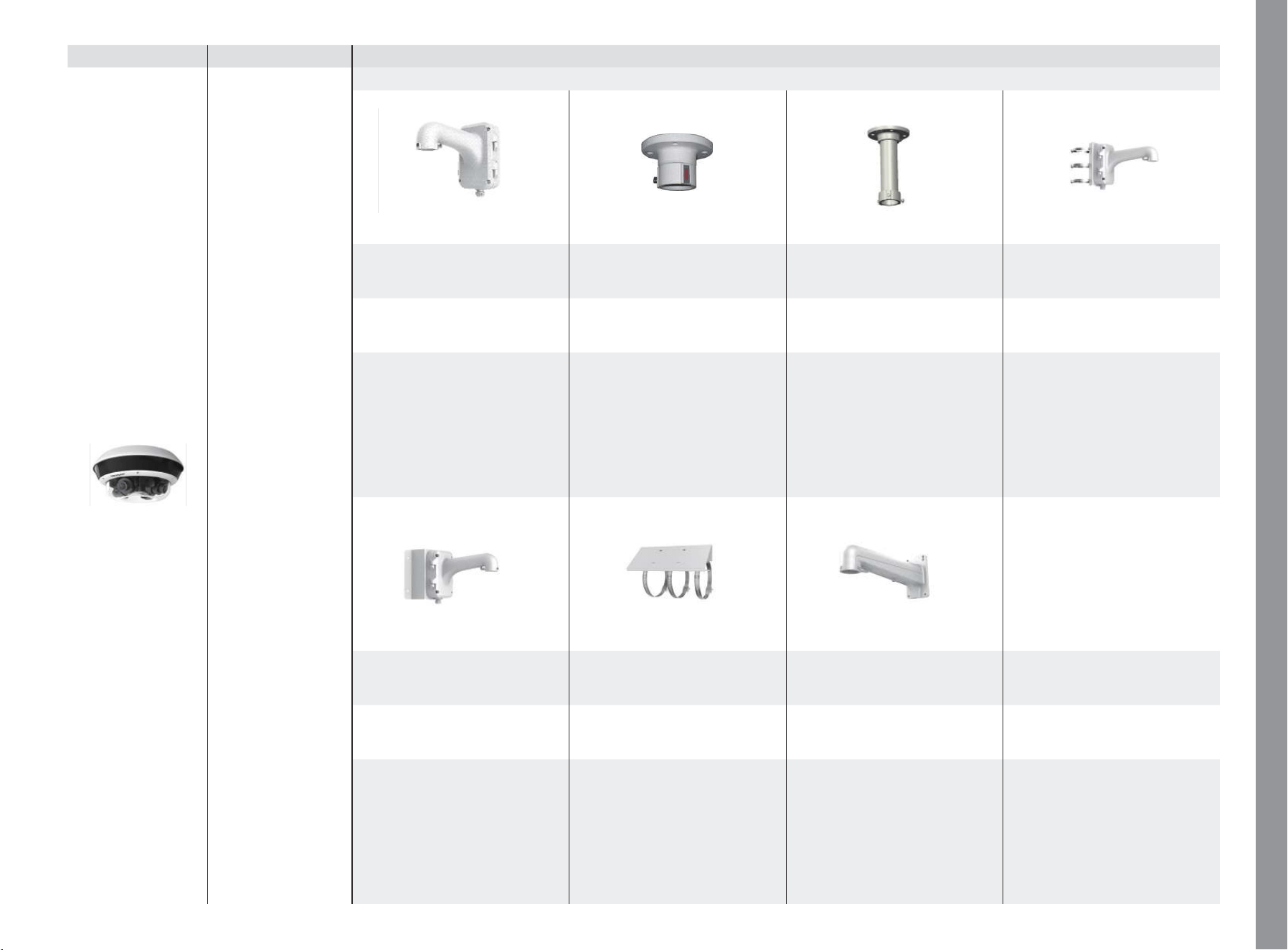

Accessories
085
096
099
102
086
090
094
097
100
101
002
DeepinView Series
Ultra Series
Special Series
Network Camera
003

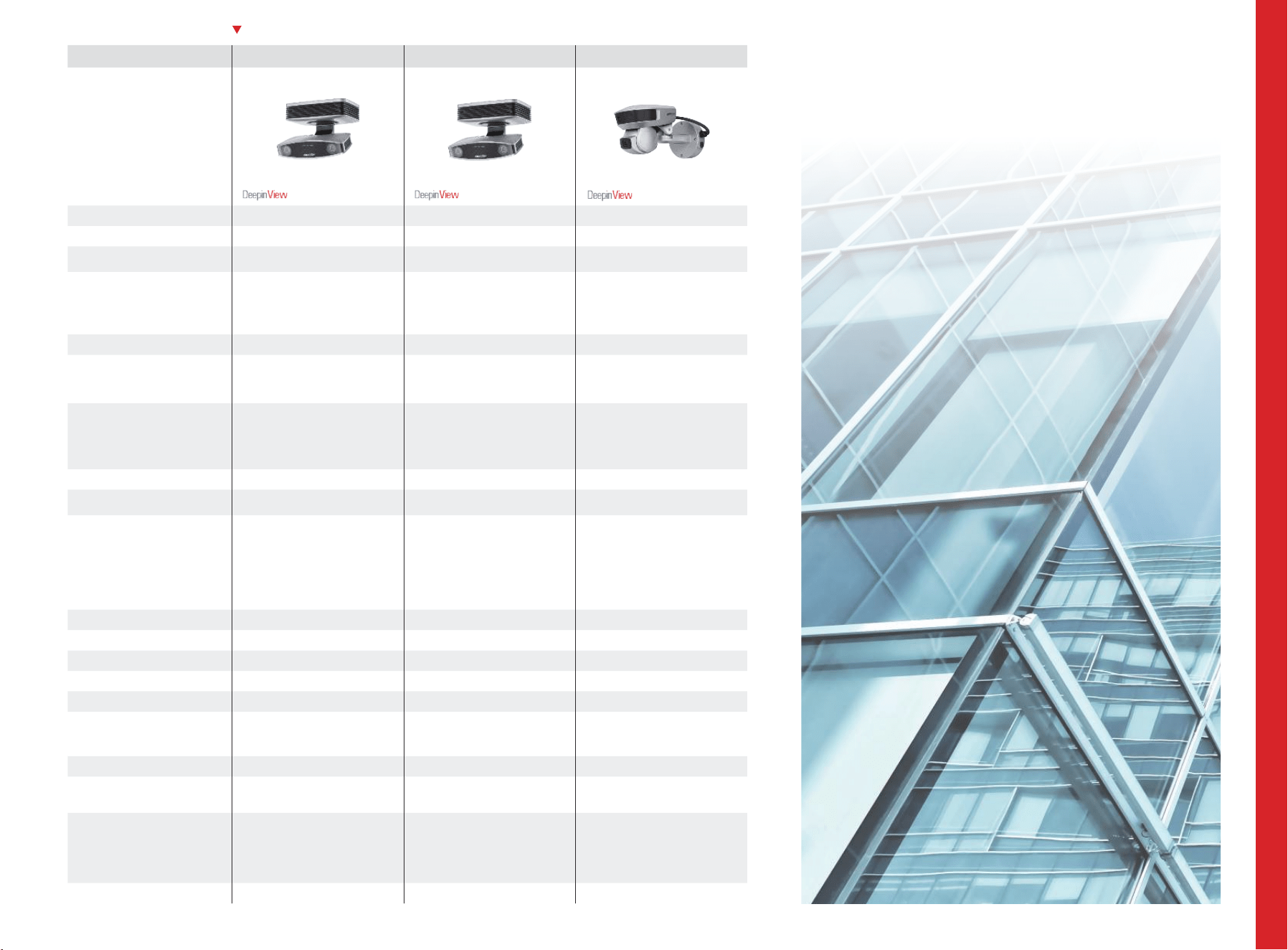

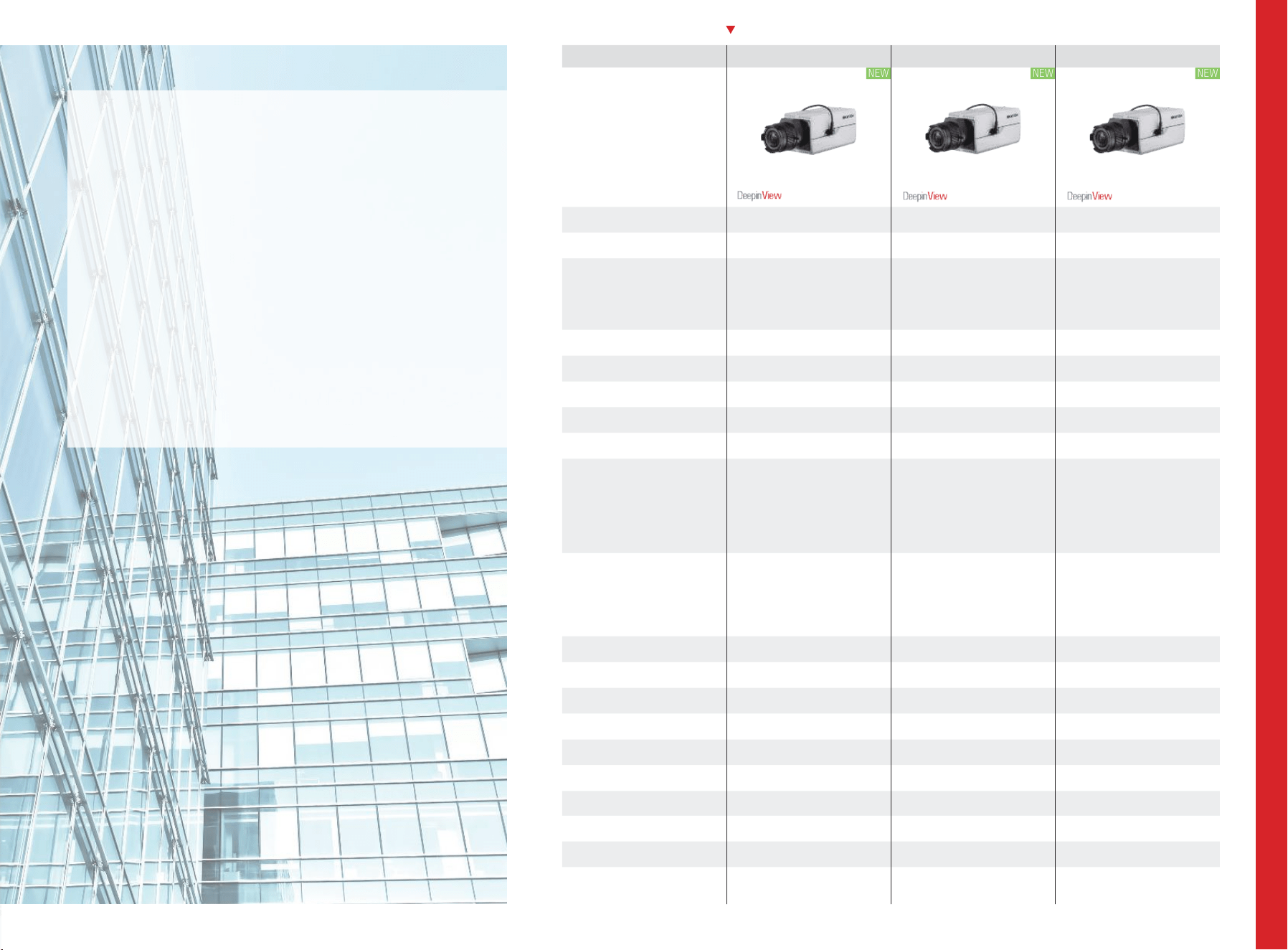

Model
DS-2CD7026G0-(AP) DS-2CD7046G0-(AP) DS-2CD7085G0-(AP)
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS
Max.Resolution
1920 × 1080 2560 × 1440 3840 × 2160
Video Compression
Main stream: H.265+/H.265/H.264+/
H.264
Sub stream/third stream/fourth
stream/fifth stream/custom stream:
H.265/H.264/
MJPEG
Main stream: H.265+/H.265/H.264+/
H.264
Sub stream/third stream/fourth
stream/fifth stream/custom stream:
H.265/H.264/
MJPEG
Main stream: H.265+/H.265/H.264+/
H.264
Sub stream/third stream/fourth
stream/fifth stream/custom stream:
H.265/H.264/
MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), B/
W: 0.0002 Lux @ (F1.2, AGC ON)
Color: 0.002 Lux @ (F1.2, AGC ON), B/
W: 0.0002 Lux @ (F1.2, AGC ON)
Color: 0.007 Lux @ (F1.2, AGC ON)
WDR
140 dB 140 dB 120dB
Lens
CS mount CS mount CS mount
FOV
- - -
Max. IR Range (meters)
- - -
VCA
Deep learning-based algorithm:Line
crossing, intrusion, region entrance,
and region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object removal
detection, exception detection,
Counting
Deep learning-based algorithm:Line
crossing, intrusion, region entrance,
and region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object removal
detection, exception detection,
Counting
Deep learning-based algorithm:Line
crossing, intrusion, region entrance,
and region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object removal
detection, exception detection,
Counting
Frame Rate
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 25fps (3840 × 2160, 3200 ×
1800, 2560 × 1440, 1920 × 1080,
1280 × 720)
60Hz: 30fps (3840 × 2160, 3200 ×
1800, 2560 × 1440, 1920 × 1080,
1280 × 720)
Streams
5+5 5+5 5+5
Protection Level
- - -
Angle Adjustment
- - -
Operating Temperature
-30°C to +60°C (-22 °F to +140 °F) -30°C to +60°C (-22 °F to +140 °F) -30°C to +60°C (-22 °F to +140 °F)
Humidity
95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing)
Local Storage
Built-in micro SD/SDHC/SDXC slot, up
to 256 GB
Built-in micro SD/SDHC/SDXC slot, up
to 256 GB
Built-in micro SD/SDHC/SDXC slot, up
to 256 GB
Indoor/Outdoor
Indoor Indoor Indoor
Audio I/O
1-ch input (line in), 1-ch output,
mono
1-ch input (line in), 1-ch output,
mono
1-ch input (line in), 1-ch output,
mono
Alarm I/O
2 inputs, 2 outputs (up to 12 VDC 1A
or 10 VAC 500 mA)
2 inputs, 2 outputs (up to 12 VDC 1A
or 10 VAC 500 mA)
2 inputs, 2 outputs (up to 12 VDC 1A
or 10 VAC 500 mA)
Power
12 VDC ± 20%, 24 VAC± 20%, two-
core terminal block; PoE (802.3af,
class 3)
12 VDC ± 20%, 24 VAC± 20%, two-
core terminal block; PoE (802.3af,
class 3)
12 VDC ± 20%, 24 VAC± 20%, two-
core terminal block; PoE (802.3af,
class 3)
Deeper Intelligence,
Deeper Surveillance
DeepinView Series
Network Cameras
- High performance and intelligent products with Deep
Learning algorithms and high performance GPU
- Facial recognition, behavior analysis, face capture,
perimeter detection, people counting, flow analysis,
and ANPR
- DeepinView series products are edge nodes in the AI
Cloud, focusing on multidimensional data collection
and front-end intelligent processing.
NEW
NEW
NEW
7 Series
004

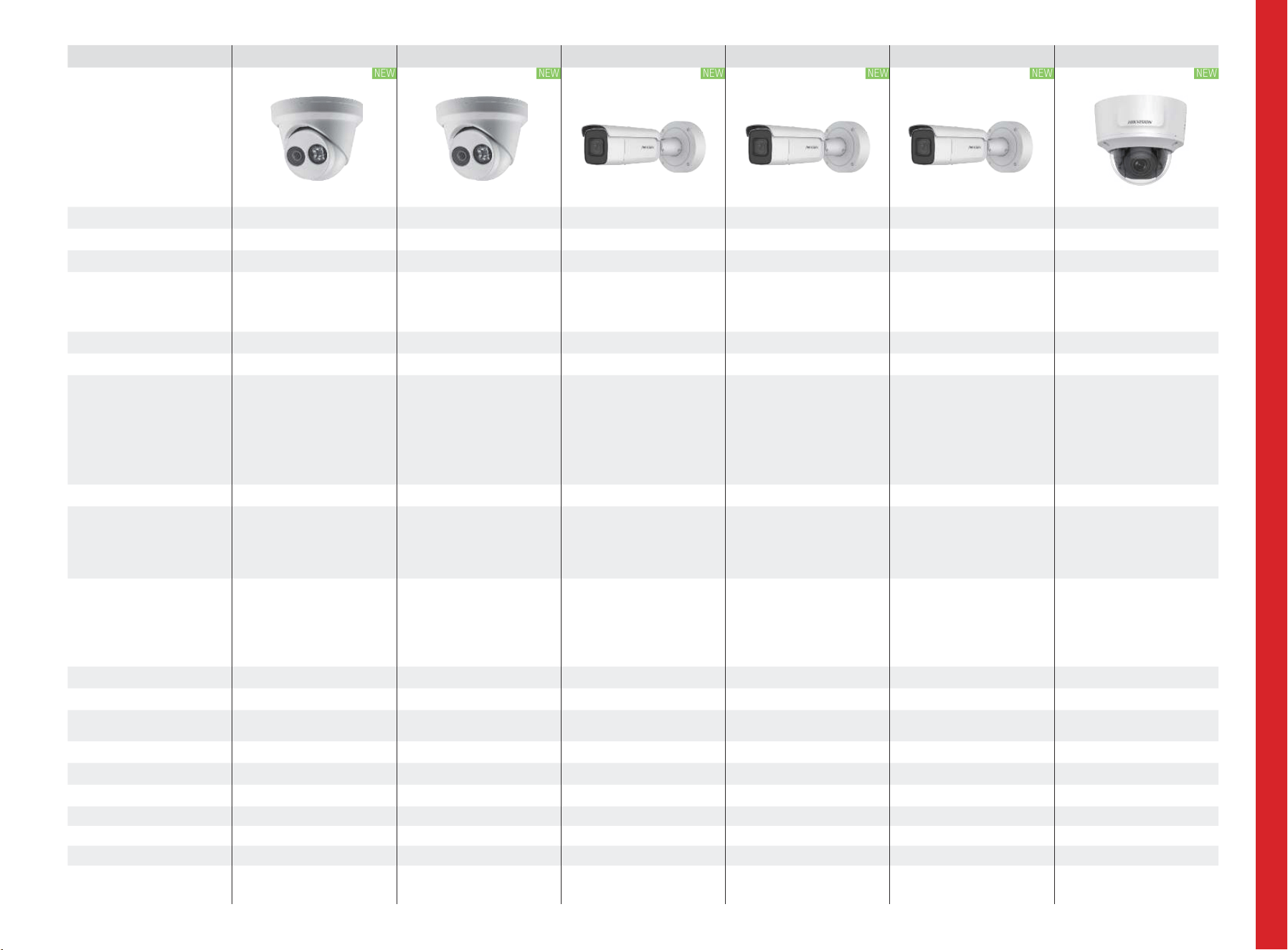

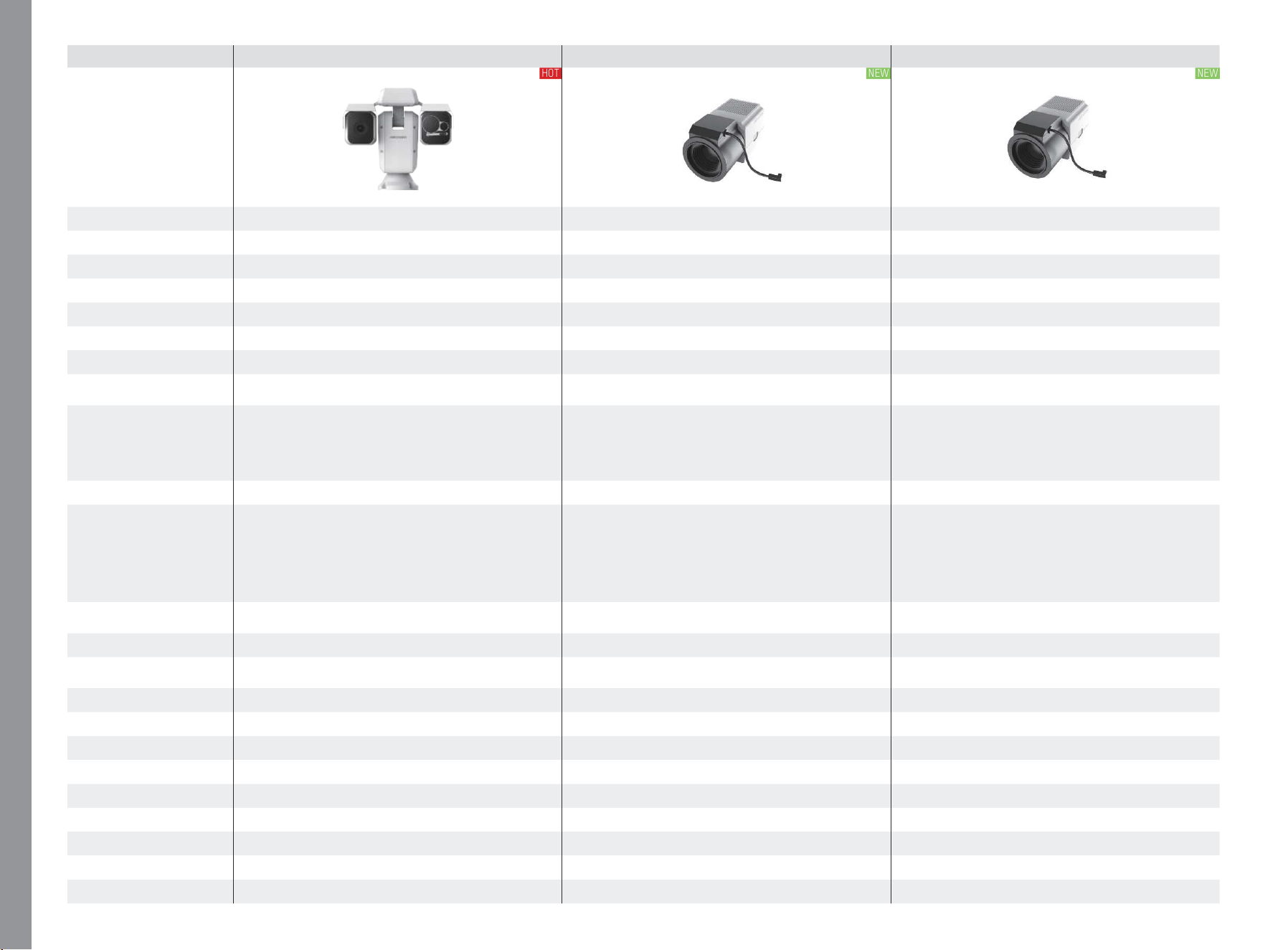

NETWORK CAMERAS

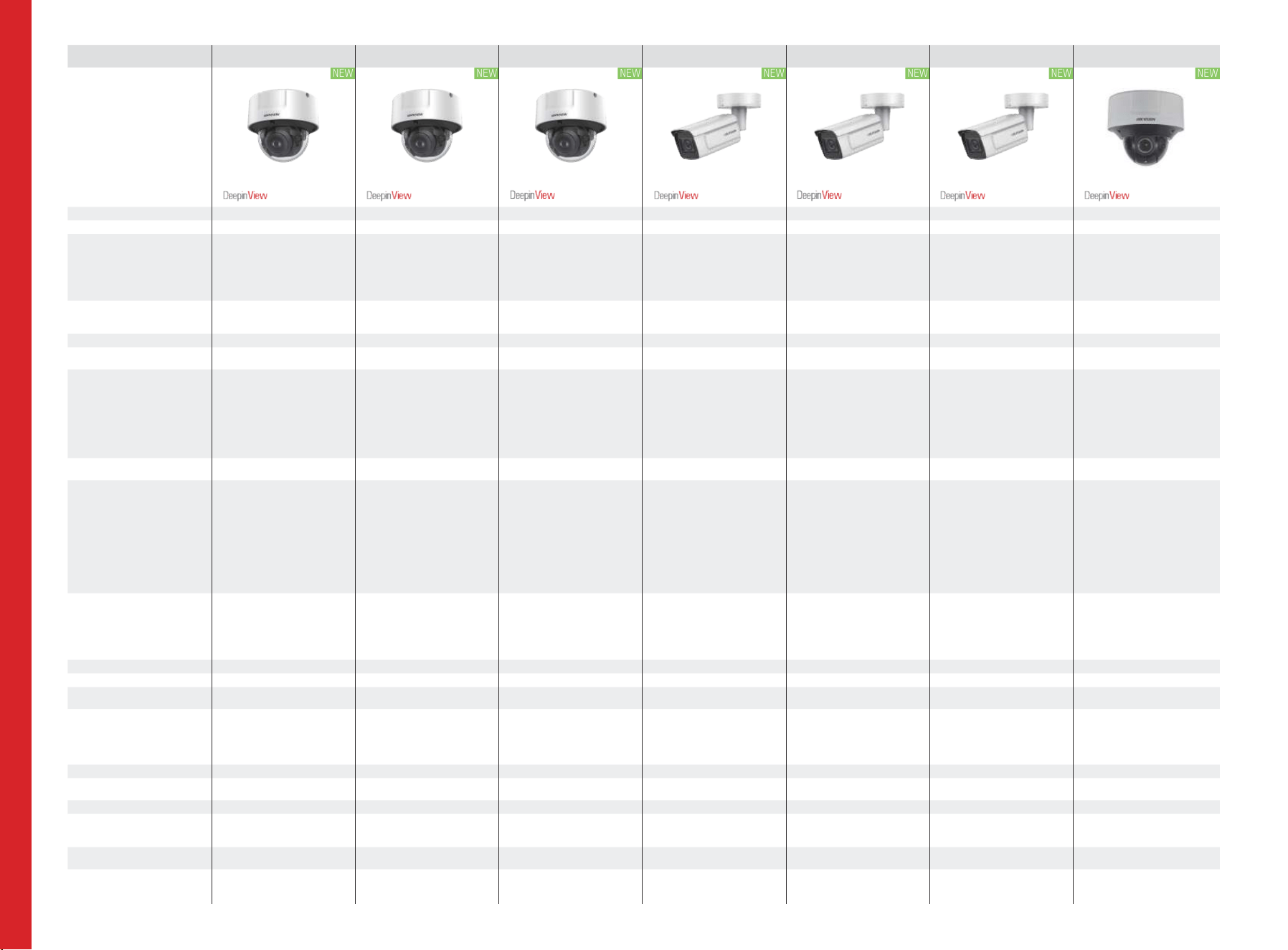

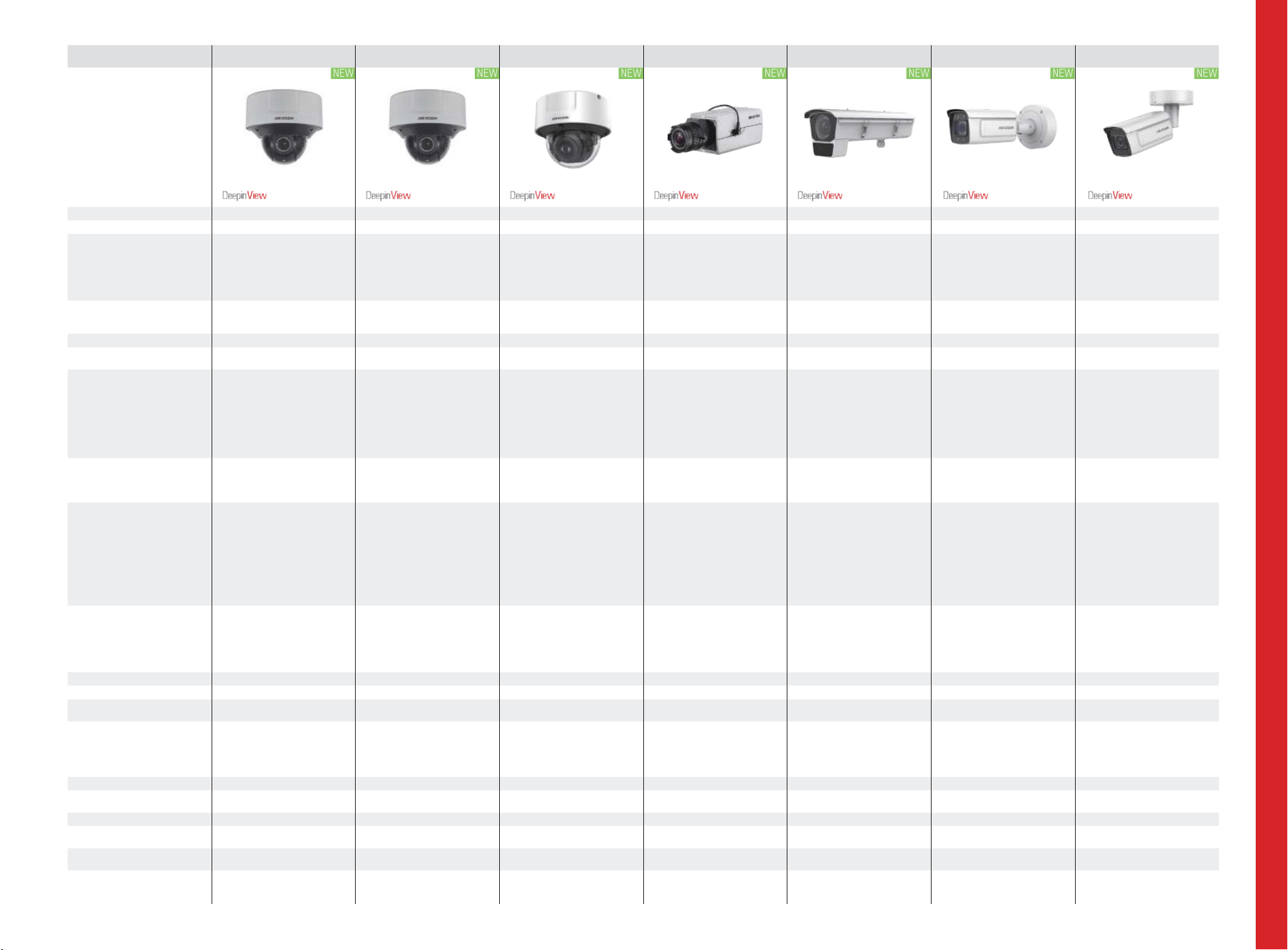

Model
DS-2CD7126G0-IZS DS-2CD7146G0-IZS DS-2CD7185G0-IZS DS-2CD7A26G0-IZ(H)S DS-2CD7A46G0-IZ(H)S DS-2CD7A85G0-IZ(H)S DS-2CD7526G0-IZ(H)S
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS
Max.Resolution
1920 × 1080 2560 × 1440 3840 × 2160 1920 × 1080 2560 × 1440 3840 × 2160 1920 × 1080
Video Compression
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.004 Lux @ (F1.6, AGC ON),
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.005 Lux @ (F1.8, AGC ON),
0 Lux with IR
Color: 0.007 Lux @ (F1.2, AGC
ON), 0.016 Lux @ (F1.8, AGC ON),
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.004 Lux @ (F1.6, AGC ON),
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.005 Lux @ (F1.8, AGC ON),
0 Lux with IR
Color: 0.007 Lux @ (F1.2, AGC
ON), 0.016 Lux @ (F1.8, AGC ON),
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.004 Lux @ (F1.6, AGC ON),
0 Lux with IR
WDR
140 dB 140 dB 120 dB 140 dB 140 dB 120 dB 140 dB
Lens
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
FOV
2.8 to 12 mm, horizontal FOV
103.3° to 38.6°, Vertical FOV
54.2° to 21.9°, diagonal FOV
124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, Vertical FOV 23.4° to
7.7°, diagonal FOV 49°
to 15.3°
2.8 to 12 mm, horizontal FOV
109.2° to 38.9°, vertical FOV
56.2° to 21.9°, diagonal FOV
134.5° to 45°;
8 to 32 mm, horizontal FOV 37.7°
to 15.2°, Vertical FOV 21° to 8.6°,
diagonal FOV 43.4°
to 17.24°
2.8 to 12 mm, horizontal FOV
112.4° to 41°, vertical FOV 58° to
23°, diagonal FOV 137° to 47°;
8 to 32 mm, horizontal FOV 39°
to 15.6°, Vertical FOV 21.8° to
8.9°, diagonal FOV 45°
to 17.8°
2.8 to 12 mm, horizontal FOV
103.3° to 38.6°, Vertical FOV
54.2° to 21.9°, diagonal FOV
124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, Vertical FOV 23.4° to
7.7°, diagonal FOV 49°
to 15.3°
2.8 to 12 mm, horizontal FOV
109.2° to 38.9°, vertical FOV
56.2° to 21.9°, diagonal FOV
134.5° to 45°;
8 to 32 mm, horizontal FOV 37.7°
to 15.2°, Vertical FOV 21° to 8.6°,
diagonal FOV 43.4°
to 17.24°
2.8 to 12 mm, horizontal FOV
112.4° to 41°, vertical FOV 58° to
23°, diagonal FOV 137° to 47°;
8 to 32 mm, horizontal FOV 39°
to 15.6°, Vertical FOV 21.8° to
8.9°, diagonal FOV 45°
to 17.8°
2.8 to 12 mm, horizontal FOV
103.3° to 38.6°, Vertical FOV 54.2°
to 21.9°, diagonal FOV
124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, Vertical FOV 23.4° to
7.7°, diagonal FOV 49°
to 15.3°
Max. IR Range (meters)
Up to 30m Up to 30m Up to 30m
2.8 to 12 mm: up to 50 m; 8 to
32 mm: up to 100 m
2.8 to 12 mm: up to 50 m; 8 to
32 mm: up to 100 m
2.8 to 12 mm: up to 50 m; 8 to
32 mm: up to 100 m
2.8 to 12 mm: up to 30 m; 8 to 32
mm: up to 50 m
VCA
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting;Face detection;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, face detection and
capture; Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting;Face detection;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, face detection and
capture; Counting
Frame Rate
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920
× 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920
× 1080, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920
× 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920
× 1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920
× 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920
× 1080, 1280 × 720)
50Hz: 25fps (3840 × 2160, 3200
× 1800, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (3840 × 2160, 3200
× 1800, 2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
Streams
5+5 5+5 5+5 5+5 5+5 5+5 5+5
Protection Level
IK10 IK10 IK10 IP67,IK10 IP67,IK10 IP67,IK10 IP67,IK10
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
Bracket, pan: 0° to 355°, tilt: 0°
to 90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0°
to 90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0°
to 90°, rotate: 0° to 360°
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
Startup and Operating
Conditions
-30°C to +60°C (-22 °F to +140
°F)
-30°C to +60°C (-22 °F to +140
°F)
-30°C to +60°C (-22 °F to +140
°F)
-30 °C to 65 °C (-22 °F to 149
°F), -H: -40 °C to 65 °C (-40 °F to
149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149
°F), -H: -40 °C to 65 °C (-40 °F to
149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149
°F), -H: -40 °C to 65 °C (-40 °F to
149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F),
-H: -40 °C to 65 °C (-40 °F to 149
°F)
Humidity 95% or less (non-
condensing)
Humidity
95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing)
Local Storage
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Indoor/Outdoor
Indoor Indoor Indoor Outdoor Outdoor Outdoor Outdoor
Audio I/O
1-ch 3.5 mm input (line in), 1-ch
3.5 mm output (line out), mono
sound
1-ch 3.5 mm input (line in), 1-ch
3.5 mm output (line out), mono
sound
1-ch 3.5 mm input (line in), 1-ch
3.5 mm output (line out), mono
sound
- - -
1-ch 3.5 mm input (line in), 1-ch
3.5 mm output (line out), mono
Alarm I/O
1 inputs, 1 outputs (12 VDC 1A
or 10 VAC 500 mA)
1 inputs, 1 outputs (12 VDC 1A
or 10 VAC 500 mA)
1 inputs, 1 outputs (12 VDC 1A
or 10 VAC 500 mA)
2 inputs, 2 outputs (up to 12
VDC 1A or 10 VAC 500 mA)
2 inputs, 2 outputs (up to 12
VDC 1A or 10 VAC 500 mA)
2 inputs, 2 outputs (up to 12
VDC 1A or 10 VAC 500 mA)
1 input, 1 output (up to 12 VDC
1A or 10 VAC 500 mA)
Power
12 VDC ± 20%, terminal block;
PoE (802.3af, class 3)
12 VDC ± 20%, terminal block;
PoE (802.3af, class 3)
12 VDC ± 20%, terminal block;
PoE (802.3af, class 3)
12 VDC ± 20%, two-core
terminal block; PoE (802.3at,
class 4)
12 VDC ± 20%, two-core
terminal block; PoE (802.3at,
class 4)
12 VDC ± 20%, two-core
terminal block; PoE (802.3at,
class 4)
12 VDC ± 20%, two-core terminal
block; PoE (802.3at, class 4)
NEW
NEW
NEW
NEW
NEW
NEW
NEW
005
NETWORK CAMERAS
Model
DS-2CD7546G0-IZ(H)S DS-2CD7585G0-IZ(H)S DS-2CD7126G0/L-IZS DS-2CD7026G0/P-(AP) DS-2CD7026G0/EP-I(H) DS-2CD7A26G0/P-LZ(H)S DS-2CD7A26G0/P-IZ(H)S
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS
Max.Resolution
2560 × 1440 3840 × 2160 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Video Compression
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Main stream: H.265+/H.265/
H.264+/H.264
Sub stream/third stream/fourth
stream/fifth stream/custom
stream: H.265/H.264/
MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.005 Lux @ (F1.8, AGC ON),
0 Lux with IR
Color: 0.007 Lux @ (F1.2, AGC
ON), 0.016 Lux @ (F1.8, AGC ON),
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.004 Lux @ (F1.6, AGC ON),
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), B/W: 0.0002 Lux @ (F1.2,
AGC ON)
Color: 0.002 Lux @ (F1.2, AGC
ON), B/W: 0.0002 Lux @ (F1.2,
AGC ON)
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.004 Lux @ (F1.6, AGC ON)
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.004 Lux @ (F1.6, AGC ON),
0 Lux with IR
WDR
140 dB 120 dB 140 dB 140 dB 140 dB 140 dB 140 dB
Lens
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm CS mount
3.8 to 16 mm and 11 to 40 mm
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
2.8 to 12 mm and 8 to 32 mm,
Optional
FOV
2.8 to 12 mm, horizontal FOV
109.2° to 38.9°, vertical FOV
56.2° to 21.9°, diagonal FOV
134.5° to 45°;
8 to 32 mm, horizontal FOV 37.7°
to 15.2°, Vertical FOV 21° to 8.6°,
diagonal FOV 43.4°
to 17.24°
2.8 to 12 mm, horizontal FOV
112.4° to 41°, vertical FOV 58° to
23°, diagonal FOV 137° to 47°;
8 to 32 mm, horizontal FOV 39°
to 15.6°, Vertical FOV 21.8° to
8.9°, diagonal FOV 45°
to 17.8°
2.8 to 12 mm, horizontal FOV
103.3° to 38.6°, Vertical FOV
54.2° to 21.9°, diagonal FOV
124.2° to 44.3°
-
3.8 to 16 mm, F1.4, horizontal
FOV 100.7° to 27.3°, vertical FOV
56.2° to 15.4°, diagonal FOV
115.5° to 31.3°
11 to 40 mm, F1.4, horizontal
FOV 35.8° to 11.2°, vertical FOV
19.6° to 6.3°, diagonal FOV 41.7°
to 12.8°
2.8 to 12 mm, horizontal FOV
103.3° to 38.6°, Vertical FOV
54.2° to 21.9°, diagonal FOV
124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, Vertical FOV 23.4° to
7.7°, diagonal FOV 49°
to 15.3°
2.8 to 12 mm, horizontal FOV
103.3° to 38.6°, Vertical FOV
54.2° to 21.9°, diagonal FOV
124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, Vertical FOV 23.4° to
7.7°, diagonal FOV 49°
to 15.3°
Max. IR Range (meters)
2.8 to 12 mm: up to 30 m; 8 to
32 mm: up to 50 m
2.8 to 12 mm: up to 30 m; 8 to
32 mm: up to 50 m
Up to 30m -
3.8-16 mm: up to 80 m
11-40 mm: up to 120 m
2.8 to 12 mm: up to 50 m(White
light)
8 to 32 mm: up to 100 m(White
light)
2.8 to 12 mm: up to 50 m; 8 to
32 mm: up to 100 m
VCA
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based
algorithm:Line crossing,
intrusion, region entrance, and
region exiting; Face detection
and capture;
Tradition algorithm:unattended
baggage detection, object
removal detection, exception
detection, Counting
Deep learning-based algorithm:
Queue detection
Deep learning-based
algorithm:ANPR;
Tradition algorithm:Line
crossing, intrusion, region
entrance, and region
exiting,unattended baggage
detection, object removal
detection, exception detection
Deep learning-based
algorithm:ANPR;
Tradition algorithm:Line
crossing, intrusion, region
entrance, and region
exiting,unattended baggage
detection, object removal
detection, exception detection
Deep learning-based
algorithm:ANPR;
Tradition algorithm:Line
crossing, intrusion, region
entrance, and region
exiting,unattended baggage
detection, object removal
detection, exception detection
Deep learning-based
algorithm:ANPR;
Tradition algorithm:Line
crossing, intrusion, region
entrance, and region
exiting,unattended baggage
detection, object removal
detection, exception detection
Frame Rate
50Hz: 25fps (2560 × 1440, 1920
× 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920
× 1080, 1280 × 720)
50Hz: 25fps (3840 × 2160, 3200
× 1800, 2560 × 1440, 1920 ×
1080, 1080 × 720)
60Hz: 30fps (3840 × 2160, 3200
× 1800, 2560 × 1440, 1920 ×
1080, 1080 × 720)
50Hz: 25fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280
× 960, 1280 × 720)
Streams
5+5 5+5 5+5 5+5 5+5 5+5 5+5
Protection Level
IP67,IK10 IP67,IK10 IK10 - IP66, IK10 IP66, IK10 IP67,IK10
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°,
rotate: 0° to 355°
- -
Bracket, pan: 0° to 355°, tilt: 0°
to 90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0°
to 90°, rotate: 0° to 360°
Startup and Operating
Conditions
-30 °C to 65 °C (-22 °F to 149 °F),
-H: -40 °C to 65 °C (-40 °F to 149
°F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F),
-H: -40 °C to 65 °C (-40 °F to 149
°F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F),
-H: -40 °C to 65 °C (-40 °F to 149
°F)
Humidity 95% or less (non-
condensing)
-30°C to +60°C (-22 °F to +140
°F)
-I: -30 °C to 60 °C (-22 °F to 140
°F),
-IH:-40 °C to 60 °C (-40 °F to 140
°F)
-30 °C to 65 °C (-22 °F to 149 °F),
-H: -40 °C to 65 °C (-40 °F to 149
°F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F),
-H: -40 °C to 65 °C (-40 °F to 149
°F)
Humidity 95% or less (non-
condensing)
Humidity
95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing) 95% or less (non-condensing)
Local Storage
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Indoor/Outdoor
Outdoor Outdoor Indoor Indoor Outdoor Outdoor Outdoor
Audio I/O
1-ch 3.5 mm input (line in), 1-ch
3.5 mm output (line out), mono
1-ch 3.5 mm input (line in), 1-ch
3.5 mm output (line out), mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch input (line in), 1-ch output,
mono
1 input (line in), 1 output, mono
sound
- -
Alarm I/O
1 input, 1 output (up to 12 VDC
1A or 10 VAC 500 mA)
1 input, 1 output (up to 12 VDC
1A or 10 VAC 500 mA)
1 input, 1 output (up to 12 VDC
1A or 10 VAC 500 mA)
2 inputs, 2 outputs (up to 24
VDC 1A or 110 VAC 500 mA)
2 Inputs, 2 outputs (up to 24
VDC, 1A or 30 VAC, 500 mA)
2 inputs, 2 outputs (up to 24
VDC 1A or 110 VAC 500 mA)
2 inputs, 2 outputs (up to 24
VDC 1A or 110 VAC 500 mA)
Power
12 VDC ± 20%, two-core terminal
block; PoE (802.3at, class 4)
12 VDC ± 20%, two-core terminal
block; PoE (802.3at, class 4)
12 VDC ± 20%, terminal block;
PoE (802.3af, class 3)
12 VDC ± 20%, 24 VAC± 20%,
two-core terminal block; PoE
(802.3af, class 4)
24 VAC ± 20%, two-core terminal
block
12 VDC ± 20%, two-core
terminal block
PoE (802.3at, class 4)
12 VDC ± 20%, two-core
terminal block
PoE (802.3at, class 4)
NEW
NEW
NEW
NEW
NEW
NEW
NEW
006
NETWORK CAMERAS

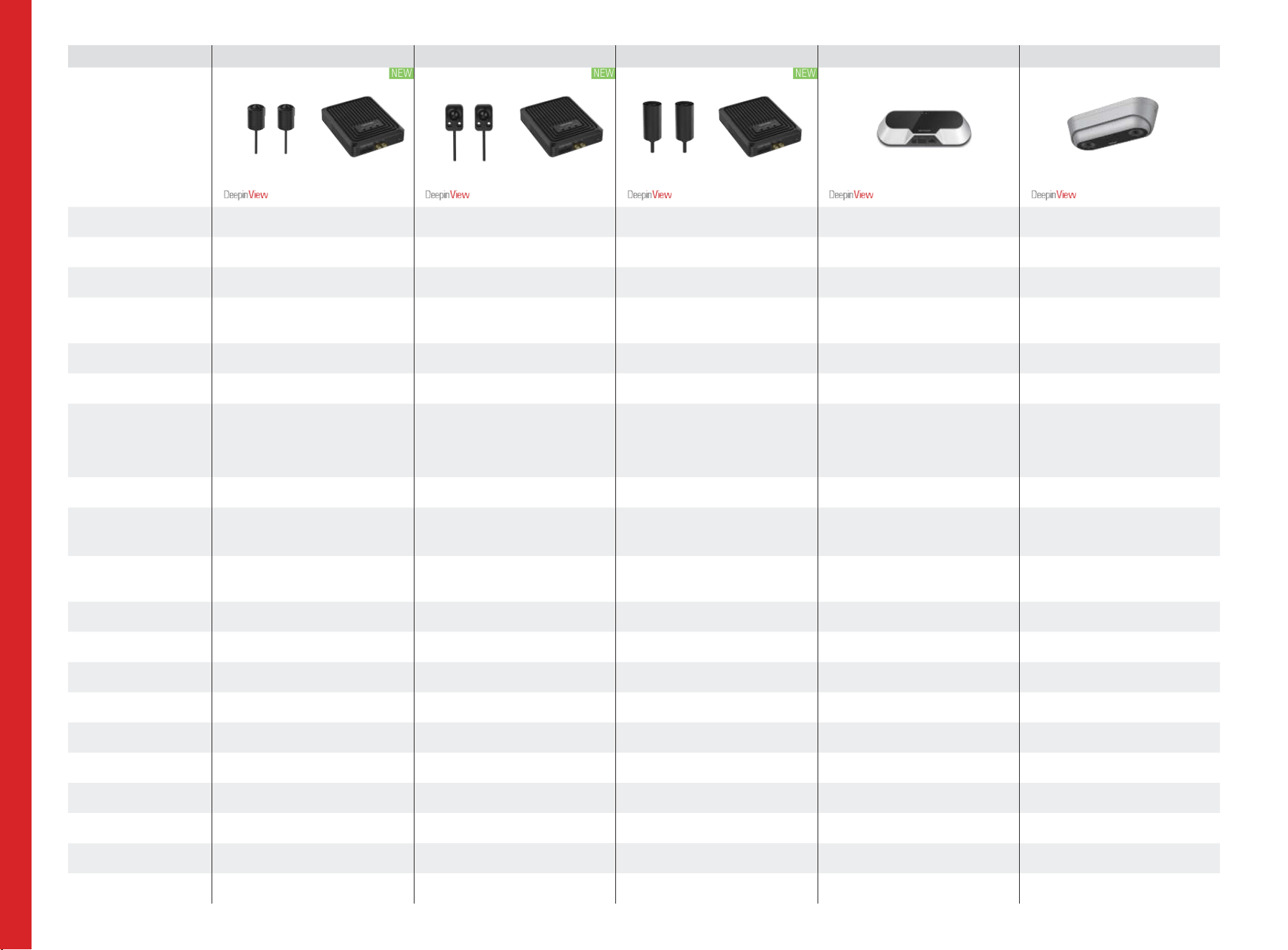

Model
DS-2CD6425G0/F-11 DS-2CD6425G0/F-21 DS-2CD6425G0/F-31 iDS-2CD6810F/C iDS-2CD6810F-IV/C
Image Sensor
1/2.8'' Progressive Scan CMOS 1/2.8'' Progressive Scan CMOS 1/2.8'' Progressive Scan CMOS 1/3'' Progressive Scan CMOS 1/3'' Progressive Scan CMOS
Max.Resolution
1920
×
1080
1920 × 1080 1920 × 1080 640 × 960 640 × 960
Video Compression
H.265/H.264/MJPEG
H.265/H.264/MJPEG H.265/H.264/MJPEG H.264 H.264
Min. Illumination
Color: 0.001 Lux @ (F1.2, AGC ON), 0.006 Lux
@ (F2.5, AGC ON)
B/W: 0.0007 Lux@(F1.2, AGC ON), 0.003 Lux@
(F2.5, AGC ON)
Color: 0.001 Lux @ (F1.2, AGC ON), 0.006 Lux @
(F2.5, AGC ON)
B/W: 0.0007 Lux@(F1.2, AGC ON), 0.003 Lux@
(F2.5, AGC ON)
Color: 0.001 Lux @ (F1.2, AGC ON), 0.006 Lux @
(F2.5, AGC ON)
B/W: 0.0007 Lux@(F1.2, AGC ON), 0.003 Lux@
(F2.5, AGC ON)
- -
WDR
120 dB WDR
120 dB WDR 120 dB WDR - -
Lens
3.7mm
2.8 mm/3.7 mm 2 mm/2.8 mm/4 mm 2 mm, 2.8 mm, 4 mm, optional 2.8 mm and 4 mm, optional
FOV
F 2.5, horizontal FOV 75° vertical FOV 41.5°,
diagonal FOV 87°
2.8 mm: F 2.5, horizontal FOV 94°, vertical FOV
51.5°, diagonal FOV 109°
3.7 mm: F 2.5, horizontal FOV 75°, vertical FOV
41.5°, diagonal FOV 87°
2 mm: F 2.0, horizontal FOV 132.8°, vertical FOV
77.5°, diagonal FOV 153°
2.8 mm: F 1.6, horizontal FOV 110.5°, vertical
FOV 60°, diagonal FOV 130°
4 mm: F 1.6, horizontal FOV 86°, vertical FOV
45°, diagonal FOV 102°
2 mm: horizontal FOV 105°, vertical FOV 89°
2.8 mm: horizontal FOV 83°, vertical FOV 68°
4 mm: horizontal FOV 63°, vertical FOV 55°
2.8 mm: horizontal FOV 83°, vertical FOV 68°
4 mm: horizontal FOV 63°, vertical FOV 55°
Max. IR Range (meters)
-
- - - Up to 5 m
VCA
Line crossing detection, intrusion detection,
region entrance, region exiting, unattended
baggage, object removal;deep learning based
face capture
Line crossing detection, intrusion detection,
region entrance, region exiting, unattended
baggage, object removal;deep learning based
face capture
Line crossing detection, intrusion detection,
region entrance, region exiting, unattended
baggage, object removal;deep learning based
face capture
Support separate counting of people entering,
exiting, and passing by, height filter
Support separate counting of people entering,
exiting, and passing by, height filter
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (640 × 480)
60Hz: 24fps (640 × 480)
50Hz: 25fps (640 × 480)
60Hz: 24fps (640 × 480)
Streams
2
2 2 2 2
Protection Level
-
- IP66 (2mm: No) - IP66
Angle Adjustment
-
- - - Tilt: 0° to 45°
Operating Temperature
-30 °C to 60 °C (-22 °F to +140 °F)
-30 °C to 60 °C (-22 °F to +140 °F) -30 °C to 60 °C (-22 °F to +140 °F) -10 °C to +40 °C (+14 °F to +104 °F) -30°C to +60°C (-22 °F to +140 °F)
Humidity
-
- - 95% or less (non-condensing) 95% or less (non-condensing)
Local Storage
Built-in micro SD/SDHC/SDXC slot, up to 128
GB
Built-in micro SD/SDHC/SDXC slot, up to 128
GB
Built-in micro SD/SDHC/SDXC slot, up to 128
GB
- -
Indoor/Outdoor
indoor indoor indoor
Indoor Outdoor
Audio I/O
1 input (line in), 1 output (line out), mono
sound
1 input (line in), 1 output (line out), mono
sound
1 input (line in), 1 output (line out), mono
sound
- -
Alarm I/O
2 inputs, 2 outputs (up to 12 VDC 30mA) 2 inputs, 2 outputs (up to 12 VDC 30mA) 2 inputs, 2 outputs (up to 12 VDC 30mA)
1 input, 1 output (up to 12 VDC, 30 mA)
2 inputs, 1 output (up to 24 VDC 1 A, or 110
VAC 500 mA)
Power
12 VDC + PoE, 8-36 VDC, two-core terminal
block, PoE (802.3at, class 4)
12 VDC + PoE, 8-36 VDC, two-core terminal
block, PoE (802.3at, class 4)
12 VDC + PoE, 8-36 VDC, two-core terminal
block, PoE (802.3at, class 4)
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
12 VDC ± 25%, terminal block
NEW
NEW
NEW
007
NETWORK CAMERAS
Model
iDS-2CD8426G0/F iDS-2CD8426G0/B iDS-2PT9122IX-DE/S(5-50mm)(4mm)
Image Sensor
1/2.8
''
Progressive Scan CMOS ×2 1/2.8
''
Progressive Scan CMOS ×2 1/2.7" Progressive Scan CMOS
Max.Resolution
1920 × 1080 1920 × 1080 1920 × 1080
Video Compression
H.265+/H.264+/H.265/H.264/MPEG4/
MJPEG
H.265+/H.264+/H.265/H.264/MPEG4/
MJPEG
H.265+/H.265/H.264+/H.264/MJPEG
Min. Illumination
Color: 0.0028 Lux @ (F1.2, AGC ON),
0.005 Lux @(F1.6, AGC ON)
B/W: 0.0014 Lux @ (F1.2, AGC ON),
0.0025 Lux @(F1.6, AGC ON)
0 Lux with IR
Color: 0.0028 Lux @ (F1.2, AGC ON),
0.005 Lux @(F1.6, AGC ON)
B/W: 0.0014 Lux @ (F1.2, AGC ON),
0.0025 Lux @(F1.6, AGC ON)
0 Lux with IR
Dsitant View Camera:
Color: 0.002 Lux@(F1.0, AGC ON)
PTZ Camera
Color: 0.0035 Lux@(F1.6, AGC ON)
WDR
120 dB Digital WDR Digital WDR
Lens
4 mm × 2 4 mm × 2
Dsitant View Camera:
4.0 mm
PTZ Camera
5 mm to 50 mm, 10× optical zoom
FOV
4mm: horizontal FOV 85.7°
4 mm: horizontal FOV 86°, vertical FOV
46°, diagonal FOV 103°
2.8 mm: horizontal FOV 107°, vertical
FOV 59°, diagonal FOV 127°
Dsitant View Camera:
Horizontal FOV 92°
PTZ Camera
Horizontal FOV 61.3° to 6.26° (Wide-
Tele)
Max. IR Range (meters)
Up to 10 m Up to 10 m IR distance: 100 m
VCA
Deep learning-based algorithm: Face
capture, Face recognition
Deep learning-based algorithm:
Loitering, and people falling down
Detects human body, face, and vehicle
automatically.
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280
× 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
Streams
5 3 3
Protection Level
- - IP66
Angle Adjustment
Tilt: -45° to 90°, rotate: 0° to 355° Tilt: -45° to 90°, rotate: 0° to 355° Pan: 210°, Tilt: -22° to 22°
Operating Temperature
-10 °C to 40 °C (-14 °F to 104 °F) -10 °C to 40 °C (-14 °F to 104 °F) Outdoor: -40°C to 70°C (-40°F to 158°F)
Humidity
Humidity 95% or less (non-condensing) Humidity 95% or less (non-condensing) ≤ 90%
Local Storage
Support Micro SD/SDHC/SDXC card
(128G) local storage, NAS (NFS,SMB/
CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G) local storage, NAS (NFS,SMB/
CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G) local storage, NAS (NFS,SMB/
CIFS), ANR
Indoor/Outdoor
Indoor Indoor Outdoor
Audio I/O
1 audio input (line in), 1 audio output
(line out), mono soundtrack
1 audio input (line in), 1 audio output
(line out), mono soundtrack
1-ch audio input and 1-ch audio
output
Alarm I/O
1 input, 1 output (up to 24 VDC 1 A or
110 VAC 500 mA)
1 input, 1 output (up to 24 VDC 1 A or
110 VAC 500 mA)
1-ch alarm input and 1-ch alarm
output, support alarm linkage: Memory
Card Recording/Aux Output/Notify
Surveillance Center/Upload to FTP/
Send Email
Power
36 VDC, two-core terminal block 36 VDC, two-core terminal block 12 VDC & Hi-PoE
8 Series
008

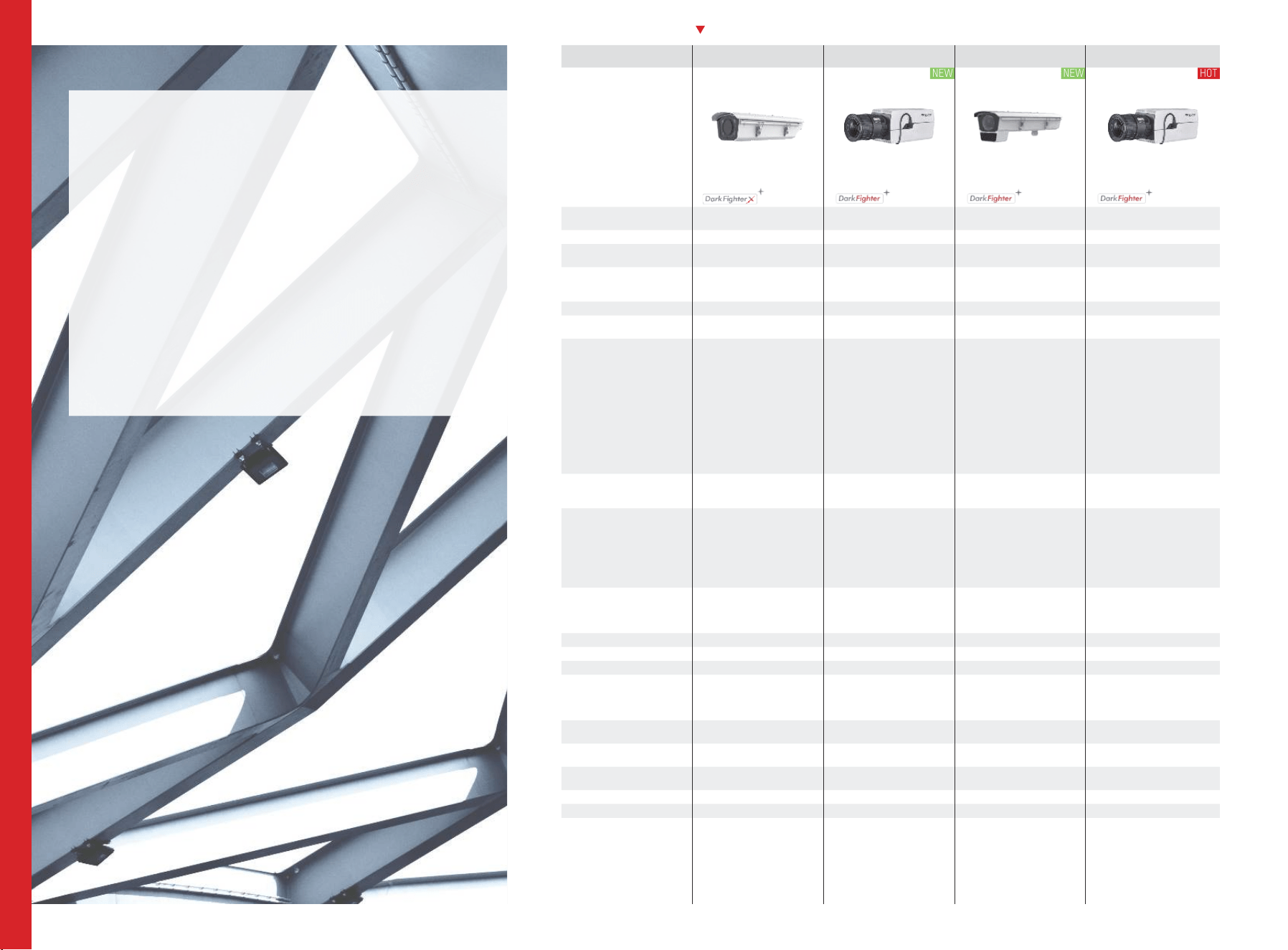

NETWORK CAMERAS
Model
DS-2CD5028G0/E DS-2CD5026G0-(AP) DS-2CD5026G0/E-HI DS-2CD5046G0-(AP)
Image Sensor
Dual-sensor, 1/2.8"
Progressive Scan CMOS
1/1.8" Progressive Scan
CMOS
1/1.8" Progressive Scan
CMOS
1/1.8" Progressive Scan CMOS
Max. Resolution
1920×1080 1920×1080 1920×1080 2560 × 1440
Video Compression
H.265/H.264/MJPEG
H.265, H.265+, H.264+,
H.264,MJPEG
H.265, H.265+, H.264+,
H.264,MJPEG
H.265, H.265+, H.264+,
H.264,MJPEG
Min. Illumination
Color: 0.0005 Lux @ (F1.5,
AGC ON), B/W: 0.0001Lux @
(F1.5, AGC ON), 0 Lux with IR
Color: 0.002 Lux @ (F1.2,
AGC ON)
Color: 0.002 Lux @ (F1.2,
AGC ON);B/W: 0.0002 Lux @
(F1.2, AGC ON)
Color: 0.002 Lux @ (F1.2, AGC
ON)B/W: 0.0002 Lux @ (F1.2,
AGC ON)
WDR
Digital WDR 140 dB 140 dB 140 dB
Lens
5 to 50 mm -
3.8-16mm, 11-40mm, 12-
50mm
-
FOV
Horizontal field of view: 60.5°
to 6.3°
-
3 to 16 mm, horizontal FOV
100.7° to 27.3°, vertical FOV
56.2° to 15.4°, diagonal FOV
115.5° to 31.3°
11 to 40 mm, horizontal FOV
35.8° to 11.2°, vertical FOV
19.6° to 6.3°, diagonal FOV
41.7° to 12.8°
12 to 50 mm, horizontal FOV
32.9° to 8.6°, vertical FOV
18.0° to 4.8°, diagonal FOV
38.2° to 9.8°
-
Max. IR Range (meters)
Up to 100 m -
3.8 to 16 mm: up to 80 m11
to 40 mm: up to 120 m
12 to 50 mm: up to 120 m
-
VCA
Line crossing detection,
intrusion detection, region
entrance detection,
region exiting detection,
unattended baggage
detection, object removal
detection
Line crossing detection,
intrusion detection, region
entrance detection,
region exiting detection,
unattended baggage
detection, object removal
detection
Line crossing detection,
intrusion detection, region
entrance detection,
region exiting detection,
unattended baggage
detection, object removal
detection
Line crossing detection,
intrusion detection, region
entrance detection, region
exiting detection, unattended
baggage detection, object
removal detection
Frame Rate
50Hz: 25fps (1920×1080,
1280×960, 1280×720)
60Hz: 30fps (1920×1080,
1280×960, 1280×720)
50Hz: 50fps (1920×1080,
1280×960, 1280×720)
60Hz: 60fps (1920×1080,
1280×960, 1280×720)
50Hz: 50fps (1920×1080,
1280×960, 1280×720)
60Hz: 60fps (1920×1080,
1280×960, 1280×720)
50Hz: 25fps (2560 × 1440,
1920 × 1080, 1280 × 720)
60Hz: 30fps (2560 × 1440,
1920 × 1080, 1280 × 720)
Multi-Streaming
3 5+5 5+5 5+5
Protection Level
IP66 - IP66,IK10 -
Angle Adjustment
- - - -
Operating Temperature
-40 °C to +60 °C (-40 °F to
+140 °F)
-30 °C to 60 °C (-22 °F to 140
°F)
-I: -30 °C to 60 °C (-22 °F to
140 °F)
-IH:-40 °C to 60 °C (-40 °F to
140 °F)
-30 °C to 60 °C (-22 °F to 140
°F)
Operating Humidity
Humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
Local Storage
Built-in Micro SD/SDHC/SDXC
slot, up to 128 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Built-in micro SD/SDHC/SDXC
slot, up to 256 GB
Audio I/O
1 input (line in), 1 output
(line out)
1 input (line in), 1 output
(line out), mono
1 input (line in), 1 output
(line out), mono
1 input (line in), 1 output (line
out), mono
Alarm I/O
2 inputs, 2 outputs 2 inputs, 2 outputs 2 inputs, 2 outputs 2 inputs, 2 outputs
Installation
- - - -
Power Supply
24 VAC ± 20%, terminal block
Recommended DC input 12
V, voltage range of 10 to 48
VDC allowed; recommended
AC input 24 V, voltage range
of 15 to 36 VAC allowed;
two-core terminal block
PoE (802.3af, class 3)
24 VAC ± 20%, two-core
terminal block
Recommended DC input 12
V, voltage range of 10 to 48
VDC allowed; recommended
AC input 24 V, voltage range
of 15 to 36 VAC allowed; two-
core terminal block
PoE (802.3af, class 3)
5 Series
HOT
NEW
NEW
Ultra Series Network
Cameras
- Ultra Series Cameras easily meet the requirements
for enterprise projects with surprisingly high
performance, excellent stability and network
security.
- High performance: DarkFighter, LightFighter, 4K, 5
defined streams & 5 custom streams, etc.
- Excellent stability: dual-file system backup, wide
voltage range, NEMA 4X anti-corrosion, etc.
- Network security methods which are applicable to
projects: 802.1x EAP-TLS 1.2, Stream Encryption,etc.
009
NETWORK CAMERAS

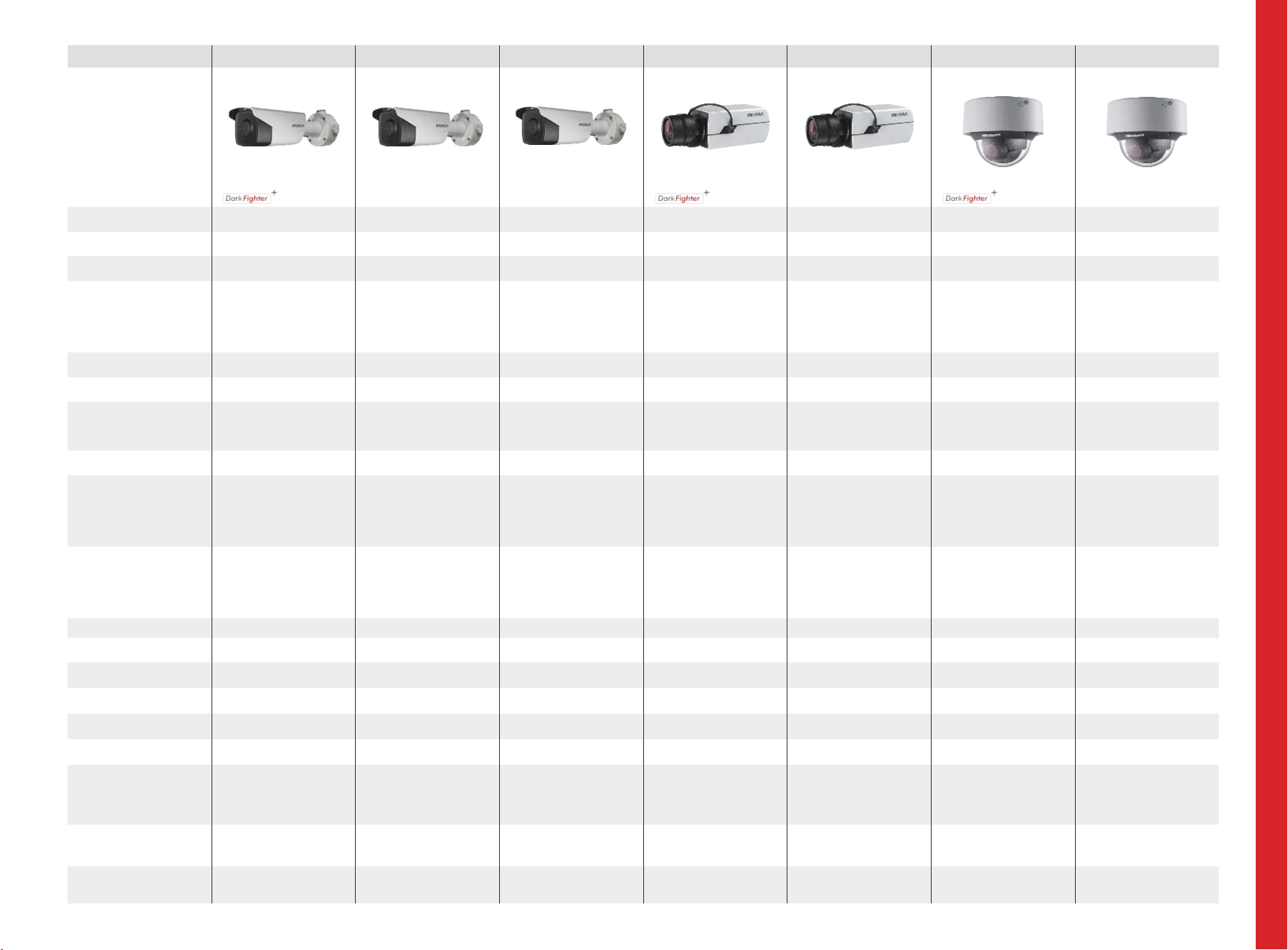

Model
DS-2CD5085G0-(AP) DS-2CD50C5G0-(AP) DS-2CD5126G0-IZS DS-2CD5146G0-IZS DS-2CD5185G0-IZS DS-2CD51C5G0-IZS
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.7" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.7" Progressive Scan CMOS
Max. Resolution
3840×2160 4000 × 3000 1920×1080 2560 × 1440 3840×2160 4000×3000
Video Compression
H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG
Min. Illumination
Color: 0.007 Lux @ (F1.2, AGC ON)
Color: 0.008 Lux @ (F1.2, AGC ON)
B/W: 0.0008 Lux @ (F1.2, AGC ON)
0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC ON)
Color: 0.002 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.007 Lux @ (F1.2, AGC ON),0
Lux with IR
Color: 0.008 Lux @ (F1.2, AGC ON)
0 Lux with IR
WDR
120 dB DWDR 140 dB 140 dB 120 dB DWDR
Lens
- - 2.8 to 12 mm 2.8 to 12 mm 2.8 to 12 mm 2.8 to 12 mm
FOV
- -
2.8 to 12 mm, horizontal FOV 103.3°
to 38.6°, vertical FOV 54.2° to 21.9°,
diagonal FOV 124.2° to 44.3°
2.8 to 12 mm, horizontal FOV 109.2°
to 38.9°, vertical FOV 56.2° to 21.9°,
diagonal FOV 134.5° to 45°
2.8 to 12 mm, horizontal FOV 112.4°
to 41°, vertical FOV 58° to 23°,
diagonal FOV 137° to 47°
2.8 to 12 mm, horizontal FOV 101°
to 36.1°, vertical FOV 72° to 27.2°,
diagonal FOV 130° to 45.2°
Max. IR Range (meters)
- - Up to 30 m Up to 30 m Up to 30 m Up to 30 m
VCA
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Frame Rate
50Hz: 25fps (3840×2160,
3200×1800, 2560×1440, 1920×1080,
1280×720)
60Hz: 30fps (3840×2160,
3200×1800, 2560×1440, 1920×1080,
1280×720)
50Hz: 20fps(4000 × 3000), 25fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
60Hz: 20fps(4000 × 3000), 30fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
50Hz: 50fps (1920×1080, 1280×960,
1280×720)
60Hz: 60fps (1920×1080, 1280×960,
1280×720)
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 25fps (3840×2160,
3200×1800, 2560×1440, 1920×1080,
1080×720)
60Hz: 30fps (3840×2160,
3200×1800, 2560×1440, 1920×1080,
1080×720)
50Hz: 20fps(4000 × 3000), 25fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
60Hz: 20fps(4000 × 3000), 30fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
Multi-Streaming
5+5 5+5 5+5 5+5 5+5 5+5
Protection Level
- - IK10 IK10 IK10 IK10
Angle Adjustment
- -
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 °F) -30 °C to 60 °C (-22 °F to 140 °F) -30 °C to 60 °C (-22 °F to 140 °F) -30 °C to 60 °C (-22 °F to 140 °F) -30 °C to 60 °C (-22 °F to 140 °F) -30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity
Humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
Local Storage
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Audio I/O
1 input (line in), 1 output (line out),
mono
1 input (line in), 1 output (line out),
mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
Alarm I/O
2 inputs, 2 outputs 2 inputs, 2 outputs
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
Installation
- - - - - -
Power Supply
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed; recommended AC input
24 V, voltage range of 15 to 36 VAC
allowed; two-core terminal block
PoE (802.3af, class 3)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed; recommended AC input
24 V, voltage range of 15 to 36 VAC
allowed; two-core terminal block
PoE (802.3af, class 3)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block
PoE (802.3af, class 3)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block
PoE (802.3af, class 3)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block
PoE (802.3af, class 3)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block
PoE (802.3af, class 3)
NEW
NEW
NEW
NEW
NEW
HOT
010

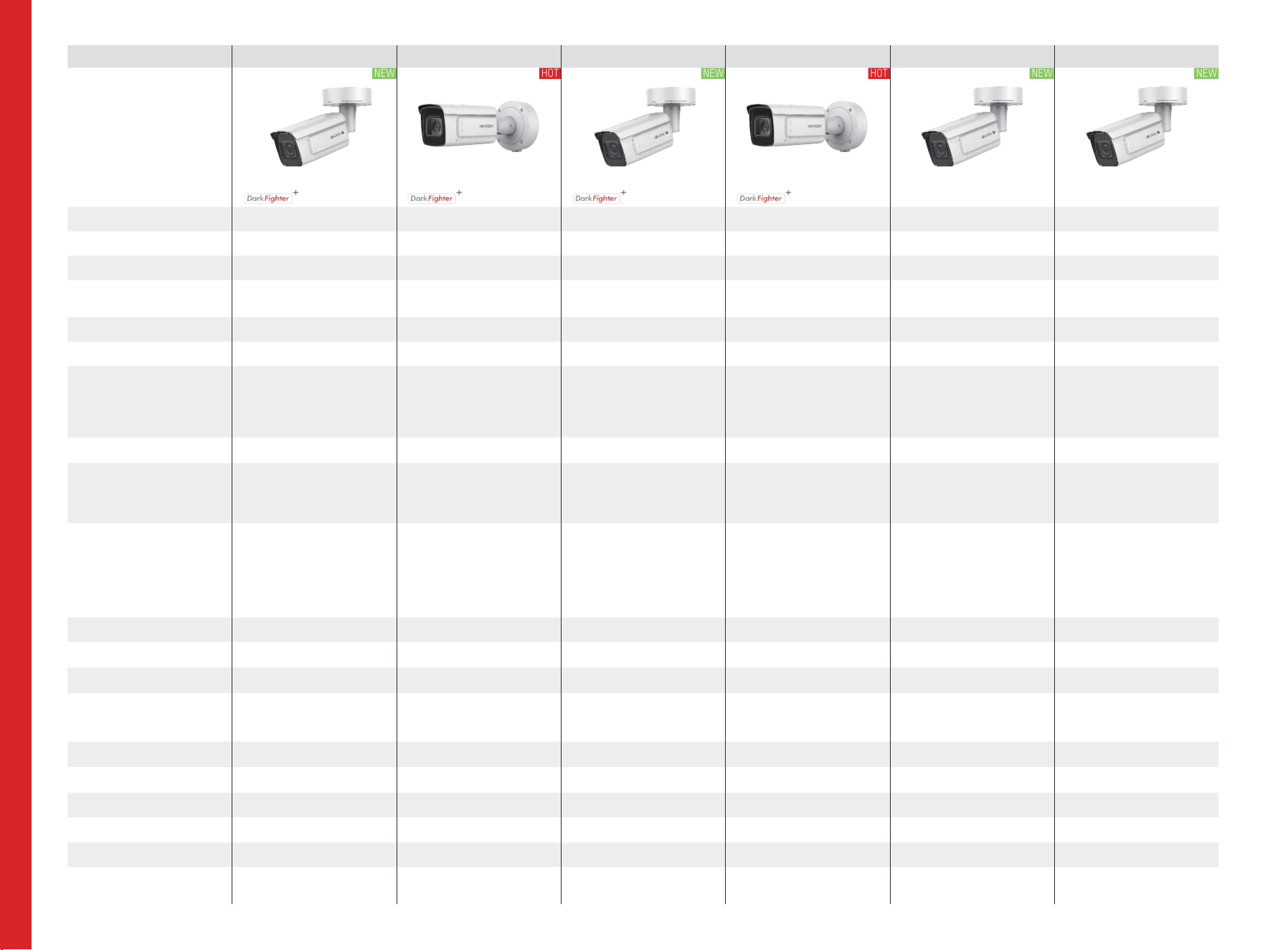

NETWORK CAMERAS
Model
DS-2CD5A26G0-IZ(H)S DS-2CD5A26G0-IZ(H)SY DS-2CD5A46G0-IZ(H)S DS-2CD5A46G0-IZ(H)SY DS-2CD5A85G0-IZ(H)S DS-2CD5AC5G0-IZ(H)S
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8“ Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.7" Progressive Scan CMOS
Max. Resolution
1920×1080 1920×1080 2560 × 1440 2560 × 1440 3840 × 2160 4000×3000
Video Compression
H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG H.265/H.264/MJPEG/H.264+/H.265+ H.265, H.265+, H.264+, H.264,MJPEG H.265/H.264/MJPEG/H.264+/H.265+ H.265, H.265+, H.264+, H.264,MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON),
0.004 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.002 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.002 Lux @ (F1.2, AGC ON),
0.005 Lux @ (F1.8, AGC ON), 0 Lux
with IR on
Color: 0.002 Lux @ (F1.2, AGC ON),
0.005 Lux @ (F1.8, AGC ON), 0 Lux
with IR on
Color: 0.007 Lux @ (F1.2, AGC ON),
0.016 Lux @ (F1.8, AGC ON), 0 Lux
with IR on
Color: 0.008 Lux @ (F1.2, AGC ON), 0
Lux with IR
WDR
140 dB 140 dB 140 dB 140 dB 120 dB DWDR
Lens
2.8 to 12 mm, 8 to 32 mm 2.8 to 12 mm 2.8 to 12 mm, 8 to 32mm 2.8 to 12 mm 2.8 to 12 mm, 8 to 32mm 2.8 to 12 mm
FOV
2.8 to 12 mm, horizontal FOV 103.3°
to 38.6°, vertical FOV 54.2° to 21.9°,
diagonal FOV 124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, vertical FOV 23.4° to 7.7°,
diagonal FOV 49° to 15.3°
2.8 to 12 mm, horizontal FOV 103.3°
to 38.6°, vertical FOV 54.2° to 21.9°,
diagonal FOV 124.2° to 44.3°
2.8 to 12 mm, horizontal FOV 102°
to 38°, vertical FOV 53° to 21.2°,
diagonal FOV 122.2° to 45°
8 to 32 mm, horizontal FOV 37.7°
to 15.2°, vertical FOV 21° to 8.6°,
diagonal FOV 43.4° to 17.24°
2.8 to 12 mm, horizontal FOV 109.2°
to 38.9°, vertical FOV 56.2° to 21.9°,
diagonal FOV 134.5° to 45°
2.8 to 12 mm, horizontal FOV 112.4°
to 41°, vertical FOV 58° to 23°,
diagonal FOV 137° to 47°
8 to 32 mm, horizontal FOV 39° to
15.6°, vertical FOV 21.8° to 8.9°,
diagonal FOV 45° to 17.8°
2.8 to 12 mm, horizontal FOV 101°
to 36.1°, vertical FOV 72° to 27.2°,
diagonal FOV 130° to 45.2°
Max. IR Range (meters)
2.8 to 12 mm lens: up to 50 m
8 to 32 mm lens: 100 m
Up to 50 m
2.8-12mm: Up to 50 m
8-32mm: Up to 100m
Up to 50 m
2.8-12mm: Up to 50 m
8-32mm: Up to 100m
Up to 50 m
VCA
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Frame Rate
50Hz: 50fps (1920×1080, 1280×960,
1280×720)
60Hz: 60fps (1920×1080, 1280×960,
1280×720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720), 50fps (1920 ×
1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720), 60fps (1920 ×
1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 25fps (3840×2160,
3200×1800, 2560×1440, 1920×1080,
1280×720)
60Hz: 30fps (3840×2160,
3200×1800, 2560×1440, 1920×1080,
1280×720)
50Hz: 20fps(4000 × 3000), 25fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
60Hz: 20fps(4000 × 3000), 30fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
Multi-Streaming
5+5 5+5 5+5 5+5 5+5 5+5
Protection Level
IP67, IK10
IP67, IK10, Anti-Corrosion Standard:
NEMA 4X
IP67, IK10
IP67, IK10, Anti-Corrosion Standard:
NEMA 4X
IP67, IK10 IP67, IK10
Angle Adjustment
Bracket, pan: 0° to 355°, tilt: 0° to
90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0° to
75°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0° to
90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0° to
90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0° to
90°, rotate: 0° to 360°
Bracket, pan: 0° to 355°, tilt: 0° to
90°, rotate: 0° to 360°
Startup and Operating
Conditions
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
Operating Humidity
Humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
Local Storage
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Audio I/O
- - - - - -
Alarm I/O
2 inputs, 2 outputs (up to 24 VDC 1A
or 110 VAC 500 mA)
2 inputs, 2 outputs (up to 24 VDC 1A
or 110 VAC 500 mA)
2 inputs, 2 outputs (up to 24 VDC 1A
or 110 VAC 500 mA)
2 inputs, 2 outputs (up to 24 VDC 1A
or 110 VAC 500 mA)
2 inputs, 2 outputs (up to 24 VDC 1A
or 110 VAC 500 mA)
2 inputs, 2 outputs (up to 24 VDC 1A
or 110 VAC 500 mA)
Installation
- - - - - -
Power Supply
12 VDC ± 20%, two-core terminal
block, PoE (802.3at, class 4)
12 VDC ± 20%, three-core terminal
block,PoE (802.3at, class 4)
12 VDC ± 20%, two-core terminal
block
PoE (802.3at, class 4)
12 VDC ± 20%, three-core terminal
block,PoE (802.3at, class 4)
12 VDC ± 20%, two-core terminal
block
PoE (802.3at, class 4)
12 VDC ± 20%, two-core terminal
block
PoE (802.3at, class 4)
NEW
HOT
NEW
NEW
NEW
HOT
011
NETWORK CAMERAS
Model
DS-2CD5526G0-IZ(H)S DS-2CD5526G0-IZ(H)SY DS-2CD5546G0-IZ(H)S DS-2CD5546G0-IZ(H)SY DS-2CD5585G0-IZ(H)S DS-2CD55C5G0-IZ(H)S
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.7" Progressive Scan CMOS
Max. Resolution
1920×1080 1920×1080 2560 × 1440 2560 × 1440 3840 × 2160 4000 × 3000
Video Compression
H.265, H.265+, H.264+, H.264,MJPEG H.265, H.265+, H.264+, H.264,MJPEG H.265/H.264/MJPEG/H.264+/H.265+ H.265, H.265+, H.264+, H.264,MJPEG H.265/H.264/MJPEG/H.264+/H.265+ H.265, H.265+, H.264+, H.264,MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON),
0.004 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.002 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.002 Lux @ (F1.2, AGC ON),
0.005 Lux @ (F1.8, AGC ON), 0 Lux
with IR
Color: 0.002 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.007 Lux @ (F1.2, AGC ON),
0.016 Lux @ (F1.8, AGC ON), 0 Lux
with IR
Color: 0.008 Lux @ (F1.2, AGC ON), 0
Lux with IR
WDR
140 dB 140 dB 140 dB 140 dB 120 dB DWDR
Lens
2.8 to 12 mm/8 to 32 mm 2.8 to 12 mm 2.8 to 12 mm, 8 to 32mm 2.8 to 12 mm 2.8 to 12 mm, 8 to 32mm 2.8 to 12 mm
FOV
2.8 to 12 mm, horizontal FOV 103.3°
to 38.6°, vertical FOV 54.2° to 21.9°,
diagonal FOV 124.2° to 44.3°
8 to 32 mm, horizontal FOV 42.5°
to 13.4°, vertical FOV 23.4° to 7.7°,
diagonal FOV 49° to 15.3°
2.8 to 12 mm, horizontal FOV 103.3°
to 38.6°, vertical FOV 54.2° to 21.9°,
diagonal FOV 124.2° to 44.3°
2.8 to 12 mm, horizontal FOV 109.2°
to 38.9°, vertical FOV 56.2° to 21.9°,
diagonal FOV 134.5° to 45°
8 to 32 mm, horizontal FOV 37.7°
to 15.2°, vertical FOV 21° to 8.6°,
diagonal FOV 43.4° to 17.24°
2.8 to 12 mm, horizontal FOV 109.2°
to 38.9°, vertical FOV 56.2° to 21.9°,
diagonal FOV 134.5° to 45°
2.8 to 12 mm, horizontal FOV 112.4°
to 41°, vertical FOV 58° to 23°,
diagonal FOV 137° to 47°
8 to 32 mm, horizontal FOV 39° to
15.6°, vertical FOV 21.8° to 8.9°,
diagonal FOV 45° to 17.8°
2.8 to 12 mm, horizontal FOV 101°
to 36.1°, vertical FOV 72° to 27.2°,
diagonal FOV 130° to 45.2°
Max. IR Range (meters)
2.8 to 12 mm lens: up to 30 m IR
8 to 32 mm lens: up to 50 m IR
Up to 30 m
2.8-12mm: Up to 30 m
8-32mm: Up to 50m
Up to 30 m
2.8-12mm: Up to 30 m
8-32mm: Up to 50m
Up to 30 m
VCA
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection
Frame Rate
50Hz: 50fps (1920×1080, 1280×960,
1280×720)
60Hz: 60fps (1920×1080, 1280×960,
1280×720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)"
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 25fps (3840×2160,
3200×1080, 2560×1440, 1920×1080,
1080×720)
60Hz: 30fps (3840×2160,
3200×1080, 2560×1440, 1920×1080,
1080×720)"
50Hz: 20fps(4000 × 3000), 25fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
60Hz: 20fps(4000 × 3000), 30fps
(4096 × 2160, 3840 × 2160, 3072
× 1728, 2560 × 1440, 1920 × 1080,
1280 x 720)
Multi-Streaming
5+5 5+5 5+5 5+5 5+5 5+5
Protection Level
IP67, IK10
IP67, IK10
Anti-Corrosion Standard: NEMA 4X
IP67, IK10
IP67, IK10
Anti-Corrosion Standard: NEMA 4X
IP67, IK10 IP67, IK10
Angle Adjustment
Bracket, tilt : 0° to 75°, rotate: 0° to
355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Bracket, tilt: 0° to 75°, rotate: 0° to
355°
Bracket, tilt: 0° to 75°, rotate: 0° to
355°
Startup and Operating
Conditions
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
-30 °C to 65 °C (-22 °F to 149 °F), -H:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-
condensing)
Operating Humidity
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
Local Storage
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Built-in micro SD/SDHC/SDXC slot,
up to 256 GB
Audio I/O
1-ch 3.5 mm input (line in), 1-ch
3.5mm output
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output, mono
1-ch 3.5 mm input (line in), 1-ch
3.5mm output
Alarm I/O
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
1-ch input, 1-ch output (up to 24
VDC 1A or 110 VAC 500 mA)
Installation
- - - - - -
Power Supply
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block,
PoE (802.3at, class 4)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block,
PoE (802.3at, class 4)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block
PoE (802.3at, class 4)
12 VDC is recommended, 10 to 48
VDC, two-core terminal blockPoE
(802.3at, class 4)
Reverse polarity protection
12 VDC is recommended, 10 to
48 VDC, two-core terminal block,
reverse polarity protection
PoE (802.3at, class 4)
Recommended DC input 12 V,
voltage range of 10 to 48 VDC
allowed, two-core terminal block,
PoE (802.3at, class 4)
NEW
NEW
NEW
NEW
HOT
HOT
012

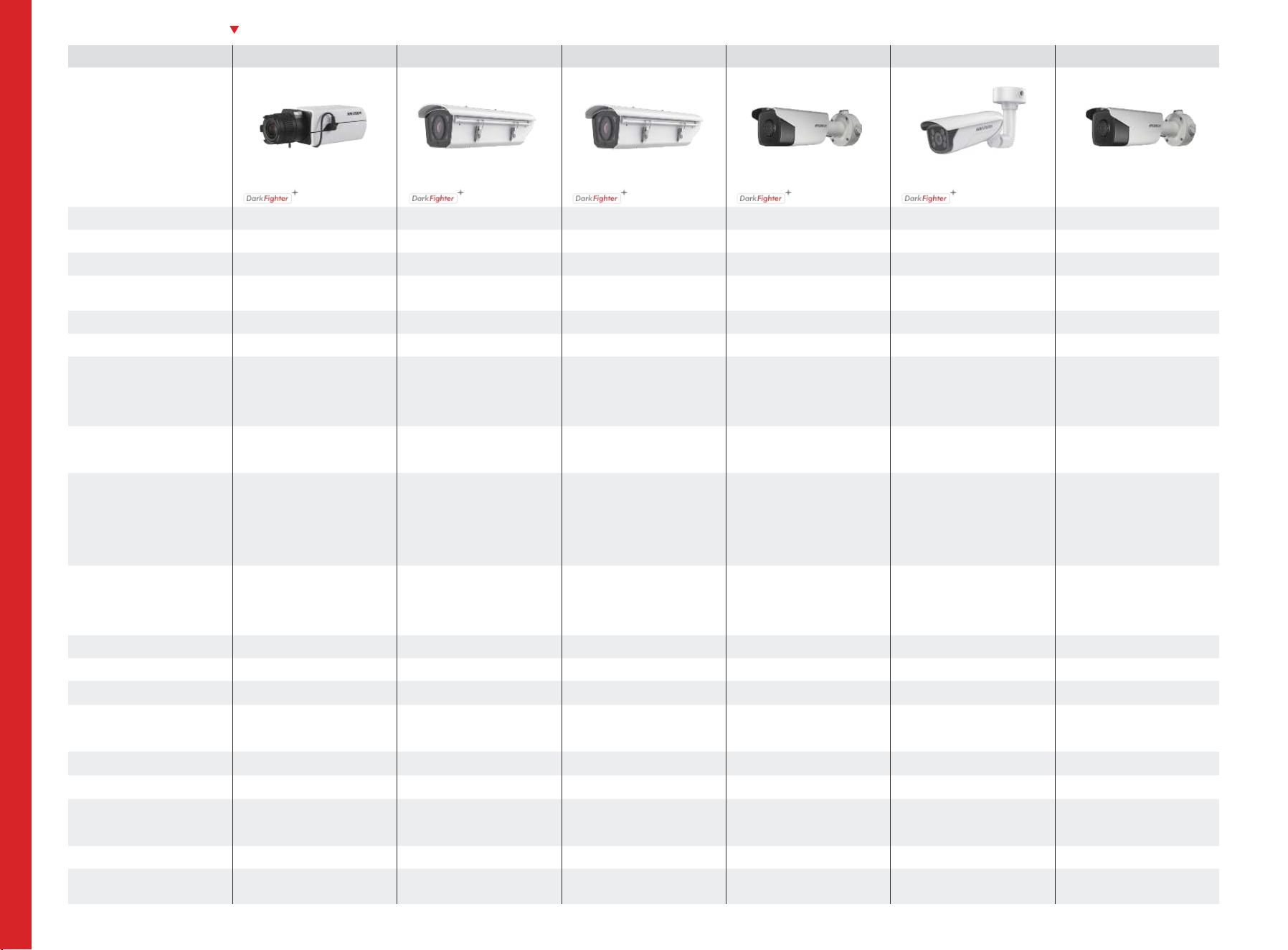

NETWORK CAMERAS
Model
DS-2CD4026FWD-A/P
DS-2CD4026FWD/
P-(HIRA)(IR5)(IRA)(INRA)
DS-2CD4026FWD/P-L
DS-2CD4A26FWD-
(IZ)(IZS)(IZHS)(LZS)/P
DS-2CD4626FWD-IZ(HS)/P DS-2CD4A45G0-IZ(H)S
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/2.5" progressive scan CMOS
Max. Resolution
1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 2560 × 1440
Video Compression
H.264+/H.264/MPEG4/MJPEG H.264+/H.264/MPEG4/MJPEG H.264+/H.264/MPEG4/MJPEG H.264+/H.264/MPEG4/MJPEG H.264+/H.264/MPEG4/MJPEG H.265/H.264/MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON),
B/W: 0.0002 Lux @ (F1.2, AGC ON)
Color: 0.002 Lux @ (F1.2, AGC ON),
B/W: 0.0002 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.002 Lux @ (F1.2, AGC ON),
B/W: 0.0002 Lux @ (F1.2, AGC ON)
Color: 0.002 Lux @ (F1.2, AGC ON),
0.0027 Lux @ (F1.4, AGC ON), 0 Lux
with IR
Color: 0.002 Lux @ (F1.2, AGC ON),
B/W: 0.0027 Lux @ (F1.4, AGC ON), 0
Lux with IR
Color: 0.007 Lux @(F1.2, AGC ON),
0.01 Lux @ (F1.4, AGC ON)
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 90 dB
Lens
- 3.8 mm to 16 mm, 11 mm to 40 mm 3.8-16mm, 11-40mm, 7-33mm 2.8 mm to 12 mm,8 mm to 32 mm 2.8 – 12 mm 4.7 to 94 mm
FOV
-
3.8 mm to 16 mm, horizontal field of
view: 100.6° to 27.3°
11 mm to 40 mm, horizontal field of
view: 35.8° to 11.2°
3.8 mm to 16 mm, horizontal field of
view: 100.6° to 27.3°
11 mm to 40 mm, horizontal field of
view: 35.8° to 11.2°
7 mm to 33 mm, horizontal field of
view: 50.5° to 16.4°
2.8 mm to 12 mm, F1.4, horizontal
field of view: 92° to 32°
8 mm to 32 mm, F1.6, horizontal
field of view: 42° to 13.5°
2.8 mm to 12 mm, F1.4, horizontal
field of view: 92° to 32°
Horizontal FOV 58.248° - 2.896°
Vertical FOV 33.602°- 1.644°
Diagonal FOV 65.868°- 3.31°
Max. IR Range (meters)
-
-IR5:up to 50 m IR range
-IRA:up to 120 m IR range
-INRA:up to 120 m IR range
-HIRA:up to 120 m IR range
-
up to 50 meters for 2.8 to 12 mm
lens, up to 100 m for 8 to 32 mm
lens
Up to 50 m IR range, 850 nm IR
wavelength
150 m
VCA
ANPR ANPR ANPR ANPR ANPR
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection,cene
change detection, defocus
detection, audio exception
detection,Face detection,Counting
Frame Rate
50Hz: 50fps(1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 2304
× 1296, 1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (2560 × 1440, 2304
× 1296, 1920 × 1080, 1280 × 960,
1280 × 720)
Multi-Streaming
3 3 3 3 3 3
Protection Level
IP5X IP66 IP66 IP67 IP66 IP67
Angle Adjustment
- - - - -
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Operating Temperature
-30 °C – 60 °C (-22 °F – 140 °F)
-IR5, -IRA, -INRA: -30 °C to +60 °C
(-22 °F to +140 °F)
-HIRA: -40 °C to +60 °C (-40 °F to
+140°F)
-30 °C – 60 °C (-22 °F – 140 °F)
-IZS/P, -IZ/P, -LZS/P: -30 °C to +60
°C (-22 °F to +140 °F)
-IZHS/P: -40 °C to +60 °C (-40 °F to
+140°F)
IZ/P: -30 °C to +60 °C (-22 °F to +140
°F)
IZHS/P: -40 °C to +60 °C (-40 °F to
+140°F)
-IZS: -30 °C to 60 °C (-22 °F to 140
°F)
-IZ(H)S: -30 °C to 60 °C (-22 °F to 140
°F)
Operating Humidity
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
Humidity 95% or less (non-
condensing)
95% or less (non-condensing)
Local Storage
Built-in Micro SD/SDHC/SDXC slot,
up to 128 GB
Support microSD/SDHC/SDXC card
(128G)
Support microSD/SDHC/SDXC card
(128G)
Built-in microSD/SDHC/SDXC slot, up
to 128 G
Support microSD/SDHC/SDXC card
(128G)
128GB
Audio I/O
1-ch 3.5 mm audio in( Mic in/
Line in)/out interface, 1 build-in
Microphone
1-ch 3.5mm audio input(line in/mic
in), 1-ch 3.5mm audio output
1 build-in microphone(can be turned
off)
1-ch 3.5mm audio input(line in/mic
in), 1-ch 3.5mm audio output
1 build-in microphone(can be turned
off)
With –S model: 1 audio input(line in/
mic in), 1 audio output
With –S model: 1 audio input(line in/
mic in), 1 audio output
1 audio input(line in/mic in), 1 audio
output
Alarm I/O
1 input, 1 output 1 input, 1 output 1 input, 1 output With –S model: 1 input, 1 output With –S model: 1 input, 1 output 1 input, 1 output
Power Supply
12 VDC, 24 VAC, PoE (802.3af, class
4)
Terminal block
24 VAC ± 10%, terminal block 24 VAC ± 10%, terminal block
12 VDC ± 10%, terminal block
PoE (802.3at, class 4)
24 VAC ± 10%, terminal block
PoE (802.3at, class 4)
12 VDC ± 20%, PoE (802.3at, class 4),
three-core terminal blocks
4 Series
013
NETWORK CAMERAS
Model
DS-2CD4B26FWD-IZ(S) DS-2CD4B25G0-IZS DS-2CD4B36FWD-IZ(S) DS-2CD4C26FWD-(A)(P) DS-2CD4C36FWD-(A)(P) DS-2CD4D26FWD-IZ(S)(/V) DS-2CD4D36FWD-IZ(S)(/V)
Image Sensor
1/1.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080 1920 × 1080 2048 × 1536 1920 × 1080 2048 × 1536 1920 × 1080 2048 × 1536
Video Compression
H.265, H.265+, H.264, H.264+ H.265, H.265+, H.264, H.264+ H.265, H.265+, H.264, H.264+ H.265, H.265+, H.264, H.264+ H.265, H.265+, H.264, H.264+ H.265, H.265+, H.264, H.264+ H.265, H.265+, H.264, H.264+
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.0027 Lux @ (F1.4, AGC
ON), 0 Lux with IR
B/W: 0.0002 Lux @ (F1.2, AGC
ON), 0.00027 Lux @ (F1.4, AGC
ON), 0 Lux with IR
0.005 Lux @ (F1.2, AGC
ON),0.007 Lux @ (F1.4, AGC ON)
Color: 0.005 Lux @ (F1.2, AGC
ON), 0.007 Lux @ (F1.4, AGC
ON), 0 Lux with IR
B/W: 0.0005 Lux @ (F1.2, AGC
ON), 0.0007 Lux @ (F1.4, AGC
ON), 0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON)
B/W: 0.0002 Lux @ (F1.2, AGC
ON), 0 Lux with IR
Color: 0.005 Lux @ (F1.2, AGC
ON)
B/W: 0.0005 Lux @ (F1.2, AGC
ON), 0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC
ON), 0.0027 Lux @ (F1.4, AGC
ON), 0 Lux with IR
B/W: 0.0002 Lux @ (F1.2, AGC
ON), 0.00027 Lux @ (F1.4, AGC
ON), 0 Lux with IR
Color: 0.005 Lux @ (F1.2, AGC
ON), 0.007 Lux @ (F1.4, AGC
ON), 0 Lux with IR
B/W: 0.0005 Lux @ (F1.2, AGC
ON), 0.0007 Lux @ (F1.4, AGC
ON), 0 Lux with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.8 – 12 mm 4.7 to 65.8 mm 2.8 to 12 mm - - 2.8 – 12 mm 2.8 to 12 mm
FOV
2.8 – 12 mm F1.4, horizontal
angle of view 90.1° - 31°
4.7 to 65.8 mm @F1.4,
horizontal FOV 54.84° to 3.12°,
vertical FOV 31.62° to 1.76°,
diagonal FOV 62.08° to 3.58°
2.8 to 12 mm F1.4, horizontal
angle of view 88.5° to 32.8°
- -
2.8 – 12 mm F1.4, horizontal
angle of view 90.1° - 31°
2.8 to 12 mm F1.4, horizontal
angle of view 88.5° to 32.8°
Max. IR Range (meters)
10 m to 30 m Up to 120 m 10 m to 30 m - - 10 m to 30 m 10 m to 30 m
VCA
Line crossing detection,
intrusion detection, region
entrance detection, region
exiting detection, unattended
baggage detection, object
removal detection
Line crossing detection,
intrusion detection, region
entrance detection, region
exiting detection, unattended
baggage detection, object
removal detection
Line crossing detection,
intrusion detection, region
entrance detection, region
exiting detection, unattended
baggage detection, object
removal detection
Line crossing detection,
Intrusion detection, Region
entrance, Region exiting,
Unattended baggage, Object
removal
Line crossing detection,
Intrusion detection, Region
entrance, Region exiting,
Unattended baggage, Object
removal
Line crossing detection,
intrusion detection, region
entrance detection, region
exiting detection, unattended
baggage detection, object
removal detection
Line crossing detection,
intrusion detection, region
entrance detection, region
exiting detection, unattended
baggage detection, object
removal detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 25fps (2048 × 1536, 1920
× 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (2048 × 1536, 1920
× 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 25fps (2048 × 1536, 1920
× 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (2048 × 1536, 1920
× 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280
× 960, 1280 × 720)
50Hz: 25fps (2048 × 1536, 1920
× 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (2048 × 1536, 1920
× 1080, 1280 × 960, 1280 ×
720)
Multi-Streaming
3 3 3 3 3 3 3
Protection Level
IP67 IP67 IP67 - - IP66, IK10 IP66, IK10
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 100°,
rotate: 0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°,
rotate: 0° to 360°
Pan: 0° to 360°, tilt: 0° to 100°,
rotate: 0° to 360°
- -
Pan: 0° to 355°, tilt: 0° to 70°,
rotate: 0° to 355°
Pan: 0° to 355°, tilt: 0° to 70°,
rotate: 0° to 355°
Operating Temperature
-30 °C – 60 °C (-22 °F – 140 °F)
-30 °C to 60 °C (-22 °F to 140
°F)
-30 °C – 60 °C (-22 °F – 140 °F) -30 °C – 60 °C (-22 °F – 140 °F) -30 °C – 60 °C (-22 °F – 140 °F) -30 °C – 60 °C (-22 °F – 140 °F) -30 °C – 60 °C (-22 °F – 140 °F)
Operating Humidity
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
humidity 95% or less (non-
condensing)
Local Storage
Support Micro SD/SDHC/SDXC
card (128G)
Support Micro SD/SDHC/SDXC
card (128G)
Built-in micro SD/SDHC/SDXC
slot, up to 128 GB
Built-in Micro SD/SDHC/SDXC
slot, up to 128 GB
Built-in Micro SD/SDHC/SDXC
slot, up to 128 GB
Support Micro SD/SDHC/SDXC
card (128G)
Built-in micro SD/SDHC/SDXC
slot, up to 128 GB
Audio I/O
With –S model: 1 input (line in),
1 output
1 input (line in), 1 output (line
out), mono
With –S model: 1 input (line in),
1 output
1-ch 3.5mm audio input(line
in/mic in), 1-ch 3.5mm audio
output
1 build-in microphone(can be
turned off)
1-ch 3.5mm audio input(line
in/mic in), 1-ch 3.5mm audio
output
1 build-in microphone(can be
turned off)
With –S model: 1 input (line in),
1 output, dual-track
With –S model: 1 input (line in),
1 output, dual-track
Alarm I/O
With –S model: 1 input, 1
output(up to 24 VDC 1A or 110
VAC 500mA)
1 input, 1 output (up to 24 VDC
1A or 110 VAC 500mA)
With –S model: 1 input, 1
output (up to 24 VDC 1 A or 110
VAC 500 mA)
1 input, 1 output (up to 24 VDC
1A or 110 VAC 500mA)
1 input, 1 output (up to 24 VDC
1A or 110 VAC 500mA)
With –S model: 2 input, 2
outputs(up to 24 VDC 1A or 110
VAC 500mA)
With –S model: 2 input, 2
outputs(up to 24 VDC 1A or 110
VAC 500mA)
Power Supply
12 V DC ± 20%, PoE (802.3at,
class 4)
12 VDC ± 20%, PoE (802.3at,
class 4)
12 VDC ± 20%, PoE (802.3at,
class 4)
12 VDC ± 25%, 24 VDC ± 25%,
PoE (802.3af, class 3)
Terminal block
12 VDC ± 25%, 24 VDC ± 25%,
PoE (802.3af, class 3)
Terminal block
12 V DC ± 20%, PoE (802.3af,
class 3)
Terminal block for DC input
12 VDC ± 20%, PoE (802.3af,
class 3)
Terminal block for DC input
014

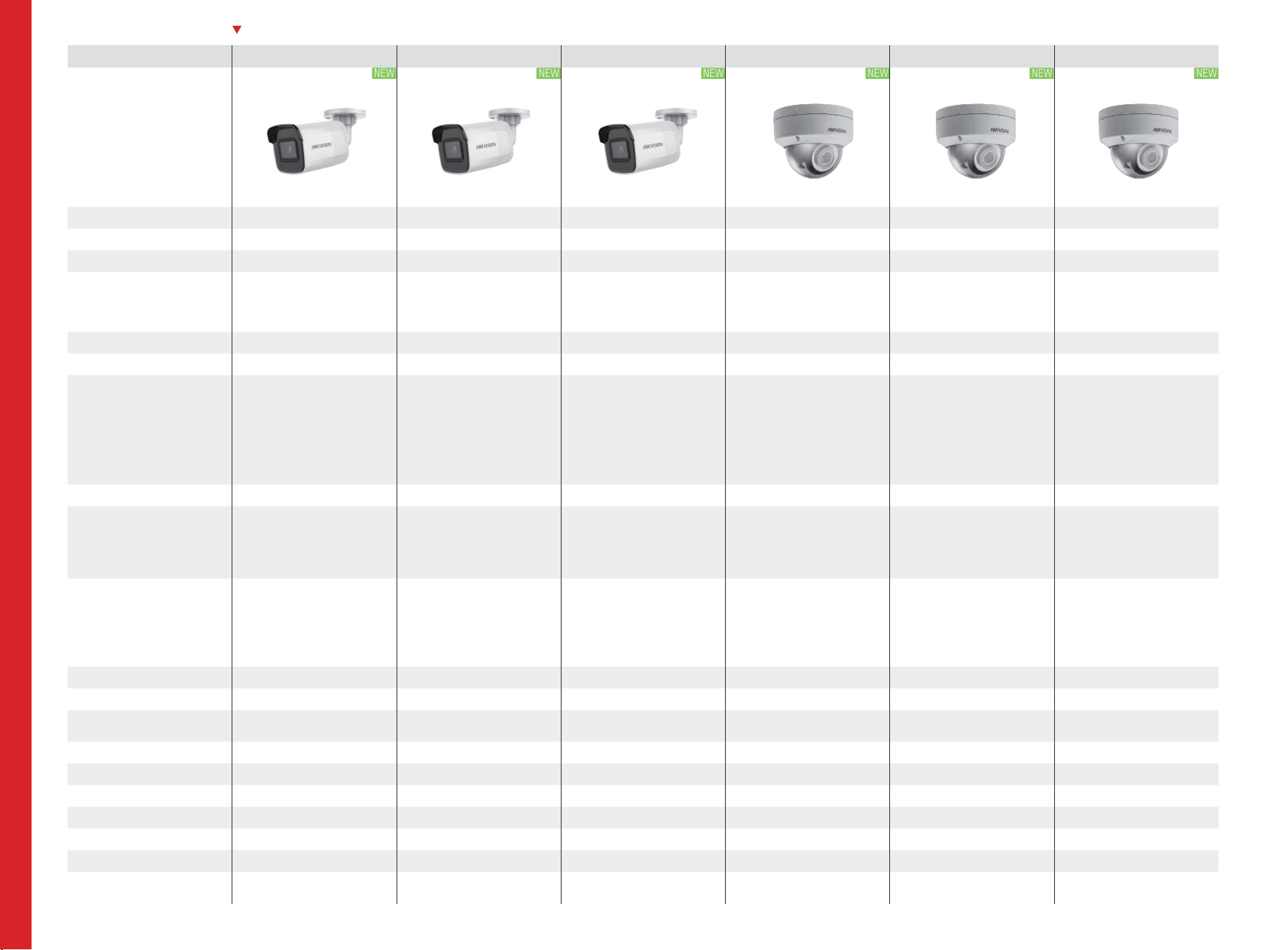

NETWORK CAMERAS
Model
DS-2CD3025G0-I(B) DS-2CD3045G0-I(B) DS-2CD3085G0-I(B) DS-2CD3125G0-IS DS-2CD3145G0-IS DS-2CD3185G0-IS
Image Sensor
1/2.8" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS 1/2" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS
Max. Resolution
1920 × 1080 2688 × 1520 3840 × 2160 1920 × 1080 2688 × 1520 3840 × 2160
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.009 Lux @ (F1.6, AGC ON), 0
Lux with IR
Color: 0.018 Lux @(F1.6, AGC ON), 0
Lux with IR
Color: 0.016 Lux @(F1.6, AGC ON), 0
Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0
Lux with IR
Color: 0.01 lux @ (F1.2, AGC ON),
0.018 lux @ (F1.6, AGC ON), 0 lux
with IR
Color: 0.01 lux @(F1.2, AGC ON),
0.028 Lux @(F2.0, AGC ON), 0 lux
with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.8 mm, 4 mm, 6 mm 2.8 mm, 4 mm, 6 mm 2.8 mm, 4 mm, 6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm
FOV
2.8 mm, horizontal field of view:
108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
2.8 mm, horizontal FOV: 109°,
vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical
FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical
FOV: 30°, diagonal FOV: 61°
2.8 mm, horizontal FOV: 102°,
vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical
FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical
FOV: 27°, diagonal FOV: 59°
2.8 mm, horizontal field of view:
108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
2.8 mm, horizontal FOV: 109°,
vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical
FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical
FOV: 30°, diagonal FOV: 61°
2.8 mm, horizontal field of view:
102°
4 mm, horizontal field of view: 79°
6 mm, horizontal field of view: 50°
Max. IR Range (meters)
Up to 40 m Up to 40 m Up to 40 m Up to 40 m Up to 40 m Up to 40 m
VCA
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Frame Rate
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 20 fps (3840 × 2160), 25 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 20 fps (3840 × 2160), 25 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
Multi-Streaming
3 3 3 3 3 3
Protection Level
IP67,IK10 IP67,IK10 IP67,IK10 IP67,IK10 IP67,IK10 IP67,IK10
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 355° , tilt: 0° to 75°,
rotate: 0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
- - - 1 in, 1 out 1 in, 1 out 1 in, 1 out
Alarm I/O
- - - 1 in, 1 out 1 in, 1 out 1 in, 1 out
Installation
- - - - - -
Power Supply
12 VDC ± 25%, 5W
PoE(802.3af, class 3), 6.5W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 6W
PoE(802.3af, class 3), 7.5W
12 VDC ± 25%, 5W
PoE(802.3af, class 3), 6.5W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 6.2W
PoE(802.3af, class 3), 9W
3 Series
NEW
NEW
NEW
NEW
NEW
NEW
015

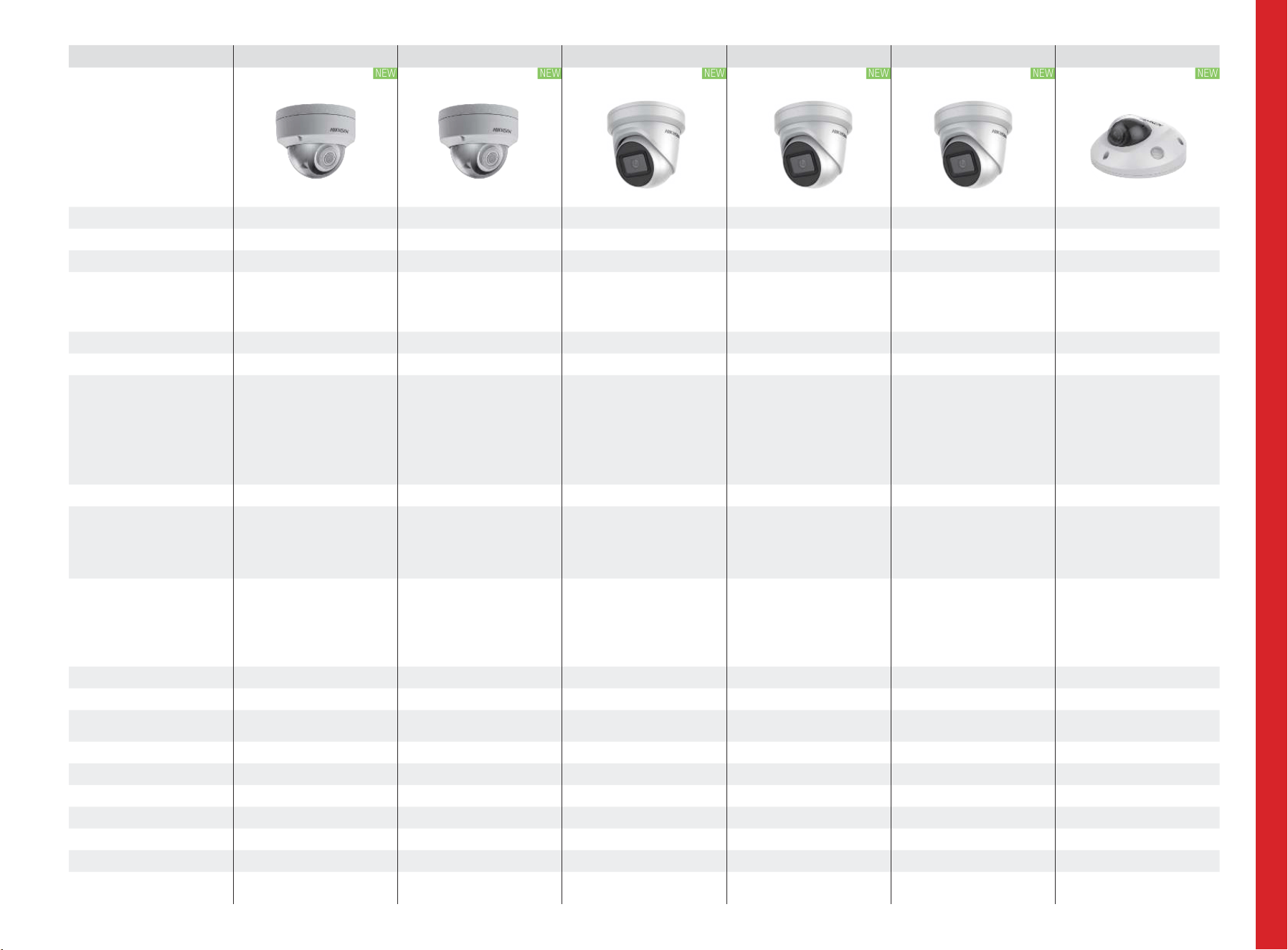

NETWORK CAMERAS
Model
DS-2CD3125G0-IMS DS-2CD3185G0-IMS DS-2CD3325G0-I(B) DS-2CD3345G0-I(B) DS-2CD3385G0-I(B) DS-2CD3525G0-IS
Image Sensor
1/2.8" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS 1/2" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080 3840 × 2160 1920 × 1080 2688 × 1520 3840 × 2160 1920 × 1080
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.009 Lux @ (F1.6, AGC ON), 0
Lux with IR
Color: 0.028 Lux @(F2.0, AGC ON), 0
Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0
Lux with IR
Color: 0.014 Lux @(F1.6, AGC ON), 0
Lux with IR
Color: 0.014 Lux @(F1.6, AGC ON), 0
Lux with IR
Color: 0.005 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.009 lux @(F1.6, AGC ON), 0
lux with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.8mm, 4mm, 6mm 2.8mm, 4mm, 6mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8mm, 4mm, 6mm 2.8 mm,4 mm,6 mm
FOV
2.8mm, horizontal FOV: 108°, vertical
FOV: 58°, diagonal FOV: 128°
4mm, horizontal FOV: 86°, vertical
FOV: 46°, diagonal FOV: 103°
6mm, horizontal FOV: 52°, vertical
FOV: 29°, diagonal FOV: 60°
2.8mm, horizontal FOV: 102°, vertical
FOV: 53°, diagonal FOV: 124°
4mm, horizontal FOV: 79°, vertical
FOV: 42°, diagonal FOV: 95°
6mm, horizontal FOV: 50°, vertical
FOV: 28°, diagonal FOV: 59°
2.8 mm, horizontal field of view:
108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
2.8 mm, horizontal FOV: 109°,
vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical
FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical
FOV: 30°, diagonal FOV: 61°
2.8mm, horizontal FOV: 102°, vertical
FOV: 55°, diagonal FOV: 120°
4mm, horizontal FOV: 78°, vertical
FOV: 43°, diagonal FOV: 92°
6mm, horizontal FOV: 50°, vertical
FOV: 27°, diagonal FOV: 59°
2.8 mm: Horizontal field of view:
108°, Vertical field of view: 59°,
Diagonal field of view: 129°
4 mm: Horizontal field of view: 87°,
Vertical field of view: 45°, Diagonal
field of view: 102°
6 mm: Horizontal field of view: 53°,
Vertical field of view: 29°, Diagonal
field of view: 60°
Max. IR Range (meters)
Up to 40 m Up to 40 m Up to 40 m Up to 40 m Up to 40 m Up to 15 m
VCA
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Frame Rate
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 20 fps (3840 × 2160), 25 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 20 fps (3840 × 2160), 25 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
2 2 3 3 3 3
Protection Level
IK10 IK10 IP67 IP67 IP67 IP66, IK08
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 360°, tilt: 0° to 75°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 75°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 75°, rotate:
0° to 360°
Pan: -30° to +30°, tilt: 0° to 75°,
rotate: 0° to 360°
Operating Temperature
-10 °C to +40 °C (14 °F to +104 °F) -10 °C to +40 °C (14 °F to +104 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
1 in, 1 out 1 in, 1 out - - - 1 built-in mic, 1 out
Alarm I/O
1 in, 1 out 1 in, 1 out - - - 1 in, 1 out
Installation
- - - - - -
Power Supply
12 VDC ± 20%, 7W
PoE (802.3af, class 3), 8.5W
12 VDC ± 20%, 7W
PoE (802.3af, class 3), 8.5W
12 VDC ± 25%, 6W
PoE(802.3af, 36 – 57V, class 3), 7W
12 VDC ± 25%, 6W
PoE(802.3af, 36 – 57V, class 3), 7.5W
12 VDC ± 25%, 7.5W
PoE (802.3af, class 3), 9W
12 VDC ± 25%, 7.5W
PoE(802.3af, 36 – 57V, class 3), 9.5W
NEW
NEW
NEW
NEW
NEW
NEW
016
NETWORK CAMERAS
Model
DS-2CD3545G0-IS DS-2CD3625G0-IZS DS-2CD3645G0-IZS DS-2CD3685G0-IZS DS-2CD3725G0-IZS DS-2CD3745G0-IZS
Image Sensor
1/2.7" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS 1/2" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS
Max. Resolution
2688 × 1520 1920 × 1080 2688 × 1520 3840 × 2160 1920 × 1080 2688 × 1520
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.008 lux @ (F1.2, AGC ON), 0
lux with IR
Color: 0.014 lux @ (F1.6, AGC ON), 0
lux with IR
Color: 0.005 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.0068 Lux @ (F1.4, AGC ON),
0 Lux with IR
Color: 0.008 lux @(F1.2, AGC ON),
0.011 lux @(F1.4, AGC ON), 0 lux with
IR
Color: 0.008 Lux @ (F1.2, AGC ON),
0.011 Lux @ (F1.4, AGC ON)
Color: 0.005 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.0068 Lux @ (F1.4, AGC ON),
0 Lux with IR
Color: 0.008 lux @(F1.2, AGC ON),
0.011 lux @(F1.4, AGC ON), 0 lux with
IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.8 mm,4 mm,6 mm 2.7 to 13.5 mm 2.7 to 13.5 mm 2.7 to 13.5 mm 2.7 to 13.5 mm 2.7 to 13.5 mm
FOV
2.8 mm, horizontal FOV: 109°,
vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical
FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical
FOV: 30°, diagonal FOV: 61°
Horizontal field of view: 105° to 35°
Vertical field of view: 56° to 20°
Diagonal field of view: 126° to 40.5°
Horizontal FOV: 114° to 32°, Vertical
FOV: 59° to 18°, Diagonal FOV: 141°
to 36.5°
Horizontal field of view: 114° to 44°
Vertical field of view: 61° to 25°
Diagonal field of view: 136° to 50°
Horizontal field of view: 105° to 35°
Vertical field of view: 56° to 20°
Diagonal field of view: 126° to 40.5°
Horizontal field of view: 114° to 32°
Vertical field of view: 59° to 18°
Diagonal field of view: 141° to 36.5°
Max. IR Range (meters)
Up to 15 m Up to 60 m Up to 60 m Up to 60 m Up to 40 m Up to 40 m
VCA
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Frame Rate
50Hz: 25fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280×720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280×720)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 20 fps (3840 × 2160), 25 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280×720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280×720)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
Multi-Streaming
3 3 3 3 3 3
Protection Level
IP66,2K08 IP67, IK10 IP67, IK10 IP67, IK10 IP67, IK10 IP67, IK10
Angle Adjustment
Pan: -30° to +30°, tilt: 0° to 75°,
rotate: 0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
1 built-in mic, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out
Alarm I/O
1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out
Installation
- - - - - -
Power Supply
12 VDC ± 25%, 8.5W
PoE (802.3af, 36V to 57V), 10W
12 VDC ± 25%, 15.5W
PoE(802.3at, 42.5V to 57V), 17.5W
12 VDC ± 25%, 14.4W
PoE(802.3at, 42.5V to 57V), 18W
12 VDC ± 25%, 14.5W
PoE (802.3at, class 4), 18W
12 VDC ± 25%, 9.5W
PoE(802.3af, 36V to 57V), 11W
12 VDC ± 25%, 11W
PoE(802.3af, 36V to 57V), 12.5W
NEW
NEW
NEW
NEW
NEW
NEW

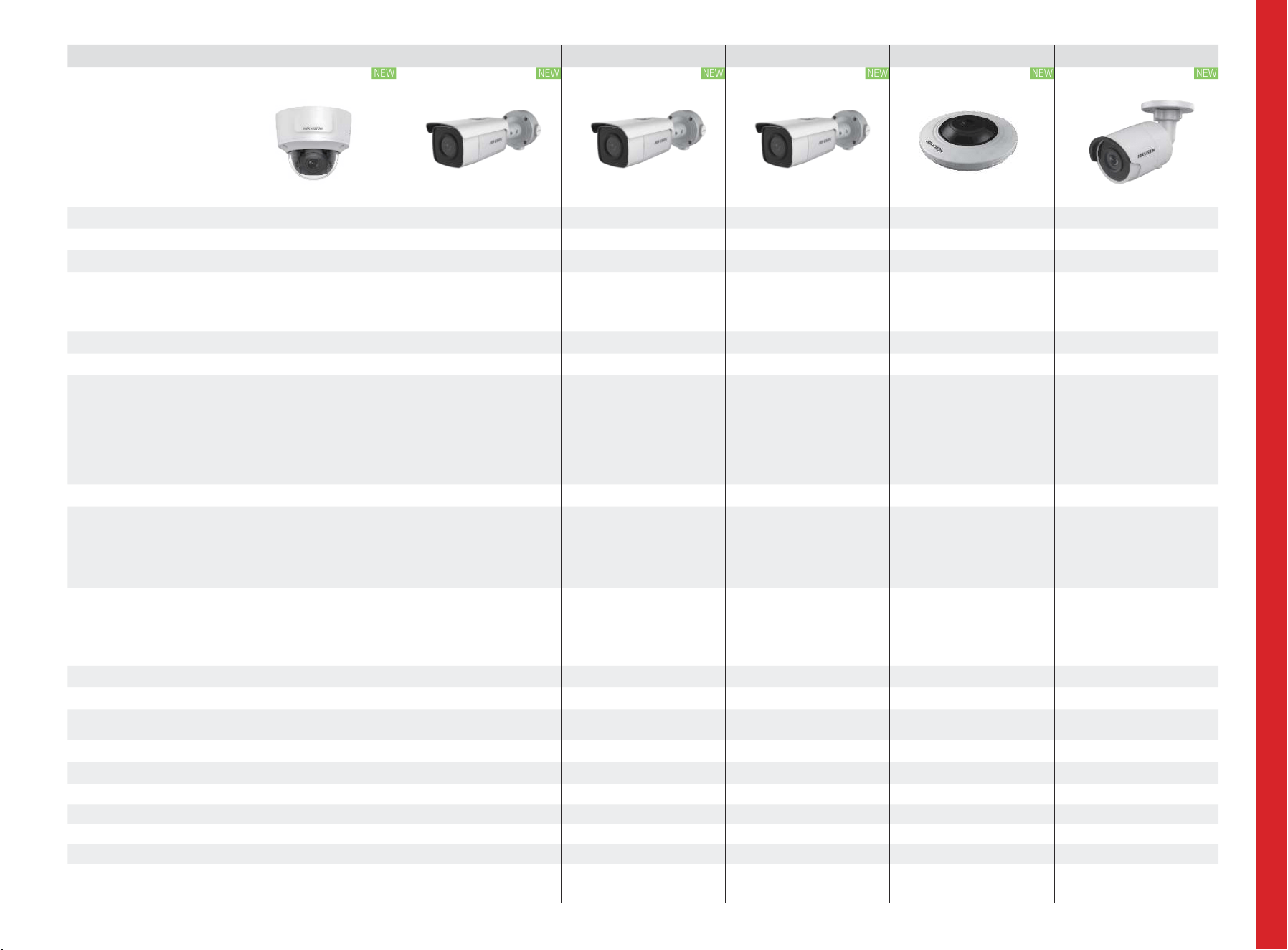

017
NETWORK CAMERAS
Model
DS-2CD3785G0-IZS DS-2CD3T25G0-4IS(B) DS-2CD3T45G0-4IS(B) DS-2CD3T85G0-4IS(B) DS-2CD3955G0-IS DS-2CD3023G0-I
Image Sensor
1/2" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS 1/2.5" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160 1920 × 1080 2688 × 1520 2688 × 1520 2560 × 1920 1920 × 1080
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.008 Lux @ (F1.2, AGC ON),
0.011 Lux @ (F1.4, AGC ON)
Color: 0.005 Lux @ (F1.2, AGC ON), 0
Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0
Lux with IR
Color: 0.008 lux @(F1.2, AGC ON),
0.014 lux @(F1.6, AGC ON), 0 lux with
IR
Color: 0.008 lux @(F1.2, AGC ON),
0.014 lux @(F1.6, AGC ON), 0 lux with
IR
Color: 0.01Lux @ (F1.2, AGC ON),
0.034Lux @ (F2.2, AGC ON), 0 Lux
with IR on
Color: 0.01 Lux @ (F1.2, AGC ON),
0.028 Lux @ (F2.0, AGC ON), 0 Lux
with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.7 to 13.5 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 1.05mm 2.8 mm,4 mm,6 mm
FOV
Horizontal field of view: 112° to 46°
Vertical field of view: 60° to 26°
Diagonal field of view: 133° to 53°
2.8 mm, horizontal field of view:
108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
2.8 mm, horizontal FOV: 109°,
vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical
FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical
FOV: 30°, diagonal FOV: 61°
2.8 mm, horizontal FOV: 109°,
vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical
FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical
FOV: 30°, diagonal FOV: 61°
1.05mm, horizontal FOV: 180°,
vertical FOV: 180°
2.8 mm, horizontal FOV: 103°,
vertical FOV: 59°, diagonal FOV: 118°
4 mm, horizontal FOV: 86°, vertical
FOV: 46°, diagonal FOV: 102°
6 mm, horizontal FOV: 54°, vertical
FOV: 30°, diagonal FOV: 62°
Max. IR Range (meters)
Up to 40 m Up to 90 m Up to 90 m Up to 90 m Up to 25 m Up to 40 m
VCA
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Frame Rate
50Hz: 20 fps (3840 × 2160), 25 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps
(3072 × 1728, 2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 25 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 ×
1296, 1920 × 1080)
50Hz: 25fps (2560 × 1920, 2048 ×
1536, 1280 × 960)
60Hz: 30fps (2560 × 1920, 2048 ×
1536, 1280 × 960)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
3 3 3 3 2 3
Protection Level
IP67, IK10 IP67 IP67 IP67 - IP67
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 360°, tilt: 0° to 100°,
rotate: 0° to 360°
Pan: 0° to 360°, tilt: 0° to 100°,
rotate: 0° to 360°
Pan: 0° to 360°, tilt: 0° to 100°,
rotate: 0° to 360°
-
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -10 °C to +50 °C (14 °F to +122 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out -
Alarm I/O
1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out 1 in, 1 out -
Installation
- - - - - -
Power Supply
12 VDC ± 25%, 10.5W
PoE (802.3af, class 3), 12.5W
12 VDC ± 25%, 10 W;
PoE, 12.5 W"
12 VDC ± 25%, 11.5W
PoE(802.3af, 36 – 57V, class 3),
12.9W
12 VDC ± 25%, 11.5W
PoE(802.3af, 36 – 57V, class 3),
12.9W
12 VDC ± 25%, 5W
PoE (802.3af 36-57V, class 3), 6.7W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
NEW
NEW
NEW
NEW
NEW
NEW
018
NETWORK CAMERAS

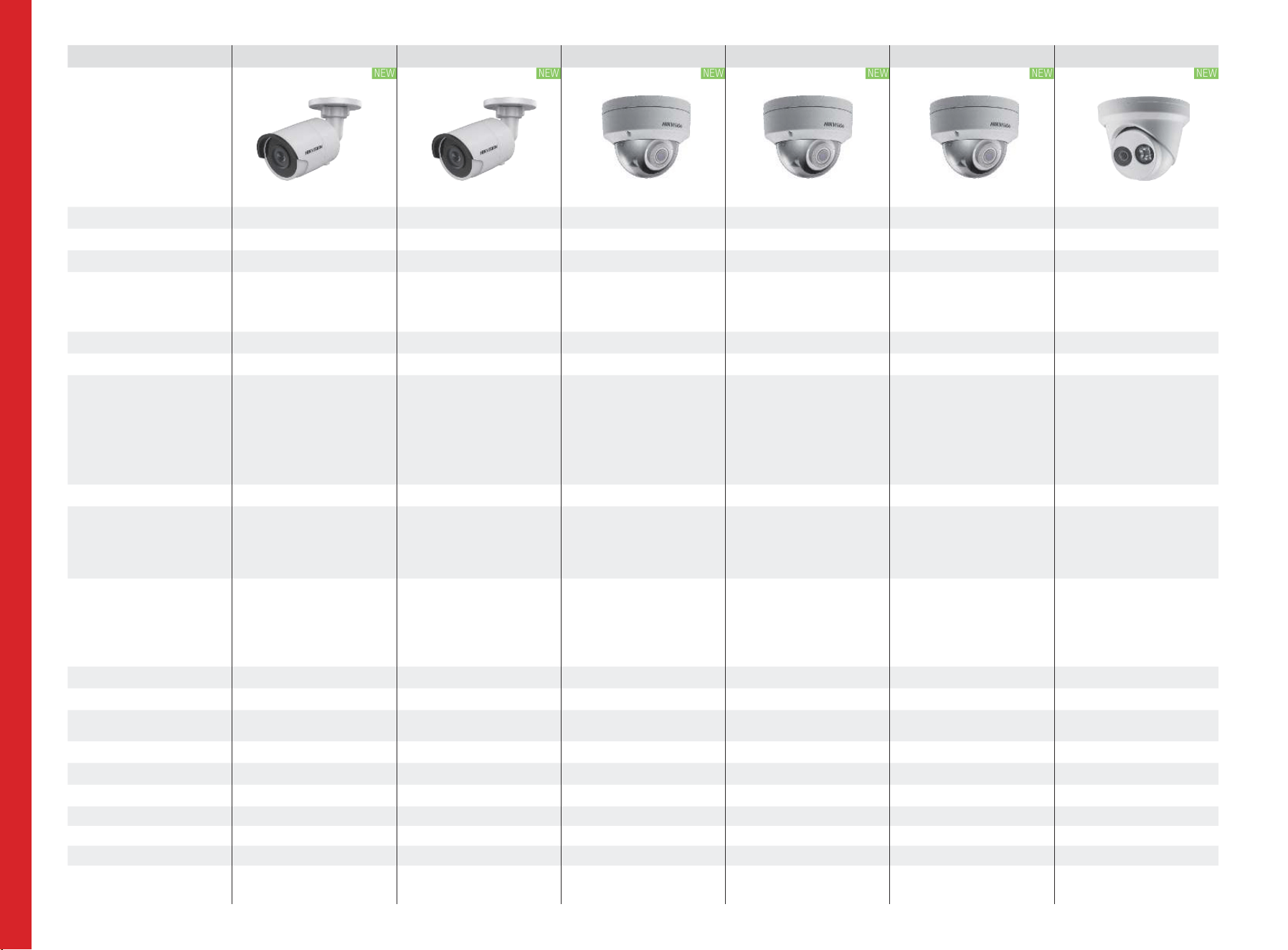

Model
DS-2CD3043G0-I DS-2CD3063G0-I DS-2CD3123G0-I(S) DS-2CD3143G0-I(S) DS-2CD3163G0-I(S) DS-2CD3323G0-I
Image Sensor
1/3" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520 3072 × 2048 1920 × 1080 2688 × 1520 3072 × 2048 1920 × 1080
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.01 lux @(F1.2, AGC ON),
0.028 lux @(F2.0, AGC ON), 0 lux with
IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.028 Lux @ (F2.0, AGC ON), 0 Lux
with IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.01 lux @(F1.2, AGC ON),
0.028 lux @(F2.0, AGC ON), 0 lux with
IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.028 Lux @ (F2.0, AGC ON), 0 Lux
with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm
FOV
2.8 mm, horizontal FOV: 103°,
vertical FOV: 58°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical
FOV: 45°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical
FOV: 29°, diagonal FOV: 58°
2.8 mm, horizontal FOV: 97°, vertical
FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical
FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical
FOV: 39°, diagonal FOV: 75°
2.8 mm, horizontal FOV: 114°,
vertical FOV: 62°, diagonal FOV: 135°
4 mm, horizontal FOV: 86°, vertical
FOV: 46°, diagonal FOV: 102°
6 mm, horizontal FOV: 54°, vertical
FOV: 30°, diagonal FOV: 62°
2.8 mm, horizontal FOV: 103°,
vertical FOV: 58°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical
FOV: 45°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical
FOV: 29°, diagonal FOV: 58°
2.8 mm, horizontal FOV: 97°, vertical
FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical
FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical
FOV: 39°, diagonal FOV: 75°
2.8 mm, horizontal FOV: 114°,
vertical FOV: 62°, diagonal FOV: 135°
4 mm, horizontal FOV: 86°, vertical
FOV: 46°, diagonal FOV: 102°
6 mm, horizontal FOV: 54°, vertical
FOV: 30°, diagonal FOV: 62°
Max. IR Range (meters)
Up to 40 m Up to 40 m Up to 40 m Up to 40 m Up to 40 m Up to 40 m
VCA
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Frame Rate
50Hz:25fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
50Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 25 fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 30fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz:25fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
50Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 25 fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 30fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
3 3 3 3 3 3
Protection Level
IP67 IP67 IP67, IK10 IP67, IK10 IP67, IK10 IP67
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Pan: 0° to 360°, tilt: 0° to 75°, rotate:
0° to 360°
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
- - With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out -
Alarm I/O
- - With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out -
Installation
- - - - - -
Power Supply
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 6W
PoE (802.3af, class 3), 7.5W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 7.5W
PoE (802.3af, 37V to 57V), 9W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
NEW
NEW
NEW
NEW
NEW
NEW
019
NETWORK CAMERAS
Model
DS-2CD3343G0-I DS-2CD3363G0-I DS-2CD3623G1-IZ(S) DS-2CD3643G1-IZ(S) DS-2CD3663G1-IZ(S) DS-2CD3723G1-IZ(S)
Image Sensor
1/3" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520 3072 × 2048 1920 × 1080 2688 × 1520 3072 × 2048 1920 × 1080
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.01 lux @(F1.2, AGC ON),
0.028 lux @(F2.0, AGC ON), 0 lux with
IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux
with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.8 mm,4 mm,6 mm 2.8 mm,4 mm,6 mm 2.7 to 13.5 mm 2.7 to 13.5 mm 2.7 to 13.5 mm 2.7 to 13.5 mm
FOV
2.8 mm, horizontal FOV: 103°,
vertical FOV: 58°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical
FOV: 45°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical
FOV: 29°, diagonal FOV: 58°
2.8 mm, horizontal FOV: 97°, vertical
FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical
FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical
FOV: 39°, diagonal FOV: 75°
horizontal FOV: 110° to 31°
vertical FOV: 58° to 18°
diagonal FOV: 136° to 36°
horizontal FOV: 104° to 29°
vertical FOV: 55° to 17°
diagonal FOV: 125° to 34°
Horizontal field of view: 88° to 27°
Vertical field of view: 56° to 18°
Diagonal field of view: 110° to 33°
horizontal FOV: 110° to 31°
vertical FOV: 58° to 18°
diagonal FOV: 136° to 36°
Max. IR Range (meters)
Up to 40 m Up to 40 m Up to 60 m Up to 60 m Up to 60 m Up to 40 m
VCA
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal
detection,face detection,scene
change detection
Frame Rate
50Hz:25fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
50Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 25 fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 30fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz:25fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 ×
1440, 2304 × 1296, 1920 × 1080)
50Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 25 fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 ×
1728, 2944 × 1656), 30fps (2560 ×
1440, 1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
3 3 3 3 3 3
Protection Level
IP67 IP67 IP67 IP67 IP67 IP67, IK10
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 75°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 360°, tilt: 0° to 90°, rotate:
0° to 360°
Pan: 0° to 355°, tilt: 0° to 90°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate:
0° to 355°
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
- - With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out
Alarm I/O
- - With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out
Installation
- - - - - -
Power Supply
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 6W
PoE (802.3af, 37V to 57V), 7.5W
12 VDC ± 25%, 14.5W
PoE (802.3at, 42.5V to 57V), 18W
12 VDC ± 25%, 14.5W
PoE (802.3at, 42.5V to 57V), 18W
12 VDC ± 25%, 14.5W
PoE (802.3at, 42.5V to 57V), 18W
12 VDC ± 25%, 10W
PoE (802.3af, 37V to 57V), 12W
NEW
NEW
NEW
NEW
NEW
NEW

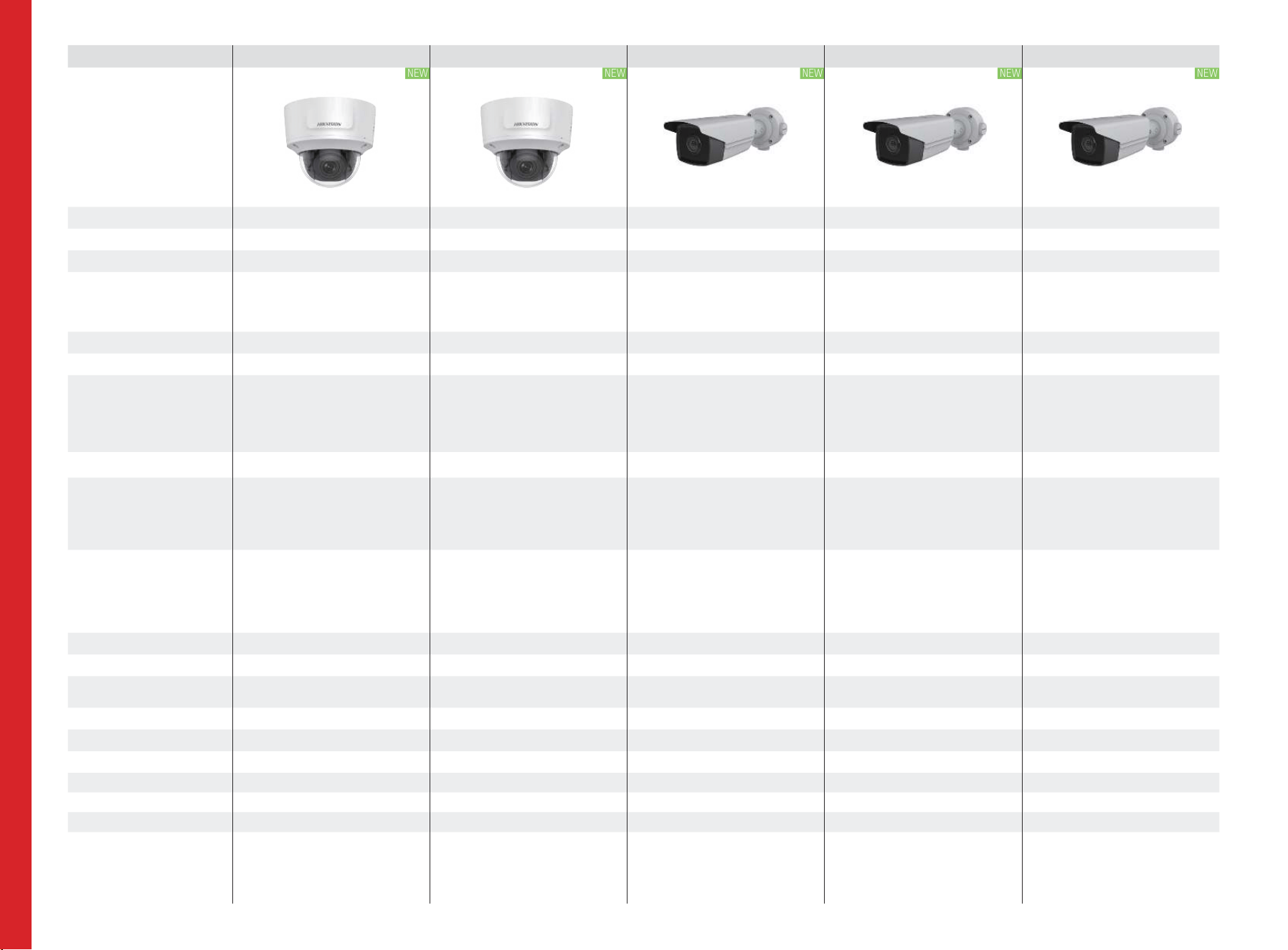

020
NETWORK CAMERAS
Model
DS-2CD3743G1-IZ(S) DS-2CD3763G1-IZ(S) DS-2CD3T23G0-2I(S)/4I(S) DS-2CD3T43G0-2I(S)/4I(S) DS-2CD3T63G0-2I(S)/4I(S)
Image Sensor
1/3" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS
Max. Resolution
2688 × 1520 3072 × 2048 1920 × 1080 2688 × 1520 3072 × 2048
Video Compression
H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+ H.265/H.264/MJPEG/H.264+/H.265+
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux
@ (F1.6, AGC ON), 0 Lux with IR
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux
@ (F1.6, AGC ON), 0 Lux with IR
Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with
IR
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux
@ (F1.6, AGC ON), 0 Lux with IR
Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @
(F2.0, AGC ON), 0 lux with IR
WDR
120 dB 120 dB 120 dB 120 dB 120 dB
Lens
2.7 to 13.5 mm 2.7 to 13.5 mm 2.8mm, 4mm, 6mm 2.8mm, 4mm, 6mm 2.8mm, 4mm, 6mm
FOV
horizontal FOV: 104° to 29°
vertical FOV: 55° to 17°
diagonal FOV: 125° to 34°
Horizontal field of view: 88° to 27°
Vertical field of view: 56° to 18°
Diagonal field of view: 110° to 33°
2.8mm, horizontal FOV: 114°, vertical FOV:
62°, diagonal FOV: 135°
4mm, horizontal FOV: 86°, vertical FOV: 46°,
diagonal FOV: 102°
6mm, horizontal FOV: 54°, vertical FOV: 30°,
diagonal FOV: 62°
2.8mm, horizontal FOV: 103°, vertical FOV:
58°, diagonal FOV: 123°
4mm, horizontal FOV: 83°, vertical FOV: 45°,
diagonal FOV: 99°
6mm, horizontal FOV: 51°, vertical FOV: 29°,
diagonal FOV: 58°
2.8mm, horizontal FOV: 97°, vertical FOV: 63°,
diagonal FOV: 120°
4mm, horizontal FOV: 78°, vertical FOV: 50°,
diagonal FOV: 97°
6mm, horizontal FOV: 60°, vertical FOV: 39°,
diagonal FOV: 75°
Max. IR Range (meters)
Up to 40 m Up to 40 m
-2I: Up to 60 m
-4I: Up to 90 m
-2I: Up to 60 m
-4I: Up to 90 m
-2I: Up to 60 m
-4I: Up to 90 m
VCA
Line crossing detection, intrusion detection,
unattended baggage detection, object
removal detection,face detection,scene
change detection
Line crossing detection, intrusion detection,
unattended baggage detection, object
removal detection,face detection,scene
change detection
Line crossing detection, intrusion detection,
unattended baggage detection, object
removal detection,face detection,scene
change detection
Line crossing detection, intrusion detection,
unattended baggage detection, object
removal detection,face detection,scene
change detection
Line crossing detection, intrusion detection,
unattended baggage detection, object
removal detection,face detection,scene
change detection
Frame Rate
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304
× 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304
× 1296, 1920 × 1080)
50Hz: 20 fps (3072 × 2048, 3072 × 1728,
2944 × 1656), 25 fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728,
2944 × 1656), 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280
× 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280
× 720)
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304
× 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304
× 1296, 1920 × 1080)
50Hz: 20 fps (3072 × 2048, 3072 × 1728,
2944 × 1656), 25 fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728,
2944 × 1656), 30fps (2560 × 1440, 1920 ×
1080, 1280 × 720)
Multi-Streaming
3 3 3 3 3
Protection Level
IP67, IK10 IP67, IK10 IP67 IP67 IP67
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to
355°
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to
355°
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to
360°
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to
360°
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to
360°
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
95% or less 95% or less 95% or less 95% or less 95% or less
Local Storage
128 GB 128 GB 128 GB 128 GB 128 GB
Audio I/O
With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out
Alarm I/O
With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out With –S model: 1 in, 1 out
Installation
- - - - -
Power Supply
12 VDC ± 25%, 10W
PoE (802.3af, 37V to 57V), 12W"
12 VDC ± 25%, 10W
PoE (802.3af, 36V to 57V), 12W
2I:
12 VDC ± 25%, 7.5W
PoE (802.3af, class 3), 9.5W
4I:
12 VDC ± 25%, 11.5W
PoE (802.3af, class 3), 12.5W
2I:
12 VDC ± 25%, 7.5W
PoE (802.3af, class 3), 9.5W
4I:
12 VDC ± 25%, 11.5W
PoE (802.3af, class 3), 12.5W
2I:
12 VDC ± 25%, 7W
PoE (802.3af, class 3), 8.5W
4I:
12 VDC ± 25%, 10W
PoE (802.3af, class 3), 12W
NEW
NEW
NEW
NEW
NEW
021

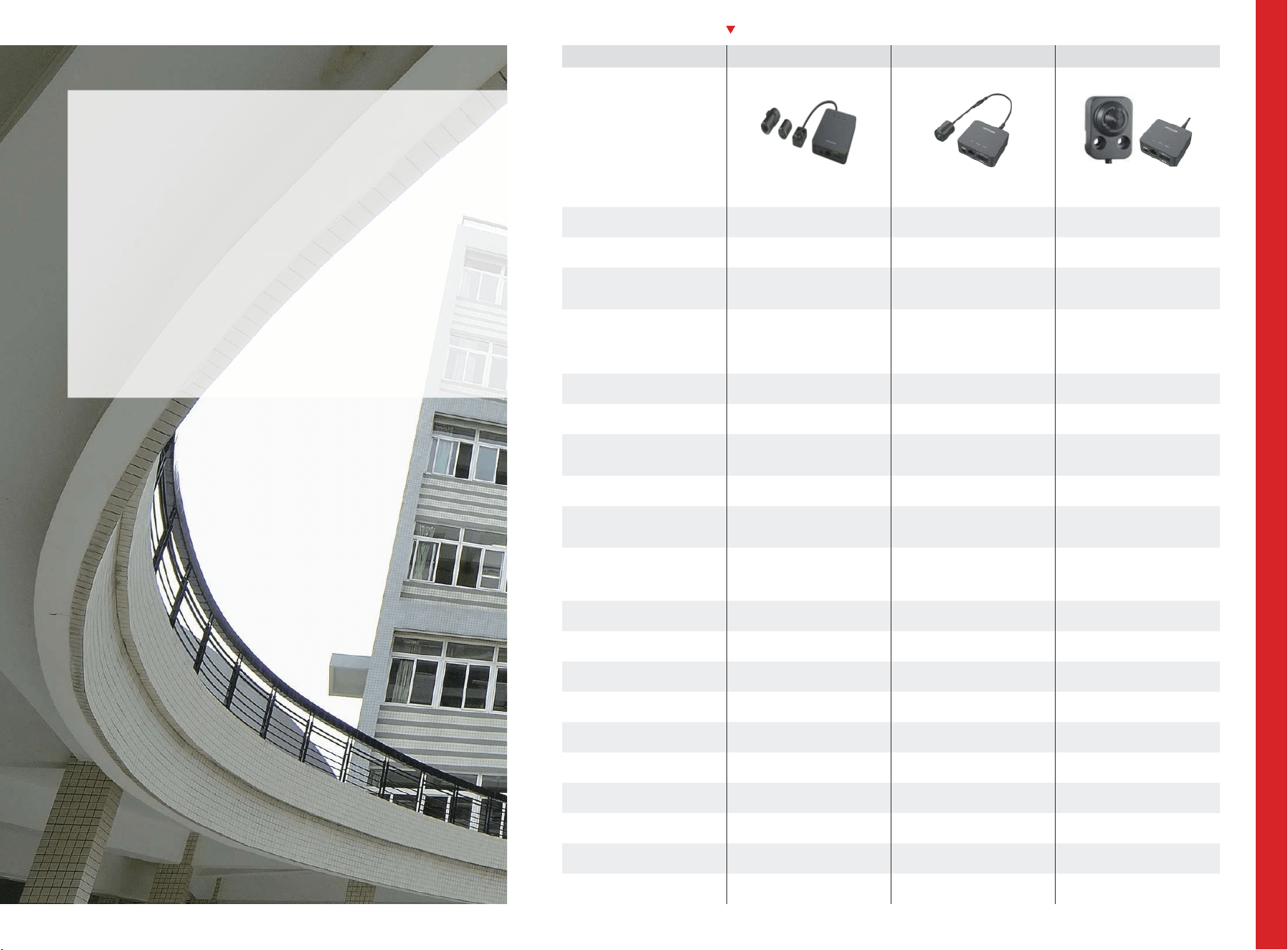

NETWORK CAMERAS
Model
DS-2CD6412FWD-11/21/31 DS-2CD6425G0-10 DS-2CD6425G0-20
Image Sensor
1/3’’ Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
1280 × 960 1920 × 1080 1920 × 1080
Video Compression
H.264/MJPEG4/MJPEG
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Min. Illumination
L10/L20/10/20: Color: 0.037 Lux @
(F2.3,AGC ON); B/W: 0.0037Lux @
(F2.3,AGC ON)
L30/30: Color: 0.028 Lux @(F2.0,AGC
ON); B/W: 0.0028Lux @(F2.0,AGC ON)
Color: 0.005 Lux @(F1.2, AGC ON),
0.014 Lux @(F2.0, AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON),
0.0003 Lux @(F2.0, AGC ON)
Color: 0.005 Lux @(F1.2, AGC ON),
0.014 Lux @(F2.0, AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON),
0.0003 Lux @(F2.0, AGC ON)
WDR
120 dB 120 dB 120 dB
Lens
L10/L20/10/20: 2.8/3.7mm
L30/30: 2.0/2.8/4/6mm
3.7mm 2.8/3.7mm
FOV
L10/L20/10/20: 2.8/3.7mm:80°-57°
L30/30:120°(2.0mm),92°(2.8mm),73°
(4mm),46°(6mm)
3.7mm:horizontal FOV 71°
2.8mm:horizontal FOV 104°
3.7mm:horizontal FOV 71°
Max. IR Range (meters)
- - -
VCA
Intrusion Detection, Line Crossing
Detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal detection
Line crossing detection, intrusion
detection, unattended baggage
detection, object removal detection
Frame Rate
50Hz: 25fps (1280 × 960,
1280 × 720)
60Hz: 30fps (1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080,
1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080,
1280 × 960, 1280 × 720)
Multi-Streaming
2 3 3
Protection Level
- - -
Angle Adjustment
N/A - -
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -10 °C to +40 °C (14 °F to +104 °F) -10 °C to +40 °C (14 °F to +104 °F)
Operating Humidity
≤ 95% 5%- 95% 5%- 95%
Local Storage
128 GB 128 GB 128 GB
Audio I/O
1 in, 1 out 1 in, 1 out 1 in, 1 out
Alarm I/O
1 in, 1 out 1 in, 1 out 1 in, 1 out
Installation
Indoor Indoor Indoor
Power Supply
12 VDC ± 10% / PoE (802.3af)
12 VDC ± 20%, two-core terminal
block, PoE: (802.3af, class 2)
12 VDC ± 20%, two-core terminal
block, PoE: (802.3af, class 2)
Covert Series
Fits Anywhere,
Monitors Everything
Special Series
Network Cameras
- Covert surveillance
- Install anywhere
- An array of interfaces
- Various lens options
- Compact housings
022

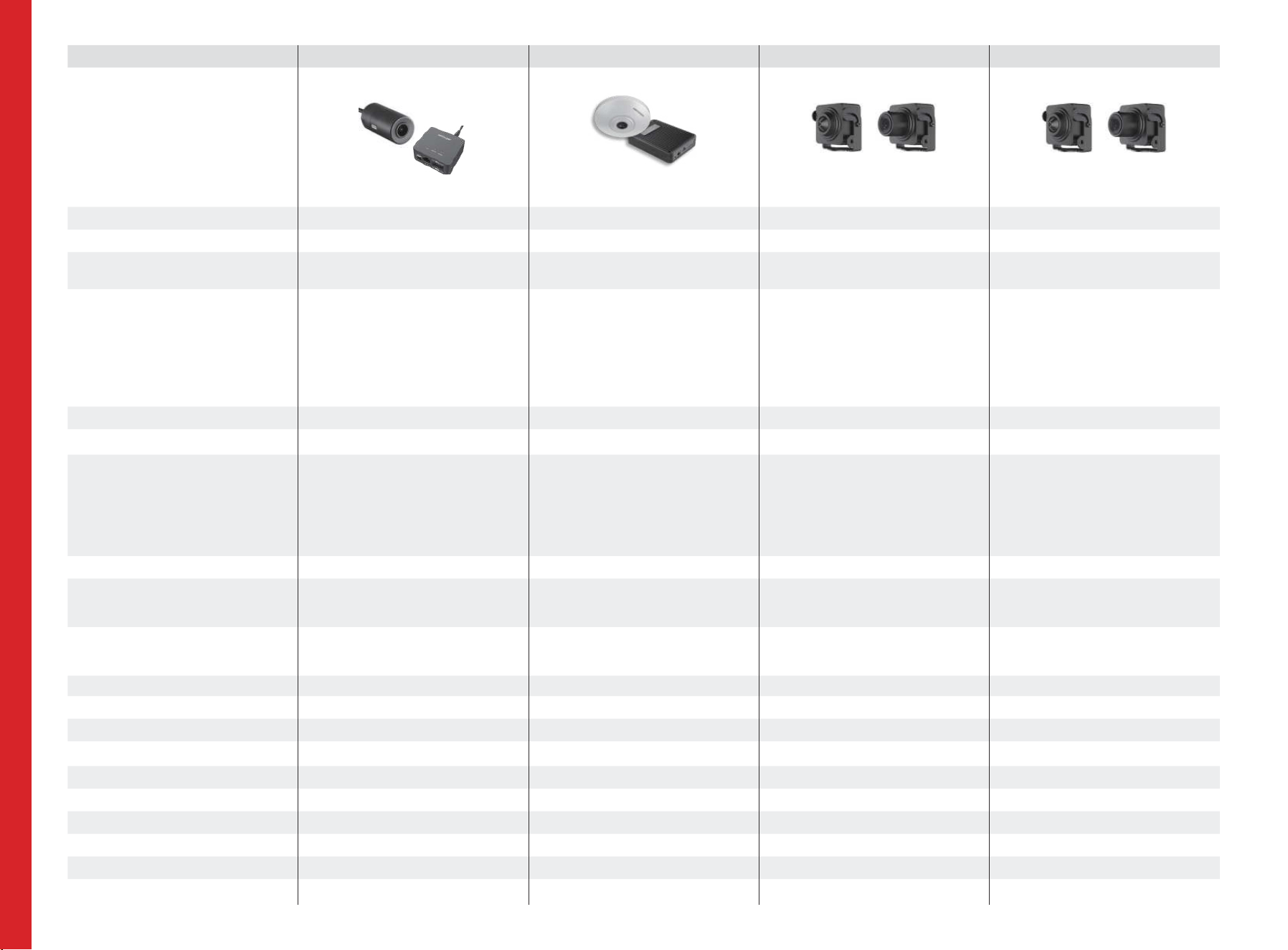

NETWORK CAMERAS
Model
DS-2CD6425G0-30 iDS-2CD6412FWD/C DS-2CD2D21G0(/M)-DNF DS-2CD2D11G0(/M)-DNF
Image Sensor
1/2.8" Progressive Scan CMOS 1/3’’ Progressive Scan CMOS 1/2.7" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS
Max. Resolution
1920 × 1080 1280×960 1920 × 1080 1280×960
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 / MJPEG / MPEG4 H.265/H.264/MJPEG H.265/H.264/MJPEG
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0,
AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0,
AGC ON)
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0,
AGC ON)
B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0028 Lux @ (F2.0,
AGC ON)
Without /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux
@ (F2.5, AGC ON)
B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux
@ (F2.5, AGC ON)
With /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux
@ (F2.0, AGC ON)
B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux
@ (F2.0, AGC ON)
Without /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux
@ (F2.5, AGC ON)
B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux
@ (F2.5, AGC ON)
With /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux
@ (F2.0, AGC ON)
B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux
@ (F2.0, AGC ON)
WDR
120 dB 120 dB 120 dB 120 dB
Lens
2.8/4.0/6.0mm 2.1/2.8mm
Without /M model: 3.7 mm
With /M model: 2.8 mm, 4 mm
Without /M model: 3.7 mm
With /M model: 2.8 mm, 4 mm
FOV
2.8mm:horizontal FOV 104°
4.0mm:horizontal FOV 80°
6.0mm:horizontal FOV 50°
2.1mm:horizontal FoV: 115º
2.8mm:horizontal FoV: 92.5º
Without /M model: 3.7 mm
horizontal FOV: 78°, vertical FOV: 43°,
diagonal FOV: 90°
With/M model: 2.8 mm
horizontal FOV: 114°, vertical FOV: 62°,
diagonal FOV: 135° 4 mm
horizontal FOV: 86°, vertical FOV: 46°,
diagonal FOV: 102.5°
Without /M model: 3.7 mm
horizontal FOV: 51°, vertical FOV: 38°,
diagonal FOV: 64°
With /M model: 2.8 mm
horizontal FOV: 74°, vertical FOV: 55°,
diagonal FOV: 93° 4 mm
horizontal FOV: 55°, vertical FOV: 41°,
diagonal FOV: 70°
Max. IR Range (meters)
- - - -
VCA
Line crossing detection, intrusion detection,
unattended baggage detection, object removal
detection
Intrusion Detection, Line Crossing Detection
Line crossing detection, intrusion detection,
region entrance detection, region exit detection,
unattended baggage detection, object removal
detection
Line crossing detection, intrusion detection,
region entrance detection, region exit detection,
unattended baggage detection, object removal
detection
Frame Rate
50Hz: 25fps (1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080,
1280 × 960, 1280 × 720)
50Hz: 25fps(1280 x 960),
(1280 x 720)
60Hz: 30fps (1280 x 960),
(1280 x 720)
50Hz: 25fps (1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080,
1280 × 960, 1280 × 720)
50Hz: 25fps (1280 × 960,
1280 × 720)
60Hz: 30fps (1280 × 960,
1280 × 720)
Multi-Streaming
3 3 3 3
Protection Level
- - - -
Angle Adjustment
- - - -
Operating Temperature
-10 °C to +40 °C (14 °F to +104 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
5%- 95% ≤ 95% ≤ 95% ≤ 95%
Local Storage
128 GB N/A N/A N/A
Audio I/O
1 in, 1 out 1 in, 1 out 1 in 1 in
Alarm I/O
1 in, 1 out 1 in, 1 out N/A N/A
Installation
Indoor Indoor Indoor Indoor
Power Supply
12 VDC ± 20%, two-core terminal block,
PoE: (802.3af, class 2)
12 V DC ± 10% 12 VDC ± 20% 12 VDC ± 20%
023
NETWORK CAMERAS
Model
DS-2XC6224G0-L DS-2XC6225G0-L
Image Sensor
1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080 1920 × 1080
Video Compression
H.265/H.264/MJPEG H.265/H.264/MJPEG
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON); 0
lux with white light
Color: 0.001 Lux @ (F1.2, AGC ON); 0
lux with white light
WDR
120 dB 120 dB
Lens
2.0/2.8/4.0 mm fixed lens 2.0/2.8/4.0 mm fixed lens
FOV
2.0 mm @ F2.2, horizontal FOV
127.6°, vertical FOV 74.5°, diagonal
FOV 145.9°
2.8 mm @ F1.6, horizontal FOV 108°,
vertical FOV 56.7°, diagonal FOV
121.4°
4 mm @ F1.6, horizontal FOV 82°,
vertical FOV 43.8°, diagonal FOV
96.5°
2.0 mm @ F2.0, horizontal FOV
127.6°, vertical FOV 77°, diagonal
FOV 151°
2.8 mm @ F1.6, horizontal FOV 103°,
vertical FOV 58.5°, diagonal FOV 127°
4 mm @ F1.6, horizontal FOV 82°,
vertical FOV 46°, diagonal FOV 103°
Max. White Light Range
(meters)
10 10
VCA
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
3 3
Protection Level
IP68 IP68
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
≤ 95% ≤ 95%
Local Storage
128 GB 128 GB
Audio I/O
- -
Alarm I/O
- -
Installation
Underwater Underwater
Power Supply
36 VDC ± 20%, two-core terminal
block,
PoE (802.3at, class 3)
36 VDC ± 20%, two-core terminal
block,
PoE (802.3at, class 3)
Underwater Camera
024
NETWORK CAMERAS

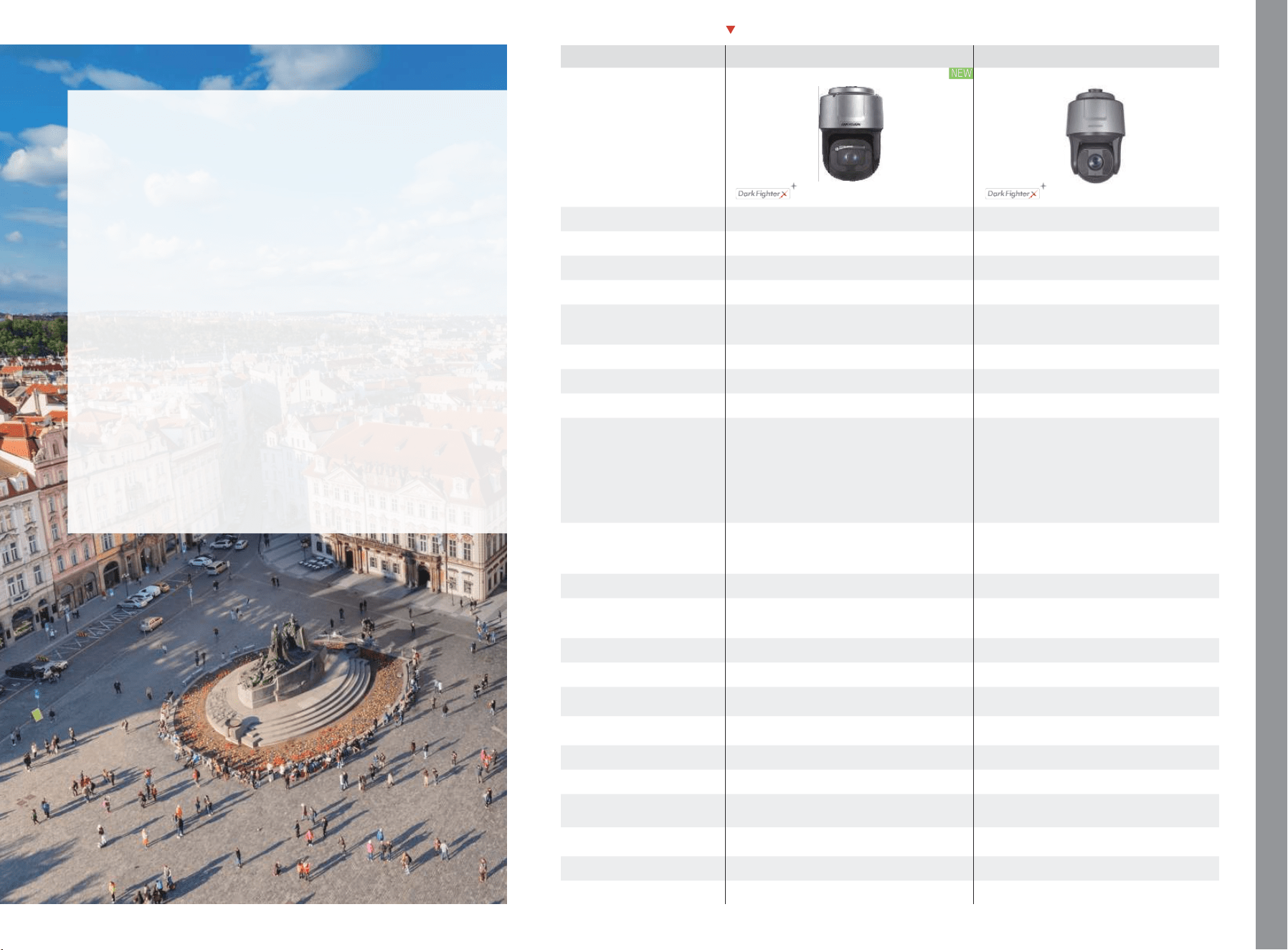

Ultra Series
Special Series
PTZ Dome
Camera
025
Model
DS-2DF9C435IH-DLW DS-2DF8225IH-AEL(W)
Image Sensor
Dual-sensor, 1/1.8" progressive scan CMOS
2× 1/2.8" progressive scan CMOS
Resolution
2688 × 1512
1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Main Stream: H.265+/H.265/H.264+/H.264
Lens
5.9 mm to 206.5 mm, 35× Optical
4.8 mm to 120 mm, 25× Optical
Angle of View
Horizontal field of view: 58.9° to 2.2° (wide-tele)
Vertical field of view: 35.3° to 1.2° (wide-tele)
Diagonal field of view: 65.9° to 2.5°(wide-tele)
Horizontal field of view: 58.2° to 3.2° (Wide-Tele)
Min. Illumination
Color: 0.0005 Lux @(F1.5, AGC ON)
Color: 0.0004 Lux @(F1.5, AGC ON)
WDR
120 dB
120 dB
Max. IR Range (meters)
250 m
Up to 200 m
VCA
Deep learning-based algorithm:Line crossing, intrusion,
region entrance, and region exiting
Tradition algorithm:unattended baggage detection, object
removal detection, exception detection,
Auto Tracking (support tracking specified target types such
as human and vehicle), Event Tracking
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types (human
and vehicle)
Reducing mistaken alarm caused by target types such as
leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking specified
target types such as human and vehicle), Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Frame Rate
50Hz: 25fps (2688 × 1512, 2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2688 × 1512, 2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Streams
3
3
Protection Level
IP67 Standard. Lightning protection, surge protection
and voltage transient protection meets IEC61000-4-2-
2/3/4/5/6
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6000V Lightning Protection, Surge Protection
and Voltage Transient Protection
Pan Range
360° endless
360° endless
Tilt Range
From -25° to 90°
From -20° to 90°
Pan Speed
Configurable, from 0.1°/s to 210°/s,
Preset Speed: 280°/s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Speed
Configurable, from 0.1°/s to 150°/s
Preset Speed: 250°/s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Operating Temperature
Outdoor: -40°C to 70°C (-40°F to 158°F)
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90%
≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up
to 256 GB
Built-in memory card slot, support Micro SD/SDHC/SDXC, up
to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Audio I/O
1-ch audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
1-ch audio output line level, impedance: 600Ω
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
Alarm I/O
7-ch alarm input/2-ch alarm output
7-ch alarm input/2-ch alarm output
Power
36 VDC
24 VAC (Max. 68 W) , Hi-PoE (Max. 50 W)
DF9
Great Innovation,
Inside and Out
Ultra Series PTZ
Cameras
NEW
- H.265+/H.265 codec
- 4K ultra HD
- DarkFighterX Technology
- High Resolution DarkFighter Deep-learning-based
target classification algorithm for auto-tracking 2.0
and perimeter protection
- False alarm reduction
- Rapid Focus
- High Zoom Ratio & Optical Image Stabilization
- IK10 & IP67
- Supports ONVIF, ISAPI, and CGI
- Supports HIKVISION SDK and Third-Party Management
Platform
026

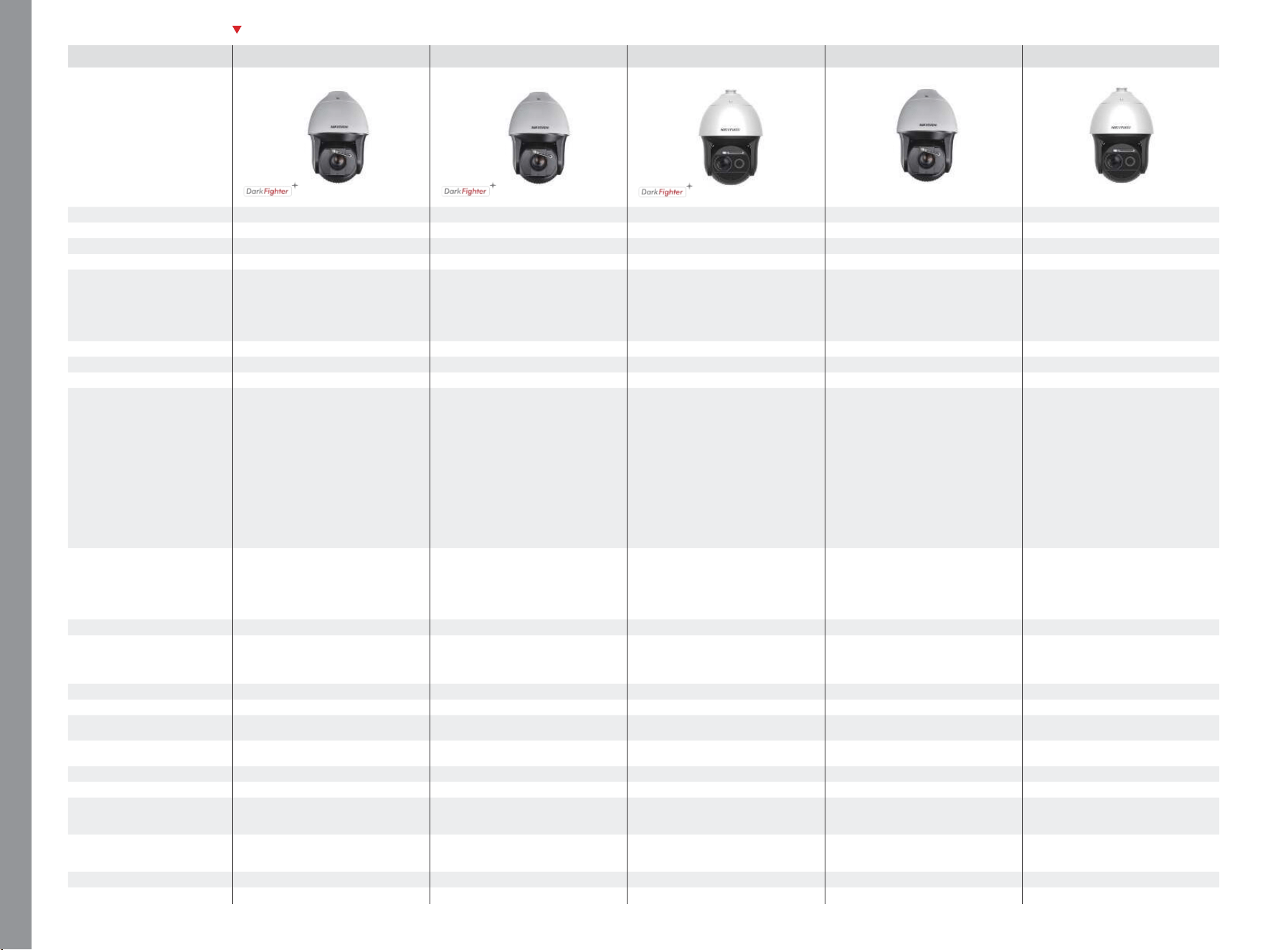

PTZ DOME CAMERAS
Model
DS-2DF8225IX-AEL(W) DS-2DF8236IX-AEL(W) DS-2DF8236I5X-AEL(W) DS-2DF8250I5X-AEL(W) DS-2DF8250I8X-AEL(W)
Image Sensor
1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS 1/2.8" progressive scan CMOS
1/2.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Main Stream: H.265+/H.265/H.264+/H.264
Lens
5.7 mm to 142.5 mm, 25× Optical 5.7 mm to 205.2 mm, 36× Optical 5.7 mm to 205.2 mm, 36× Optical 6.6 mm to 330 mm, 50× Optical
6.6 mm to 330 mm, 50× Optical
Angle of View
Horizontal field of view: 59.8° to 2.8° (Wide
Tele) Vertical field of view: 33.6° to 1.6°
(Wide-Tele) Diagonal field of view: 68.6° to
3.2° (Wide-Tele)
Horizontal field of view: 59.8° to 2.0° (Wide-
Tele)
Vertical field of view: 33.6° to 1.1° (Wide-Tele)
Diagonal field of view: 68.6° to 2.3° (Wide-Tele)
Horizontal field of view: 59.8° to 2.0° (Wide-
Tele)
Vertical field of view: 33.6° to 1.1° (Wide-Tele)
Diagonal field of view: 68.6° to 2.3° (Wide-Tele)
Horizontal field of view: 41.3° to 1.1° (Wide-
Tele)
Vertical field of view: 23.6° to 0.6° (Wide-Tele)
Diagonal field of view: 47.4° to 1.3° (Wide-Tele)
Horizontal field of view: 41.3° to 1.1° (Wide-
Tele)
Vertical field of view: 23.6° to 0.6° (Wide-
Tele)
Diagonal field of view: 47.4° to 1.3° (Wide-
Tele)
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.01 Lux @(F1.8, AGC ON)
Color: 0.01 Lux @(F1.8, AGC ON)
WDR
120 dB 120 dB 120 dB 120 dB
120 dB
Max. IR Range (meters)
Up to 200 m Up to 200 m Up to 500 m (laser) Up to 500 m (laser)
Up to 800 m (laser)
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support
tracking specified target types such as human
and vehicle), Event Tracking
ANR (Automatic Network Replenishment), Dual-
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support
tracking specified target types such as human
and vehicle), Event Tracking
ANR (Automatic Network Replenishment), Dual-
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support
tracking specified target types such as human
and vehicle), Event Tracking
ANR (Automatic Network Replenishment), Dual-
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support
tracking specified target types such as human
and vehicle), Event Tracking
ANR (Automatic Network Replenishment), Dual-
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support
tracking specified target types such as
human and vehicle), Event Tracking
ANR (Automatic Network Replenishment),
Dual-VCA
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280
× 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280
× 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Streams
3 3 3 3
3
Protection Level
IP67 Standard, IK10 (only supported by
camera without wiper), TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10 (only supported by
camera without wiper), TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10 (only supported by
camera without wiper), TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10 (only supported by
camera without wiper), TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10 (only supported by
camera without wiper), TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
Pan Range
360° endless 360° endless 360° endless 360° endless
360° endless
Tilt Range
From -20° to 90° From -20° to 90° From -20° to 90° From -20° to 90°
From -20° to 90°
Pan Speed
Configurable, from 0.1°/s to 210°/s, Preset
Speed: 280°/s
Configurable, from 0.1°/s to 210°/s, Preset
Speed: 280°/s
Configurable, from 0.1°/s to 210°/s, Preset
Speed: 280°/s
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Tilt Speed
Configurable, from 0.1°/s to 150°/s, Preset
Speed: 250°/s
Configurable, from 0.1°/s to 150°/s, Preset
Speed: 250°/s
Configurable, from 0.1°/s to 150°/s, Preset
Speed: 250°/s
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Operating Temperature
Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Temperature: -40°C to 70°C (-40°F to 158°F)
-40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90% ≤ 90% ≤ 90% ≤ 90%
≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Audio I/O
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
DF8
027

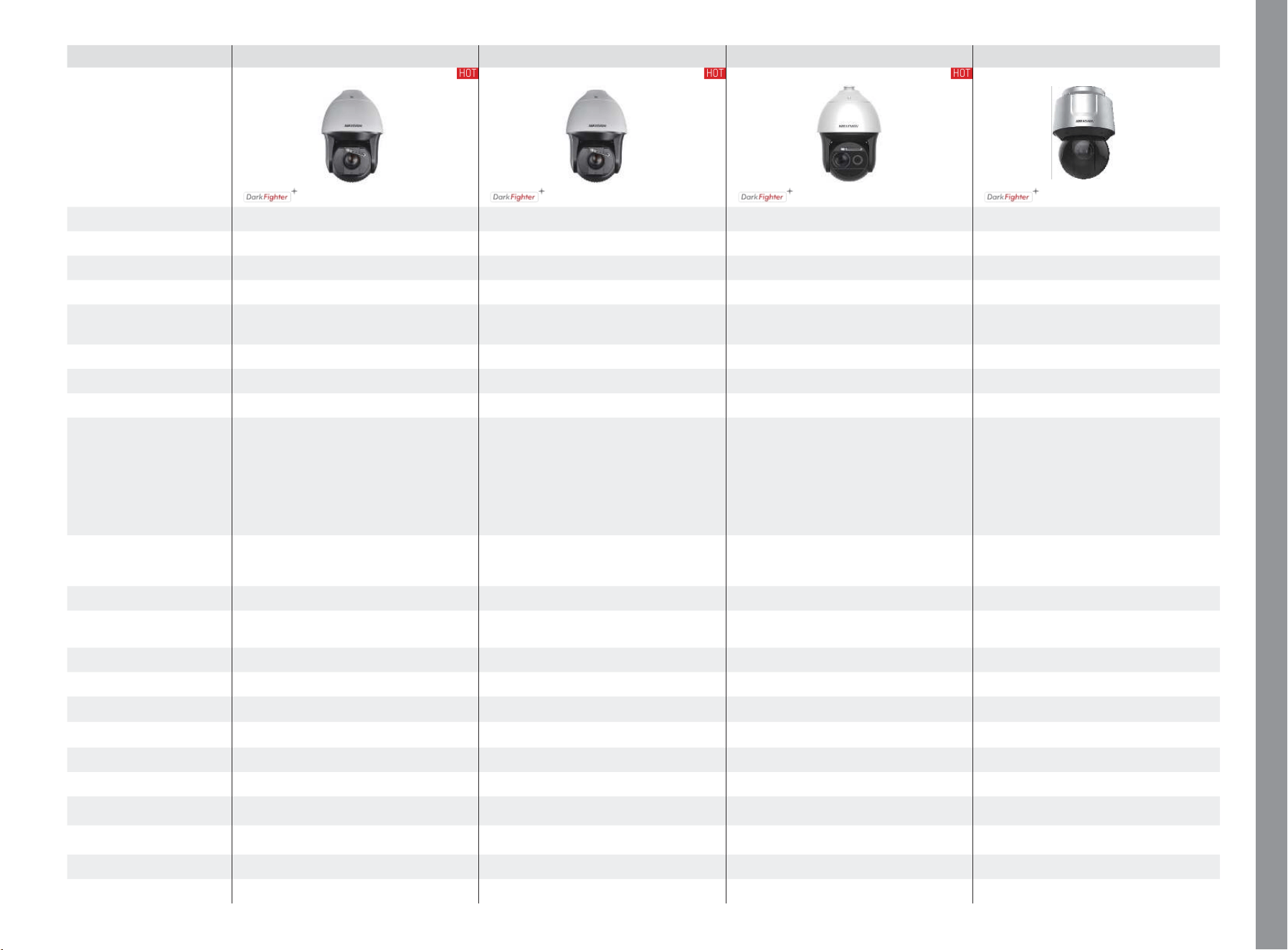

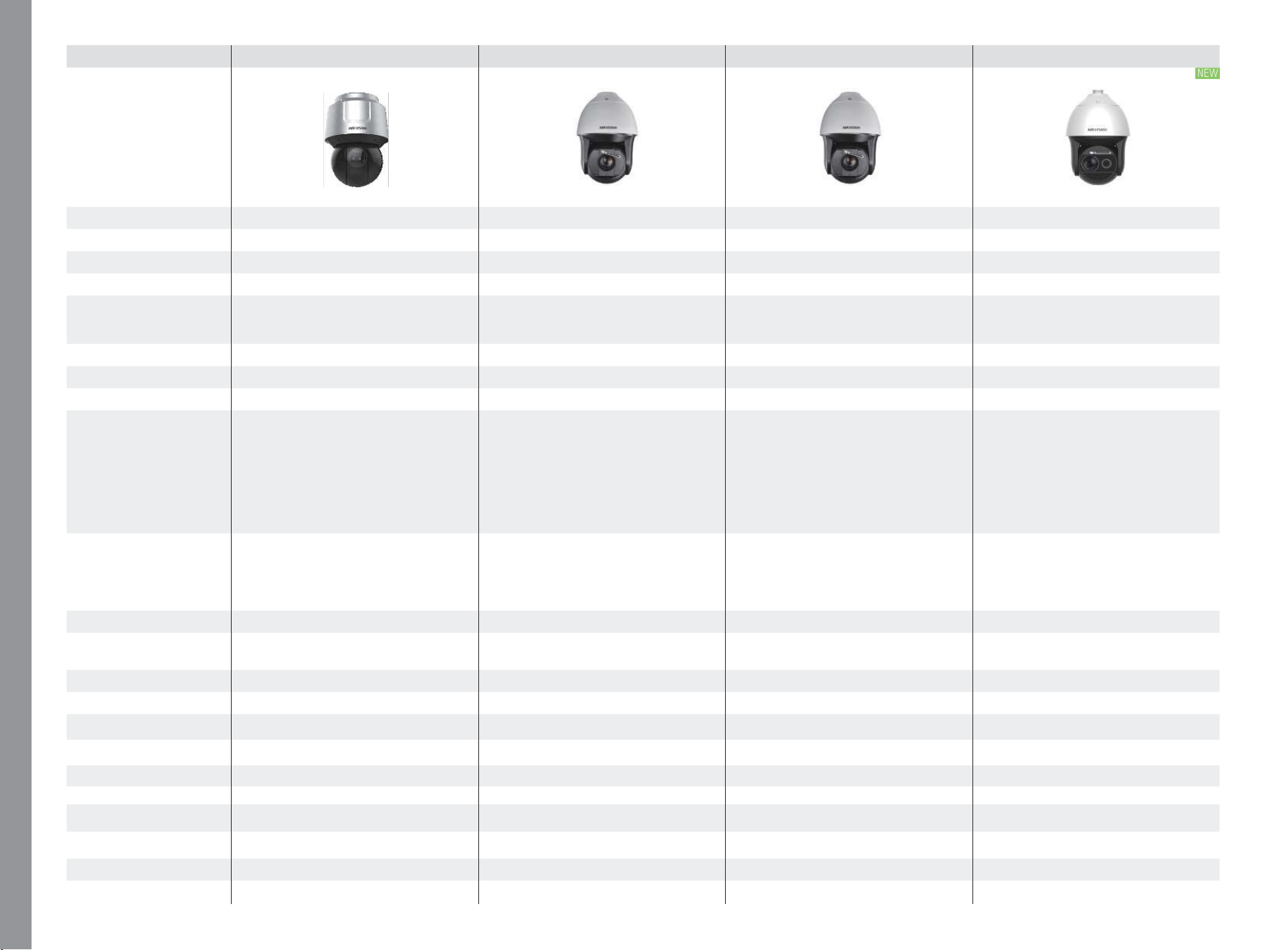

PTZ DOME CAMERAS
Model
DS-2DF8425IX-AEL(W) DS-2DF8436IX-AEL(W) DS-2DF8436I5X-AEL(W) DS-2DF8A436IX-AEL
Image Sensor
1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS
1/1.8" progressive scan CMOS
Resolution
2560 × 1440 2560 × 1440 2560 × 1440
2560 × 1440
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Main Stream: H.265+/H.265/H.264+/H.264
Lens
5.7 mm to 142.5 mm, 25× Optical 5.7 mm to 205.2 mm, 36× Optical 5.7 mm to 205.2 mm, 36× Optical
5.7 mm to 205.2 mm, 36× Optical
Angle of View
Horizontal field of view: 51.1° to 2.5° (Wide-Tele)
Vertical field of view: 31.3° to 1.4° (Wide-Tele)
Diagonal field of view: 58.0° to 2.8° (Wide-Tele)
Horizontal field of view: 59.8° to 2.0° (Wide-Tele)
Vertical field of view: 33.6° to 1.1° (Wide-Tele)
Diagonal field of view: 68.6° to 2.3° (Wide-Tele)
Horizontal field of view: 51.1° to 1.7° (Wide-Tele)
Vertical field of view: 31.3° to 1.0° (Wide-Tele)
Diagonal field of view: 58.0° to 2.0° (Wide-Tele)
Horizontal field of view: 59.8° to 2.0° (wide-tele)
Vertical field of view: 33.6° to 1.1° (wide-tele)
Diagonal field of view: 68.6° to 2.3° (wide-tele)
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON)
Color: 0.002 Lux @(F1.5, AGC ON)
WDR
120 dB 120 dB 120 dB
120dB
Max. IR Range (meters)
Up to 200 m Up to 200 m Up to 500 m (laser)
Up to 250 m
VCA
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types
(human and vehicle)
Reducing mistaken alarm caused by target types such
as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking
specified target types such as human and vehicle),
Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types
(human and vehicle)
Reducing mistaken alarm caused by target types such
as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking
specified target types such as human and vehicle),
Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types
(human and vehicle)
Reducing mistaken alarm caused by target types such
as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking
specified target types such as human and vehicle),
Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Deep learning-based algorithm:Line crossing, intrusion,
region entrance, and region exiting
Tradition algorithm:unattended baggage detection, object
removal detection, exception detection,
Auto Tracking (support tracking specified target types such
as human and vehicle), Event Tracking
Frame Rate
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080,
1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080,
1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080,
1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280
× 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280
× 960, 1280 × 720)
Streams
3 3 3
3
Protection Level
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6,000V Lightning Protection, Surge Protection
and Voltage Transient Protection
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6,000V Lightning Protection, Surge Protection
and Voltage Transient Protection
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6,000V Lightning Protection, Surge Protection
and Voltage Transient Protection
IP67 Standard, IK10, 6000V Lightning Protection, Surge
Protection and Voltage Transient Protection
Pan Range
360° endless 360° endless 360° endless
360° endless
Tilt Range
From -20° to 90° From -20° to 90° From -20° to 90°
From -20° to 90°
Pan Speed
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Speed
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Operating Temperature
Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F)
Outdoor: -40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90% ≤ 90% ≤ 90%
≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support Micro SD/SDHC/SDXC, up
to 256 GB
Audio I/O
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio output, line level, impedance: 600 Ω
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
HOT
HOT
HOT
028
PTZ DOME CAMERAS
Model
DS-2DF8A836IX-AEL DS-2DF8825IX-AEL(W) DS-2DF8836IX-AEL(W) DS-2DF8836I5X-AEL(W)
4K 4K 4K 4K
Image Sensor
2/3" progressive scan CMOS 2/3" progressive scan CMOS 2/3" progressive scan CMOS 2/3" progressive scan CMOS
Resolution
4096 × 2160 4096 × 2160 4096 × 2160 4096 × 2160
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Lens
7.5 mm to 270 mm, 36× Optical 7.5 mm to 187.5 mm, 25× Optical 7.5 mm to 270 mm, 36× Optical 7.5 mm to 270 mm, 36× Optical
Angle of View
Horizontal field of view: 56.1° to 2.0° (wide-tele)
Vertical field of view: 33.4° to 1.1° (wide-tele)
Diagonal field of view: 62.9° to 2.3° (wide-tele)
Horizontal field of view: 56.1° to 3.0° (Wide-Tele)
Vertical field of view: 33.4° to 1.7° (Wide-Tele)
Diagonal field of view: 62.9° to 3.4° (Wide-Tele)
Horizontal field of view: 56.1° to 2.0° (Wide-Tele)
Vertical field of view: 33.4° to 1.1° (Wide-Tele)
Diagonal field of view: 62.9° to 2.3° (Wide-Tele)
Horizontal field of view: 56.1° to 2.0° (Wide-Tele)
Vertical field of view: 33.4° to 1.1° (Wide-Tele)
Diagonal field of view: 62.9° to 2.3° (Wide-Tele)
Min. Illumination
Color: 0.005 Lux @(F1.5, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON)
WDR
Support Support Support Support
Max. IR Range (meters)
Up to 250 m Up to 200 m Up to 200 m Up to 500 m (laser)
VCA
Deep learning-based algorithm:Line crossing, intrusion,
region entrance, and region exiting
Tradition algorithm:unattended baggage detection,
object removal detection, exception detection,
Auto Tracking (support tracking specified target types
such as human and vehicle), Event Tracking
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types
(human and vehicle)
Reducing mistaken alarm caused by target types such
as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking
specified target types such as human and vehicle),
Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types
(human and vehicle)
Reducing mistaken alarm caused by target types such
as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking
specified target types such as human and vehicle),
Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Intrusion, Line Crossing, Region Entrance, Region Exiting
Support alarm triggering by specified target types
(human and vehicle)
Reducing mistaken alarm caused by target types such
as leaf, light, animal, and flag, etc.
Face Detection, Audio Exception Detection
Manual Tracking, Auto Tracking (support tracking
specified target types such as human and vehicle),
Event Tracking
ANR (Automatic Network Replenishment), Dual-VCA
Frame Rate
50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728,
2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960,
1280 × 720)
Streams
3 3 3 3
Protection Level
IP67 Standard, IK10, 6000V Lightning Protection, Surge
Protection and Voltage Transient Protection
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6,000V Lightning Protection, Surge Protection
and Voltage Transient Protection
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6000V Lightning Protection, Surge Protection
and Voltage Transient Protection
IP67 Standard, IK10 (only supported by camera without
wiper), TVS 6,000V Lightning Protection, Surge Protection
and Voltage Transient Protection
Pan Range
360° endless 360° endless 360° endless 360° endless
Tilt Range
From -20° to 90° From -20° to 90° From -20° to 90° From -20° to 90° (Auto-flip)
Pan Speed
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/
s
Tilt Speed
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/
s
Operating Temperature
Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90% ≤ 90% ≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support Micro SD/SDHC/SDXC,
up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Audio I/O
1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio output, line level, impedance: 600 Ω
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
1-ch audio input (applicable microphone, plug-in power
type), 2 to 2.4 V[p-p], 1 KΩ ± 10%
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
NEW
029

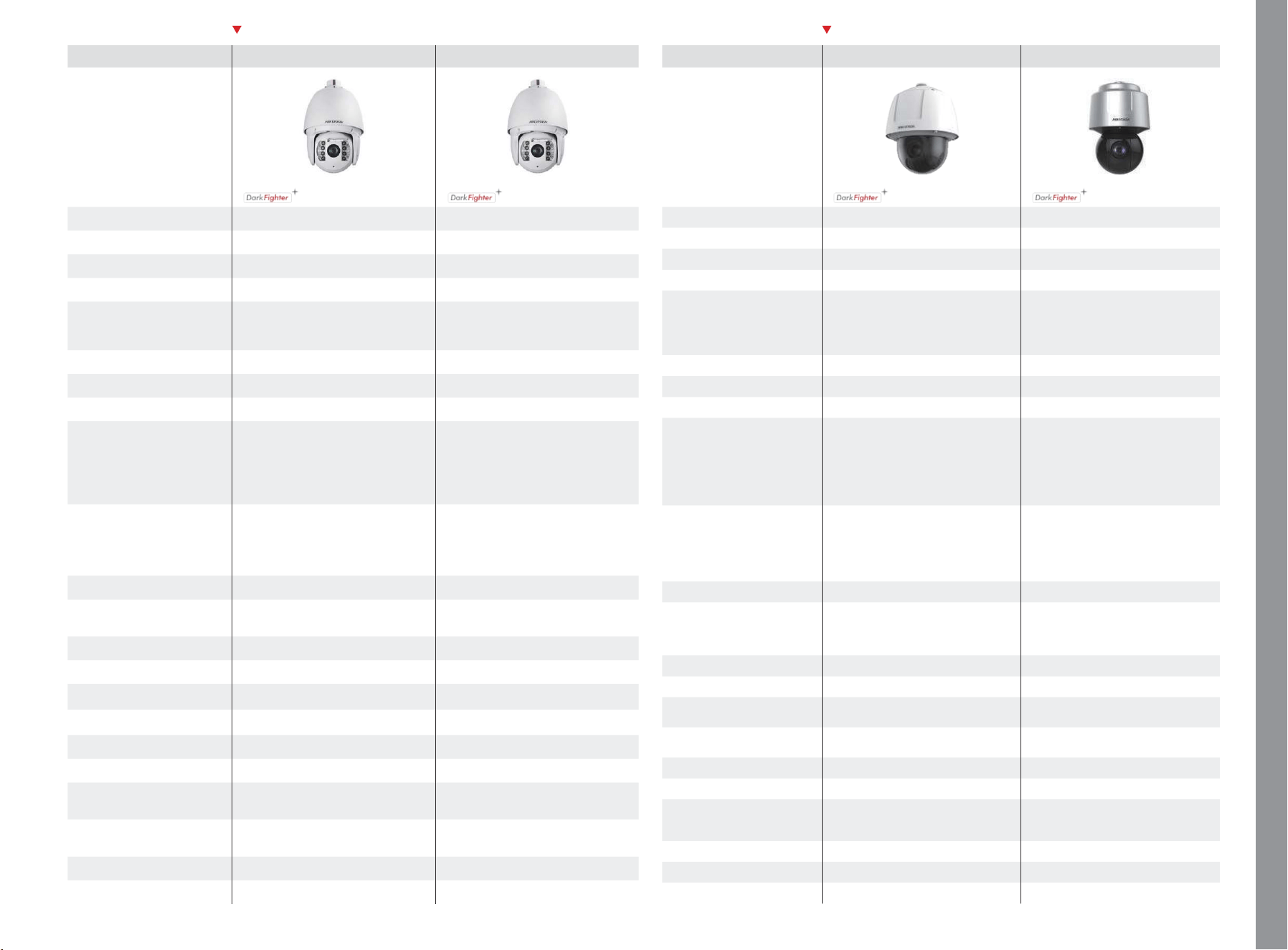

PTZ DOME CAMERAS
DF7 DF6
Model
DS-2DF7225IX-AEL(W) DS-2DF7232IX-AEL(W)
Image Sensor
1/2.8" progressive scan CMOS 1/2.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Lens
4.5 mm to 112.5 mm, 25× Optical 4.5 mm to 144 mm, 32× Optical
Angle of View
Horizontal field of view: 61.4° to 2.7°
(Wide-Tele)
Vertical field of view: 40.7° to 1.7° (Wide-Tele)
Diagonal field of view: 70.0° to 3.2° (Wide-Tele)
Horizontal field of view: 61.4° to 2.1°
(Wide-Tele)
Vertical field of view: 40.7° to 1.3° (Wide-Tele)
Diagonal field of view: 70.0° to 2.5° (Wide-Tele)
Min. Illumination
Color: 0.002 Lux @(F1.2, AGC ON) Color: 0.002 Lux @(F1.2, AGC ON)
WDR
120 dB 120 dB
Max. IR Range (meters)
150 m 150 m
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Streams
3 3
Protection Level
IP66 Standard, TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP66 Standard, TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
Pan Range
360° endless 360° endless
Tilt Range
From -10° to 90° From -10° to 90°
Pan Speed
Configurable, from 0.1°/s to 210°/s,
Preset Speed: 280°/s
Configurable, from 0.1°/s to 210°/s,
Preset Speed: 280°/s
Tilt Speed
Configurable, from 0.1°/s to 150°/s,
Preset Speed: 250°/s
Configurable, from 0.1°/s to 150°/s,
Preset Speed: 250°/s
Operating Temperature
Outdoor: -40°C to 65°C (-40°F to 149°F) Outdoor: -40°C to 65°C (-40°F to 149°F)
Humidity
≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Audio I/O
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
Model
DS-2DF6225X-AEL DS-2DF6A225X-AEL
Image Sensor
1/1.9" progressive scan CMOS 1/1.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Lens
5.7 mm to 142.5 mm, 25× Optical 5.7 mm to 142.5 mm, 25× optical zoom
Angle of View
Horizontal field of view: 59.8° to 2.8°
(Wide-Tele)
Vertical field of view: 33.6° to 1.6° (Wide-Tele)
Diagonal field of view: 68.6° to 3.2° (Wide-
Tele)
Horizontal field of view: 59.8° to 2.8°
(Wide-Tele)
Vertical field of view: 33.6° to 1.6° (Wide-Tele)
Diagonal field of view: 68.6° to 3.2° (Wide-
Tele)
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON)
WDR
120 dB 120 dB
Max. IR Range (meters)
- -
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280
× 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Streams
3 3
Protection Level
IP67 Standard, K10 (only supported by
camera without wiper), TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10, TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
Pan Range
360° endless 360° endless
Tilt Range
From -15° to 90° From -20° to 90° (auto flip)
Pan Speed
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Tilt Speed
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Operating Temperature
-40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Audio I/O
1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
030

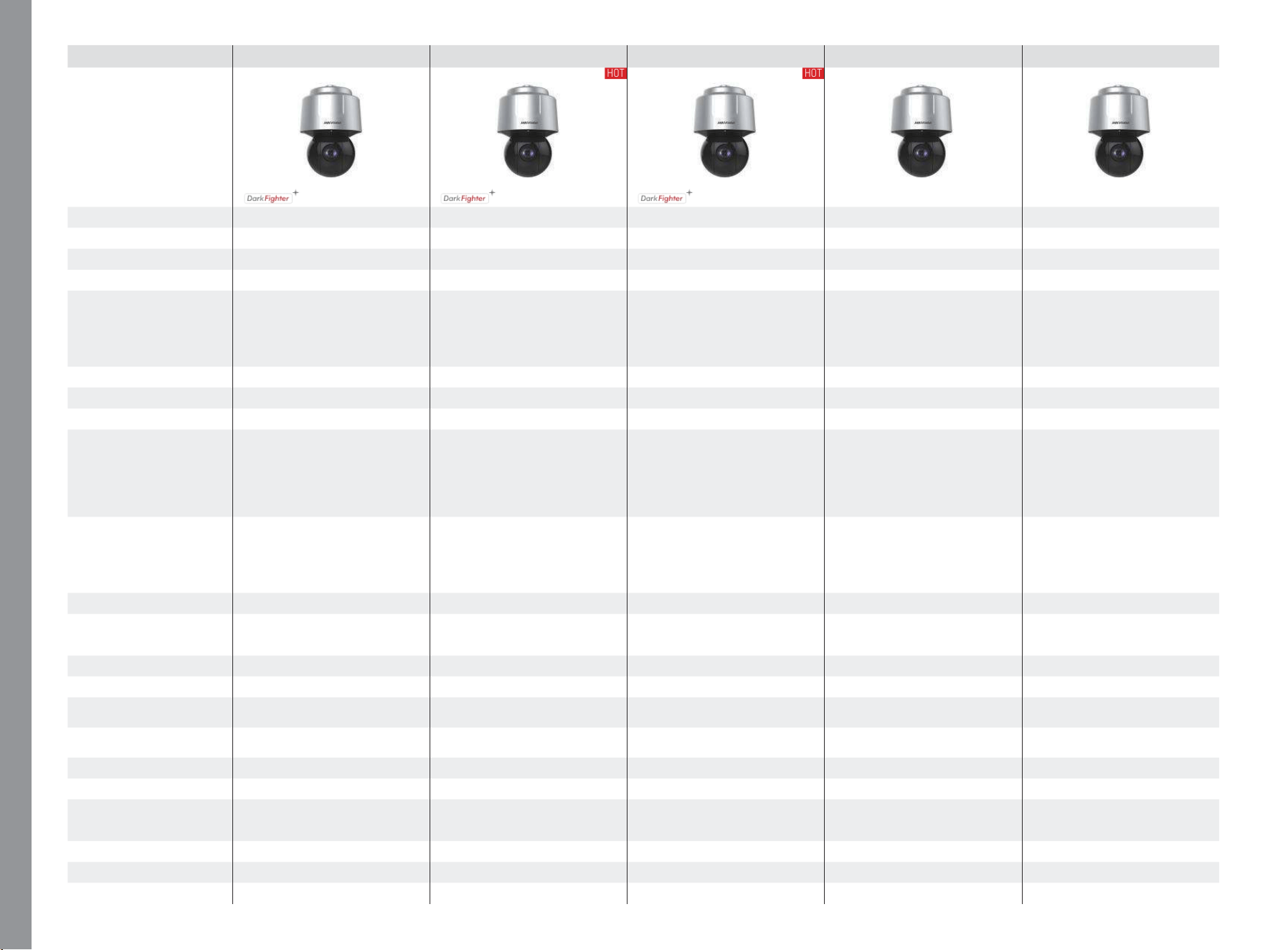

PTZ DOME CAMERAS
Model
DS-2DF6A236X-AEL DS-2DF6A425X-AEL DS-2DF6A436X-AEL DS-2DF6A825X-AEL DS-2DF6A836X-AEL
4K 4K
Image Sensor
1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS 2/3" progressive scan CMOS 2/3" progressive scan CMOS
Resolution
1920 × 1080 2560 × 1440 2560 × 1440 4096 × 2160 4096 × 2160
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Lens
5.7 mm to 205.2 mm, 36× optical zoom 5.7 mm to 142.5 mm, 25× optical zoom 5.7 mm to 205.2 mm, 36× optical zoom 7.5 mm to 187.5 mm, 25× optical zoom 7.5 mm to 270 mm, 36× optical zoom
Angle of View
Horizontal field of view: 59.8° to 2.0°
(Wide-Tele)
Vertical field of view: 33.6° to 1.1°
(Wide-Tele)
Diagonal field of view: 68.6° to 2.3°
(Wide-Tele)
Horizontal field of view: 51.1° to 2.5°
(Wide-Tele)
Vertical field of view: 31.3° to 1.4°
(Wide-Tele)
Diagonal field of view: 58.0° to 2.8°
(Wide-Tele)
Horizontal field of view: 51.1° to 1.7°
(Wide-Tele)
Vertical field of view: 31.3° to 1.0°
(Wide-Tele)
Diagonal field of view: 58.0° to 2.0°
(Wide-Tele)
Horizontal field of view: 56.1° to 3.0°
(Wide-Tele)
Vertical field of view: 33.4° to 1.7°
(Wide-Tele)
Diagonal field of view: 62.9° to 3.4°
(Wide-Tele)
Horizontal field of view: 56.1° to 2.0°
(Wide-Tele)
Vertical field of view: 33.4° to 1.1°
(Wide-Tele)
Diagonal field of view: 62.9° to 2.3°
(Wide-Tele)
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON)
WDR
120 dB 120 dB 120 dB Digital WDR Digital WDR
Max. IR Range (meters)
- - - - -
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (4096 × 2160, 3840 × 2160,
3072 × 1728, 2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160,
3072 × 1728, 2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (4096 × 2160, 3840 × 2160,
3072 × 1728, 2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (4096 × 2160, 3840 × 2160,
3072 × 1728, 2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 × 960, 1280 × 720)
Streams
3 3 3 3 3
Protection Level
IP67 Standard, IK10, TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10, TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10, TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10, TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP67 Standard, IK10, TVS 6000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
Pan Range
360° endless 360° endless 360° endless 360° endless 360° endless
Tilt Range
From -20° to 90° (auto flip) From -20° to 90° (auto flip) From -20° to 90° (auto flip) From -20° to 90° (auto flip) From -20° to 90° (auto flip)
Pan Speed
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Configurable, from 0.1°/s to 300°/s, preset
speed: 540°/s
Tilt Speed
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Configurable, from 0.1°/s to 240°/s, Preset
Speed: 400°/s
Operating Temperature
-40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90% ≤ 90% ≤ 90% ≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Audio I/O
1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W) 24 VAC (Max. 60 W) , Hi-PoE (Max. 50 W)
HOT
HOT
031
PTZ DOME CAMERAS
Model
DS-2DF5225X-AEL(3) DS-2DF5232X-AEL(3)
Image Sensor
1/2.8" progressive scan CMOS 1/2.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264 Main Stream: H.265+/H.265/H.264+/H.264
Lens
4.5 mm to 112.5 mm, 25× Optical 4.5 mm to 144 mm, 32× Optical
Angle of View
Horizontal field of view: 61.4° to 2.7° (Wide-
Tele)
Vertical field of view: 40.7° to 1.7° (Wide-Tele)
Diagonal field of view: 70.0° to 3.2° (Wide-Tele)
Horizontal field of view: 61.4° to 2.1° (Wide-
Tele)
Vertical field of view: 40.7° to 1.3° (Wide-Tele)
Diagonal field of view: 70.0° to 2.5° (Wide-Tele)
Min. Illumination
Color: 0.002 Lux @(F1.2, AGC ON) Color: 0.002 Lux @(F1.2, AGC ON)
WDR
120 dB 120 dB
Max. IR Range (meters)
- -
VCA
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Support alarm triggering by specified target
types (human and vehicle)
Reducing mistaken alarm caused by target
types such as leaf, light, animal, and flag,
etc.
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960,
1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Streams
3 3
Protection Level
IP66 Standard (Outdoor), TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP66 Standard (Outdoor), TVS 6,000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
Pan Range
360° endless 360° endless
Tilt Range
From -5° to 90° From -5° to 90°
Pan Speed
Configurable, from 0.1°/s to 300°/s,
Preset Speed: 540°/s
Configurable, from 0.1°/s to 300°/s,
Preset Speed: 540°/s
Tilt Speed
Configurable, from 0.1°/s to 240°/s,
Preset Speed: 400°/s
Configurable, from 0.1°/s to 240°/s,
Preset Speed: 400°/s
Operating Temperature
-40°C to 65°C (-40°F to 149°F) (Outdoor) -40°C to 65°C (-40°F to 149°F) (Outdoor)
Humidity
≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS
(NPS, SMB/ CIPS), ANR
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB; NAS
(NPS, SMB/ CIPS), ANR
Audio I/O
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
1-ch audio input (applicable microphone,
plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ±
10%
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
Power
24 VAC, Hi-PoE 24 VAC, Hi-PoE
DF5
032
PTZ DOME CAMERAS
Model
DS-2DE7225IW-AE DS-2DE7232IW-AE DS-2DE7425IW-AE DS-2DE7430IW-AE DS-2DE7530IW-AE
Image Sensor
1/2.8" progressive scan CMOS 1/2.8" progressive scan CMOS 1/2.5" progressive scan CMOS 1/1.9" progressive scan CMOS 1/1.9" progressive scan CMOS
Resolution
1920×1080 1920×1080 2560×1440 2560×1440 2592×1944
Video Compression
H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264
Lens
4.8 mm to 120 mm, 25x optical 4.8 mm to 153 mm, 32x optical 4.8 mm to 120 mm, 25× optical zoom 5.9 mm to 177 mm, 30x Optical Zoom 5.9 mm to 177 mm, 30× Optical Zoom
Angle of View
Horizontal field of view: 57.6° to 2.5° (Wide-
Tele)
Vertical field of view: 34.4° to 1.4° (Wide-
Tele)
Diagonal field of view: 64.5° to 2.9° (Wide-
Tele)
Horizontal field of view: 55.6° to 2.04° (Wide-
Tele)
Vertical field of view: 32.4° to 1.14° (Wide-
Tele)
Diagonal field of view: 63° to 2.34° (Wide-
Tele)
Horizontal field of view: 59.5° to 2.6° (Wide-
Tele)
Vertical field of view: 35.7° to 1.5° (Wide-
Tele)
Diagonal field of view: 66.6 to 3.0° (Wide-
Tele)
48.8° to 2.3° (wild-tele) 51.3° to 2.7° (Wide-Tele)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON) Color: 0.005 Lux @(F1.6, AGC ON) Color: 0.005 Lux @(F1.6, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON) Color: 0.005 Lux @(F1.5, AGC ON)
WDR
120dB 120dB 120dB 120dB 120dB
Max. IR Range (meters)
150 m 150 m 150 m 150 m 150 m
VCA
Audio Exception Detection, Face Detection,
Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting
Detection, Unattended Baggage Detection,
Object Removal Detection
Audio Exception Detection, Face Detection,
Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting
Detection, Unattended Baggage Detection,
Object Removal Detection
Audio Exception Detection, Face Detection,
Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting
Detection, Unattended Baggage Detection,
Object Removal Detection
Audio Exception Detection, Face Detection,
Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting
Detection, Unattended Baggage Detection,
Object Removal Detection
Audio Exception Detection, Face Detection,
Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting
Detection, Unattended Baggage Detection,
Object Removal Detection
Frame Rate
50Hz: 25fps (1920×1080,
1280×960, 1280×720), 50fps
(1920×1080,1280×960,1280×720)
60Hz: 30fps (1920×1080, 1280×960,
1280×720), 60fps (1920×1080, 1280×960,
1280×720)
50Hz: 25fps (1920×1080, 1280×960,
1280×720), 50fps (1920×1080, 1280×960,
1280×720)
60Hz: 30fps (1920×1080, 1280×960,
1280×720), 60fps (1920×1080, 1280×960,
1280×720)
50Hz: 25fps (2560×1440, 2048×1536,
1920×1080, 1280×960, 1280×720), 50fps
(1920×1080,1280×960, 1280×720)
60Hz: 30fps (2560×1440, 2048×1536,
1920×1080, 1280×960, 1280×720), 60fps
(1920×1080, 1280×960, 1280×720)
50Hz: 25fps (2560×1440, 2048×1536,
1920×1080, 1280×960, 1280×720), 50fps
(1920×1080, 1280×960, 1280×720)
60Hz: 30fps (2560×1440, 2048×1536,
1920×1080, 1280×960, 1280×720), 60fps
(1920×1080, 1280×960, 1280×720)
50Hz: 25fps (2592×1944,
2560×1440, 2048×1536, 1920×1080,
1280×960, 1280×720), 50fps
(1920×1080,1280×960,1280×720)
60Hz: 30fps (2592×1944, 2560×1440,
2048×1536, 1920×1080, 1280×960,
1280×720), 60fps (1920×1080, 1280×960,
1280×720)
Streams
3 3 3 3 3
Protection Level
IP66 Standard, TVS 4000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP66 Standard, TVS 4000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP66 Standard, TVS 4000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP66 Standard, TVS 4000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
IP66 Standard, TVS 4000V Lightning
Protection, Surge Protection and Voltage
Transient Protection
Pan Range
360° endless 360° endless 360° endless 360° endless 360° endless
Tilt Range
From -15° to 90° (Auto-flip) From -15° to 90° (Auto-flip) From -15° to 90° (Auto Flip) From -15° to 90° (Auto Flip) From -15° to 90° (Auto Flip)
Pan Speed
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Configurable, from 0.1°/s to 160°/s, Preset
Speed: 240°/s
Tilt Speed
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Configurable, from 0.1°/s to 120°/s, Preset
Speed: 200°/s
Operating Temperature
-30°C to 65°C (-22°F to 149°F) -30°C to 65°C (-22°F to 149°F) -30°C to 65°C (-22°F to 149°F) -30°C to 65°C (-22°F to 149°F) -30°C to 65°C (-22°F to 149°F)
Humidity
≤ 90% ≤ 90% ≤ 90% ≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB
Built-in memory card slot, support Micro SD/
SDHC/SDXC, up to 256 GB
Audio I/O
1/1 1/1 1/1 1/1 1/1
Alarm I/O
2/1 2/1 2/1 2/1 2/1
Power
24 VAC & Hi-PoE, Max.: 40 W (IR Max.14 W) 24 VAC & Hi-PoE, Max.: 40 W (IR Max.14 W) 24 VAC & Hi-PoE, Max.: 40 W (IR Max.14 W) 24 VAC & Hi-PoE, Max.: 40 W (IR Max.14 W) 24 VAC & Hi-PoE, Max.: 40 W (IR Max.14 W)
HOT
DE7
033

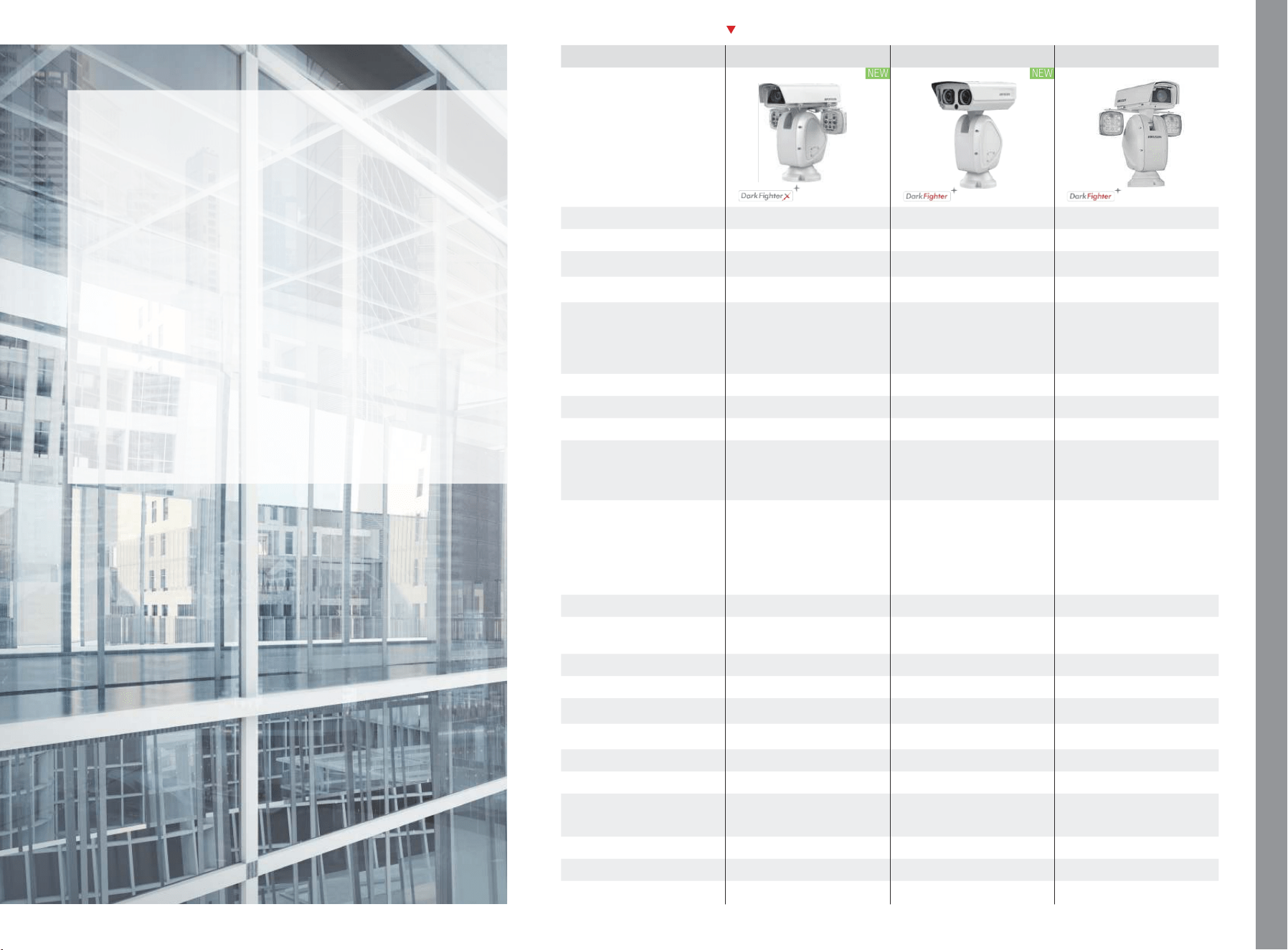

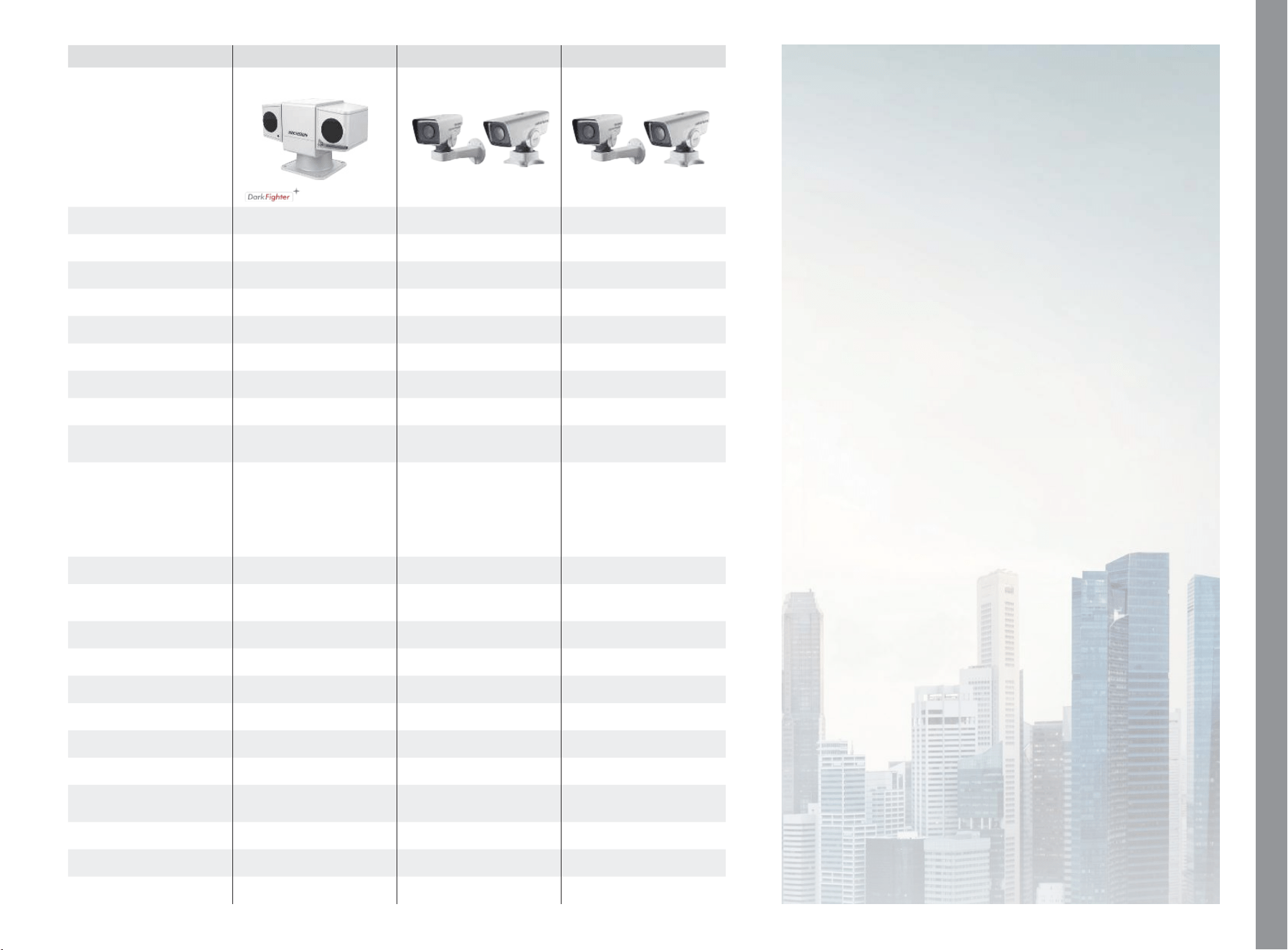

PTZ DOME CAMERAS
Model
DS-2DY9225IH-A DS-2DY9250IAX-A DS-2DY9250IX-A
Image Sensor
2× 1/2.8" progressive scan CMOS 1/2.8" progressive scan CMOS 1/2.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080 1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Lens
4.8 mm to 120 mm, 25x optical
6.6 mm to 330 mm,
50× optical zoom
6.6 mm to 330 mm, 50× Optical
Angle of View
Horizontal field of view: 41.3° to 1.1°
(Wide-Tele)
Vertical field of view: 23.6° to 0.6°
(Wide-Tele)
Diagonal field of view: 47.4° to 1.3°
(Wide-Tele)
Horizontal field of view: 41.3° to 1.1°
(Wide-Tele)
Vertical field of view: 23.6° to 0.6°
(Wide-Tele)
Diagonal field of view: 47.4° to 1.3°
(Wide-Tele)
Horizontal field of view: 41.3° to 1.1°
(Wide-Tele)
Vertical field of view: 23.6° to 0.6°
(Wide-Tele)
Diagonal field of view: 47.4° to 1.3°
(Wide-Tele)
Min. Illumination
Color: 0.001 Lux @(F1.5, AGC ON) Color: 0.05 Lux @(F1.8, AGC ON) Color: 0.05 Lux @(F1.8, AGC ON)
WDR
120 dB 120 dB 120 dB
Max. IR Range (meters)
150m 1000 m 200m
VCA
Face Detection, Intrusion Detection,
Line Crossing Detection, Audio
Exception Detection, Region
Entrance Detection, Region Exiting
Detection
Face Detection, Intrusion Detection,
Line Crossing Detection, Audio
Exception Detection, Region
Entrance Detection, Region Exiting
Detection
Face Detection, Intrusion Detection,
Line Crossing Detection, Audio
Exception Detection, Region
Entrance Detection, Region Exiting
Detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
Streams
3 3 3
Protection Level
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
Pan Range
360° endless 360° endless 360° endless
Tilt Range
From -90° to 40° From -90° to 40° From -90° to 40°
Pan Speed
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Tilt Speed
Configurable, from 0.1°/s to 50°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 50°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 50°/s,
Preset Speed: 100°/s
Operating Temperature
-40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Humidity
≤ 90% ≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Audio I/O
1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output
Power
24 VAC (Max. 120 W) 24 VAC (Max. 110 W) 24 VAC (Max. 70 W)
Positioning Systems
NEW
NEW
Excellent Environmental
Adaptability
Positioning Systems
- Up to 1920 x 1080 resolution
- H.265+ / H.265 codec
- DarkFighter Technology
- More zoom ratio options – 4x / 20x / 23x / 30x / 36x
/ 50x
- Supplemental light options – IR (up to 200 m in
distance), Laser (up to 1,000 m in distance)
- Supports ONVIF, ISAPI, and CGI
- Supports HIKVISION SDK and Third-Party Management
Platform
034

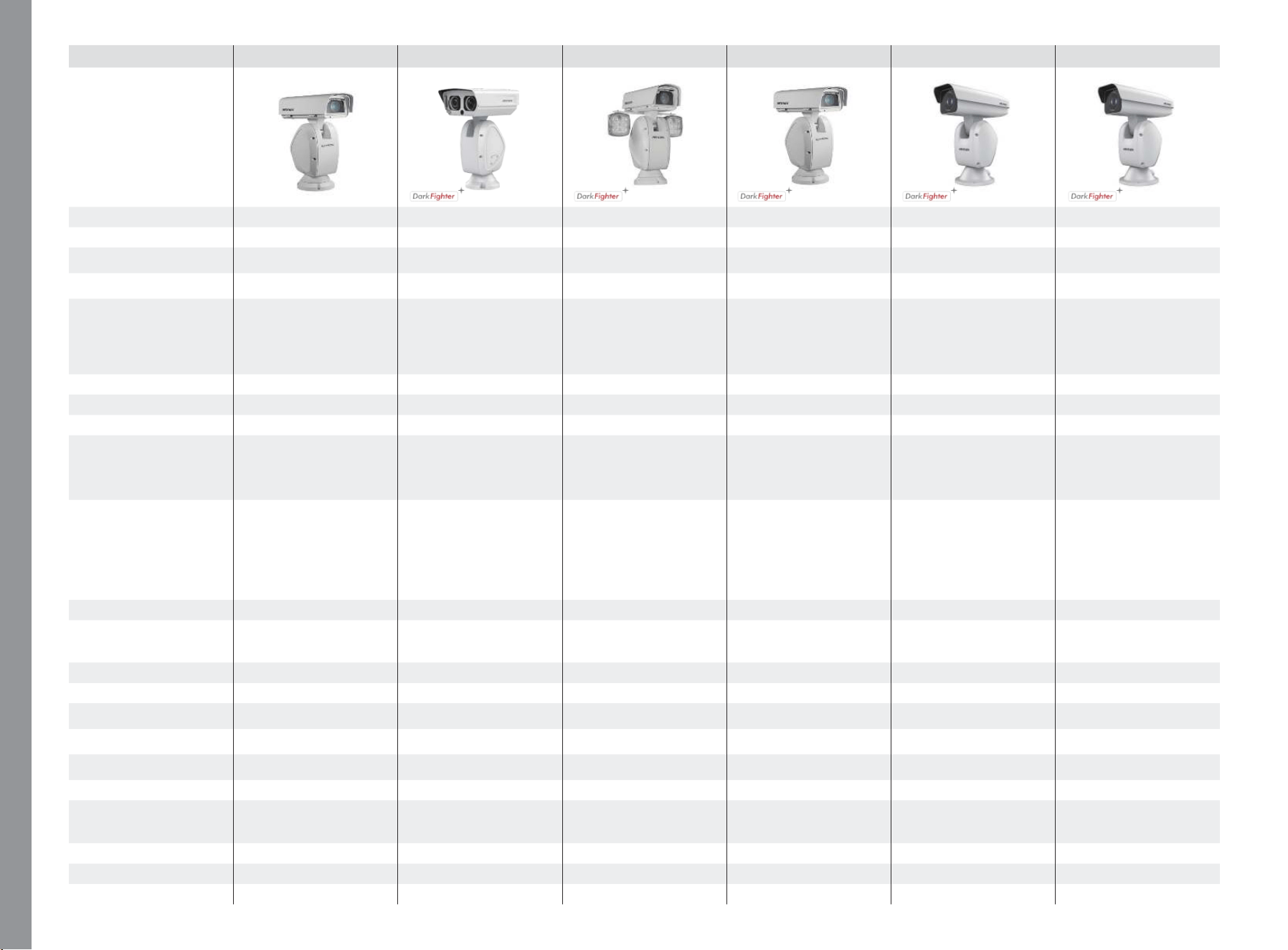

PTZ DOME CAMERAS
Model
DS-2DY9250X-A DS-2DY9236I8X-A DS-2DY9236IX-A DS-2DY9236X-A DS-2DY7236IW-A DS-2DY7236W-A
Image Sensor
1/2.8" progressive scan CMOS 1/1.9" progressive scan CMOS 1/1.9" progressive scan CMOS 1/1.9" progressive scan CMOS 1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Video Compression
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Lens
6.6 mm to 330 mm, 50× Optical
5.6 mm to 207 mm, 36× optical
zoom
5.6 mm to 207 mm, 36× optical
zoom
5.6 mm to 207 mm, 36× optical
zoom
5.7 mm to 205 mm, 36× Optical 5.7 mm to 205 mm, 36× Optical
Angle of View
Horizontal field of view: 41.3° to 1.1°
(Wide-Tele)
Vertical field of view: 23.6° to 0.6°
(Wide-Tele)
Diagonal field of view: 47.4° to 1.3°
(Wide-Tele)
Horizontal field of view: 59.8° to 2.0°
(Wide-Tele)
Vertical field of view: 33.6° to 1.1°
(Wide-Tele)
Diagonal field of view: 68.6° to 2.3°
(Wide-Tele)
Horizontal field of view: 59.8° to 2.0°
(Wide-Tele)
Vertical field of view: 33.6° to 1.1°
(Wide-Tele)
Diagonal field of view: 68.6° to 2.3°
(Wide-Tele)
Horizontal field of view: 59.8° to 2.0°
(Wide-Tele)
Vertical field of view: 33.6° to 1.1°
(Wide-Tele)
Diagonal field of view: 68.6° to 2.3°
(Wide-Tele)
Horizontal field of view: 59.8° to 2.0°
(Wide-Tele)
Vertical field of view: 33.6° to 1.1°
(Wide-Tele)
Diagonal field of view: 68.6° to 2.3°
(Wide-Tele)
Horizontal field of view: 59.8° to 2.0°
(Wide-Tele)
Vertical field of view: 33.6° to 1.1°
(Wide-Tele)
Diagonal field of view: 68.6° to 2.3°
(Wide-Tele)
Min. Illumination
Color: 0.05 Lux @(F1.8, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.002 Lux @(F1.5, AGC ON)
WDR
120 dB 120 dB 120 dB 120 dB 120 dB 120 dB
Max. IR Range (meters)
- 800 m (laser) 200 m - 150 m -
VCA
Face Detection, Intrusion Detection,
Line Crossing Detection, Audio
Exception Detection, Region
Entrance Detection, Region Exiting
Detection
Face Detection, Audio Exception
Detection, Intrusion Detection, Line
Crossing Detection, Region Entrance
Detection, Region Exiting Detection
Face Detection, Audio Exception
Detection, Intrusion Detection, Line
Crossing Detection, Region Entrance
Detection, Region Exiting Detection
Face Detection, Intrusion Detection,
Line Crossing Detection, Audio
Exception Detection, Region
Entrance Detection, Region Exiting
Detection
Intrusion Detection, Line Crossing
Detection, Audio Exception
Detection
Intrusion Detection, Line Crossing
Detection, Audio Exception
Detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
Streams
3 3 3 3 3 3
Protection Level
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
Pan Range
360° endless 360° endless 360° endless 360° endless 360° endless 360° endless
Tilt Range
From -90° to 40° From -90° to 40° From -90° to 40° From -90° to 40° From -90° to 40° From -90° to 40°
Pan Speed
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 150°/s,
Preset Speed: 150°/s
Configurable, from 0.1°/s to 150°/s,
Preset Speed: 150°/s
Tilt Speed
Configurable, from 0.1°/s to 50°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 40°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 40°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 50°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Configurable, from 0.1°/s to 100°/s,
Preset Speed: 100°/s
Operating Temperature
Outdoor: -40°C to 70°C (-40°F to
158°F)
Outdoor: -40°C to 70°C (-40°F to
158°F)
Outdoor: -40°C to 70°C (-40°F to
158°F)
Outdoor: -40°C to 70°C (-40°F to
158°F)
Outdoor: -40°C to 70°C (-40°F to
158°F)
Outdoor: -40°C to 70°C (-40°F to
158°F)
Humidity
≤ 90% ≤ 90% ≤ 90% ≤ 90% ≤ 90% ≤ 90%
Local Storage
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB;
NAS (NPS, SMB/ CIPS), ANR
Audio I/O
1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output
Alarm I/O
7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 7-ch alarm input/2-ch alarm output 2-ch alarm input/1-ch alarm output 2-ch alarm input/1-ch alarm output
Power
24 VAC (Max. 70 W) 24 VAC, Max.: 110 W 24 VAC, Max.: 110 W (39.2 W for IR) 24 VAC (Max. 70 W) 24 VAC (Max. 55 W) 24 VAC (Max. 45 W)
035
PTZ DOME CAMERAS
Model
DS-2DY5223IW-AE\DM DS-2DY3220IW-DE(4) DS-2DY3320IW-DE(4)
Image Sensor
1/1.9’’ Progressive Scan CMOS 1/2.8" progressive scan CMOS 1/2.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080 2048 × 1536
Video Compression
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Lens
5.9-135.7mm, 23X 4.7 mm to 94 mm, 20× Optical 4.7 mm to 94 mm, 20× Optical
Angle of View
Horizontal field of view: 59.8° to 3.0°
(Wide-Tele)
61.4° to 2.9° (Wide-Tele) 58.3° to 3.2° (Wide-Tele)
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON) Color: 0.05 Lux @(F1.6, AGC ON) Color: 0.05 Lux @(F1.6, AGC ON)
WDR
120 dB Digital WDR Digital WDR
Max. IR Range (meters)
150 m Up to 100 m Up to 100 m
VCA
Intrusion Detection, Line Crossing
Detection, Audio Exception
Detection
Intrusion Detection, Line Crossing
Detection, Region Exiting Detection,
Region Entrance Detection
Intrusion Detection, Line Crossing
Detection, Region Exiting Detection,
Region Entrance Detection
Frame Rate
50Hz:25fps(1920×1080),
25fps(1280×720)
60Hz:30fps(1920×1080),
30fps(1280×720)
50Hz: 25fps (1920 × 1080, 1280 ×
960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (2048 × 1536, 1920 ×
1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960,
1280 × 720)
60Hz: 30fps (2048 × 1536, 1920 ×
1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960,
1280 × 720)
Streams
3 3 3
Protection Level
IP66 standard, TVS 6,000V lightning
protection, surge protection and
voltage transient protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
IP66 Standard; TVS 6000V Lightning
Protection, Surge Protection and
Voltage Transient Protection
Pan Range
360° endless 360° endless 360° endless
Tilt Range
From -90° to 90° (Auto Flip) From -40° to 30° From -40° to 30°
Pan Speed
Configurable, from 0.1°/s to 200°/s Configurable, from 0.1°/s to 60°/s Configurable, from 0.1°/s to 60°/s
Tilt Speed
Configurable, from 0.1°/s to 50°/s Configurable, from 0.1°/s to 30°/s Configurable, from 0.1°/s to 30°/s
Operating Temperature
Outdoor: -40°C to 65°C (-40°F to
149°F)
Outdoor: -30°C to 65°C (-22°F to
149°F)
Outdoor: -30°C to 65°C (-22°F to
149°F)
Humidity
≤ 90% ≤ 90% ≤ 90%
Local Storage
Built-in Micro SD/SDXC card slot, up
to 128GB, manual/alarm recording,
ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 128 GB;
NAS (NPS, SMB/ CIPS), ANR
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 128 GB;
NAS (NPS, SMB/ CIPS), ANR
Audio I/O
1-ch audio input/1-ch audio output 1-ch audio input, 1-ch audio output 1-ch audio input, 1-ch audio output
Alarm I/O
7-ch alarm input/2-ch alarm output 1-ch alarm input, 1-ch alarm output 1-ch alarm input, 1-ch alarm output
Power
Hi-PoE&24 VAC, Max. 45W 12 VDC & PoE (802.3at, class4) 12 VDC & PoE (802.3at, class4)
036
PTZ DOME CAMERAS
PanoVu Series
Fisheye Series
Panoramic
Camera
037
Model
DS-2PT3326IZ-DE3 DS-2PT3122IZ-DE3 DS-2PT3306IZ-DE3
Image Sensor
Fixed: 3×1/2.8" progressive scan
CMOS
PTZ: 1/2.8" progressive scan CMOS
Fixed: 1×1/2.8‘’ progressive scan
CMOS
PTZ: 1/2.8‘’ progressive scan CMOS
3×1/2.8" progressive scan CMOS
Resolution
1920×1080 1920×1080 1920×1080
Video Compression
H.265/H.264/MJPEG H.265/H.264/MJPEG H.265/H.264/MJPEG
Min. Illumination
Color: 0.05 Lux @(F2.0, AGC ON) Color: 0.05 Lux @(F2.0, AGC ON) Color: 0.05 Lux @(F2.0, AGC ON)
WDR
Digital WDR Digital WDR Digital WDR
Lens
Fixed: 2mm
PTZ: 2.8-12mm
Fixed: 2mm
PTZ: 2.8-12mm
2mm
FOV
Fixed:
Horizontal field of view: 128.5°
Vertical field of view: 75.7°
Diagonal field of view: 144°
PTZ cam:
Horizontal field of view: 120° to 56.6°
(Wide-Tele)
Vertical field of view: 61.8° to 31.7°
(Wide-Tele)
Diagonal field of view: 149° to 65°
(Wide-Tele)
Panoramic cam:
Horizontal field of view: 128.5°
Vertical field of view: 75.7°
Diagonal field of view: 144°
PTZ cam:
Horizontal field of view: 120° to 56.6°
(Wide-Tele)
Vertical field of view: 61.8° to 31.7°
(Wide-Tele)
Diagonal field of view: 149° to 65°
(Wide-Tele)
Horizontal field of view: 128.5° × 3
Vertical field of view: 75.7°
Optical Zoom
PTZ: 4X PTZ: 4X -
Max. IR Range (meters)
10m 10m 10m
VCA
Audio Exception Detection,
Intrusion Detection, Line Crossing
Detection,motion detection
Audio Exception Detection,
Intrusion Detection, Line Crossing
Detection,motion detection
Audio Exception Detection,
Intrusion Detection, Line Crossing
Detection,motion detection
Frame Rate
50Hz: 25fps (1920×1080, 1280×720,
704×576, 640×480, 352×288)
60Hz: 30fps (1920×1080, 1280×720,
704×480, 640×480, 352×240)
50Hz: 25fps (1920×1080, 1280×720,
704×576, 640×480, 352×288)
60Hz: 30fps (1920×1080, 1280×720,
704×480, 640×480, 352×240)
50 Hz: 20 fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60 Hz: 20 fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Streams
2 2 2
Protection Level
- - IP66
Operating Temperature
-10°C to 50°C (14°F to 122°F) -10°C to 50°C (14°F to 122°F) -10°C to 50°C (14°F to 122°F)
Humidity
Humidity 90% or less (non-
condensing)
Humidity 90% or less (non-
condensing)
Humidity 90% or less (non-
condensing)
Local Storage
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB
Indoor/Outdoor
Indoor Indoor Indoor
Audio I/O
1-ch audio input and 1-ch audio
output.
1-ch audio input and 1-ch audio
output.
1-ch audio input and 1-ch audio
output.
Alarm I/O
- - -
Power
12 VDC (Max.24 W), PoE+ (Max. 25 W),
IR Max. 6 W
12 VDC (Max.19 W), PoE+ (Max. 20 W),
IR Max. 2 W
12 VDC & PoE+ (802.3 at, class 4)
Max.20 W (Max. 6 W for IR)
PanoVu Mini
From Expansive Scenes to
Detailed Close-Ups
PanoVu Series
- 360°/180° Monitoring
- H.265 / H.265+ (optional) codec
- Multiple display modes
- Saves labor costs
- Saves IP address costs
038

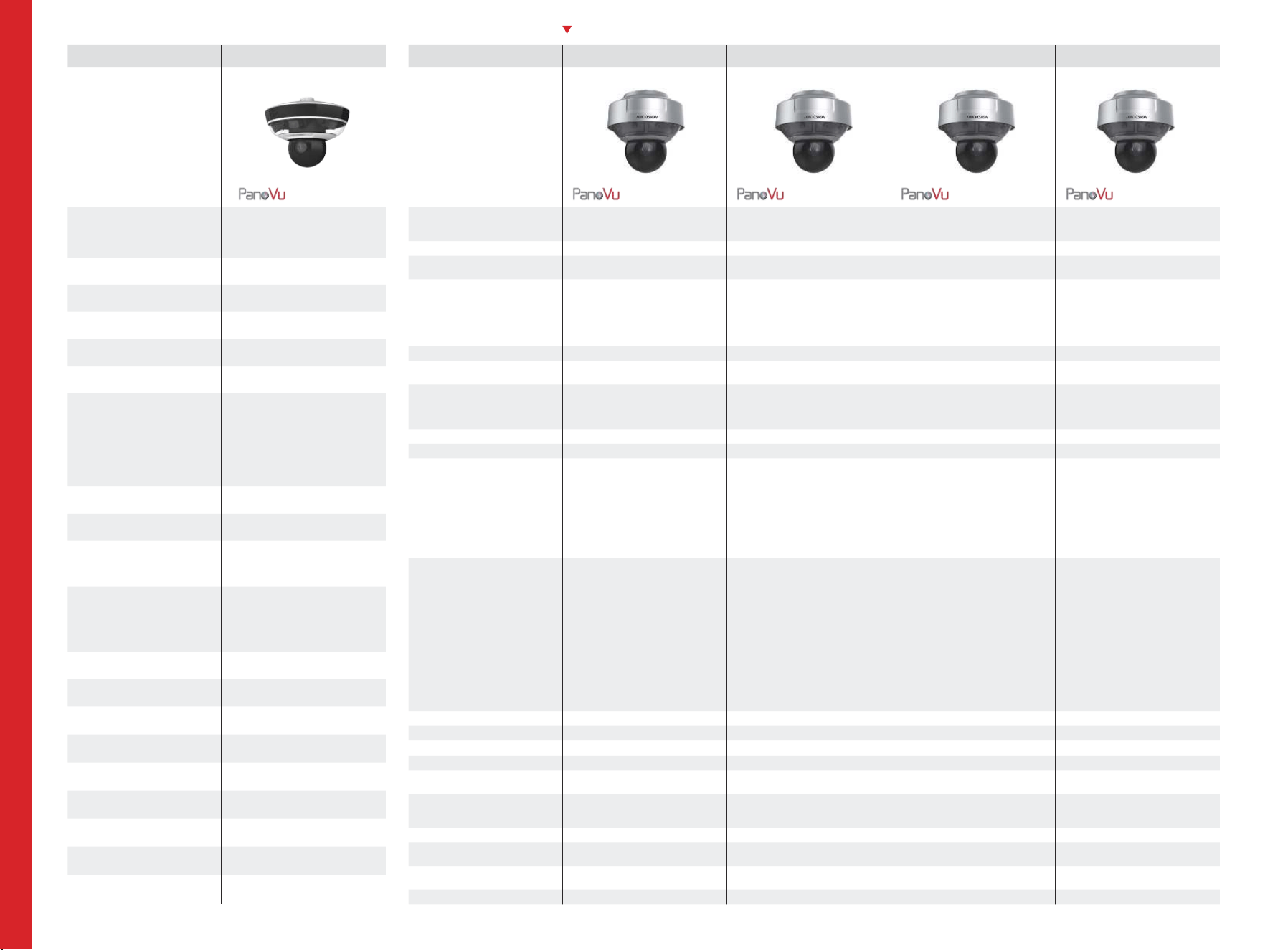

PANORAMIC CAMERAS
Model
DS-2PT5326IZ-DE
Image Sensor
Fixed: 3×1/2.8" progressive scan
CMOS
PTZ: 1/2.8" progressive scan CMOS
Resolution
1920×1080
Video Compression
H.265/H.264/MJPEG
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
WDR
Digital WDR
Lens
Fixed: 4mm
PTZ: 5-50mm
FOV
Panoramic cam:
Horizontal field of view: 80.7° × 3
Vertical field of view: 43.5°
PTZ cam:
Horizontal field of view: 58.6° to 6.4°
(wide - tele)
Optical Zoom
PTZ: 10X
Max. IR Range (meters)
Panoramic cam:30m
PTZ cam:50m
VCA
Audio Exception Detection,
Intrusion Detection, Line Crossing
Detection,motion detection
Frame Rate
50Hz: 25fps (1920×1080, 1280×720,
704×576, 640×480, 352×288)
60Hz: 30fps (1920×1080, 1280×720,
704×480, 640×480, 352×240)
Streams
2
Protection Level
IP66
Operating Temperature
-30°C to 65°C (-22°F to 149°F), with
heater on
Humidity
Humidity 90% or less (non-
condensing)
Local Storage
Built-in memory card slot, support
Micro SD/SDHC/SDXC, up to 256 GB
Indoor/Outdoor
Outdoor
Audio I/O
1-ch audio input and 1-ch audio
output.
Alarm I/O
1-ch alarm input and 1-ch alarm
output
Power
12 VDC & PoE+ (802.3 at, class 4)
Max.27 W (Max. 9 W for IR)

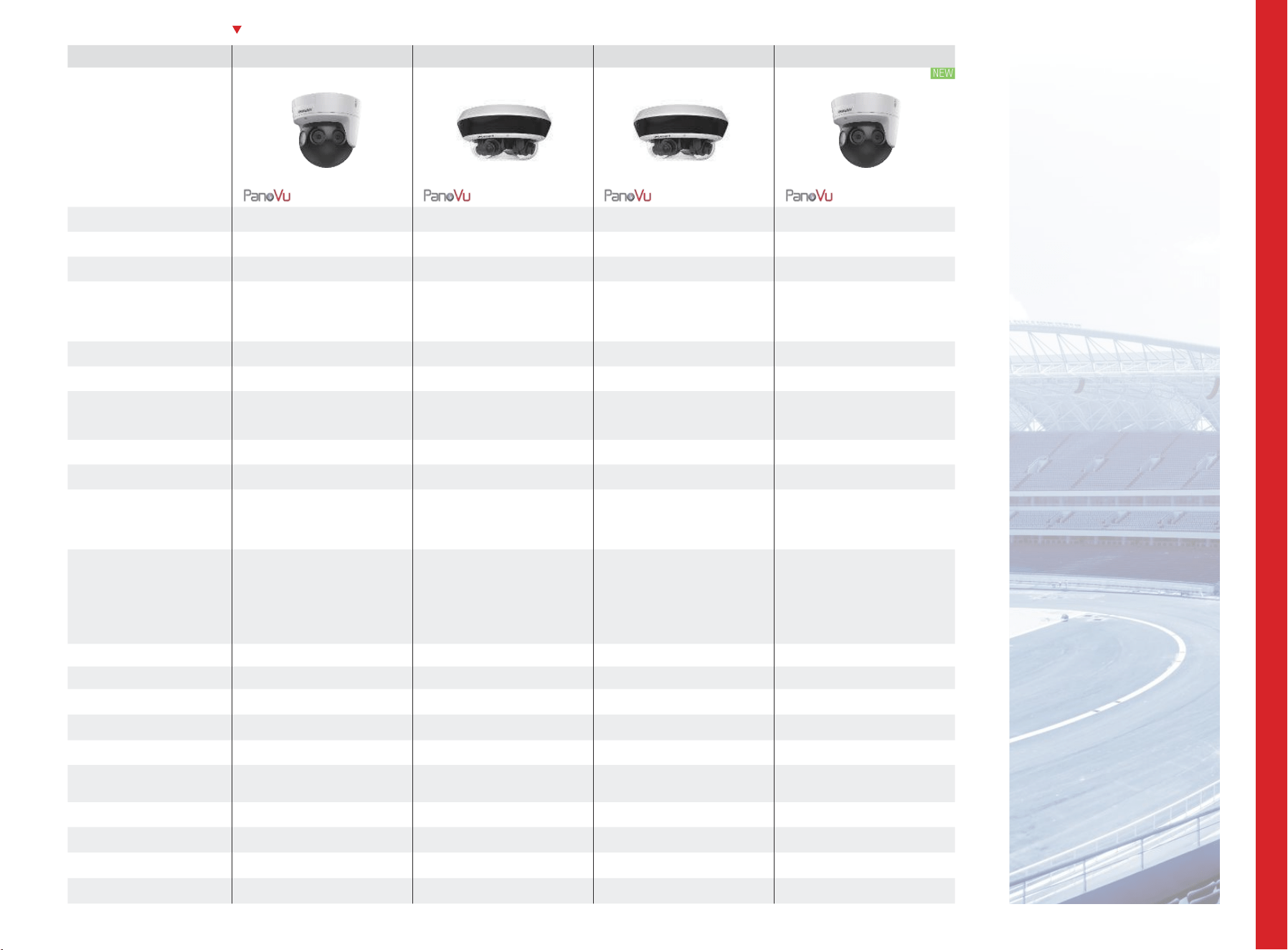

Model
DS-2DP0818ZIX-D/236(5mm) DS-2DP1636ZIX-D/236(5mm) DS-2DP0818ZX-D/236(5mm) DS-2DP1636ZX-D/236(5mm)
Image Sensor
Panoramic: Four 1/1.8" Progressive
Scan CMOS
PTZ: 1/1.8" Progressive Scan CMOS
Panoramic: Eight 1/1.8" Progressive
Scan CMOS
PTZ: 1/1.8" Progressive Scan CMOS
Panoramic: Four 1/1.8" Progressive
Scan CMOS
PTZ: 1/1.8" Progressive Scan CMOS
Panoramic: Eight 1/1.8" Progressive
Scan CMOS
PTZ: 1/1.8" Progressive Scan CMOS
Resolution
4096×1800 4096×1800 4096×1800 4096×1800
Video Compression
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Main Stream: H.265+/H.265/H.264+/
H.264
Min. Illumination
Panoramic:
Color: 0.005 Lux@(F2.0, AGC ON), B/W:
0.0005 Lux@(F2.0, AGC ON)
PTZ:Color: 0.002 Lux@(F1.5, AGC ON),
B/W: 0.0002 Lux@(F1.5, AGC ON), 0
Lux with IR
Panoramic:
Color: 0.005 Lux@(F2.0, AGC ON), B/W:
0.0005 Lux@(F2.0, AGC ON)
PTZ:Color: 0.002 Lux@(F1.5, AGC ON),
B/W: 0.0002 Lux@(F1.5, AGC ON), 0
Lux with IR
Panoramic:
Color: 0.005 Lux@(F2.0, AGC ON), B/W:
0.0005 Lux@(F2.0, AGC ON)
PTZ:Color: 0.002 Lux@(F1.5, AGC ON),
B/W: 0.0002 Lux@(F1.5, AGC ON)
Panoramic:
Color: 0.005 Lux@(F2.0, AGC ON), B/W:
0.0005 Lux@(F2.0, AGC ON)
PTZ:Color: 0.002 Lux@(F1.5, AGC ON),
B/W: 0.0002 Lux@(F1.5, AGC ON)
WDR
120 dB 120 dB 120 dB 120 dB
Lens
Panoramic: 5.0mm/ F2.0
PTZ: 5.6 to 208mm, 36× optical zoom
Panoramic: 5.0mm/ F2.0
PTZ: 5.6 to 208mm, 36× optical zoom
Panoramic: 5.0mm/ F2.0
PTZ: 5.6 to 208mm, 36× optical zoom
Panoramic: 5.0mm/ F2.0
PTZ: 5.6 to 208mm, 36× optical zoom
FOV
Panoramic:
Horizontal: 180°, Vertical: 80°
PTZ:
Horizontal: 62.5° to 1.9° (Wide-Tele)
Panoramic:
Horizontal: 360°, Vertical: 80°
PTZ:
Horizontal: 62.5° to 1.9° (Wide-Tele)
Panoramic:
Horizontal: 180°, Vertical: 80°
PTZ:
Horizontal: 62.5° to 1.9° (Wide-Tele)
Panoramic:
Horizontal: 360°, Vertical: 80°
PTZ:
Horizontal: 62.5° to 1.9° (Wide-Tele)
Optical Zoom
36X 36X 36X 36X
Max. IR Range (meters)
PTZ: 200m PTZ: 200m
VCA
Panoramic:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection
PTZ:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection, Face
Detection, Audio Exception Detection,
Panoramic:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection
PTZ:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection, Face
Detection, Audio Exception Detection,
Panoramic:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection
PTZ:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection, Face
Detection, Audio Exception Detection,
Panoramic:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection
PTZ:
Intrusion Detection, Line Crossing
Detection, Region Entrance Detection,
Region Exiting Detection, Face
Detection, Audio Exception Detection,
Frame Rate
Panoramic: 20:9
50Hz: 25fps (4096×1800, 3840×1680,
2720×1192)
60Hz: 30fps (4096×1800, 3840×1680,
2720×1192)
20:6
50Hz: 25fps (4096×1200, 3840×1080,
2720×800)
60Hz: 30fps (4096×1200, 3840×1080,
2720×800)
PTZ:50Hz: 25fps (1920×1080,
1280×960, 1280×720)
60Hz: 30fps (1920×1080, 1280×960,
1280×720)
Panoramic: 20:9
50Hz: 25fps (4096×1800, 3840×1680,
2720×1192)
60Hz: 30fps (4096×1800, 3840×1680,
2720×1192)
20:6
50Hz: 25fps (4096×1200, 3840×1080,
2720×800)
60Hz: 30fps (4096×1200, 3840×1080,
2720×800)
PTZ:50Hz: 25fps (1920×1080,
1280×960, 1280×720)
60Hz: 30fps (1920×1080, 1280×960,
1280×720)
Panoramic: 20:9
50Hz: 25fps (4096×1800, 3840×1680,
2720×1192)
60Hz: 30fps (4096×1800, 3840×1680,
2720×1192)
20:6
50Hz: 25fps (4096×1200, 3840×1080,
2720×800)
60Hz: 30fps (4096×1200, 3840×1080,
2720×800)
PTZ:50Hz: 25fps (1920×1080,
1280×960, 1280×720)
60Hz: 30fps (1920×1080, 1280×960,
1280×720)
Panoramic: 20:9
50Hz: 25fps (4096×1800, 3840×1680,
2720×1192)
60Hz: 30fps (4096×1800, 3840×1680,
2720×1192)
20:6
50Hz: 25fps (4096×1200, 3840×1080,
2720×800)
60Hz: 30fps (4096×1200, 3840×1080,
2720×800)
PTZ:50Hz: 25fps (1920×1080,
1280×960, 1280×720)
60Hz: 30fps (1920×1080, 1280×960,
1280×720)
Streams
3 3 3 3
Protection Level
IP66 IP66 IP66 IP66
Angle Adjustment
- - - -
Operating Temperature
Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F) Outdoor: -40°C to 70°C (-40°F to 158°F)
Humidity
Humidity 90% or less (non-
condensing)
Humidity 90% or less (non-
condensing)
Humidity 90% or less (non-
condensing)
Humidity 90% or less (non-
condensing)
Local Storage
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS
(NFS,SMB/CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS
(NFS,SMB/CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS
(NFS,SMB/CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS
(NFS,SMB/CIFS), ANR
Indoor/Outdoor
Outdoor Outdoor Outdoor Outdoor
Audio I/O
1-ch audio input and 1-ch audio
output.
1-ch audio input and 1-ch audio
output.
1-ch audio input and 1-ch audio
output.
1-ch audio input and 1-ch audio
output.
Alarm I/O
7-ch alarm input and 2-ch alarm
output
7-ch alarm input and 2-ch alarm
output
7-ch alarm input and 2-ch alarm
output
7-ch alarm input and 2-ch alarm
output
Power
36 VDC 36 VDC 36 VDC 36 VDC
PanoVu PTZ
039
PANORAMIC CAMERAS
Model
DS-2CD6924F DS-2CD6D54FWD DS-2CD6D24FWD DS-2CD6984G0-HI(S)(/NFC)
Image Sensor
1/2.8" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS 1/2" Progressive scan CMOS
Resolution
Panorama mode 2560 x 1920 1920 × 1080 8160 × 3616(Panorama mode)
Video Compression
H.265+/H.264+/H.265/H.264/MJPEG H.265+/H.264+/H.265/H.264/MJPEG H.265+/H.264+/H.265/H.264/MJPEG H.265/H.264
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON),
0.007Lux @ (F1.8, AGC ON)
Color: 0.006 Lux @ (F1.2, AGC ON), 0.010
Lux @ (F1.6, AGC ON)
Color: 0.006 Lux @ (F1.2, AGC ON), 0.010
Lux @ (F1.6, AGC ON)
Color: 0.009 Lux @ (F1.2, AGC ON), 0.012
Lux @ (F1.4, AGC ON)
B/W: 0.0009 Lux @ (F1.2, AGC ON),
0.0012 Lux @ (F1.4, AGC ON), 0 Lux with
IR
WDR
Digital WDR 120 dB 120 dB Digital WDR
Lens
4 × 4 mm/4 × 6 mm lens 4 × 2.8mm to 12 mm lens 4 × 2.8mm to 12 mm lens 4*2.8mm
FOV
Horizontal field of view: 180° Horizontal field of view: 30° to 101° Horizontal field of view: 30° to 96.3°
Single lens image: horizontal FOV 102°,
vertical FOV 55°, diagonal FOV 120°
Panorama Image: horizontal field of view
180°, vertical FOV 95°
Optical Zoom
- 4X 4X -
Max. IR Range (meters)
4 × IR LEDs, up to 20 m 10 m to 30 m 10 m to 30 m 4 × IR LEDs, up to 20 m
VCA
Line crossing detection, intrusion
detection, region entrance, region
exiting, unattended baggage detection,
object removal detection, face
detection
Line crossing detection, intrusion
detection, region entrance detection,
region exiting detection, unattended
baggage detection, object removal
detection
Line crossing detection, intrusion
detection, region entrance detection,
region exiting detection, unattended
baggage detection, object removal
detection
-
Frame Rate
4 mm:
50Hz: 25fps (4096 × 1800, 4096 × 1440,
4096 × 1080)
60Hz: 30fps (4096 × 1800, 4096 × 1440,
4096 × 1080)
6 mm:
50Hz: 25fps (7008 × 1080, 3504 × 540)
60Hz: 30fps (7008 × 1080, 3504 × 540)
50Hz: 25fps (2560 × 1920, 2048 × 1536,
1920 × 1080, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960,
1280 × 720)
50Hz: 25fps (8160 × 3616, 8160 × 2304)
60Hz: 30fps (8160 × 3616, 8160 × 2304)
Streams
2 3 3 1
Protection Level
IP67, IK10 IP67, IK10 IP67, IK10 IP66, IK10
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 90°
Pan: 0° to +355°, tilt: 0° to 135°, rotate:
0° to 355°
Pan: 0° to +355°, tilt: 0° to 135°, rotate:
0° to 355°
Pan: 0° to 355°, tilt: 0° to 90°
Operating Temperature
-40 °C to +60 °C (-40 °F to +140 °F)
-30 °C to 60 °C (-22 °F to 140 °F). -H: -40
°C to 60 °C (-40 °F to 140 °F)
-30 °C to 60 °C (-22 °F to 140 °F). -H: -40
°C to 60 °C (-40 °F to 140 °F)
-40 °C to +60 °C (-40 °F to +140 °F)
Humidity
Humidity 95% or less (non-condensing) Humidity 95% or less (non-condensing) Humidity 95% or less (non-condensing) humidity 95% or less (non-condensing)
Local Storage
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS (NFS,SMB/
CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS (NFS,SMB/
CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS (NFS,SMB/
CIFS), ANR
Support Micro SD/SDHC/SDXC card
(128G), local storage and NAS (NFS,SMB/
CIFS), ANR
Indoor/Outdoor
Outdoor Outdoor Outdoor Outdoor
Audio I/O
1 Input (line in/mic in, 3.5 mm), 1
output(3.5 mm)
1-ch 3.5 mm input (line in), 1-ch 3.5mm
output, dual-track, stereo
1-ch 3.5 mm input (line in), 1-ch 3.5mm
output, dual-track, stereo
1 input (line in), 1 output (line out),
mono sound
Alarm I/O
2 Inputs, 2 outputs (max. 24 VDC, 1
A/110 VAC, 500 mA)
2 inputs, 2 outputs (up to 24 VD, 1A or
110 VAC, 500mA )
2 inputs, 2 outputs (up to 24 VD, 1A or
110 VAC, 500mA )
2 Inputs, 2 outputs (max. 12 VDC, 1 A)
Power
12 VDC ± 20%, PoE: 802.3at, class 4
12 VDC ± 20%, 24 VAC ± 20%, PoE
(802.3at): 42.5 VDC to 57 VDC
12 VDC ± 20%, 24 VAC ± 20%, PoE: 42.5
VDC to 57 VDC
12 VDC±20%, three-core terminal block,
PoE (802.3at), class 4
PanoVu Camera
NEW
040
PANORAMIC CAMERAS
Model
DS-2CD63C5G0-I(V)(S) DS-2CD6365G0-I(V)(S)
Image Sensor
1/1.7'' Progressive Scan CMOS 1/1.8'' Progressive Scan CMOS
Max.Resolution
4000 × 3000 3072 × 2048
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG
Min. Illumination
0.015 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F1.2, AGC
ON), 0 Lux with IR
0.01 Lux @ (F1.2, AGC ON), 0.001 Lux @ (F1.2, AGC ON),
0 Lux with IR
WDR
120 dB 120 dB
Lens
1.29mm 1.27mm
FOV
Horizontal FOV 180° (wall mount), 360°(ceiling mount),
360°(table mount)
Horizontal FOV 180° (wall mount), 360°(ceiling mount),
360°(table mount)
Max. IR Range (meters)
Up to 15 m IR range, 3 LEDs. Each LED is independently
controlled.
Up to 15 m IR range, 3 LEDs. Each LED is independently
controlled.
VCA
Line crossing detection, intrusion detection,
region entrance detection, region exiting
detection, unattended baggage detection, object
removal detection;Heat map with deep learning
algorithm;Intersection analysis
Line crossing detection, intrusion detection,
region entrance detection, region exiting
detection, unattended baggage detection, object
removal detection;Heat map with deep learning
algorithm;Intersection analysis
Frame Rate
50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 ×
2560)
60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 ×
2560)
50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Streams
2 2
Protection Level
IP66, IK10 IP66, IK10
Angle Adjustment
- -
Operating Temperature
-30 °C to 60 °C (-22 °F to +140 °F) -30 °C to 60 °C
Humidity
humidity 95% or less (non-condensing) humidity 95% or less (non-condensing)
Local Storage
Support microSD/SDHC/SDXC card (256 G), local storage
and NAS (NFS,SMB/CIFS), ANR
Support microSD/SDHC/SDXC card (256 G), local storage
and NAS (NFS,SMB/CIFS), ANR
Indoor/Outdoor
indoor/outdoor indoor/outdoor
Audio I/O
1 Audio input (line in, 3.5 mm), 1 audio output (line out,
3.5 mm);
1 Audio input (line in, 3.5 mm), 1 audio output (line out,
3.5 mm);
Alarm I/O
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24
VDC, 1 A
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24
VDC, 1 A
Power
12 VDC±20%, PoE (802.3at, class 4), two-core terminal
block
12 VDC±20%, PoE (802.3at, class 4), two-core terminal
block
Ultra Series
Single Sensor Panorama
Camera
Fisheye Series
- 360°/180° overview
- H.265 / H.265+ (optional) codec
- Multiple display modes
- Deep learning heat map (optional)
- Hardware decode mode (optional)
NEW
NEW
041
PANORAMIC CAMERAS

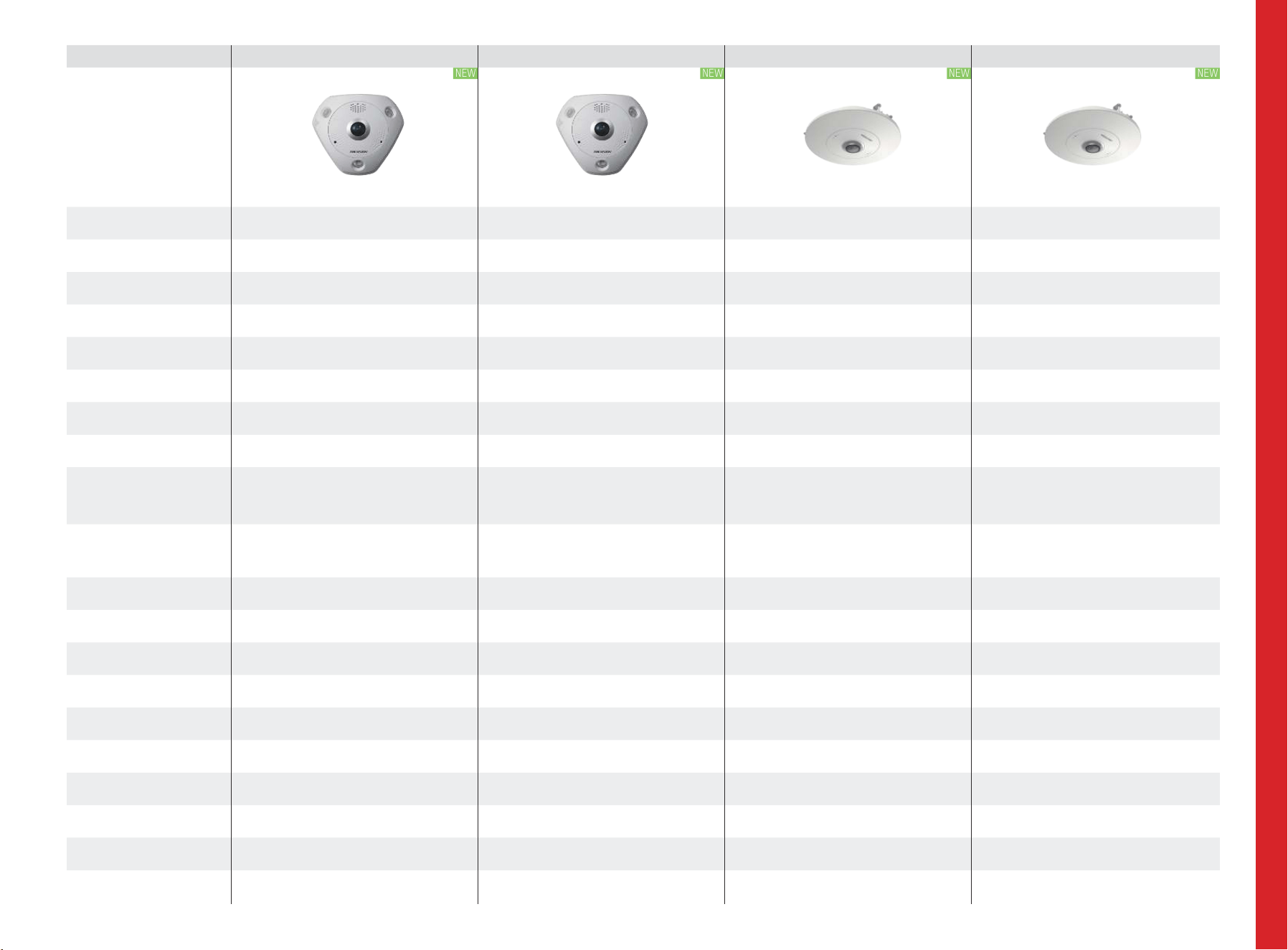

Model
DS-2CD63C5G0E-I(V)(S) DS-2CD6365G0E-I(V)(S) DS-2CD63C5G0E-S/RC DS-2CD6365G0E-S/RC
Image Sensor
1/1.7'' Progressive Scan CMOS 1/1.8'' Progressive Scan CMOS 1/1.7'' Progressive Scan CMOS 1/1.8'' Progressive Scan CMOS
Max.Resolution
4000 × 3000 3072 × 2048 4000 × 3000 3072 × 2048
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG
Min. Illumination
0.015 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F1.2, AGC ON),
0 Lux with IR
0.01 Lux @ (F1.2, AGC ON), 0.001 Lux @ (F1.2, AGC ON), 0
Lux with IR
0.015 Lux @ (F1.2, AGC ON) 0.01 Lux @ (F1.2, AGC ON)
WDR
120 dB 120 dB 120 dB 120 dB
Lens
2mm 1.27mm 2mm 1.27mm
FOV
Horizontal FOV 180° (wall mount), 360°(ceiling mount),
360°(table mount)
Horizontal FOV 180° (wall mount), 360°(ceiling mount),
360°(table mount)
Horizontal FOV 180° (wall mount), 360°(ceiling mount),
360°(table mount)
Horizontal FOV 180° (wall mount), 360°(ceiling mount),
360°(table mount)
Max. IR Range (meters)
Up to 15 m IR range, 3 LEDs. Each LED is independently
controlled.
Up to 15 m IR range, 3 LEDs. Each LED is independently
controlled.
- -
VCA
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection;
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection;
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection;
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection;
Frame Rate
50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 ×
2560)
60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 ×
2560)
50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 ×
2560)
60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 ×
2560)
50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Streams
2 2 2 2
Protection Level
IP66, IK10 IP66, IK10 - -
Angle Adjustment
- - - -
Operating Temperature
-30 °C to 60 °C (-22 °F to +140 °F) -30 °C to 60 °C (-22 °F to +140 °F) -10 °C to +50 °C (14 °F to +122 °F) -10 °C to +50 °C (14 °F to +122 °F)
Humidity
humidity 95% or less (non-condensing) humidity 95% or less (non-condensing) humidity 95% or less (non-condensing) humidity 95% or less (non-condensing)
Local Storage
Support microSD/SDHC/SDXC card (256 G), local storage
and NAS (NFS,SMB/CIFS), ANR
Support microSD/SDHC/SDXC card (256 G), local storage
and NAS (NFS,SMB/CIFS), ANR
Support microSD/SDHC/SDXC card (256 G), local storage
and NAS (NFS,SMB/CIFS), ANR
Support microSD/SDHC/SDXC card (256 G), local storage
and NAS (NFS,SMB/CIFS), ANR
Indoor/Outdoor
indoor/outdoor indoor/outdoor indoor indoor
Audio I/O
1 Audio input (line in, 3.5 mm), 1 audio output (line out,
3.5 mm);
1 Audio input (line in, 3.5 mm), 1 audio output (line out,
3.5 mm);
1 Audio input (line in, 3.5 mm), 1 audio output (line out,
3.5 mm);
1 Audio input (line in, 3.5 mm), 1 audio output (line out,
3.5 mm);
Alarm I/O
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24
VDC, 1 A
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24
VDC, 1 A
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24
VDC, 1 A
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24
VDC, 1 A
Power
12 VDC±20%, PoE (802.3af, class 0), two-core terminal
block
12 VDC±20%, PoE (802.3af, class 0), two-core terminal
block
12 VDC±20%, PoE (802.3af, class 0), two-core terminal
block
12 VDC±20%, PoE (802.3af, class 0), two-core terminal
block
NEW
NEW
NEW
NEW
042
PANORAMIC CAMERAS

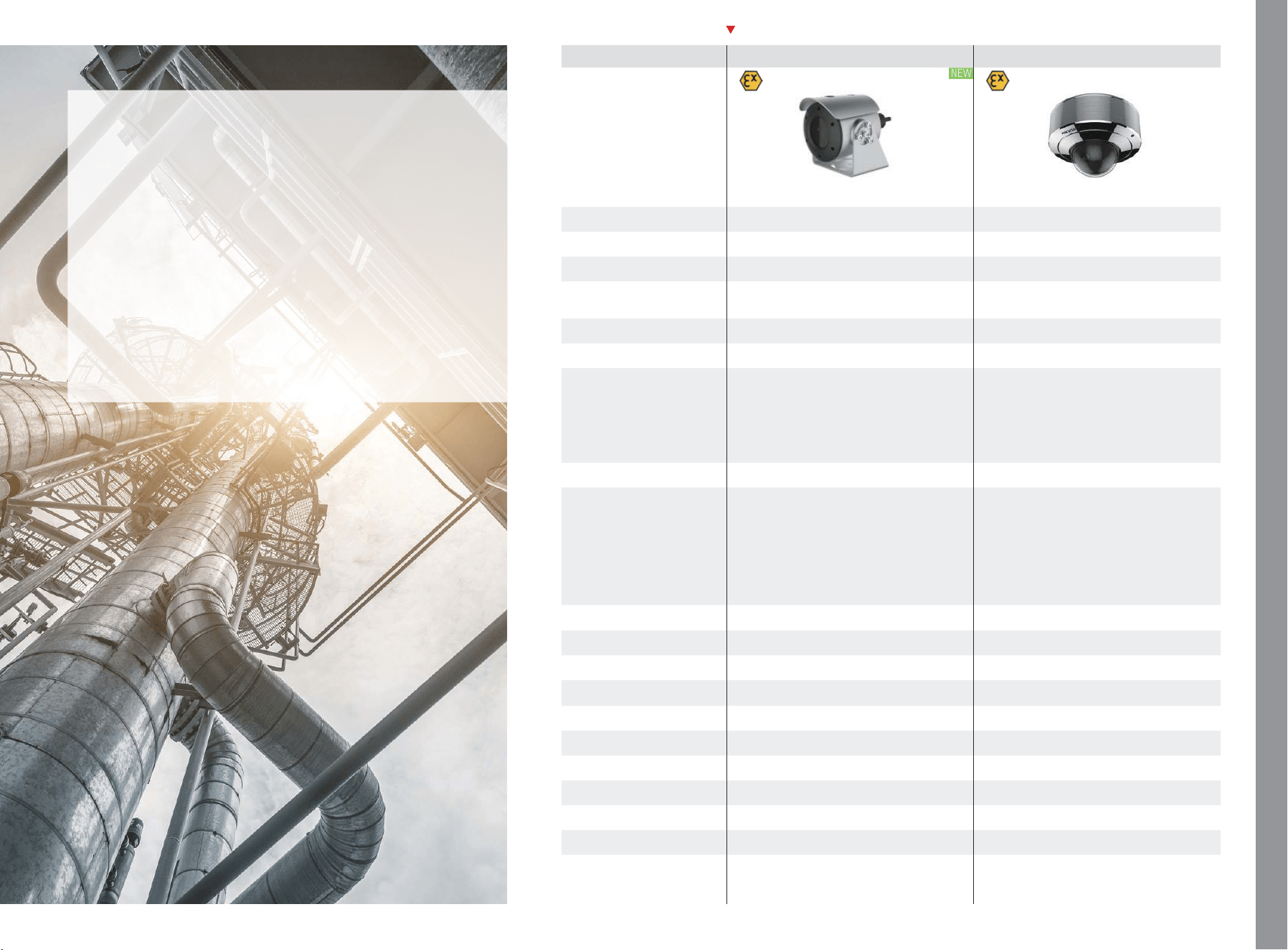

Explosion-Proof Series
Anti-Corrosion Series
Explosion-Proof
& Anti-Corrosion
Series
043

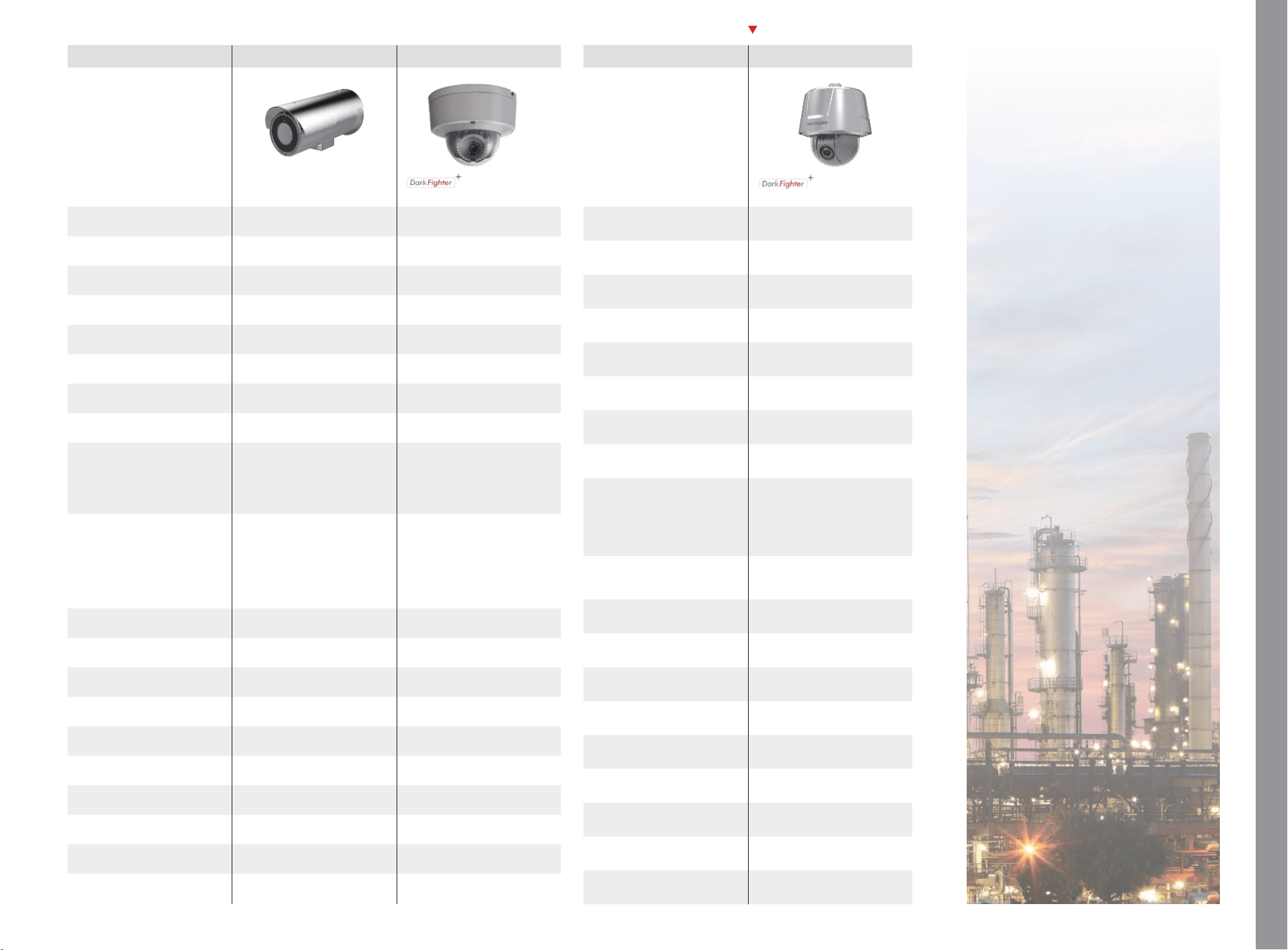

Model
DS-2XE6025G0-I DS-2XE6126FWD
ATEX/IECEx ATEX/IECEx
Image Sensor
1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080 1920 × 1080
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG
Min. Illumination
Color: 0.009 Lux @(F1.6,AGC ON)
B/W: 0.004 Lux @(F1.6,AGC ON), 0 Lux with IR on
Color 0.003lux @(F1.2,AGC ON); 0.005Lux @ (F1.6, AGC
ON)
B/W 0.001lux @(F1.2,AGC ON); 0.017Lux @ (F1.6, AGC ON)
WDR
120 dB 120 dB
Lens
4/6/8 mm 2/2.8/4/6 mm
FOV
4 mm, horizontal FOV: 82.6°, vertical FOV: 43.4°, diagonal
FOV: 96.6°
6 mm, horizontal FOV: 51.2°, vertical FOV: 27.2°, diagonal
FOV: 59.2°
8 mm, horizontal FOV: 38.7°, vertical FOV: 21.3°, diagonal
FOV: 44.8°
2 mm: horizontal FOV 126.5°, vertical FOV 73.8°, diagonal
FOV 144°
2.8 mm: horizontal FOV 108°, vertical FOV 59.3°, diagonal
FOV 129°
4 mm: horizontal FOV 86°, vertical FOV 46°, diagonal FOV
102.3°
6 mm: horizontal FOV 52.8°, vertical FOV 29.7°, diagonal
FOV 60.7°
Max. IR Range (meters)
30m N/A
VCA
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions
configurable
Object removal detection, up to 4 regions configurable
Face detection: detects faces and upload images
Scene change detection, audio exception detection,
defocus detection
Line crossing detection, intrusion detection, region
entrance detection, region exit detection, unattended
baggage detection, object removal detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Multi-Streaming
3 3
Protection Level
IP68; IK08 IP68
Angle Adjustment
Pan: 0° to 90°, tilt: 0° to 60°
2mm: pan: 0° to 340°, tilt: 0° to 60°
2.8 mm, 4 mm, 6 mm: 0° to 340°, tilt: 0° to 75°
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 °F) -40°C to 60°C (-40°F to 140°F)
Operating Humidity
≤ 95% ≤ 95%
Local Storage
128 GB 128 GB
Audio I/O
1 in, 1 out 1 in, 1 out
Alarm I/O
1 in, 1 out 1 in, 1 out
Installation
Outdoor Outdoor
Power Supply
24 VDC, reverse polarity protection
PoE: (802.3af, 36 to 57 VDC), 0.3 A to 0.2 A, max. 7.5 W
-I/-IS: Φ5.5 mm coaxial power plug
-IM: two-core WAGO connector
12 VDC ±20%, PoE (802.3af, class 3)
Terminal block for DC input
Camera
Complete Protection with
Superior Design Inside and Out
Explosion-Proof
Series
- H.265+/H.265 codec
- Stainless Steel 304/316L
- Explosion-proof: ATEX, IECEx
- Compliant with international standards
- DarkFighter (optional)
NEW
044
EXPLOSION-PROOF&ANTI-CORROSION
Model
DS-2XE6222F-IS DS-2XE6242F-IS DS-2XE6422FWD-IZHS DS-2XE6452F-IZHRS
ATEX/IECEx ATEX/IECEx ATEX/IECEx ATEX/IECEx
Image Sensor
1/2.7" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080 2560 × 1440 1920 × 1080 2592 × 1944
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG
Min. Illumination
0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on 0.001Lux @(F1.2,AGC ON), 0 Lux with IR on
0.01Lux @(F1.2, AGC ON), 0.014Lux @(F1.4, AGC ON), 0
Lux with IR on
WDR
120 dB WDR 120 dB WDR 120 dB WDR DWDR
Lens
4/6/8/12/16 mm 4/6/8/12/16 mm 2.8-12 mm,8-32mm 2.8-12 mm
FOV
4 mm, horizontal field of view: 91°
6 mm, horizontal field of view: 60°
8 mm, horizontal field of view: 41.5°
12 mm, horizontal field of view: 26.6°
16 mm, horizontal field of view: 20.6°
4 mm, horizontal field of view: 83°
6 mm, horizontal field of view: 55.4°
8 mm, horizontal field of view: 38.5°
12 mm, horizontal field of view: 24.7°
16 mm, horizontal field of view:19.1°
2.8 mm to 12 mm, horizontal FOV: 85° to 31°, vertical
FOV: 45° to 17.5°, diagonal FOV: 101° to 17.5°
8 mm to 32 mm, horizontal field of view: 42.2° to 13.5°,
vertical FOV: 23.4° to 7.7°, diagonal FOV: 49° to 15.3°
2.8 mm to 12 mm, horizontal FOV: 70° to 34°, vertical
FOV: 52° to 24°, diagonal FOV: 90° to 41°
Max. IR Range (meters)
30m 30m
2.8 mm to 12 mm lens: up to 80 m (262.5 ft.)
8 mm to 32 mm lens: up to 150 m (492.1 ft.)
80m
VCA
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection,Face
detection
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection,Face
detection
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection,Face
detection
Line crossing detection, intrusion detection, region
entrance detection, region exiting detection, unattended
baggage detection, object removal detection,Face
detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280
× 720)
60Hz: 24fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280
× 720)
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps (2592 × 1944, 2560 × 1920, 2048 × 1536),
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2592 × 1944, 2560 × 1920, 2048 × 1536),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Multi-Streaming
3 3 3 3
Protection Level
- - IP68 IP68
Angle Adjustment
- - - -
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -40°C to +60°C (-40°F to +140°F) -40°C to +60°C (-40°F to +140°F)
Operating Humidity
≤ 95% ≤ 95% ≤ 95% ≤ 95%
Local Storage
128 GB 128 GB 128 GB 128 GB
Audio I/O
N/A N/A 1 in, 1 out 1 in, 1 out
Alarm I/O
2 in, 2 out 2 in, 2 out 2 in, 2 out 2 in, 2 out
Installation
Outdoor Outdoor Outdoor Outdoor
Power Supply
100 VAC to 240 VAC, 0.1A, terminal block
PoE (802.3af, class 3), 0.2A
AC 100 V to 240 V, 0.1A, terminal block
PoE (802.3af, class 3), 0.2A
85 VAC to 245 VAC, three-core terminal block
PoE (802.3at, class 4)
85 VAC to 245 VAC, three-core terminal block
PoE (802.3at, class 4)
045
EXPLOSION-PROOF&ANTI-CORROSION
Model
DS-2DB4223I-CX(WE/316L) DS-2DB4236I-CWX(WE/316L)
ATEX/IECEx ATEX/IECEx
Image Sensor
1/1.8" progressive scan CMOS 1/1.8" progressive scan CMOS
Resolution
1920 × 1080 1920 × 1080
Video Compression
H.265+/H.265/H.264+/H.264 H.265+/H.265/H.264+/H.264
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
WDR
Digital WDR Digital WDR
Lens
5.9 mm to 135.7 mm 5.9 mm to 135.7 mm
FOV
Horizontal field of view: 59.8° to 3.0° (Wide-
Tele)
Vertical field of view: 33.6° to1.7° (Wide-Tele)
Diagonal field of view: 68.6° to 3.4° (Wide-Tele)
Horizontal field of view: 59.8° to 2.0° (Wide-
Tele)
Vertical field of view: 33.6° to1.1° (Wide-Tele)
Diagonal field of view: 68.6° to 2.3° (Wide-Tele)
Optical Zoom
23x 36x
Max. IR Range (meters)
200 200
VCA
Intrusion Detection, Line Crossing Detection,
Audio Exception Detection
Intrusion Detection, Line Crossing Detection,
Audio Exception Detection
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
Streams
3 3
Protection Level
IP68 IP68
Angle Adjustment
- -
Operating Temperature
-40°C to 60°C (-40° F to 140° F) -40°C to 60°C (-40° F to 140° F)
Humidity
95% or less 95% or less
Local Storage
128GB 128GB
Indoor/Outdoor
Outdoor Outdoor
Audio I/O
1-ch audio input/1-ch audio output 1-ch audio input/1-ch audio output
Alarm I/O
1-ch alarm in1put/1-ch alarm output 1-ch alarm in1put/1-ch alarm output
Power
100 VAC to 240 VAC & PoE+ (IEEE802.3at
class4)
Max. 25 W
100 VAC to 240 VAC & PoE+ (IEEE802.3at
class4)
Max. 25 W
Interface
1 RJ45 10M/100M Ethernet port;
1 RS-485 interface
1 RJ45 10M/100M Ethernet port;
1 RS-485 interface
Model
DS-2DY9236I-CWX(W/316L) DS-2DF6223-CX (W316L)
ATEX/IECEx ATEX/IECEx
Image Sensor
1/1.8" Progressive Scan CMOS 1/1.9" progressive scan CMOS
Max. Resolution
1920 × 1080 1920 × 1080
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG Main Stream: H.265+/H.265/H.264+/H.264
Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
Color: 0.002 Lux @(F1.5, AGC ON)
WDR
120 dB 120 dB
Lens
5.7 mm to 205 mm, 36× optical zoom 5.9 mm to 135.7 mm, 23× optical zoom
FOV
Horizontal field of view: 59.8° to 2.0° (Wide-
Tele)
Vertical field of view: 35° to 1.1° (Wide-Tele)
Diagonal field of view: 66.2° to 2.3° (Wide-Tele)
59.8° to 3.0° (Wide-Tele)
Max. IR Range (meters)
150m -
VCA
Face Detection, Audio Exception Detection,
Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting
Detection
Intrusion, Line Crossing, Region Entrance,
Region Exiting
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×
720)
50fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×
720)
60fps (1920 × 1080, 1280 × 960, 1280 ×
720)
Multi-Streaming
3 3
Protection Level
IP68 IP68
Angle Adjustment
Movement Range (Pan) 360° endless,
Movement Range (Tilt) From -90° to 90° (auto-
flip)
-
Operating Temperature
-40°C to 60°C (-40°F to 140°F) -40°C to 60°C (-40°F to 140°F)
Operating Humidity
≤ 90% ≤ 95%
Local Storage
256GB 128 GB
Audio I/O
1 in, 1 out 1 in, 1 out
Alarm I/O
7-ch alarm input and 2-ch alarm output 7 in, 2 out
Installation
Outdoor Outdoor
Power Supply
100 VAC to 240 VAC
Max.: 100 W (Max. 15 W for IR)
100 VAC to 240 VAC, Max.: 60 W
PTZ
046
EXPLOSION-PROOF&ANTI-CORROSION
Model
DS-2XC6122FWD-IS DS-2XC6142FWD-IS DS-2CD6626B
C5-M; NEMA 4X C5-M; NEMA 4X C5-M; NEMA 4X; DarkFighter
Image Sensor
1/2.7" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/1.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080 2560 × 1440 1920 × 1080
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG H.265+/H.265/H.264+/H.264/MJPEG
Min. Illumination
0.01Lux @(F1.2,AGC ON) ,0 Lux with
IR on
0.028 Lux @(F2.0,AGC ON), 0 Lux
with IR on
0.01Lux @(F1.2,AGC ON) ,0 Lux with
IR on
0.028 Lux @(F2.0,AGC ON), 0 Lux
with IR on
0.002 Lux @ (F1.2, AGC ON), 0 Lux
with IR
WDR
120 dB 120 dB 120 dB
Lens
2.8/4/6mm 4/6mm 2.8-12 mm,8-32mm
FOV
2.8mm, horizontal field of view:
100°, vertical field of view: 53°
4mm, horizontal field of view: 91°,
vertical field of view:49°
6mm horizontal field of view: 60°,
vertical field of view: 32.5°
4mm, horizontal field of view: 83°,
vertical field of view: 44.7°
6mm horizontal field of view: 55.4°,
vertical field of view: 30.4°
2.8 – 12 mm, F1.4: horizontal field of
view, 90.1° to 31°
8 – 32 mm, F1.4: horizontal field of
view, 42.2° to 13.5°
Max. IR Range (meters)
10 m 10 m
2.8 – 12 mm lens: up to 80 m
8 – 32 mm lens: up to 150 m
VCA
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
u-ttended baggage detection,
object removal detection,Face
detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
u-ttended baggage detection,
object removal detection,Face
detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
u-ttended baggage detection,
object removal detection,Face
detection
Frame Rate
2.8mm lens camera:
50Hz: 25fps (1920 × 1080,1280 ×
960,1280 × 720)
60Hz: 24fps (1920 × 1080,1280 ×
960,1280 × 720)
4mm and 6mm lens camera:
50Hz: 25fps (1920 × 1080,1280 ×
960,1280 × 720)
60Hz: 30fps (1920 × 1080,1280 ×
960,1280 × 720)
50Hz: 25fps (2560 × 1440, 1920 ×
1080, 1280 × 720, 528 × 384)
60Hz: 24fps (2560 × 1440, 1920 ×
1080, 1280 × 720, 528 × 384)
50Hz: 50fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
3 3 3
Protection Level
IP67 IP67 IP67
Angle Adjustment
Tilt: 0° to 75°; Pan: -30° to 30°;
Rotate: 0° to 360°
Tilt: 0° to 75°; Pan: -30° to 30°;
Rotate: 0° to 360°
-
Operating Temperature
-30 °C to +60 °C (-22 °F to +140 °F) -30 °C to +60 °C (-22 °F to +140 °F) -40 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
≤ 95% ≤ 95% ≤ 95%
Local Storage
128 GB 128 GB 128 GB
Audio I/O
- - 1 in, 1 out
Alarm I/O
1 in, 1 out 1 in, 1 out 1 in, 1 out
Installation
Outdoor Outdoor Outdoor
Power Supply
12 VDC, 330mA, termi-l block
PoE (802.3af, class 3), 0.1A
12 VDC, 0.4A, 5W, terminal block
PoE (802.3af, class 3), 0.1A
24 VAC, 1.7A, termi-l block
Camera
The Best Choice for Critical
Industry Applications
Anti-Corrosion Series
- H.265+/H.265 codec
- Anti-corrosion certification: C5-M, NEMA-4X
- Easy installation
- Stainless Steel hull or anticorrosive coating
- DarkFighter (optional)
047
EXPLOSION-PROOF&ANTI-CORROSION
Model
DS-2CD6652B-IZHS DS-2CD6626DS
C5-M; NEMA 4X C5-M; NEMA 4X; DarkFighter
Image Sensor
1/1.8'' Progressive Scan CMOS 1/1.8" Progressive Scan CMOS
Max. Resolution
2592 × 1944 1920 × 1080
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG H.264/MJPEG/MJPEG4
Min. Illumi-tion
0.01 Lux @ (F1.2, AGC ON), 0.014 Lux
@(F1.4,AGC ON), 0 Lux with IR
Color: 0.002 Lux @ (F1.2, AGC ON)
B/W: 0.0002 Lux @ (F1.2, AGC ON)
WDR
DWDR 120 dB
Lens
2.8-12 mm 2.8-12 mm
FOV
2.8 – 12 mm, F1.4: horizontal field of
view, 90.1° to 31°
2.8 to 12 mm F1.4, horizontal field of
view: 92° to 32°
Max. IR Range (meters)
up to 80 m 10-30 m
VCA
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
u-ttended baggage detection,
object removal detection,Face
detection
Line crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
u-ttended baggage detection,
object removal detection
Frame Rate
50Hz: 50fps(1920 ×1080),
25fps(2592 × 1944, 2560 × 1920,
2048 × 1536, 1920 × 1080, 1280 ×
960, 1280 × 720)
60Hz: 60fps(1920 ×1080),
30fps(2592 × 1944, 2560 × 1920,
2048 × 1536, 1920 × 1080, 1280 ×
960, 1280 × 720)
50 Hz: 50 fps (1920 × 1080, 1280 ×
960, 1280 × 720)
60 Hz: 60 fps (1920 × 1080, 1280 ×
960, 1280 × 720)
Multi-Streaming
3 3
Protection Level
IP67 IP67
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°,
rotation: 0° to 355°
Operating Temperature
-40 °C to +60 °C (-22 °F to +140 °F) -40 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity
≤ 95% ≤ 95%
Local Storage
128 GB 128 GB
Audio I/O
1 in, 1 out 1 in, 1 out
Alarm I/O
1 in, 1 out 1 in, 1 out
Installation
Outdoor Outdoor
Power Supply
24 VAC, 1.7A terminal block 24 VAC / 12 VDC / PoE (802.3at)
Model
DS-2DT6223-AELY
C5-M; NEMA 4X; Darkfighter
Image Sensor
1/1.9'' Progressive Scan CMOS
Max. Resolution
1920 × 1080
Video Compression
H.264/MJPEG/MJPEG4
Min. Illumination
Color: 0.002 lux, B/W: 0.0002 lux
WDR
120 dB
Lens
5.9-135.7mm, 23x
FOV
58.7° to 3.0° (Wide-Tele)
Max. IR Range (meters)
-
VCA
Face detection, Intrusion detection,
Line crossing detection, Audio
exception detection, Region
entrance detection, Region exiting
detection, Smat tracking
Frame Rate
50Hz: 25fps (1920×1080, 1280×960,
1280×720); 60Hz: 30fps(1920×1080,
1280×960, 1280×720)
Multi-Streaming
3
Protection Level
IP67 IK10
Operating Temperature
-40° C to 65° C (-40° F to 149° F)
Operating Humidity
90% or less
Local Storage
128 GB
Audio I/O
1 in, 1 out
Alarm I/O
7 in, 2 out
Installation
Outdoor
Power Supply
Hi-PoE & 24 VAC, Max.60W
PTZ
048
EXPLOSION-PROOF&ANTI-CORROSION
DeepinMind Series
Ultra Series
Special Series
NVR
049
Deeper Intelligence,
Deeper Surveillance
DeepinMind
Series NVR
- The first deep learning security NVRs
- GPU-based designs
- Enhanced Video Content Analytics (VCAs) via facial
recognition and human detection
Model
iDS-96128NXI-I16 iDS-96064NXI-I16
Hardware Platform
Intel Xeon E3 Quad-Core processor Intel Xeon i3 Quad-Core processor
Channel No.
128-ch 64-ch
Decoding Format
H.265+/H.265/H.264+/H.264/SVAC/MJPEG/MPEG4 H.265+/H.265/H.264+/H.264/SVAC/MJPEG/MPEG4
Incoming/Outgoing Bandwidth
512 Mbps/512 Mbps 400 Mbps/400 Mbps
Decoding Capacity
5-ch@8 MP/10-ch@4 MP/20-ch@1080p/40-ch@720p 5-ch@8 MP/10-ch@4 MP/20-ch@1080p/40-ch@720p
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /
VGA/4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /
VGA/4CIF/DCIF/2CIF/CIF/QCIF
Display
2 HDMI/1 VGA 2 HDMI/1 VGA
LCD
7-inch LCD 7-inch LCD
Storage Capacity
Up to 10TB capacity for each HDD Up to 10TB capacity for each HDD
eSATA/Mini SAS
1 eSATA interface/2 miniSAS interfaces 1 eSATA interface/2 miniSAS interfaces
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10
Audio Output
1-ch, RCA (2.0 Vp-p, 1 KΩ) 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Alarm I/O
16/8 16/8
Network Interface
4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
PoE Port
- -
USB Port
Front panel: 2 × USB 2.0;
Rear panel: 2 × USB 3.0
Front panel: 2 × USB 2.0;
Rear panel: 2 × USB 3.0
Smart Function
Support multiple VCA (Video Content Analytics) events
mart search for the selected area in the video; and
smart playback to improve the playback efficiency
Support multiple VCA (Video Content Analytics) events
Smart search for the selected area in the video; and
smart playback to improve the playback efficiency
Power Consumption (without
HDD)
≤ 140 W ≤ 140 W
Description
300,000 face pictures for total 32 libraries.
Face pictures comparison and alarm linkage actions for
up to32 channels.
False alarm reduction for up to 16 channels. Search by
face picture or by human body picture is supported
300,000 face pictures for total 16 libraries.
Face pictures comparison and alarm linkage actions for
up to16 channels.
False alarm reduction for up to 8 channels. Search by
face picture or by human body picture is supported
96 Series
050
NVR
Model
iDS-9632NXI-I8/8F(B) iDS-9632NXI-I8/16S(B) iDS-9616NXI-I8/8F(B) iDS-9616NXI-I8/16S(B) iDS-9632NXI-I8/8S
Hikvision DeepinMind Hikvision DeepinMind Hikvision DeepinMind Hikvision DeepinMind
Hardware Platform
Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor
Channel No.
32-ch 32-ch 16-ch 16-ch 32-ch
Decoding Format
H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4
Incoming/Outgoing
Bandwidth
RAID enabled: 200 Mbps/200 Mbps
RAID disabled: 256 Mbps/200 Mbps
RAID enabled: 200 Mbps/200 Mbps
RAID disabled: 256 Mbps/200 Mbps
RAID enabled: 200 Mbps/200 Mbps
RAID disabled: 256 Mbps/200 Mbps
RAID enabled: 200 Mbps/200 Mbps
RAID disabled: 256 Mbps/200 Mbps
RAID enabled: 200 Mbps/200 Mbps
RAID disabled: 256 Mbps/200 Mbps
Decoding Capacity
16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps) 12-ch @ 1080p (30fps)
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
Display
2 HDMI/2VGA 2 HDMI/2VGA 2 HDMI/2VGA 2 HDMI/2VGA 2 HDMI/2VGA
LCD
- - - - -
Storage Capacity
Up to 10TB capacity for each HDD Up to 10TB capacity for each HDD Up to 10TB capacity for each HDD Up to 10TB capacity for each HDD Up to 10TB capacity for each HDD
eSATA/Mini SAS
1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10
Audio Output
2-ch, RCA (Linear, 1 KΩ) 2-ch, RCA (Linear, 1 KΩ) 2-ch, RCA (Linear, 1 KΩ) 2-ch, RCA (Linear, 1 KΩ) 2-ch, RCA (Linear, 1 KΩ)
Alarm I/O
16/4 (16/8 is optional) 16/4 (16/8 is optional) 16/4 (16/8 is optional) 16/4 (16/8 is optional) 16/4 (16/8 is optional)
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
PoE Port
- - - - -
USB Port
Front panel: 2 × USB 2.0; Rear panel: 1 × USB
3.0
Front panel: 2 × USB 2.0; Rear panel: 1 × USB
3.0
Front panel: 2 × USB 2.0; Rear panel: 1 × USB
3.0
Front panel: 2 × USB 2.0; Rear panel: 1 × USB
3.0
Front panel: 2 × USB 2.0; Rear panel: 1 × USB
3.0
Smart Function
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended
baggage detection, object removal
detection, audio exception detection,
sudden scene
change detection, and defocus detection
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended baggage detection, object
removal detection, audio exception
detection, sudden scene change detection,
and defocus detection
Human body search, behavior analysis,
face detection, fire/ship/temperature/
temperature difference detection video files
and pictures; people counting and heat map
statistics
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended
baggage detection, object removal
detection, audio exception detection,
sudden scene
change detection, and defocus detection
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended baggage detection, object
removal detection, audio exception
detection, sudden scene change detection,
and defocus detection
Human body search, behavior analysis,
face detection, fire/ship/temperature/
temperature difference detection video files
and pictures; people counting and heat map
statistics
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended baggage detection, object
removal detection, audio exception
detection, sudden scene change detection,
and defocus detection
Human body search, behavior analysis,
face detection, fire/ship/temperature/
temperature difference detection video files
and pictures; people counting and heat map
statistics
Power Consumption (without
HDD)
≤ 70 W ≤ 70 W ≤ 70 W ≤ 70 W ≤ 70 W
Description
100,000 face pictures for total 16 libraries.
Face pictures comparison and alarm linkage
actions for up to 8 channels.
Up to 16-ch 2 MP video analysis for human
and vehicle recognition to reduce false alarm
Up to 16-ch 2 MP video analysis for human
and vehicle recognition to reduce false alarm
100,000 face pictures for total 16 libraries.
Face pictures comparison and alarm linkage
actions for up to 8 channels.
Up to 16-ch 2 MP video analysis for human
and vehicle recognition to reduce false alarm
Up to 16-ch 2 MP video analysis for human
and vehicle recognition to reduce false alarm
False alarm reduction for up to 8-ch behavior
(line crossing, intrusion, region entrance and
region exiting) detection
Re-recognition of up to 8-ch human body
pictures
NEW
NEW
NEW
NEW
051
NVR
Model
iDS-7732NXI-I4/16P/16S(B) iDS-7732NXI-I4/16S(B) iDS-7716NXI-I4/16P/16S(B) iDS-7716NXI-I4/16S(B) iDS-7732NXI-I4/16P/8S iDS-7732NXI-I4/8S
Hikvision DeepinMind Hikvision DeepinMind Hikvision DeepinMind Hikvision DeepinMind
Hardware Platform
Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor
Channel No.
32-ch 32-ch 16-ch 16-ch 32-ch 32-ch
Decoding Format
H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4
Incoming/Outgoing
Bandwidth
320 Mbps/256 Mbps 320 Mbps/256 Mbps 320 Mbps/256 Mbps 320 Mbps/256 Mbps 256 Mbps/200 Mbps 256 Mbps/200 Mbps
Decoding Capacity
16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps)
2-ch @ 12 MP (20fps) / 4-ch @ 8
MP (25fps) / 8-ch @ 4MP (30fps) /
12-ch @ 1080p (30fps)
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP
(25fps) / 8-ch @ 4MP (30fps) / 12-ch
@ 1080p (30fps)
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p /VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p /VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p /VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p /VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4
MP/3MP/1080p/UXGA/720p/VGA
/4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA /4CIF/
DCIF/2CIF/CIF/QCIF
Display
2 HDMI/1VGA 2 HDMI/1VGA 2 HDMI/1VGA 2 HDMI/1VGA 1HDMI/1VGA 1HDMI/1VGA
LCD
- - - - - -
Storage Capacity
Up to 8TB capacity for each HDD Up to 8TB capacity for each HDD Up to 8TB capacity for each HDD Up to 8TB capacity for each HDD Up to 6TB capacity for each HDD Up to 6TB capacity for each HDD
eSATA/Mini SAS
1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface
RAID Type
- - - - - -
Audio Output
1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ)
Alarm I/O
16/8 16/8 16/8 16/8 16/8 16/8
Network Interface
1, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
2, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
1, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
2, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
1, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
2 RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interfaces
PoE Port
16 RJ-45 10/100 Mbps self-adaptive
Ethernet interfaces
-
16 RJ-45 10/100 Mbps self-adaptive
Ethernet interfaces
- 16 -
USB Port
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel: 1
× USB 3.0
Smart Function
Human body detection, face
detection, vehicle detection, line
crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection, audio
exception detection, sudden scene
change detection, and defocus
detection
Human body search, behavior
analysis, face detection, fire/
ship/temperature/temperature
difference detection video files and
pictures; people counting and heat
map statistics
Human body detection, face
detection, vehicle detection, line
crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection, audio
exception detection, sudden scene
change detection, and defocus
detection
Human body search, behavior
analysis, face detection, fire/
ship/temperature/temperature
difference detection video files and
pictures; people counting and heat
map statistics
Human body detection, face
detection, vehicle detection, line
crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection, audio
exception detection, sudden scene
change detection, and defocus
detection
Human body search, behavior
analysis, face detection, fire/
ship/temperature/temperature
difference detection video files and
pictures; people counting and heat
map statistics
Human body detection, face
detection, vehicle detection, line
crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection, audio
exception detection, sudden scene
change detection, and defocus
detection
Human body search, behavior
analysis, face detection, fire/
ship/temperature/temperature
difference detection video files and
pictures; people counting and heat
map statistics
Human body detection, face
detection, vehicle detection, line
crossing detection, intrusion
detection, region entrance
detection, region exiting detection,
unattended baggage detection,
object removal detection, audio
exception detection, sudden scene
change detection, and defocus
detection
Human body search, behavior
analysis, face detection, fire/
ship/temperature/temperature
difference detection video files and
pictures; people counting and heat
map statistics
Human body detection, face detection,
vehicle detection, line crossing
detection, intrusion detection, region
entrance detection, region exiting
detection, unattended baggage
detection, object removal detection,
audio exception detection, sudden
scene change detection, and defocus
detection
Human body search, behavior analysis,
face detection, fire/ship/temperature/
temperature difference detection video
files and pictures; people counting and
heat map statistics
Power Consumption (without
HDD)
≤ 30 W ≤ 30 W ≤ 30 W ≤ 30 W ≤ 30 W ≤30 W
Description
Up to 16-ch 2 MP video analysis for
human and vehicle recognition to
reduce false alarm
Up to 16-ch 2 MP video analysis for
human and vehicle recognition to
reduce false alarm
Up to 16-ch 2 MP video analysis for
human and vehicle recognition to
reduce false alarm
Up to 16-ch 2 MP video analysis for
human and vehicle recognition to
reduce false alarm
False alarm reduction and
picture re-recognition for up to
8-ch behavior (line crossing and
intrusion) detection, False alarm
reduction and picture re-recognition
for human body detection
False alarm reduction and picture re-
recognition for up to 8-ch behavior
(line crossing and intrusion) detection,
False alarm reduction and picture re-
recognition for human body detection
NEW
NEW
NEW
NEW
7 Series
052
NVR
Model
iDS-7716NXI-I4/16P/8S iDS-7716NXI-I4/8S
Hardware Platform
Quad-core embedded processor Quad-core embedded processor
Channel No.
16-ch 16-ch
Decoding Format
H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4
Incoming/Outgoing
Bandwidth
256 Mbps/200 Mbps 256 Mbps/200 Mbps
Decoding Capacity
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps)
/ 8-ch @ 4MP (30fps) / 12-ch @ 1080p
(30fps)
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) /
8-ch @ 4MP (30fps) / 12-ch @ 1080p (30fps)
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/
UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Display
1HDMI/1VGA 1HDMI/1VGA
LCD
- -
Storage Capacity
Up to 6TB capacity for each HDD Up to 6TB capacity for each HDD
eSATA/Mini SAS
1 eSATA interface 1 eSATA interface
RAID Type
- -
Audio Output
1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ)
Alarm I/O
16/8 16/8
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
2 RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interfaces
PoE Port
16 -
USB Port
Front panel: 2 × USB 2.0; Rear panel: 1 × USB
3.0
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Smart Function
False alarm reduction, line crossing and
intrusion detection, human body detection
False alarm reduction, line crossing and
intrusion detection, human body detection
Power Consumption (without
HDD)
≤ 30 W ≤30 W
Description
False alarm reduction and picture re-
recognition for up to 8-ch behavior (line
crossing and intrusion) detection, False alarm
reduction and picture re-recognition for
human body detection
False alarm reduction and picture re-
recognition for up to 8-ch behavior (line
crossing and intrusion) detection, False alarm
reduction and picture re-recognition for human
body detection
Model
iDS-6716NXI-I/16S(B) iDS-6708NXI-I/8F(B)
Hikvision DeepinMind Hikvision DeepinMind
Hardware Platform
Quad-core embedded processor Quad-core embedded processor
Channel No.
16-ch 8-ch
Decoding Format
H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4
Incoming/Outgoing Bandwidth
320 Mbps/250 Mbps 256 Mbps/200 Mbps
Decoding Capacity
16-ch @ 1080p (30fps) 16-ch @ 1080p (30fps)
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
Display
- 2 HDMI/2VGA
LCD
- -
Storage Capacity
1, built-in 2.5-inch 2 TB SATA hard disk 1, built-in 2.5-inch 2 TB SATA hard disk
eSATA/Mini SAS
- -
RAID Type
- -
Audio Output
1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ)
Alarm I/O
16/4 16/4
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
2, RJ-45 10/100/1000 Mbps self-adaptive
Ethernet interface
PoE Port
- -
USB Port
- Rear panel: 1 × USB 3.0, 1 × USB 2.0
Smart Function
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended
baggage detection, object removal detection,
audio exception detection, sudden scene
change detection, and defocus detection
Human body detection, face detection,
vehicle detection, line crossing detection,
intrusion detection, region entrance
detection, region exiting detection,
unattended
baggage detection, object removal detection,
audio exception detection, sudden scene
change detection, and defocus detection
Power Consumption (without
HDD)
≤ 30 W ≤ 30 W
Description
Up to 16-ch 2 MP video analysis for human
and vehicle recognition to
reduce false alarm
100,000 face pictures for total 16 libraries.
Face pictures comparison and alarm linkage
actions for up to 8 channels.
NVS Series
NEW
NEW
053
NVR
Model
DS-6716NXI-I/16S iDS-6704NXI-I/4F
Hikvision DeepinMind Hikvision DeepinMind
Hardware Platform
Quad-core embedded processor Quad-core embedded processor
Channel No.
16-ch 4-ch
Decoding Format
H.265/H.264 H.265/H.264
Incoming/Outgoing Bandwidth
256 Mbps/200 Mbps 256 Mbps/200 Mbps
Decoding Capacity
- -
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/
UXGA/720p/VGA/4CIF/DCIF/2CIF/
CIF/QCIF
8MP/6MP/5MP/4MP/3MP/1080p/
UXGA/720p/VGA/4CIF/DCIF/2CIF/
CIF/QCIF
Display
2HDMI/2VGA 2HDMI/2VGA
LCD
- -
Storage Capacity
1 built-in SATA hard disk (2.5-inch,
1T)
1 built-in SATA hard disk (2.5-inch,
1T)
eSATA/Mini SAS
- -
RAID Type
- -
Audio Output
1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ)
Alarm I/O
16/4 16/4
Network Interface
2, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
2, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
PoE Port
- -
USB Port
Rear panel: 1 × USB 3.0, 1 × USB 2.0 Rear panel: 1 × USB 3.0, 1 × USB 2.0
Smart Function
False alarm reduction, line crossing,
intrusion detection, picture search
and comparison
Face pictures comparison,line
crossing and intrusion detection
Power Consumption (without
HDD)
≤ 30 W ≤ 30 W
Description
False alarm reduction and picture
re-recognition for up to 16-
ch behavior (line crossing and
intrusion) detection, picture search
and comparison
Face pictures comparison and alarm
linkage actions for up to 4 channels
without video storage.
054
NVR
Model
DS-96256NI-I24/H DS-96256NI-I24 DS-96128NI-I24/H
Hardware Platform
Intel Xeon E3 Quad-Core processor Intel Xeon E3 Quad-Core processor Intel Xeon E3 Quad-Core processo
Channel No.
256-ch 256-ch 128-ch
Decoding Format
H.265, H.265+, H.264, H.264+,MPEG4,
MJPEG (for Hikvision IP camera only)
H.265, H.265+, H.264, H.264+,MPEG4,
MJPEG (for Hikvision IP camera only)
H.265, H.265+, H.264, H.264+,MPEG4,
MJPEG (for Hikvision IP camera only)
Incoming/Outgoing Bandwidth
768 Mbps/768 Mbps
768 Mbps/768 Mbps (RAID mode)
768 Mbps/768 Mbps
768 Mbps/768 Mbps (RAID mode)
768 Mbps/512 Mbps
768 Mbps/512 Mbps (RAID mode)
Decoding Capacity
20-ch@1080p 20-ch@1080p 20-ch@1080p
Recording Resolution
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
Display
2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA
LCD
One 7 inch LCD (Optional) One 7 inch LCD (Optional) One 7 inch LCD (Optional)
Storage Capacity
Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD
eSATA/Mini SAS
1 × eSATA interface, 2 × mini SAS
interface (optional)
1 × eSATA interface, 2 × mini SAS
interface (optional)
1 × eSATA interface, 2 × mini SAS
interface (optional)
RAID Type
RAID0, RAID1, RAID5, RAID 6, and
RAID10
RAID0, RAID1, RAID5, RAID 6, and
RAID10
RAID0, RAID1, RAID5, RAID 6, and
RAID10
Audio Output
1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Alarm I/O
16/8 16/8 16/8
Network Interface
4, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
4, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
4, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
PoE Port
- - -
USB Port
Front Panel: 1 × USB 2.0; Rear Panel:
2 × USB 3.0
Front Panel: 1 × USB 2.0; Rear Panel:
2 × USB 3.0
Front Panel: 1 × USB 2.0; Rear Panel:
2 × USB 3.0
Smart Function
Face detection, behavior analysis,
people counting and heat map
Face detection, behavior analysis,
people counting and heat map
Face detection, behavior analysis,
people counting and heat map
Power Consumption (without
HDD)
≤ 140W ≤ 140W ≤ 140W
Description
- - -
8/9 Series
HOT
Superior Storage and
Robust Recording
Ultra Series NVR
- H.265+/H.265, H.264+/H.264 self-adapting decoding
- Supports HDD hot swapping
- RAID 0,1,5,6,10
- Supports VCA cameras, LPR cameras, People
Counting cameras,fisheye cameras and PoS
055
NVR
Model
DS-96128NI-I24 DS-96256NI-I16(/H) DS-96128NI-I16 DS-96064NI-I16 DS-9664NI-I16
Hardware Platform
Intel Core I3 Dual-Core processor Intel Xeon E3 Quad-Core processor Intel Core I3 Dual-Core processor Intel Pentium Dual-Core processor Quad-core embedded processor
Channel No.
128-ch 256-ch 128-ch 64-ch 64-ch
Decoding Format
H.265, H.265+, H.264, H.264+,MPEG4, MJPEG
(for Hikvision IP camera only)
H.265, H.265+, H.264, H.264+,MPEG4, MJPEG
(for Hikvision IP camera only)
H.265, H.265+, H.264, H.264+,MPEG4, MJPEG
(for Hikvision IP camera only)
H.265, H.265+, H.264, H.264+,MPEG4, MJPEG
(for Hikvision IP camera only)
H.265/H.265+/H.264/H.264+/MPEG4
Incoming/Outgoing Bandwidth
576 Mbps/512 Mbps
768 Mbps/512 Mbps (RAID mode)
768 Mbps/768 Mbps
768 Mbps/768 Mbps (RAID mode)
576 Mbps/512 Mbps
768 Mbps/512 Mbps (RAID mode)
512 Mbps/512 Mbps
512 Mbps/400 Mbps (RAID mode)
320 Mbps/256 Mbps
200 Mbps/200 Mbps (RAID mode)
Decoding Capacity
20-ch@1080p 20-ch@1080p 20-ch@1080p 20-ch@1080p
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps)
/ 8-ch @ 4MP (30fps) / 16-ch
@ 1080p (30fps)
Recording Resolution
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/
CIF/QCIF
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/
CIF/QCIF
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/
CIF/QCIF
12 MP/8 MP/7MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/
CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Display
2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/2 VGA
LCD
One 7 inch LCD (Optional) One 7 inch LCD (Optional) One 7 inch LCD (Optional) One 7 inch LCD (Optional) -
Storage Capacity
Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD
eSATA/Mini SAS
1 × eSATA interface, 2 × mini SAS interface
(optional)
1 × eSATA interface, 2 × mini SAS interface
(optional)
1 × eSATA interface, 2 × mini SAS interface
(optional)
1 × eSATA interface, 2 × mini SAS interface
(optional)
1 × eSATA interface
RAID Type
RAID0, RAID1, RAID5, RAID 6, and RAID10 RAID0, RAID1, RAID5, RAID 6, and RAID10 RAID0, RAID1, RAID5, RAID 6, and RAID10 RAID0, RAID1, RAID5, RAID 6, and RAID10 RAID0, RAID1, RAID5, RAID 6, and RAID10
Audio Output
1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Alarm I/O
16/8 16/8 16/8 16/8 16/8
Network Interface
4, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
4, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
4, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
4, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
2, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
PoE Port
- - - - -
USB Port
Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB
3.0
Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB
3.0
Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB
3.0
Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB
3.0
Front Panel: 2 × USB 2.0; Rear Panel: 1 × USB
3.0
Smart Function
Face detection, behavior analysis, people
counting and heat map
Face detection, behavior analysis, people
counting and heat map
Face detection, behavior analysis, people
counting and heat map
Face detection, behavior analysis, people
counting and heat map
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Power Consumption (without
HDD)
≤ 140W ≤ 140W ≤ 140W ≤ 140W ≤ 45 W
Description
- - - - -
HOT
HOT
056
NVR
Model
DS-9632NI-I16 DS-9664NI-I8 DS-9632NI-I8 DS-9616NI-I8 DS-8632NI-K8 DS-8616NI-K8
Hardware Platform
Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Quad-core embedded processor Dual-core embedded processor Dual-core embedded processor
Channel No.
32-ch 64-ch 32-ch 16-ch 32-ch 16-ch
Decoding Format
H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4 H.265/H.265+/H.264/H.264+/MPEG4
H.265/ H.265+/H.264/H.264+/
MPEG4
H.265/ H.265+/H.264/H.264+/
MPEG4
Incoming/Outgoing Bandwidth
320 Mbps/256 Mbps
200 Mbps/200 Mbps (RAID mode)
320 Mbps/256 Mbps
200 Mbps/200 Mbps (RAID mode)
320 Mbps/256 Mbps
200 Mbps/200 Mbps (RAID mode)
256 Mbps/256 Mbps
200 Mbps/200 Mbps (RAID mode)
256 Mps/160 Mbps 160 Mps/160 Mbps
Decoding Capacity
2-ch @ 12 MP (20fps) / 4-ch @ 8
MP (25fps) / 8-ch @ 4MP (30fps) /
16-ch
@ 1080p (30fps)
2-ch @ 12 MP (20fps) / 4-ch @ 8
MP (25fps) / 8-ch @ 4MP (30fps) /
16-ch
@ 1080p (30fps)
2-ch @ 12 MP (20fps) / 4-ch @ 8
MP (25fps) / 8-ch @ 4MP (30fps) /
16-ch @ 1080p (30fps)
2-ch @ 12 MP (20fps) / 4-ch @ 8
MP (25fps) / 8-ch @ 4MP (30fps) /
16-ch @ 1080p (30fps)
2-ch @ 8 MP (25fps) / 4-ch @ 4MP
(30fps) / 8-ch @ 1080p (30fps)
2-ch @ 8 MP (25fps) / 4-ch @ 4MP
(30fps) / 8-ch @ 1080p (30fps)
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF
/2CIF/CIF/QCIF
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF
/2CIF/CIF/QCIF
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF
Display
2 HDMI/2 VGA 2 HDMI/2 VGA 2 HDMI/2 VGA 2 HDMI/2 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA
LCD
- - - - - -
Storage Capacity
Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10TB capacity for each HDD Up to 10TB capacity for each HDD Up to 6TB capacity for each HDD Up to 6TB capacity for each HDD
eSATA/Mini SAS
1 × eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface 1 eSATA interface
RAID Type
RAID0, RAID1, RAID5, RAID 6, and
RAID10
RAID0, RAID1, RAID5, RAID 6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10 - -
Audio Output
1-ch. RCA (2.0 Vp-p, 1 KΩ) 2-ch. RCA (2.0 Vp-p, 1 KΩ) 2-ch, RCA (2.0Vp-p, 1 KΩ) 2-ch, RCA (2.0Vp-p, 1 KΩ) 2-ch, RCA (Linear, 1 K Ω) 2-ch, RCA (Linear, 1 K Ω)
Alarm I/O
16/8 16/4 16/4 16/4 16/4 16/4
Network Interface
2, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
2, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
2, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
2, RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interface
2 RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interfaces
2 RJ-45 10/100/1000 Mbps self-
adaptive Ethernet interfaces
PoE Port
- - - - - -
USB Port
Front Panel: 2 × USB 2.0; Rear Panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Front panel: 2 × USB 2.0; Rear panel:
1 × USB 3.0
Smart Function
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Supports multiple VCA(Video Content
Analytics) events for IP cameras
Power Consumption (without
HDD)
≤ 45 W ≤ 30 W ≤ 30 W ≤ 30 W ≤ 30 W ≤ 30 W
Description
- - - - - -
HOT
HOT
057
NVR
Model
DS-WSELI-T4(/16P) DS-WSELI-T2(/8P) DS-WSEWI-T4(/16P)
Processor
Intel® Celeron® Processor J3455
(2M Cache, up to 2.3 GHz), 64 bit, 4
Core;
Intel® Celeron® Processor J3455
(2M Cache, up to 2.3 GHz), 64 bit, 4
Core;
Intel® Celeron® Processor J3455
(2M Cache, up to 2.3 GHz), 64 bit, 4
Core;
Operating system
Ubuntu Linux 16.04 Ubuntu Linux 16.04
Win10 IoT Ent LTSB 2016 Entry
EPKEA, 64 bit
Memory
4GB 4GB 4GB
Hardware Platform
- - -
Channel No.
- - -
Decoding Format
- - -
Incoming/Outgoing Bandwidth
- - -
Decoding Capacity
- - -
Recording Resolution
- - -
Display
2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA
LCD
- - -
Storage Capacity
Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD
eSATA/Mini SAS
1 × mSATA 32GB ( Optional: mSATA
64GB)
1 × mSATA 32GB ( Optional: mSATA
64GB)
1 × mSATA 64GB (Optional: mSATA
128GB)
RAID Type
- - -
Audio Output
1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector
Alarm I/O
Optional: 16/4 Optional: 4/2 Optional: 16/4
Network Interface
2, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
2, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
2, RJ45 10M/100M/1000M self-
adaptive Ethernet interface
PoE Port
16 RJ-45 10/100 Mbps self-adaptive
Ethernet interfaces
8 RJ-45 10/100 Mbps self-adaptive
Ethernet interfaces
16 RJ-45 10/100 Mbps self-adaptive
Ethernet interfaces
USB Port
Front Panel: 2 × USB 2.0; Rear Panel:
4 × USB 3.0;
Front Panel: 2 × USB 2.0; Rear Panel:
4 × USB 3.0;
Front Panel: 2 × USB 2.0; Rear Panel:
4 × USB 3.0;
Smart Function
- - -
Power Consumption (without
HDD)
≤ 30 W ≤ 30 W ≤ 30 W
Chassis
19-inch rack-mounted 1.5U chassis 19-inch rack-mounted 1U chassis 19-inch rack-mounted 1.5U chassis
Description
- - -
Workstation Series
Seeking VMS Partners
for Collaboration
Workstation
Series NVR
- Unique module featuring the
strengths of outstanding hardware
development
- Pre-install Windows or Linux
Ubuntu OS for 3rd-party VMS
- Configurable alarm I/O and PoE
interfaces for 3rd-party integration
- Multiple models with corresponding
hardware such as CPU, memory,
and storage provided to satisfy a
host of applications
058
NVR
Model
DS-WSEWI-T2(/8P) DS-WSPWI-T2 DS-WSPLI-T2 DS-WSPWI-T4 DS-WSPLI-T4 DS-WSPLI-T8 DS-WSPWI-T8
Processor
Intel® Celeron® Processor
J3455 (2M Cache, up to 2.3
GHz), 64 bit, 4 Core;
Intel® Xeon® Processor
i5-8500(G4900,i3-8100,i7-
8700,E2176)
Intel® Xeon® Processor
i5-8500(G4900,i3-8100,i7-
8700,E2176)
Intel® Xeon® Processor
i5-8500(G4900,i3-8100,i7-
8700,E2176)
Intel® Xeon® Processor
i5-8500(G4900,i3-8100,i7-
8700,E2176)
Intel® Xeon® Processor E3-
1225 v5, 3.30 GHz
Intel® Xeon® Processor E3-
1225 v5, 3.30 GHz
Operating system
Win10 IoT Ent LTSB 2016 Entry
EPKEA, 64 bit
Standard 128 GB mSATA
SSD (for Windows 64 GB are
optional)
Standard 128 GB mSATA SSD
(for Linux 64 GB are optional)
Standard 128 GB mSATA
SSD (for Windows 64 GB are
optional)
Standard 128 GB mSATA SSD
(for Linux 64 GB are optional)
Ubuntu Linux 16.04
Win10 IoT Ent LTSB 2016 Entry
EPKEA, 64 bit
Memory
4GB 8GB=2 × 4GB 8GB=2 × 4GB 8GB=2 × 4GB 8GB=2 × 4GB 8G 8G
Hardware Platform
- - - - - - -
Channel No.
- - - - - - -
Decoding Format
- - - - - - -
Incoming/Outgoing Bandwidth
- - - - - - -
Decoding Capacity
- - - - - - -
Recording Resolution
- - - - - - -
Display
2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA 2 HDMI/1 VGA
LCD
- - - - - - -
Storage Capacity
Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD Up to 10 TB for each HDD
eSATA/Mini SAS
1 × mSATA 64GB (Optional:
mSATA 128GB)
1 × mSATA 128GB 1 × mSATA 128GB 1 × mSATA 128GB 1 × mSATA 128GB
1 × mSATA 64GB ( Optional:
mSATA 128GB)
1 × mSATA 64GB ( Optional:
mSATA 128GB)
RAID Type
- - - - - - -
Audio Output
1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector 1-ch, 3.5 mm audio connector
Alarm I/O
Optional: 4/2 4/2 4/2 4/2 4/2 Optional: 16/4 Optional: 16/4
Network Interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
2, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
PoE Port
8 RJ-45 10/100 Mbps self-
adaptive
Ethernet interfaces
- - - - - -
USB Port
Front Panel: 2 × USB 2.0; Rear
Panel: 4 × USB 3.0;
Front panel: 2 × USB 2.0, rear
panel: 4 × USB 3.0
Front panel: 2 × USB 2.0, rear
panel: 4 × USB 3.0
Front panel: 2 × USB 2.0, rear
panel: 4 × USB 3.0
Front panel: 2 × USB 2.0, rear
panel: 4 × USB 3.0
Front Panel: 2 × USB 2.0; Rear
Panel: 4 × USB 3.0;
Front Panel: 2 × USB 2.0; Rear
Panel: 4 × USB 3.0;
Smart Function
- - - - - - -
Power Consumption (without
HDD)
≤ 30 W ≤ 200 W ≤ 200 W ≤ 200 W ≤ 200 W ≤ 200 W ≤ 200 W
Chassis
19-inch rack-mounted 1U
chassis
19-inch rack-mounted 1U
chassis
19-inch rack-mounted 1U
chassis
19-inch rack-mounted 1.5U
chassis
19-inch rack-mounted 1.5U
chassis
19-inch rack-mounted 2U
chassis
19-inch rack-mounted 2U
chassis
Description
- - - - - - -
059
NVR
Hybrid SAN
Cluster Storage
Network Storage
060
Model
DS-A81016S
Performance
Direct Streaming mode:
video (2 Mbps) + picture
320-ch recording + playback
IPSAN
180-ch recording + playback
Controller
Processor
One controller (64-bit multi-core processor)
Cache
4 GB (extendable to 32 GB)
HDD
HDD slot
16
Interface/capacity
SATA/1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB,12TB
RAID
RAID0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-spare
Network Protocol
iSCSI, RTSP, ONVIF, PSIA
Storage Management
Disk management
Disk inspection, alarm and repair
Logical volume management
iSCSI volume, video volume management
Recording Management
Recording mode
Timing recording, manual recording, dual-stream
recording, alarm recording
Video protection
Lock key video, N+1 service protection, ANR,
video loss detection and alarm
Device Maintenance
Management mode
Web-based GUI, serial port CLI, centralized
management of multiple devices
Alarm mode
Sound, light, email, message, web page
External interface
Data network interface
3, 1000M Ethernet interface
Management network interface
1, 1000M Ethernet interface
MiniSAS interface
Supported
General
Power supply
Redundant
Chassis
3U (19-inch height)
Dedicated, Superior Data
Security and Sustainability
Hikvision Hybrid SAN
Products
- Dual Mode Support: Video direct streaming and IPSAN
- Video direct streaming mode eliminates recording
server requirement, highly effective for video storage
and cost-effective
- Video stream based R/W/Search operation, higher
efficiency
- Super N+1 failover (1 failover node to take over
traffic of multiple faulty nodes) providing enhanced
video safety
- Proven lab and field compatibility in IPSAN mode with
leading VMSs Milestone/AXXON/ISS, etc.
061
NETWORK STORAGE
Model
DS-A80624S DS-A82024D DS-A83024D
Performance
Direct Streaming mode: video (2 Mbps) +
320-ch recording + playback 448-ch (recording + playback) 320-ch recording + playback
IPSAN
180-ch recording + playback 256-ch (recording + playback) -
Controller
Processor
One controller (64-bit multi-core processor) Dual controller Dual controller (Dual 64-bit multi-core processor)
Cache per controller
4 to 32 GB 8 GB (extendable to 32 GB)/controller 64 GB (extendable to 384 GB)/controller
HDD
HDD slot
24 24 24
Interface/capacity
SATA/1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB,12TB SAS/1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB,12TB SAS,NL-SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB
RAID
RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-Spare RAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare RAID 0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare
Network Protocol
iSCSI, RTSP, ONVIF, PSIA iSCSI, RTSP, ONVIF, PSIA iSCSI, RTSP, ONVIF, PSIA
Storage Management
Disk management
Disk inspection, alarm and repair Disk inspection, alarm and repair Disk inspection, alarm and repair
Logical volume management
iSCSI volume, video volume management iSCSI volume, video volume management iSCSI volume, video volume management
Recording Management
Recording mode
Timing recording, manual recording, dual-stream
recording, alarm recording
Timing recording, manual recording, dual-stream
recording, alarm recording
Timing recording, manual recording, dual-stream
recording, alarm recording
Video protection
Lock key video, N+1 service protection, ANR, video
loss detection and alarm
Lock key video, N+1 service protection, ANR, video
loss detection and alarm
Lock key video, N+1 service protection, ANR, video
loss detection and alarm
Device Maintenance
Management mode
Web-based GUI, serial port CLI, centralized
management of multiple devices
Web-based GUI, serial port CLI, centralized
management of multiple devices
Web-based GUI, serial port CLI, centralized
management of multiple devices
Alarm mode
Sound, light, email, message, web page Sound, light, email, message, web page Sound, light, email, message, web page
External Interfaces
Data network interface per controller
3, 1000M Ethernet interface
4, 1000M Ethernet interface (4 × GbE or 2 × 10GbE is
extendable) per controller
6, 1000M Ethernet interface (8× GbE or 4 × 10GbE is
extendable)/Controller
Management network interface
1, 1000M Ethernet interface 1, 1000M Ethernet interface/Controller 1, 1000M Ethernet interface/Controller
MiniSAS interface
Supported Supported Supported
General
Power supply
Redundant Redundant Redundant
4U (19-inch height) 4U (19-inch height) 4U(19-inch height)
NEW
062
NETWORK STORAGE
Model
DS-AJ7824S DS-AJ7824D DS-AJ7872D
Controller Parameters
Controller
1 Controller 2 Controller 2 Controller
SAS Interface (Upper-level)
2(12Gbps) 2(12Gbps) 2 (12Gbps)
SAS Interface (Lower-level)
1 (12Gbps) 1 (12Gbps) 1 (12Gbps)
HDD Interfaces
24 24 72
HDD Interface Type
SATA SAS SAS
Hot Swap HDD
Supported Supported Supported
Power
Redundant (1+1) Redundant (1+1) Redundant (2+1)
Applicable Models
DS-A81016S,DS-A80624S DS-A82024D DS-A82024D,DS-A83024D
General
Chassis
4U Chassis 4U Chassis 8U Chassis
Dimension(W × H × D)
486 × 173 × 760mm 447× 172 × 525mm
486 × 344 × 750mm(19 x 13 x 29.5
in)
Wight(without hard disk)
41 kg 30 kg ≤ 64 Kg (141 lb)
Consumption(with max. hard
disks)
≤ 550 W ≤ 550 W ≤ 702 W
NEW
NEW
NEW
063
NETWORK STORAGE
High Performance,
High Scalability, High
Availability
Hikvision
Cluster Storage
Products
- Clustering technology creates load
balancing and prevents single-point failure
- Virtual management unifies storage
resources to one pool for flexible utilization
- Equipment-level redundancy reaches the
highest levels of data security
- Real-time online system capacity
expansion
- One IP for the entire storage system means
easy maintenance
Model
DS-A72024R-CVS DS-A72048R-CVS
Performance
Video: recording +
playback (2Mbps)
300-ch + 64-ch 360-ch + 32-ch
Controller
Processor
2 × Xeon hexa-core processor
Cache
16 GB (extendable to 64 GB)
SSD
64 GB
HDD slot
24 48
Storage
Interface
SATA (SSD optional)
Capacity
1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB
Hot-plugging
Supported
RAID
RAID 0, 1, 3, 5, 6, 10, 50, hot spare
Software
module
CVA
Device access management, recording schedule, stream forwarding, VCA
CVS
Video access service, storage space management, data read/write
Storage
management
StorOS storage system, RAID management, HDD detection and restoration, alarm
External
interface
Data
4, 1000M Ethernet interface, extendable to 4 × GE or 2 × 10GE
Management
1, 100M Ethernet interface
General
Power supply
Redundant power supply
Operating: ≤ 410 W Rated: ≤ 875 W Operating: ≤ 620 W Rated: ≤ 1360 W
Dimensions
(W × D × H)
430 × 730 × 180 mm
(16.9 × 28.7 × 7.1 inch)
447 × 843 × 344 mm
(17.6 × 33.2 × 13.5 inch)
064
NETWORK STORAGE
Model DS-A81024S-ICVS DS-A81048S-ICVS DS-A82024D-ICVS DS-A83024S-ICVS DS-A83048S-ICVS
Performance
Video: recording
+ playback
220-ch(2 Mbps)+32-ch
110-ch(4 Mbps)+32-ch
280-ch(2 Mbps)+32-ch
130-ch(4 Mbps)+32-ch
220-ch(2 Mbps)+32-ch
320-ch(2 Mbps)+32-ch
160-ch(4 Mbps)+32-ch
360-ch(2 Mbps)+32-ch
200-ch(4 Mbps)+32-ch
Controller
Processor
1 Xeon 64-bit 6-core processors 1 Xeon 64-bit 6-core processors
Dual controller (64-bit multi-core
processor/controller)
2 Xeon 64-bit 6-core processors 2 Xeon 64-bit 6-core processors
Cache
16 GB standard, extendable to 32 GB 32 GB standard 16 GB (extendable to 64 GB)/controller 64 GB standard, extendable to 384 GB 64 GB standard, extendable to 384 GB
HDD slot
24 48 24 24 48
Storage
Interface
SAS/SATA SAS/SATA SAS (SSD optional) SAS/SATA SAS/SATA
Capacity
1 TB/2 TB/3 TB/4 TB/6 TB/8 TB (enterprise
HDD)
1 TB/2 TB/3 TB/4 TB/6 TB/8 TB (enterprise
HDD)
1TB/2TB/3TB/4TB/6TB/8TB(enterprise HDD)
1 TB/2 TB/3 TB/4 TB/6 TB/8 TB/10 TB
(enterprise HDD)
1 TB/2 TB/3 TB/4 TB/6 TB/8 TB/10 TB
(enterprise HDD)
Hot-plugging
Supported Supported Supported Supported Supported
RAID
Network RAID: N + M: K, N + M ≤ 16, M ≥ K,
N
∈
[1, 15], M
∈
[1, 4], K
∈
[1, 4]
Network RAID: N + M: K, N + M ≤ 16, M ≥ K,
N
∈
[1, 15], M
∈
[1, 4], K
∈
[1, 4]
Network RAID: N + M: K, N + M ≤ 16, M ≥ K,
N
∈
[1, 15], M
∈
[1, 4], K
∈
[1, 4]
Network RAID: N + M: K, N + M ≤ 16, M ≥ K,
N
∈
[1, 15], M
∈
[1, 4], K
∈
[1, 4]
Network RAID: N + M: K, N + M ≤ 16, M ≥ K,
N
∈
[1, 15], M
∈
[1, 4], K
∈
[1, 4]
External
Interfaces
Data
6, 1000M Ethernet interface (8 × GbE or 4 ×
10GbE is extendable)
6, 1000M Ethernet interface (8 × GbE or 4 ×
10GbE is extendable)
6, 1000M Ethernet interface (8× GbE or 4 ×
10GbE is extendable)/Controller
6, 1000M Ethernet interface (8 × GbE or 4 ×
10GbE is extendable)
6, 1000M Ethernet interface (8 × GbE or 4 ×
10GbE is extendable)
Management
1, 1000M Ethernet interface 1, 1000M Ethernet interface 1, 1000M Ethernet interface/Controller 1, 1000M Ethernet interface 1, 1000M Ethernet interface
General
Power supply
Redundant 1 + 1 power supply Redundant 2 + 1 power supply Redundant 1 + 1 power supply Redundant 1 + 1 power supply Redundant 2 + 1 power supply
Power
Consumption
Operating: ≤420 W Operating: ≤ 710 W Operating: ≤ 594 W Operating: ≤484 W Operating: ≤ 763 W
(with HDD)
Rated: ≤550 W Rated: ≤ 1600 W Rated: ≤ 800 W Rated: ≤550 W Rated: ≤ 1600 W
Dimensions
(W × D × H)
490×180×760 mm (19.3 x7.1 x 29.9 inch) 486 x 344 x 750 mm (19.1 x 13.5 x 29.5 inch 490 × 760 × 180 mm (19.3 × 29.9 × 7.1 inch) 486 x 173 x 760 mm (19.1 x 6.8 x 29.9 inch) 486 x 344 x 750 mm (19.1 x 13.5 x 29.5 inch
NEW
NEW
NEW
NEW
NEW
065
NETWORK STORAGE
Generic Purpose Server
DeepinMind Series Server
Data Center
066
Model
DS-VE22D-B/HW1 DS-VE1104A-BBC/HW
Processor
Intel® Xeon® SP, up to 28 cores per processor
1 processor from the following product families:
Intel® Xeon® processor E3-1200 v5 product family
Chipset
Intel 4110 series chipset Intel® C236
Memory
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds
up to 2666MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Architecture: Up to 2133MT/s DDR4 DIMMs
Memory type: UDIMMs
Memory module sockets: 4
Maximum RAM: Up to 64GB
Drive bays
Front drive bays
Up to 16 x 2.5”SAS/SATA(HDD/SSD)(optional)
Up to 8 x 3.5” SAS/SATA HDD(default)
2 x 3.5"" cabled HDD
4 x 3.5"" cabled HDD
4 x 3.5” hot-swap or 2.5"" hot-swap in hybrid drive carrier
Maximum internal storage
Up to 16 x 2.5” SAS/SATA (HDD/SSD)max 61TB
up to 8 x 3.5” SAS/SATA HDD max 80TB
-
PCI-E expansion slot
Riser options with up to 8 PCIe Gen 3 slots, maximum of
4 x 16 slots
2x PCI-E 3.0: x16 slot, height (1x83.0) + x8 slot, half height
(1x43.0)
RAID controllers
Internal controllers: PERC H330
RAID 0/1/5/10
Internal controllers: PERC H330
RAID 0/1/5
Embedded NIC
1GbE×4 1GbE×2
Power supplies
Titanium 750W, Platinum 495W, 750W, 1100W,
1600W,48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
(China/Japan)
Hot plug power supplies with full redundancy and
2000W Up to 6 hot plugs fans with full redundancy
250W cabled PSU
Power
- 100-240V/50Hz-60Hz
Chassis
2U chassis 1U chassis
Dimensions
960mmx 715.5mmx259mm (W× D × H) 750mmx 614mmx259mm (W× D × H)
Weight
≤ 24 kg (without guide rail) ≤ 13 kg (without guide rail)
Operating systems
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Microsoft® Windows Server® 2008 R2 SP1
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2 x64
Red Hat® Enterprise Linux®
VMware® Vsphere® 2015
Device Access
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
5 total USB:
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
Internal: 1 x USB 3.0 port
Hypervisor support
-
Microsoft Windows Server with Hyper-V®
Citrix® XenServer®
VMware® vSphere® ESXi®
Nearly Endless
Applications
Hikvision Generic
Purpose Server
With high-performance hardware, Hikvision’s Generic
Purpose Servers have been expertly designed for
various types of applications, such as financial
institutions, stock markets, transportation centers,
postal and telecommunications centers, energy
production, and other remote environments.
These capable servers meet and exceed the strict
requirements on performance, data scalability, and
reliability.
067
DATA CENTER
Model
DS-IF1032-03U/X DS-IF0206-P4I
Full Analysis Server Full Analysis Server
Facial analysis
Function module
Facial tracking, facial detection, facial rating, facial modeling, facial attribute
analysis, facial comparison and alarm
Facial attribute
Age, gender, smile, glasses, mask
Video streaming performance
32-channel (1080P to 800W) 60-channel with 1080P
Image streaming performance
160 pics/s 180 pics/s
jpeg, gif, bmp, png, tif
List storage capacity
1 million
Video structuralization
Function module
Moving target detection, tracking, rating, attribute analysis, modeling
Video processing performance
32-channel (1080P to 800W) 60-channel with 1080P
Security image processing
performance
48 pics/s 120 pics/s(1080P )
Human body attribute
Target direction/size/speed, upper/lower body clothing/color, age, hair
style, gender, whether riding, whether carrying bag, whether wearing hat,
mask, whether carrying article, number of personnel on non-motor vehicle,
vehicle type
Vehicle attribute
Target direction/size/speed, license plate number, license plate type,
vehicle color, temporary license plate, license plate color, vehicle type,
vehicle main/sub brand, safety belt of driver seat/front passenger seat, sun
visor of driver seat/front passenger seat, using mobile phone, yellow-label
vehicle, pendant, swinging pendant, vehicle with dangerous articles, tissue
box
Vehicle analysis
Function module
Vehicle detection, vehicle modeling, vehicle attribute analysis, vehicle
recognition
Resolution
256 x 256 to 900 W pixel
Format
Standard JPG/JPEG, BMP, PNG/TIFF, TIF, static GIF
General
4 × USB 3.0 interface, 2 × USB 2.0
interface
2 × USB 3.0 interface, 2 × USB 2.0
interface
1 × VGA interface 2 × VGA interface
4 × 10M/100M/1000M self-adaptive
Ethernet interface
4 ×1000M Ethernet interface
19-inch 1.5U chassis 19 inch 2U standard chassis
Power consumption:360 W
2000 W efficient 1+1 redundant
power module
Storage temperature:-40 °C to +70 °C (-40 °F to +158 °F)
Working humidity:10% to 90%
Create utility, accurate, and
innovative AI
DeepinMind Series
Server
- By adopting high density GPU architecture and
continuously optimization of deep learning algorithm,
provide high-speed, accurate and abundant AI
applications
- Real time comparison alarm to alert the appearance
of interested people and vehicles
- Search faces, human bodies and vehicles in millions
of targets within seconds
- 1 V 1 comparison to confirm similarity between two
faces
- High frequency alarm to pre-alert potential criminals
- One person one document to manage interested
people daily behaviors through time and location
information
- Upload history video to search for wanted people and
vehicles saving a lot of time and labor cost
NEW
NEW
068
DATA CENTER
Model
DS-VBD1HH-EF/H DS-VBD1HH-UF/H
Fusion Big Data Server Fusion Big Data Server
Retrieval performance
Search picture by picture
(Single type data capacity)
Face
10 million faces hot data 60 million faces hot data
Human Body
10 million human bodies hot data 60 million human bodies hot data
Vehicle
- 60 million vehicles hot data
Storage capacity
(Single type data storage
capacity)
Face
800 million face structured data 800 million face structured data
Human Body
1 billion human body structured
data
1 billion human body structured
data
Vehicle
2 billion vehicles structured data 2 billion vehicles structured data
General
Chipset
Intel 4114 series chipset Intel 4114 series chipset
Memory
128G DDR4 256G DDR4
Hard disk
480G SSD×4+2T 7.2K SATA×4
{RAID_10}
480G SSD×6+4T 7.2K SATA×2
{RAID_1}
VGA
1 1
Network
4 × 1000M Ethernet interface 4 × 1000M Ethernet interface
Chassis
19 inch 2U standard chassis 19 inch 2U standard chassis
Storage temperature
19 inch 2U standard chassis
Working humidity
Working humidity:10% to 90%
NEW
NEW
069
DATA CENTER
Model
DS-IE6316-EL/FA DS-IE6332-EL/FA DS-IX2002-A1U/X DS-IX2004-A1U/X
Edge Facial Recognition Server Edge Facial Recognition Server Intelligent Fusion Server Intelligent Fusion Server
Capture camera arming
Upper limit of number
16 32 40 80
Resolution
Up to 8 MP Up to 8MP
Normal IP camera arming
Upper limit of number
3 6 20 40
Resolution
Up to 8 MP, 720P at least Up to 8MP, 720P at least
Combination of capture camera and normal IP camera
5X+Y≤16
X:Normal IPC, Y: Capture camera
5X+Y≤32
X:Normal IPC, Y: Capture camera
- -
Imported picture
Resolution
Up to 16 MP Up to 16 MP
Format
jpeg, gif, bmp, png, tif jpeg, gif, bmp, png, tif
Blacklist Capacity
Up to 16 blacklist libraries and 1 million blacklist pictures Up to 128 blacklist libraries and 1 million blacklist pictures
Data Storage
Capacity
1 million face pictures for face capture library 30 million face pictures 50 million face pictures
Hard Disk
1 × built-in 2.5 inch 64G SSD, 1 × built-in 2.5 inch 1TB enterprise HDD
1 × 240G M.2
2 × 480G SSD
2 × 8TB SATA
1 × 240G M.2
3 × 480G SSD
4 × 8TB SATA"
External interface
USB
4 × USB 3.0 interface
2 × USB 3.0 interface
2 × USB 2.0 interface
2 × USB 3.0 interface
2 × USB 2.0 interface
VGA
1 × VGA interface 1 × VGA interface
Network
4 × 10M/100M/1000M self-adaptive Ethernet interface 4 × 1000M Ethernet interface 4 × 1000M Ethernet interface
General
Chassis
19-inch 1.5U chassis 19-inch 2U chassis
Consumption
200 W 750 W 1100 W
Working temperature
-10 °C to 55 °C (41 °F to 95 °F) 5°C to 35°C (41°F to +95 °F)
Storage temperature
-40 °C to +70 °C (-40 °F to +158 °F) -40 °C to +70 °C (-40 °F to +158 °F)
Working humidity
10% to 90% 8% to 90%
Dimensions (W × D × H)
440 × 390 × 70.5 mm (17.3 × 15.3 × 2.8 inch) 435 x 797.5 x 87mm (17.1 × 31.4 × 3.4 inch)
NEW
NEW
NEW
NEW
070
DATA CENTER
Security
Thermography
Commercial Vision
Thermal
071
Model
DS-2TD2117-3V1/6V1 DS-2TD2136-7V1/10V1/15V1/25V1/35V1
DeepinView DeepinView
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm
Max. Resolution(Thermal)
160 × 120 384 × 288
Thermal Lens
3/6mm 7/10/15/25/35mm
Optical Camera Sensor
- -
Max. Resolution(Optical)
- -
Min. Illumination
- -
Field of View
3mm: 50° × 37.2°
6mm: 25.0° × 18.7°
7mm: 60° × 43.8°
10mm: 36° × 27°
15mm: 24.55° × 18.54°
25mm: 14.88° × 11.19°
35mm: 10.66° × 8.002°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/
Main/High Profile
H.265/H.264, H.265+/H.264+ encoding with Baseline/
Main/High Profile
Frame Rate
Main Stream: 25fps(1280 × 720, 704 × 576, 640 × 512,
352 × 288)
Sub Stream: 25fps(704 × 576, 640 × 512, 352 × 288)
Third Stream: 25fps(1280 × 720, 704 × 576, 640 × 512,
352 × 288)
Main Stream: 50fps(1280 × 720, 704 × 576, 640 × 512,
352 × 288)
Sub Stream: 50fps(704 × 576, 640 × 512, 352 × 288)
Third Stream: 50fps(1280 × 720, 704 × 576, 640 × 512,
352 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge
protection, voltage transient protection
IP66 Standard, TVS 6000V Lightning protection, surge
protection, voltage transient protection
Pan/Tilt
- -
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p],
output impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p],
output impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
12 VDC ± 20%: 1.7 A, max. 8W, PoE (802.3af, class 4)
24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A, max. 8W (20W
with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to
57 V, 0.4 A to 0.5 A
Environmental Requirement
From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90%
or less
From -40 ° C to 65 ° C (-40 ° F to 149 °F), Humidity: 90%
or less
VCA
Intrusion/Line crossing/Region entrance/Region exiting,
Max 8 rules
Intrusion/Line crossing/Region entrance/Region exiting,
Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F)
NEW
See the World in a New Way
Security Group
Products
- Powerful Behavior Analyses: Line crossing, Intrusion,
Region entrance & exit
- Superior environmental adaptability
- More accurate alarms
- Extended distances
- Better visuals
Thermal - Single Lens
NEW
072
THERMAL
Model
DS-2TD2137-7VP/10VP/15VP/25VP/35VP DS-2TD2166-7V1/15V1/25V1/35V1 DS-2TD2336-50/75/100 DS-2TD2366-50/75/100 DS-2TD2466-25Y/50Y
HEOP
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 35mk (@25°C,F#=1.0) < 35mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm 17 μm 17 μm
Max. Resolution(Thermal)
384 × 288 640 × 512 384 × 288 640 × 512 640 × 512
Thermal Lens
7/10/15/25/35mm 7/15/25/35mm 50/75/100mm 50/75/100mm 25/50mm
Optical Camera Sensor
- - - - -
Max. Resolution(Optical)
- - - - -
Min. Illumination
- - - - -
Field of View
7mm:60° × 43.8°
10mm:36° × 27°
15mm:24.55° × 18.54°
25mm:14.88° × 11.19°
35mm:10.66° × 8.002°
7mm:88.5° × 73.2°
15mm:39.87° × 32.36°
25mm:24.55° × 19.75°
35mm:17.67° × 14.18°
50mm:7.47° × 5.61°
75mm:4.98° × 3.74°
100mm:3.74° × 2.8°
50mm:12.42° × 9.95°
75mm:8.3° × 6.64°
100mm:6.23° × 4.98°
25mm:24.55° × 19.75°
50mm:12.42° × 9.95°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with
Baseline/Main/High Profile
H.265/H.264, H.265+/H.264+ encoding with
Baseline/Main/High Profile
H.265/H.264, H.265+/H.264+ encoding with
Baseline/Main/High Profile
H.265/H.264, H.265+/H.264+ encoding with
Baseline/Main/High Profile
H.265/H.264, H.265+/H.264+ encoding with
Baseline/Main/High Profile
Frame Rate
Main Stream: 50fps(1280 × 720, 704 × 576, 640
× 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 × 512, 352 ×
288)
Third Stream: 50fps(1280 × 720, 704 × 576,
640 × 512, 352 × 288)
Main Stream: 50fps(1280 × 720, 704 × 576, 640
× 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 × 512, 352 ×
288)
Third Stream: 50fps(1280 × 720, 704 × 576,
640 × 512, 352 × 288)
Main Stream: 50fps(1280 × 720, 704 × 576, 640
× 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 × 512, 352 ×
288)
Third Stream: 50fps(1280 × 720, 704 × 576,
640 × 512, 352 × 288)
Main Stream: 50fps(1280 × 720, 704 × 576, 640
× 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 × 512, 352 ×
288)
Third Stream: 50fps(1280 × 720, 704 × 576,
640 × 512, 352 × 288)
Main Stream: 50fps(1280 × 720, 704 × 576, 640
× 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 × 512, 352 ×
288)
Third Stream: 50fps(1280 × 720, 704 × 576,
640 × 512, 352 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection,
surge protection, voltage transient protection
IP66 Standard, TVS 6000V Lightning protection,
surge protection, voltage transient protection
IP66 Standard, TVS 6000V Lightning protection,
surge protection, voltage transient protection
IP66 Standard, TVS 6000V Lightning protection,
surge protection, voltage transient protection
IP67 Standard, TVS 6000V Lightning protection,
surge protection, voltage transient protection
Pan/Tilt
- - - - -
Audio Input
1 3.5mm Mic in/Line in interface. Line input:
2-2.4V[p-p], output impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input:
2-2.4V[p-p], output impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input:
2-2.4V[p-p], output impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input:
2-2.4V[p-p], output impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input:
2-2.4V[p-p], output impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A,
max. 8W (20W with De-icing Heater On), PoE
(802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A,
max. 8W (22W with De-icing Heater On),
PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to
0.5 A
24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A,
max. 8W (20W with De-icing Heater On)
24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A,
max. 8W (22W with De-icing Heater On)
24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A,
max. 10W (22W with De-icing Heater On),
PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to
0.5 A
Environmental Requirement
From -40 ° C to 65 ° C (-40 ° F to 149 °F),
Humidity: 90% or less
From -40 ° C to 65 ° C (-40 ° F to 149 °F),
Humidity: 90% or less
From -40 ° C to 65 ° C (-40 ° F to 149 °F),
Humidity: 90% or less
From -40 ° C to 65 ° C (-40 ° F to 149 °F),
Humidity: 90% or less
From -40 ° C to 65 ° C (-40 ° F to 149 °F),
Humidity: 90% or less
VCA
Intrusion/Line crossing/Region entrance/
Region exiting, Max 8 rules
Intrusion/Line crossing/Region entrance/
Region exiting, Max 8 rules
Intrusion/Line crossing/Region entrance/
Region exiting, Max 8 rules
Intrusion/Line crossing/Region entrance/
Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F)
NEW
NEW
HOT
HOT
HOT
073
THERMAL
Model
DS-2TD2617-3V1/6V1 DS-2TD1217-2V1/3V1/6V1 DS-2TD2636-10/15
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
160 × 120 160 × 120 384 × 288
Thermal Lens
3/6mm 2/3/6mm 10/15mm
Optical Camera Sensor
1/2.8” Progressive Scan CMOS 1/2.8” Progressive Scan CMOS 1/2.8” Progressive Scan CMOS
Max. Resolution(Optical)
1920 × 1080 1920 × 1080 1920 × 1080
Min. Illumination
Color: 0.002 Lux @(F1.5,AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
Color: 0.002 Lux @(F1.5,AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
Color: 0.002 Lux @(F1.5,AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
Field of View
3mm:Optical:87° × 46.2° Thermal:50° × 37.2°
6mm:Optical:53° × 30° Thermal:25.0° × 18.7°
2mm:Optical:101.2° x 77° Thermal:90° × 66.4°
3mm:Optical:87° × 46.2° Thermal:50° × 37.2°
6mm:Optical:53.0° × 30° Thermal:25.0° × 18.7°
10mm:Optical:52.8° × 30.0° Thermal:37.7° × 28.7°
15mm:Optical:40.0° × 22.4° Thermal:24.2°× 18.4°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Frame Rate
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 25fps(1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 25fps(704 × 576, 640 × 512, 352 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 25fps(1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 25fps(704 × 576, 640 × 512, 352 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps(1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps(704 × 576, 640 × 512, 352 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
Pan/Tilt
- - -
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
12 VDC ± 20%: max. 12W PoE (802.3af, class 4)
12 VDC ± 20%: 0.7 A, max. 8W
PoE (802.3af, class 4): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W
24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 10W (20 W with De-icing Heater
On),
PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A
Environmental Requirement
From -40 ° C to 65 ° C (-40 ° F to 149 °F), Humidity: 90% or less From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F)
Thermal - Dual Lens
NEW
HOT
NEW
074
THERMAL
Model
DS-2TD2836-25/50 DS-2TD2866-25/50 DS-2TD4237-10V2/25V2
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
384 × 288 640 × 512 384 × 288
Thermal Lens
25/50mm 25/50mm 10/25mm
Optical Camera Sensor
1/2.8” Progressive Scan CMOS 1/2.8” Progressive Scan CMOS 1/2.8” Progressive Scan CMOS
Max. Resolution(Optical)
1920 × 1080 1920 × 1080 1920 × 1080
Min. Illumination
Color: 0.001 Lux @(F1.2, AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON)
Color: 0.001 Lux @(F1.2, AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON)
Color: 0.05 lux @ (F1.2 , AGC On )
B/W: 0.01 lux @ (F1.2 , AGC On )
Field of View
25mm:
Optical:24° × 13.7° ; Thermal:14.88°× 11.19°
50mm:
Optical:12.7° × 7.2°; Thermal:7.47°× 5.61°
25mm:
Optical:43° × 25°; Thermal:24.55°× 19.75°
50mm:
Optical:24° × 13.7°; Thermal:12.42°× 9.95°
10mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Thermal:37.7° × 28.7°
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Thermal:14.88° × 11.19°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Frame Rate
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps(1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps(704 × 576, 640 × 512, 352 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps(1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps(704 × 576, 640 × 512, 352 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
Pan/Tilt
- - Pan: 360° Continuous Rotate; Tilt: From -5° to + 90°
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 15W (22W with De-icing Heater On),
PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
24 VAC± 25%: 1 A, 12 VDC ± 20%: 2 A, max. 16W (24W with De-icing Heater On), PoE
(802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
TBD
Environmental Requirement
From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F)
HOT
HOT
NEW
075
THERMAL
Model
DS-2TD4136-25V2/50V2 DS-2TD4166-25V2/50V2 DS-2TX3636-15A/25A/35A
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
384 × 288 640 × 512 384 × 288
Thermal Lens
25/50mm 25/50mm 15/25/35mm
Optical Camera Sensor
1/1.9’’ Progressive Scan CMOS 1/1.9’’ Progressive Scan CMOS 1/1.9’’ Progressive Scan CMOS
Max. Resolution(Optical)
1920 × 1080 1920 × 1080 1920 × 1080
Min. Illumination
Color: 0.002 lux @ (F1.5 , AGC On )
B/W: 0.0002 lux @ (F1.5 , AGC On )
Color: 0.002 lux @ (F1.5 , AGC On )
B/W: 0.0002 lux @ (F1.5 , AGC On )
Color: 0.002 lux @ (F1.5 , AGC On )
B/W: 0.0002 lux @ (F1.5 , AGC On )
Field of View
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Thermal:15° × 11°
50mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Thermal:7.47° × 5.61°
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Thermal:24.55° × 19.75°
50mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Thermal:12.42° × 9.95°
15mm:
Speed Dome:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Fixed:24.55° × 18.54°
25mm:
Speed Dome:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Fixed:14.88° × 11.19°
50mm:
Speed Dome:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele); Fixed:10.66° × 8.002°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Frame Rate
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (640 × 512)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
Pan/Tilt
Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) Network Camera (Universal Joint Module): Pan: 90°, Tilt: -45° to 45°
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
Up to 7-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
24 VAC, 5 A 24 VAC, 5 A 24 VAC, 5 A
Environmental Requirement
From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40 ° C to 65 ° C (-40 ° F to 149 °F), Humidity: 90% or less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F)
HOT
HOT
HOT
076
THERMAL
Model
DS-2TX3636-15P/25P/35P DS-2TD6236-50H2LV2/75C2LV2 DS-2TD6266-50H2LV2/75C2LV2/100C2LV2
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
384 × 288 384 × 288 640 × 512
Thermal Lens
15/25/35mm 50/75mm 50/75/100mm
Optical Camera Sensor
1/1.9’’ Progressive Scan CMOS
H: 1/1.9’’ Progressive Scan CMOS
C: 1/2.8’’ Progressive Scan CMOS
H: 1/1.9’’ Progressive Scan CMOS
C: 1/2.8’’ Progressive Scan CMOS
Max. Resolution(Optical)
1920 × 1080 1920 × 1080 1920 × 1080
Min. Illumination
Color: 0.002 lux @ (F1.5 , AGC On )
B/W: 0.0002 lux @ (F1.5 , AGC On )
H:Color: 0.002 lux @ (F1.5 , AGC ON ) H:B/W: 0.0002 lux @ (F1.5 , AGC ON )
C:Color: 0.05Lux @ (F1.8, AGC ON) C:B/W: 0.01Lux @ (F1.8, AGC ON)
H:Color: 0.002 lux @ (F1.5 , AGC ON ) H:B/W: 0.0002 lux @ (F1.5 , AGC ON )
C:Color: 0.05Lux @ (F1.8, AGC ON) C:B/W: 0.01Lux @ (F1.8, AGC ON)
Field of View
15mm:
Speed Dome:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
;
Fixed:24.55° × 18.54°
25mm:
Speed Dome:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
;
Fixed:14.88° × 11.19°
50mm:
Speed Dome:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
;
Fixed:10.66° × 8.002°
50mm:7.47° × 5.61°
75mm:4.98° × 3.74°
Optical:
H:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
C:41.3° - 1.2° (Wide-Tele)
50mm:12.42° × 9.95°
75mm:8.3° × 6.64°
100mm:6.23° × 4.98°
Optical:
H:58.4° × 33.8° - 2.14° × 1.2° (Wide-Tele)
C:41.3° - 1.2° (Wide-Tele)
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Frame Rate
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (640 × 512)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
Pan/Tilt
Network Camera (Universal Joint Module): Pan: 90°, Tilt: -45° to 45° Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip) Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip)
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
Up to 7-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
24 VAC, 5 A 24 VAC, 5 A 24 VAC, 5 A
Environmental Requirement
From -40 ° C to 65 ° C (-40 ° F to 149 °F), Humidity: 90% or less From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F) -20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F) ± 8 °C (± 14.4 °F)
HOT
HOT
HOT
077
THERMAL
Model
DS-2TD8166-75C2FV2/100C2FV2/150ZH2FV2/150ZE2FV2/180ZE2FV2
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm
Max. Resolution(Thermal)
640 × 512
Thermal Lens
75mm/100mm/30-150mm/45-180mm
Optical Camera Sensor
H: 1/1.9’’ Progressive Scan CMOS
C: 1/2.8 ” Progressive Scan CMOS
E: 1/1.8 ” Progressive Scan CMOS
Max. Resolution(Optical)
1920 × 1080
Min. Illumination
H:Color: 0.002 lux @ (F1.5 , AGC ON ) H:B/W: 0.0002 lux @ (F1.5 , AGC ON )
C:Color: 0.05Lux @ (F1.8, AGC ON) C:B/W: 0.01Lux @ (F1.8, AGC ON)
E:Color: 0.005 Lux @ (F3.5, AGC ON) E:B/W: 0.0005 Lux @ (F3.5, AGC ON)
Field of View
75mm:8.3° × 6.64°; 100mm:6.23° × 4.98°
150Zmm:WIDE:20.56° × 16.51°; TELE:4.15° × 3.32°;
180Zmm:WIDE: 13.8° × 11°; TELE:3.46° × 2.77°
Optical:H:58.4° × 33.8° - 2.14° × 1.2° (Wide-Tele)
C:41.3° - 1.2° (Wide-Tele)
E:31.5 ° × 23.9 ° - 0.51 ° × 0.39 ° (Wide-Tele)
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Frame Rate
Main Stream: Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (640 × 512)
Sub Stream: Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Pan/Tilt
Pan: 360° Continuous Rotate; Tilt: From -45 ° to + 45 ° (auto flip)
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω
Alarm Input
Up to 7-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage
Power
48 VDC, 220 W
Environmental Requirement
From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 150° C (-4 °F to +302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F)
HOT
078
THERMAL
Model
DS-2TD2136T-10/15/25 DS-2TD2166T-15/25 DS-2TD2466T-25X
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal
Plane Arrays
Vanadium Oxide Uncooled Focal
Plane Arrays
Vanadium Oxide Uncooled Focal
Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 35mk (@25°C,F#=1.0) < 35mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
384 × 288 640 × 512 640 × 512
Thermal Lens
10/15/25mm 15/25mm 25mm
Optical Camera Sensor
- - -
Max. Resolution(Optical)
- - -
Min. Illumination
- - -
Field of View
10mm:36° × 27°
15mm:24.55° × 18.54°
25mm:14.88° × 11.19°
15mm:39.87° × 32.36°
25mm:24.55° × 19.75°
25mm:24.55° × 19.75°
Video Compression
H.265/H.264, H.265+/H.264+
encoding with Baseline/Main/High
Profile
H.265/H.264, H.265+/H.264+
encoding with Baseline/Main/High
Profile
H.265/H.264, H.265+/H.264+
encoding with Baseline/Main/High
Profile
Frame Rate
Main Stream: 50fps(1280 × 720, 704
× 576, 640 × 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 ×
512, 352 × 288)
Third Stream: 50fps(1280 × 720, 704
× 576, 640 × 512, 352 × 288)
Main Stream: 50fps(1280 × 720, 704
× 576, 640 × 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 ×
512, 352 × 288)
Third Stream: 50fps(1280 × 720, 704
× 576, 640 × 512, 352 × 288)
Main Stream: 50fps(1280 × 720, 704
× 576, 640 × 512, 352 × 288)
Sub Stream: 50fps(704 × 576, 640 ×
512, 352 × 288)
Third Stream: 50fps(1280 × 720, 704
× 576, 640 × 512, 352 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning
protection, surge protection,
voltage transient protection
IP66 Standard, TVS 6000V Lightning
protection, surge protection,
voltage transient protection
IP68 Standard, TVS 6000V Lightning
protection, surge protection,
voltage transient protection
Pan/Tilt
- - -
Audio Input
1 3.5mm Mic in/Line in interface.
Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface.
Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface.
Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC) 2-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm
Linkage
2-ch Relay Output, Support Alarm
Linkage
2-ch Relay Output, Support Alarm
Linkage
Power
PoE (802.3at), 24 VAC, 12 VDC/3A,
8W (20W with De-icing Heater On)
PoE (802.3at), 24 VAC, 12 VDC/3A,
8W (22W with De-icing Heater On)
100-240 VAC, max.15W PoE (802.3at)
Environmental Requirement
From -40 ° C to 65 ° C (-40 ° F to 149
°F), Humidity: 90% or less
From -40 ° C to 65 ° C (-40 ° F to 149
°F), Humidity: 90% or less
From -40 ° C to 65 ° C (-40 ° F to 149
°F), Humidity: 90% or less
VCA
Intrusion/Line crossing/Region
entrance/Region exiting, Max 8
rules
Intrusion/Line crossing/Region
entrance/Region exiting, Max 8
rules
Intrusion/Line crossing/Region
entrance/Region exiting, Max 8
rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 550° C (-4 °F to +1022°F) -20° C ~ 550° C (-4 °F to +1022°F) -20° C ~ 550° C (-4 °F to +1022°F)
Temperature Accuracy
Max (±2°C, ±2%) Max (±2°C, ±2%) Max (±2°C, ±2%)
HOT
HOT
HOT
See the World in a New Way
Thermography Group
Products
- Accurate temperature measurement
- Dynamic fire detection
- Easy operation
- Fast alarm
079
THERMAL
Model
DS-2TD4136T-9/25 DS-2TD4166T-9/25 DS-2TD6236T-25H2L/50H2L
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
384 × 288 640 × 512 384 × 288
Thermal Lens
9/25mm 9/25mm 25/50mm
Optical Camera Sensor
1/1.9’’ Progressive Scan CMOS 1/1.9’’ Progressive Scan CMOS 1/1.9’’ Progressive Scan CMOS
Max. Resolution(Optical)
1920 × 1080 1920 × 1080 1920 × 1080
Min. Illumination
Color: 0.002 lux @ (F1.5 , AGC On )
B/W : 0.0002 lux @ (F1.5 , AGC On )
Color: 0.002 lux @ (F1.5 , AGC On )
B/W : 0.0002 lux @ (F1.5 , AGC On )
Color: 0.002 lux @ (F1.5 , AGC ON )
B/W : 0.0002 lux @ (F1.5 , AGC ON )
Field of View
9mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:41.3° × 30.6°
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:14.88° × 11.19°
9mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:72° × 56.1°
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:24.55° × 19.75°
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:14.88° × 11.19°
50mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:7.47° × 5.61°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Frame Rate
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (640 × 512)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512)
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (384 × 288)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
Pan/Tilt
Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip)
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
Audio Output
Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω Linear Level; Impedance: 600Ω
Alarm Input
Up to 7-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC) Up to 7-ch inputs (0-5 VDC)
Alarm Output
2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage 2-ch Relay Output, Support Alarm Linkage
Power
24 VAC, 5 A 24 VAC, 5 A 24 VAC, 5 A
Environmental Requirement
From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40 ° C to 60 ° C (-40 ° F to 140 °F), Humidity: 90% or less From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view Max 10 fire points for live view Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 550° C (-4 °F to +1022°F) -20° C ~ 550° C (-4 °F to +1022°F) -20° C ~ 550° C (-4 °F to +1022°F)
Temperature Accuracy
Max (±2°C, ±2%) Max (±2°C, ±2%) Max (±2°C, ±2%)
HOT
HOT
080
THERMAL
Model
DS-2TD6266T-25H2L/50H2L DS-2TA03-15SVI DS-2TA06-25SVI
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays Vanadium Oxide Uncooled Focal Plane Arrays
Sensitivity
< 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0) < 40mk (@25°C,F#=1.0)
Pixel Pitch(Thermal)
17 μm 17 μm 17 μm
Max. Resolution(Thermal)
640 × 512 384 × 288 640 × 512
Thermal Lens
25/50mm 15mm 25mm
Optical Camera Sensor
1/1.9’’ Progressive Scan CMOS - -
Max. Resolution(Optical)
1920 × 1080 - -
Min. Illumination
Color: 0.002 lux @ (F1.5 , AGC ON )
B/W : 0.0002 lux @ (F1.5 , AGC ON )
- -
Field of View
25mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:24.55° × 19.75°
50mm:
Optical:58.4° × 33.8° - 2.14° × 1.2° (Wide - Tele)
Thermal:12.42° × 9.95°
15mm: 25° × 19° 25mm: 24° × 19°
Video Compression
H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile - -
Frame Rate
Main Stream:
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps (640 × 512)
Sub Stream:
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (640 × 512)
50fps 50fps
Ingress Protection
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage
transient protection
- -
Pan/Tilt
Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip) - -
Audio Input
1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output
impedance:1KΩ±10%
- -
Audio Output
Linear Level; Impedance: 600Ω - -
Alarm Input
Up to 7-ch inputs (0-5 VDC) 1 in / 1 out 1 in / 1 out
Alarm Output
2-ch Relay Output, Support Alarm Linkage
Power
24 VAC, 5 A 12 VDC, ≤ 6 W 12 VDC, ≤ 6 W
Environmental Requirement
From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less From -20°C to 50°C (-4°F to 122°F); Humidity: 90% or Less From -20°C to 50°C (-4°F to 122°F); Humidity: 90% or Less
VCA
Intrusion/Line crossing/Region entrance/Region exiting, Max 8 rules
Fire Detection
Max 10 fire points for live view
Temperature Mesuring Range
-20° C ~ 550° C (-4 °F to +1022°F) -20° C ~ 550° C (-4 °F to +1022°F) -20° C ~ 550° C (-4 °F to +1022°F)
Temperature Accuracy
Max (±2°C, ±2%) Max (±2°C, ±2%) Max (±2°C, ±2%)
HOT
NEW
NEW
081
THERMAL
Model
DS-2TP23-10VM/W DS-2TP31-03AUF
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal
Plane Arrays
Vanadium Oxide Uncooled Focal
Plane Arrays
Pixel Pitch(Thermal)
17μm 17μm
Max. Resolution
Thermal: 384 x 288
Optical: 1920 x 1080
Thermal: 160 x 120
Thermal Lens
10mm 3mm
Field of View(Thermal)
37.5° × 28.5° 37.2° x 50°
Monitor
640× 480 resolution 3.5" LCD touch
display
320 × 240 resolution 2.4" LCD
display
Storage
Built-in memory module (64G)
Replaceable memory card (default
8G, support up to 128G storage)
Wi-Fi
Support -
Battery Operating Time
≤ 4h ≤ 8h
Ingress Protection
IP54 IP54
Fall Resistant Level
2 m (6.56 feet) 2 m (6.56 feet)
Operating Temperature
-20 ° C to 50 ° C (-4 °F to 122 °F) -10 °C to 50 °C (14 °F to 122 °F)
Temperature Measuring Range
-20 ° C to 550 ° C (-4 °F to 1022 °F) -20 ° C to 550 ° C (-4 °F to 1022 °F)
Temperature Accuracy
Max (± 2 °C, ± 2%) Max (± 2 °C, ± 2%)
Dimension
244 mm × 100 mm × 104 mm
(9.6 " × 3.9" × 4.1 ")
196 mm × 117 mm × 59 mm
(7.7 " × 4.6 " × 2.3")
Weight
660 g 350 g
NEW
Coming Soon
082
THERMAL
Model
DS-2TS03-15/25/35UF/W DS-2TS16-35/50VI/W DS-2TR03-35/50UF/W
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal
Plane Arrays
Vanadium Oxide Uncooled Focal
Plane Arrays
Vanadium Oxide Uncooled Focal
Plane Arrays
Pixel Pitch(Thermal)
17μm 17μm 17μm
Max. Resolution
Thermal: 384 x 288
Thermal: 640 x 512
Optical: 1920 x 1080
Thermal: 640 x 512
Thermal Lens
15/25/35mm 35/50mm 35/50mm
Field of View(Thermal)
15mm:24°×19°
25mm:15°×11°
35mm:10.66°×8°
35mm:14.88°×11.19°
50mm:12.42°×9.95°
35mm: 10°×7.5°
50mm: 7.47°×5.61°
Monitor
0.39-inch, OLED, 1024 × 768 0.39-inch, OLED, 1024 × 768 0.39-inch, OLED, 1024 × 768
Storage
Built-in memory module (16GB) Built-in memory module (16GB) Built-in memory module (16GB)
Wi-Fi
Support Support Support
Battery Operating Time
≤ 5h ≤ 7h ≤ 8h
Ingress Protection
IP67 IP67 IP67
Fall Resistant Level
2 m (6.56 feet) - -
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 ° F) -30 °C to 60 °C (-22 °F to 140 ° F) -30 °C to 60 °C (-22 °F to 140 ° F)
Dimension
15mm:189 mm × 74 mm × 66 mm
(7.44 " × 2.91 " × 2.60 " )
25mm: 189 mm × 74 mm × 66 mm
(7.44 " × 2.91 " × 2.60 " )
35mm: 202 mm × 74 mm × 66 mm
(7.95 " × 2.91 " × 2.60 " )
35mm: 164mm × 182.3mm × 73.3mm
(6.46" × 7.18" ×2.89")
50mm: 164mm × 182.3mm × 73.3mm
(6.46" × 7.18" ×2.89")
35mm: 225mm x 65mm x 95mm
(8.86" x 2.56" x 3.74")
50mm: 244mm x 65mm x 95mm
(9.61" x 2.56” x 3.74")
Weight
15mm: 460g
25mm: 460g
35mm: 500g
35mm: 1.0kg
50mm: 1.0kg
35mm: 800g
50mm: 800g
HOT
NEW
NEW
See the World in a New Way
Commercial Vision
Products
- High quality
- Distance measurement
- Target tracking
- Great user experience
083
THERMAL
Model
DS-2TS36-50/75/100VI/WL
Thermal Camera Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Pixel Pitch(Thermal)
17μm
Max. Resolution
Thermal: 640 x 512
Optical: 1920 x 1080
Thermal Lens
50/75/100mm
Field of View(Thermal)
50mm: 12.42° × 9.95° (H × V)
75mm: 8.3° × 6.64° (H × V)
100mm: 6.23° × 4.98° (H × V)
Monitor
0.39-inch, OLED, 1024 × 768
Storage
Built-in memory module (32GB)
Wi-Fi
Support
Battery Operating Time
≤ 7h
Ingress Protection
IP67
Fall Resistant Level
-
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 ° F)
Dimension
50mm: 187.8mm × 219.8mm × 87.4mm (7.4" ×8.65" ×3.4")
75mm: 188mm × 242.9mm × 87.4mm (7.4" ×9.6" ×3.4")
100mm: 188mm × 276.9mm × 87.4mm (7.4" ×10.9" ×3.4")
Weight
Approx. 1.5KG
Model
DS-2TM03/06-NF DS-2TM13/16-NF
Image Sensor
Vanadium Oxide Uncooled Focal Plane
Arrays
Vanadium Oxide Uncooled Focal Plane
Arrays
Max. Resolution(Thermal)
384*288;640*512 384*288;640*512
Pixel Pitch
17μm 17μm
Frame rate
50Hz 50Hz
Communication Interface
232,BT.656,CVBS 232,BT.656,CVBS
NETD(@25
°C,F#1.0)
≤35mk ≤35mk
TEC
- -
Power Consumption(@25
°C)
1.3W;1.8W 0.8W;1W
Dimension
40x41x41mm 34.5x28x28
Weight
86g 40g
Working Temperature
-40~65°C -40~65°C
Storage Temperature
-55~70°C -55~70°C
Coming Soon
Coming Soon
NEW
Camera module series
084
THERMAL
LCD Video Wall
LED Display
Interactive Tablet
Commercial
Display
085
Model
DS-D2046NL-B
Display
Diagonal Size (inch)
46"
Backlight
LED Backlight (Direct type)
Panel
S-PVA
Resolution
1920×1080
Color
16.7M
Visual Angle
Horizontal: 178°, Vertical: 178°
Response Time
8ms (G to G)
Contrast
4500:1
Brightness
500cd/m
2
Dot Pitch (H×V)
0.53025mm×0.53025mm
(0.021"×0.021")
Color Saturation
92%
Screen Moving Area (H×V)
1018.08mm×572.67mm
(40.08"×22.55")
Side Frame Size Physical Seam
5.3 mm (0.21")
Interface
Input Interface
VGA×1, DVI×1, BNC×1,HDMI×1
Output Interface
VGA×1, DVI×1, BNC×1
Control Interface
RJ45 for RS-232
Power
Power Consumption
111 W
Power Requirement
90-264 VAC, 50/60Hz
Working
Environment
Operating Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating Humidity
10%~85% (No Condensation)
Working Life
≥60,000 Hours
Physical Features
Dimension (W×H×D)
1023.8mm×579mm×132mm (40.31"×22.77"×5.20" )
Frame Width
0.14" (Left/Upper),
0.067" (Right/Lower)
Bracket
Check the LCD screen inventory table
HOT
See it Better
LCD Video Wall
- LED direct backlighting
- Industrial grade panel and industrial structure design
- Ultra-narrow bezel width: 1.7, 1.8, 3.5, 5.3 mm
- HDMI/VGA/DVI interfaces
- Anti-static/Radiation protection
- 24-Hour operation
086
COMMERCIAL DISPLAY
Model
DS-D2046NL-C DS-D2046NH-C DS-D2046NH-E DS-D2049NL-B
Display
Diagonal Size (inch)
46" 46" 46" 49"
Backlight
LED Backlight (Direct type) LED Backlight (Direct type) LED Backlight (Direct type) LED Backlight (Direct type)
Panel
S-PVA S-PVA S-PVA IPS
Resolution
1920*1080 1920×1080 1920×1080 1920×1080
Color
16.7M 16.7M 16.7M 10Bit(D), 1.07 Billion colors
Visual Angle
Horizontal: 178°, Vertical: 178° Horizontal: 178°, Vertical: 178° Horizontal: 178°, Vertical: 178° Horizontal:178°, Vertical:178°(CR≥10)
Response Time
8ms (G to G) 8ms (G to G) 6ms (G to G) 8ms (G to G)
Contrast
4500:1 4500:1 4500:1 4000:1
Brightness
500cd/m
2
800cd/m
2
700cd/m
2
500cd/m
2
Dot Pitch (H×V)
0.53025mm ×0.53025mm
(0.021"×0.021")
0.53025mm×0.53025mm
(0.021"×0.021")
0.53025mm×0.53025mm
(0.021"×0.021")
0.56mm
Color Saturation
92% 92% 92% 92%
Screen Moving Area (H×V)
1018.08mm×572.67mm (40.08"×22.55") 1018.08mm×572.67mm (40.08"×22.55") 1018.08mm×572.67mm (40.08"×22.55") 1073.8mm(H)×604.0(V)mm
Side Frame Size Physical Seam
3.5 mm (0.14") 3.5 mm (0.14") 1.7 mm (0.068") 3.5mm(0.14")
Interface
Input Interface
VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1
Output Interface
VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1
Control Interface
In: RS-232, Out: RS-232×2 In:RS-232,Out:RS-232×2(Loop) In:RS-232,Out:RS-232×2(Loop) RJ45 for RS-232
Power
Power Consumption
139 W 139W 139W 134W
Power Requirement
90-264 VAC, 50/60Hz 90-264 VAC, 50/60Hz 100-264 VAC, 50/60Hz 100-240 VAC,50/60HZ
Working
Environment
Operating Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F) 0 °C ~ 40 °C (32 °F ~ 104 °F) 0 °C ~ 50 °C (32 °F ~ 122 °F) 0 °C ~ 40 °C
Operating Humidity
10%~85% (No Condensation) 10%~85% (No Condensation) 10%~90% (No Condensation) 10%~85% (No Condensation)
Working Life
≥60,000 Hours ≥60,000 Hours ≥60,000 Hours ≥60,000 Hours
Physical Features
Dimension (W×H×D)
1022.08mm×576.67mm×120.3mm
(40.24"×22.70"×4.74")
1022.08mm×576.67mm×120.3mm
(40.24"×22.70"×4.74")
1020.02mm×574.61mm×116.5mm
(40.16"×22.62"×4.59")
1077.6mm×607.8mm×113.57mm (W×H×D)
Frame Width
0.09" (Left/Upper),
0.047" (Right/Lower)
0.09" (Left/Upper),
0.047" (Right/Lower)
1.15mm (Left/Upper), 0.55mm (Right/
Lower)
2.3mm (Left/Upper), 1.2mm (Right/Lower)
Bracket
Check the LCD screen inventory table
HOT
HOT
087
COMMERCIAL DISPLAY
Model
DS-D2055NL-B DS-D2055NL-B/G DS-D2055NH-B
Display
Diagonal Size (inch)
55" 55" 55"
Backlight
LED Backlight (Direct type) LED Backlight (Direct type) LED Backlight (Direct type)
Panel
S-PVA IPS S-PVA
Resolution
1920×1080 1920×1080 1920×1080
Color
16.7M 16.7M 16.7M
Visual Angle
Horizontal: 178°, Vertical: 178° Horizontal: 178°, Vertical: 178° Horizontal: 178°, Vertical: 178°
Response Time
8ms (G to G) 6ms (G to G) 8ms (G to G)
Contrast
4000:1 4000:1 4000:1
Brightness
500cd/m
2
500cd/m
2
800cd/m
2
Dot Pitch (H×V)
0.63mm×0.63mm
(0.025"×0.025")
0.63mm×0.63mm
(0.025"×0.025")
0.63mm×0.63mm
(0.025"×0.025")
Color Saturation
92% 92% 92%
Screen Moving Area (H×V)
1209.6mm×680.4mm
(47.62"×26.79")
1209.6mm×680.4mm
(47.62"×26.79")
1209.6mm×680.4mm
(47.62"×26.79")
Side Frame Size Physical Seam
3.5 mm (0.14") 3.5 mm (0.14") 3.5 mm (0.14")
Interface
Input Interface
VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1
Output Interface
VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1
Control Interface
In: RS-232×1, Out: RS-232×2 In:RS-232,Out:RS-232×2(Loop) RJ45 for RS-232
Power
Power Consumption
192W 192W 192W
Power Requirement
90-264 VAC 90-264 VAC 90-264 VAC
Working
Environment
Operating Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F) 0 °C ~ 40 °C (32 °F ~ 104 °F) 0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating Humidity
10%~85% (No Condensation) 10%~85% (No Condensation) 10%~85% (No Condensation)
Working Life
≥60,000 Hours ≥60,000 Hours ≥60,000 Hours
Physical Features
Dimension (W×H×D)
1213.5mm×684.3mm×112.9mm (47.78"×26.94"×4.44")
1020.02mm×574.61mm×116.5mm
(40.16"×22.62"×4.59")
1213.6mm×684.3mm×111.2mm (47.78"×26.94"×4.38")
Frame Width
0.09" (Left/Upper),
0.047" (Right/Lower)
0.09" (Left/Upper),
0.047" (Right/Lower)
0.09" (Left/Upper),
0.047" (Right/Lower)
Bracket
Check the LCD screen inventory table
HOT
088
COMMERCIAL DISPLAY
Model
DS-D2055NH-B/G DS-D2055NL-E/G DS-D2055NH-E/G
Display
Diagonal Size (inch)
55" 55" 55"
Backlight
LED Backlight (Direct type) LED Backlight (Direct type) LED Backlight (Direct type)
Panel
IPS IPS IPS
Resolution
1920×1080 1920×1080 1920×1080
Color
16.7M 16.7M 10Bit (D), 1.06 Billion Colors
Visual Angle
Horizontal: 178°, Vertical: 178° Horizontal: 178°, Vertical: 178° Horizontal: 178°, Vertical: 178°
Response Time
12ms (G to G) 8ms (G to G) 8ms (G to G)
Contrast
4000:1 4000:1 4000:1
Brightness
700cd/m
2
500cd/m
2
≥700cd/m
2
Dot Pitch (H×V)
0.63mm×0.63mm
(0.025"×0.025")
0.63mm×0.63mm
(0.025"×0.025")
0.63mm×0.63mm
(0.025"×0.025")
Color Saturation
92% 92% 92%
Screen Moving Area (H×V)
1209.6mm×680.4mm
(47.62"×26.79")
1209.6mm×680.4mm
(47.62"×26.79")
1209.6mm×680.4mm
(47.62"×26.79")
Side Frame Size Physical Seam
3.5 mm (0.14") 1.8 mm (0.072") 1.8 mm (0.072")
Interface
Input Interface
VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1 VGA×1, DVI×1, BNC×1,HDMI×1
Output Interface
VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1 VGA×1, DVI×1, BNC×1
Control Interface
RJ45 for RS-232 RJ45 for RS-232 RJ45 for RS-232
Power
Power Consumption
192W 192W 192W
Power Requirement
90-264 VAC 100-240 VAC, 50/60Hz 90-264 VAC
Working
Environment
Operating Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F) 0 °C ~ 50 °C (32 °F ~ 122 °F) 0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating Humidity
10%~85% (No Condensation) 10%~90% (No Condensation) 10%~85% (No Condensation)
Working Life
≥60,000 Hours ≥60,000 Hours ≥60,000 Hours
Physical Features
Dimension (W×H×D)
1213.6mm×684.3mm×111.2mm (47.78"×26.94"×4.38")
1211.54mm×682.34mm×112.4mm
(47.78"×26.94"×4.38")
1211.5mm×682.3mm×112.4mm (47.78"×26.94"×4.38")
Frame Width
0.09" (Left/Upper),
0.047" (Right/Lower)
0.035" (Left/Upper),
0.035" (Right/Lower)
0.035" (Left/Upper),
0.035" (Right/Lower)
Bracket
Check the LCD screen inventory table
089
COMMERCIAL DISPLAY
Indoor LED Display
Model
DS-D4212FI-GW DS-D4215FI-GW
Module Composition
Pixel structure
Surface mounted trinity LED Surface mounted trinity LED
Pixel pitch (mm)
1.27 mm 1.588 mm
Module Resolution (W × H)
120 × 90 96 × 72
Module Dimension (W × H)
152.48 × 114.36 mm 152.48 × 171.54 mm
Unit module composition (W ×
H)
4 × 3 4 × 3
Unit Composition
Unit Resolution (W × H)
480 × 270 384 × 216
Unit area
0.2093 m2 0.2093 m2
Weight
≤ 37.3 kg (82.2 lb) ≤ 37.3 kg (82.2 lb)
Pixel density
619,350 pitch/ m2 396,384 pitch/ m2
Unit Ratio
16:9 16:9
Optical Parameters
Brightness(nits)
600 800
Color Temperature
3000 to 9300 adjustable 3000 to 10000 adjustable
Viewing Angle
Horizontal 160°, vertical 160° Horizontal 160°, vertical 160°
Luminous point center
distance deviation
< 3% < 3%
Brightness uniformity
≥ 97% ≥ 97%
Color uniformity
≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy
Max. Contrast
≥3000 : 1 ≥3000 : 1
Electrical parameters
Peak Consumption
850 850
Average Consumption
270 275
Power Supply
100 to 240 VAC ± 15% 100 to 240 VAC ± 15%
Processing Performance
Drive Mode
Constant current driving Constant current driving
Frame Rate
60 Hz 60 Hz
Refresh Rate
3, 840 Hz 3, 840 Hz
General
Service life(H)
≥ 100,000 h ≥ 100,000 h
Temperature(°C)
-10 to 40 º C (14 to 104 º F) -10 to 40 º C (14 to 104 º F)
Humidity(RH)
10 to 80 % (non-condensing) 10 to 80 % (non-condensing)
New Vision
LED Display
- Seamless splicing
- Self-adaption resolution
- IR remote control to switch LED screen signal source
- Intelligent dehumidification
- Excellent technology of image processing
090
COMMERCIAL DISPLAY
Model
DS-D4219FI-GW DS-D4225FI-CW
Module Composition
Pixel structure
Surface mounted trinity LED Surface mounted trinity LED
Pixel pitch (mm)
1.906 mm 2.54 mm
Module Resolution (W × H)
80 × 60 60 × 45
Module Dimension (W × H)
152.48 × 114.36 mm 152.48 × 114.36 mm
Unit Composition
Unit module composition (W × H)
4 × 3 4 × 3
Unit Resolution (W × H)
320 × 180 240 × 135
Unit area
0.2093 m2 0.2093 m2
Weight
≤ 37.3 kg (82.2 lb) ≤ 37.3 kg (82.2 lb)
Pixel density
275, 267 pitch/ m2 154,837 pitch/ m2
Unit Ratio
16:9 16:9
Optical Parameters
Brightness(nits)
800 800
Color Temperature
3000 to 10000 adjustable 3000 to 10000 adjustable
Viewing Angle
Horizontal 160°, vertical 160° Horizontal 160°, vertical 160°
Luminous point center distance deviation
< 3% < 3%
Brightness uniformity
≥ 97% ≥ 97%
Color uniformity
≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy
Max. Contrast
≥3000 : 1 ≥3000 : 1
Electrical parameters
Peak Consumption
850 800
Average Consumption
275 275
Power Supply
100 to 240 VAC ± 15% 100 to 240 VAC ± 15%
Processing Performance
Drive Mode
Constant current driving Constant current driving
Frame Rate
60 Hz 60 Hz
Refresh Rate
3, 840 Hz 3, 840 Hz
General
Service life(H)
≥ 100,000 h ≥ 100,000 h
Temperature(°C)
-10 to 40 º C (14 to 104 º F) -10 to 40 º C (14 to 104 º F)
Humidity(RH)
10 to 80 % (non-condensing) 10 to 80 % (non-condensing)
091
COMMERCIAL DISPLAY
Outdoor LED Display
Model
DS-D4440FO DS-D4450FO DS-D4460FO DS-D4480FO DS-D44A0FO DS-D44A6FO
Module Composition
Pixel structure
1R1G1B 1R1G1B 1R1G1B 1R1G1B SMD3535 DIP346
Pixel pitch (mm)
4.0(mm) 5.0(mm) 6.67(mm) 8.0(mm) 10mm 16mm
Module Resolution (W × H)
80(W)x80(H) 64(W)x64(H) 48(W)x48(H) 40(W)x40(H) 32×32 20×20
Module Dimension (W × H)
320mm(W)x 320mm(H) 320mm×320mm 320mm×320mm 320(W)x 320(H) 320mm×320mm 320mm×320mm
Unit Composition
Unit module composition
(W × H)
3×3 3×3 3×3 3×3 3×3 3×3
Unit Resolution (W × H)
160(W)x 160 192(W)x 192(H) 144(W)x 144(H) 960(W)x960(H)x90(D) 96×96 60×60
Unit area
0.9216m
2
0.9216m
2
0.9216m
2
0.9216m
2
0.9216m
2
0.9216m
2
Weight
50kg/m
2
50kg/m
2
50kg/m
2
50kg/m
2
50kg/m
2
50kg/m
2
Pixel density
62500dots/m
2
40000dots/m
2
22500dots/m
2
15625dots/m
2
10000dots/m
2
3906dots/m
2
Unit Ratio
1:1 1:1 1:1 1:1 1:1 1:1
Optical Parameters
Brightness(nits)
≥5500(cd/m2) ≥6000(cd/m2) ≥5500(cd/m2) ≥5500(cd/m2) ≥5500(cd/m2) ≥7500(cd/m2)
Color Temperature
6500-8000k 6500-8000k 6500-8000k 6500-8000k 6500~8000K(Adjustable) 6500~8000K(Adjustable)
Viewing Angle
120 ( Horizontal), 120 ( Vertical) 120 ( Horizontal), 120 ( Vertical) 120 ( Horizontal), 120 ( Vertical) 120 ( Horizontal), 120 ( Vertical) 120°( Horizontal),120°( Vertical) 110°( Horizontal),50°( Vertical)
Luminous point center
distance deviation
<
3% <3% <3% <3% <3% <3%
Brightness uniformity
≥95% ≥97% ≥97% ≥97% ≥97% ≥97%
Color uniformity
≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy
Max. Contrast
≥3000 : 1 ≥3000 : 1 ≥3000 : 1 ≥3000 : 1 ≥3000 : 1 ≥3000 : 1
Electrical parameters
Peak Consumption
750 W/m
2
500 W/m
2
580 W/m
2
580 W/m
2
580W/m
2
520W/m
2
Average Consumption
250 W/m
2
200 W/m
2
195 W/m
2
195 W/m
2
195W/m
2
170W/m
2
Power Supply
100 to 240 VAC ± 15% 100 to 240 VAC ± 15% 100 to 240 VAC ± 15% 100 to 240 VAC ± 15% 100 to 240 VAC ± 15% 100 to 240 VAC ± 15%
Processing Performance
Drive Mode
Constant Current Driving Constant Current Driving Constant Current Driving Constant Current Driving Constant Current Driving Constant Current Driving
Frame Rate
60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Refresh Rate
≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz 1,920 Hz 1920Hz
General
Service life(H)
>100,000 (H) >100,000 (H) >100,000 (H) >100,000 (H) >100,000 (H) >100,000 (H)
Temperature(°C)
-20 to 50 º C (-4 to 122 º F) -20 to 50 º C (-4 to 122 º F) -20 to 50 º C (-4 to 122 º F) -20 to 50 º C (-4 to 122 º F) -20 to 50 º C (-4 to 122 º F) -20 to 50 º C (-4 to 122 º F)
Humidity(RH)
10-90%(Non-condensing) 10-90%(Non-condensing) 10-90%(Non-condensing) 10-90%(Non-condensing)
10-90%(Working, non-
condensing),10-85%(Storage,
non-condensing)
10-90%(Working, non-
condensing),10-85%(Storage,
non-condensing)
092
COMMERCIAL DISPLAY
Model
DS-D4A39TI-GW DS-D4A50TI-GW DS-D4A60TI-GW DS-D4A50TI-GP
LED Unit
Module type
Surface mounted trinity LED Surface mounted trinity LED Surface mounted trinity LED Surface mounted trinity LED
Pixel pitch
H: 3.9mm V: 7.8mm H: 5mm V: 7mm H: 6mm V: 8mm H: 5mm V: 8mm
Resolution
256 ×128 200 ×142 166 ×125 192 ×160
Dimensions
1000mm(W) × 1000mm(H) × 100mm(D) 1000mm(W) × 1000mm(H) × 100mm(D) 1000mm(W) × 1000mm(H) × 100mm(D) 1016.6mm(W) × 1497mm(H) × 50mm(D)
Weight
16 kg/m
2
15 kg/m
2
15 kg/m
2
21 kg/unit
Pixel density
32768 pixel/m
2
28571 pixel/m
2
20833 pixel/m
2
25000 pixel/m
2
Transparency
60% 70% 75% 75%
Ingress protection
IP43 IP43 IP43 IP43
Material
Aluminium Aluminium Aluminium Aluminium
Optical
Brightness
5000 nits 5000 nits 5000 nits 5000 nits
Color temperature
3000 ~10000K, adjustable 3000 ~10000K, adjustable 3000 ~10000K, adjustable 3000 ~10000K, adjustable
Viewing angle
Horizontal 160°, vertical 160° Horizontal 160°, vertical 160° Horizontal 160°, vertical 160° Horizontal 160°, vertical 160°
Recommended viewing distance
≥ 4m ≥ 5m ≥ 6m ≥ 4m
Center distance deviation of LED
< 3% < 3% < 3% < 3%
Brightness uniformity
≥ 97% ≥ 97% ≥ 97% ≥ 97%
Color uniformity
≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy ≤ ± 0.003 Cx, Cy
Contrast
≥3000 : 1 ≥3000 : 1 ≥3000 : 1 ≥3000 : 1
Electrical
Max. consumption
800 W/m
2
800 W/m
2
800 W/m
2
1000 W/m
2
Average consumption
250 W/m
2
250 W/m
2
250 W/m
2
320 W/m
2
Power supply
100~240 VAC 100~240 VAC 100~240 VAC 100~220 VAC
Processing Performance
Driving mode
Constant current driving Constant current driving Constant current driving Constant current driving
Frame frequency
60 Hz 60 Hz 60 Hz 60 Hz
Refresh rate
≥1500 Hz ≥1500 Hz ≥1500 Hz ≥1920 Hz
Processing depth
16 bit 16 bit 16 bit 16 bit
Grey level
65536 level 65536 level 65536 level 65536 level
Color
281.4 trillion 281.4 trillion 281.4 trillion 281.4 trillion
Brighness control
Auto/Manual Auto/Manual Auto/Manual Auto/Manual
General
Working hours
≥ 100,000 h ≥ 100,000 h ≥ 100,000 h ≥ 100,000 h
Working temperature
-10 ~ 45 º C (14 to 104 º F) -10 ~ 45 º C (14 to 104 º F) -10 ~ 45 º C (14 to 104 º F) -10 ~ 45 º C (14 to 104 º F)
Storage temperature
-20 ~ 60 º C (-4 to 140 º F) -20 ~ 60 º C (-4 to 140 º F) -20 ~ 60 º C (-4 to 140 º F) -20 ~ 60 º C (-4 to 140 º F)
Working humidity
10 ~ 90 % (non-condensing) 10 ~ 90 % (non-condensing) 10 ~ 90 % (non-condensing) 10 ~ 90 % (non-condensing)
Transparent LED Display
093
COMMERCIAL DISPLAY
Model
DS-D5A65RB/A
Display
Diagonal Size (inch) 65"
Backlight LED Backlight
Panel LCD
Resolution 4K(3840 × 2160)
Color 10 bit
Visual Angle Horizantal 178°, vertical 178º
Response Time 6 ms
Contrast 1200
∶
1
Brightness 400 cd/m²
Dot Pitch (H×V) 0.496(H) × 0.372(V) mm
Screen Moving Area (H×V)
HDMIx2, VGA×1,
AUDIO×2
Interface
Input Interface AUDIO OUT×2, HDMI OUT×1
Output Interface 2, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Control Interface ≤ 300 W
Power
Power Consumption 100 to 240 VAC, 50/60Hz
Power Requirement 0 to 40 º C (0 to 104 º F)
Working Environment
Operating Temperature 10 to 90 % (non-condensing)
Operating Humidity 1505 × 907 × 114 mm
Working Environment
Dimension (W×H×D)
1545.93 × 963.58 × 123.92 mm
(60.9" × 37.9" × 4.9")
Smarter Touch, Smarter
Communication
Interactive Tablet
- UHD 4K resolution
- Anti-glare and anti-collision tempered glass
protection
- 20-Point touch control and smooth writing
experience
- On-screen annotations with built-in whiteboard
software
- Wireless projection
- Built-in Android OS, OPS optional
NEW
094
COMMERCIAL DISPLAY
Model
DS-D5A75RB/A DS-D5A86RB/A
Display
Diagonal Size (inch) 75" 86"
Backlight LED Backlight LED Backlight
Panel LCD LCD
Resolution 4K(3840 × 2160) 4K(3840 × 2160)
Color 10 bit 10 bit
Visual Angle Horizantal 178°, vertical 178º Horizantal 178°, vertical 178º
Response Time 8 ms 8 ms
Contrast 1200
∶
1 1200
∶
1
Brightness 350 cd/m² 350 cd/m²
Dot Pitch (H×V) 0.429(H) × 0.429(V) mm 0.4935(H) × 0.4935(V) mm
Screen Moving Area (H×V)
HDMIx2, VGA×1,
AUDIO×2
HDMIx2, VGA×1,
AUDIO×2
Interface
Input Interface AUDIO OUT×2, HDMI OUT×1 AUDIO OUT×2, HDMI OUT×1
Output Interface
2, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
2, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
Control Interface ≤ 500 W ≤ 600 W
Power
Power Consumption 100 to 240 VAC, 50/60Hz 100 to 240 VAC, 50/60Hz
Power Requirement 0 to 40 º C (0 to 104 º F) 0 to 40 º C (0 to 104 º F)
Working Environment
Operating Temperature 10 to 90 % (non-condensing) 10 to 90 % (non-condensing)
Operating Humidity 1737 × 1041 × 104 mm 1990 × 1186 × 118 mm
Working Environment
Dimension (W×H×D)
1798.5 × 1110.6 × 79.6 mm
(70.8" × 43.7" × 3.1")
2012.6 × 1226.9 × 113.9 mm
(79.2" × 48.3" × 4.5")
NEW
NEW
095
COMMERCIAL DISPLAY
Decoder
Decoder
096
Model
DS-6901UDI DS-6904UDI DS-6908UDI
Video Stream Format
Supported
H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG
Audio Stream Format
Supported
G.722, G711A, G726, G711U, MPEG2-L2, and AAC
Decoding Capability
12MP@20fps: 2-ch
8MP@30fps: 4-ch
5MP@30fps: 6-ch
3MP@30fps: 10-ch
1080p@30fps: 16-ch
12MP@20fps:4-ch
8MP@30fps: 8-ch
5MP@30fps: 12-ch
3MP@30fps: 20-ch
1080p@30fps: 32-ch
12MP@20fps:8-ch
8MP@30fps: 16-ch
5MP@30fps: 24-ch
3MP@30fps: 40-ch
1080p@30fps: 64-ch
Split screen
1/4/6/8/9/12/16 1/4/6/8/9/12/16/25 1/4/6/8/9/12/16/25/36
VGA Output
1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz
SXGA: 1280 × 1024@60Hz 720p: 1280 × 720@50Hz/60Hz
XGA: 1024 × 768@60Hz
1-ch - -
HDMI Output
4K: 3840 × 2160@30Hz ( for odd interface only)
1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz
UXGA: 1600 × 1200@60Hz (for odd interface only)
720p: 1280 × 720@50Hz/60Hz SXGA: 1280 × 1024@60Hz XGA: 1024 × 768@60Hz
1-ch 4-ch 8-ch
Video Input
WSXGA: 1680×1050/60Hz WXGA: 1440×900/60Hz
WXGA: 1280×800/60Hz, 1366×768/60Hz, 1080p: 1920 × 1080@50/60Hz
UXGA: 1600 × 1200@60Hz XVGA: 1280 × 960@60Hz 720p: 1280 × 720@50Hz/60Hz
SXGA: 1280 × 1024@60Hz XGA: 1024 × 768@60Hz
- 1-ch, VGA connector; 1-ch, DVI-I connector
CVBS Output
1-ch 2-ch, 1 DB 15 4-ch, 1 DB 15
Audio Output
1-ch 4-ch, 1 DB 15 8-ch, 1 DB 15
Network Interface
2, 10/100/1000 Mbps self-adaptive management network interface
2, 10/100/1000 Mbps self-adaptive Ethernet interface
16, 10M/100 Mbps self-adaptive Ethernet interface
Serial Interface
1 RS-232 (RJ45), 1 RS-485
Two-Way Audio In
1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Two-Way Audio Out
1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Alarm In
8
Alarm Out
8
Dimensions (W×D×H)
220 × 148 × 45 mm
(8.66 × 5.83 × 1.77 inch)
440 × 311 × 44.5 mm
(17.32 × 12.24 × 1.75 inch)
440 × 311 × 44.5 mm
(17.32 × 12.24 × 1.75 inch)
DS-6900 Series
Dynamic and Secure Video
Stream
Decoder
- Multiple output interfaces
- Supports various video compression formats
- Decoding capability up to 128-ch 1080p
- Supports splicing, cross-window, division, and
roaming modes
- Video wall controlling up to 16 screens
097
DECODER
Model
DS-6910UDI DS-6912UDI DS-6916UDI
Video Stream Format
Supported
H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG
Audio Stream Format
Supported
G.722, G711A, G726, G711U, MPEG2-L2, and AAC
Decoding Capability
12MP@20fps:10-ch
8MP@30fps: 20-ch
5MP@30fps: 30-ch
3MP@30fps: 50-ch
1080p@30fps: 80-ch
12MP@20fps:12-ch
8MP@30fps: 24-ch
5MP@30fps: 36-ch
3MP@30fps: 60-ch
1080p@30fps: 96-ch
12MP@20fps:16-ch
8MP@30fps: 32-ch
5MP@30fps: 48-ch
3MP@30fps: 80-ch
1080p@30fps/3 Mbps: 128-ch
Split screen
1/4/6/8/9/12/16/25/36
VGA Output
1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz
SXGA: 1280 × 1024@60Hz 720p: 1280 × 720@50Hz/60Hz
XGA: 1024 × 768@60Hz
- - -
HDMI Output
4K: 3840 × 2160@30Hz ( for odd interface only)
1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz
UXGA: 1600 × 1200@60Hz (for odd interface only)
720p: 1280 × 720@50Hz/60Hz SXGA: 1280 × 1024@60Hz XGA: 1024 × 768@60Hz
10-ch 12-ch 16-ch
Video Input
WSXGA: 1680×1050/60Hz WXGA: 1440×900/60Hz
WXGA: 1280×800/60Hz, 1366×768/60Hz, 1080p: 1920 × 1080@50/60Hz
UXGA: 1600 × 1200@60Hz XVGA: 1280 × 960@60Hz 720p: 1280 × 720@50Hz/60Hz
SXGA: 1280 × 1024@60Hz XGA: 1024 × 768@60Hz
1-ch, VGA connector; 1-ch, DVI-I connector
CVBS Output
5-ch, 2 DB 15 6-ch, 2 DB 15 8-ch, 2 DB 15
Audio Output
10-ch, 2 DB 15 12-ch, 2DB 15 16-ch, 2 DB 15
Network Interface
2, 10/100/1000 Mbps self-adaptive management network interface
2, 10/100/1000 Mbps self-adaptive Ethernet interface
16, 10M/100 Mbps self-adaptive Ethernet interface
Serial Interface
1 RS-232 (RJ45), 1 RS-485
Two-Way Audio In
1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Two-Way Audio Out
1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Alarm In
8
Alarm Out
8
Dimensions (W×D×H)
440 × 311 × 80 mm (17.32 × 12.24 × 3.15 inch)
098
DECODER
HikCentral Pro
Blazer Pro
Software
099
HikCentral Maximum Performance
Items
Without RSM With RSM
(E3-1220) (E5-2620)
General
Cameras 3,000
3,000
(Current Site)
100000(Remote Sites)
Encoding Devices, Access Control
Devices, and Remote Sites
1,024
Recording Servers 64
Event & Alarm
Event and Alarm Rules 3,000
Events or Alarms Received per
Second (Rule Matched)
120
Users and Roles
Users 3,000
Roles 3,000
Face Comparison
Face Pictures 10,000
Face Comparison Groups 64
Persons in One Face Comparison
Group
10,000
Person
Persons 10,000
Cards 50,000
Fingerprints 40,000
Credentials (Card + Fingerprint) 50,000
Access Control
Access Control Devices 128
Doors 128
Anti-Passback Rules 128
Doors in One Anti-Passback Rule 16
Access Groups 64
Access Levels 128
Access Schedules 32
Attendance Groups 64
Shift Schedules 128
16
Smart Wall
Decoding Devices 32
Smart Walls 32
Supported Language
Bulgarian, Cezch, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Thai,
Traditional Chinese, Turkish, Vietnamese, Korean, Finnish.
Central, Collaborative,
Intelligent
HikCentral Pro
- Two product modes: software and all-in-one
hardware
- Video Surveillance Management / PTZ / Heat Map /
People Counting / Thermal Cameras / Flow Analysis
Cameras / Fisheye Cameras
- Facial Recognition / Auto Number Plate Recognition
(ANPR) / Under Vehicle Surveillance System (UVSS)
- Centralized Management / Remote Site Management
- Map Management / Alarm Center / Health Monitoring
- Access Control / Time & Attendance
- Smart Wall
100
SOFTWARE
Model
Blazer Pro/256/16H Blazer Pro/128/16H
Hardware Platform
- -
Channel No.
256-ch 128-ch
Decoding Format
H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for
Hikvision network camera only)
H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision
IP camera only)
Incoming/Outgoing Bandwidth
768 Mbps/768 Mbps
768 Mbps/768 Mbps (RAID mode)
576 Mbps/512 Mbps
576 Mbps/512 Mbps (RAID mode)
Decoding Capacity
20-ch@1080p 20-ch@1080p
Recording Resolution
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/
UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Display
2 HDMI/1 VGA 2 HDMI/1 VGA
LCD
- -
Storage Capacity
Up to 10 TB for each HDD Up to 10 TB for each HDD
eSATA/Mini SAS
1 × eSATA interface, 2 × mini SAS interface (optional) 1 × eSATA interface, 2 × mini SAS interface (optional)
RAID Type
RAID0, RAID1, RAID5, RAID 6, and RAID10 RAID0, RAID1, RAID5, RAID 6, and RAID10
Audio Output
1-ch. RCA (2.0 Vp-p, 1 KΩ) 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Alarm I/O
16/8 16/8
Network Interface
4, RJ45 10M/100M/1000M self-adaptive Ethernet
interface
4, RJ45 10M/100M/1000M self-adaptive Ethernet
interface + 4 RJ-45 10/100/1000 Mbps self-adaptive
Ethernet
PoE Port
- -
USB Port
Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0 + 2 ×
USB 3.0;
Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0 + 2 ×
USB 3.0;
Smart Function
Face detection, behavior analysis, people counting and
heat map
Face detection, behavior analysis, people counting and
heat map
Power Consumption (without
HDD)
≤ 300 W ≤ 300 W
Description
- -
A Powerful, Convenient and
Fail-Proof VMS Recorder
Blazer Pro
- All-in-one recorder with powerful VMS and data
storage in one unit
- Dual board design for risk isolation and better
reliability – in case of VMS server board failure,
storage board works independently and recording,
preview and playback functions are not affected
- Supports facial recognition, access control,
centralized video management, and business
intelligence functions such as people counting,
queue detection, etc.
101
SOFTWARE
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD4C26FWD-(A)(P)
DS-2CD4C36FWD-(A)(P)
DS-2CD4026FWD-A/P
Indoor Indoor housing Outdoor housing
DS-2CD5026G0-(AP)
DS-2CD5046G0-(AP)
DS-2CD5085G0-(AP)
DS-2CD50C5G0-(AP)
DS-2CD7026G0(/P)-(AP)
DS-2CD7046G0-(AP)
DS-2CD7085G0-(AP)
DS-1299ZJ DS-1292ZJ DS-1332HZ DS-1330HZ DS-1331HZ series DS-1340HZ
Pendant Mount Wall mount Indoor housing Indoor housing Outdoor housing Outdoor housing
Hik white
Aluminum Alloy
77×77×198mm
165g
Hik white
Aluminum alloy
70x97.1x217.9mm
201g
Hik white
Alminum alloy
288×149×100mm
800g
Hik white
Complex fiber
290×142×92mm
640g
Hik white
Aluminum alloy
Three-axis adjustment
Containing combined wires and
fan
IK10
Product form Model Recommended brackets for Hikvision IP camera
Indoor
DS-2CD3663G0-IZS
DS-2CD3643G0-IZS
DS-2CD3623G0-IZS
DS-2CD3645G0-IZS
DS-2CD3625G0-IZS
DS-1475ZJ-SUS DS-1476ZJ-SUS DS-1275ZJ-S-SUS
DS-2CD5A26G0-IZ(H)S
DS-2CD5A46G0-IZ(H)S
DS-2CD5A85G0-IZ(H)S
DS-2CD5AC5G0-IZ(H)S
DS-2CD7A26G0(/P)-IZ(H)S
DS-2CD7A46G0-IZ(H)S
DS-2CD7A85G0-IZ(H)S
Vertical pole mount Corner mount Vertical pole mount
Hik white
Stainless Steel
250 mm × 127 mm × 46 mm
Diameter of clamp: Φ67-127mm
1205g
Hik white
Stainless Steel
126×105×250mm
2280g
Hik white
Stainless Steel
144 mm × 131.6 mm × 44.3 mm (5.67"× 5.18"× 1.74")
760 g (1.68 lb.)
IPC
102
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD5028G0/E
Outdoor
DS-1293ZJ-P DS-1269ZJ-P DS-1214ZJ-TP DS-1233ZJ-P
Wall mount Pendant mount Horizontal pole mount Column Mount
Platinum gray
Aluminum alloy
88×116.6×297.3mm
473g
Platinum gray
Aluminum alloy
493x246x88mm
480g
Platinum gray
Steel(mounting board) & Stainless Steel(clamp)
Platinum gray
Steel
Φ160 x 1093mm
6200g
DS-1232ZJ-P DS-1232ZJ-TP DS-1275ZJ-P-SUS DS-1275ZJ-SUS
Cardan Joint Cardan Joint Vertical pole mount Vertical pole mount
Platinum gray
Steel
126x103.5x83mm
790
Platinum gray
Steel
96x95x92.5mm
Platinum gray
Stainless Steel
127×46×250mm
Match up with wall mount(DS-1293ZJ-XX)
Hikvision White
Stainless Steel
127 mm × 46 mm × 250 mm (5"× 1.81" × 9.84")
1480 g (3.26 lb.)
Match up with wall mount(DS-1293ZJ-XX(B))
103
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD5026G0/E-I(H)
Indoor/Outdoor
DS-1293ZJ DS-1214ZJ DS-1275ZJ-SUS DS-1269ZJ
Wall mount Horizontal pole mount Vertical pole mount Pendant Mount
Hik white
Aluminum alloy
88×116.6×297.3mm
473g
Hik white
Steel
117×226×194mm
Diameter of clamp: Φ67-127mm
1895g
Hik white
Stainless Steel
127 mm × 46 mm × 250 mm (5"" × 1.81"" × 9.84"")
1480 g (3.26 lb.)
Match up with wall mount(DS-1293ZJ-XX(B))
Hik white
Aluminum alloy
493x246x88mm
480g
DS-1233ZJ DS-1276ZJ-SUS DS-1674ZJ DS-2202ZJ
Column Mount Corner mount Junction Box Wall Mount
Hik white
Steel
Φ160 x 1093mm
6200g
Hik white
Stainless Steel
126×105×250mm
2280g
Match up with wall mount(DS-1293ZJ-XX)
Hik white
Aluminum Alloy
310 mm × 208.9 mm × 89 mm
(12.20" × 8.22" × 3.50")
2380 g (5.25 lb.)
Hik white
Aluminum Alloy ADC12
300.7 mm × 250.2 mm × 107.9 mm
(9.85" × 9.85" × 4.25")
1250 g (2.76 lb.)
104
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD6412FWD-11/21/31
Indoor
DS-1290ZJ-BL DS-1291ZJ-BL
Clamp bracket Desktop/Pendant mount
Black
Plastic
90x70x22mm
Black
Plastic
87x73x73mm
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD4026FWD/P-L
DS-2CD4026FWD/P-(IR5)(IRA)
(INRA)(HIRA)
Indoor/Outdoor
DS-1293ZJ DS-1214ZJ DS-1275ZJ-SUS DS-1269ZJ DS-1233ZJ DS-1276ZJ-SUS
Wall mount Horizontal pole mount Vertical pole mount Pendant Mount Column Mount Corner mount
Hik white
Aluminum alloy
88×116.6×297.3mm
473g
Hik white
Steel
117×226×194mm
Diameter of clamp: Φ67-127mm
1895g
Hik white
Stainless Steel
127 mm × 46 mm × 250 mm
(5"" × 1.81"" × 9.84"")
1480 g (3.26 lb.)
Match up with wall mount
(DS-1293ZJ-XX(B))
Hik white
Aluminum alloy
493x246x88mm
480g
Hik white
Steel
Φ160 x 1093mm
6200g
Hik white
Stainless Steel
126×105×250mm
2280g
Match up with wall mount
(DS-1293ZJ-XX)
Appearance Model
Recommended brackets for Hikvision
IP camera
DS-2CD3063G0-I
DS-2CD3043G0-I
DS-2CD3023G0-I
DS-2CD3085G0-I
DS-2CD3045G0-I
DS-2CD3025G0-I
Indoor/Outdoor
DS-1280ZJ-XS
Junction box
Hik white
Aluminum Alloy
Φ100 x 43.2 x 129mm
320g
105
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD4A26FWD-(IZ)(IZS)(IZHS)
(LZS)/P
DS-2CD4A45G0-IZ(H)S
DS-2CD4B25G0-IZS
DS-2CD4B36FWD-IZ(S)
DS-2CD4B26FWD-IZ(S)
Indoor/Outdoor Outdoor
DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1275ZJ-S-SUS Rubber sleeve
Vertical pole mount Corner mount Vertical pole mount Rubber sleeve with weather proof
Hik white
Stainless Steel
127 mm × 46 mm × 250 mm
(5"" × 1.81"" × 9.84"")
1480 g (3.26 lb.)
Hik white
Stainless Steel
126×105×250mm
2280g
Hik white
Stainless Steel
144 mm × 131.6 mm × 44.3 mm
(5.67" × 5.18" × 1.74")
760 g (1.68 lb.)
Hik white
Rubber
106
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD3T63G0-2I/4I
DS-2CD3T43G0-2I/4I
DS-2CD3T23G0-2I/4I
DS-2CD3T45G0-4I
DS-2CD3T25G0-4I
Indoor/Outdoor
DS-1275ZJ-SUS DS-1260ZJ DS-1276ZJ-SUS DS-1280ZJ-S DS-1275ZJ-S-SUS
Vertical pole mount Junction box Corner mount Junction box Vertical pole mount
Hik white
Stainless Steel
127 mm × 46 mm × 250 mm
(5" × 1.81" × 9.84")
1480 g (3.26 lb.)
Hik white
Aluminum alloy
Φ105 mm
included in the package with 3TXX
series
Hik white
Stainless Steel
126×105×250mm
2280g
Hik white
Aluminum alloy
Φ137 x 53.4x 164.8mm
527g
Hik white
Stainless Steel
144 mm × 131.6 mm × 44.3 mm
(5.67" × 5.18" × 1.74")
760 g (1.68 lb.)
Match up with DS-1260ZJ
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD7126G0-IZS
DS-2CD7126G0/L-IZS
DS-2CD7146G0-IZS
DS-2CD7185G0-IZS
DS-2CD5126G0-IZS
DS-2CD5146G0-IZS
DS-2CD5185G0-IZS
DS-2CD51C5G0-IZS
Indoor/Outdoor
DS-1271ZJ-130 DS-1273ZJ-130 DS-1273ZJ-130B DS-1227ZJ DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1281ZJ-DM23
Pendant Mount Wall mount Wall mount In-ceiling mount Vertical pole mount Corner mount Inclined ceiling mount
Hik white
Aluminum alloy
Φ150×565mm
1900g
Hik white
Aluminum alloy
132×183.5×228.5mm
690g
Hik white
Aluminum alloy
with junction box
132×243×288.5mm
1475g
Hik white
Steel&Plastic
Φ210×90mm
564g
Hik white
Stainless Steel
127 mm × 46 mm × 250
mm (5" × 1.81" × 9.84")
1480 g (3.26 lb.)
Match up with wall
mount(DS-1273ZJ-XX(B))
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall
mount(DS-1273ZJ-XX(B))
Hik white
Aluminum alloy
Φ136×48mm
245g
107
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2XM6112FWD-I
Indoor/Outdoor
DS-2CD3563G0-IS
DS-2CD3543G0-IS
DS-2CD3523G0-IS
DS-2CD3565G0-IS
DS-2CD3545G0-IS
DS-2CD3525G0-IS
DS-2XM6726FWD-I
DS-2XM6736FWD-I
DS-2XM6756FWD-I
DS-1272ZJ-120 DS-1272ZJ-120B DS-1271ZJ-120 DS-1276ZJ-SUS DS-1282ZJ-DM(mini) DS-1280ZJ-DM46 DS-1275ZJ-SUS
Wall mount Wall mount Pendant mount Corner mount Gang box Junction box Vertical pole mount
Hik white
Aluminum alloy
120×122×173.5mm
430g
Hik white
Aluminum alloy
with junction box
123×180×223mm
1225g
Hik white
Aluminum alloy
Φ150×573mm
1900g
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall
mount(DS-1272ZJ-XX(B))
Hik white
Plastic
Φ120 mm
(comes with camera)
Hik white
Alminum aloy
Ø 120 mm × 37.2 mm
(Ø 4.72" × 1.46")
250g
Hik white
Stainless Steel
127 mm × 46 mm × 250
mm (5" × 1.81" × 9.84")
1480 g (3.26 lb.)
Match up with wall
mount(DS-1272ZJ-XX(B))
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD3763G0-IZS
DS-2CD3743G0-IZS
DS-2CD3723G0-IZS
DS-2CD3745G0-IZS
DS-2CD3725G0-IZS
Indoor/Outdoor
DS-1471ZJ-155 DS-1473ZJ-155 DS-1475ZJ-SUS DS-1476ZJ-SUS DS-1227ZJ-DM37 DS-1473ZJ-155B
Pendant Mount Wall Mount Vertical pole mount Corner mount In-Ceiling Mount Wall Mount
Hik white
Aluminum alloy
Φ155×150×565mm
Hik white
Aluminum alloy
155×183.5×240mm
Hik white
Stainless Steel
250 mm × 127 mm × 46 mm
Diameter of clamp: Φ67-127mm
1205g
Match up with wall mount
(DS-1473Z-XX(B))
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall mount
(DS-1473ZJ-XX(B))
Hik white
Steel and Plastic
Ø 225 mm × 98.2 mm
(8.86" × 3.87")
700 g (1.54 lb.)
Hik white
Aluminum alloy
243×123×300mm
1750 g (3.86 lb.)
108
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD3163G0-I(S)
DS-2CD3143G0-I(S)
DS-2CD3123G0-I(S)
DS-2CD3185G0-IS
DS-2CD3145G0-IS
DS-2CD3125G0-IS
ndoor/Outdoor(suitable for indoor)
DS-1259ZJ DS-1271ZJ-110 DS-1272ZJ-110 DS-1272ZJ-110B DS-1276ZJ-SUS
Inclined ceiling mount Pendant mount Wall mount Wall mount Corner mount
Hik white
Plastic
Φ111×39.2mm
70g
Hik white
Aluminum alloy
Φ150×560mm
1900g
Hik white
Aluminum alloy
120×122×169mm
420g
Hik white
Aluminum alloy
with junction box
123×180×227.8mm
1205g
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall mount(DS-1272ZJ-
XX(B))
DS-1280ZJ-DM18 DS-1258ZJ DS-1250ZJ DS-1275ZJ-SUS
Junction box Wall mount Rain shade Vertical pole mount
Hik white
Aluminum alloy
Φ115.4×43.8mm
450g
Hik white
Plastic
120×111×161.5mm
110g
Hik white
Plastic
264.7×152×189.6 mm
220g
Hik white
Stainless Steel
127 mm × 46 mm × 250 mm
(5" × 1.81" × 9.84")
1480 g (3.26 lb.)
Match up with wall mount
(DS-1272ZJ-XX(B))
109
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD5526G0-IZ(H)S
DS-2CD5546G0-IZ(H)S
DS-2CD5585G0-IZ(H)S
DS-2CD55C5G0-IZ(H)S
DS-2CD7526G0-IZ(H)S
DS-2CD7546G0-IZ(H)S
DS-2CD7585G0-IZ(H)S
Indoor/Outdoor
DS-1471ZJ-155 DS-1473ZJ-155 DS-1475ZJ-SUS DS-1476ZJ-SUS DS-1473ZJ-155B DS-1253ZJ-L DS-1250ZJ
Pendant Mount Wall Mount Vertical pole mount Corner mount Wall Mount Rain shade Rain shade
Hik white
Aluminum alloy
Φ155×150×565mm
Hik white
Aluminum alloy
155×183.5×240mm
Hik white
Stainless Steel
250 mm × 127 mm × 46
mm
Diameter of clamp: Φ67-
127mm
1205g
Match up with wall
mount(DS-1473ZJ-XX(B))
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall
mount(DS-1473ZJ-XX(B))
Hik white
Aluminum alloy
243×123×300mm
1750 g (3.86 lb.)
Hik white
Plastic
Φ225.1×98mm
172g
Match up with wall
mount(DS-1473ZJ-155)
Hik white
Plastic
264.7×152×189.6 mm
220g
Product form Model Recommended brackets for Hikvision IP camera
w
DS-2CD5526G0-IZ(H)SY
DS-2CD5546G0-IZ(H)SY
Indoor/Outdoor
DS-1471ZJ-155-Y DS-1473ZJ-155-Y DS-1475ZJ-SUS-Y DS-1476ZJ-SUS-Y
Pendant Mount Wall Mount Vertical pole mount Corner mount
Hik white
Aluminum alloy
Φ155×150×565mm
Hik white
Aluminum alloy
155×183.5×240mm
Hik white
Stainless Steel
250 mm × 127 mm × 46 mm
Diameter of clamp: Φ67-127mm
1205g
Match up with wall mount(DS-1473ZJ-XX(B))
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall mount(DS-1473ZJ-XX(B))
110
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD3H63G0-IZS
DS-2CD3H43G0-IZS
DS-2CD3H23G0-IZS
DS-2CD3H45G0-IZS
DS-2CD3H25G0-IZS
Indoor/Outdoor
DS-1473ZJ-135 DS-1471ZJ-135 DS-1281ZJ-DM23 DS-1475ZJ-SUS DS-1476ZJ-SUS DS-1473ZJ-135B
Wall mount Pendant mount Inclined ceiling mount Vertical pole mount Corner mount
Wall mount
with junction box
Hik white
Aluminum alloy
136×183.5×230mm
704g
Hik white
Aluminum alloy
150×150×565mm
1900g
Hik white
Aluminum alloy
136.3×136.3×48mm
245g
Hik white
Stainless Steel
250 mm × 127 mm × 46 mm
Diameter of clamp: Φ67-127mm
1205g
Match up with wall mount
(DS-1473ZJ-XX(B))
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall mount
(DS-1473ZJ-XX(B))
Hik white
Aluminum alloy
with junction box
136×243×290mm
1490g
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD3363G0-I
DS-2CD3343G0-I
DS-2CD3323G0-I
DS-2CD3345G0-I
DS-2CD3325G0-I
Indoor/Outdoor
DS-1273ZJ-130-TRL DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1280ZJ-DM8 DS-1281ZJ-M DS-1271ZJ-130-TRL DS-1273ZJ-130B-TRL
Wall mount Vertical pole mount Corner mount Junction box Inclined ceiling mount Pendant mount Wall mount
Hik white
Aluminum alloy
131×183.5×228.5mm
890g
Hik white
Stainless Steel
127 mm × 46 mm × 250
mm (5" × 1.81" × 9.84")
1480 g (3.26 lb.)
Match up with wall
mount(DS-1273ZJ-XX(B))
Hik white
Stainless Steel
126X105X250mm
2280g
Match up with wall
mount(DS-1273ZJ-J-
XX(B))
Hik white
Aluminum alloy
Φ126.7mm×35mm
Hik white
Aluminum alloy
157×165.7×61.8mm
586g
Hikvision white
Aluminum alloy
Φ150×567mm
Hik white
Aluminum Alloy
Ø 132 mm × 242.9 mm ×
288.5mm
(5.20" × 9.56" × 11.36")
1690 g (3.73 lb.)
111
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD6626DS-IZ(H)S
Indoor
DS-1284ZJ-M DS-1703ZJ
Junction box Wall mount
Natural Stainless Steel Color
Stainless Steel
229×141×71.5mm
1981g
Natural Stainless Steel Color
Stainless Steel
Φ175.8×116.5×202mm
Appearance Model Recommended brackets for Hikvision IP camera
DS-2XC6122FWD-IS
Indoor
DS-1705ZJ-DM35 DS-1284ZJ-M
Wall mount Junction box
Natural Stainless Steel Color
Stainless Steel
180×74×150mm
Natural Stainless Steel Color
Stainless Steel
229×141×71.5mm
1981g
112
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2XE6222F-IS
DS-2XE6242F-IS
Outdoor
DS-1704Z DS-1706ZJ DS-2780ZJ-X DS-2780ZJ-X/316L
Wall mount PT joint Explosion-proof terminal box Explosion-proof terminal box
Natural Stainless Steel Color
304L Stainless Steel
412.5×140×228mm
Natural Stainless Steel Color
Stainless Steel
85×60×55mm
Stainless steel
272 mm × 272 mm × 96.8 mm
6.4 kg
Stainless steel
272 mm × 272 mm × 96.8 mm
6.4 kg
DS-1704Z-Y DS-1712ZJ DS-1677ZJ-XS-1.0 (D) DS-1677ZJ-XS-1.0 (C2)
Wall mount Pendant mount Flexible conduit Flexible conduit
Unpainted Stainless Steel
SUS316L
412.5 mm × 140 mm × 228 mm
(16.24" × 5.51" × 8.98")
2160 g (4.76 lb.)
304 stainless steel
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
113
ACCESSORIES
Appearance Model
Recommended brackets
for Hikvision IP camera
Indoor
iDS-2CD6810F-IV/C
DS-1227ZJ-P1
In-ceiling mount
Hik white
Φ253.4×8.5mm
Product form Model Recommended brackets for Hikvision IP camera
DS-2XE6422FWD-IZH(R)S
Indoor/Outdoor
DS-1707ZJ-Y DS-2780ZJ-X DS-2780ZJ-X/316L DS-1707ZJ-Y-E DS-1677ZJ-XS-1.0 (D) DS-1677ZJ-XS-1.0 (C2)
Wall mount Explosion-proof terminal box Explosion-proof terminal box
Wall mount (316L stainless
steel)
Flexible conduit Flexible conduit
Natural Stainless Steel Color
SUS316L Stainless Steel
562.5 mm × 180 mm × 309 mm
(22.15"" × 7.09"" × 12.17"" )
7.02 kg (15.48 lb.)
Stainless steel
272 mm × 272 mm × 96.8 mm
6.4 kg
Stainless steel
272 mm × 272 mm × 96.8 mm
6.4 kg
Unpainted Stainless Steel
SUS316L
543.5 mm × 160 mm × 258 mm
(21.40" × 6.30" × 10.16")
4.98 kg (10.98 lb.)
NBR, braided steel wire, carbon
steel
Ø25 mm × 1000 mm
NBR, braided steel wire,
carbon steel
Ø25 mm × 1000 mm
Product form Model Recommended brackets for Hikvision IP camera
Indoor
iDS-2CD6810F/C
DS-1227ZJ-P1 DS-2102ZJ DS-1299ZJ
In-ceiling mount Wall mount 302701248
Hik white
Φ253.4×8.5mm
Hik white
194×110×50mm
Hik white
Aluminum Alloy
77×77×198mm
165g
114
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2XE6126FWD-HS
Outdoor
DS-1694ZJ-X DS-1695ZJ-X DS-1696ZJ-X DS-1697ZJ-X
Pendant Mount Wall Mount Pendant Mount-316L Wall Mount-316L
Natural Stainless Steel Color
stainless steel 304
φ136x306mm
Approx. 1.07 kg
Natural Stainless Steel Color
stainless steel 304
136x204.3x353.4 mm
Approx. 1.04kg
Natural Stainless Steel Color
stainless steel 316L
φ136x306mm
Approx. 1.07kg
Natural Stainless Steel Color
stainless steel 316L
136x204.3x353.4 mm
Approx. 1.04kg
DS-2781ZJ-X DS-2781ZJ-X/316L DS-1677ZJ-XS-1.0 (D) DS-1677ZJ-XS-1.0 (C2)
Explosion-Proof Terminal Box Explosion-Proof Terminal Box Flexible conduit Flexible conduit
Natural Stainless Steel Color
DS-2781ZJ-X: stainless steel 304
272 mm × 272 mm × 96.8 mm (10.7" × 10.7" × 3.8")
Approx. 6.7 kg (14.8 lb.)
Natural Stainless Steel Color
DS-2781ZJ-X/316L: stainless steel 316L
272 mm × 272 mm × 96.8 mm (10.7" × 10.7" × 3.8")
Approx. 6.7 kg (14.8 lb.)
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
115
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD6D24FWD
DS-2CD6D54FWD
Outdoor
DS-1604ZJ DS-1663ZJ DS-1661ZJ DS-1604ZJ-pole
Wall Mount with junction box Ceiling mount Pendant mount Vertical pole mount
Hik white
Aluminum alloy
255×171×355.5mm
2150g
Hik white
Aluminum alloy
Φ116.5×57mm
Hik white
Aluminum alloy
Φ116.5×200mm
Hik white
Aluminum alloy
170.7×261.8×355.5mm
DS-1604ZJ-corner DS-1673ZJ DS-1602ZJ
Corner mount Horizontal pole mount Wall Mount
Hik white
Aluminum alloy
206.8×261.8×465mm
Hik white
Steel(mounting board) & Stainless Steel(clamp)
Diameter of clamp: Φ67-127mm
Match up with pendant mount
Hik white
Aluminum alloy
97X182X305mm
116
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2CD6924F
DS-2CD6984G0-IH(S)
ndoor/Outdoor(suitable for indoor)
DS-1661ZJ DS-1662ZJ DS-1604ZJ DS-1604ZJ-pole DS-1604ZJ-corner
Pendant mount Pendant mount Wall Mount with junction box Vertical pole mount Corner mount
Hik white
Aluminum alloy
Φ116.5×200mm
600g
Hik white
Aluminum alloy
Φ116.5×500mm
960g
Hik white
Aluminum alloy
255×171×355.5mm
2150g
Hik white
Aluminum alloy
170.7×261.8×355.5mm
Hik white
Aluminum alloy
206.8×261.8×465mm
DS-1604ZJ-box DS-1604ZJ-BOX-POLE DS-1604ZJ-BOX-CORNER DS-1602ZJ
Wall mount with junction box
Vertical Pole Mount
with junction box
Wall Mount with junction box Wall Mount
Hik white
Aluminum alloy
281.2×170.7×395.5mm
Hik white
Aluminum alloy & steel
222×139.3×422mm
Hik white
Aluminum alloy & stee
255.5×314×542.5mm
Hik white
Aluminum alloy
97X182X305mm
117
ACCESSORIES
Product form Model
Recommended brackets for Hikvision IP
camera
Indoor
DS-2XC6224G0-L
DS-1706ZJ
DS-2XC6225G0-L
PT joint
Natural Stainless Steel Color
Stainless Steel
85×60×55mm
118
ACCESSORIES
PTZ and Zoom camera
Product form Model Recommended brackets for Hikvision PTZ Dome Camera
Outdoor(only available for outdoor PTZ model)
DS-2DF5232X-AEL
DS-2DF5225X-AEL
DS-2DF7232IX-AEL
DS-2DF7232IX-AELW
DS-2DF7225IX-AEL
DS-2DF7225IX-AELW
DS-1661ZJ DS-1662ZJ DS-1663ZJ DS-1660ZJ DS-1604ZJ DS-1604ZJ-pole DS-1604ZJ-corner
302700180 302700215 302700203 302701355 302701666 302700683
DS-2DE7530IW-AE
DS-2DE7430IW-AE
DS-2DE7425IW-AE
DS-2DE7232IW-AE
DS-2DE7225IW-AE
Hik white
Aluminum alloy
Φ116.5×200mm
600g
Hik white
Aluminum alloy
Φ116.5×500mm
960g
Hik white
Aluminum alloy
Φ116.5×57mm
380g
Hik white
Aluminum Alloy & Steel
180×950×800mm
4036g
Hik white
Aluminum alloy
255×171×355.5mm
2150g
Hik white
Aluminum alloy
170.7×261.8×355.5mm
Hik white
Aluminum alloy
206.8×261.8×465mm
DS-2DF6225X-AEL
DS-2DF8836IX-AEL
DS-2DF8836IX-AELW
DS-2DF8825IX-AEL
DS-2DF8825IX-AELW
DS-2DF8436IX-AEL
DS-2DF8436IX-AELW
DS-2DF8425IX-AEL
DS-2DF8425IX-AELW
DS-2DF8236IX-AEL
DS-2DF8236IX-AELW
DS-2DF8225IX-AEL
DS-2DF8225IX-AELW
DS-1604ZJ-box DS-1604ZJ-BOX-POLE
DS-1604ZJ-BOX-
CORNER
DS-1619ZJ DS-1667ZJ DS-1602ZJ
Wall mount with junction
box
Vertical Pole Mount
with junction box
Wall Mount with junction
box
Gooseneck mount
Extendable pole
for Pendant mount
Wall Mount
DS-2DF8836I5X-AELW
DS-2DF8436I5X-AELW
DS-2DF8236I5X-AELW
DS-2DF8250I5X-AEL
DS-2DF8250I5X-AELW
DS-2DF8250I8X-AELW
Hik white
Aluminum alloy
281.2×170.7×395.5mm
Hik white
Aluminum alloy & steel
222×139.3×422mmwith
junction box
Hik white
Aluminum alloy & stee
255.5×314×542.5mm
Hik white
Aluminum alloy
455.2×130.4×841.5mm
Hik white
Galvanized steel pipe
1500~2500mm
Hik white
Aluminum
alloy97X182X305mm
119
ACCESSORIES
Product form Model Recommended brackets for Hikvision PTZ Dome Camera
Outdoor
DS-2DF8225IH-AEL(W)
DS-1604ZJ-P DS-1663ZJ-P DS-1660ZJ-P DS-1661ZJ-P DS-1667ZJ-P DS-1663ZJ-P DS-1682ZJ-P
Wall Mount with junction
box
Ceiling mount Parapet wall mount Pendant mount
Extendable pole
for Pendant mount
Ceiling mount
Extendable pole
for Pendant mount
DS-2DF6A836X-AEL
DS-2DF6A825X-AEL
DS-2DF6A436X-AEL
DS-2DF6A425X-AEL
DS-2DF6A236X-AEL
DS-2DF6A225X-AEL
Platinum gray
Aluminum alloy
255×171×355.5mm
2150g
Platinum gray
Aluminum alloy
Φ116.5×57mm
380g
Platinum gray
Aluminum alloy
180×950×800mm
2900g
Platinum gray
Aluminum alloy
Φ116.5×200mm
600g
Platinum gray
Galvanized steel pipe
1500~2500mm
Platinum gray
Aluminum alloy
Φ116.5×57mm
380g
Platinum gray
Aluminum alloy
500mm
Match up with pendant
mount(DS-1661ZJ-P)
DS-2DF8A436I(N)X-AEL
DS-2DF8A836I(N)X-AEL
DS-1662ZJ-P DS-1673ZJ-P DS-1604ZJ-Pole-P DS-1604ZJ-Corner-P DS-1604ZJ-BOX-P
DS-1604ZJ-BOX-
CORNER-P
DS-1604ZJ-BOX-
POLE-P
Pendant mount Horizontal pole mount Vertical pole mount Corner mount
Wall mount with junction
box
Wall Mount with junction
box
Vertical Pole Mount
with junction box
Platinum gray
Aluminum alloy
Φ116.5×500mm
960g
Platinum gray
Steel(mounting board) &
Stainless Steel(clamp)
Diameter of clamp: Φ67-
127mm
Match up with pendant
mount
Platinum gray
Aluminum alloy
170.7×261.8×355.5mm
Platinum gray
Aluminum alloy
206.8×261.8×465mm
Platinum gray
Aluminum alloy
281.2×170.7×395.5mm
Platinum gray
Aluminum alloy & stee
255.5×314×542.5mm
Platinum gray
Aluminum alloy & steel
222×139.3×422mm
120
ACCESSORIES
Product form Model Recommended brackets for Hikvision PTZ Dome Camera
DS-2DF9C435IH-DLW
Outdoor
DS-1603ZJ-P DS-1668ZJ-P DS-1668ZJ(20)-P DS-1603ZJ-Pole-P DS-1619ZJ-HP2
Wall mount Pendant mount Pendant mount Vertical Pole Mount Gooseneck Mount
Platinum Gray
Aluminum Alloy
364.1 mm × 182.0 mm (14.3"" × 7.2"")
1400 g (3.09 lb.)
Platinum Gray
Steel
Φ115×58mm
620g
Platinum Gray
Steel
Φ 115 mm × 200 mm (4.53"" × 7. 87"")
1150 g (2.54 lb.)
Platinum Gray
Aluminum Alloy+steel
410.6×194×126.1 mm
2.5Kg
Platinum Gray
Stainless Steel
Ø 130 mm × 455 mm × 526 mm
(5.12"" × 17.91"" × 20.71"")
5200 g (12.46 lb.)
Product form Model Recommended brackets for Hikvision IP camera
Indoor
iDS-2PT9122IX-D/S
Wall mount bracket included in
the package
DS-2664ZJ DS-2601ZJ-P DS-2665ZJ-P
Pendent mount Wall Mounting racket [INCLUDED] Base Mounting Bracket
Grey
Aluminum alloy
Φ203.5×217.4mm
Plastic with surface spray treatment
Φ 203.5 mm × 227.9 mm
Plastic with surface spray treatment
178.7 mm × 126 mm × 57.2 mm
121
ACCESSORIES
Product form Model Recommended brackets for Hikvision PTZ Dome Camera
DS-2DP0818ZX-D
DS-2DP1636ZX-D
DS-2DP1636ZIX-D
DS-2DP0818ZIX-D
Outdoor
DS-1603ZJ-P DS-1668ZJ-P DS-1668ZJ(20)-P DS-1603ZJ-Pole-P DS-1619ZJ-HP2
Wall mount Pendant mount Pendant mount Vertical Pole Mount Gooseneck Mount
Platinum Gray
Aluminum Alloy
364.1 mm × 182.0 mm (14.3"" × 7.2"")
1400 g (3.09 lb.)
Platinum Gray
Steel
Φ115×58mm
620g
Platinum Gray
Steel
Φ 115 mm × 200 mm (4.53" × 7. 87")
1150 g (2.54 lb.)
Platinum Gray
Aluminum Alloy+steel
410.6×194×126.1 mm
2.5Kg
Platinum Gray
Stainless Steel
Ø 130 mm × 455 mm × 526 mm
(5.12" × 17.91" × 20.71")
5200 g (12.46 lb.)
Product form Model Recommended brackets for Hikvision IP camera
DS-2DT6223-AEL
Indoor
DS-1696ZJ-Y DS-1697ZJ-Y
Pendant mount Wall mount
Stainless steel 316L
160×160×342mm
1890g
Stainless steel 316L
136×212×326mm
2300g
122
ACCESSORIES
Product form Model Recommended brackets for Hikvision PTZ Dome Camera
DS-2DF6223-CX(W/316L)
wall mount bracket included in
the package
Outdoor
DS-1693ZJ-X DS-1692ZJ-X DS-1677ZJ-XS-1.0 (C2) DS-2780ZJ-X DS-1677ZJ-XS-1.0 (D)
Pendant Mounting Wall mounting bracket (included) Flexible conduit Explosion-proof terminal box Flexible conduit
Stainless steel 316L
250 mm × 200 mm × 303 mm
6kg
SUS316L
350 mm × 200 mm × 345 mm
7 KG
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
Stainless steel
272 mm × 272 mm × 96.8 mm
6.4 kg
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
Product form Model Recommended brackets for Hikvision PTZ Dome Camera
DS-2DB4223I-CX(WE/316L)
DS-2DB4236I-CWX(WE/316L)
Outdoor
DS-1707ZJ-Y DS-1707ZJ-Y-E DS-1677ZJ-XS-1.0 (D) DS-2780ZJ-X/316L DS-1677ZJ-XS-1.0 (C2)
Wall mount (316L stainless steel) Wall mount (316L stainless steel) Flexible conduit Explosion-proof terminal box Flexible conduit
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
Stainless steel
272 mm × 272 mm × 96.8 mm
6.4 kg
NBR, braided steel wire, carbon steel
Ø25 mm × 1000 mm
123
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2DY9250IAX-A
DS-2DY9236I8X-A
Indoor
DS-2DY9236IX-A
DS-1693ZJ DS-1678ZJ
DS-2DY9250X-A
DS-2DY9236X-A
Wall mount Junction Box
Hik white
steel
190×200×500mm
5700g
Hik white
Aluminum alloy
286×424×119.5mm
DS-2DY7236W-A
DS-2DY7236IW-A
Positioning System
Product form Model Recommended brackets for Hikvision IP camera
Indoor
DS-2DY3320IW-DE
DS-2DY3220IW-DE
DS-1280ZJ-M(SPTZ) DS-1281ZJ-M(SPTZ) DS-1275ZJ(SPTZ)
Junction Box Inclined ceiling mount Pole mount
Hik white
steel
157 x 53.4 x 184mm
621g
Hik white
steel
157 x 61.8 x 165.7mm
586g
Hik white
steel
250 x 127 x 140mm
124
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
Indoor
iDS-2CD6810F-IV/C
DS-1227ZJ-P1
In-ceiling mount
Hik white
Φ253.4×8.5mm
Appearance Model Recommended brackets for Hikvision IP camera
Indoor
iDS-2CD6810F-IV/C
DS-1227ZJ-P1
In-ceiling mount
Hik white
Φ253.4×8.5mm
125
ACCESSORIES
Housing
Product form Model Available Camera Model Key Feature Bracket Model
DS-1330HZ
DS-2CD4C26FWD-(A)(P)
DS-2CD4C36FWD-(A)(P)
DS-2CD4026FWD-A/P
DS-2CD5026G0-(AP)
DS-2CD5046G0-(AP)
DS-2CD5085G0-(AP)
DS-2CD50C5G0-(AP)
DS-2CD7026G0(/P)-(AP)
DS-2CD7046G0-(AP)
DS-2CD7085G0-(AP)
Hik white
Complex fiber
290×142×92mm
640g
DS-1293ZJ DS-1299ZJ DS-1269ZJ
Wall mount Pendant Mount Pendant mount
Hik white
Aluminum alloy
88×116.6×297.3mm
473g
Hik white
Aluminum Alloy
77×77×198mm
165g
Hik white
Aluminum alloy
493x246x88mm
480g
Product form Model Available Camera Model Key Feature Bracket Model
DS-1332HZ
DS-2CD4C26FWD-(A)(P)
DS-2CD4C36FWD-(A)(P)
DS-2CD4026FWD-A/P
DS-2CD5026G0-(AP)
DS-2CD5046G0-(AP)
DS-2CD5085G0-(AP)
DS-2CD50C5G0-(AP)
DS-2CD7026G0(/P)-(AP)
DS-2CD7046G0-(AP)
DS-2CD7085G0-(AP)
Hik white
Aluminum alloy
288×149×100mm
800g
DS-1293ZJ DS-1299ZJ DS-1269ZJ
Wall mount Pendant Mount Pendant mount
Hik white
Aluminum alloy
88×116.6×297.3mm
473g
Hik white
Aluminum Alloy
77×77×198mm
165g
Hik white
Aluminum alloy
493x246x88mm
480g
126
ACCESSORIES
Product form Model Available Camera Model Key Feature Bracket Model
DS-1331HZ-C
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan
DC12V IP67
110×165×445mm
1900g
DS-1331HZ-H
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan and heater
AC24V IP67
110×165×445mm
1900g
DS-1293ZJ DS-1269ZJ DS-1214ZJ DS-1214ZJ-T
DS-1331HZ-W
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan and wiper
AC24V IP67
445×165×170mm
1900g
Wall mount Pendant mount Horizontal pole mount Horizontal pole mount
DS-1331HZ-HW
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan, wiper and
heater
AC24V IP67
445×165×170mm
2500g
Hik white
Aluminum alloy
88×116.6×297.3mm
473g
Hik white
Aluminum alloy
493x246x88mm
480g
Hik white
Steel
117×226×194mm
Diameter of clamp: Φ67-127mm
1895g
Hik white
Steel(mounting board) &
Stainless Steel(clamp)
DS-1331HZ-CI
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan
DC12V IP67 IK10
445×140×94mm
1900g
DS-1331HZ-HI
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan and heater
AC 24V(DC 12V) IP67 IK10
110×165×445mm
1900g
DS-1233ZJ DS-1232ZJ DS-1232ZJ-T DS-1275ZJ-SUS
DS-1331HZ-T
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing fan and heater
AC 24V(DC 12V) IP67
suitable for wide angle lens
and fish-eye lens
454.2×169.2×114.6mm
1900g
Column Mount Cardan Joint Cardan Joint
Vertical pole mount
DS-1331HZ-R
DS-2CD2821G0
DS-2CC12D9T-(A)
DS-2CC12D9T-E
DS-2CE37U8T-A
Hik white
Aluminum alloy
Containing Cooling module
AC 110 to 240V IP66
490×169.4×100mm
3200g
Hik white
Steel
Φ160 x 1093mm
6200g
Hik white
Steel
126x103.5x83mm
790
Hik white
Steel
96x95x92.5mm
Hik white
Stainless Steel
127x46x250mm
Diameter of clamp:
Φ67-127mm
1205g
Match up with
wall mount(DS-1293ZJ)
127
ACCESSORIES
Product form Model Available Camera Model Key Feature
DS-1340HZ
Three-axis adjustment
Containing combined wires
and fan
IK10
DS-1275ZJ-4626
Vertical Pole Mount
Hik white
Steel(mounting board) & Stainless Steel(clamp)
127×46×250mm
1235g
For 40 series box camera
Product form Model Available Camera Model Key Feature Bracket Model
DS-4718HZ-K
DS-2CD4C26FWD-(A)(P)
DS-2CD4C36FWD-(A)(P)
DS-2CD4026FWD-A/P
DS-2CD5026G0-(AP)
DS-2CD5046G0-(AP)
DS-2CD5085G0-(AP)
DS-2CD50C5G0-(AP)
DS-2CD7026G0(/P)-(AP)
DS-2CD7046G0-(AP)
DS-2CD7085G0-(AP)
Hik white
Aluminum alloy
Containing fan and heater
AC 24V(DC 12V) IP66
174×153×550mm
2500g
DS-1293ZJ DS-1269ZJ DS-1214ZJ DS-1214ZJ-T DS-1275ZJ-SUS
Wall mount Pendant mount Horizontal pole mount Horizontal pole mount Vertical pole mount
Hik white
Aluminum alloy
88×116.6×297.3mm
473g
Hik white
Aluminum alloy
493x246x88mm
480g
Hik white
Steel
117×226×194mm
Diameter of clamp: Φ67-
127mm
1895g
Hik white
Steel(mounting board) &
Stainless Steel(clamp)
Hik white
Stainless Steel
127×46×250mm
Diameter of clamp: Φ67-
127mm
1205g
Match up with wall
mount(DS-1293ZJ)
128
ACCESSORIES
Thermal
Product form Model Relevant brackets
DS-2TD1217/V1
DS-1273ZJ-130-TRL DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1280ZJ-M DS-1281ZJ-M DS-1271ZJ-130-TRL DS-1273ZJ-130B-TRL
wall mount
Vertical pole
mount(Combination with
wall mount)
Corner mount Junction box
Junction box (pitched
roof)
ceiling wall mount
Product form Model Relevant brackets
DS-2TD2136/2166/2117V1
DS-2TD2636/2617V1
DS-1275ZJ DS-1276ZJ DS-1260ZJ
Vertical pole mount Corner mount Junction box
Hik white
Stainless steel
117×143×195mm
Hik white
Stainless steel
158X173mm
Hik white
Aluminum alloy
Φ88.5 mm
129
ACCESSORIES
Product form Model Relevant brackets and housings
DS-2TD41XX
Outdoor(only available for outdoor PTZ model)
DS-1602ZJ DS-1602ZJ-pole DS-1602ZJ-corner DS-1604ZJ-box DS-1604ZJ-BOX-POLE
DS-1604ZJ-BOX-
CORNER
DS-1673ZJ
Wall mount Vertical pole mount Corner mount
Wall mount, Including
power box
Vertical Pole Mount
with junction box
Wall Mount with junction
box
Vertical pole mount
Hik white
Aluminum alloy
97×182×305mm
Hik white
Aluminum Alloy & Steel
117×194×310mm
Hik white
Aluminum alloy
176.8×194×419.5mm
Hik white
Aluminum alloy
281.2×170.7×395.5mm
Hik white
Aluminum alloy
222×139×422mm
Hik white
Aluminum alloy
255×314×542mm
Hik white
Stainless steel
Φ67-127mm
DS-1619ZJ DS-1661ZJ DS-1662ZJ DS-1667ZJ DS-1682ZJ DS-1663ZJ DS-1660ZJ
Gooseneck mount
Pendant mount Pendant mount
Extendable pole
for Pendant mount
Extendable pole
for Pendant mount
Ceiling mount Parapet wall mount
Hik white
Aluminum alloy
455.2×130.4×841.5mm
Hik white
Aluminum alloy
Φ116.5×200mm
Hik white
Aluminum alloy
Φ116.5×500mm
Hik white
Galvanized steel pipe
1500~2500mm
Hik white
Aluminum alloy
Φ116.5×500mm
Hik white
Aluminum alloy
Φ116.5×57mm
Hik white
Aluminum Alloy & Steel
180×950×800mm
130
ACCESSORIES
Product form Model Recommended brackets for Hikvision IP camera
DS-2TX36XX
Indoor/Outdoor
DS-2902ZJ DS-2904ZJ DS-2903ZJ DS-2905ZJ
Wall mount Vertical pole mount Vertical pole mount
Hik white
Stainless steel
259×396×119mm
Hik white
Stainless steel
70×38mm
Hik white
Stainless steel
118×194×Φ200mm
Hik white
Aluminum alloy
Φ116.5-57mm
Product form Model
Indoor
DS-2TD62XX
DS-1693ZJ
Wall mount
Hik white
steel
190×200×500mm
5700g
Product form Model
Indoor
DS-2XC6224G0-L
DS-2904ZJ
Vertical pole mount
Hik white
Steel
157×240×Φ200mm
131
ACCESSORIES
AC24V/2.5A power adapter
model Suitable for
HKKD-12077, AC24V/2.5A, American standard plug
DS-2TD4136/V2
DS-2TD4166/V2
HKA-A24250-230, AC24V/2.5A, Europe standard plug
HKA-A24250-230,AC24V/2.5A, British standard plug
MKAC-96-248000M,AC24V/2.5A, Australia standard plug
DC48V/5A power adapter
model Suitable for
AWAD240,DC48V5A, American standard plug
DS-2TD8166
AWAD240,DC48V5A, Europe standard plug
AWAD240,DC48V5A, British standard plug
AWAD240,DC48V5A, Australia standard plug
DC5V/2A power adapter
model Suitable for
HKC0115020-2B,DC5V/2A,American standard plug
DS-2TS03
EE9-050200-4H,DC5V/2A,Europe standard plug
HKC0105020-4H,DC5V/2A, British standard plug
HKC0105020-9H,DC5V/2A, Australia standard plug
AC24V/5A power adapter
model Suitable for
MSA-C1500IC12.0-18P-US, DC12V/1.5A, American standard plug
DS-2TP23-10VM/W
MSA-C1500IC12.0-18P-DE, DC12V/1.5A, Europe standard plug
MSA-C1500IC12.0-18P-GB, DC12V/1.5A, British standard plug
MSA-C1500IC12.0-24P-AU, DC12V/2A, Australia standard plug
AC24V/5A power adapter
model Suitable for
KPL-040F-VI,12V3.33A, American standard plug
DS-2TD2136,DS-2TD2166
DS-2TD2336,DS-2TD2366
DS-2TD2466,DS-2TD2136T
DS-2TD2166T
KPL-040F-VI,12V3.33A, Europe standard plug
KPL-040F-VI,12V3.33A, British standard plug
KPL-040F-VI,12V3.33A, Australia standard plug
AC24V/5A power adapter
model Suitable for
A24-5A-950,UL,AC24V5A , American standard plug
DS-2TD6236
DS-2TD6266
DS-2TD6236T
DS-2TD6266T
DS-2TX3636
HKKD-13002,AC24V/5A, Europe standard plug
MKAC-76-245000V,AC24V5A,British standard plug
MKAC-96-248000M,AC24V/2.5A, Australia standard plug
Power adaptor
132
ACCESSORIES
Power adaptor detail Available Models
DC12V1A
DSA-12PFG-12 FEU 120100, European standard,12V1A, Two-wire
Most IPC, analog camera and DS-2DE3/2xxx
series mini PTZ models
DSA-12PFG-12 FEU 120100,European standard,12V1A,Φ2.1
ADS-12FG-12N 12012EPG,12V/1A,European standard,Φ2.1
DSA-12PFT-12FUS120100,American standard,12V1A,Two-wire
DSA-12PFT-12FUS120100,American standard,12V1A,Φ2.1
ADS-12FG-12N 12012EPCU,12V/1A,American standard,Φ2.1
DSA-12PFG-12 FUK 120100,British standard,12V1A,Two-wire
DSA-12PFG-12 FUK 120100,British standard,12V1A,Φ2.1
ADS-12FG-12N 12012EPB,12V/1A,British standard,Φ2.1
DSA-12PFG-12 FAU 120100,Australian standard,12V1A,Φ2.1
DSA-12PFG-12 FAU 120100,Australian standard,12V1A,Two-wire
DC12V2A
ASW0081-1220002W(green head),12V24W,Two-wire
Indoor mini PanoVu and high power consumption
IPC and analog camera
AC power wire, European standard,1.5m,black
AC power wire, British standard,1.5m,black
AC power wire, Australian standard,1.8m,black
Match up with 101700162
MSA-C2000IC12.0-24P-GB,British standard,12V2A,Φ2.1
MSA-C2000IC12.0-24P-DE,European standard,12V2A,Φ2.1
MSA-C2000IC12.0-24P-US,American standard,12V2A,Φ2.1
DC12V3.33A
KPL-040F-VI (green head),12V40W,Two-wire
AC power wire, European standard,1.5m,black
AC power wire, British standard,1.5m,black
AC power wire, Australian standard,1.8m,black
Match up with 101700613"
DC12V 5A
KPL-060F-VI,12V5A,UL, green head,Two-wire
DS-2PT9122IX-DE/S
AC power wire, European standard,1.5m,black
AC power wire, British standard,1.5m,black
AC power wire, Australian standard,1.8m,black
Match up with 101700168"
DC36V 4.17A
EUV-150S036ST-KW02,36V4.17A ,150W (NO AC power wire)
PanoVu
AC power wire, European standard
AC power wire, British standard
AC power wire, American standard
Match up with 101701022"
DC36V
DS-2FA3616-DZ-HW (NO AC power wire)
iDS-2CD8426
AC power wire, American standard,1M,black
AC power wire, European standard,1M,black
AC power wire, British standard ,1M,black
AC power wire, Australian standard, 1.0M,black
AC power wire, Chinese standard,1.0M,black
AC24V2.5A
AC adaptor,HKA-A24250-230,AC24V/2.5A,European standard
All DS-2D(A)F8/76/5xxx-A/A3/AW/AE/AE3/AEL
Models;
All DS-2D(A)E7/5/4xxx-A/A3/-AE/-AE
Linear power,HKKD-12077,AC24V/2.5A,American standard
Linear power,HKA-A24250-230,AC24V2.5A,British standard
Linear power,PSE-A1525/5060,AC100V,AC24V2.5A,Japanese standard
AC24V3A
Linear power,TEAC-66-243000V,AC230V,AC24V3A,European standard
Linear power,TEAC-66-243000U,AC120V,AC24V/3A,American standard
Linear power,TEAC-66-243000VB,AC230V,AC24V/3A,British standard
AC24V5A Linear power,HKKD-13002,AC230V,AC24V5A,European standard Positioning System
133
ACCESSORIES
IPC-8600 Network camera teste, 7" Screen, with ANSI power supply
IPC-8600-E Network camera tester, 7" Screen, with ANSI power supply
IPC-8600-E Network camera tester, 7" Screen, with ANSI power supply
IPC-8600 Network camera tester, 7" Screen, with EN power supply
IPC-4300H
Network camera tester, 4.3'' Screen, with ANSI/EN/BS/AS power supply, Support IP/CVBS/
TVI(AHD/CVI) input
Models Key Features Picture
DS-2FP2020
Pickup range:70 sq.m,
Audio transmission distance:3000m,
Frequency response:20Hz~20KHz,
SNR:60dB(1m40 dB audio tone SPL)40dB(10m 40 dB audio tone SPL)1KHz at 1 Pa,
Dynamic Range:70dB(1KHz at Max dB SPL)
DS-2FP4021-B
Pickup Scope:60 m2 / continuously adjustable,
Gain Adjustment Scope:30dB/ continuous,
Pickup Direction:Full Directions /360°,
Frequency Response:100Hz~16KHz(1kHz@94Db SPL),
Dynamic Range:85dB,
Output Impedance:600 Ohm unbalanced
3.5mm plug adapter
match up with pick up for camera with 3.5mm jack
Camera tester
Pickup
134
ACCESSORIES
