Model No. DG282
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG282 Issue:1 01/08/24
www.dellonda.co.uk
Dellonda BBQ/Plancha Trolley with
Cupboard, Extension Table & Utensil Hooks
- Black
Specication
Product Dimensions (W x D x H): 950 x 500x x800mm
Dimensions with Side Table Hidden: 950 x 500 x 800mm
Dimensions with Side Table Standing: 1550 x 500 x 800mm
Main Tabletop Dimension: 850 x 500
Safety Instructions
• GENERAL SAFETY
• WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be applied by the
operator.
• Check tightness of fixings periodically.
• Ensure BBQ/plancha is placed centrally.
• Only use on level ground.
• Risk assess area where trolley is to be used.
• Refer to Safety section of BBQ/plancha instructions for information on safe location and use of the trolley.
• DO NOT use BBQ/plancha with gas bottle on the shelf of the trolley.
• DO NOT move the trolley whilst the BBQ/plancha is lit.
• Keep children and pets away from the area.
• WARNING! Although we take every effort to ensure that the assembly process is as easy as possible, it is inherent with fabricated steel parts that
corners and edges can cause cuts if improperly handled during assembly procedures. Be careful while handling any parts during assembly. It is
strongly recommended that you protect hands with a pair of work gloves.
Refer to
instruction
manual
Wear
gloves
Warning:
hot
surface
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.

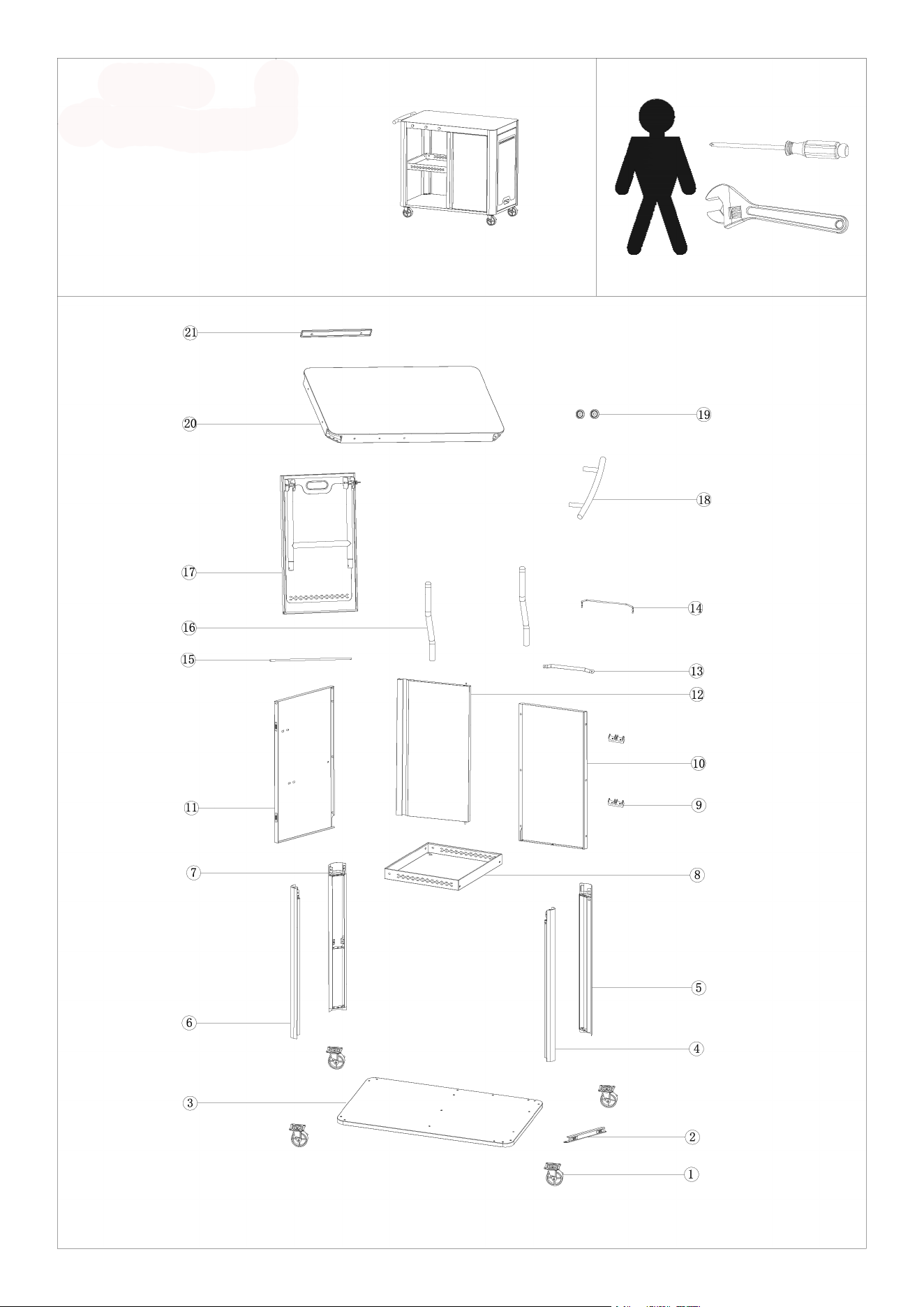

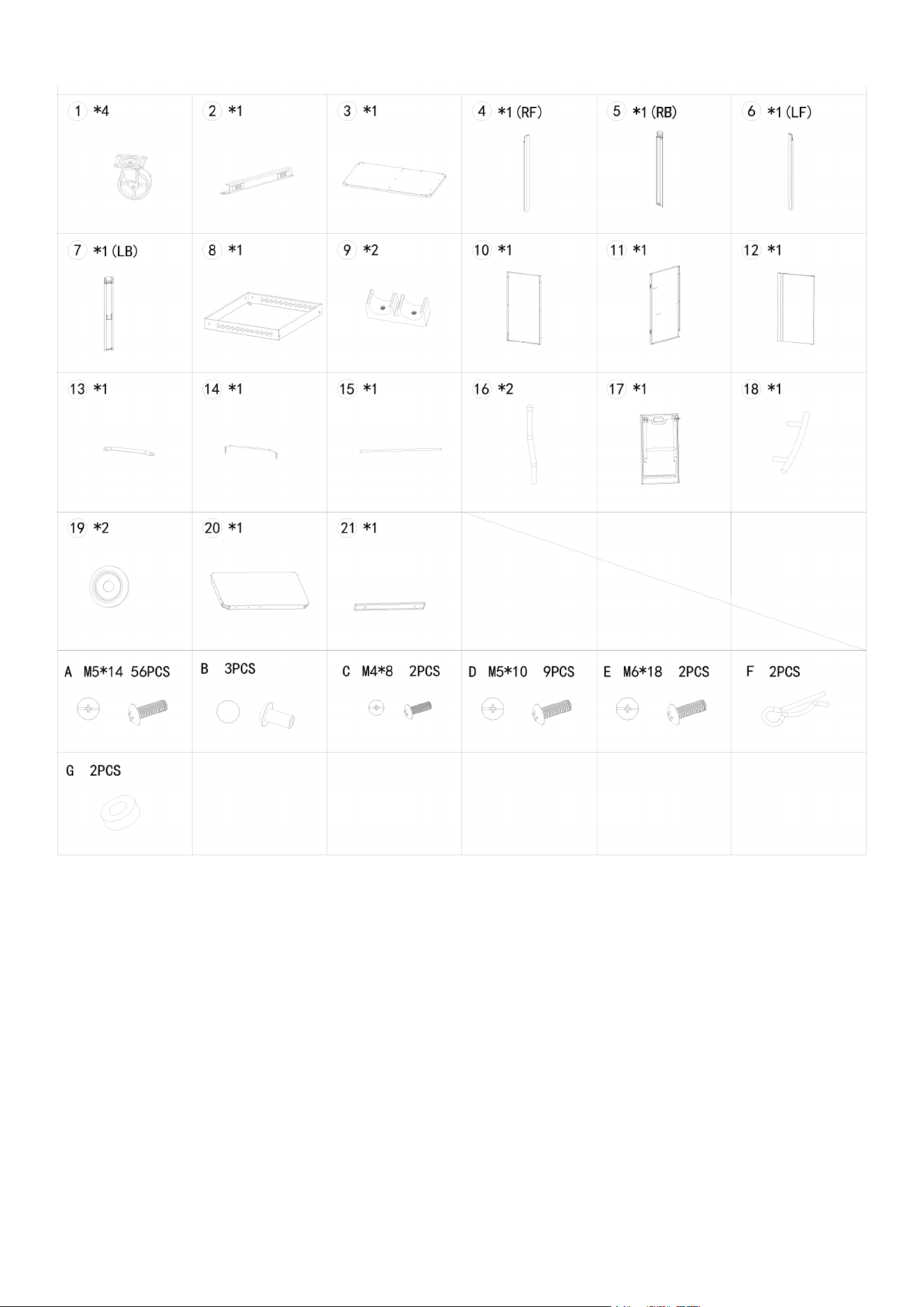

PARTS LIST
CONTENTS

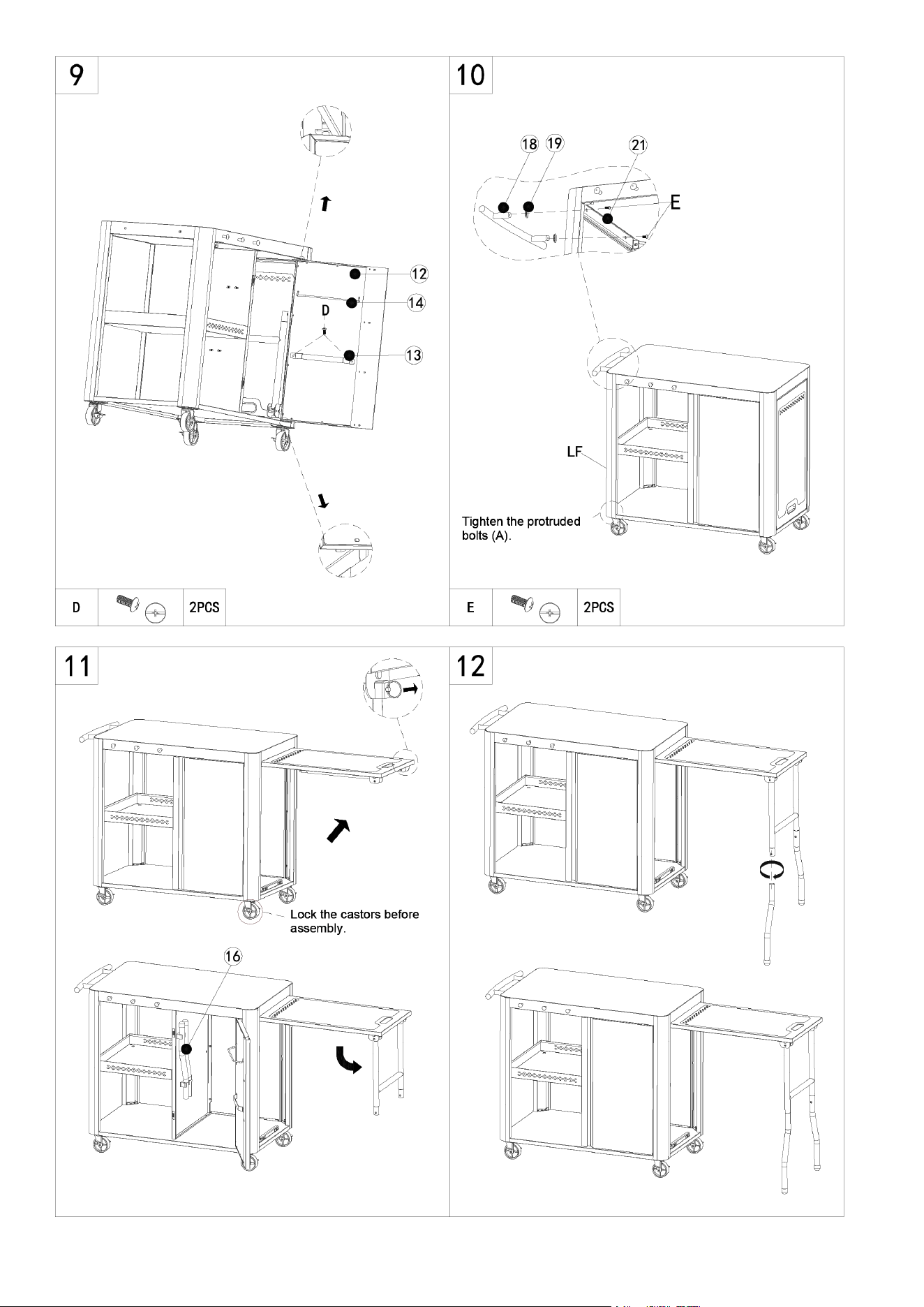

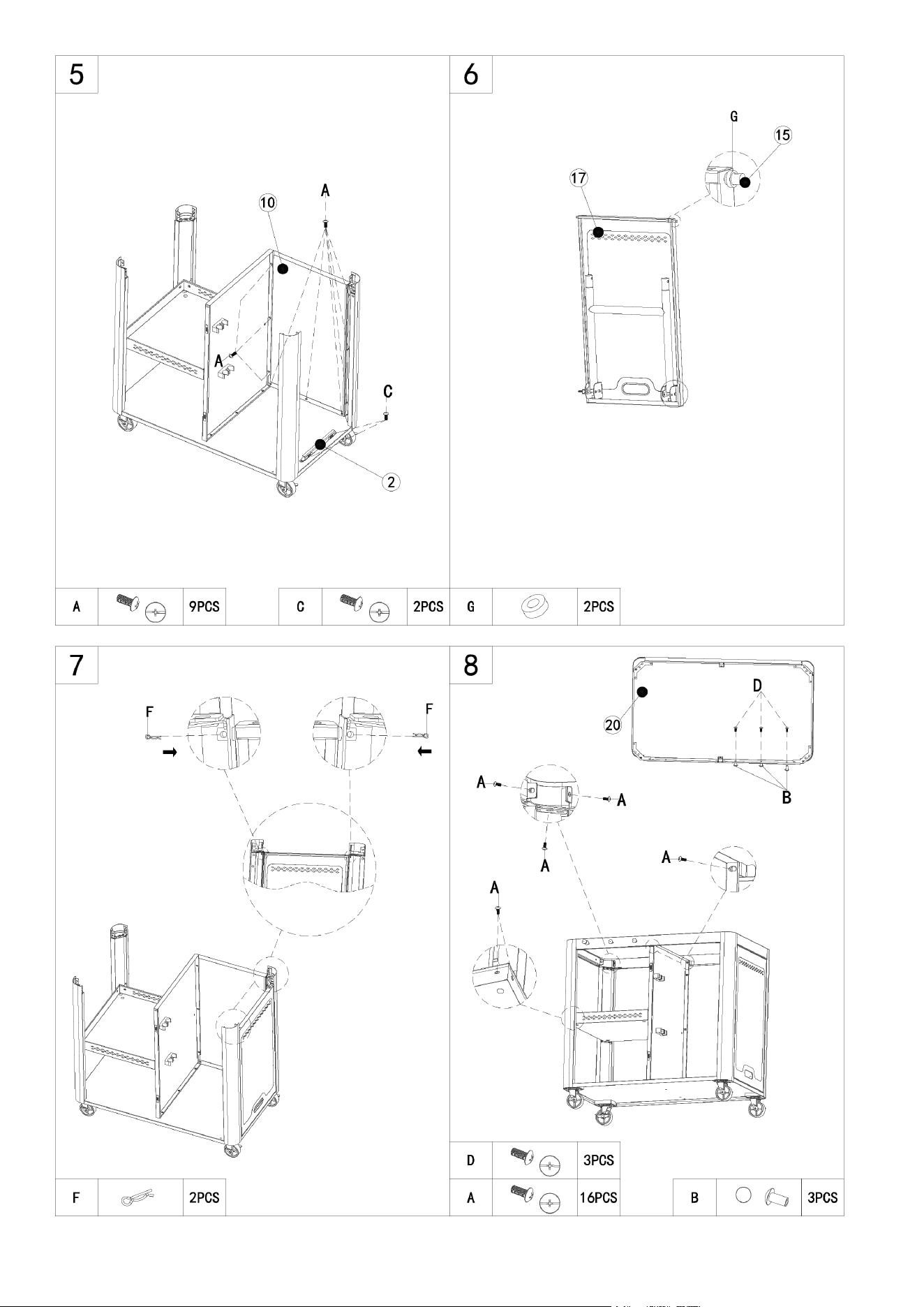

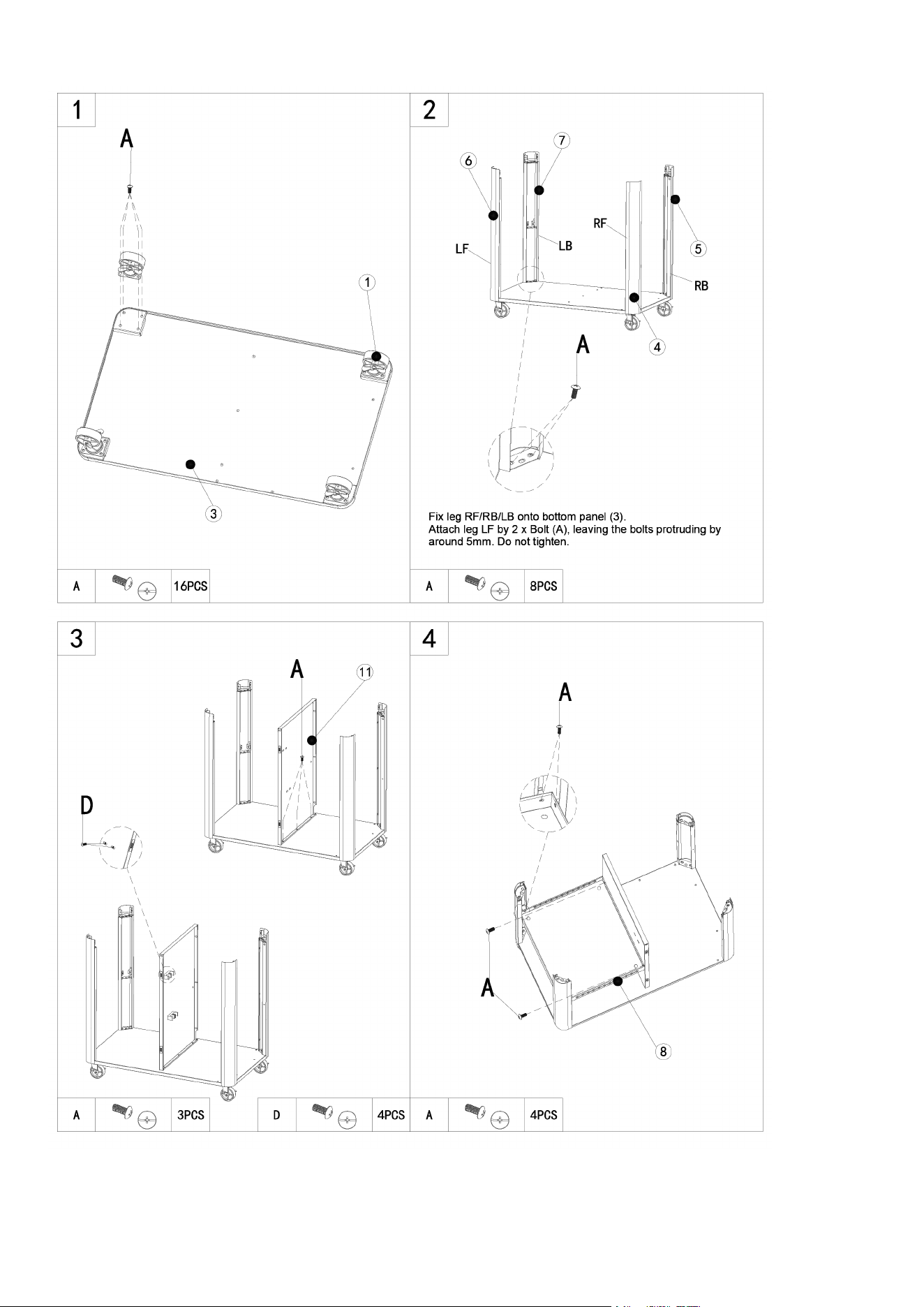

ASSEMBLY
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
