Congratulations on purchasing your new product. To ensure
proper operation, please read this instruction manual
carefully before using this product. Keep this manual in a
safe place for future reference.
COMPACT DRYER
Instruction Manual
after-sales-services
@hotmail.com
TABLE OF CONTENTS
Safety Precautions
Warning
Installation
Set up & Use
Maintenance
Troubleshooting
Warranty and Service
2
3
4-5
6-10
11
12
13
01
Safety Precautions
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instructions concerning the
use of the appliance by a person responsible for
their safety.
Do not allow children to play on or in the
appliance. Close supervision of children is
necessary when the appliance is used near
children.
INDOOR USE ONLY - this appliance is not
intended for outdoor use.
Do not place open flame sources, such as
candles, on the appliance.
Do not place the appliance or cord near heat
sources such as radiators, heaters, air ducts or
direct sunlight.
Do not block any of the ventilation openings.
Ensure that vents are not covered by newspapers,
tablecloths, curtains, etc.
Do not run the cord under floor coverings.
Instead, arrange the cord away from areas with
high traffic where it will not become a trip
hazard.
Please disconnect the appliance, turn the
appliance off, switch off the power outlet and
remove the plug from the power outlet.
Do not misuse the cord. Never carry the
appliance by the cord or pull on it to disconnect it
from the outlet. Instead, grasp the plug and
gently pull to disconnect.
Do not operate the appliance if it has a damaged
cord or plug; if the appliance malfunctions; or if it
has been dropped or damaged in any way.
Consult the manufacturer.
Do not attempt to repair, disassemble or modify
this appliance. The warranty becomes void if not
serviced or repaired by a qualified person.
To reduce the risk of fire, electric shock, and/or
injury to persons when using electrical appliances,
basic safety precautions should always be
followed, including:
Read all the instructions carefully, even if you are
familiar with the appliance.
Important Safeguards
For Your Safety
Do not reach into the appliance if the drum is
moving.
Before putting items that have been soiled by
flammable liquids into the dryer, please wash them
thoroughly with detergent in advance.
Do not excessively bend, stretch, twist or bind the
power cord or place heavy objects on it.
This appliance is only to be serviced by a qualified
person. There are no user-serviceable parts inside.
Do not install in a tight-fitting cabinet.
Do not overload the tumble dryer.
Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other flammable
or explosive substances, as they give off vapors
that could ignite or explode.
Before the appliance is removed from service or
discarded, remove the door to the drying
compartment.
Do not install or store this appliance where it will
be exposed to direct sunlight.
Do not tamper with the controls.
Do not repair or replace any part of the appliance or
attempt any servicing unless specifically
recommended to do so in the user-maintenance
instructions or in published user-repair instructions
that you understand and have the skills to carry
out.
Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
Do not use heat to dry articles containing foam
rubber or similarly textured rubber-like materials.
Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of
lint, dust, and dirt.
The interior of the appliance and exhaust duct
should be cleaned periodically by a qualified service
person.
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could be a
fire hazard.
Ensure that foreign objects do not find their way
into the tub of the tumble dryer.
Clean the lint screen before or after each load.
02
Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in the
oil. This oxidation creates heat, and if the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping and become a fire hazard.
If it is unavoidable that fabrics containing vegetable or cooking oil, or items that have been contaminated
by haircare products are placed in a tumble dryer, they should first be washed in hot water with extra
detergent. This will reduce, but not eliminate, the hazard.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are
left at a temperature that won’t damage the items.
WARNING: Never stop a tumble dryer in the process of the drying cycle unless all the items are quickly
removed and spread out so that the heat is dissipated.
Installation of the clothes dryer must be performed by a qualified installer.
Install clothes dryer according to the manufacturer’s instructions and local codes.
Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is
installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with
clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct the clothes dryer’s airflow and increase the risk of fire.
To reduce the risk of severe injury or death, follow all the installation instructions.
Connect to Individual Branch Circuit.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for the electric current. This appliance is equipped
with a cord having an equipment-grounding conductor and grounded in accordance with all local codes
and ordinances.
Improper connection of the equipment-grounding conductor may cause electric shock. Check with a
qualified electrician or service representative if you are not sure as to whether the appliance is properly
grounded. Do not modify the plug provided with the appliance: if it does not fit the outlet, have a proper
outlet installed by a qualified electrician.
Appliance must be placed on a steady, flat surface. Do not place the dryer on carpet as this will block the
intake. There should be at least 10cm between the dryer and the walls.
Caution, danger
This dryer cannot be used upside down
WARNING
WARNING
Warning
Fire Hazard
03
This dryer cannot be used upside down.

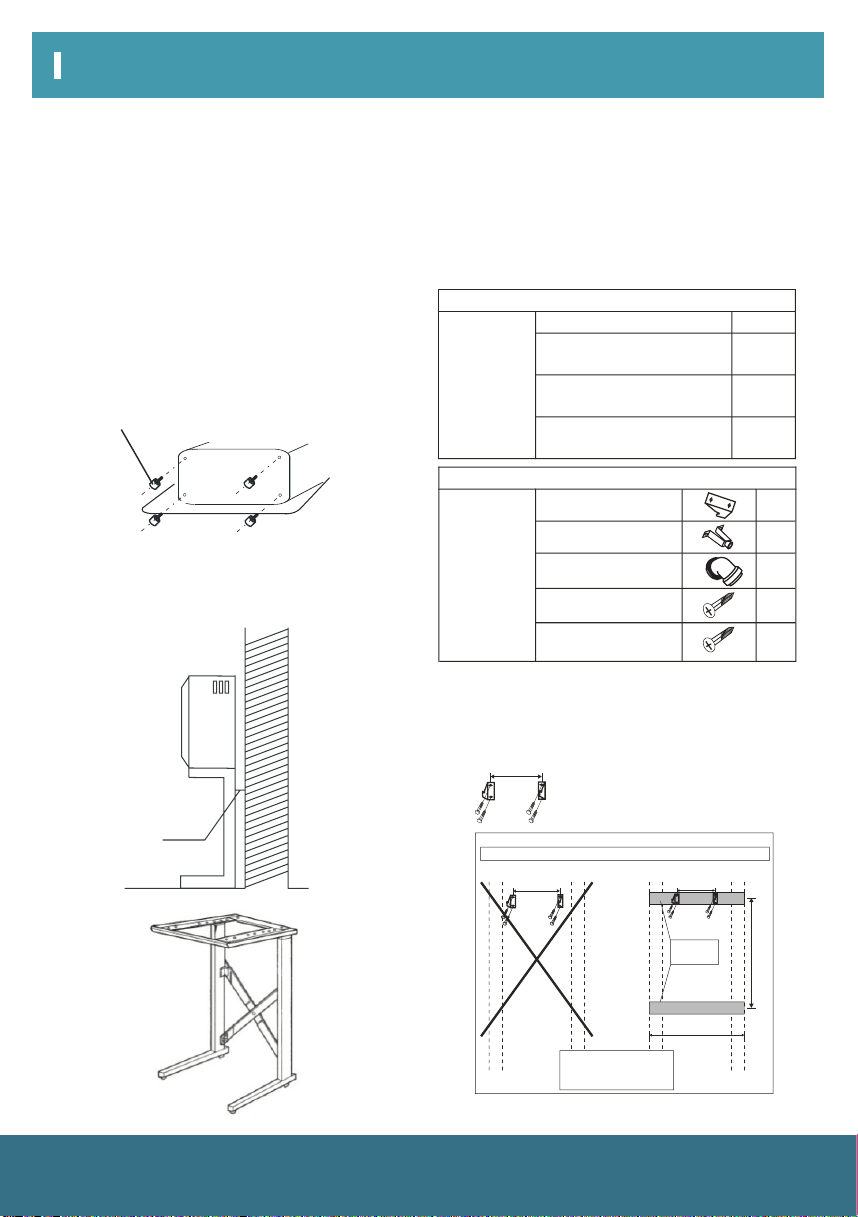

Where to place your dryer:
Place the dryer in a dry well-ventilated area.
It should be positioned away from heat sources
and direct sunlight.
If the dryer is not wall-mounted, it must be
placed on a firm, flat surface. Do not place the
dryer on a carpet as this will block the intake.
There should be at least 15cm between the dryer
and the walls.
The dryer comes with fixed legs that need to be
assembled to ensure stability.
1. Determine the dryer position on your wall and
mark required bracket position. The dryer should
not be directly placed on top of a washing machine.
* A minimum of 50mm is needed between the top
of the dryer and the ceiling for ease of installation.
* If mounting above a washing machine, allow
sufficient room to open the lid of the washer.
2. Fix the wall hanging brackets (2 supplied) to
the wall securely (e.g., into the stud). Fit a timber
slat between the studs to mount the brackets
onto the stud position is too wide.
If the dryer is rack-mounted, a secure bracket is
required to ensure stability and to prevent
vibration. At least 15cm between the dryer and
walls is required (Bracket is not included).
Leg
15cm
450mm
450mm
Stud
Stud
Stud
Stud
450mm
25x75mm
Timber
450mm
470mm
Fig. 1
Ceiling
Installation Instructions Wall Mounting Instructions
Installation
Tools Required
Wall Mounting Kit Includes
Description
Hanging brackets
Plastic spacers
Exhaust connector
12mm Long Screws
25mm Long Screws
1
1
1
1
2
2
4
4
4
Tools &
parts
required for
plaster/
wooden wall
Drill & 3mm Bit
Philips Head screwdriver
Wood Screws, 12x 50mm
Timber screws
Helper to lift dryer onto wall
Ensure brackets
aresecurely fastened. Fit
Timber slats if necessary
04

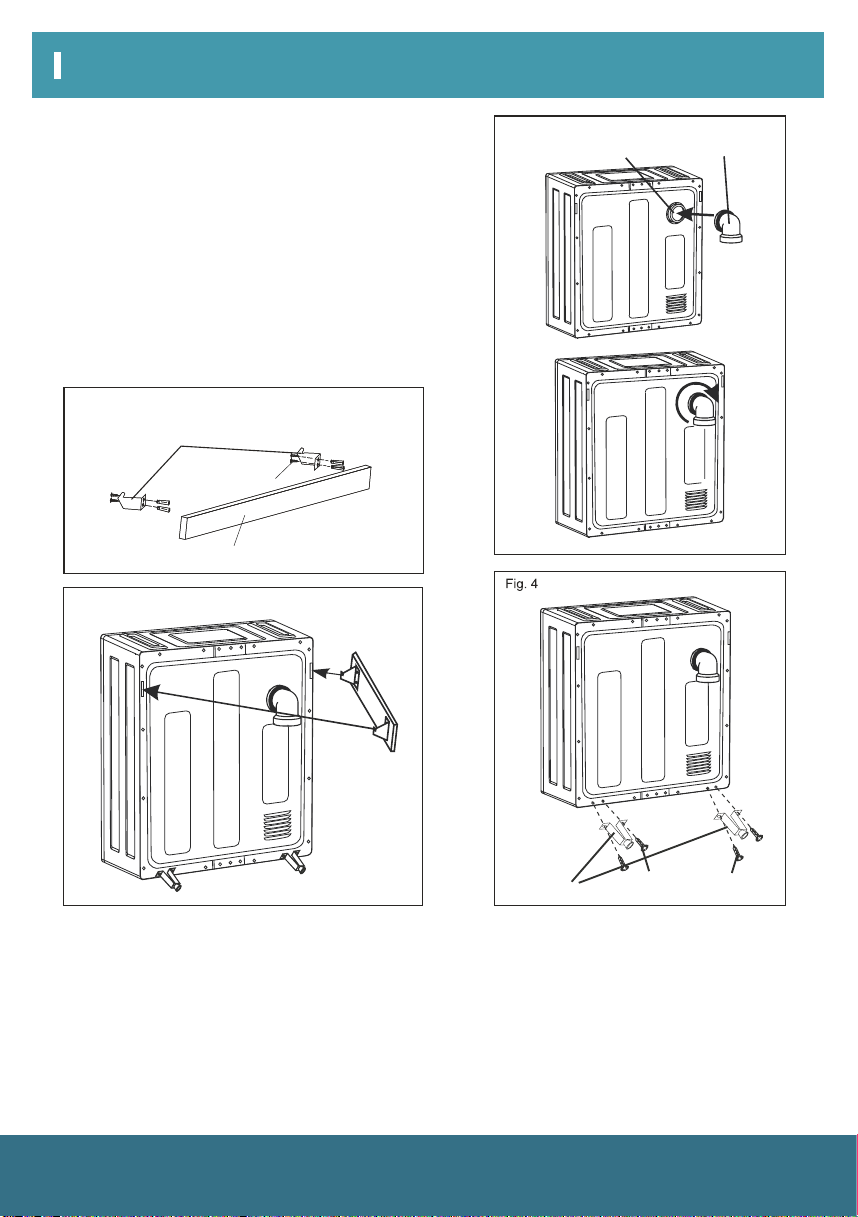

3. To install the hanging hook to timber, start at Fig
2.
4. Align hanging hooks and fasten screws tightly.
5. Please adjust the exhaust connector direction,
then, match the exhaust connector onto the
connector. Please refer to Fig 3.
6. Turn the exhaust connector clockwise, until it
inserts into the connector's groove.
7. Use the 4 X 12mm screws (provided) to fix the 2
spacers as per Fig 4.
8. With assistance, mount the dryer on wall
bracket. See Fig.5.
The appliance shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a
concealed space of a building.
Only rigid or flexible metal duct shall be used for exhausting.
In Canada, only foil-type flexible ducts, if any, specifically identified for use with the appliance by
the manufacturer, should be used. In the United States, only foil-type flexible ducts, if any,
specifically identified for use with the appliance by the manufacturer and that comply with the
outline for Clothes Dryer Transition Duct, Subject 2158A, shall be used.
The total length of the flexible metal duct shall not exceed 2.4 m.
The duct shall not assembled with screws or other fastening means that extend into the duct and
catch lint
Fig. 2
Fig. 3
Fig. 5
Hanging Hook
Connector base
Exhaust connector
Spacers
12mm long screws
25mm long screws
Timber(not included)
Installation
05

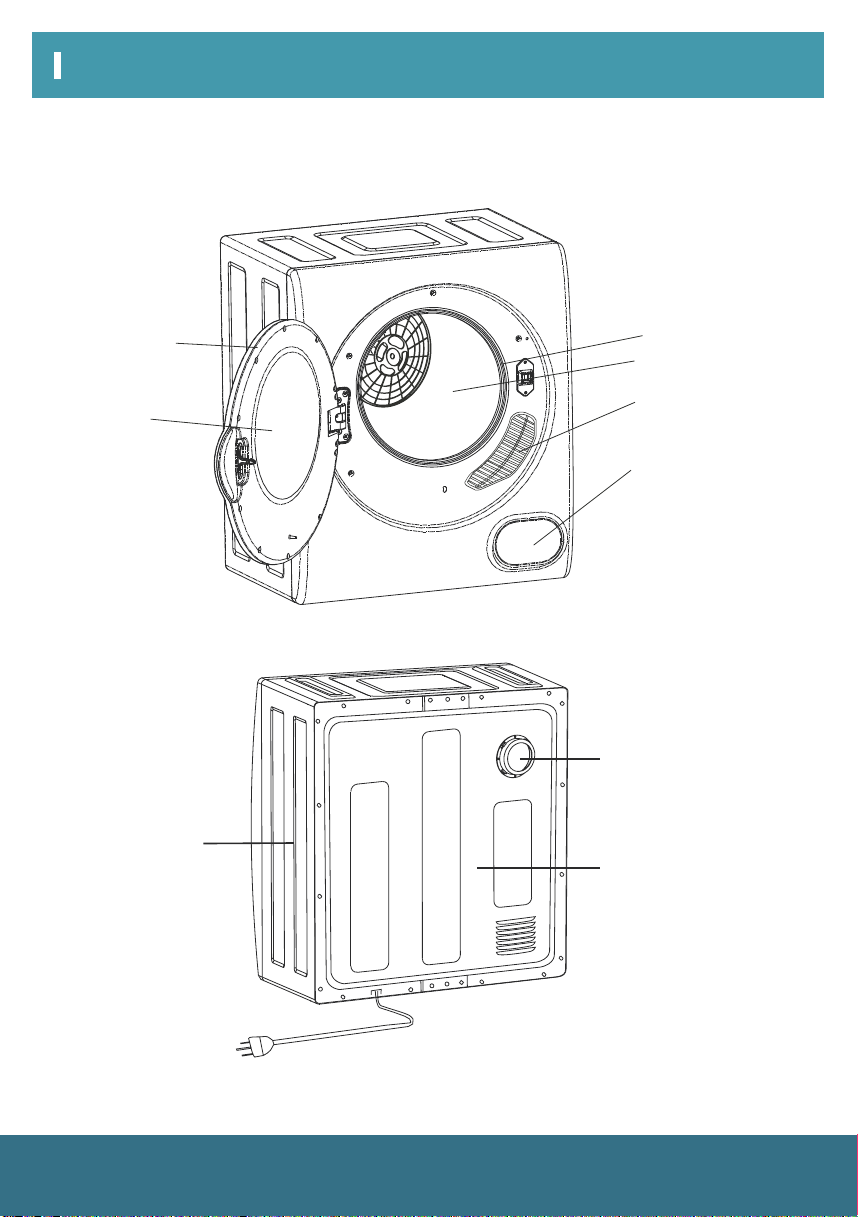

Names of Components
Setup & Use
06
Door
Door Gasket
Drum
Air intake shroud
Control Panel
Casing
Exhaust vent
Back cover
Window
Setup & Use
07
The unit is required to be plugged into a three pin
socket that is reliably grounded.
Plug the power cord into the socket.
Check if the items to be dried do not have
combustible materials or foreign objects within
them, i.e.: lighters, hair pins, coins.
Turn items with zippers inside out and fasten the
buckles.
Dryer heat may permanently set stains, ensure
you check prior to drying that stains are removed.
Separate dark and light colored items as you
would do when washing.
For best results load the dryer with similar
fabrics. Place small delicate items in a mesh bag
and do not overload the dryer.
The maximum mass is 4.0 kilogram's of dry textile
material for the dryer and do not overload. The
compact dryer is intended only for drying textile
material washed in water.
It is recommended that items are placed into the
dryer one at a time. This ensures they are not
tangled which results in uneven drying. When
closing the dryer door prior to starting the unit
ensures that items are not jammed in the door.

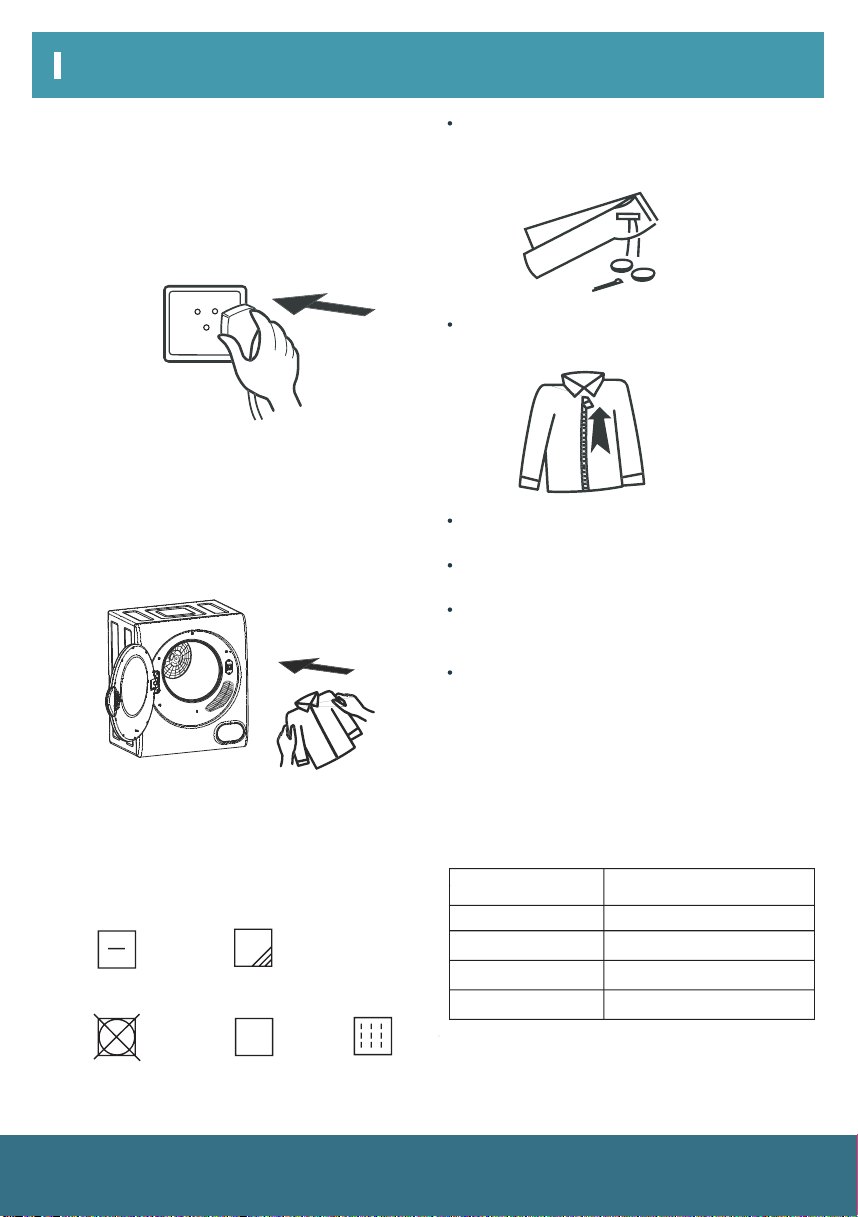

Operating your dryer
Drying time
reference table
Electrical Requirements
Loading the dryer
Prior to loading the dryer, check that the items
do not have the following the symbols anywhere
on them.
If they do, do not tumble dry these items.
Drying times can be affected by many factors,
such as material, bulkiness, how full the dryer is
etc. The above list is a guide only.
Tips before drying
Dry flat Dry
Do not tumble dry Hang to dry Drip dry
Dry in the shade
Drying Capacity
3 Lbs. (Three Pounds) 30 Minutes
60 Minutes
200 Minutes
5 Lbs. (Five Pounds)
9 Lbs. (Nine Pounds)
120 Minutes7 Lbs. (Seven Pounds)
Approximate Drying Times

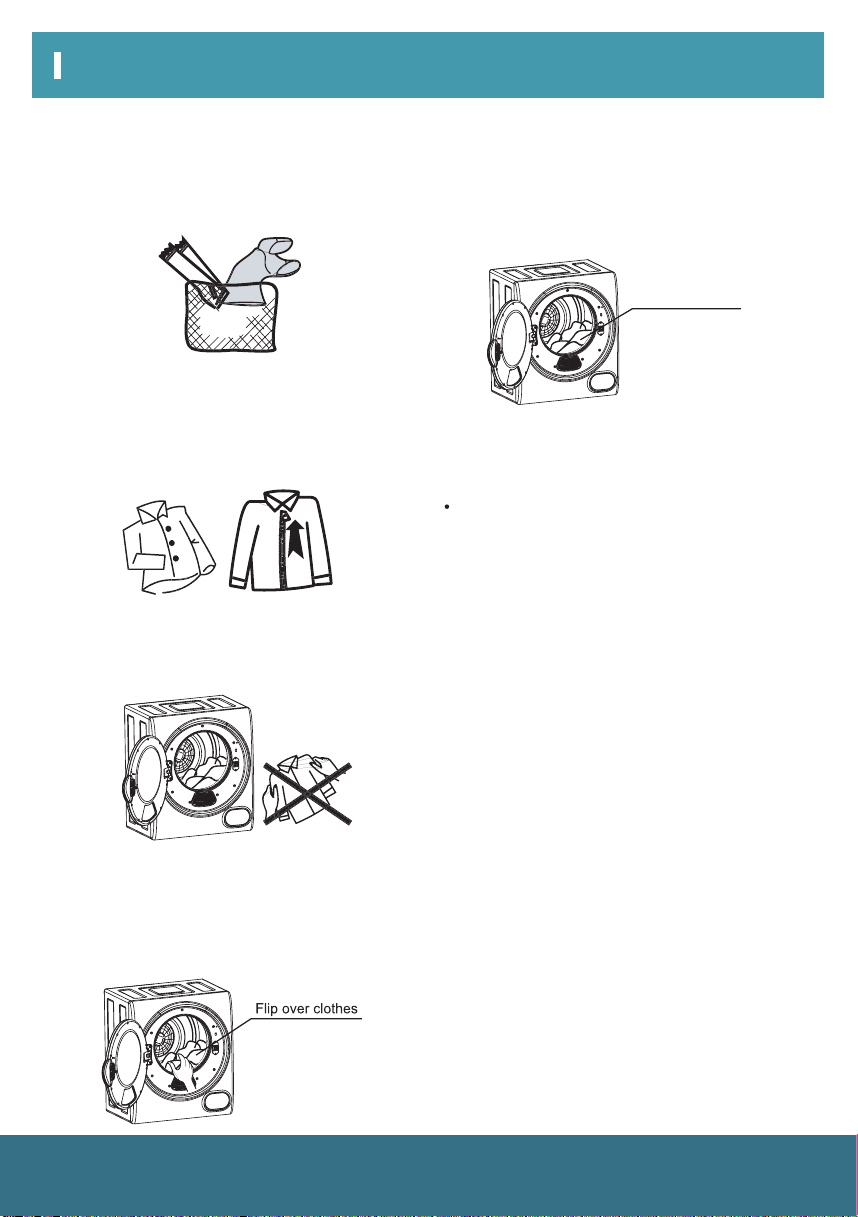

Delicate items should be placed into a nylon
mesh bag prior to drying. It is not recommended
to dry under wire bras in this unit.
To get the most out of the anti-wrinkle function,
do not overload the dryer and remove the dried
items from the dryer immediately and hang on
coat hangers. Iron the items if desired.
To minimize the risk of fire in a tumble dryer, the
following should be observed:
Oil-affected items can ignite spontaneously,
especially when exposed to heat sources such as
in a tumble dryer. The items become warm,
causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items
can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can
prevent heat from escaping and so create a fire
hazard.
Items that have been spattered or soaked with
vegetable or cooking oil constitute a fire
hazard and should not be placed in a tumble
dryer.
Ensure that all pockets of items are emptied and
that buttons, buckles and zips are fastened. This
will also help reduce impact noise when the
items hit against the turning drum.
Do not add items into the dryer whilst it is in
operation.
If drying large items such as blankets, it is
recommended that you open the dryer door from
time to time, shake the items, place them back in
the dryer and close the door. This will ensure
even drying.
Operation Precautions
Reduced load
Setup & Use
08
Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials
should not be dried in a tumble dryer on a heat setting.
Foam rubber materials can, when heated, produce fire by spontaneous combustion.
Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of
static electricity unless this practice is specifically recommended by the manufacturer of the fabric
softener or product.
Undergarments that contain metal reinforcements should not be placed in a tumble dryer.
Metal reinforcements may come loose during drying and cause damage to the tumble dryer. If available, a
drying rack could be used for such items.
Plastic articles such as shower caps or waterproof baby napkin covers should not be placed in a tumble
dryer.
Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber-coated
tennis shoes should not be placed in a tumble dryer.
The 'cool down' cycle of tumble dryers should be used to reduce the temperature of the items.
They should not be removed from the tumble dryer or piled or slacked while hot.
Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline,
dry-cleaning solvents or other flammable or explosive substances should not be placed in a tumble dryer.
Highly flammable substances commonly used in domestic environments include acetone, denatured
alcohol, petrol/gasoline, kerosene, spot removers (some brands), turpentine, waxes and wax removers.
Setup & Use
09
Set up & Use
10
Control Panel Functions
Start/Pause Time Program Power
Remaining time display (Minutes)
Light bar (different programs, the color of the light bars
are also different colors: red, white, blue, green)
Power Button
When the power cord is connected to the socket, the power button is slightly lit, and you can see the
location of the power button. After touching the power button, other buttons and descriptions on the
control panel appear, and the dryer enters standby mode.
Program Button
This button is used to select a different drying program, as described below.
a) Strong drying: Select this program, the light bar is red, the remaining time defaults to 150°. In the
process of running the program, the heater full power heating, run the set time after the shutdown.
Generally used to dry larger size clothing.
b) Intelligent drying: Select this program, the light bar is white, the remaining
time is displayed as "200". In this program, the heater full power heating, clothes drying automatically
shut down.
c) ECO drying: Select this program, the light bar is blue, the remaining time is displayed as "ECO". The
dryer operates under an energy-saving mode. The operating time is determined by the humidity sensor,
by the maximum duration of 210 minutes.
d) Normal drying: When this program is selected, the light bar is green, and the remaining time is
displayed as "90". In this mode of operation, the heater half-power heating, run the set time after the
shutdown. This mode has two functions of ironing and drying, ironing function set time is generally not
more than 90 minutes, after the shutdown will still contain moisture, easy ironing; drying function set
time is generally not less than 120 minutes, generally used for small sized clothing or a small amount of
clothing.
Note: This button is invalid during the operation of the dryer, to change the program, touch the "Start /
Pause" button to pause the dryer before touching this button to change the mode.
Time Button
This button is used to set the drying time, Each touch, the time increased by 20 minutes, up to no more
than 200 minutes. When the remaining time is greater than 180 minutes, touch this button, and the
remaining time jump to 20 minutes. In the "Intelligent drying" and "ECO drying" program, this button is
invalid. During the operation of the dryer, this button is also invalid. If you need to change the time, you
must first touch the ''Start / Pause" button to pause the dryer, and then touch the key to change the
time.
Start/Pause Button
Press this button to start or pause the dryer operation.
When the program and time are set, touch the button to start the dryer. To change the time or
procedure while the dryer is running, touch the key to put the dryer in a paused state.

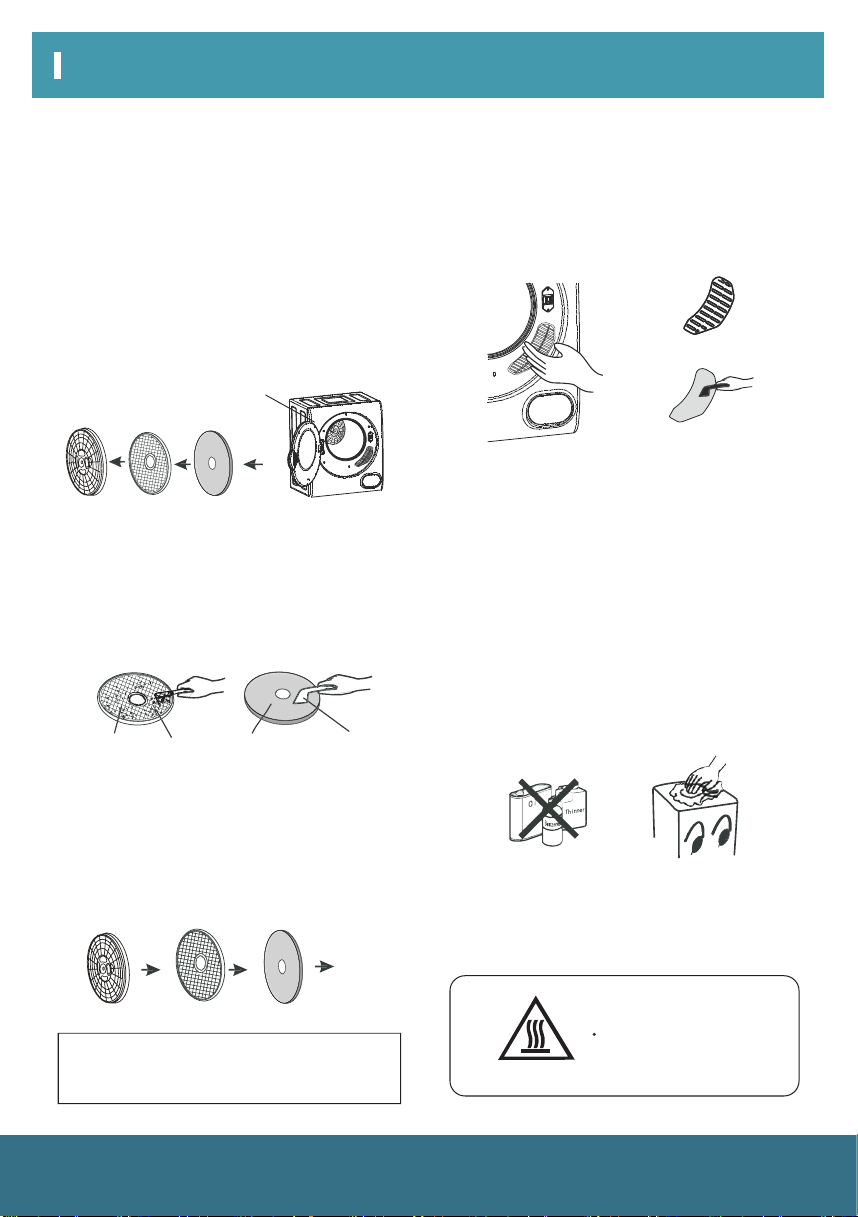

Maintenance
Cleaning the Lint Filter
1. Removing the filters
2. Cleaning the filter
Cleaning the interior & exterior
of the dryer
WARNING:
Regularly clean the lint trap
CAUTION! HOT SURFACE
PLEASE READ THE INSTRUCTIONS
Do not touch the intake during
the drying cycle due to high temperatures
Please unplug the power cord prior to any
cleaning. The lint filter must be in place whenever
drying. It must be cleaned before every use.
Air Intake Shroud
Air Intake Filter
Remove by pulling outwards with your fingers,
inserted into the four holes around the exhaust
vent shroud. The filter has 3 parts: Exhaust vent
shroud, lint filter and exhaust filter (as shown in
Figure l).
Separate "exhaust vent shroud", “lint filter” and
“exhaust filter”. Clean the lint on the lint filter
and exhaust filter with a soft brush or vacuum
cleaner. Do not damage the filters (See figure 2).
Slightly push upwards with your thumb until
the latch hook disconnects, then remove.
Do not wash with water.
Do not use thinners, gasoline or alcohol.
Do not use any type of spray cleaner when
cleaning the interior. If dryer drum becomes
stained, clean the drum with a damp cloth.
Remove any residue before drying the next
load. Clean the cabinet with mild soap and
water. Do not use harsh or abrasive cleaners, as
this could damage the dryer.
3. Re-installing the filter
After cleaning, assemble in the sequence of
“exhaust filter – lint filter – exhaust vent shroud”,
align the recesses in the center with the
projection in the center of the drum. Make sure
that it is firmly inserted (see Figure 3).
Note: The filter fixed in the bottom of the drum
should also be cleaned with a soft brush.
The fitter fixed in the
bottom of the drum
Exhaust
vent shroud
Lint
Filter
Lint Filter Lints
Exhaust
Filter
Exhaust Filter Dust Cleaner
Figure 1
Figure 3
Cleaning of the Air Intake Filter
The filter should be cleaned once a month.
Remove by pulling outwards holding the upper
and lower ends of the air intake shroud. Remove
the filter inside the shroud and clean it with a
soft brush. Reassemble and install as before.
11
Troubleshooting
12
Review the following pages before calling for service.
Problem
Timer knob does
not turn
Drum does not turn
Hot air is not
blowing out
The laundry is not
thoroughly dried
Dryer does not start
Possible Cause
Is the power cord inserted firmly?
Is the timer incorrectly set on cold air?
Is the door closed?
Is the power cord inserted?
Does the receptacle have power?
Are the front and back filters clogged?
Is there too many items in the dryer?
Have items been added whilst the
dryer was in operation?
Has the laundry become twisted whilst
drying?
Has the dryer been placed in a small
and badly ventilated area?
Have you set the dryer to Antiwrinkle?
Is there a power failure?
Is the power cord inserted firmly? Is
the door closed?
Is the timer in the OFF position?
Clean the filter.
Reduce the amount of items in
the dryer.
Re-dry the items again
Untangle the items and re-dry.
Place the dryer in a
well-vented area.
Try using 'Warm' or 'Hot'
setting instead.
Try again when there is power.
Insert the power cord firmly.
Close the door.
Set the dry time.
Close the door.
Insert the power cord firmly.
Check the power cord
receptacle.
Insert the power cord firmly.
Set the timer to hot air.
What to do
SKU
Drying Capacity
Voltage
Rated Input
ZX-CD-9
9 LBS
120V/60HZ
1400W
Dryer Technical Specifications
NOTE: Consistent with our continuing
product development policy,
improvements may have been made which
render the contents of this package
slightly different to that shown.
We offers a limited 1-year warranty ("warranty period") on all of our products purchased new and unused
from us with an original proof of purchase and where a defect has arisen, wholly or substantially, as a
result of faulty manufacture, parts, or workmanship during the warranty period. The warranty does not
apply where damage is caused by other factors, including without limitation:
(a) normal wear and tear;
(b) abuse, mishandling, accident, or failure to follow operating instructions;
(c) exposure to liquid or infiltration of foreign particles;
(d) servicing or modifications of the product other than by our company;
Our warranty covers all costs related to restoring the proven defective product through repair or
replacement of any defective part and necessary labor so that it conforms to its original specifications. A
replacement product may be provided instead of repairing a defective product. Our sole obligation under
this warranty is limited to such repair or replacement. A receipt indicating the purchase date is required for
any claim, so please keep all receipts in a safe place. Although greatly appreciated, the product registration
is not required to activate any warranty, and product registration does not eliminate the need for the
original proof of purchase. The warranty will be voided if repairs are performed by a non-authorized third
party and/or if spare parts other than those provided by the Company are used. You may also arrange for
service after the warranty expires, at an additional cost.These are our general terms for warranty service,
but we always urge our customers to reach out to us with any issue, regardless of warranty terms. If you
have an issue with our products, please contact us ([email protected]), and we will do our
best to resolve it for you.
13
Warranty and Service
