Storage Bins Manufactured Prior to July 2008
SERVICE PARTS MANUAL
B55A
B40A
CRT125
B75
B100A
B25
B42A
Storage Bin Service Parts Table of Contents
This parts list contains the service parts available for the Ice-O-Matic storage bins listed below.
B25PP
B42A
B40A
B55A
B75
B100A
CRT 125 Ice Cart
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
B25PP Page 2
B42A Page 3
B40A and B55A Page 4
B75 Page 5
B100A Page 6
CRT125 Ice Cart Page 7
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
NLA-NR=No Longer Available-No Replacement Parts Available
Page 1

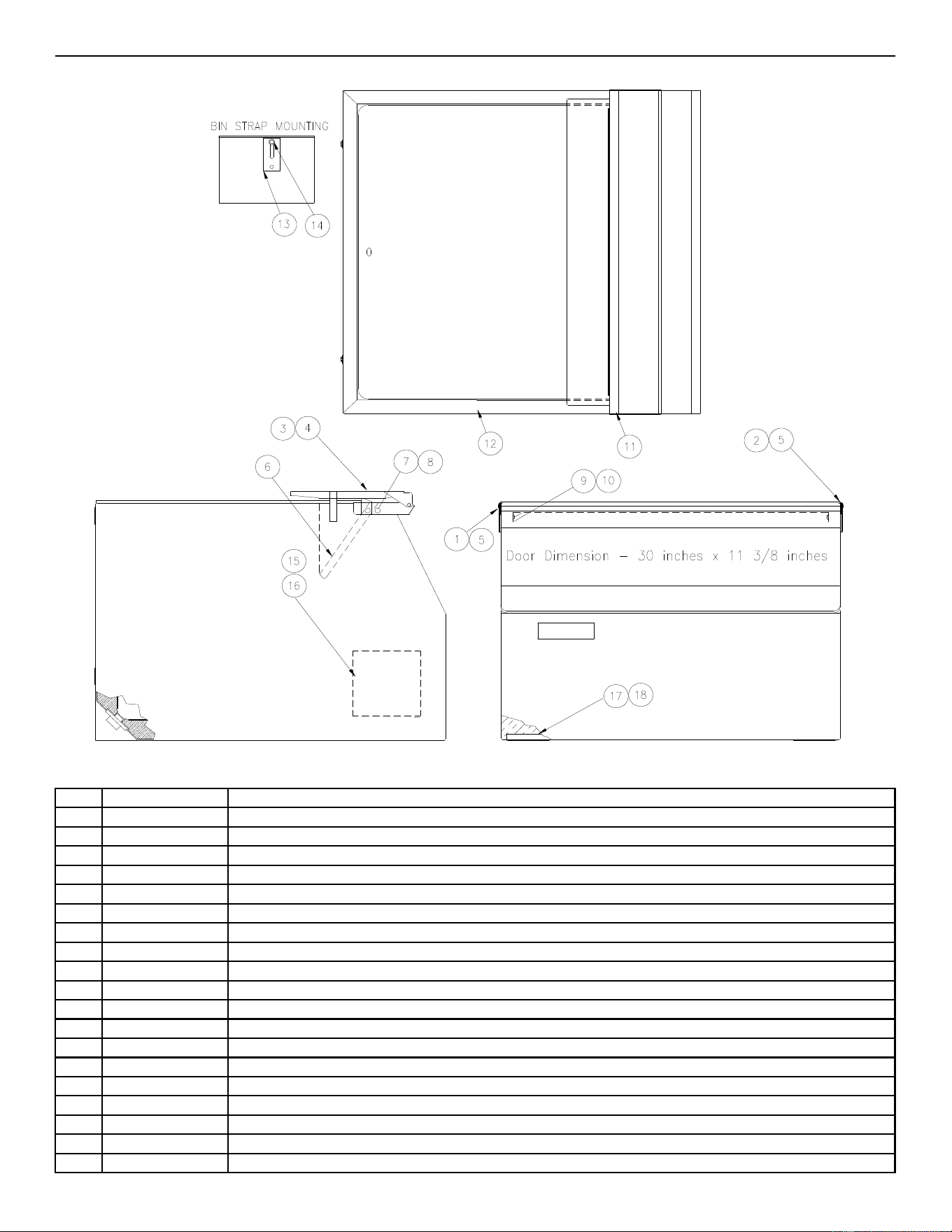

Storage Bin B25PP Bin
Item B25PP Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
3 2031303-97 Door, 30 x 11.375 Black Only (Includes Gasket)
4 6081036-01 Door Gasket 3.87 Ft. Required
5 9031008-15P Screw-Hinge to Door
6 2101252-01 Drip Shield/Ice Deflector
7 9031098-05P Drip Shield Screw
8 9031141-01P Plastic Nut
9 3012646-03 Drip Shield Stainless Steel Stiffener
10 9031113-04 Drip Shield Stainless Steel Stiffener Screws
11 6081004-07 Drip Shield Gasket 2.50 Ft Required
12 6081004-06 Bin Perimeter Gasket 6.42 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-03P Connecting Strap Screw
9031003-10P Flat Washer for Bin Strap
15 9021001-04 Legs (Set of 4)
16 9051127-01 Ice Scoop
17 2031453-01 Leg Support (Includes Nut Retainers)
18 9031012-02 Leg Nut Retainer
P=Package Quantity
Page 2

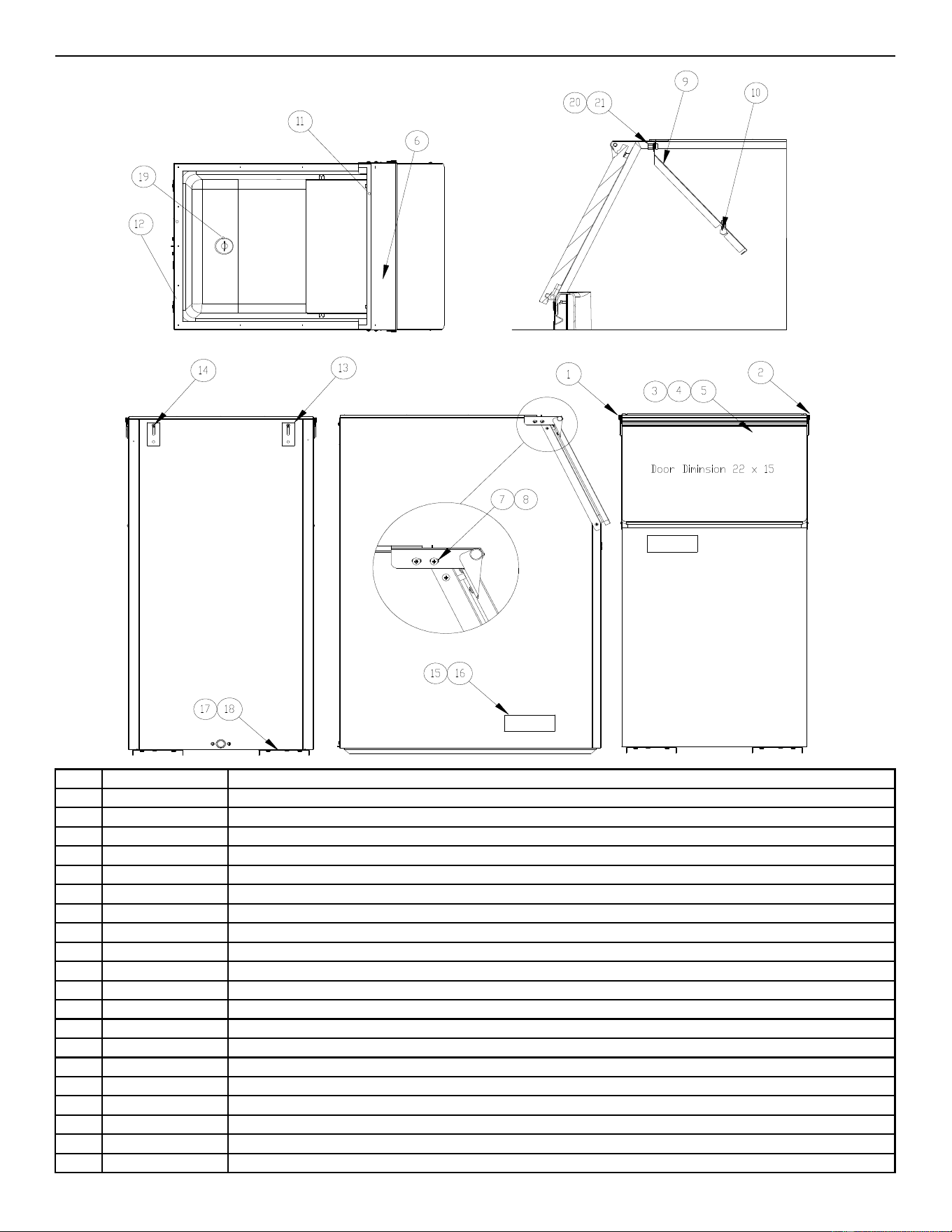

Storage Bin B42A Bin
Item B42A Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
9121032-01 Nylon Bearing (Hinge)
3 2031303-98
Door, 22 x 15 Black (Includes Gasket) NLA-NR
4 6081036-01 Door Gasket 4.00 Ft. Required
5 9031008-15P Screw-Hinge to Door
6 2031496-01
Drip Shield NLA-NR
7 9031098-03P Drip Shield Screw
9 3011984-03 Ice Deflector
10 9031116-01
Hex Standoff NLA-NR
11 6081004-07 Drip Shield Gasket 2.3 Ft Required
12 6081004-06 Bin Perimeter Gasket 5.70 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-03P Connecting Strap Screw
15 9021001-04 Leg Set (4)
16 9051127-01 Ice Scoop
17 2031310-03S Leg Support (Includes Nut Retainers)
19 9051126-02
Drain Plug NLA-NR
20 9031122-03P Thumbscrew
21 9031004-19P Washer, Rubber
P=Package Quantity
Page 3

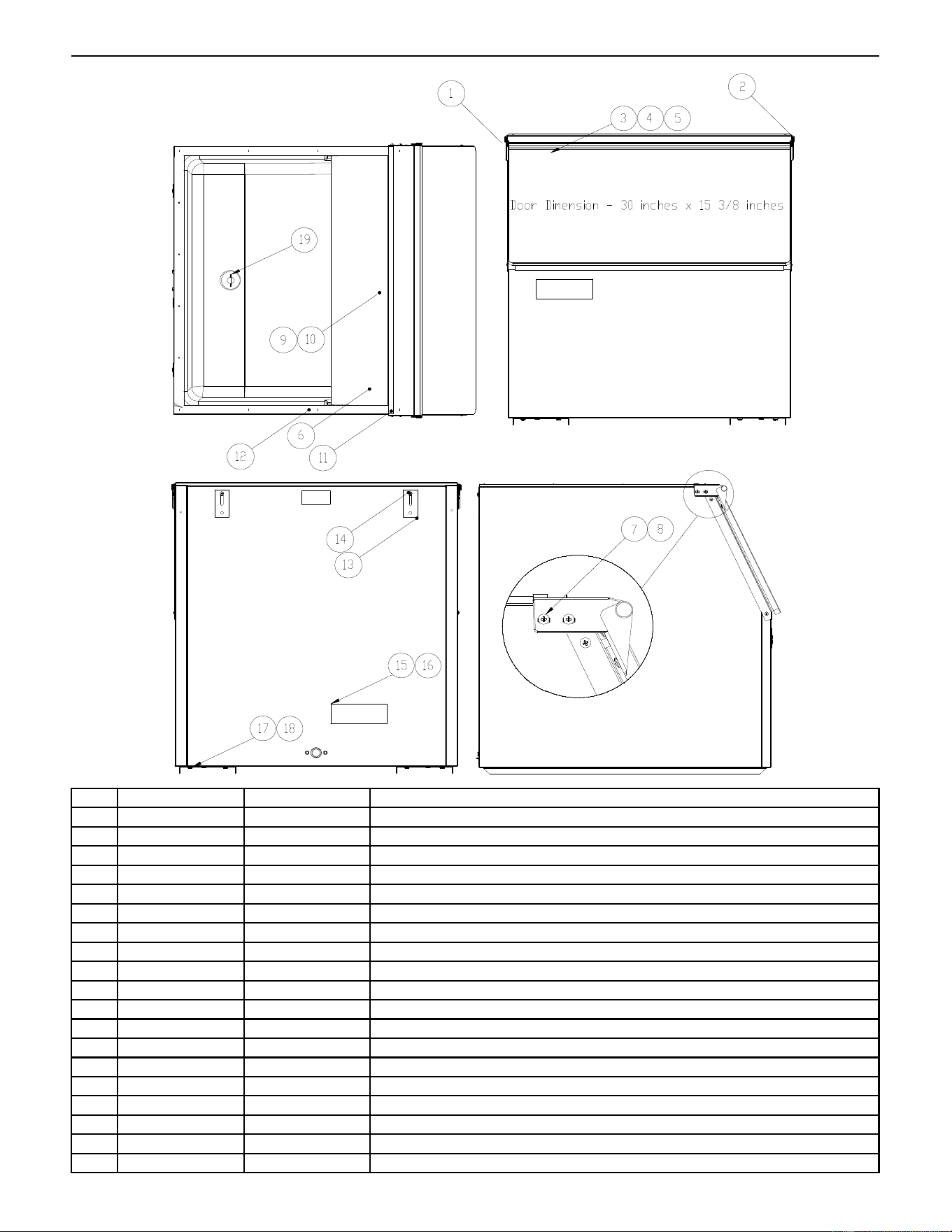

Storage Bin B40A and B55A Bin
Item B40A Bin B55A Bin Description
1 2031302-01 2031302-01 Hinge-Left Hand
2 2031302-02 2031302-02 Hinge-Right Hand
3 2031303-93 2031303-93 Door, 30 x 15.375 Black Only (Includes Gasket)
4 6081036-01 6081036-01 Door Gasket 5.00 Ft. Required
5 9031008-15P 9031008-15P Screw-Hinge to Door
6 9051370-02 9051370-02
Drip Shield/Ice Deflector NLA-NR
7 9031098-03P 9031098-03P Drip Shield Screw
8 9031141-01P 9031141-01P Plastic Nut
9 3012646-02 3012646-02
Drip Shield Stainless Steel Brace NLA-NR
10 9031113-04P 9031113-04P Drip Shield Stainless Steel Stiffener Screws
11 6081004-07 6081004-07 Drip Shield Gasket 2.5 Ft Required
12 6081004-06 6081004-06 Bin Perimeter Gasket 6.30 Ft. Required
13 3012608-01 3012608-01 Connecting Strap
14 9031113-03P 9031113-03P Connecting Strap Screw
15 9021001-04 9021001-04 Leg Set (4)
16 9051127-01 9051127-01 Ice Scoop
17 2031310-03S 2031310-03S Leg Support (Includes Nut Retainers)
18 9031012-02P 9031012-02P Nut Retainer 1/2-13
19 9051126-01 9051126-01 Drain Plug
P=Package Quantity
Page 4

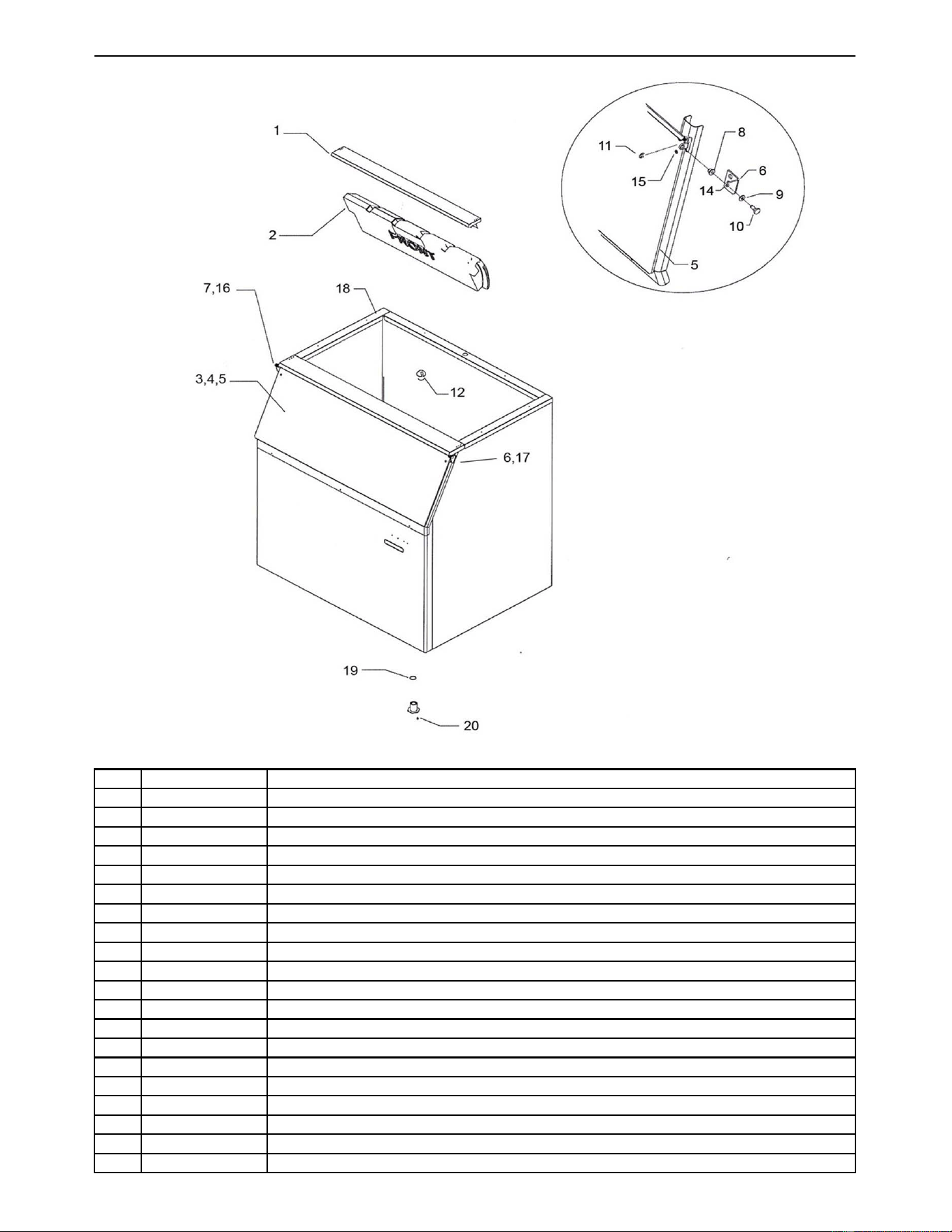

Storage Bin B75 Bin
Item B75 Description
1 1011369-01
Canopy NLA-NR
2 1011369-02
Baffle NLA-NR
3 1011369-03
Door Assembly NLA-NR
4 1011369-04
Drip Molding NLA-NR
5 1011369-05
Door Gasket (10 Feet Required) NLA-NR
6 1011369-06
Hinge R/H NLA-NR
7 1011369-07
Hinge L/H NLA-NR
8 1011369-08
Hinge Bushing NLA-NR
9 1011369-09
Hinge Spacer NLA-NR
10 1011369-10
Shoulder Screw NLA-NR
11 1011369-11
E-Clip NLA-NR
12 1011369-12
Drain Top NLA-NR
13 1011369-13
Legs, Painted (Set of 4) NLA-NR
14 1011369-14
Screw - Hinge to Frame NLA-NR
15 1011369-15
Screw - Hinge to Door NLA-NR
16 1011369-16
Door Hinge L/H NLA-NR
17 1011369-17
Door Hinge R/H NLA-NR
18 1011339-104 Gasket
19 1011351-69 O-Ring
20 1011351-05 Drain Bottom
Page 5

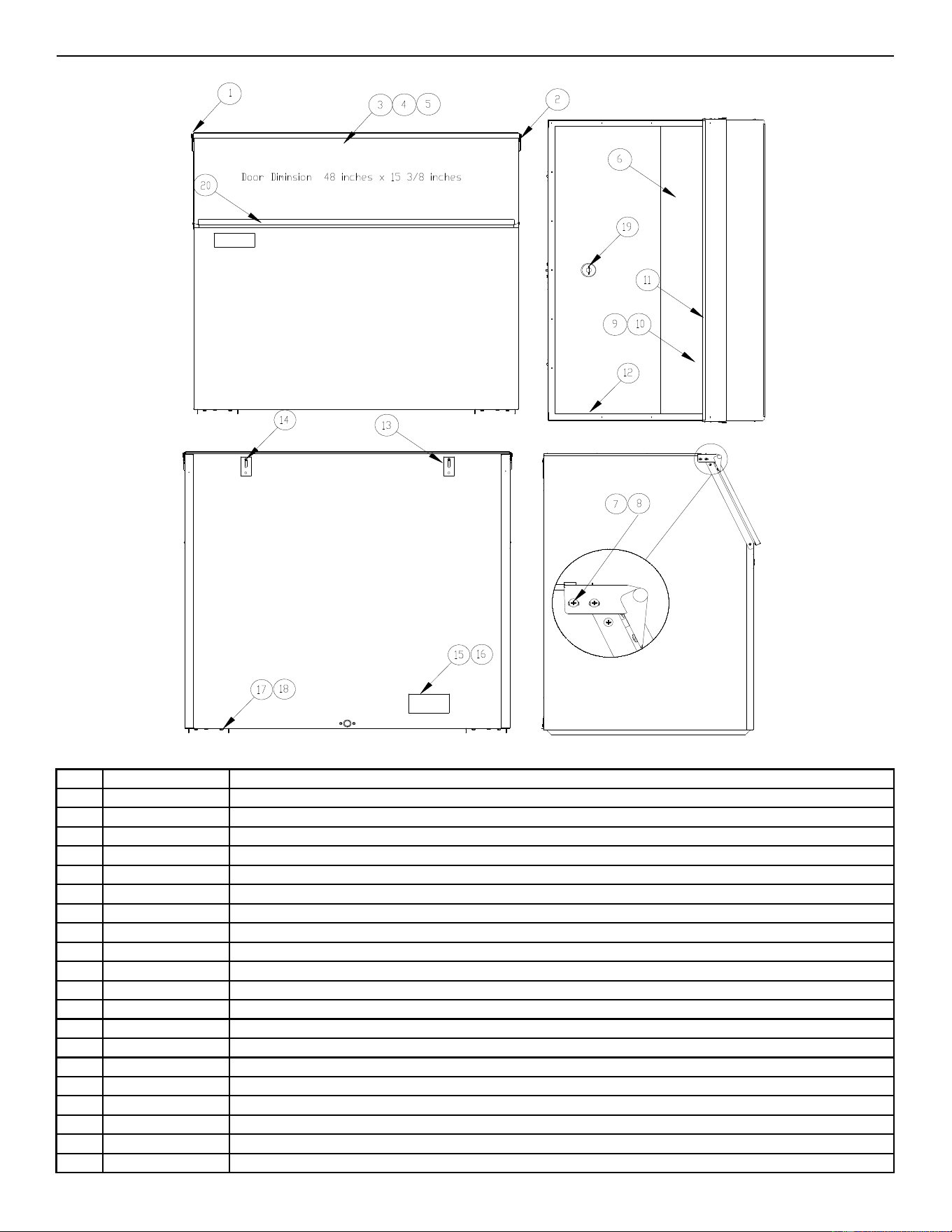

Storage Bin B100A Bin
Item B100A Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
3 2031303-95 Door, 48 x 15 3/8 Black Only (Includes Gasket)
4 6081036-01 Door Gasket 6.50 Ft. Required
5 9031008-15P Screw-Hinge to Door
6 9051370-03
Drip Shield/Ice Deflector No Longer Available
7 9031098-03P Drip Shield Screw
8 9031141-01P Plastic Nut
9 3012646-01 Drip Shield Stainless Steel Stiffener
10 9031113-04P Drip Shield Stainless Steel Stiffener Screws
11 6081004-07 Drip Shield Gasket 4.0 Ft Required
12 6081004-06 Bin Perimeter Gasket 7.8 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-04P Connecting Strap Screw
15 9021001-04 Leg Set (4)
16 9051127-01 Ice Scoop
17 2031310-03S Leg Support (Includes Nut Retainers)
18 9031012-02P Nut Retainer 1/2-13
19 9051126-01 Drain Plug
20 3012664-01 Bin Door Reinforcement
P=Package Quantity
Page 6

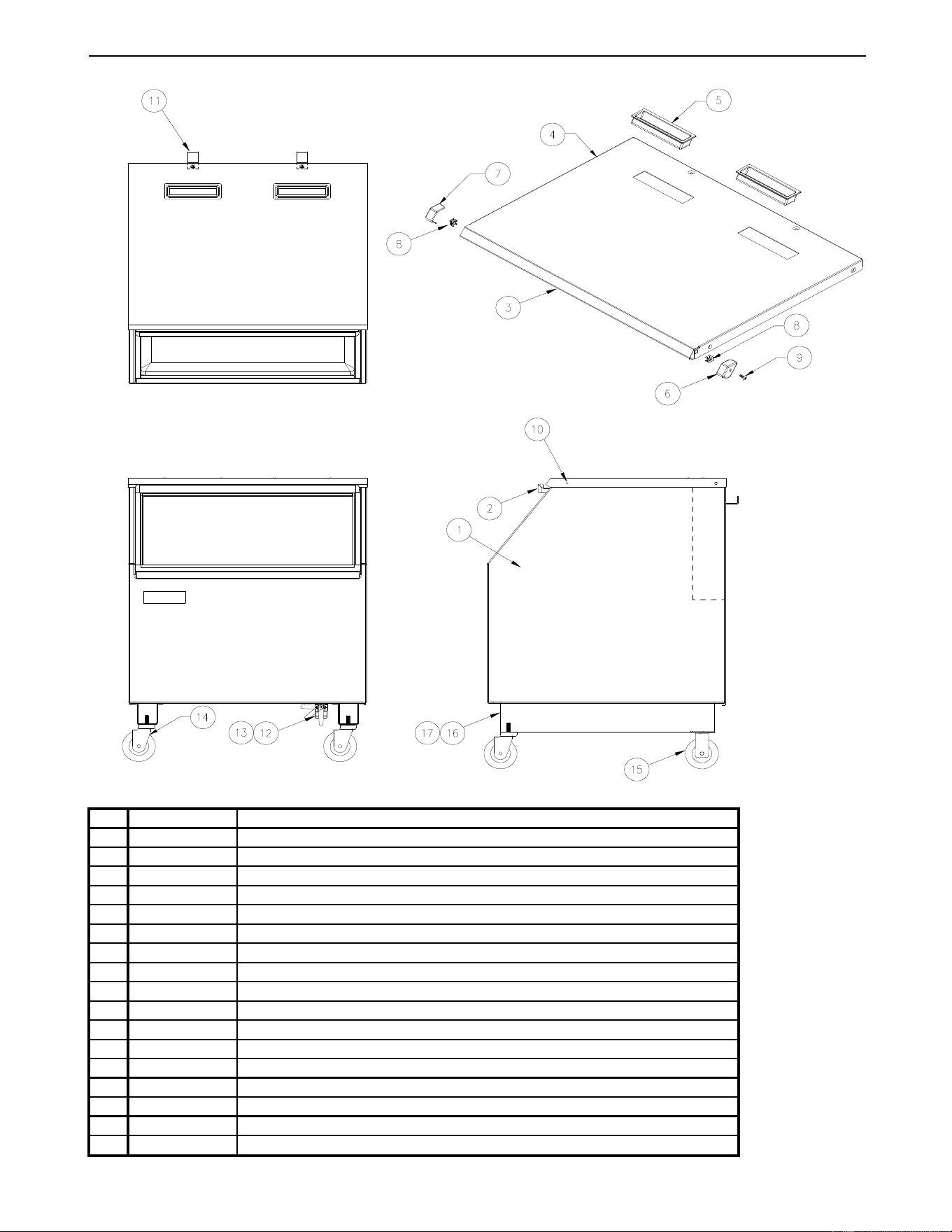

Storage Bins Ice Cart-CRT125
Item CRT125 Description
1 9051214-01
Bin NLA-NR
2 9051310-01 Bin Door
3 2101414-01
Top Panel Assembly (Includes Items 4-8) NLA-NR
4 3021924-01 Top Panel Only
5 9021089-01 Recessed Handle
6 9051542-01
Corner Cap Right Hand NLA-NR
7 9051542-02
Corner Cap Left Hand NLA-NR
8 9031141-01P Plastic Nut
9 9031098-02P Plastic Corner Screw
10 9031023-10P Top Panel Screw
11 3012780-01 Hose Clip
12 9091117-01 Drain Valve
13 9091097-01 Drain Elbow
14 9021088-01 Caster-Pivot (Front) (Each)
15 9021094-01 Caster-Fixed (Rear)(Each)
16 2021511-01
Leg Channel (Left and Right) NLA-NR
17 9031113-02P Leg Channel Screw
Not Shown-Ice Scoop-9051127-02
P=Package Quantity
