PSD18B-184X
Original instructions
2
2
Important!
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
Subject to technical modifications.
3
3
The following tools (not included) are needed for making adjustments:
COMBINATION SQUARECOMBINATION WRENCHFRAMING SQUARE HEX KEY
3MM
Ø 184 mm
n
max.
7900
Ø 20 mm
40 HW 1.6 mm

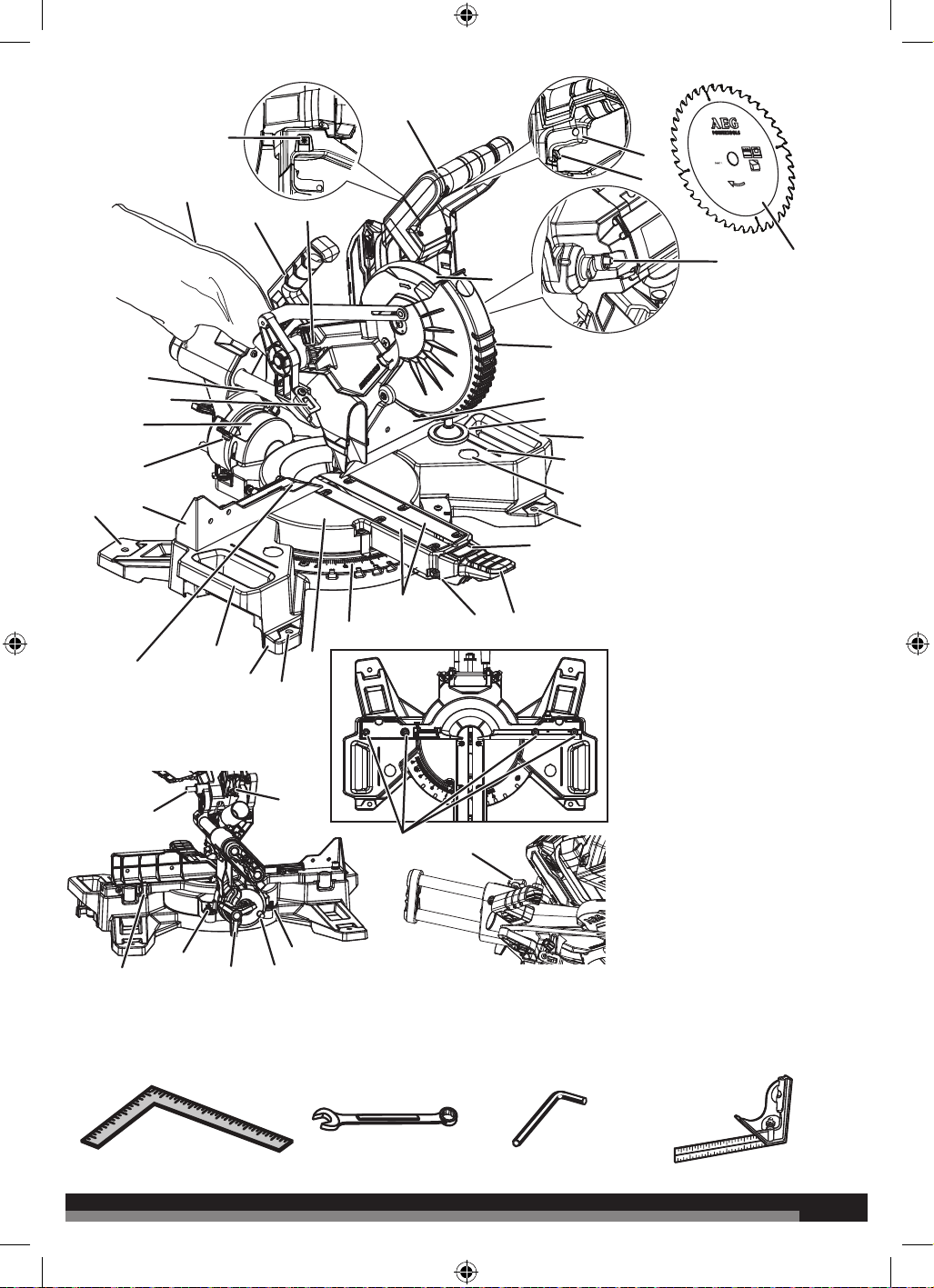

1 - “D” Handle
2 - Head lock pin
3 - Blade wrench storage
4 - Single/dual bevel selector
5 - Bevel lock knob
6 - Sliding fence adjustment knob
7 - Switch trigger
8 - Upper blade guard
9 - Lower blade guard
10 - Sliding fence
11 - Work clamp
12 - Lift handle
13 - “No hands zone” boundary line
14 - “No hands zone” label
15 - Mitre detent release button
16 - Mitre lock lever
17 - Control arm
18 - Throat plates
19 -
Mitre scale/ Mitre scale detent plate
20 - Turning table
21 - Saw base
22 - Bevel stop turret
23 - Fixed fence
24 - Depth stop
25 - Slide bar
26 - Dust bag
27 - Carrying handle
28 - Depth control knob
29 - LED light button
30 - Fence extension
31 - Spindle lock button
32 - Saw blade
33 - Mounting holes
34 - Bevel scale
35 - Screws for adjusting mitre angle
36 - Bevel stop adjustment screw
37 - Sliding lock knob
38 - Lock-off button
31
33
35
33
12
33
34
36
32
1
27
28
26
29
7
38
8
9
10
12
11
13
14
15
1617
18
19
20
21
30
23
24
25
37
3
2
4
22
6
5
22
4
4

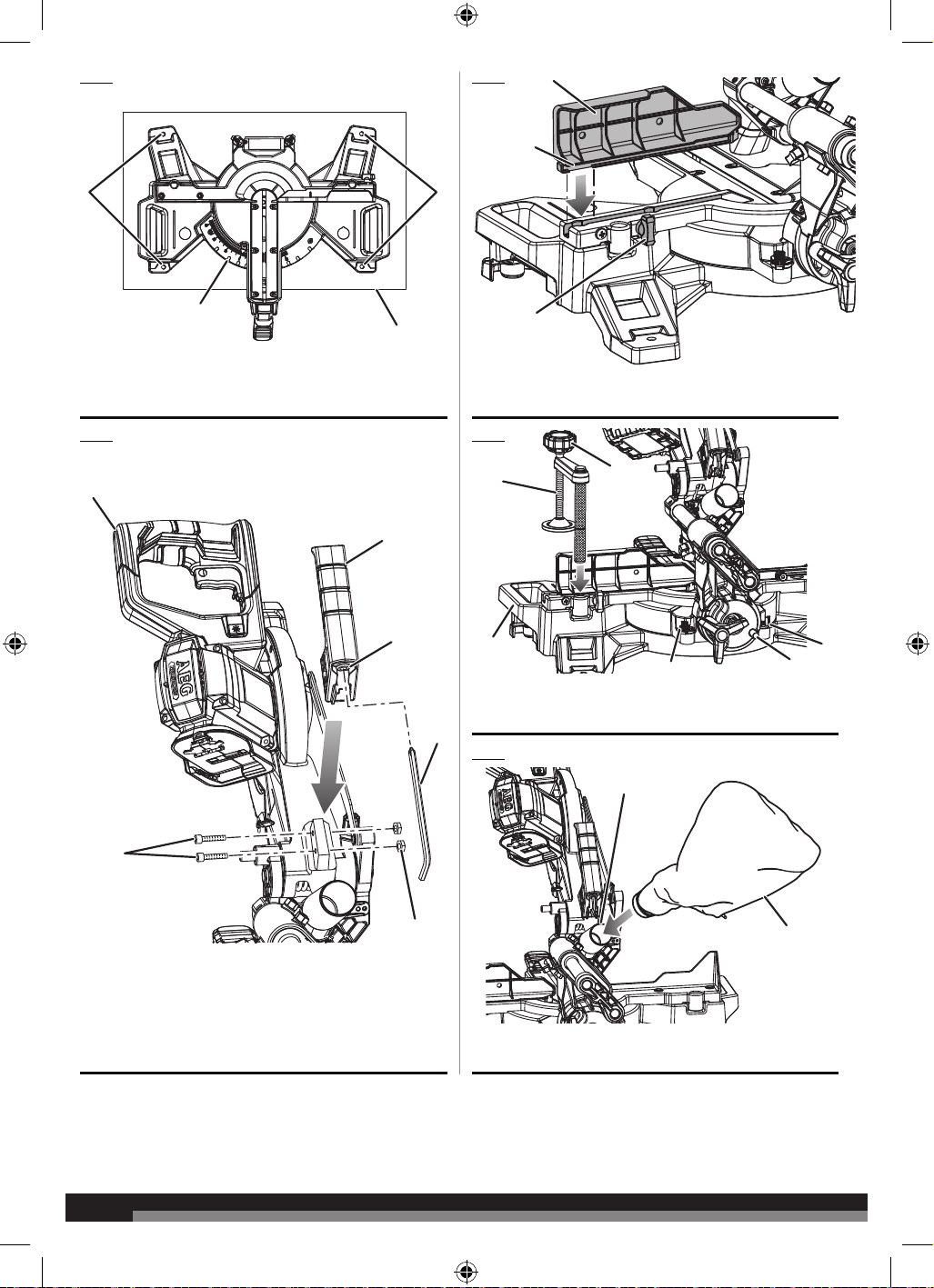

1 - Mounting holes
2 - Mounting surface
3 - Base
6
1
2
3
5
4
2
1
Fig. 3Fig. 1
1 - Sliding fence
2 - Slot
3 - Sliding fence adjustment knob
1 - Work clamp
2 - Base
3 -
Bevel stop turret
Fig. 2
1 - Carrying handle
2 - Blade wrench storage
3 - Blade wrench
4 - Nuts
5 - Screws
6 - “D”handle
Fig. 4
Fig. 5
1 - Exhaust port
2 - Dust bag
4 -
Single/dual bevel selector
5 - Work clamp knob
2
1
3
2
11
3
1
2
4
3
5
3
5
5
Fig. 6

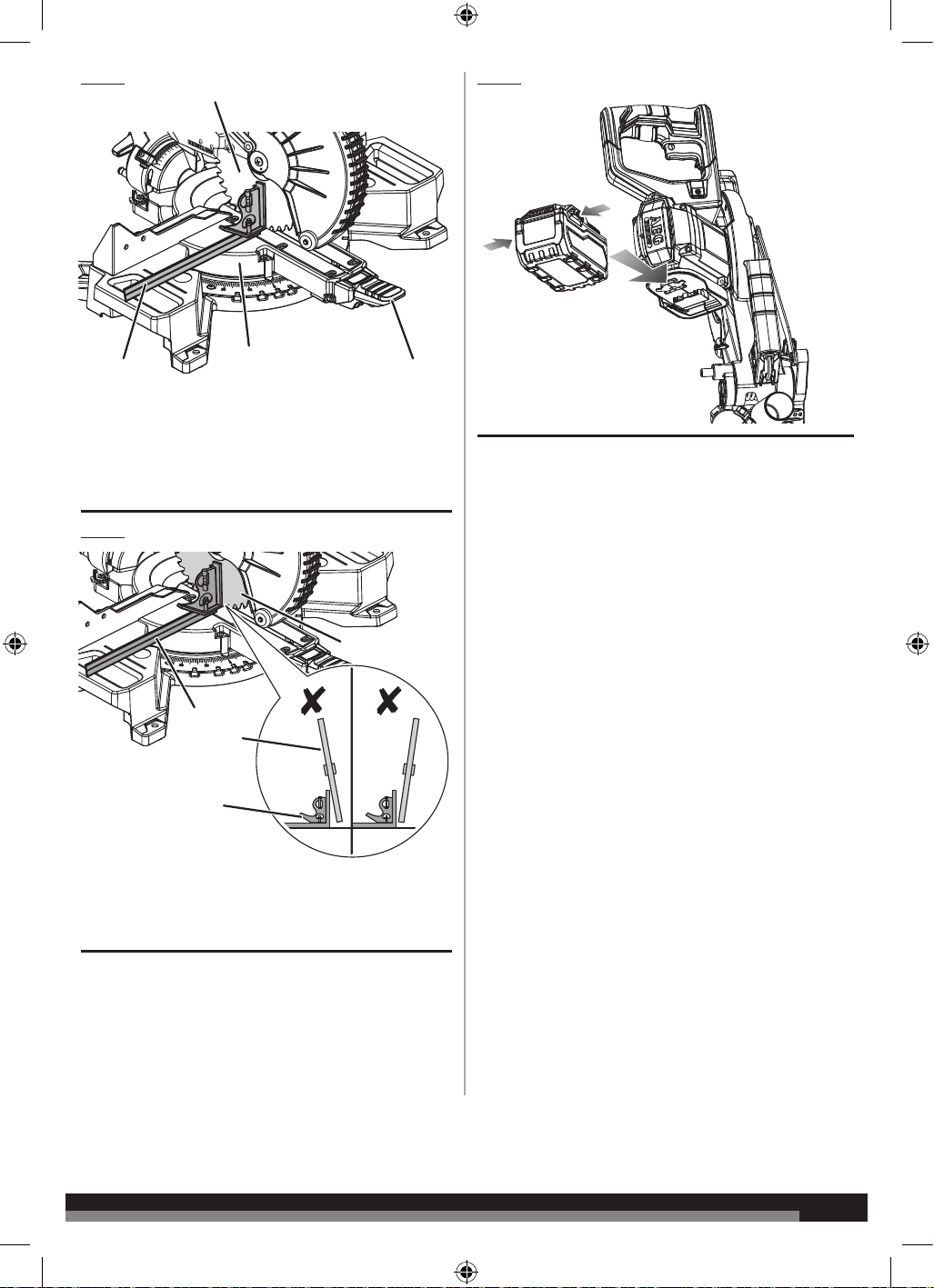

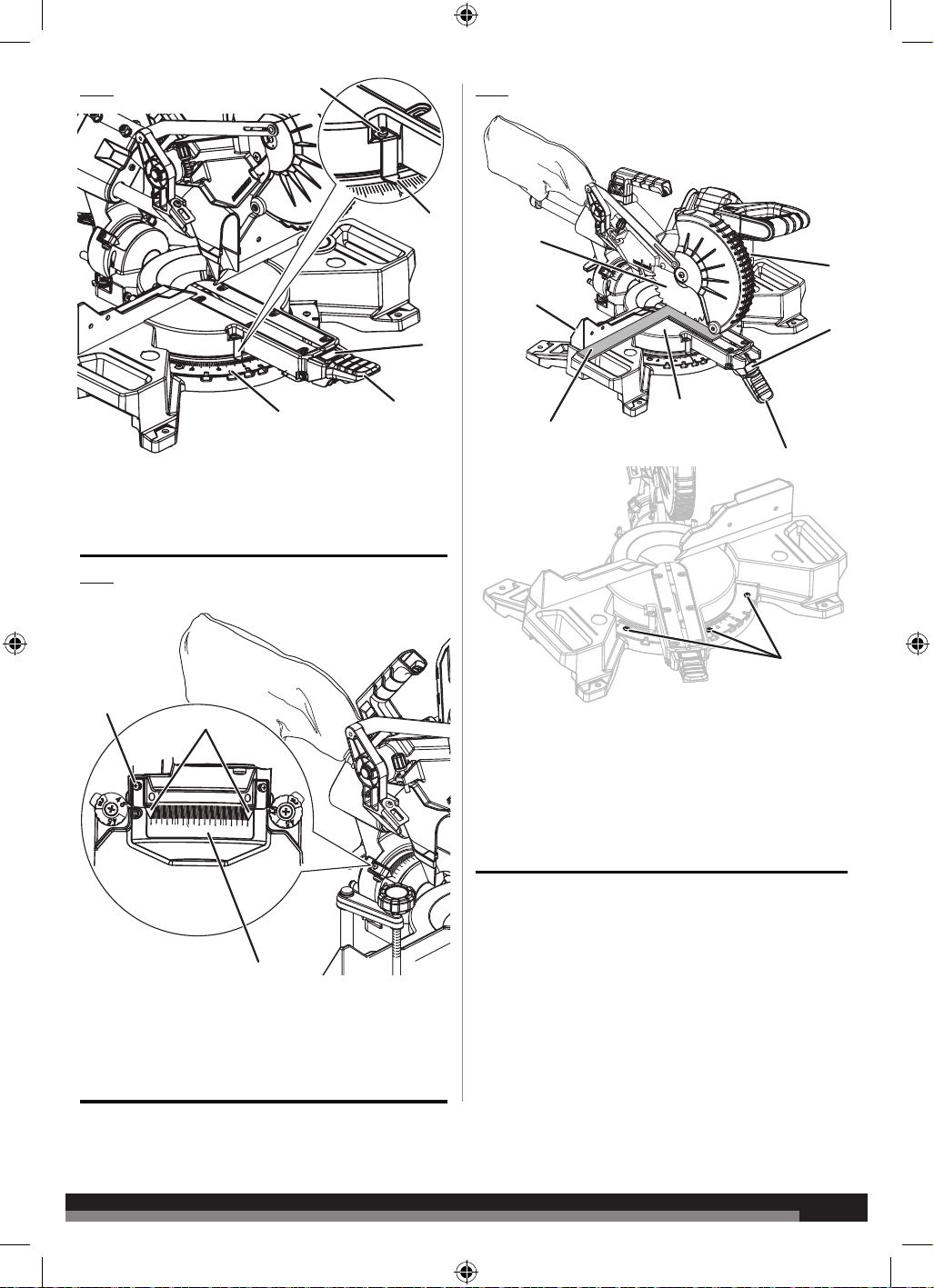

1 - Mitre indicator screw
2 - Mitre scale indicator
3 - Mitre detent release button
4 - Mitre lock lever
5 - Mitre scale / Mitre scale detent plate
1 - Sliding fence
2 - Mitre detent release button
3 - Mitre lock lever
4 - Turning table
5 - Framing square
6 - Fixed fence
7 - Saw blade
8 - Screws
Fig. 7

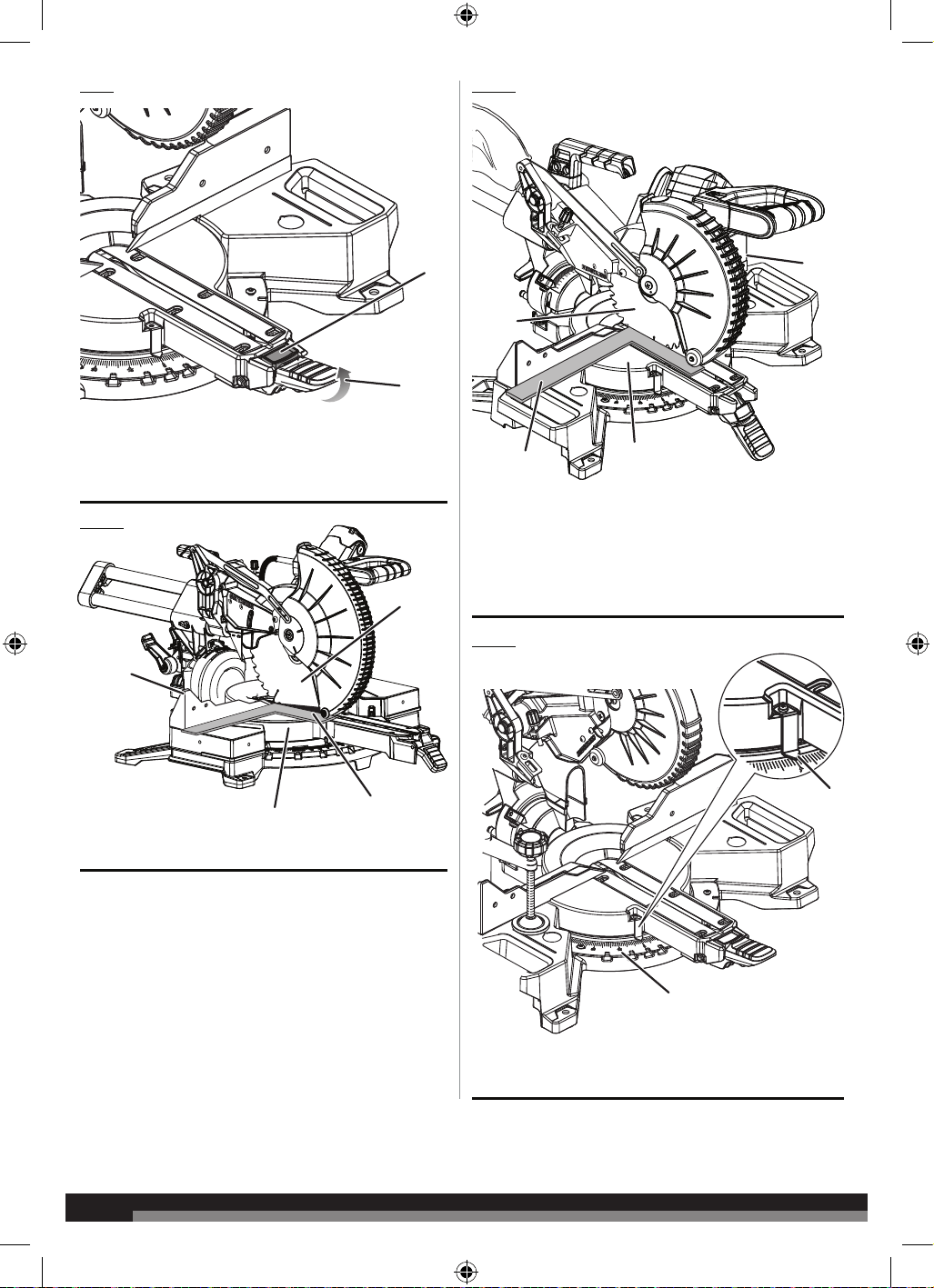

1 - Indicator screw
2 - Scale indicator
3 - Bevel scale
0
15
30
22.5
0
45
30
33.9
15
22.5
33.9
22.5
30
15
0
1
3
2
0
15
30
22.5
Fig. 8
1
2
3
4
5
1
7
2
3
4
6
5
8
6
6
0
15
30
22.5
Fig. 9

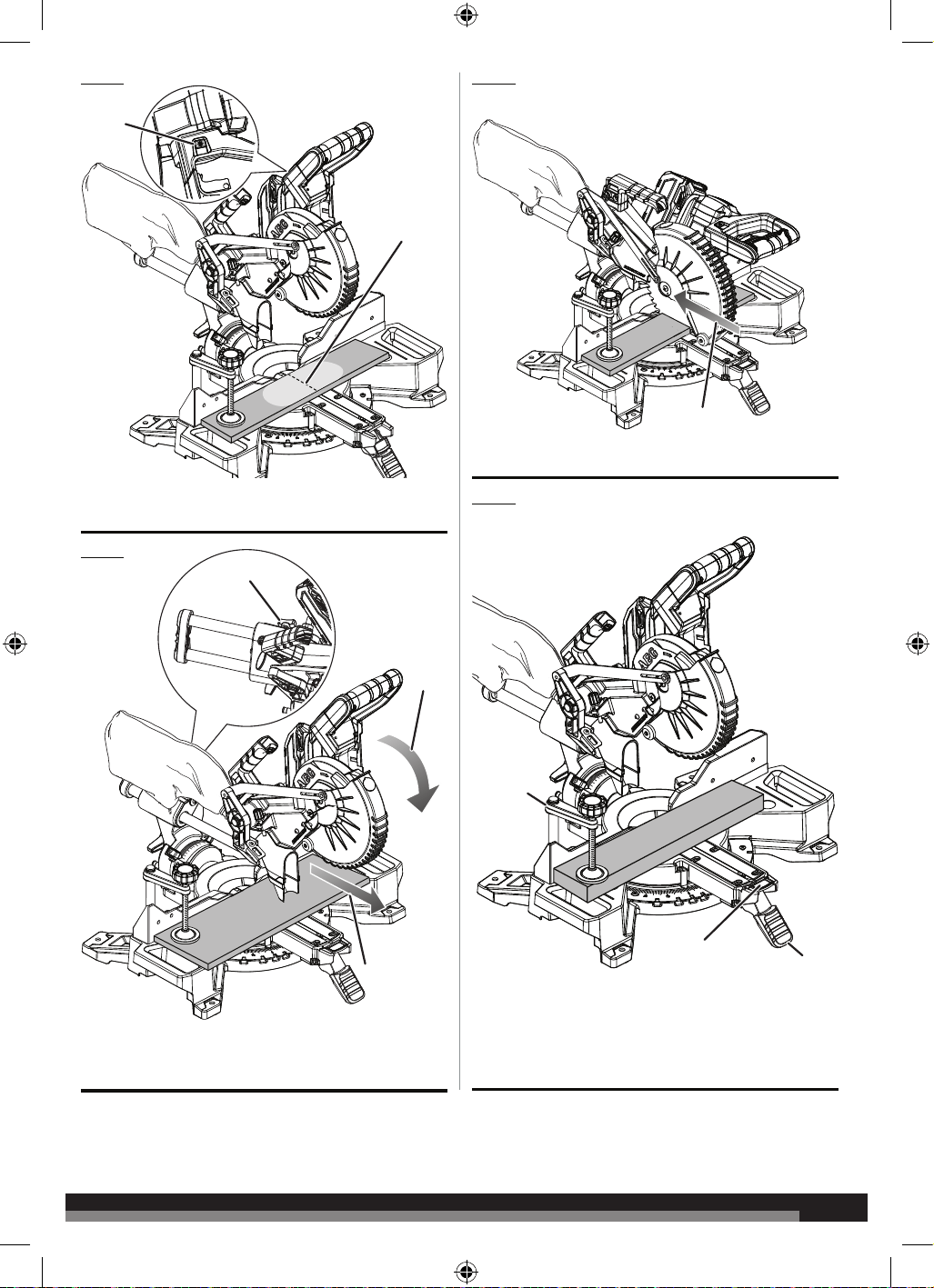

1 - Mitre detent release button (press to disengage)
2 - Unlocked
3 - Framing square
1 - Sliding fence
2 - Turning table
4 - Saw blade
View of blade not square with fence, adjustments are
required.
1 - Mitre scale indicator
2 - Mitre scale/ Mitre scale detent plate
Fig. 10
Fig. 12
2 - Framing square
3 - Turning table
4 - Fixed fence
1 - Saw blade
Fig. 11
1
Press the mitre detent release button to rotate the turning
table.
2
1
3
4
2
1
2
1
3
2
4
7
7
0
15
30
22.5
1 -
Saw blade
2 - Mitre lock lever
3 - Turning table
4 - Combination square
Correct view of blade square with turning table
Fig. 14
Fig. 15
Fig. 13
0
15
30
22.5
1 -
Combination square2 -
Saw blade
View of blade not square with turning table, adjustments are
required.
1
2
3
4
2
1
2
1
8
8
0
15
30
22.5
Note: Before use, replace blade bolt cover screw and
tighten securely to prevent guard movement.
Note: Before use, replace
blade bolt cover screw and
tighten securely to prevent
guard movement
1
2
3
4
5
6
1
8
29
3
4
To loosen
To tighten
Fig. 16

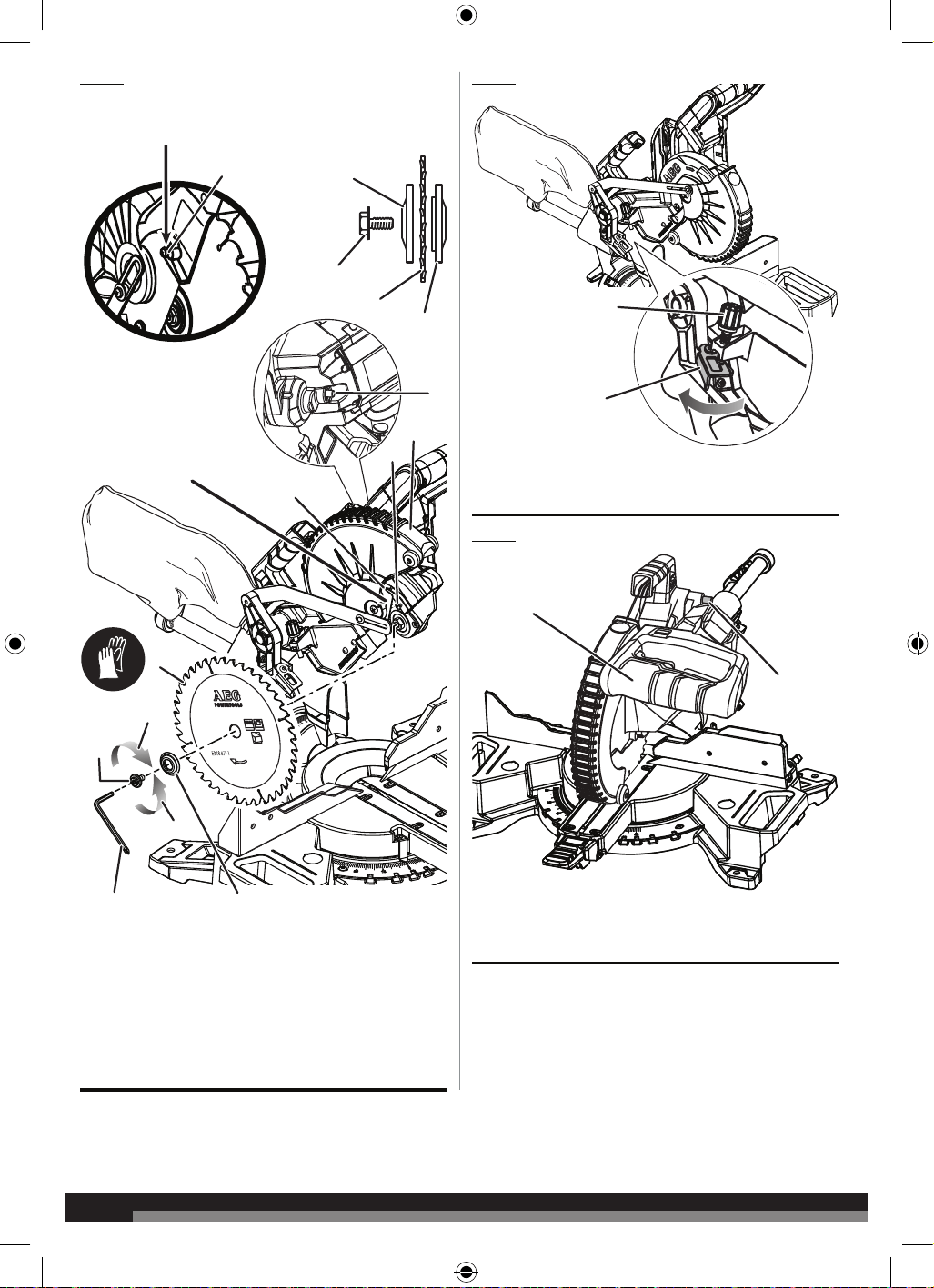

1 - Blade bolt cover screw
2 - Outer flange
3 - Blade bolt
4 - Saw blade
5 - Inner flange
6 - Blade bolt cover
7 - Spindle lock button
8 - Lower blade guard
9 - Blade wrench
Fig. 17
Fig. 18

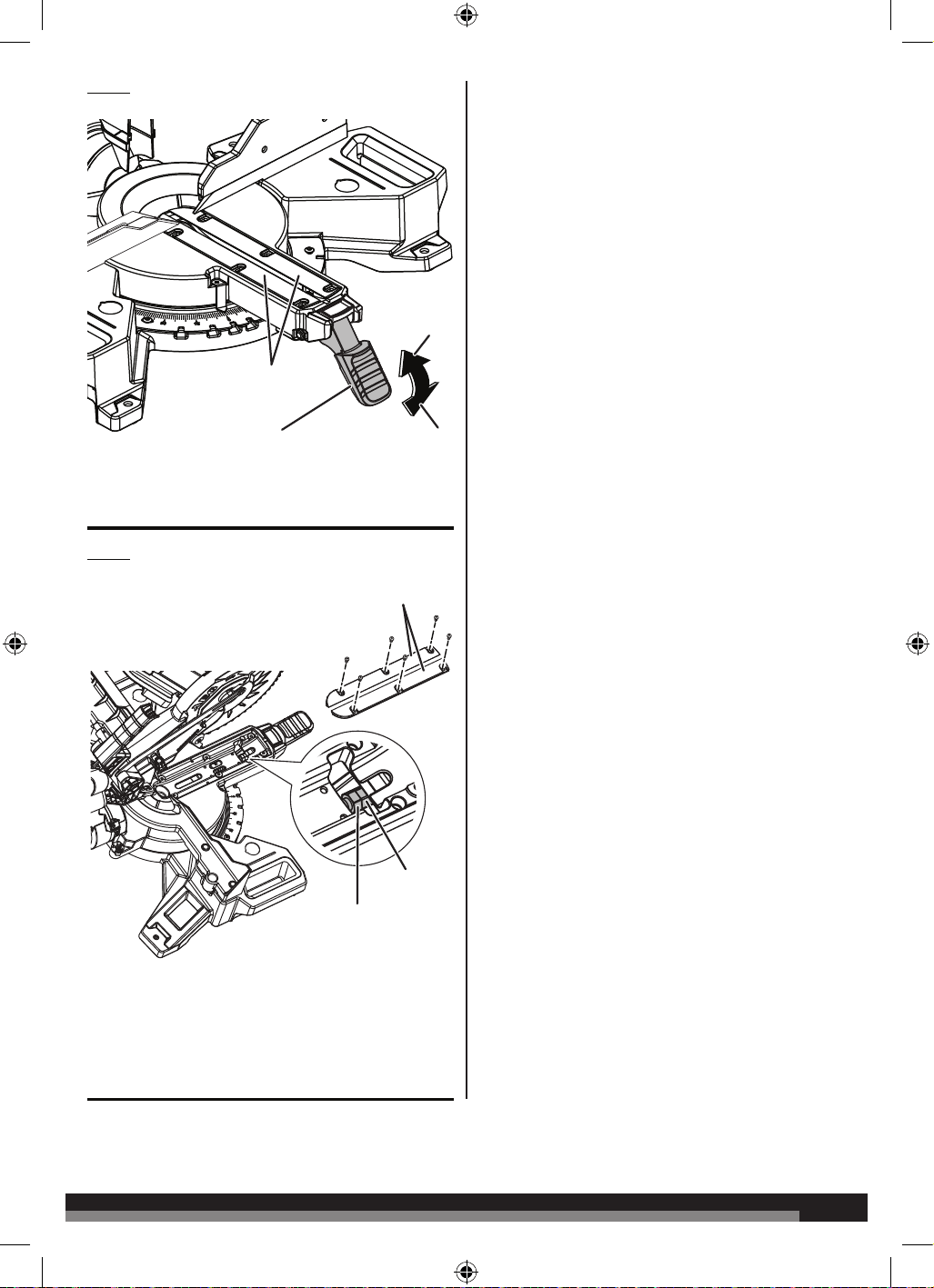

1 - Depth control knob
2 - Depth stop
1 - “D” handle
2 - Head lock pin
0
15
30
22.5
1
1
2
2
7
Ø 184 mm
n
max.
7900
Ø 20 mm
40 HW 1.6 mm
9
9
0
30
22.5
3
0
15
30
22.5
Fig. 19
Fig. 20

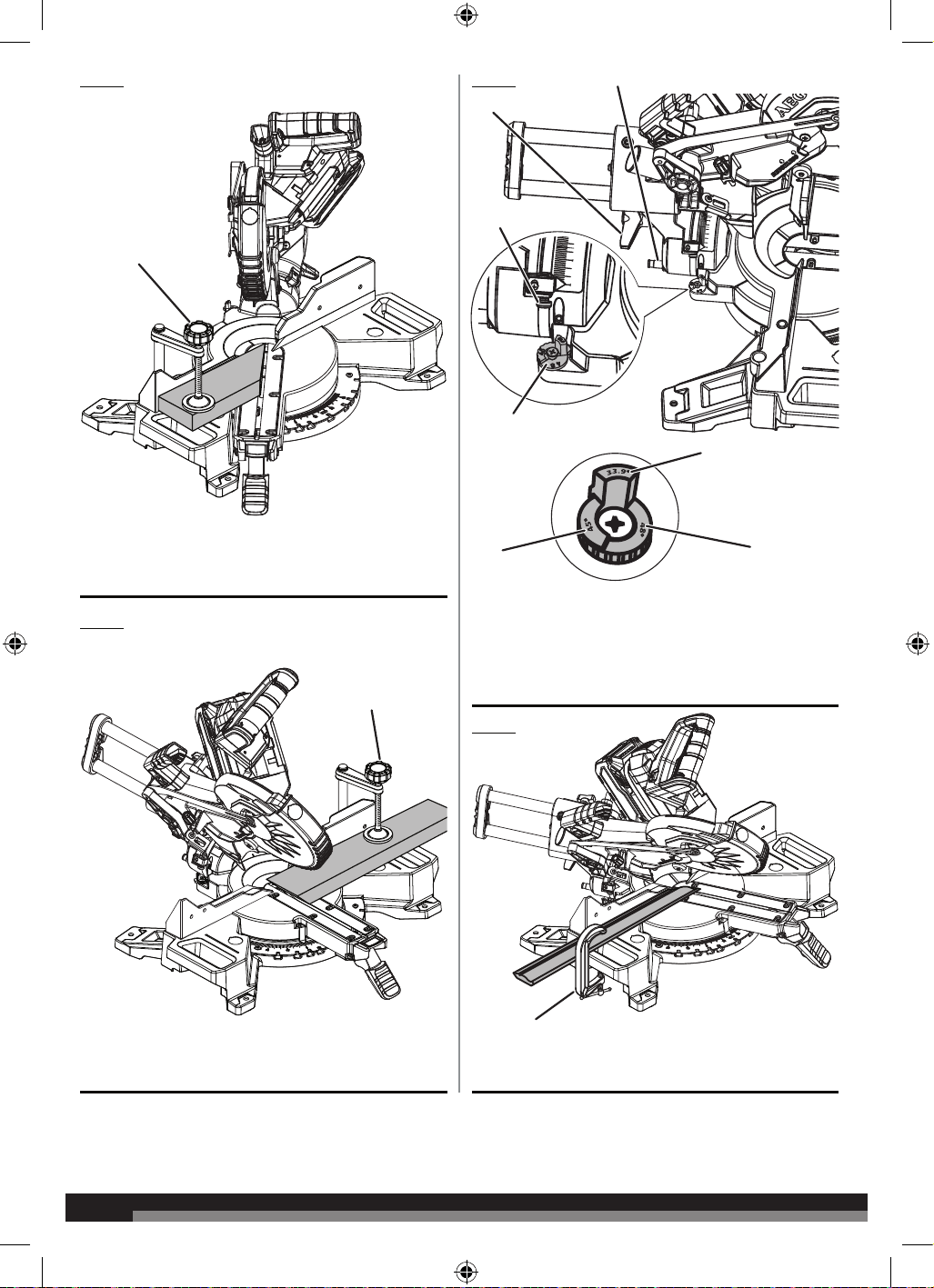

1 - LED button
Fig. 21
Fig. 22
1 - Push back
Cross cut
1 - Work clamp
2 - Mitre detent release button
3 - Mitre lock lever
1
1
2
2
3
Shadow of
blade teeth
projected
onto workpiece
0
15
30
22.5
2
1
1 - Slide cut
2 - Slide saw arm forward, then push down.
3 - Sliding lock knob
0
15
30
22.5
1
10
10
Fig. 23
Fig. 24
Mitre cut
1 - Work clamp
Mitre cut
1 - Bevel lock knob
2 - Single/dual bevel selector
3 - Bevel stop adjustment screw
1
1
Bevel cut
1 - Work clamp
Fig. 25
Fig. 26
4
1
0
30
15
22.5
33.9
33.9º
45º
48º
0
15
22.5
1
2
3
Compound mitre cut
1 - C-clamp (not included)
4 - Bevel stop turret
11
11
Fig. 27
Fig. 28
0
15
30
22.5
0
15
30
22.5
1 - Long workpiece
2 - Workpiece supports
2
1
1
Fig. 30
Fig. 29
1 - Wide board
1
2
3
Ceiling
Wall
38°
52°
2
Top edge against fence:
Left side, inside corner
Right side, outside corner
1
Ceiling
Wall
45°
45°
1
4
3
Top edge against fence:
Left side, inside corner
Right side, outside corner
2

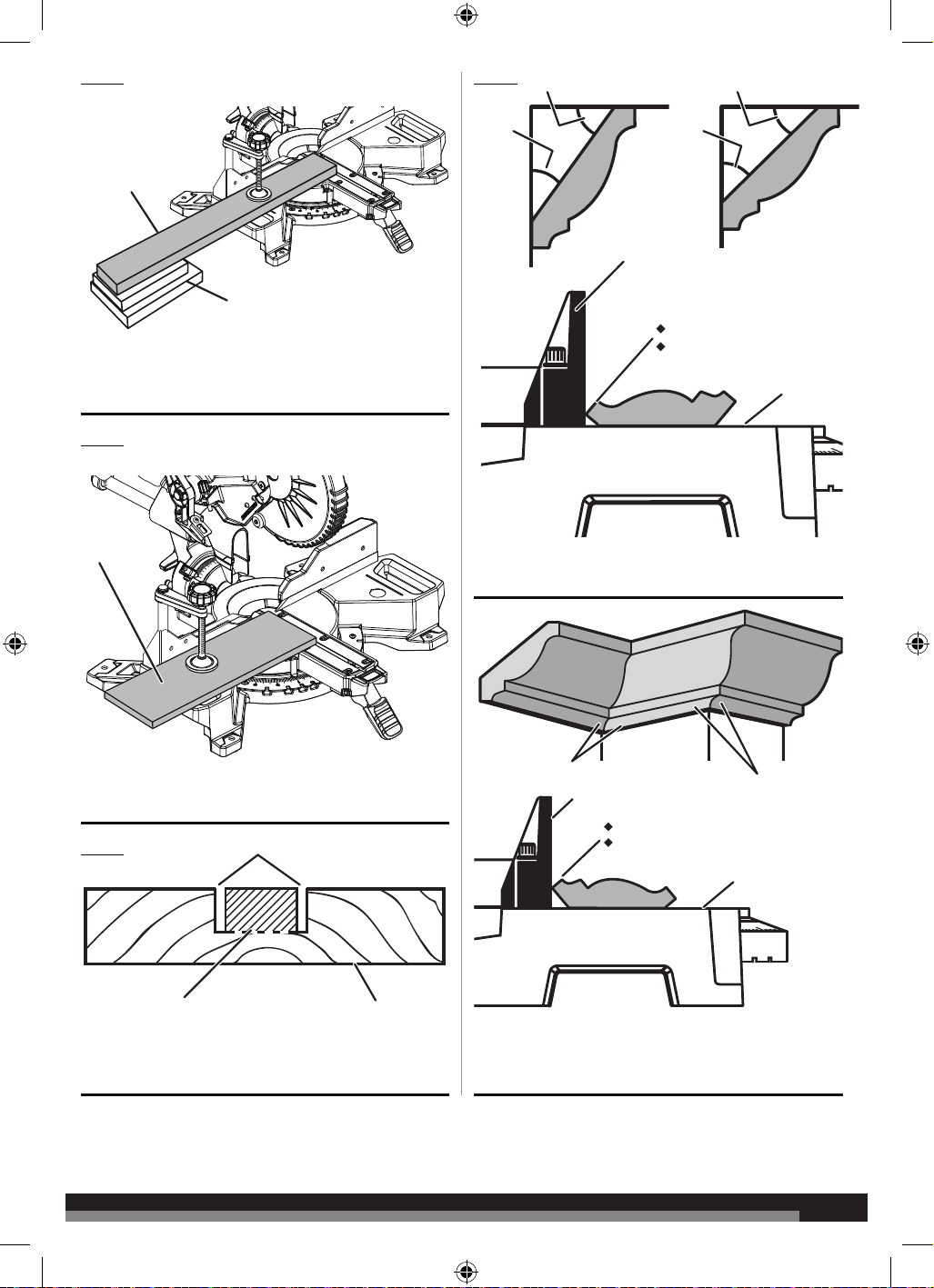

1 - Cut these grooves with saw
2 - Use a chisel to cut out the middle
3 - Workpiece
1 - Inside corner
2 - Mitre fence
3 - Outside corner
4 - Turning table
1 - Mitre fence
2 - Turning table
12
12
0
30
15
22.5
33.9
0
15
22.5
Fig. 31
Fig. 32
Fig. 35
Right
2
1
1
3
Fig. 34
Wrong
Fig. 33

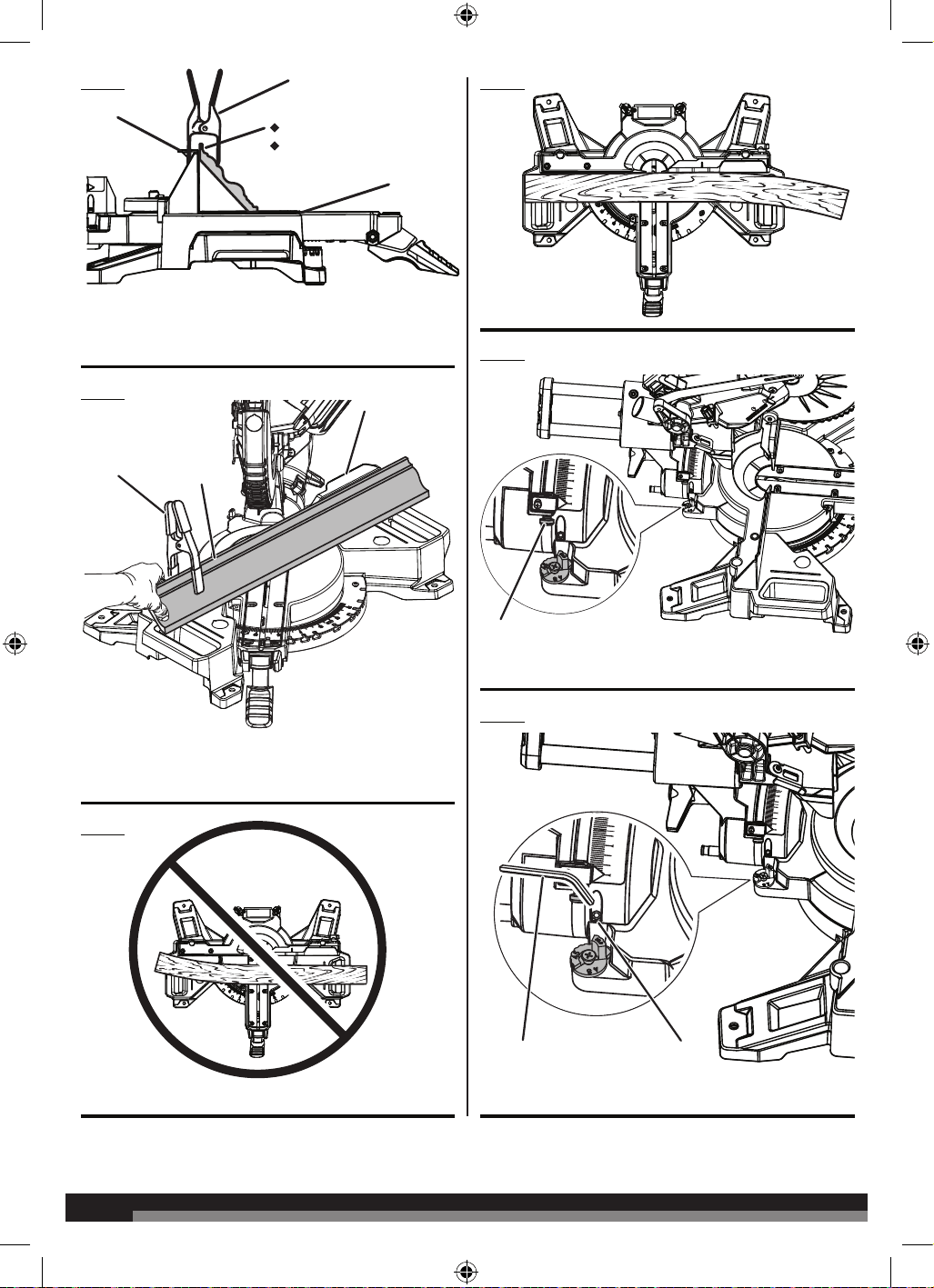

1 - Spring clamp (not included)
2 - Molding
3 - Sliding fence
Fig. 36
1 - Bevel stop adjustment screw
2
3
1
Bottom edge against fence:
Left side, inside corner
Right side, outside corner
1 2
1 - Hex key
2 - 0° Bevel top screw
0
15
22.5
0
30
15
22.5
33.9
1 - Fixed fence
2 - Spring clamp (not included)
3 - Turning table
Crown molding nested against front facing mitre fence
13
13
Fig. 37
1 - Throat plates
2 - Tensioning nut
3 - Lock nut
1 - Throat plates
2 - Mitre lock lever
2
Unlock
Lock
1
Fig. 38
1
3
2
14
14
TECHNICAL DATA SLIDE COMPOUND MITRE SAW
PSD18B-184X
Voltage 18 V
Maximum cutting depth 55 mm
No-load speed 3700 min
-1
Weight 11 kg
Saw blade diameter x hole diameter 184 mm×20 mm
Saw blade thickness / kerf 1.0 mm / 1.6 mm
Maximum mitre/bevel angle (L/R) 48°
Cutting capacity
Mitre 0°/ Bevel 0° 55 mm × 190 mm
Mitre 0°/ Bevel 45° (R) 19.1 mm × 190 mm
Mitre 0°/ Bevel 45° (L) 38.1 mm × 190 mm
Mitre 45°/ Bevel 0° 55 mm × 140 mm
Mitre 45°/ Bevel 45° (R) 19.1 mm × 140 mm
Mitre 45°/ Bevel 45° (L) 38.1 mm × 140 mm
Vertical Base
Mitre 45°/ Bevel 0° 19.1 mm × 88.9 mm
Nested Crown
Mitre 45°/ Bevel 0° 88.9 mm
Minimum workpiece dimensions 215 mm × 35 mm × 2.5 mm
Measured values determined according to EN 62841
A-weighted sound pressure level
L
pA
= 85.0 dB(A)
Uncertainty K K = 3 dB(A)
Measured values determined according to EN 62841
A-weighted sound power level
L
wA
= 97.0 dB(A)
Uncertainty K K = 3 dB(A)
REPLACEMENT PARTS
Saw blade 089294001085
Combination wrench 089294001078
Work clamp 089294001800
Dust bag 089294001705
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820S
A18FB2
L1830R-X5
L1860R-X5
L1890R
A18B4
A18FB4
A18FB5
A18B5
A18OB6
Use AEG 18V battery and charger only.
WARNING!
The declared noise emission value(s) have been measured in accordance with a standard test method of EN 62841-1 and EN 62841-3-9, and
may be used for comparing one tool with another.
The declared noise value(s) may also be used in a preliminary assessment of exposure.
The noise emissions during actual use of the power tool can dier from the declared values depending on the ways in which the tool is used
especially what kind of workpiece is processed.
Identify safety measures to protect the operator based on an estimation of exposure in the actual conditions of use (taking account of all parts
of the operating cycle such as the times when the tool is switched o and when it is running idle in addition to the trigger time).
Wear hearing protection. Exposure to noise can cause hearing loss.
15
15
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations
and specifications provided with this power tool. Failure to follow
all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk
of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in
serious personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat or hearing protection used for appropriate conditions will reduce
personal injuries.
Prevent unintentional starting. Ensure the switch is in the o-
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch
on invites accidents.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the power
tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep
your hair and clothing away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow
you to become complacent and ignore tool safety principles. A
careless action can cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and o.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making
any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands
of untrained users.
Maintain power tools and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any other
condition that may aect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool for
operations dierent from those intended could result in a hazardous
situation.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk
of fire when used with another battery pack.
Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns
or a fire.
Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
Do not use a battery pack or tool that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
Do not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperature above 130’C may
cause explosion.
Follow all charging instructions and do not charge the battery
pack or tool outside the temperature range specified in the
instructions. Charging improperly or at temperatures outside the
specified range may damage the battery and increase the risk of fire.
SERVICE
Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of
16
16
the power tool is maintained.
Never service damaged battery packs. Service of battery packs
should only be performed by the manufacturer or authorized service
providers.
SAFETY INSTRUCTIONS FOR MITRE SAWS
Mitre saws are intended to cut wood or wood-like products, they
cannot be used with abrasive cut-o wheels for cutting ferrous
material such as bars, rods, studs, etc. Abrasive dust causes moving
parts such as the lower guard to jam. Sparks from abrasive cutting will
burn the lower guard, the kerf insert and other plastic parts.
Use clamps to support the workpiece whenever possible. If
supporting the workpiece by hand, you must always keep your
hand at least 100 mm from either side of the saw blade. Do
not use this saw to cut pieces that are too small to be securely
clamped or held by hand. If your hand is placed too close to the saw
blade, there is an increased risk of injury from blade contact.
The workpiece must be stationary and clamped or held against
both the fence and the table. Do not feed the workpiece into
the blade or cut “freehand” in any way. Unrestrained or moving
workpieces could be thrown at high speeds, causing injury.
Push the saw through the workpiece. Do not pull the saw through
the workpiece. To make a cut, raise the saw head and pull it out
over the workpiece without cutting, start the motor, press the
saw head down and push the saw through the workpiece. Cutting
on the pull stroke is likely to cause the saw blade to climb on top of
the workpiece and violently throw the blade assembly towards the
operator.
Never cross your hand over the intended line of cutting either
in front or behind the saw blade. Supporting the workpiece “cross
handed” i.e. holding the workpiece to the right of the saw blade with
your left hand or vice versa is very dangerous.
Do not reach behind the fence with either hand closer than 100
mm from either side of the saw blade, to remove wood scraps,
or for any other reason while the blade is spinning. The proximity
of the spinning saw blade to your hand may not be obvious and you
may be seriously injured.
Inspect your workpiece before cutting. If the workpiece is
bowed or warped, clamp it with the outside bowed face toward
the fence. Always make certain that there is no gap between
the workpiece, fence and table along the line of the cut. Bent or
warped workpieces can twist or shift and may cause binding on the
spinning saw blade while cutting. There should be no nails or foreign
objects in the workpiece.
Do not use the saw until the table is clear of all tools, wood scraps,
etc., except for the workpiece. Small debris or loose pieces of wood
or other objects that contact the revolving blade can be thrown with
high speed.
Cut only one workpiece at a time. Stacked multiple workpieces
cannot be adequately clamped or braced and may bind on the blade
or shift during cutting.
Ensure the mitre saw is mounted or placed on a level, firm work
surface before use. A level and firm work surface reduces the risk of
the mitre saw becoming unstable.
Plan your work. Every time you change the bevel or mitre angle
setting, make sure the adjustable fence is set correctly to support
the workpiece and will not interfere with the blade or the guarding
system. Without turning the tool “ON” and with no workpiece on the
table, move the saw blade through a complete simulated cut to assure
there will be no interference or danger of cutting the fence.
Provide adequate support such as table extensions, saw horses,
etc. for a workpiece that is wider or longer than the table top.
Workpieces longer or wider than the mitre saw table can tip if not
securely supported. If the cut-o piece or workpiece tips, it can lift the
lower guard or be thrown by the spinning blade.
Do not use another person as a substitute for a table extension
or as additional support. Unstable support for the workpiece can
cause the blade to bind or the workpiece to shift during the cutting
operation pulling you and the helper into the spinning blade.
The cut-o piece must not be jammed or pressed by any means
against the spinning saw blade. If confined, i.e. using length stops,
the cut-o piece could get wedged against the blade and thrown
violently.
Always use a clamp or a fixture designed to properly support
round material such as rods or tubing. Rods have a tendency to
roll while being cut, causing the blade to “bite” and pull the work with
your hand into the blade.
Let the blade reach full speed before contacting the workpiece.
This will reduce the risk of the workpiece being thrown.
If the workpiece or blade becomes jammed, turn the mitre saw
o. Wait for all moving parts to stop and disconnect the plug
from the power source and/or remove the battery pack. Then
work to free the jammed material. Continued sawing with a jammed
workpiece could cause loss of control or damage to the mitre saw.
After finishing the cut, release the switch, hold the saw head
down and wait for the blade to stop before removing the cut-o
piece. Reaching with your hand near the coasting blade is dangerous.
Hold the handle firmly when making an incomplete cut or when
releasing the switch before the saw head is completely in the
down position. The braking action of the saw may cause the saw
head to be suddenly pulled downward, causing a risk of injury.
SAFETY INSTRUCTIONS FOR WOOD CUTTING BLADE
Please read the manual and instructions carefully before using the
saw blade and the machine.
The product must be in good condition, the spindle without
deformation and vibration.
Do not use the product without the guards in position. Keep guards in
good working order and properly maintained.
Ensure the operator is adequately trained in safety precautions,
adjustment and operation of the product.
Always wear goggles and ear protection when using the product. It is
recommended to wear gloves, sturdy non slipping shoes and apron.
Before using any accessory, consult the instruction manual. The
improper use of an accessory can cause damage and increase the
potential for injury.
Use only blades specified in this manual, complying with EN 847-1.
Observe the maximum speed marked on the saw blade. Ensure the
speed marked on the saw blade is at least equal to the speed marked
on the saw.
Always use blades with correct size and shape of arbour holes.
Blades that do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.
Do not use blades of larger or smaller diameter than recommended.
Do not use any spacers to make the blade fit onto the spindle.
Check the tips of the saw blade for damage or abnormal appearance
before each use. Tips that are damaged or loose can become flying
objects in use and increase the chance of personal injury.
Do not use cracked or distorted saw blades. Do not use saw blades
that are damaged or deformed.
Scrap the saw blade if damaged, deformed, distorted or cracked,
repairing is not permitted.
Do not use HSS blades.
Ensure the saw blade is mounted correctly, tighten the arbor nut
securely before use (tightening torque approx. 12 Nm).
Fastening screw and nuts shall be tightened using the appropriate
spanner, etc.
Extension of the spanner or tightening using hammer blows is not
permitted.
Make sure the blade and flanges are clean and the recessed sides of
the collar are against the blade.
17
17
Make sure the blade rotates in the correct direction.
Before work, make a dummy cut without the motor turned on so the
position of the blade, operation of the guards with respect to other
machine parts and workpiece may be checked.
Never leave the product unattended.
Do not apply lubricants on the blade when it is running.
Never perform any cleaning or maintenance work when the machine
is still running and the head is not in the rest position.
Never attempt to stop a machine in motion rapidly by jamming a tool
or other means against the blade, serious accidents can be caused
unintentionally in this way.
Disconnect the product from the mains supply or remove battery
pack before changing blades or carrying out maintenance.
Pay attention to blade packing and unpacking, it is easy to be injured
by the sharp blade tips.
Use a blade holder or wear gloves when handling a saw blade.
Keep and store the blade in original packaging or other suitable
packaging, keep in dry conditions and away from chemicals which
may damage the blade.
ADDITIONAL SAFETY WARNINGS
Always clamp the workpiece safely and securely.
Ensure that the product is always stable and secure (e.g., fixed to a
bench).
Always wear ear protectors. Exposure to noise can cause hearing loss.
Always wear safety goggles when using the product. It is
recommended to wear gloves for handling blades and rough material,
plus sturdy non slip shoes to protect the feet from workpieces which
may fall from the cutting area.
Disconnect the product from the mains supply or remove battery
pack before carrying out any maintenance or cleaning the product.
Ensure the product is switched o before installing or removing the
battery pack.
Do not stand in a line with the saw blade in front of the machine.
Always stand aside of the saw blade.
Keep hands, fingers, and arms away from the rotating saw blade.
Never reach into the area near the blade unless the blade has
completely stopped.
Before use, thoroughly check the product for any damage or material
fatigue. Repairs to the whole product should only be carried out by an
authorised service centre.
Always use the guards on the product. Do not use the product if the
guards are not in place and working correctly.
The lower blade guard should only open when the blade is lowered
to the workpiece and must always be able to move freely and close
automatically.
If the workpiece or blade becomes jammed, turn the mitre saw “OFF”.
Wait for all moving parts to stop and disconnect the plug from the
power source and/or remove the battery pack. Then work to free the
jammed material.
Always fix and use extension bar holders for workpiece support
during operation.
Never alter of modify the product or its function. Your safety may be
compromised.
Do not use saw blades which are cracked, damaged or deformed.
Do not use saw blades made of high-speed steel.
Only use saw blades which are sharp. Replace blunt blades with a
new replacement.
Use a blade holder or wear gloves when handling a saw blade.
Always use blades with correct size and shape of arbour holes.
Blades that do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.
Use only woodworking blades specified in this manual, which comply
with EN 847-1.
Do not use any flanges, washers and nuts to secure the saw blade
other than those supplied or indicated in the instruction manual.
It is necessary to select a saw blade which is suitable for the material
being cut. Never use the product to cut materials other than those
specified in the intended use section in this manual.
It is important to avoid overheating the blade and melting the plastic
workpiece when cutting.
It is essential to adhere to the maximum speed specified on the saw
blade, only use saw blade that are marked with a speed equal or
higher than the speed marked on the tool.
Replace the table insert when worn or damaged.
Before work, make a dummy cut without the motor turned on so the
position of the blade, operation of the guards with respect to other
machine parts, and workpiece may be checked.
When performing mitre, bevel or compound mitre cuts, adjust or
remove the sliding fence or fence extension to ensure the correct
clearance from the blade.
Avoid uncontrolled release of the saw unit from the fully down
position.
The bracket stop must always be engaged when transporting the
product.
Keep the floor area free of loose materials, such as chips and cut-os.
Refrain from removing any cut-os or other parts of the workpiece
from the cutting area whilst the product is running and the saw head
is not in the rest position.
When transporting the machine, use only transportation devices and
never use guards for handling or transportation.
The handle lock must always be engaged when transporting the mitre
saw.
Long workpieces must be adequately supported. The working area
of the saw includes the whole extent of the workpiece. The operator
should secure this area from accidental contact from other persons or
objects which may move the workpiece during operation.
Stock having a round or irregular cross section (such as firewood)
which cannot be clamped securely by the provided clamp must not
be cut. When sawing into the edge of thin or layered stock, a suitable
auxiliary fence must be used to provide support.
The dust produced when using the product may be harmful to health.
Use a dust suction system and wear a suitable dust protection mask.
Remove deposited dust thoroughly with a vacuum cleaner.
Connect the saw to a dust-collecting device when sawing wood.
Do not replace the LED with a dierent type. Any repairs must only be
carried out by the manufacturer or authorised service agent.
Ambient temperature range for tool during operation is between 0°C
and 40°C.
Ambient temperature range for tool storage is between 0°C and 40°C.
The recommended ambient temperature range for the charging
system during charging is between 10°C and 38°C.
SPECIFIED CONDITIONS OF USE
The mitre saw is intended for sawing solid and bonded wood with or
without glued veneer, plastics, and materials similar to wood.
The mitre saw is intended to be used only by adult operators who
have read the instruction manual and understand the risks and
hazards.
The mitre saw is designed to be fixed at the base to a solid bench
top. If the base is not securely fixed, the whole machine may move
during cutting operations, which increases the possibility of serious
personal injury.
The mitre saw is designed to make bevel and mitre cuts. The capacities
for the various cuts are provided in the product specifications in this
18
18
manual.
The mitre saw is to be used in dry conditions, with excellent ambient
lighting and adequate ventilation.
The mitre saw is intended for consumer use and should only be used
as described above and is not intended for any other purpose.
RESIDUAL RISKS
Even when the slide compound mitre saw is used as prescribed, it is
still impossible to completely eliminate certain residual risk factors.
The following hazards may arise and the operator should pay special
attention to avoid the following:
■ Risk of contact with uncovered parts of the rotating saw blade.
■ Kick-back of work pieces or parts of work pieces due to improper
adjustment or handling.
■ Catapulting of faulty carbide tips from the saw blade. Wear Eye
protection at all times.
■ Damage to the respiratory system. Wear respiratory protection
masks containing filters appropriate to the materials being
worked. Ensure adequate workplace ventilation. Do not eat, drink
or smoke in the work area.
■ Damage to hearing if effective hearing protection is not worn.
WARNING! Dust from certain paints, coatings, and materials
may cause irritation or allergic reactions. Dust from wood such as
oak, beech, MDF, and others are carcinogenic. Materials containing
asbestos should only be worked on or processed by qualified
specialist operators.
WARNING! Injuries may be caused or aggravated by prolonged
use of a tool. When using any tool for prolonged periods, ensure you
take regular breaks.
ASSEMBLY
UNPACKING
Packing list
■ Dust bag x 1
■ Work clamp x 1
■ Sliding fence x 1
■ Carrying handle x 1
■ Nylon nut x 2
■ Hex socket bolt x 2
■ Operation manual x 1
The product requires assembly.
Carefully lift saw from the carton by the carrying handle and the saw
base, and place it on a level work surface.
The product has been shipped with the saw arm secured in the down
position. To release the saw arm, push down on the top of the saw
arm, cut the tie-wrap, and pull out the head lock pin.
WARNING! The saw arm is spring loaded. Hold the handle down
to prevent saw arm from snapping up when cutting the tie-wrap.
Failure to do so could result in possible serious injury.
■ Lift the saw arm by the handle. Hand pressure should remain on
the saw arm to prevent sudden rise upon release of the tie wrap.
■ Inspect the product carefully to make sure no breakage or
damage occurred during shipping.
■ Do not discard the packing material until you have carefully
inspected and satisfactorily operated the product.
■ The product is factory set for accurate cutting. After assembling
it, check for accuracy. If shipping has influenced the settings, refer
to specific procedures explained in the manual.
WARNING! If any parts are damaged or missing, do not operate
the product until the parts are replaced. Use of the product with
damaged or missing parts could result in serious personal injury.
WARNING! Do not attempt to modify the product or create
accessories not recommended for use with the product. Any such
alteration or modification is misuse and could result in a hazardous
condition leading to possible serious personal injury.
WARNING! To prevent accidental starting that could cause
serious personal injury, always remove the battery pack from the
product when assembling parts.
MOUNTING HOLES
See figure 1.
WARNING! Before starting any cutting operation, mount the
product to a solid workbench. Never operate the product on the floor
or in a crouched position. Failure to heed this warning can result in
serious personal injury.
The product should be mounted to a firm supporting surface such as
a workbench, mounting board. Four bolt holes have been provided in
the saw base for this purpose. Each of the four mounting holes should
be bolted securely using 7.9 mm (5/16 in.) machine bolts, lock washers,
and hex nuts (not included). Bolts should be of suicient length to
accommodate the saw base, lock washers, hex nuts, and the thickness
of the workbench. Tighten all four bolts securely.
The hole pattern for mounting to a workbench is shown in figure 1.
Carefully check the workbench after mounting to make sure that no
movement can occur during use. If any tipping, sliding, or walking is
noted, secure the workbench to the floor before operating.
INSTALLING CARRYING HANDLE
See figure 2.
■ Remove the screws and nuts from the carrying handle and set
aside.
■ Slide the carrying handle onto the saw arm, aligning the holes on
the arm with the holes in the handle.
■ Insert the screws and nuts into the holes and tighten securely.
WARNING! Only use the lift handles on the table and/or the
carrying handle on top to move or carry the product. Never use the
“D” handle and always remove the battery before moving. Carrying
the product with the “D” handle may cause inadvertent switch
actuation and may result in serious personal injury.
BLADE WRENCH
See figure 2.
A blade wrench is packed with the product. One end of the wrench
is a Phillips screwdriver and the other end is a hex key. Use the hex
key end when installing or removing blade and the Phillips end when
removing or loosening screws. A storage area for the blade wrench is
located in the carrying handle on the top of the product.
INSTALLING SLIDING FENCE
See figure 3.
■ Turn the sliding fence adjustment knob counterclockwise, to clear
fence slots.
■ Install the sliding fence. Lower fence into fence slot. Be sure side
of fence lines up flush with side of fixed fence.
■ Tighten sliding fence adjustment knob securely.
NOTE: To remove the sliding fence, loosen the sliding fence
adjustment knob. Then, slide the fence towards the blade to take out.
INSTALLING THE WORK CLAMP
See figure 4.
WARNING! In some operations, the work clamp assembly may
interfere with the operation of the blade guard assembly. Always make
sure there is no interference with the blade guard prior to beginning
any cutting operation to reduce the risk of serious personal injury.
The work clamp provides greater control by clamping the workpiece
to the table. It also prevents the workpiece from creeping towards
19
19
the saw blade.
Depending on the cutting operation and the size of the workpiece, it
may be necessary to use a C-clamp (not included) instead of the work
clamp to secure the workpiece prior to making the cut.
To install the work clamp:
■ Place the shaft of the work clamp in either hole on the turning
table base.
■ Rotate the work clamp knob on the work clamp to move it in or
out as needed.
NOTE: Many of the illustrations in this manual show only portions
of the product. This is intentional so that we can clearly show points
being made in the illustrations. Never operate the product without all
guards securely in place and in good operating condition.
DUST BAG
See figure 5.
■ To install the dust bag and frame assembly, slide the open end of
the frame onto the exhaust port.
■ For efficient operation, empty the dust bag before it is half full.
This will permit better air flow through the bag.
SQUARING THE SAW BLADE TO THE FENCE
See figures 6 - 12.
■ Remove the battery pack from the product.
■ Pull the saw arm all the way down and lock in transport position.
■ Lift the mitre lock lever to unlock the turning table.
■ Press the mitre detent release button and rotate the turning table
until the pointer on the mitre scale is positioned at 0°.
■ Release the mitre detent release button and allow the turning
table to engage the 0° detent position.
■ Push the mitre lock lever down to lock the turning table.
■ Loosen the bevel lock knob and set the product at the 0° bevel
angle.
■ Securely tighten the bevel lock knob.
■ Lay a framing square flat on the turning table. Place one leg of the
square against the fixed fence. Slide the other leg of the square
against the flat part of the saw blade.
NOTE: Make sure that the square contacts the flat part of the saw
blade, not the blade teeth.
■ The edge of the square and the saw blade should be parallel. See
figure 8.
■ If the front or back edge of the saw blade angles away from the
square, adjustments are needed. See figures 10 and 11.
■ Lift the mitre lock lever to unlock the turning table.
■ Press the mitre detent release button and rotate the turning
table until the pointer is at the left 30° position on the mitre scale
detent plate. See figure 8.
■ Loosen the 3 screws that hold the mitre scale detent plate in
place.
■ Press the mitre detent release button and rotate the turning table
to the 0° position on the mitre scale or until the detent engages
in the detent plate.
■ Adjust the mitre angle until the blade is parallel with the framing
square. If adjustments are needed, refer to To adjust the mitre
angle in the Adjustments section.
■ Push the mitre lock lever down to lock the turning table.
■ Tighten the 2 visible screws that secure the mitre scale detent
plate.
■ Lift the mitre lock lever to unlock the turning table.
■ Press the mitre detent release button and rotate the turning table
to the left 30° position on the mitre scale. See figure 8.
■ Tighten the remaining screw to secure the mitre scale detent
plate.
SQUARING THE BLADE TO THE TURNING TABLE
See figures 13 - 14.
To square the blade at 0°:
■ Remove the battery pack from the product.
■ Pull the saw arm all the way down and engage the head lock pin
to hold the saw arm in transport position.
■ Lift the mitre lock lever, then depress and hold the mitre detent
release button to release the turning table.
■ Rotate the turning table until the scale indicator is positioned at
0°.
■ Release the mitre detent release button and allow the turning
table to engage the 0° detent position. Push the mitre lock lever
down to secure the turning table.
■ Push the single/ dual bevel selector inward. See figure 4.
■ Loosen bevel lock knob and tilt saw arm until it is seated in the
positive 0° bevel stop (blade set 90° to turning table). Tighten
bevel lock knob.
■ Place a combination square against the turning table and the flat
part of saw blade.
NOTE: Make sure that the square contacts the flat part of the saw
blade, not the blade teeth.
■ Rotate the blade by hand and check the blade-to-table alignment
at several points.
■ The edge of the square and the saw blade should be parallel as
shown in figure 13.
■ If the top or bottom of the saw blade angles away from the square
as shown in figure 14, adjustments are needed.
■ Loosen the bevel lock knob.
■ Adjust 0° bevel stop screw to bring saw blade into alignment with
the square. See 0° Bevel Adjustment in the Adjustments section.
■ Retighten bevel lock knob. Recheck blade-to-table alignment.
To square the blade at 45°:
■ Loosen the bevel lock knob and set the saw arm at 45° bevel.
Tighten bevel lock knob.
NOTE: To obtain right bevel angles, pull the single/ dual bevel
selector out and tilt the saw to the desired angle.
■ Using a combination square, check the blade-to-table alignment
as described earlier.
■ If adjustments are needed, refer to 45° Bevel Adjustment in the
Adjustments section.
■ The product has several scale indicators. After squaring
adjustments have been made, it may be necessary to loosen the
indicator screws and reset them to zero. See figures 6-7.
OPERATION
WARNING! Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a second is suicient
to inflict severe injury.
WARNING! Always wear eye protection with side shields. Failure
to do so could result in objects being thrown into your eyes, resulting
in possible serious injury.
WARNING! Do not use any attachments or accessories not
recommended by the manufacturer of the product. The use of
attachments or accessories not recommended can result in serious
personal injury.
WARNING! To avoid serious personal injury, always push the
mitre lock lever down and tighten the bevel lock knob securely before
making a cut. Failure to do so could result in movement of the control
arm or turning table while making a cut.
20
20
WARNING! Do not start the product without checking for
interference between the blade and the mitre fence. Damage could
result to the blade if it strikes the mitre fence during operation of
the product. Failure to heed this warning can also result in serious
personal injury.
INSTALLING/REMOVING THE BATTERY PACK
See figure 15.
■ Place the battery pack in the product. Align the raised rib on the
battery pack with the groove inside the saw, then slide the battery
pack into the product.
■ Make sure the latches on each side of the battery pack snap into
place and the battery pack is secured in the saw before beginning
operation.
■ Depress the latches to remove the battery pack.
■ For complete charging instructions, see the operator’s manuals
for your battery pack and charger.
WARNING! Always remove battery pack from the product when
you are assembling parts, making adjustments, cleaning, or when not
in use. Removing battery pack will prevent accidental starting that
could cause serious personal injury.
REPLACING THE BLADE
See figure 16.
WARNING! Before removing and fitting the blade, make sure to
wear safety gloves.
WARNING! A 184 mm (7-1/4 in.) blade is the maximum blade
capacity of the product. Never use a blade that is too thick to allow
outer flange to engage with the flats on the spindle. Larger blades
will come in contact with the blade guards, while thicker blades will
prevent the blade bolt from securing the blade on the spindle. Either
of these situations could result in a serious accident and can cause
serious personal injury.
WARNING! Only use the blade specified in this manual and its
speed is at least equal to the speed marked on the product.
■ Remove the battery pack from the product.
■ Raise saw arm.
■ Rotate lower blade guard up and loosen blade bolt cover screw.
Slide blade bolt cover towards upper blade guard to expose the
blade bolt.
■ Depress the spindle lock button and rotate the blade bolt until
the spindle locks.
■ Using the blade wrench provided, loosen and remove the blade
bolt.
NOTE: The blade bolt has left hand threads. Turn blade bolt
clockwise to loosen.
■ Remove the outer flange. Wear gloves. Remove the blade. Wear
gloves when handling the saw blade.
■ Wipe a drop of oil onto the inner flange and the outer flange
where they contact the blade.
WARNING! If inner flange has been removed, replace it before
placing blade on spindle. Failure to do so could cause an accident
since blade will not tighten properly.
■ Wear gloves. Fit saw blade inside upper blade guard and onto
spindle. The blade teeth point downward at the front of saw as
shown in figure 16.
■ Replace the outer flange. The double “D” flats on the blade
washers align with the flats on the spindle.
■ Depress spindle lock button and replace blade bolt.
NOTE: The blade bolt has left hand threads. Turn blade bolt
counterclockwise to tighten.
WARNING! Always install the blade with the blade teeth and the
arrow printed on the side of the blade pointing down at the front of
the saw. The direction of blade rotation is also stamped with an arrow
on the upper blade guard.
■ Tighten blade bolt securely.
■ Replace blade bolt cover and tighten blade bolt cover screw
securely.
■ Lower the blade guard.
■ Raise and lower the saw arm to ensure lower blade guard
functions correctly.
USING THE DEPTH GUIDE
See figure 17.
When used, the depth guide limits the downward travel of the blade
when cutting dadoes and other non-through cuts.
To use the depth guide:
■ Remove the battery pack from the product.
■ Rotate the depth stop outward.
■ With the depth control knob touching the depth stop, adjust the
depth control knob by turning the knob until the desired depth
of cut is attained.
■ Rotate the depth stop inward for normal through cuts.
NOTE: The depth stop must be pushed in before locking/
unlocking the saw arm.
LOCKING / UNLOCKING THE SAW ARM
See figure 18.
When locking and unlocking the saw arm, it is not necessary to loosen
the depth control knob, however the depth stop must be pushed in.
To unlock and raise the saw arm:
■ Firmly grasp the “D” handle and apply downward pressure while
at the same time pulling the head lock pin out and away from the
saw housing.
■ Raise the saw arm.
To lock the saw arm:
■ Firmly grasp the “D” handle and apply downward pressure until
head stops. Push in the head lock pin towards the saw allowing it
to lock the saw into place.
CUTTING WITH THE PRODUCT
WARNING! Secure the workpiece to the mitre saw base. Use
the clamp provided and, where necessary, use additional clamps
or holding mechanisms to prevent unintentional movement of the
workpiece while cutting.
WARNING! Never move the workpiece or make adjustment to
any cutting angle while the saw is running and the blade is rotating.
Any slip can result in contact with the blade causing serious personal
injury.
WARNING! Do not try to cut narrow pieces using the sliding
feature. Failure to heed this warning could result in serious personal
injury.
LED LIGHTING SYSTEM
See figure 19.
The LED lighting system casts the shadow of the blade onto the
workpiece. This results in greater accuracy of cuts and requires no
adjustments.
■ To use this feature, press the LED button. The LED light will
automatically turn off after 15 seconds.
NOTE: The LED light will automatically turn on when the switch
trigger is depressed.
■ Bring the saw arm down so that the blade is approximately 6.3
mm (1/4 in.) from the workpiece. The shadow of the blade will be
projected onto the workpiece, indicating where the blade teeth
will make contact as the cut is made.
Mitre 0°/ Bevel 0° 55 mm × 190 mm
Mitre 0°/ Bevel 45° (R) 19.1 mm × 190 mm
Mitre 0°/ Bevel 45° (L) 38.1 mm × 190 mm
Mitre 45°/ Bevel 0° 55 mm × 140 mm
Mitre 45°/ Bevel 45° (R) 19.1 mm × 140 mm
Mitre 45°/ Bevel 45° (L) 38.1 mm × 140 mm
21
21
TO SLIDE CUT
See figures 20-21.
WARNING! Never make a cut by pulling the saw towards you as
the blade can climb on top of the workpiece and come towards you.
Failure to heed this warning could result in serious personal injury.
■ The sliding feature will cut workpieces up to 190 mm wide x
55 mm thick.
■ With the saw off, pull the saw arm forward. Press and hold the lock-
off button. Squeeze the switch trigger (let blade reach maximum
speed), then push the blade down on top of the workpiece then
back towards the rear of the saw to make a cut. Cuts are made
by: pushing the saw blade away from you and towards the bevel
scale at the back of the saw, stopping when the full rear position
has been reached after each cut. When the saw is running (turned
on), never pull the saw blade towards you or towards the front
of the saw.
■ Raise saw arm to its full height.
■ Push the mitre lock lever down to secure the turning table.
■ Place the workpiece flat on the turning table securely against
the fence. If the board is warped, place the convex side against
the fence. If the concave edge of a board is placed against the
fence, the board could collapse on the blade at the end of the cut,
jamming the blade. See figures 33 - 34.
■ When cutting long pieces of lumber or molding, support the
opposite end of the stock with a roller stand or with a work surface
level with the saw table. See figure 27.
■ Align the cutting line on the workpiece with the edge of saw blade.
■ Loosen the sliding lock knob by turning the knob counterclockwise.
■ Press the LED button to project the blade’s shadow onto the
workpiece.
■ Grasp the stock firmly with one hand and secure it against the
fence. Use the work clamp or a C-clamp (not included) to secure
the workpiece when possible.
■ Before turning on the saw, perform a dry run of the cutting
operation to make sure that no problems will occur when the cut
is made.
■ With the saw off, grasp the saw handle firmly then pull the saw
forward until the blade arbor (centre of the saw blade) is over the
front of the workpiece.
■ Press and hold the lock-off button. Squeeze the switch trigger
and allow several seconds for the blade to reach maximum speed.
■ Slowly lower the blade into and through the front edge of the
workpiece.
■ Push the saw handle away from you and towards the bevel scale
at the back of the saw.
■ Release the switch trigger and allow the saw blade to stop
rotating before raising the blade out of workpiece and removing
the workpiece from turning table.
TO MAKE NON-SLIDING CUTS
WARNING! Securely tighten the sliding lock knob when making
any non-sliding cuts. Failure to tighten the knob could result in the
saw head moving during the cutting operation.
TO MITRE CUT / CROSS CUT
See figures 22 - 23.
A cross cut is made by cutting across the grain of the workpiece. A
straight cross cut is made with the turning table set at the 0° position.
Mitre cross cuts are made with the turning table set at some angle
other than zero.
■ Slide the saw head to its most rearward position and tighten the
sliding lock knob securely.
■ Pull out the head lock pin and lift saw arm to its full height.
■ Lift the mitre lock lever, then depress and hold the mitre detent
release button to release the turning table.
■ Rotate the control arm until the scale indicator aligns with the
desired angle on the mitre scale.
■ Release the mitre detent release button, then push the mitre lock
lever down to secure the turning table.
NOTE: You can quickly locate 0°, 15°, 22.5°, 31.6°, and 45° left or
right by releasing the mitre detent release button as you rotate
the control arm. The control arm will seat itself in one of the
positive stop notches, located in the turning table base.
■ Place the workpiece flat on the turning table securely against
the fence. If the board is warped, place the convex side against
the fence. If the concave edge of a board is placed against the
fence, the board could collapse on the blade at the end of the cut,
jamming the blade. See figures 33 - 34.
■ When cutting long pieces of lumber or molding, support the
opposite end of the stock with a roller stand or with a work surface
level with the saw table. See figure 27.
■ Align cutting line on the workpiece with the edge of saw blade
or LED shadow.
■ Secure the stock against the fence firmly. Use the work clamp or
a C-clamp (not included) to secure the workpiece when possible.
■ Before turning on the saw, perform a dry run of the cutting
operation to make sure that no problems will occur when the cut
is made.
■ Grasp the saw handle firmly. Press and hold the lock-off button.
Squeeze the switch trigger. Allow several seconds for the blade to
reach maximum speed.
■ Slowly lower the blade into and through the workpiece.
■ Release the switch trigger and allow the saw blade to stop
rotating before raising the blade out of workpiece and removing
the workpiece from the turning table.
TO BEVEL CUT
See figures 24 - 25.
A bevel cut is made by cutting across the grain of the workpiece with
the blade angled to the workpiece. A straight bevel cut is made with
the turning table set at the zero degree position and the blade set at
an angle between 0° and 48°.
NOTE: It may be necessary to adjust or remove the sliding fence
or fence extension to insure proper clearance prior to making the
cut. To adjust or remove the sliding fence, loosen the sliding fence
adjustment knob. Once the desired position of the sliding fence is
determined, tighten the sliding fence adjustment knob to secure the
sliding fence.
■ Slide the saw head to its most rearward position and tighten the
sliding lock knob securely.
■ Pull out the head lock pin and lift saw arm to its full height.
■ Lift the mitre lock lever, then depress and hold the mitre detent
release button to release the turning table.
■ Rotate the control arm until the scale indicator aligns with zero
on the mitre scale.
■ Release the mitre detent release button, then push the mitre lock
lever down to secure the turning table.
■ Loosen the bevel lock knob and move the saw arm to the desired
left bevel angle.
NOTE: To obtain right bevel angles, pull the single/ dual bevel
selector out and tilt the saw to the desired right bevel angle.
■ Left and right bevel angles can be set from 0° to 48°.
NOTE: Use the bevel stop turret to locate 33.9°, 45°, and 48° bevel
angles. See figure 25.
■ Once the saw arm has been set at the desired angle, securely
tighten the bevel lock knob.
■ Place the workpiece flat on the turning table securely against
the fence. If the board is warped, place the convex side against
the fence. If the concave edge of a board is placed against the
fence, the board could collapse on the blade at the end of the cut,
Mitre 0°/ Bevel 0° 55 mm × 190 mm
Mitre 0°/ Bevel 45° (R) 19.1 mm × 190 mm
Mitre 0°/ Bevel 45° (L) 38.1 mm × 190 mm
Mitre 45°/ Bevel 0° 55 mm × 140 mm
Mitre 45°/ Bevel 45° (R) 19.1 mm × 140 mm
Mitre 45°/ Bevel 45° (L) 38.1 mm × 140 mm
22
22
CUTTING COMPOUND MITRES
To aid in making the correct settings, the compound angle setting chart below has been provided. Since compound cuts are the most diicult to
accurately obtain, trial cuts should be made in scrap material, and much thought and planning made, prior to making your required cut.
Pitch of side
Number of sides
4 5 6 7 8 9 10
0°
M- 45.00°
B- 0.00°
M- 36.00°
B- 0.00°
M- 30.00°
B- 0.00°
M- 25.71°
B- 0.00°
M- 22.50°
B- 0.00°
M- 20.00°
B- 0.00°
M- 18.00°
B- 0.00°
5°
M- 44.89°
B- 3.53°
M- 35.90°
B- 2.94°
M- 29.91°
B- 2.50°
M- 25.63°
B- 2.17°
M- 22.42°
B- 1.91°
M- 19.93°
B- 1.71°
M- 17.94°
B- 1.54°
10°
M- 44.56°
B- 7.05°
M- 35.58°
B- 5.86°
M- 29.62°
B- 4.98°
M- 25.37°
B- 4.32°
M- 22.19°
B- 3.81°
M- 19.72°
B- 3.40°
M- 17.74°
B- 3.08°
15°
M- 44.01°
B- 10.55°
M- 35.06°
B- 8.75°
M- 29.15°
B- 7.44°
M- 24.95°
B- 6.45°
M- 21.81°
B- 5.68°
M- 19.37°
B- 5.08°
M- 17.42°
B- 4.59°
20°
M- 43.22°
B- 14.00°
M- 34.32°
B- 11.60°
M- 28.48°
B- 9.85°
M- 24.35°
B- 8.53°
M- 21.27°
B- 7.52°
M- 18.88°
B- 6.72°
M- 16.98°
B- 6.07°
25°
M- 42.19°
B- 17.39°
M- 33.36°
B- 14.38°
M- 27.62°
B- 12.20°
M- 23.56°
B- 10.57°
M- 20.58°
B- 9.31°
M- 18.26°
B- 8.31°
M- 16.41°
B- 7.50°
30°
M- 40.89°
B- 20.70°
M- 32.18°
B- 17.09°
M- 26.57°
B- 14.48°
M- 22.64°
B- 12.53°
M- 19.73°
B- 11.03°
M- 17.50°
B- 9.85°
M- 15.72°
B- 8.89°
35°
M- 39.32°
B- 23.93°
M- 30.76°
B- 19.70°
M- 25.31°
B- 16.67°
M- 21.53°
B- 14.41°
M- 18.74°
B- 12.68°
M- 16.60°
B- 11.31°
M- 14.90°
B- 10.21°
40°
M- 37.45°
B- 27.03°
M- 29.10°
B- 22.20°
M- 23.86°
B- 18.75°
M- 20.25°
B- 16.19°
M- 17.60°
B- 14.24°
M- 15.58°
B- 12.70°
M- 13.98°
B- 11.46°
45°
M- 35.26°
B- 30.00°
M- 27.19°
B- 24.56°
M- 22.21°
B- 20.70°
M- 18.80°
B- 17.87°
M- 16.32°
B- 15.70°
M- 14.43°
B- 14.00°
M- 12.94°
B- 12.62°
50°
M- 32.73°
B- 32.80°
M- 25.03°
B- 26.76°
M- 20.36°
B- 22.52°
M- 17.20°
B- 19.41°
M- 14.91°
B- 17.05°
M- 13.17°
B- 15.19°
M- 11.80°
B- 13.69°
55°
M- 29.84°
B- 35.40°
M- 22.62°
B- 28.78°
M- 18.32°
B- 24.18°
M- 15.44°
B- 20.82°
M- 13.36°
B- 18.27°
M- 11.79°
B- 16.27°
M- 10.56°
B- 14.66°
60°
M- 26.57°
B- 37.76°
M- 19.96°
B- 30.60°
M- 16.10°
B- 25.66°
M- 13.54°
B- 22.07°
M- 11.70°
B- 19.35°
M- 10.31°
B- 17.23°
M- 9.23°
B- 15.52°
65°
M- 22.91°
B- 39.86°
M- 17.07°
B- 32.19°
M- 13.71°
B- 26.95°
M- 11.50°
B- 23.16°
M- 9.93°
B- 20.29°
M- 8.74°
B- 18.06°
M- 7.82°
B -16.26°
70°
M- 18.88°
B- 41.64°
M- 13.95°
B- 33.53°
M- 11.17°
B- 28.02°
M- 9.35°
B- 24.06°
M- 8.06°
B- 21.08°
M- 7.10°
B- 18.75°
M- 6.34°
B- 16.88°
75°
M- 14.51°
B- 43.08°
M- 10.65°
B- 34.59°
M- 8.50°
B- 28.88°
M- 7.10°
B- 24.78°
M- 6.12°
B- 21.69°
M- 5.38°
B- 19.29°
M- 4.81°
B- 17.37°
80°
M- 9.85°
B- 44.14°
M- 7.19°
B- 35.37°
M- 5.73°
B- 29.50°
M- 4.78°
B- 25.30°
M- 4.11°
B- 22.14°
M- 3.62°
B- 19.68°
M- 3.23°
B- 17.72
85°
M- 4.98°
B- 44.78°
M- 3.62°
B- 35.84°
M- 2.88°
B- 29.87°
M- 2.40°
B- 25.61°
M- 2.07°
B- 22.41°
M- 1.82°
B- 19.92°
M- 1.62°
B- 17.93°
90°
M- 0.00°
B- 45.00°
M- 0.00°
B- 36.00°
M- 0.00°
B- 30.00°
M- 0.00°
B- 25.71°
M- 0.00°
B- 22.50°
M- 0.00°
B- 20.00°
M- 0.00°
B- 18.00°
Each B (Bevel) and M (Miter) Setting is given to the closest 0.005°.
23
23
jamming the blade. See figures 33 - 34.
■ When cutting long pieces of lumber or molding, support the
opposite end of the stock with a roller stand or with a work surface
level with the saw table. See figure 25.
■ Align cutting line on the workpiece with the edge of saw blade.
■ Press the LED button to project the blade’s shadow onto the
workpiece.
■ Secure the stock against the fence firmly. Use the work clamp or
a C-clamp (not included) to secure the workpiece when possible.
■ Before turning on the saw, perform a dry run of the cutting
operation to make sure that no problems will occur when the cut
is made.
■ Grasp the saw handle firmly. Press and hold the lock-off button.
Squeeze the switch trigger. Allow several seconds for the blade to
reach maximum speed.
■ Slowly lower the saw blade into and through the workpiece.
■ Release the switch trigger and allow the saw blade to stop
rotating before raising the blade out of workpiece and removing
the workpiece from the turning table.
TO COMPOUND MITRE CUT
See figure 26.
A compound mitre cut is a cut made using a mitre angle and a bevel
angle at the same time. This type of cut is used to make picture
frames, cut molding, make boxes with sloping sides, and for certain
roof framing cuts.
To make this type of cut the control arm on the turning table must
be rotated to the correct angle and the saw arm must be tilted to
the correct bevel angle. Care should always be taken when making
compound mitre setups due to the interaction of the two angle
settings.
Adjustments of mitre and bevel settings are interdependent with one
another. Each time you adjust the mitre setting you change the eect
of the bevel setting. Also, each time you adjust the bevel setting you
change the eect of the mitre setting.
It may take several settings to obtain the desired cut. The first angle
setting should be checked after setting the second angle, since
adjusting the second angle aects the first.
Once the two correct settings for a particular cut have been obtained,
always make a test cut in scrap material before making a finish cut in
good material.
NOTE: It may be necessary to adjust or remove the sliding fence or
fence extension to insure proper clearance prior to making the cut.
■ Slide the saw head to its most rearward position and tighten the
sliding lock knob securely.
■ Pull out the head lock pin and lift saw arm to its full height.
■ Lift the mitre lock lever and depress the mitre detent release
button to release the turning table.
■ Rotate the control arm until the scale indicator aligns with the
desired angle on the mitre scale.
■ Release the mitre detent release button, then push the mitre lock
lever down to secure the turning table.
■ Loosen the bevel lock knob and move the saw arm to the desired
left bevel angle.
NOTE: To obtain right bevel angles, pull the single/ dual bevel
selector out and tilt the saw to the desired right bevel angle.
■ Left and right bevel angles can be set from 0° to 48°.
NOTE: Use the bevel stop turret to locate 33.9°, 45°, and 48° bevel
angles. See figure 25.
■ Once the saw arm has been set at the desired angle, securely
tighten the bevel lock knob.
■ Recheck mitre angle setting. Make a test cut in scrap material.
■ Place the workpiece flat on the turning table securely against
the fence. If the board is warped, place the convex side against
the fence. If the concave edge of a board is placed against the
fence, the board could collapse on the blade at the end of the cut,
jamming the blade. See figures 33 - 34.
■ When cutting long pieces of lumber or molding, support the
opposite end of the stock with a roller stand or with a work surface
level with the saw table. See figure 27.
■ Align cutting line on the workpiece with the edge of saw blade.
■ Press the LED button to project the blade’s shadow onto the
workpiece.
■ Secure the stock against the fence firmly. Use the work clamp or
a C-clamp (not included) to secure the workpiece when possible.
■ Before turning on the saw, perform a dry run of the cutting
operation to make sure that no problems will occur when the cut
is made.
■ Grasp the saw handle firmly. Press and hold the lock-off button.
Squeeze the switch trigger. Allow several seconds for the blade to
reach maximum speed.
■ Slowly lower the blade into and through the workpiece.
■ Release the switch trigger and allow the saw blade to stop
rotating before raising the blade out of workpiece and removing
the workpiece from the turning table.
TO SUPPORT LONG WORKPIECES
See figure 27.
Long workpieces need extra supports. Supports should be placed
along the workpiece so it does not sag. The support should let the
workpiece lay flat on the base of the saw and turning table during the
cutting operation. Use the work clamp or C-clamp (not included) to
secure the workpiece.
TO CLAMP WIDE WORKPIECES
See figure 28.
When cutting wide workpieces, boards should be clamped with the
work clamp or C-clamp (not included).
ROUGH CUTTING A DADO
See figure 29.
Using a wood chisel and the depth guide, it is possible to make a
rough dado cut. The marks on the depth guide are to be used for
reference only. Always make a practice cut on scrap wood.
To use the depth guide:
■ Remove the battery pack from the product.
■ Rotate the depth stop outward. See figure 17.
■ With the depth control knob touching the depth stop, adjust the
depth control knob by turning the knob until the desired depth
of cut is attained.
■ A wooden spacer must be placed between the workpiece and
the fence to create a distance of 63.5 mm (2-1/2 inches)between
the workpiece and the fence for a consistent depth of cut in the
workpiece. Use the work clamp to clamp the spacer and another
suitable clamp to clamp the workpiece. Make the slide cut at the
desired depth.
■ Rotate the depth stop inward for normal through cuts.
NOTE: The depth stop must be pushed in before locking/
unlocking the saw arm.
To make the cut:
■ Unlock the sliding lock knob.
■ Raise the saw arm to its full height.
■ With the saw off, pull the saw arm forward. Press and hold the
lock-off button. Squeeze the switch trigger (let blade reach
maximum speed). Then, push the saw blade down on top of the
24
24
workpiece then back towards the rear of the saw to make a cut.
■ Cut two outside grooves in the workpiece.
■ Using a wood chisel, remove the material between the two
outside grooves.
CUTTING CROWN MOLDING
The product does an excellent job of cutting crown molding. In
general, the products do a better job of cutting crown molding than
any other tool made.
In order to fit properly, crown molding must be compound mitred with
extreme accuracy.
The two contact surfaces on a piece of crown molding that fit flat
against the ceiling and the wall of a room are at angles that, when
added together, equal exactly 90°. Most crown molding has a top rear
angle (the section that fits flat against the ceiling) of 52° and a bottom
rear angle (the section that fits flat against the wall) of 38°.
LAYING MOLDING FLAT ON THE TURNING TABLE
See figure 30.
To use this method for accurately cutting crown molding for a 90°
inside or outside corner, lay the molding with its broad back surface
flat on the turning table and against the fence.
When setting the bevel and mitre angles for compound mitres,
remember that the settings are interdependent; changing one angle
changes the other angle as well.
Keep in mind that the angles for crown moldings are very precise
and diicult to set. Since it is very easy for these angles to shift, all
settings should first be tested on scrap molding. Also most walls do
not have angles of exactly 90°, therefore, you will need to fine tune
your settings.
When cutting crown molding by this method the bevel angle should
be set at 33.9°. The bevel stop turret can be used to set the bevel
angle to 33.9°. The mitre angle should be set at 31.6° either right or
left, depending on the desired cut for the application. See the chart
below for correct angle settings and correct positioning of crown
molding on turning table.
The settings in the chart below can be used for cutting crown molding
with 52° and 38° angles or 45° and 45° angles. The crown molding is
placed flat on the turning table using the compound features of the
product.
Type of
crown
molding
Bevel angle
type of cut
Setting
38
o
33.9
o
(Left) Left side of inside corner
1. Top edge of molding against fence
2. Turning table set right 31.6
o
3. Save left end of cut
38
o
33.9
o
(Left) Right side of inside corner
1. Bottom edge of molding against
fence
2. Turning table set left 31.6
o
3. Save left end of cut
38
o
33.9
o
(Left) Left side of outside corner
1. Bottom edge of molding against
fence
2. Turning table set left 31.6
o
3. Save right end of cut
38
o
33.9
o
(Left) Right side of outside corner
1. Top edge of molding against fence
2. Turning table set right 31.6
o
3. Save right end of cut
38
o
33.9
o
(Right) Left side of inside corner
1. Bottom edge of molding against
fence
2. Turning table set right 31.6
o
3. Save right end of cut
38
o
33.9
o
(Right) Right side of inside corner
1. Top edge of molding against fence
2. Turning table set left 31.6
o
3. Save right end of cut
38
o
33.9
o
(Right) Left side of outside corner
1. Top edge of molding against fence
2. Turning table set left 31.6
o
3. Save left end of cut
38
o
33.9
o
(Right) Right side of outside corner
1. Bottom edge of molding against
fence
2. Turning table set right 31.6
o
3. Save left end of cut
45
o
30
o
(Left) Left side of inside corner
1. Top edge of molding against fence
2. Turning table set right 35.3
o
3. Save left end of cut
45
o
30
o
(Left) Right side of inside corner
1. Bottom edge of molding against
fence
2. Turning table set left 35.3
o
3. Save left end of cut
45
o
30
o
(Left) Left side of outside corner
1. Bottom edge of molding against
fence
2. Turning table set left 35.3
o
3. Save right end of cut
45
o
30
o
(Left) Right side of outside corner
1. Top edge of molding against fence
2. Turning table set right 35.3
o
3. Save right end of cut
45
o
30
o
(Right) Left side of inside corner
1. Bottom edge of molding against
fence
2. Turning table set right 35.3
o
3. Save right end of cut
45
o
30
o
(Right) Right side of inside corner
1. Top edge of molding against fence
2. Turning table set left 35.3
o
3. Save right end of cut
45
o
30
o
(Right) Left side of outside corner
1. Top edge of molding against fence
2. Turning table set left 35.3
o
3. Save left end of cut
45
o
30
o
(Right) Right side of outside corner
1. Bottom edge of molding against
fence
2. Turning table set right 35.3
o
3. Save left end of cut
25
25
NESTING CROWN MOLDING AGAINST THE MITRE FENCE
See figures 31 - 32.
To nest pieces of crown molding less than 89 mm (3-1/2 in.) tall:
■ Set the bevel angle at 0° and the mitre angle at 45° to either the
left or the right.
■ Lay the crown molding on the saw with its bottom edge resting
at a natural angle flush against the fence and its top edge resting
flush against the turning table, this is called “nesting”.
■ Nest and secure the crown molding against mitre fence using a
spring clamp (not included) and hold crown molding securely.
■ Before turning on the saw, perform a dry run of the cutting
operation to make sure that no problems will occur when the cut
is made.
■ Grasp the saw handle firmly. Press and hold the lock-off button.
Squeeze the switch trigger. Allow several seconds for the blade to
reach maximum speed.
■ Slowly lower the blade into and through the crown molding.
■ Release the switch trigger and allow the saw blade to stop
rotating before raising the blade out of the crown molding and
removing the crown molding from the turning table.
CUTTING WARPED MATERIAL
See figures 33 - 34.
When cutting warped material, always make sure it is positioned on
the turning table with the convex side against the fence as shown in
figure 34.
If the warped material is positioned the wrong way as shown in figure
33, it will pinch the blade near the completion of the cut.
WARNING! To avoid kickback and to avoid serious personal
injury, never position the concave edge of bowed or warped material
against the fence.
ADJUSTMENTS
WARNING! To prevent accidental starting that could cause
serious personal injury, always remove the battery pack from the
product when making adjustments.
The product has been adjusted at the factory for making very accurate
cuts. However, some of the components might have been jarred out of
alignment during shipping. Also, over a period of time, readjustment
will probably become necessary due to wear. After unpacking the saw,
check the following adjustments before you begin using saw. Make
any readjustments that are necessary and periodically check the parts
alignment to make sure that the saw is cutting accurately.
PIVOT ADJUSTMENTS
NOTE: These adjustments were made at the factory and normally do
not require readjustment.
TRAVEL PIVOT ADJUSTMENT
■ The saw arm should rise completely to the up position by itself.
■ If the saw arm does not raise by itself or if there is play in the
pivot joints, have saw repaired at your nearest authorised service
centre.
TO ADJUST THE BEVEL PIVOT
The product should bevel easily by loosening the bevel lock
knob and tilting the saw.
NOTE: To obtain right bevel angles, pull the single/ dual bevel
selector out and tilt the saw to the desired angle.
If movement is tight or if there is play in the pivot, have saw repaired
at your nearest authorised service centre.
45° BEVEL ADJUSTMENT
See figure 35.
■ Remove the battery pack from the product.
■ Loosen the bevel lock knob and set the saw arm at 45° bevel.
NOTE: To obtain right bevel angles, pull the single/ dual bevel
selector out and tilt the saw to the desired angle.
■ Check the accuracy of the blade to the turning table as described
in the Assembly section of this manual.
■ If the blade is out of 45° bevel accuracy, adjust by tightening or
loosening the bevel stop adjustment screw.
■ Retighten bevel lock knob and push single/ dual bevel selector in.
Recheck blade-to-table alignment.
NOTE: The above procedure can be used to check the accuracy
of the saw blade to the turning table at both left and right 45°
angles.
Your saw has several scale indicators. After squaring adjustments
have been made, it may be necessary to loosen the indicator screws
and reset them to zero. See figures 6-7.
0° BEVEL ADJUSTMENT
See figure 36.
NOTE: These adjustments were made at the factory and normally do
not require readjustment.
■ Remove the battery pack from the product.
■ Loosen the bevel lock knob by turning the knob counterclockwise.
■ Square the saw blade to the turning table as described in the
Assembly section of this manual.
■ If the saw blade is out of square, adjust by tightening or loosening
the 0° bevel stop screw using the 3 mm leg (short leg) of a hex
key.
■ Retighten bevel lock knob. Recheck blade-to-table alignment.
Your saw has several scale indicators. After squaring adjustments
have been made, it may be necessary to loosen the indicators screws
and reset them to zero. See figures 6-7.
TO ADJUST THE MITRE ANGLE
■ Loosen the sliding fence adjustment knob. Remove the sliding
fence.
■ Loosen the 4 screws for adjusting mitre angle on the fixed fence.
Ensure that the fixed fence can be moved.
■ Lay a framing square flat on the turning table. Place one leg of the
square against the fixed fence. Slide the other leg of the square
against the flat part of the saw blade.
NOTE: Make sure that the square contacts the flat part of the saw
blade, not the blade teeth.
■ Adjust the fixed fence until the flat part of saw blade and the edge
of the framing square are parallel.
■ Tighten the 4 screws for adjusting mitre angle on the fixed fence.
■ Install the sliding fence. Tighten the sliding fence adjustment
knob securely.
REMOVING/REPLACING THE ADJUSTABLE THROAT PLATES
See figures 37 - 38.
When squaring the saw blade, it may be necessary to move the throat
plates away from the saw blade. Once the saw’s alignment has been
confirmed, return the throat plates to their original position. Never
operate the saw without the throat plates installed.
■ Remove the battery pack from the product.
■ Using the blade wrench provided, loosen the screws securing the
right side of the adjustable throat plate.
NOTE: The throat plate may be adjusted to (near) zero clearance to
support thin materials.
■ Slide the throat plate away from the blade as far as possible.
■ Retighten the screws, being careful not to overtighten which can
cause the throat plate to bow or bend.
26
26
■ Repeat the above steps for the left side of the throat plate.
TO ADJUST THE MITRE LOCK LEVER
See figures 37 - 38.
In the locked position, the mitre lock lever should feel tight and secure,
and considerable eort should be required to move the turning table.
If the mitre lock lever feels loose or the table moves easily when in
the locked and unindexed position, an adjustment to the mitre lock
lever is required.
To adjust:
■ Remove the battery pack from the product.
■ Lift the mitre lock lever.
■ Remove the screws securing the throat plates, remove both
throat plates and set aside.
■ Locate the lock nut and tensioning nut.
■ Using a blade wrench, loosen the lock nut and adjust the
tensioning nut until the proper amount of tension in the lock lever
is attained.
Be sure to disconnect the product from the power supply before
attaching or removing the saw blade.
TRANSPORTATION AND STORAGE
When storing the product, remove the battery pack. Store the product
in a secure place that is not accessible to children.
Clean the product using a brush and vacuum cleaner before storage.
If you remove the saw blade or keep spares with the unit, ensure they
are in the original packaging to prevent injury.
To secure the product prior to movement:
■ The product should be stored at the zero degree mitre and
bevel angle and locked in position. The slide should be locked.
The handle should be locked in the lower (safe) position with the
guards closed.
To move or transport in a vehicle:
■ Secure the product prior to movement as described in the manual.
■ Remove the product from the bench top by releasing the 4 bolts,
one at each corner. Secure the bolts for future use. Lifting the
product using the handle at the top.
■ When lifting to a height, two persons are needed to hold the lift
handles on each side of the saw base firmly.
■ When transporting in a vehicle, set the product on its base and
secure against movement.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legislation
requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
■ The user can transport the batteries by road without further
requirements.
■ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately.
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
■ Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
■ Ensure that battery pack is secured against movement within
packaging.
■ Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch o the machine automatically. To restart,
switch the machine o and then on again. If the machine does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
MAINTENANCE
Do not modify this saw in any way or use accessories not approved by
the manufacturer. Your safety and that of others may be compromised.
Do not use the saw if any switches, guards or other function of this
saw does not work as it is intended to. Return to an authorised service
centre for professional repair or adjustment.
Do not make any adjustments whilst the saw blade is in motion.
Removed the battery pack before making adjustments, lubricating or
when doing any maintenance on the machine.
Before and after each use, check your saw for damage or broken parts
and keep it in top working condition by replacing parts immediately
with spares approved by the manufacturer.
The blade is very hot after use, wear gloves or allow to cool before
maintenance or cleaning procedures.
Clean out accumulated dust using a brush or vacuum cleaner. Do not
use compressed air.
To assure safety and reliability, all repairs, including changing brushes,
should be performed by an authorised service centre.
WARNING!
Use only AEG accessories and spare parts. Should components need
to be replaced which have not been described, please contact one of
our AEG service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the product can be ordered. Please
state the Article No. as well as the machine type printed on the label
and order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
27
27
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797 (0800 AEGPWR)
New Zealand
SYMBOLS
Safety alert
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Please read the instructions carefully before starting
the machine.
Always wear goggles when using the machine.
Wear ear protectors.
Keep hands away from the cutting area and sharp
blade.
Do not expose to rain or use in damp locations.
LOOSEN
Loosening direction of blade bolt
40 HW
Blade teeth
1.6 mm
Width of cut
For cutting wood only
Blade rotation direction
Wear gloves
Ø20 mm
Ø184
Ø20 mm
Ø184
Arbor hole and blade size
Do not dispose of electric tools together with
household waste material! In observance of
European Directive 2002/96/EC on waste electrical
and electronic equipment and its implementation
in accordance with national law, electric tools that
have reached the end of their life must be collected
separately and returned to an environmentally
compatible recycling facility.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
20220114v4
AEG is a registered trademark used under
license from AB Electrolux (publ).
