14-1972
Date 6/20/18
11100 E. 45th Avenue • Denver , CO 80239 •WWW.iceomatic.com
SERVICE PARTS MANUAL
CIM 22 INCH WIDE SERIES
CIM0320, CIM326, CIM0520, CIM526
CIM0325 and CIM0525
CIM Service Parts Table of Contents
This parts list contains the service parts available for the following CIM Series.
CIM0320 115/60/1 CIM0325 220-240/50/1
CIM0326 208-230/60/1
CIM0520 115/60/1 CIM0525 220-240/50/1
CIM0526 208-230/60/1
Model Number Example
CIM0320H
A
CIM = Cube
r
Ice Machine
03 = 300 lb, in 24 hours capacity
2 = 22 inch wide cabine
t
0 = 115 Volt, 5 = 220-240/50/1 6 = 208-230/60/1 Volt
H = Half Cube Size, F = Full Cube Size
A
= Air Cooled Condenser, W = Water Cooled Condenser
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Page 2-3
Water System Page 4-5
Air Cooled Condenser Page 6-7
Water Cooled Condenser Page 8-9
Electrical Page 10-11
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1

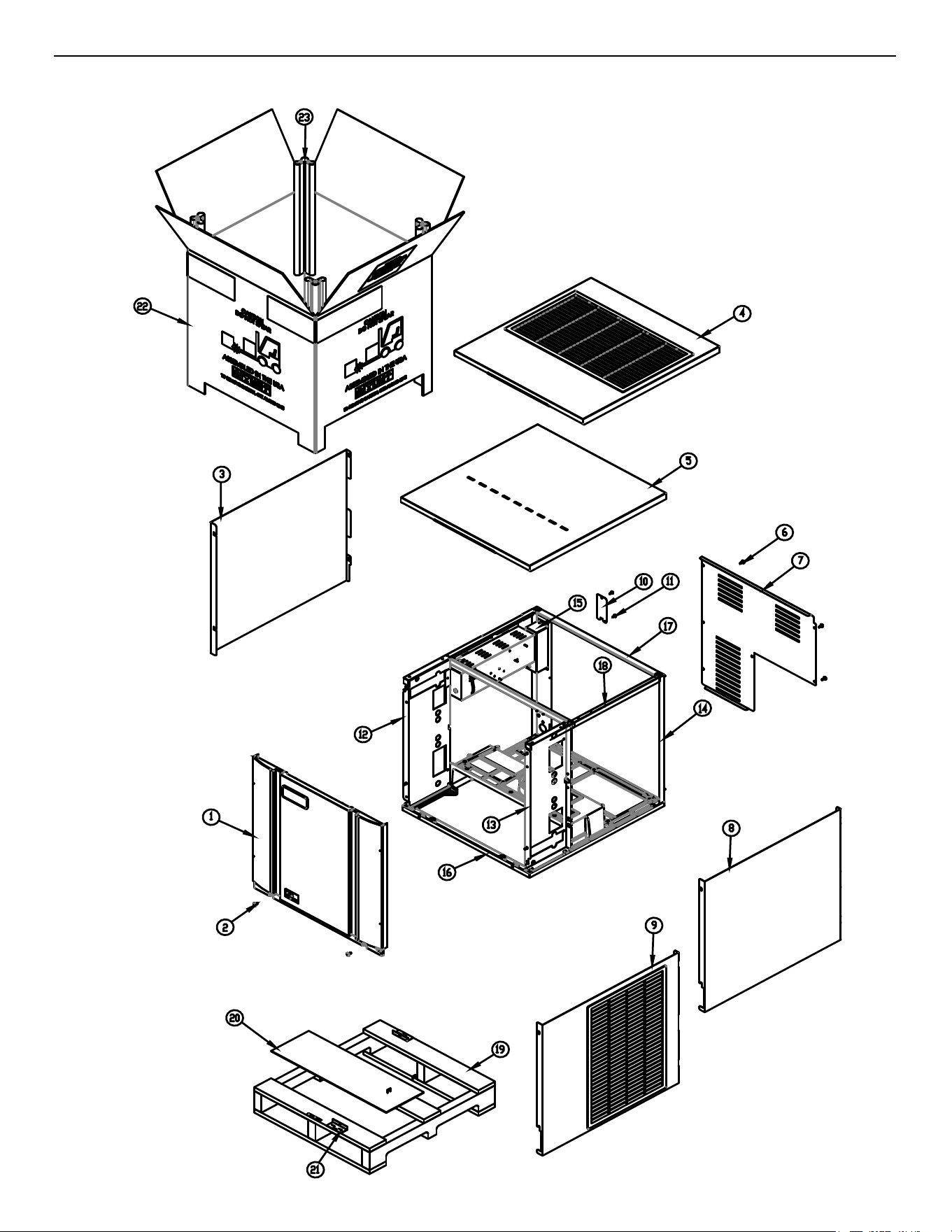

CIM Series Service Parts Cabinet
Page 2
CIM Service Parts Cabinet
Item
No. CIM0320 CIM0326 CIM0520 CIM0526 Description
1 2031543-01S
2031543-01S 2031543-01S 2031543-01S
Front Panel
2 9031237-01P 9031237-01P 9031237-01P 9031237-01P Front Panel Screws
3 3022007-02 3022007-02 3022007-02 3022007-02 Left Side Side Panel
4 2101496-01S 2101496-01S 2101496-01S 2101496-01S Top Panel-Air Cooled
5 3022012-01 3022012-01 3022012-01 3022012-01 Top Panel- Water Cooled
6 9031046-01P 9031046-01P 9031046-01P 9031046-01P Rear Cover Screws
7 3013634-01 3013634-01 3013634-01 3013634-01 Rear Cover
8 3022007-03 3022007-03 3022007-03 3022007-03 Right Side Panel-Water Cooled
9 2101495-01S 2101495-01S 2101495-01S 2101495-01S Right Side Panel-Air Cooled
10 3013674-01 3013674-01 3013674-01 3013674-01 Junction Box Cover
11 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Screw
12 2021784-01 2021784-01 2021784-01 2021784-01 Front Left Brace
13 2021785-01 2021785-01 2021785-01 2021785-01 Front Right Brace
14 2021782-01 2021782-01 2021782-01 2021782-01 Right Side Rear Corner
15 2101494-01 2101494-01 2101494-01 2101494-01 Junction Box
16 9051725-01 9051725-01 9051725-01 9051725-01 Base
17 3013636-01 3013636-01 3013636-01 3013636-01 Rear Brace
18 3013691-01 3013691-01 3013691-01 3013691-01 Top Right Framework
19 9011369-03 9011369-03 9011369-03 9011369-03 Elevation Skid 22 Inch
20 9011378-02 9011378-02 9011378-02 9011378-02 Carton Liner 22 Inch
21 9051765-01 9051765-01 9051765-01 9051765-01 Shipping Bracket 2 Req. (Field Installed)
22 9011374-01 9011374-01 9011374-01 9011374-01 Carton, Elevation 22 Inch
23 9011320-15 9011320-15 9011320-15 9011320-15 Corner Post (Each), Elevation, (4 Required)
9031026-04P 9031026-04P 9031026-04P 9031026-04P Pop Rivets Not Shown ( Package of 10)
115/60/1 208-230/60/1 115/60/1 208-230/60/1
V
oltage
Item
No.
CIM0325 CIM0525
Description
1 2031543-01S
2031543-01S
Front Panel
2 9031237-01P 9031237-01P Front Panel Screws
3 3022007-02 3022007-02 Left Side Side Panel
4 2101496-01S 2101496-01S Top Panel-Air Cooled
5
3022012-01 Top Panel- Water Cooled
6 9031046-01P 9031046-01P Rear Cover Screws
7 3013634-01 3013634-01 Rear Cover
8 3022007-03 3022007-03 Right Side Panel-Water Cooled
9 2101495-01S 2101495-01S Right Side Panel-Air Cooled
10 3013674-01 3013674-01 Junction Box Cover
11 9031046-01 9031046-01 Junction Box Screw
12 2021784-01 2021784-01 Front Left Brace
13 2021785-01 2021785-01 Front Right Brace
14 2021782-01 2021782-01 Right Side Rear Corner
15 2101494-02 2101494-02 Junction Box
16 9051725-01 9051725-01 Base
17 3013636-01 3013636-01 Rear Brace
18 3013691-01 3013691-01 Top Right Framework
19 9011369-03 9011369-03 Elevation Skid 22 Inch
20 9011378-02 9011378-02 Carton Liner 22 Inch
21 9051765-01 9051765-01 Shipping Bracket 2 Req. (Field Installed)
22 9011374-01 9011374-01 Carton, Elevation 22 Inch
23 9011320-15 9011320-15 Corner Post (Each), Elevation, (4 Required)
24 9031026-04P 9031026-04P Pop Rivets Not Shown ( Package of 10)
220-240/50/1 220-240/50/1
V
oltage
Model Number
Model Number
Page 3
3022012-01

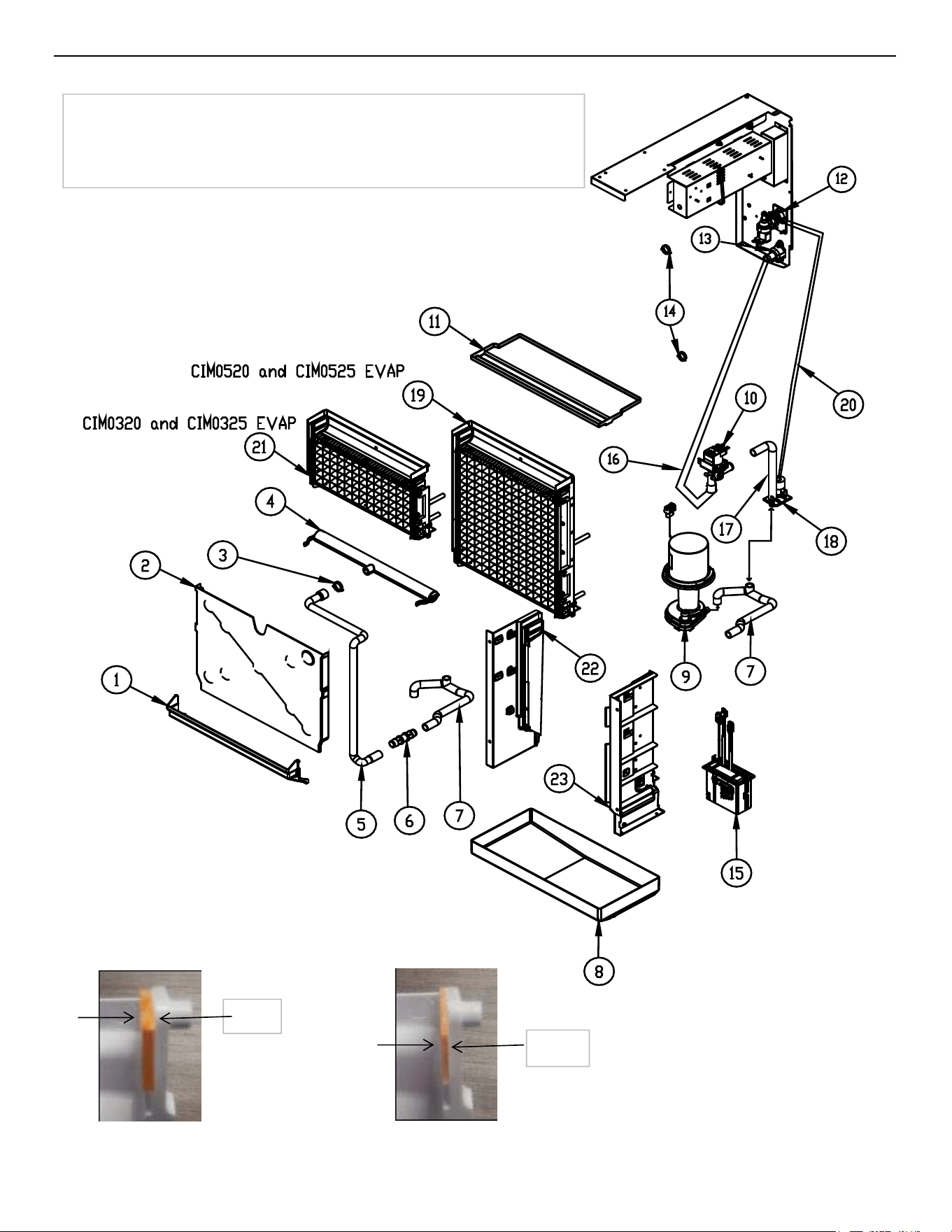

CIM Series Service Parts Water System
1051225‐01
1051225‐02
LowerCurtainDimensions
.055
.100
Note: When ordering an evaporator from Serial Number 1710 to
and including Serial Number 1802, the Lower Curtain Assembly
PN 9051736-01 must be ordered due to the evaporator plastic
configuration
Page 4
CIM Service Parts Water System
Im
p
ortant-Check the CIM Model Number and Serial Number when orderin
g
the Lower Curtain
Item
No. CIM0320 CIM0326 CIM0520 CIM0526 Description
1 9051736-01 9051736-01 9051736-01 9051736-01
Lower Curtain Assembly From SN 1803
1 1051225-02 1051225-02 1051225-02 1051225-02
Lower Curtain Assembly From SN 1801 to 1802
1 1051225-01 1051225-01 1051225-01 1051225-01
Lower Curtain Assembly From SN 1710 to1712
2 9051726-01 9051726-01 9051726-02 9051726-02 Evaporator Cover
3 9021010-05 9021010-05 9021010-05 9021010-05 Hose Clamp, Plastic
4 9051766-01 9051766-01 9051766-01 9051766-01 Water Distribution Tube Assembly
5 9051749-01 9051749-01 9051749-02 9051749-02 Water Tube, Upper
6 9091177-01 9091177-01 9091177-01 9091177-01 Coupler, Straight, 5/8 I.D. Tubing
7 9051748-01 9051748-01 9051748-01 9051748-01 Water Tube, Sump
8 9051737-01 9051737-01 9051737-01 9051737-01 Sump/Water Trough
9 2062336-01S 2062336-02S 2062336-01S 2062336-02S Water Pump
10 9041105-04 9041105-05 9041105-04 9041105-05 Purge Valve
11 9051738-01 9051738-01 9051738-01 9051738-01 Top Cover
12 9041108-01 9041108-02 9041108-01 9041108-02 Water Inlet Valve
13 9091140-01 9091140-01 9091140-01 9091140-01 Drain Fitting
14 9021010-04 9021010-04 9021010-04 9021010-04 Hose Clamp, Plastic
15 1051224-01 1051224-01 1051224-01 1051224-01 Float Switch Assembly (Includes Instructions)
16 3051269-30S 3051269-30S 3051269-30S 3051269-30S Purge Valve Tubing to Drain
17 9051541-01 9051541-01 9051541-01 9051541-01 Purge Valve Tube to Inlet Outlet Bracket
18 9051739-01 9051739-01 9051739-01 9051739-01 Inlet Outlet Bracket
19 1051223-03 1051223-03 Evaporator-FULL Cube = 7/8 x 7/8 x 7/8
19 1051223-04 1051223-04 Evaporator-HALF Cube = 3/8 x 7/8 x 7/8
20 9051270-36 9051270-36 9051270-36 9051270-36 Water Inlet Valve to Inlet Outlet Bracket Tube
21 1051223-01 1051223-01 Evaporator-FULL Cube = 7/8 x 7/8 x 7/8
21 1051223-02 1051223-02 Evaporator-HALF Cube = 3/8 x 7/8 x 7/8
22 9051729-01 9051729-01 9051729-01 9051729-01 Evaporator Support Left Hand
23 9051730-01 9051730-01 9051730-01 9051730-01 Evaporator Support Right Hand
115/60/1 208-230/60/1 115/60/1 208-230/60/1 Machine Voltage
Item Machine Voltage
No. CIM0325 CIM0525 Description
1 9051736-01 9051736-01
Lower Curtain Assembly From SN 1803
1 1051225-02 1051225-02
Lower Curtain Assembly From SN 1801 to 1802
1 1051225-01 1051225-01
Lower Curtain Assembly From SN 1710 to1712
2 9051726-01 9051726-02 Evaporator Cover
3 9021010-05 9021010-05 Hose Clamp, Plastic
4 9051766-01 9051766-01 Water Distribution Tube Assembly
5 9051749-01 9051749-02 Water Tube, Upper
6 9091177-01 9091177-01 Coupler, Straight, 5/8 I.D. Tubing
7 9051748-01 9051748-01 Water Tube, Sump
8 9051737-01 9051737-01 Sump/Water Trough
9 2062336-02S 2062336-02S Water Pump Assembly
10 9041105-05 9041105-05 Purge Valve
11 9051738-01 9051738-01 Top Cover
12 9041108-01 9041108-02 Water Inlet Valve
13 9091140-01 9091140-01 Drain Fitting
14 9021010-04 9021010-04 Hose Clamp, Plastic
15 1051224-01 1051224-01 Float Switch Assembly (Includes Instructions)
16 3051269-30S 3051269-30S Purge Valve Tubing to Drain
17 9051541-01 9051541-01 Purge Valve Tube to Inlet Outlet Bracket
18 9051739-01 9051739-01 Inlet Outlet Bracket
19 1051223-03 Evaporator-FULL Cube = 7/8 x 7/8 x 7/8
19 1051223-04 Evaporator-HALF Cube = 3/8 x 7/8 x 7/8
20 9051270-36 9051270-36 Water Inlet Valve to Inlet Outlet Bracket Tube
21 1051223-01 Evaporator-FULL Cube = 7/8 x 7/8 x 7/8
21 1051223-02 Evaporator-HALF Cube = 3/8 x 7/8 x 7/8
22 9051729-01 9051729-01 9051729-01 9051729-01 Evaporator Support Left Hand
23 9051730-01 9051730-01 9051730-01 9051730-01 Evaporator Support Right Hand
Model Number
Model Number 220-240/50/1
Page 5

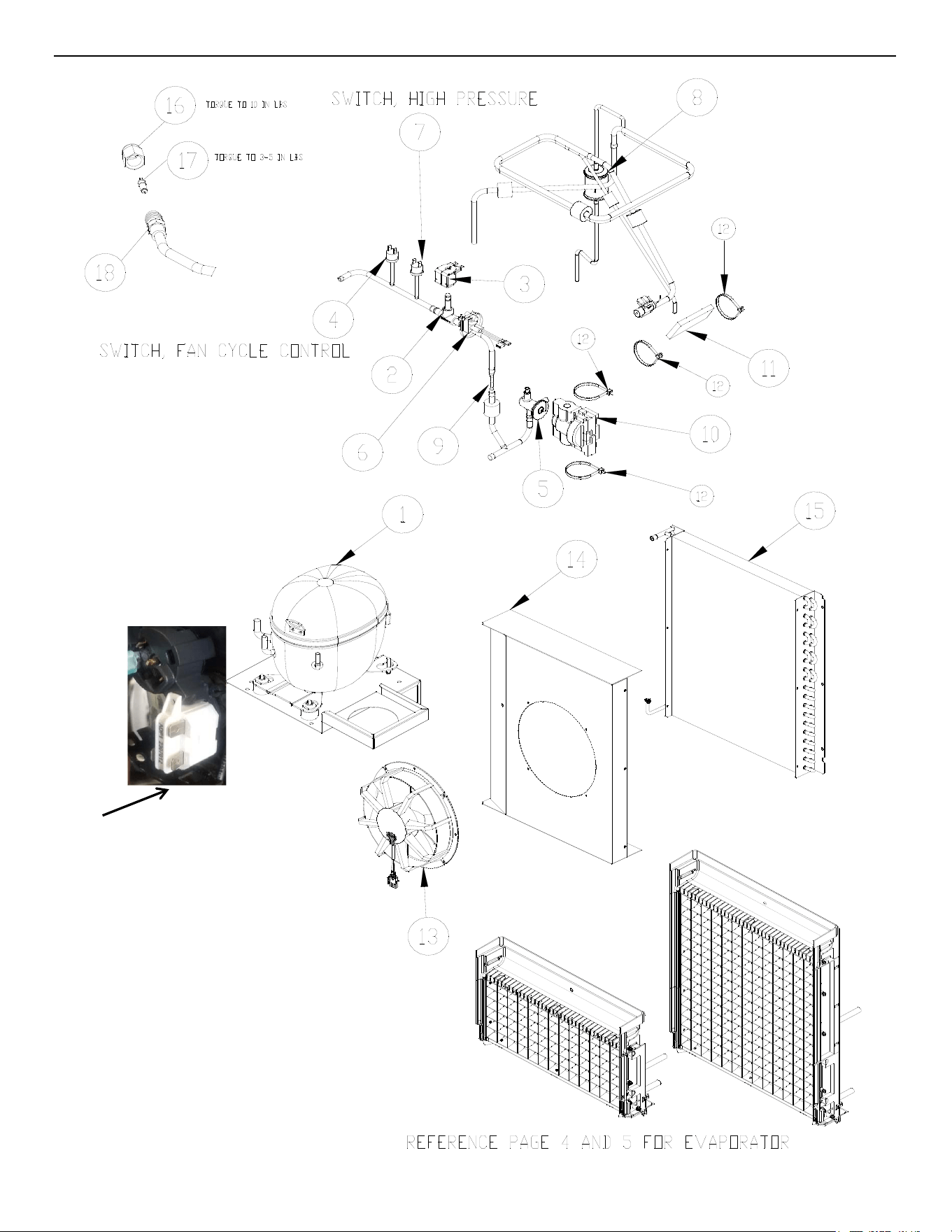

CIM Series Service Parts Air Cooled
PIN to QC Adapter
Page 6
CIM Service Parts Air Cooled
Item
No. CIM0320
A
CIM0326
A
CIM0520
A
CIM0526
A
Description
1 9181163-101 9181164-101 9181137-11B 9181170-11
Compressor
Kit
2 9151192-03 9151192-03 9151192-01 9151192-01 Hot Gas Valve Body
3 9151193-01 9151193-02 9151193-01 9151193-02 Hot Gas Valve Coil
4 9041106-01 9041106-01 9041106-01 9041106-01 Switch, Fan Cycle
5 9151154-101 9151149-101 9151149-101 9151149-101 TXV
6 9041098-02 9041098-02 9041098-02 9041098-02 High Temp Switch
7 9041111-01 9041111-01 9041111-01 9041111-01 Switch, High Pressure
8 9151163-01 9151163-01 9151163-01 9151163-01
Drier (Included in Compressor Kit)
9 9091179-01 9091179-01 9091179-01 Not Used Restrictor
10 9131544-01 9131544-01 9131544-01 9131544-01 Insulation, TXV
11 9131143-07 9131143-07 9131143-07 9131143-07 Insulation, Bulb
12 9021021-01 9021021-01 9021021-01 9021021-01 Cable Tie-For TXV and Bulb Insulation
13 9161135-01 9161135-02 9161135-01 9161135-02 Fan Motor Assembly
14 3013639-01 3013639-01 3013639-01 3013639-01 Fan Shroud
15 9141152-01 9141152-01 9141152-01 9141152-01 Condenser
16 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
17 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
18 9091086-01 9091086-01 9091086-01 9091086-01 Service Valve Stem
115/60/1 208-230/60/1 115/60/1 208-230/60/1 Machine Voltage
CIM0330
A
CIM0326
A
CIM0520
A
CIM0526
A
Starting Components (Included in Comp Kit)
9181163-101 9181164-101 9181137-11B 9181170-11 Compressor Kit
9181003-50 9181003-26 9181003-50 9181003-54 Start Capacitor
9181009-25 9181009-08 9181009-25 9181009-09 Run Capact\ito
r
9181010-33 9181010-27 9181010-14 9181010-27 Compressor Relay
9181005-49 9181005-50 9181005-45 9181005-48 Overload
9181195-01 PIN to QC Adapte
r
Item Machine Voltage
No. CIM0325
A
CIM0525
A
Description
1 9181165-101 9181166-11
Compressor
Kit
2 9151192-03 9151192-01 Hot Gas Valve Body
3 9151193-02 9151193-02 Hot Gas Valve Coil
4 9041106-01 9041106-01 Switch, Fan Cycle
5 9151154-101 9151149-101 TXV
6 9041098-02 9041098-02 High Temp Switch
7 9041111-01 9041111-01 Switch, High Pressure
8 9151163-01 9151163-01
Drier (Included in Compressor Kit)
9 9091179-01 9091179-01 Restrictor
10 9131544-01 9131544-01 Insulation, TXV
11 9131143-07 9131143-07 Insulation, Bulb
12 9021021-01 9021021-01 Cable Tie-For TXV and Bulb Insulation
13 9161135-02 9161135-02 Fan Motor Assembly
14 3013639-01 3013639-01 Fan Shroud
15 9141152-01 9141152-01 Condense
r
16 9091086-03 9091086-03 Service Valve Cap
17 9091086-02 9091086-02 Service Valve Core
18 9091086-01 9091086-01 Service Valve Stem
CIM0335
A
CIM0535
A
Starting Components (Included in Comp Kit)
9181165-101 9181166-11 Compressor Kit
9181003-54 9181003-32 Start Capacitor
9181009-26 9181009-28 Run Capact\itor
9181010-27 9181010-34 Compressor Relay
9181005-50 9181005-51 Overload
Model Number
Model Number 220-240/50/1
Page 7

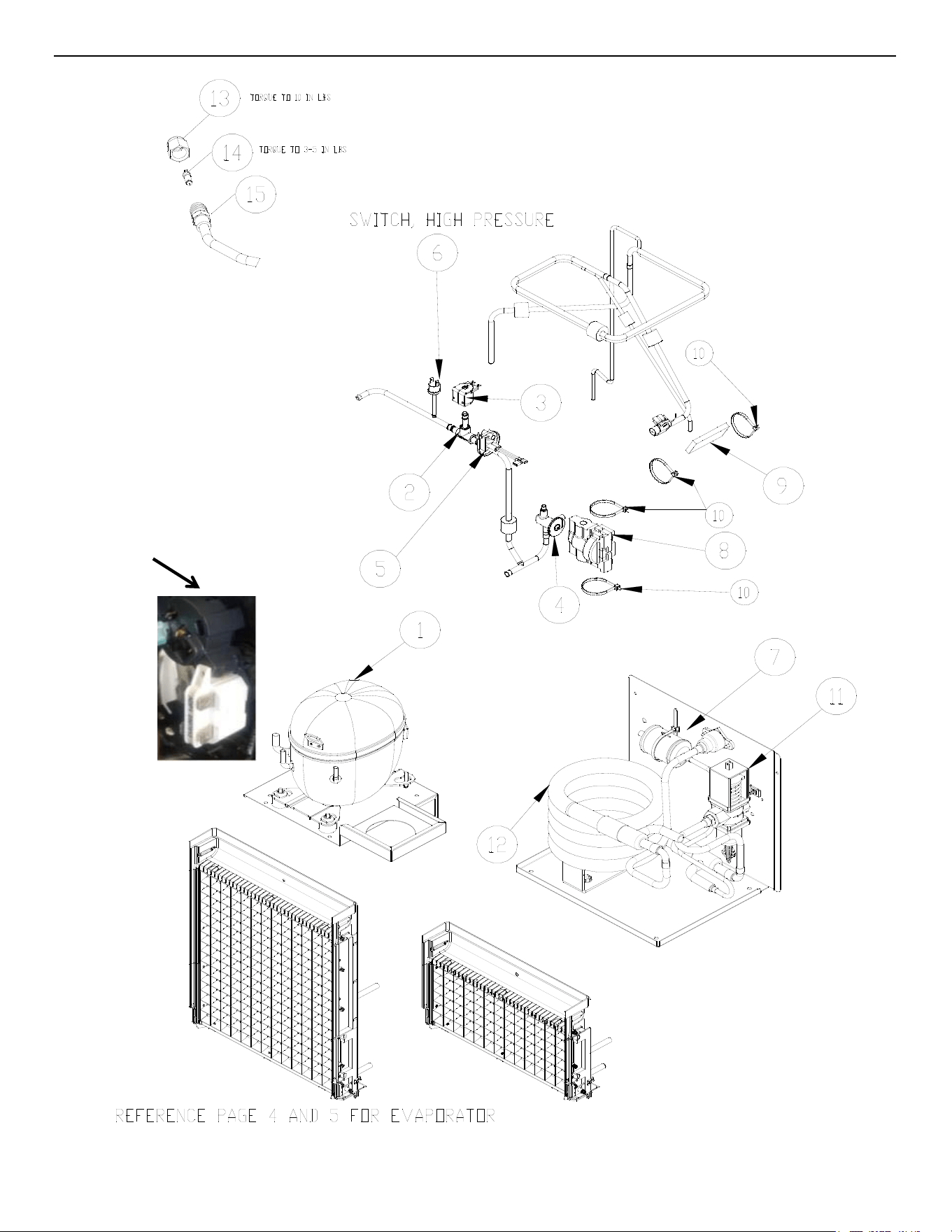

CIM Series Service Parts Water Cooled
PIN to QC Adapter
Page 8
CIM Service Parts Water Cooled
Item
No. CIM0320W CIM0326W CIM0520W CIM0526W Description
1 9181163-101 9181164-101 9181137-11B 9181170-11
Compressor
Kit
2 9151192-03 9151192-03 9151192-03 9151192-03 Hot Gas Valve Body
3 9151193-01 9151193-02 9151193-01 9151193-02 Hot Gas Valve Coil
4 9151154-101 9151149-101 9151149-101 9151149-101 TXV
5 9041098-02 9041098-02 9041098-02 9041098-02 High Temp Switch
6 9041111-01 9041111-01 9041111-01 9041111-01 Switch, High Pressure
7 9151163-01 9151163-01 9151163-01 9151163-01
Drier (Included in Compressor Kit)
8 9131544-01 9131544-01 9131544-01 9131544-01 Insulation, TXV
9 9131143-07 9131143-07 9131143-07 9131143-07 Insulation, Bulb
10 9021021-01 9021021-01 9021021-01 9021021-01 Cable Tie-For TXV and Bulb Insulation
11 9051104-01 9051104-01 9051104-01 9051104-01 Water Regulator
12 9141156-01 9141156-01 9141156-01 9141156-01 Condenser
13 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
14 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
15 9091086-01 9091086-01 9091086-01 9091086-01 Service Valve Stem
115/60/1 208-230/60/1 115/60/1 208-230/60/1 Machine Voltage
CIM0320
A
CIM0326
A
CIM0520
A
CIM0526
A
Starting Components (Included in Comp Kit)
9181163-101 9181164-101 9181137-11B 9181170-11 Compressor Kit
9181003-50 9181003-26 9181003-50 9181003-54 Start Capacito
r
9181009-25 9181009-08 9181009-25 9181009-09 Run Capact\itor
9181010-33 9181010-27 9181010-14 9181010-27 Compressor Relay
9181005-49 9181005-50 9181005-45 9181005-48 Overload
9181195-01 PIN to QC Adapte
r
Item Machine Voltage
No. CIM0325 CIM0535W Description
1 9181165-11 9181166-11
Compressor
Kit
2 9151192-03 9151192-03 Hot Gas Valve Body
3 9151193-02 9151193-02 Hot Gas Valve Coil
4 9151154-101 9151149-101 TXV
5 9041098-02 9041098-02 High Temp Switch
6 9041111-01 9041111-01 Switch, High Pressure
7 9151163-01 9151163-01
Drier (Included in Compressor Kit)
8 9131544-01 9131544-01 Insulation, TXV
9 9131143-07 9131143-07 Insulation, Bulb
10 9021021-01 9021021-01 Cable Tie-For TXV and Bulb Insulation
11 9051104-01 9051104-01 Water Regulator
12 9141156-01 9141156-01 Condense
r
13 9091086-03 9091086-03 Service Valve Cap
14 9091086-02 9091086-02 Service Valve Core
15 9091086-01 9091086-01 Service Valve Stem
CIM0535
A
Starting Components (Included in Comp Kit)
9181165-101 9181166-11
Compressor
Kit
9181003-54 9181003-32 Start Capacitor
9181009-26 9181009-28 Run Capact\itor
9181010-27 9181010-34 Compressor Relay
9181005-50 9181005-51 Overload
Model Number
Model Number 220-240/50/1
Page 9
CIM Series Service Parts Electrical
PIN to QC Adapter
Page 10

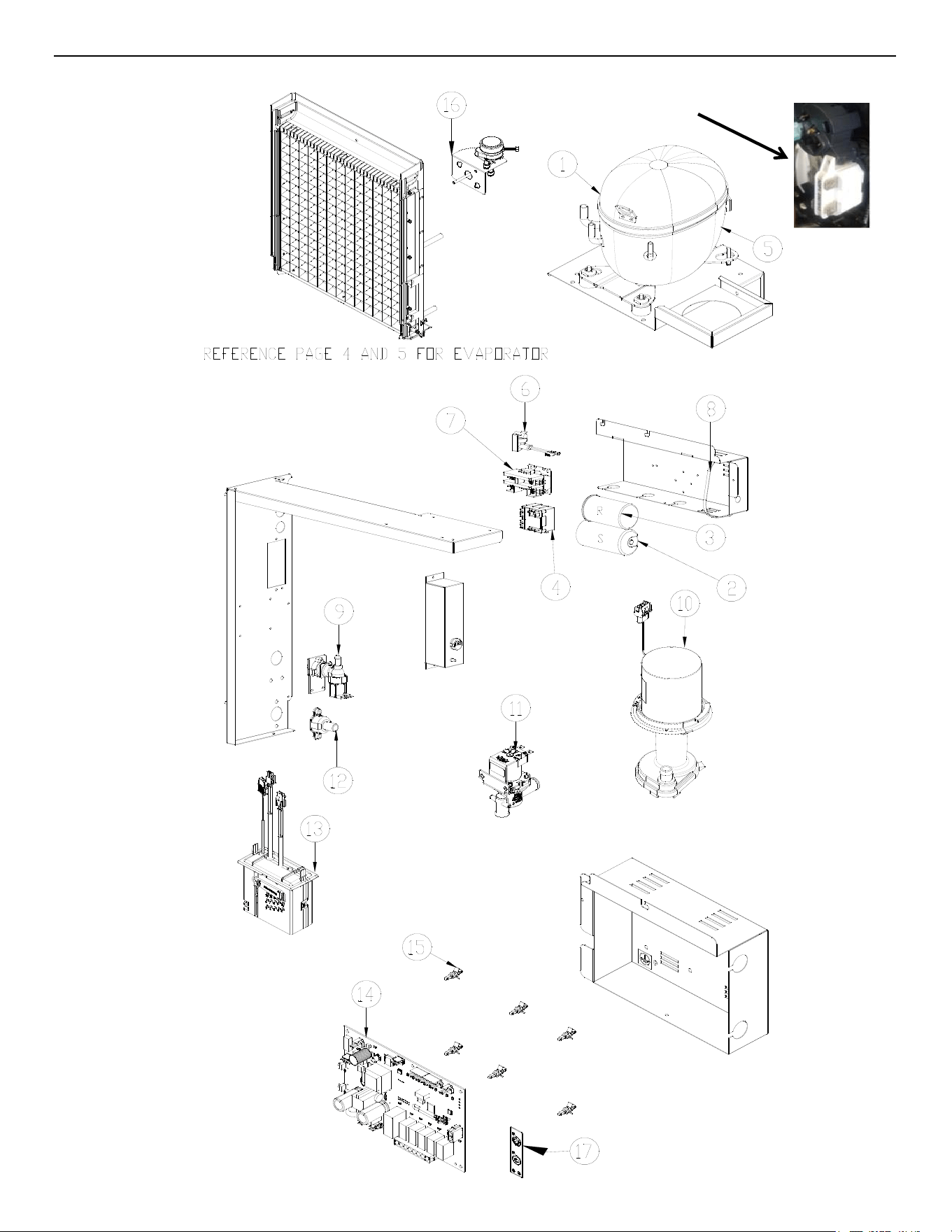

CIM Service Parts Electrical
Item
No. CIM0320
A
CIM0326
A
CIM0520
A
CIM0526
A
Description
1 9181163-101 9181164-101 9181137-11B 9181170-11 Compressor
2 9181003-50 9181003-26 9181003-50 9181003-54 Start Capacitor
3 9181009-25 9181009-08 9181009-25 9181009-09 Run Capact\itor
4 9181010-33 9181010-27 9181010-14 9181010-27 Potential Relay
5 9181005-49 9181005-50 9181005-45 9181005-48 Overload
9181195-01 PIN to QC Adapte
r
6 9041098-02 9041098-02 9041098-02 9041098-02 Switch, High Temp
7 9101002-07 9101002-06 9101002-07 9101002-06 Contactor
8 9021096-01 9021096-01 9021096-01 9021096-01 Cable Tie, Metal
9 9041108-01 9041108-02 9041108-01 9041108-02 Valve, Water Inlet
10 2062336-01 2062336-02 2062336-01 2062336-02 Water Pump
11 9041105-04 9041105-05 9041105-04 9041105-05 Purge Valve
12 9091140-01 9091140-01 9091140-01 9091140-01 Purge Drain
13 1051224-01 1051224-01 1051224-01 1051224-01 Float Switch Assembly (Includes Instructions)
14 9101368-02 9101368-02 9101368-02 9101368-02 Board Dual Voltage
15 9051698-01P 9051698-01P 9051698-01P 9051698-01P Plastic Standoff, Control Board (Pkg of 10)
16 9161134-01 9161134-02 9161134-01 9161134-02 Harvest Assist
17 9101394-01 9101394-01 9101394-01 9101394-01 Membrane Switch (Includes Cable)
18 9101379-01 9101379-01 9101379-01 9101379-01 Switch, Magnetic Reed (Bin Control On Evap
)
115/60/1 208-230/60/1 115/60/1 208-230/60/1 Machine Voltage
Item Machine Voltage
No. CIM0335
A
CIM0525A/
W
Description
1 9181165-101 9181166-11 Compressor Kit
2 9181003-54 9181003-32 Start Capacitor
3 9181009-26 9181009-28 Run Capact\itor
4 9181010-27 9181010-34 Compressor Relay
5 9181005-50 9181005-51 Overload
6 9041098-02 9041098-02 Switch, High Temp
7 9101002-06 9101002-06 Contactor
8 9021096-01 9021096-01 Cable Tie, Metal
9 9041108-02 9041108-02 Valve, Water Inlet
10 2062336-02 2062336-02 Water Pump
11 9041105-05 9041105-05 Purge Valve
12 9091140-01 9091140-01 Purge Drain
13 1051224-01 1051224-01 Float Switch Assembly (Includes Instructions)
14 9101368-02 9101368-02 Board Dual Voltage
15 9051698-01P 9051698-01P Plastic Standoff, Control Board (Pkg of 10)
16 9161134-02 9161134-02 Harvest Assist
17 9101394-01 9101394-01 Membrane Switch (Includes Cable)
18 9101379-01 9101379-01 Switch, Magnetic Reed (Bin Control On Evap
)
Model Number
Model Number 220-240/50/1
Page 11
