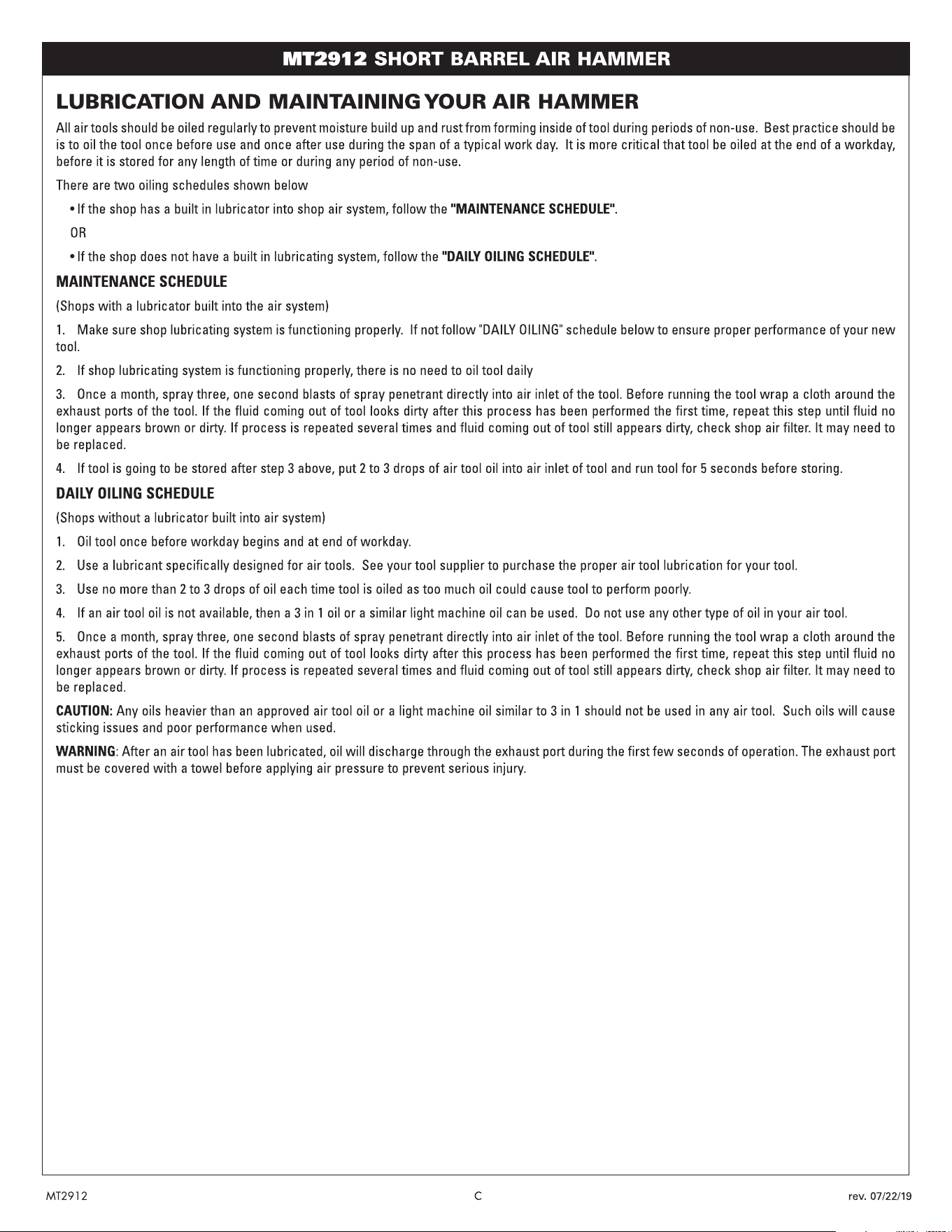

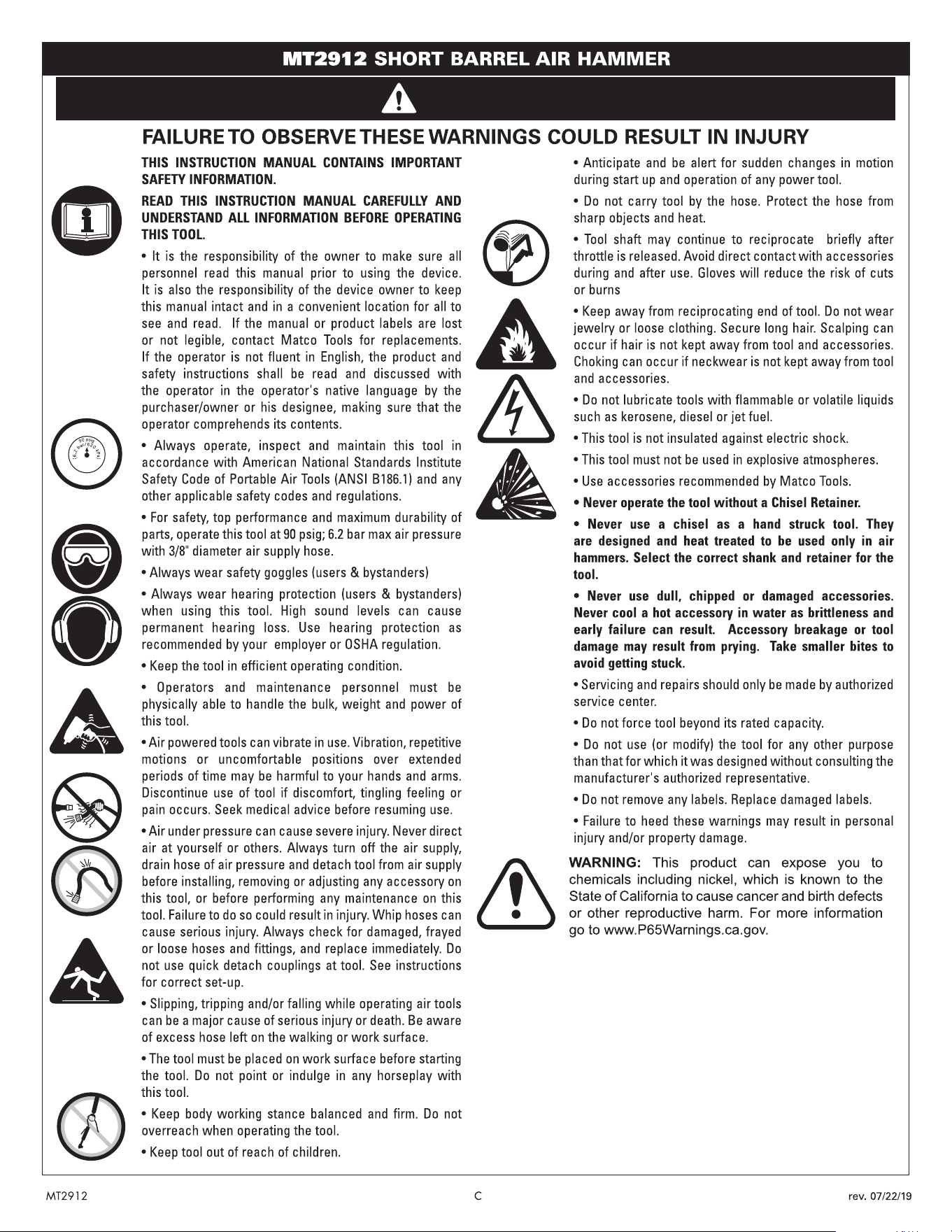

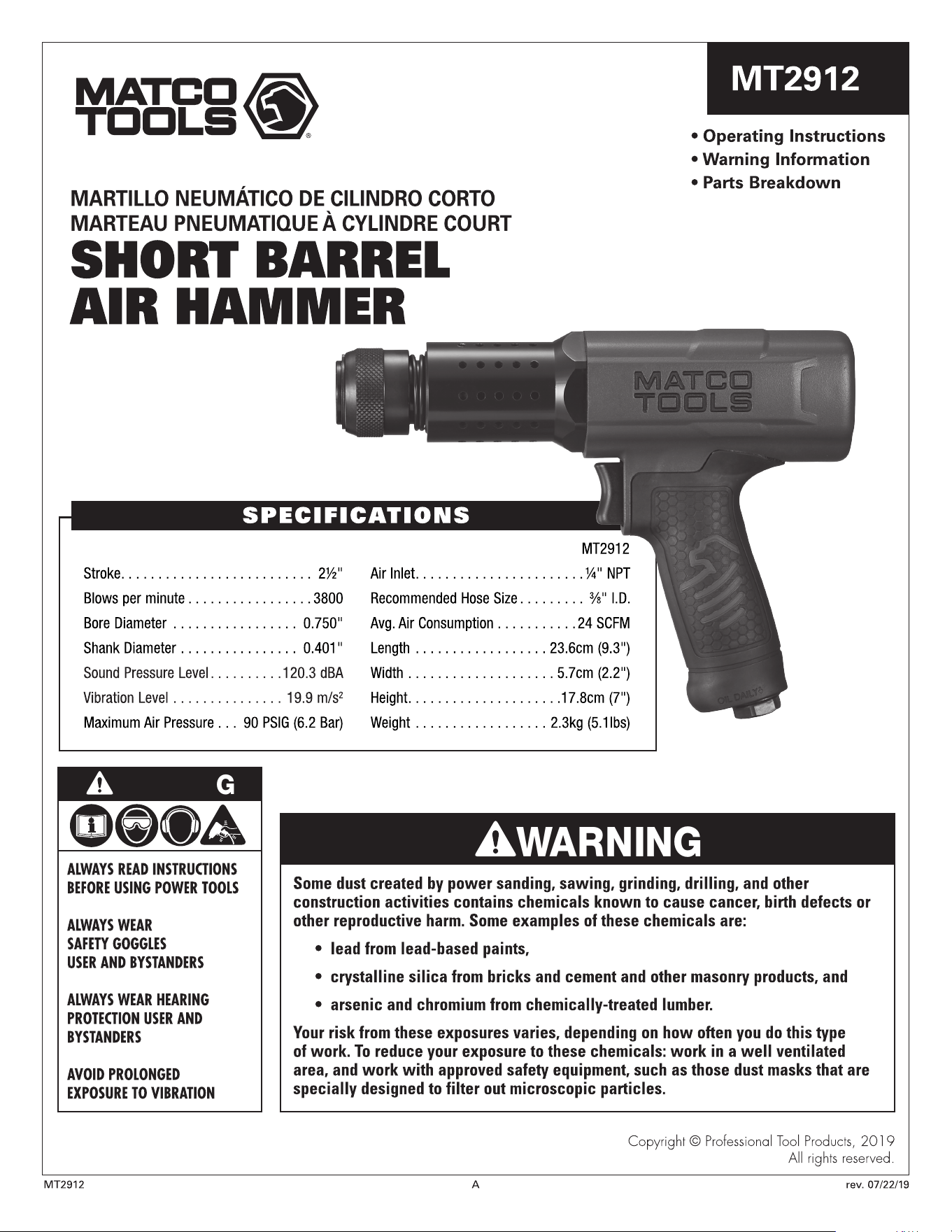

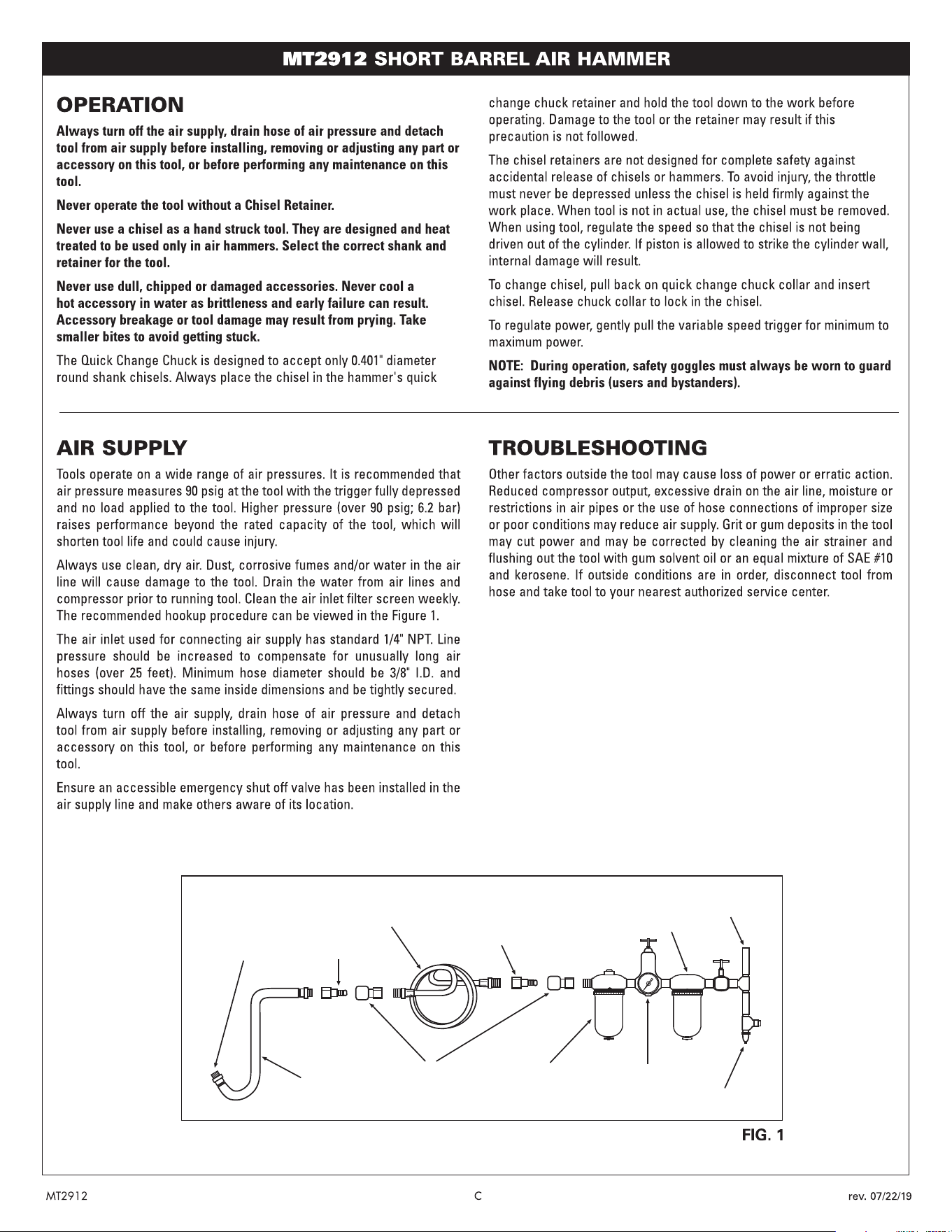

WARNING
WARNING
WARNING
Drain Daily
Regulator Oiler Quick Coupler Leader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose

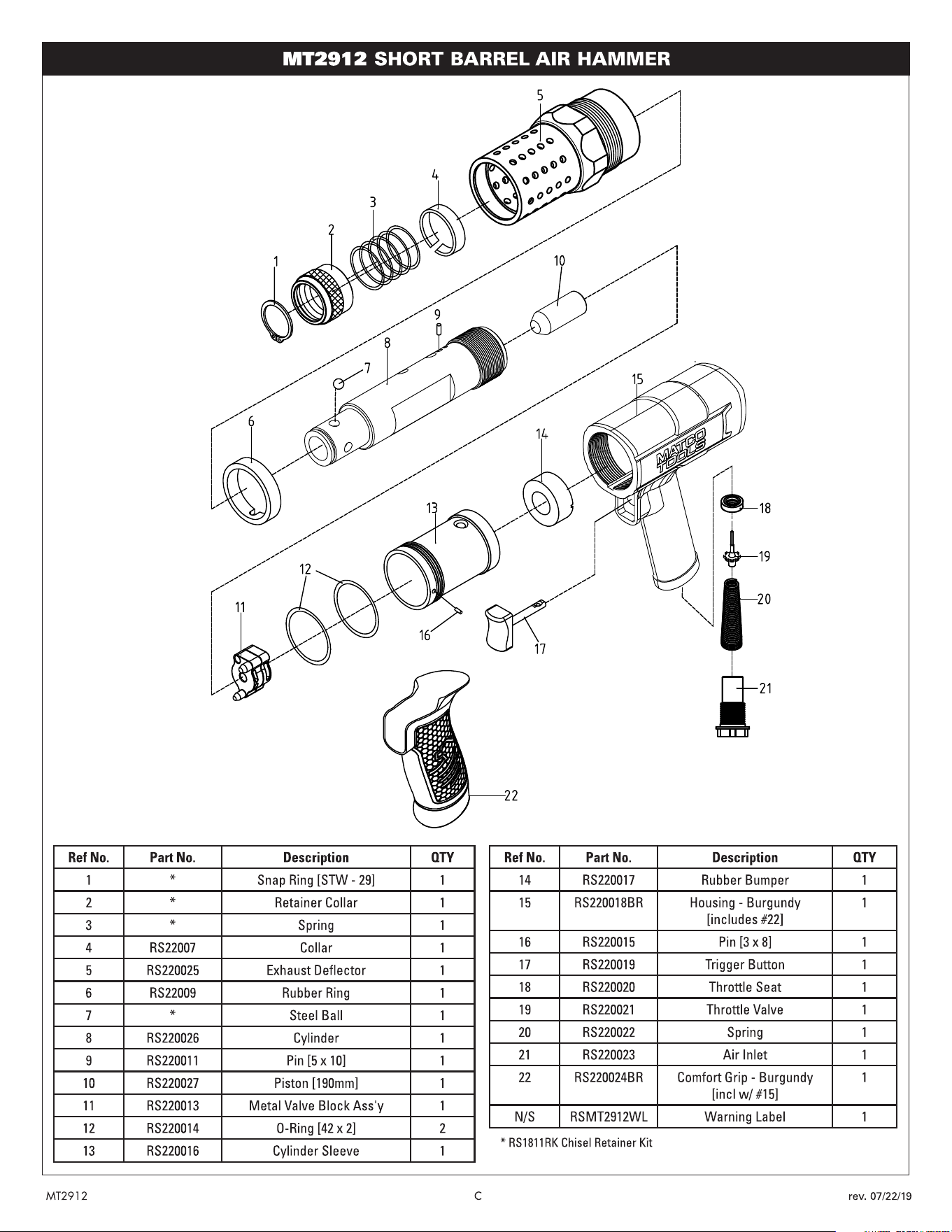

Ref No. Part No. Description QTY
1 * Snap Ring [STW - 29] 1
2 * Retainer Collar 1
3 * Spring 1
4 RS22007 Collar 1
5 RS220025 Exhaust Deflector 1
6 RS22009 Rubber Ring 1
7 * Steel Ball 1
8 RS220026 Cylinder 1
9 RS220011 Pin [5 x 10] 1
10 RS220027 Piston [190mm] 1
11 RS220013 Metal Valve Block Ass'y 1
12 RS220014 O-Ring [42 x 2] 2
13 RS220016 Cylinder Sleeve 1
Ref No. Part No. Description QTY
14 RS220017 Rubber Bumper 1
15 RS220018BR Housing - Burgundy
[includes #22]
1
16 RS220015 Pin [3 x 8] 1
17 RS220019 Trigger Button 1
18 RS220020 Throttle Seat 1
19 RS220021 Throttle Valve 1
20 RS220022 Spring 1
21 RS220023 Air Inlet 1
22 RS220024BR Comfort Grip - Burgundy
[incl w/ #15]
1
N/S RSMT2912WL Warning Label 1

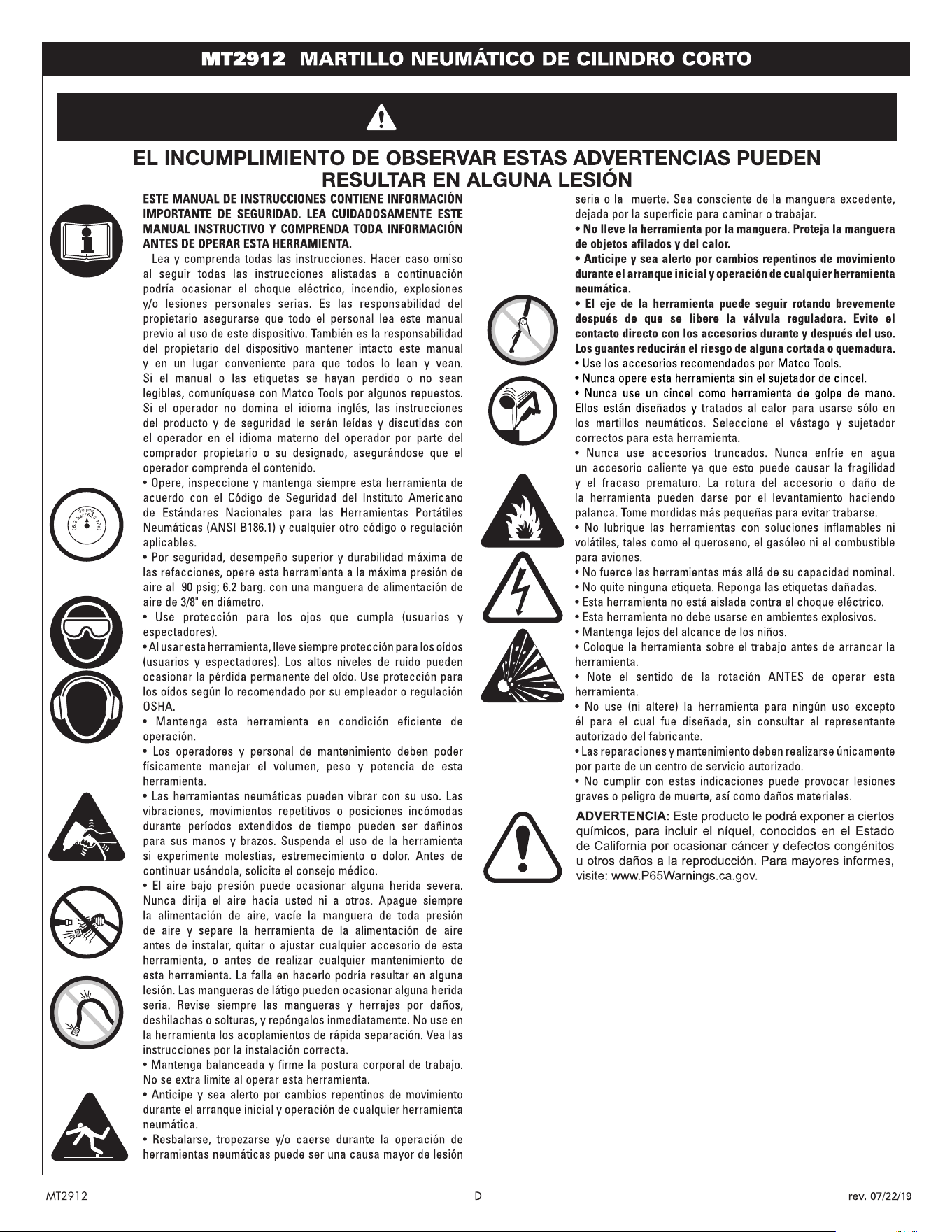

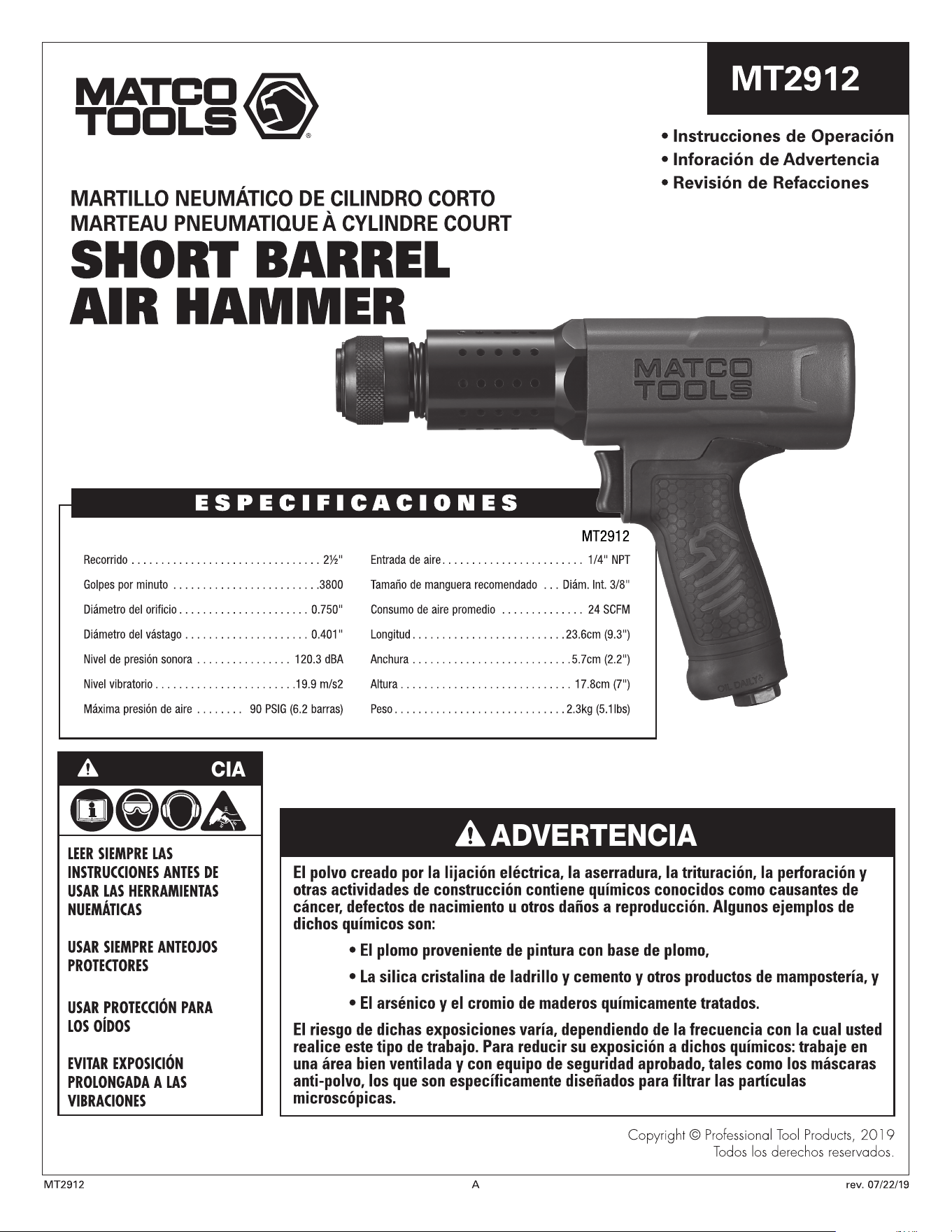

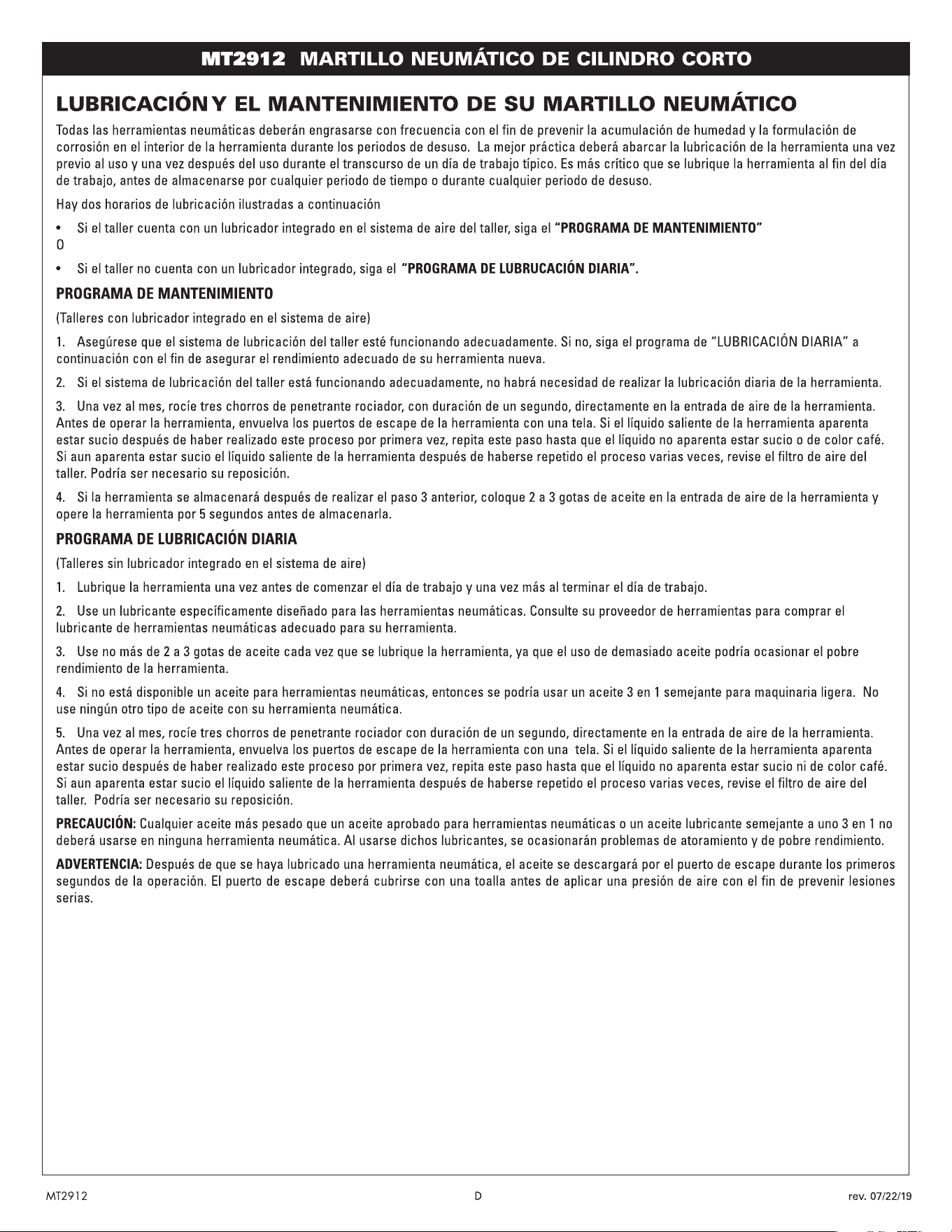

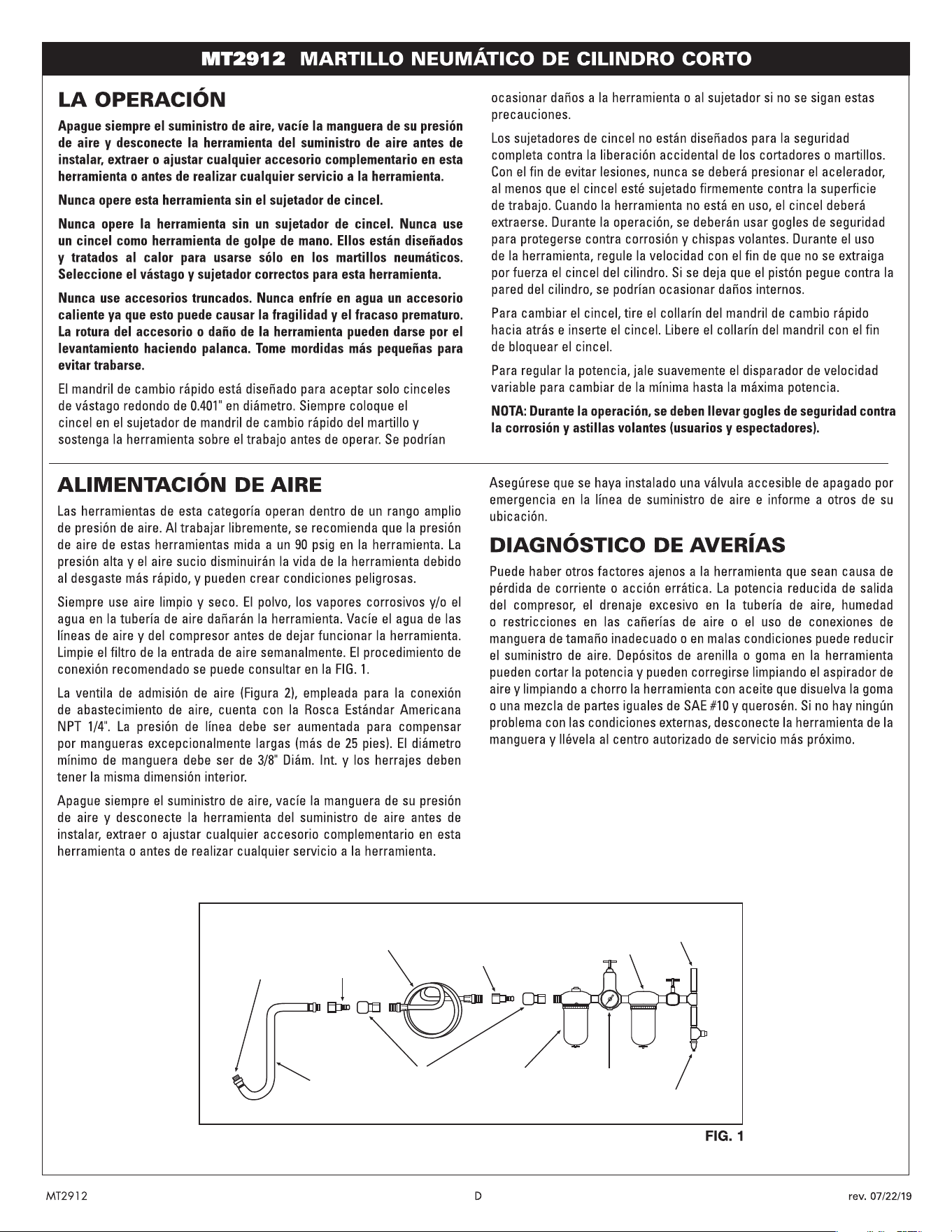

ADVERTENCIA
ADVERTENCIA
ADVERTENCIA
Drane
diariamente
ReguladorCaja de aceiteAcoplamiento de
conexión rápida
Primera
Manguera
No instale aquí el
acoplamiento de
conexión rápida
Conexión
macho
Conexión
macho
Filtro
Abastecimiento
de aire
Manguera
que azota

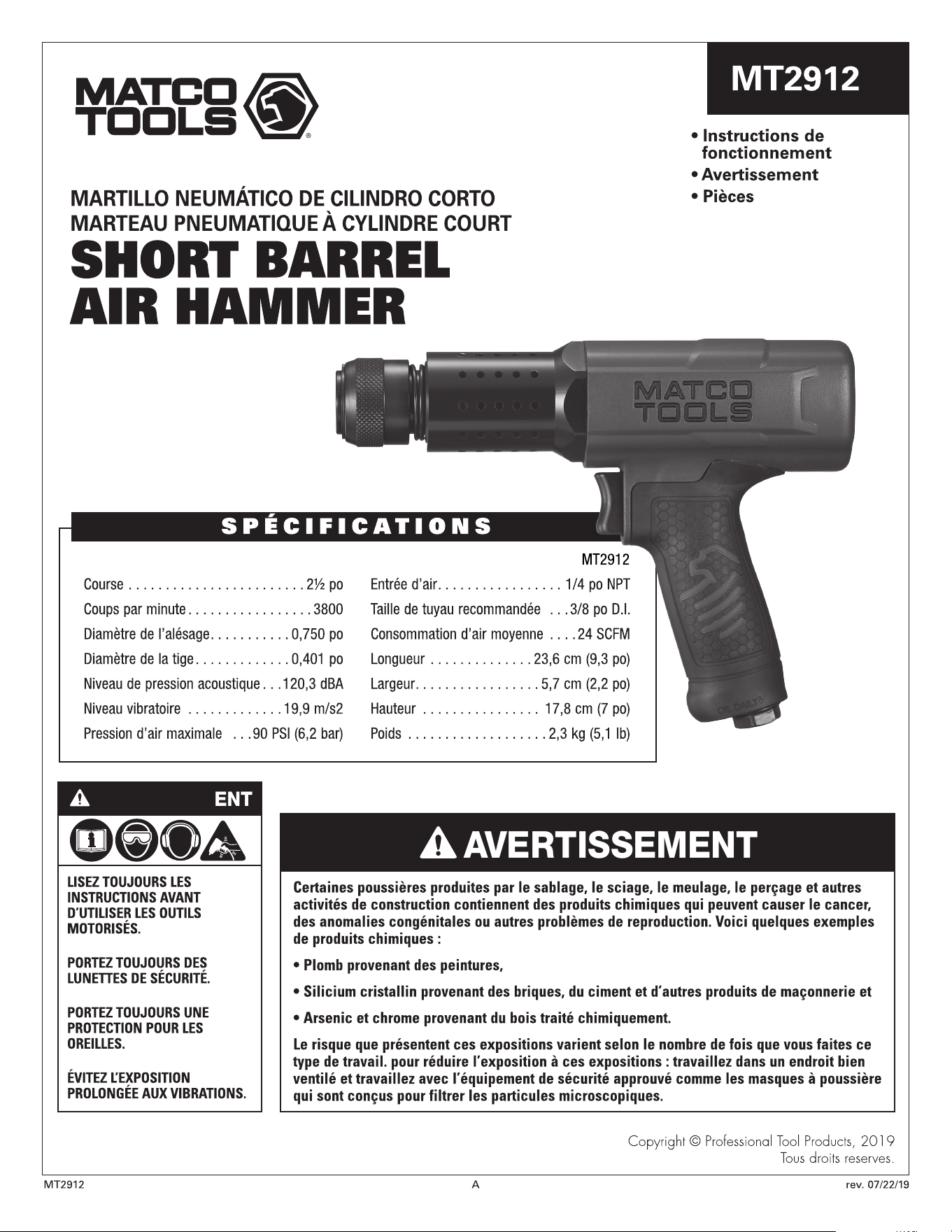

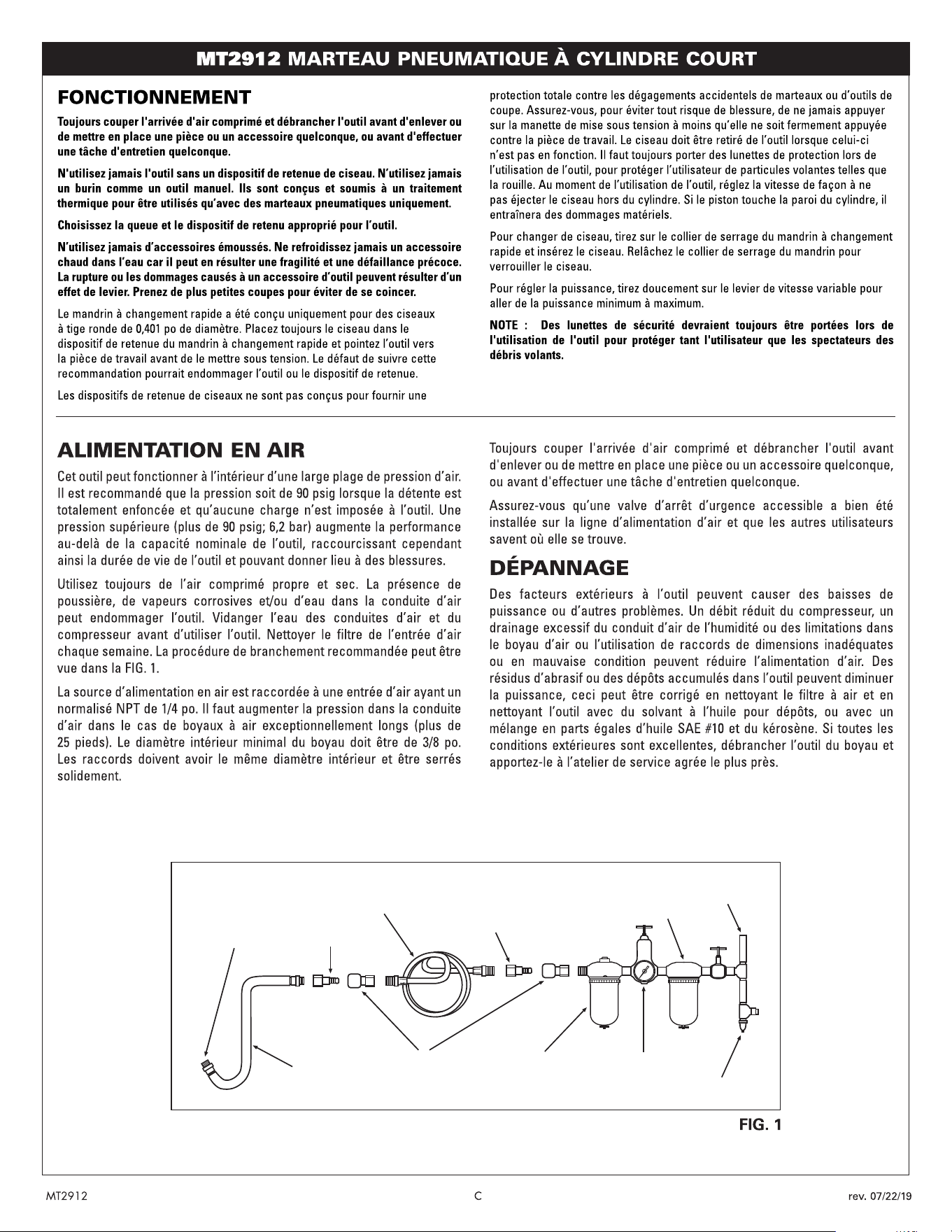

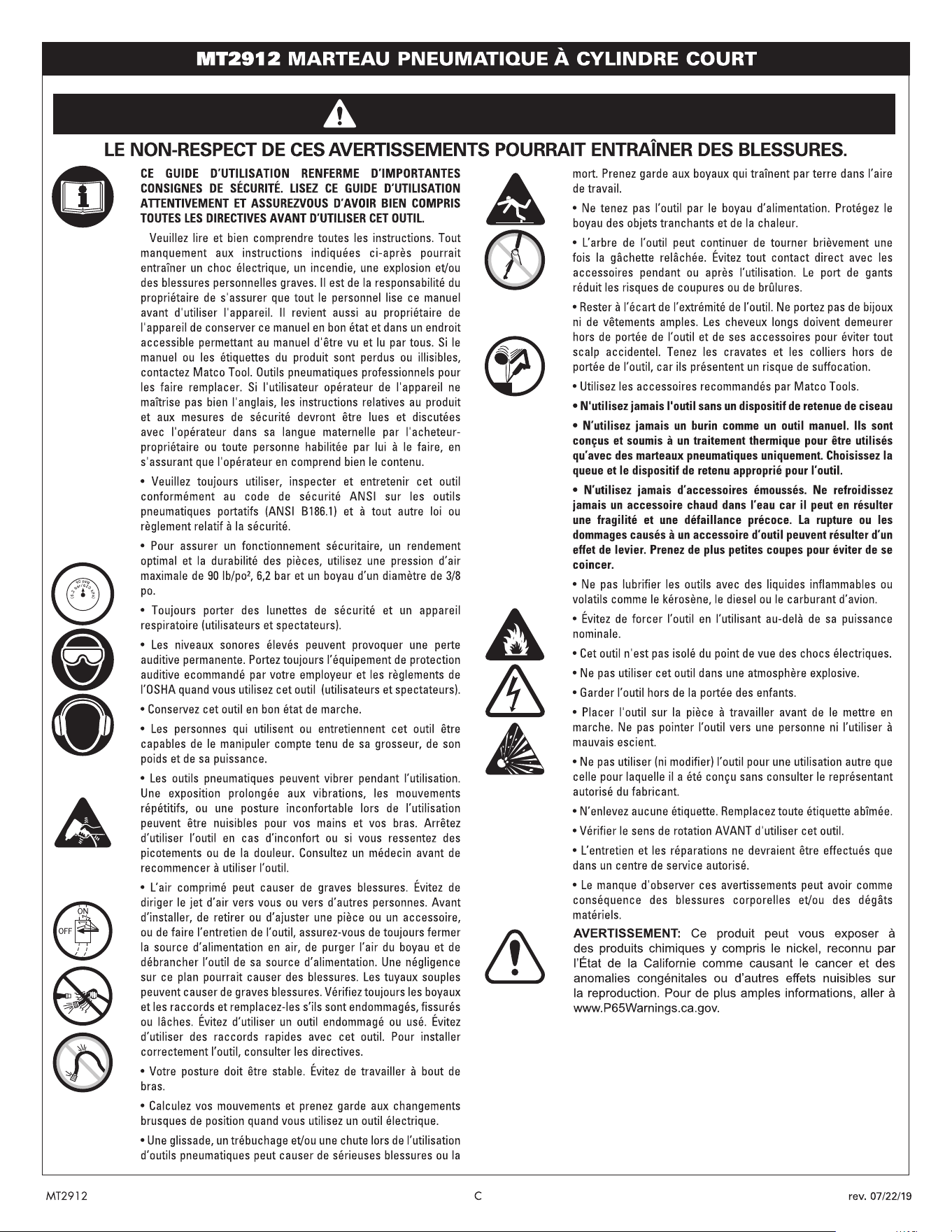

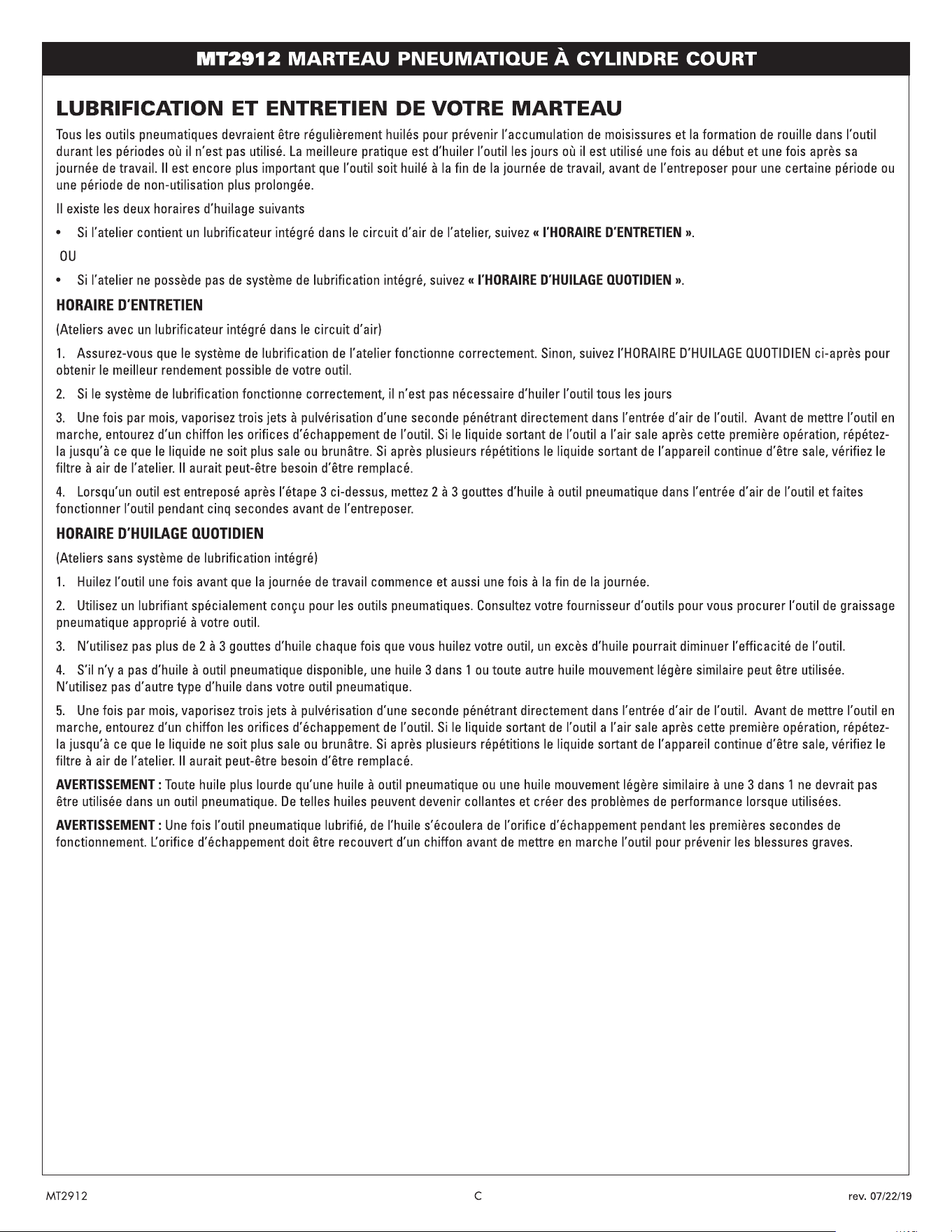

AVERTISSEMENT
AVERTISSEMENT
AVERTISSEMENT
Drain Daily
Regulator Oiler Quick Coupler Leader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
