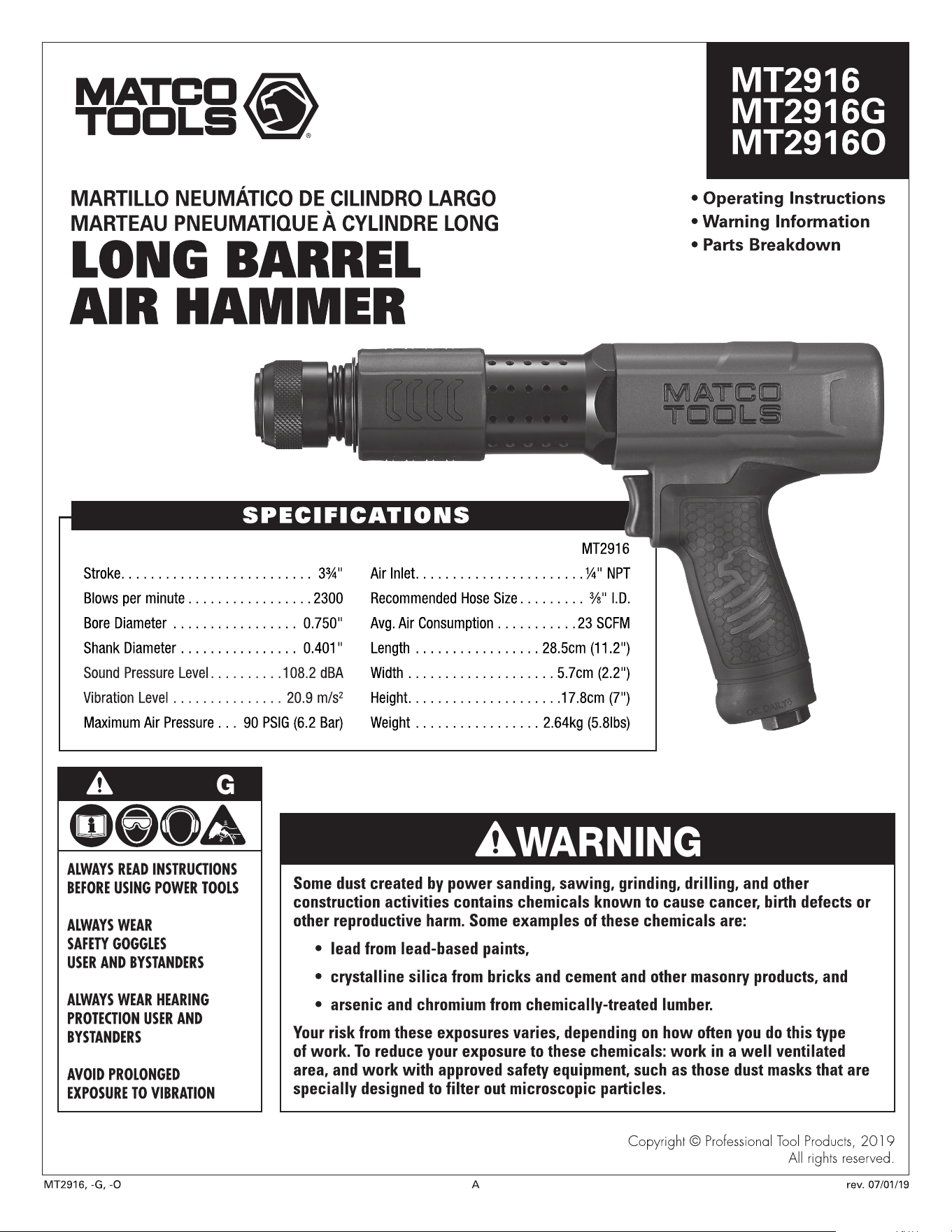

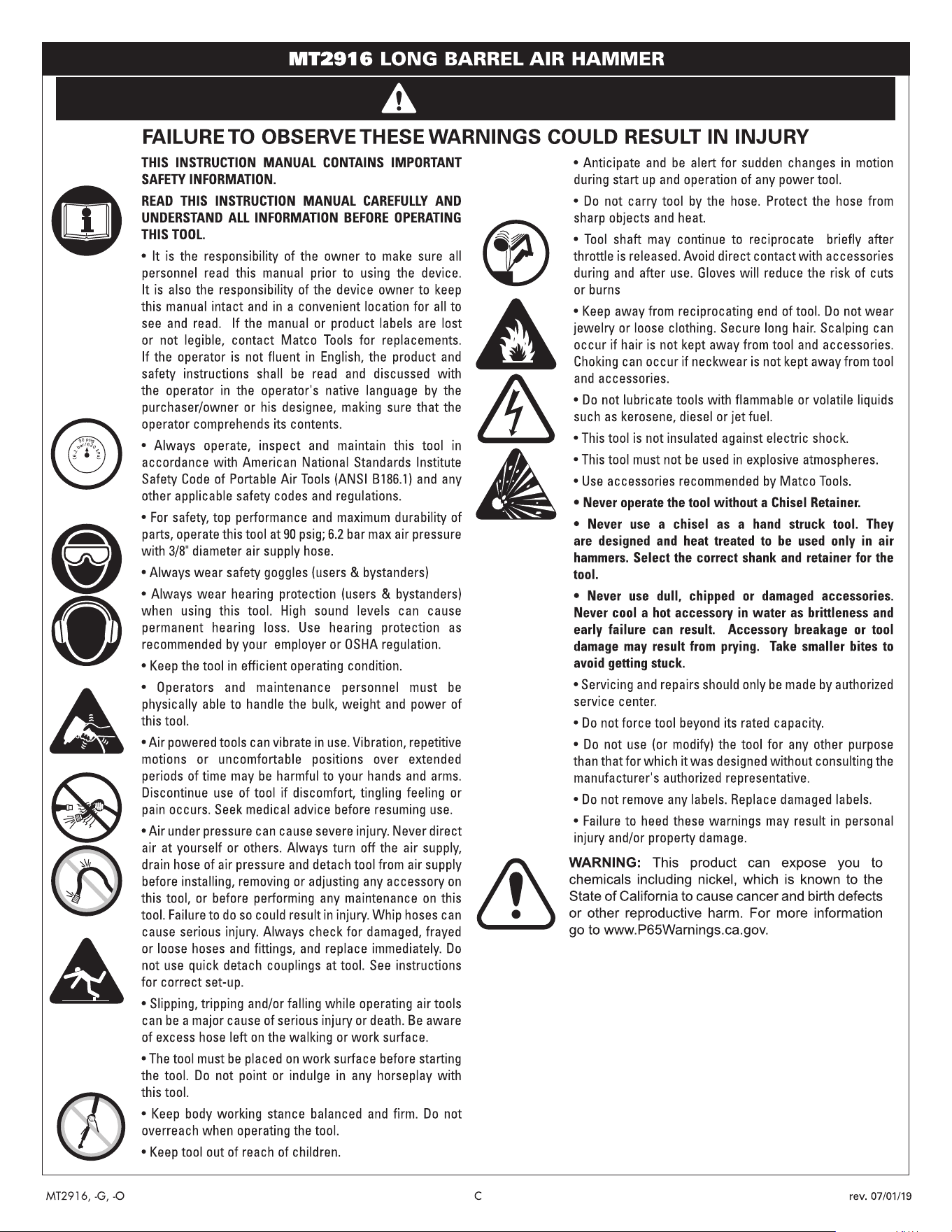

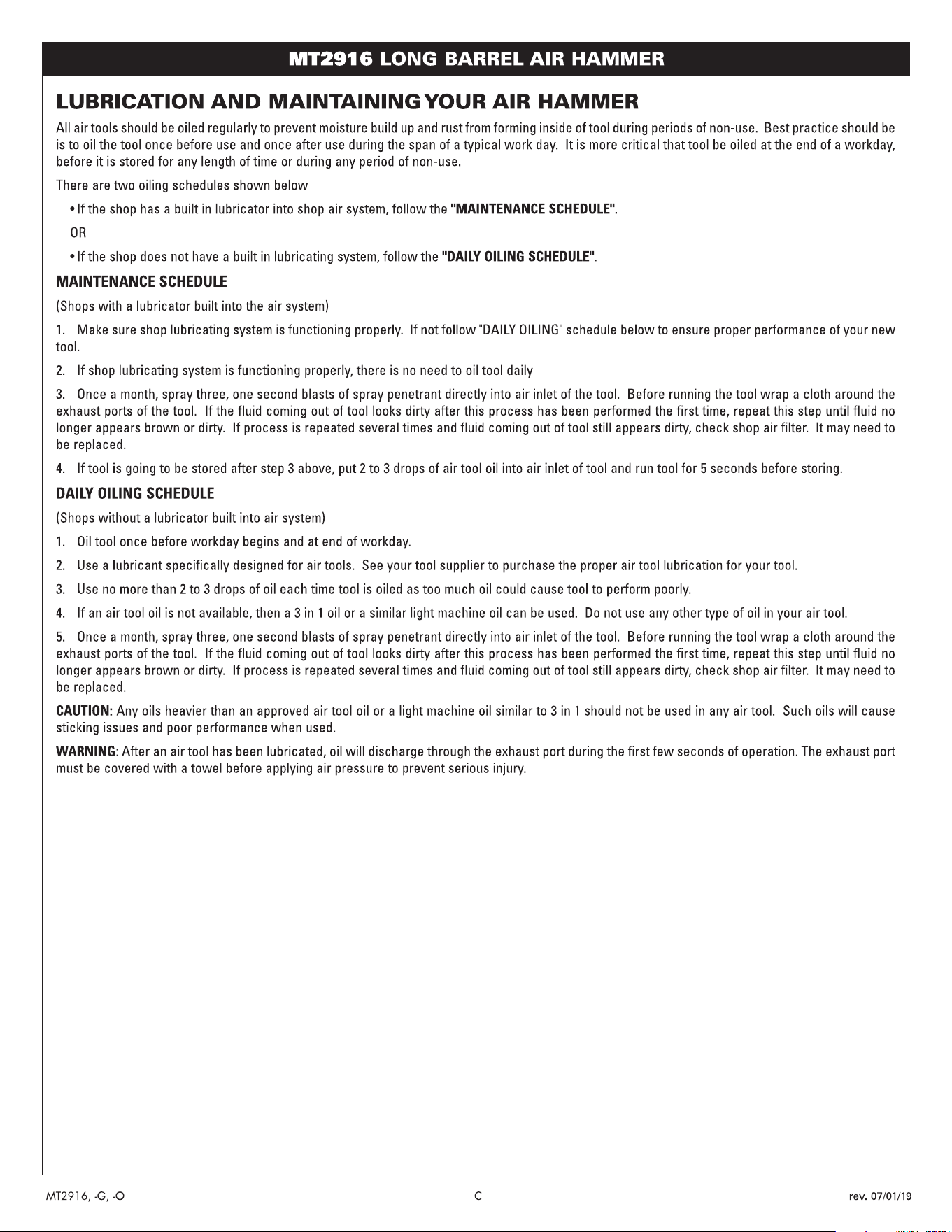

WARNING
WARNING

WARNING

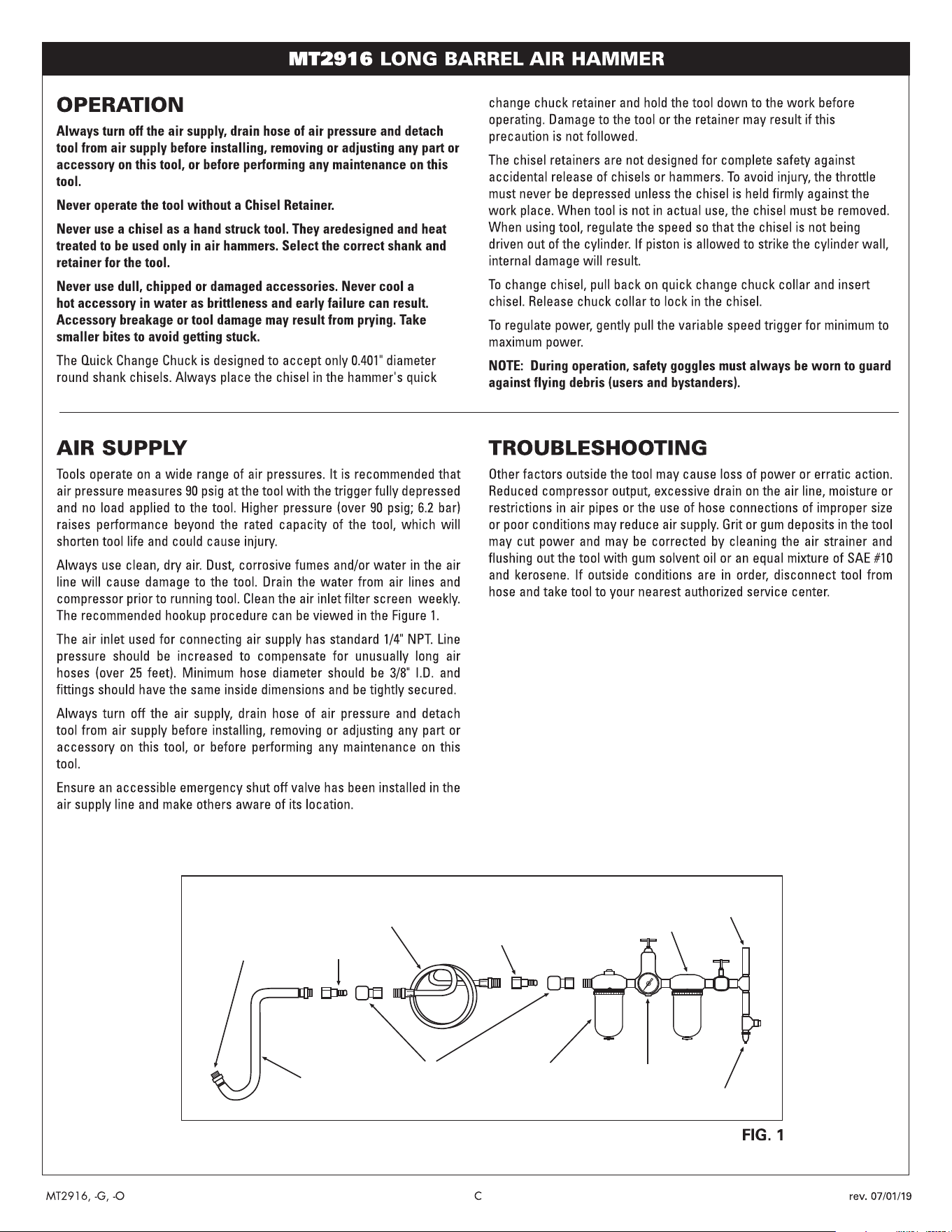

Drain Daily
Regulator Oiler Quick Coupler Leader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose

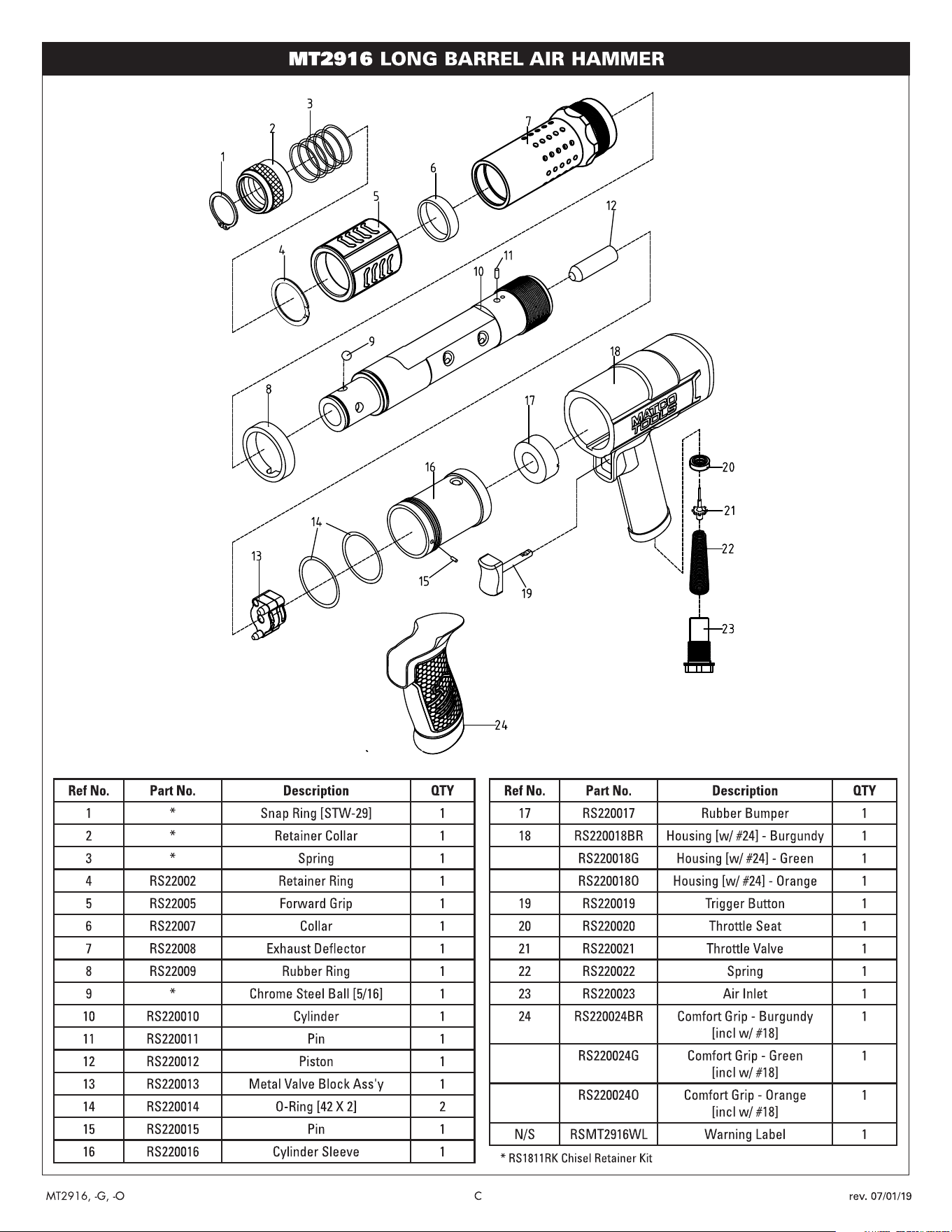

Ref No. Part No. Description QTY
1 * Snap Ring [STW-29] 1
2 * Retainer Collar 1
3 * Spring 1
4 RS22002 Retainer Ring 1
5 RS22005 Forward Grip 1
6 RS22007 Collar 1
7 RS22008 Exhaust Deflector 1
8 RS22009 Rubber Ring 1
9 * Chrome Steel Ball [5/16] 1
10 RS220010 Cylinder 1
11 RS220011 Pin 1
12 RS220012 Piston 1
13 RS220013 Metal Valve Block Ass'y 1
14 RS220014 O-Ring [42 X 2] 2
15 RS220015 Pin 1
16 RS220016 Cylinder Sleeve 1
Ref No. Part No. Description QTY
17 RS220017 Rubber Bumper 1
18 RS220018BR Housing [w/ #24] - Burgundy 1
RS220018G Housing [w/ #24] - Green 1
RS220018O Housing [w/ #24] - Orange 1
19 RS220019 Trigger Button 1
20 RS220020 Throttle Seat 1
21 RS220021 Throttle Valve 1
22 RS220022 Spring 1
23 RS220023 Air Inlet 1
24 RS220024BR Comfort Grip - Burgundy
[incl w/ #18]
1
RS220024G Comfort Grip - Green
[incl w/ #18]
1
RS220024O Comfort Grip - Orange
[incl w/ #18]
1
N/S RSMT2916WL Warning Label 1

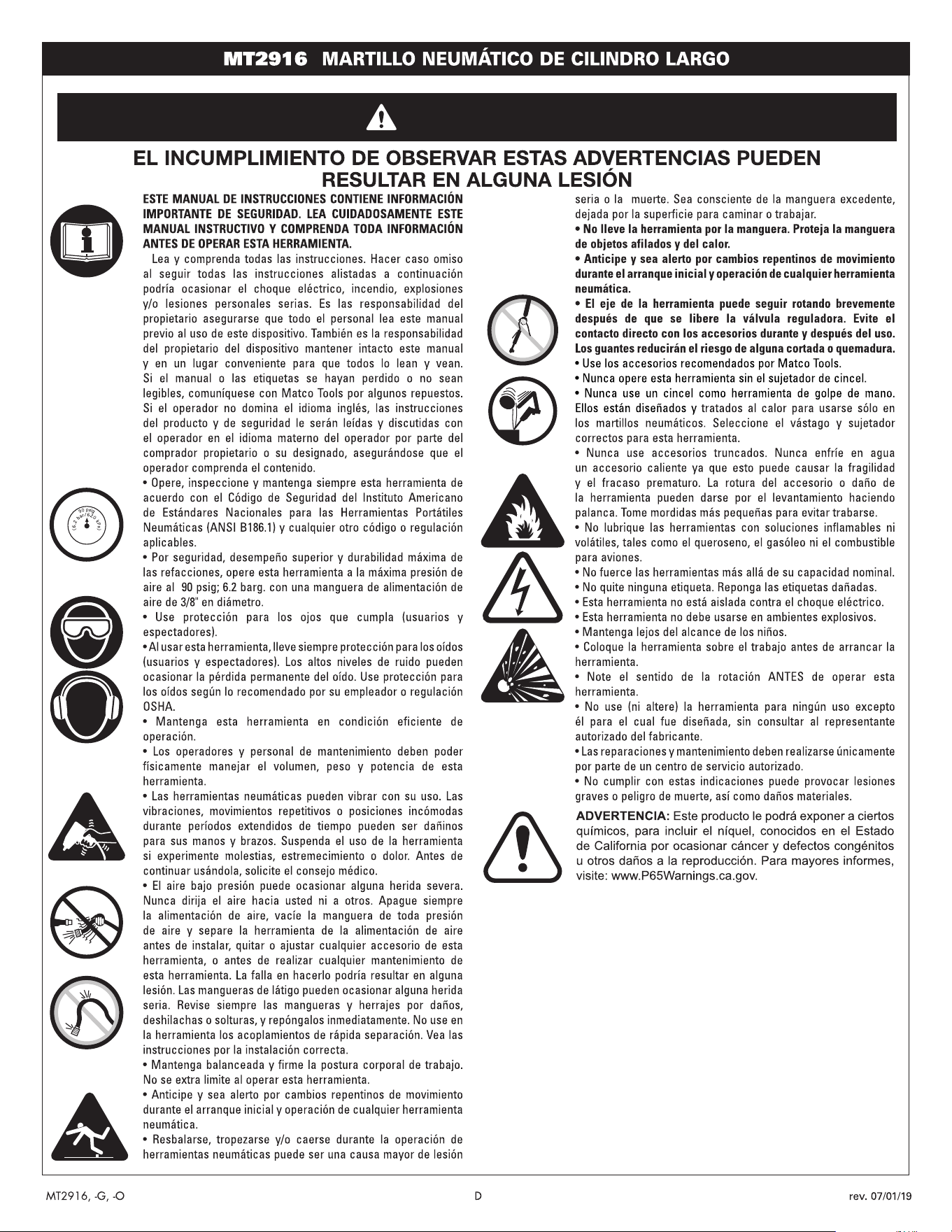

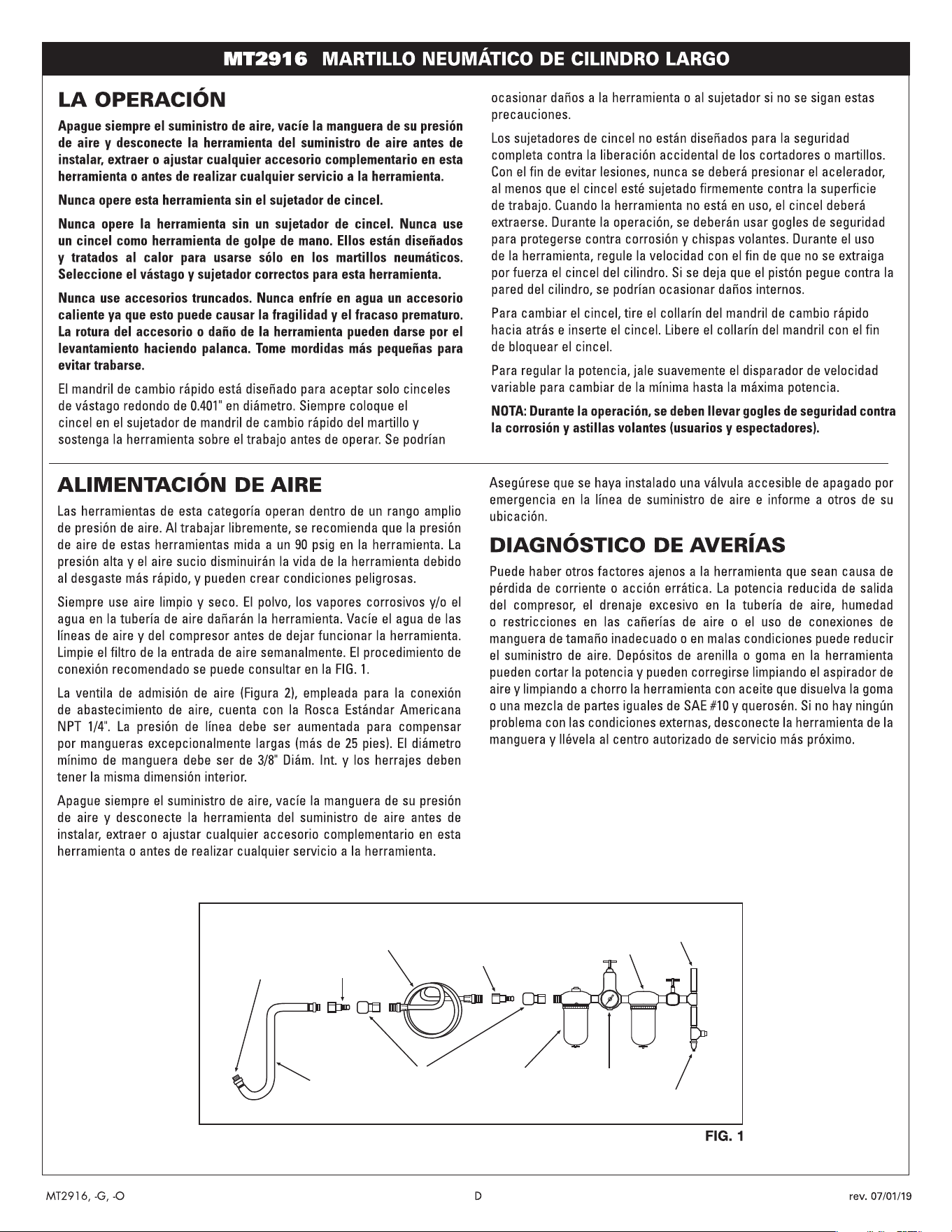

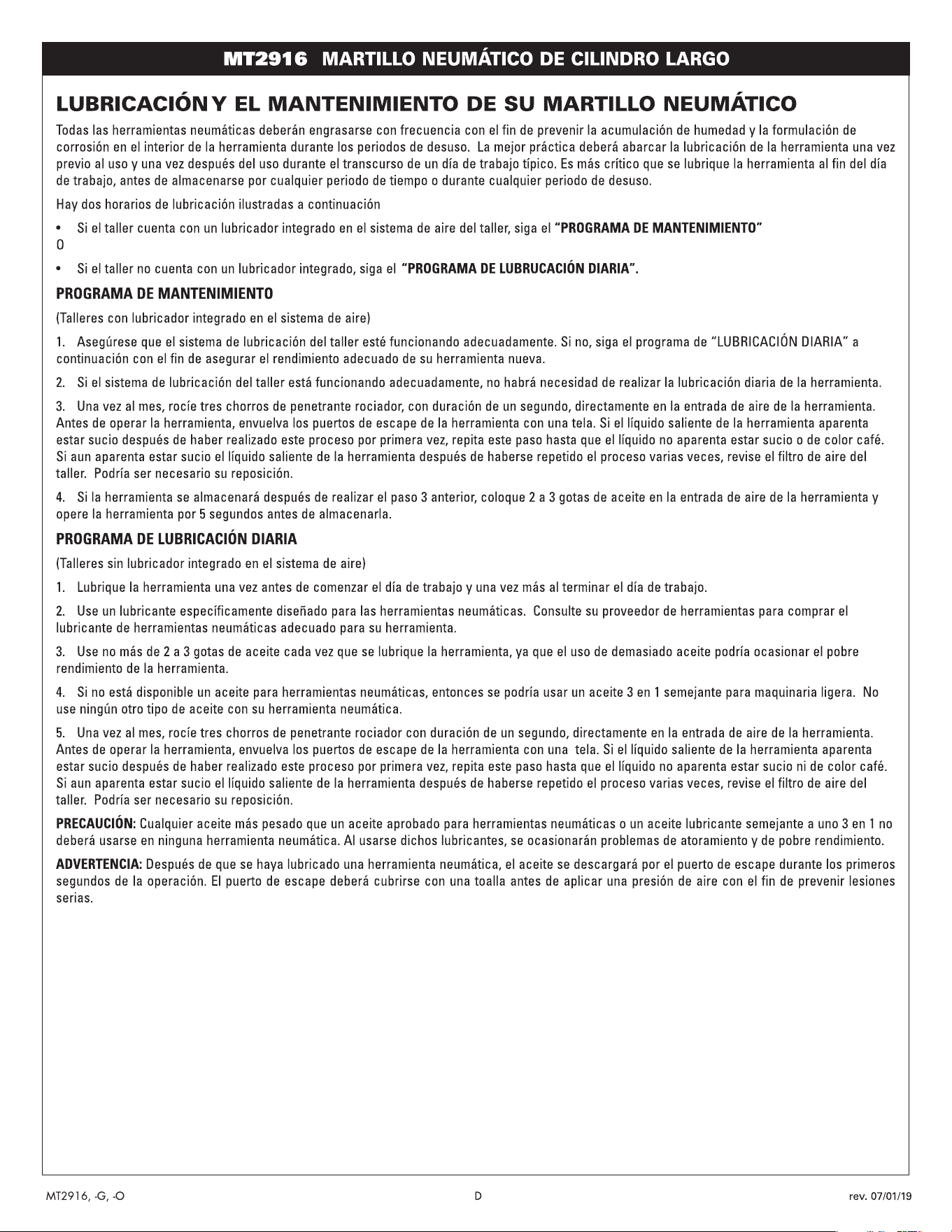

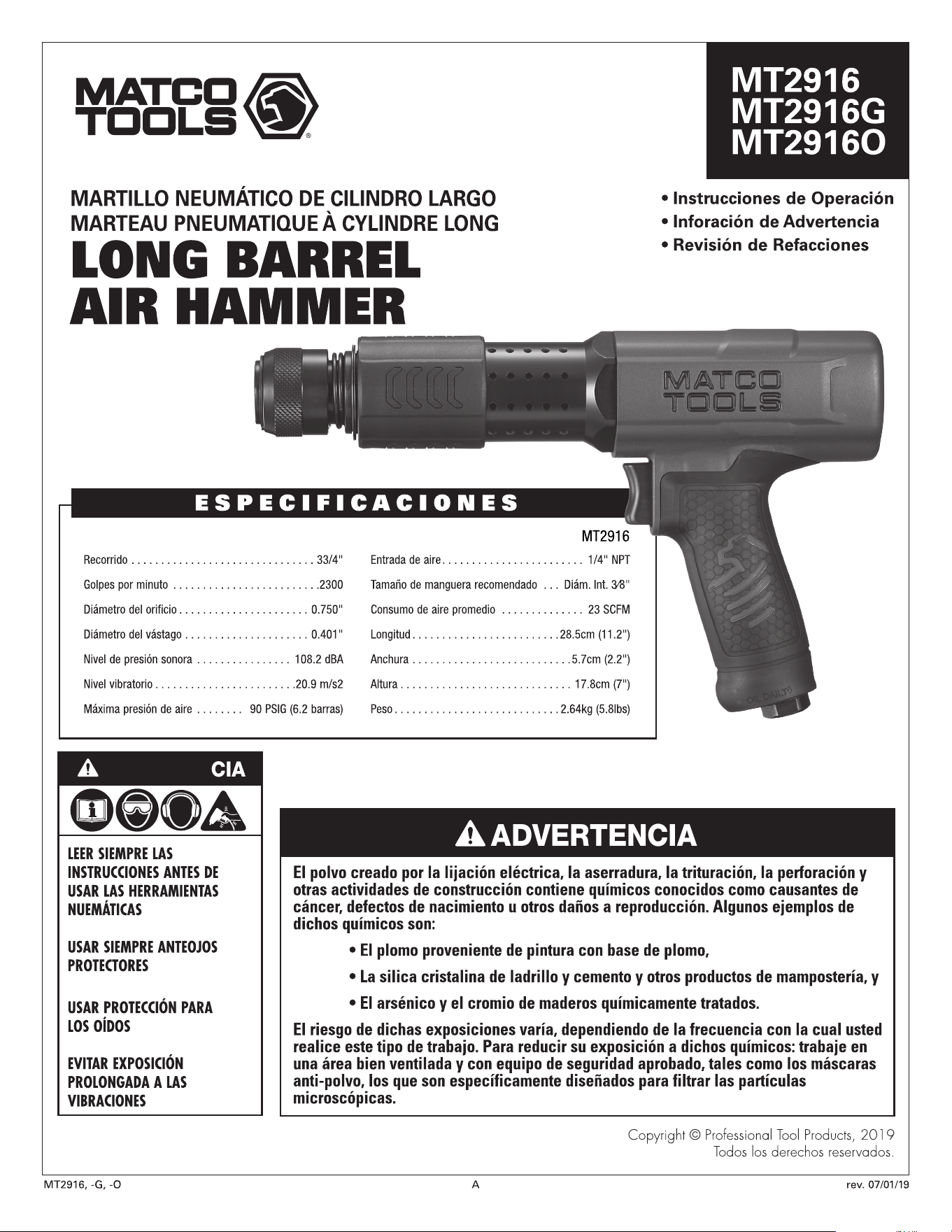

ADVERTENCIA
ADVERTENCIA

ADVERTENCIA

Drane
diariamente
ReguladorCaja de aceiteAcoplamiento de
conexión rápida
Primera
Manguera
No instale aquí el
acoplamiento de
conexión rápida
Conexión
macho
Conexión
macho
Filtro
Abastecimiento
de aire
Manguera
que azota

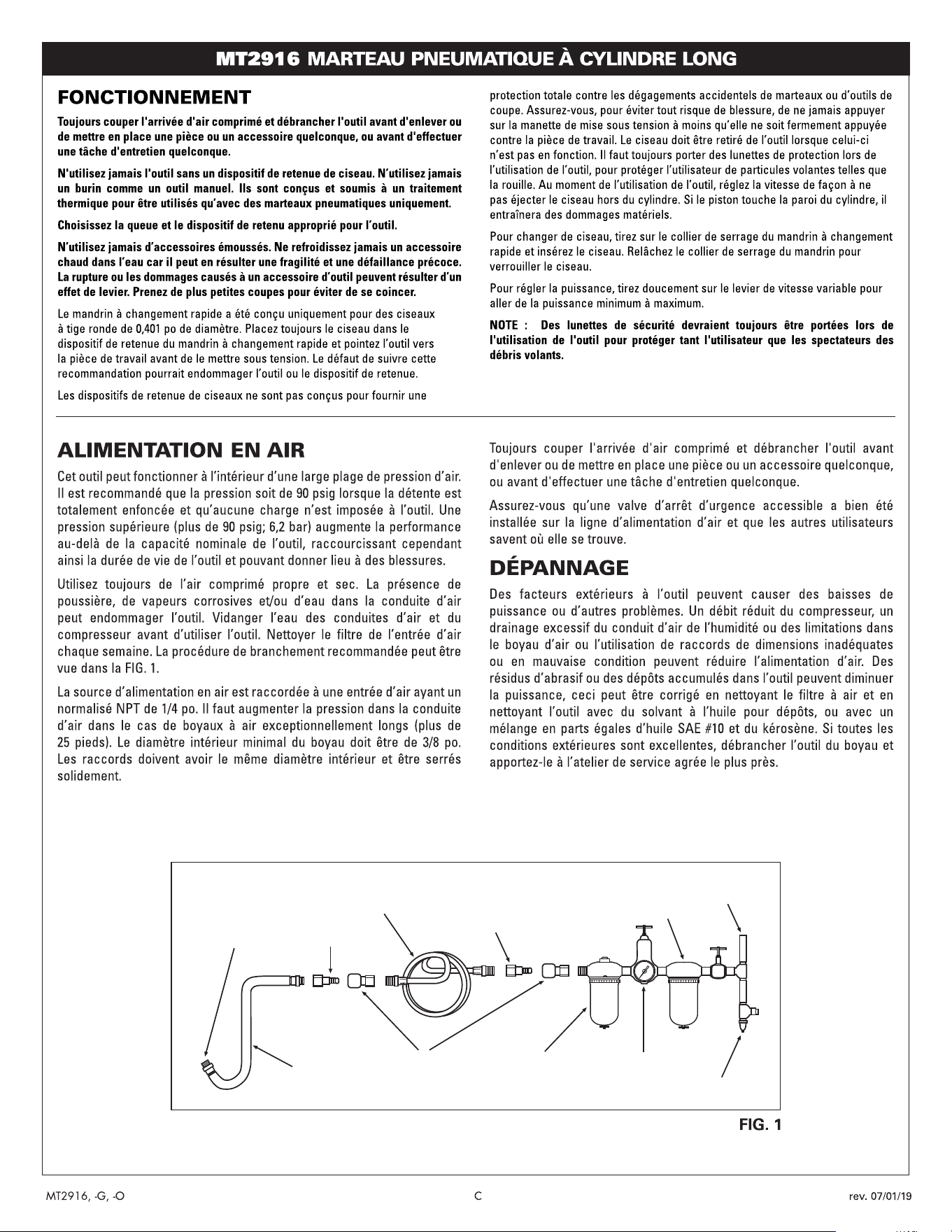

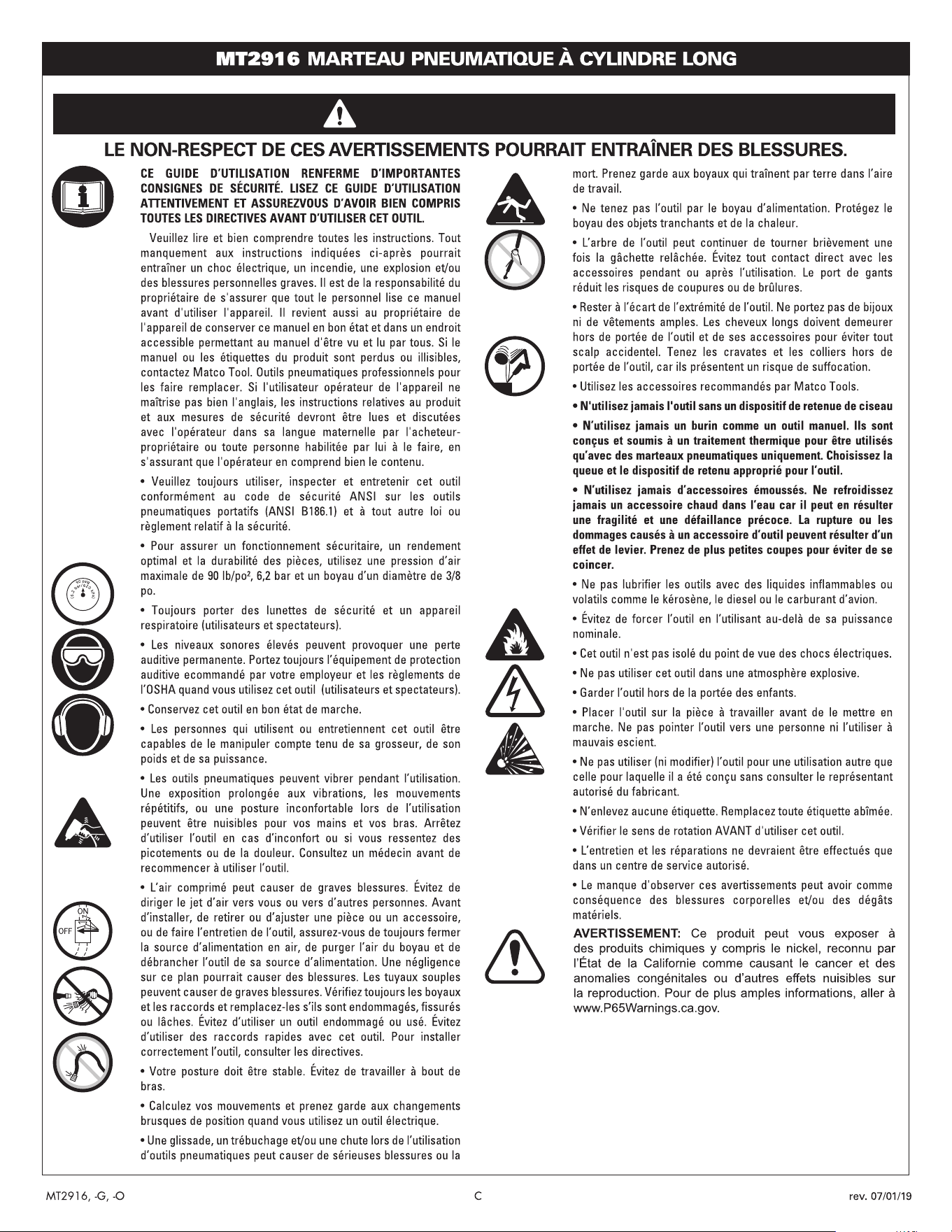

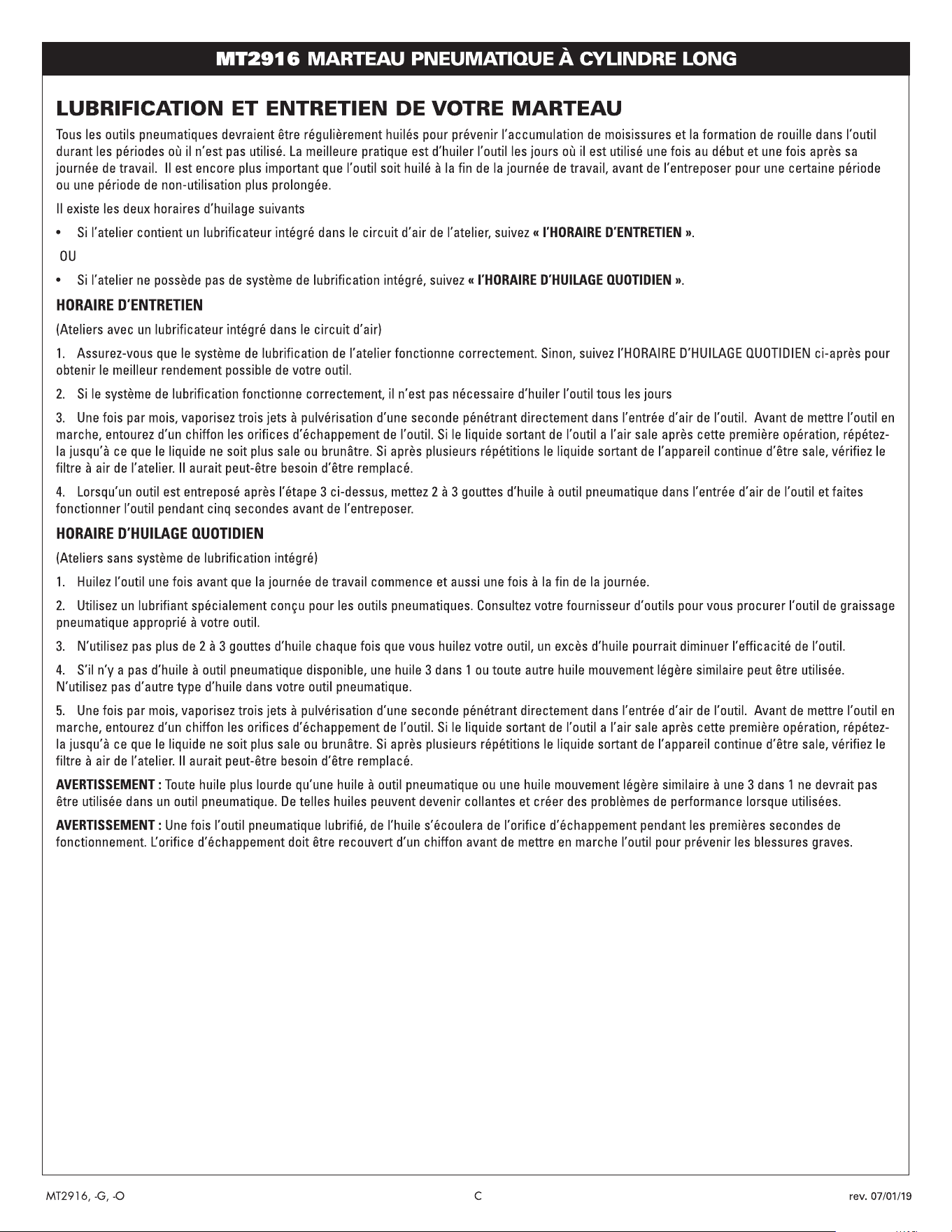

AVERTISSEMENT
AVERTISSEMENT

AVERTISSEMENT

Drain Daily
Regulator Oiler Quick Coupler Leader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
