User guide
The color and the appearance may differ depending on the product, and the specifications are subject to
change without prior notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung
Samsung owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung is
prohibited.
Trademarks other than that of Samsung are owned by their respective owners.
S22D30*G S24D30*G S27D30*G
S22D40*G S24D40*G S27D40*G
Table of contents
Before Using the Product
Safety Precautions 4
Electricity and Safety 4
Installation 5
Operation 6
Cleaning 8
Correct posture to use the product 8
Preparations
Installation 9
Attaching the Stand 9
Precautions for moving the product 10
Checking the space around the product 11
Adjusting the Product Tilt and Height 11
Rotating the Product 13
Anti-theft Lock 14
Wall Mount Kit Specifications (VESA) 15
Control Panel 16
Direct Key Guide 17
2
Menu
Picture 23
OnScreen Display 29
System 30
Support 32
Installing the Software
Easy Setting Box 33
Restrictions and Problems with the Installation 33
System Requirements 33
Driver Installation 33
Connecting and Using a Source Device
Read below before connecting the product. 18
Ports 18
Connecting and Using a PC 19
Connection Using the HDMI Cable 19
Connection Using an DP Cable 19
Connecting to headphones or earphones 19
Connection Using the D-SUB Cable
(Analog Type) 19
Connecting the Power 20
Connecting the Product to a PC as a USB HUB 20
Tidying Up the Cables 21
Setting Optimum Resolution 22
Table of contents
3
Appendix
Responsibility for the Pay Service (Cost to
Customers) 42
Not a product defect 42
A Product damage caused by customer's fault 42
Others 42
TCO CERTIFIED 43
Say hello to a more sustainable product 43
Product warranty information 43
Software updates 43
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Center 34
Product diagnosis (Screen issue) 34
Checking the Resolution and Frequency 34
Check the following. 34
Q & A 37
Specifications
General 38
Standard Signal Mode Table 40
4
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are
not followed.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high
voltage is present inside. It is
dangerous to make any kind of
contact with any internal part of this
product.
AC voltage: Rated voltage marked
with this symbol is AC voltage.
This symbol indicates that this
product has included important
literature concerning operation and
maintenance.
DC voltage: Rated voltage marked
with this symbol is DC voltage.
Class II product: This symbol indicates
that a safety connection to electrical
earth (ground) is not required. If this
symbol is not present on a product
with a mains lead, the product
MUST have a reliable connection to
protective earth (ground).
Caution. Consult instructions for use:
This symbol instructs the user to
consult the user manual for further
safety related information.
Electricity and Safety
Warning
• Do not use a damaged power cord or plug, or a loose power socket.
• Do not use multiple products with a single power socket.
• Do not touch the power plug with wet hands.
• Insert the power plug all the way in so it is not loose.
• Connect the power plug to a grounded power socket (type 1 insulated devices only).
• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy
object.
• Do not place the power cord or product near heat sources.
• Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
• Do not disconnect the power cord while the product is being used.
• Only use the power cord provided with your product by Samsung. Do not use the power cord with
other products.
• Keep the power socket where the power cord is connected unobstructed.
‒ The power cord must be disconnected to cut off power to the product when an issue occurs.
• Hold the plug when disconnecting the power cord from the power socket.
Before Using the Product
5
Installation
Warning
• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT
INSTALL THE PRODUCT NEAR HEAT SOURCES.
• Keep the plastic packaging out of the reach of children.
‒ Children may suffocate.
• Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
‒ The product may fall and become damaged or cause an injury.
‒ Using the product in an area with excess vibration may damage the product or cause a fire.
• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or
smoke.
• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
‒ The product lifespan may be reduced or a fire may result.
• Do not install the product within the reach of young children.
‒ The product may fall and injure children.
• Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil
pollution. And do not install or use the product in the kitchen or near the kitchen stove.
Caution
• Do not drop the product while moving.
• Do not set down the product on its front.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of
the product is not protruding.
‒ The product may fall and become damaged or cause an injury.
‒ Install the product only on cabinets or shelves of the right size.
• Set down the product gently.
‒ Product failure or personal injury may result.
• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical
substances, extreme temperatures or a significant presence of moisture, or a place where
the product will operate continuously for an extended period of time) may seriously affect its
performance.
‒ Be sure to consult Samsung Customer Service Center if you want to install the product at such a
place.
• Before assembling the product, place the product down on a flat and stable surface so that the
screen is facing downwards.
• In the same series, the color can vary depending on the size.
6
Operation
Warning
• There is a high voltage inside the product. Never disassemble, repair or modify the product
yourself.
‒ Contact Samsung Customer Service Center for repairs.
• To move the product, first disconnect all the cables from it, including the power cord.
• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord
immediately and contact Samsung Customer Service Center.
• Do not let children hang from the product or climb on top of it.
‒ Children may become injured or seriously harmed.
• If the product is dropped or the outer case is damaged, turn off the power and disconnect the
power cord. Then contact Samsung Customer Service Center.
‒ Continued use can result in a fire or electric shock.
• Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
‒ The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a
serious injury.
• During a lightning or thunderstorm, power off the product and remove the power cord.
• Do not drop objects on the product or apply impact.
• Do not move the product by pulling the power cord or any cable.
• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
• Do not lift or move the product by pulling the power cord or any cable.
• Do not use or keep combustible spray or an inflammable substance near the product.
• Ensure the vents are not blocked by tablecloths or curtains.
‒ An increased internal temperature may cause a fire.
• Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,
matches, etc) into the product (through the vent or input/output ports, etc).
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
• Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the
product.
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
• Do not use liquid fumigators containing chemicals, such as mosquito repellent or air freshener,
around the product.
‒ If steam comes in contact with the product surface or enters the product, it may cause stains or
malfunction.
7
Caution
• Leaving the screen fixed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
‒ Set the screen to power-saving mode or moving-picture screen saver when not using the
product for an extended period of time.
• Disconnect the power cord from the power socket if you do not plan on using the product for an
extended period of time (vacation, etc).
‒ Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
• Use the product at the recommended resolution and frequency.
‒ Your eyesight may deteriorate.
• Do not put AC/DC adapters together.
• Remove the plastic bag from the AC/DC adapter before you use it.
• Do not let water enter the AC/DC adapter device or get the device wet.
‒ An electric shock or fire may result.
‒ Avoid using the product outdoors where it can be exposed to rain or snow.
‒ Be careful not to get the AC/DC adapter wet when you wash the floor.
• Do not put the AC/DC adapter near to any heating apparatus.
‒ Otherwise, a fire may result.
• Keep the AC/DC adapter in a well-ventilated area.
• If you place the AC/DC power adapter hanging with the cord input facing upwards, water or other
foreign substances could enter the Adapter and cause the Adapter to malfunction. Make sure to
rest the AC/DC power adapter flat on a table or the floor.
• Do not hold the product upside-down or move it by holding the stand.
‒ The product may fall and become damaged or cause an injury.
• Looking at the screen too close for an extended period of time can deteriorate your eyesight.
• Do not use humidifiers or stoves around the product.
• Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
• Do not touch the screen when the product has been turned on for an extended period of time as it
will become hot.
• Store small accessories out of the reach of children.
• Exercise caution when adjusting the product angle or stand height.
‒ Your hand or finger may get stuck and injured.
‒ Tilting the product at an excessive angle may cause the product to fall and an injury may result.
• Do not place heavy objects on the product.
‒ Product failure or personal injury may result.
• When using headphones or earphones, do not turn the volume too high.
‒ Having the sound too loud may damage your hearing.
8
Cleaning
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product
(Service fee will be charged.)
Do not press the product screen with hands or other objects. There is a risk of damaging the screen.
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1
Power off the product and PC.
2
Disconnect the power cord from the product.
―
Hold the power cord by the plug and do not touch the cable with wet hands. Otherwise, an electric shock
may result.
3
Wipe the product with a clean, soft and dry cloth.
Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product
clean.
‒ Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.
‒ Do not spray water or detergent directly on the product.
4
Connect the power cord to the product when cleaning is finished.
5
Power on the product and PC.
Correct posture to use the product
Use the product in the correct posture as follows:
• Straighten your back.
• Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at
the screen.
• Keep your eyes directly in front of the screen.
• Adjust the angle so light does not reflect on the screen.
• Keep your forearms perpendicular to your upper arms and level with the back of your hands.
• Keep your elbows at about a right angle.
• Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels
attached to the floor, and your arms lower than your heart.
• Do the Eye excercises or blink frequently, then eye fatigue will be relieved.
9
Preparations
Installation

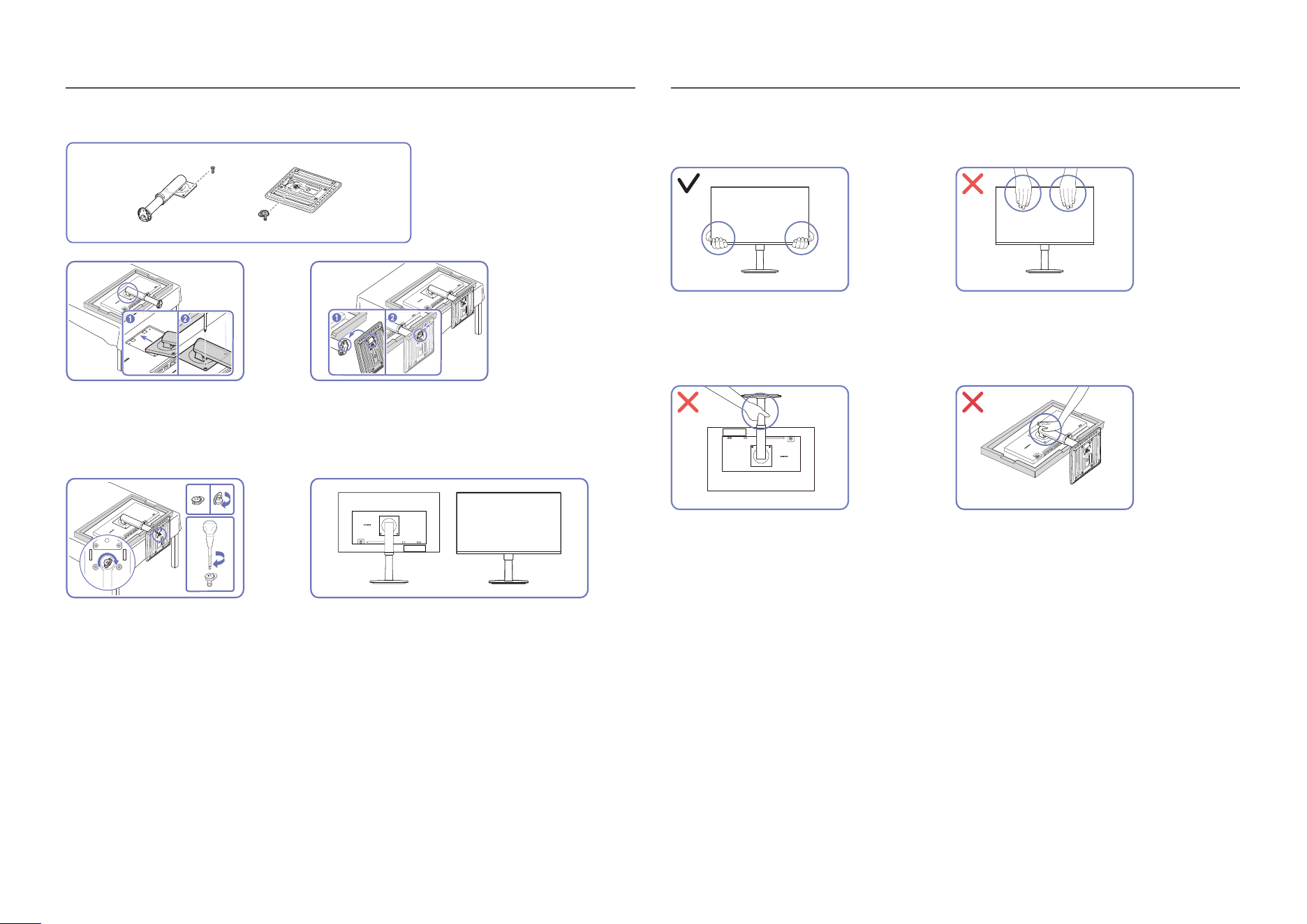

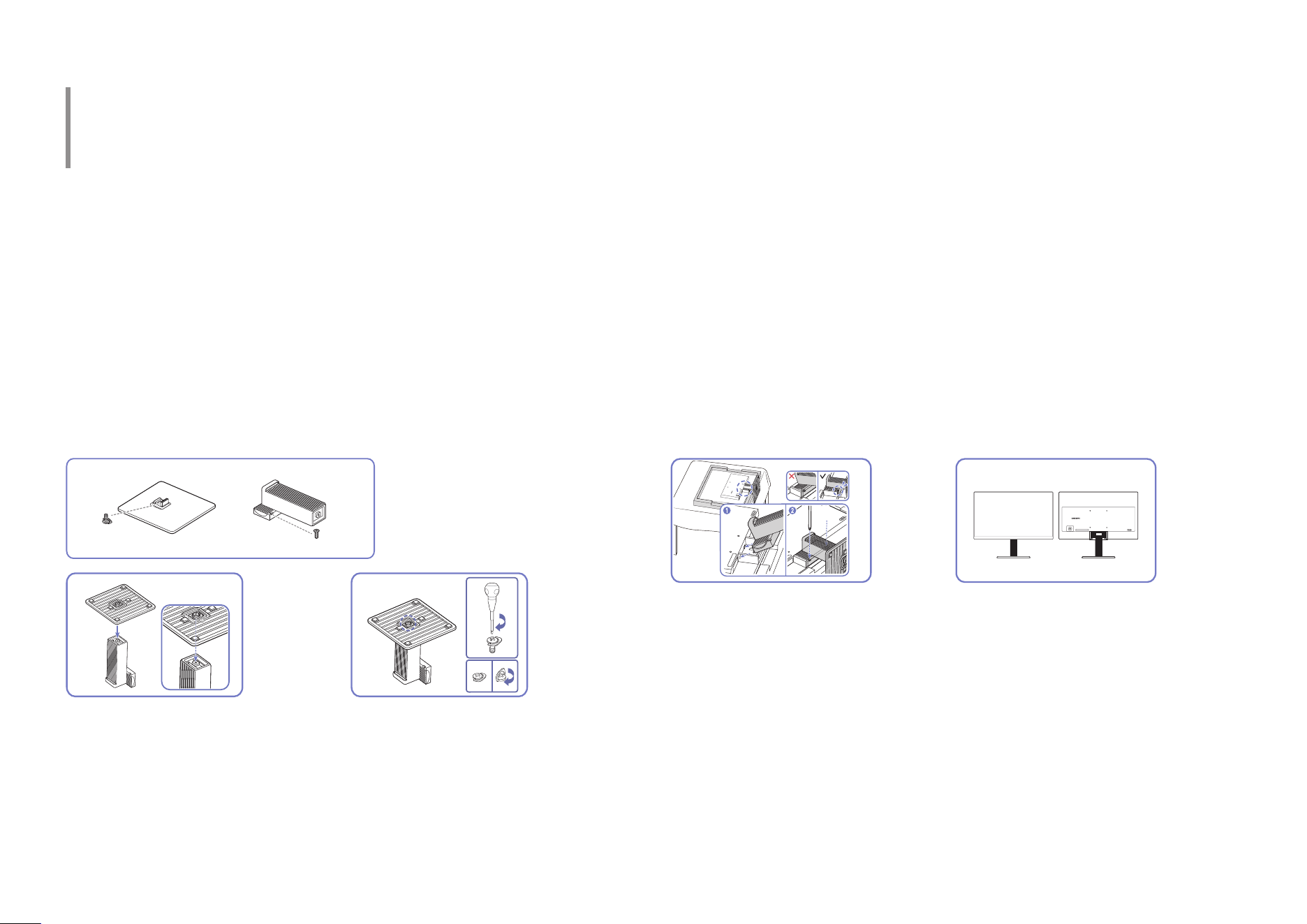

Attaching the Stand
―
Before assembling the product, place the product down on a flat and stable surface so that the screen
is facing downwards.
―
Disassembly is the reverse order of assembly.
S22D30*G / S24D30*G / S27D30*G
x 2
1
1
2
Put the stand base onto the stand neck as the
direction shown in the figure. Check that the
stand neck is firmly connected.
Tightly fasten the connecting screw at the
bottom of the stand base.
3
4
4
Place a soft cloth over the table to protect
the product and place the product onto the
cloth so that the front of the product is facing
downwards. Push the assembled stand into
the main body in the direction of the arrow
as shown in the figure. Tightly fasten the
connecting screw at the center of the stand
neck.
After installing the stand, place the product
upright.
10
S22D40*G / S24D40*G / S27D40*G
x 2
1
2
Push the stand neck into the main body
in the direction of the arrow as shown in
the figure. Check that the stand neck is
firmly connected.
Insert the stand base into the stand neck in the
direction as shown in the figure.
3
4
Tightly fasten the connecting screw at
the bottom of the stand base.
After installing the stand, place the product upright.
Precautions for moving the product
• Hold the lower corners or edges of the
product when moving it.
• Do not directly apply pressure on the screen.
• Do not hold the screen when moving the
product.
• Do not hold the product upside down only by
the stand.
• Do not press down on the product. There is a
risk of damaging the product.
11

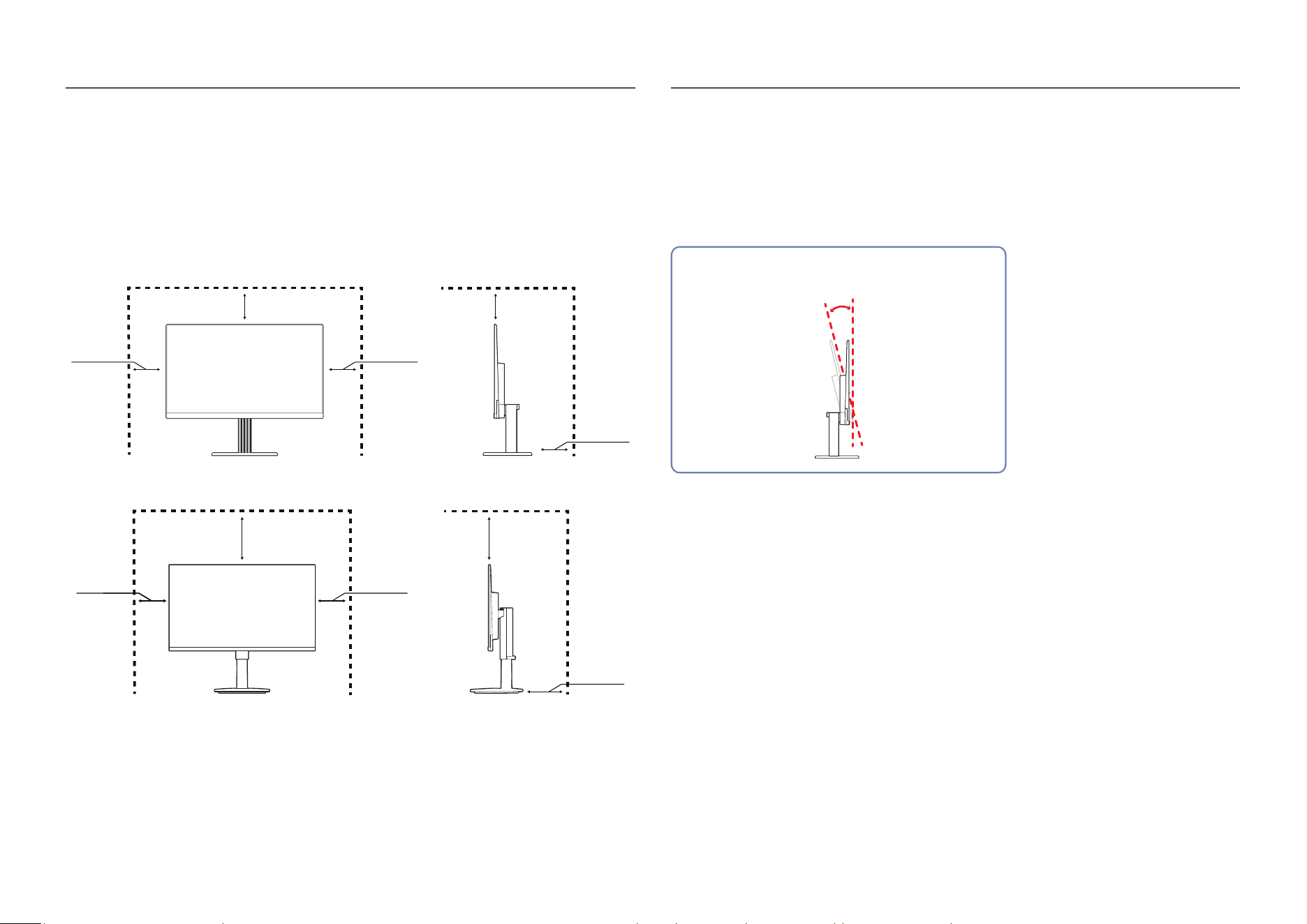

Checking the space around the product
Make sure to have enough space for ventilation when placing the product. An internal temperature rise
may cause fire and damage the product. Maintain enough space around the product as shown in the
diagram when installing the product.
―
The exterior may differ depending on the product.
S22D30*G / S24D30*G / S27D30*G
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
S22D40*G / S24D40*G / S27D40*G
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)

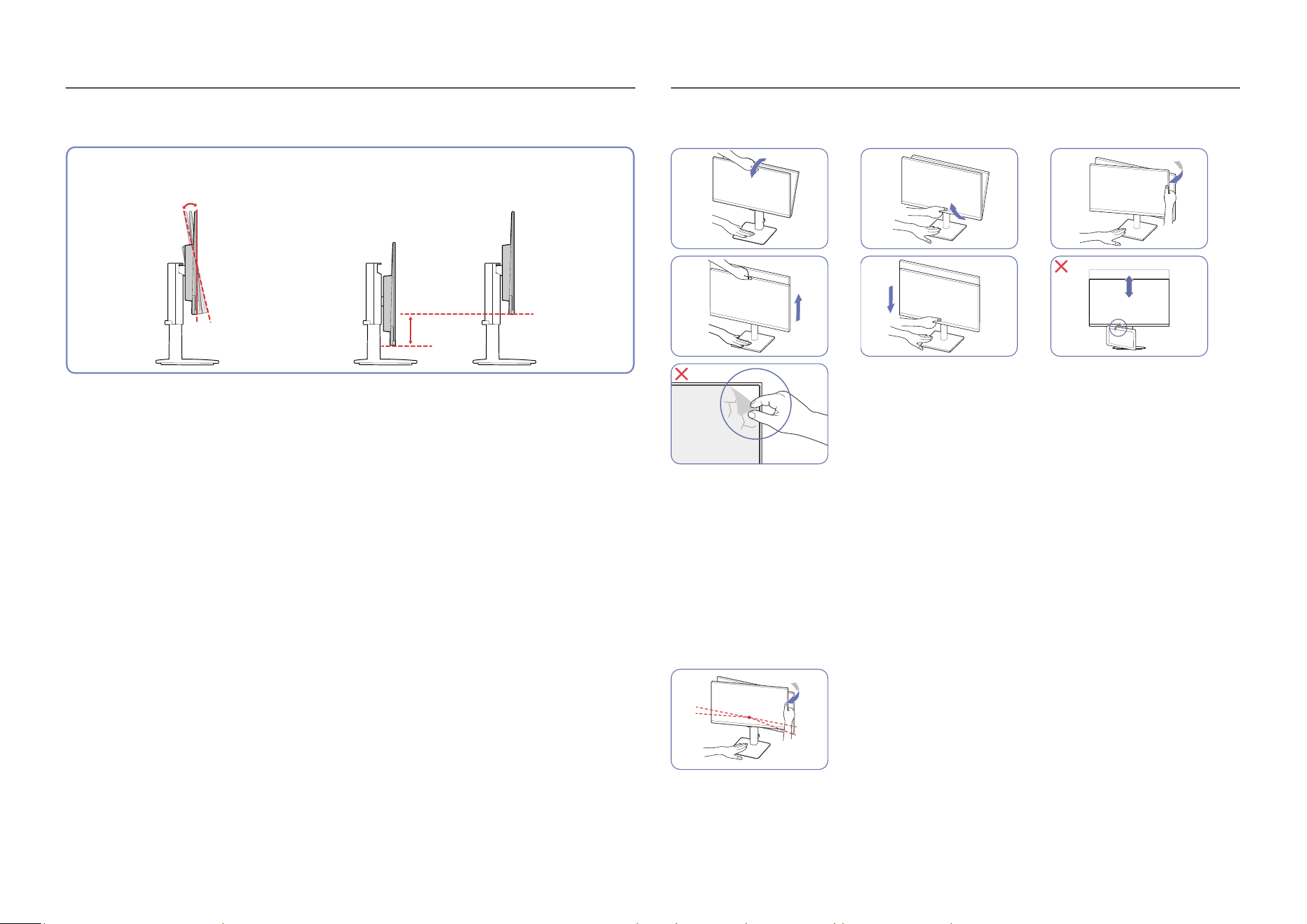

Adjusting the Product Tilt and Height
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S22D30*G / S24D30*G / S27D30*G
-2.0° (±2.0°) ~ 21.0° (±2.0°)
• The product tilt can be adjusted.
• Hold the top center of the product and adjust the tilt carefully.
12
S22D40*G / S24D40*G / S27D40*G
-3.0° (±2.0°) ~ 25.0° (±2.0°) 105.0 mm (±5.0 mm)
• The product tilt and height can be adjusted.
• Hold the top center of the product and adjust the height carefully.
• When adjusting the stand height, you may hear a noise. This noise is generated because of the
ball inside the stand slides when the stand height is adjusted. It is a normal noise and not a
malfunction of the product.
Caution
• Grasp the left and right sides of the monitor and adjust the swivel.
• Grasp the center of the monitor and adjust the height.
• Do NOT hold the stand moving part with your hand when leveling the screen. Your hand may get
hurt.
• Do not put an object around the lower part of the product. The product or object may get damaged
when adjusting the product height.
• Do not arbitrarily remove the panel film. If not observed, the warranty service may be restricted.
If the screen is not level, take the following actions.
• Hold the bezel at both side edges and adjust the monitor angle until the screen becomes level.
(Be careful not to directly hold the LCD display.)
• The monitor angle can be adjusted from -3° to +3°. (S22D30*G / S24D30*G / S27D30*G models
only.)
13

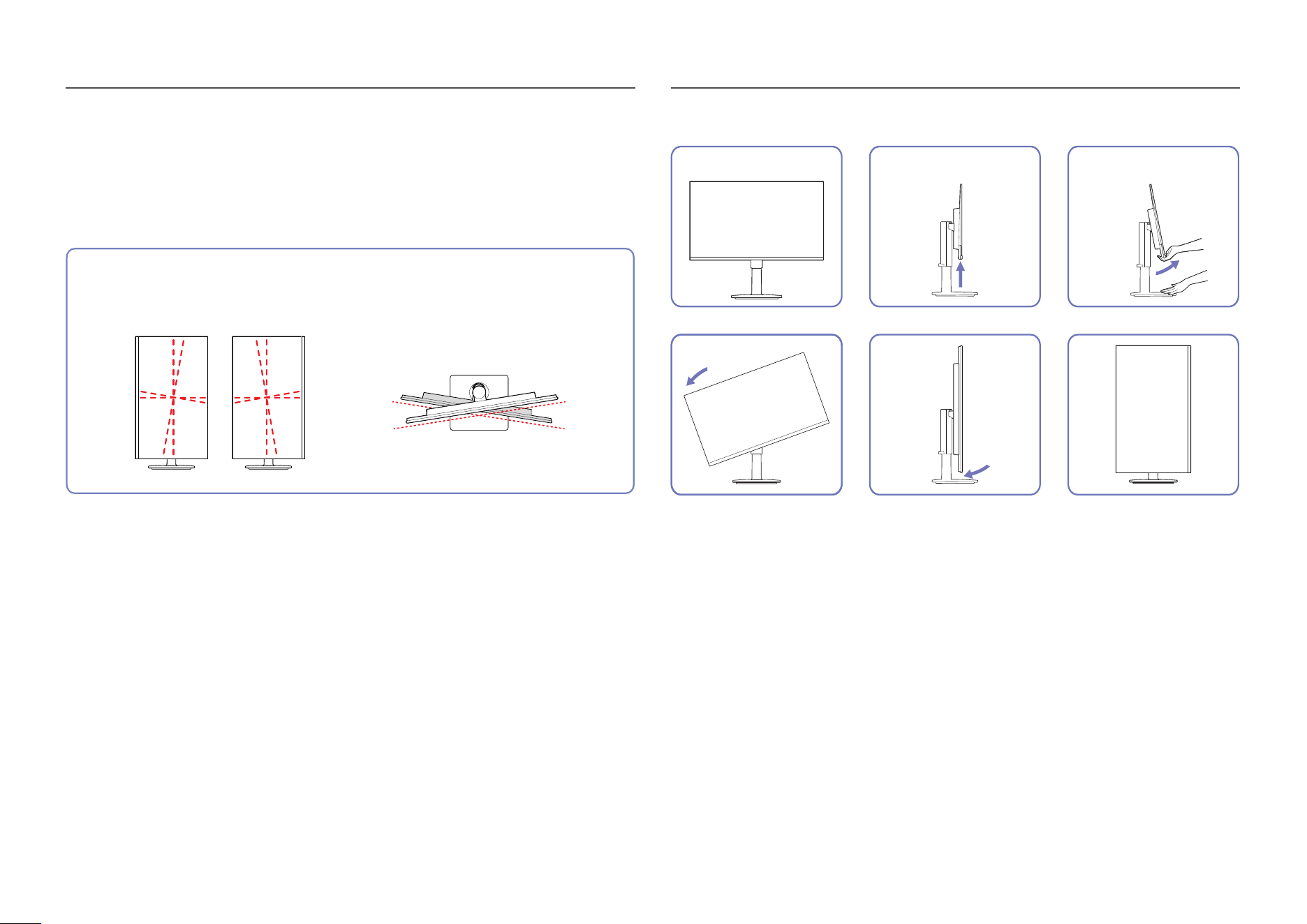

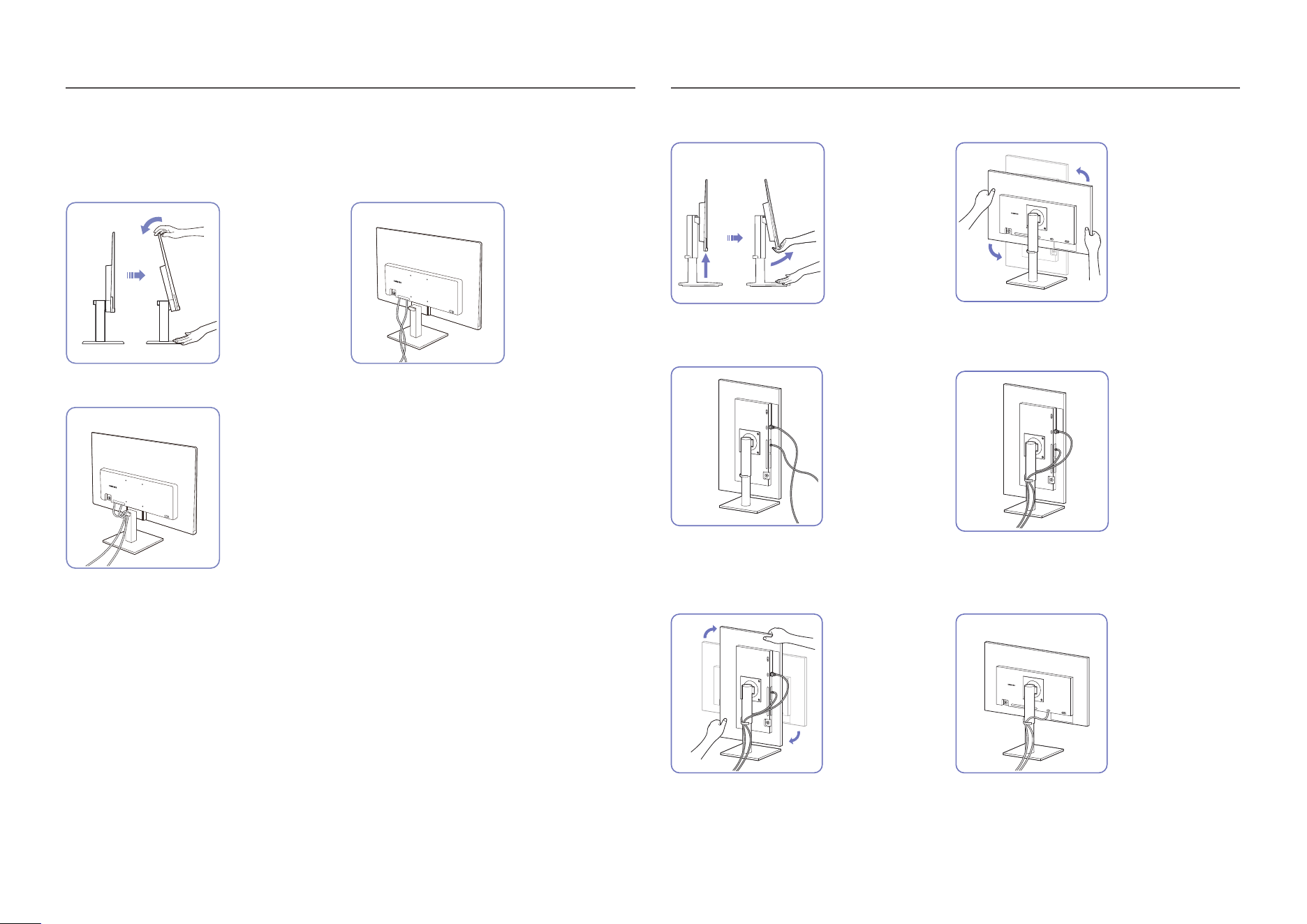

Rotating the Product
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S22D40*G / S24D40*G / S27D40*G
-92.0° (±2.0°) ~ 92.0° (±2.0°) -45.0° (±3.0°) ~ 45.0° (±3.0°)
You can rotate your product as shown below.
5 64
1 32
• Be sure to fully extend the stand before rotating the product.
• If you rotate the product without fully extending the stand, the corner of the product may hit the
floor and get damaged.
• When rotating the product, be careful not to damage the product by hitting the object or stand.
14
Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the manuals provided
with your anti-theft locking device for details.
To lock an anti-theft locking device:
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
‒ An anti-theft locking device can be purchased separately.
‒ Refer to the manuals provided with your anti-theft locking device for details.
‒ Anti-theft locking devices can be purchased at electronics retailers or online.
15
Wall Mount Kit Specifications (VESA)
―
Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to
surfaces other than plaster board, please contact your nearest dealer for additional information. If you
install the product on a slanted wall, it may fall and result in severe personal injury. Samsung wall mount
kits contain a detailed installation manual and all parts necessary for assembly are provided.
• Do not use screws that are longer than the standard length or do not comply with the VESA
standard screw specifications. Screws that are too long may cause damage to the inside of the
product.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the
screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall,
leading to personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified
wall mount is used or the consumer fails to follow the product installation instructions.
• Do not mount the product at more than a 15 degree tilt.
• Standard dimensions for wall mount kits are shown in the table follow.
C
Product
Wall mount bracket
Model name VESA screw hole specs
(A * B) in millimeters
C Standard
Screw
Quantity
S22D40*G / S24D40*G /
S27D40*G / S22D30*G /
S24D30*G / S27D30*G
100.0 x 100.0 6.0 ~ 8.0 mm M4 4
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
16

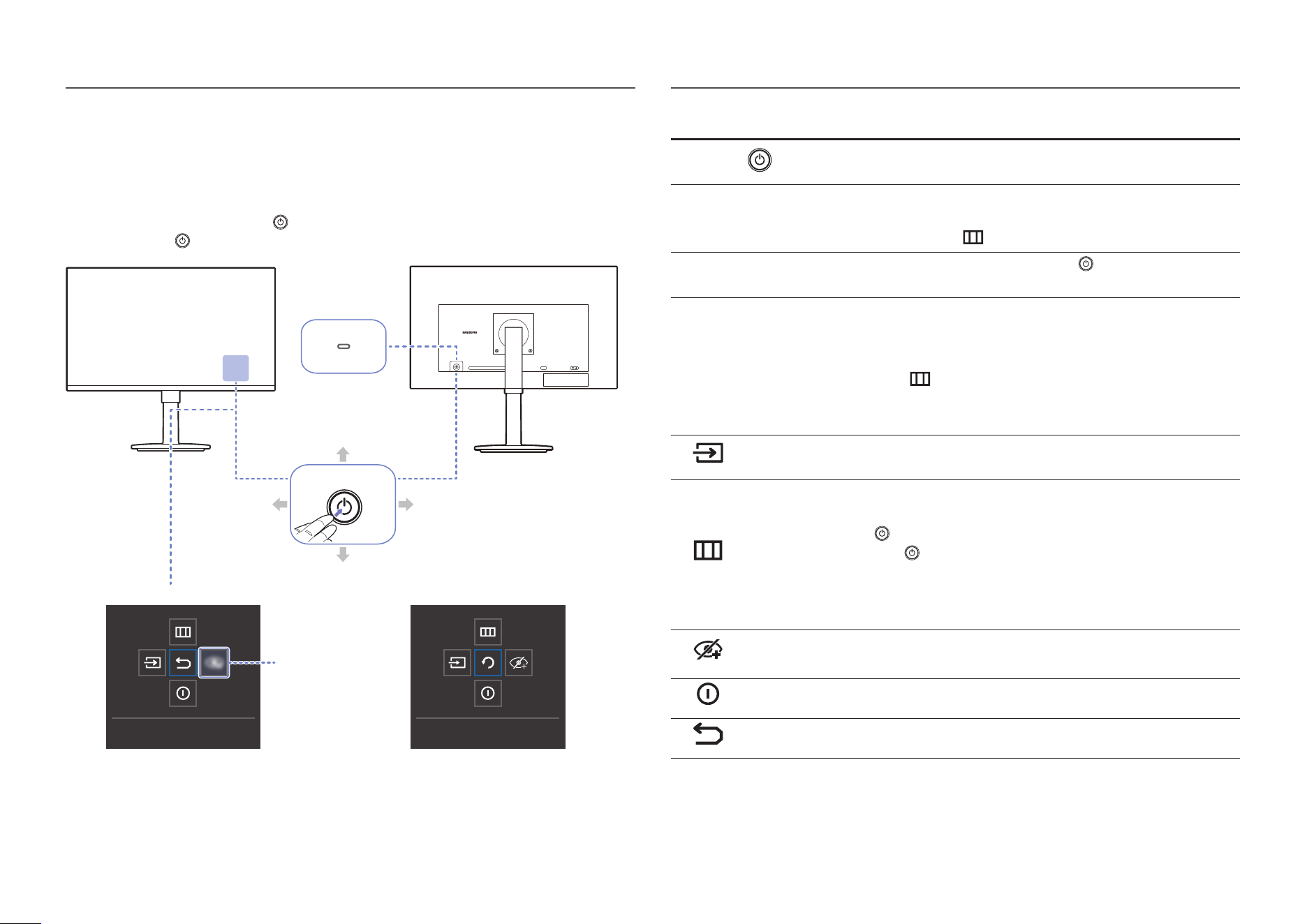

Control Panel
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
―
You can turn on the product with the
button, and then use the Function Key Guide. Function Key Guide
appears when the button is pressed while the product is On.
Function Key Guide
Custom Key
Power LED
DOWN
PRESS(ENTER)
LEFT
<Rear>
UP
RIGHT
Return Return
S22D40*G / S24D40*G / S27D40*G
S22D30*G / S24D30*G / S27D30*G
Parts Description
Use this multi-directional button to turn on the power or navigate
menus.
Power LED
This LED is power status indicator.
―
You can select the power LED operation to be enabled or disabled on
the menu screen. (
→ System → Power LED On)
Function Key Guide
To use the Function Key Guide, press the button when the screen
is turned on.
Custom Key
• Custom Key is used to directly access the function set in Setup
Custom Key.
• Setup Custom Key
―
Go to
→ System → Setup Custom Key and change the custom
key.
―
S22D40*G / S24D40*G / S27D40*G models only.
Source
Changes the input source. A message will appear on the top left
corner of the screen if the input source has been changed.
Menu
Displays the main on-screen menu.
To enable or disable the menu lock, move to the next step (move
the
button to the right) with the “Menu” displayed, and then
push the button to the left for 10 seconds until the menu screen
disappears.
If the menu lock is enabled, Brightness, Contrast, Eye Saver Mode,
Volume and Information are available.
Eye Saver Mode
Enables the Eye Saver Mode.
―
S22D30*G / S24D30*G / S27D30*G models only.
Power Off
Turns off the product.
Return
Exits from the menu page.
17
Direct Key Guide
―
On the Direct Key Guide screen, the following menu options appear when the product screen is switched
on or the input source is changed.
S22D40*G / S24D40*G / S27D40*G
Eye Saver Mode
Volume
Source
Eye Saver Mode
Off
Features
―
The Direct Key Guide screen shows if Eye Saver Mode is enabled. (Off, Low, High)
―
When the product not displays the OSD menu, the
button could be used as below.
• UP: Adjust Brightness, Contrast, Eye Saver Mode.
• DOWN: Adjust Volume, Mute.
• LEFT/RIGHT: Adjust Source.
• PRESS(ENTER): Display Function Key Guide.
S22D30*G / S24D30*G / S27D30*G
HDMI mode
Brightness
Source
Eye Saver Mode
Off
Features
• UP/DOWN: Adjust Brightness, Contrast, Sharpness.
• LEFT/RIGHT: Adjust Source.
• PRESS(ENTER): Display Function Key Guide.
Analog mode
Brightness
Auto Adjustment
Source
Eye Saver Mode
Off
Features
• UP: Adjust Brightness, Contrast, Sharpness.
• DOWN: Adjust Auto Adjustment.
―
Changing the resolution in Display Properties will activate the Auto Adjustment function.
―
This function is only available in Analog mode.
• LEFT/RIGHT: Adjust Source.
• PRESS(ENTER): Display Function Key Guide.
18

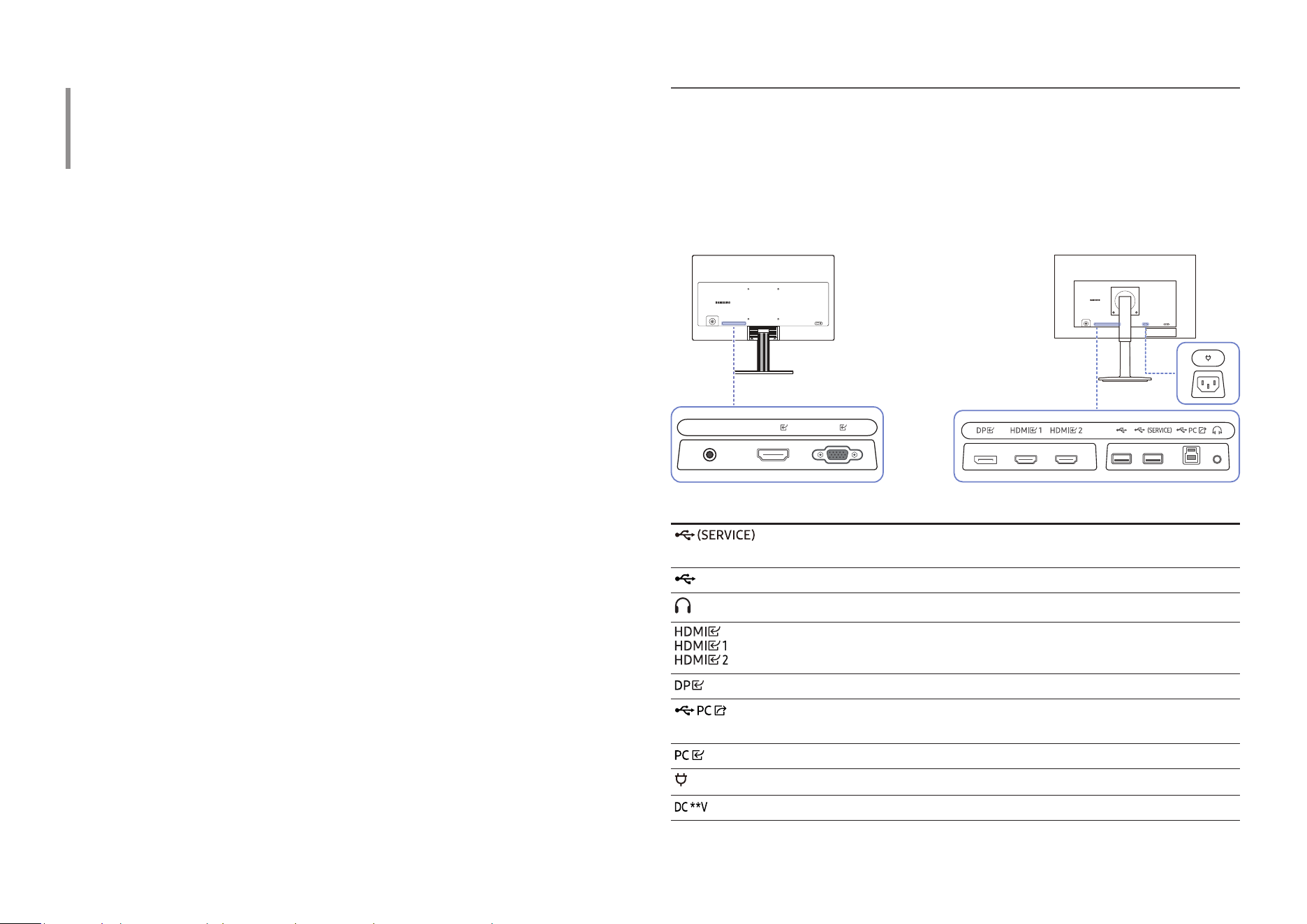

Ports
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality. Refer to the
actual product.
S22D30*G / S24D30*G / S27D30*G S22D40*G / S24D40*G / S27D40*G
DC **V
HDMI
PC
Port Description
• Connect to a USB device.
• Used to update the software.
Connect to a USB device.
Connect to an audio output device such as headphones.
Connects to a source device using an HDMI cable.
Connects to a PC using a DP cable.
Connects to a PC using a USB cable.
―
This port can only connect to a PC.
Connect to a PC using the D-SUB cable.
Connect the power cord for product.
Connects to the AC/DC adapter.
Connecting and Using a Source
Device
Read below before connecting the product.
1
Before connecting the product, check the shapes of both ports of the supplied signal cables and
the shapes and locations of the ports on the product and external device.
2
Before connecting the product, make sure you remove the power cords from both the product and
the external device to prevent damage to the product due to a short circuit or over current.
3
After all signal cables have been properly connected, connect the power cords back to the product
and the external device.
4
After connecting is completed, make sure you read the manuals to acquaint yourself with the
product functions, precautions and other information required to use the product properly.
―
Connecting parts may differ in different products.
―
Provided ports may vary depending on the product.
19

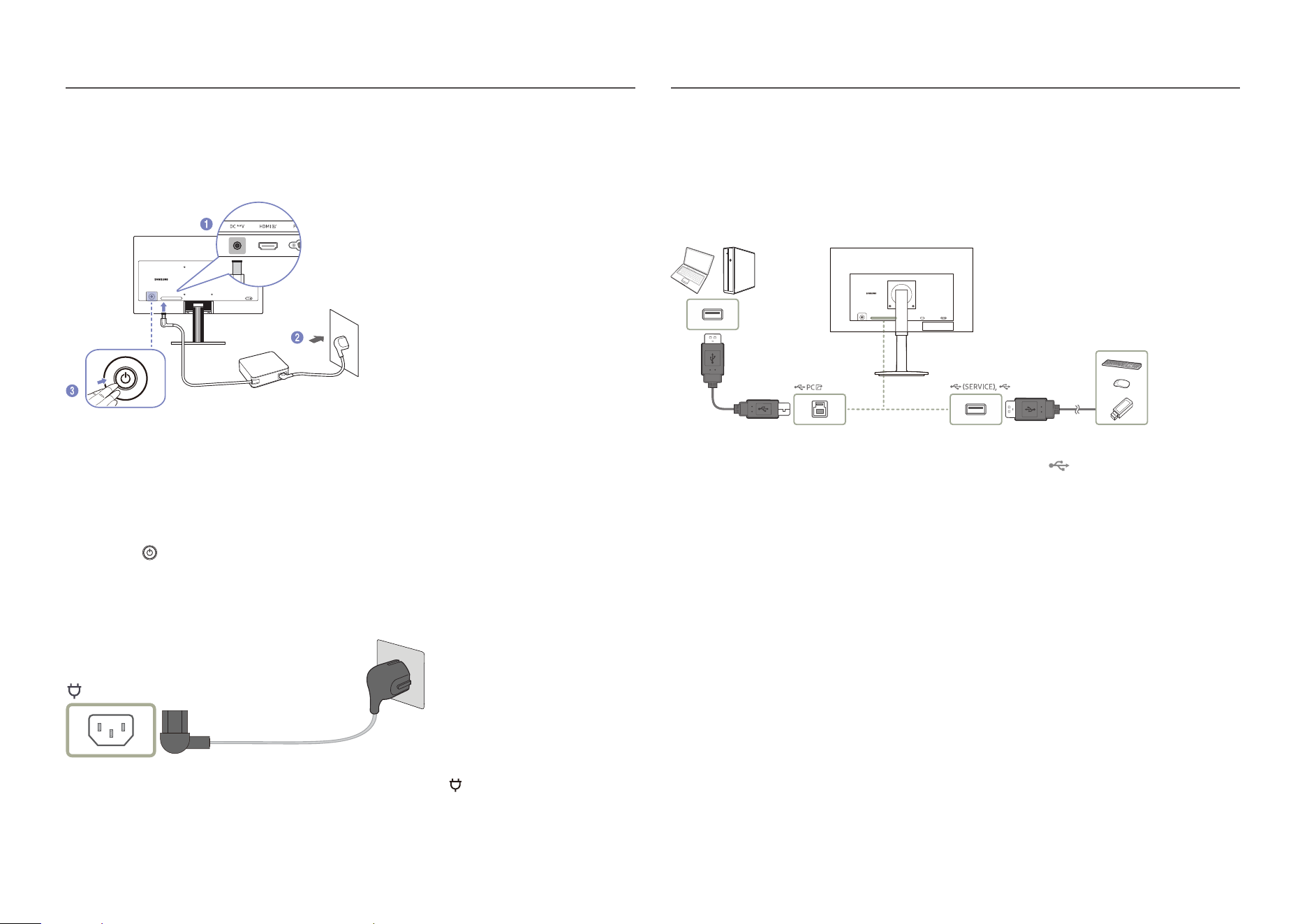

Connecting and Using a PC

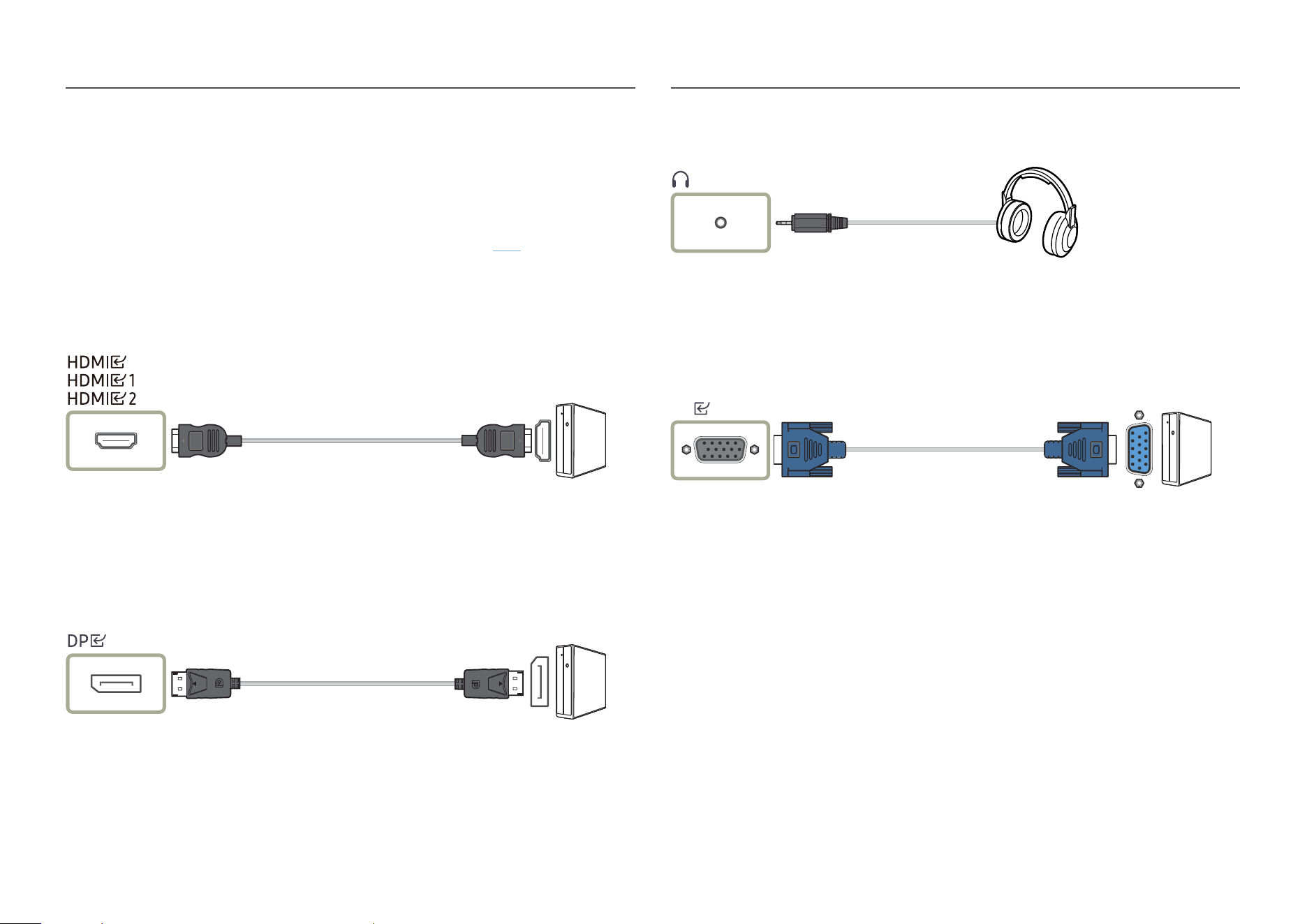

Select a connection method suitable for your PC.
―
If you connect a source device using a gender changer, the product may not work properly, depending on
the characteristics of the gender changer.
―
The functions available may vary depending on the product model. Refer to the Ports page for port
specifications for each product.
Connection Using the HDMI Cable
―
It is recommended to use the HDMI cable provided as components. If not provided, be sure to use
authorized cable for HDMI cable connections. If you use a unauthorized HDMI cable, the image quality may
be degrade.
Connection Using an DP Cable
―
It is recommended to use the DP cable provided as an accessory. If not provided, be sure to use a DP cable
of 1.5 m or below.
―
Use a VESA certified DP 1.2 cable or higher and its gender.
Connecting to headphones or earphones
―
Use headphones or earphones when activating sound with an HDMI-HDMI or DP cable.
―
The headphones or earphones jack supports only the 3 conductor tip-ring-sleeve (TRS) type.
Connection Using the D-SUB Cable (Analog Type)
PC
20
Connecting the Power
S22D30*G / S24D30*G / S27D30*G
1
Connect the power cord to the AC/DC adapter. Then, connect the AC/DC adapter to the DC **V port
on the back of the product.
―
Rated power consumption for adapters differs depending on the model. Use an adapter that meets the
power consumption specification of the model.
2
Next, connect the power cord to the power outlet.
3
Press the button of the product to turn it on.
―
The input voltage is switched automatically.
S22D40*G / S24D40*G / S27D40*G
To use the product, connect the power cord to a power outlet and the port on the product.
―
The input voltage is switched automatically.
Connecting the Product to a PC as a USB HUB
Using the product as a hub, connect and use various source devices with the product at a time.
―
Port names and the number of ports may differ, depending on the model.
S22D40*G / S24D40*G / S27D40*G
―
To detect and start a USB device faster, connect the USB device to the
port on the product. The read/
write rate will be affected by the USB device and your PC.
―
For USB-related problems caused by OS, drive programs or software, please contact relevant suppliers.
―
With the launch of various USB devices on the market, we cannot guarantee that our products are matched
with all USB devices.
―
For an external mass-storage HDD requiring external power supply, be sure to connect it to a power source.
―
The company is not liable for problems or damages to an external device caused by using an unauthorized
cable for the connection.
―
Some products do not follow the USB standard, and it may cause a malfunction of the device.
21
Tidying Up the Cables
S22D30*G / S24D30*G / S27D30*G
1
2
Tilt the display, as shown in the figure. Connect the corresponding cables.
3
Put both cables in the cable holder on the
stand (HOLDER-STAND CABLE) to organize the
cables, as shown in the figure.
Assembly is complete.
S22D40*G / S24D40*G / S27D40*G
1
2
Tilt the display, as shown in the figure. Rotate the product to the highest vertical
position.
3
4
Connect the corresponding cables. Put both cables in the cable holder on the
stand (HOLDER-STAND CABLE) to organize the
cables, as shown in the figure.
5
6
Rotate the product to the horizontal position. Assembly is complete.
22
Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for
the first time after purchase.
Select a language on information message and change the resolution on your PC to the optimum
setting.
―
If the optimum resolution is not selected, the message will appear up to three times for a specified time
even when the product is turned off and on again.
―
If you want to set the optimum resolution for your computer. Please refer to (Q&A) → “How can I change the
resolution?”
23
Menu
Function Key Guide →
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality.
2nd Description
Picture Mode This menu provides an optimum picture quality suitable for the
environment where the product will be used.
―
This menu is not available when Eye Saver Mode is enabled.
S22D40*G / S24D40*G / S27D40*G
In PC mode
• Entertain: Obtain the clear and vivid picture quality with color
enhancement.
• Graphic: Obtain the quality of Image contents without color
enhancement.
• Eco: This screen is provided to save energy.
• Game Standard: Obtain a picture quality suitable for playing
games.
2nd Description
Picture Mode • RPG: This mode is optimized for 3D graphics and instant
messaging on the RPG (Role Playing Game) game screen.
• RTS: Increase the color temperature and contrast ratio to
improve visibility of the RTS (Real-Time Strategy) screen and
minimap.
• FPS: Increase the brightness of darker areas of the FPS (First-
Person Shooter) game screen. This mode increases visibility of
your enemies during a FPS (First-Person Shooter) game.
• Sports: Obtain the brightness and sharpness of monitors
suitable for enjoying sports contents.
• Original: Obtain the pure picture quality of contents without
color enhancement.
• Custom: Customize the contrast and brightness as required.
24
2nd Description
Picture Mode • RTS: Increase the color temperature and contrast ratio to
improve visibility of the RTS (Real-Time Strategy) screen and
minimap.
• FPS: Increase the brightness of darker areas of the FPS (First-
Person Shooter) game screen. This mode increases visibility of
your enemies during a FPS (First-Person Shooter) game.
• Sports: Obtain the brightness and sharpness of monitors
suitable for enjoying sports contents.
• Original: Obtain the pure picture quality of contents without
color enhancement.
• Custom: Select this mode when you want to adjust the image
according to your preferences.
―
The input source is 480p, 576p, 720p or 1080p and product can
display normally (Not every model can support all of these signals.).
2nd Description
Picture Mode In AV mode
When the external input is connected through HDMI, DP and PC/
AV Mode is set to AV, Picture Mode has eleven automatic picture
settings (Dynamic, Standard, Eco, Movie, Game Standard, FPS, RTS,
RPG, Sports, Original and Custom) that are preset at the factory. You
can activate either Dynamic, Standard, Eco, Movie, Game Standard,
FPS, RTS, RPG, Sports, Original or Custom. You can select Custom
which automatically recalls your personalized picture settings.
―
Supported ports may differ, depending on the product.
• Dynamic: Select this mode to view a sharper image than in
Standard mode.
• Standard: Select this mode when the surroundings are bright.
• Eco: This screen is provided to save energy.
• Movie: Select this mode when the surroundings are dark. This
will save power and reduce eye fatigue.
• Game Standard: Obtain a picture quality suitable for playing
games.
• RPG: This mode is optimized for 3D graphics and instant
messaging on the RPG (Role Playing Game) game screen.
25
2nd Description
Picture Mode In AV mode
When the external input is connected through HDMI PC/AV Mode is
set to AV, Picture Mode has four automatic picture settings (Dynamic,
Standard, Movie and Custom) that are preset at the factory. You
can activate either Dynamic, Standard, Movie or Custom. You can
select Custom which automatically recalls your personalized picture
settings.
• Dynamic: Select this mode to view a sharper image than in
Standard mode.
• Standard: Select this mode when the surroundings are bright.
• Movie: Select this mode when the surroundings are dark. This
will save power and reduce eye fatigue.
• Custom: Select this mode when you want to adjust the image
according to your preferences.
―
The input source is 480p, 576p, 720p or 1080p and product can
display normally (Not every model can support all of these signals.).
2nd Description
Picture Mode This menu provides an optimum picture quality suitable for the
environment where the product will be used.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when Eco Saving Plus is enabled.
―
This menu is not available when Game Mode is enabled.
S22D30*G / S24D30*G / S27D30*G
In PC mode
• Custom: Customize the contrast and brightness as required.
• Standard: Obtain a picture quality suitable for editing
documents or using Internet.
• Cinema: Obtain the brightness and sharpness of monitors
suitable for enjoying video and DVD content.
• Dynamic Contrast: Obtain balanced brightness through
automatic contrast adjustment.
26
2nd Description
Color Adjust the color saturation levels.
―
This menu is not available when Eye Saver Mode is enabled.
―
This option is not available when Picture Mode is in Cinema or
Dynamic Contrast mode. (S22D30*G / S24D30*G / S27D30*G models
only.)
―
This menu is not available when Game Mode is enabled. (S22D30*G /
S24D30*G / S27D30*G models only.)
Tint (G/R) Adjust the ratio of green to red tint levels. Increasing values
intensifies the saturation of red and green colors.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
Contrast Enhancer Automatically balance the contrast to prevent excessive differences
between bright and dark areas.
• Off / Low / High
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
Color Tone Select a color tone that best suits your viewing needs.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
2nd Description
Brightness You can adjust the general brightness of the picture.
A higher value will make the picture appear brighter.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when Picture Mode is set to Dynamic
Contrast mode. (S22D30*G / S24D30*G / S27D30*G models only.)
―
This menu is not available when Eco Saving Plus is enabled. (S22D30*G
/ S24D30*G / S27D30*G models only.)
―
This menu is not available when Save Energy is enabled. (S22D40*G /
S24D40*G / S27D40*G models only.)
Contrast Adjust the contrast between the objects and background.
A higher value will increase the contrast to make the object appear
clearer.
―
This option is not available when Picture Mode is in Cinema or
Dynamic Contrast mode. (S22D30*G / S24D30*G / S27D30*G models
only.)
―
This menu is not available when Game Mode is enabled. (S22D30*G /
S24D30*G / S27D30*G models only.)
Sharpness Make the outline of objects more clear or blurry.
A higher value will make the outline of objects clearer.
―
This option is not available when Picture Mode is in Cinema or
Dynamic Contrast mode. (S22D30*G / S24D30*G / S27D30*G models
only.)
―
This menu is not available when Game Mode is enabled. (S22D30*G /
S24D30*G / S27D30*G models only.)
27
2nd Description
White Balance Adjust the color temperature of the picture so that white objects
appear brighter.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
Red
Adjust the red saturation level. Values closer to 50 mean greater
intensity for the color.
Green
Adjust the green saturation level. Values closer to 50 mean greater
intensity for the color.
Blue
Adjust the blue saturation level. Values closer to 50 mean greater
intensity for the color.
Reset
Restore the white balance settings to the default values.
Gamma Adjust the middle level of luminance.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
2nd Description
Shadow Detail Adjust the brightness of dark images. Black detail increases as the
value nears 5.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
Color Space Configure color space settings to refine the spectrum of colors on
your screen.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
Dynamic Brightness Automatically adjust the Brightness to provide the best possible
screen contrast under the current conditions.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when Eco Saving Plus is enabled.
Black Level Optimize HDMI picture brightness and contrast by adjusting the
black level of the video signal.
In such case, Black Level can be used to adjust the image quality.
• Auto / Normal / Low
―
This function is only available in HDMI mode.
―
Black Level may not be compatible with some source devices.
―
The Black Level feature is only activated at a certain AV resolution,
such as 480p @ 60 Hz, 576p @ 50 Hz, 720p @ 60 Hz and 1080p @ 60
Hz.
28
2nd Description
Screen Ratio Choose the size and aspect ratio of the picture displayed on screen.
In PC mode
• Auto / Wide
In AV mode
• 4:3 / 16:9 / Screen Fit
―
The function may not be supported depending on the ports provided
with the product.
―
Changing the Screen Ratio is available when the following conditions
are satisfied.
―
The input source is 480p, 576p, 720p or 1080p and product can
display normally (Not every model can support all of these signals.).
―
This can only be set when the external input is connected through
HDMI, DP and PC/AV Mode is set to AV.
―
Supported ports may differ, depending on the product.
2nd Description
Eye Saver Mode Eye Saver Mode Set to an optimum picture quality suitable for eye
relaxation.
When Eye Saver Mode is 'On', the blue light that wavelength is
around 400nm will decrease, and it will provide an optimum picture
quality suitable for eye relaxation.
Game Mode Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game
console such as PlayStation™ or Xbox™ is connected.
―
S22D30*G / S24D30*G / S27D30*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
―
When the product turns off, enters power-saving mode or changes
input sources, Game Mode turns Off even if it is set to On.
If you want to keep Game Mode enabled all the time, select Always
On.
Response Time Accelerate the panel response rate to make video appear more vivid
and natural.
―
Use Standard mode when not playing a video or game.
29
OnScreen Display
2nd Description
Transparency Set the transparency for the menu windows.
Position
• H-Position: Move the menu position to the left or right.
• V-Position: Move the menu position up or down.
Language Set the menu language.
―
A change to the language setting will only be applied to the onscreen
menu display.
―
It will not be applied to other functions on your PC.
Display Time Set how long the menu window will remain on screen for when it is
not in use.
Display Time Info Show the time left until the menu window disappears. Menu display
time can be set in the Menu settings.
―
S22D40*G / S24D40*G / S27D40*G models only.
2nd Description
Screen Adjustment Adjust the position of the screen or increase the picture quality.
• H-Position: Move the screen to the left or right.
• V-Position: Move the screen up or down.
―
Connection Using the HDMI, DP Cable.
―
Supported ports may differ, depending on the product.
―
This menu is only available when Screen Ratio is set to Screen Fit in
AV Mode.
When a 480p, 576p, 720p or 1080p signal is input in AV mode
and the product can display normally, select Screen Fit to adjust
horizontal position and vertical position in 0-6 levels.
―
Coarse, Fine: This function is only available in Analog mode.
(S22D30*G / S24D30*G / S27D30*G models only.)
Picture Reset Restore all picture settings to the factory default.
―
S22D40*G / S24D40*G / S27D40*G models only.
30
System
2nd Description
Save Energy Reduce power consumption by adjusting brightness settings.
―
S22D40*G / S24D40*G / S27D40*G models only.
Eco Saving Plus Reduce energy consumption compared to consumption at the
maximum brightness level.
• Off: Deactivate the Eco Saving Plus function.
• Auto: The power consumption will automatically be reduced by
about 10% over the current setting.
(The reduction of power consumption depends on the customer
screen brightness condition.)
• Low: Saves up to 25 % energy compared to the maximum
brightness.
• High: Saves up to 50 % energy compared to the maximum
brightness.
―
S22D30*G / S24D30*G / S27D30*G models only.
―
This option is not available when Picture Mode is in Dynamic Contrast
mode.
―
This menu is not available when Game Mode is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
Volume
Change the Volume setting.
―
S22D40*G / S24D40*G / S27D40*G models only.
2nd Description
Dynamic Brightness Automatically adjust the Brightness to provide the best possible
screen contrast under the current conditions.
―
S22D30*G / S24D30*G / S27D30*G models only.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when Eco Saving Plus is enabled.
―
This option is not available when Picture Mode is in Dynamic Contrast
mode.
Off Timer Plus Off Timer
• Off Timer: Turn on Off Timer mode.
• Turn Off After: The off timer can be set within a range of 1 to
23 hours. The product will automatically power off after the
specified number of hours.
‒ This option is only available when Off Timer is set to On.
―
For products for the market in some regions, the Off Timer is set to
automatically activate 4 hours after the product powers on. This is
done in accordance with power supply regulations. If you do not want
the timer to activate, go to
→ System → Off Timer Plus and set Off
Timer to Off.
Eco Timer
• Eco Timer: Turn on Eco Timer mode.
• Eco Off After: The Eco Timer can be set between 10 and 180
minutes. The product will automatically power off after the
specified time has elapsed.
‒ This option is only available when Eco Timer is set to On.
PC/AV Mode Set PC/AV Mode to AV. The picture size will be enlarged.
This option is useful when you view a movie.
―
Products with a display area of 16:9 or 16:10 are only supported.
31
2nd Description
Source Detection Select either Auto or Manual as the method to recognize input
source.
―
S22D30*G / S24D30*G / S27D30*G models only.
DisplayPort Ver. Select the DisplayPort version to use.
―
Incorrect settings may cause the screen to go blank. If this occurs,
check the device specifications.
―
S22D40*G / S24D40*G / S27D40*G models only.
Auto Source Switch By activating, a new connected source is displayed automatically.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
This function may not be supported depending on the model or
geographical area.
Key Repeat Time Control the response rate of a button when the button is pressed.
Acceleration, 1 sec or 2 sec can be selected. If No Repeat is selected,
a command responds only once when a button is pressed.
Power LED On Configure the settings to enable or disable the power LED located at
the lower part of the product.
• Working: The power LED is on when the product is turned on.
• Stand-by: The power LED is on when the product is turned off.
SeeColors Mode Allows users with color blindness to experience rich colors. Enable
this feature to customize colors to suit your viewing conditions, to
experience richer colors on the screen.
―
S22D30*G / S24D30*G / S27D30*G models only.
―
Some menus are not available when SeeColors Mode is in use.
―
This function may not be supported depending on the model.
2nd Description
Accessibility Configures the accessibility options.
―
S22D40*G / S24D40*G / S27D40*G models only.
• SeeColors Mode: Allows users with color blindness to experience
rich colors. Enable this feature to customize colors to suit your
viewing conditions, to experience richer colors on the screen.
―
Some menus are not available when SeeColors Mode is in use.
―
This function may not be supported depending on the model.
• High Contrast: Increase the contrast between the text and
background for the Settings menu.
• Grayscale: Change the color sense of the screen to black-and
white tone.
• Color Inversion: Invert the colors of the Settings menu. White
becomes black, black becomes white, and other colors are
inverted according to RGB color values.
Setup Custom Key Set the custom key so that your chosen function can be set up
directly.
―
S22D40*G / S24D40*G / S27D40*G models only.
32
Support
2nd Description
Self Diagnosis Perform this test when you experience a problem with your
monitor's picture.
―
Never turn off the power nor change the input source during self
diagnosis. If possible, try not to interrupt testing.
Software Update Update software using an update file on a USB device.
1
Save the update file (in .img format) that you downloaded from
the Samsung website (http://www.samsung.com) to a USB
device.
2
Connect the USB device to the port on the monitor.
Select → Support → Software Update.
3
Follow the instructions on the screen to proceed with update.
4
Your product will turn itself off and on again automatically after
completing update, and then turn off your product.
5
Remove the power cord from the power outlet and then
reconnect the cord after turning off.
―
S22D40*G / S24D40*G / S27D40*G models only.
―
To perform software update by using a USB device, first format the
USB device to FAT32.
―
When updating by a USB device, be sure to use the device whose
version of USB 3.0 or lower.
―
When performing update, make sure that only one IMG file (.img) is
saved in the root directory.
―
If the No USB devices detected. Please check and try again. message
is displayed, this is probably due to the following reasons.
2nd Description
Software Update
―
A USB device is not connected to the
port.
―
The files in the connected USB device are not compatible formats.
―
There are no valid update files found in the connected USB device.
(There are no update files saved in the memory or the file names
are incorrect.)
―
The update will not start if the downloaded software does not
match the software installed on the monitor. To check the software
for consistency, select
→ Support → Information.
―
Do not turn off the product until the update is complete. And prevent
the updating from any interruption as far as possible. In general, the
product returns to the previous version if an update is interrupted.
―
It may change the screen color or blink during USB update, but it is
not a monitor problem. Since S/W update is performed normally,
please wait until the update is finished.
Register Product Discover how to register your product.
―
S22D40*G / S24D40*G / S27D40*G models only.
Information View the current software information. Refer to the actual monitor
screen.
Reset All Return all the settings for the product to the default factory
settings.
33
Installing the Software
Easy Setting Box
Easy Setting Box enables users to use the product by partitioning multiple sections.
To install the latest version of Easy Setting Box, download it from the Samsung website.
(http://www.samsung.com)
―
The software may not work properly if you do not restart the PC after the installation.
―
The Easy Setting Box icon may not appear depending on the PC system and the product specifications.
―
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation
The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS Hardware
• Windows 7 32Bit/64Bit
• Windows 8 32Bit/64Bit
• Windows 8.1 32Bit/64Bit
• Windows 10 32Bit/64Bit
• Windows 11 32Bit/64Bit
• At least 32MB of memory
• At least 60MB of free space on the hard disk drive
Driver Installation
To install the latest version of the product driver, download it from the Samsung website.
(http://www.samsung.com)
―
You can set the optimum resolution and frequency for this product by installing the corresponding drivers.
34
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Center
―
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Product diagnosis (Screen issue)
If a problem occurs with the product screen, run Self Diagnosis to check that the product is working
properly.
Checking the Resolution and Frequency
If a resolution that is not supported (see the Standard Signal Mode Table) is selected, the Not Optimum
Mode message may appear for a short time or the screen may not be displayed properly.
―
The displayed resolution may vary, depending on the PC system settings and cables.
Check the following.
Caution
When the product makes popping (cracking) sound.
The sound may be caused by contraction or expansion from temperature change of external
components or internal circuit of the product.
This is NOT a product failure and does not affect the life of the product.
Installation issue
Blank spaces are found on all four sides of the screen when an HDMI cable is connected to the
product and PC.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the
screen size in the HDMI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update the
graphics card driver to the latest version.
(Please contact the graphics card or PC manufacturer for further details about how to adjust the
screen settings.)
35
The screen appears unstable and shaky. There are shadows or ghost images left on the screen.
Check that the resolution and frequency for the PC are within the range of resolution and frequency
compatible with the product. Next, if required, change the settings, referring to Standard Signal
Mode Table (P.40) in this manual and the Information menu on the product.
Change the Response Time in the Display OSD to Faster or Standard depending on your application
and usage.
―
Available functions may differ depending on the model.
The screen is too bright. The screen is too dark.
Adjust Brightness and Contrast.
Screen color is inconsistent.
Change the Color settings.
The colors on the screen have a shadow and are distorted.
Change the Color settings.
White does not really look white.
Change the Color settings.
There is no image on the screen and the power LED blinks every 0.5 to 1 second.
Check the cable connection between the product and PC, and ensure the connectors are locked.
Press any key on the keyboard or move the mouse to return to normal operating mode.
The product is operating in power-saving mode.
Text is blurry.
If using a Windows OS (e.g. Windows 7, Windows 8, Windows 8.1 or Windows 10): Go to Control Panel
→ Fonts → Adjust ClearType text and change Turn on ClearType.
Video playback is choppy.
Playback of high-definition large video files can be choppy. This may be because the video player is
not optimized for the PC resource.
Try playing the file on another video player.
Screen issue
The power LED is off. The screen will not turn on.
Check that the power cord is connected properly.
If a problem occurs with the product screen, run Self Diagnosis to check that the product is working
properly.
The message Check the cable connection and the settings of the source device. appears.
Check that the cable is properly connected to the product.
Check that the device connected to the product is powered on.
Check the PC/AV Mode status. (
→ System → PC/AV Mode → HDMI1, HDMI2, DisplayPort (S22D40*G
/ S24D40*G / S27D40*G), HDMI (S22D30*G / S24D30*G / S27D30*G) → PC or AV.)
Set the connected HDMI or DisplayPort version.
Not Optimum Mode is displayed.
This message appears when the signal from the graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to suit the product performance, referring to
Standard Signal Mode Table (P.40).
The images on the screen look distorted.
Check the cable connection to the product.
The screen is not clear. The screen is blurry.
Remove any accessories (video extension cable, etc.) and try again.
Set the resolution and frequency to the recommended level.
36
Sound issue
There is no sound.
Re-check the condition of the connected headphone or earphone or adjust the volume.
Check the volume.
Check whether the volume of the product or the source device is set to mute.
The volume is too low.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound
card or software.
Video is available but there is no sound.
Sound cannot be heard if an HDMI-DVI cable or DVI cable is used to connect the input device.
Connect the device using an HDMI cable or a DP cable.
Source device issue
A beeping sound is heard when my PC is booting.
If a beeping sound is heard when your PC is booting, have your PC serviced.
37
Q & A
―
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the frequency?
Set the frequency on your graphics card.
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Screen Refresh Rate under Monitor settings.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.
How can I change the resolution?
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Adjust Resolution.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.
How do I set power-saving mode?
• Windows 7: Go to Control Panel → Appearance and Personalization → Personalization → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 10: Go to Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.
38
Specifications
General
Model Name S22D30*G S22D40*G S24D30*G S24D40*G S27D30*G S27D40*G
Size
22 Class (21.5 Inches / 54.6 cm) 24 Class (23.8 Inches / 60.4 cm) 27 Class (27 Inches / 68.6 cm)
Display area
476.064 mm (H) x 267.786 mm (V) 527.04 mm (H) x 296.46 mm (V) 597.888 mm (H) x 336.312 mm (V)
Pixel Pitch
0.24795 mm (H) x 0.24795 mm (V) 0.2745 mm (H) x 0.2745 mm (V) 0.3114 mm (H) x 0.3114 mm (V)
Maximum Pixel Clock
224.25 MHz 224.4 MHz 224.25 MHz 224.4 MHz 224.25 MHz 224.4 MHz
Power Supply
AC100-240V~ 50/60Hz
Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the product label. (S22D30*G / S24D30*G / S27D30*G models only.)
Refer to the label at the back of the product as the standard voltage can vary in different countries. (S22D40*G / S24D40*G / S27D40*G models only.)
Signal connectors
HDMI, D-SUB (S22D30*G / S24D30*G / S27D30*G models only.)
HDMI, DisplayPort (S22D40*G / S24D40*G / S27D40*G models only.)
Environmental conditions Operating
Temperature: 50 °F to 104 °F (10 °C to 40 °C)
Humidity: 10 % to 80 %, non-condensing
Storage
Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
Humidity: 5 % to 95 %, non-condensing
39
• Plug-and-Play
This product can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the product and PC system optimizes the product settings. Product installation takes
place automatically. However, you can customize the installation settings if desired.
• Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.
• The specifications are subject to change without notice to improve quality.
• For detailed device specifications, visit the Samsung website.
• Open Source Licence Notice
Open Source used in this product can be found on the following webpage (https://opensource. samsung.com).
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
(USA only)
Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recycling or call, 1-800-Samsung
For battery recycling go to call2recycle.org or call 1-800-822-8837
40
Standard Signal Mode Table
Model Name S22D30*G / S24D30*G / S27D30*G S22D40*G / S24D40*G / S27D40*G
Synchronization Horizontal Frequency
30 ~ 110 kHz 30 ~ 110 kHz
Vertical Frequency
48 ~ 100 Hz 48 ~ 100 Hz
Resolution Optimum Resolution
1920 x 1080 @ 60 Hz
Maximum Resolution
1920 x 1080 @ 75 Hz (D-SUB)
1920 x 1080 @ 100 Hz (HDMI, DisplayPort)
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400
31.469 70.087 28.322 -/+
VESA, 640 x 480
31.469 59.940 25.175 -/-
MAC, 640 x 480
35.000 66.667 30.240 -/-
VESA, 640 x 480
37.861 72.809 31.500 -/-
VESA, 640 x 480
37.500 75.000 31.500 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 800 x 600
48.077 72.188 50.000 +/+
VESA, 800 x 600
46.875 75.000 49.500 +/+
MAC, 832 x 624
49.726 74.551 57.284 -/-
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1024 x 768
56.476 70.069 75.000 -/-
VESA, 1024 x 768
60.023 75.029 78.750 +/+
41
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1152 x 864
67.500 75.000 108.000 +/+
MAC, 1152 x 870
68.681 75.062 100.000 -/-
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1280 x 1024
63.981 60.020 108.000 +/+
VESA, 1280 x 1024
79.976 75.025 135.000 +/+
VESA, 1440 x 900
55.935 59.887 106.500 -/+
VESA, 1600 x 900
60.000 60.000 108.000 +/+
VESA, 1680 x 1050
65.290 59.954 146.250 -/+
VESA, 1920 x 1080
67.500 60.000 148.500 +/+
VESA, 1920 x 1080
83.894 74.973 174.500 +/-
*1920 x 1080
109.926 99.933 224.250 +/-
**1920 x 1080
110.000 100.000 224.400 +/-
―
*: S22D30*G / S24D30*G / S27D30*G models only.
―
**: S22D40*G / S24D40*G / S27D40*G models only.
―
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in
kHz.
―
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
―
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality.
To avoid this, it is recommended that you select the optimum resolution specified for your product.
―
Some resolutions listed in the table above may not be available depending on graphics card specifications.
42
Appendix
Responsibility for the Pay Service (Cost to
Customers)
―
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
• If a service technician is requested to give instructions on how to use product or simply adjusts
options without disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased
product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If the customer requests instructions on how to use another company's product.
• If customer requests instructions on how to use the network or another company's Program.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-
shopping or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorized electrical connections.
• Not following the "cautions" in User Manual.
Others
• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
―
If customer requests a service in case the product has no defect, service fee may be charged. So please
read User Manual first.
43
TCO CERTIFIED
―
A third-party certification according to ISO 14024
―
Applies to TCO-certified models only.
Toward sustainable IT products
Say hello to a more sustainable product
IT products are associated with a wide range of sustainability risks throughout their life cycle. Human
rights violations are common in the factories. Harmful substances are used both in products and their
manufacture. Products can often have a short lifespan because of poor ergonomics, low quality and
when they are not able to be repaired or upgraded.
This product is a better choice. It meets all the criteria in TCO Certified, the world’s most
comprehensive sustainability certification for IT products. Thank you for making a responsible product
choice, that help drive progress towards a more sustainable future!
Criteria in TCO Certified have a life-cycle perspective and balance environmental and social
responsibility. Conformity is verified by independent and approved verifiers that specialize in IT
products, social responsibility or other sustainability issues. Verification is done both before and after
the certificate is issued, covering the entire validity period. The process also includes ensuring that
corrective actions are implemented in all cases of factory non-conformities. And last but not least, to
make sure that the certification and independent verification is accurate, both TCO Certified and the
verifiers are reviewed regularly.
Want to know more?
Read information about TCO Certified, full criteria documents, news and updates at tcocertified.com.
On the website you’ll also find our Product Finder, which presents a complete, searchable listing of
certified products.
Product warranty information
• Minimum included product warranty : 1~3 years
• Minimum purchasable extended warranty : 2~4 years
• Total available warranty (free + extended) : 5 years
• The maximum cost per year for the extended warranty : under 15% of product cost
―
The warranty period may vary by region and model.
Software updates
Samsung guarantees the availability of free-of-charge security updates, corrective updates and
functionality updates to the operating system for at least 5 years after the end of placement on the
market. You can download the latest version of software from the Samsung.com support page.
