Black
HPH60IMB2 and HPH90IMB2 Models
Built-in Integrated
Rangehood
INSTALLATION GUIDE NZ AU
3
CONTENTS
Safety and Warnings................................................................................4
Components Required ............................................................................6
Product Dimensions................................................................................7
Cabinetry Cutout Dimensions..................................................................8
Clearances .............................................................................................9
Venting Requirements........................................................................... 10
Recirculating Venting ............................................................................ 11
Carbon Filter......................................................................................... 12
Electrical Requirements......................................................................... 13
Preparing For Installation ....................................................................... 14
Assembling V-Flap ................................................................................ 15
Installation Rangehood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installer Checklist.................................................................................. 19
4
WARNING!
9 kg
(HPH60)
12 kg
(HPH90)
Weight Hazard
The appliance is heavy. Please ensure adequate care
is taken when installing the appliance to prevent
personal injury. The rangehood must be installed
onto secure cabinetry.
Weight of the products are:
• HPH60IMB is 9kg
• HPH90IMB is 12kg
WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains
power supply before carrying out any maintenance
or repairs.
Installation work and electrical wiring must be
done by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated
construction. Failure to do so can result in death,
electric shock, fire or injury to persons.
IMPORTANT SAFETY INFORMATION
READ THE ENTIRE SET OF INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE.
WARNING! When using this appliance always exercise basic safety precautions including the following:
z
Read the entire set of instructions before installing or using this appliance.
z
Please make this information available to the person installing the appliance — doing so could reduce
your installation costs.
z
Always switch the power off prior to installation, servicing or cleaning of the rangehood.
z
This appliance must be installed and connected to the mains power supply only by a suitably qualified
person according to these installation instructions and in compliance with any applicable local building
and electricity regulations. Failure to install the appliance correctly could invalidate any warranty or
liability claims.
z
To comply with electrical safety regulations, the rangehood must be plugged into a socket near the
appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end
user to isolate the rangehood from the power for the purpose of internal cleaning or maintenance.
z
A power outlet should be within 750 mm of the motor assembly and can either beon the wall, behind
the chimney or in the ceiling.
SAFETY AND WARNINGS
5
z
If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
z
Ducting accessories are not supplied. All ducting must comply with local requirements and
building codes.
z
Attention should be given to ensure that any applicable regulations concerning the discharge of
exhaust air are fulfilled.
z
Before connecting any pipes, consult municipal ordinances to ensure that any applicable regulations
concerning the discharge of exhaust air are adhered to and request permission from the person in
charge of the building.
z
Attention should be given to ensure that any applicable regulations concerning the discharge of
exhaust air are fulfilled.
z
Before connecting any pipes, consult municipal ordinances to ensure that any applicable regulations
concerning the discharge of exhaust air are adhered to and request permission from the person in
charge of the building.
z
Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from
appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely
affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due
to back flow of combustion gases.
z
These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or
other cooking fume extractor, the operation of flued gas appliances should be tested by a competent
person to ensure that back flow of combustion gases does not occur.
z
The minimum distance between the supporting surface for cooking vessels on the cooktop and the
lowest part of the rangehood shall be 600 mm.
z
Glass and painted surfaces are very easily damaged during installation if abraded or knocked by tools.
It is recommended to protect the top of the rangehood with cardboard or polystyrene during the
installation to minimise the risk of damage occurring.
z
To reduce the risk of damage occurring to the cooktop, it is recommended that the surface of the
cooktop is protected with cardboard or a similar object during installation of the rangehood.
z
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
z
Children should be supervised to ensure they do not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
z
You must read the details concerning the method and frequency of cleaning.
z
There is a fire risk if cleaning is not carried out in accordance with the instructions.
z
Never leave frying food unattended since grease can overheat and catch fire. The risk of fire is even
greater in the case of used oil.
z
Do not flambé under the rangehood.
z
Never use the rangehood without the filters in place.
z
During an electrostatic discharge (ESD) it is possible that the device will stop working. By switching
the device off and on the device will again work as intended.
z
CAUTION: accessible parts may become hot when used with cooking appliances.
z
Remove all packaging and protective wrappings, including on the grease filters, before use.
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject to
change at any time.
SAFETY AND WARNINGS
6
COMPONENTS REQUIRED
PARTS
Supplied and required
F 1x Rangehood
F 1x Installation instructions user guide manual
F 1x Pair v-flap (150mm diameter)
F 2x Black aluminium filters (HPH60IMB2)
3x Black aluminium filters (HPH90IMB2)
Not supplied
F Ducting - 150mm diameter, rigid or semi-rigid
F Aluminium duct tape or cable ties for ducting
Optional Recirculation Accessories
(when ducting externally not possible)
F 2x Recirculation carbon filters
H0530060509 (not supplied)
F Louvered vent (not supplied)
TOOLS
Not supplied
F Phillips screwdriver
F Box cutter
7

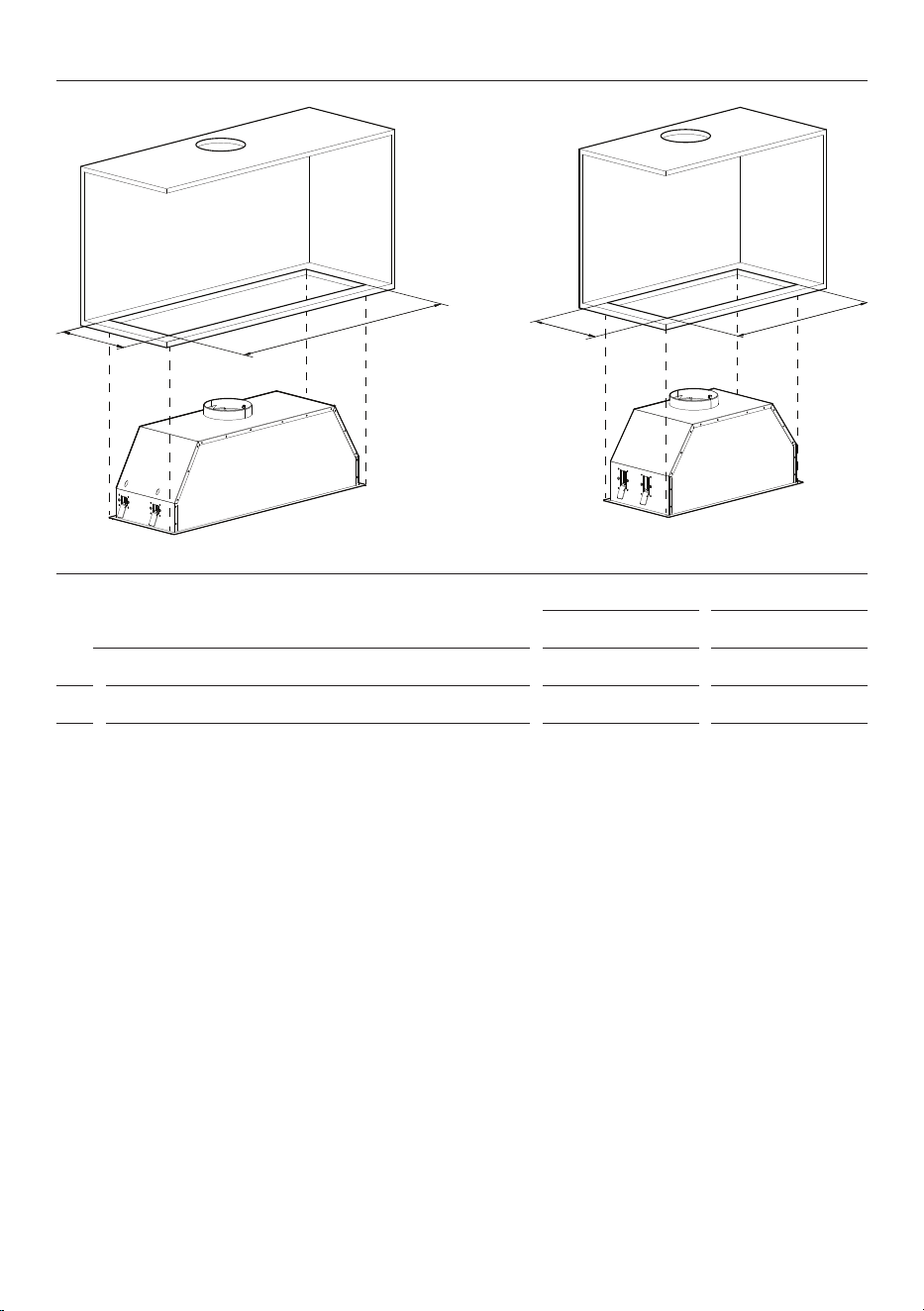

PRODUCT DIMENSIONS
J
K
Ø
L
F
C
A
D
(A)
H
I
G
E
B
m
HPH60IMB2
HPH90IMB2
mm
mm
A
Overall height of product
(with ducting adapter)
276
305
276
305
B
Overall width of product 520
850
C
Overall depth of product 290
290
D
Thickness of ange 1
1
E
Width of chassis 488
818
F
Depth of chassis 262
262
G
Height of side of chassis 126
126
H
Width of top surface of chassis 275
606
I
Length of angled surface of chassis 182
182
J
Distance from centre of ducting outlet to back
of chassis
88
88
K
Distance from centre of ducting outlet to side of chassis 243
408
L
Diameter of ducting outlet 150
150
M
Base of brackets/clips to bottom of chassis min.15-max.40
min.15-max.40
Length of power cord 1500
1500
Actual product dimensions may vary by ± 2 mm.
Power Cord Location
Ducting adapter
8
HPH60IMB2
HPH90IMB2
mm
mm
A
Overall width of cutout 500
830
B
Overall depth of cutout 265
265
Actual product dimensions may vary by ± 2 mm.
A
B
A
B
CABINETRY CUTOUT DIMENSIONS
HPH90IMB2 HPH60IMB2
9
CLEARANCES
MINIMUM CLEARANCE
HPH60IMB2 and HPH90IMB2
mm
A
Height from top of cooktop to base of rangehood min.600 -
max. recommended 750
This rangehood must be installed no lower than the minimum height indicated in the table above. Minimum installation height
may be greater if required by the cooktop manufacturer or safety and warnings section on this user guide. Installation at the
minimum height will improve efficiency of capturing cooking odours, grease and smoke. Installation at the maximum height
improves ergonomics by offering increased head room.
A
10
VENTING REQUIREMENTS

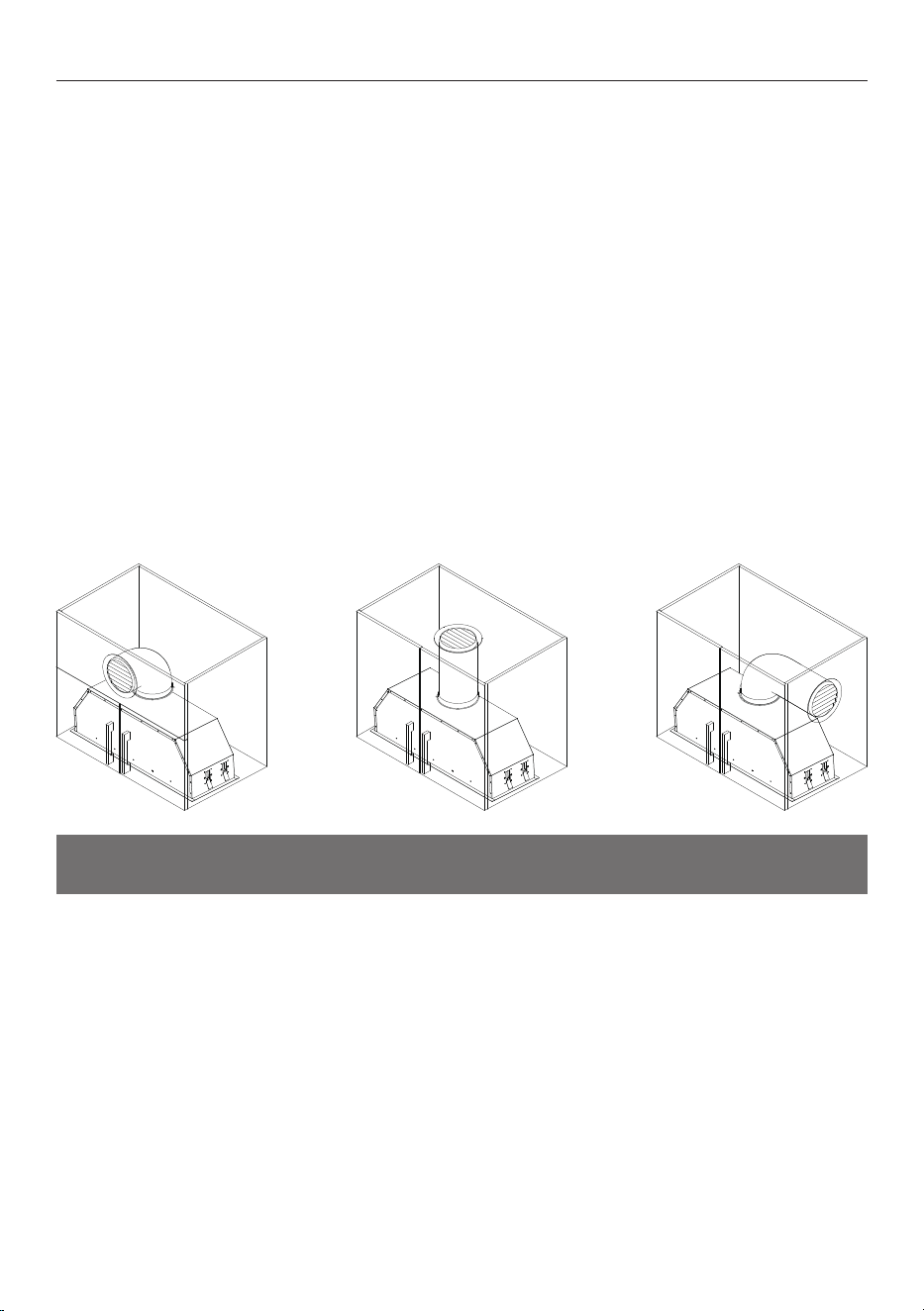

Recirculating
Where ducting outside is not a
practical option, this rangehood
can be installed to operate with
the air recirculating. Carbon filters
are required to remove odours
from the air before it is channelled
back into the room or overhead
bulkhead. Ensure that the ducting
outlet is not obstructed, even a
partial obstruction will restrict the
efficiency of the rangehood.
Note: a ducting hole is not required
in the wall or ceiling
Recirculate With Carbon Filters
Vent through roof and vent
through exterior wall

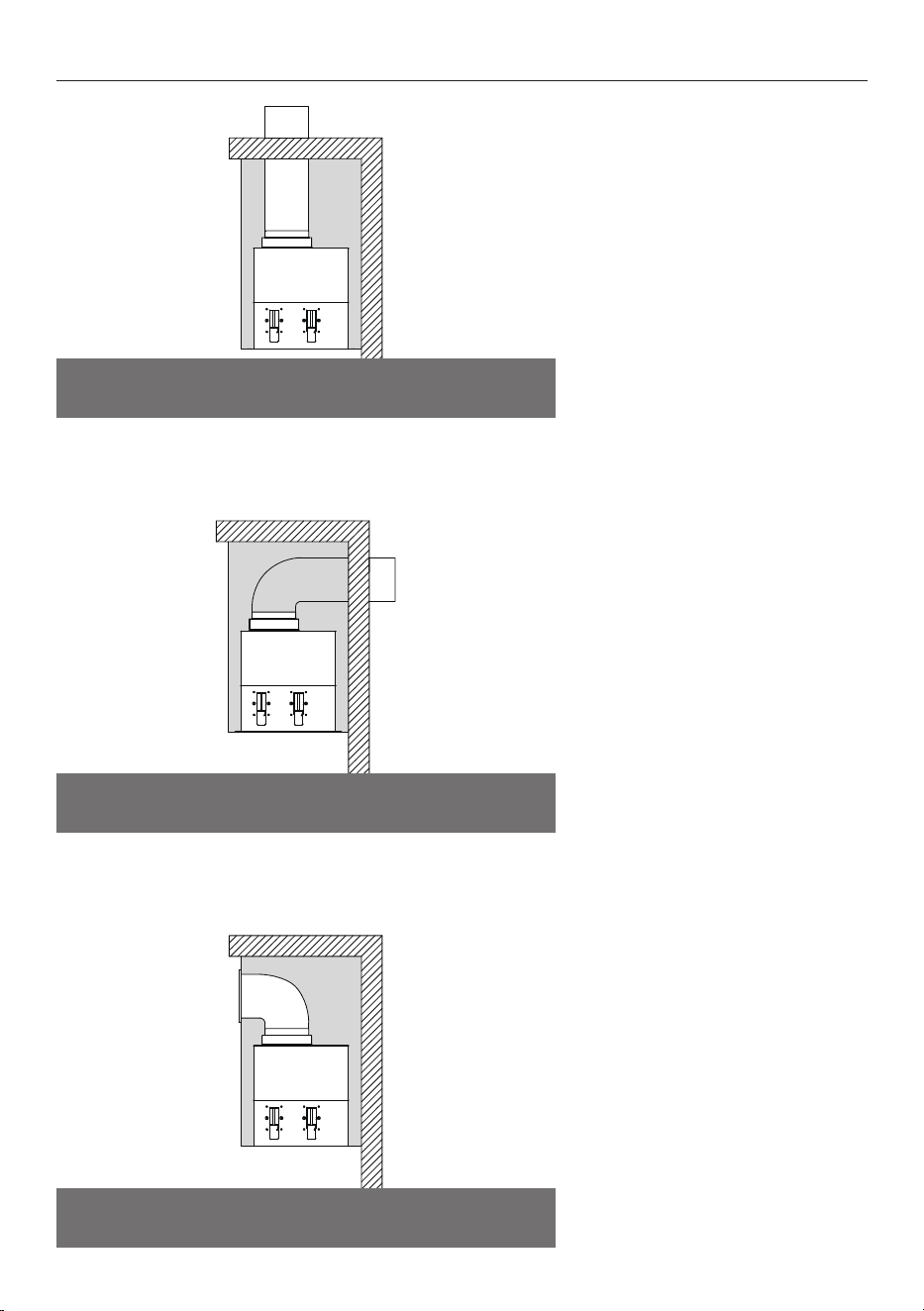

For an externally ducted installation
it is recommended that 150mm
diameter, rigid or semi-rigid ducting
is used. Create a hole in the ceiling
that's at least 160mm in diameter,
ensuring precise positioning for
proper installation.
For optimal efficiency use the
shortest and straightest duct
route possible to reduce noise and
increase airflow.
Vent Through Roof
Vent Through Exterior Wall
11
IMPORTANT!

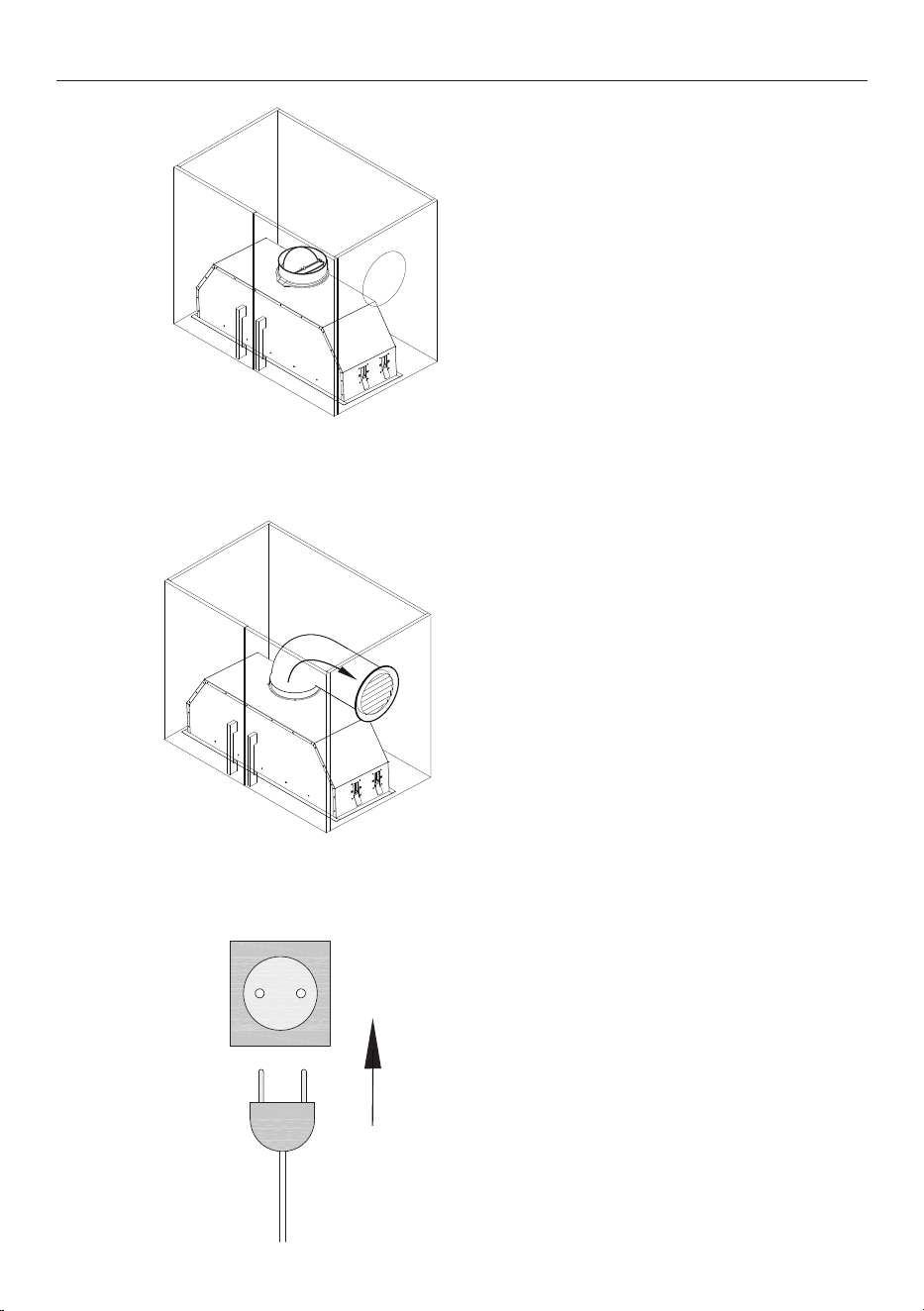

Venting directly into the cabinet with no ducting and louvered vent is not permitted.
To recirculate your perimeter insert rangehood
1. Determine the desired location of the 150mm louvered vent on your cabinetry. The louvered vent can
be placed on the side or front of your cabinet provided there is sufficient clearance from the surrounding
cabinetry to enable ventilated air to recirculate back into your kitchen.
2. Create a cutout in your cabinet to fit the 150mm louvered vent. Place the louvered vent on the hole
created and secure.
3. Connect the blower outlet to the louvered vent with a length of 150mm rigid ducting, and secure the
joints with aluminum tape. Ensure there is no slack in the ducting.
Placement of the louvered vent on the top of your cabinetry is not recommended. This should only be done
if objects can be prevented from falling through the louvers into the blower.
Note: louvered vent not supplied with rangehood.
RECIRCULATING VENTING
Front, top and side
12

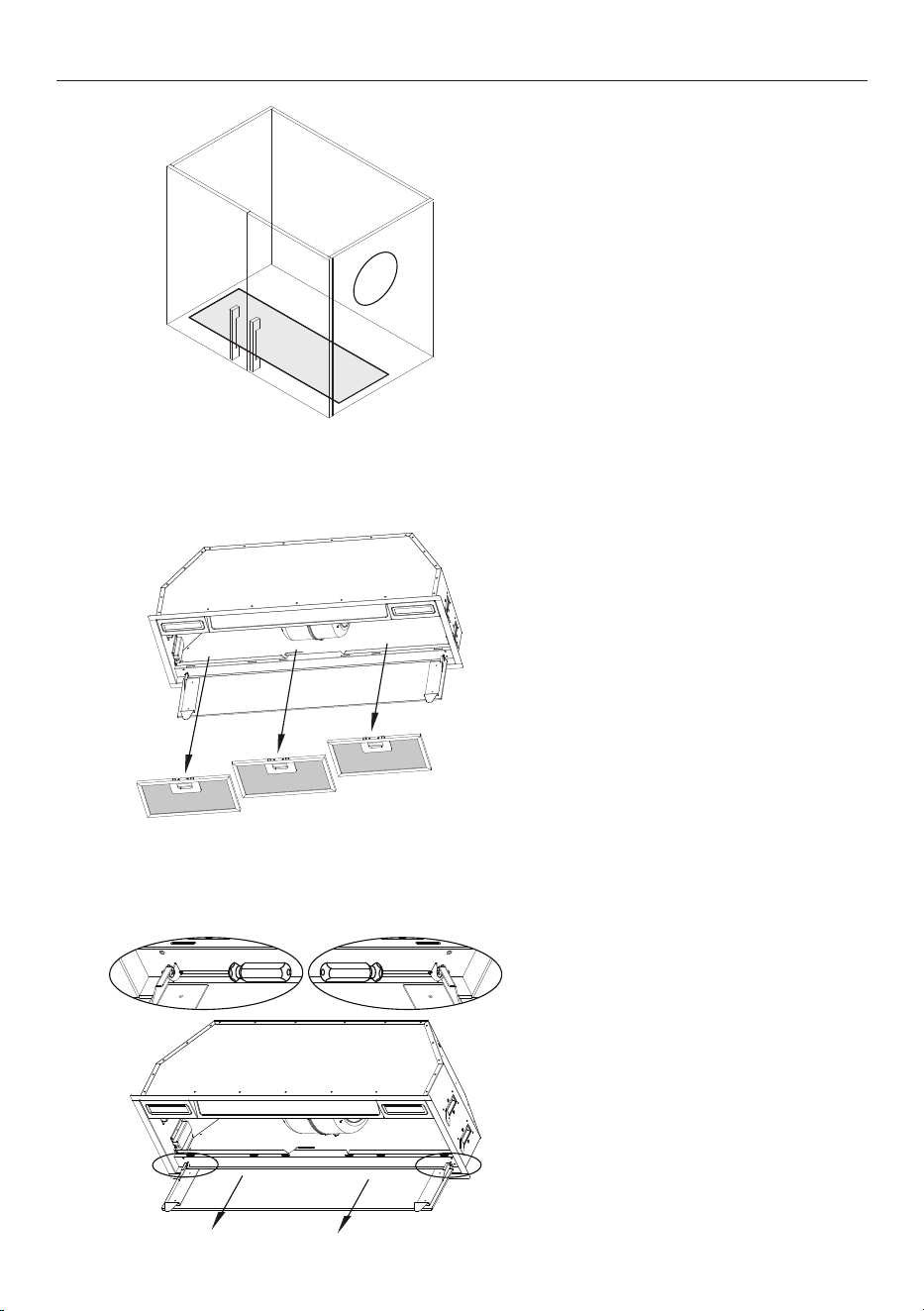

CARBON FILTER
Carbon filters are for use in recirculating mode. They are disposable and must be replaced at least every
three months to ensure the performance of the rangehood. In the event of a fire, grease-laden filters could
be flammable.
Before installing or replacing the carbon filters, disconnect the mains power to the unit.
1. Press the filter lock and remove
the mesh filter.

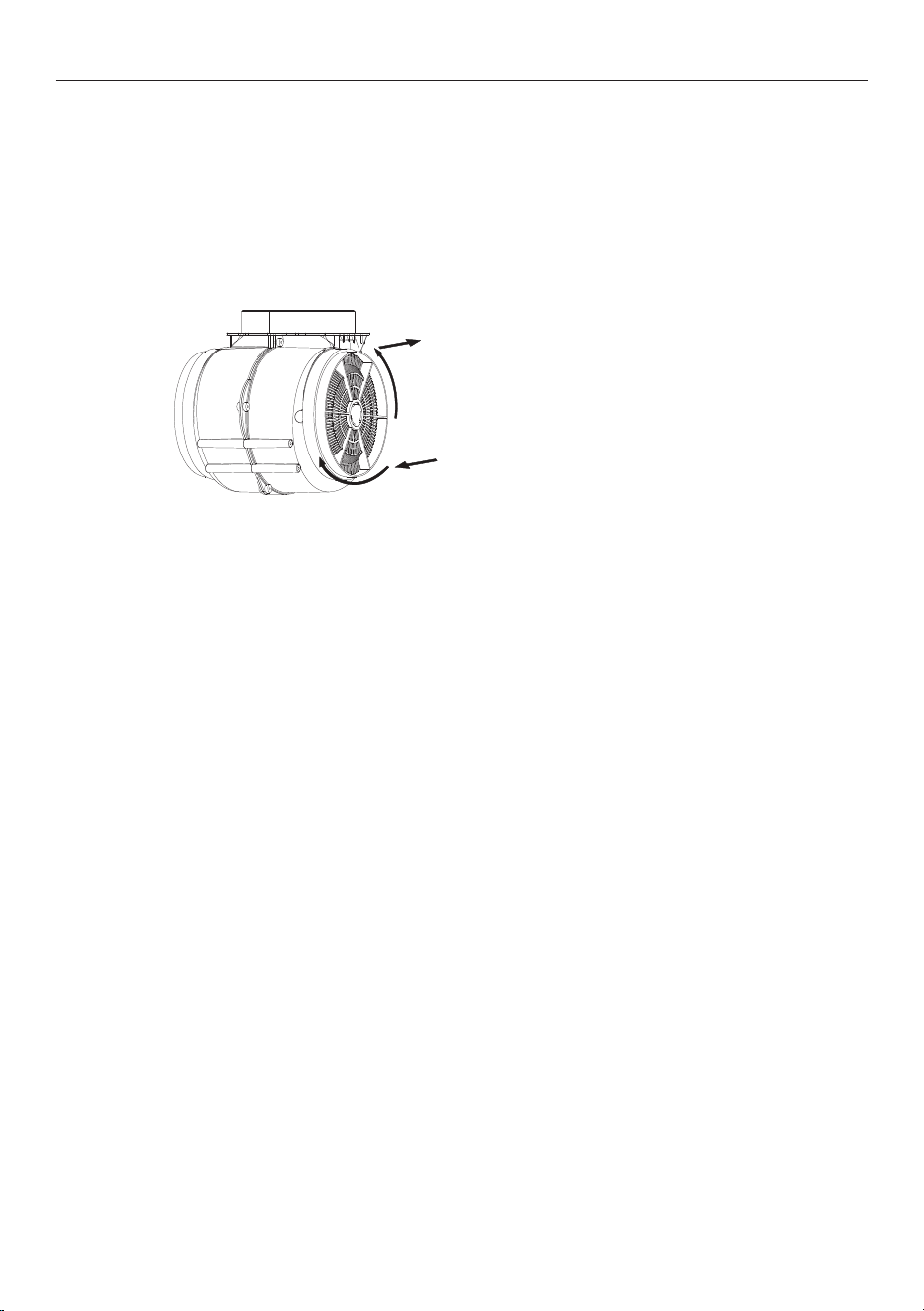

2. Turn the carbon filter on both
sides of the motor anti-clockwise.
Replace the existing carbon filters
with the new carbon filters.
3. Replace the mesh filter.
4. Connect the power supply to the
wall socket.
13
ELECTRICAL REQUIREMENTS
MODEL FREQUENCY VOLTAGE
TOTAL POWER
HPH60IMB2 50 Hz 220-240 V
223 W
HPH90IMB2 50 Hz 220-240 V
223 W
Before connecting the rangehood to the power supply, ensure the voltage and frequency indicated on the
rating plate match that of the installation location:
14
PREPARING FOR INSTALLATION
WARNING!
z
This product is heavy and requires two persons for installation.
z
Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.
IMPORTANT!
Wear gloves to protect against sharp edges.
Manufacturer is not liable for any damage caused by not following these instructions.
Before installing your rangehood:
z
Unpack the rangehood and check that all functions are working.
z
Ensure that the voltage (V) and frequency (Hz) indicated on the serial plate match the voltage and
frequency at the installation site.
z
The stainless steel and glass surfaces of the rangehood are very easily damaged during installation if
grazed or knocked by tools. Take care to protect the surfaces.
z
Protect the cooktop surface below with cardboard, or the like, to prevent damage occurring whilst the
rangehood is being installed above.
15

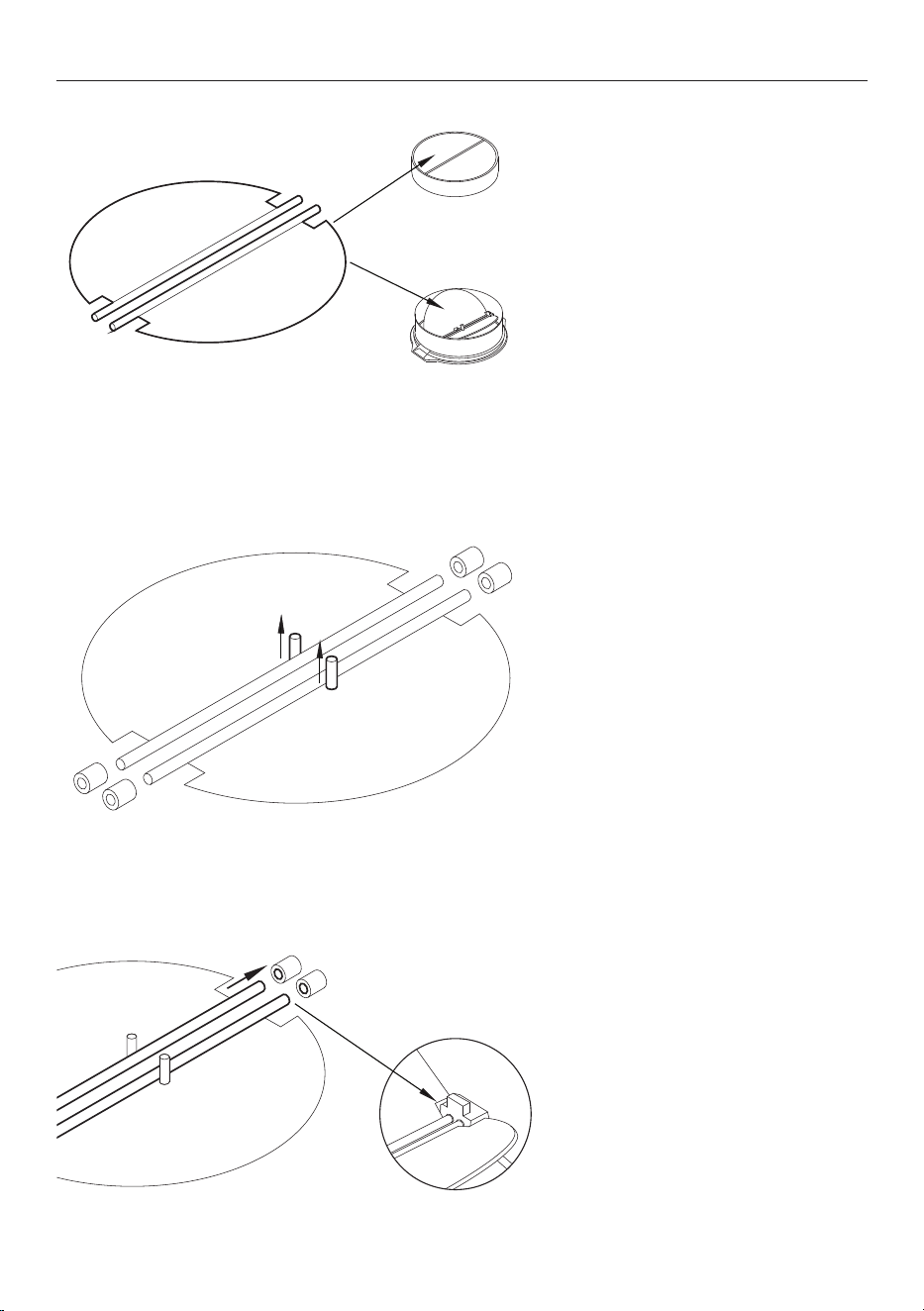

ASSEMBLING V-FLAP
1. Mount the two V-flap half-parts
into the body.
2. The pins should be facing upwards.
3. Insert the axis into the holes on
the body.
Body - outer
V-flap
Body - inside
Body - inside
16
INSTALLATION RANGEHOOD
1. Centre rangehood over cooktop
and prepare cutout to the required
specifications.
Refer to 'Cabinetry Cutout
Dimensions' for details.
360˚
2. Remove the filters.
3. Remove the perimeter plate by
unscrewing the screws.
17
2.1
INSTALLATION RANGEHOOD
2.3
2.2
2.1

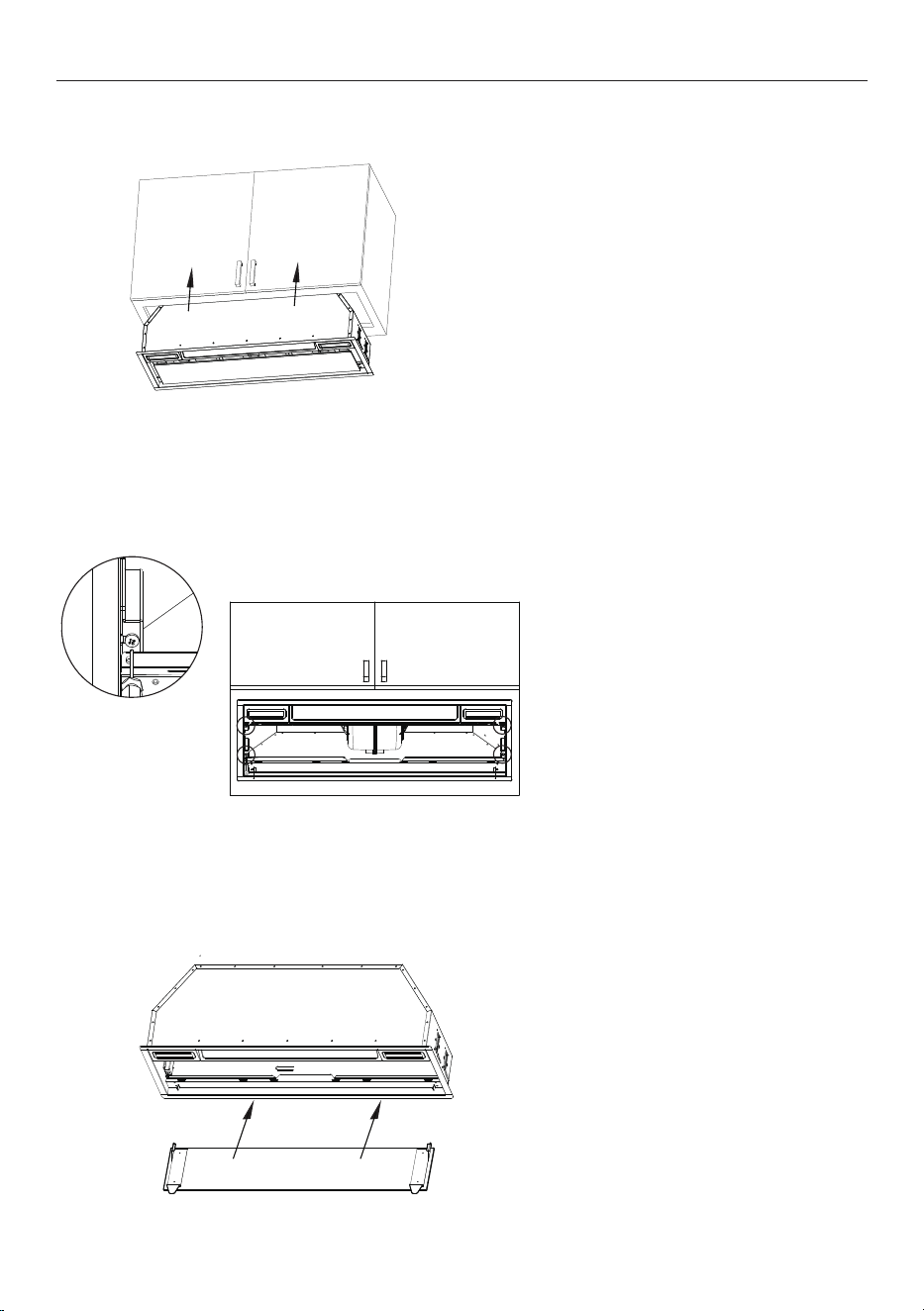

4. Lift the rangehood and fit through
the opening of the cupboard till the
spring loaded brackets / clips hold
the product in place.
5. Secure rangehood while
tightening the 4 brackets / clips.
6. Refit perimeter plate and secure
using the screws removed in step 3.
18
INSTALLATION RANGEHOOD
7. Assemble the V-flap.
Refer to 'Assembling V-Flap' for
details.
8. Place 150mm ducting around the
rangehood outlet. Fix ducting to
rangehood outlet with duct tape or
cable tie.
9. Plug in the rangehood and turn on.
Remove blue protective film from
filters and perimeter plate.
19
Complete and keep for safe reference:
Model
Serial no.
Purchase date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
INSTALLER CHECKLIST
TO BE COMPLETED BY THE INSTALLER
F Have all packaging been removed?
F Rangehood is correctly installed
F All connections are secure
F The ducting is not bent or crushed in any areas
F Check rangehood suction
F External vent is sealed appropriately
F All local regulations have been met
F Operation has been tested (refer to rangehood user guide)
F Check for unusual noises
