X-400 / X-400A / X-430TF / P-400
(115V / 60Hz)
Features:
• Low power draw with an high velocity air flow from 1,600 to 2000 CFM
• Super quiet motor and super lightweight.
• Easy clean filter system.
• Easy carrying handle and stackable up to 4 units high.
• Easy and quick to disassemble for thorough cleaning and service.
• Power cord lengths are 20’.
• Safety screens on open vents.
• 3-speed switch.
• 4 air-flow positions for models (0°, 20°, 45°, 90°).
XPOWER Blower / Fans are intended to move air and to dry
floors, walls, furniture, etc. Durable and easy to operate with
an effective balance of static pressure and airflow, the units
are suitable for a variety of applications.
1. XPOWER Blower / Fans are shipped ready-to-use.
Prior to plugging the unit into the power source, inspect
completely for any shipping damage.
2. Plug the electrical cord into a standard 3-prong outlet.
3. Carefully place the Blower / Fans on a stable, flat dry surface.
4. The unit is capable to be used at 4 different angles to direct
air flow.
5. Turn the switch to desired speed, while making sure unit
operates normally.
6. All Blower / Fans in operation must be supervised at all times.
( Applicable for X-430TF)

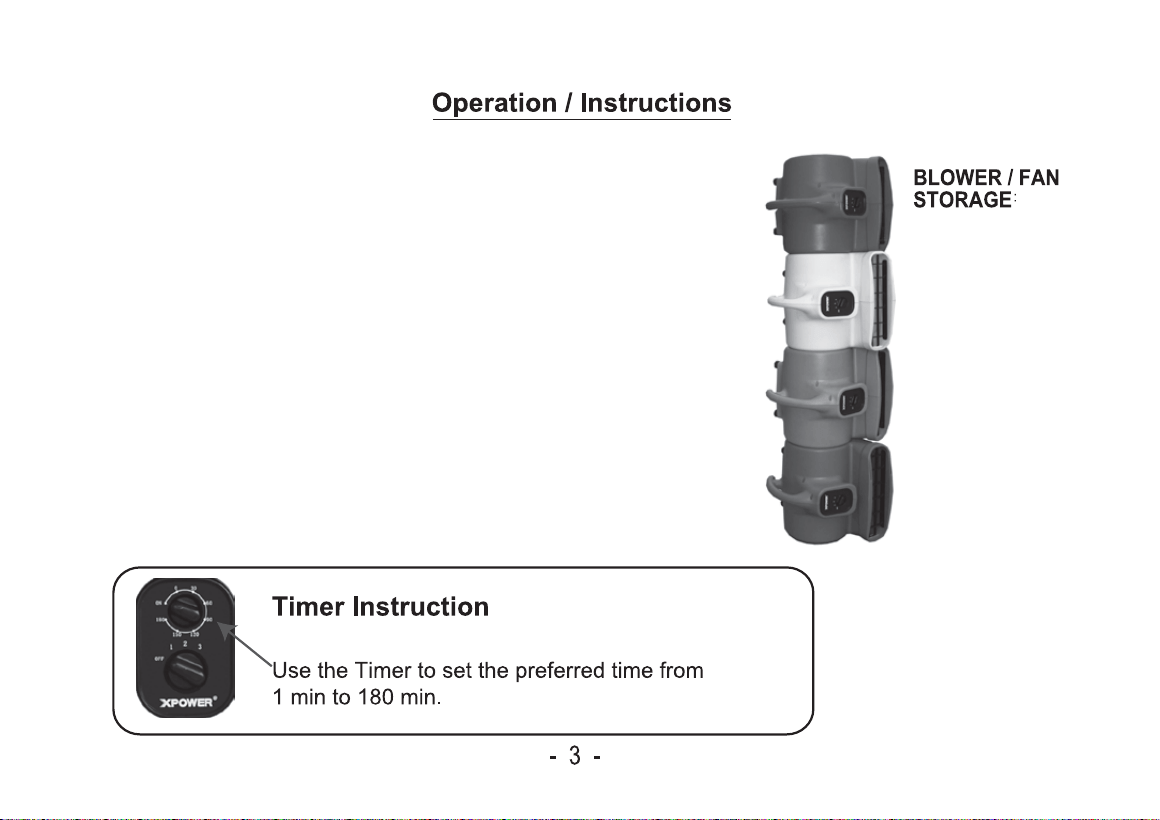

Air Movers can
be stacked
(up to 4) on
their sides for
storage.
NOTICE:
1.Stacking feature
is not secure for
transportation.
2.Remove the
filters before
stacking.
(For unit with filters)
Clean the filters (for unit with filters) as often as necessary to avoid loss of airflow.
Model X-400/P-400 X-400A X-430TF
Volt/Frequency
115V,60Hz 115V,60Hz 115V,60Hz
Power
1/4 HP 1/4 HP 1/3 HP
Amp
3 Amps 3 Amps 3.8 Amps
Unit Weight
15 Lbs./16 Lbs. 17.7 Lbs. 17Lbs.
Speeds
eerhTeerhTeerhT
Size(WxDxH)
13.9x14.8x14.6 in. 13.9x14.8x14.6 in. 13.9x14.8x14.6 in.
Timer
.lcnI.A.N.A.N
Filter
Optional Optional Incl.
Daisy Chain
.A.N.lcnI.A.N
Cord Length
.tF 02.tF 02.tF 02
Overheating Protecting
detcetorP yllamrehT detcetorP yllamrehT Thermally Protected
Rated Airflow (on high)
1600 CFM 1600 CFM 2000 CFM
Positions
4(0°, 20°, 45°, 90°) 4(0°, 20°, 45°, 90°) 4(0°, 20°, 45°, 90°)
Housing
SBASBAPP / SBA

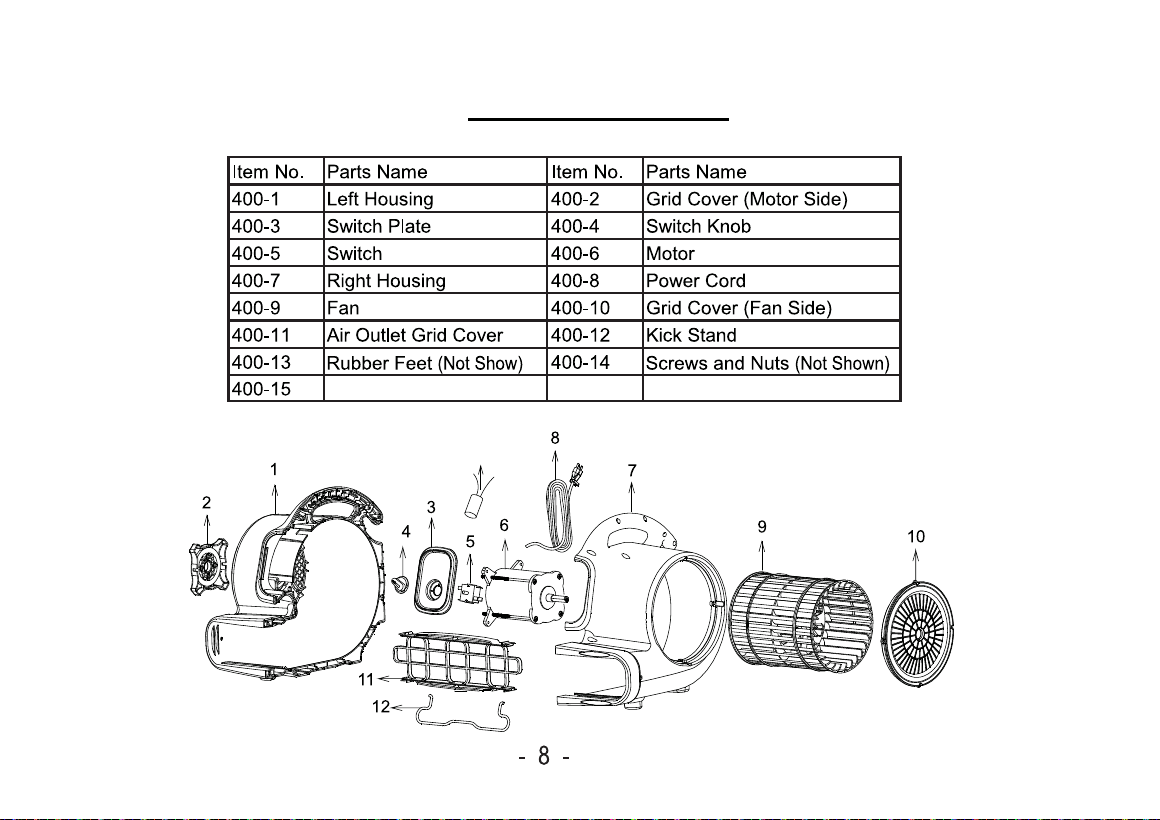

400 Series Parts List
15
Capacitor 400-16
400A Series Parts List
Capacitor
15
400A-1
400A-3
400A-5
400A-7
400A-9
400A-11
400A-13
400A-15
400A-2
400A-4
400A-6
400A-8
400A-10
400A-12
400A-14
430TF Series Parts List
430TF-17 Capacitor
430TF-1
430TF-3
430TF-5
430TF-7
430TF-9
430TF-11
430TF-13
430TF-15
430TF-2
430TF-4-1/2
430TF-6
430TF-8
430TF-10
430TF-12
430TF-14
430TF-16
17
4-1
4-2
Switch Knob & Timer Knob
X-400A
XPOWER Blower / Fan Model X-400A is daisy chainable with an low 3 amp draw, the 12-amp on
board circuit breaker will allow two(2) additional X-400A units to run on one circuit at the same time.
1.
2.
3.
