RADIANT CONVEYOR TOASTER
MODELS:
XTRM-1
OWNERS MANUAL
2M-93100174 REV B (01-23)
is a registered trademark of APW Wyott®, A Middleby Company. All rights reserved.
DESIGNED SMART. BUILT SOLID.
®
APW Wyott Food Service Equipment Company
265 Hobson St. • Smithville, TN 37166
(800) 527-2100 • apwwyott.com
This manual includes material related to installation, use , cleaning, and care. Exploded view[s], as well as any
available parts list[s] and wiring diagram[s] pertaining to the unit[s] covered by this manual are also included.
This manual must be read and understood by all persons using or installing this appliance. Contact your APW Wyott
dealer if you have any questions concerning installation, use, or maintenance of this equipment.
DO NOT DISCARD THIS MANUAL.
WARNING: California Residents Only. This product can expose you to chemicals
including chromium which is known to the State of California to cause cancer
and birth defects or other reproductive harm. For more information go to www.
P65Warnings.ca.gov.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WARNING: Improper installation, operation, service or maintenance can cause
property damage, injury or death. Read and understand these instructions
thoroughly before positioning, installing, maintaining or servicing this equipment.
Initial heating of appliance may generate smoke or fumes and must be done in a well ventilated area.
Overexposure to smoke or fumes may cause nausea or dizziness.
APW Wyott
®
cooking equipment has been engineered to provide you with year-round dependable service
when used according to the instructions in this manual and standard commercial kitchen practices.
2
SERVICE INFORMATION
IF A SHORTAGE OR A PROBLEM, CALL – in the USA: (800) 527-2100
PLEASE FOLLOW THESE INSTRUCTIONS:
A. ON CALLS YOU WILL NEED TO GIVE THE FOLLOWING INFORMATION.
1. Name and title of person calling.
2. Phone number of person calling.
3. Business name.
4. Street address.
5. City, State, Zip.
6. Model Number (from serial plate).
7. Serial Number (from serial plate).
8. Date purchased (if serial number indicates date of manufacture is over
13 months old you will be asked to supply proof of purchase)
9. Purchased from.
B. FOR SHORTAGE – SUPPLY THE ABOVE INFORMATION AND FULLY
EXPLAIN WHAT IS MISSING. It will be sent immediately – prepaid via UPS or
equivalent. (Next Day Air or Priority shipments available at customer’s expense).
C. FOR EQUIPMENT PROBLEM – IF WITHIN ONE YEAR FROM DATE OF
PURCHASE, THIS UNIT FAILS TO FUNCTION, YOU ARE ENTITLED TO – YOUR
CHOICE OF 1, 2, OR 3.
1. APW Wyott will replace the unit.
When calling the factory, besides the above information you will need Electrical
Characteristics, voltage and phase; describe the problems the best you can. The
factory will require a *Visa or Master Card number and expiration date of same to
assure return and/or validity of condition. Upon validation of credit card information,
factory will strive to ship a replacement unit the same day if call is received before
3:00 p.m. Central Time or the next day if later. The replacement unit will be shipped
prepaid regular UPS or equivalent. If requested Next Day Air or Priority, shipment
will be made at customer’s expense. Upon receipt it is the customer’s responsibility
to unpack the new unit taking care to preserve the packaging. Repack the unit being
replaced in the same container using caution to pack properly and return this unit
to the factory following the instructions supplied. Factory will supply return label and
UPS call tag, both must be used. If original unit is returned within 30 days and is as
represented the credit card validation will be canceled.
*IMPORTANT - If factory does not receive the unit to be returned within 30 days,
the unit will be billed to the credit card number supplied. If the returned unit is not
as represented - i.e. out of warranty, customer abuse, then it will be billed to the
credit card number supplied. In these cases, the person calling in the problem will
be contacted and if applicable the returned unit if charged for will be returned to the
original owner if requested.
2. You may take this unit to the APW Wyott Authorized Service Distributor. List of
same is included with each product. If the problem is covered under warranty the unit
will be repaired at no cost to you. If the Authorized Agency cannot repair same within
a reasonable time while you wait, it will be returned to you prepaid, via UPS.
3. You can request the Authorized Service Distributor to service the equipment on
site. If problem is covered under the warranty the parts and labor will be billed to the
factory, the mileage and travel time will be responsibility of the owner.
THIS REPLACEMENT WARRANTY IS ONLY AVAILABLE ON SELECTED PRODUCTS SHIPPED WITHIN THE
CONTINENTAL USA, ALASKA, HAWAII AND CANADA. AS WITH MOST WARRANTIES - WARRANTY IS ONLY
VALID TO THE ORIGINAL END-USER/OWNER.
INSTRUCTIONS AND PROCEDURES MUST BE FOLLOWED OR THE WARRANTY IS VOID.
2M-67168 REV A (02-22)
3
TABLE OF CONTENTS
SECTION ITEM ...................PAGE
1 Important Safety Instructions 3
2 General Information 5
3 Installation Instructions 5
4 Operation Instructions 5
5 Cleaning Instructions 6
SECTION ITEM ...................PAGE
6 Specifications 6
7 Troubleshooting 7

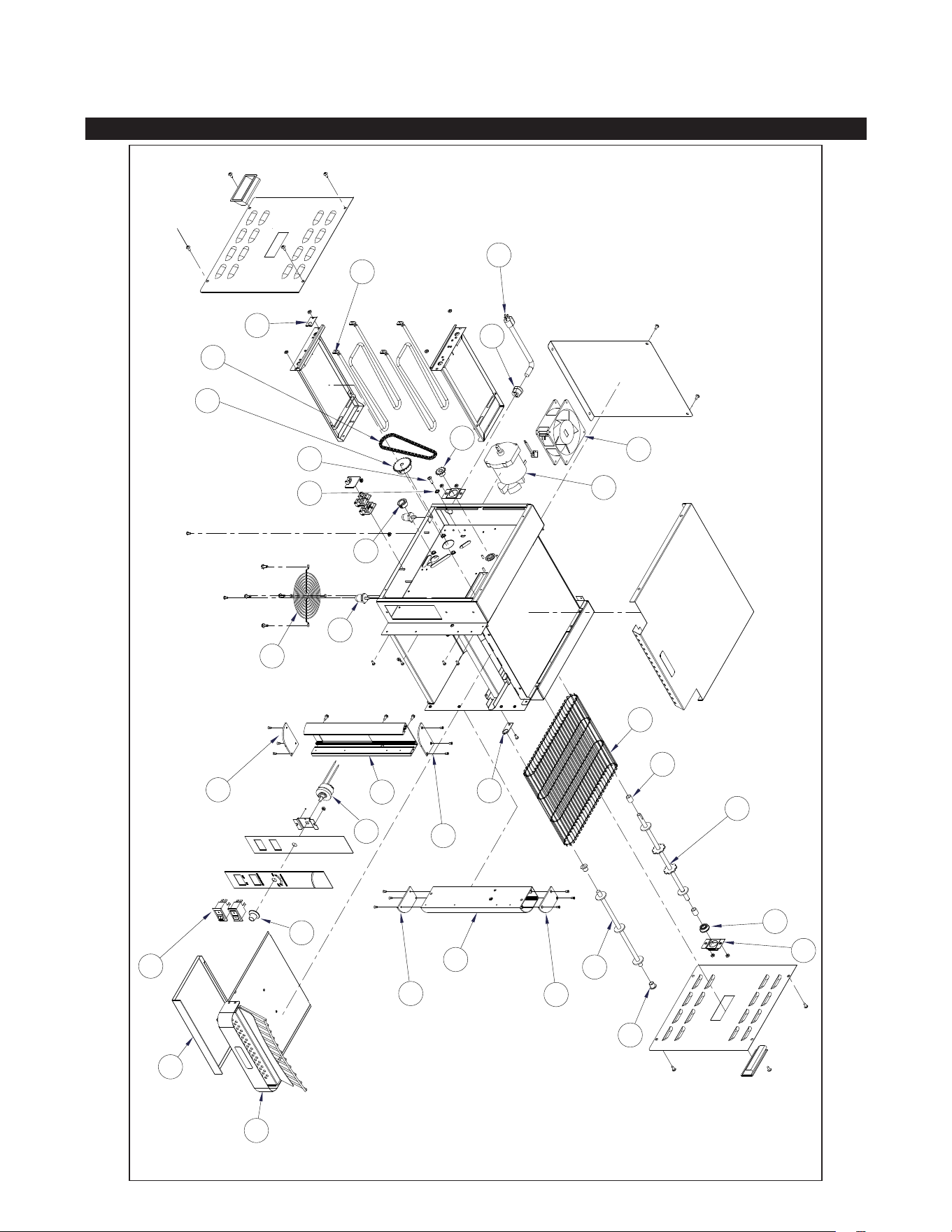

8 Parts List with Exploded View 8

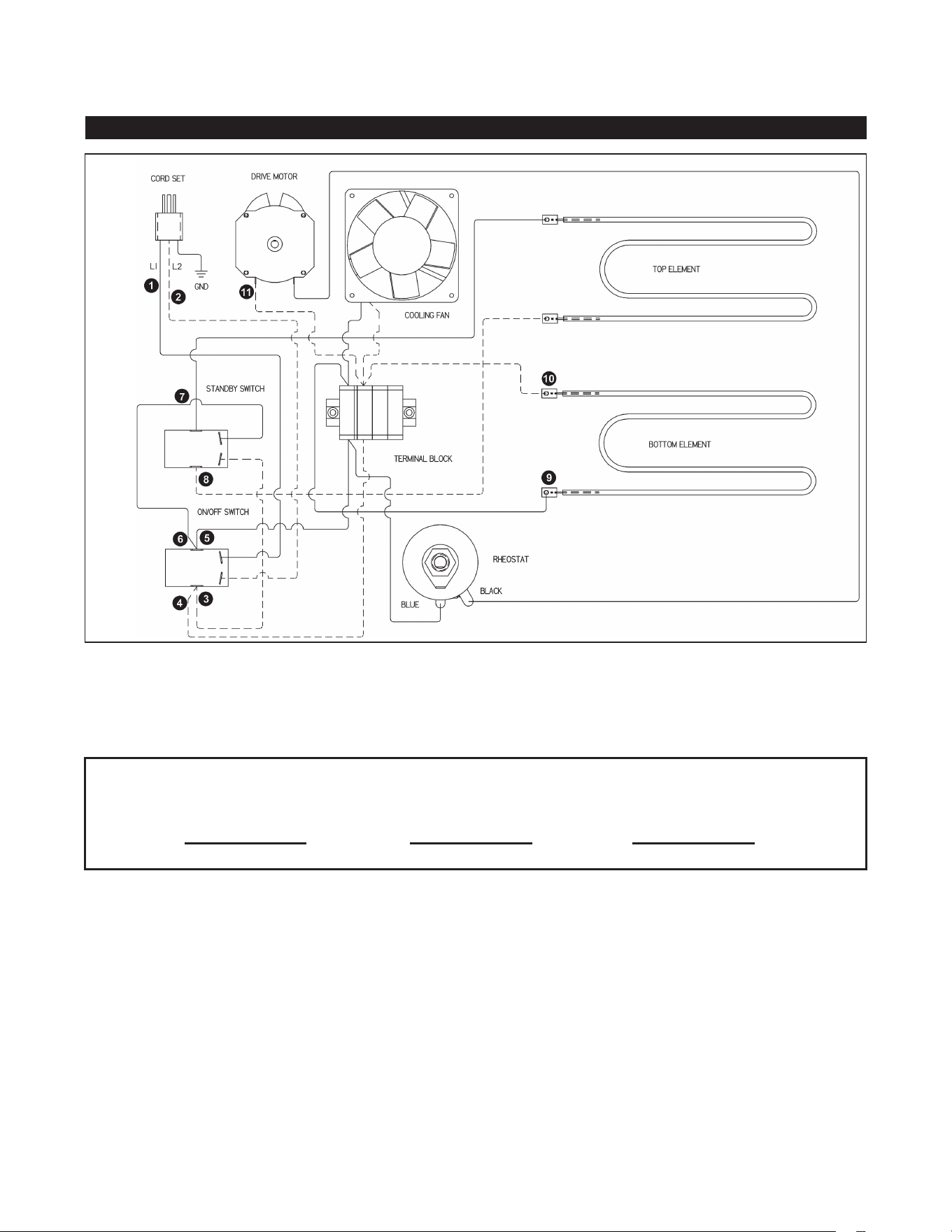

9 Wiring Diagram 9
10 Warranty 11
SAFETY PRECAUTIONS
Before installing and operating this equipment be sure everyone involved in its operation is
fully trained and is aware of all precautions Accidents & problems can result by a failure to
follow fundamental rules and precautions
Shut o gas flow through the appliance before cleaning or servicing unit
The following words and symbols, found in this manual, alert you to hazards to the operator,
service personnel or the equipment The words are defined as follows:
DANGER: This symbol warns of imminent hazard which will result in serious injury or death.
WARNING: This symbol refers to a potential hazard or unsafe practice, which could result in
serious injury or death.
CAUTION: This symbol refers to a potential hazard or unsafe practice, which may result in or
moderate injury or product or property damage.
NOTICE: This symbol refers to information that needs special attention or must be fully
understood even though not dangerous.
IMPORTANT: Read the following important safety instructions to avoid personal injury or
death, and to avoid damage to the equipment or property.
WARNING: APW Wyott toasters are designed, built, and sold for commercial use. If positioned
where the general public can use them, make sure that all cautions, warnings, and operating
instructions are clearly posted near each unit to insure proper operation, reduce the chance of
personal injury and/or equipment damage.
WARNING: Plug unit into a properly grounded electrical outlet of the correct voltage, size and
plug configuration. If the plug and receptacle do not match, contact a qualified electrician to
determine the proper voltage and size and install the proper electrical outlet.
WARNING: Unit is not waterproof. Do not submerge in water. Do not operate if it has been
submerged in water. Do not clean the unit with a water jet.
WARNING: To avoid any injury, turn the power switch o at the fuse disconnect switch/
circuit breaker or unplug the unit from the power source and allow to cool completely before
performing any maintenance or cleaning.
WARNING: To avoid electrical shock, always unplug the unit before performing cleaning or
maintenance.
4
WARNING: For safe and proper operation, the unit must be located a reasonable distance
from combustible walls and materials. If safe distances are not maintained, discoloration or
combustion could occur.
WARNING: An earthing cable must connect the appliance to all other units in the complete
installation and from there to an independent earth connection.
WARNING: To avoid electrical shock or personal injury, do not steam clean or use excessive
water on the unit.
WARNING: If service is required on this unit, contact your authorized APW Wyott Service
Agent, or contact the APW Wyott Service Department directly at (800) 527-2100.
WARNING: This product has no “user” serviceable parts. To avoid damage to the unit or injury
to personnel, use only Authorized APW Wyott Service Agents and genuine APW Wyott Parts
when service is required.
WARNING: Genuine APW Wyott Replacement Parts are specified to operate safely in the
environments in which they are used. Some aftermarket or generic replacement parts do not
have the characteristics that will allow them to operate safely in APW Wyott equipment. It is
essential to use APW Wyott Replacement Parts when repairing APW Wyott equipment. Failure
to use APW Wyott Replacement Parts may subject operators of the equipment to hazardous
electrical voltage, resulting in electrical shock or burn.
CAUTION: Some exterior surfaces on the unit will get hot. Use caution when touching these
areas to avoid injury.
CAUTION: Locate the unit at the proper counter height, in an area that is convenient for use.
The location should be level to prevent the unit or its contents from accidentally falling, and
strong enough to support the weight of the unit and food.
WARNING: In Europe, appliance must be connected by an earthing cable to all other units in
the complete installation and thence to an independent earth connection in compliance with
EN 60335-1 and/or local codes.
CAUTION: The National Sanitation Foundation (NSF) requires that units over 36” (91 cm) in
length or weighing more than 80 lbs. (36 kg) to be either sealed or raised on the installation
surface. If this unit cannot be sealed at the point of use, 4” (10 cm) legs are included to allow
for proper cleaning access below unit.
CAUTION: Use only non-abrasive cleaners. Abrasive cleaners could scratch the finish of your
unit, marring its appearance and making it susceptible to dirt accumulation.
WARNING: Failure to provide clearances will cause unit failure and invalidate warranty claims
(see installation instructions).
NOTICE: Do not use toppings (butter, etc.) on product as product is inverted during normal
operation.
NOTICE: Operating toaster without legs invalidates any warranty claims.
NOTICE: Neglecting to keep fan opening clean could result in toaster failure.
5
2. GENERAL INFORMATION

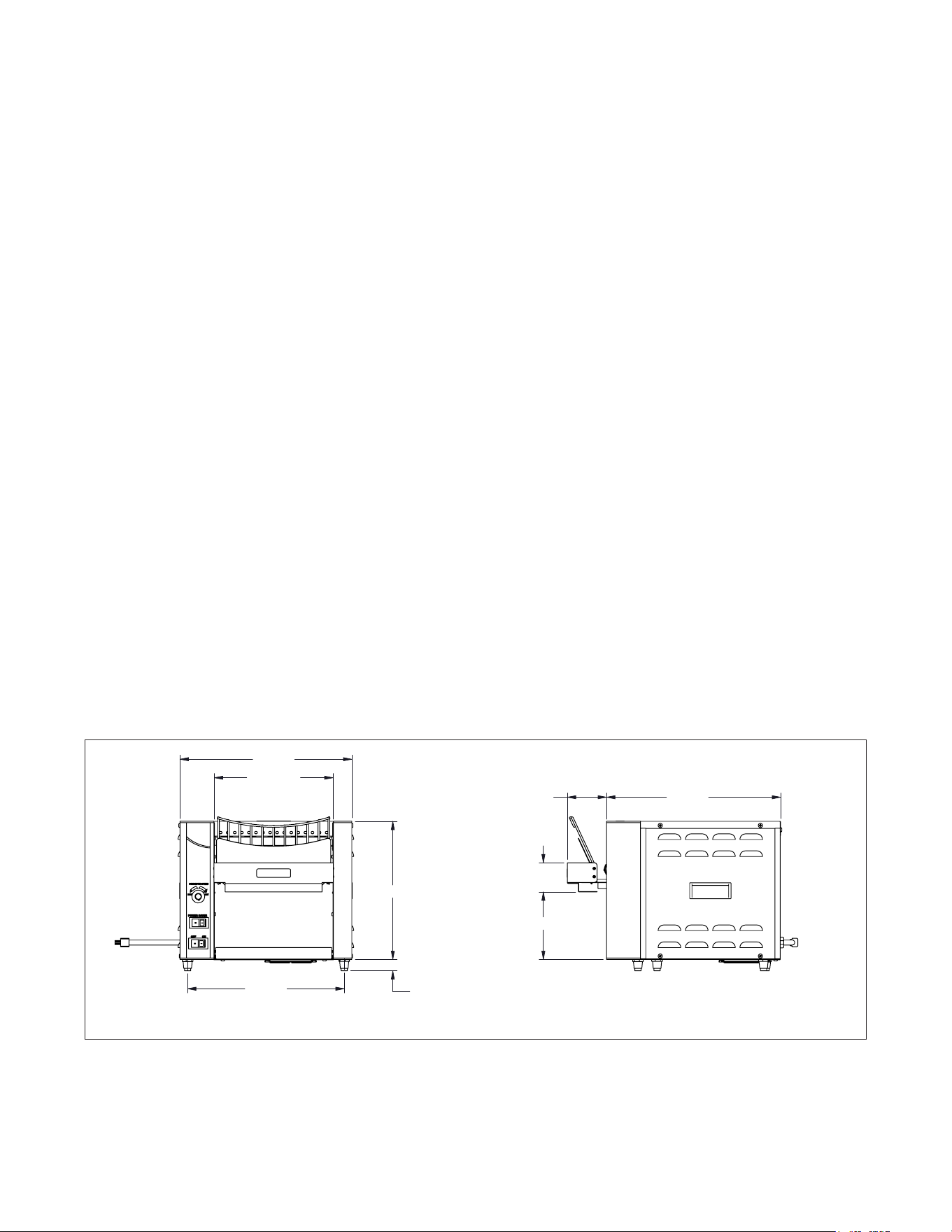

1 Overall Dimensions w/Wire Feeder - 13 610”H (34 5cm) x 15 192” W (38 6cm) x 17 982” D
(45 7cm)
2 Product Opening - 1 50”H (3 8cm) x 10 50” W (26 7cm)
3 Electrical Requirements (Single phase):
A 120 Volt, 1800 Watt, 15 Amp
B 208 Volt, 1800 Watt, 8 5 Amp
C 230/240 Volt, 1800 Watt, 7 8 Amp
D Cordset configuration
1 Each toaster equipped with three wire grounded cordset and standard three-prong
plug
2 In the U S : 120V uses NEMA 5-15P 208, 230/240V uses NEMA 6-20P
3 In Canada: 120V uses NEMA 5-20P
4 Net/Shipping Weight – 28 lb (12 7kg) / 33 lb (14 97kg)
3. INSTALLATION INSTRUCTIONS

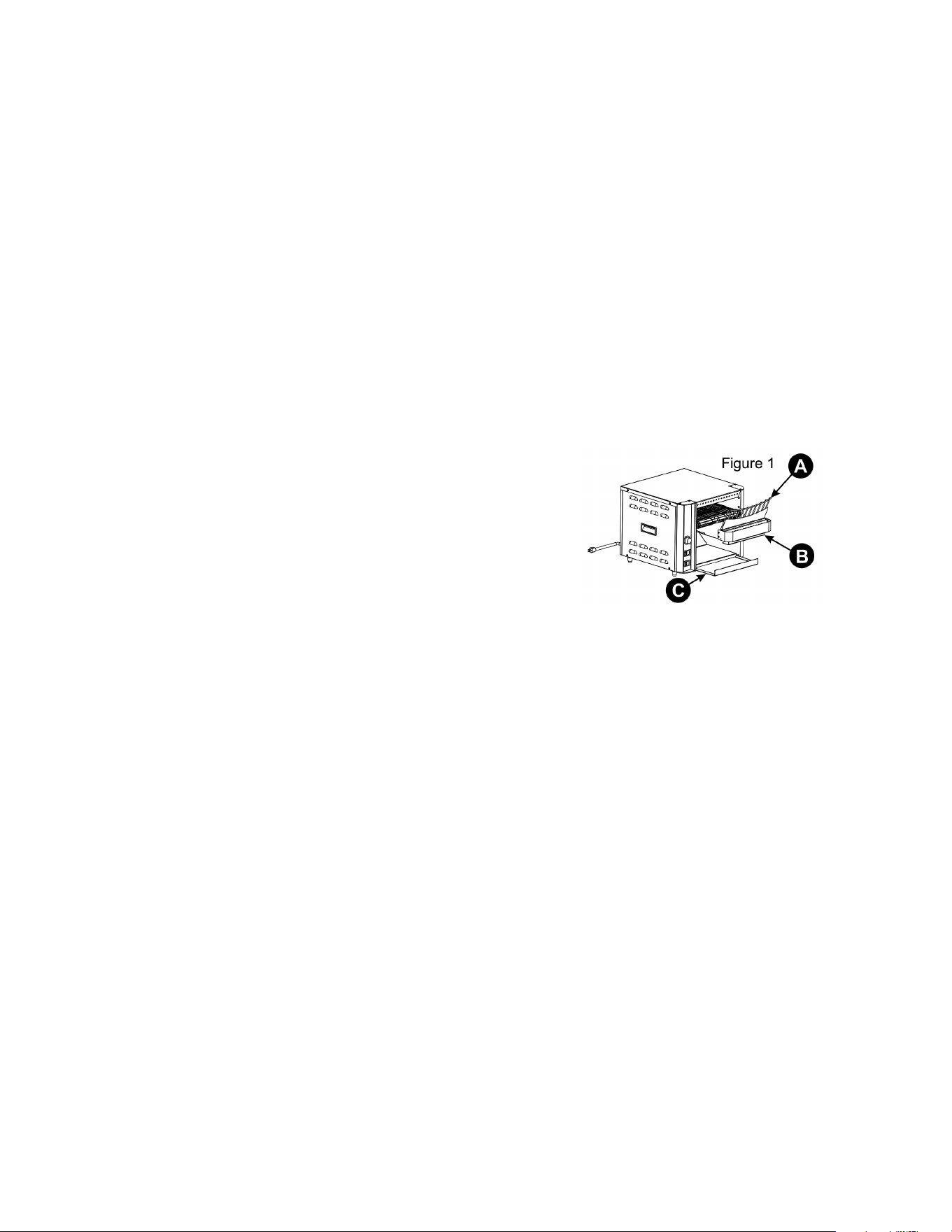

1 Check Contents - refer to Figure 1, account for the following parts:
A Wire Feeder - inside Reflector Tray
B Reflector Tray - shipped in place
C Toast Drawer - shipped in place
D Instruction Manual - shipped loose
2 Position Wire Feeder
A Pull out Reflector Tray
B Rotate Wire Feeder
C Slide Reflector Tray back
D WARNING: Operating toaster without Reflector Tray reduces toasting capabilities
3 Toaster Placement
A Locate toaster near a grounded receptacle of the proper configuration (see below)
Plug the cordset directly into receptacle (DO NOT USE AN EXTENSION CORD)
1 In the U S : 120V uses NEMA 5-15R 208, 230/240V uses NEMA 6-20R
2 In Canada: 120V uses NEMA 5-20R
B Place toaster on flat surface providing following minimum clearances:
1 Base = one inch (provided with legs installed)
2 Side and back walls = two inches
3 Overhead = Enough space to allow adequate heat displacement
C Position toaster where customers will not contact any surface labeled “CAUTION
HOT”
4. OPERATION INSTRUCTIONS
1 Preparation
A Clean toaster thoroughly before first use (See cleaning instructions)
B Controls Familiarity
1 Main Power Switch (located on very bottom of control panel): There are two rocker
switches The bottom switch powers the unit “ON” It also turns on the bottom
element The top switch is a standby switch (upper heat switch) that runs the top
element When the standby switch is in the “ON” position the unit is at full power
When the standby switch is in the “OFF” position the unit is running at 50%
A Full Power: Flip both rocker switches to the right
B Power O: Flip both rocker switches to the left
2 Conveyor Speed Control: Set knob to the three (3) position for warm-up
C Warm-up time: Allow five (5) minutes
6
2 Normal Use
A Loading Product
1 Place product on Wire Feeder The conveyor will automatically draw product
through the toaster at a speed determined by conveyor speed control
B Toasting Darkness: determined by conveyor speed
1 Darkest toasting - set conveyor speed control to far left setting
2 Lightest toasting - set conveyor speed control to far right setting
3 Other factors aecting toasting darkness
A Product moistness - moister product requires slower speeds
B Sugar content in product - product with more sugar requires slower speeds
C Product Temperature - cooler product requires slower speeds
4 For best results, use day old bread stored room temperature
5. CLEANING INSTRUCTIONS
1 Daily Cleaning
A With toaster o and cool, turn toaster on and set conveyor speed to four
B Using a plastic abrasive pad, wipe the conveyor belt in a back and forth motion (side-
to-side) motion to remove baked-on product Wipe the conveyor belt in the same
manner with a hot, damp cloth
C Turn o toaster
D Slide the reflector/crumb tray out of toaster by pulling forward Dispose of crumbs and
wash tray in hot, soapy water Dry tray and place back in toaster
E Remove toast drawer from toaster by sliding out and lifting up Dispose of crumbs
and wash drawer in hot, soapy water Wipe crumbs from inside the toaster with a hot,
damp cloth Dry drawer and place back in toaster
F Wipe the exterior surfaces of the toaster with a hot, damp cloth
R
10.506
OPENING
15.200
12.223
13.851
1.000
18.859
3.466
15.396
5.979
2.570
NOTES:
UNLESS NOTED, HOLE DIAMETER TOLERANCE +/- 0.005
1.
DEBURR SHARP EDGES THAT USER MAY CONTACT
2.
DURING INSTALLATION, USE, CLEANING, OR
MAINTENANCE.
ALL DIMENSIONS TO THE OUTSIDE OF PART AS SHOWN
3.
UNLESS OTHERWISE SPECIFIED.
REV.
DATE/ECO
DESCRIPTION OF CHANGE
DR
THIS DRAWING CONTAINS INFORMATION
CONFIDENTIAL TO STAR MFG. INT'L INC.
NO REPRODUCTION OR DISCLOSURE
OF ITS CONTENTS IS PERMITTED
WITHOUT
APPROVAL OF STAR MFG.
INT'L INC. ENGINEERING DEPARTMENT
T
OLERANCE: UNLESS NOTED: .x
.06 .xx
.03 .xxx ± .015
FLAT PATTERN .xxx
.005
ANGLES
1
PART NO.
MODEL NO.
DESCRIPTION
MATERIAL
FINISH
DR
:
CK.
DATE:
3T-X1-120
XTRM-1 120V BLACK (STD)
-
07/26/2021
STS
SHEET 3OF3
STAR MANUFACTURING
INTERNATIONAL INC.
265 HOBSON STREET
SMITHVILLE, TN.37166, USA
Solidworks- File Location
XXX
-
6. SPECIFICATIONS
7
7. TROUBLESHOOTING
1 Always ask and check the following:
A Is the unit connected to a live power source?
B Check the circuit breaker
C Is power switch on?
D Is the unit operating on proper voltage?
2 If problems exist after checking the above, check the chart below
3 If any service is needed (italicized items), call an APW Wyott authorized service agency
All service should be performed by an APW Wyott authorized service agency
PROBLEM CAUSE SOLUTION
Won’t toast... a. Toaster cold. a. Allow five (5) minutes for warm up.
b. Wrong power switch position. b. Position power switch to full power.
c. Wrong conveyor speed setting. c. Reduce conveyor speed.
Toasts unevenly... d. Only part of product surface is toasted. d. Reduce conveyor speed.
e. Product located too far to side of conveyor. e. Place product on conveyor between end links.
Product sticks to conveyor or slide. f. Butter or butter substitute used on product. f. Discontinue use of butter or butter substitute.
g. Conveyor surface has baked-on oil residue. g. Follow daily cleaning methods to remove & prevent residue.
h. Very moist or doughy product. h. Use dierent source or day old product.
i. Product not defrosted or thawed. i. Defrost/thaw product.
No power... j. No power to receptacle. j. Check circuit breaker.
k. Toaster unplugged. k. Plug in toaster.
l. Loose connections. l. Check connections.
m. Power switch. m. Check that switch is on & operational.
Won’t heat... n. Loose connections. n. Check connections.
o. Faulty power switch. o. Replace power switch
p. Burnt out element. p. Replace element.
Lighter toast under peak loads... q. Speed control setting. q. Reduce speed control setting.
r. Very moist product. r. Use dierent source or day old product.
s. Product too cold. s. Allow product to warm to room temperature.
t. Toaster cavity temperature being quenched. t. Add 1” or more spacing between product.
Conveyor won’t move... u. No power. u. Check circuit breaker.
v. Conveyor links are binding. v. Check conveyor for bent links.
w. Loose or bad connection between speed control and
conveyor motor.
w. Check for loose or bad connection.
x. Conveyor motor burnt out. x. Replace conveyor motor.
y. Speed control burnt out. y. Replace speed control.
8
1
3
53
50
30
54
51
29
47
2
32
41
23
48
49
52
40
43
42
10 8
4
3
4
20
21
45
39
66
63
44
31
5
EXPLODED VIEW
8. PARTS LIST WITH EXPLODED VIEW
9
Item P/N Description Qty
1 82920 WIRE- BELT-BT15-2-EIN 1.6667 FT
2 83267 LEG 1” PLASTIC W/CHROME 4
3 93000225 END CAP, F/L & B/R 2
4 93000226 END CAP, B/L & F/R 2
5 93300058 SPACER, CONVEYOR SHAFT DRIVE SIDE 2
8 8507900 WASHER, LOCK 1/4 INTERNAL 4
10 89006 SCREW, 10-24x5/8 PAN HD SLOT 4
20 70444800 SWITCH, ROCKER 2
21 83221 RHEOSTAT, MOTOR CONTROL 120V 1
23
85638 CORDSET 14/3 300V .440 DIA SJO 515P 1
55302 CORD ASSY 120V 14/3 5-20P (120CA) 1
83277 CORDSET ASSY (CORD 85640 ) (208V & 240V) 1
29 93100160 XPRS-CONTROL PANEL EXTRUSION 1
30 93100162 XPRS-, LEFT SIDE EXTRUSION 1
31 89111 STRAIN RELIEF BUSHING (HEYCO) 1
32 8978400 BUSHING, SNAP 1
39
93300017 ELEMENT; 120V 832W 2
93300053 ELEMENT; 208V 832W 2
93300055 ELEMENT; 240V 832W 2
40 38125 BEARING FLANGED POLYMER 2
41 82901 CHAIN: 1/4 DRIVE 68 LINK 1
42 83209 SPROCKET; 23 TOOTH 1/4 PTC 5/16 DIA BORE 1
43 83248 BEARING; SHAFT 2
44 83261 SPROCKET; 12 TOOTH 1/4 PI TCH 3/8 BORE 1
45 75617 KNOB; W/NO’S. 0 TO 9 1
47 85287 FAN GUARD 1
48
85152 MOTOR; AT10 115V 60HZ 3RP M MK 5-3902 1
85149 MOTOR; AT’S 208/240V 60HZ VARIABLE 1
49 85286 FAN;COOLING;4.5DIA.;105CF M;120V 1
50 38122 W/ASSY; IDLER SHAFT 1
51 38129 (B)DRAWER TOAST 1
52 38130 (K)CLIP BEARING 2
53 83956 DRIVE SHAFT ASSY AT-10 SEGMENTED BELT 1
54 93100058 ASSY; XPRS FEEDER 1
63 89076 WASHER, LOCK 1/4 INTERNAL 4
66 93100047 XTRM-1 ELEMENT END CAP 4
10
WIRING DIAGRAM
9. WIRING DIAGRAM
IMPORTANT NOTICE: The information contained in this section of the manual is intended for individuals
possessing backgrounds of electrical and mechanical experience, such as an authorized APW Wyott service
technician APW or the seller cannot be responsible for the interpretation of this information, nor can it assume
any liability in connection with its use
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment For Warranty Service
and/or Parts, this information is required
Model Number Serial Number Date Purchased
APW Wyott takes pride in the design and quality of our products When used as intended
and with proper care and maintenance, you will experience years of reliable operation
from this equipment To ensure best results, it is important that you read and follow the
instructions in this manual carefully Installation and start-up should be performed by a
qualified installer who thoroughly read, understands and follows these instructions
If you have questions concerning the installation, operation, maintenance or service of
this product, contact APW Wyott Foodservice Equipment Company’s “Technical Service
Department”
11
APW Wyott_WARRANTY 2023 FINAL.pdf
LIMITED EQUIPMENT WARRANTY
APW (as well as its subsidiaries) warrants to the original purchaser
of new APW's products to be free from defects in material or
workmanship, under normal and proper use and maintenance service as
specified by APW and upon proper installation and start-up in
accordance with the instructions supplied with each APW unit.
APW’s obligation under this warranty is limited to a period of one [1]
year beginning from the date of original installation. The warranty period
begins upon the earlier of the date of original installation or up to six [6]
months after the original shipment, from the factory, of the covered
product. Defects that occur as a result of normal use, within the time
period and limitations defined in this warranty, will at APWs’ discretion
have the parts replaced or repaired by APW or a APWs-authorized
service agency.
THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS
Repairs performed under this warranty are to be performed by an
APW authorized service agency. APW will not be responsible for
charges incurred or service performed by non-authorized repair
agencies. In all cases, the nearest APW-authorized service agency must be
used. APW will be responsible for normal labor charges incurred in
the repair or replacement of a warrantied product within 50 miles
(80.5 km) of an authorized service agency. Time and expense charges
for anything beyond that distance will be the responsibility of the owner.
All labor will need to be performed during regular service hours. Any
overtime premium will be charged to the owner. For all shipments
outside the U.S.A. and Canada, please see the International Warranty
for specific details. It is the responsibility of the owner to inspect
and report any shipping damage claims, hidden or otherwise, promptly
following delivery. No mileage or travel charges will be honored on any
equipment that is deemed portable. In general, equipment with a cord
and plug weighing less than 50 lb. (22.7 kg) is considered portable and
should be taken or shipped to the closest authorized service agency,
transportation prepaid.
CONTACT
Should you require any assistance regarding the operation or maintenance
of any APW Manufacturing; phone or email our service department. In all
correspondence provide the model number and serial number of the unit
needing service; include the voltage or gas type.
Normal Business Hours: 8:00 a.m. to 5:00 p.m. Central
Telephone: 800-264-7827 Tech Service Option 2
Email: [email protected]
www.apwwyott.com
WARRANTY EXCLUSIONS
THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.
APWs’ sole obligation under this warranty is limited to either repair
or replacement parts, subject to the additional limitations
detailed below. This warranty neither assumes nor authorizes any
person to assume obligations other than those expressly
covered by this warranty.
• Any product which has not been used, maintained, or installed in
accordance with the directions published in the appropriate
installation sheet and/or owner’s manual, including incorrect gas or
electrical connection. APW is not liable for any unit which has been
mishandled, abused, misapplied, subjected to harsh chemicals,
modified by unauthorized personnel, damaged by flood, fire, or other
acts of nature [or God], or which have an altered or missing serial
number.
• Installation, labor, and job checkouts, calibration of heat controls,
air and gas burner/bypass/pilot adjustments, gas or electrical system
checks, voltage and phase conversions, cleaning of equipment, or
seasoning of griddle surface.
• Replacement of fuses or resetting of circuit breakers, safety
controls, or reset buttons.
• Replacement of broken or damaged glass components, quartz
heating elements, and light bulbs.
• Labor charges for all removable and consumable parts in gas
charbroilers and hotplates, including but not limited to burners,
grates, and radiants.
• Any labor charges incurred by delays, waiting time, or operating
restrictions that hinder a service technician’s ability to perform
service.
• Replacement of parts that fail or are damaged due to normal wear
or labor for replacement of parts that can be replaced during a daily
cleaning routine, such as but not limited to silicone belts, PTFE non-
stick sheets, control labels, knobs, bulbs, fuses, quartz heating
elements, baskets, racks, and grease drawers.
• Any economic loss of business or profits.
• Non-OEM parts. Use of non-OEM parts without APWs’ approval
will void the warranty.
• Units exceeding one [1] year from original installation date.
ADDITIONAL WARRANTIES
• Specific/chain-specific equipment may have additional and/or
extended warranties.
The foregoing warranty is in lieu of any
and all other warranKes
expressed or implied and consKtutes the enKre warranty.
APW Wyott • www.apwwyott.com/
265 Hobson St. • Smithville, TN 37166
Telephone: (800) 527-2100
Printed in the U.S.A. • 2M-93100174 REV B (01-23)
Specications are subject to change without notice.
is a registered trademark of APW Wyott®, A Middleby Company. All rights reserved.
