INSTALLATION GUIDE
for the
SBX-T-TACDCG3/10TW1
SKU# 94722
2016-Up Toyota Tacoma Double Cab
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
1
5
OUT
OF
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600

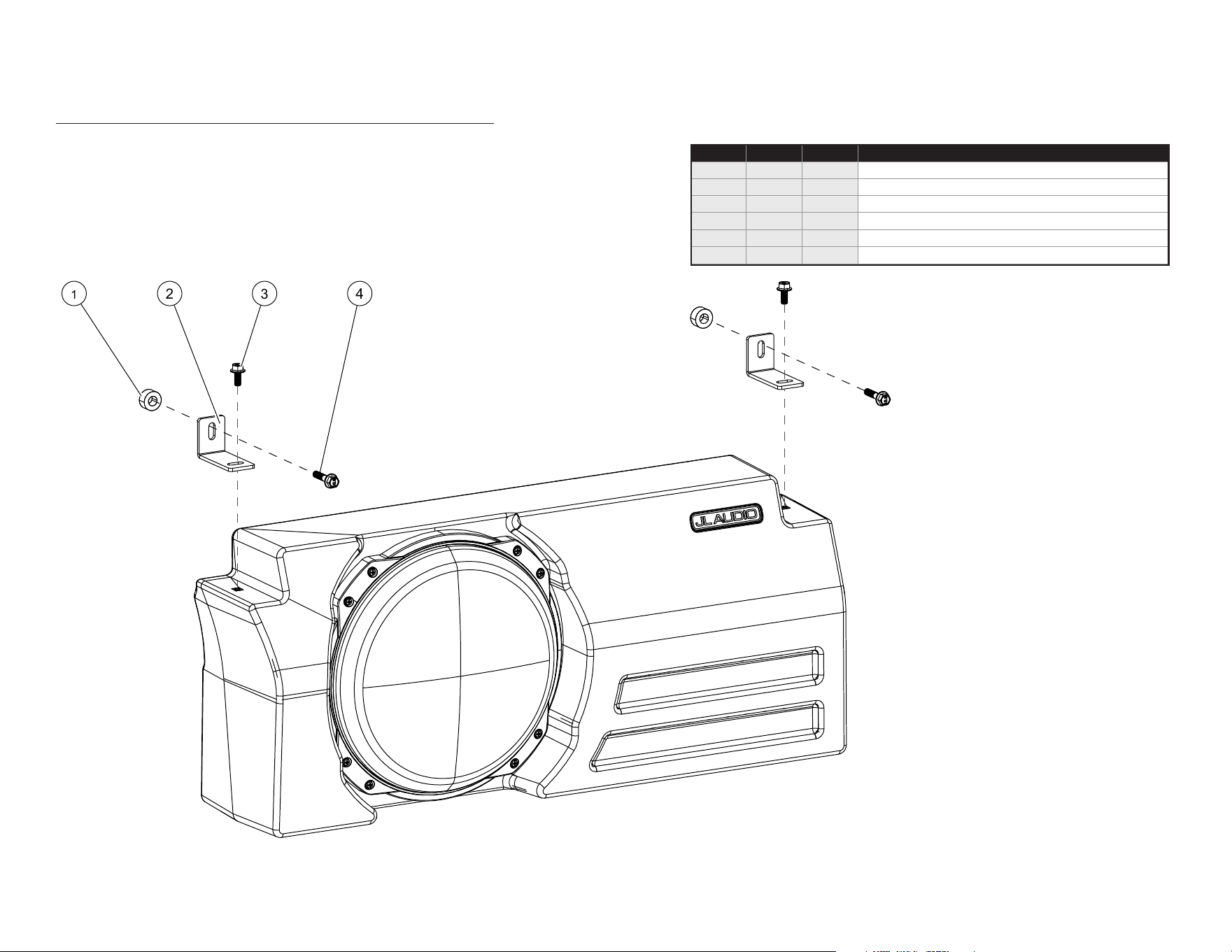

INCLUDED HARDWARE
1
2
3
4
Continued on Next Page
Page 2 • JL Audio, Inc., 2024
BOM ID Qty SKU Description
1 2 151329 3/8” ID, 3/4” OD x 3/8” Long Aluminum Spacer
2 2 155079 L-Bracket
3 2 155078 M6 x 14mm Flanged Hex Head Screw
4 2 155077 M6 x 20mm Flanged Hex Head Screw
- 1 194157 Vibra-Tite 132 (not shown)
- 2 150249 Foam Tape (not shown)
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600
Page 3 • JL Audio, Inc., 2024 Continued on Next Page

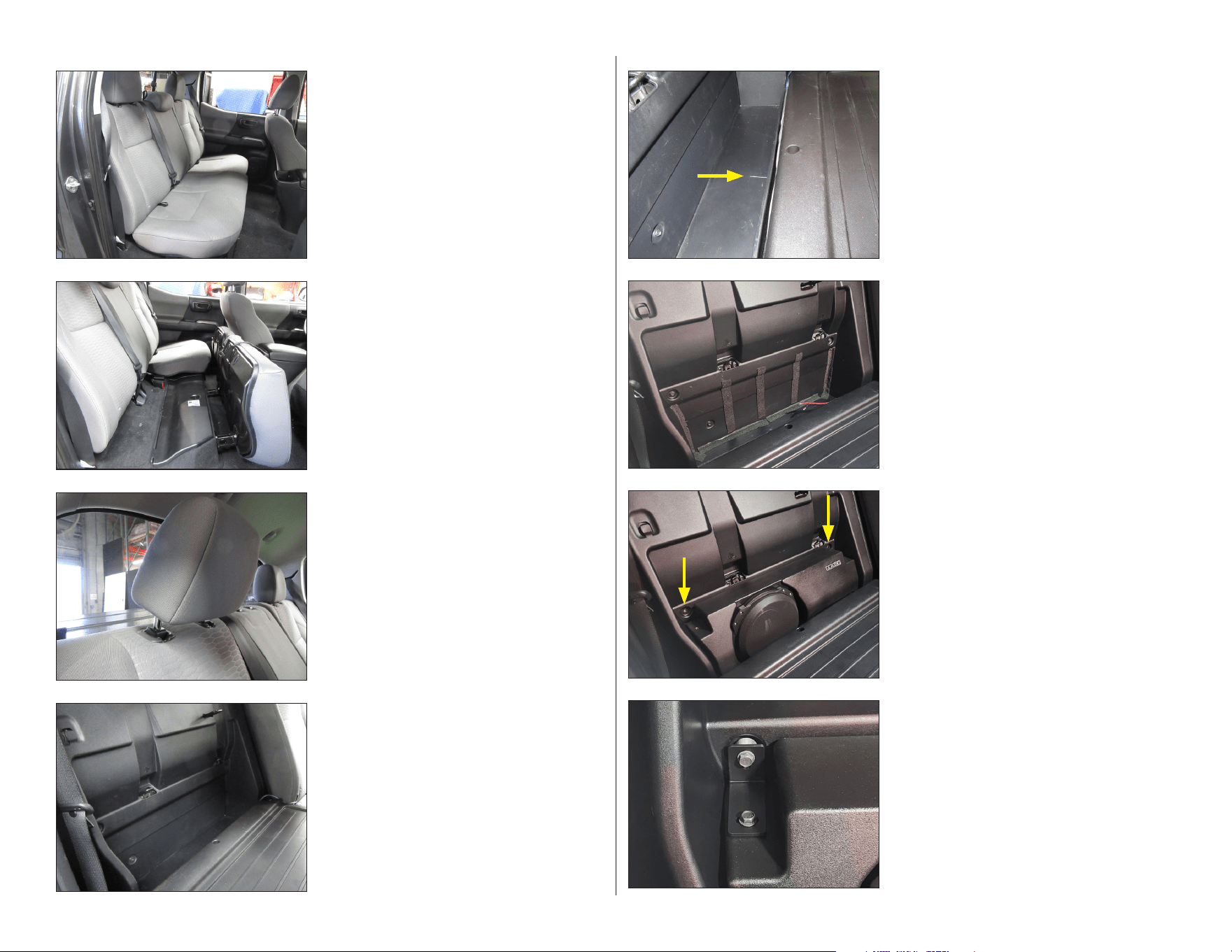

STEP 8
Apply Vibra-Tite 132 to an M6 x 30mm Flanged
Hex Head Screw, pass it through the slot in
the L-Bracket, through a 3/8” Long Aluminum
Spacer, into the factory location, and hand
tighten. Apply Vibra-Tite 132 to an M6 x 14mm
Flanged Hex Head Screw, pass it through the
slot in the 3/8” Long Aluminum Spacer, into the
insert in the enclosure, and hand tighten.
Repeat the process for the opposite side.
STEP 7
Connect the speaker cable and place the
enclosure into position, as shown.
Remove the factory bolt from the back of the
storage pocket on each side of the enclosure.
These will not be reinstalled.
STEP 6
Peel the adhesive backing and place Foam
Tape strips into the storage pocket, as needed.
Route speaker cable to the inner side of the
storage pocket.
STEP 5
Locate the small, plastic tab in the center of the
storage pocket floor. Using a razor knife,
carefully remove the tab.
STEP 4
Fold the passenger side seat back down to
access the rear storage pocket, and empty the
pocket.
STEP 3
Remove the two headrests on the passenger
side seat back.
STEP 2
Fold the passenger side seat bottom forward.
STEP 1
Empty the rear seat area.
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600
Page 4 • JL Audio, Inc., 2024

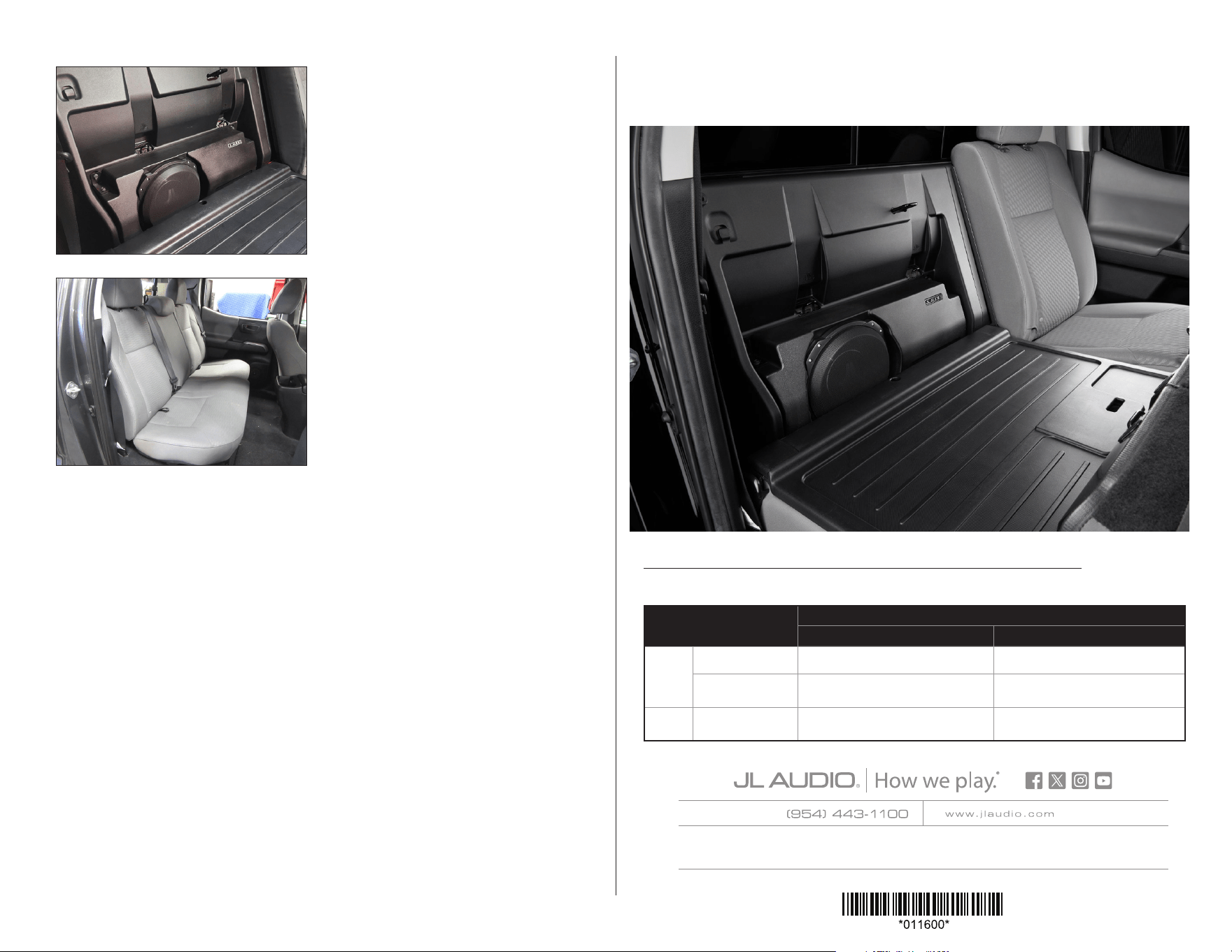

STEP 10
Fold the seat back into place and reinstall the
headrests.
STEP 9
Fully tighten all four fasteners.
JLA-SKU# 011600 • ver. 04.18.2024 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
Please review the warranty information included with each product for details. Warranty is valid only if the product was purchased from an Authorized JLAudio Dealer. Authorized dealer
status can be veried with the Dealer Locator on www.jlaudio.com. International Warranty: Please contact your country’s JLAudio distributor for specic warranty details.
© Garmin Ltd. or its subsidiaries. All rights reserved. • Garmin, JL Audio, Stealthbox, and How we play. are trademarks of Garmin Ltd. or its subsidiaries and are registered in one or more
countries, including the U.S. The JLAudio logo, the How we play logo, the Stealthbox logo, and the SBX logo are trademarks of Garmin Ltd. or its subsidiaries. Product images shown are for
illustrative purposes only and may differ from the actual product. Due to continuous product development, all specifications are subject to change without notice.
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of your vehicle.
1 - Installation may require adaptor, 2 - Component woofer only
Location / OEM
Speaker Size
Suggested JL Audio Speaker Models
Coaxial Models Component Models
Front
Dash / 2.75-inch N/A CF-275mt
Door / 6x9-inch
C1-690x
(1)
, C1-690tx
(1)
, C2-690tx
(1)
C2-650x
(1)
, C5-650x
(1)
C1-650, C2-650, C3-650,
C6-650cw
(2)
,
C7-650cw
(2)
Rear Door / 6.5-inch C1-650x, C2-650x
C1-650, C2-650, C3-650,
C6-650cw
(2)
,
C7-650cw
(2)
