Part No. 10869.00 Sold by Matco Tools, 4403 Allen Road, Stow, OH 44224-1096 March 2021
Save This Manual For Future Reference
ADJUSTABLE BACKREST CREEPER
Model No.
CRHDAB
OWNER’S MANUAL
DESCRIPTION
Adjustable Backrest Creeper has 1˝ diameter welded steel tube
frame. Frame is 20˝ wide and 44˝ long, upholstered vinyl fabric
over 2˝ foam bed, backrest and headrest. Six 3˝ high-impact,
non-marking, oil-resistant casters withstand harsh environments.
Creeper has comfortable pillow style adjustable headrest. 500
pound load capacity with 1½˝ ground clearance.
ASSEMBLY INSTRUCTIONS
1. To install casters (Key No. 4) onto frame (Key No. 1), place
creeper on a workbench.
2. Insert stem portion of caster into one (1) of the six (6) holes
in bottom of frame. Make sure stem portion of caster fits
completely into frame.
3. Repeat process for five (5) remaining casters. Make sure all
six (6) casters are properly seated into holes in bottom of
frame.
4. Mount adjustable headrest bracket assembly (Key No. 9) by
aligning holes in bracket with T-nut holes in headrest (Key No.
3). Make sure bent pivoting rod of bracket assembly is
towards thickest portion of headrest. Securely tighten four (4)
flat head screws (Key No. 11) through headrest bracket and
into headrest.
5. Align four holes in bottom plate of headrest bracket assembly
with four holes in frame (Key No. 1) top support tubes. Insert
pan head screw (Key No. 5) through headrest bracket and
frame. Slide flat washer (Key No. 6) onto screw and secure
with hex nut (Key No. 10). Repeat with three remaining pan
head screws, flat washers and hex nuts. Securely tighten all
hex nuts.
GENERAL SAFETY INSTRUCTIONS
• Do not stand on creeper.
• Do not use this creeper as a stool or bench.
• Only use creeper when fully assembled.
• Periodically check fasteners and tighten securely if needed.
• Never use creeper if it does not perform according to this
manual.
• Do not exceed creeper maximum weight capacity of
500 pounds.
INDUSTRIAL SEATING LIMITED WARRANTY
Product is warranted against mechanical or structural failure due
to defective material or workmanship for 1 year. Provided
however, this warranty lasts only so long as you own your
product. If you sell or otherwise transfer the product this
warranty terminates automatically. Products that are damaged
or made unserviceable by accidents, abuse, misuse or are
altered in anyway are not covered by this warranty.
Matco Tools reserves the right to replace or recondition at its
option, any units covered by this warranty. All return shipments
require Material Return Authorization and must be freight
prepaid unless otherwise approved in writing.
If any product covered under this warranty fails to meet the
terms of this warranty or it is in any respect broken, defective
or missing parts, please call us immediately at toll free
1-866-289-8665. Any attempts to make unauthorized repairs
will void this warranty in every respect.
This warranty gives you specific legal rights. You may have other
rights which vary from state to state, however such implied
rights are limited to a period of one year from the date of your
initial purchase. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not
apply to you.
Matco Tools will in no event be liable for incidental or
consequential damages for any amount in excess of the original
purchase price. Some states do not allow exclusion or limitation
of such damages, so the above limitation or exclusion may not
apply to you.
HOW TO ORDER REPAIR PARTS
When ordering repair parts or reporting problems, always
give the following information:
NAME OF ITEM MODEL NUMBER
Adjustable Backrest Creeper CRHDAB
PART DESCRIPTION PART NUMBER
_______________________________ _______________
All parts listed may be ordered from Matco Tools® Customer
Service at 1-866-289-8665.
CRHDAB_manual_012_10869.00 __ 03-26-2021 . .
2
KEY
NO. DESCRIPTION QTY. PART NO.
1 Frame 1 10797.00
2 Backrest 1 10798.04
3 Headrest 1 10416.01
4 Caster 6 10342.01
5 1/4˝ - 20 x 1¼˝ Phillips Pan Head Screw 4 07934.01
6 1/4˝ Flat Washer 12 10421.01
7 1/4˝ - 20 x 1½˝ Phillips Pan Head Screw 8 10412.00
8 Cap 4 10424.00
9 Adjustable Headrest Bracket Assembly 1 10459.00
10 1/4˝ - 20 Hex Nut 4 10519.00
11 1/4˝ - 20 x 5/8˝ Flat Head Screw 4 10520.00
12 Bed 1 10799.00
13 1/4˝-20 x 5/8˝ Phillips Pan Head Screw with Washers 8 10338.01
14 Backrest Bracket 2 10800.00
15 Phillips Pan Head Screw, 5-0.8 x 12mm 8 10801.00
16 Backrest Brace Bracket 2 10802.00
17 Backrest Brace 1 10803.00

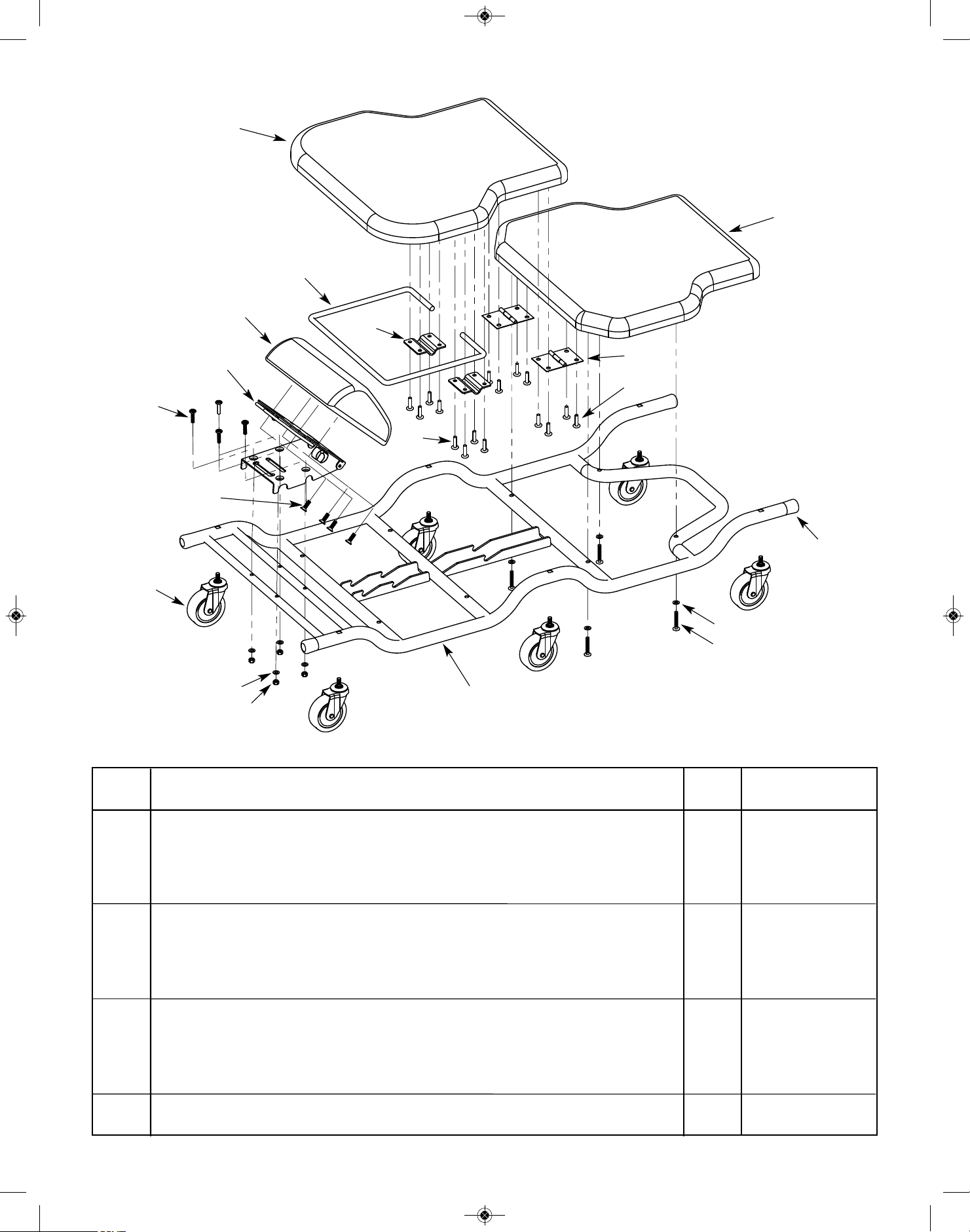

PARTS LIST
7
6
10
6
1
8
2
3
17
9
5
15
16
14
13
12
4
11
CRHDAB_manual_012_10869.00 __ 03-26-2021 . .
